7 1/4 inch gauge Lynton & Barnstaple 2-4-2T "Lyn"

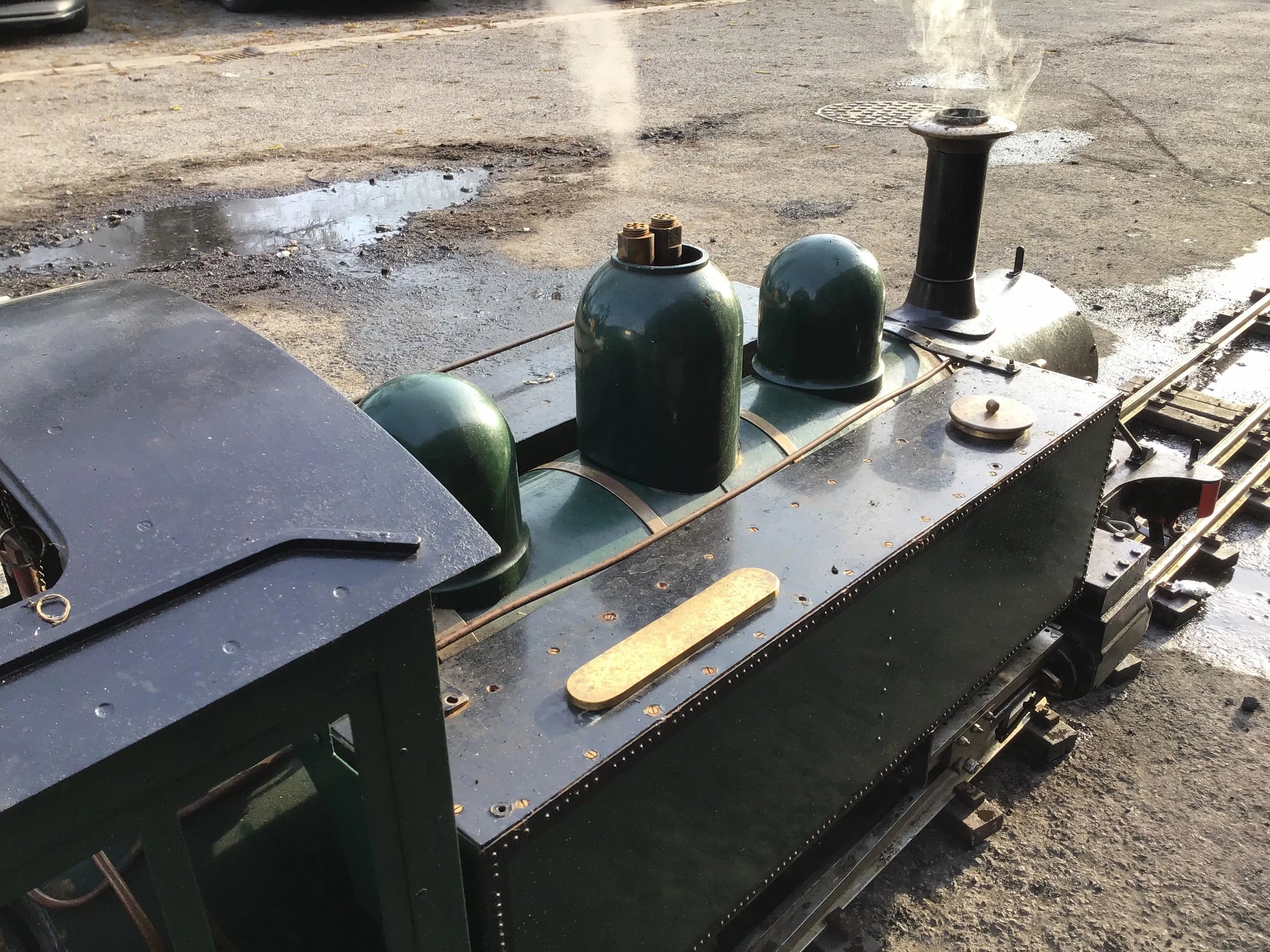

It's an ill wind that blows nobody any good as they say, so while the world shuts down around us we spent a happy day in the sunshine having a steam up yesterday!

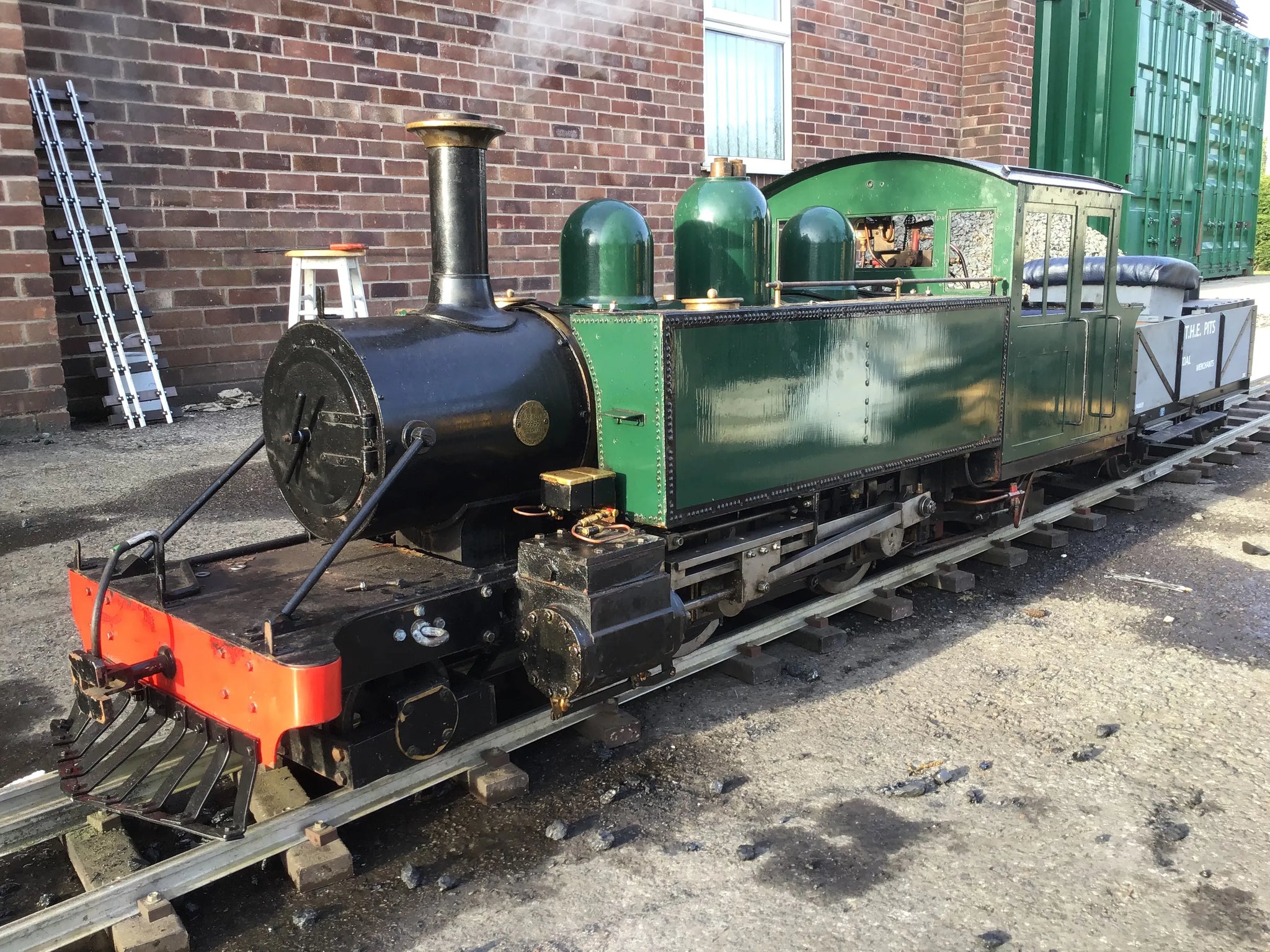

This included the Lynton & Barnstaple Baldwin, which came blinking into the sunshine from one of the containers. We first sold it many years ago, it came back in as a part exchange last year.

Whilst cosmetically tired and needing various minor jobs doing, we were surprised at just how well it goes. Injectors pick up beautifully; safety valves open at 100psi and shut with a satisfying "plop" at 95psi; it pulls with a most enthusiastic bark - it's even got a good chime whistle!

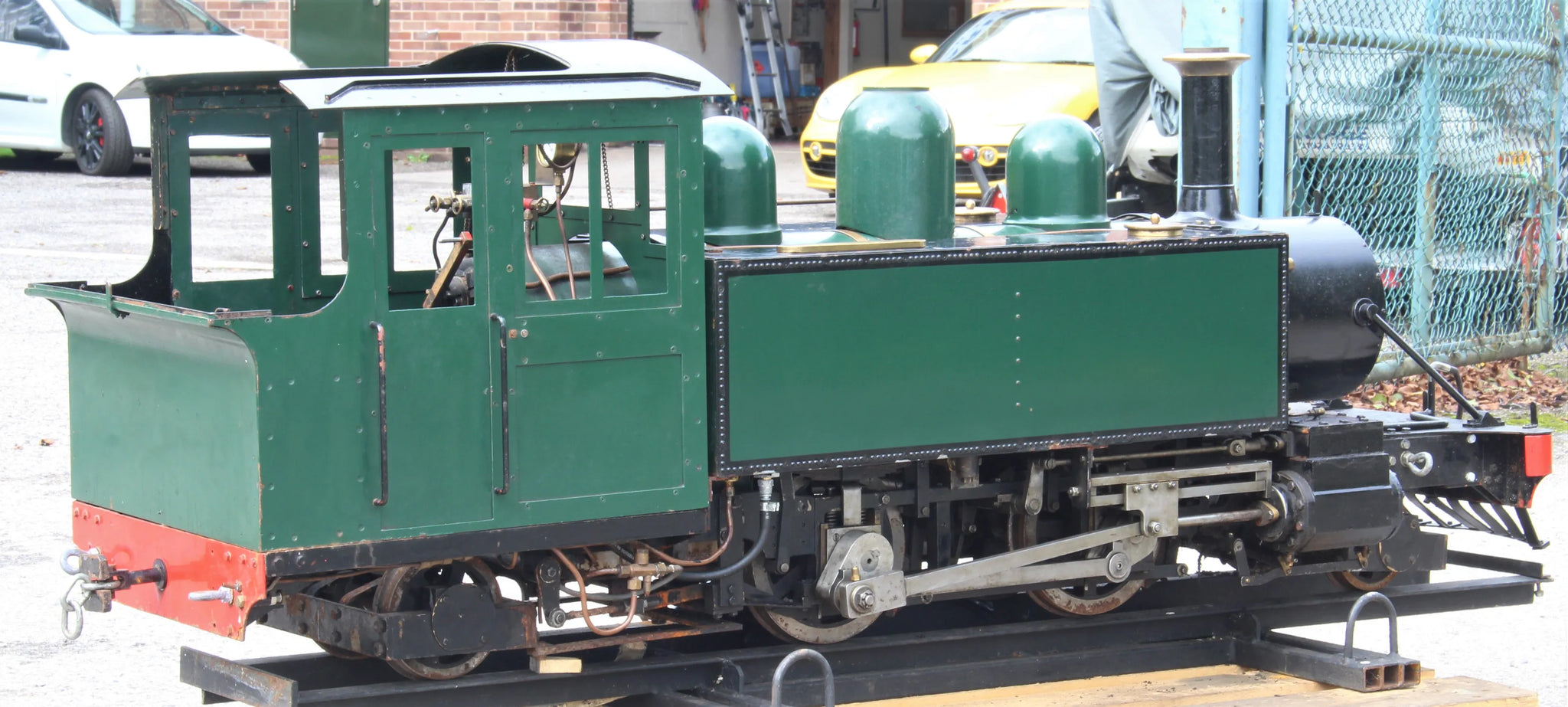

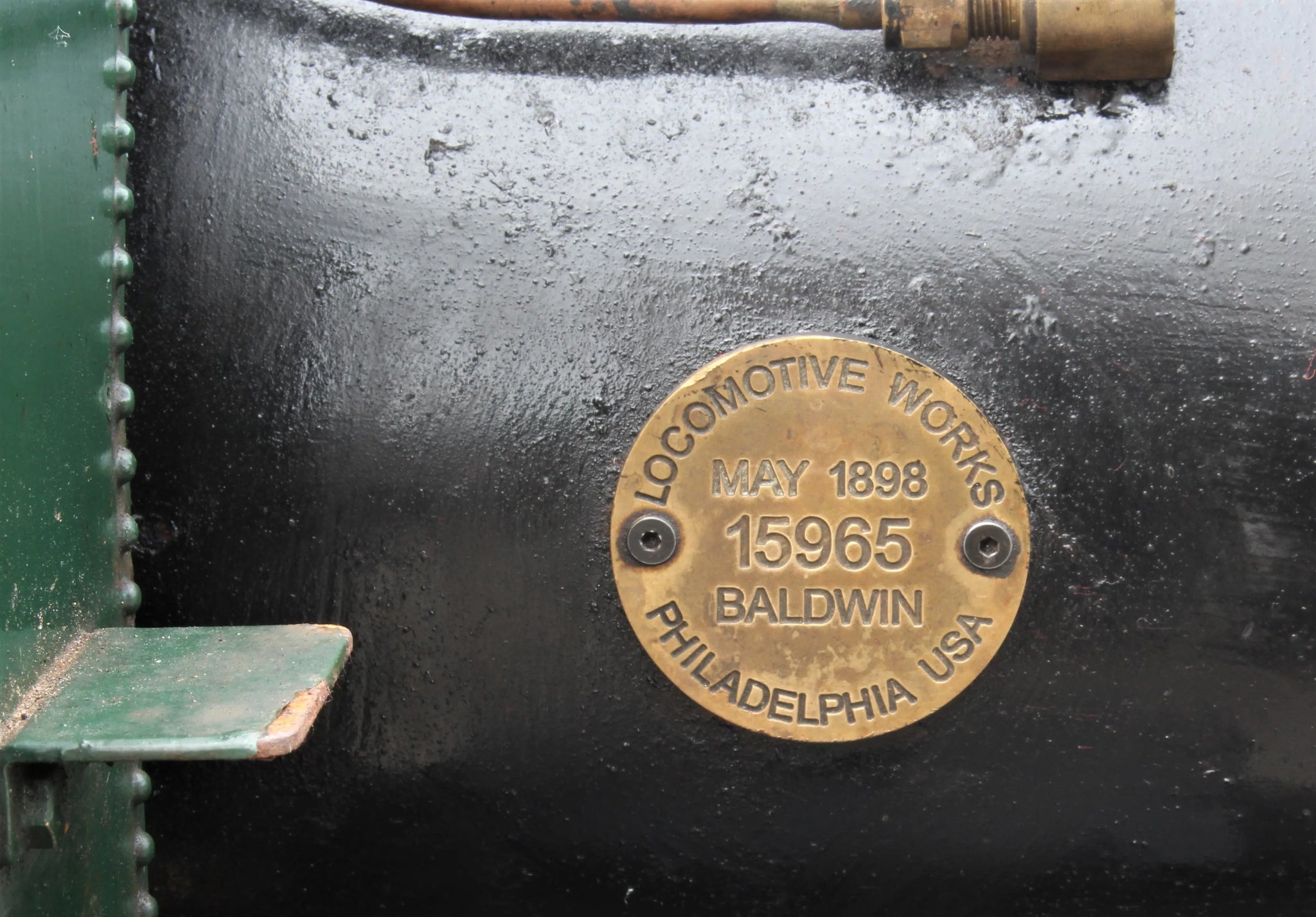

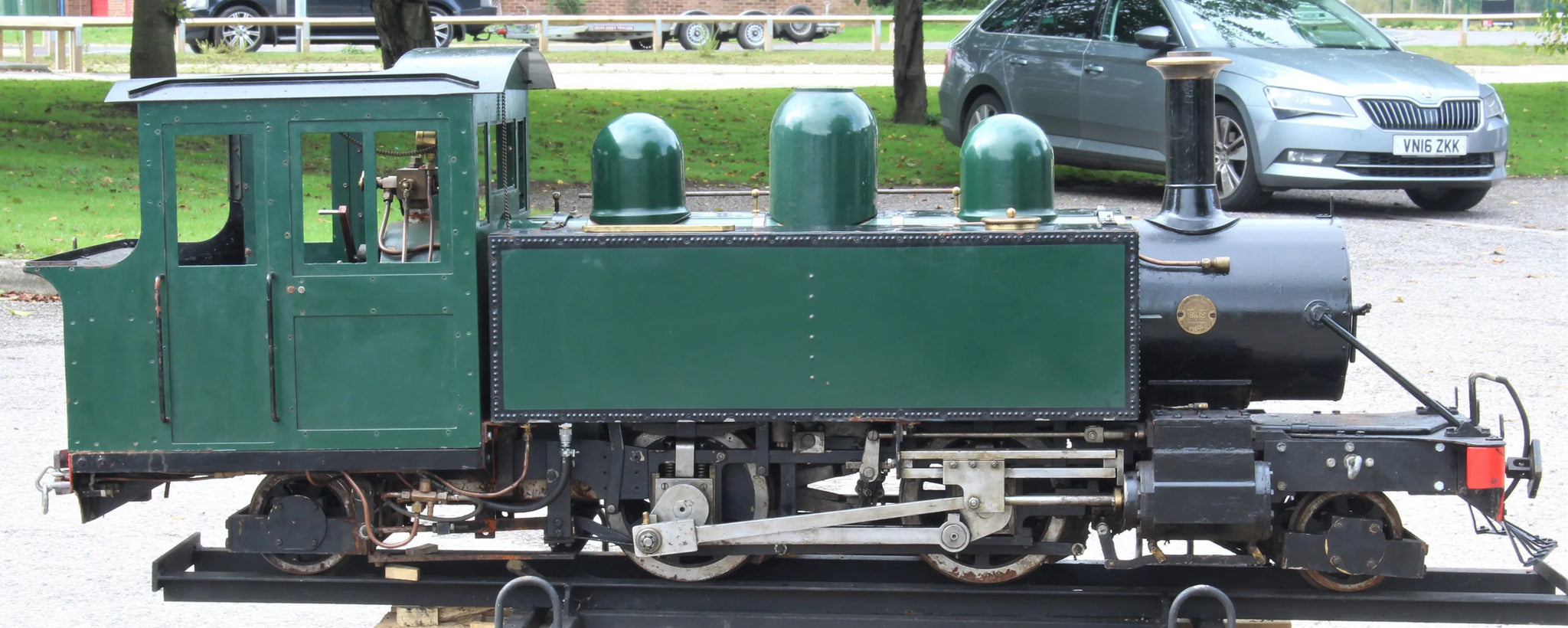

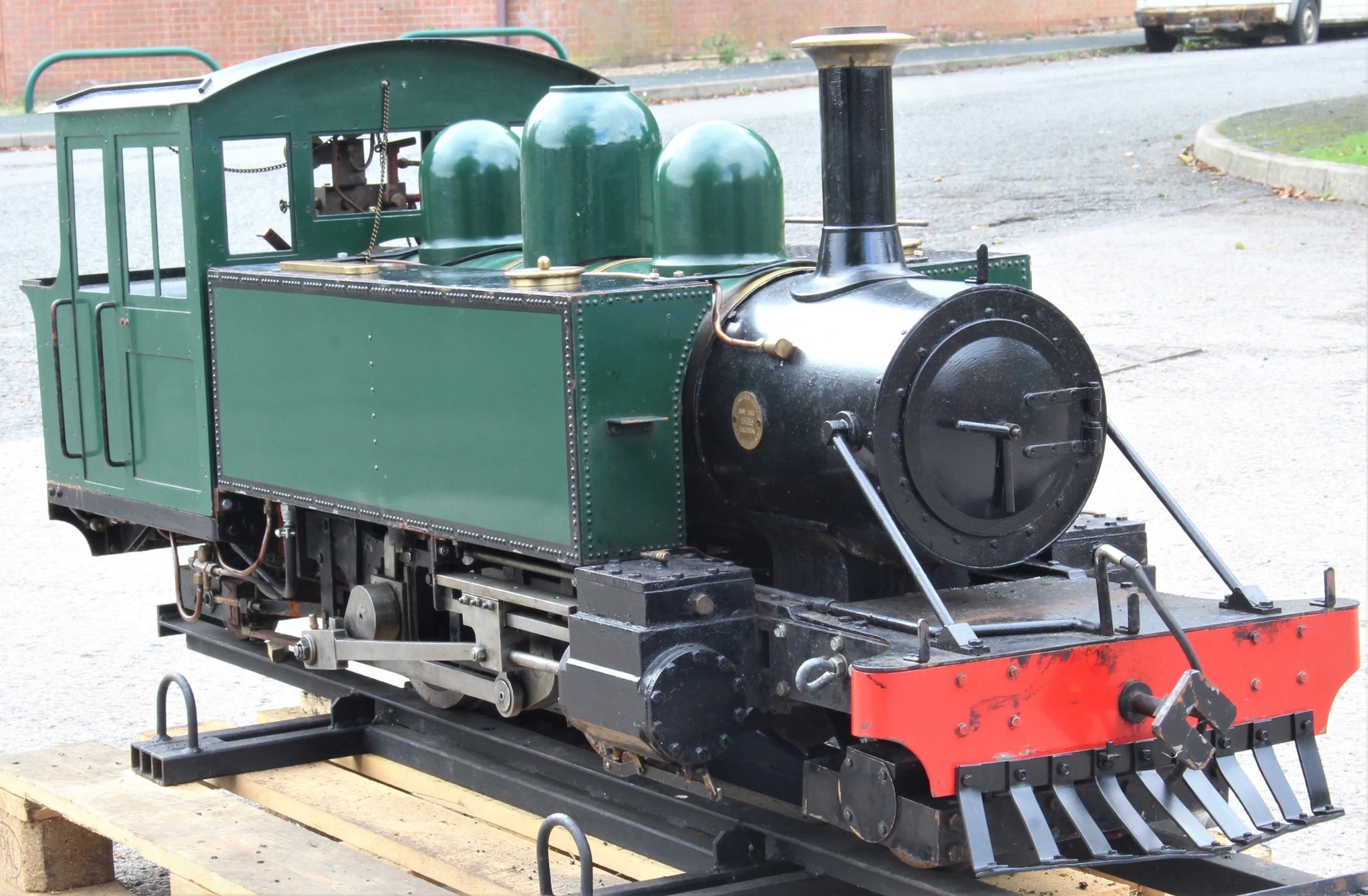

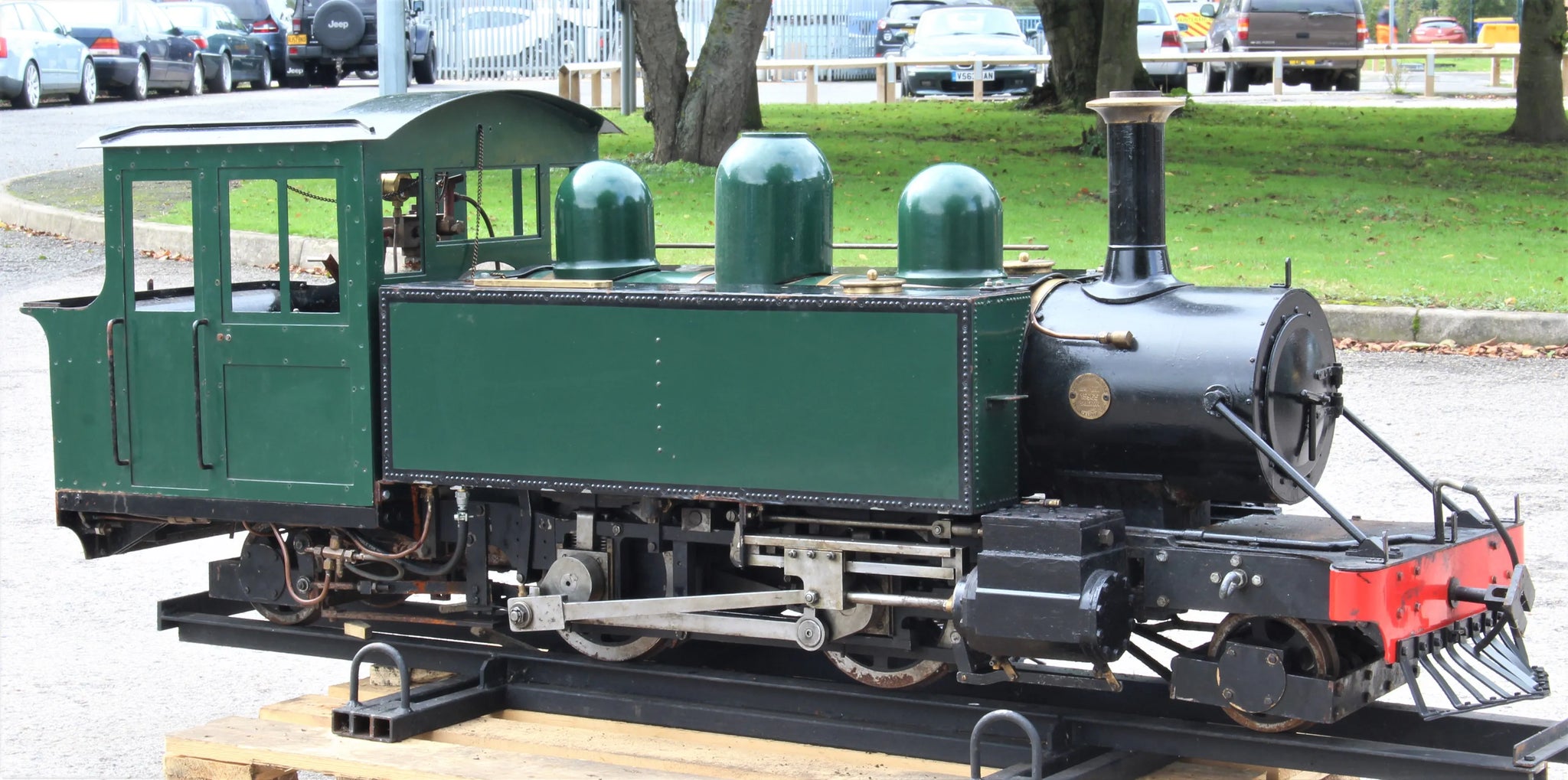

A 7 1/4 inch gauge Baldwin 2-4-2T "Lyn", the original built for the Lynton & Barnstaple Railway in 1898 when Manning Wardle, who had supplied the first three locomotives for the railway's opening that year were unable to supply a fourth engine due to a general strike.

Built from a Winson kit - the company produced ten back in the late 1990s - this engine has been in use until recently on a miniature railway at a preserved line in Wiltshire. It came in last year as part exchange against a standard gauge Great Western engine

The original Winson boiler has had new tubeplates and set of tubes in the past - the originals were welded in which made retubing a major job (hence the new tubeplates). With the new tubes expanded in - and still in good condition - retubing next time round will be straightforward.

We think there's a lot of potential in this one. Boiler is sound, the engine steams freely and runs well - there's some video of Connor having a run up and down the yard yesterday here.

The original Winson design is highly amenable to additional detailing (glazing the cab would make a world of difference). A repaint into lined Southern livery - like the recently-completed full-size replica - would make for a large, very attractive locomotive.

Technical information

Stock code

8531

Gauge

7 1/4 inch

Length/inches

80

Width/inches

20

Height/inches

28

Weight/Kg

est 400

Wheel material

steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Winson Model Technology

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

100

CE/UKCA mark

n/a - pre-2002

Year built

1999

Safety valve type

pop

Safety valve

2

Fusible plug

no

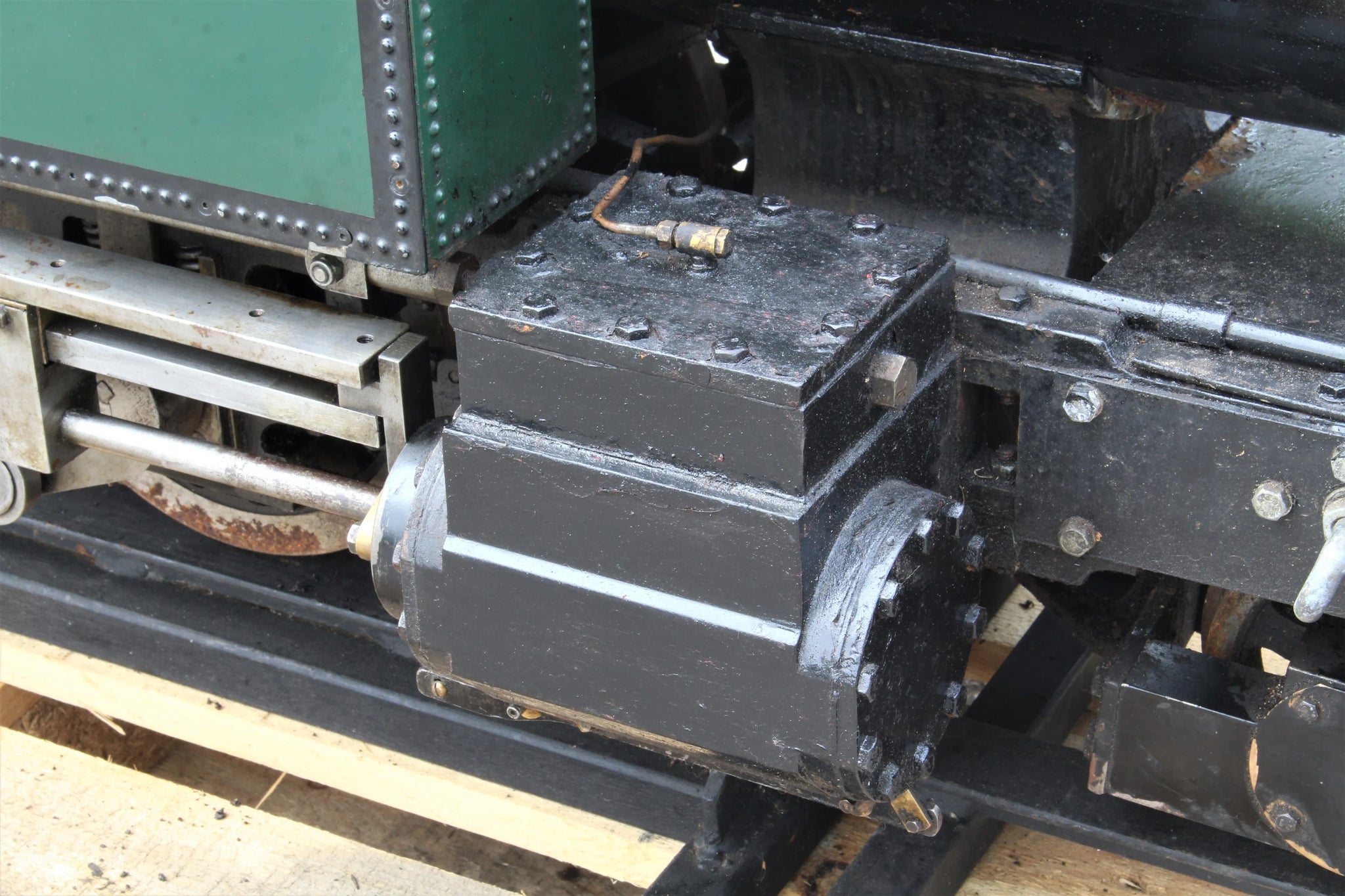

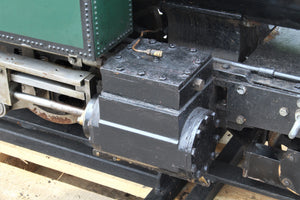

Bore x stroke

2 1/2 x 4

Whistle

yes

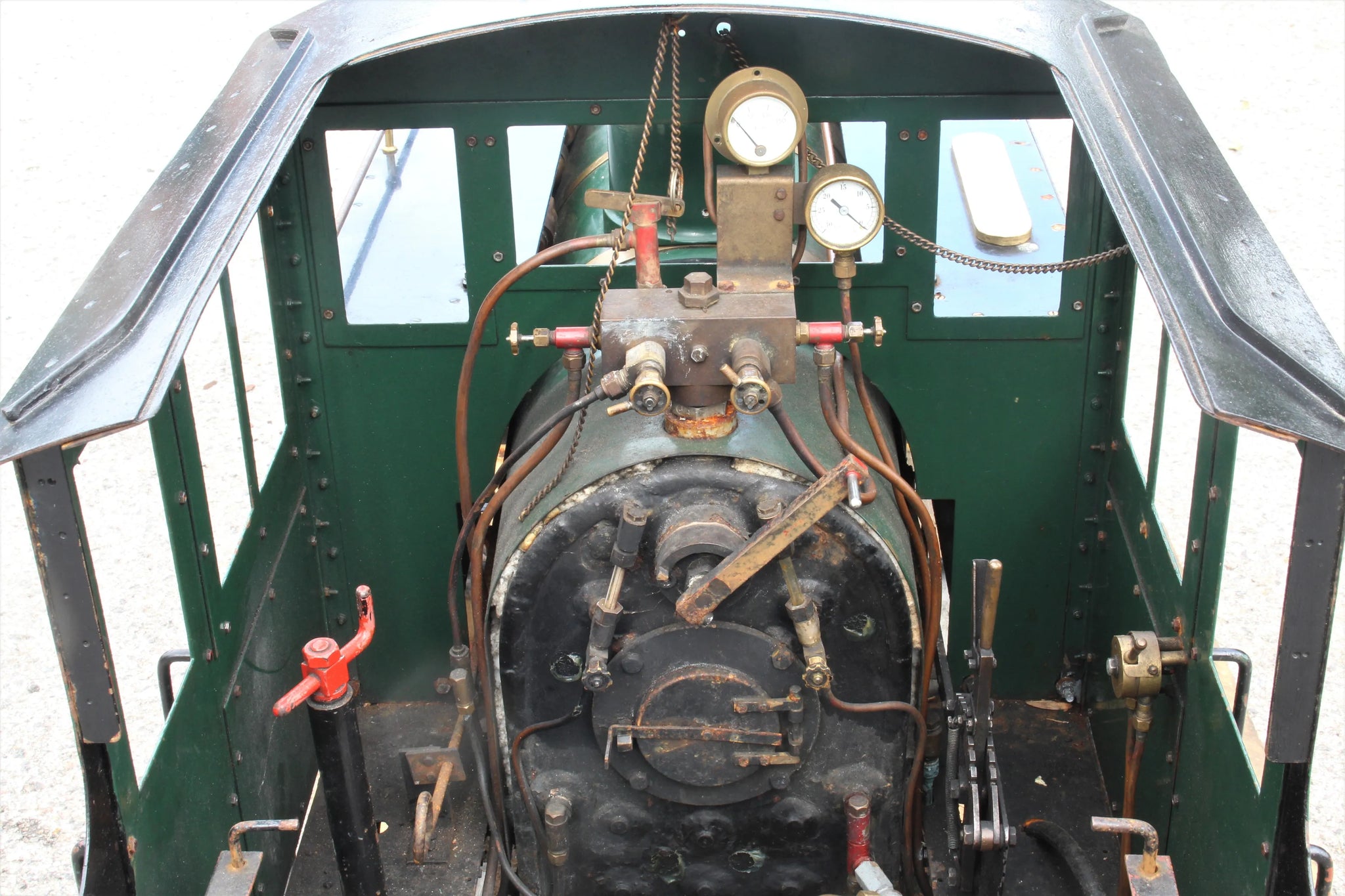

Injector

2

Minimum radius

40

Date out

Apr-20

Hydraulic test valid to

23-Mar-22

Steam test valid to

23-May-21
