12638

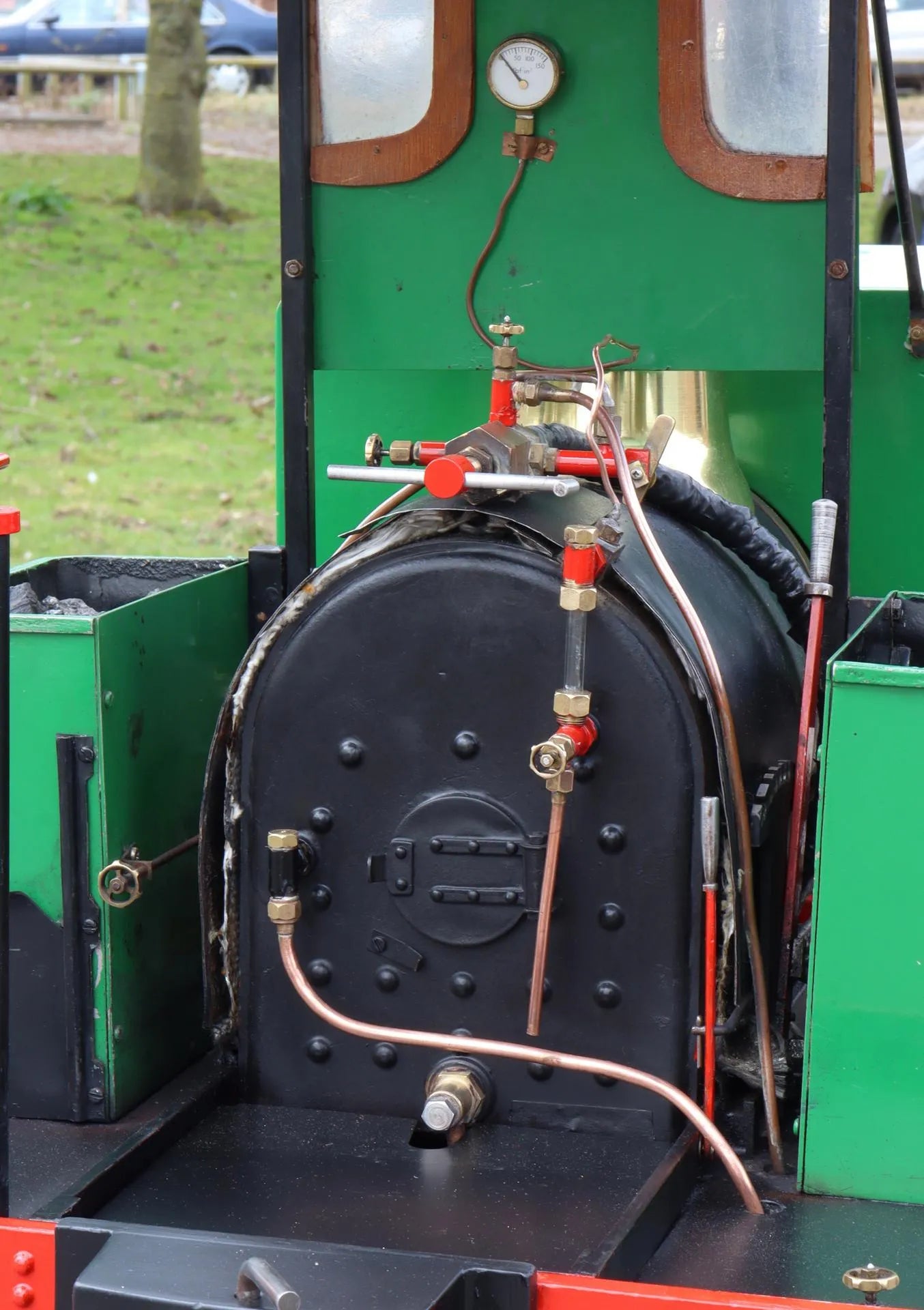

An older engine, it's been serviced with the valves reset, clack cleaned and a new union sleeve fitted on the injector delivery pipe. The boiler has had hydraulic and steam test with new certification issued.
On the rolling road it proved free-steaming and ran well - better in forwards than reverse, with some wear apparent in the axleboxes.
Stock code |
12638 |
Gauge |
7 1/4 inch |
Length/inches |
37 |
Width/inches |
16 |
Height/inches |
24 |
Weight/Kg |
85 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

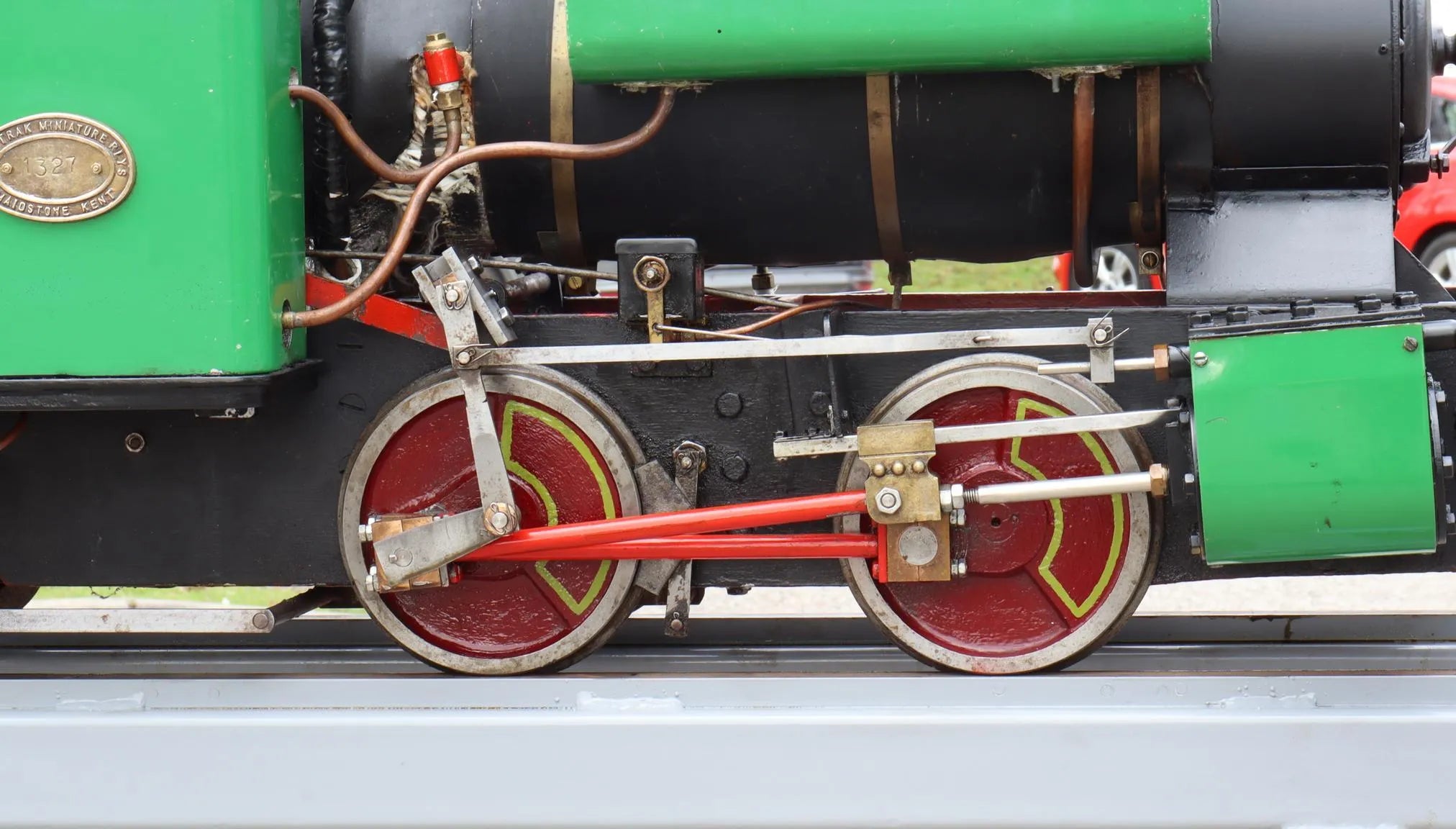

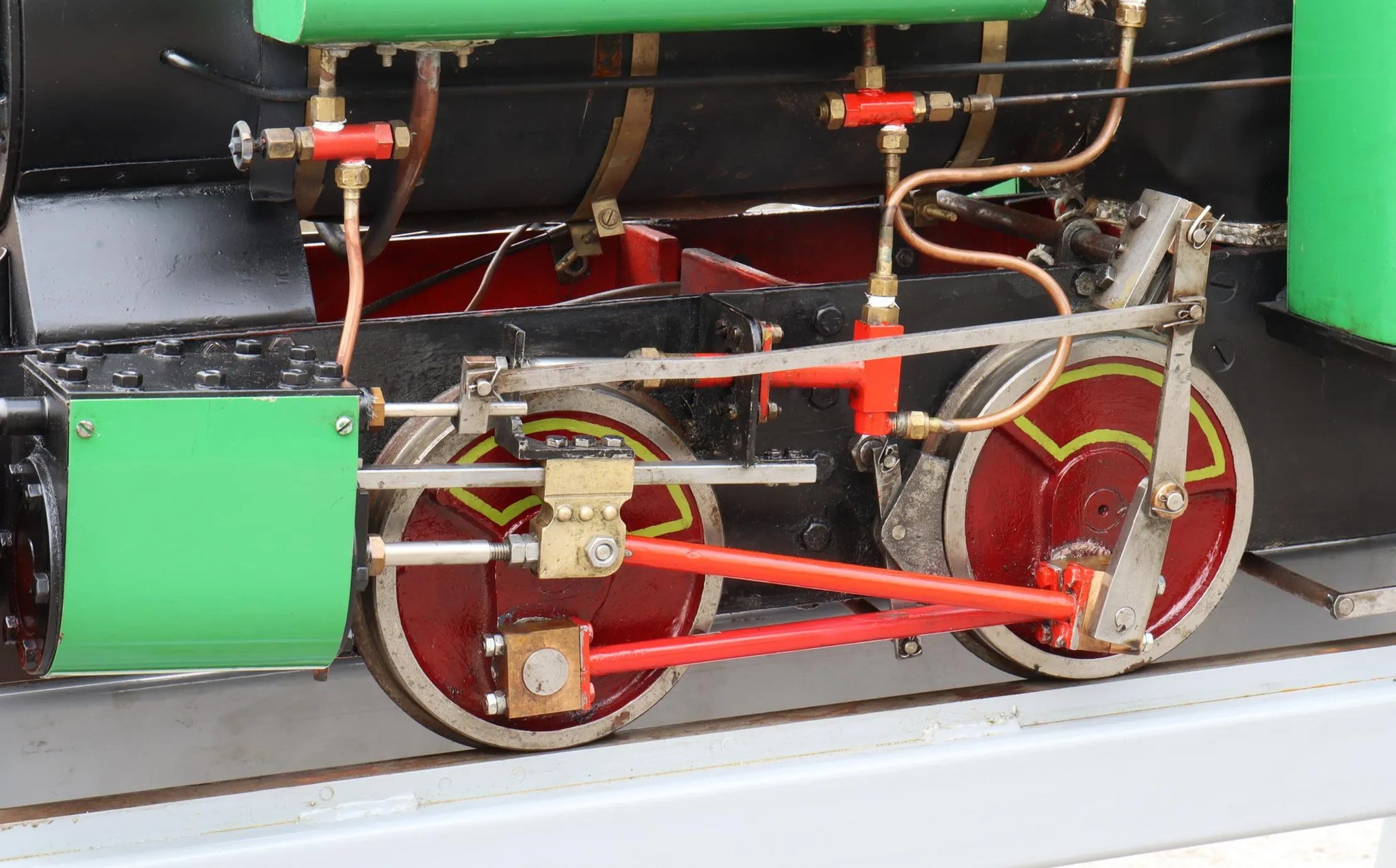

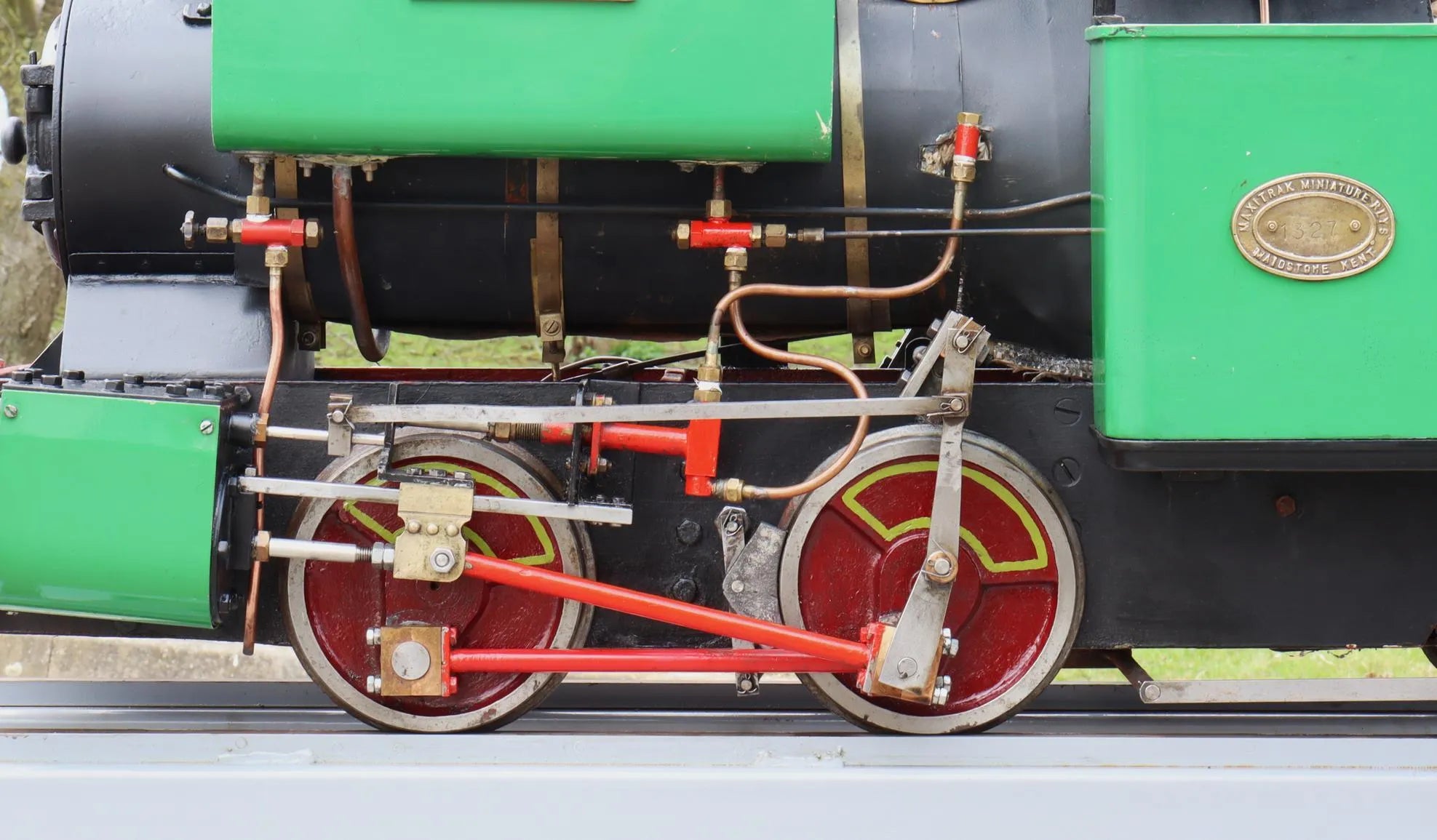

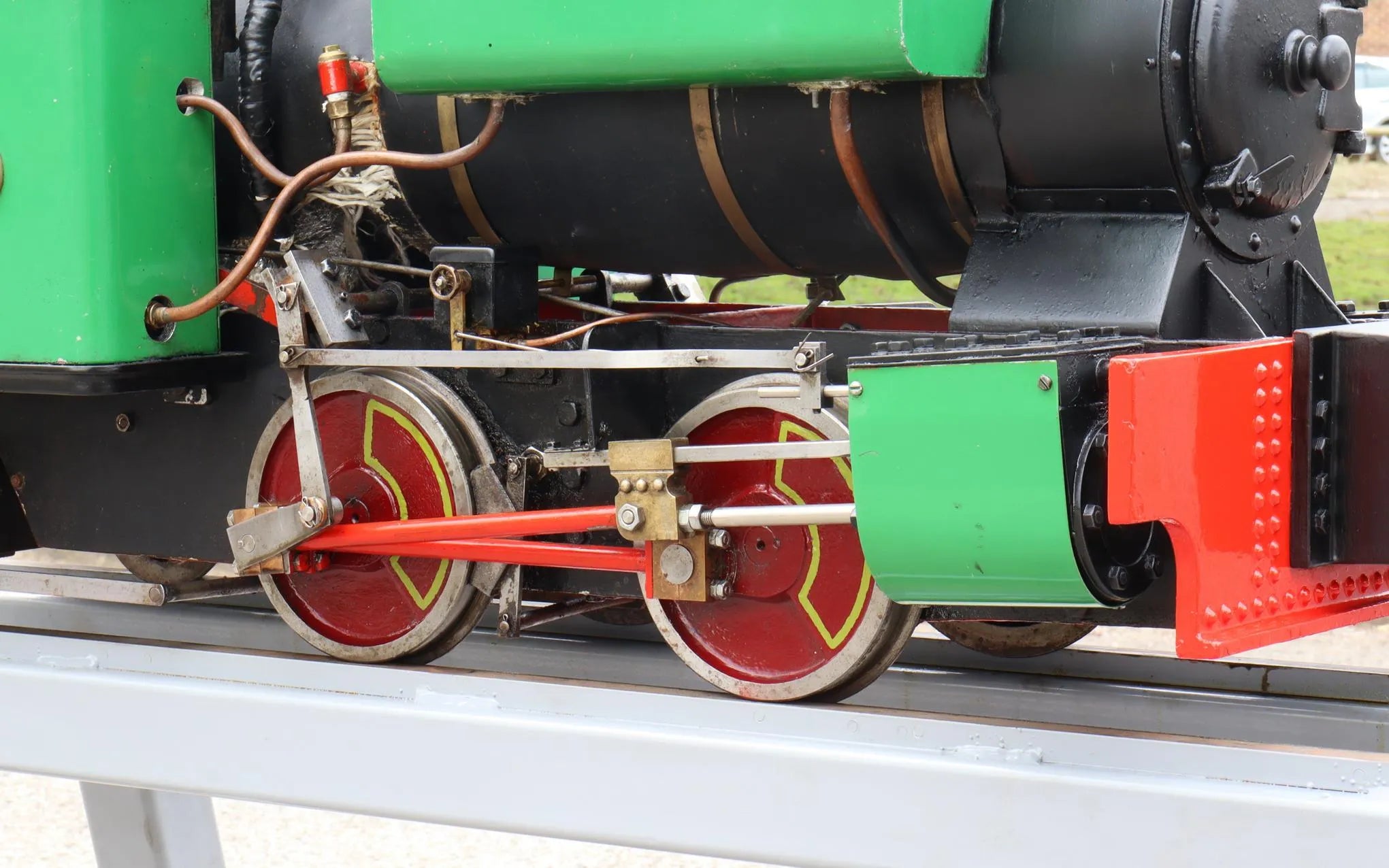

Valve gear |
Hackworth |
Reverser type |
pole |

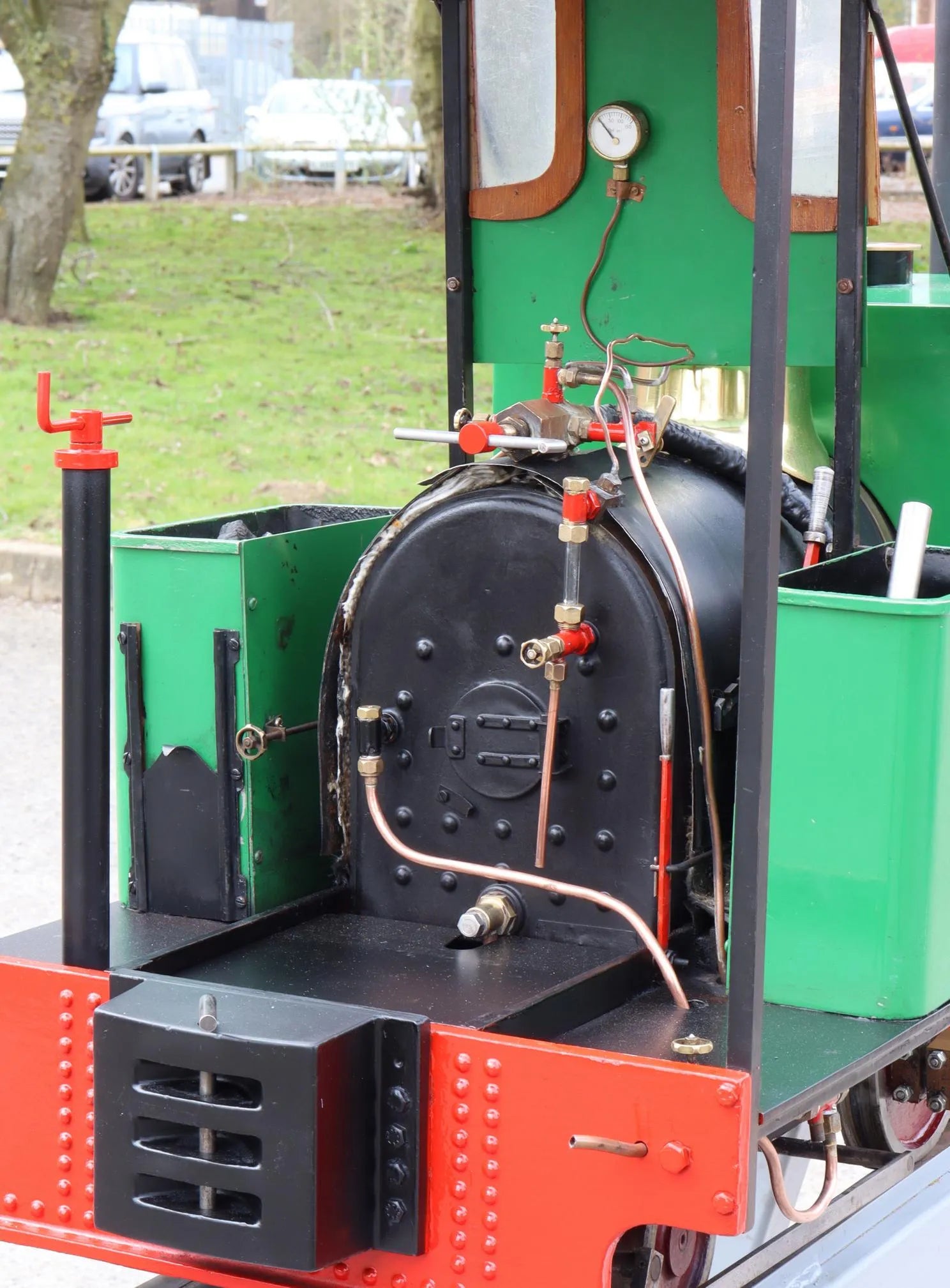

Boiler maker |
Maxitrak |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
CE/UKCA mark |
n/a - pre-2002 |
Year built |
1996 |
Boiler number |
N23-90-CP52 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Date out |
May-26 |
Hydraulic test valid to |
30-Jan-29 |
Steam test valid to |
05-Apr-26 |
