Sold

9216

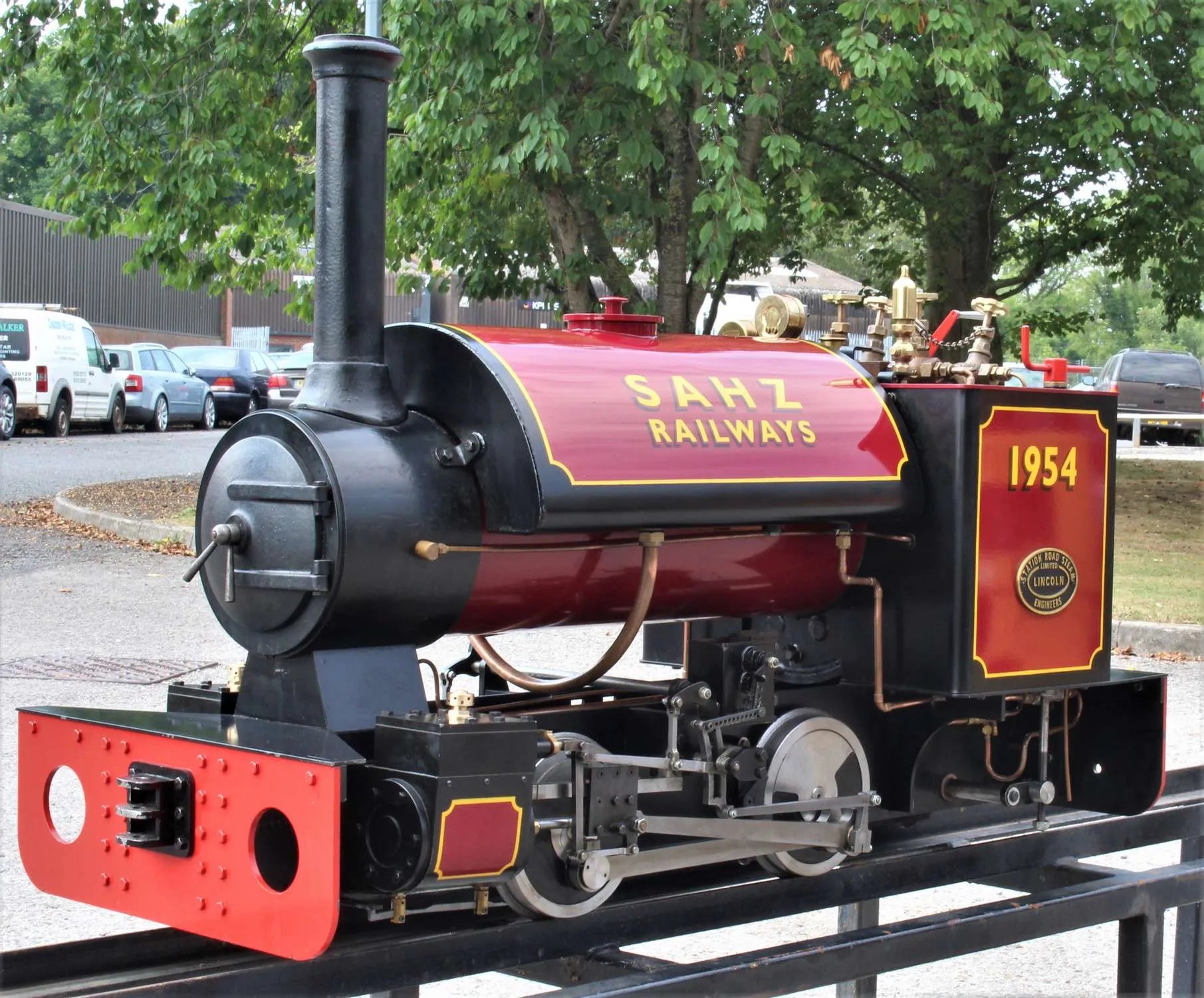

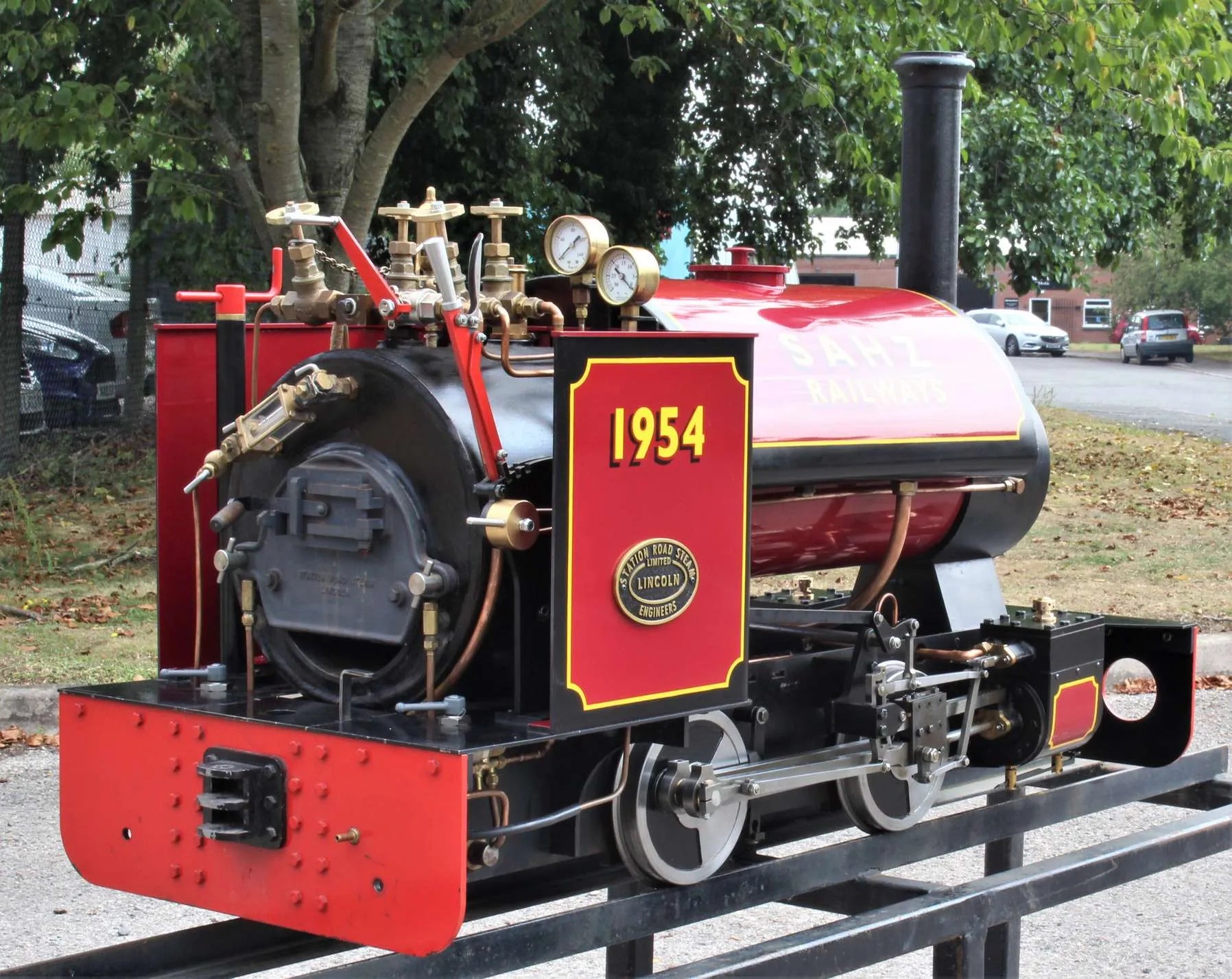

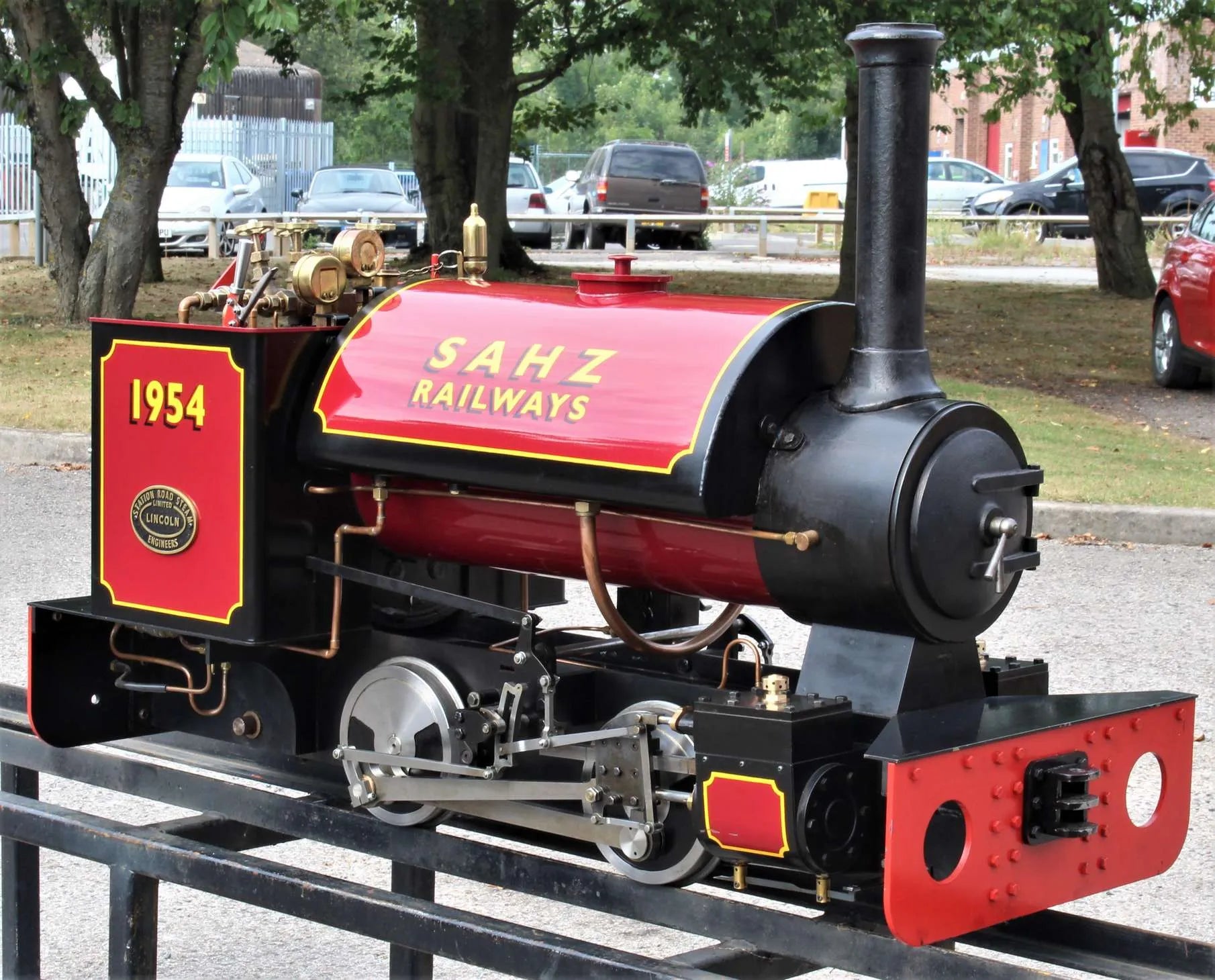

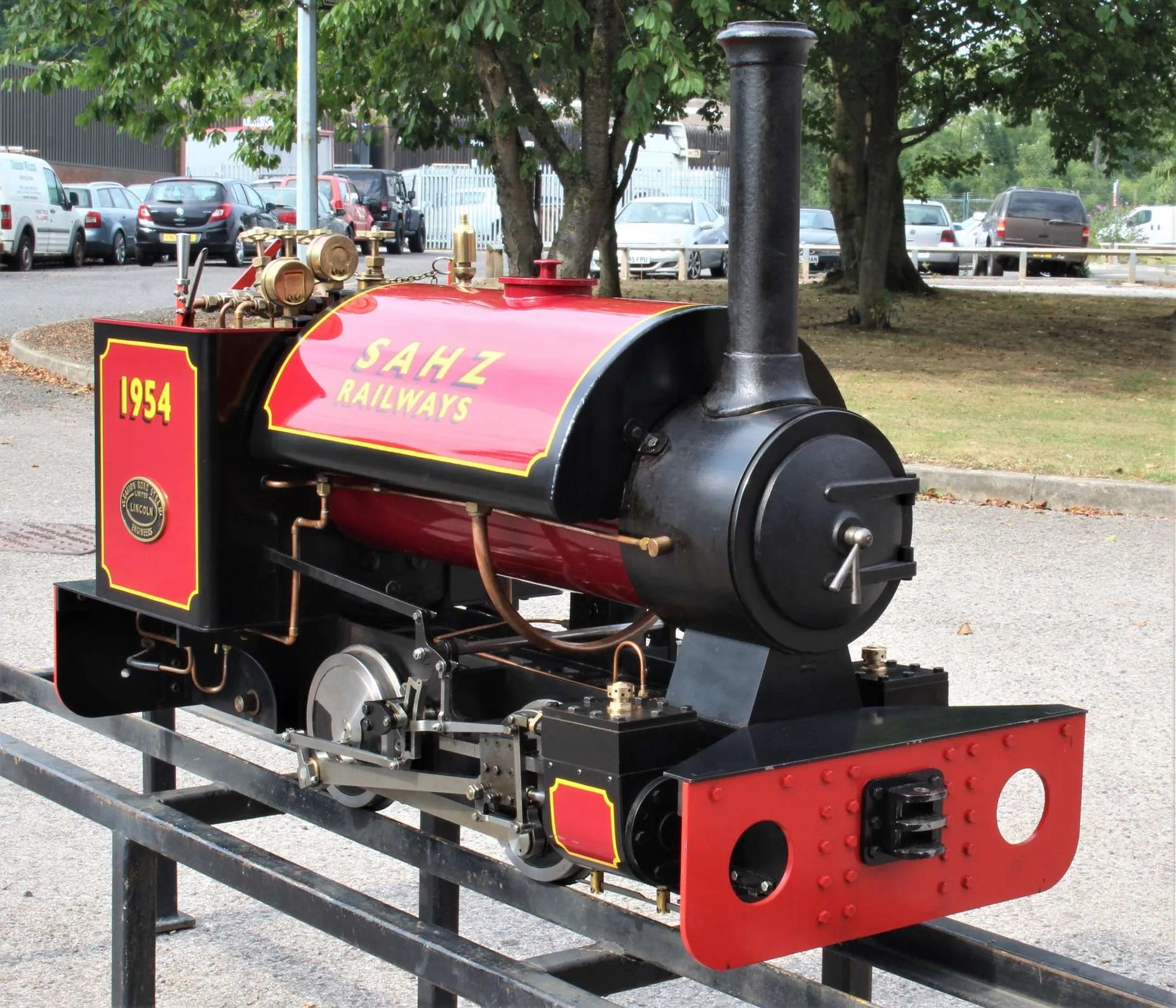

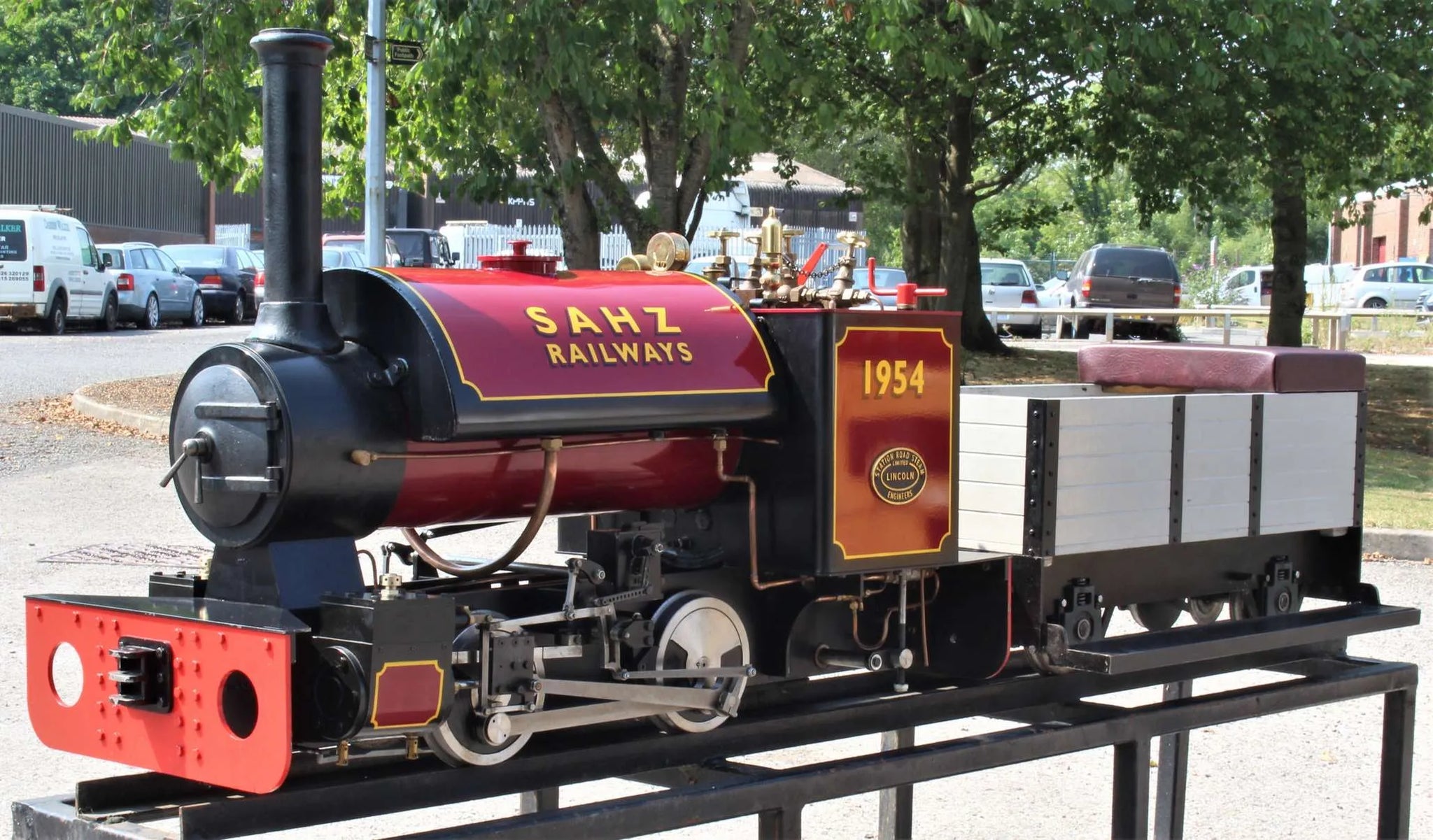

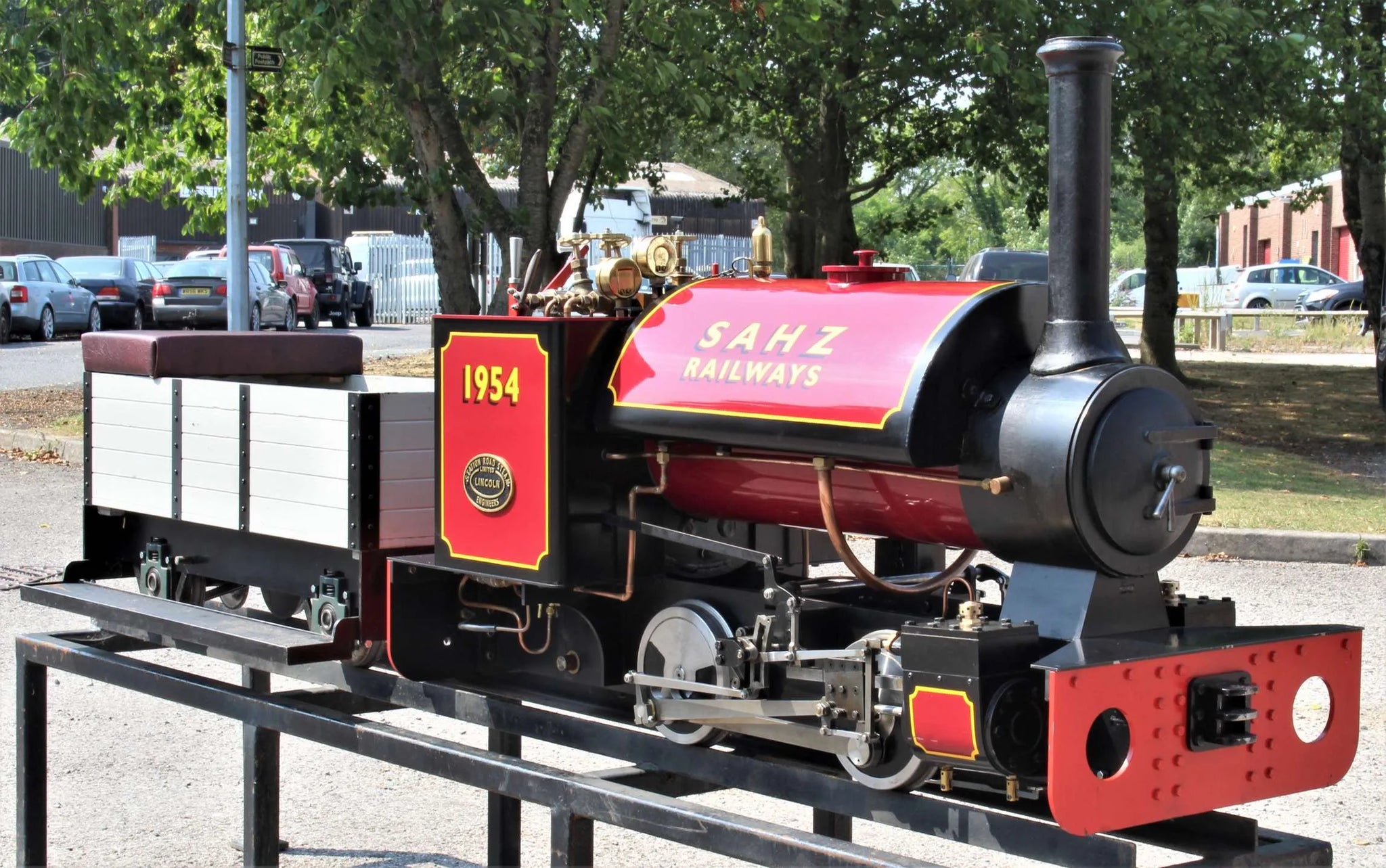

7 1/4 inch gauge Stafford 0-4-0ST, works number 1326, with driving truck

7 1/4 inch gauge factory built Stafford 0-4-0ST, works number 1326, delivered new in November 2012. A one owner engine it's in excellent condition, a testimony to his careful use and maintenance.

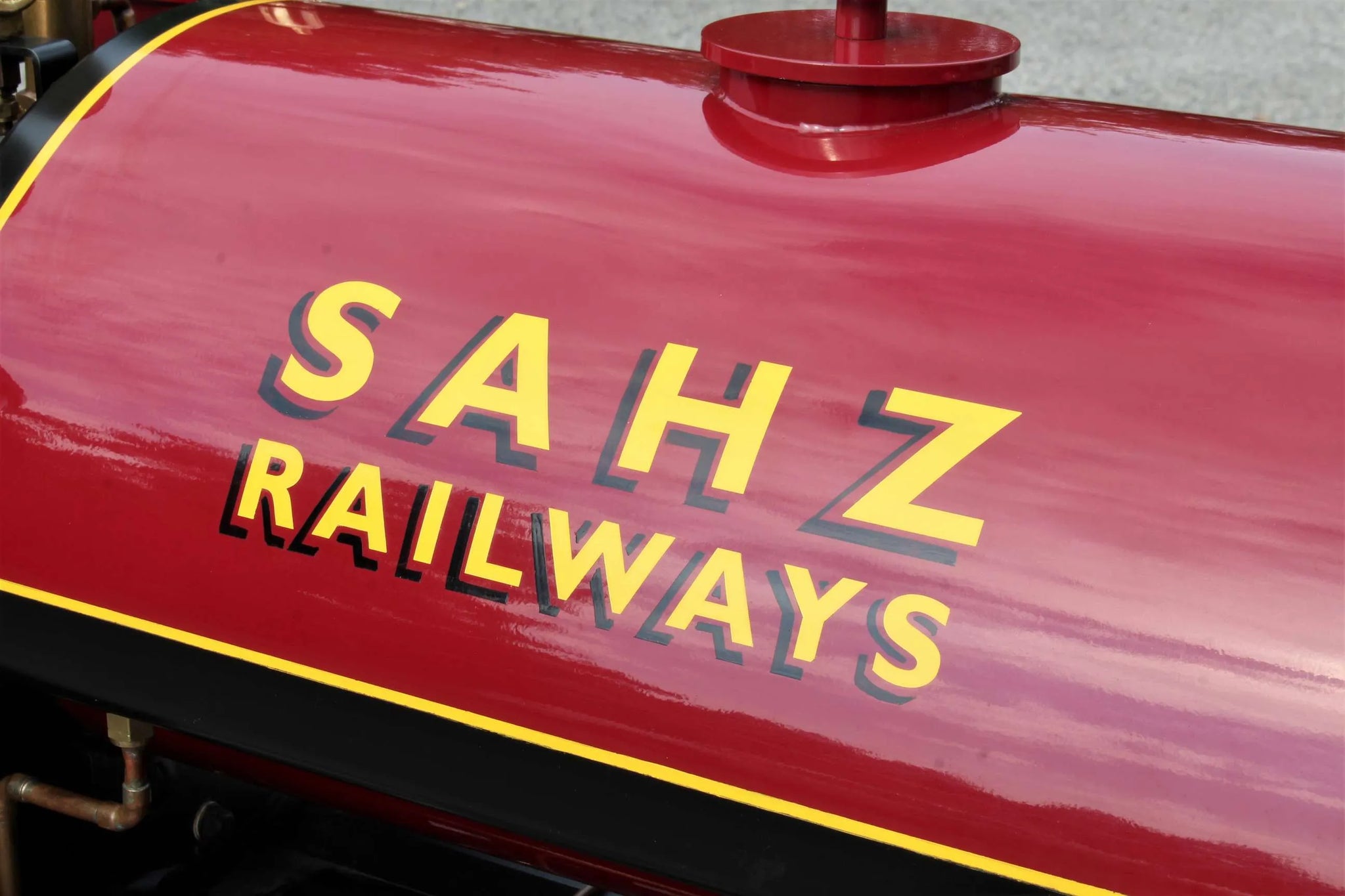

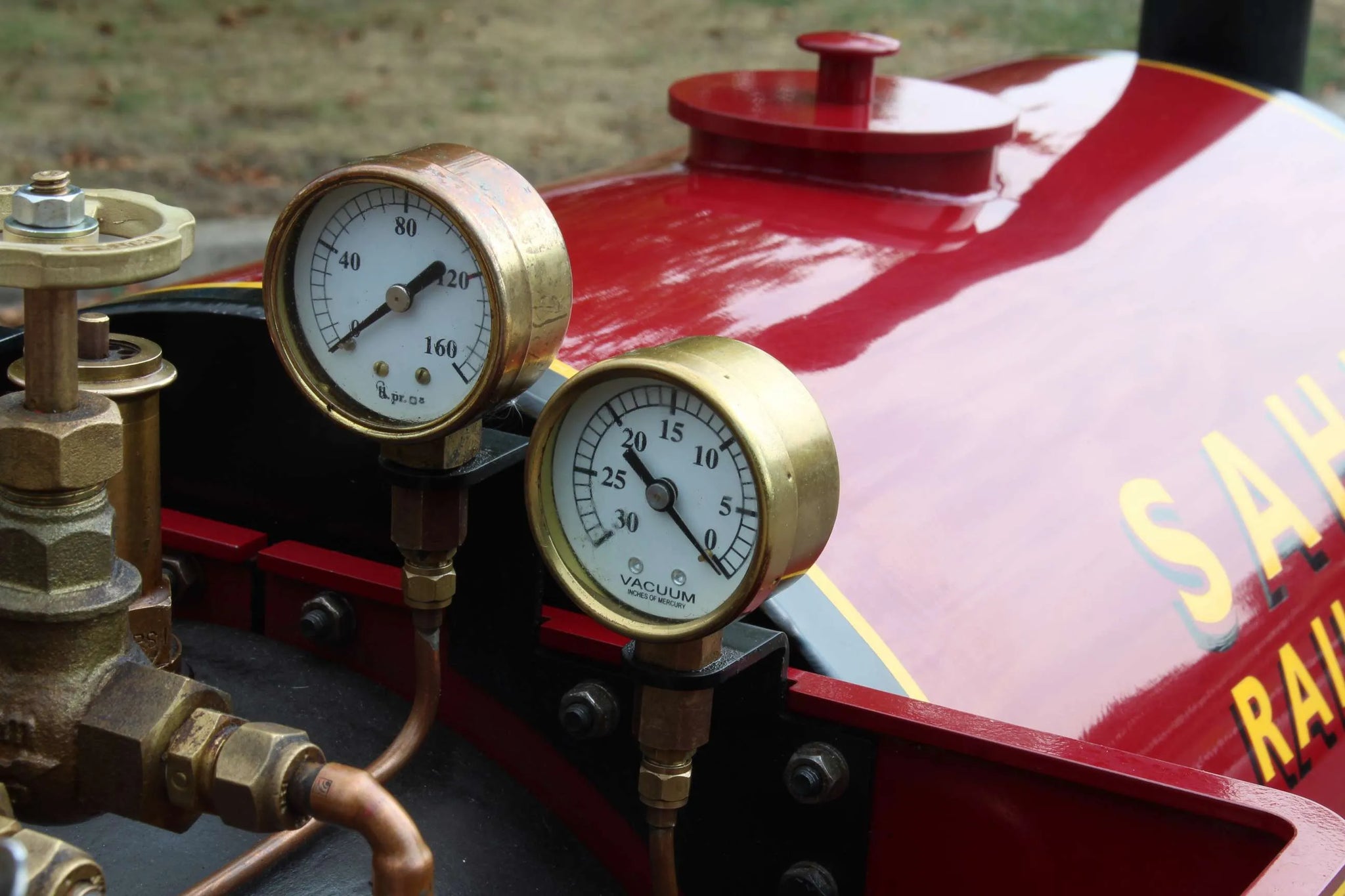

Supplied new with optional whistle, vacuum brake equipment, front coupling and driving truck. Paintwork was specified in red, panelled out in black, hand lined and sign written - it remains in good, bright condition.

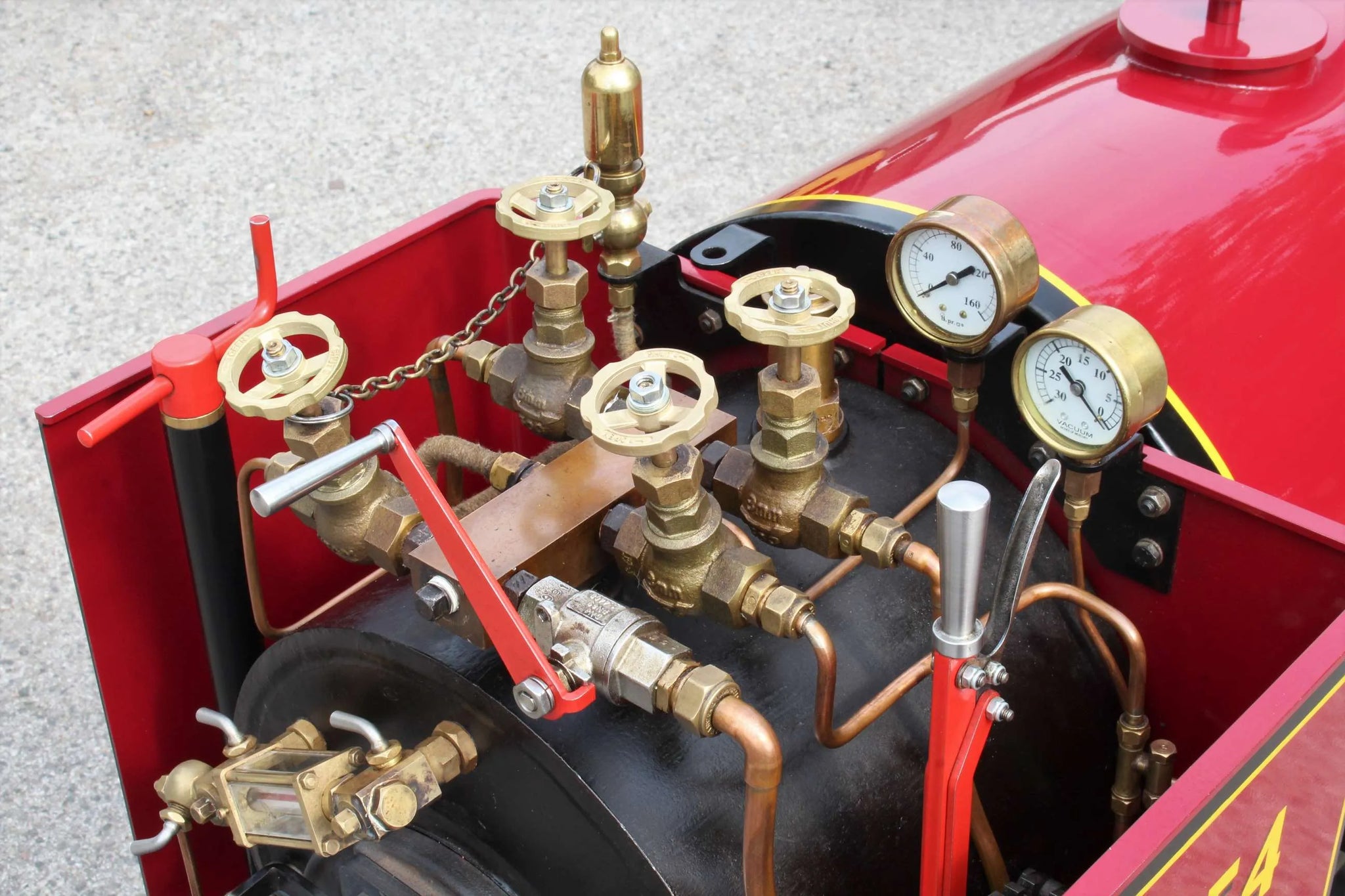

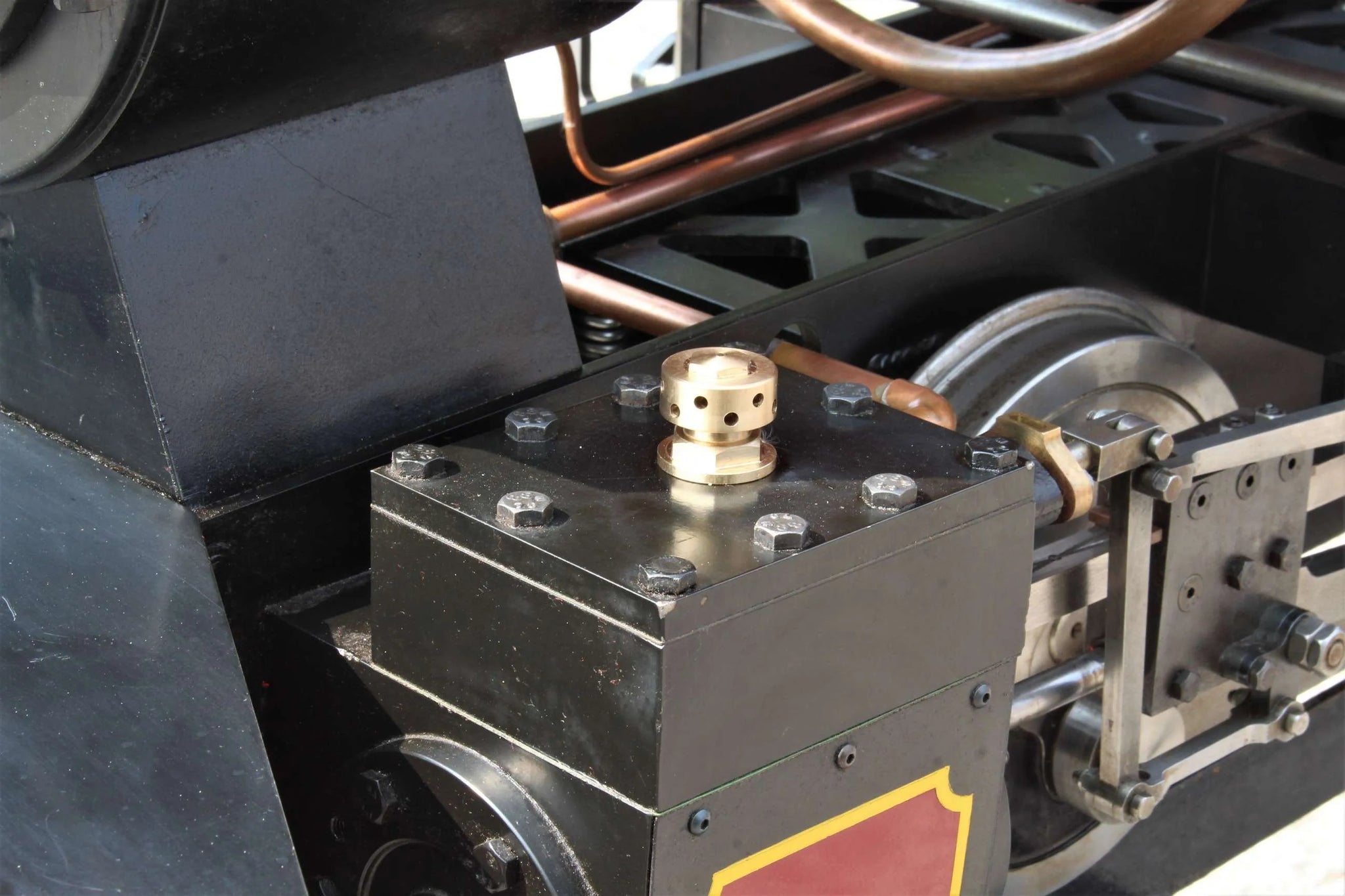

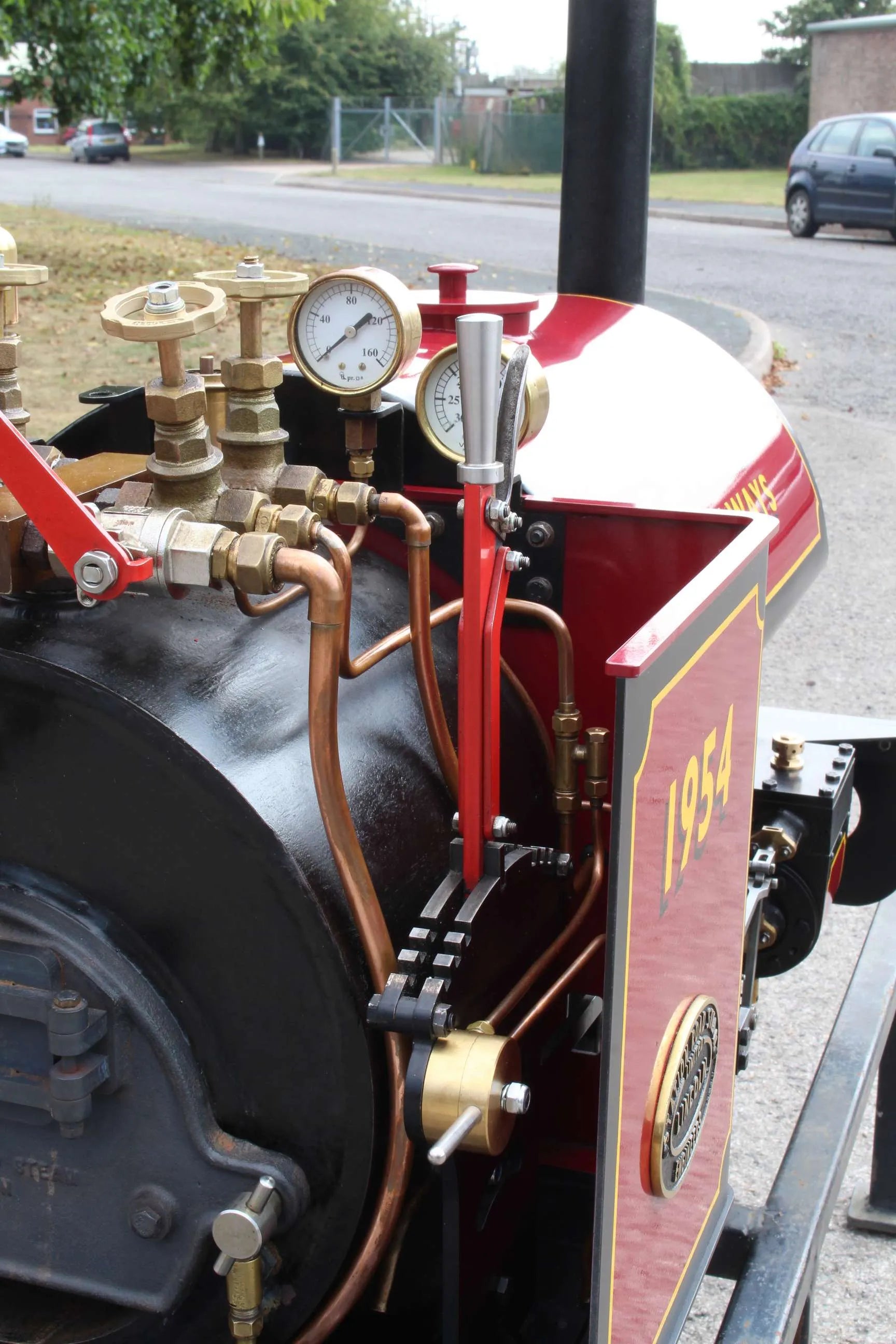

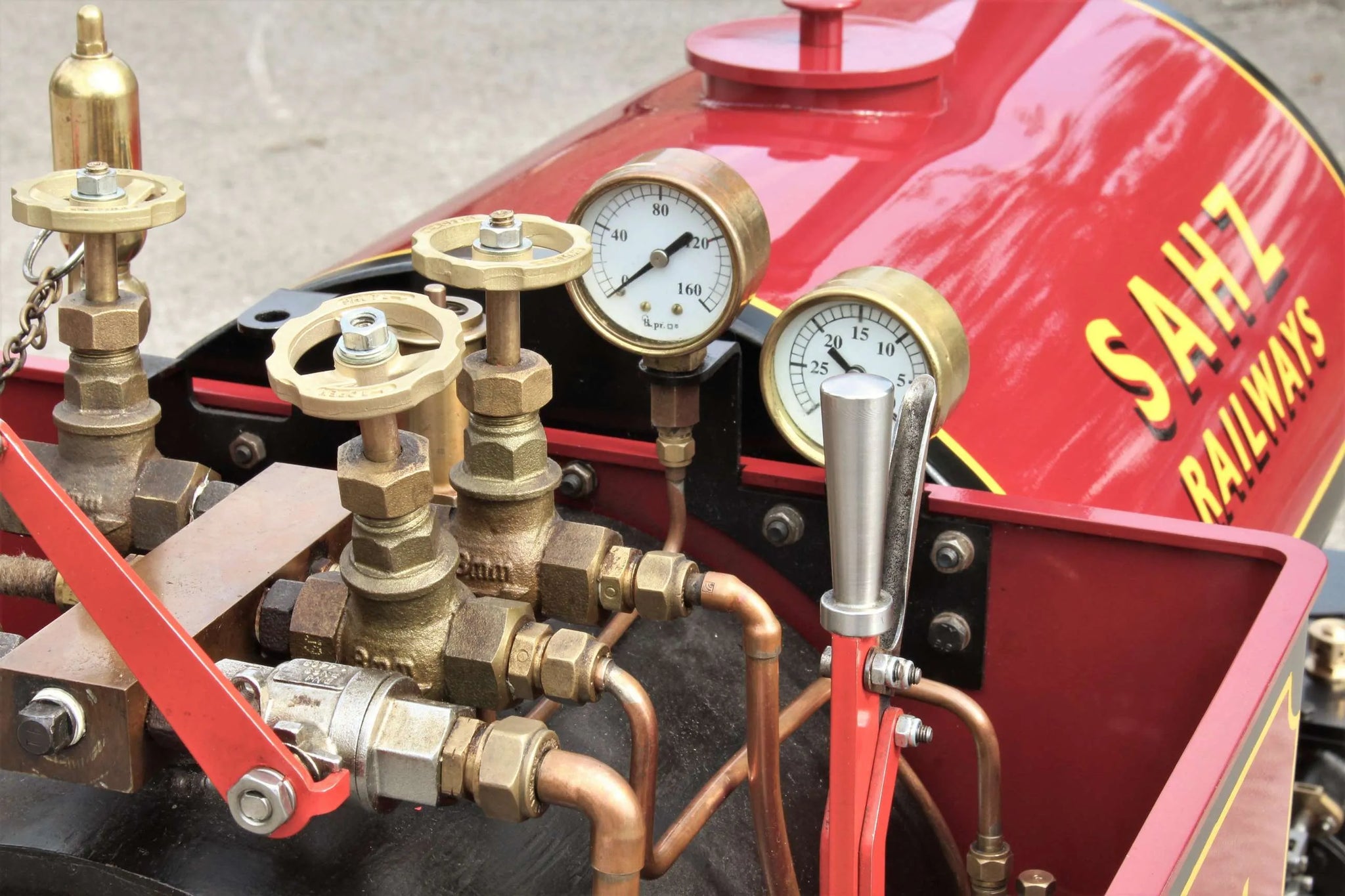

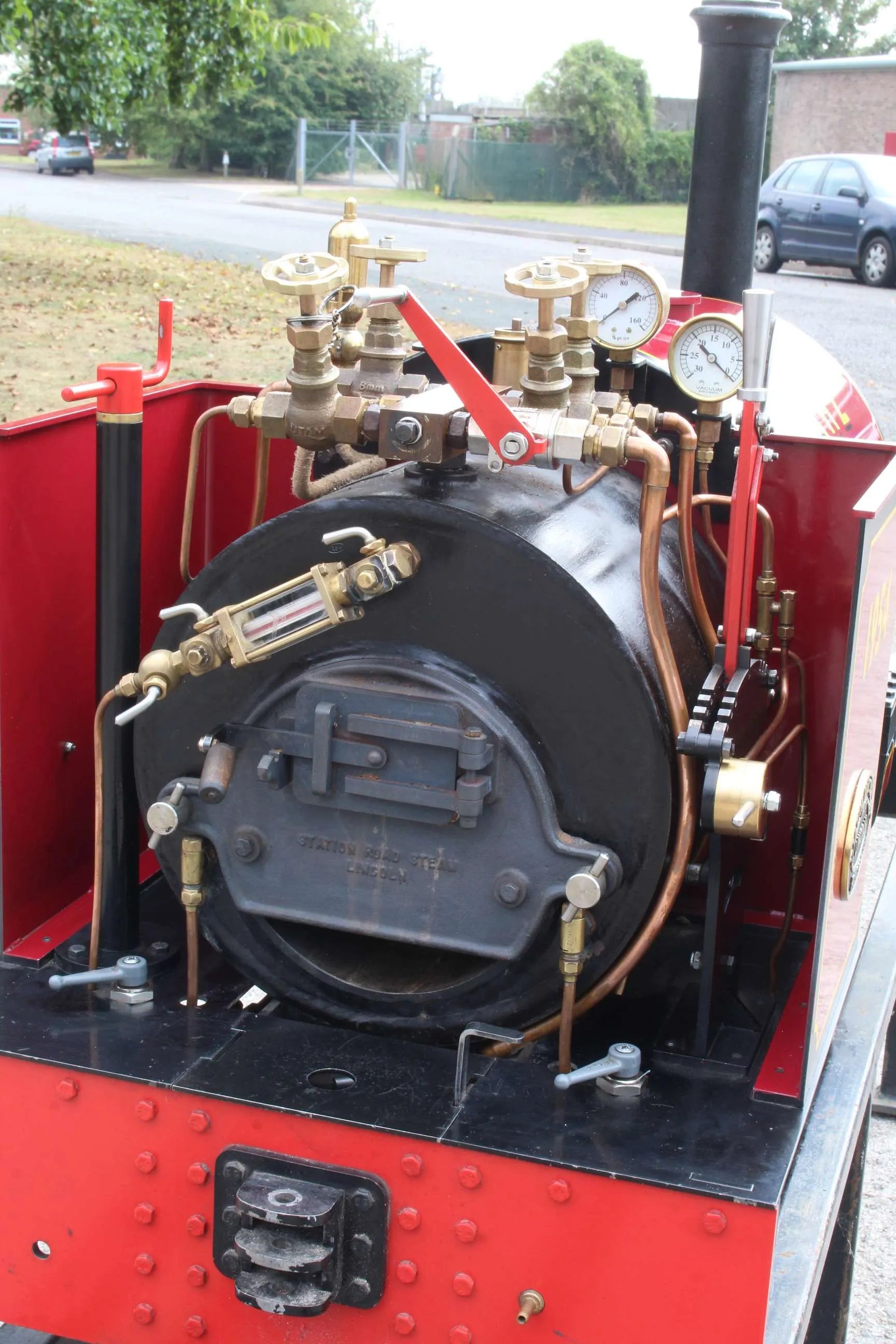

Since arriving back it has been through the workshop: we've uprated the lubricator with the latest adjustable pump and fitted snifting valves and cast steam valve handwheels.

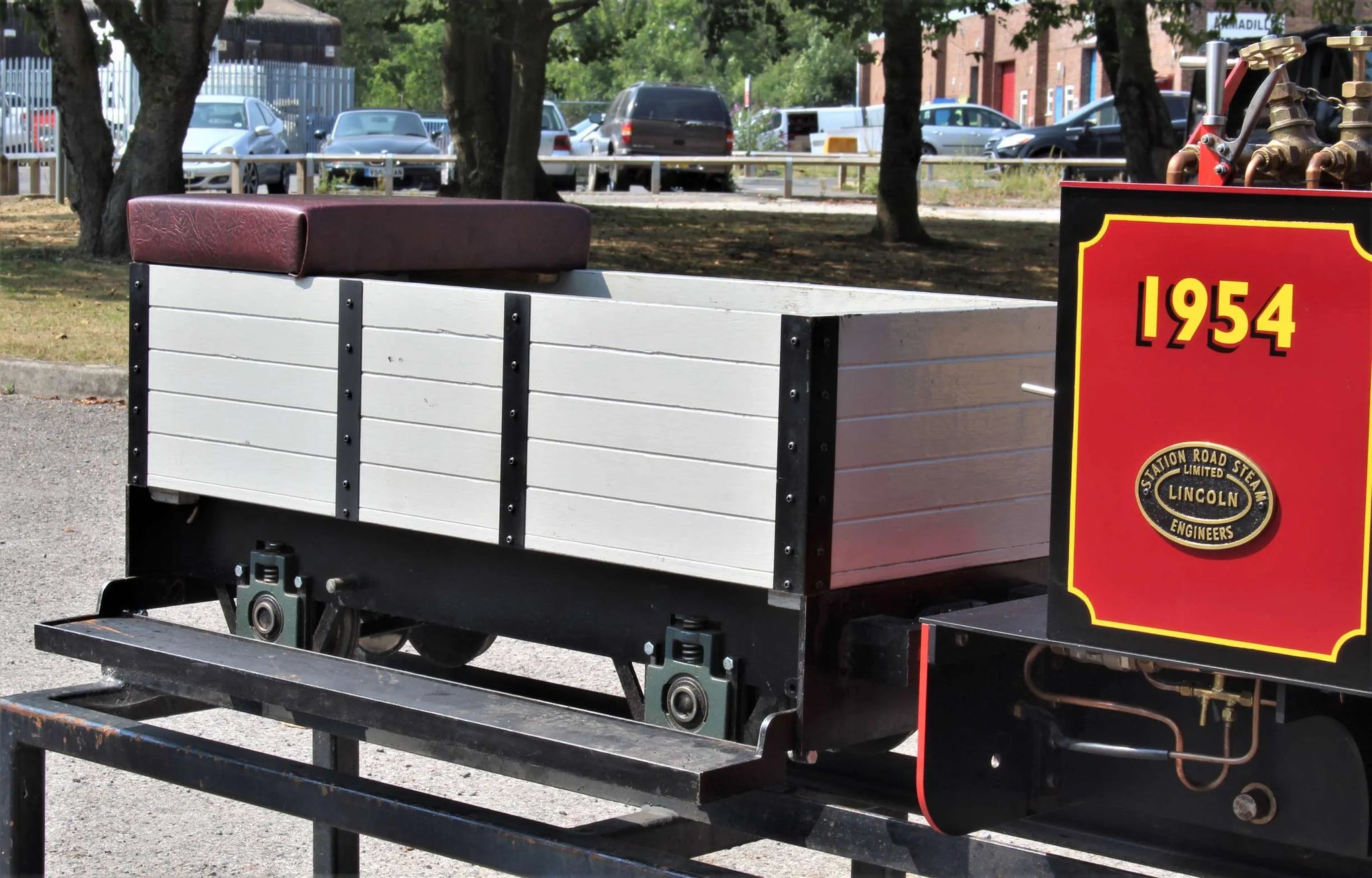

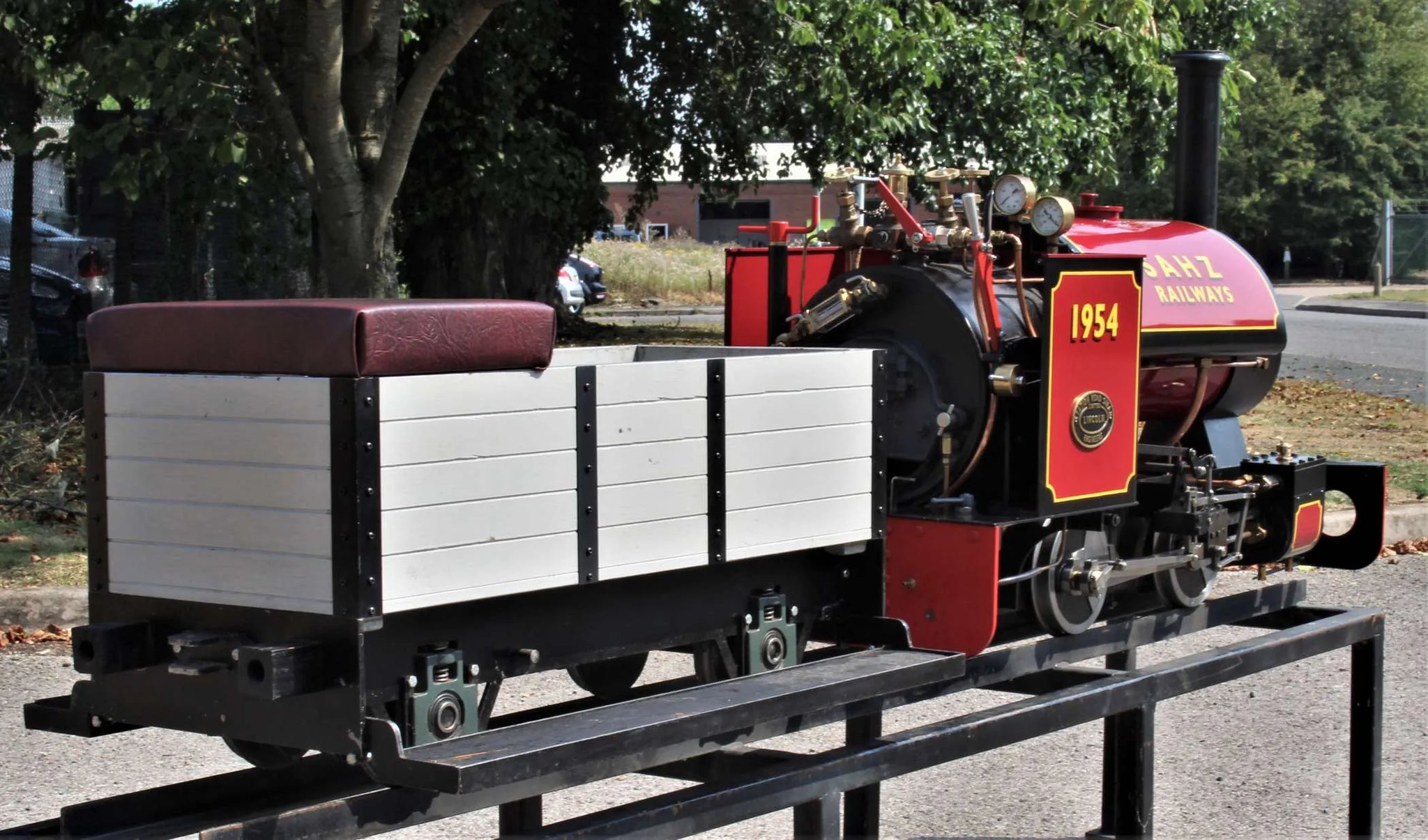

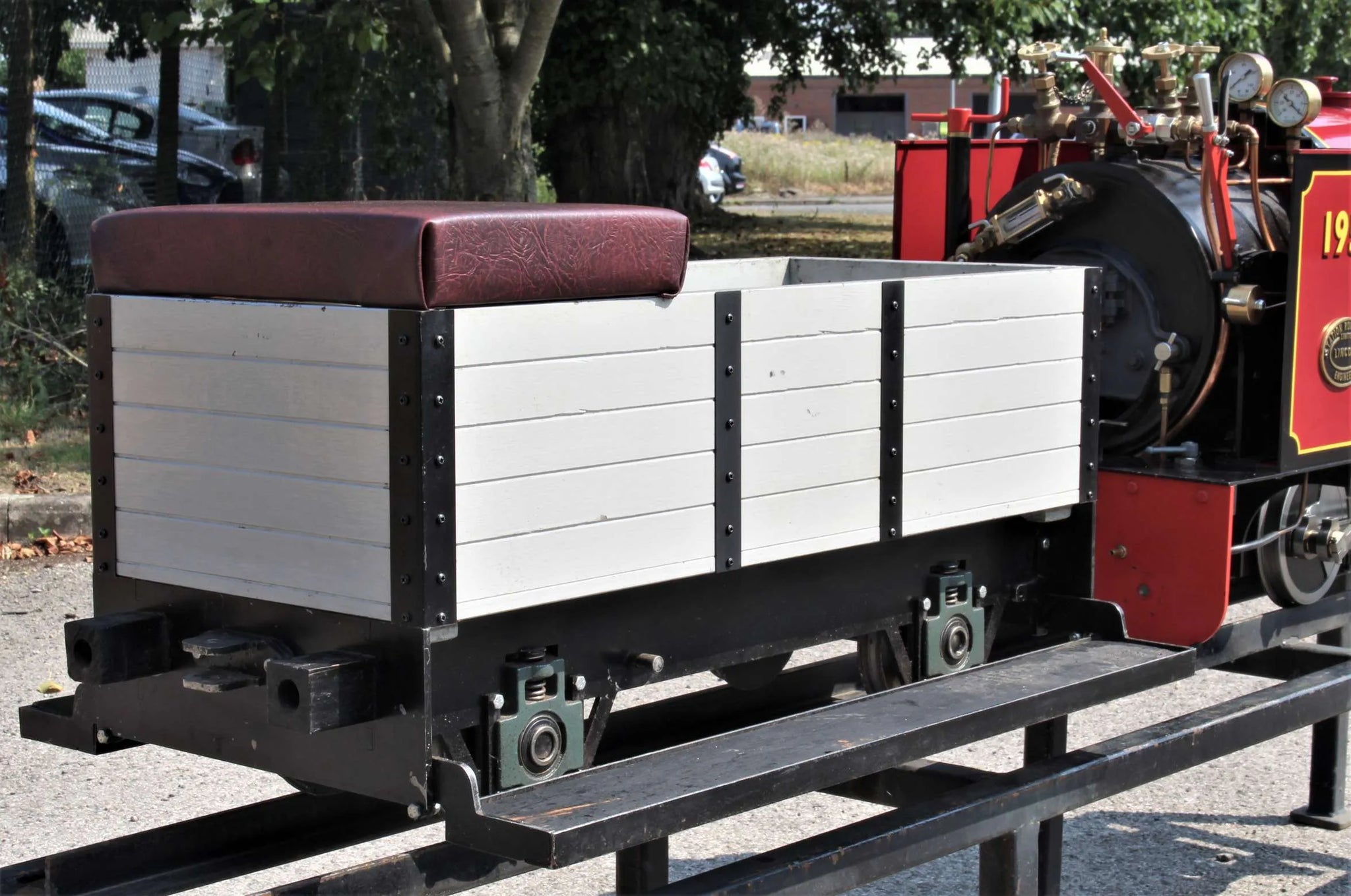

Driving truck is by Ride on Railways - we've supplied these for many Staffords over the years. As with all RoR stuff, it's a well thought out, bullet proof bit of kit, running on sealed self-aligning roller bearings with a hand operated disc brake.

Supplied with handbook, 12 months warranty and starter kit of firing irons, coal, oil and water treatment - exactly the same as we offer on our new engines.

Technical information

Stock code

9216

Gauge

7 1/4 inch

Length/inches

45

Width/inches

19

Height/inches

32

Weight/Kg

195

Wheel material

steel

Cylinder material

cast iron

Valve type

slide

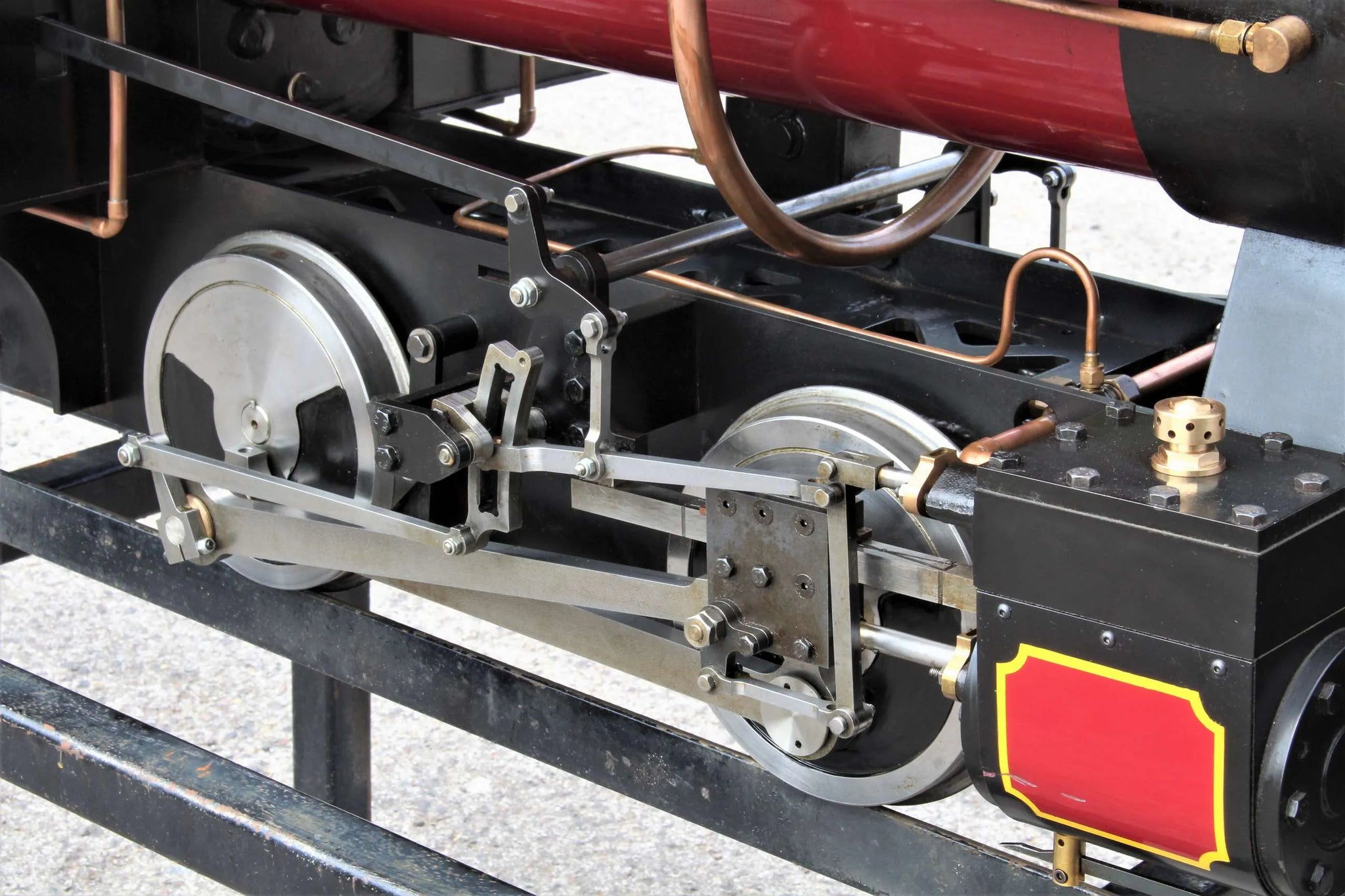

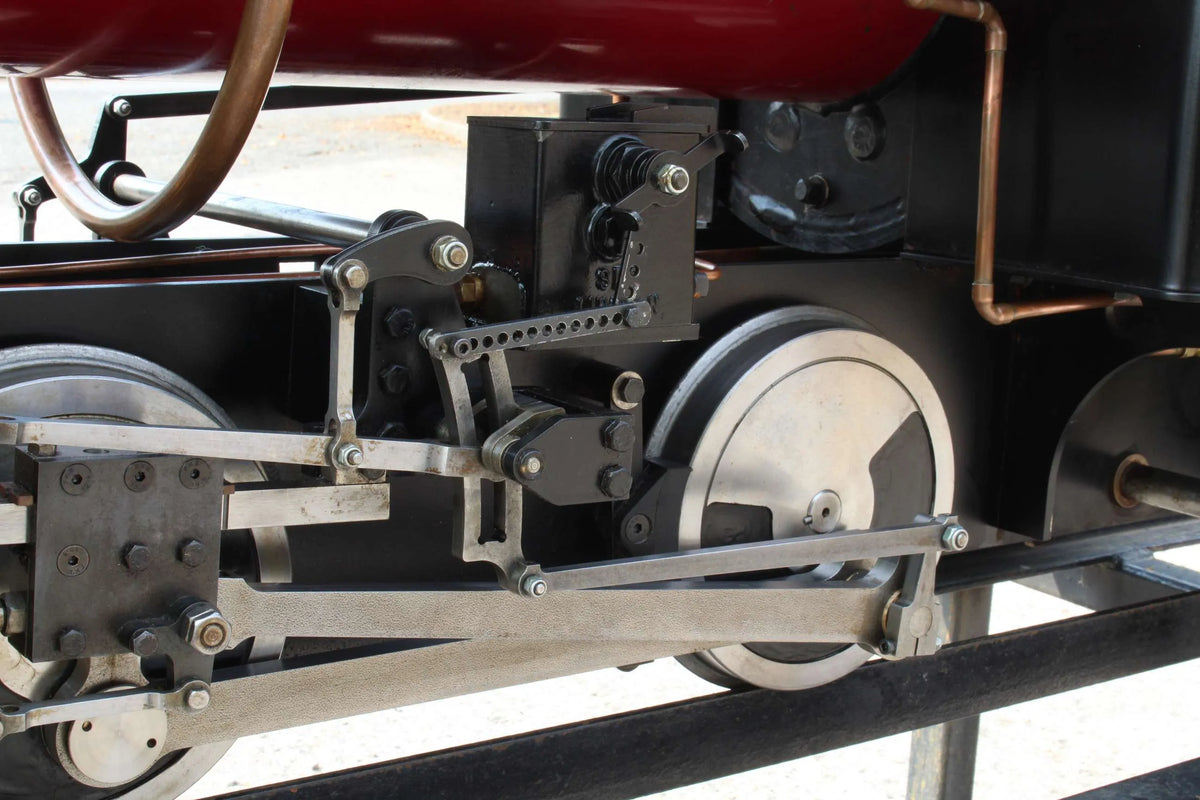

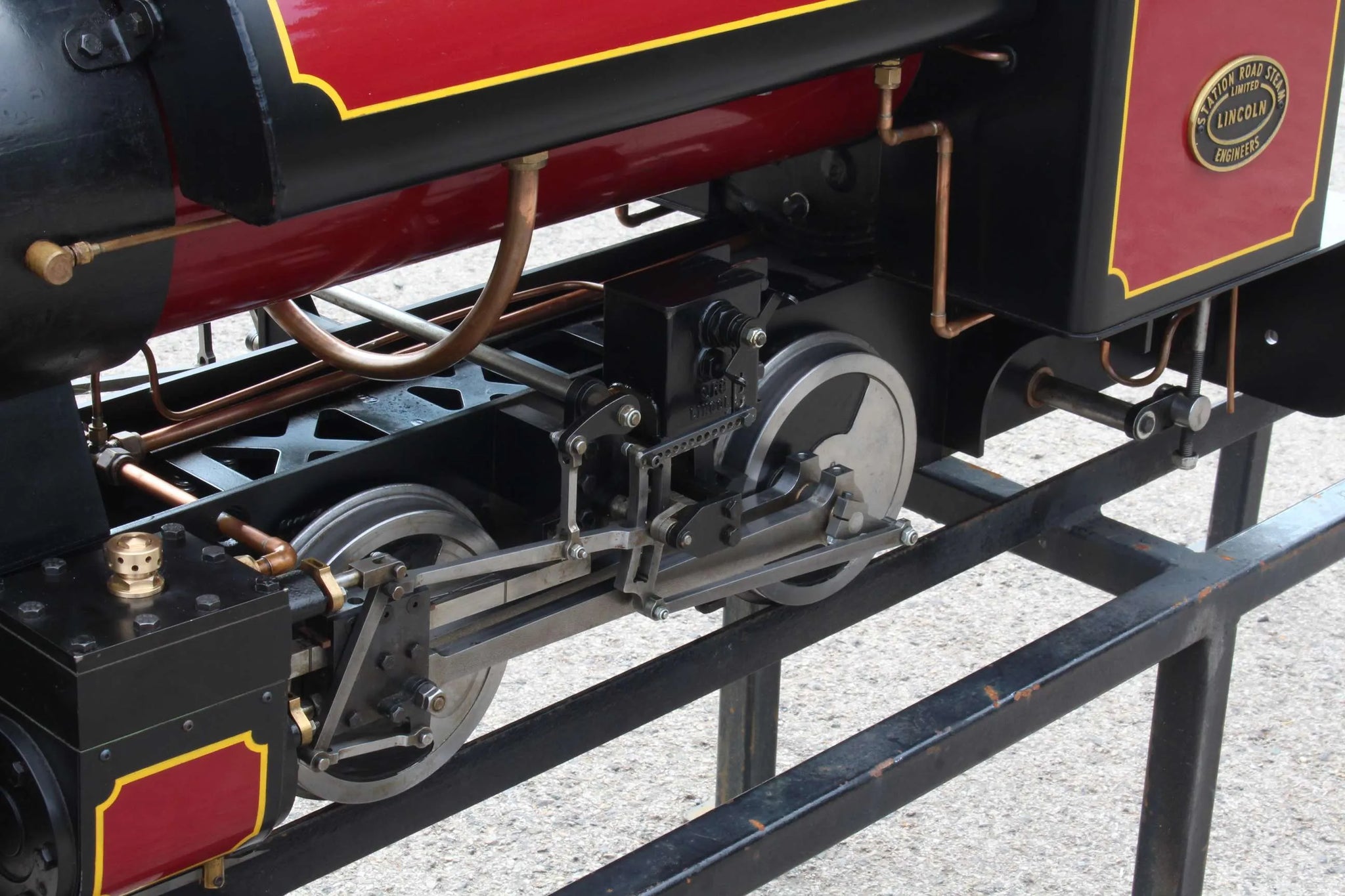

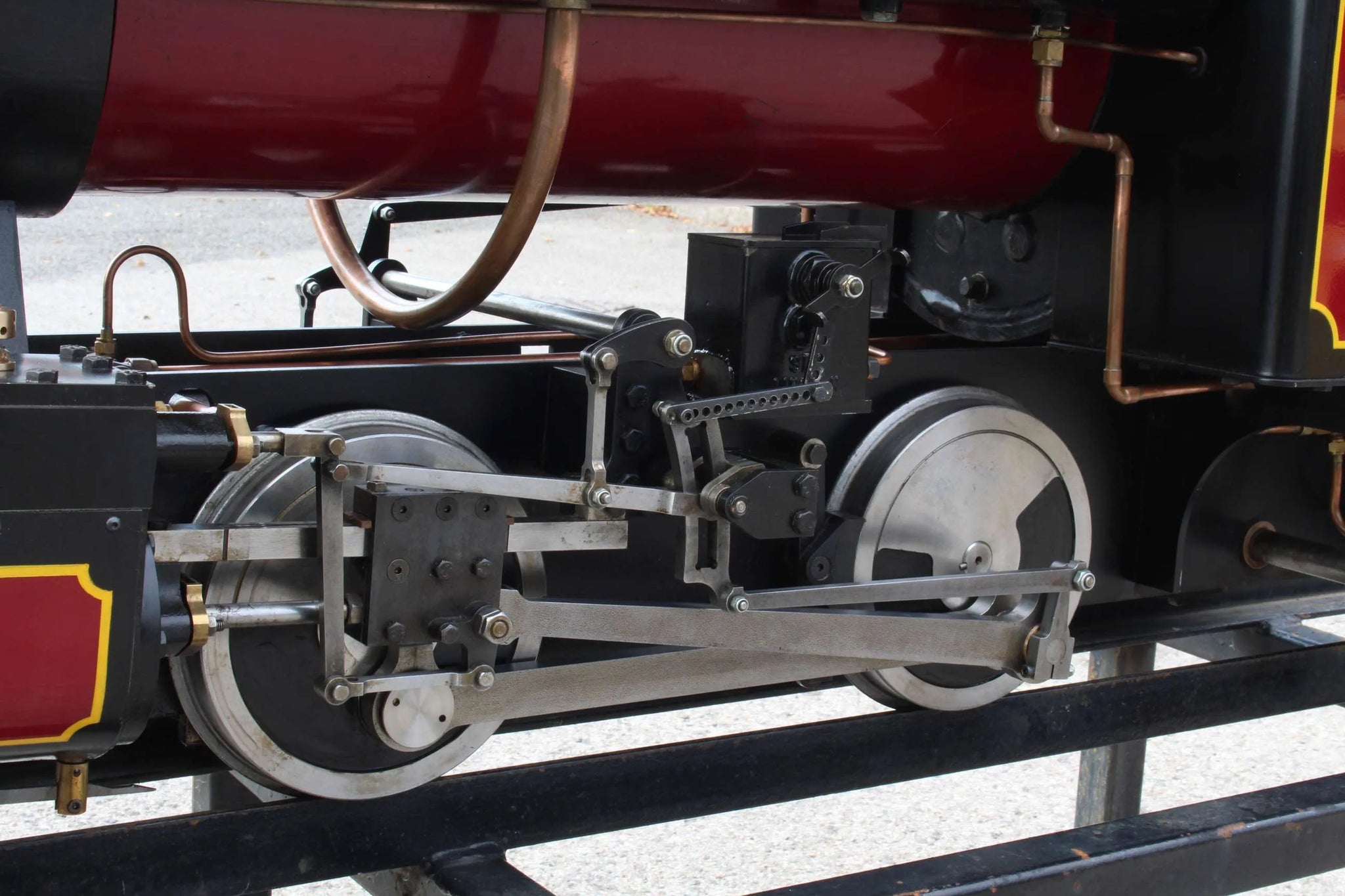

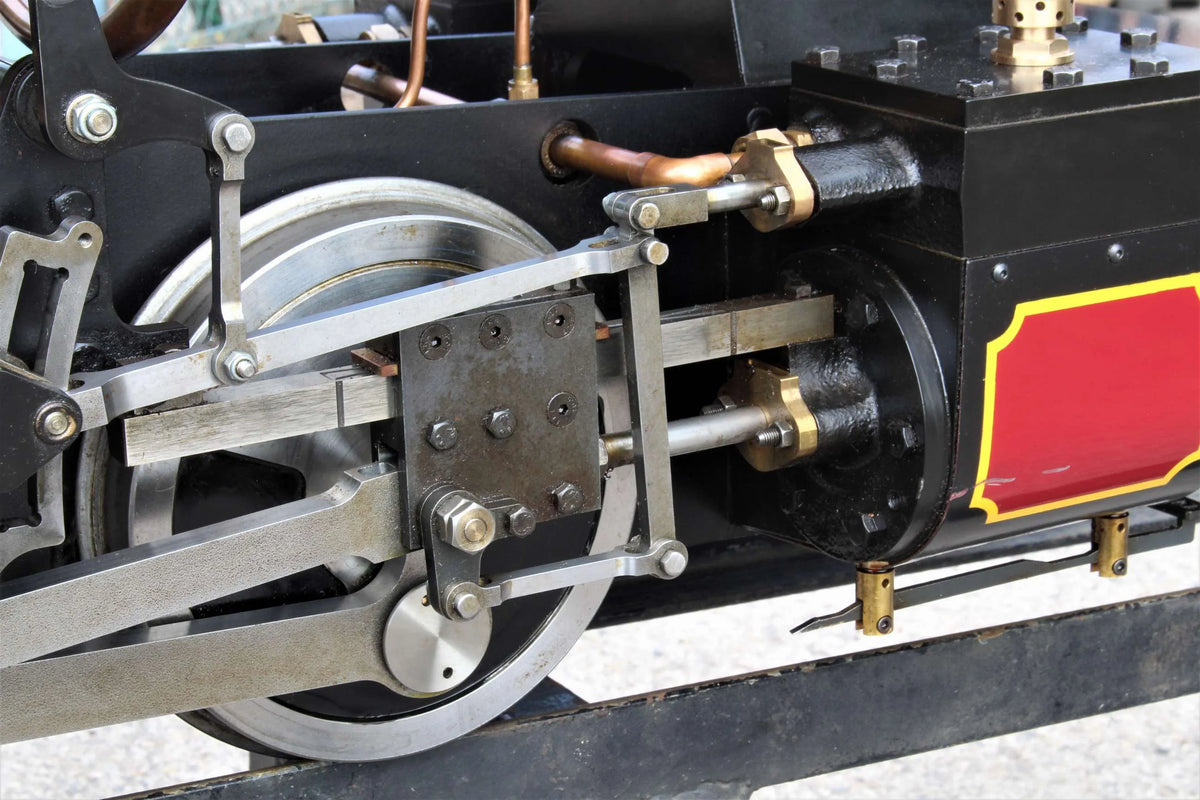

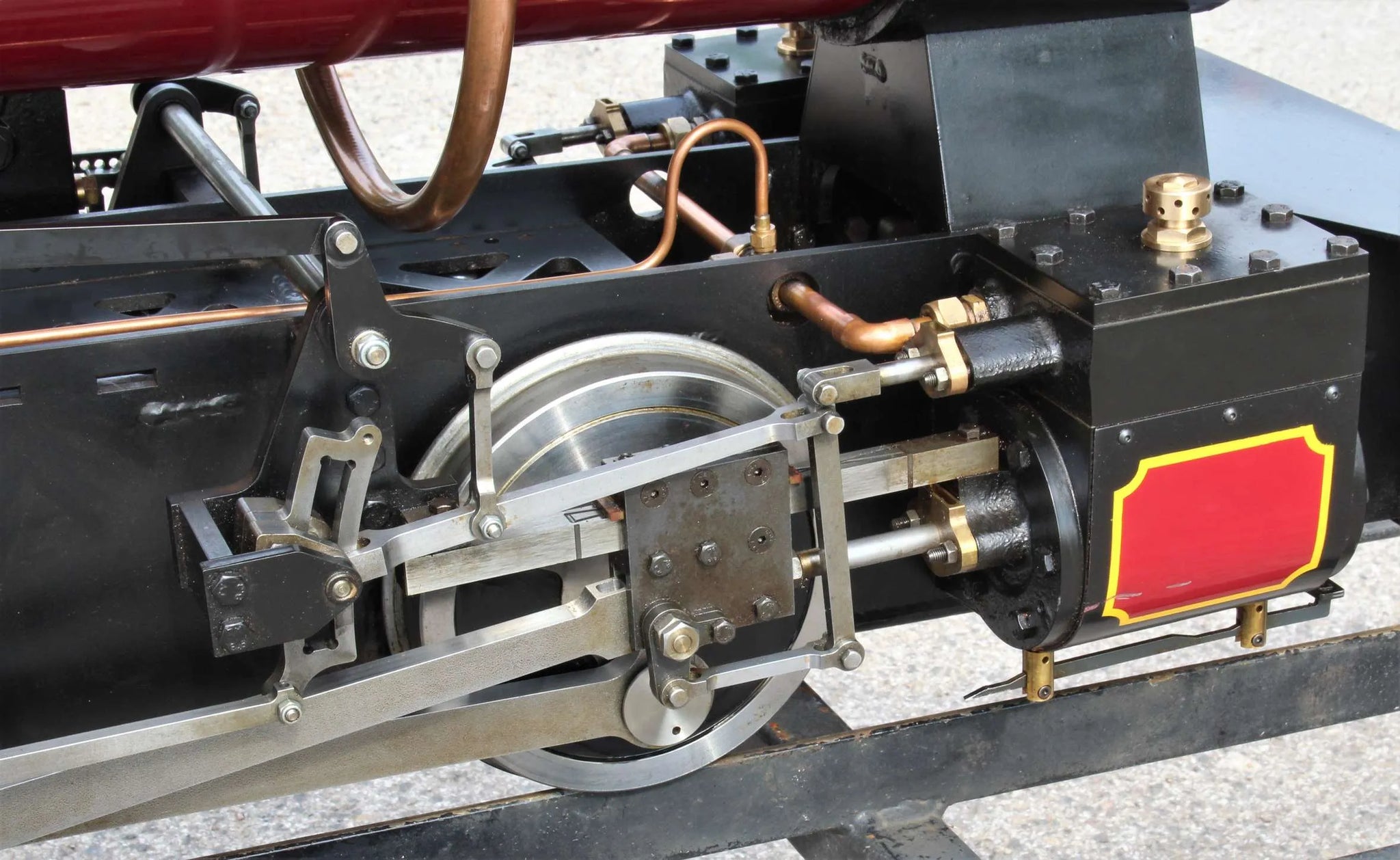

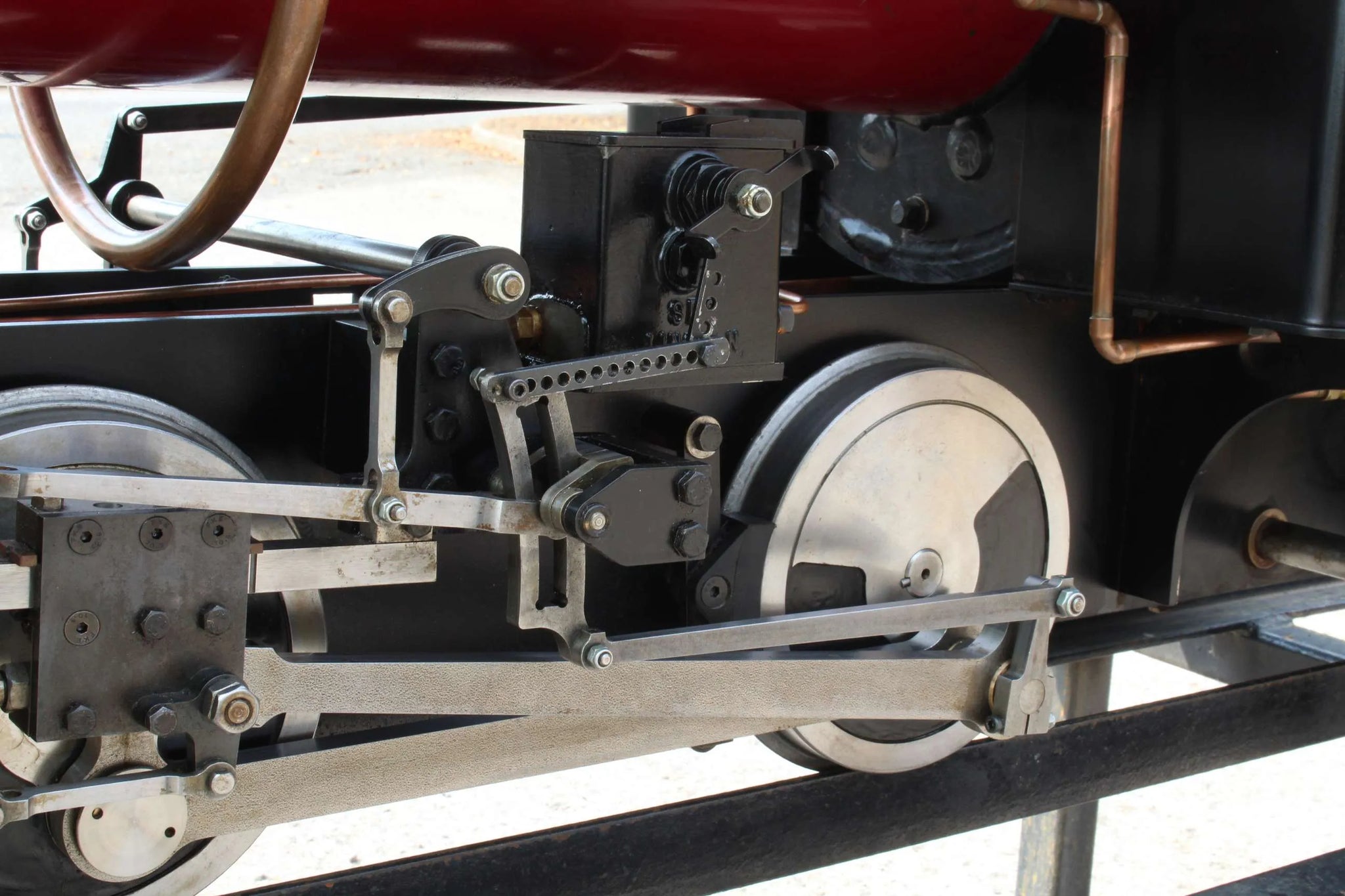

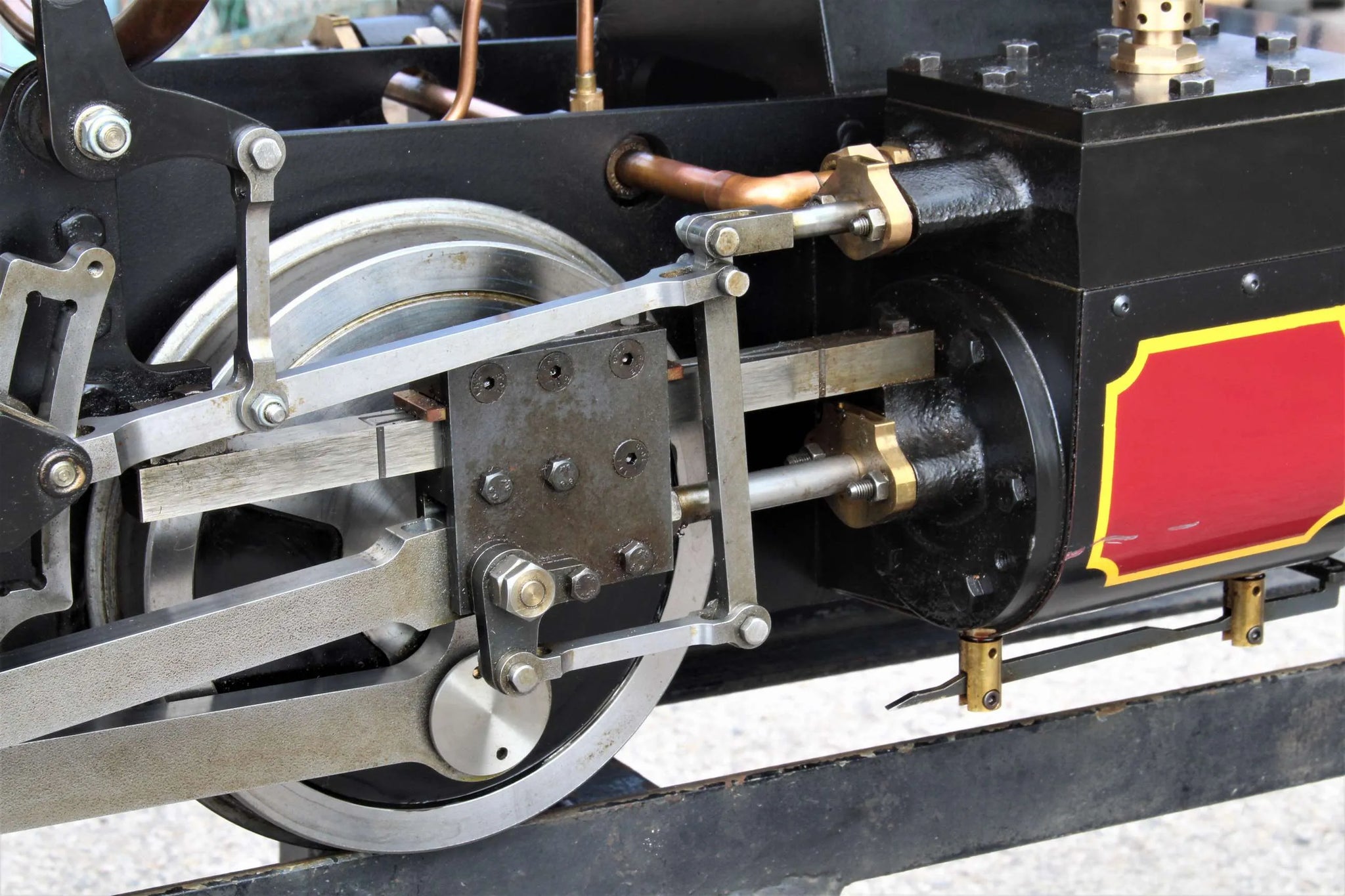

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

AJB Engineering

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2011

Boiler number

235

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2

Nominal traction

238

Date out

Aug-20

Hydraulic test valid to

06-Aug-22

Steam test valid to

06-Oct-21
