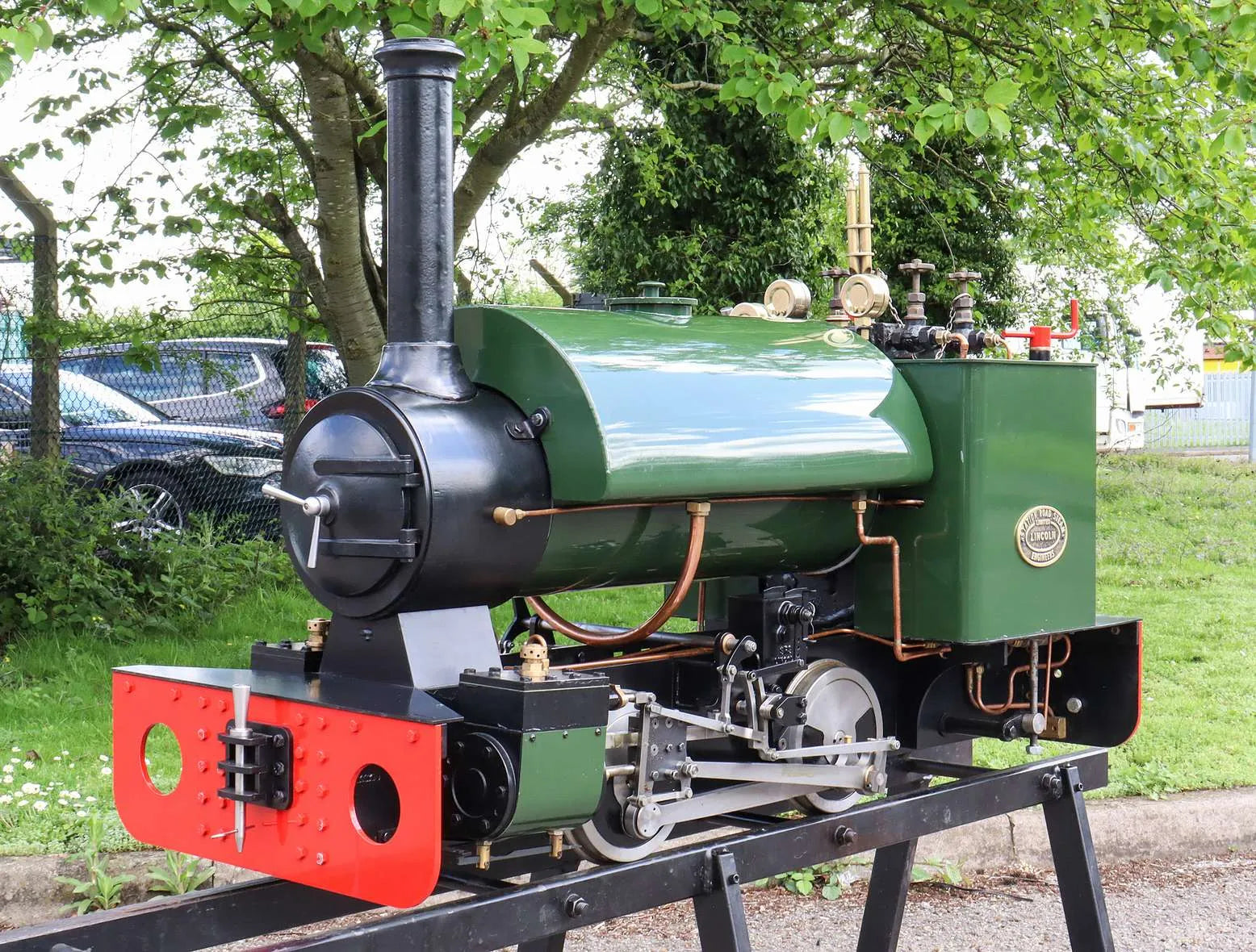

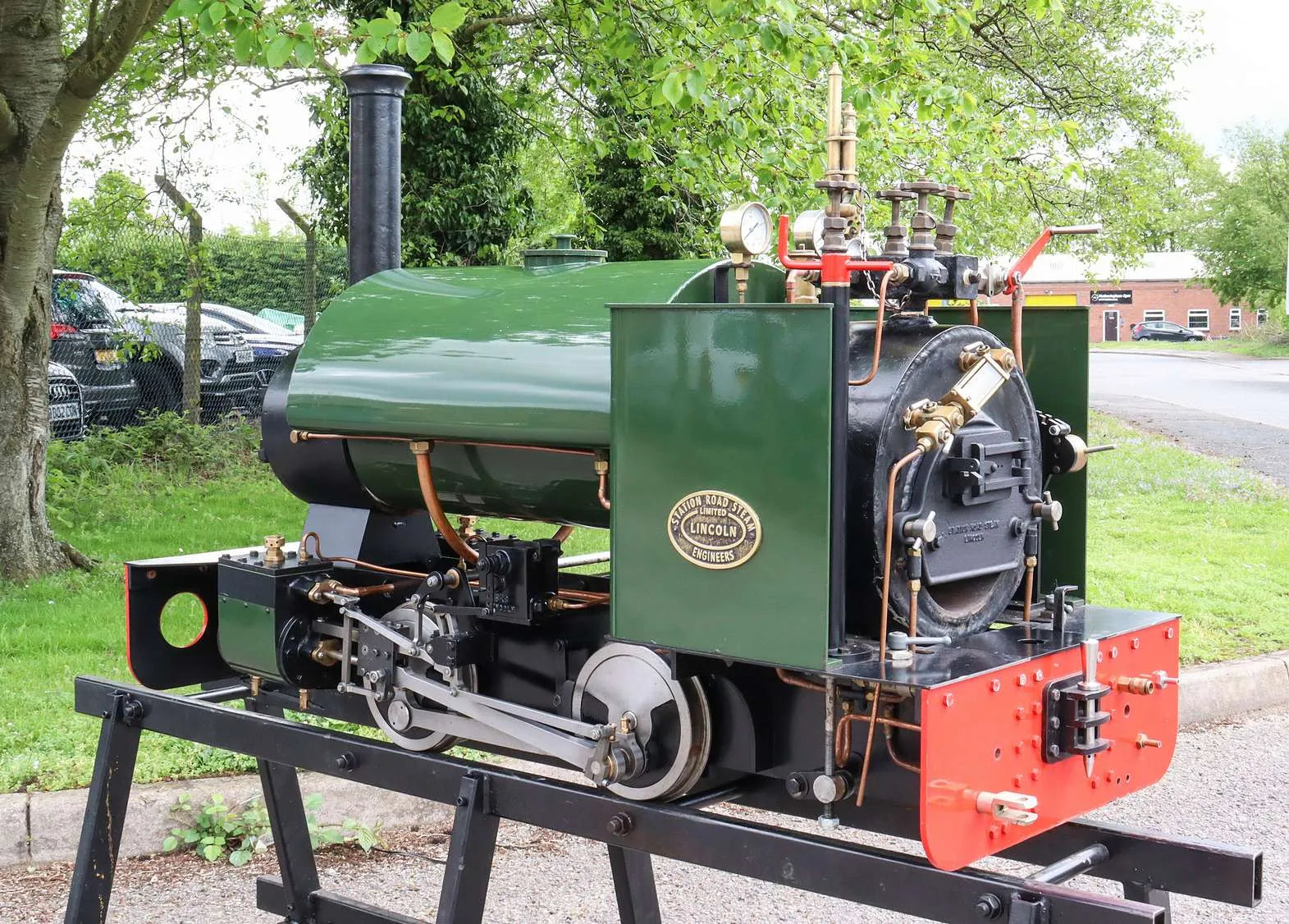

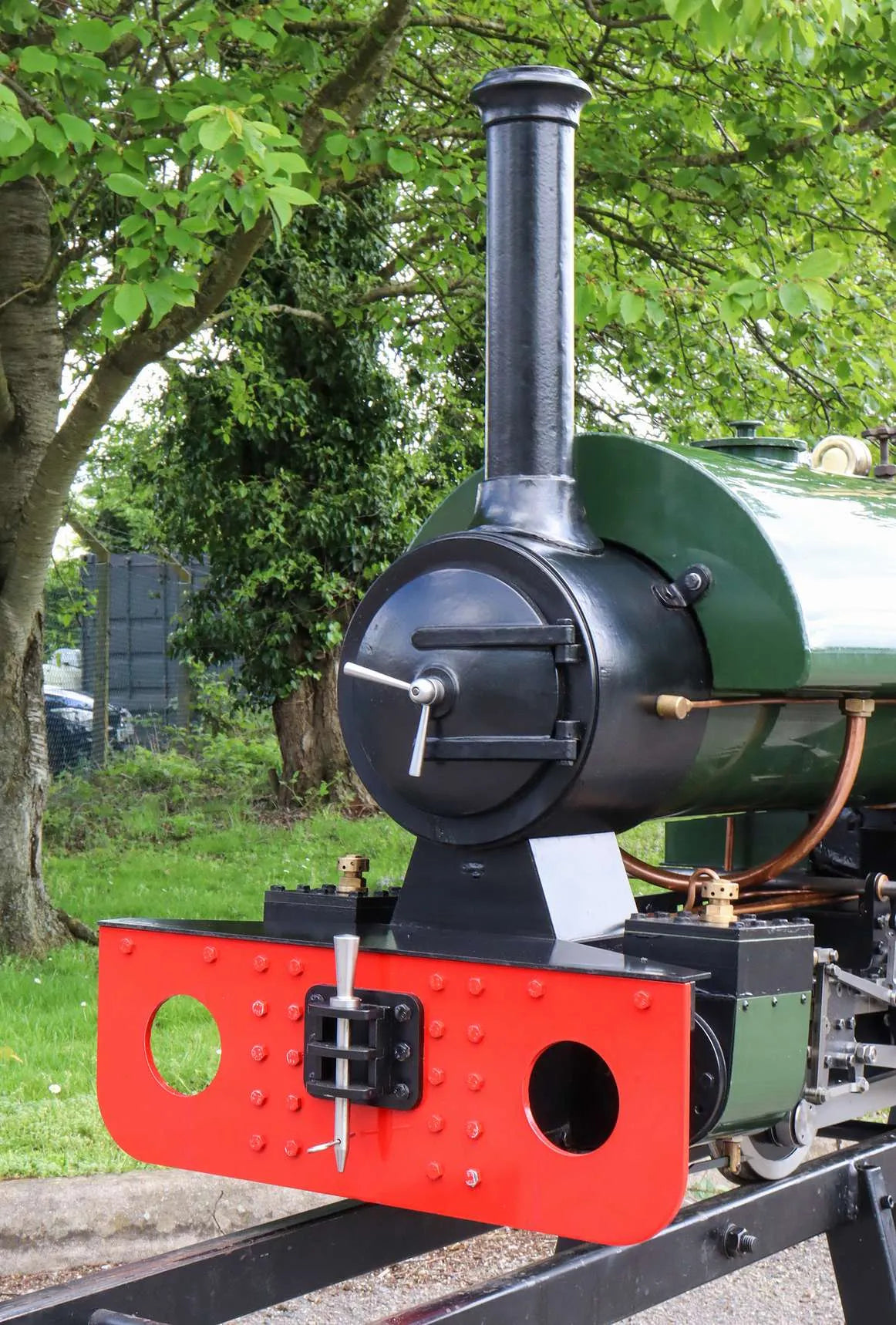

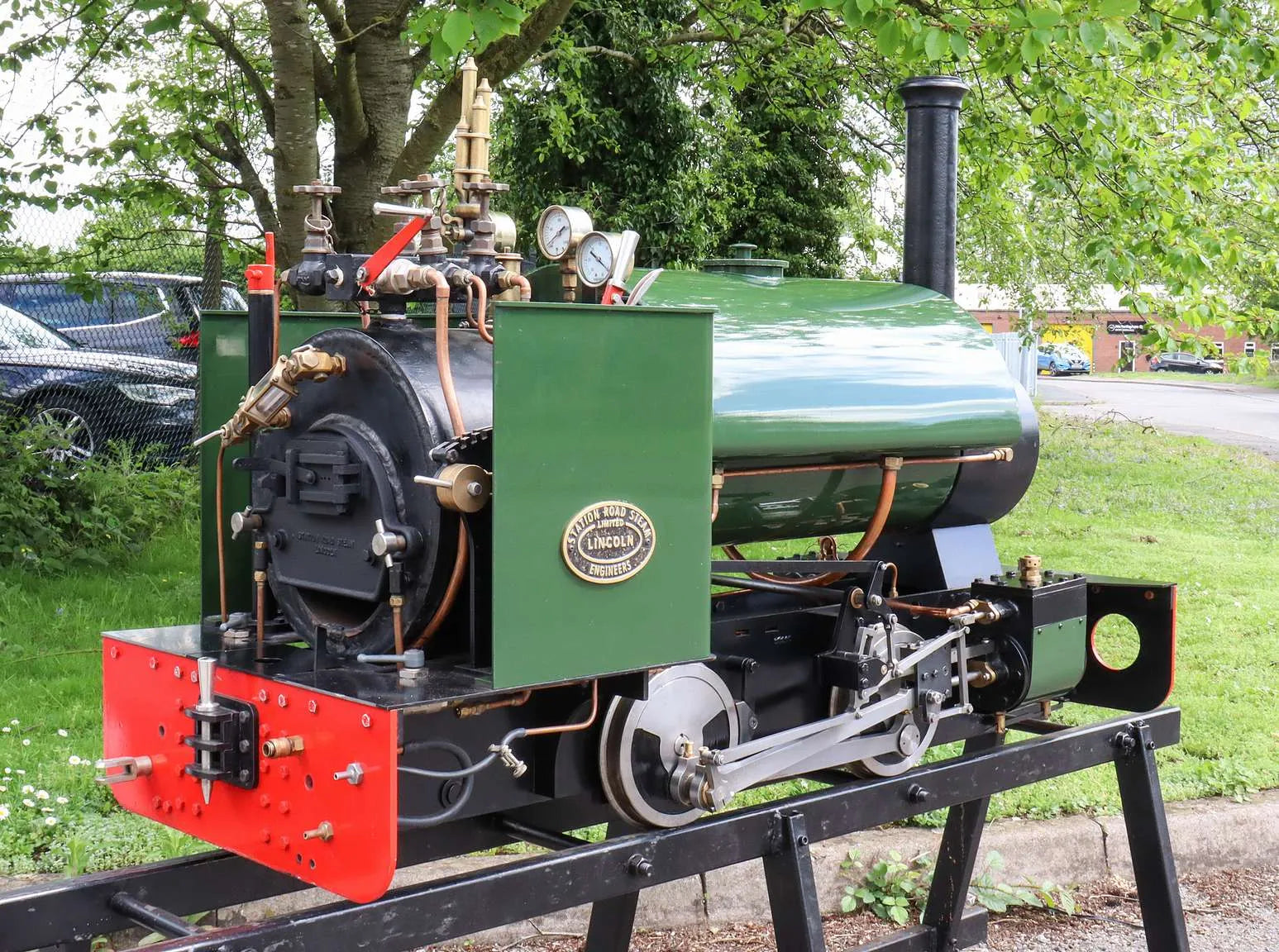

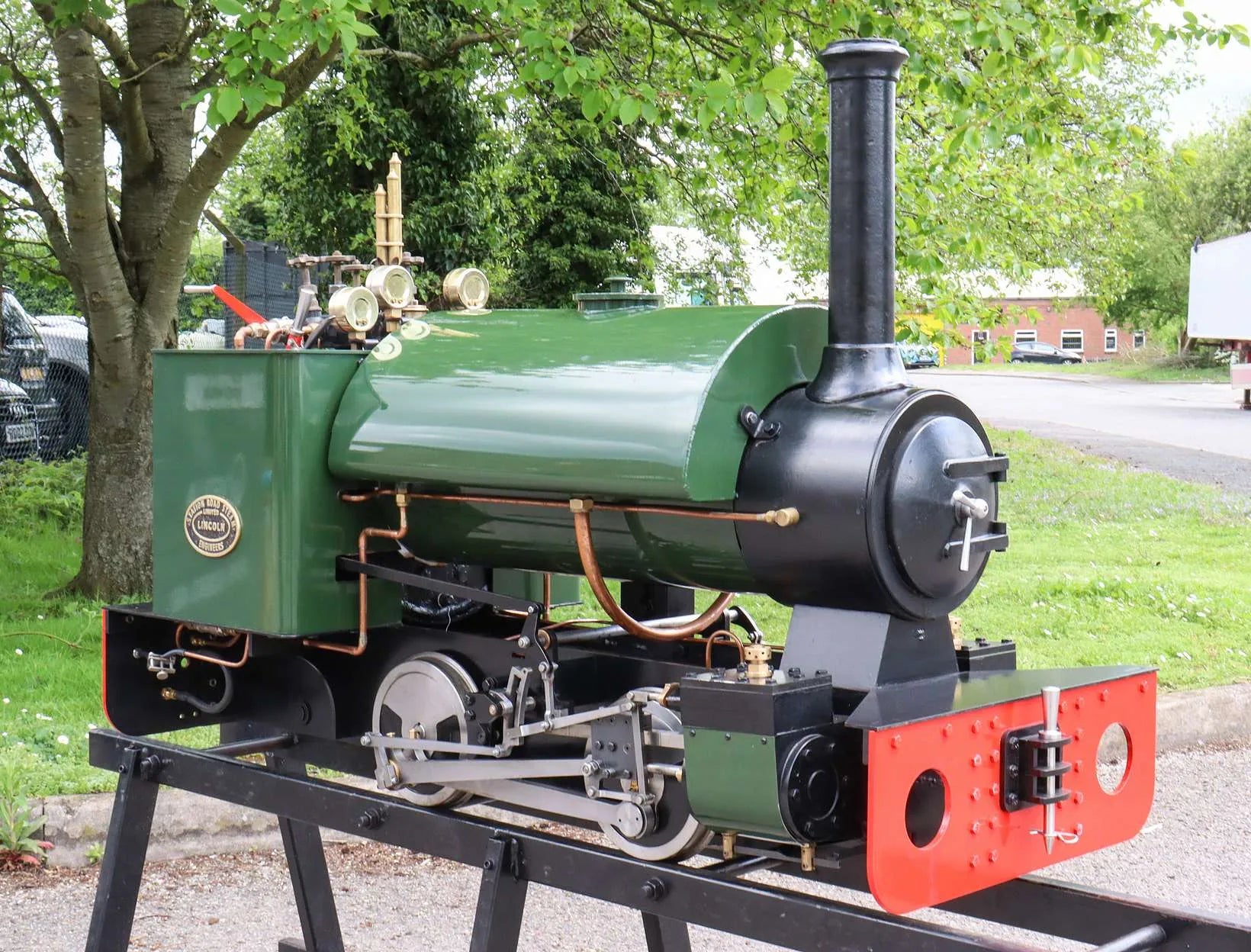

7 1/4 inch gauge Stafford 0-4-0ST, works number 1332

A 7 1/4 inch gauge Stafford 0-4-0ST, works number 1332, supplied new in March 2013.

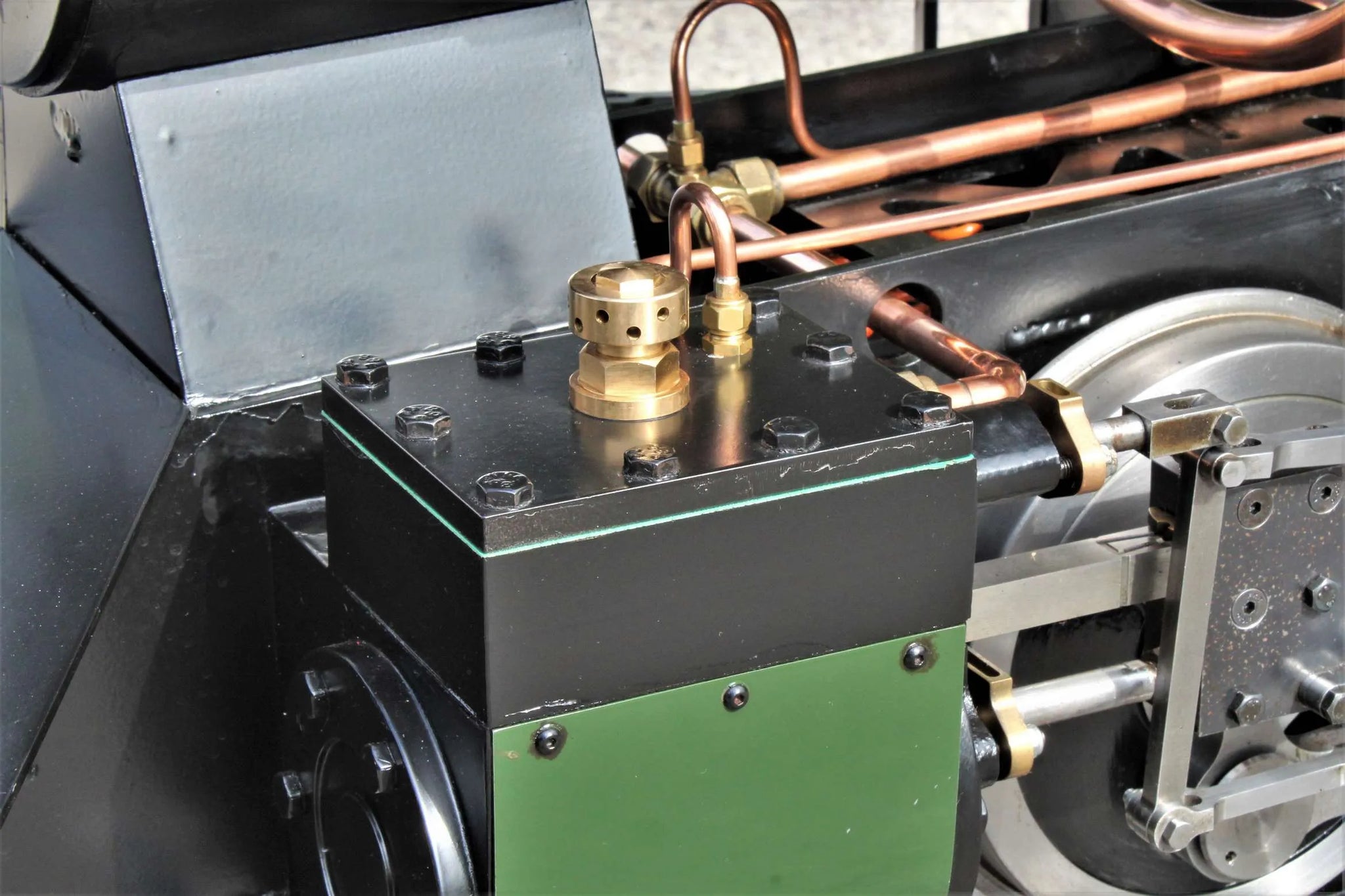

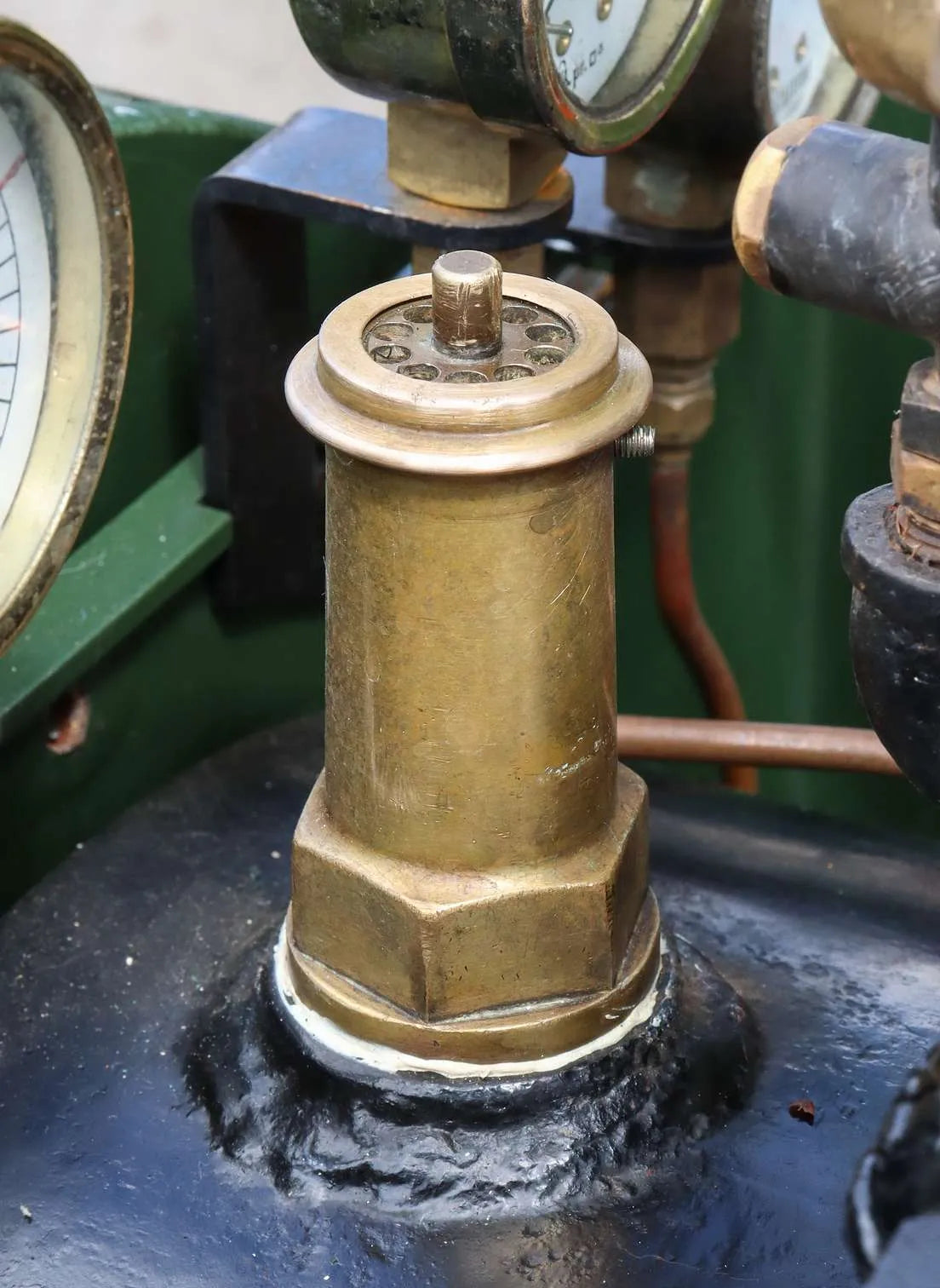

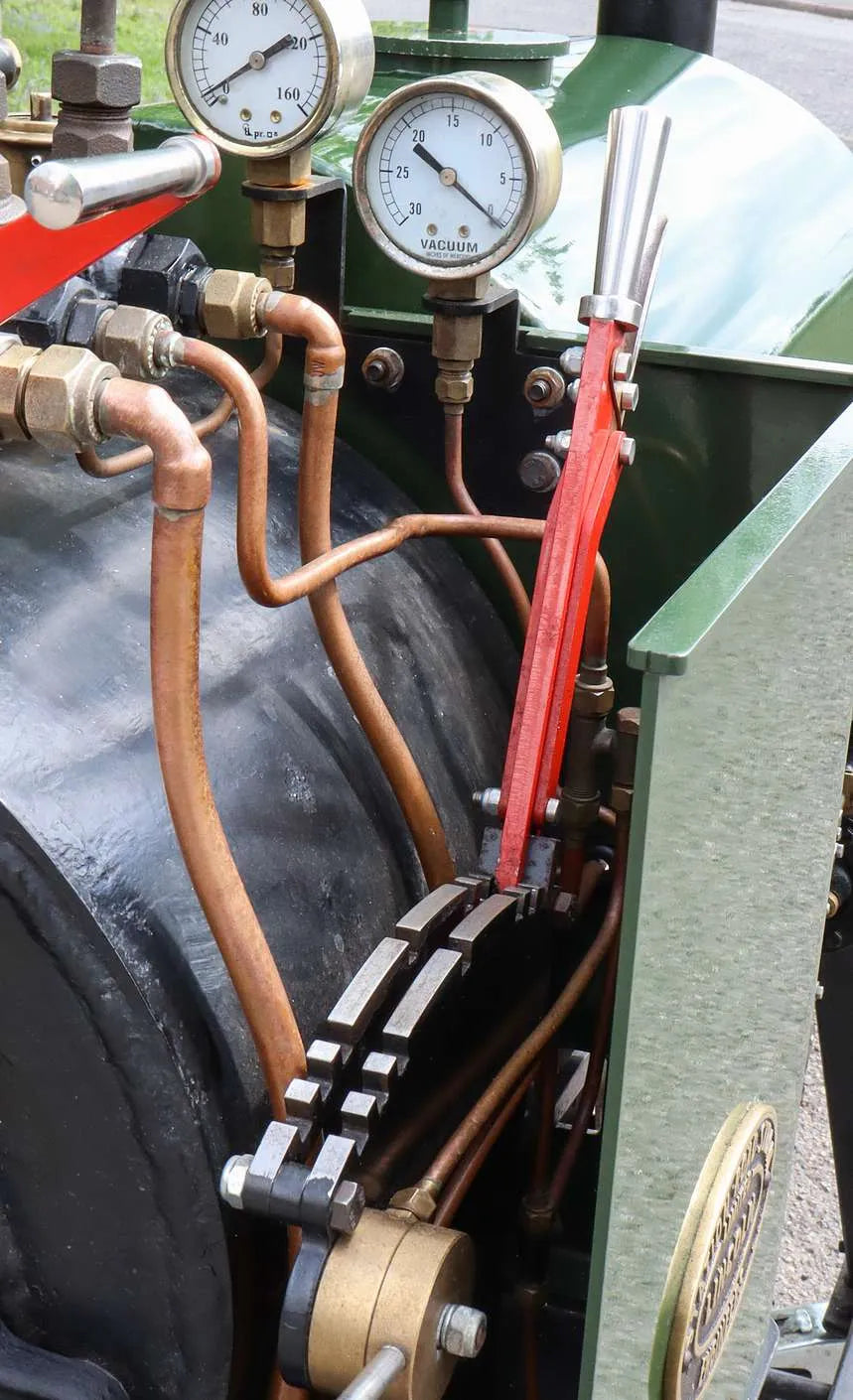

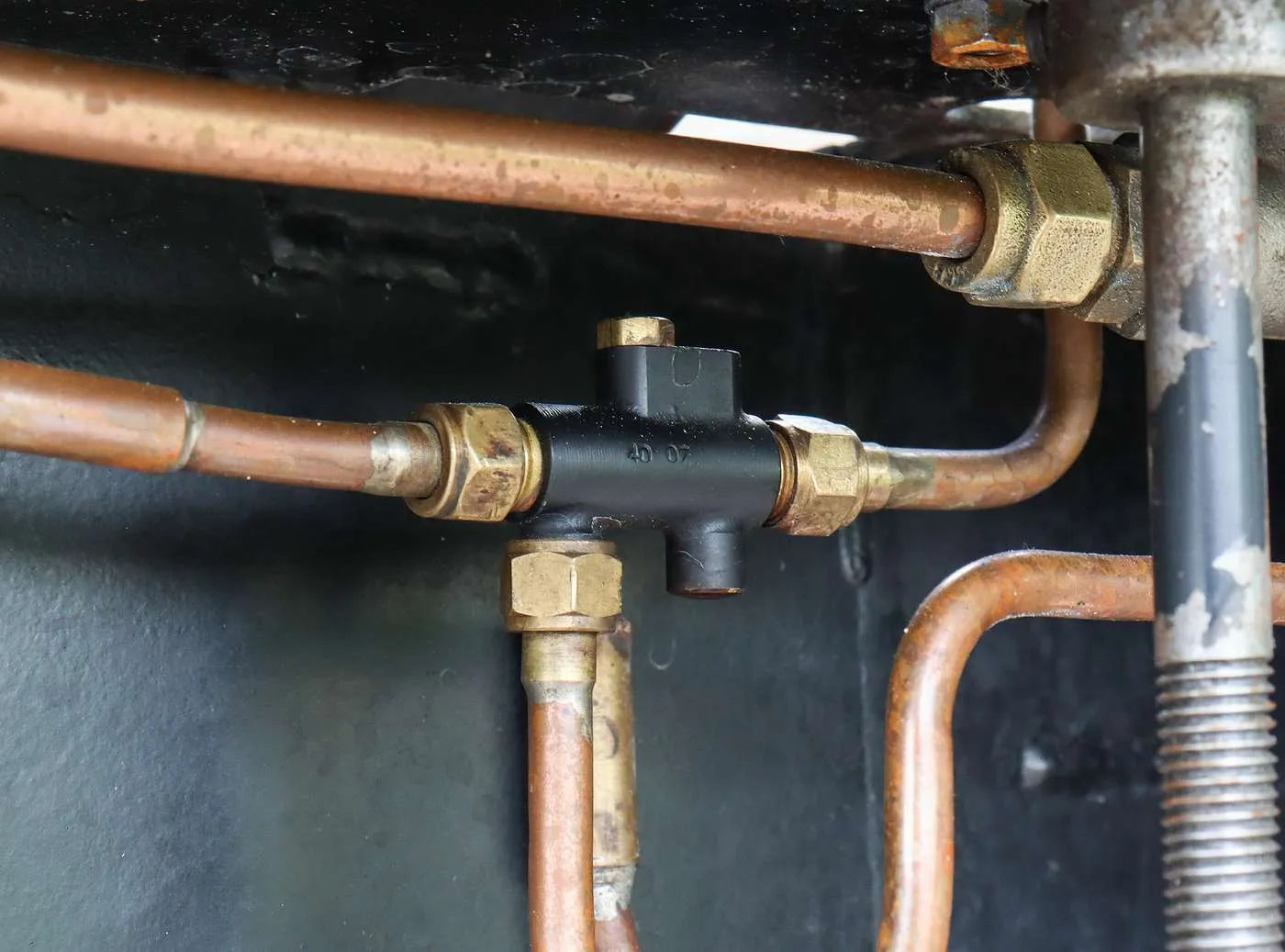

A one-owner engine, it has recently come back to us; the engine has been through the works for servicing, including fitting the latest type vacuum brake valve, coupling and connecting rod oil pots, snifting valves and valve chest pressure gauge.

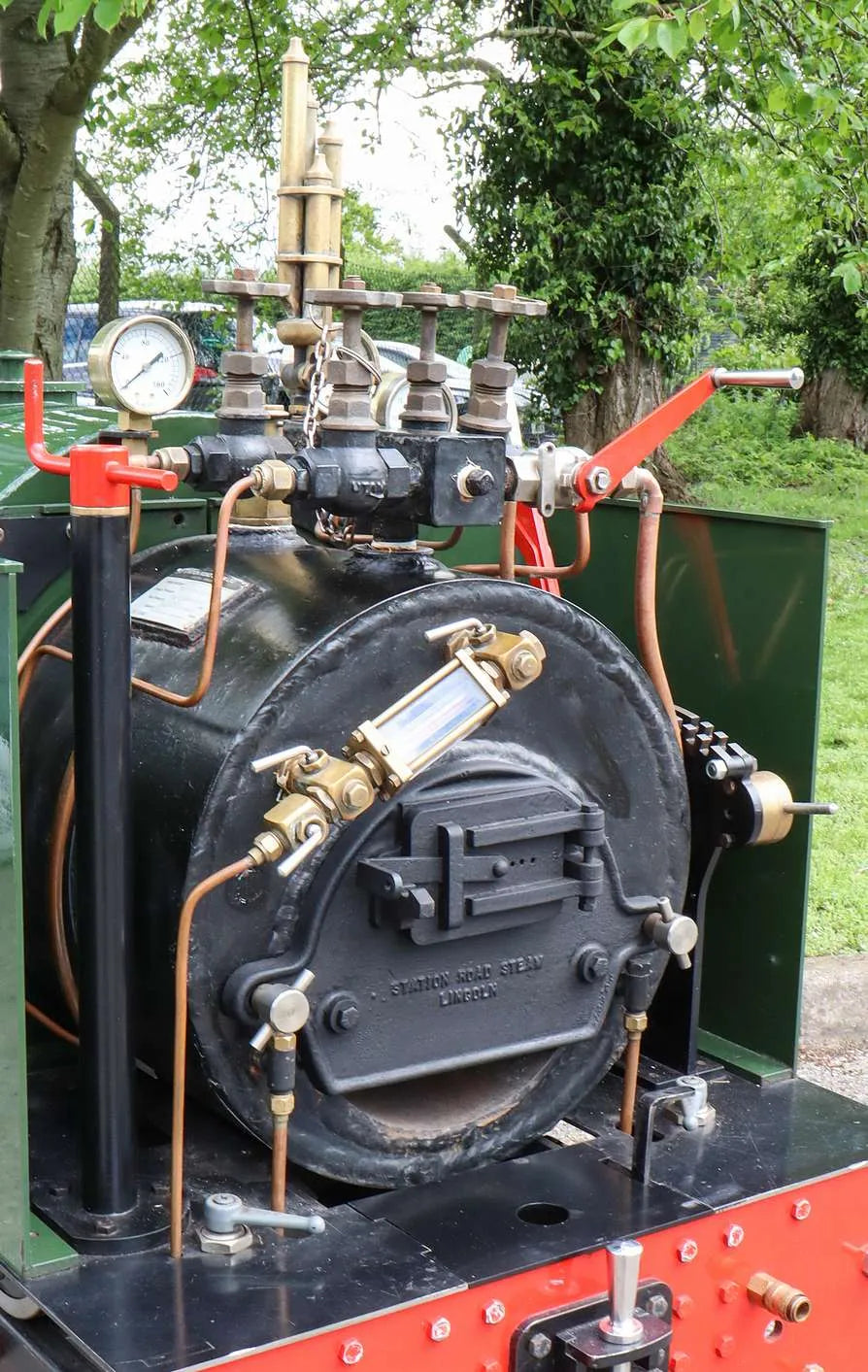

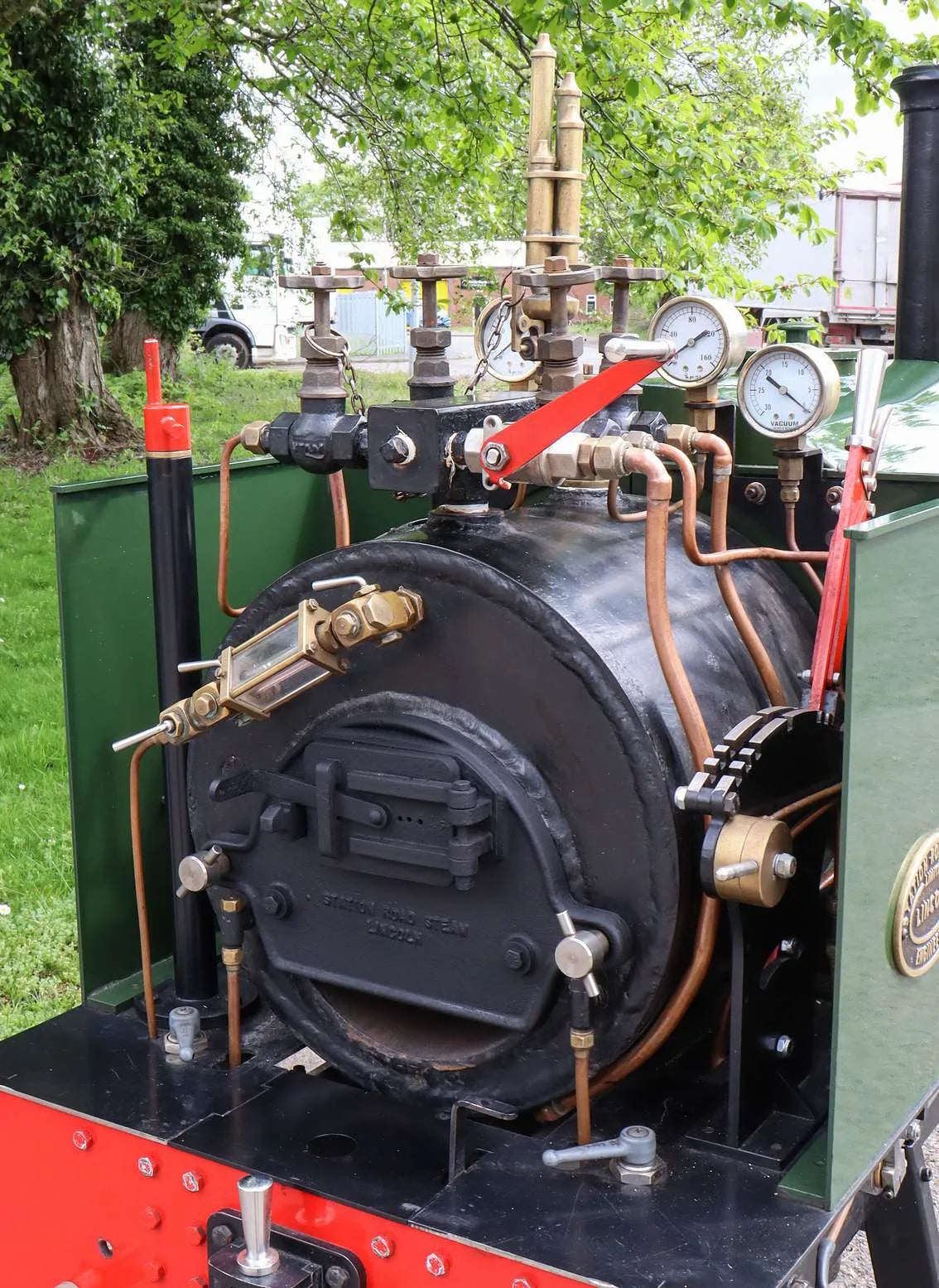

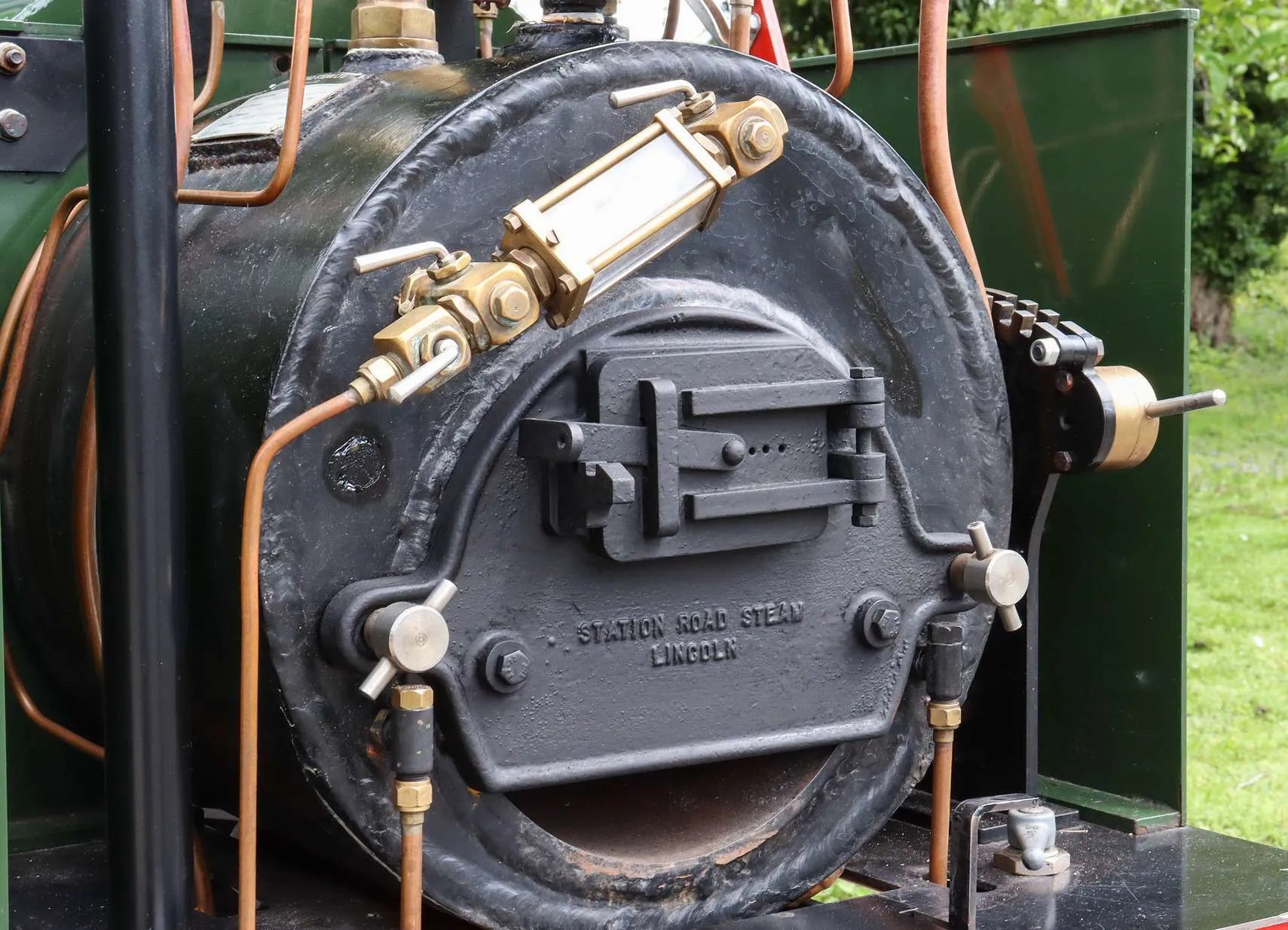

Boiler has had an inspection off the frames with cladding removed, followed by hydraulic and steam test with new certification issued.

Well-specified when first ordered, including braked four-wheeled driving truck, chime whistle, gauge glass protector and vacuum brake equipment. There is a two wheeled road trailer included, fitted out with rails and tie down points for locomotive.

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines.

Technical information

Stock code

9795

Gauge

7 1/4 inch

Length/inches

45

Width/inches

19

Height/inches

32

Weight/Kg

195

Wheel material

steel

Axlebox type

takeup bearing

Cylinder material

cast iron

Valve type

slide

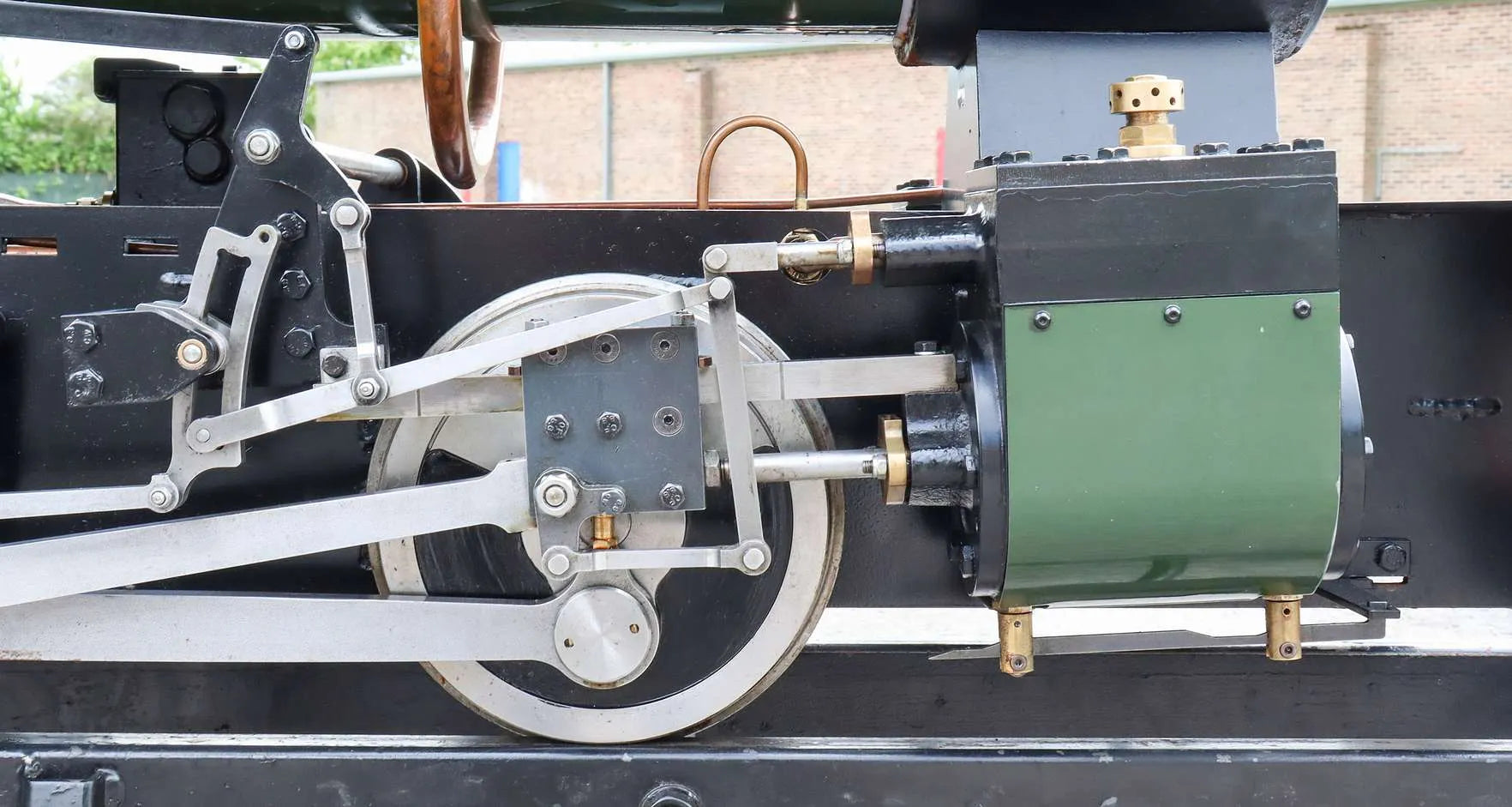

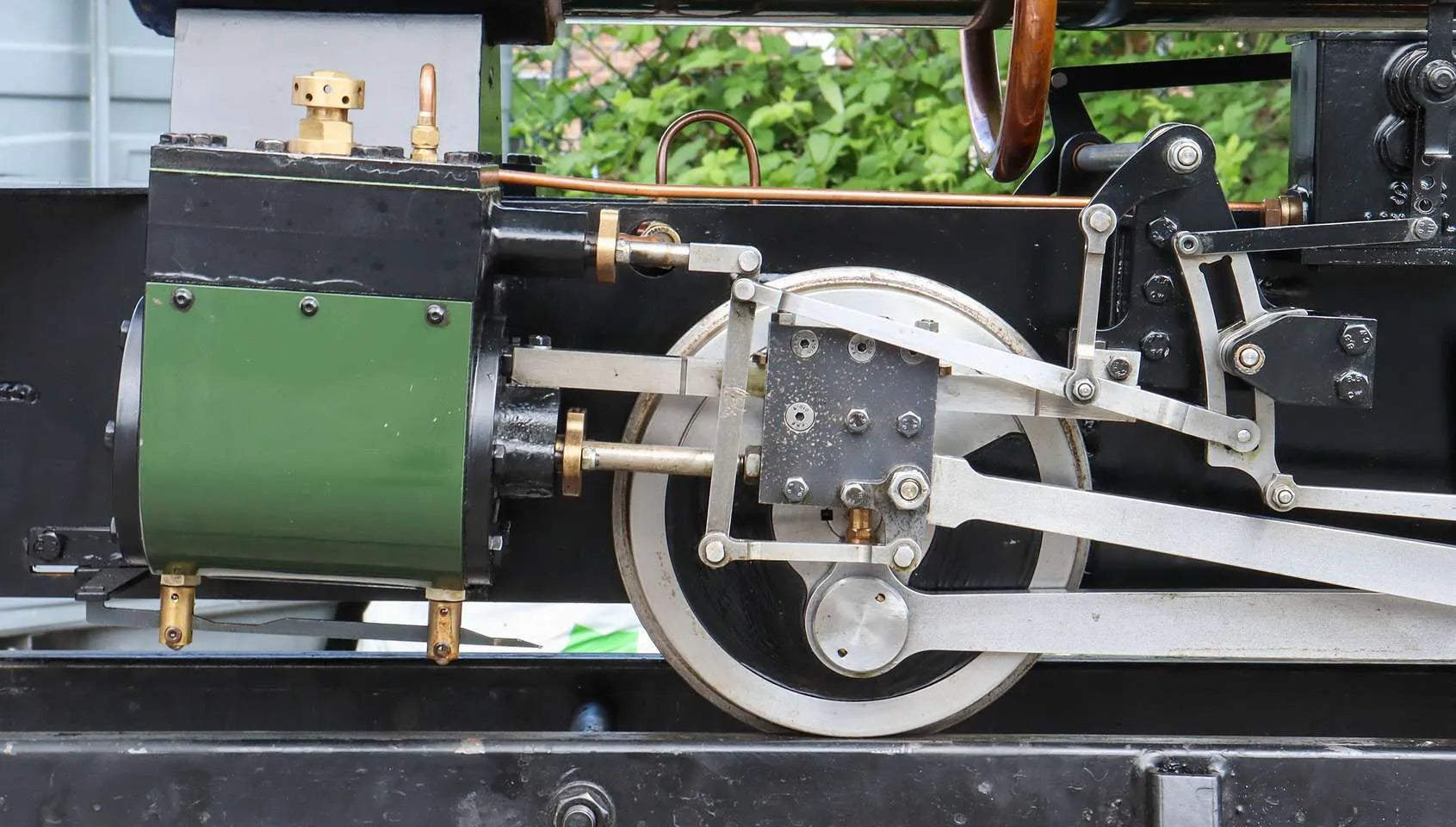

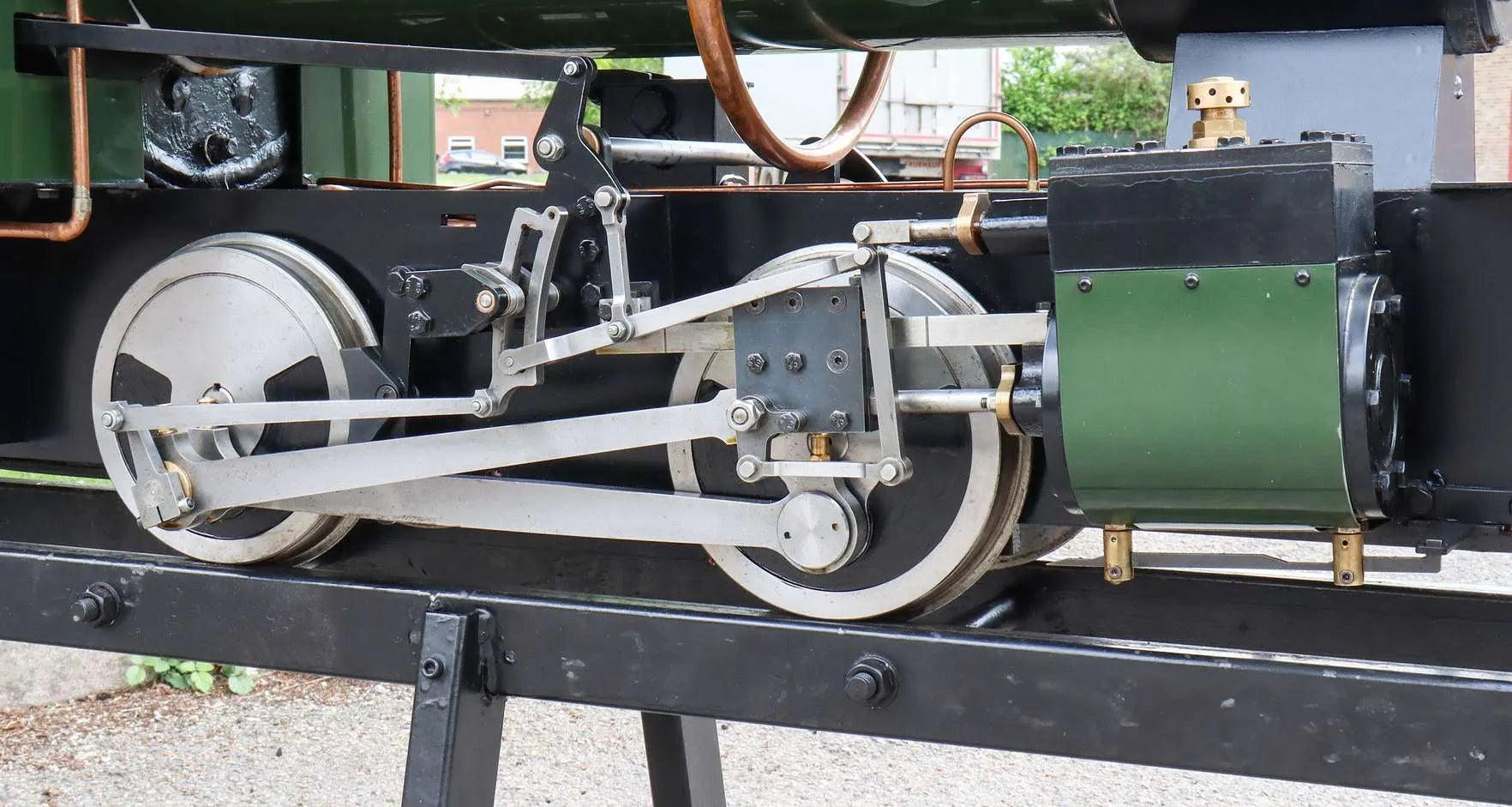

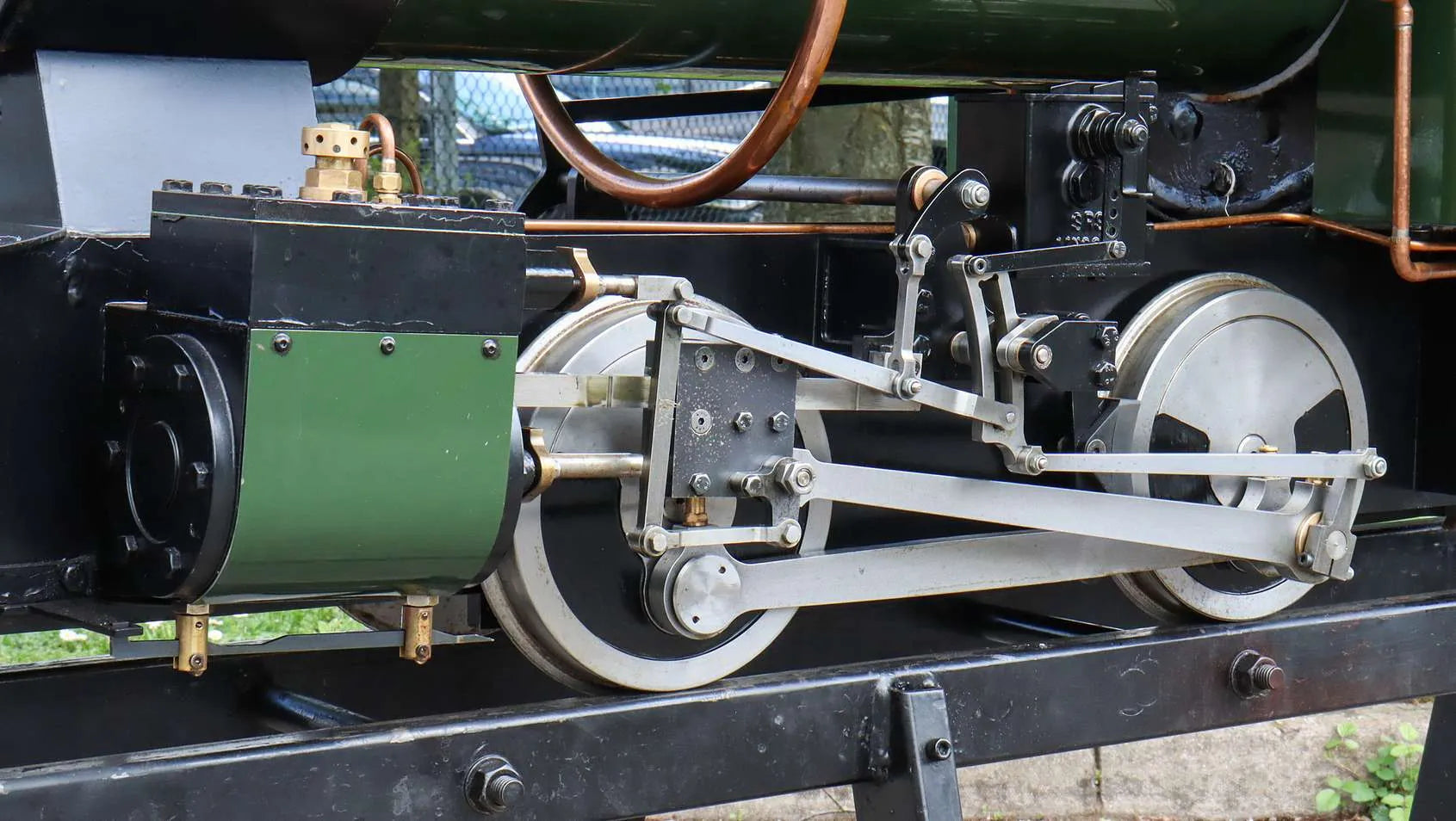

Valve gear

Walschaerts

Reverser type

pole

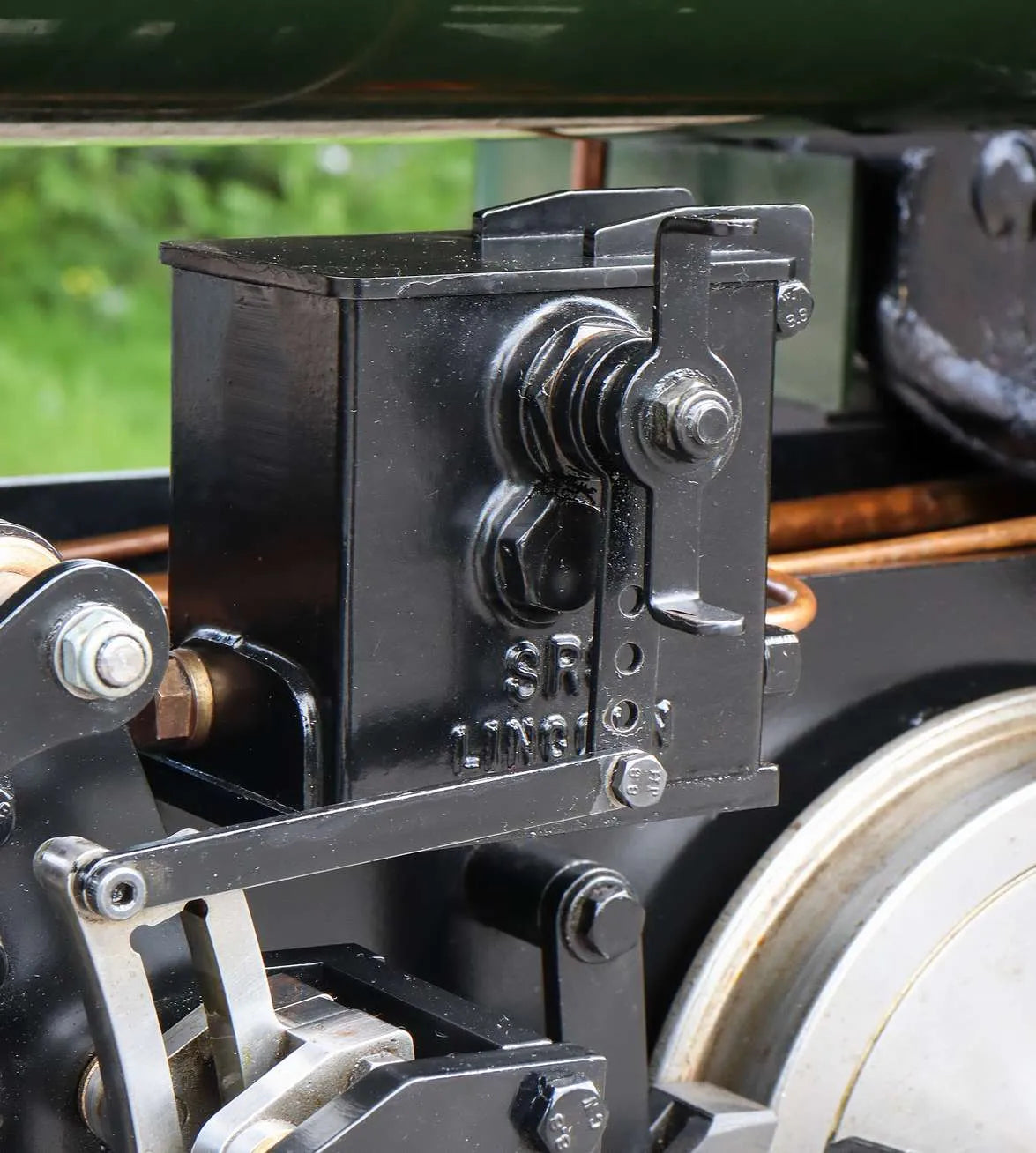

Lubricator type

mechanical

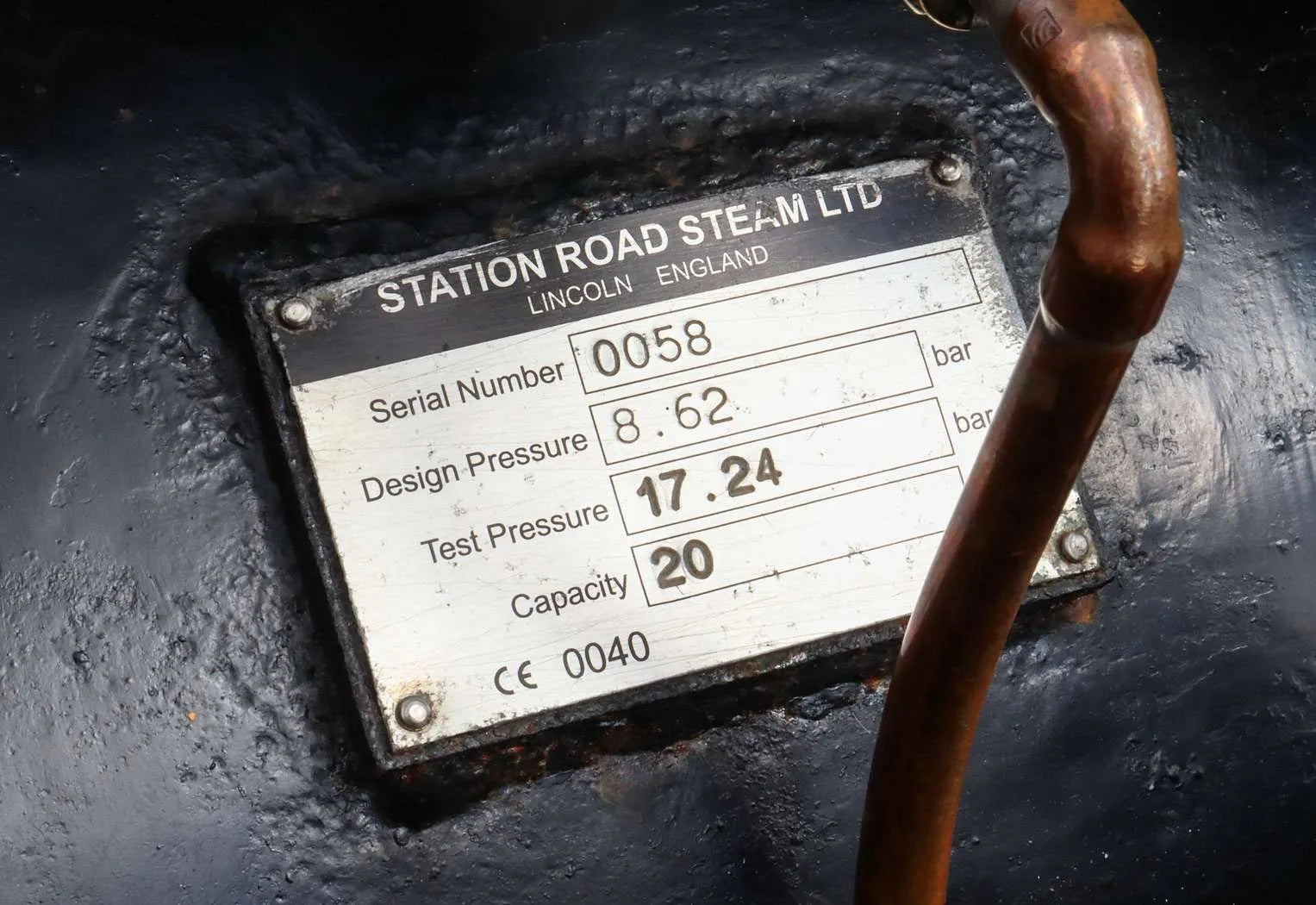

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2012

Boiler number

58

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2

Date out

Jun-23
