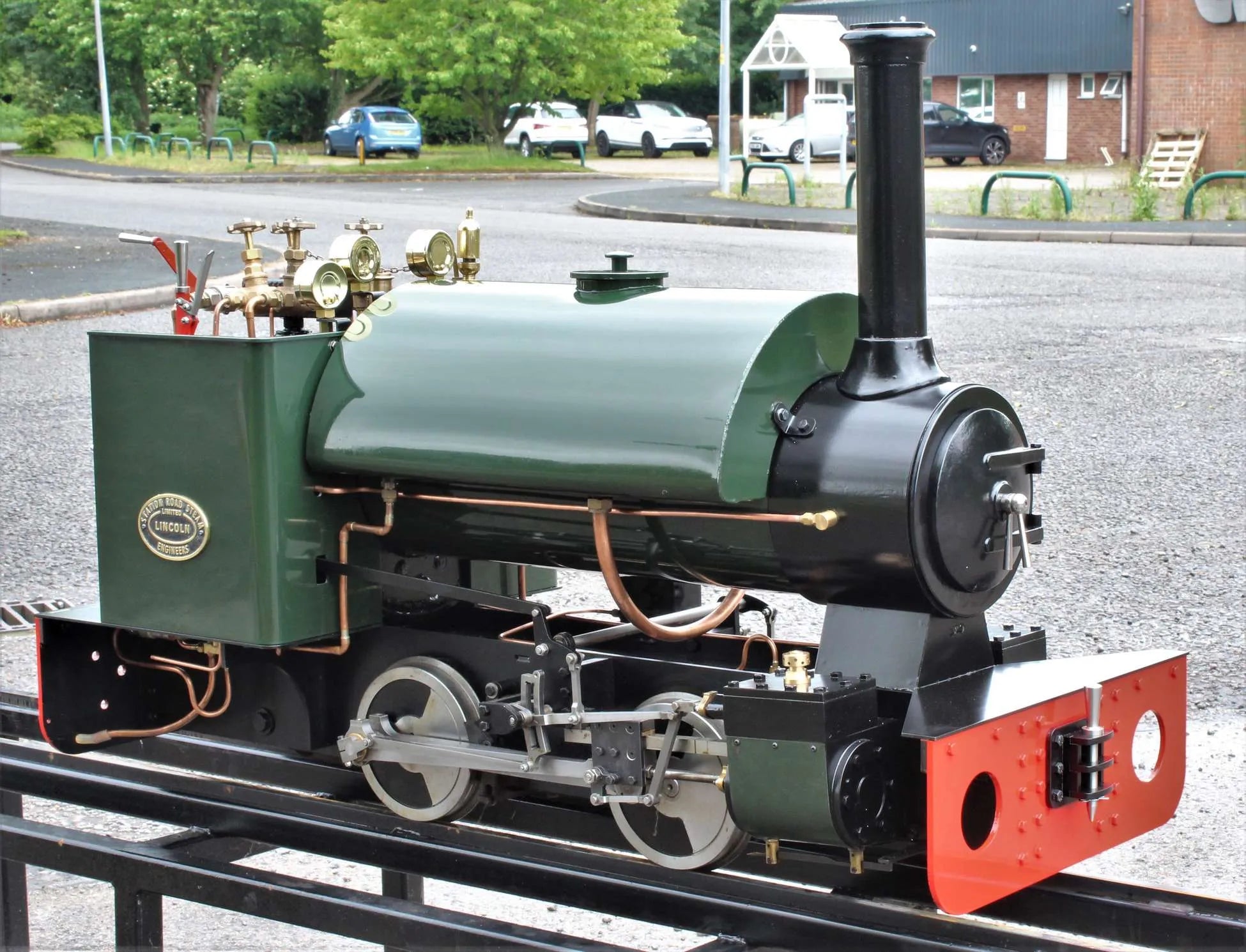

7 1/4 inch gauge Stafford 0-4-0ST with driving truck

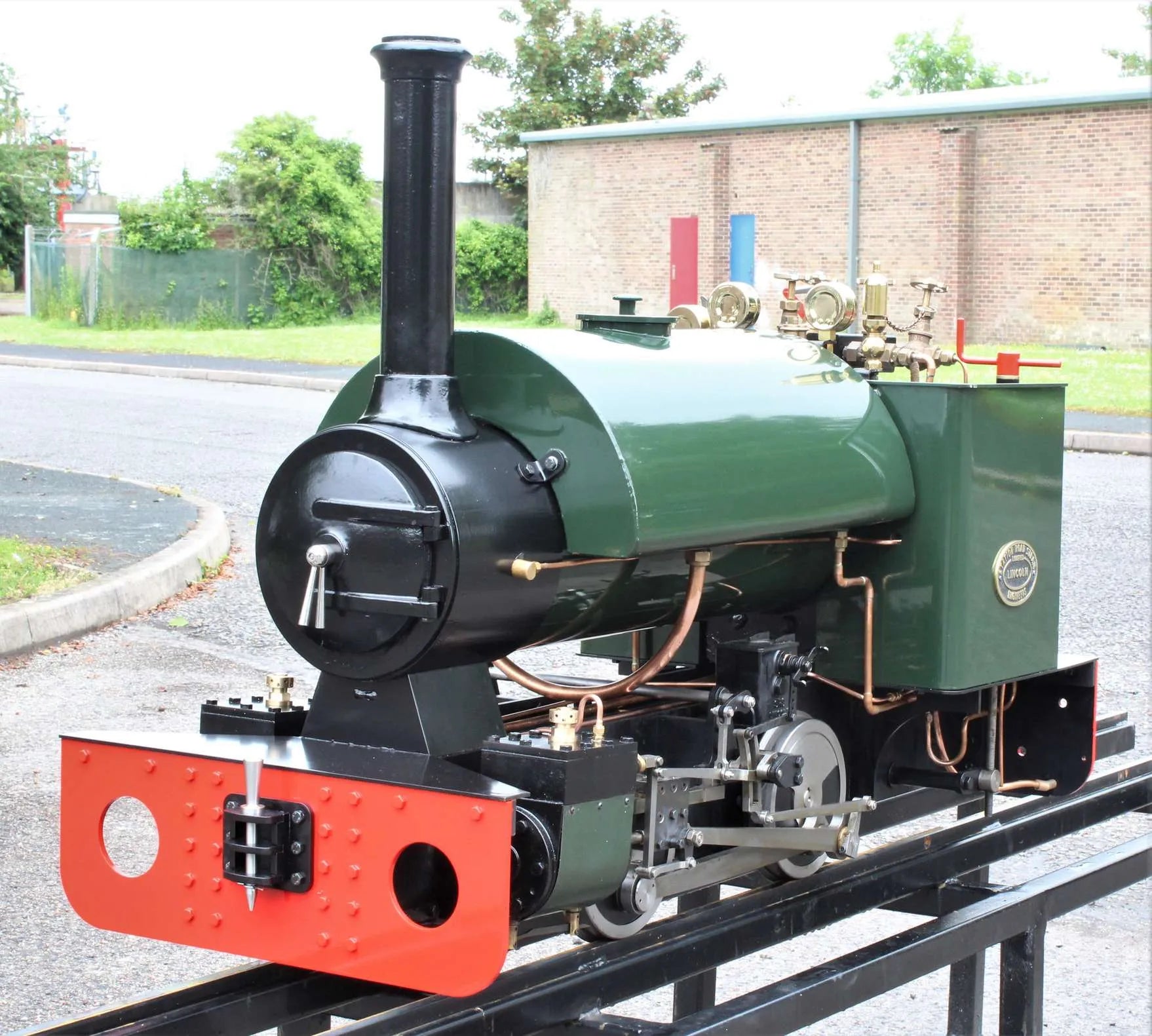

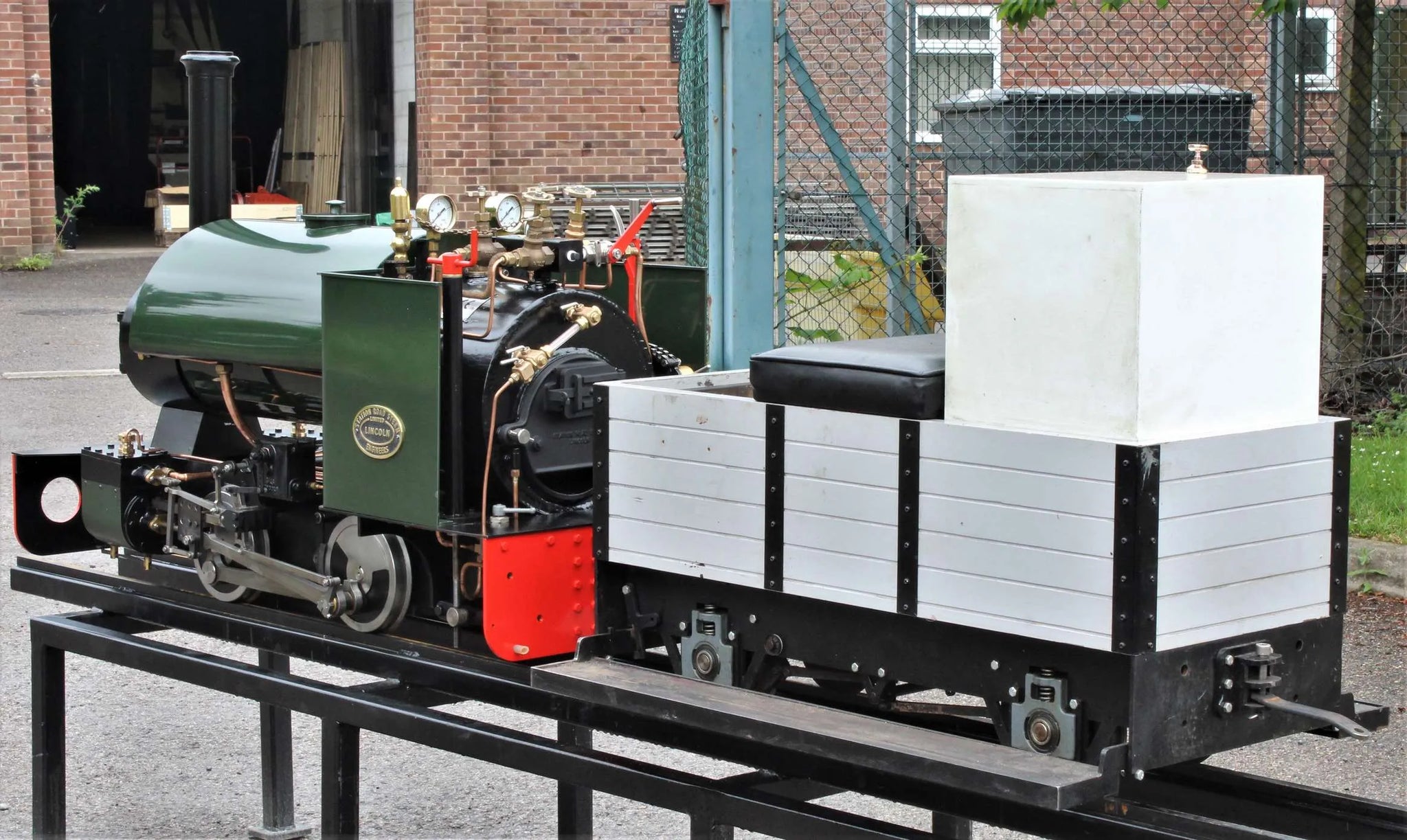

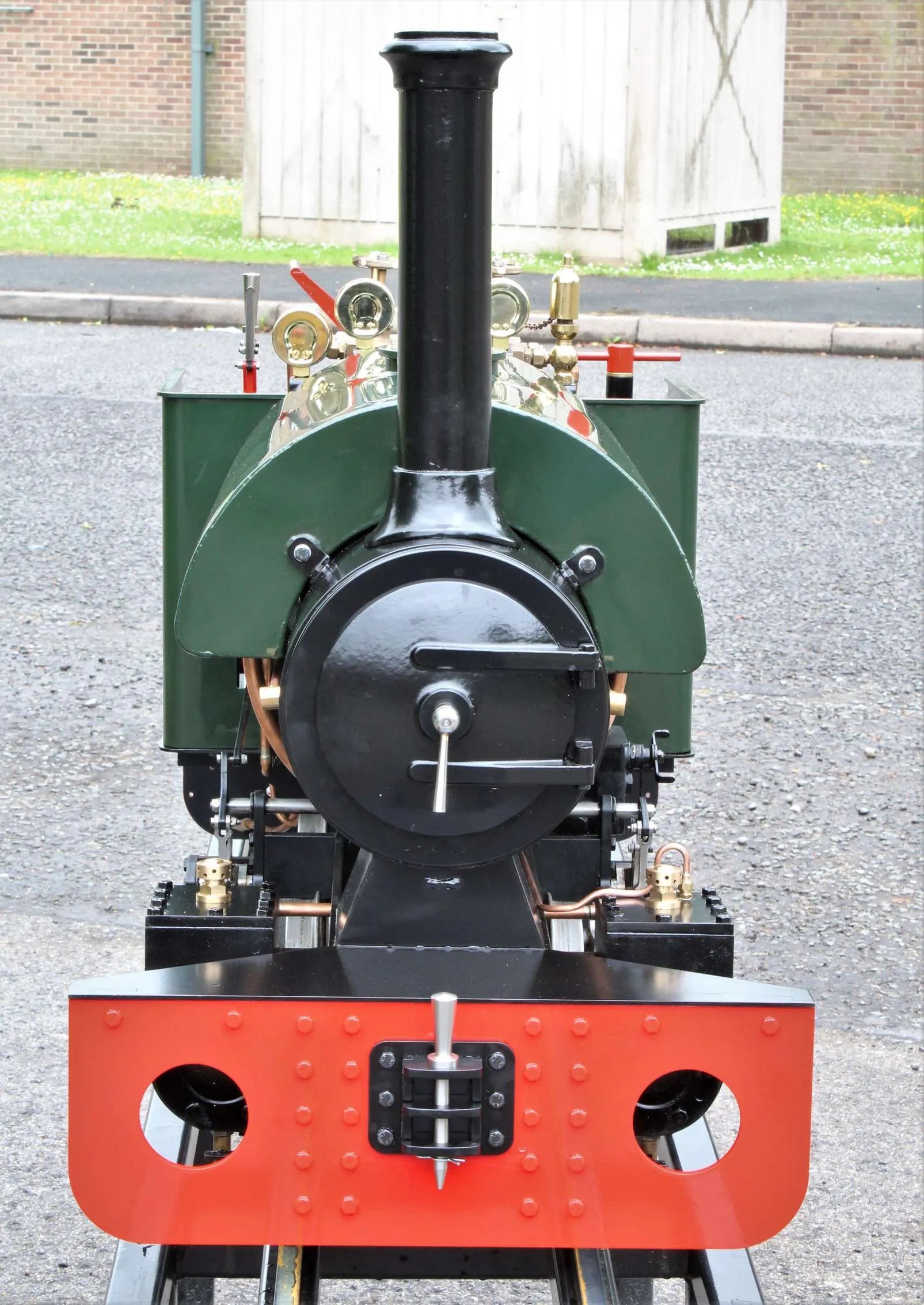

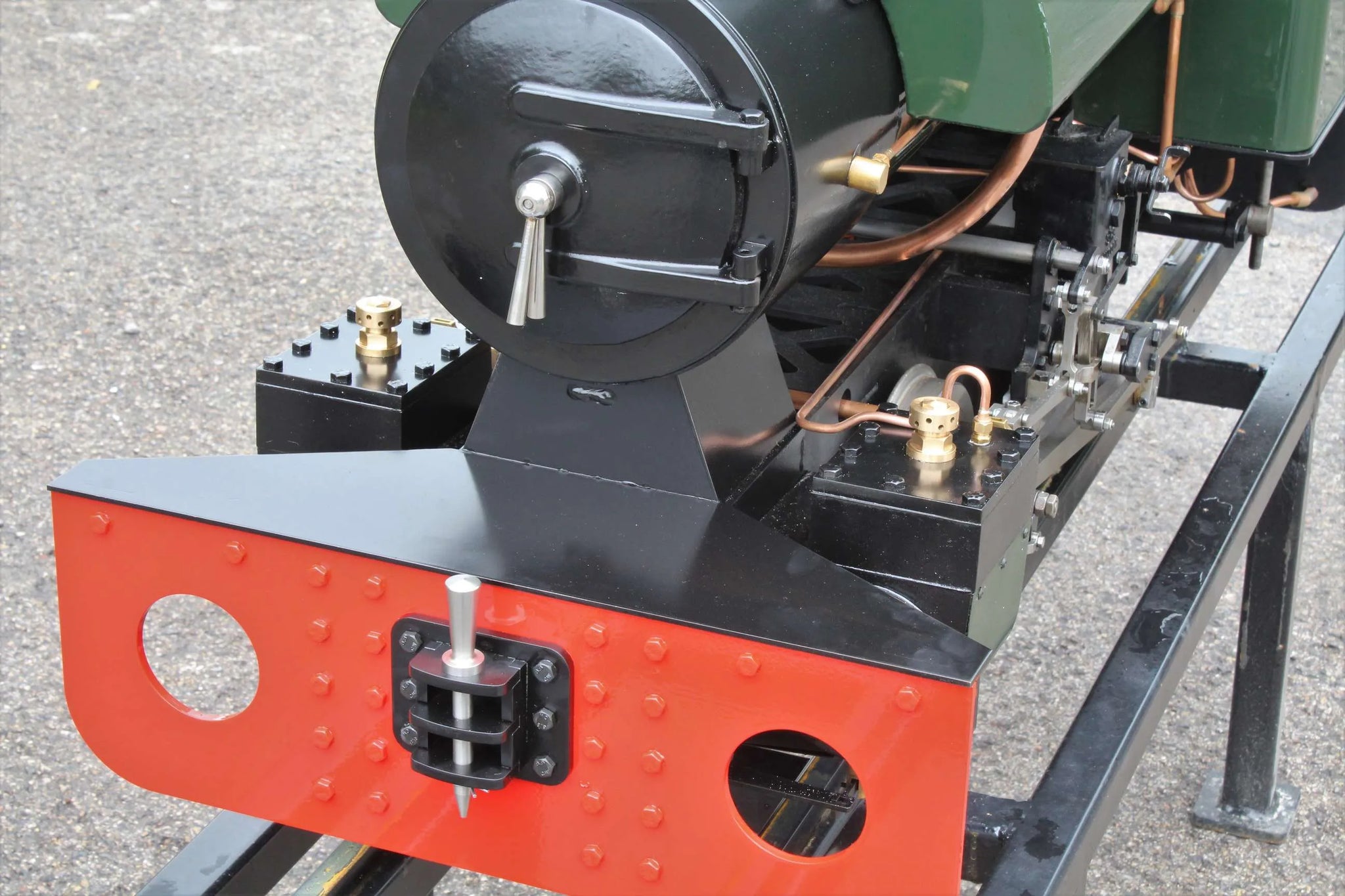

7 1/4 inch gauge factory built Stafford 0-4-0ST, works number 1349, a one owner engine delivered new in October 2013, supplied with optional whistle, vacuum brake equipment, front coupling and braked driving truck.

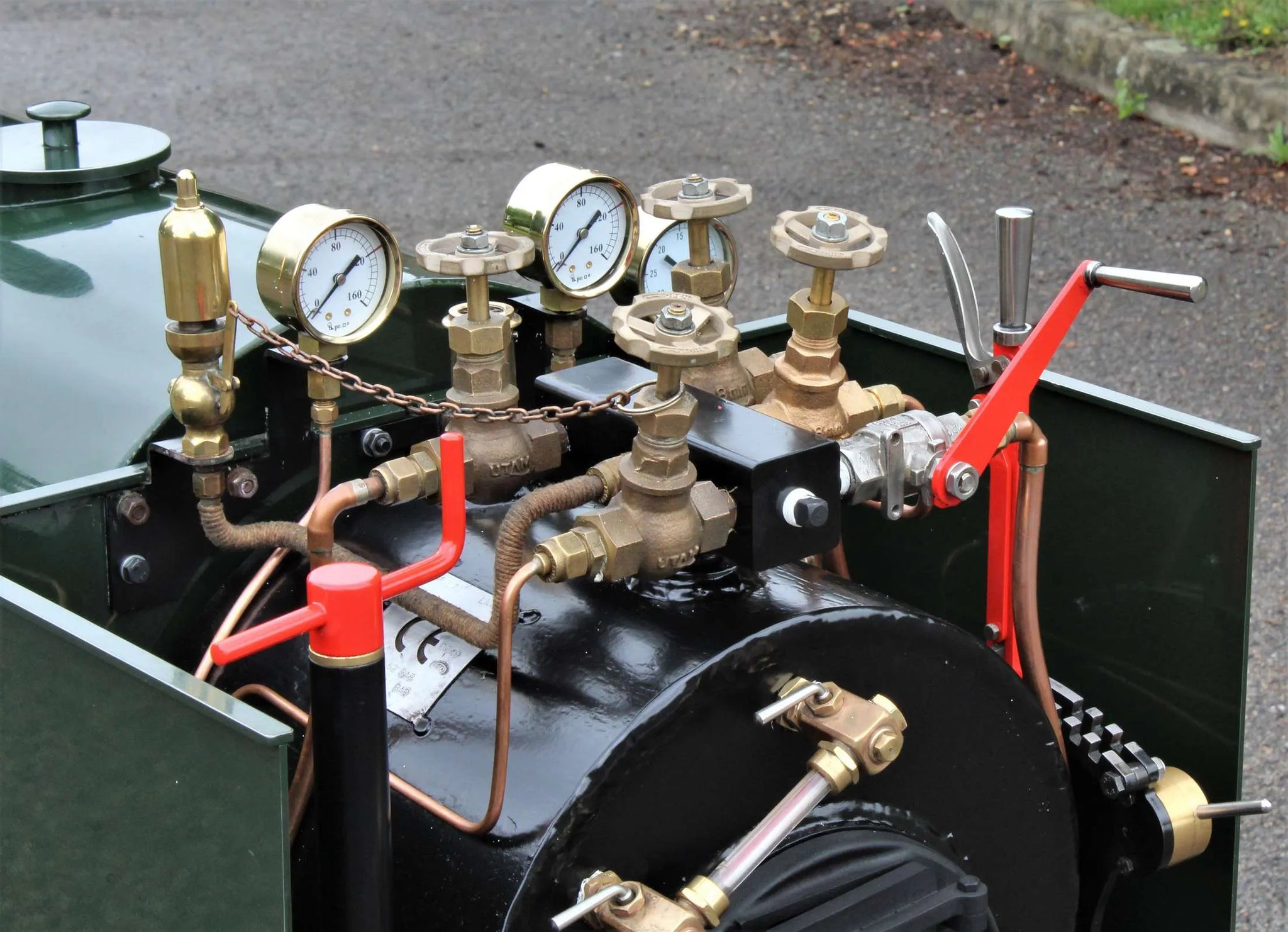

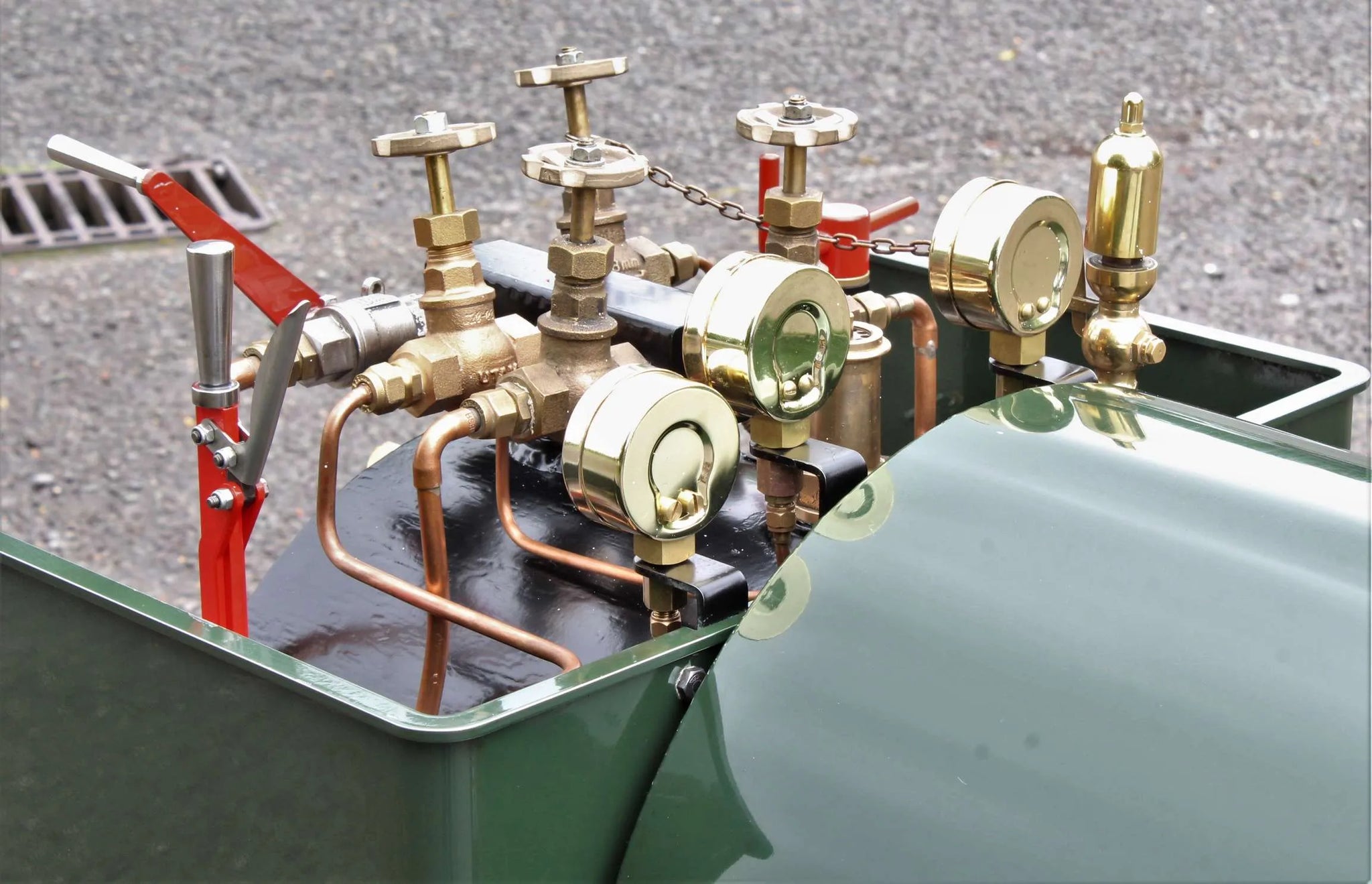

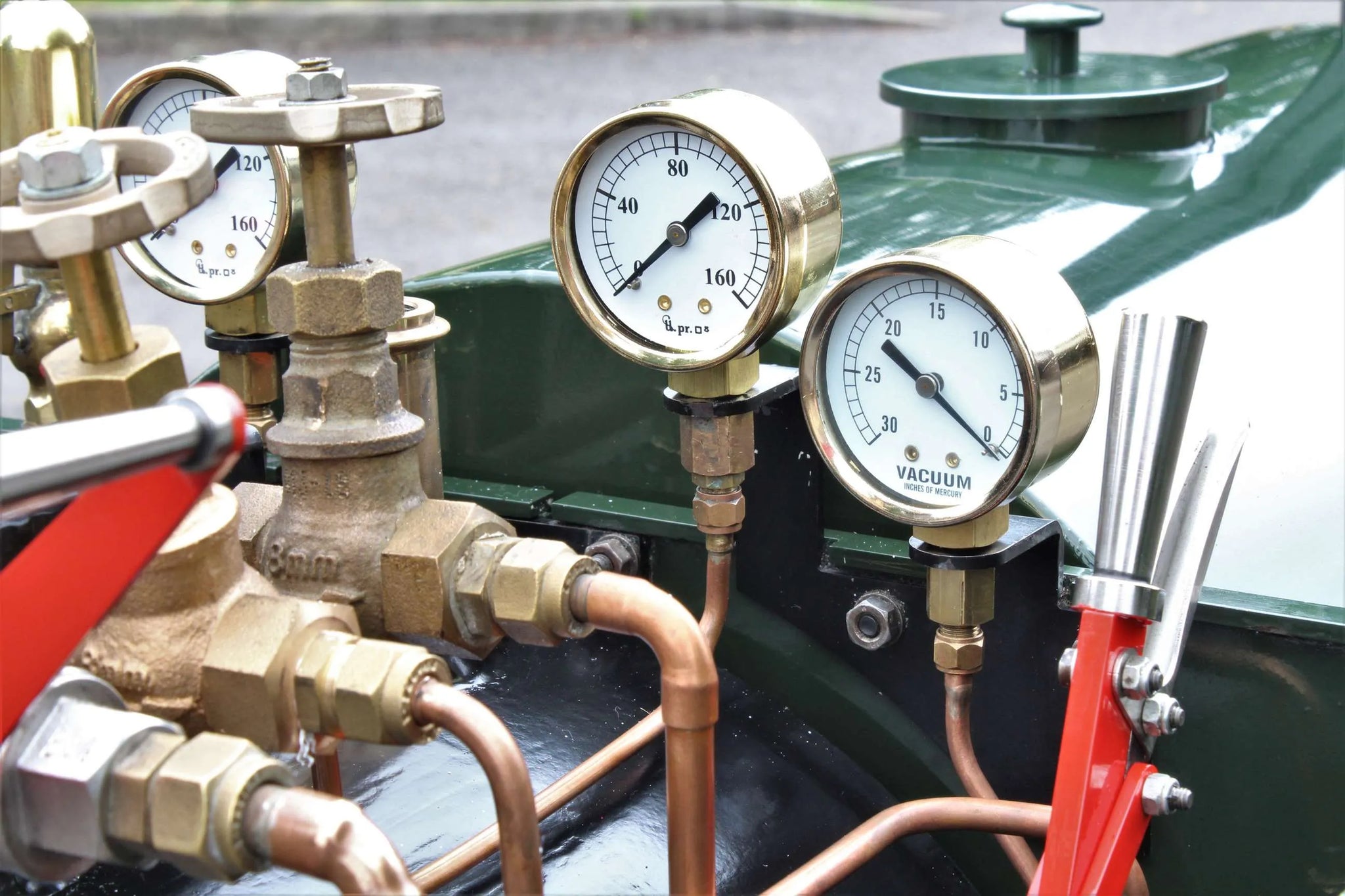

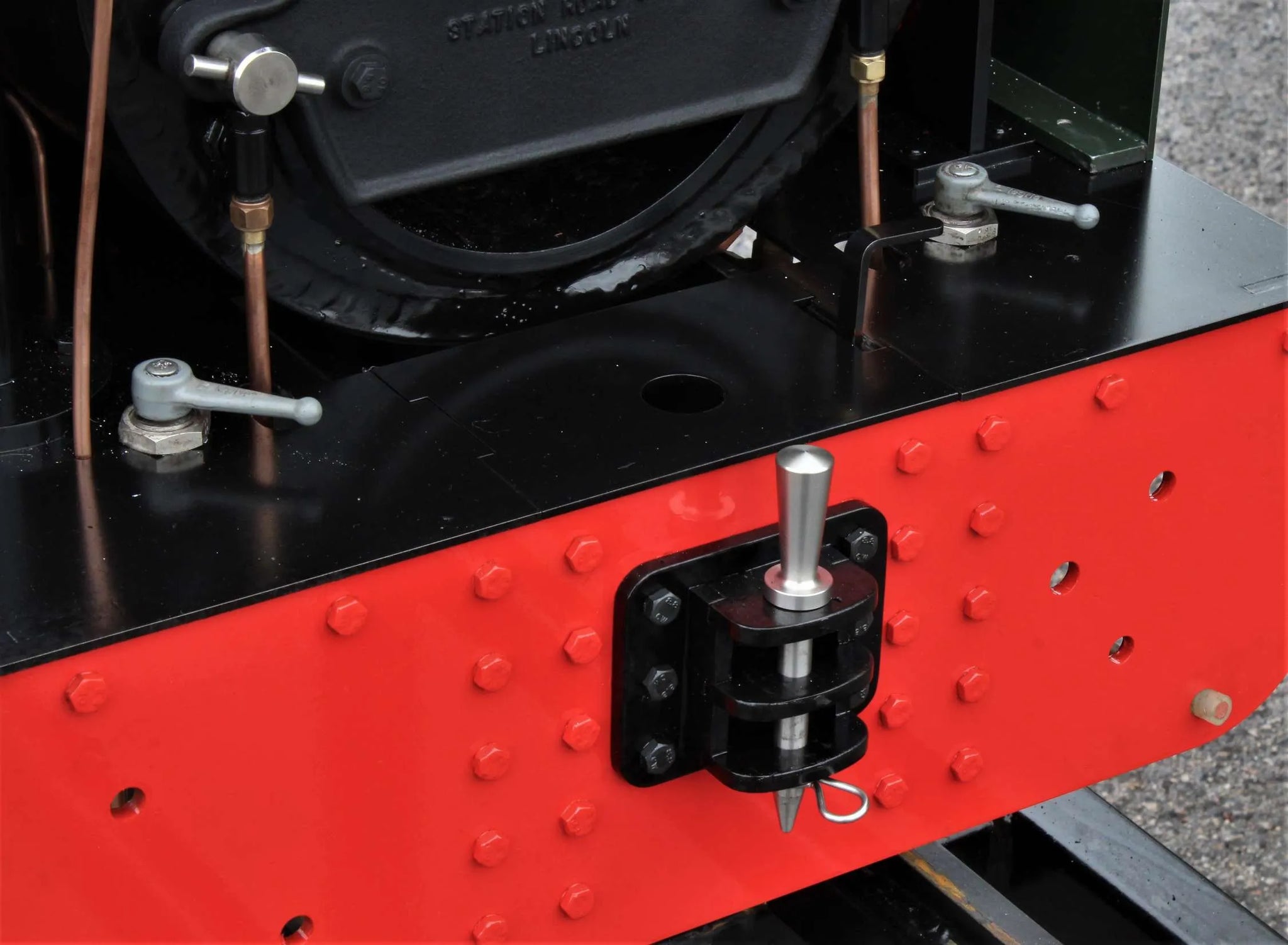

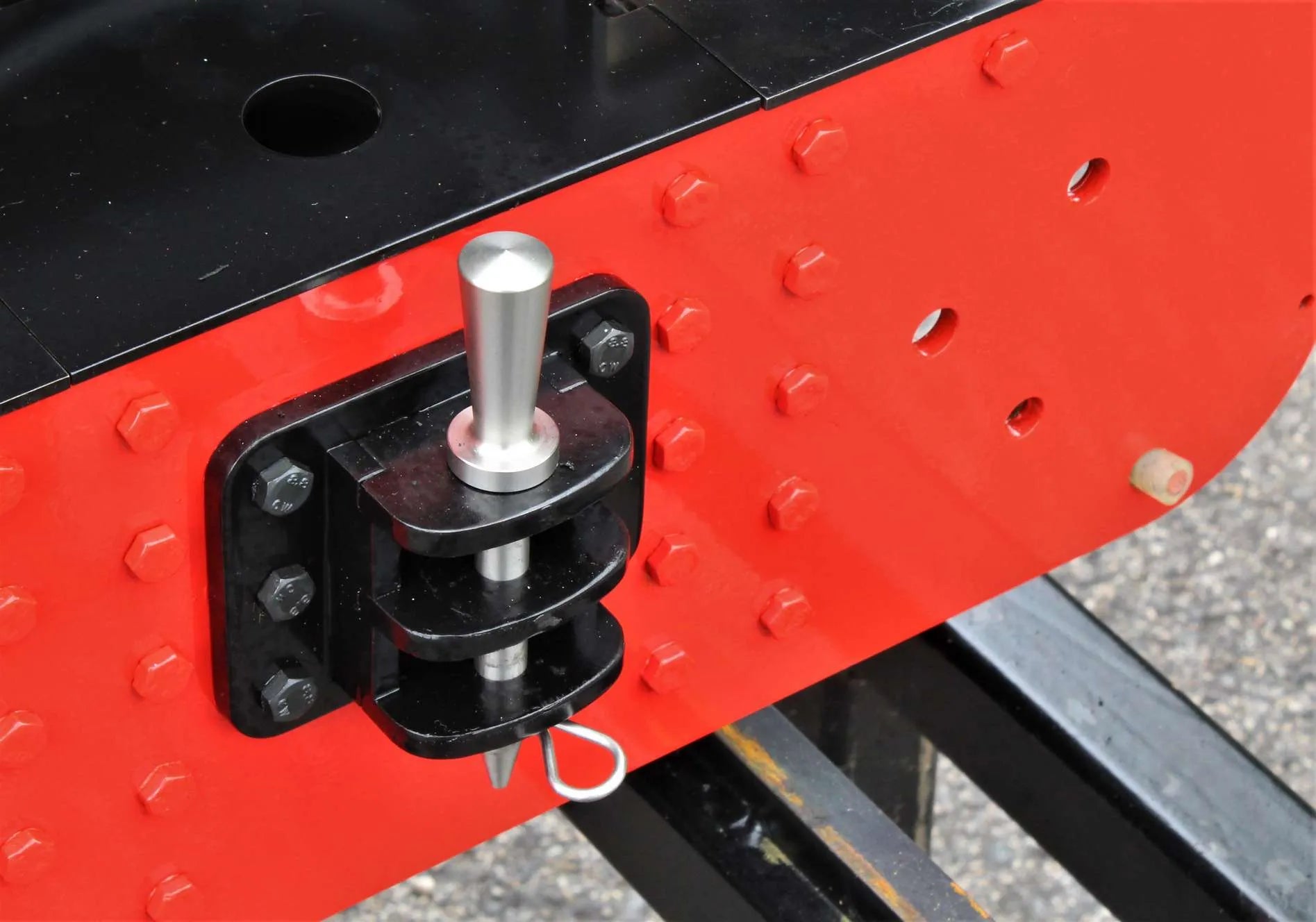

Since arriving back it has been through the workshop: we've retubed the boiler which has had a cladding off inspection and hydraulic test; fitted latest specification axlebox springs, stainless coupling pins, snifting valves, valve chest pressure gauge and cast steam valve handwheels.

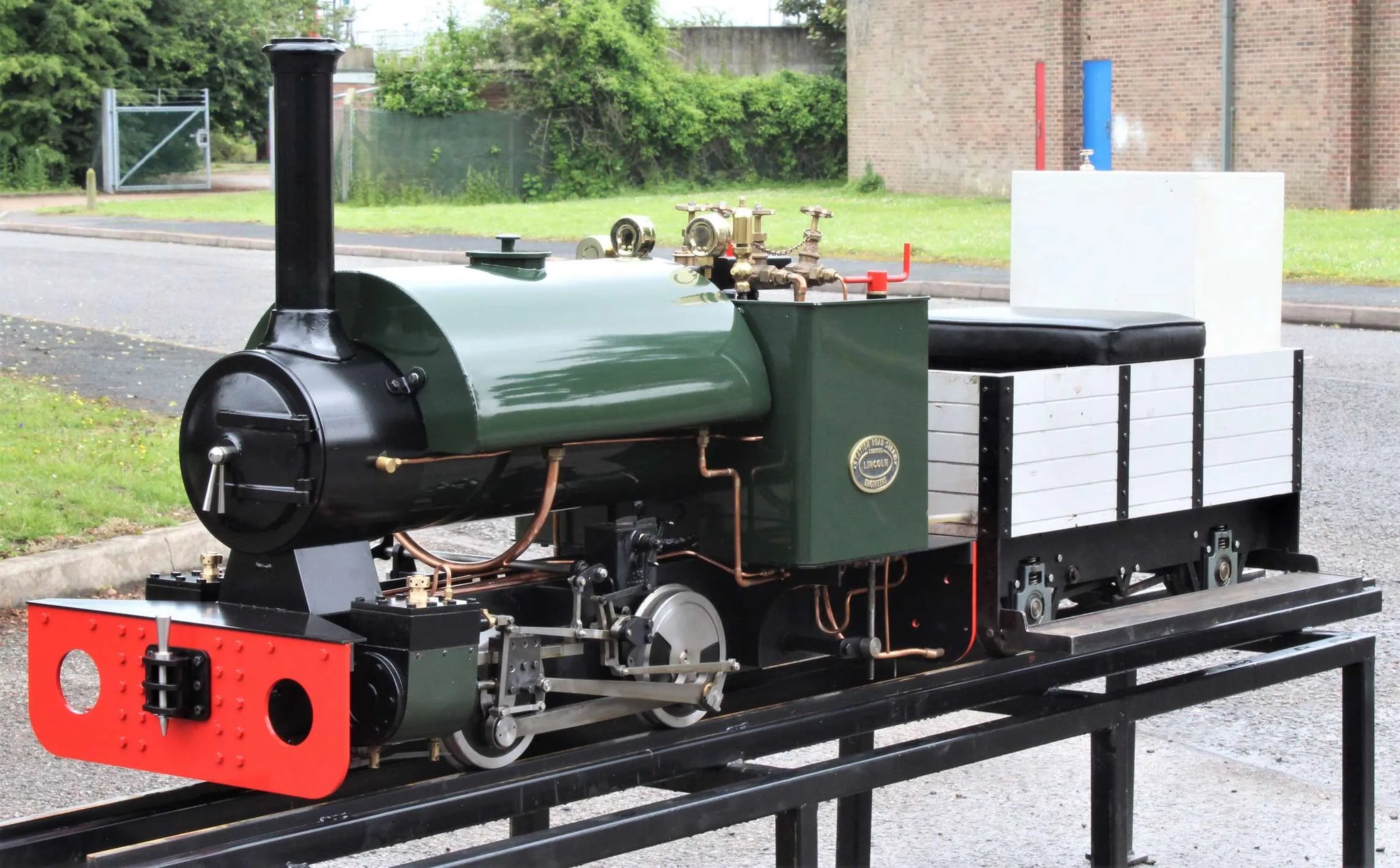

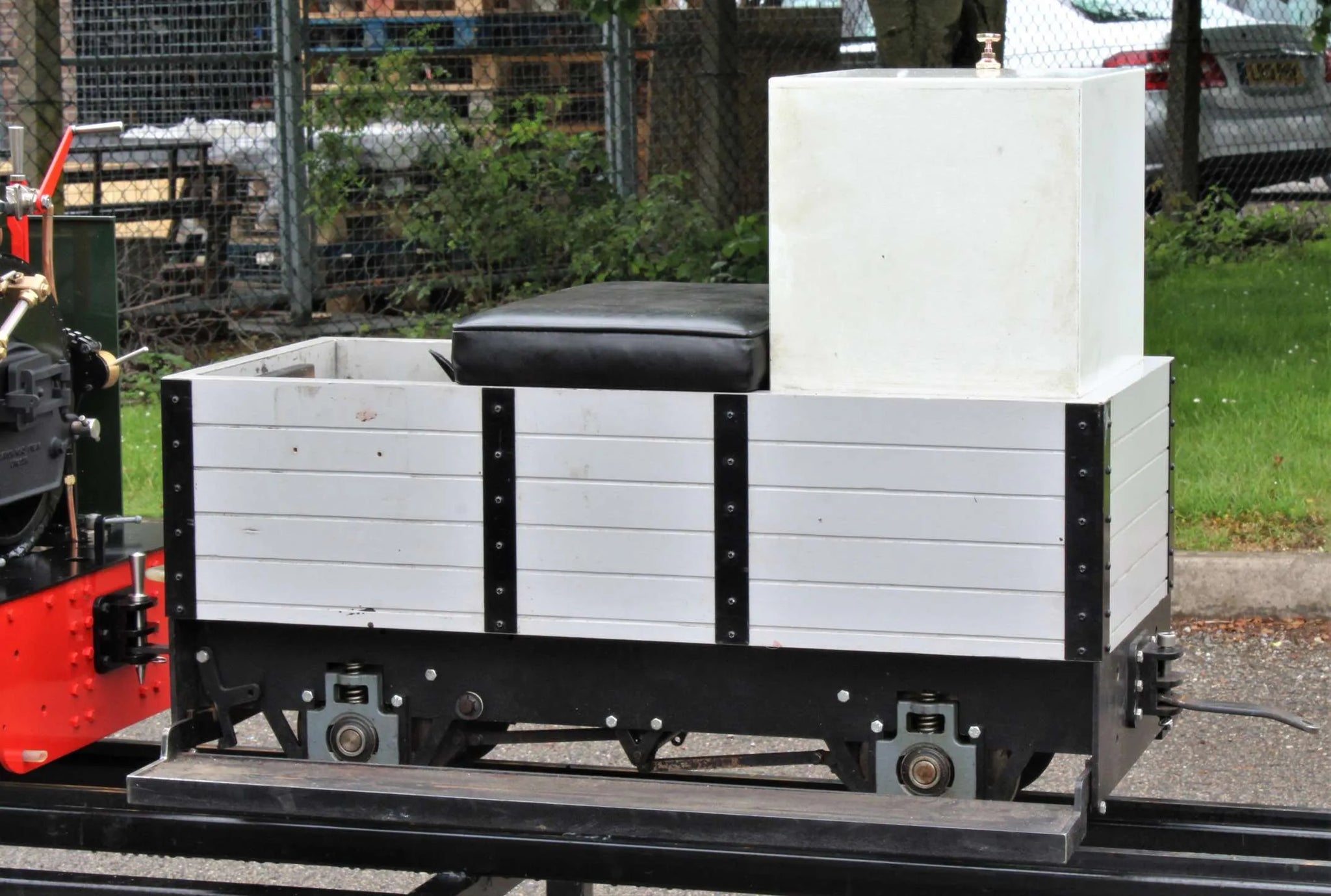

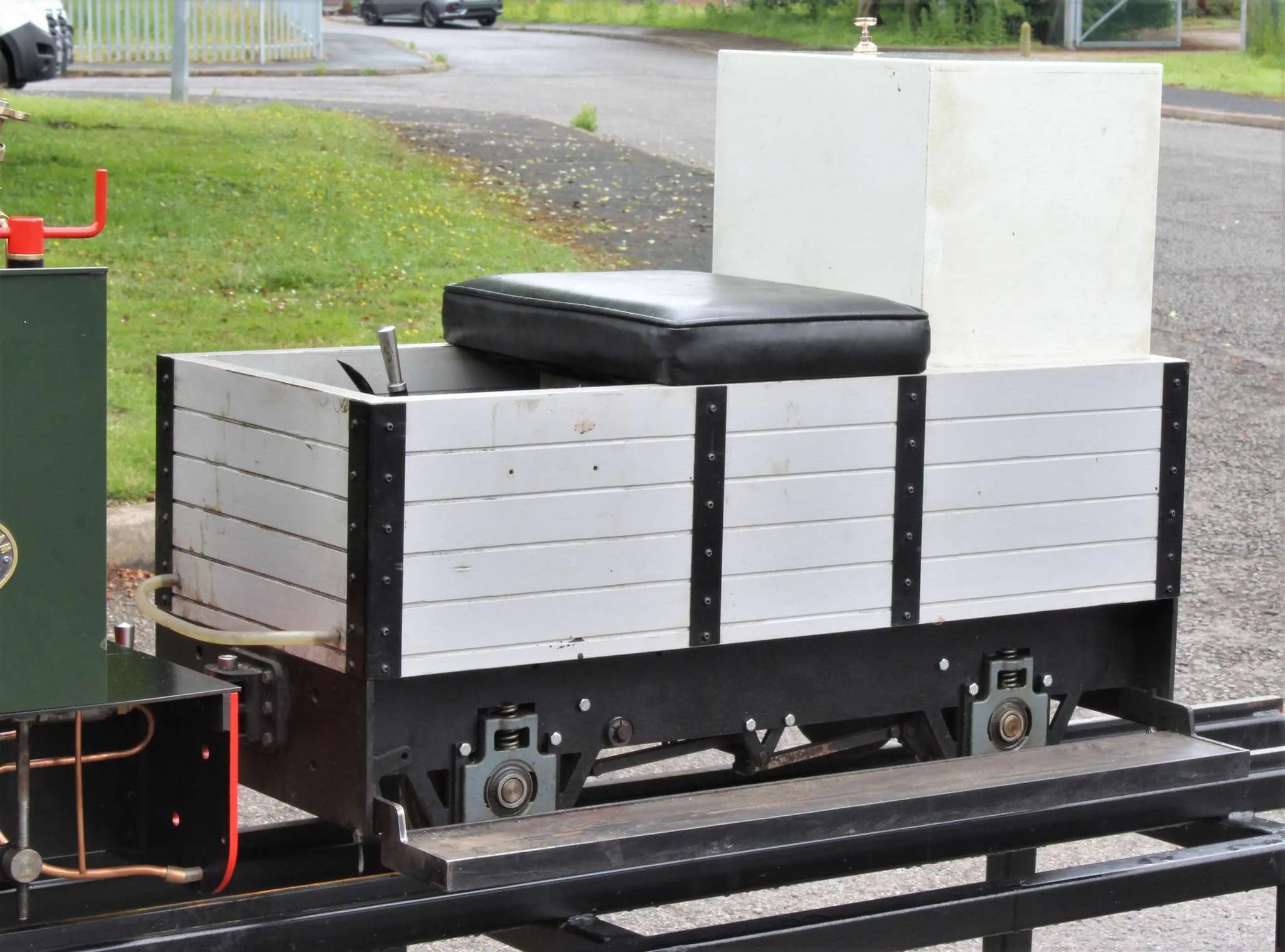

Driving truck is by Ride on Railways - we've supplied these for many Staffords over the years. As with all RoR stuff, it's a well thought out, bullet proof bit of kit, running on sealed self-aligning roller bearings with a hand operated disc brake.

Supplied with handbook, 12 months warranty and starter kit of firing irons, coal, oil and water treatment - exactly the same as we offer on our new engines.

Technical information

Stock code

9703

Gauge

7 1/4 inch

Length/inches

45

Width/inches

19

Height/inches

32

Weight/Kg

195

Wheel material

EN8 steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

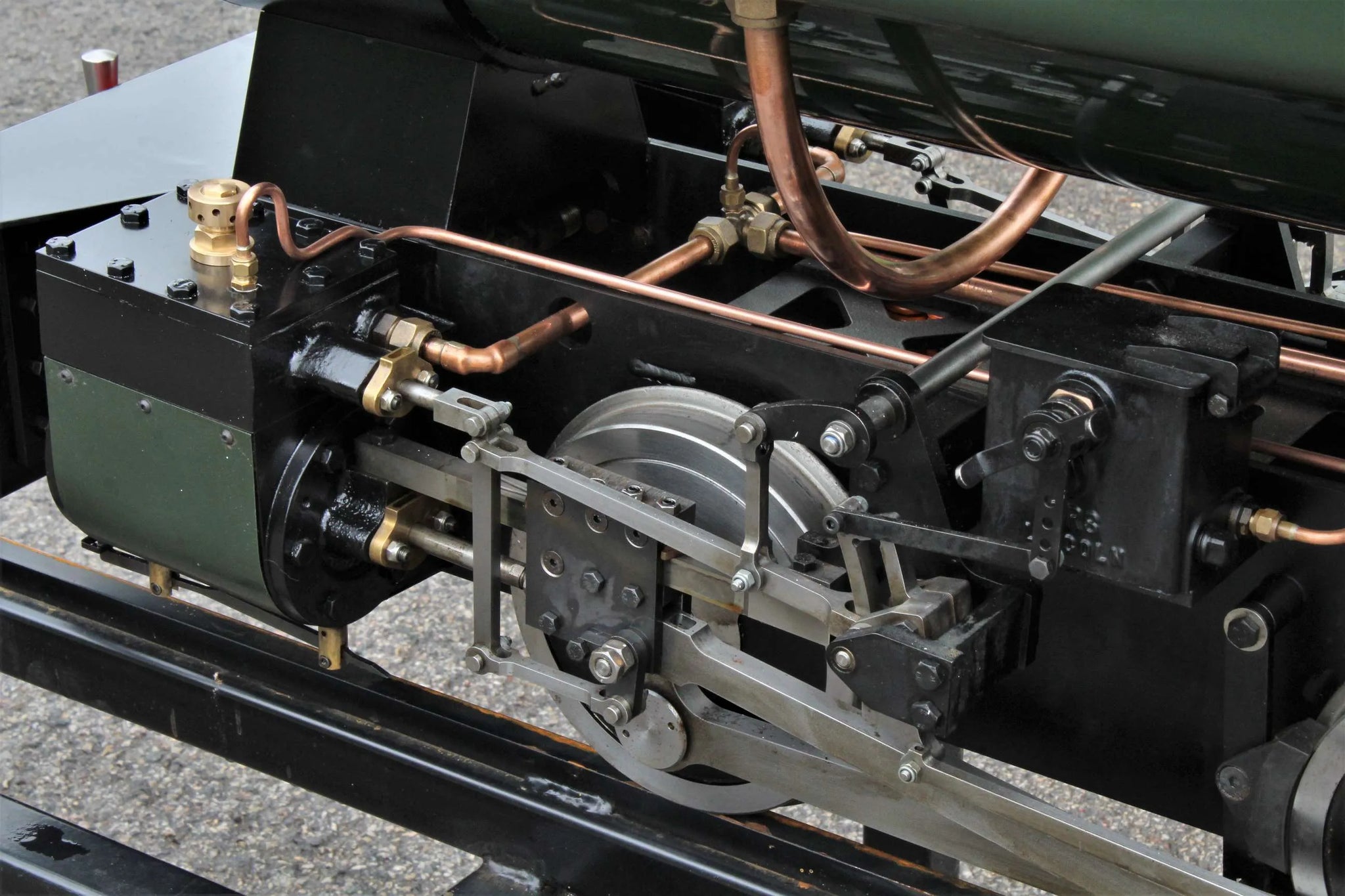

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2013, retubed 2021

Boiler number

67

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Injector

2 x 2.6 pint/min

Nominal traction

238

Minimum radius

20

Date out

Jul-21
