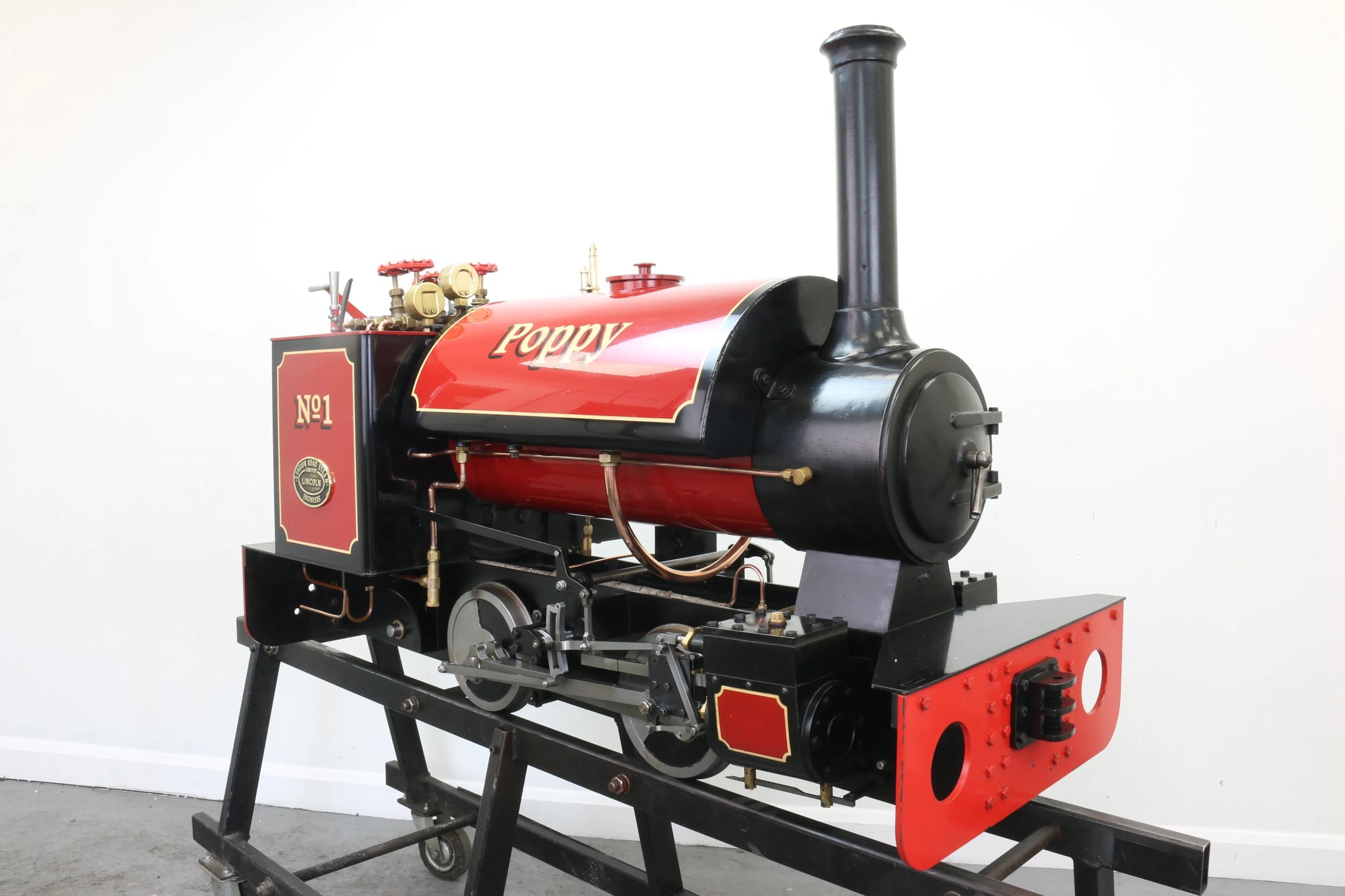

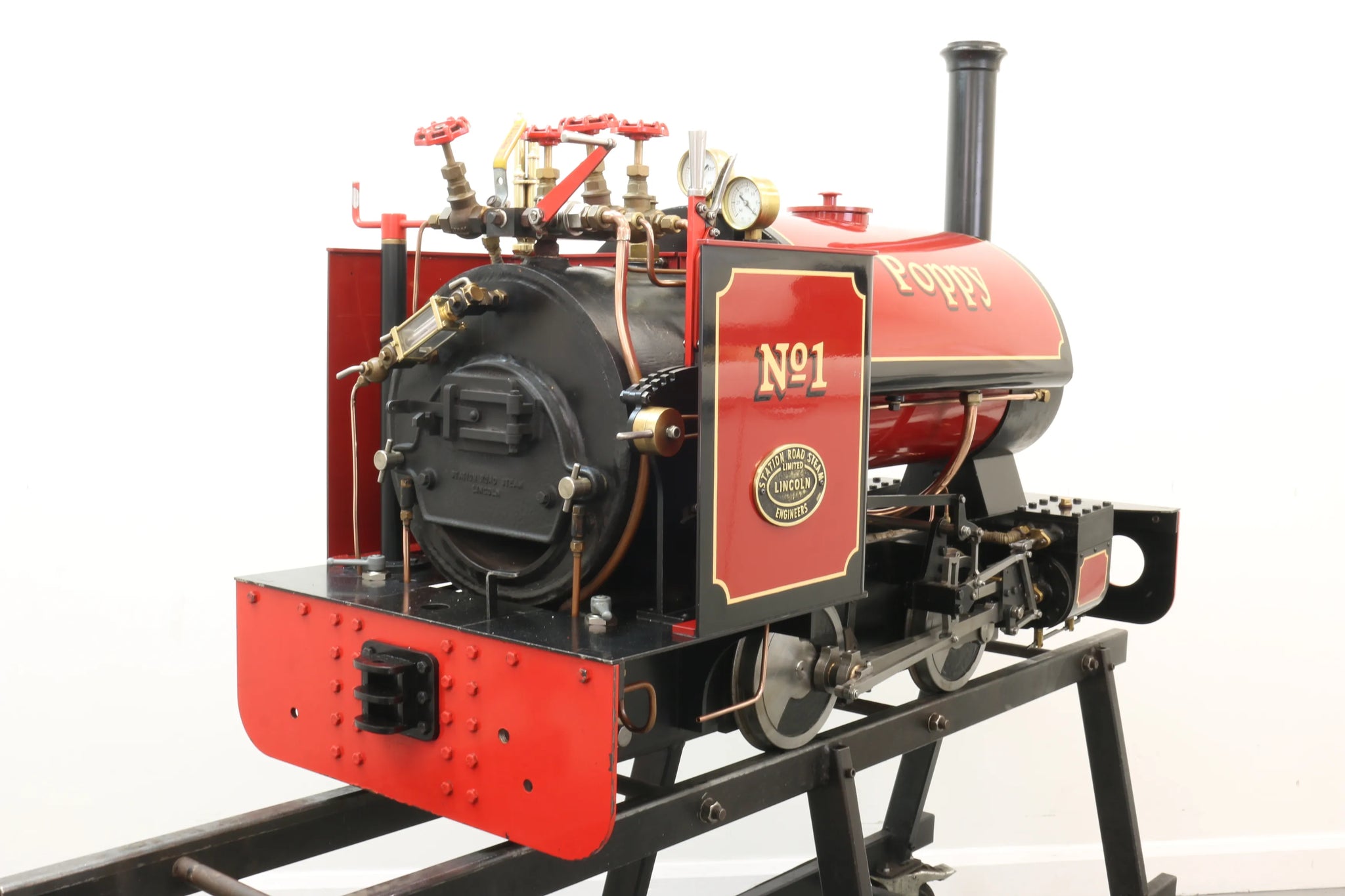

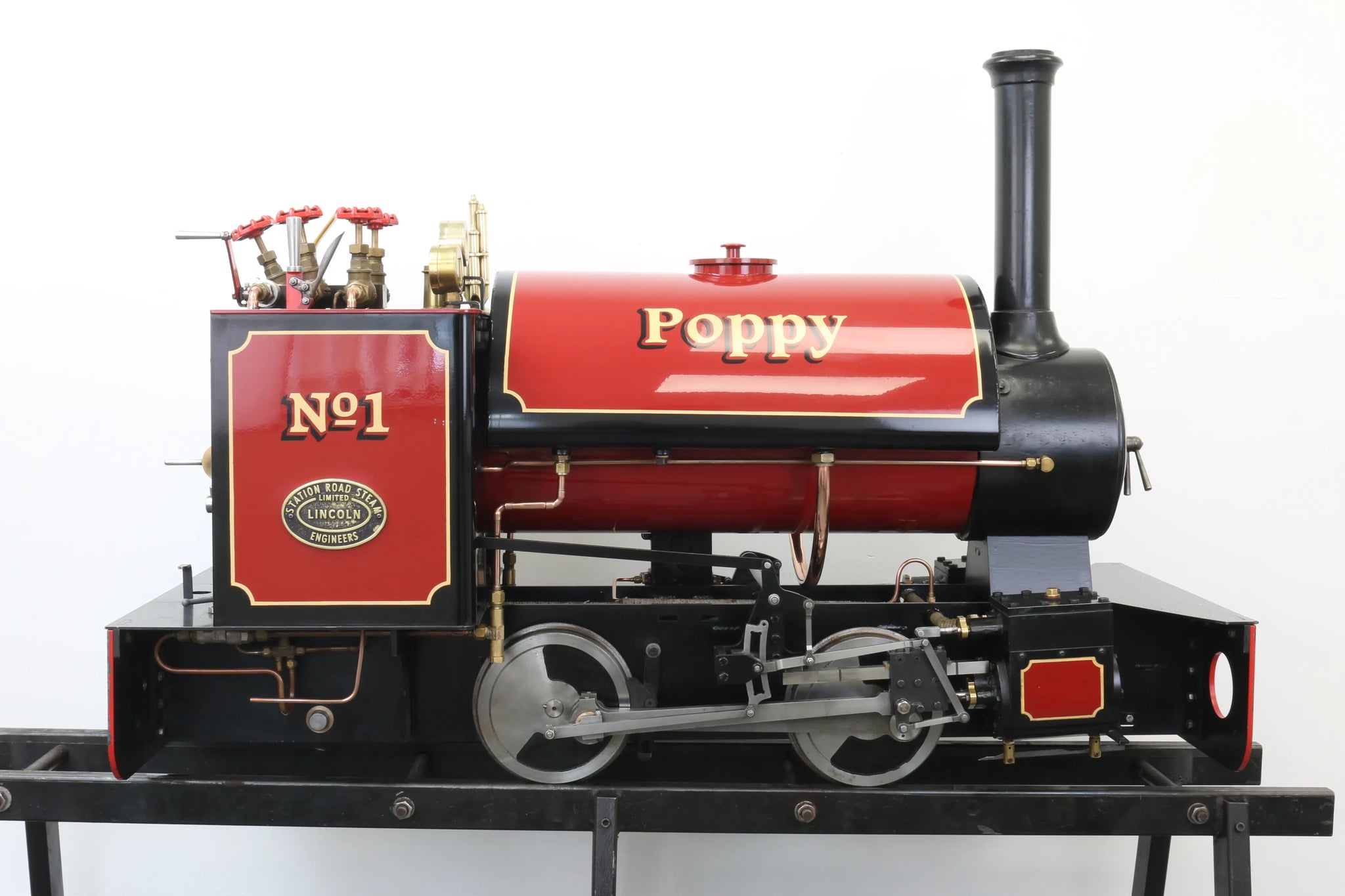

7 1/4 inch gauge Stafford 0-4-0ST "Poppy", works number 1324

A Stafford 0-4-0ST, works number 1324 - we built this one in 2012, it was delivered new on the 10th October of that year.

It's in good order throughout, has been fully serviced in the workshop here and will be supplied with new boiler certification; starter kit of tools, oil and coal; owners handbook and 12 months parts and labour warranty, exactly the same as a new engine.

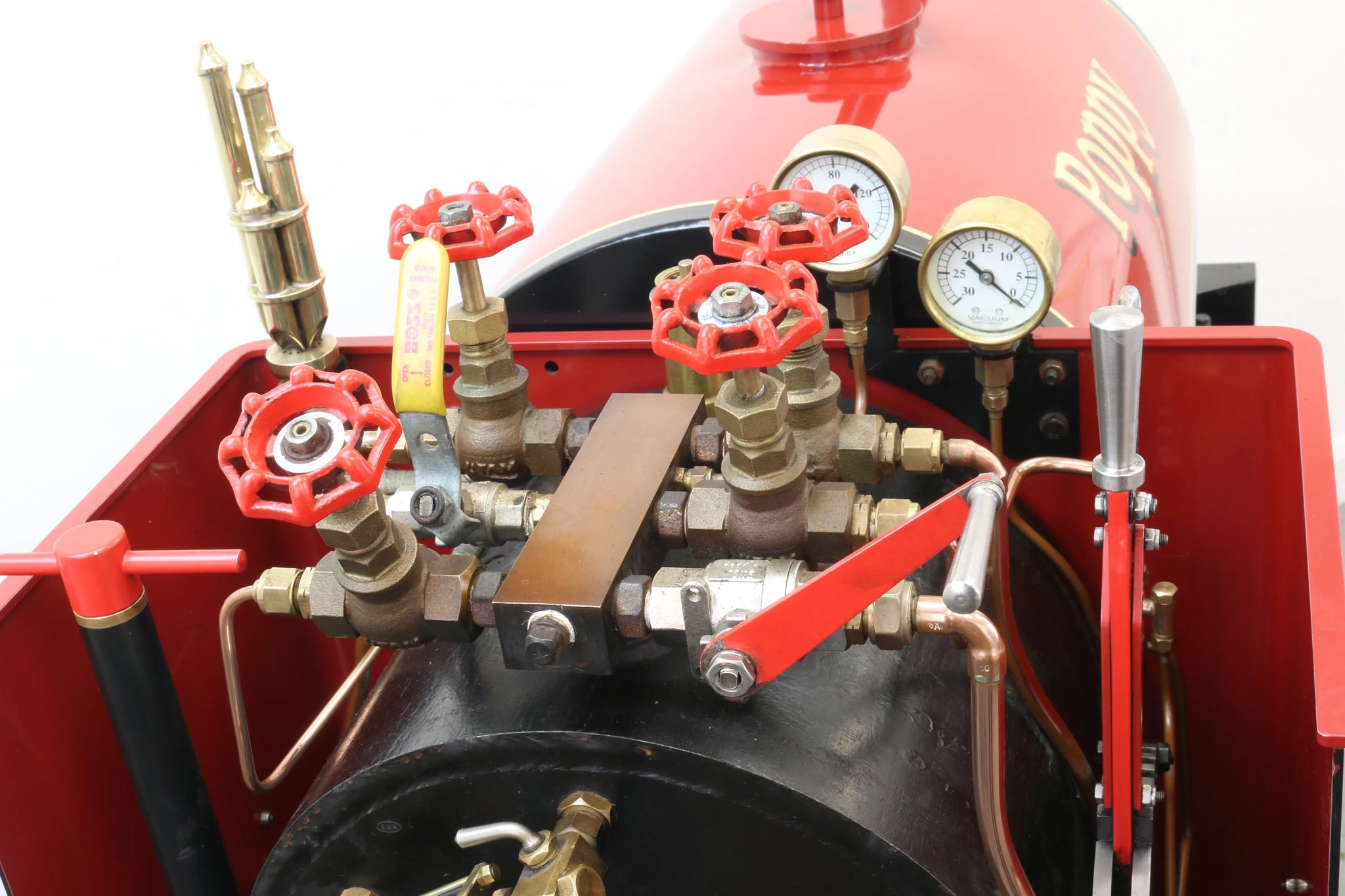

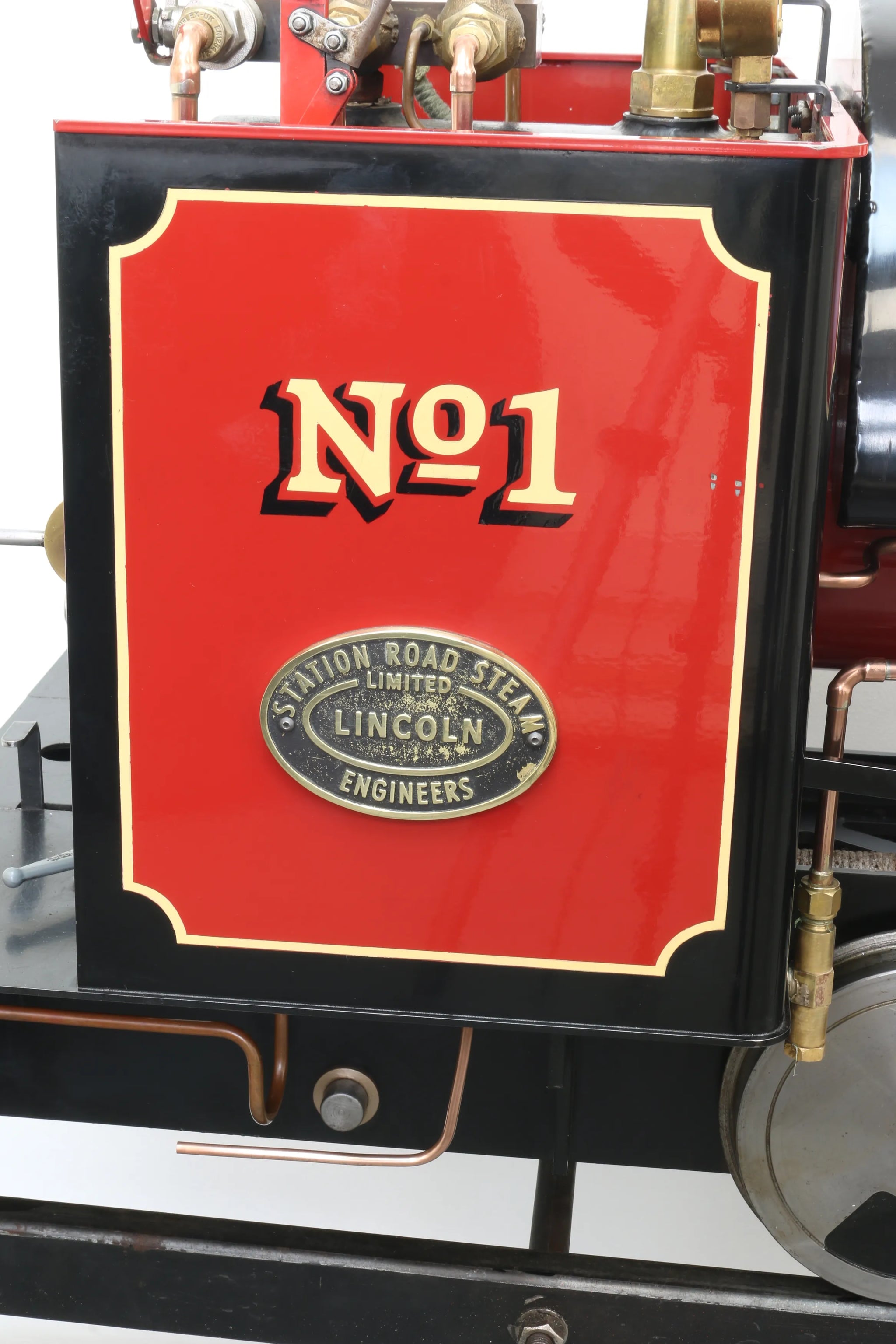

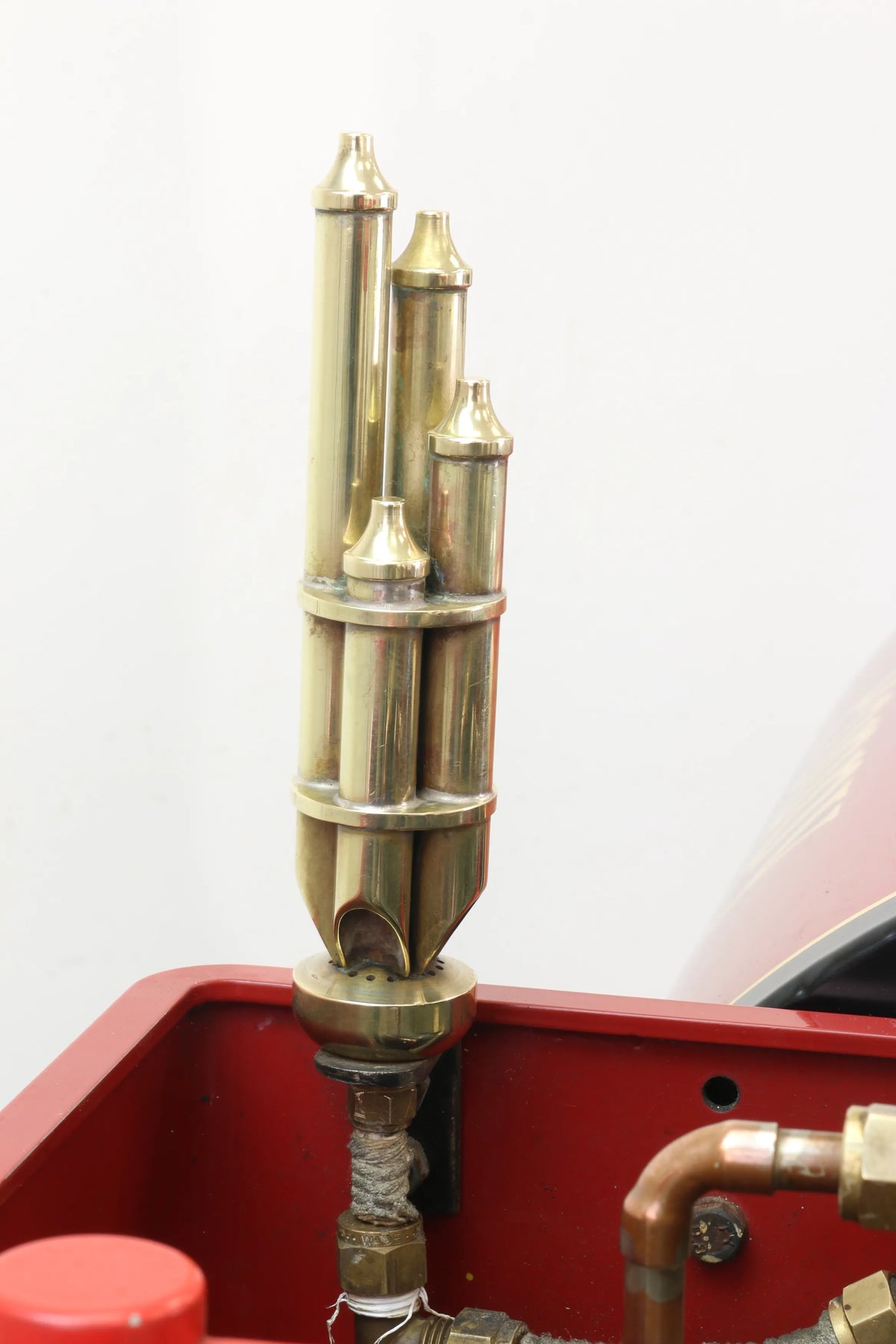

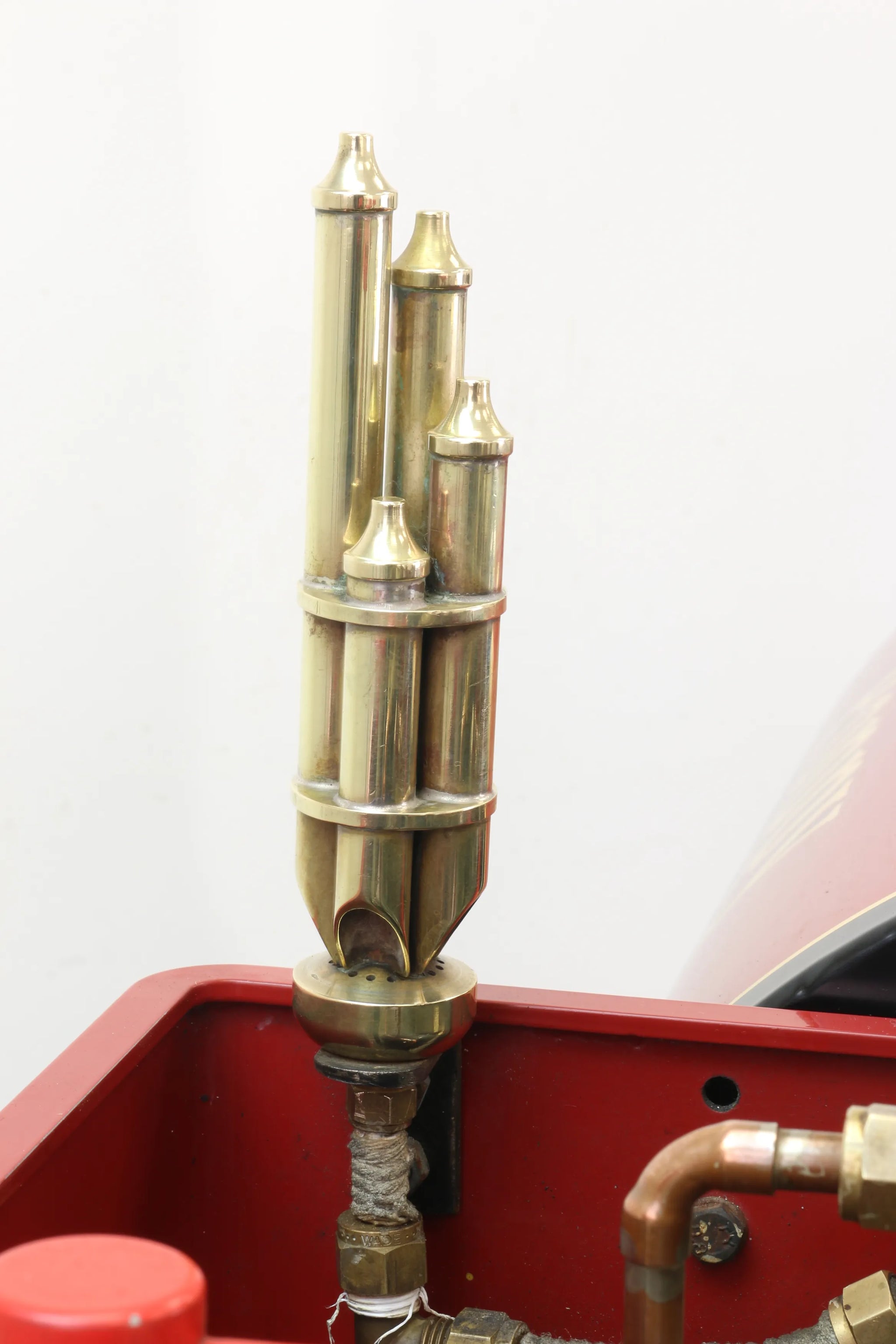

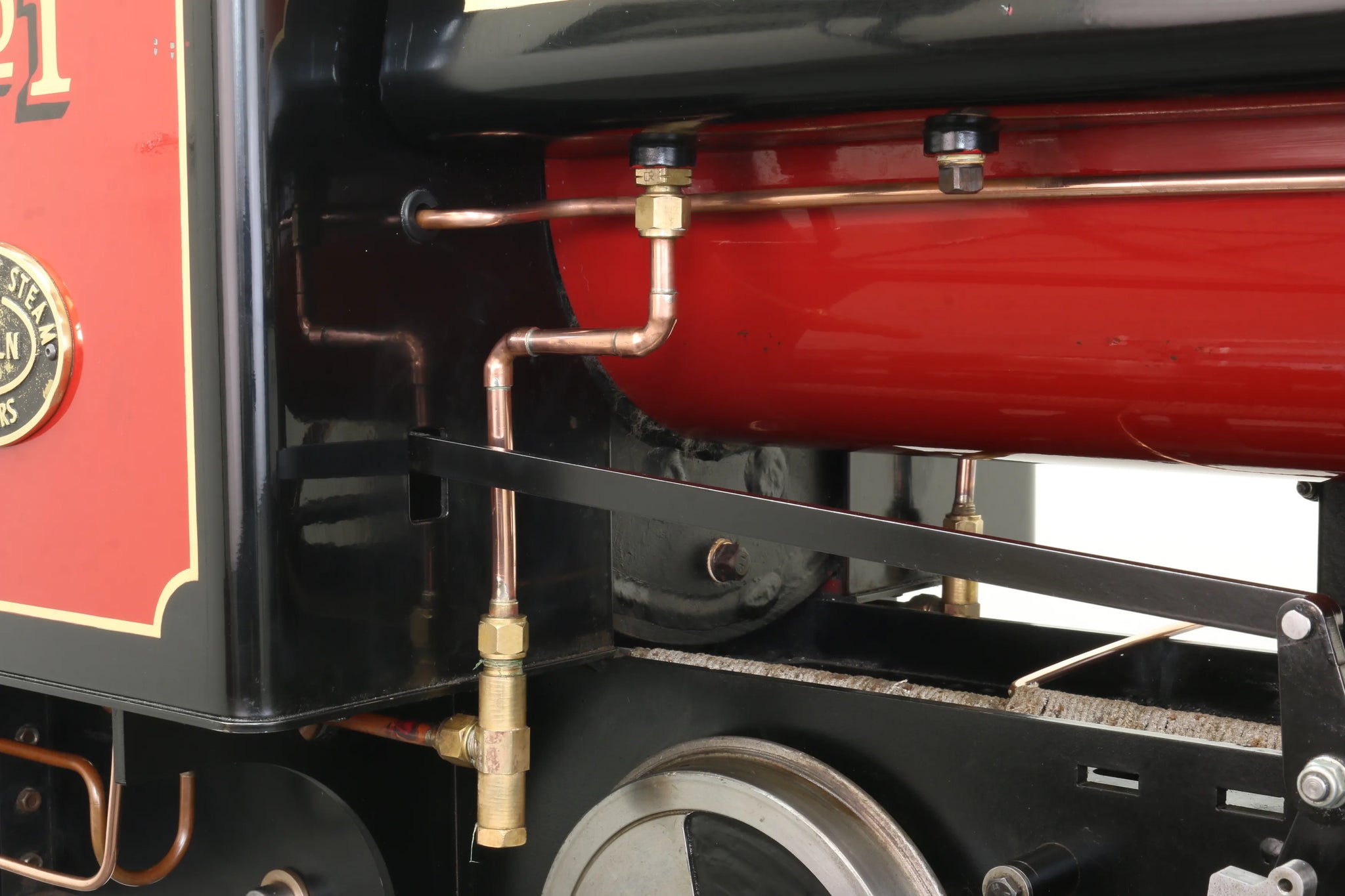

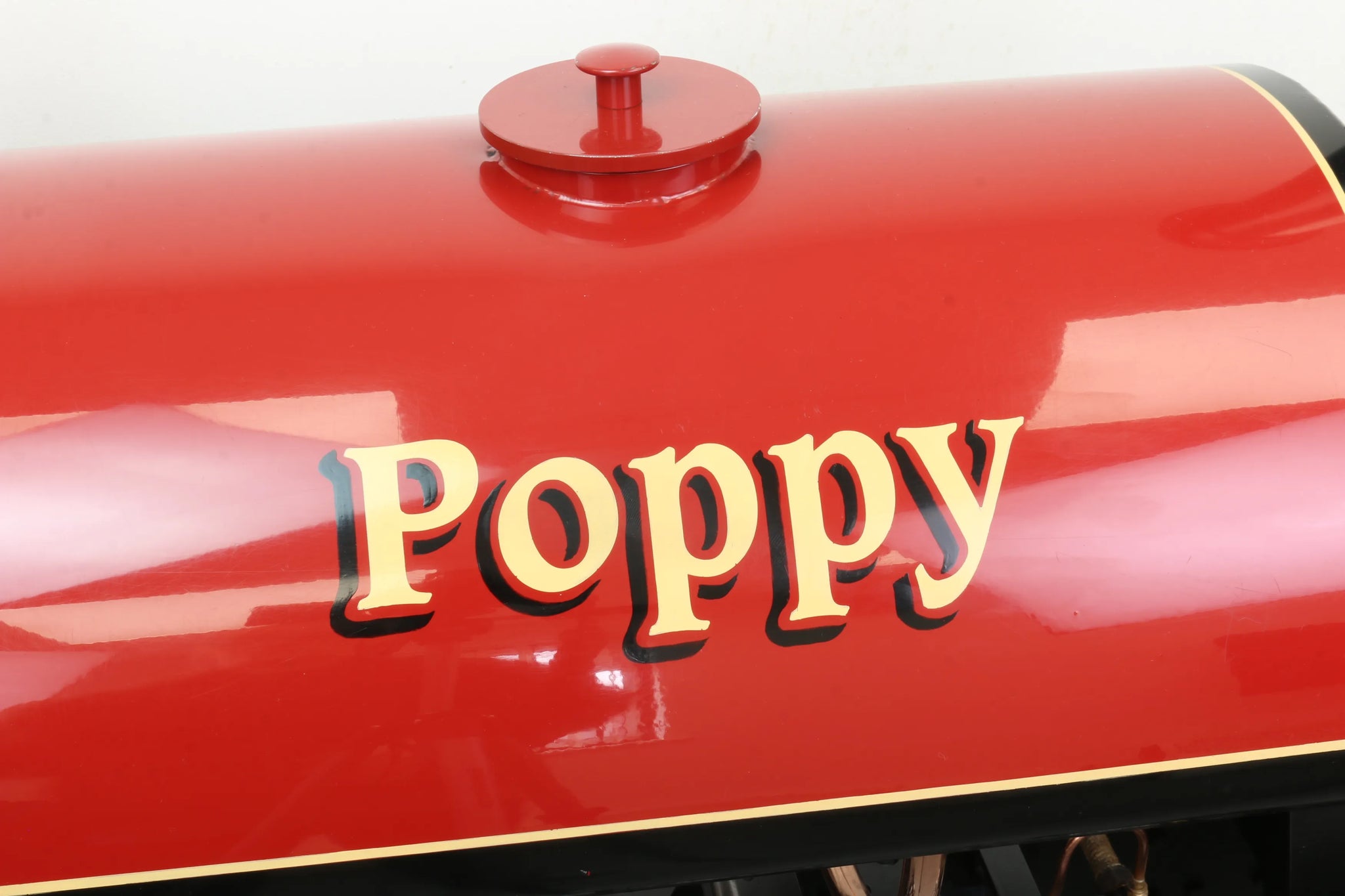

Ordered to a high specification when new, the locomotive has gauge protector, chime whistle and vacuum brake equipment. Painted in RAL3011 red, panelled in black and hand lined and signwritten - the first one we did in this colour, it's gone on to be one of the most popular Stafford liveries. The engine has been fitted with the latest soft-lift type safety valve.


Technical information

Stock code

7867

Gauge

7 1/4 inch

Length/inches

45

Width/inches

19

Height/inches

32

Weight/Kg

195

Wheel material

steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

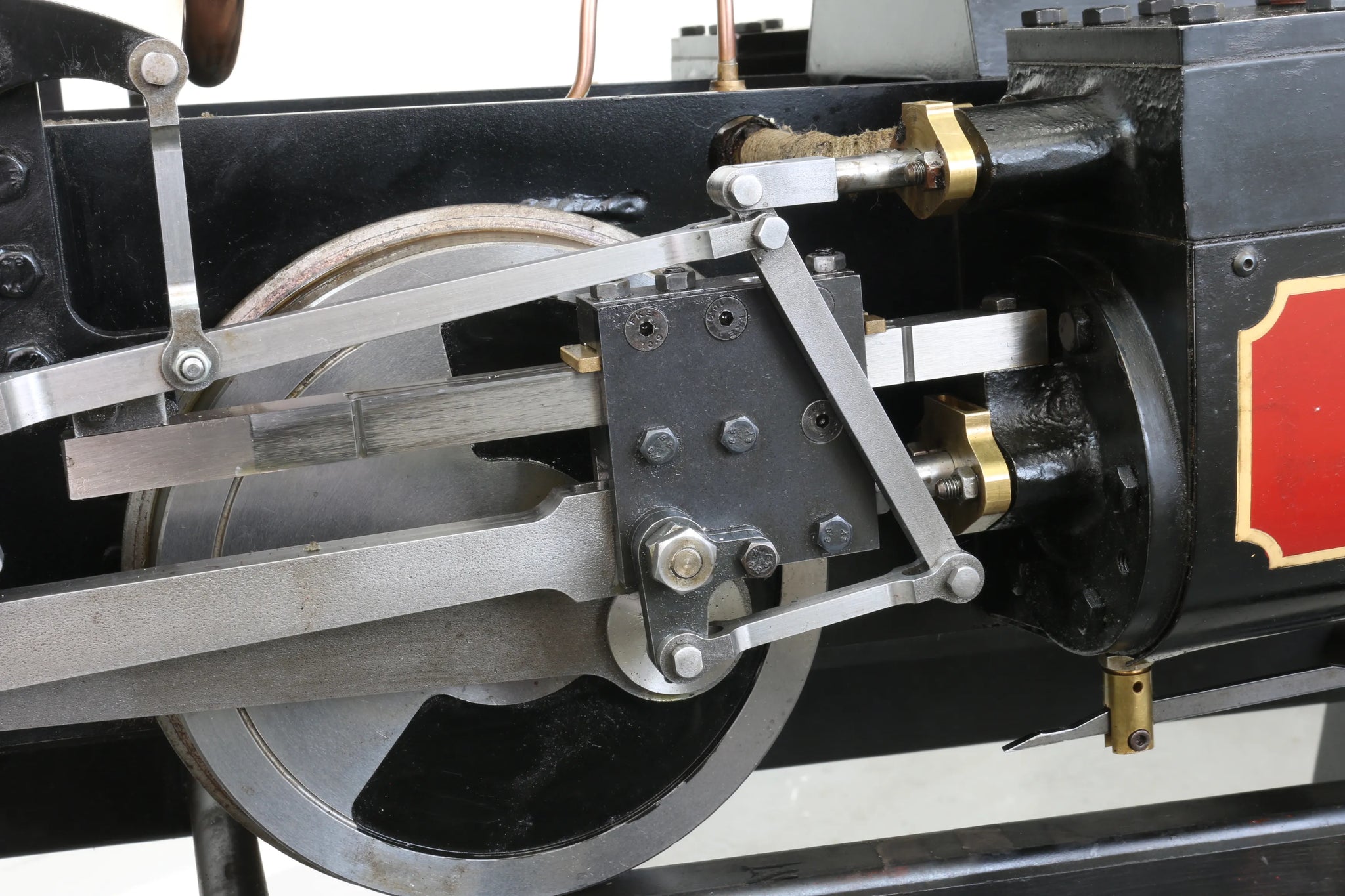

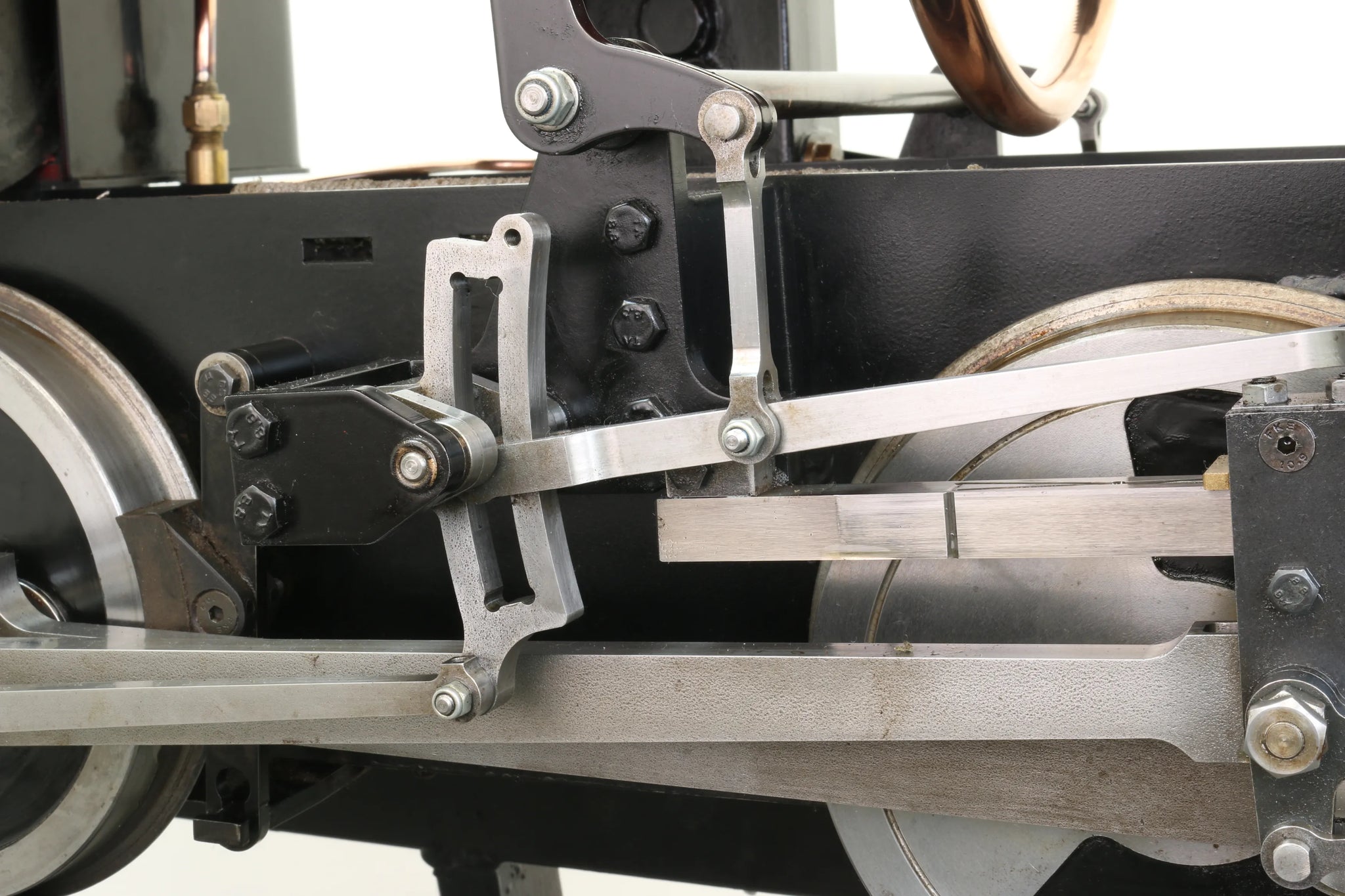

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

AJB Engineering

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2012

Boiler number

236

Safety valve type

pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2

Superheater type

flue tube

Superheater

2

Nominal traction

238

Pack

Single half pallet

Date out

Feb-18

Hydraulic test valid to

06-Feb-20

Steam test valid to

11-Apr-19
