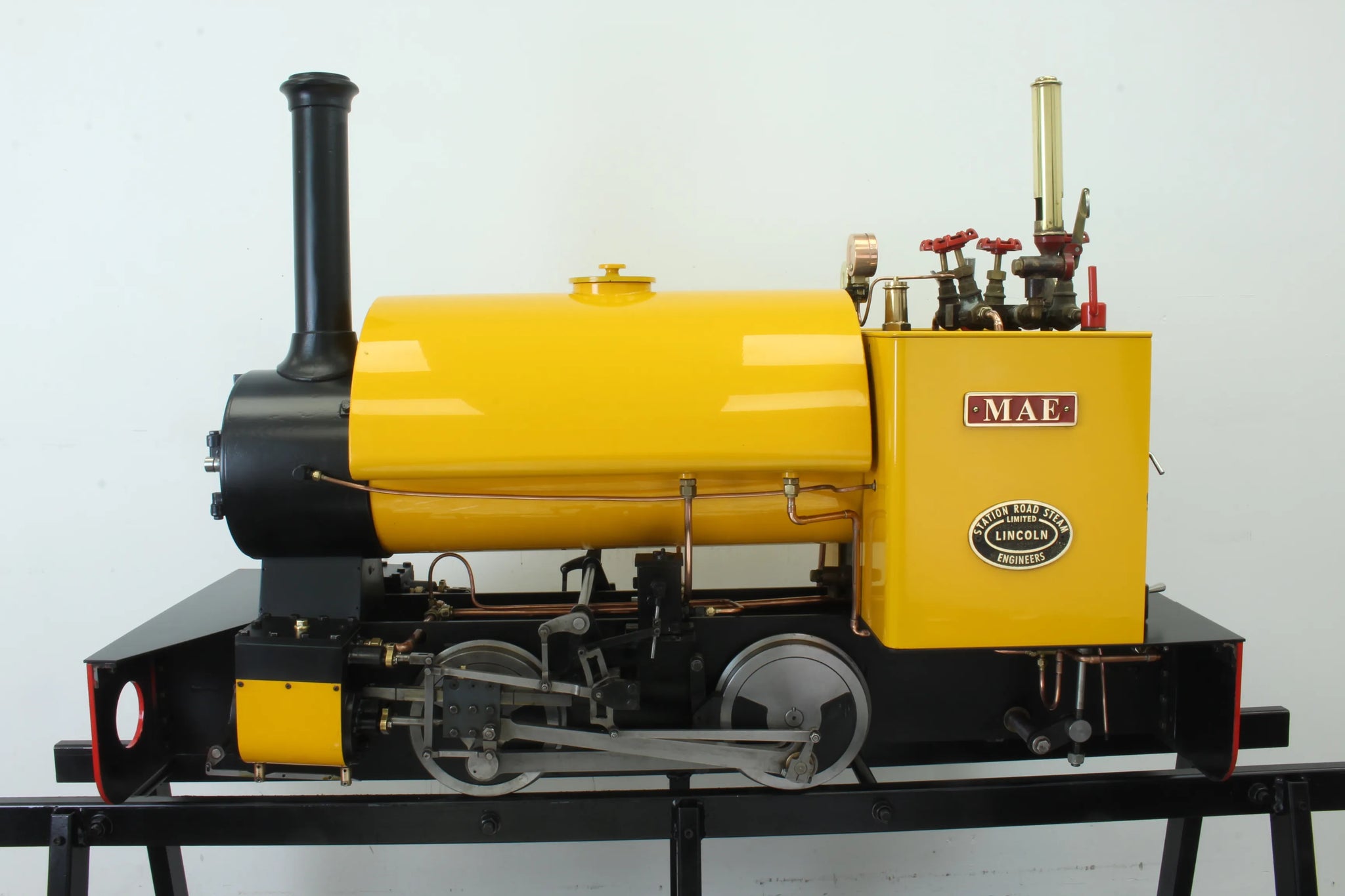

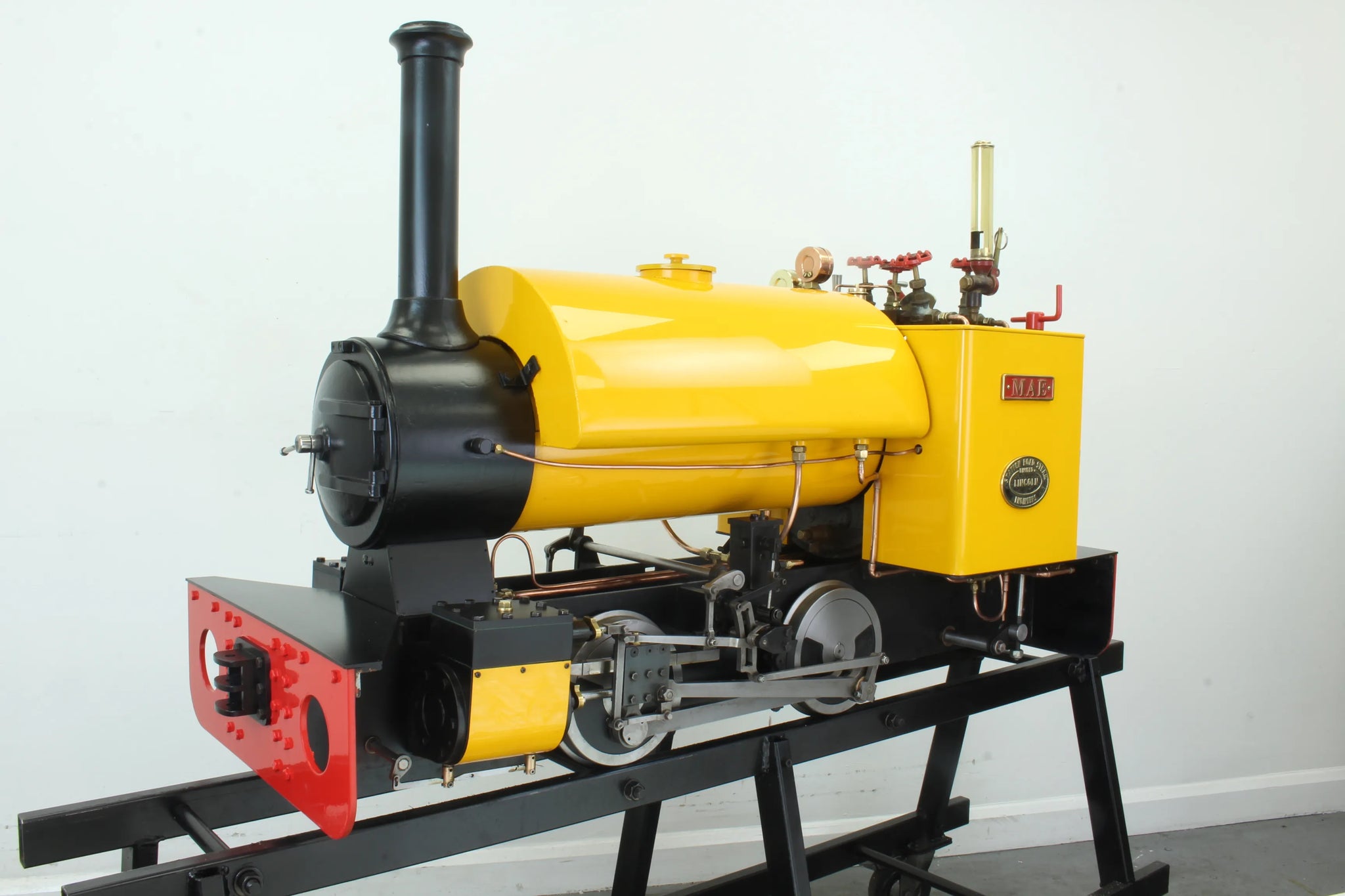

7 1/4 inch gauge "Stafford" 0-4-0ST

A 7 1/4 inch gauge "Stafford" 0-4-0, it's just arrived back to us in part exchange for a new "General Gordon".

We originally built this engine for a man who already had one of the first Staffords built - a green one. The day he came to place the order for his second engine, we had the first ever yellow engine ("Gentoo") in the workshop ready for despatch. "Looks lovely" he said, "I'll have mine the same colour".

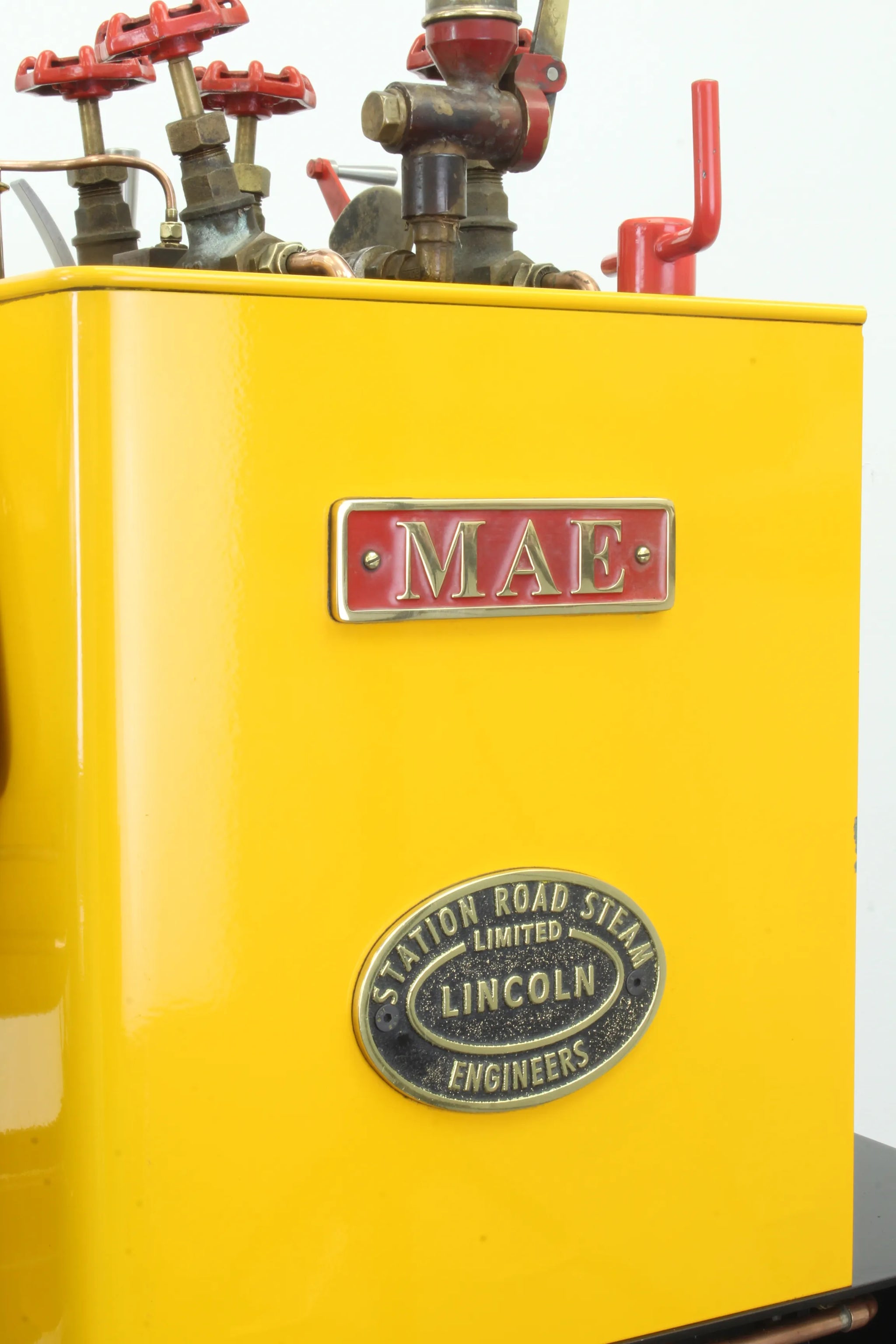

So it was that "Mae" became the second engine we painted yellow - it was followed by half a dozen others over the years. The following year the owner bought a "Feldbahn", before having the first of our "Big Engine" FC7s (a black Feldbahn), followed by two others, both Stafford FC7s.

"Mae" has been through the works since arriving back - it was originally specificed with vacuum brakes, the owner fitted a small full-size organ-pipe whistle. Updated with the later type progressive pop safety valve, it's also had the latest axlebox springs fitted.

As usual with our own engines, we offer 12 months warranty, handbook and a starter kit including coal, oil, water treatment and a set of firing irons - exactly the same as you'd get with a new Stafford.

Technical information

Stock code

8239

Gauge

7 1/4 inch

Length/inches

49

Width/inches

19

Height/inches

53

Weight/Kg

195

Wheel material

steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Walschaerts

Reverser type

pole

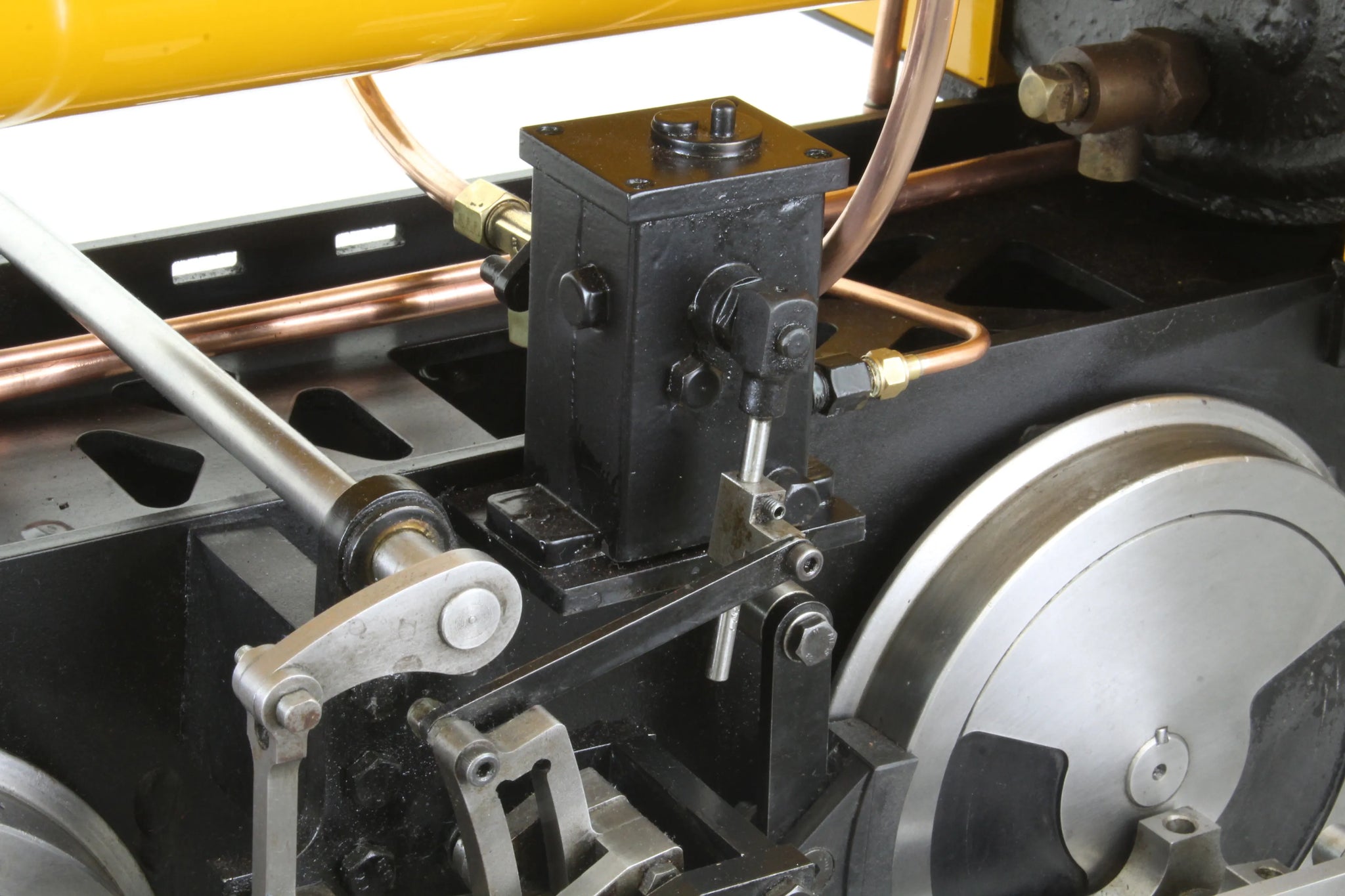

Lubricator type

mechanical

Boiler maker

AJB Engineering

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2011

Boiler number

170

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2

Pack

Single half pallet

Date out

Jan-19

Hydraulic test valid to

02-Dec-20
