8964

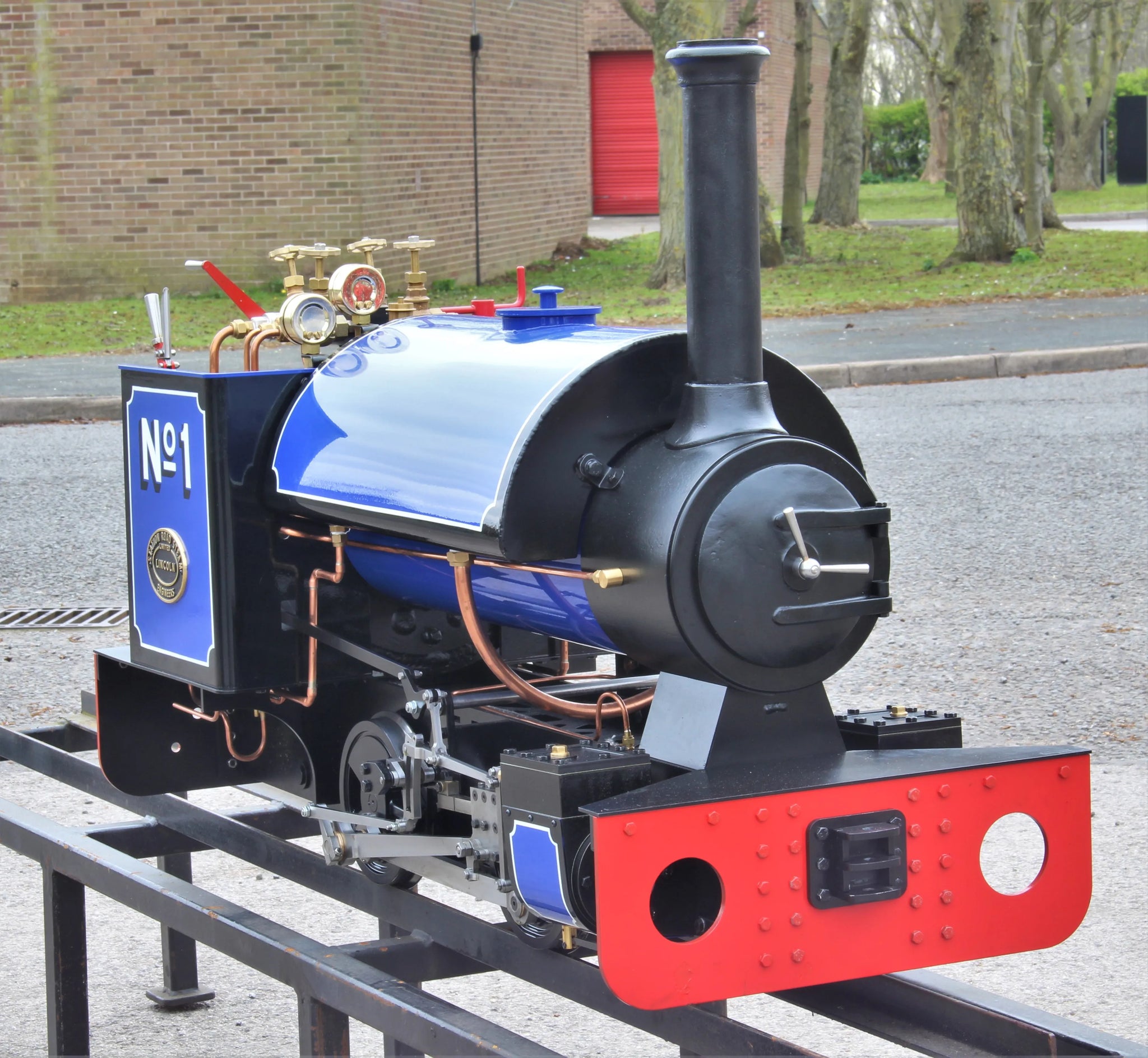

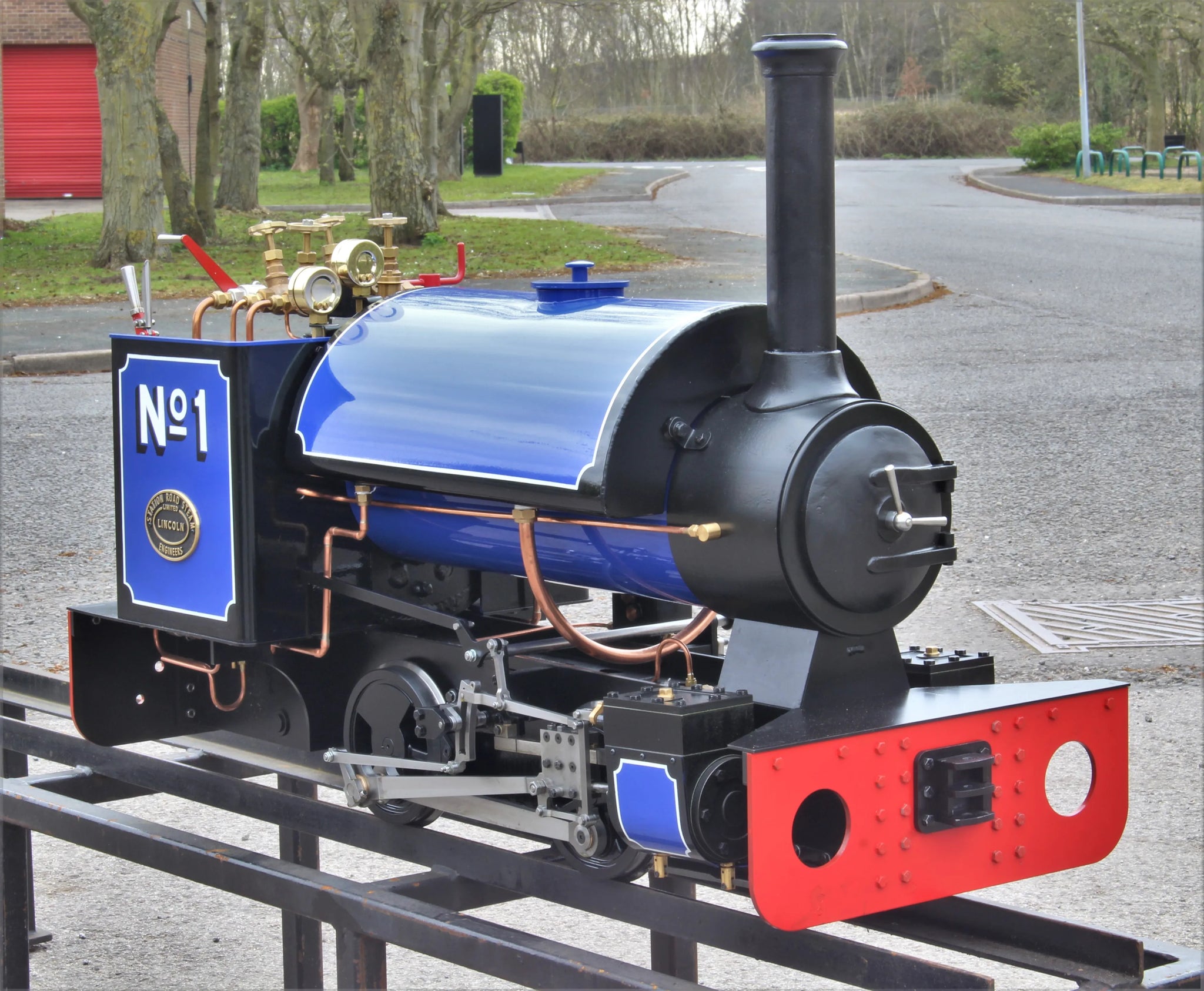

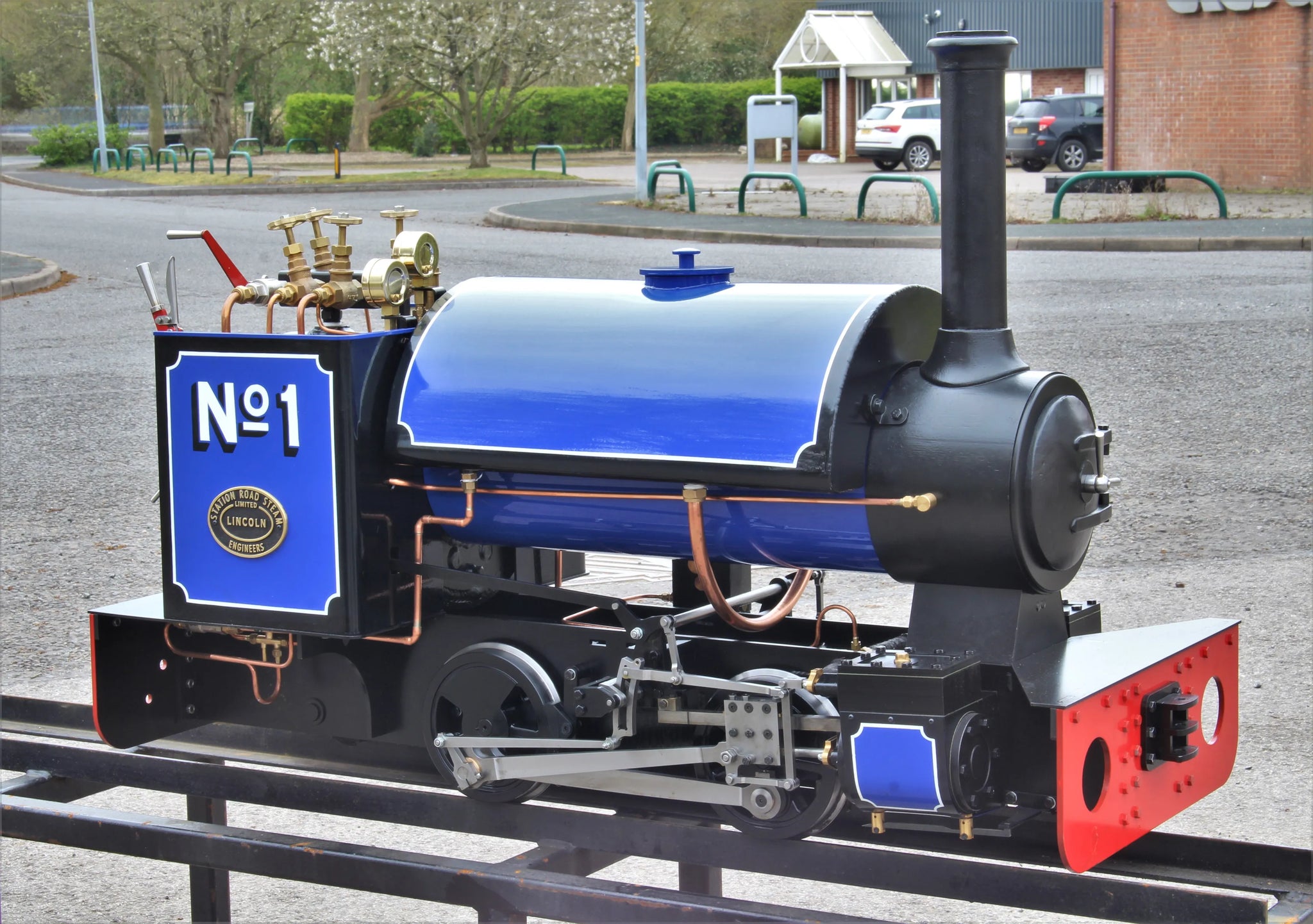

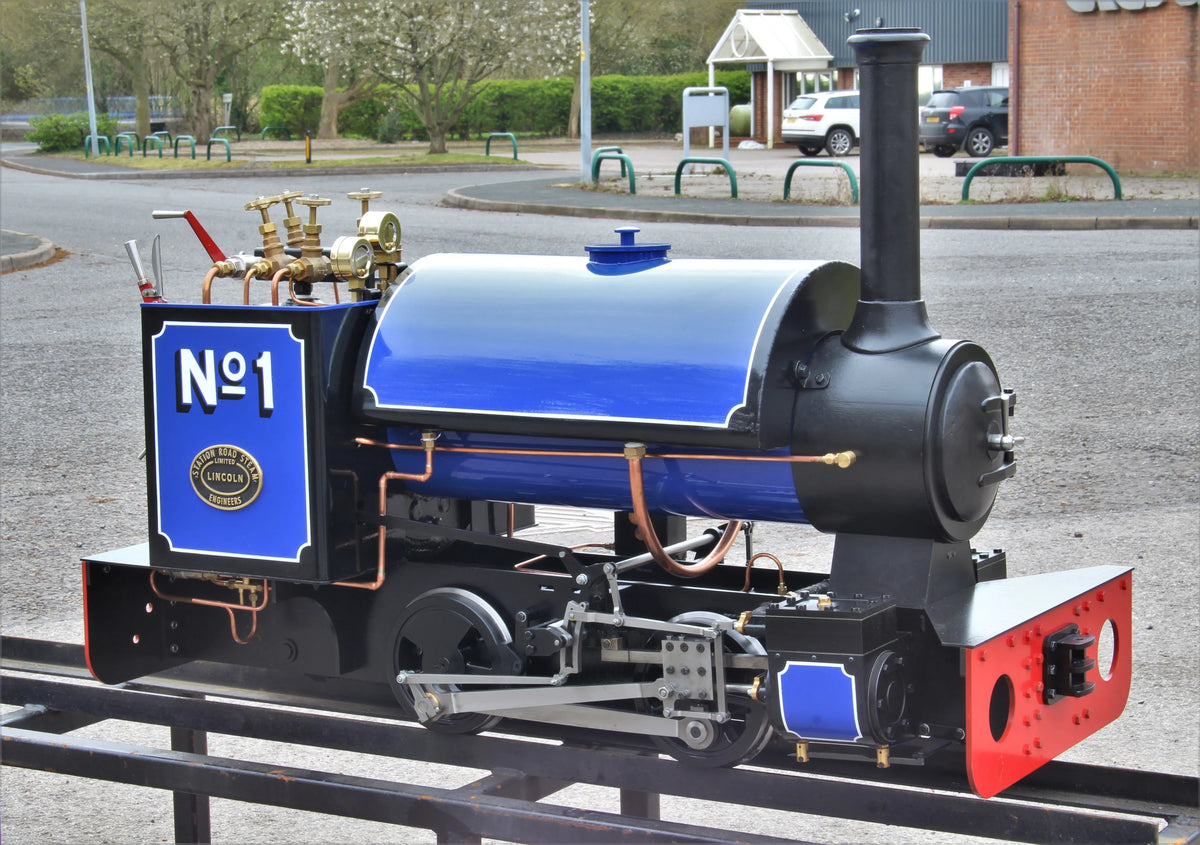

We'd been preparing this one ready for the Doncaster Show in May - with the exhibition now cancelled, it's available ex-stock, in show finish.
Intended to showcase options and latest developments, the engine features:
Stock code |
8964 |
Gauge |
7 1/4 inch |
Length/inches |
45 |
Width/inches |
19 |
Height/inches |
32 |
Weight/Kg |
195 |
Wheel material |
steel |
Axlebox type |
roller bearing |

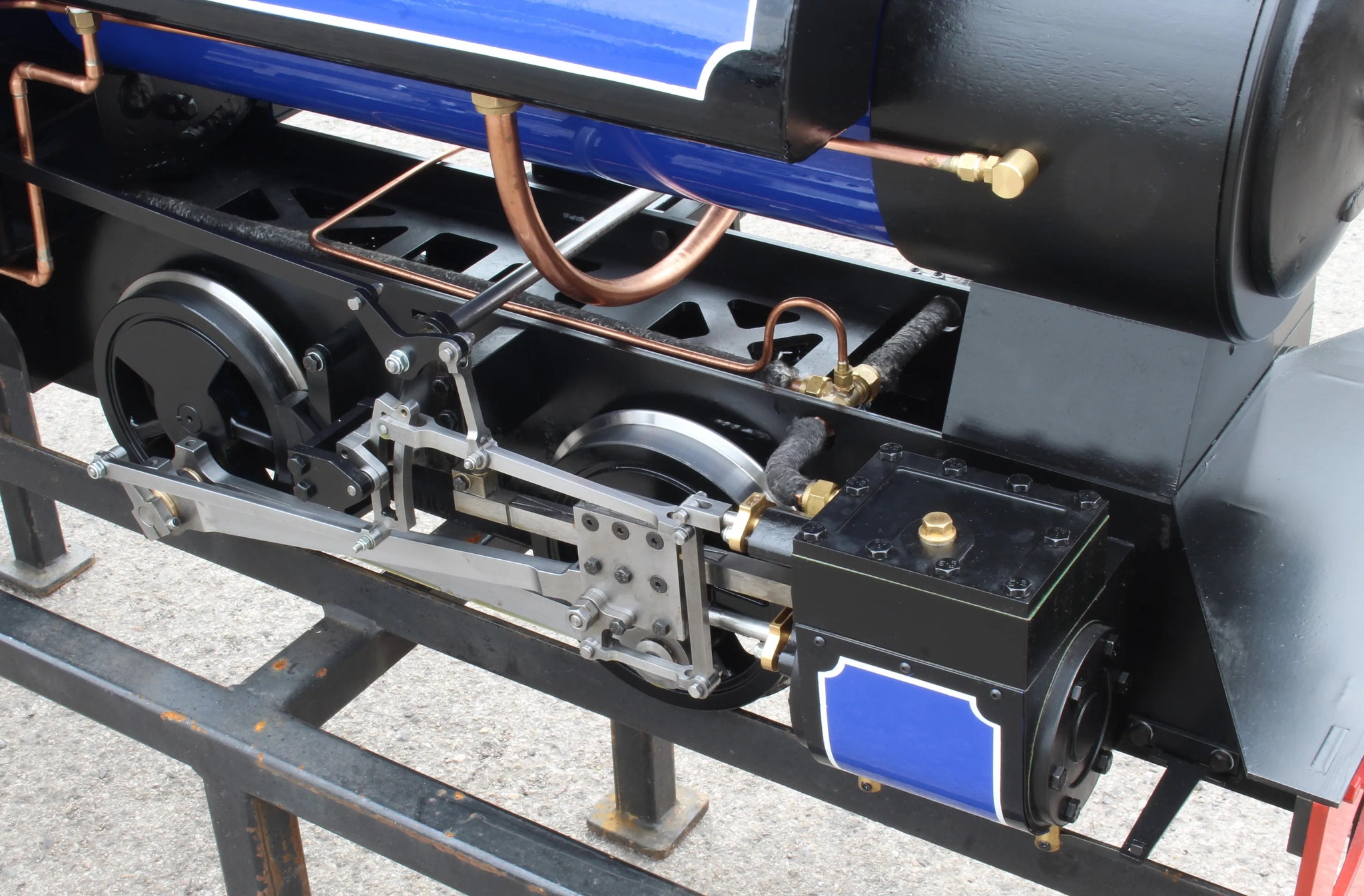

Cylinder material |
cast iron |
Valve type |
slide |

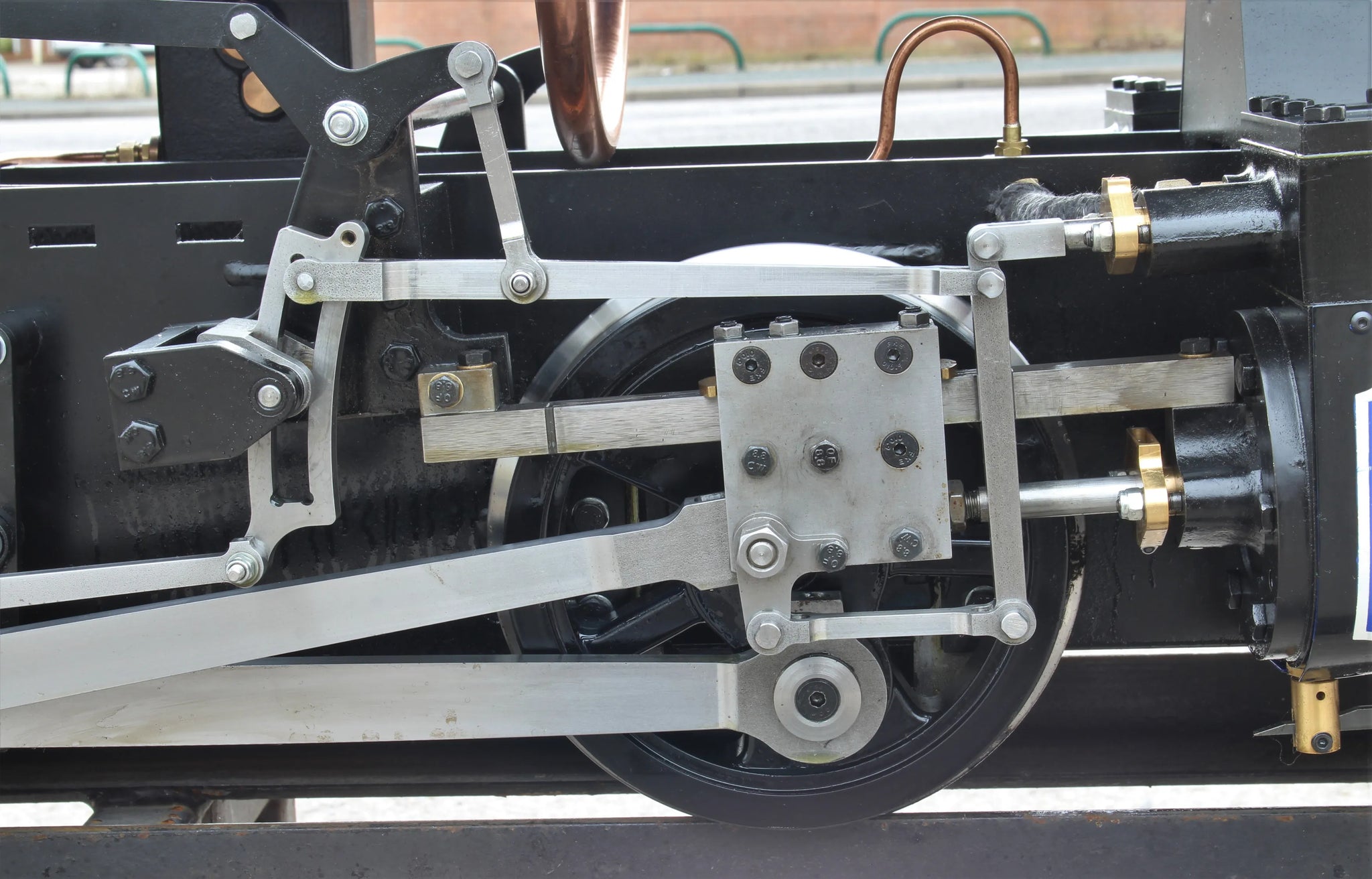

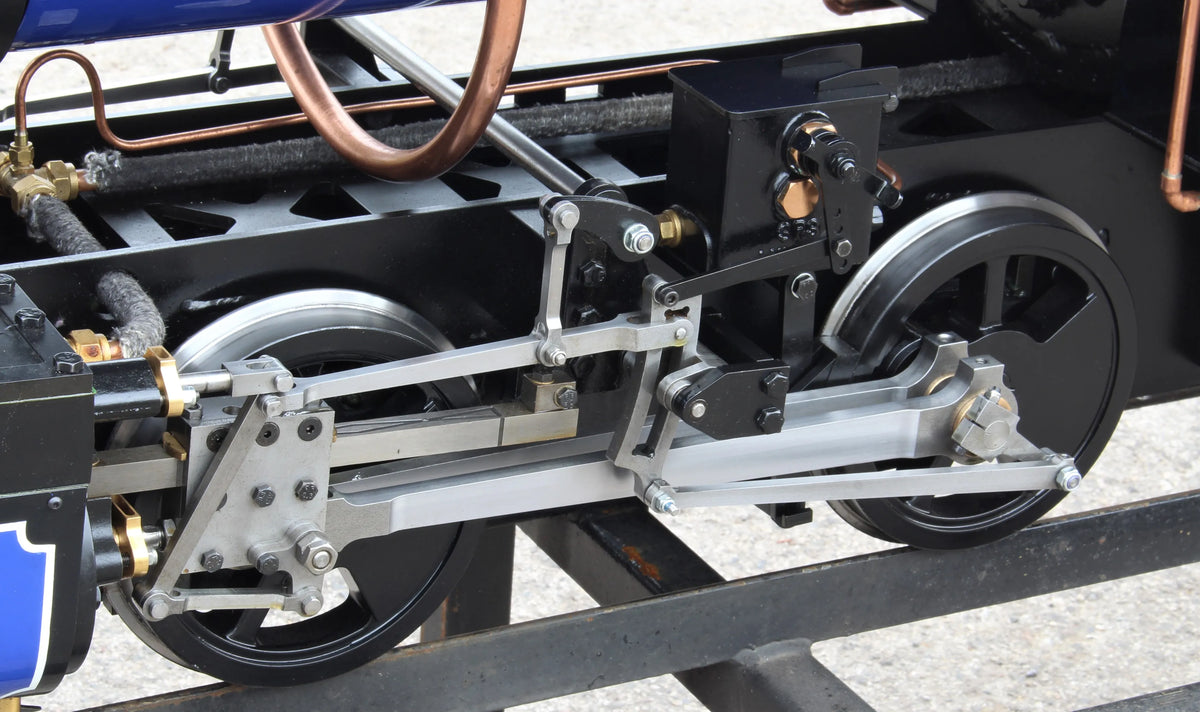

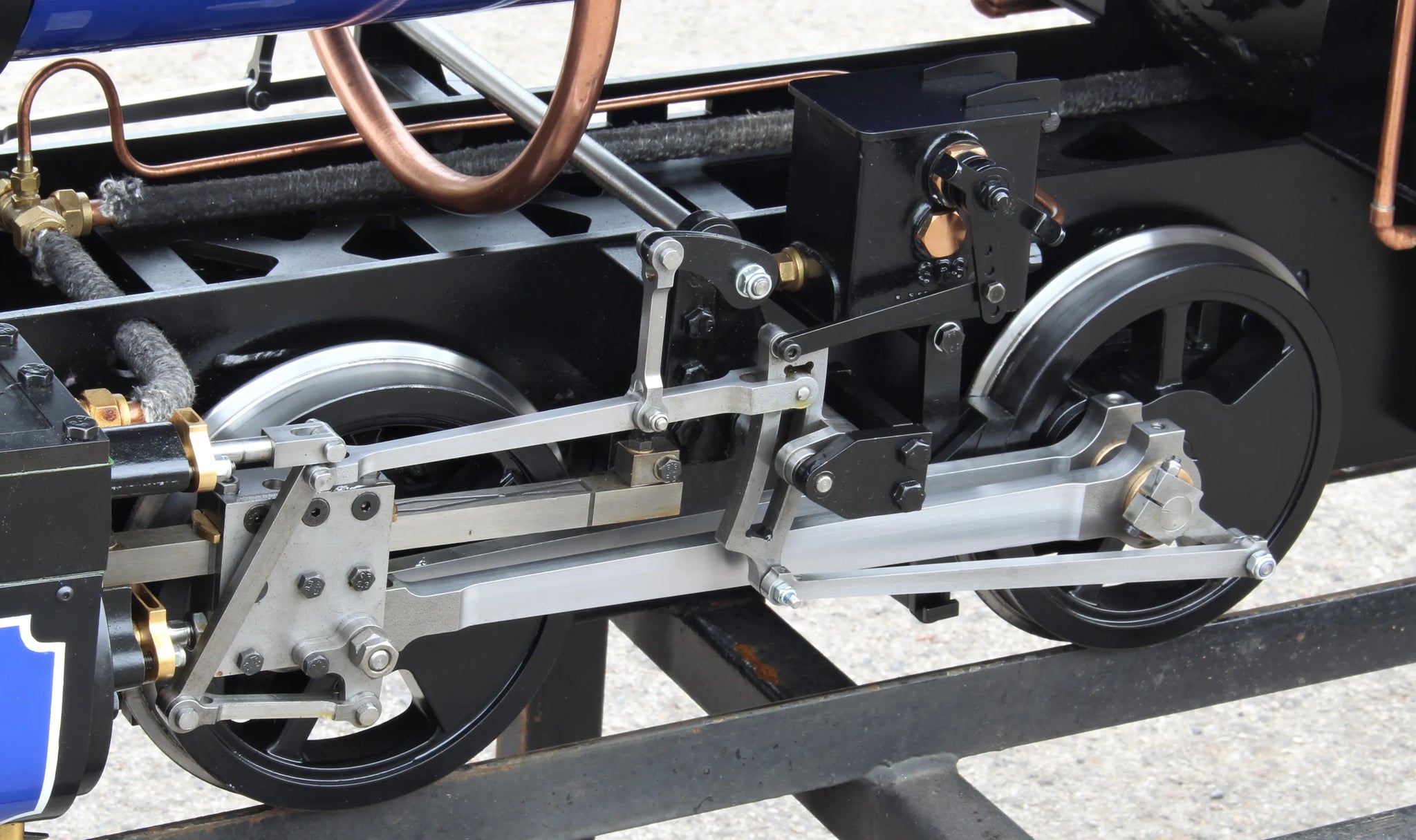

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |

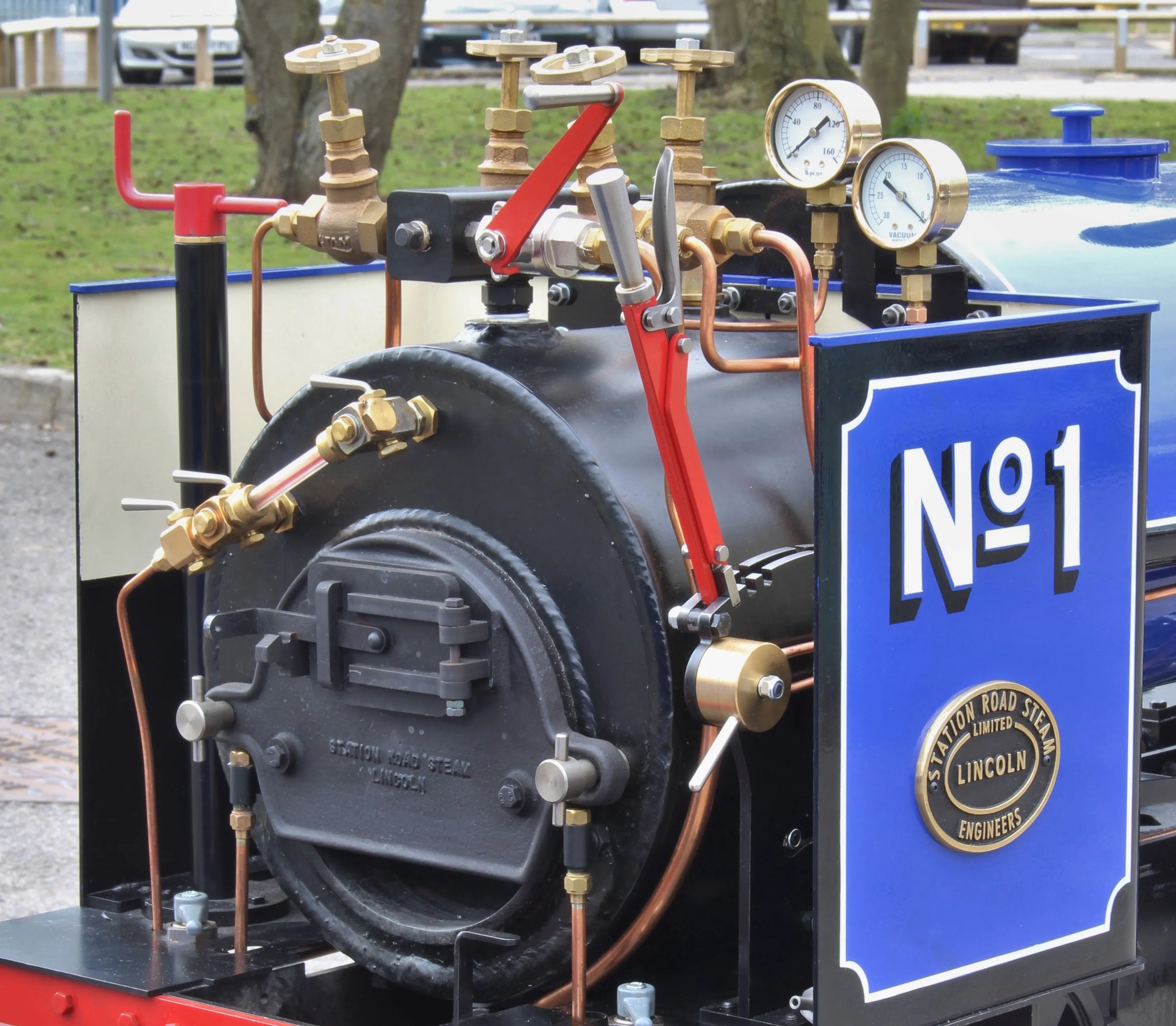

Boiler maker |
Station Road Steam |
Boiler type |
marine |
Boiler construction |
welded, expanded tubes |
Boiler material |
steel |
Working pressure |
120 |
CE/UKCA mark |
yes |
Boiler number |
144 |
Safety valve type |
progressive pop |
Safety valve |
1 |
Fusible plug |
yes |
Bore x stroke |
2 1/4 x 3 |
Whistle |
yes |
Injector |
2 |
Nominal traction |
238 |
Pack |
Single half pallet |
Minimum radius |
20 |
Date out |
Apr-20 |
Hydraulic test valid to |
22-Mar-22 |
Steam test valid to |
24-May-21 |
