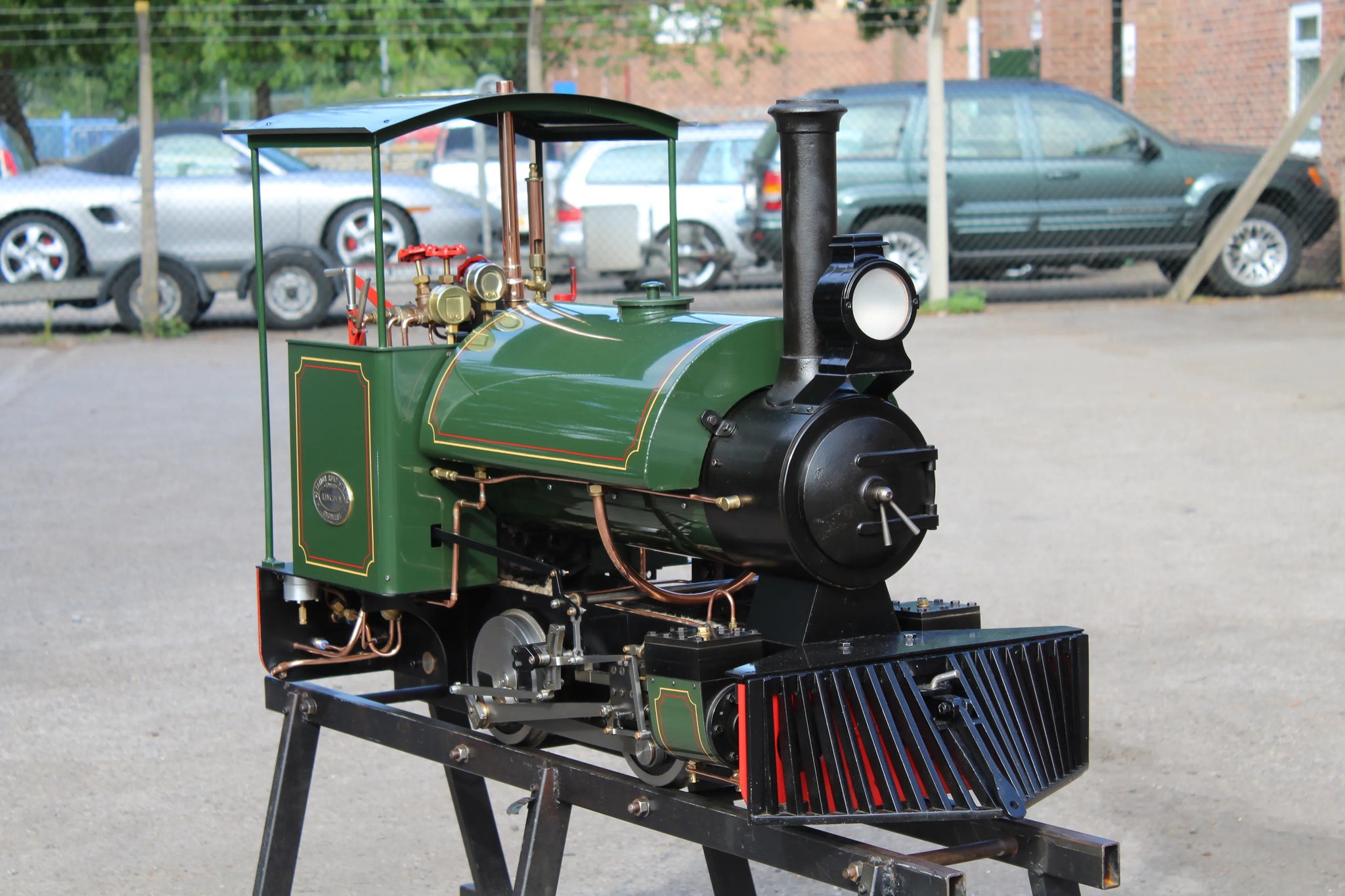

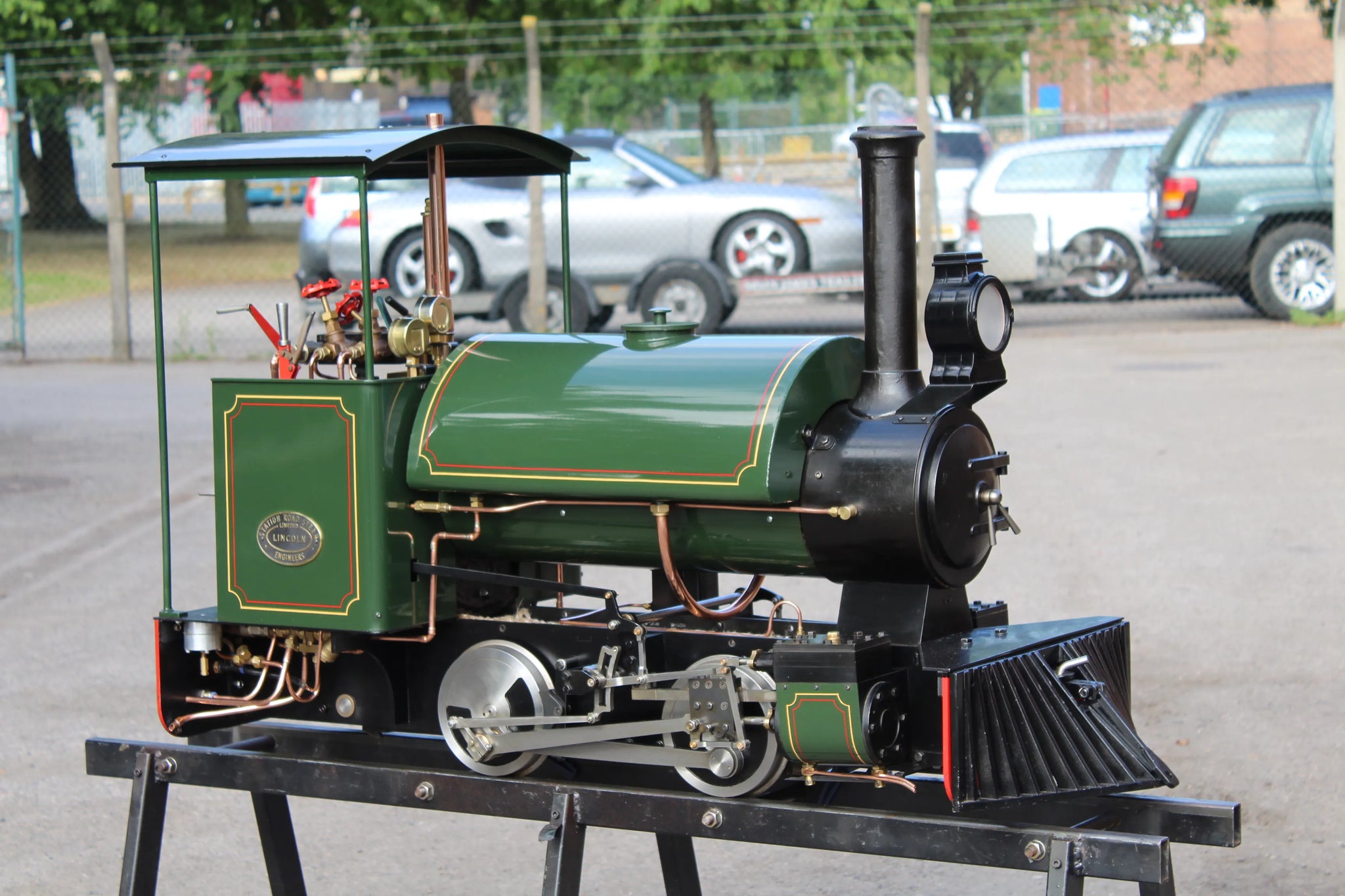

7 1/4 inch gauge Stafford 0-4-0ST with driving truck, works number 1331

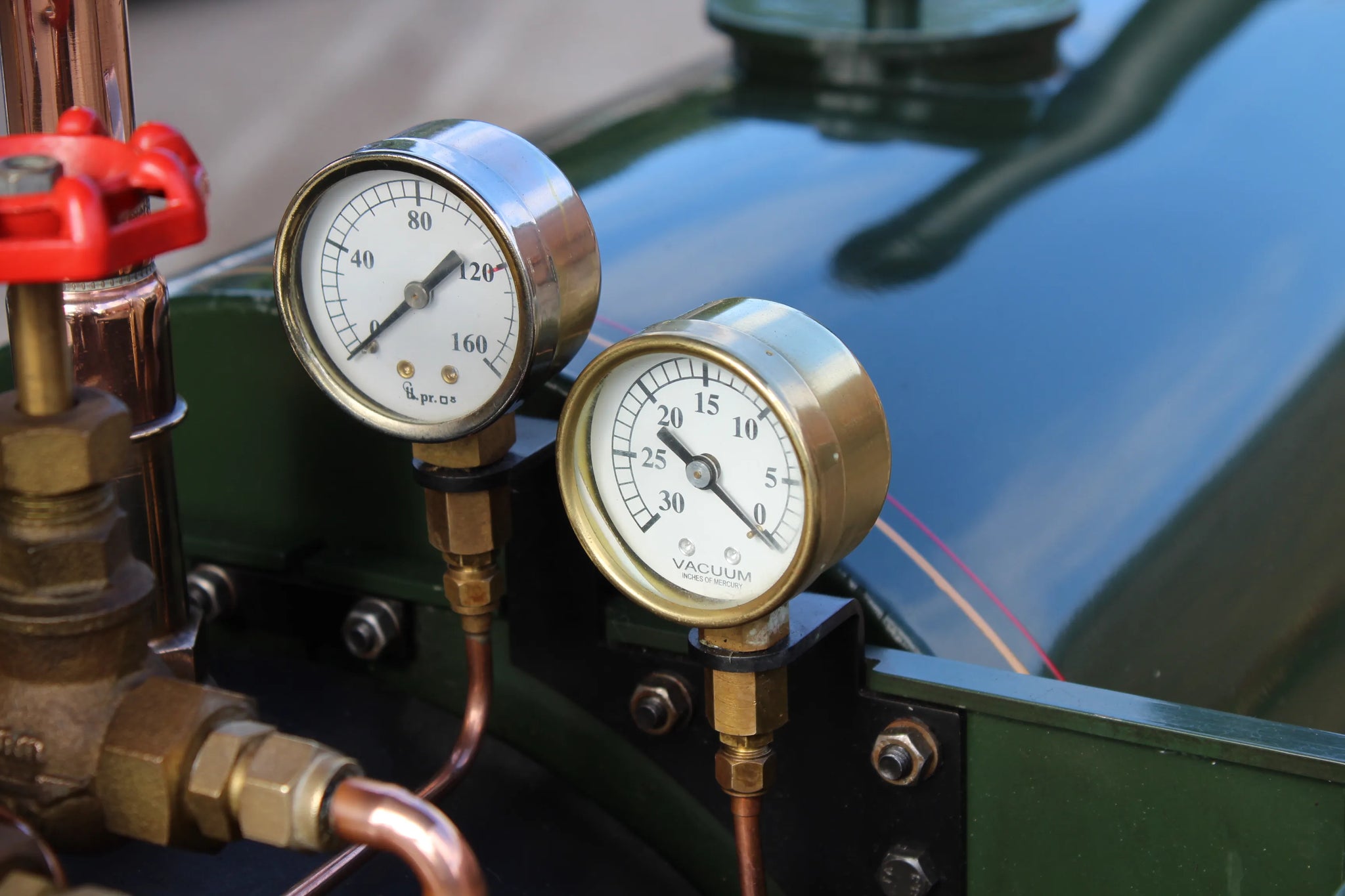

A 7 1/4 inch gauge Stafford, works number 1331. We built this one in 2013 - a one-owner engine it's recently come back in part exchange for a traction engine. A well-specified engine to start with, it has been lined out, is fitted with vacuum brake equipment and has a gauge protector.

The engine has had a variety of additions and thoughtful modifications from standard - work done is to a good standard and all reversible should a new owner have different ideas on the perfect engine. Ourselves, we think it looks super!

Work includes:

  • injector overflow extensions, visible from footplate whilst driving

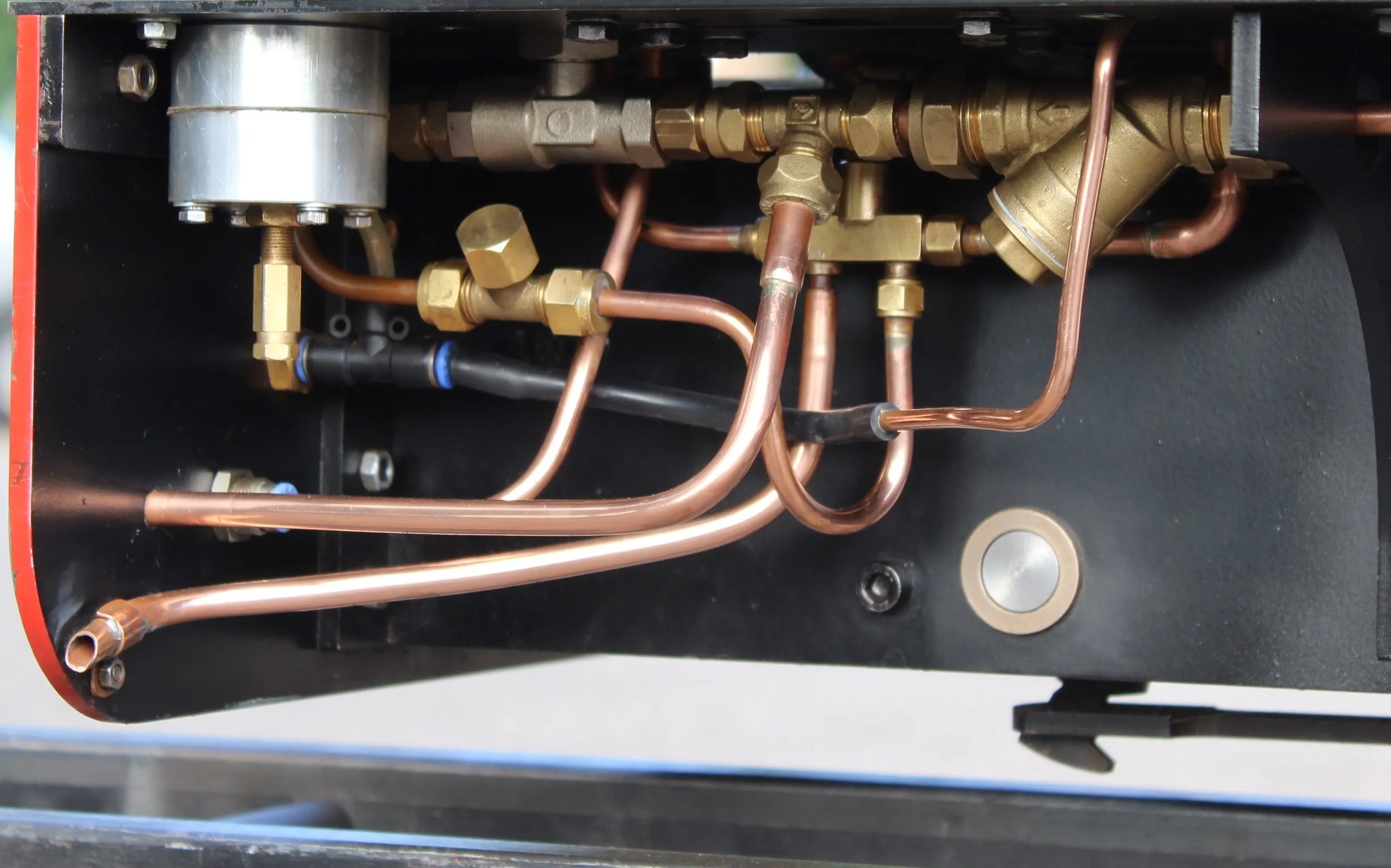

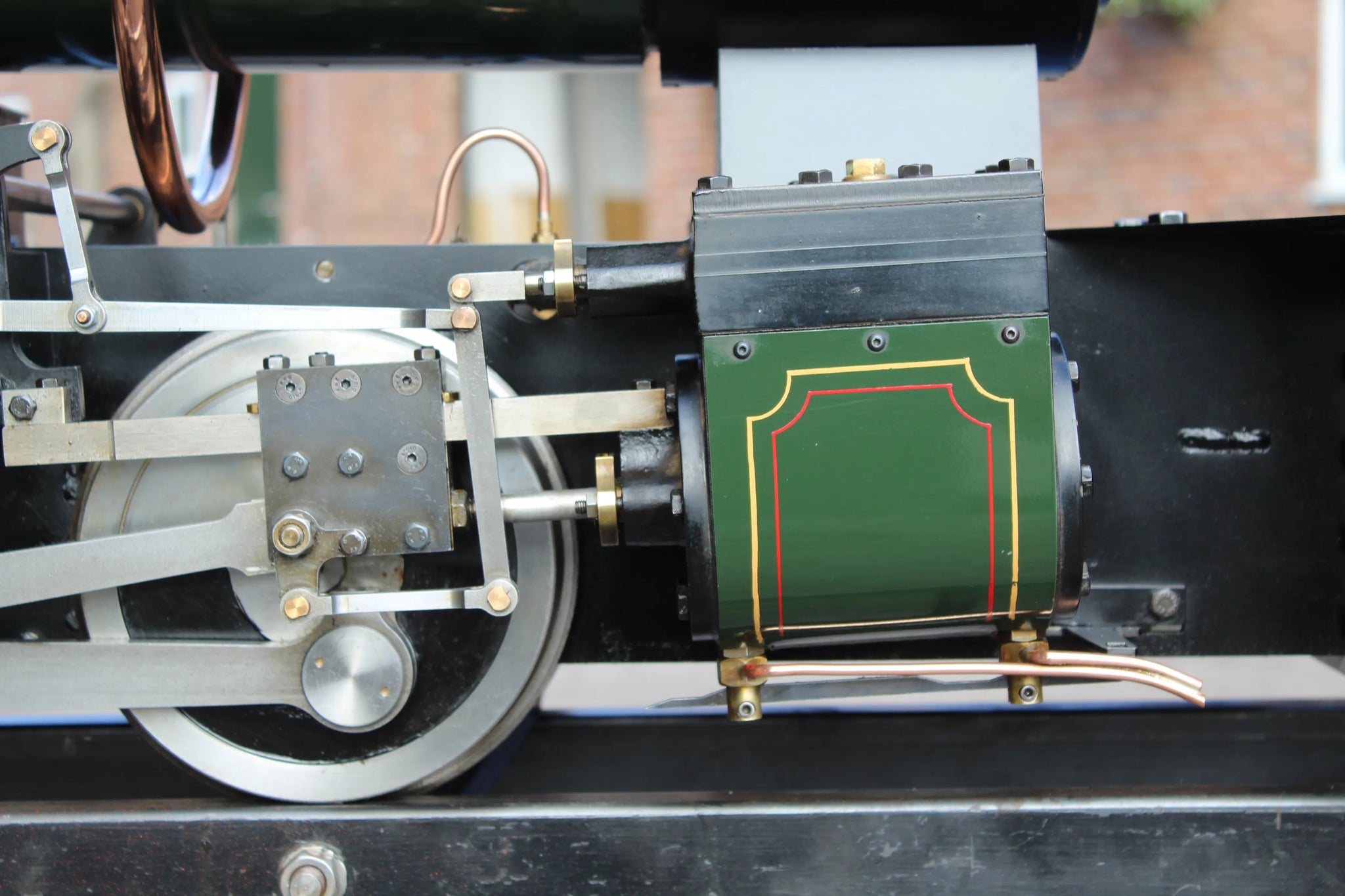

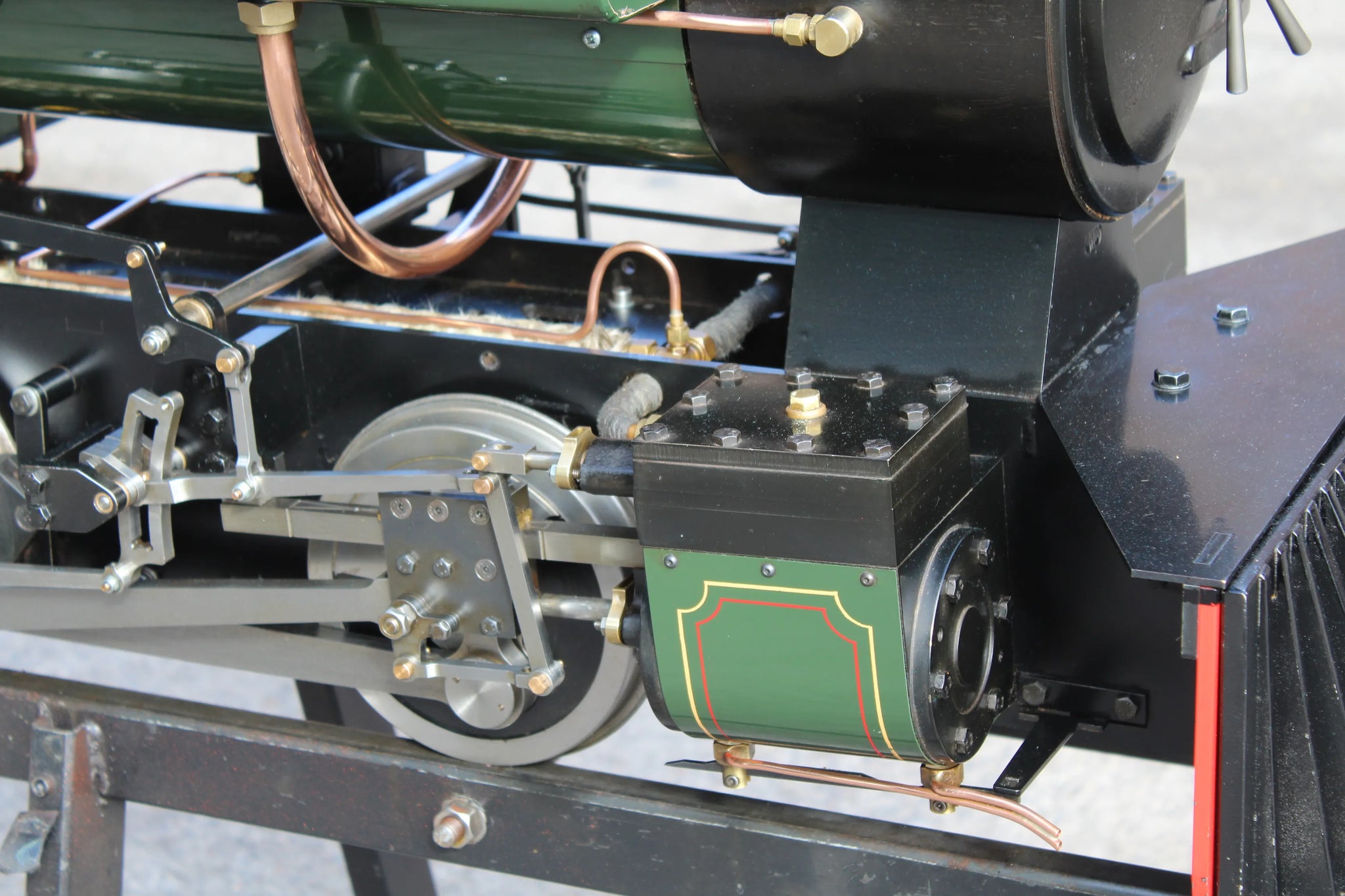

  • drain cocks piped forwards
  • water tank filter

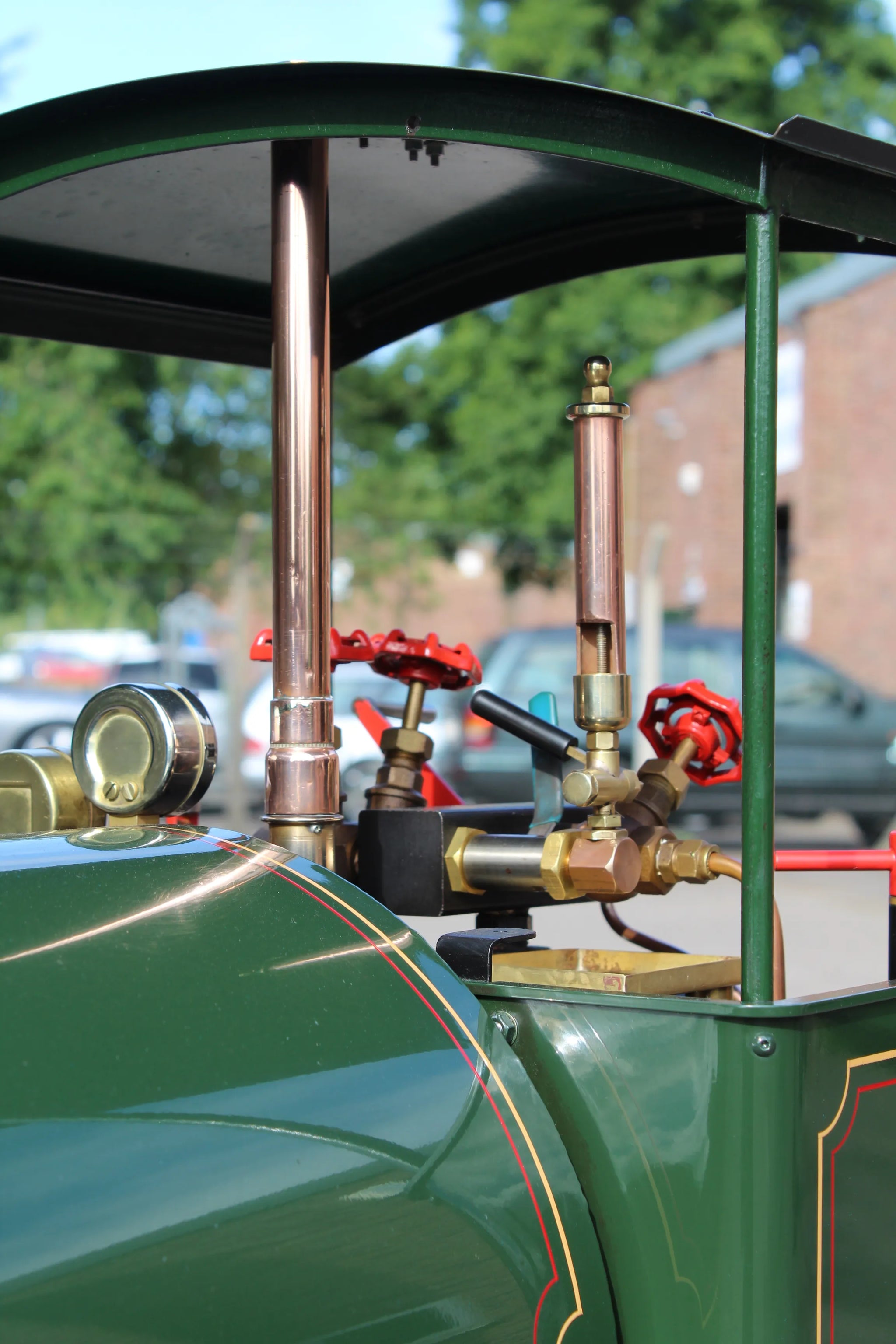

  • whistle with a natty brass drip tray beneath, to collect any condensate

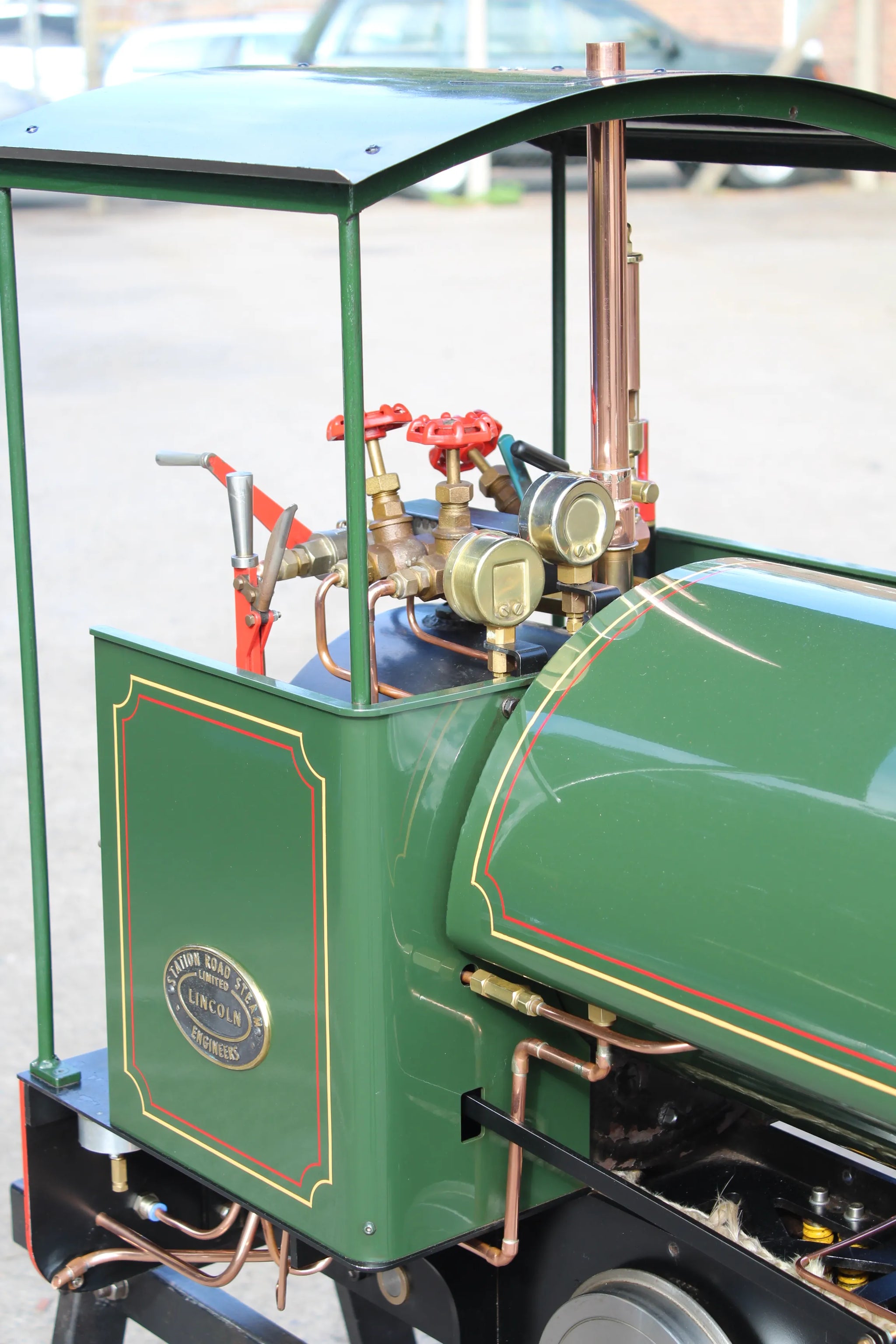

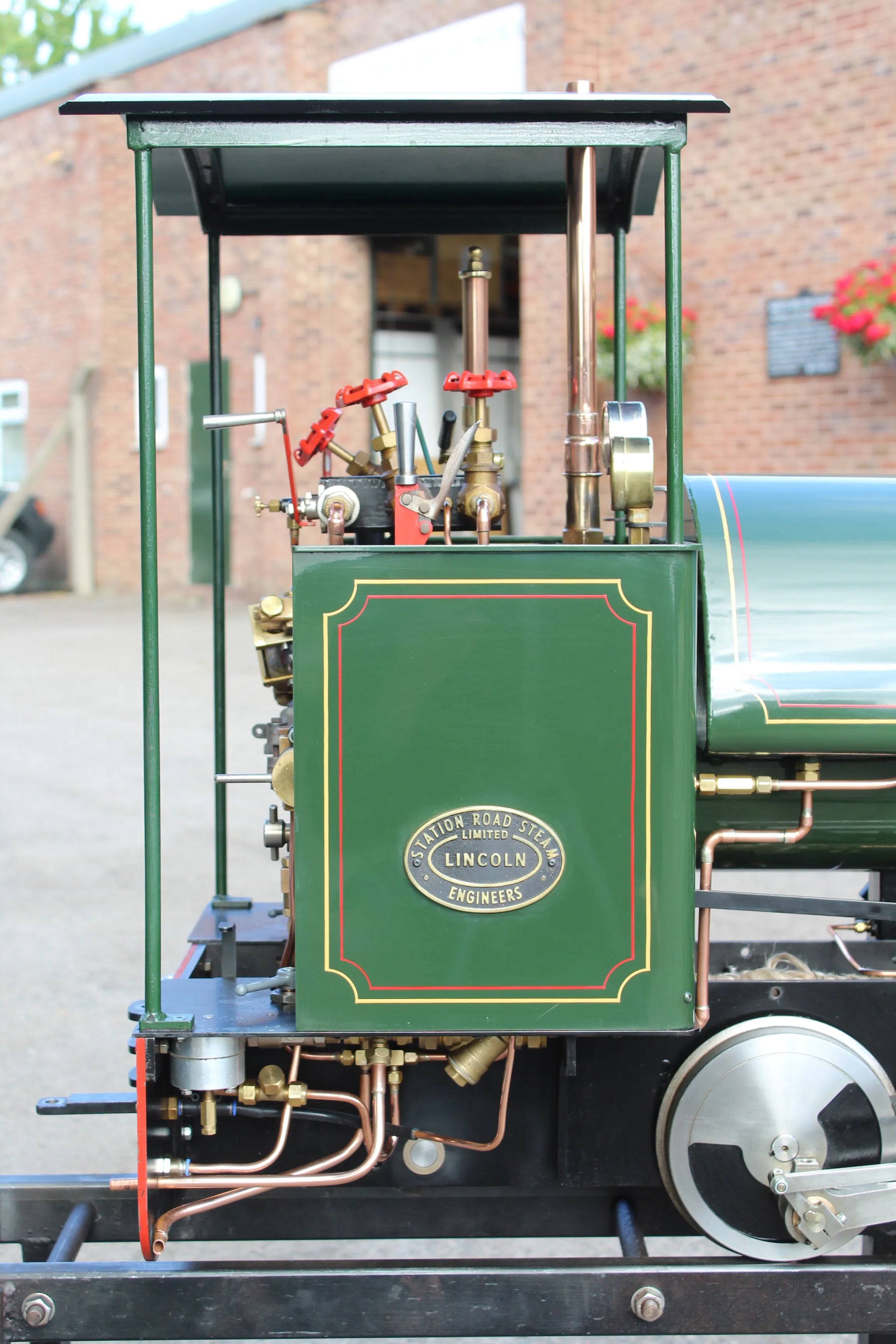

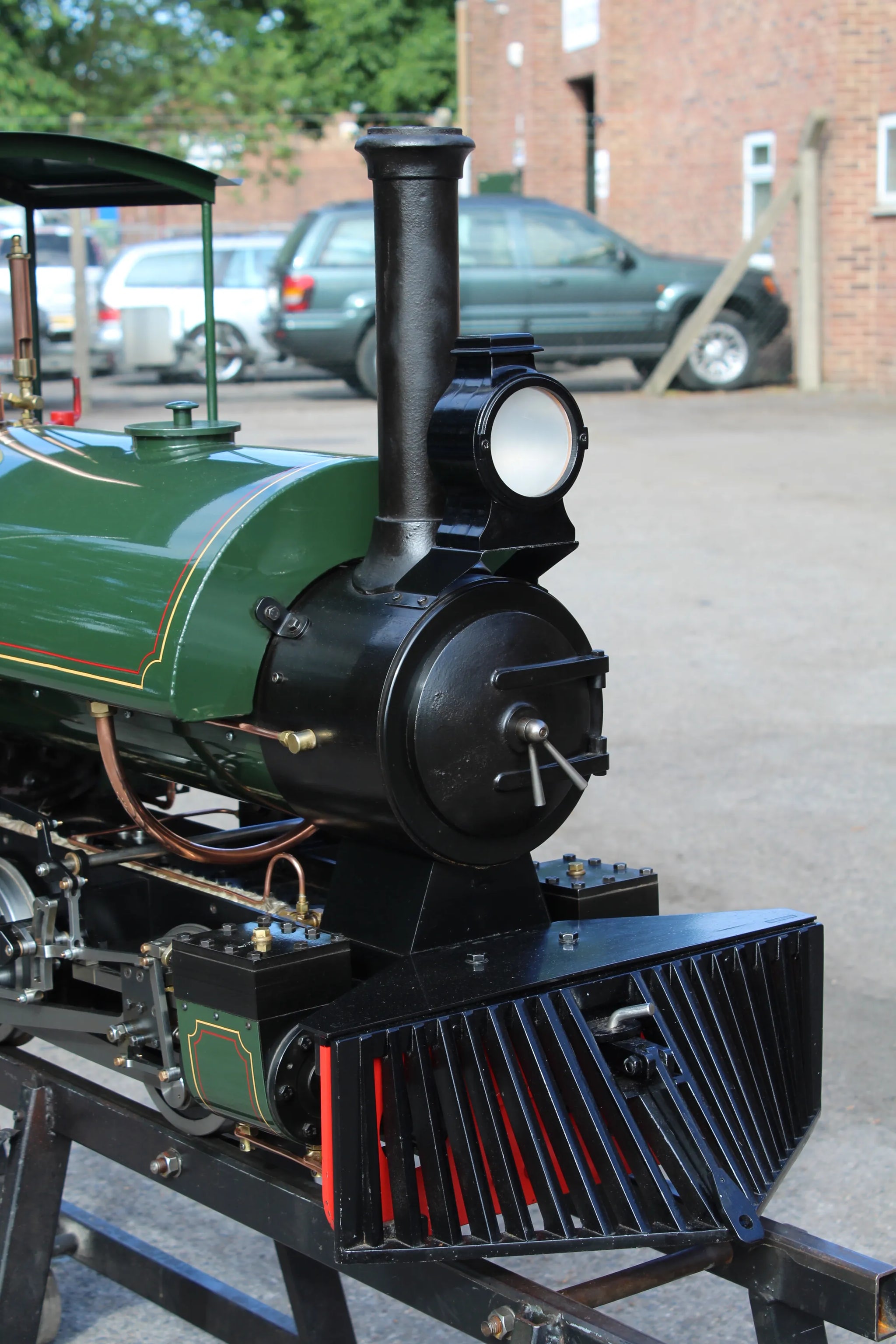

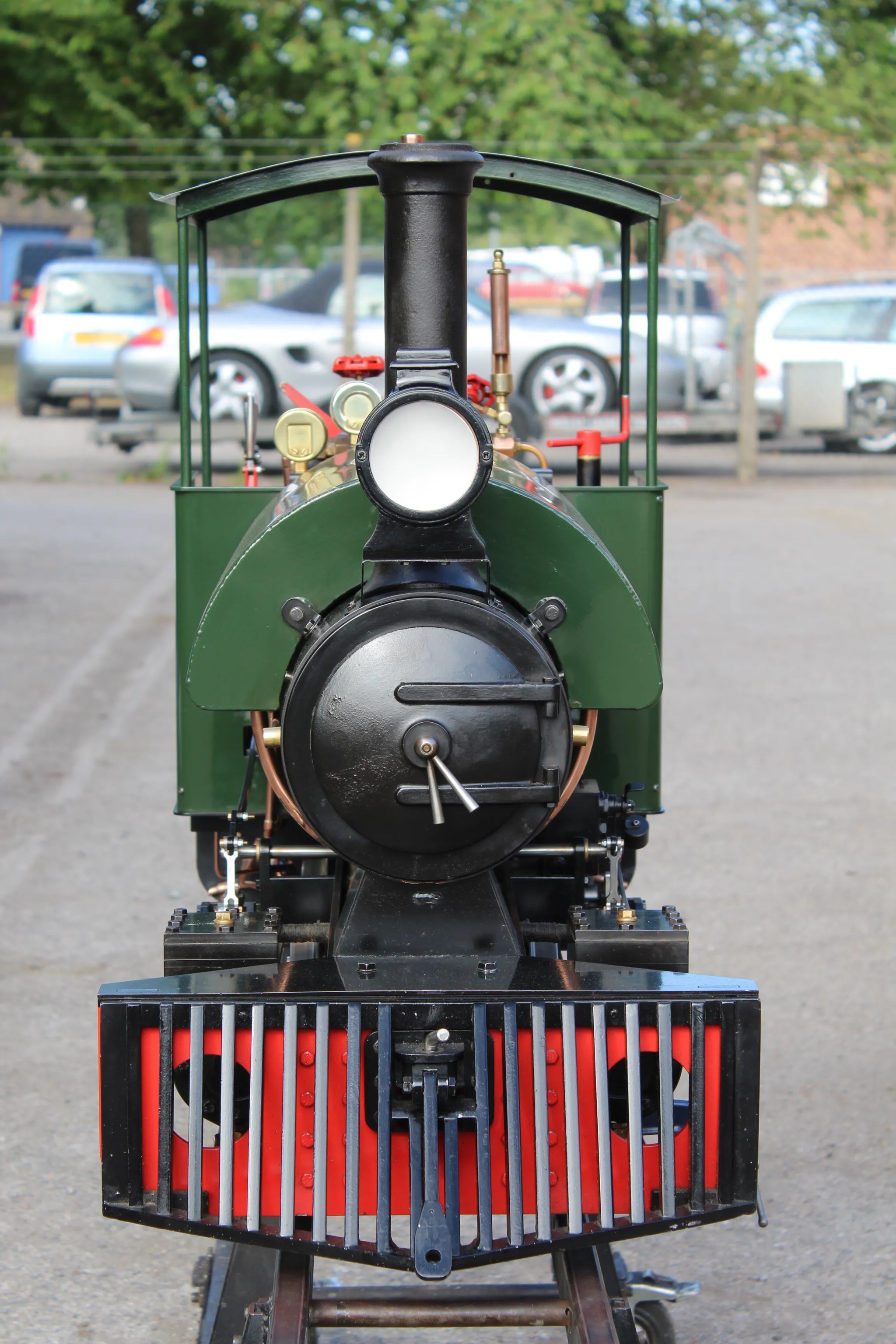

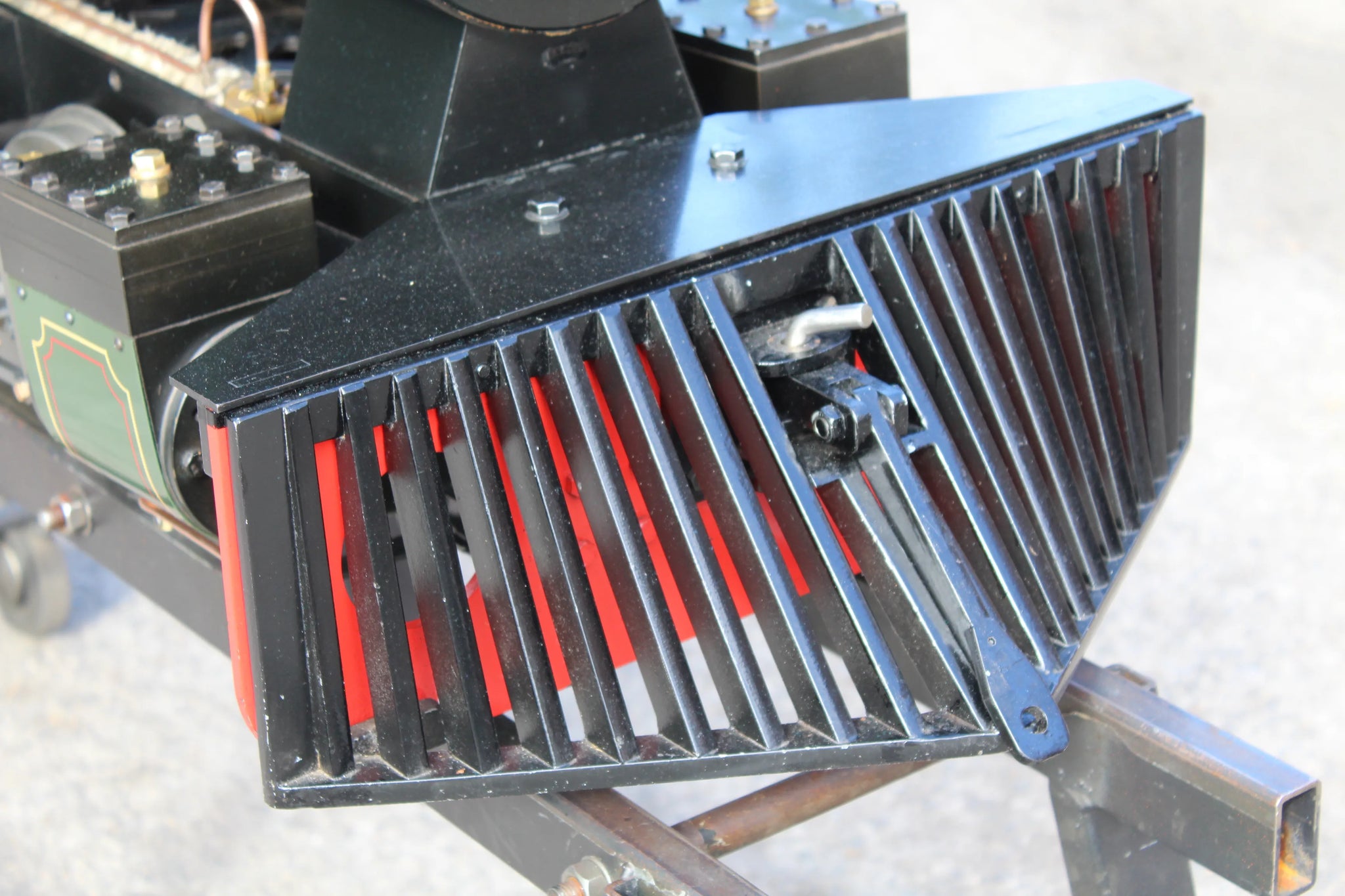

  • "Colonial" type sun-shade cab and cow catcher (or "roo bar" as the builder described it)
  • "Rose bud" type grate - original grate included, grates can be swapped over by undoing four bolts
  • Pivoting draw bar on locomotive

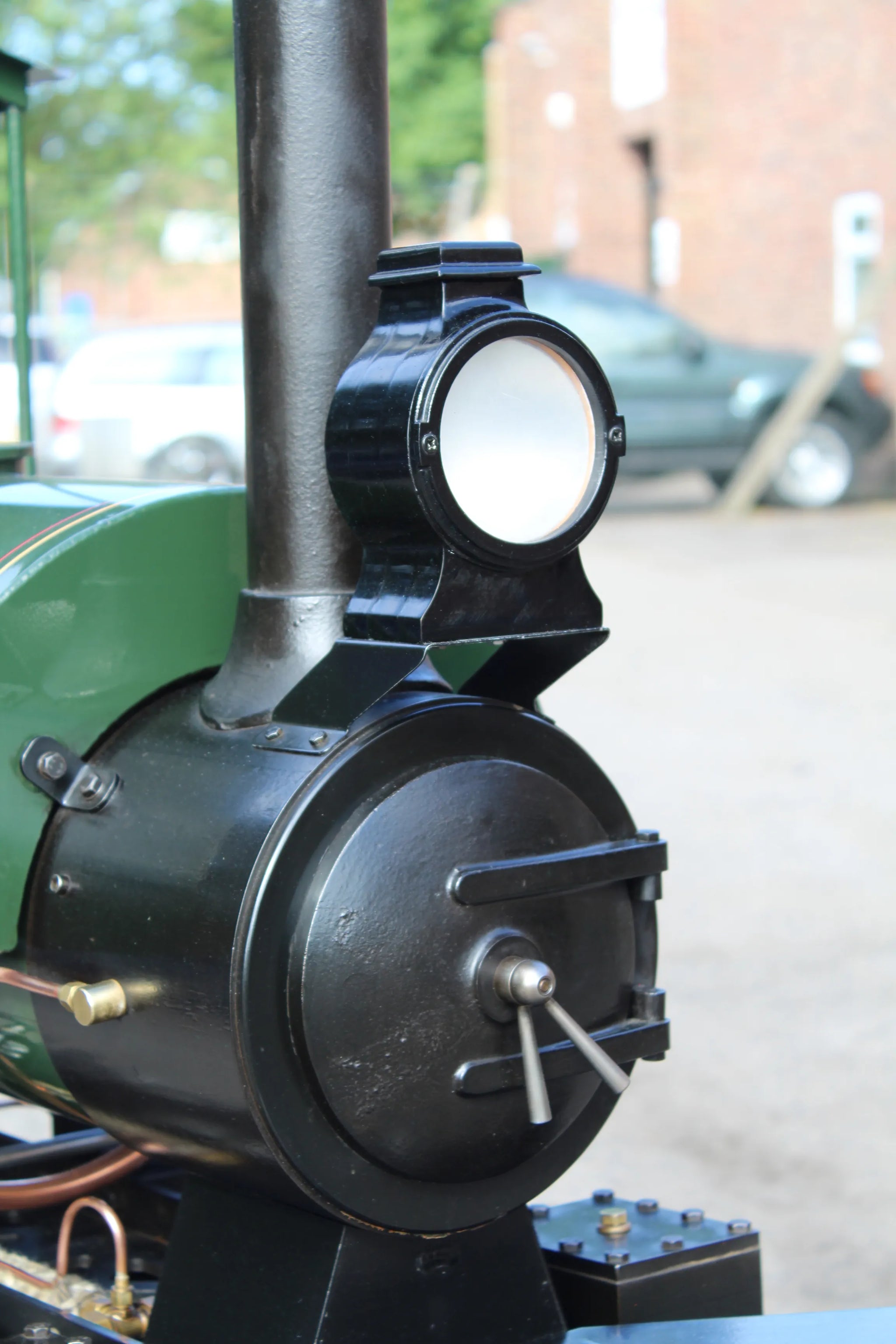

  • Headlamp

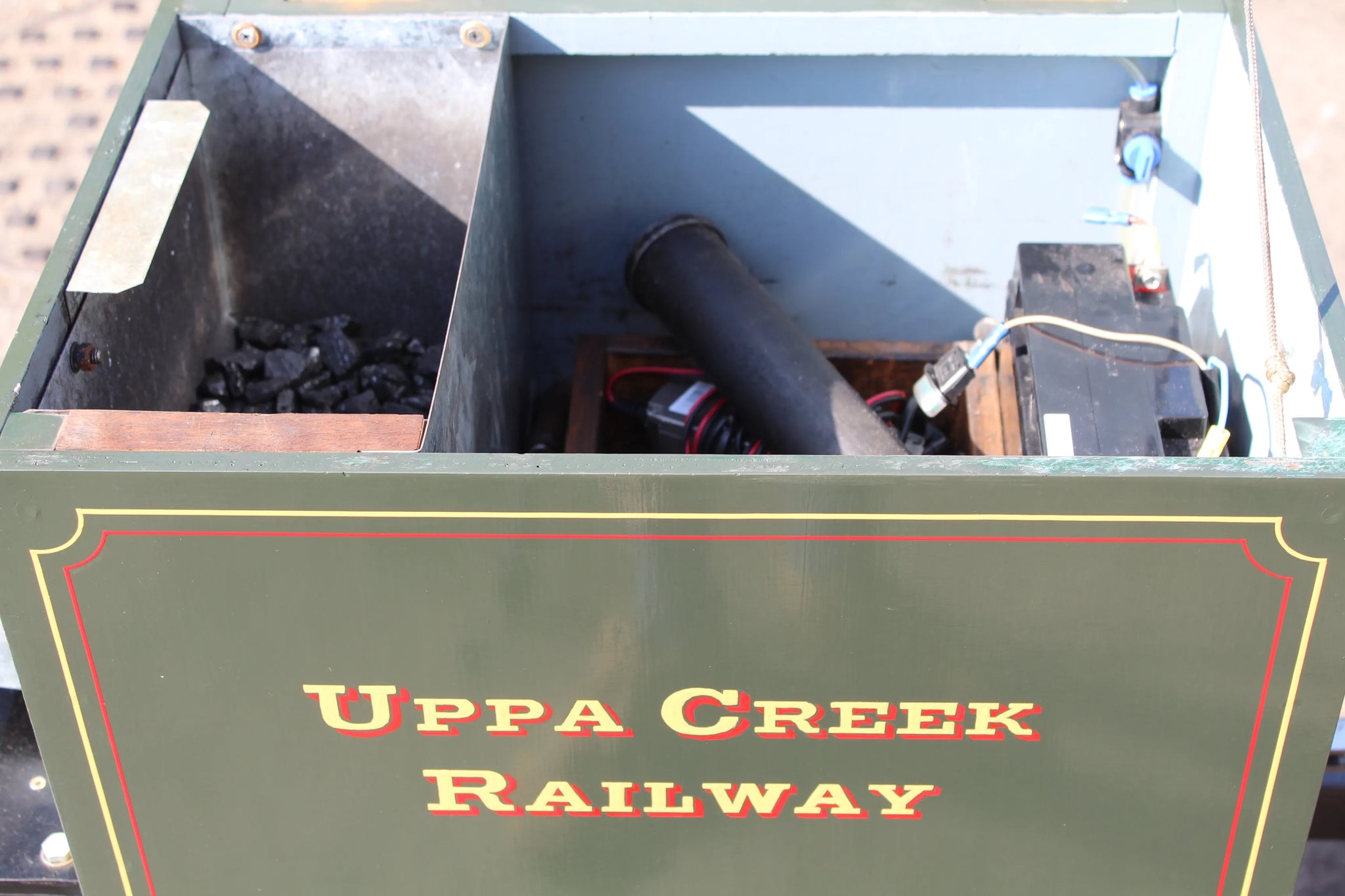

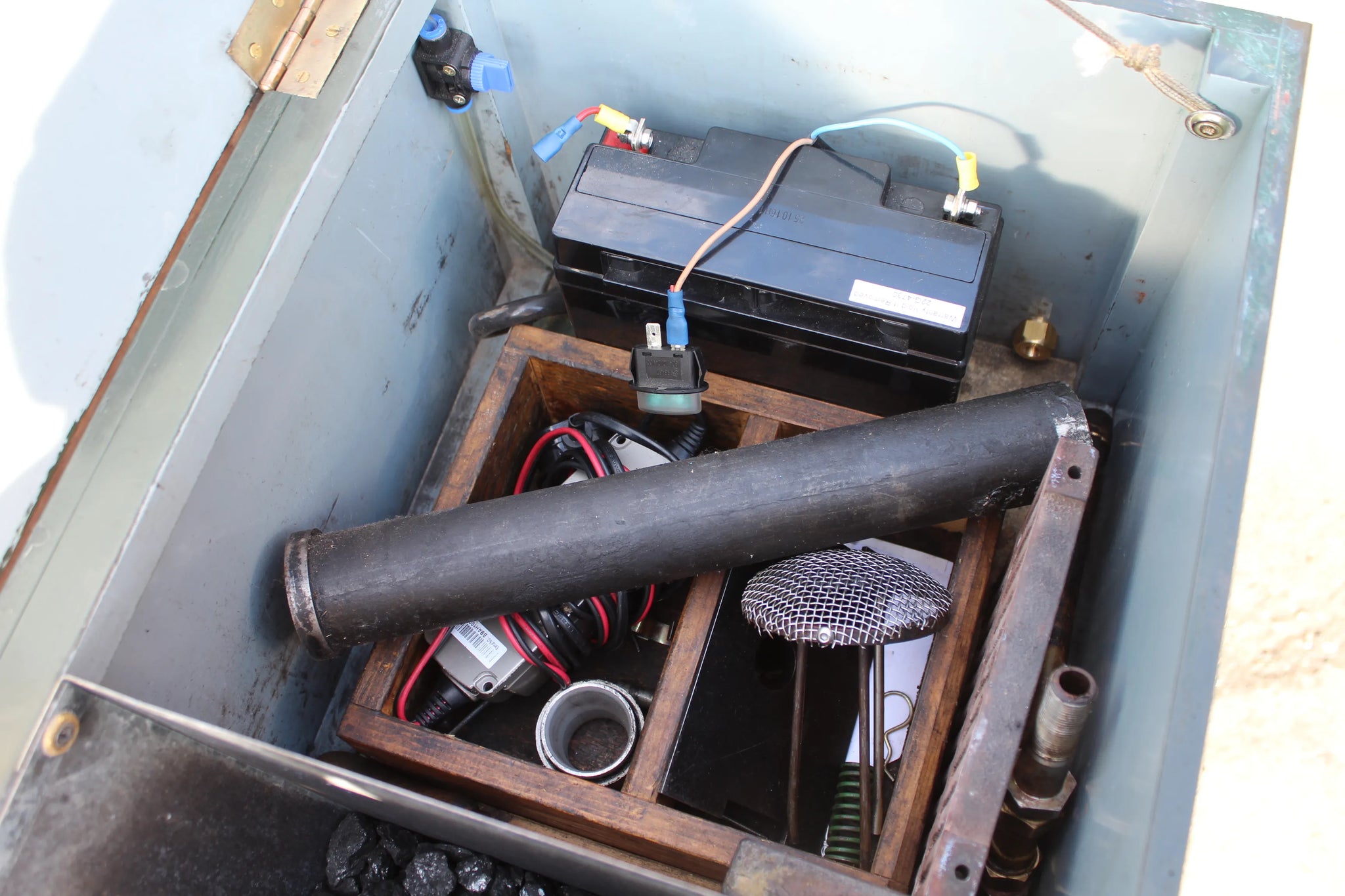

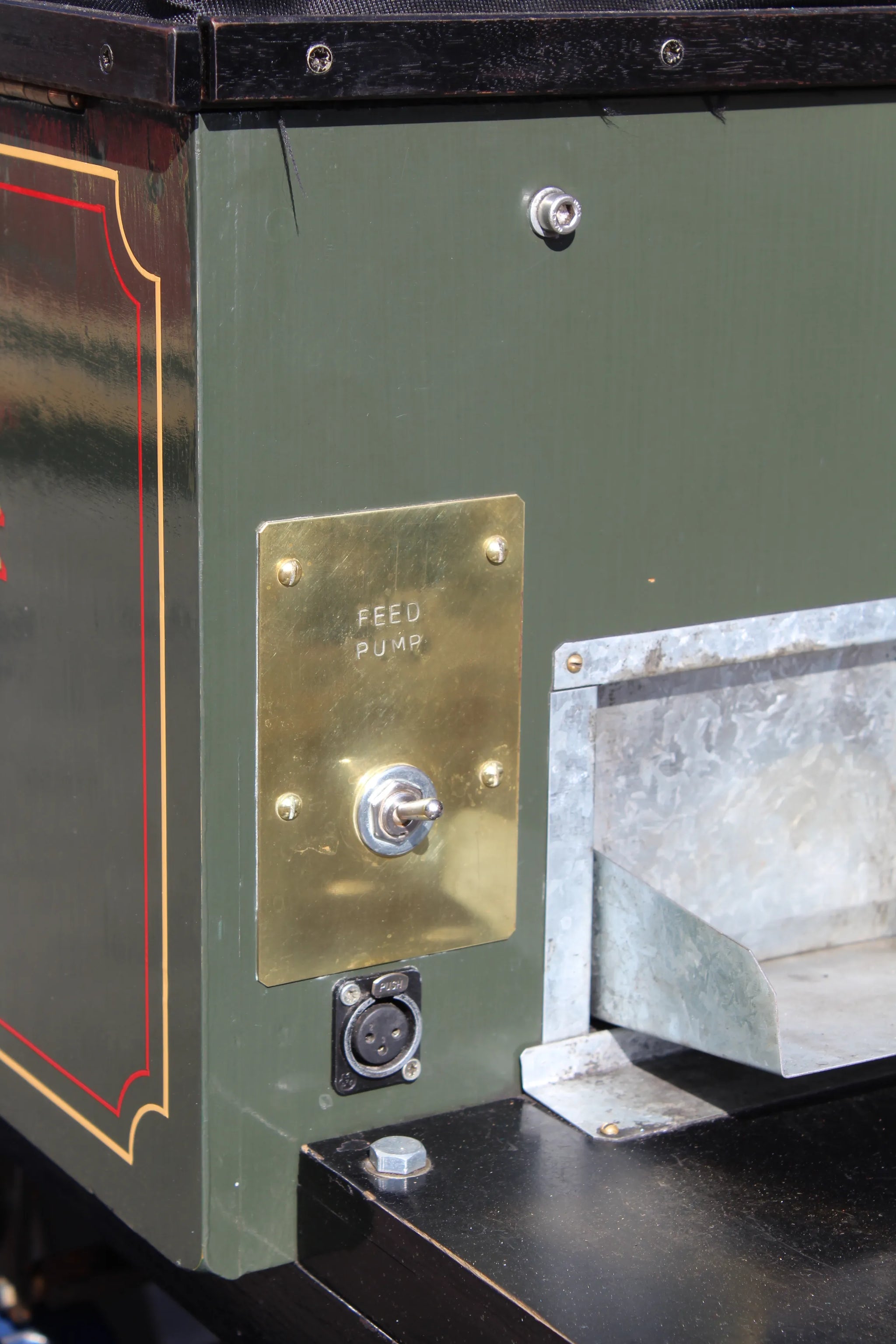

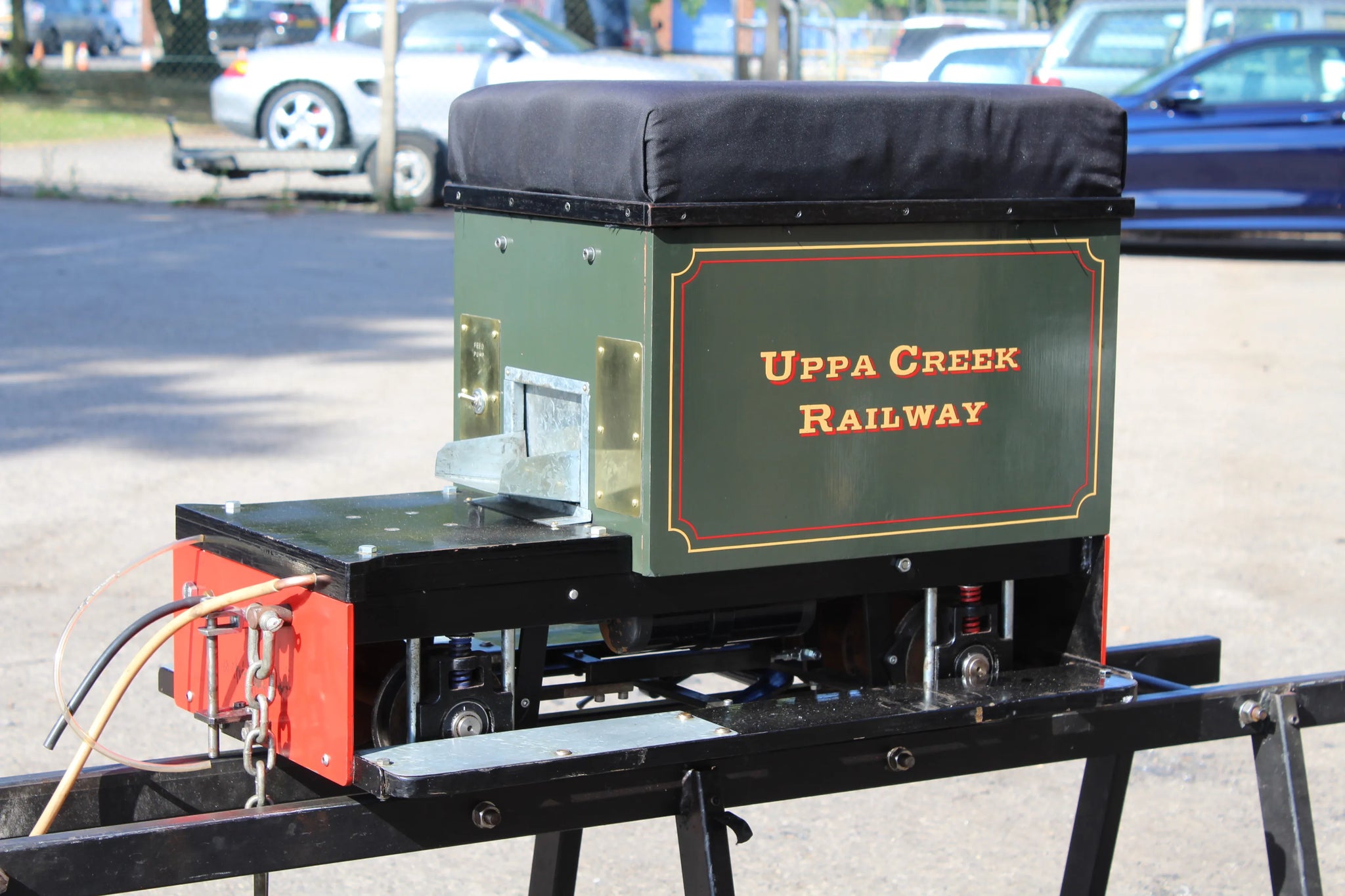

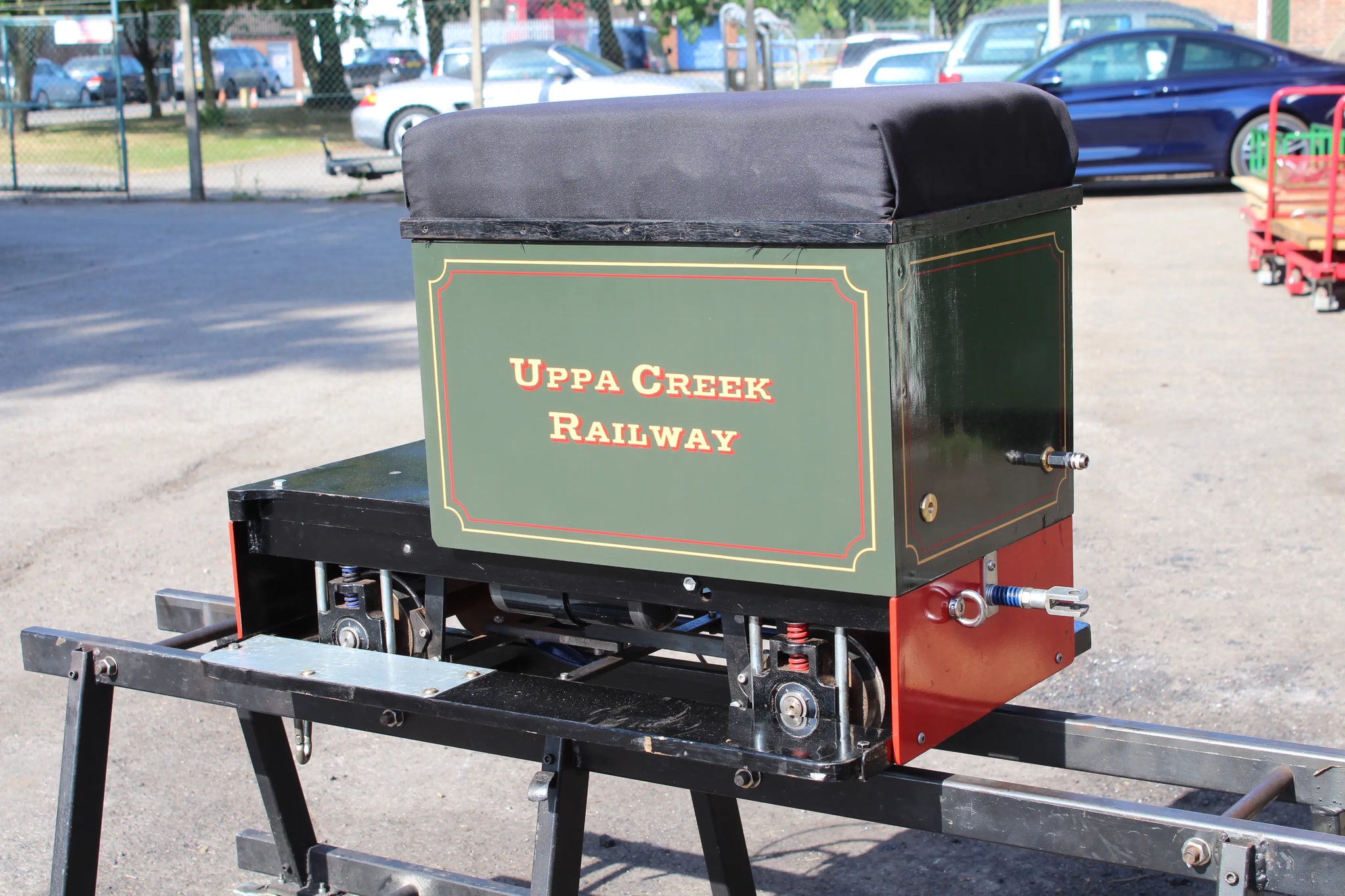

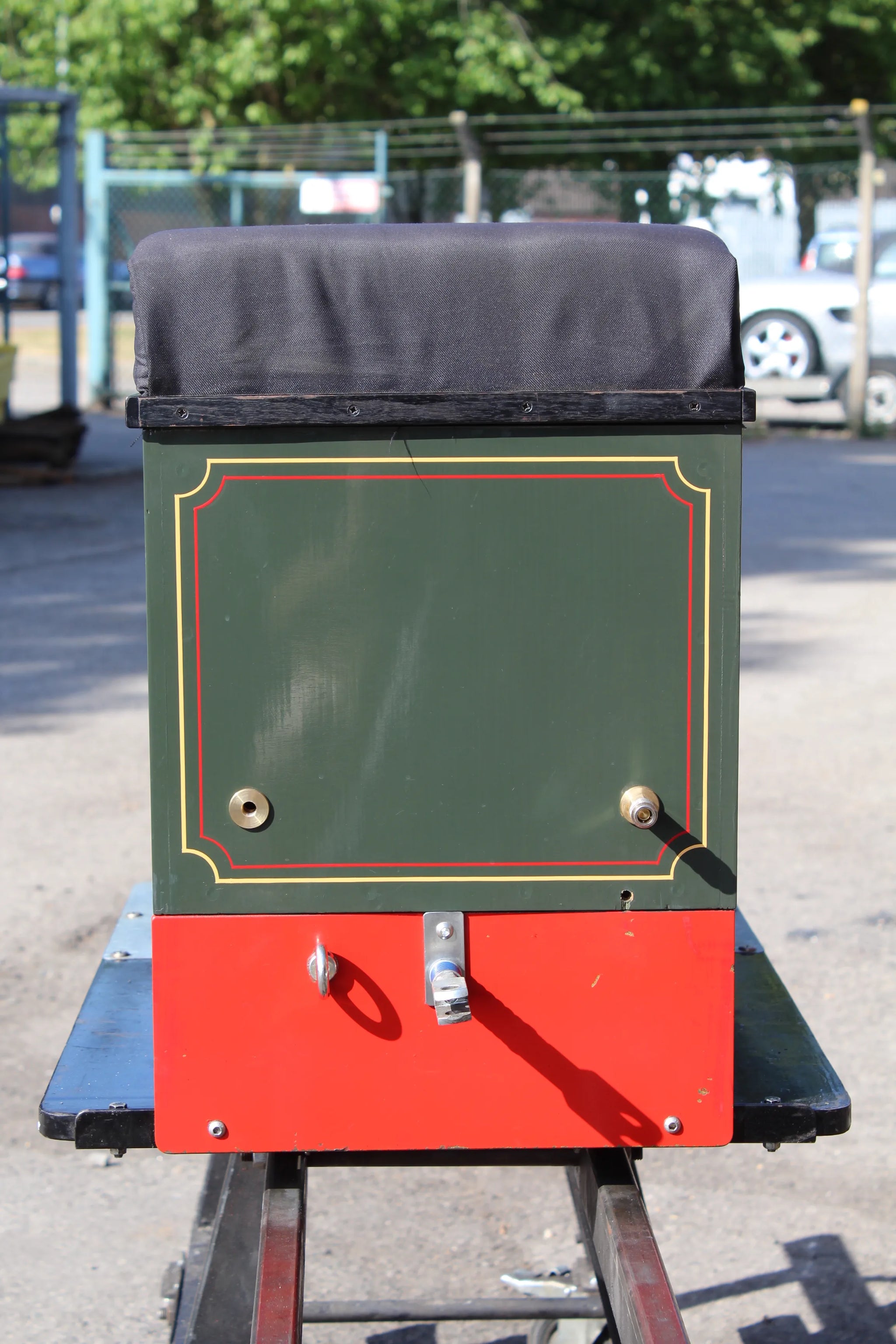

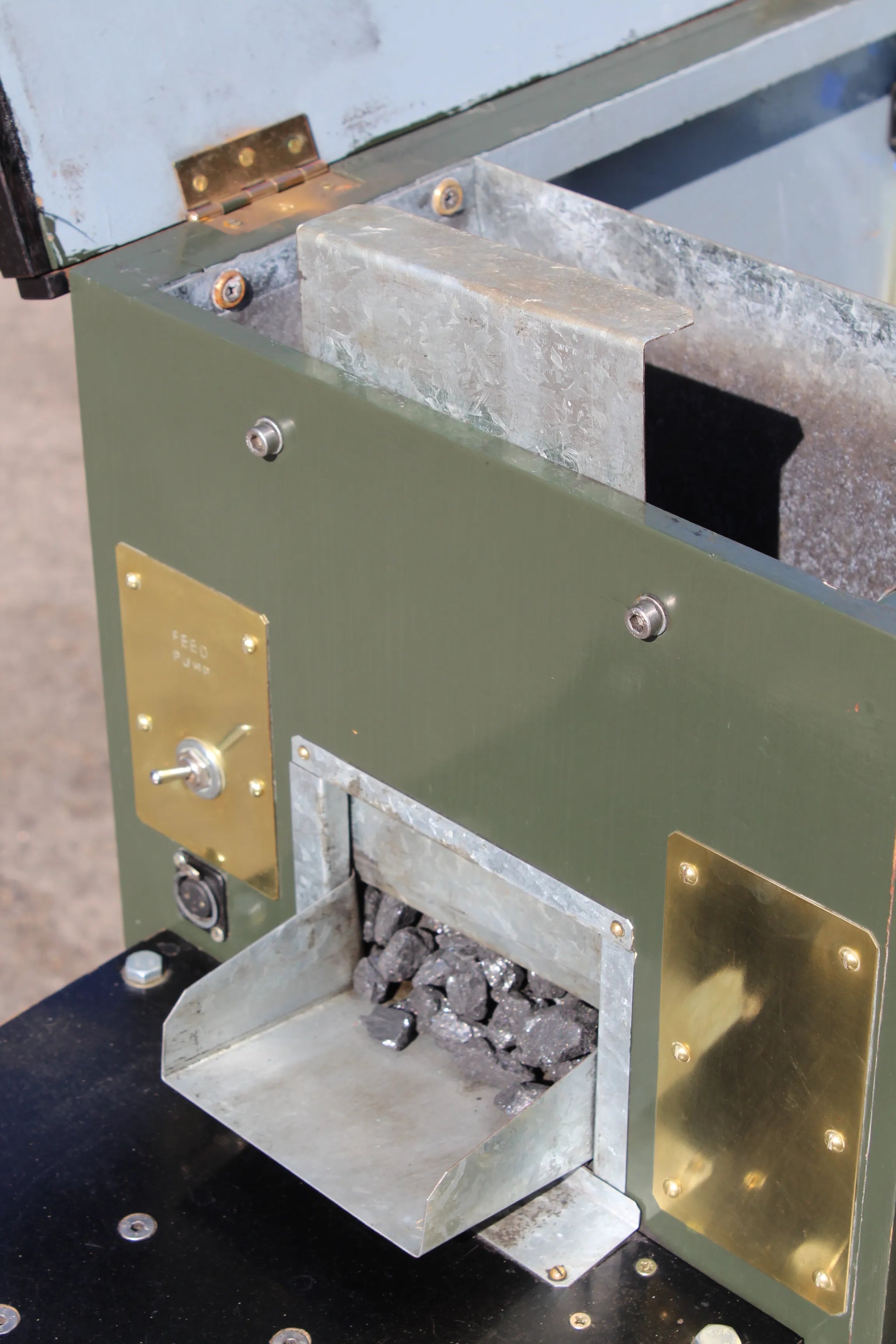

  • Four wheel vacuum braked driving truck, with electric water pump and coal bunker
  • Pivoting coupling bar and check chain fitted to locomotive
We had this one in steam last week, spent a happy afternoon driving up and down our short test track. The driving truck is comfortable, its brakes work well using the engines vacuum valve.

In excellent mechanical condition, it's a credit to its previous owner. As with all second hand Staffords and Feldbahns we sell, it's supplied with new boiler certificate, handbook, starter kit of oil and water treatment, and 12 months warranty - exactly the same as a new engine.


Technical information

Stock code

8082

Gauge

7 1/4 inch

Length/inches

49 + 32

Width/inches

19

Height/inches

53

Weight/Kg

200 + 60

Wheel material

EN8 steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2013

Boiler number

01/02/2000 00:00

Safety valve type

pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Mechanical pump

1 x electric pump

Injector

2

Nominal traction

238

Pack

Single half pallet

Date out

Jul-18

Hydraulic test valid to

26-Jun-20

Steam test valid to

26-Aug-19
