Sold

9812

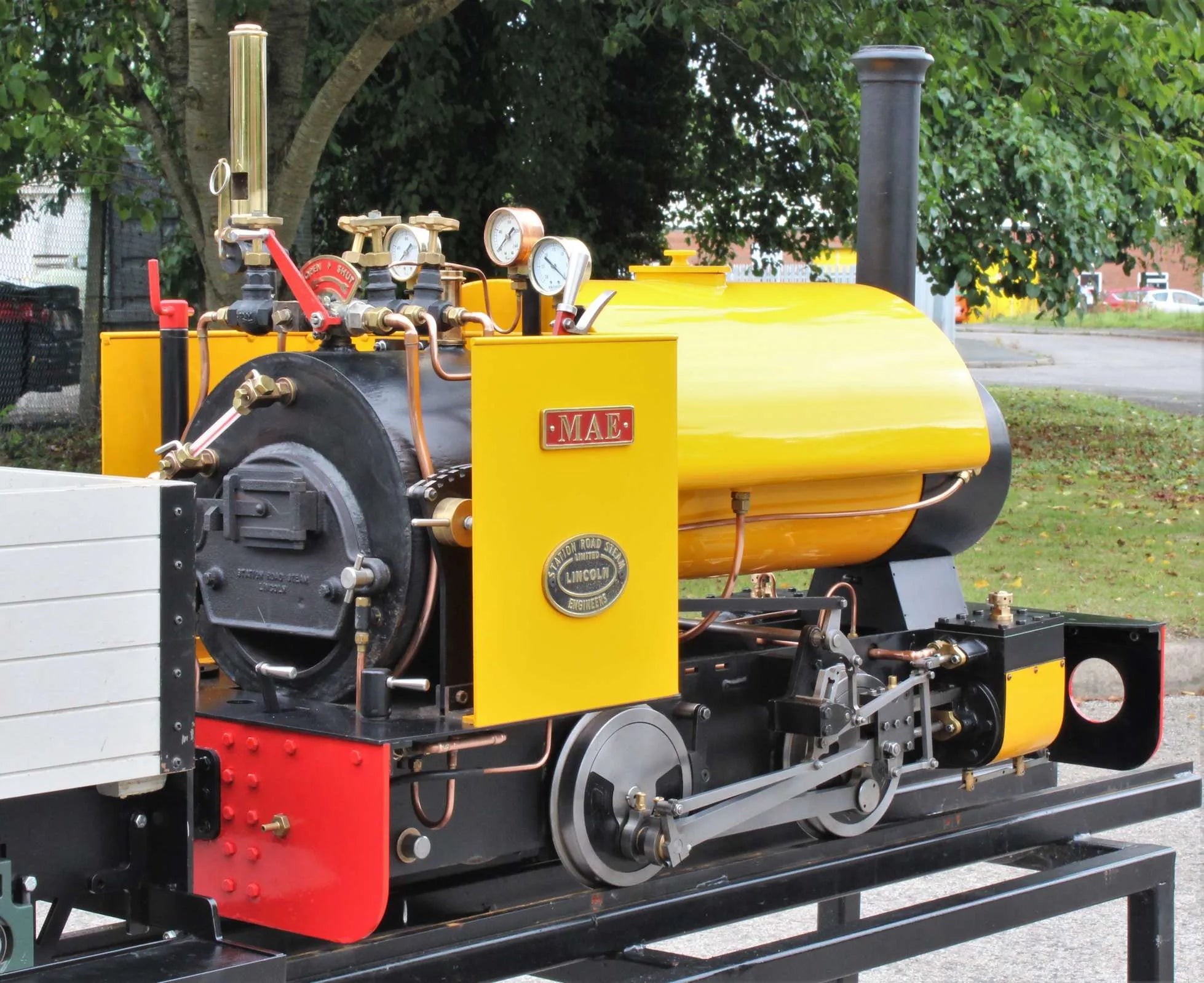

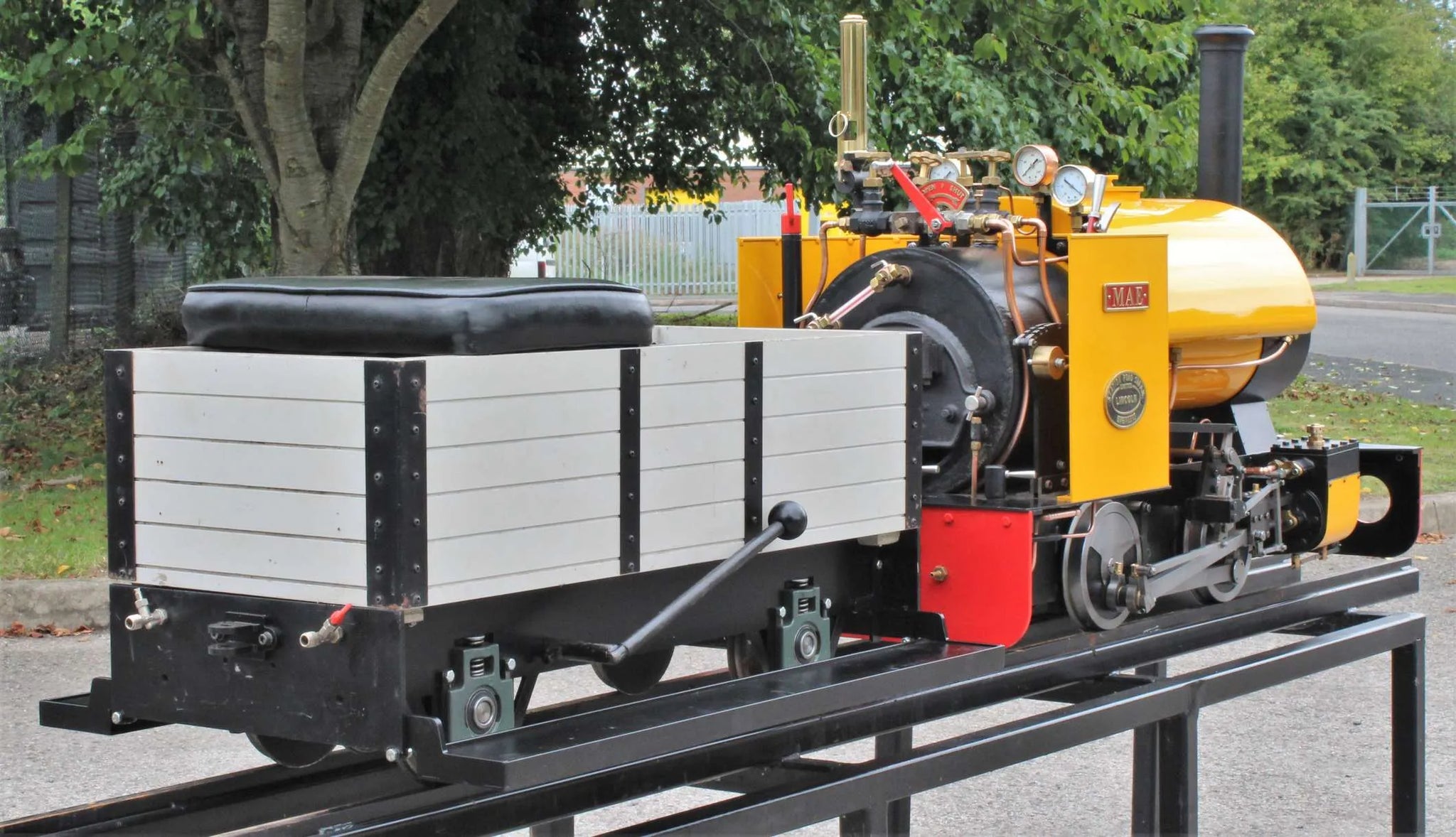

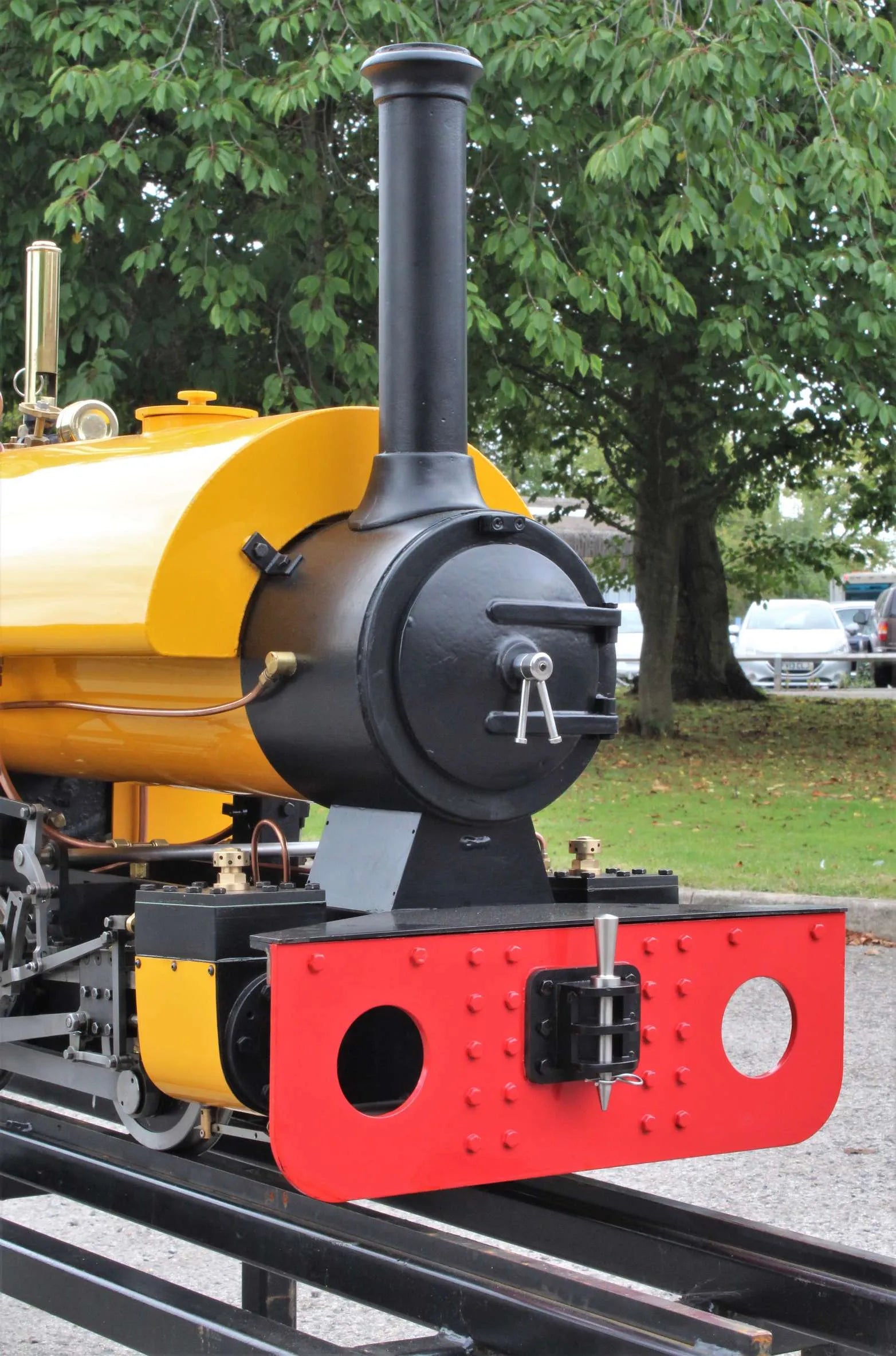

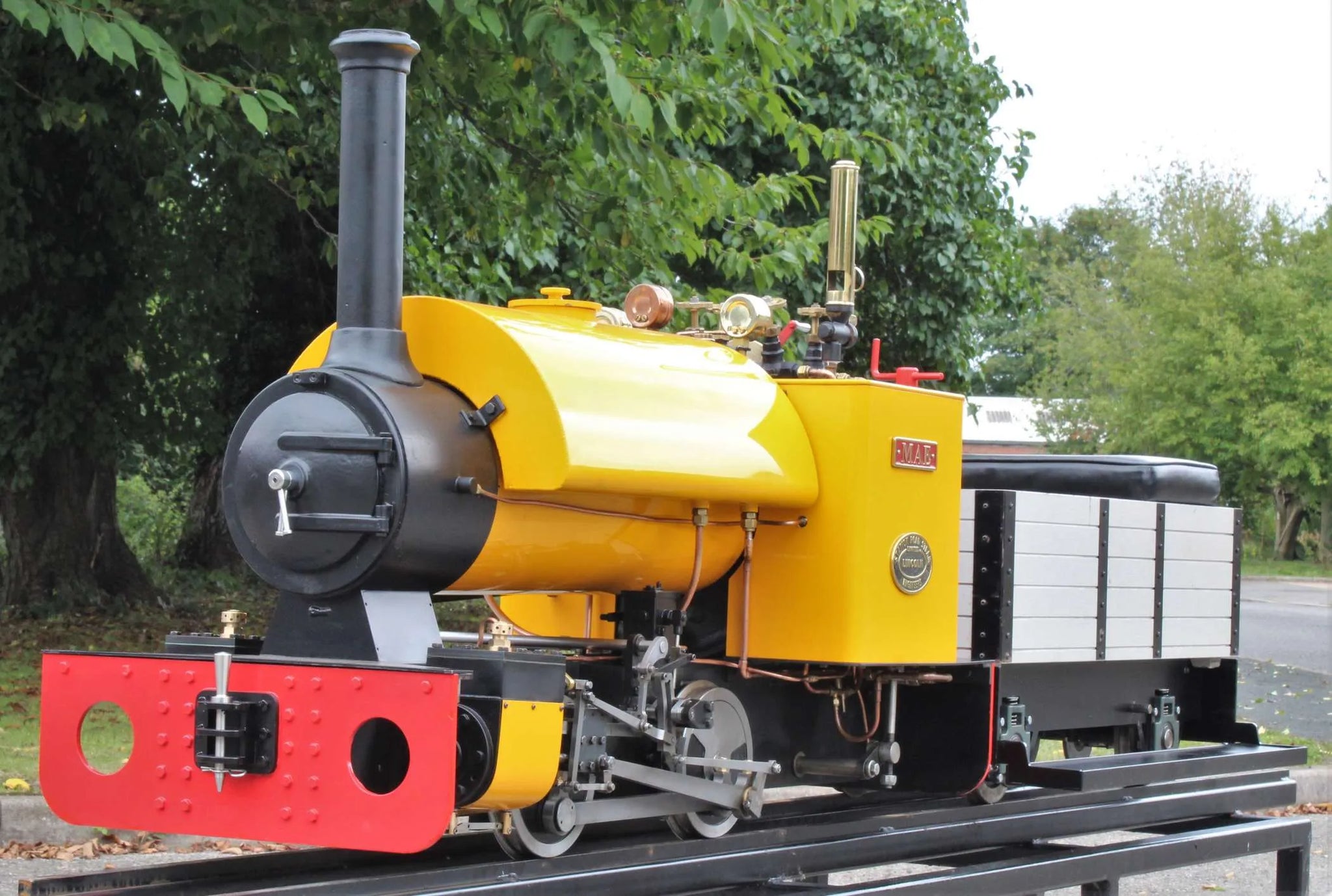

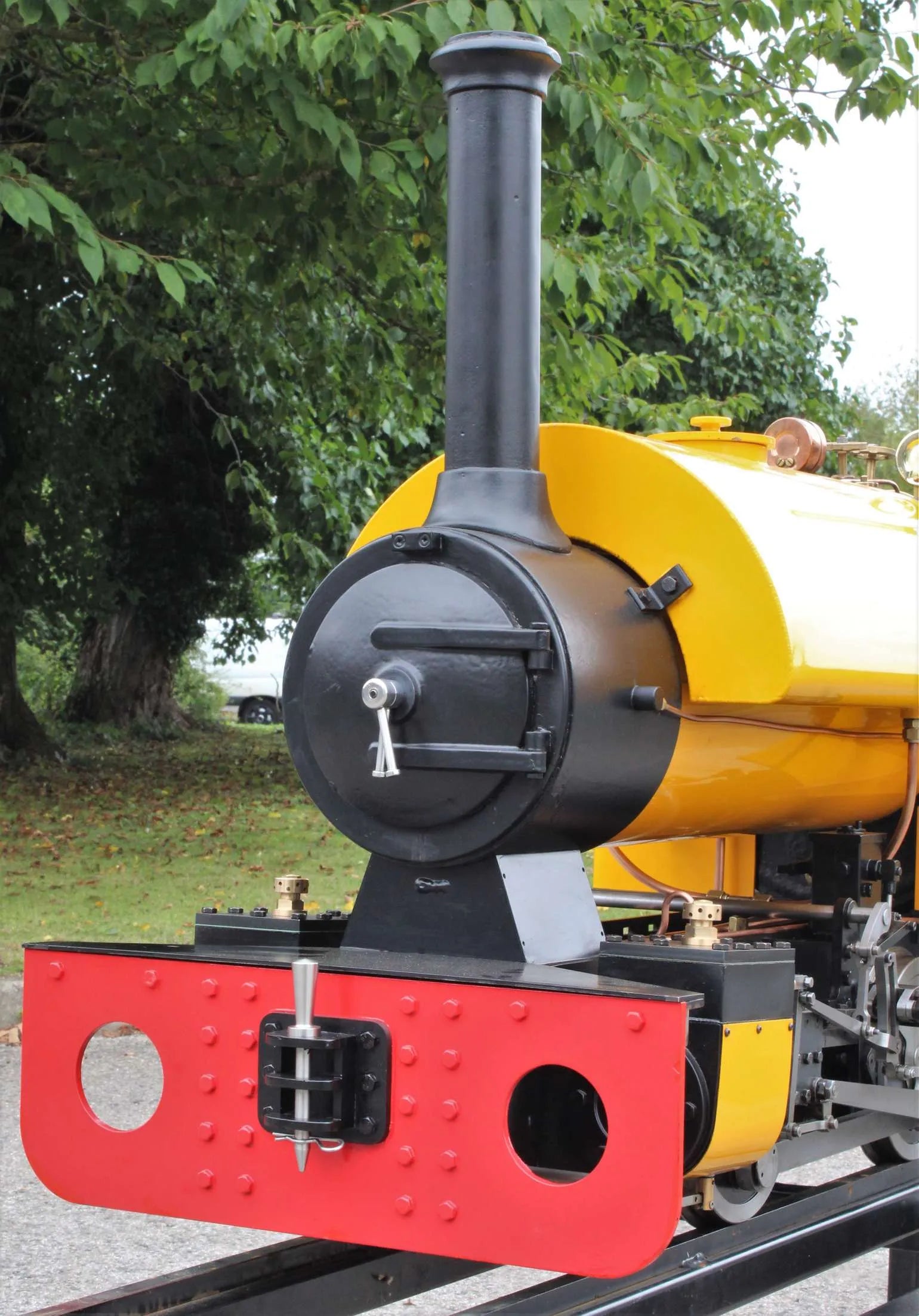

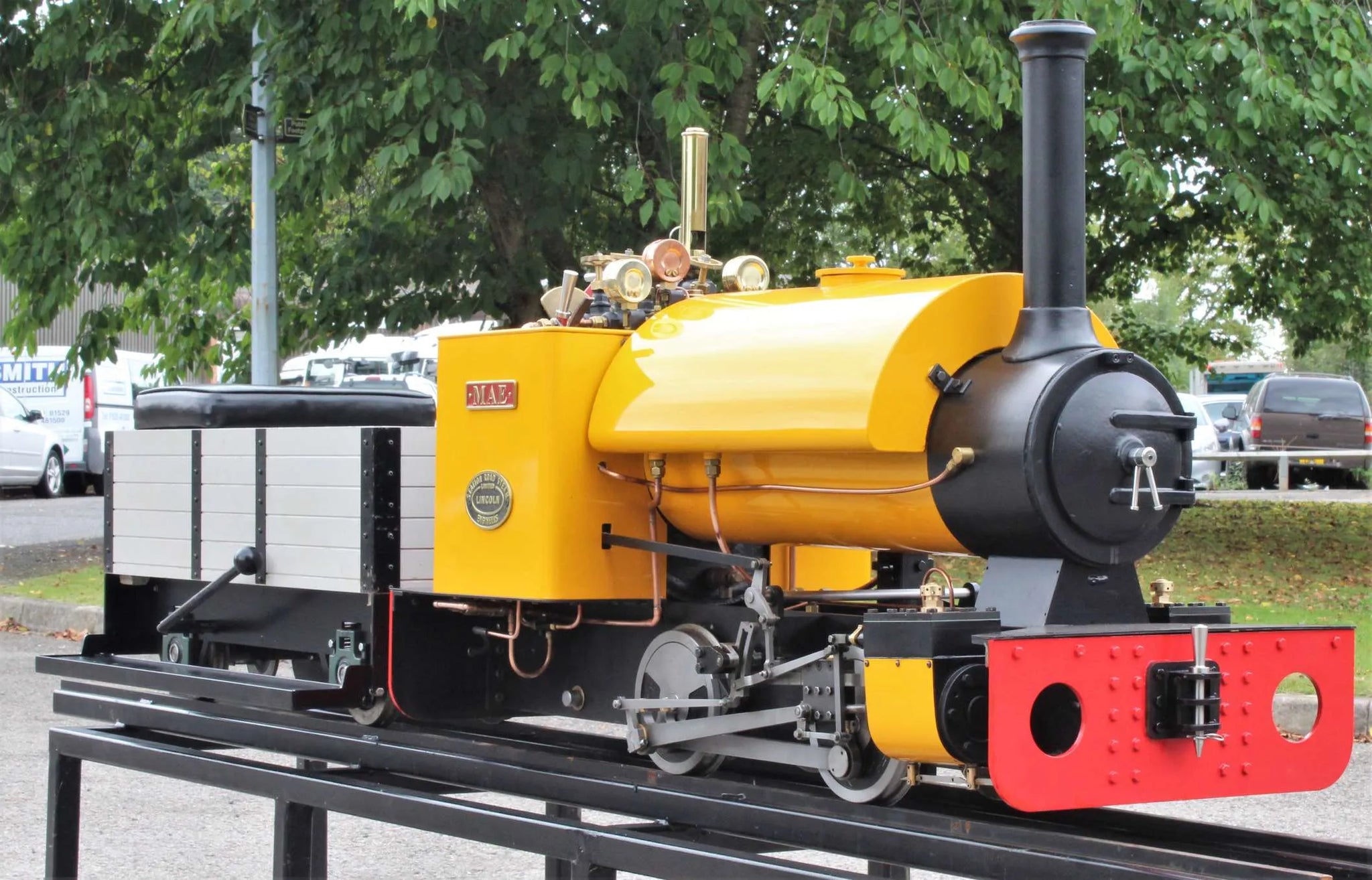

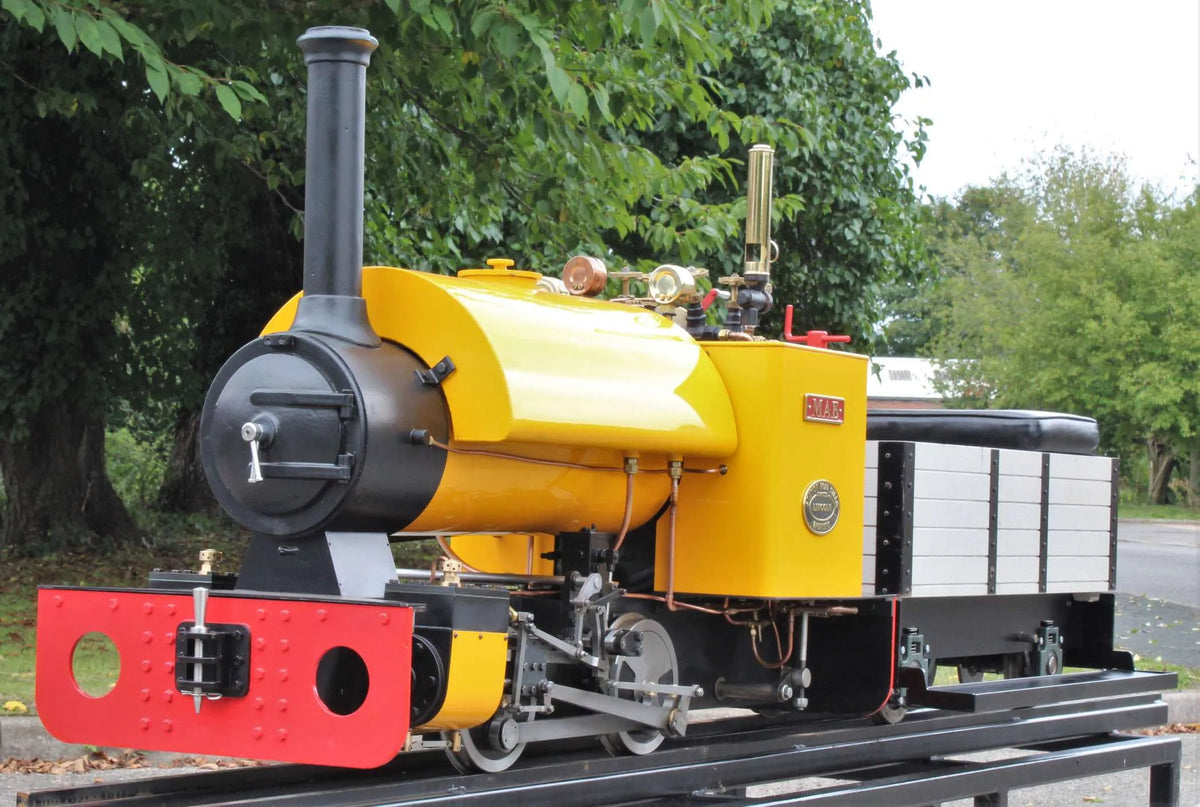

7 1/4 inch gauge Stafford 0-4-0ST works number 1312, with driving truck

A 7 1/4 inch gauge Stafford 0-4-0ST, works number 1312; built originally for the Coalyard Miniature Railway at Kidderminster - their fleet of Staffords eventually numbering three Clubman and three Estate Railway sized locomotives - it subsequently passed to a private owner.

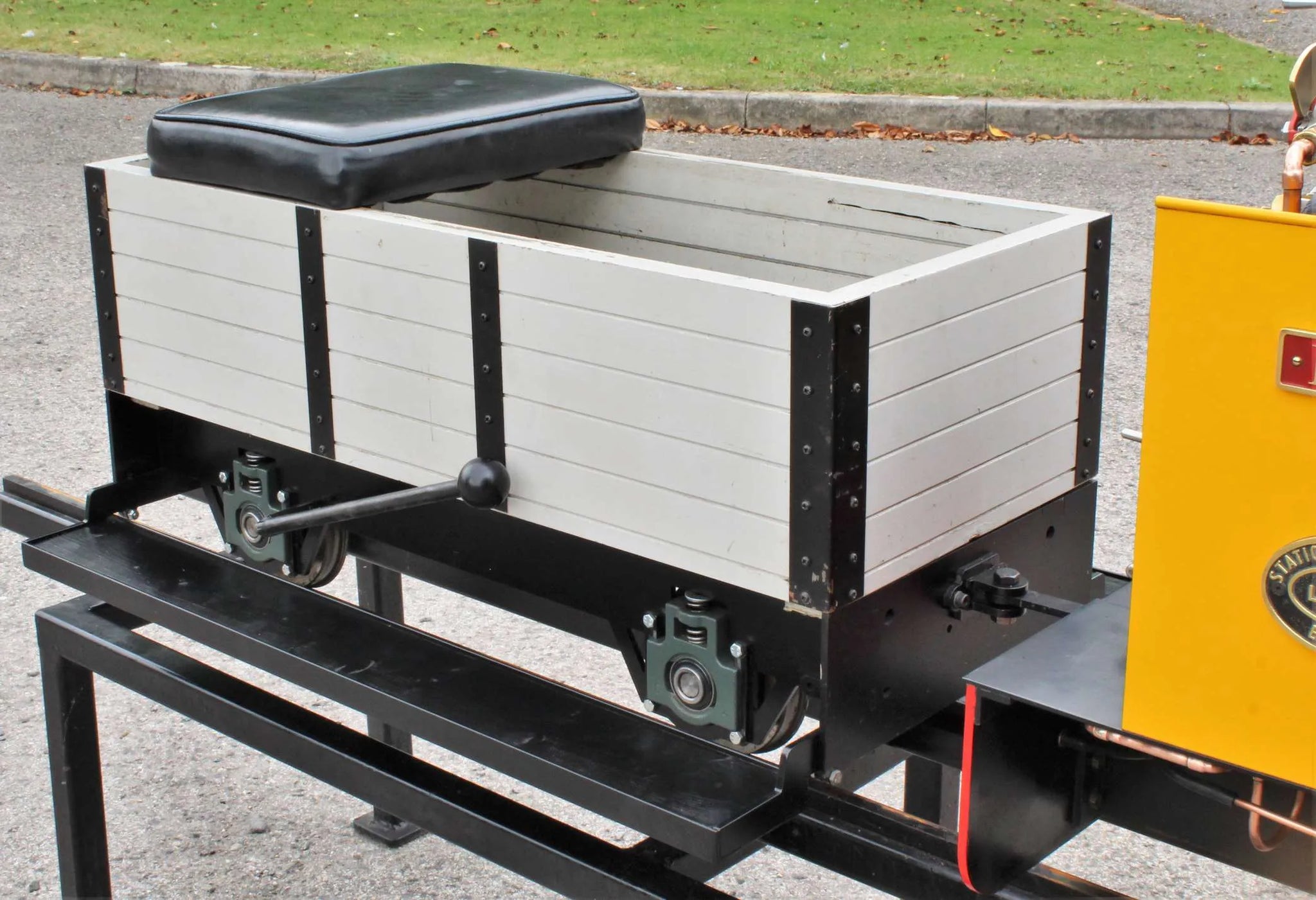

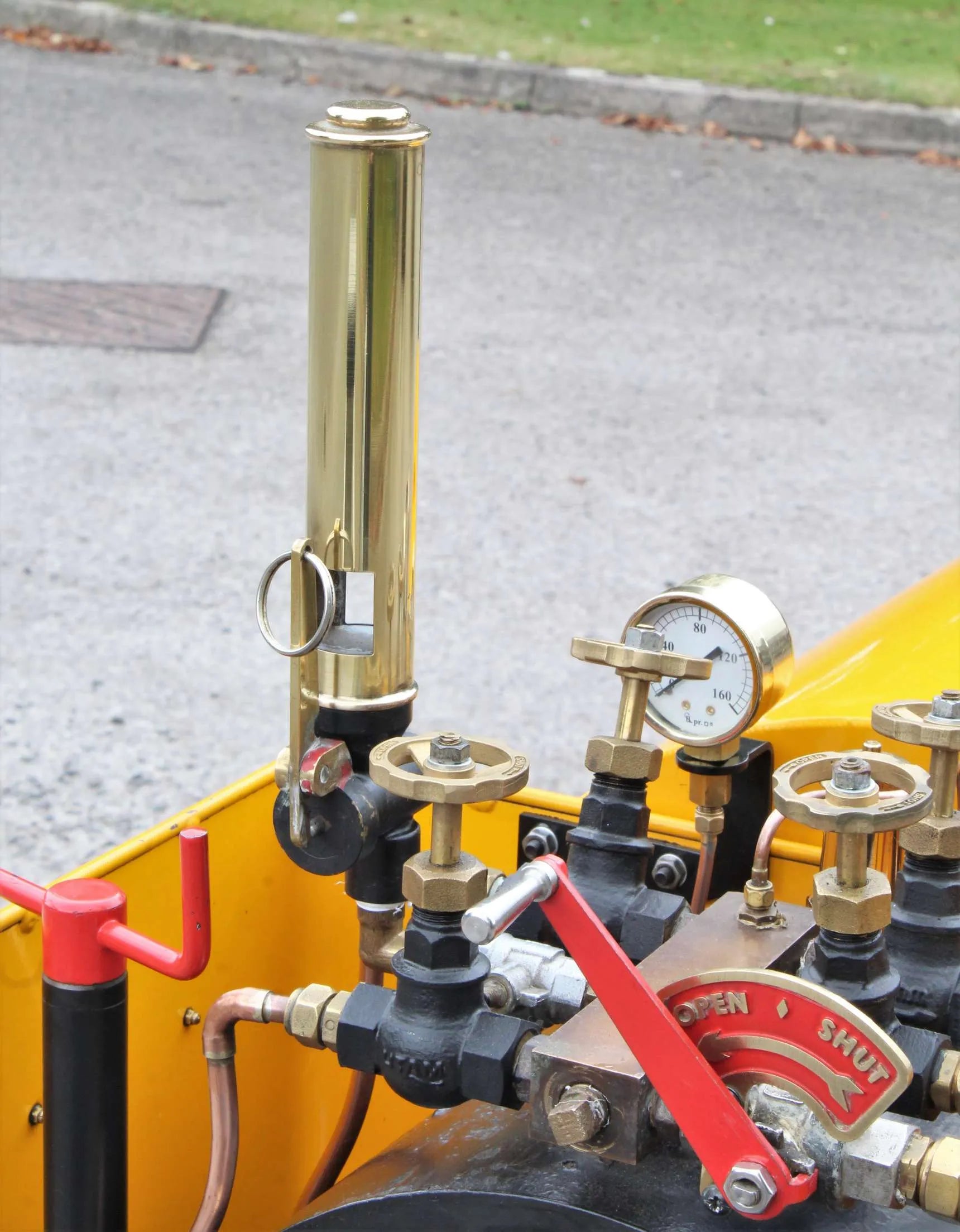

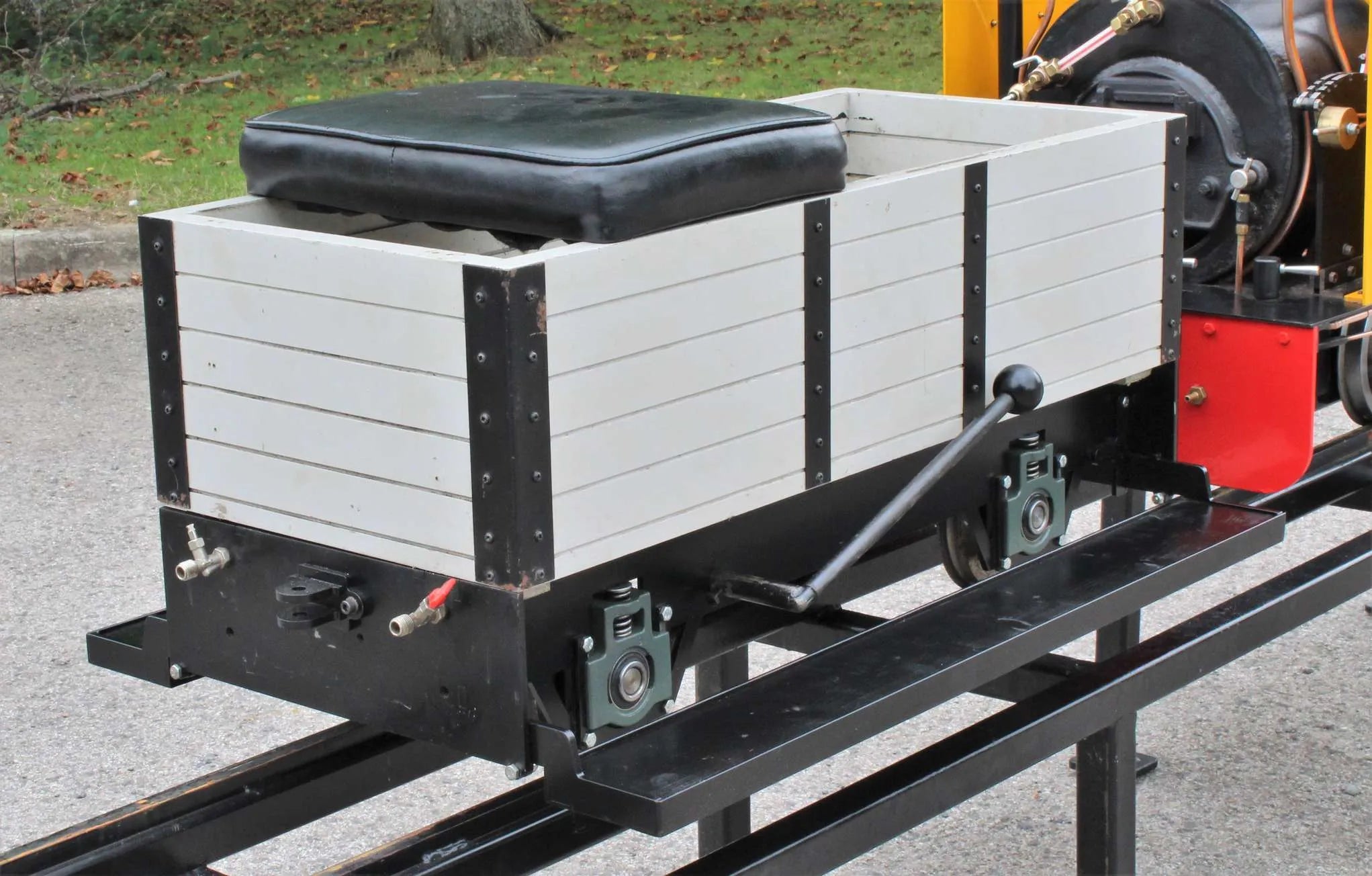

Specified with vacuum brakes and braked four-wheel driving truck when first ordered - the first owner subsequently fitted a fine sounding whistle and cast regulator indicator plate.

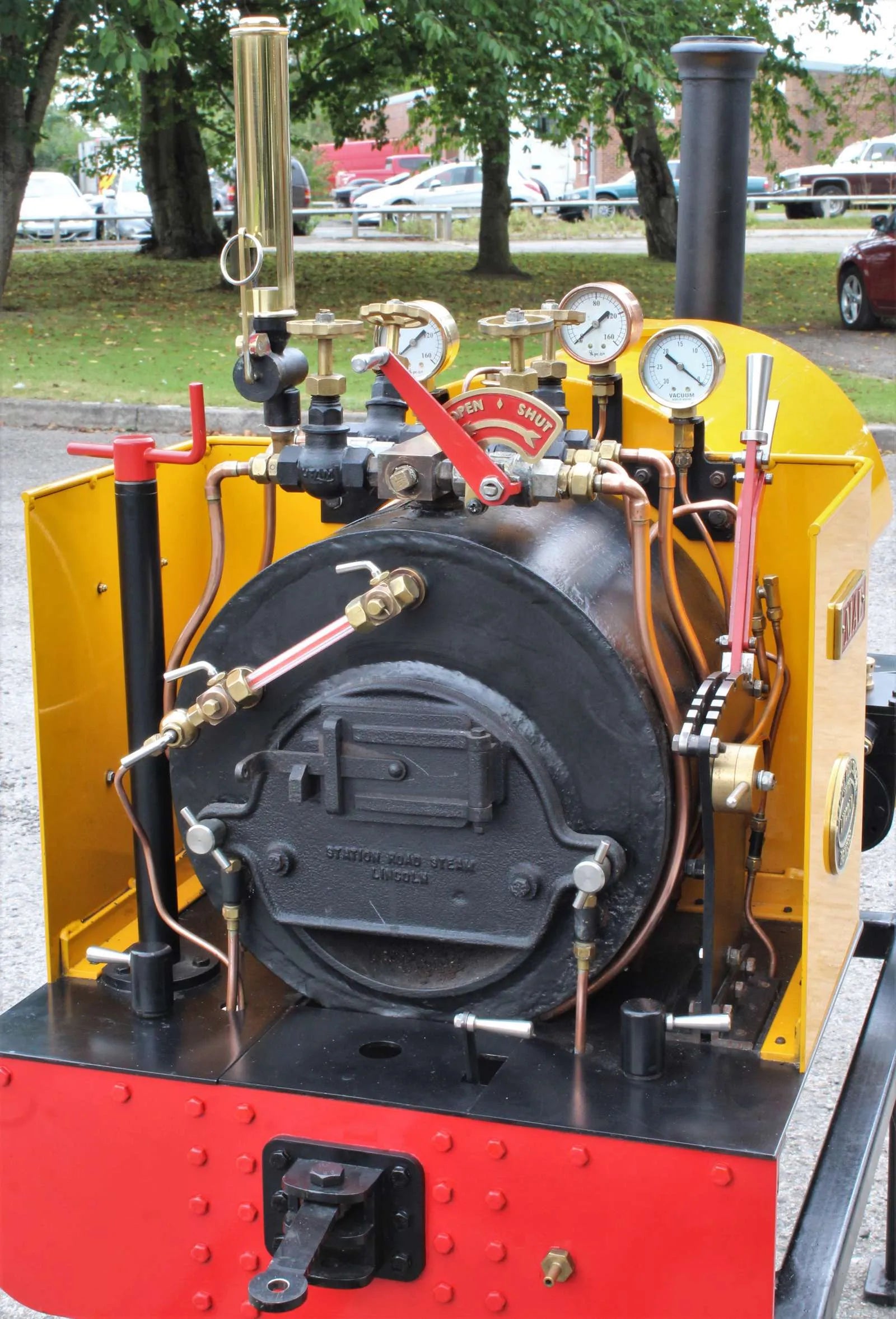

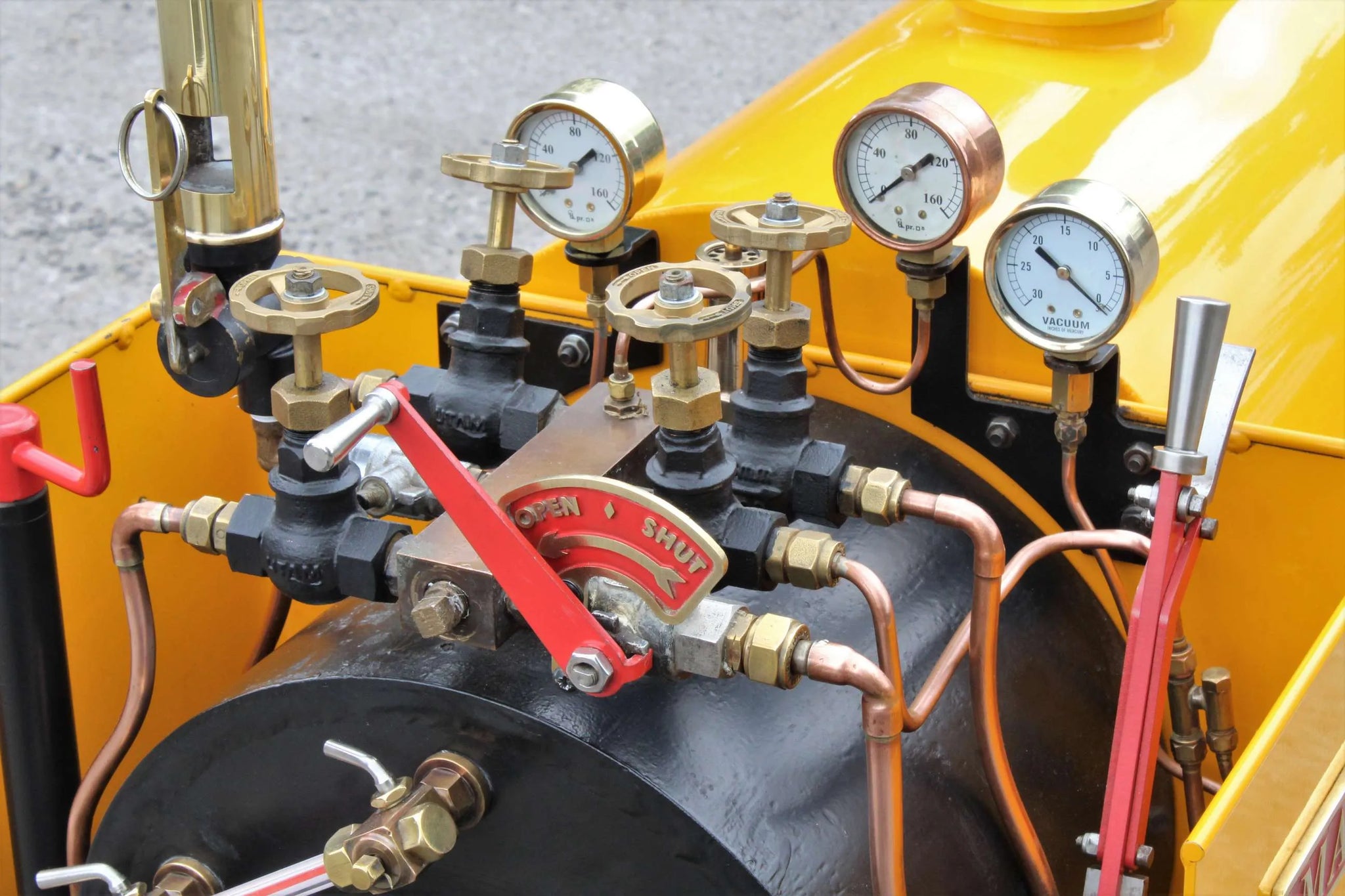

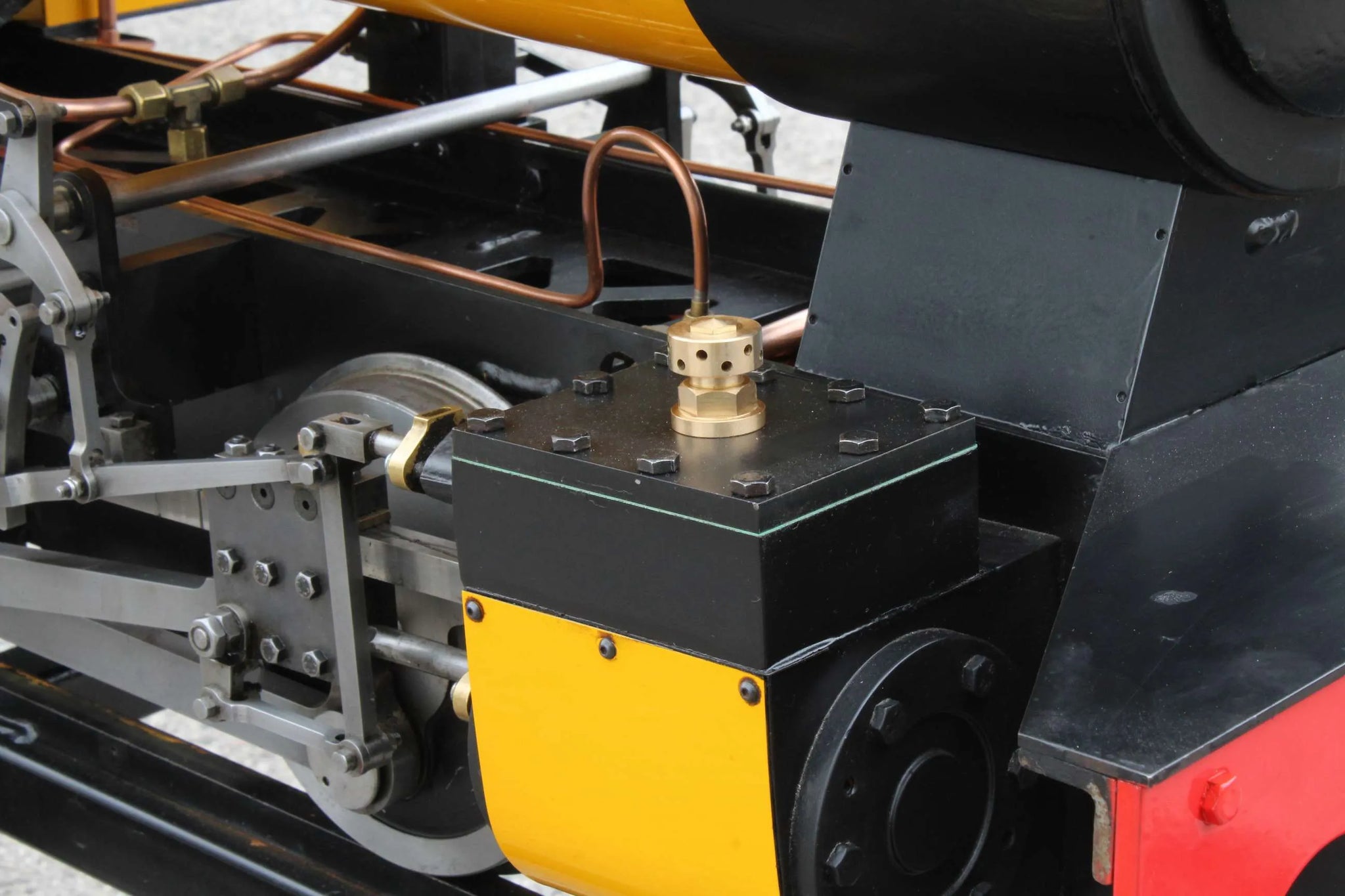

Since arriving back with us the engine has been through the works, serviced and brought up to date with latest type steam valve handwheels, snifting valves and valve chest pressure gauge.

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines.

Technical information

Stock code

9812

Gauge

7 1/4 inch

Length/inches

45

Width/inches

19

Height/inches

32

Weight/Kg

195

Wheel material

steel

Axlebox type

takeup bearing

Cylinder material

cast iron

Valve type

slide

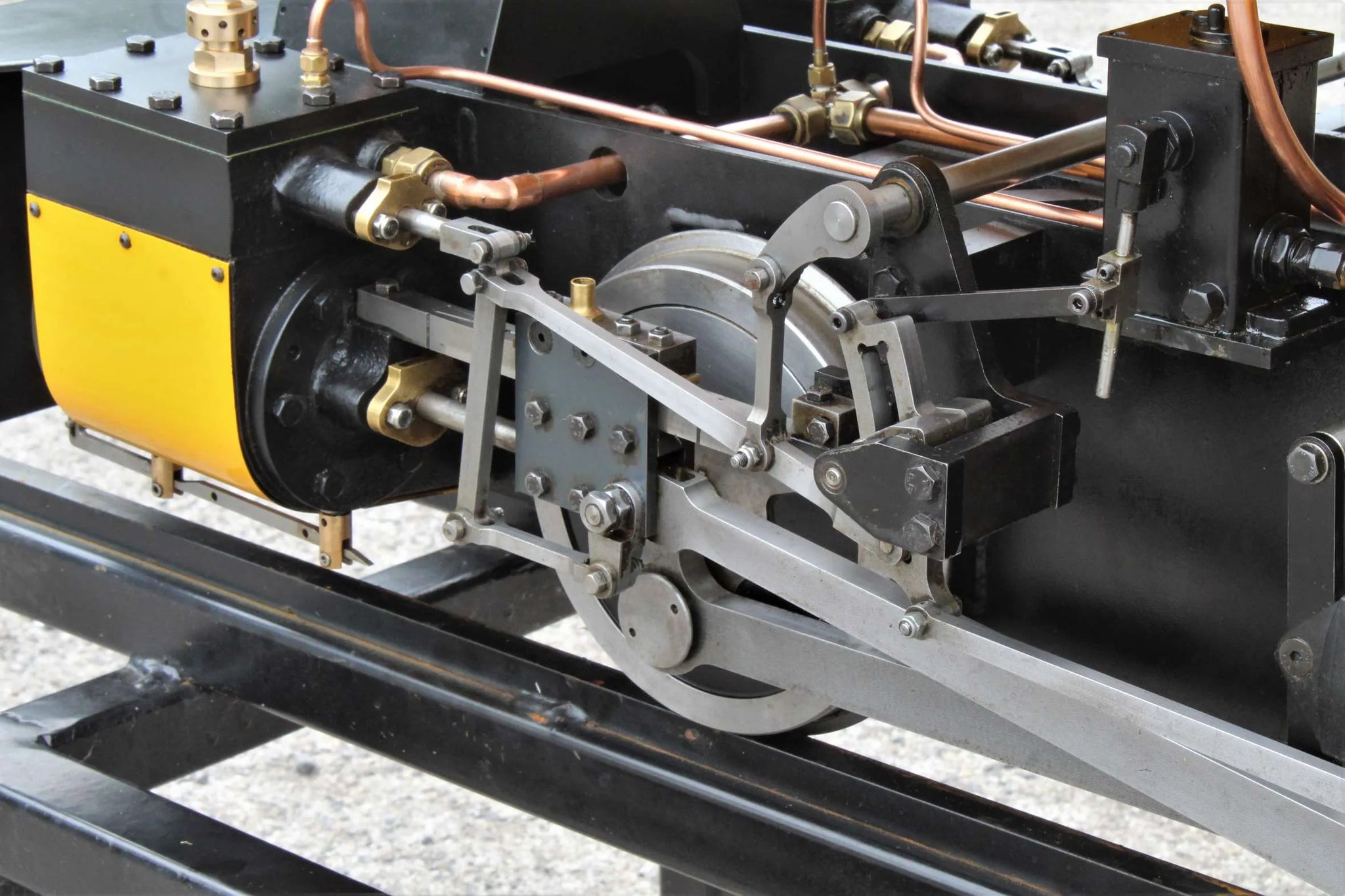

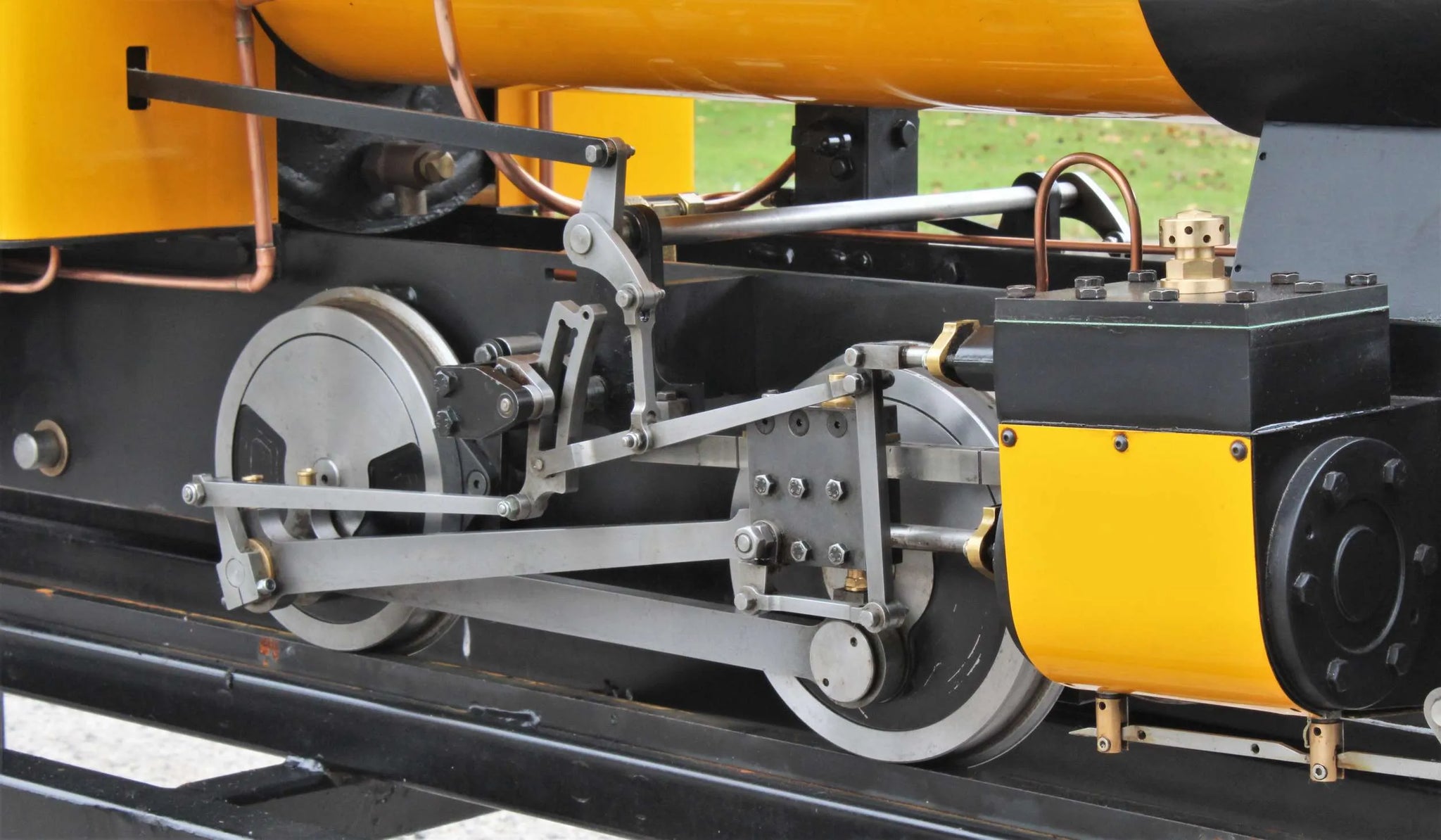

Valve gear

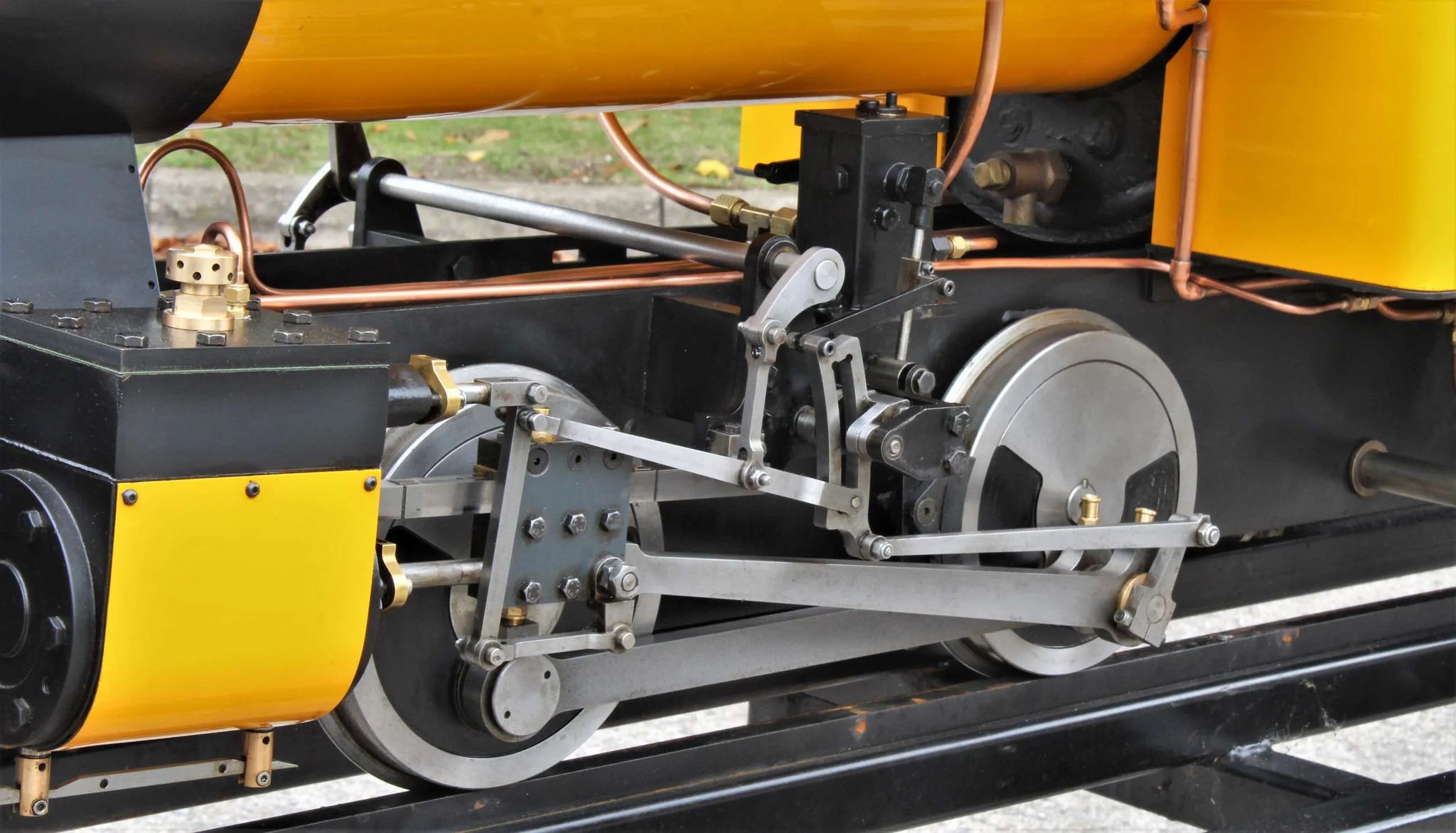

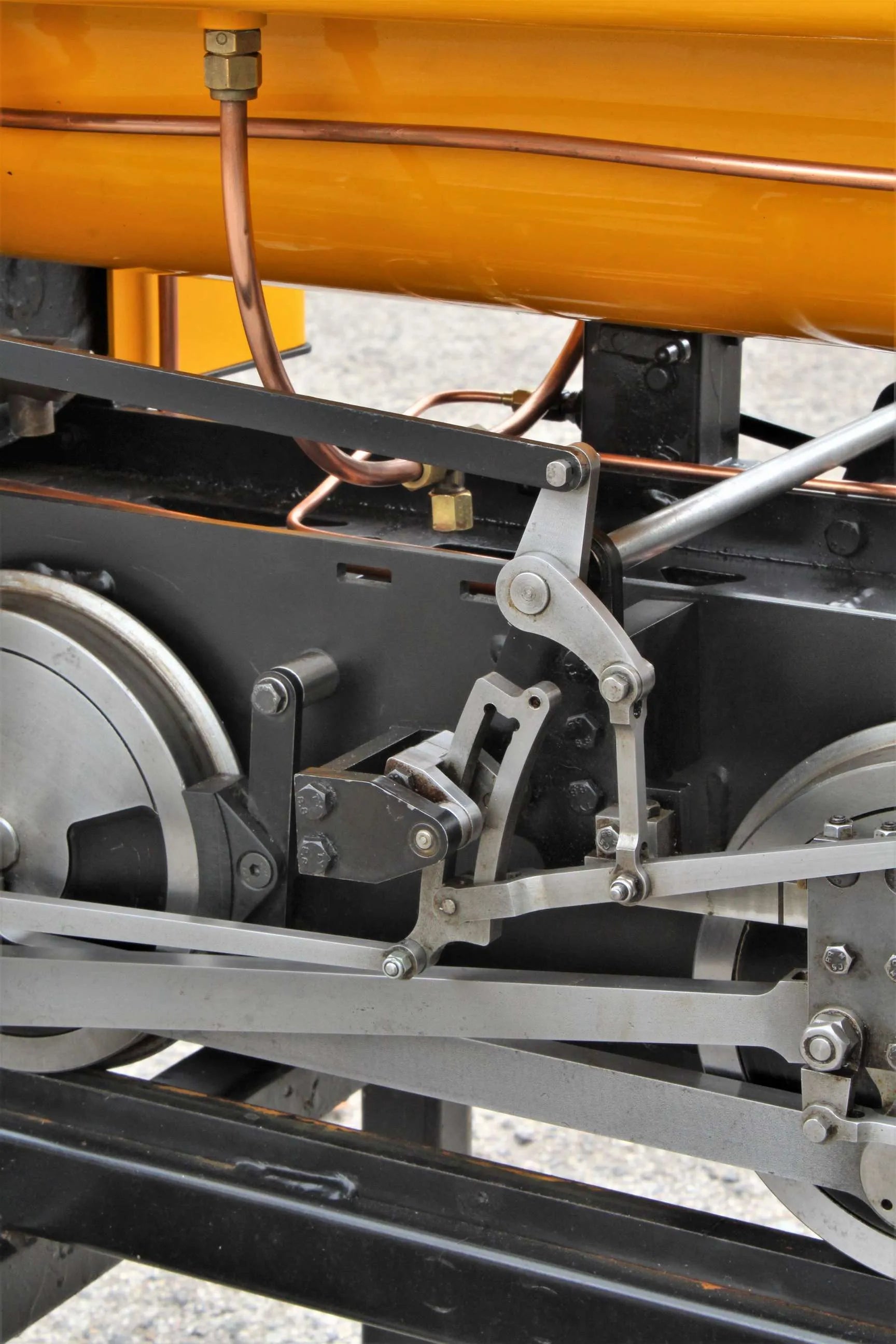

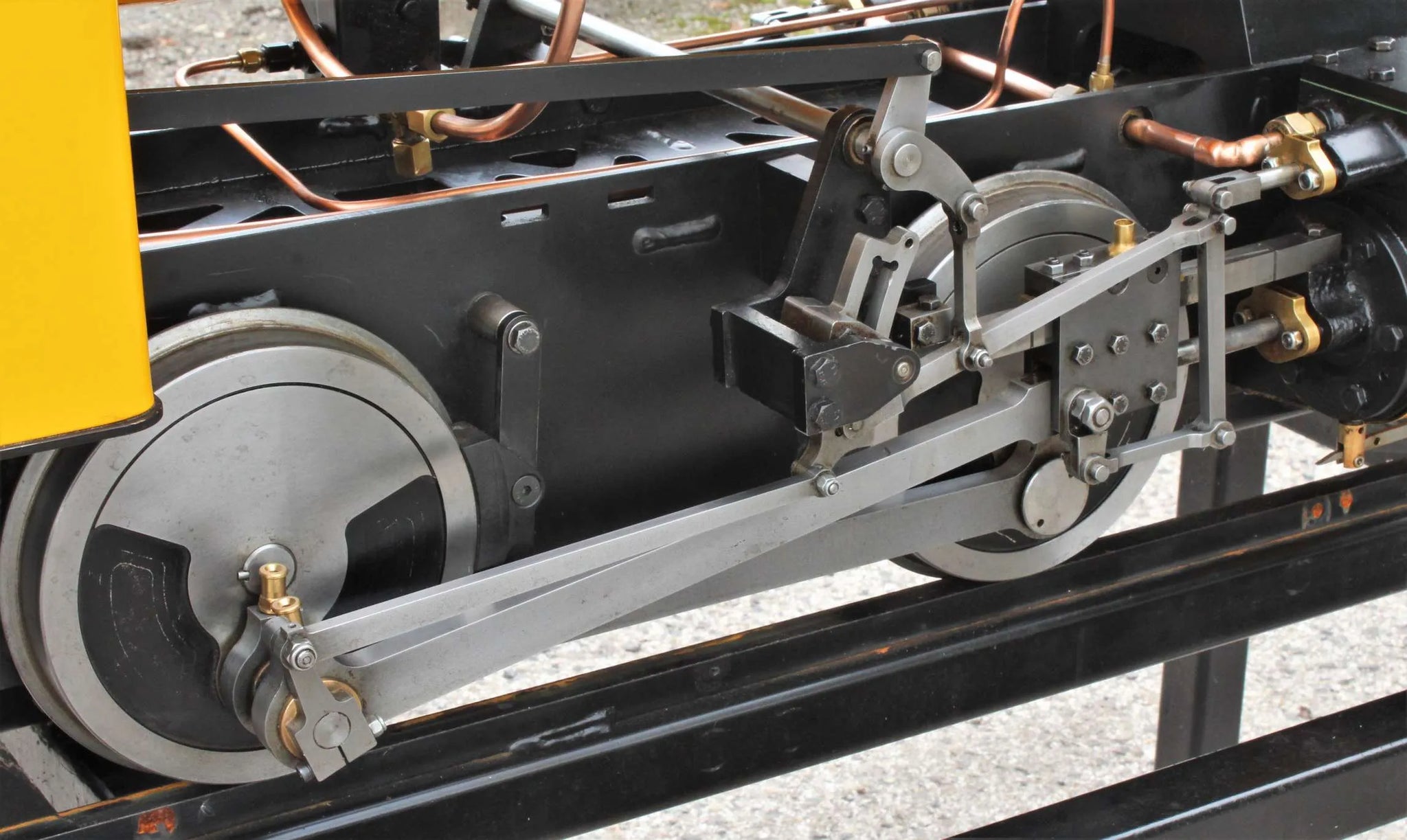

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

AJB Engineering

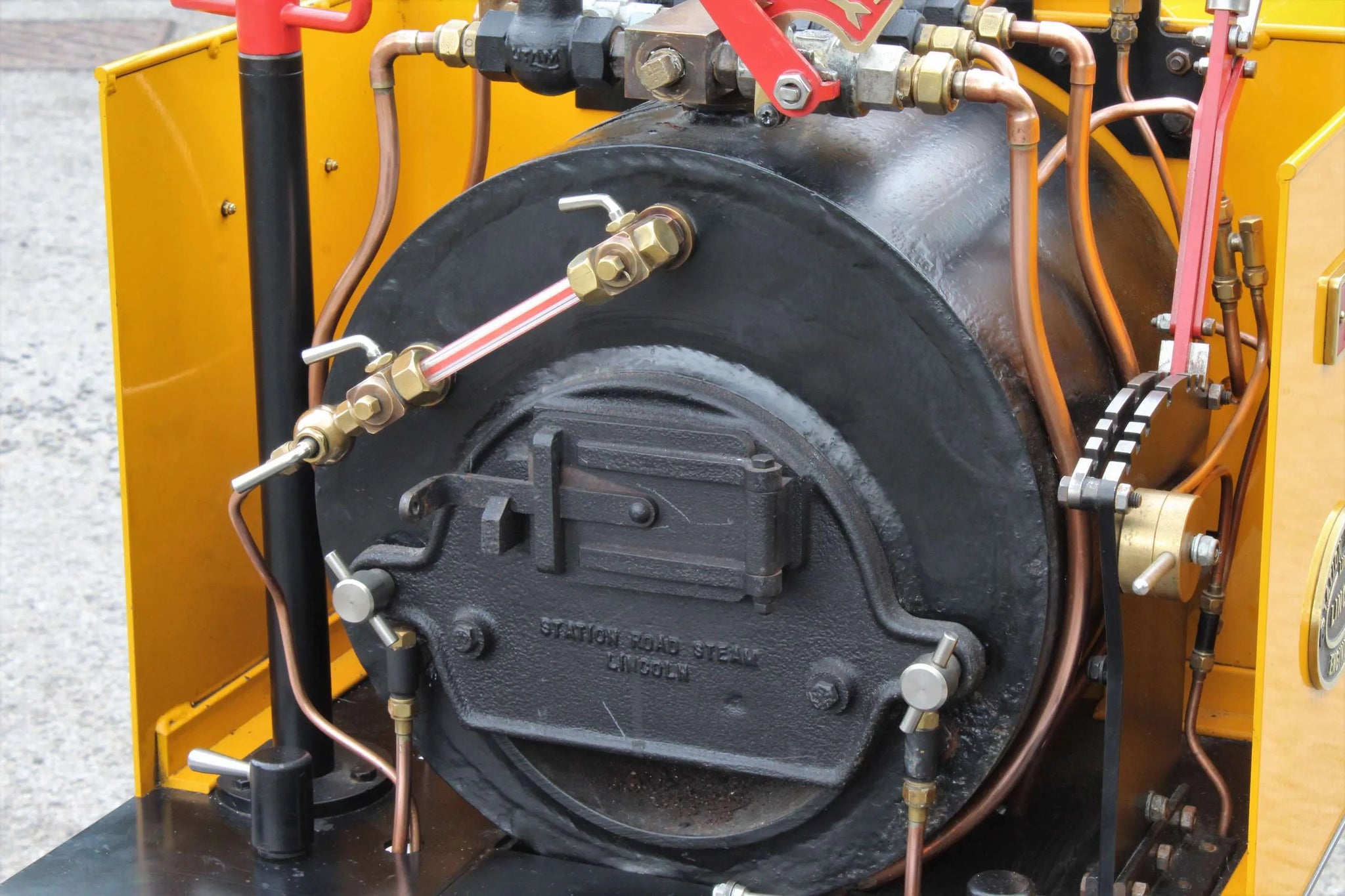

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2010

Boiler number

170

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2

Date out

Nov-21
