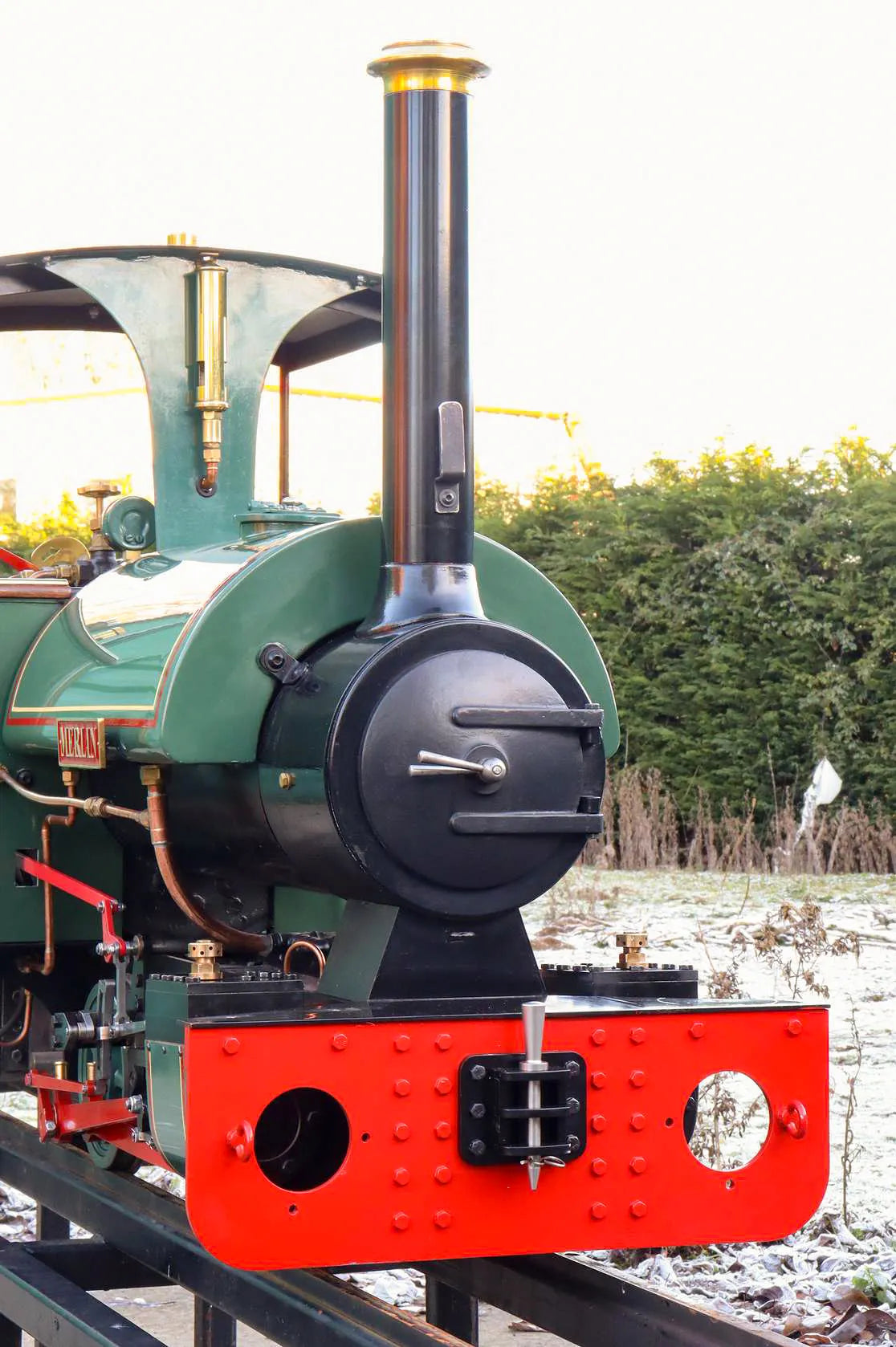

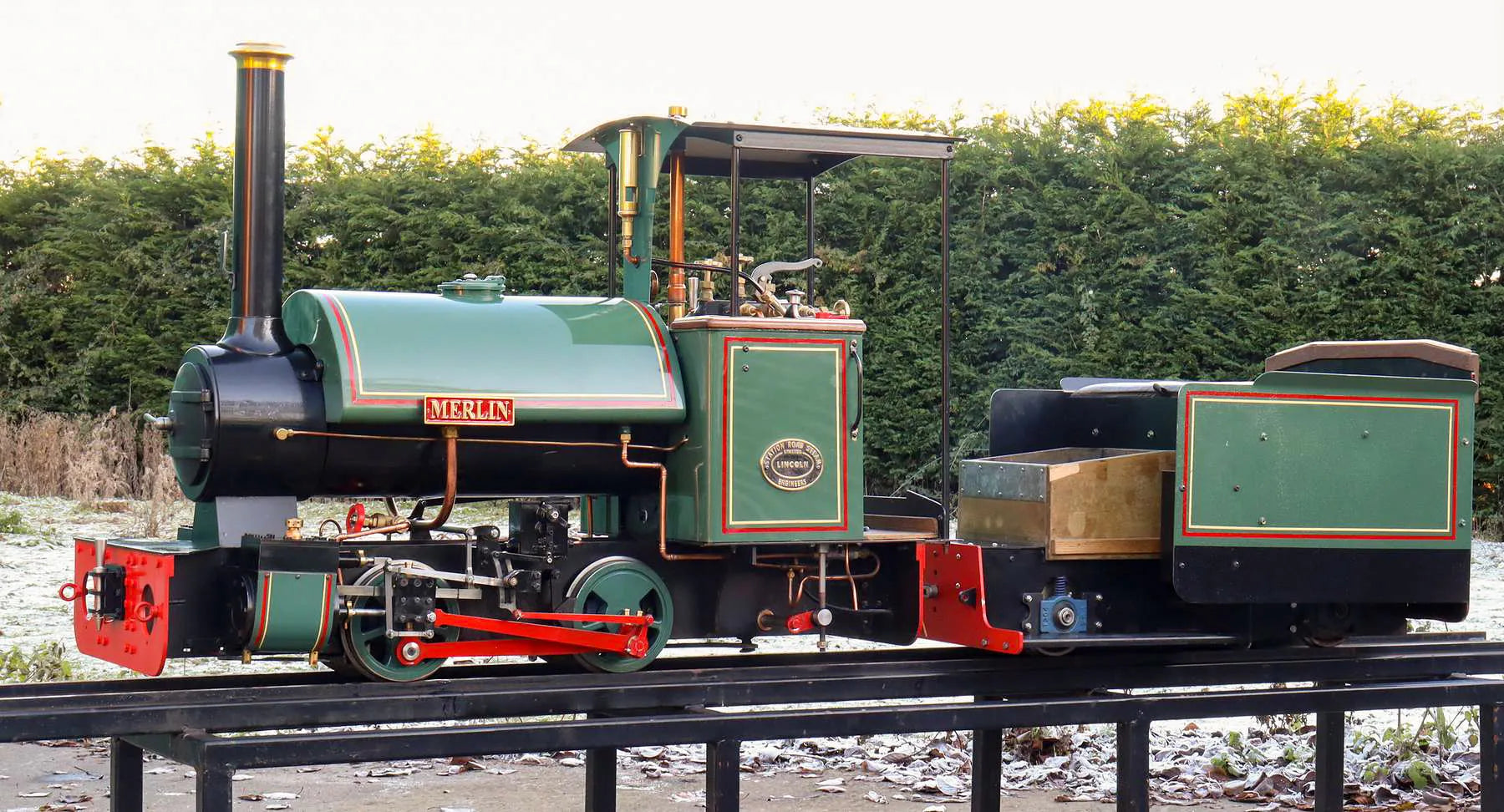

7 1/4 inch gauge "Stafford" 0-4-0ST with tender

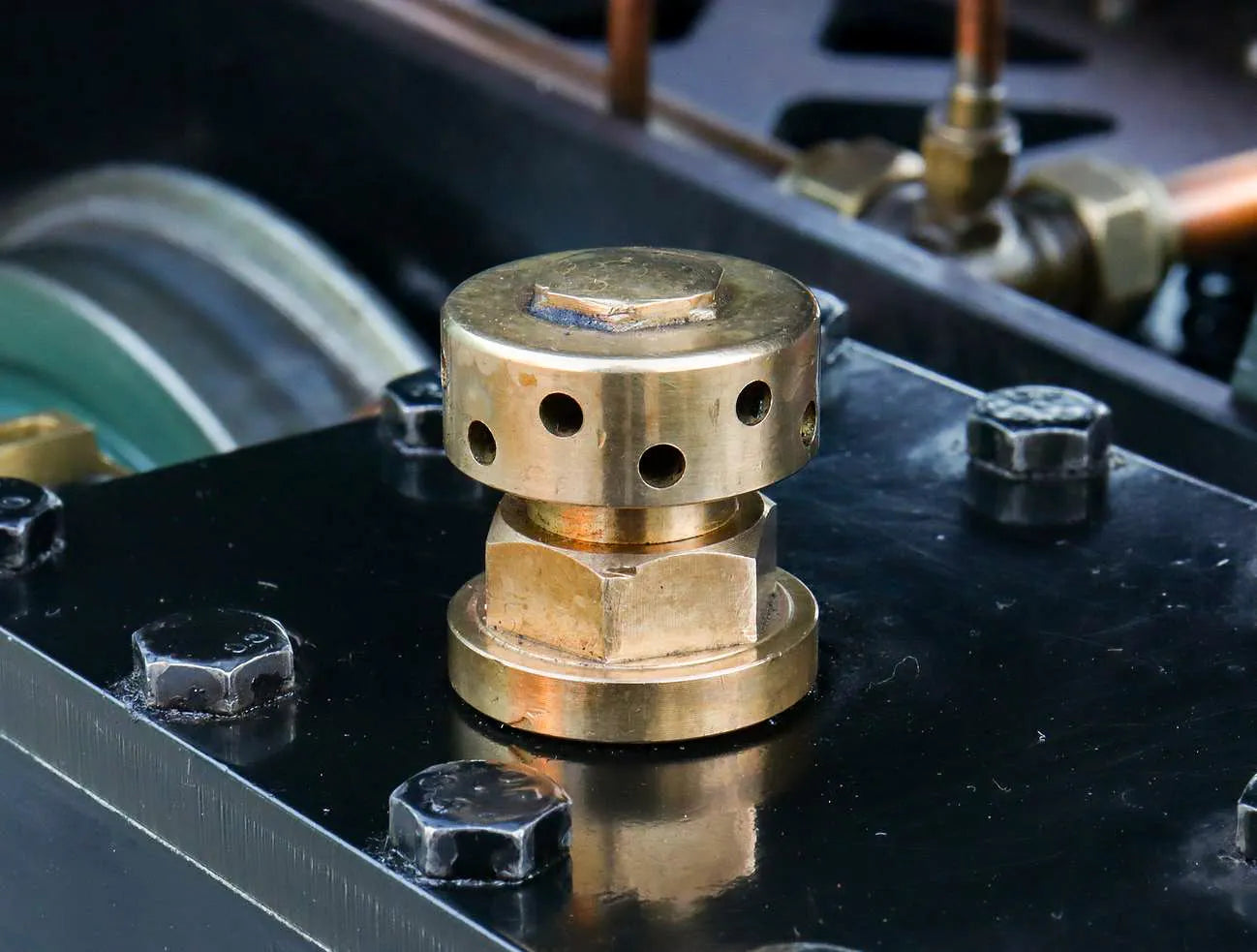

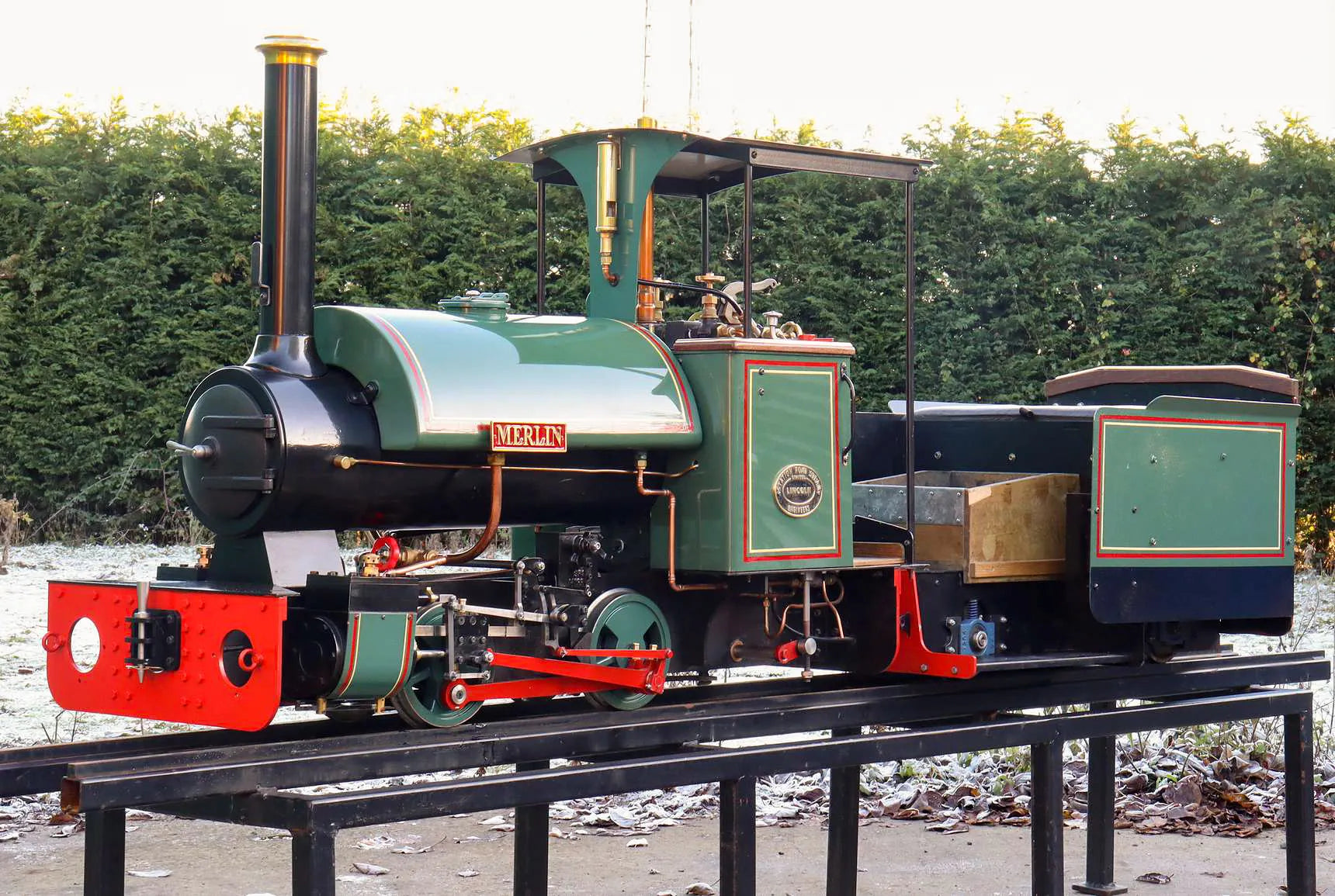

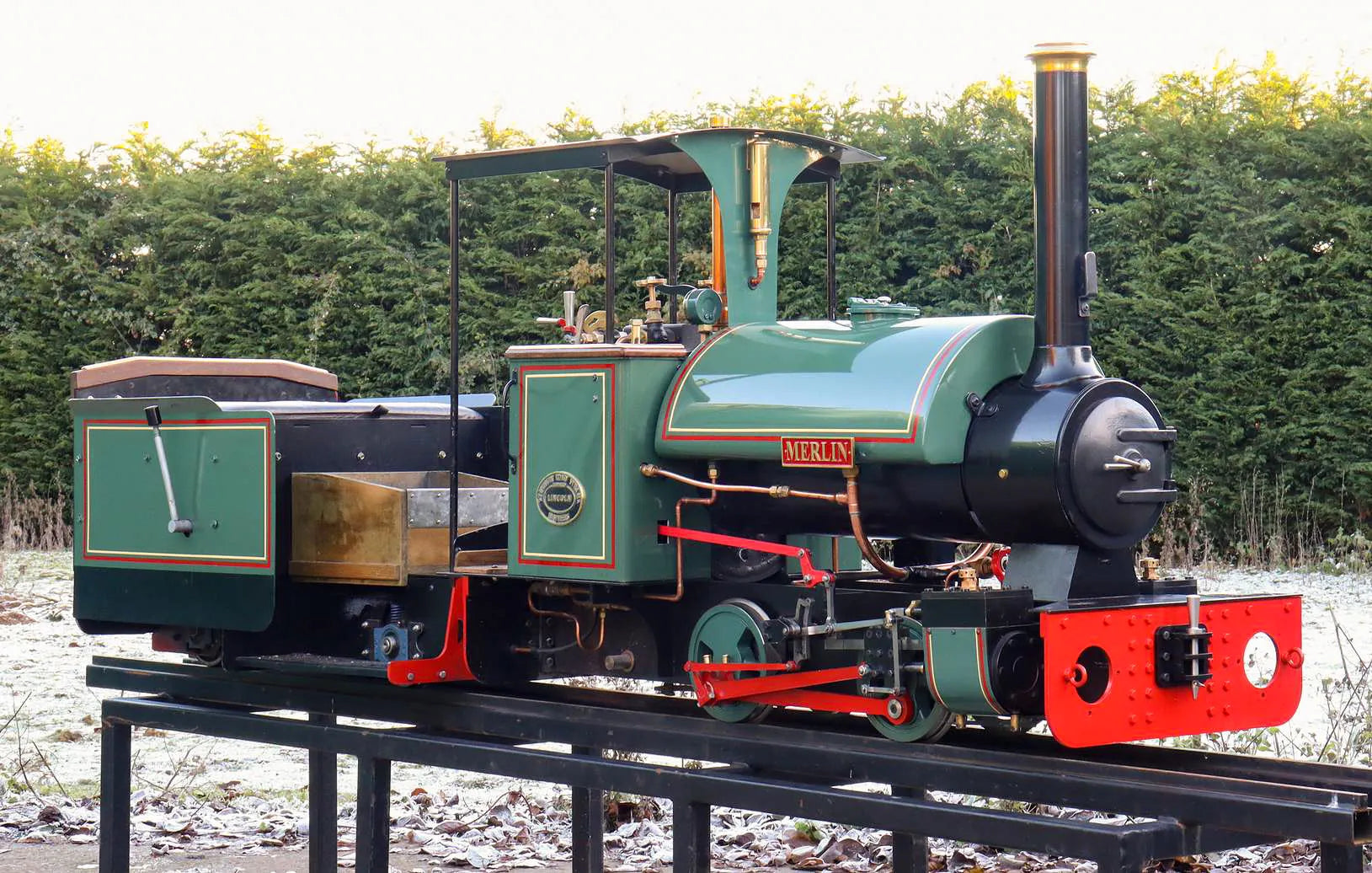

A 7 1/4 inch narrow gauge "Stafford "0-4-0ST, a 2019 locomotive with spoked wheels, brought up to latest specification with snifting valves and rod oilers, complete with a braked ride-on tender, painted and lined to match the locomotive.

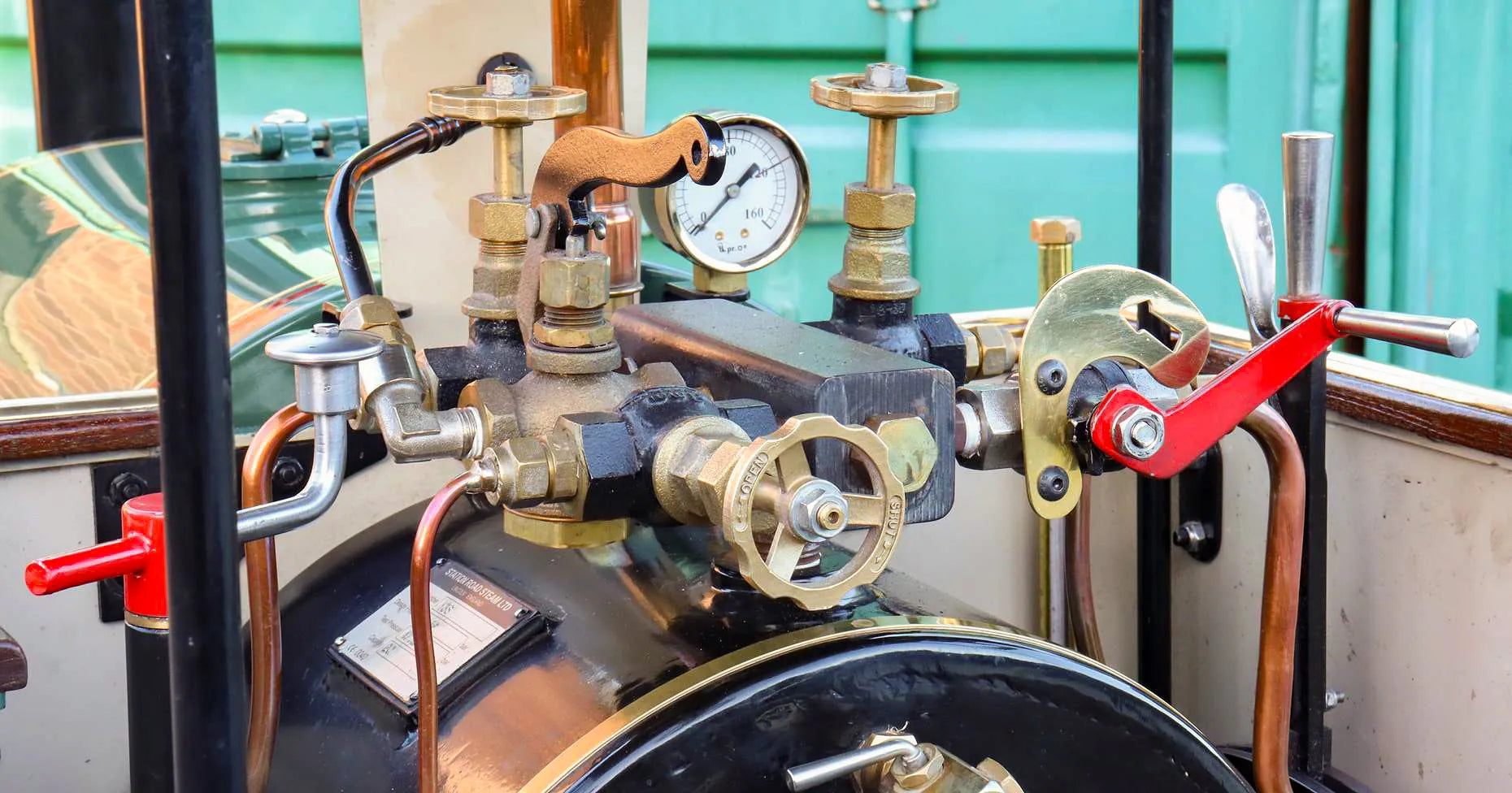

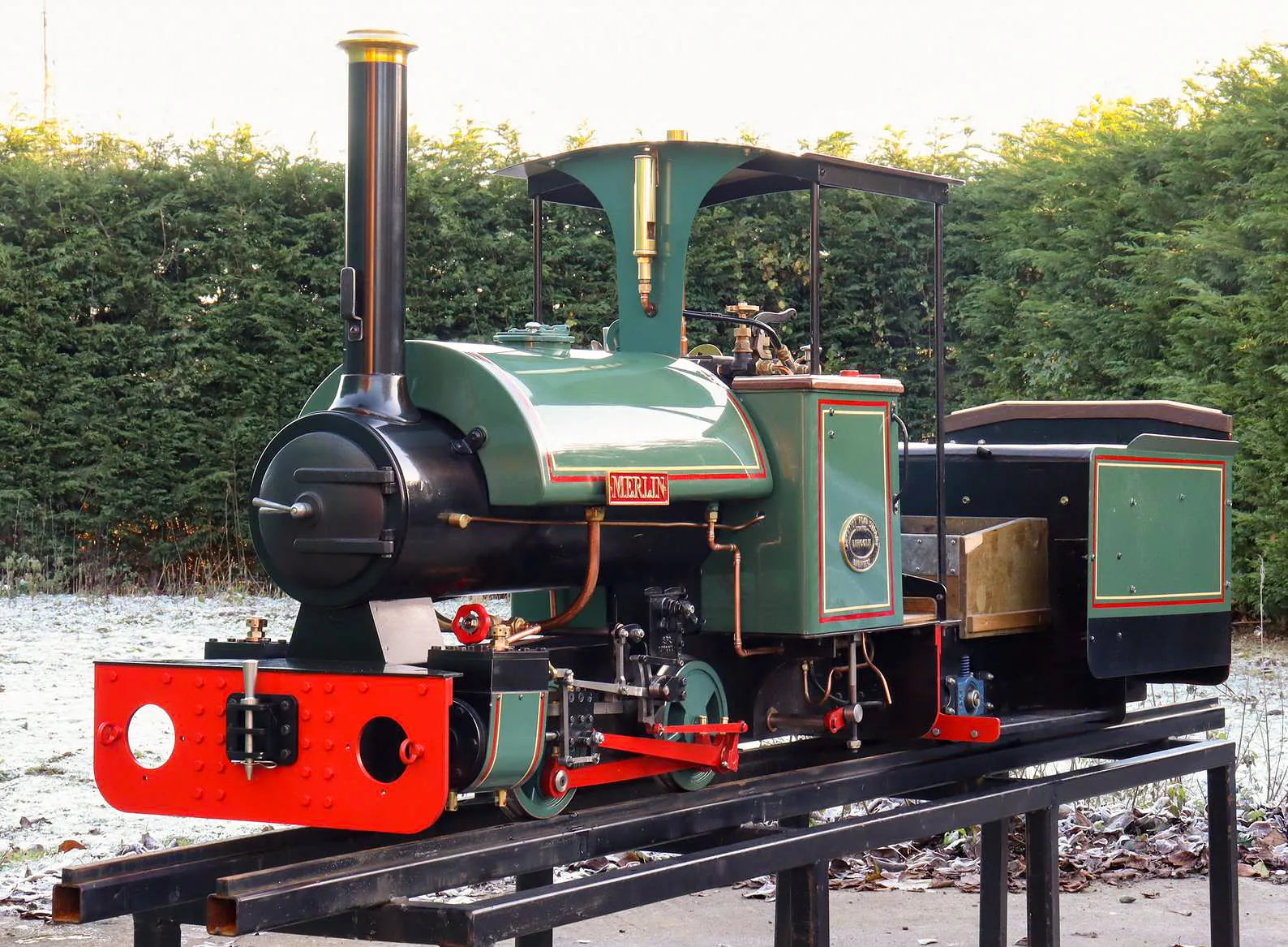

Customised by the owner in line with his own ideas, modifications include a Bagnall style open cab with longer, parallel copper-capped chimney to match; water tank level gauge; hinged saddle tank lid; injector overflow extensions to the rear buffer beam; polished copper safety valve chimney and wood-decked footplate.

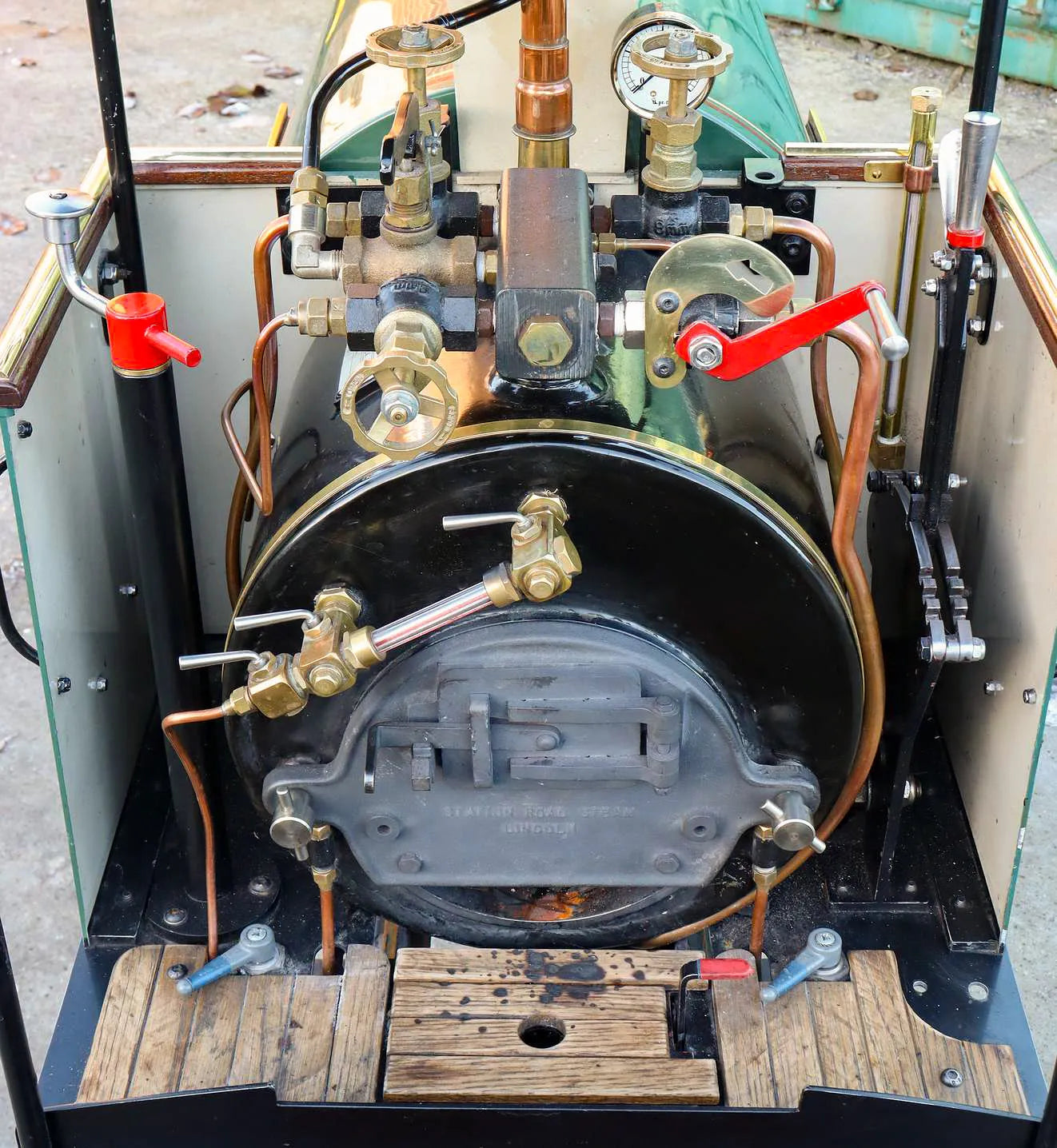

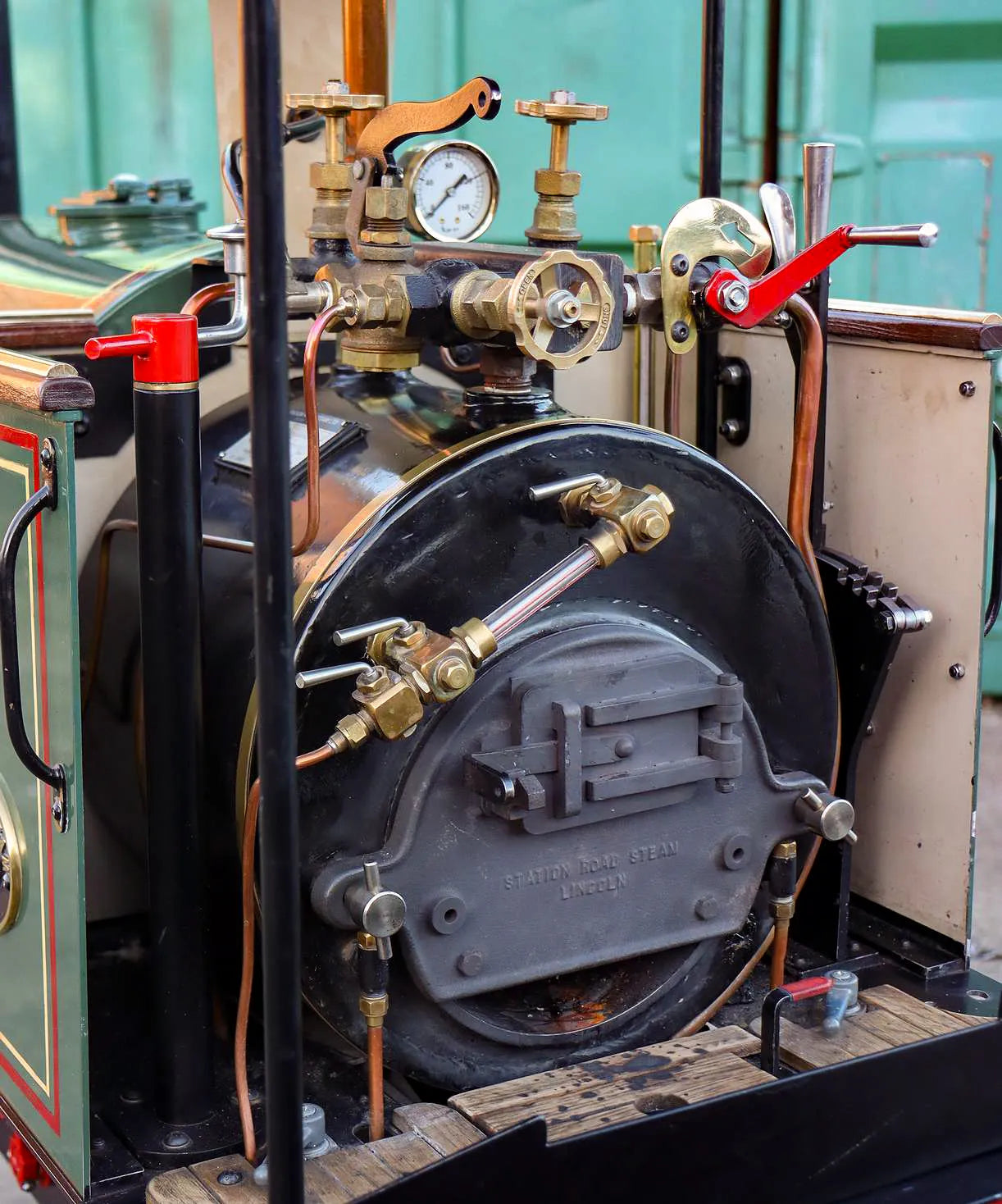

Since arriving back with us the engine has been through the works for a full service, the boiler has had internal inspection, hydraulic and steam tests with new certification issued.

On test it steamed freely and ran very quietly (although we'd have been surprised if a three year old Stafford didn't...)

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines.

Current new price of a new Stafford with paintwork and lining, options and tender as shown would be £17,734.

Technical information

Stock code

11052

Length/inches

50 + 36

Width/inches

19

Height/inches

36

Weight/Kg

195

Wheel material

EN8 steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

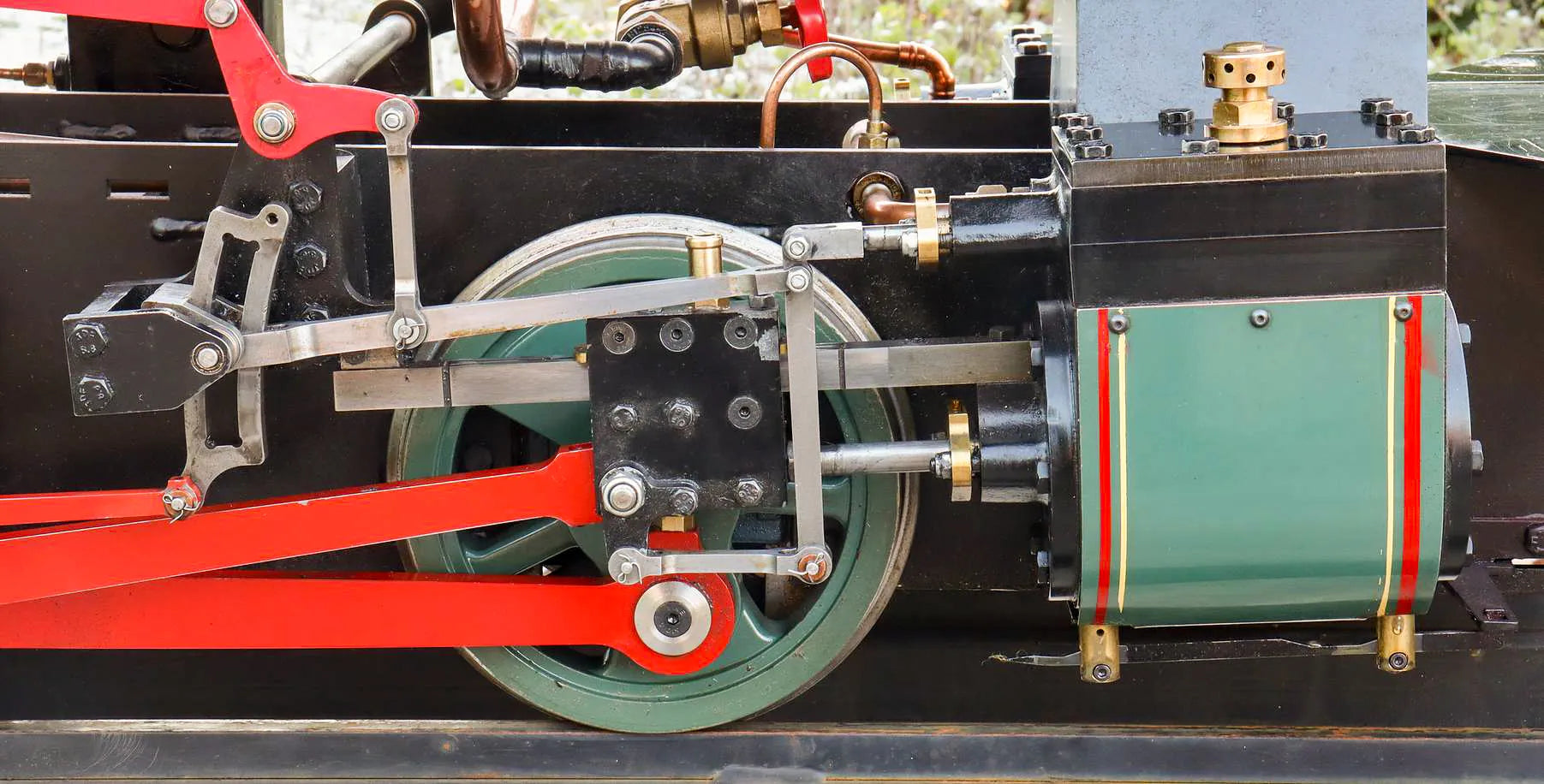

Valve gear

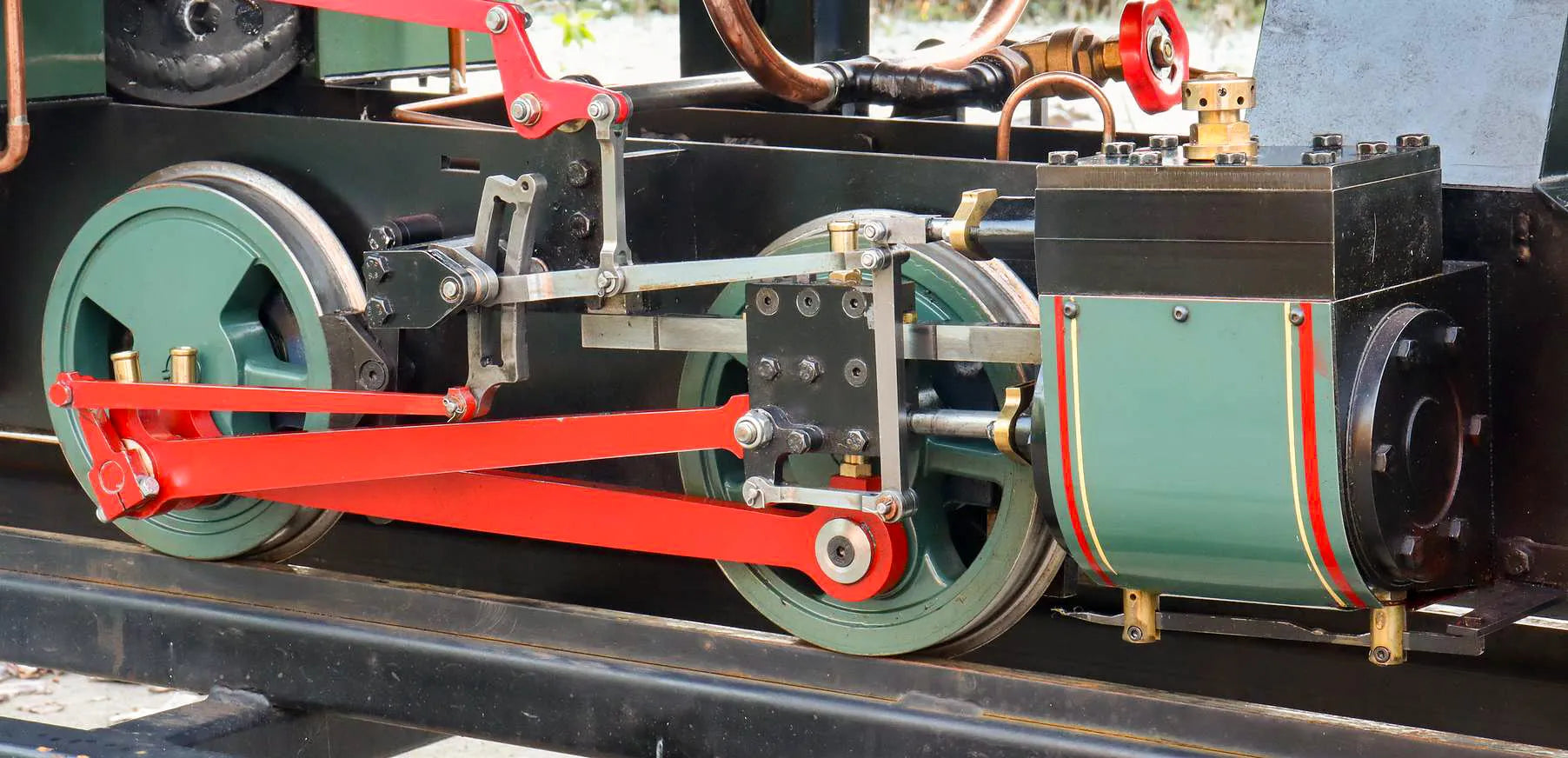

Walschaerts

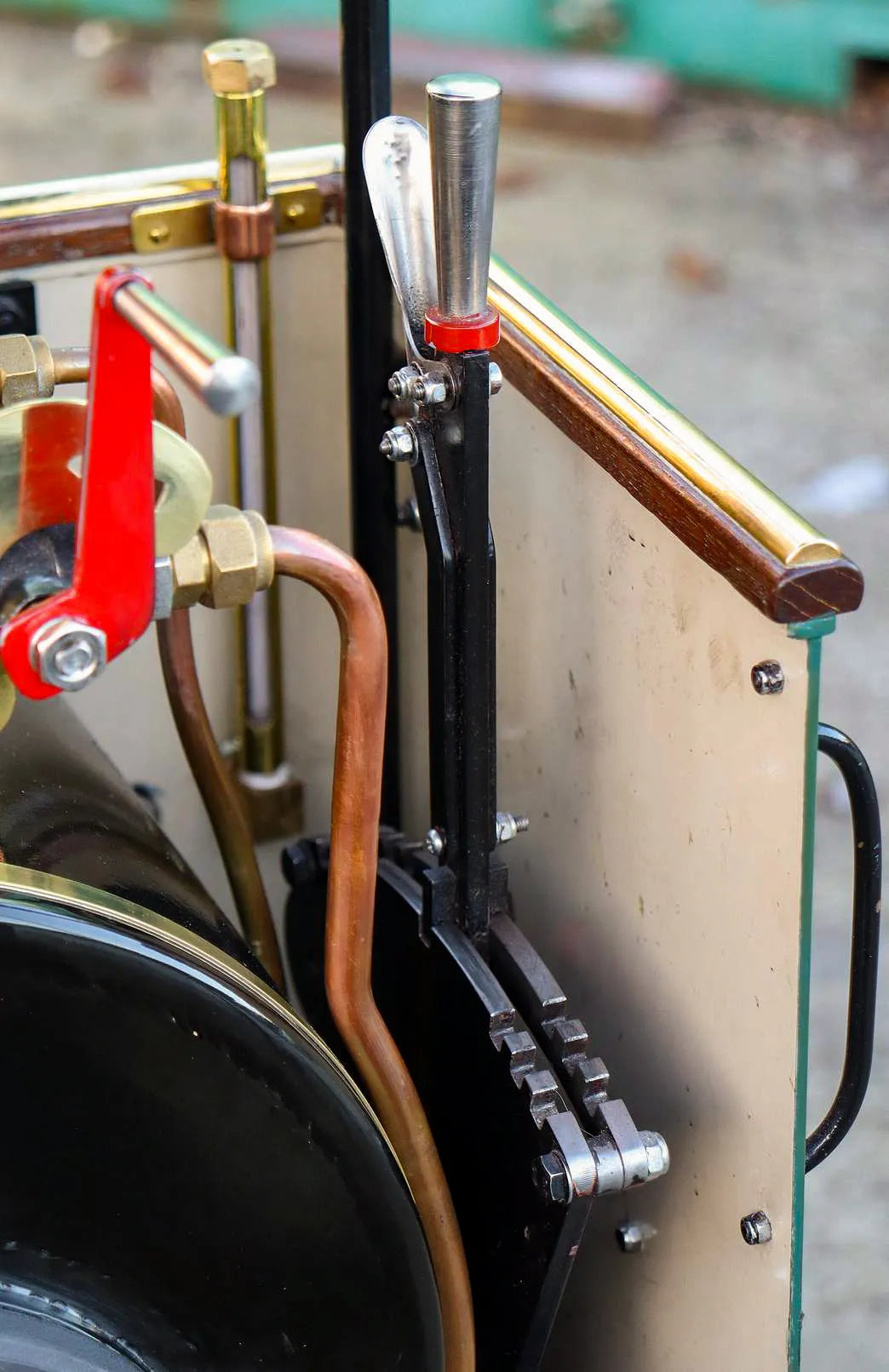

Reverser type

pole

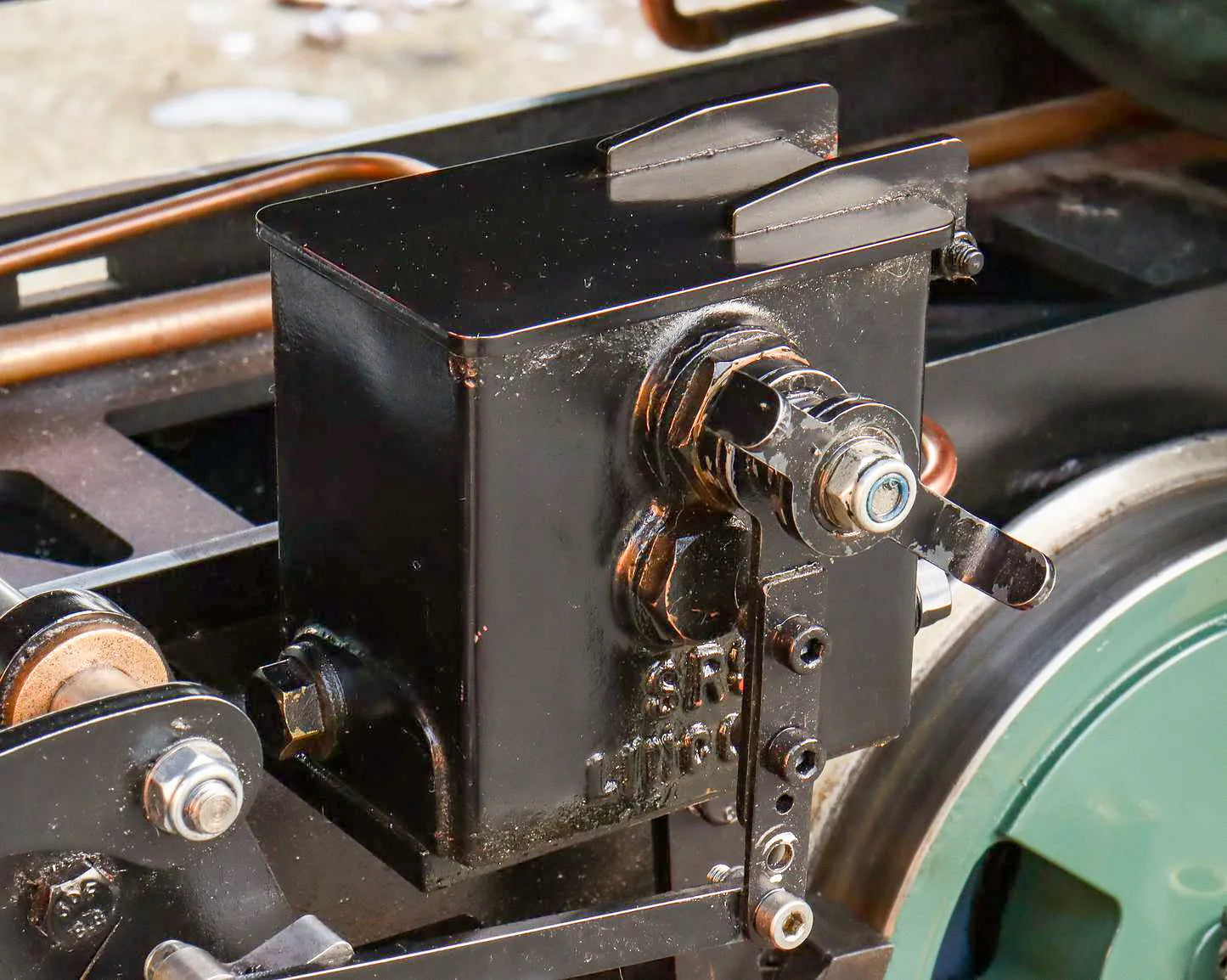

Lubricator type

mechanical

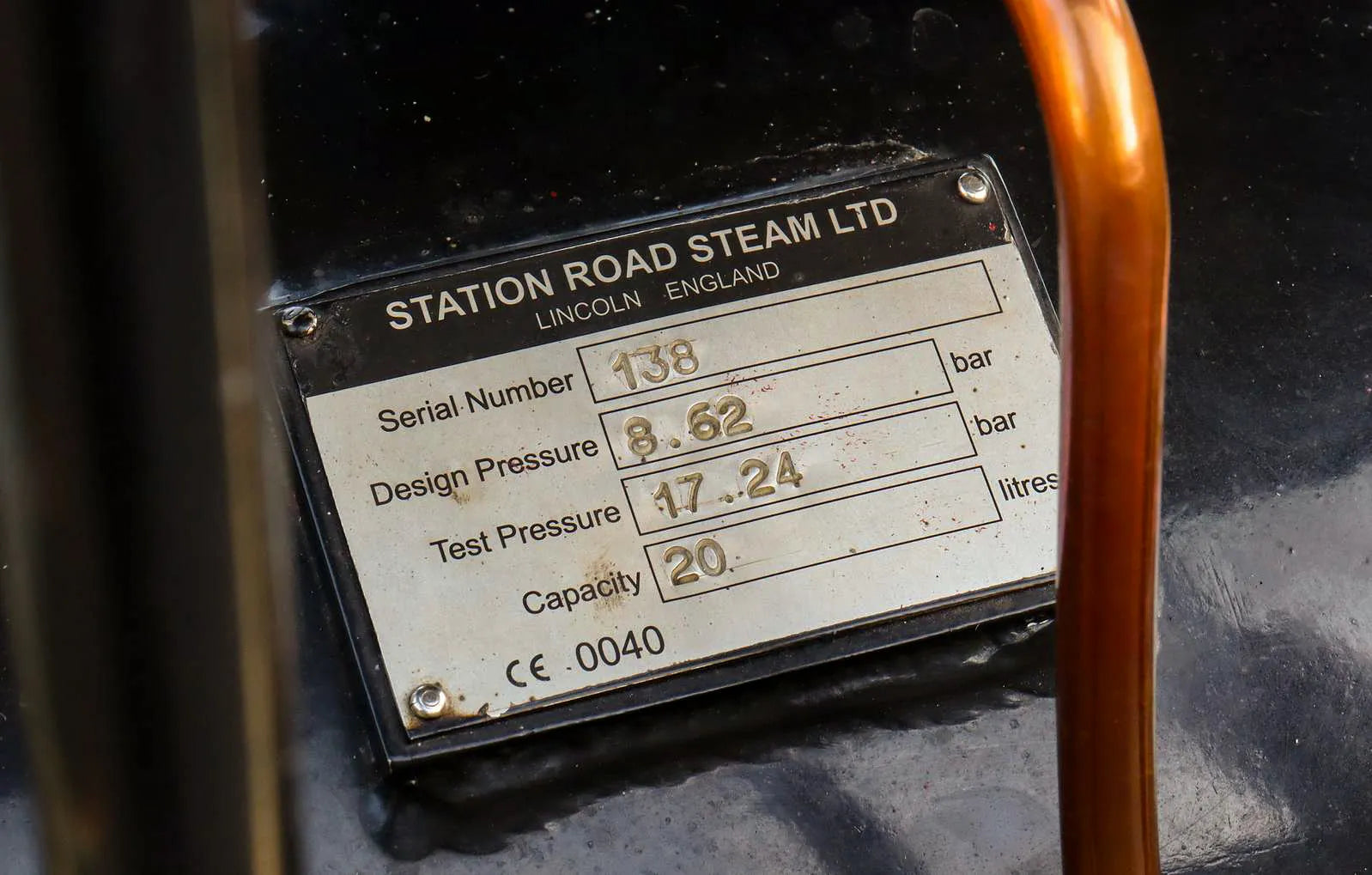

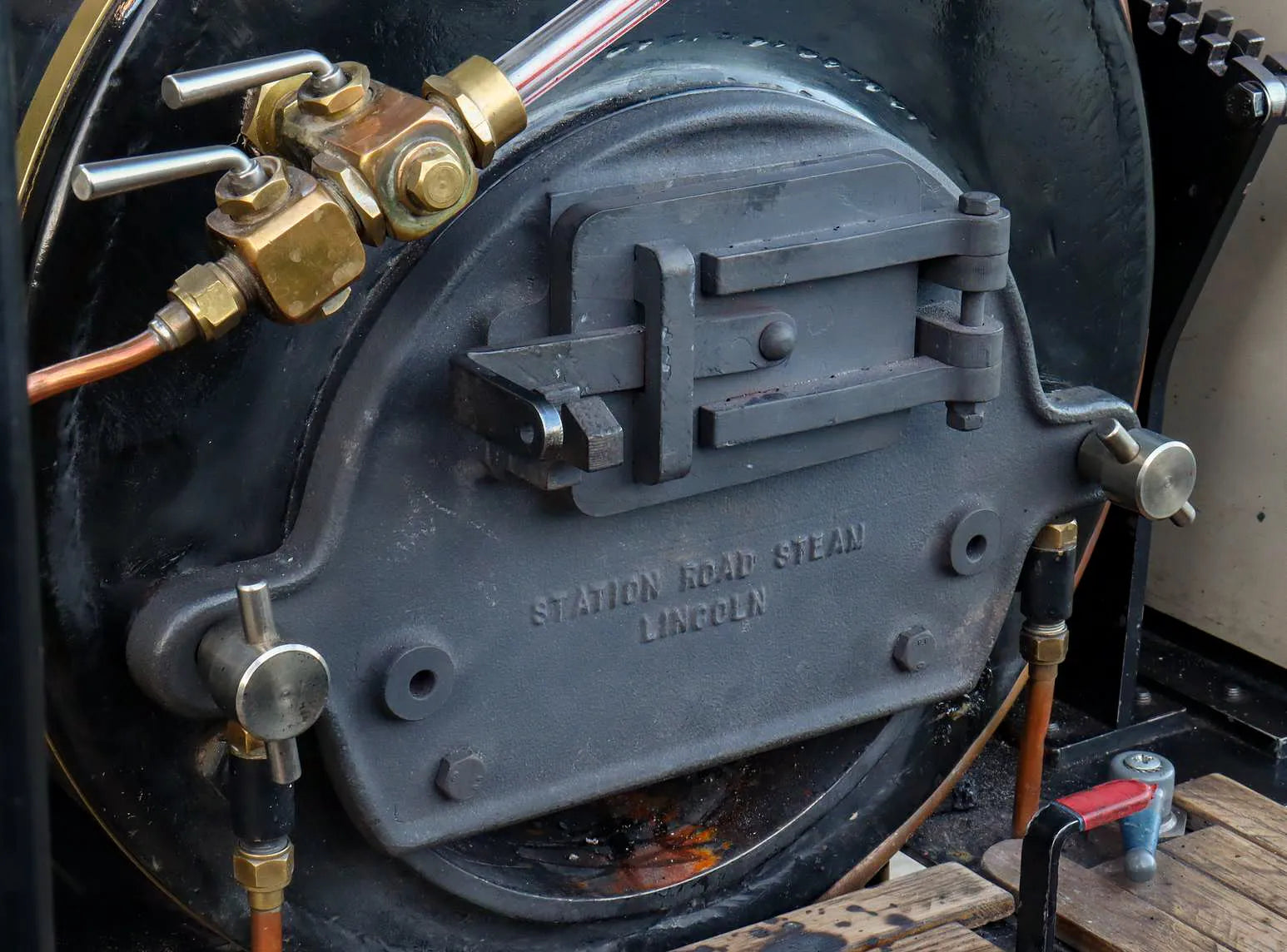

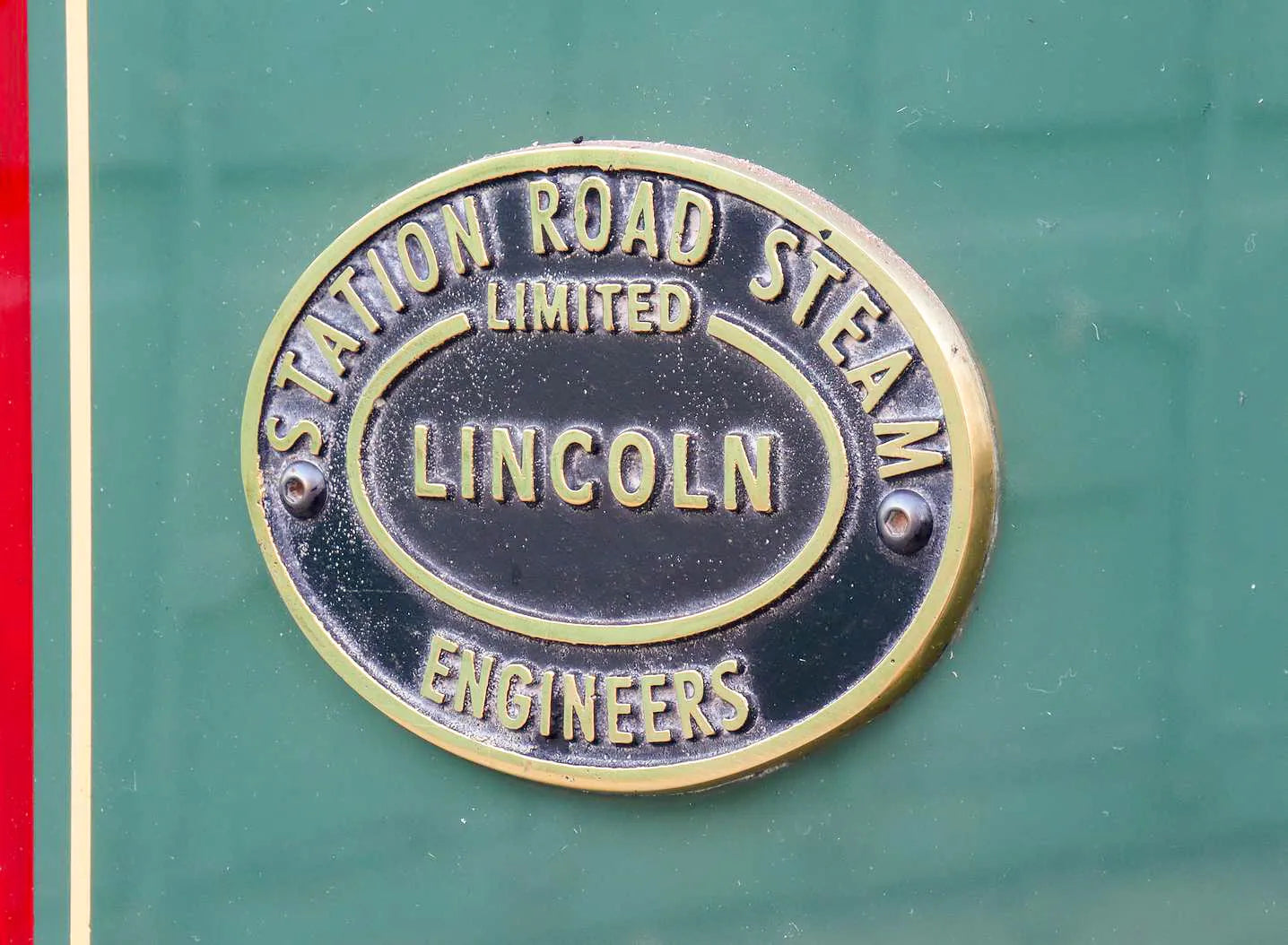

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

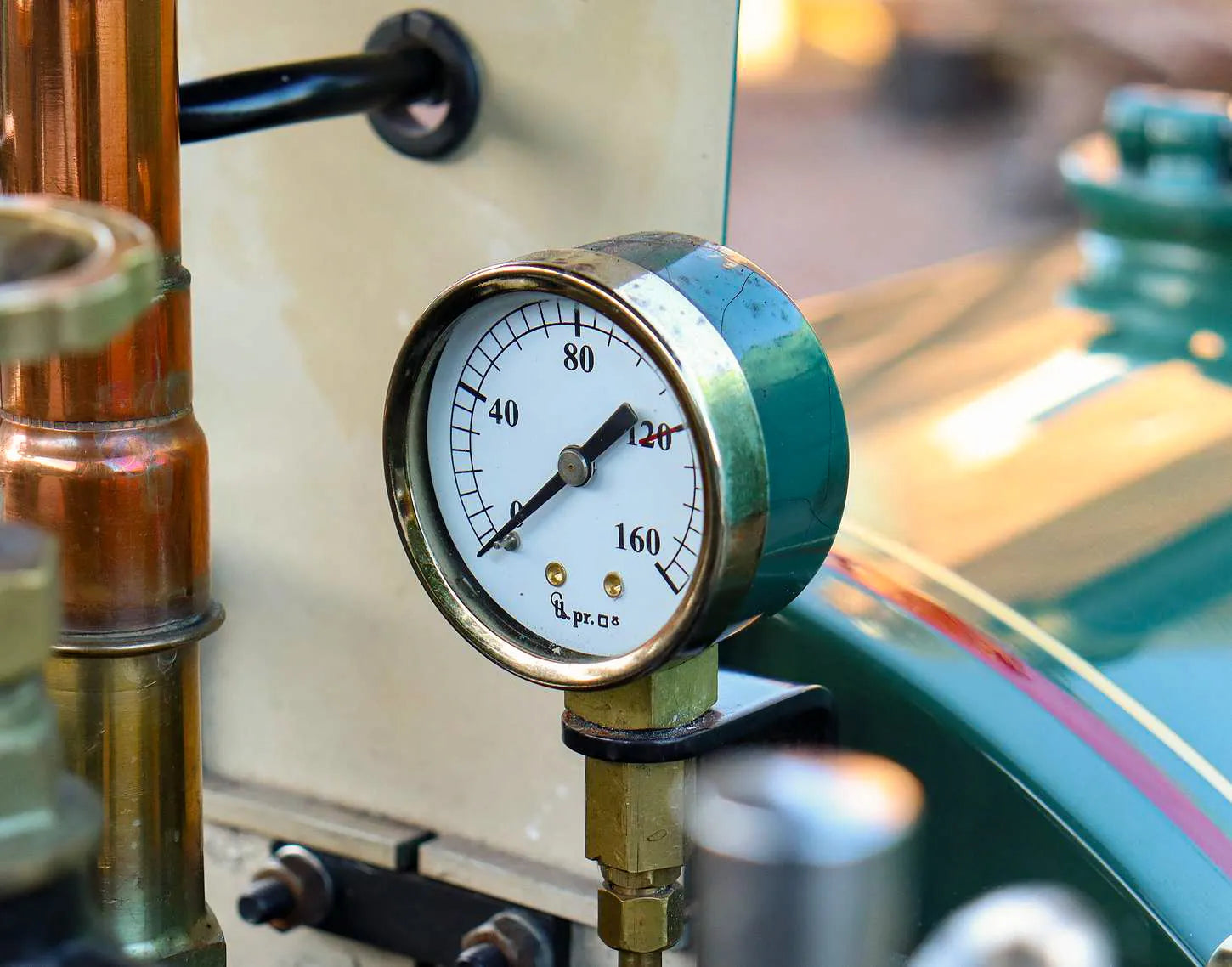

Working pressure

120

CE/UKCA mark

yes

Year built

2019

Boiler number

138

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

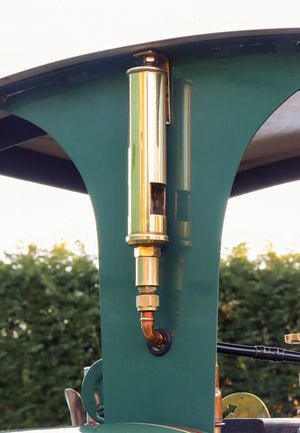

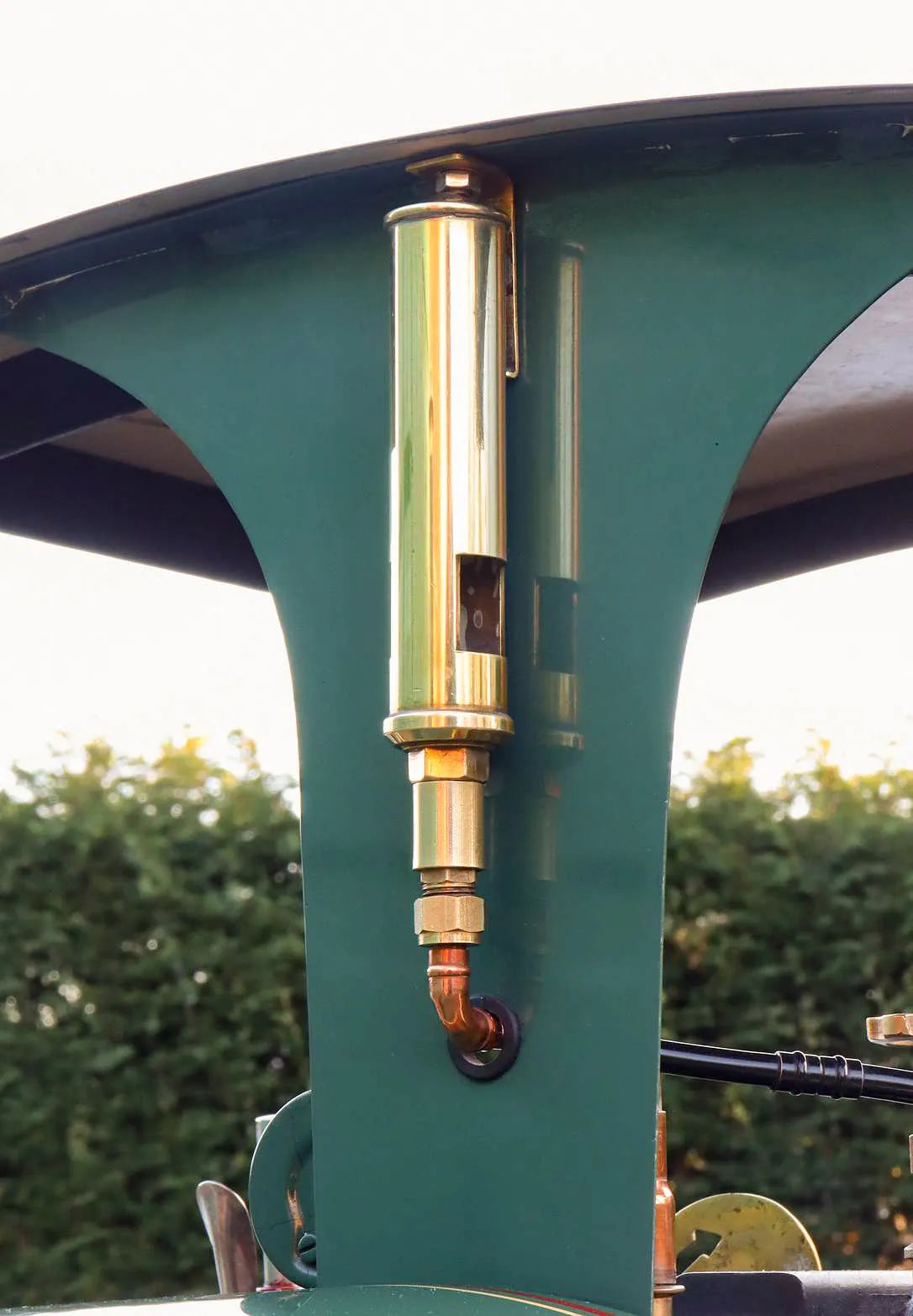

Whistle

yes

Injector

2 x 2.6 pint/min

Nominal traction

238

Minimum radius

20

Date out

Jun-23
