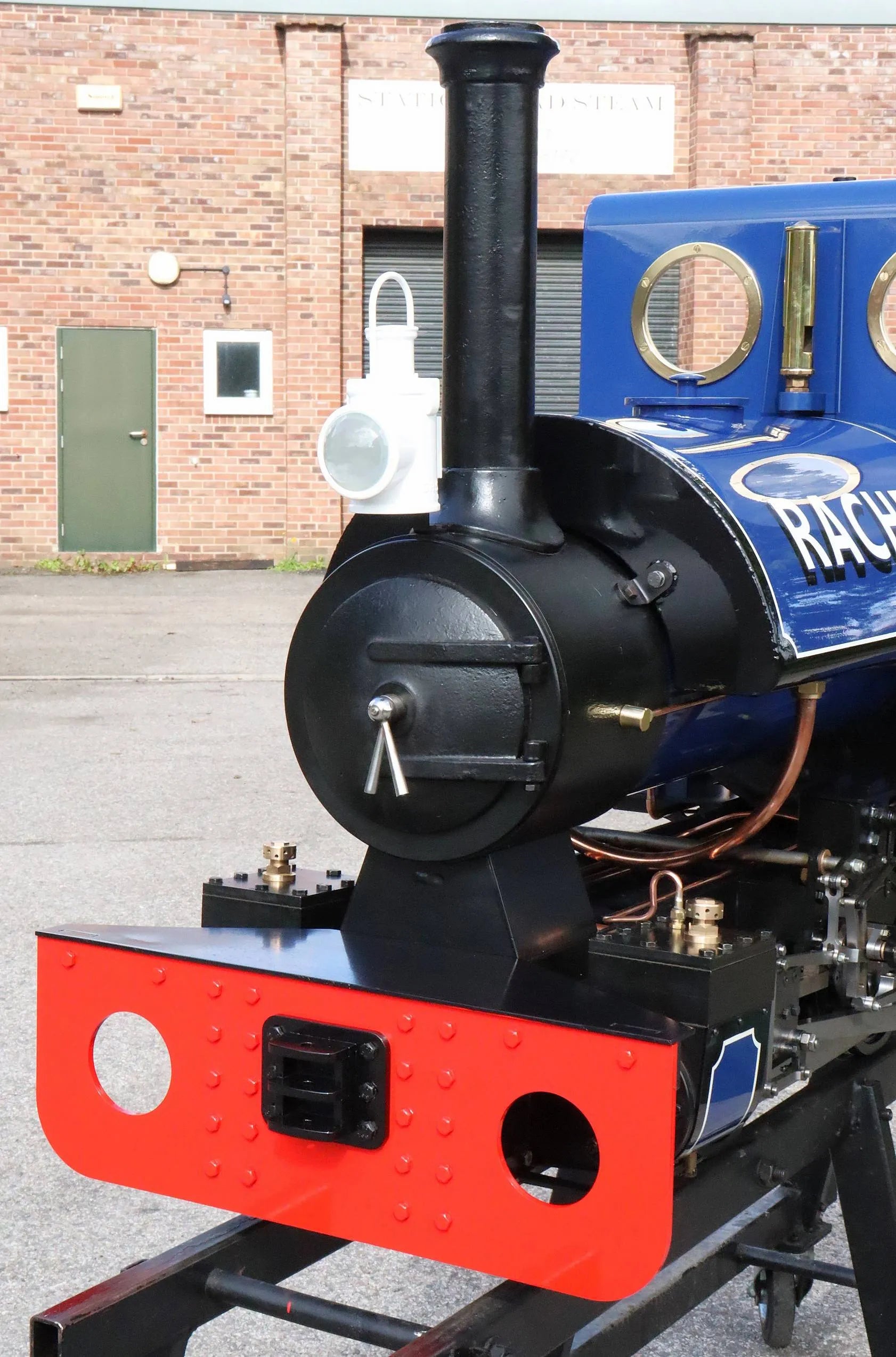

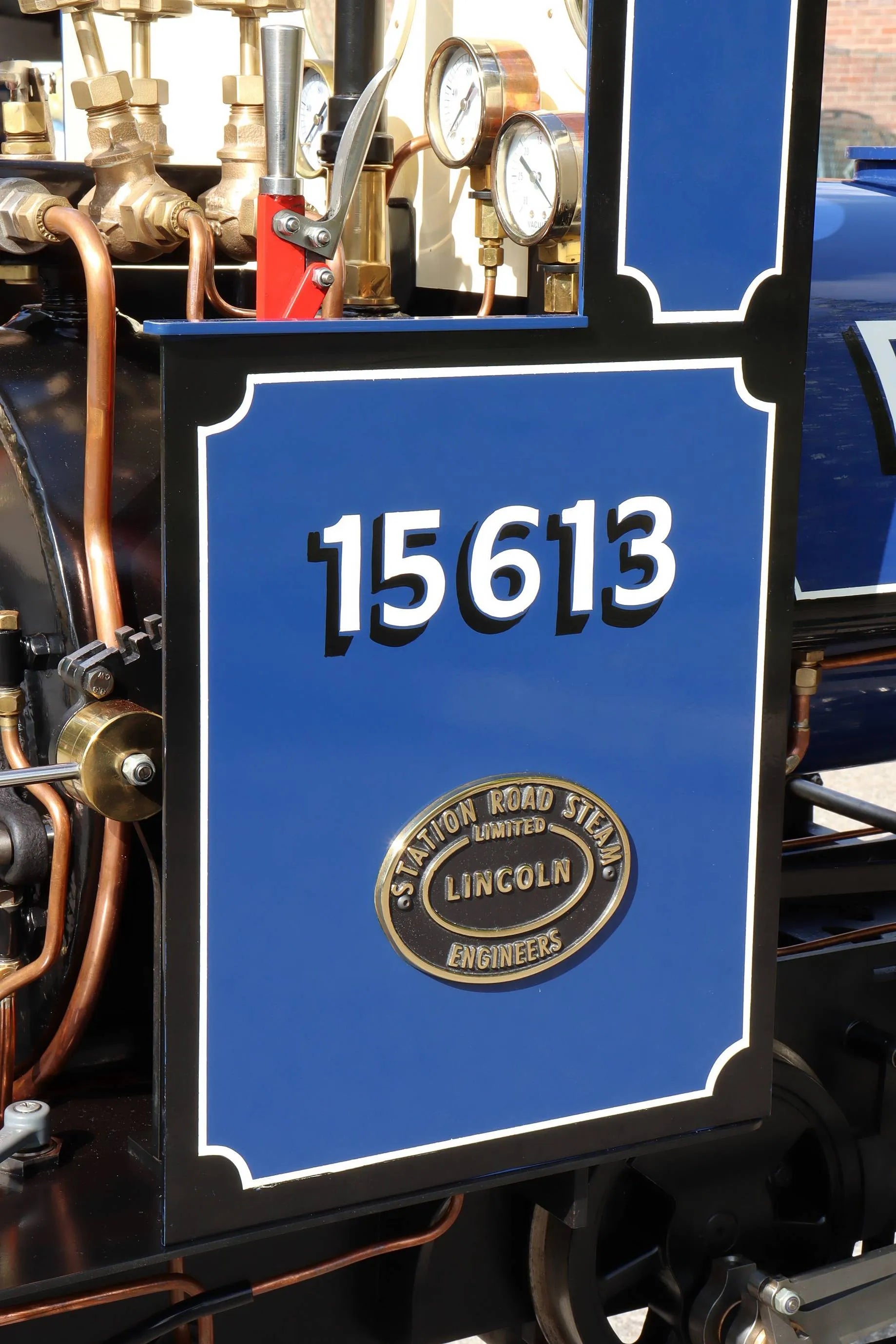

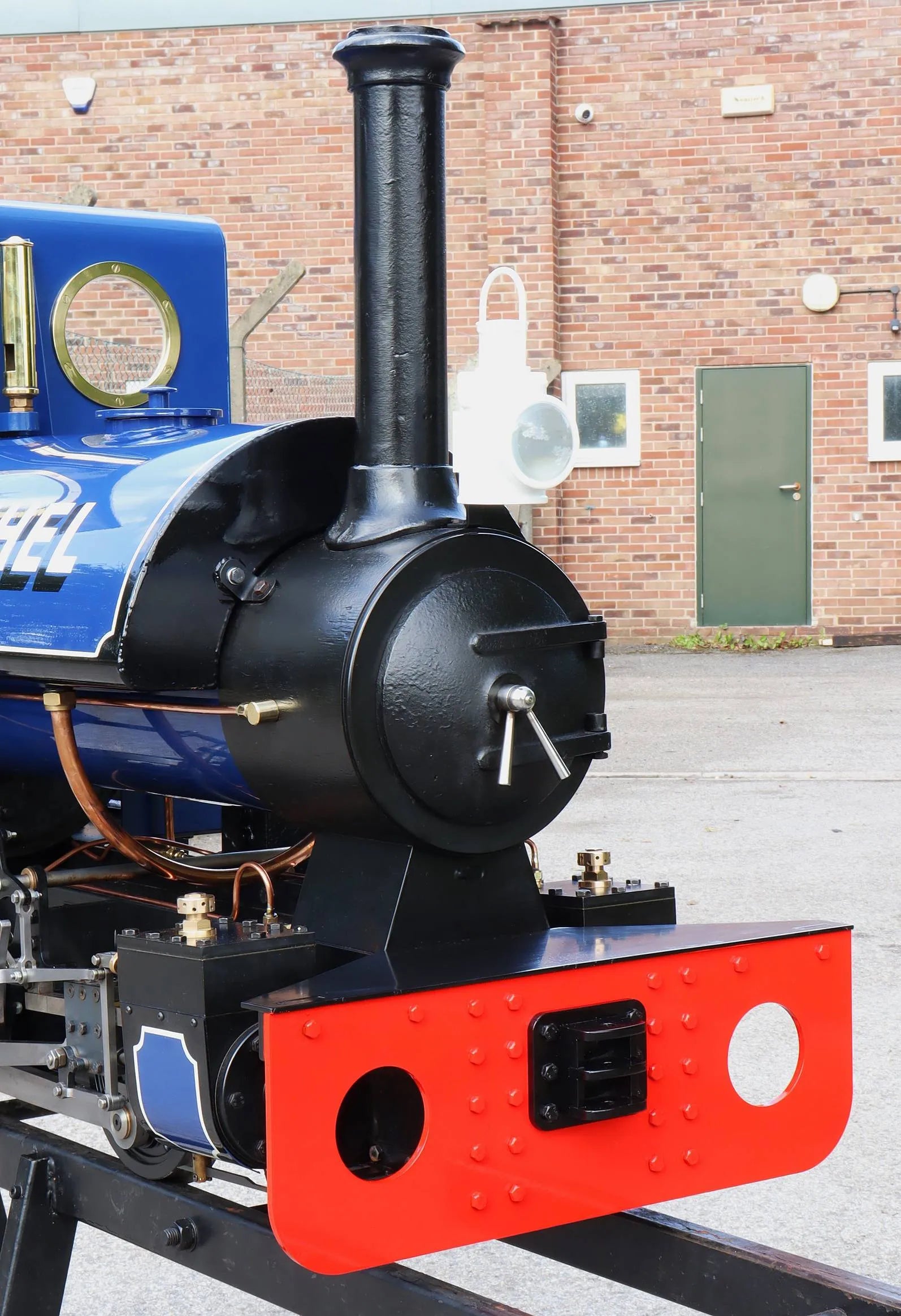

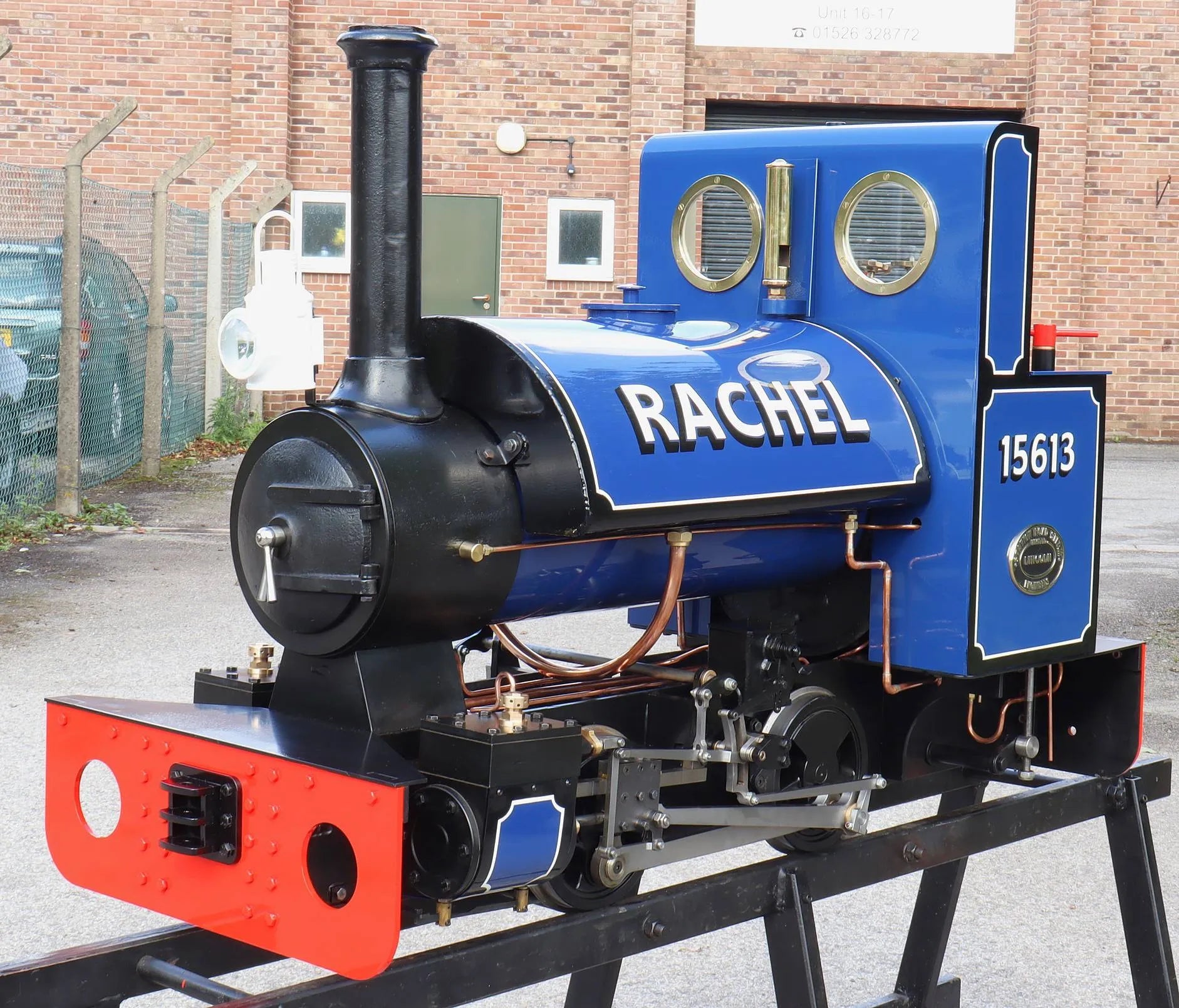

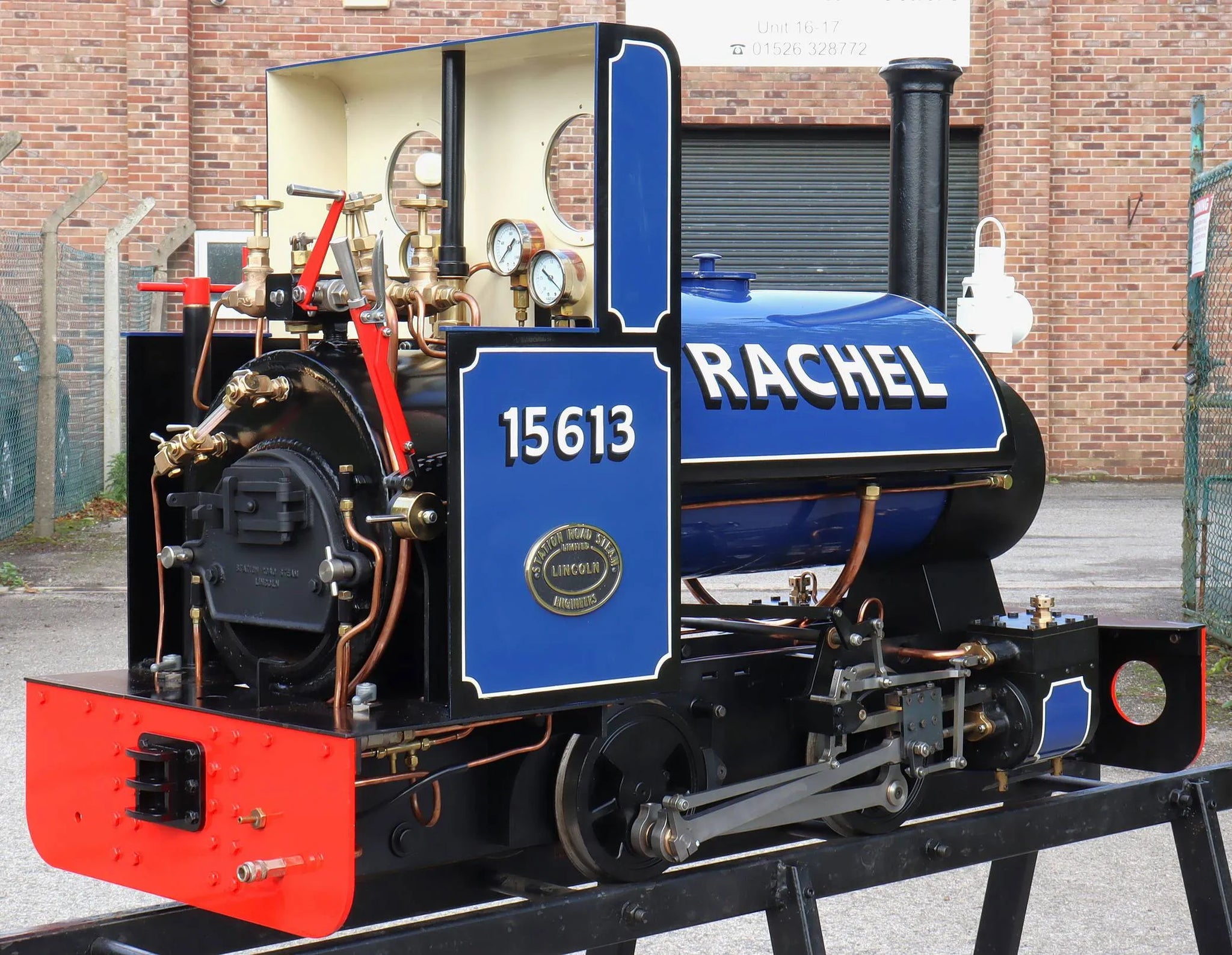

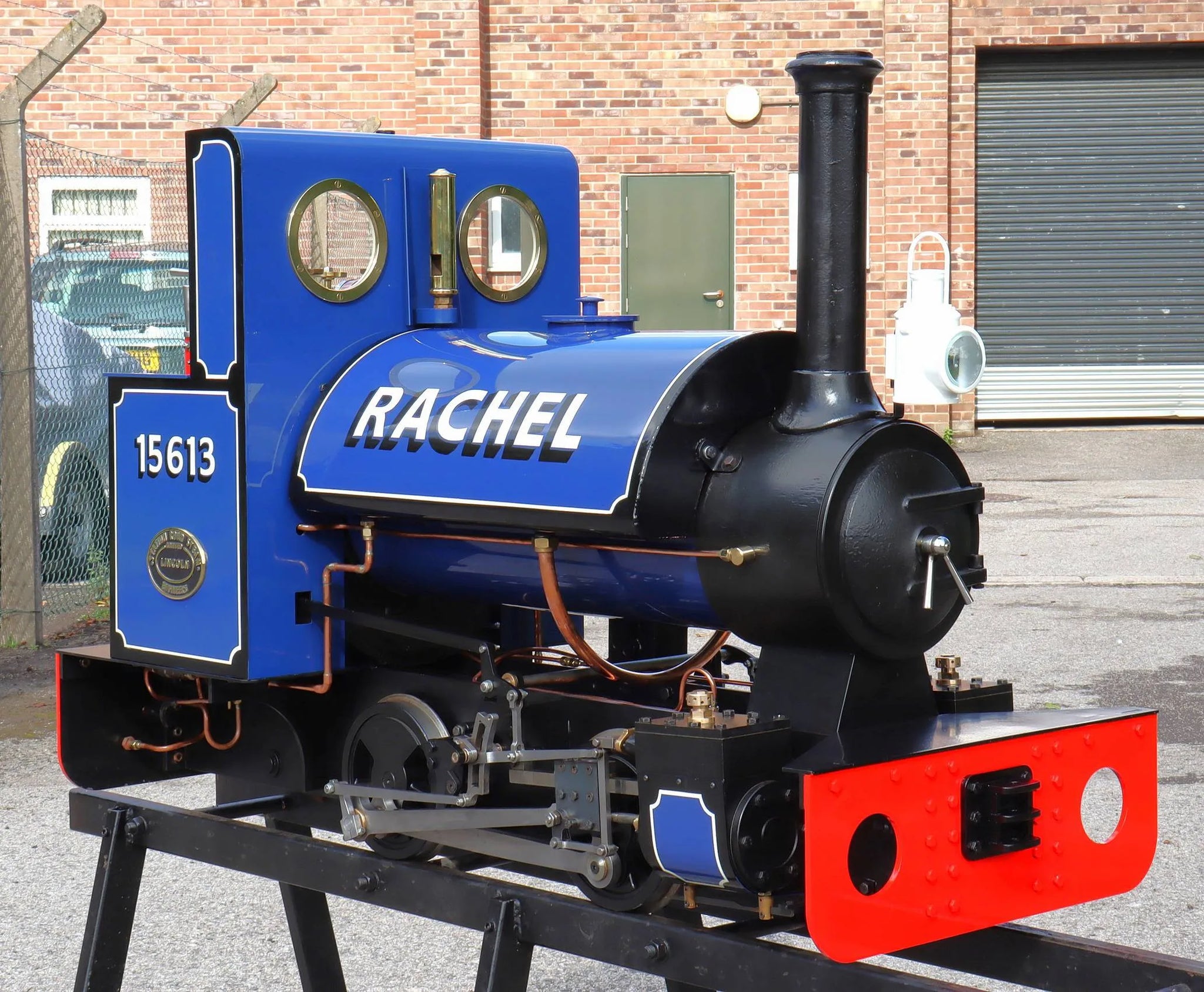

7 1/4 inch gauge "Stafford" 0-4-0T, works number 1347

A 7 1/4 inch gauge "Stafford" 0-4-0ST which we supplied new in 2019. A one-owner engine, we subsequently supplied a "General Gordon" to the same man as well as a kit built "Feldbahn" to his father.

The engine has been well-maintained and remains in excellent condition. Suuplied new with options including:

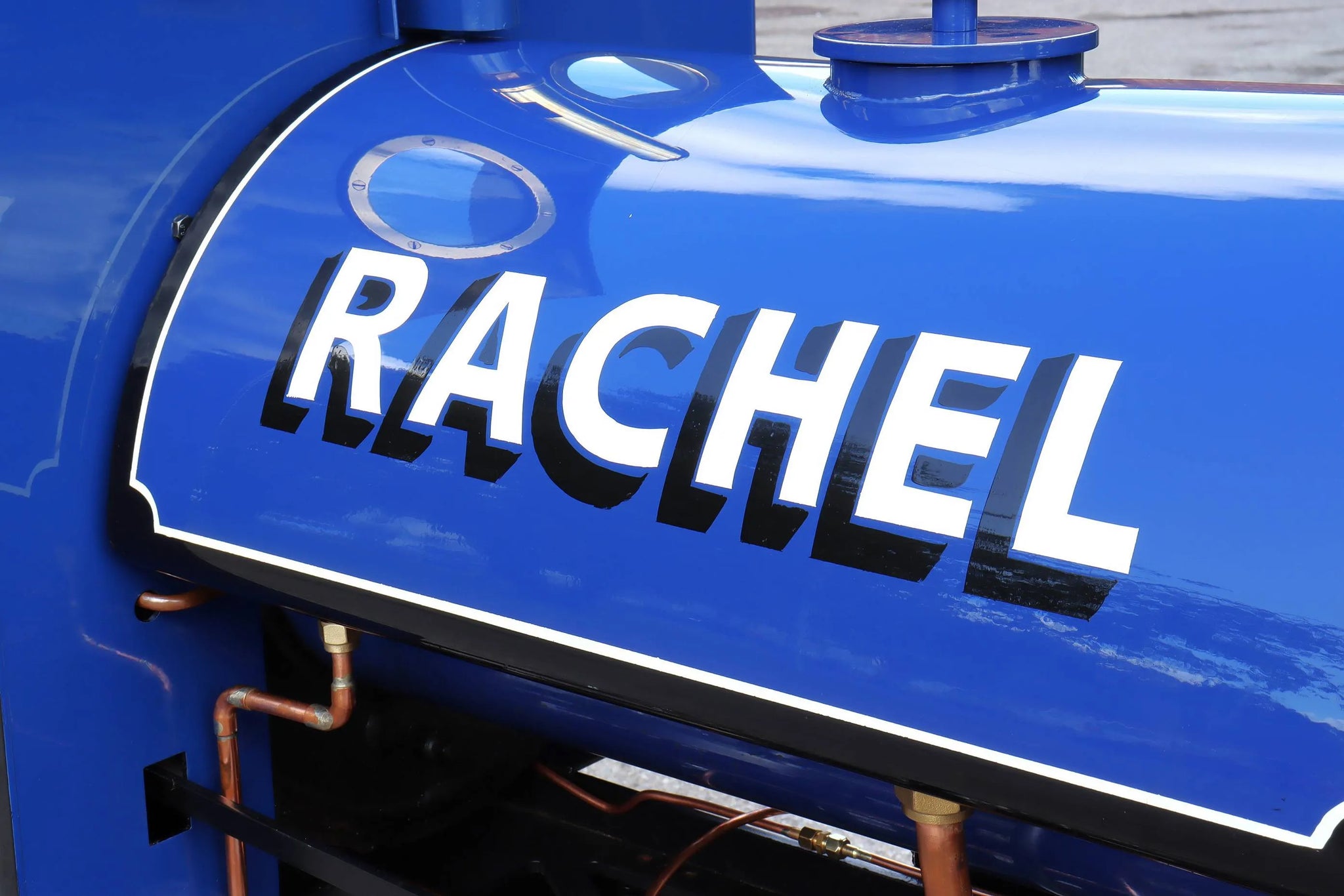

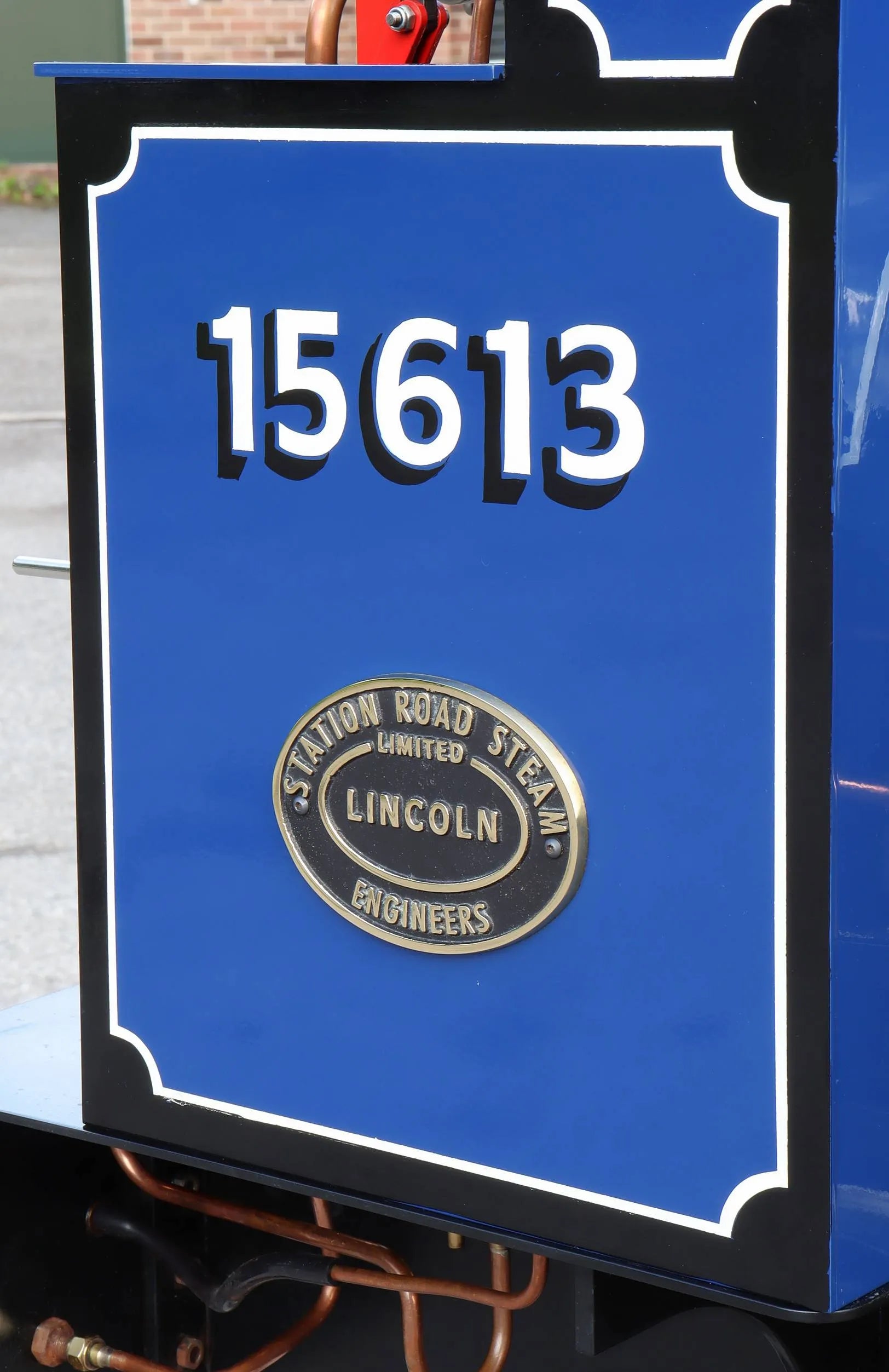

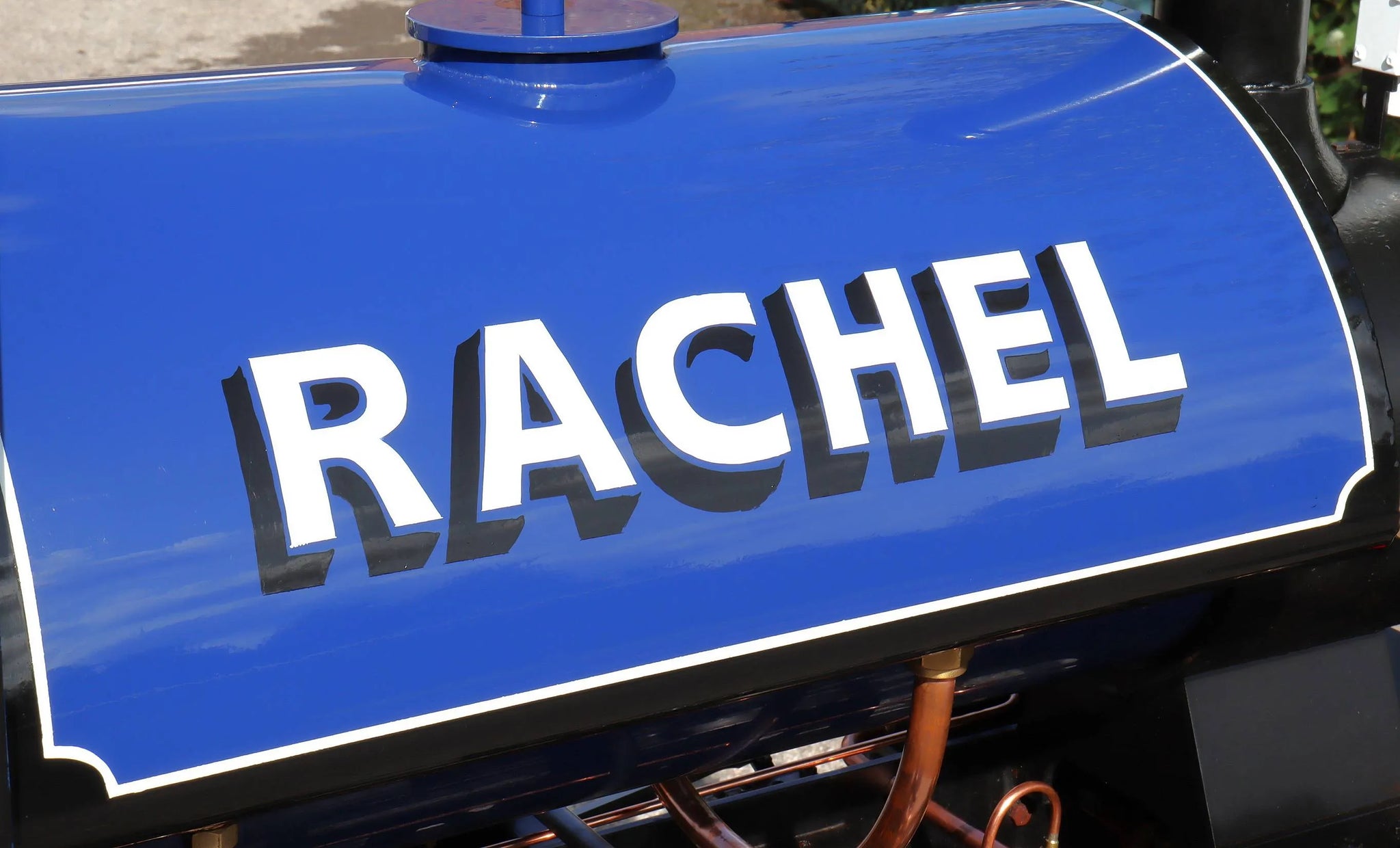

  • Hand lined finish to cab, tank and cylinder cladding sheets

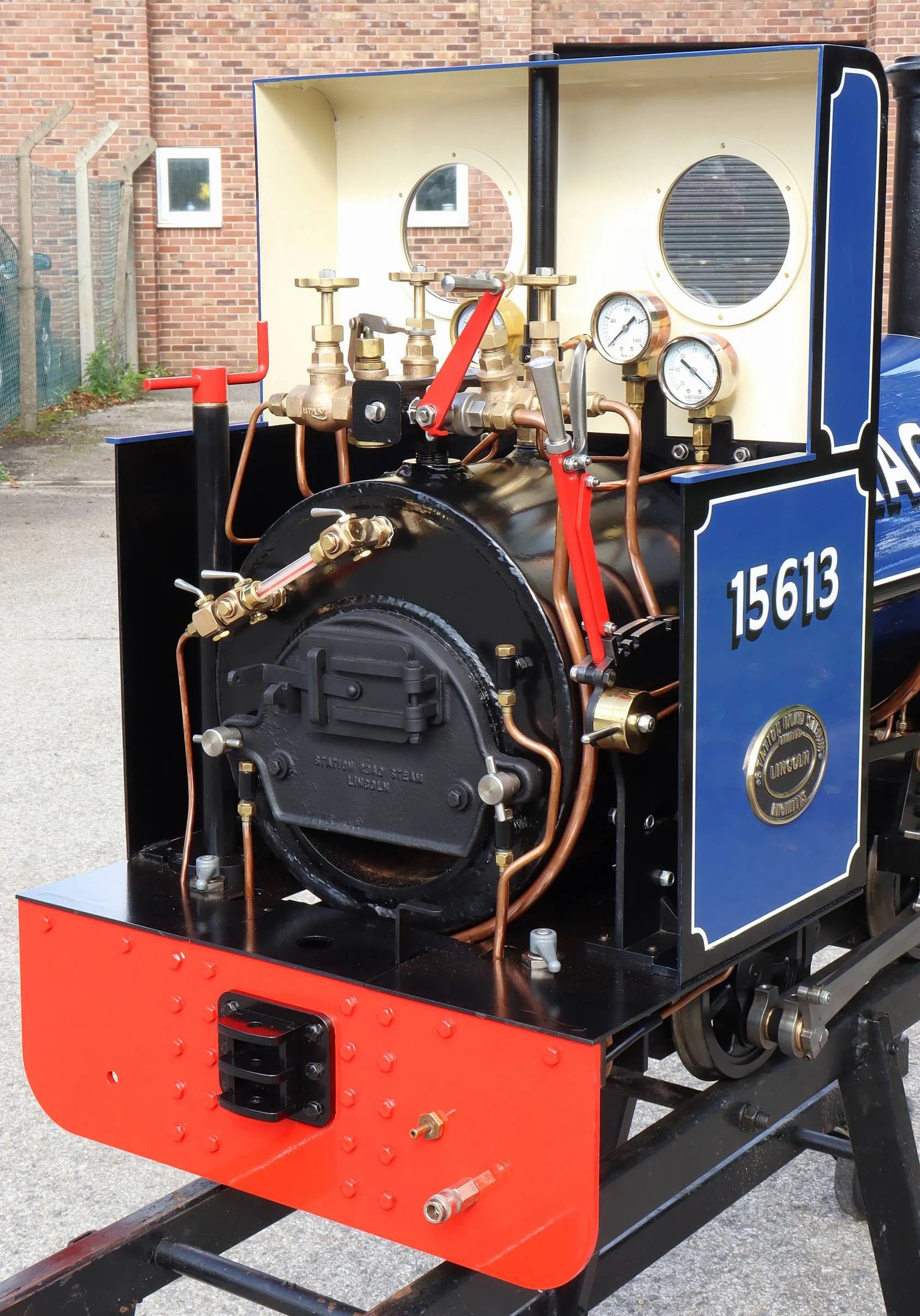

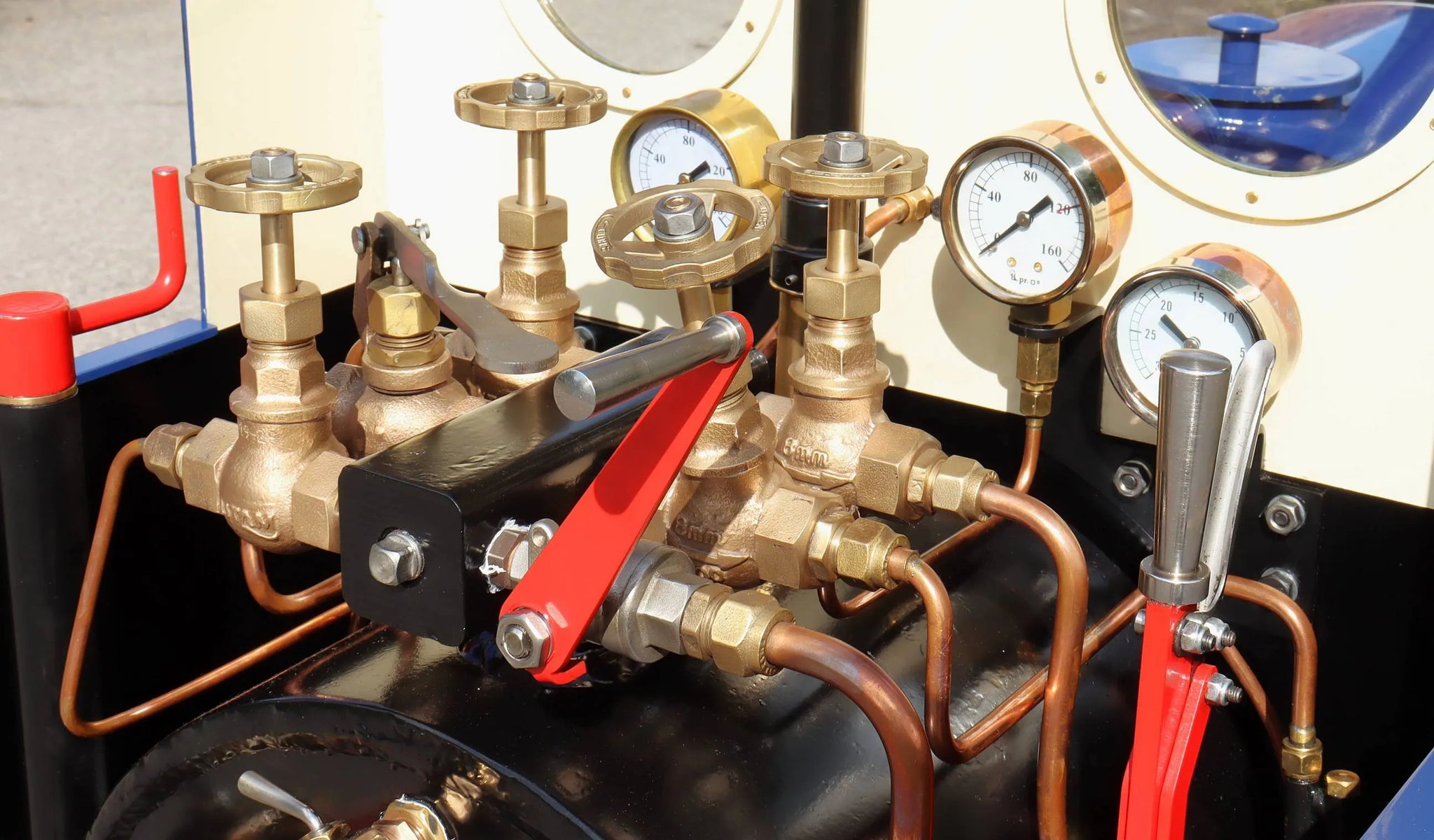

  • Vacuum brake equipment including ejector, steam valve, vacuum gauge and driver's brake valve

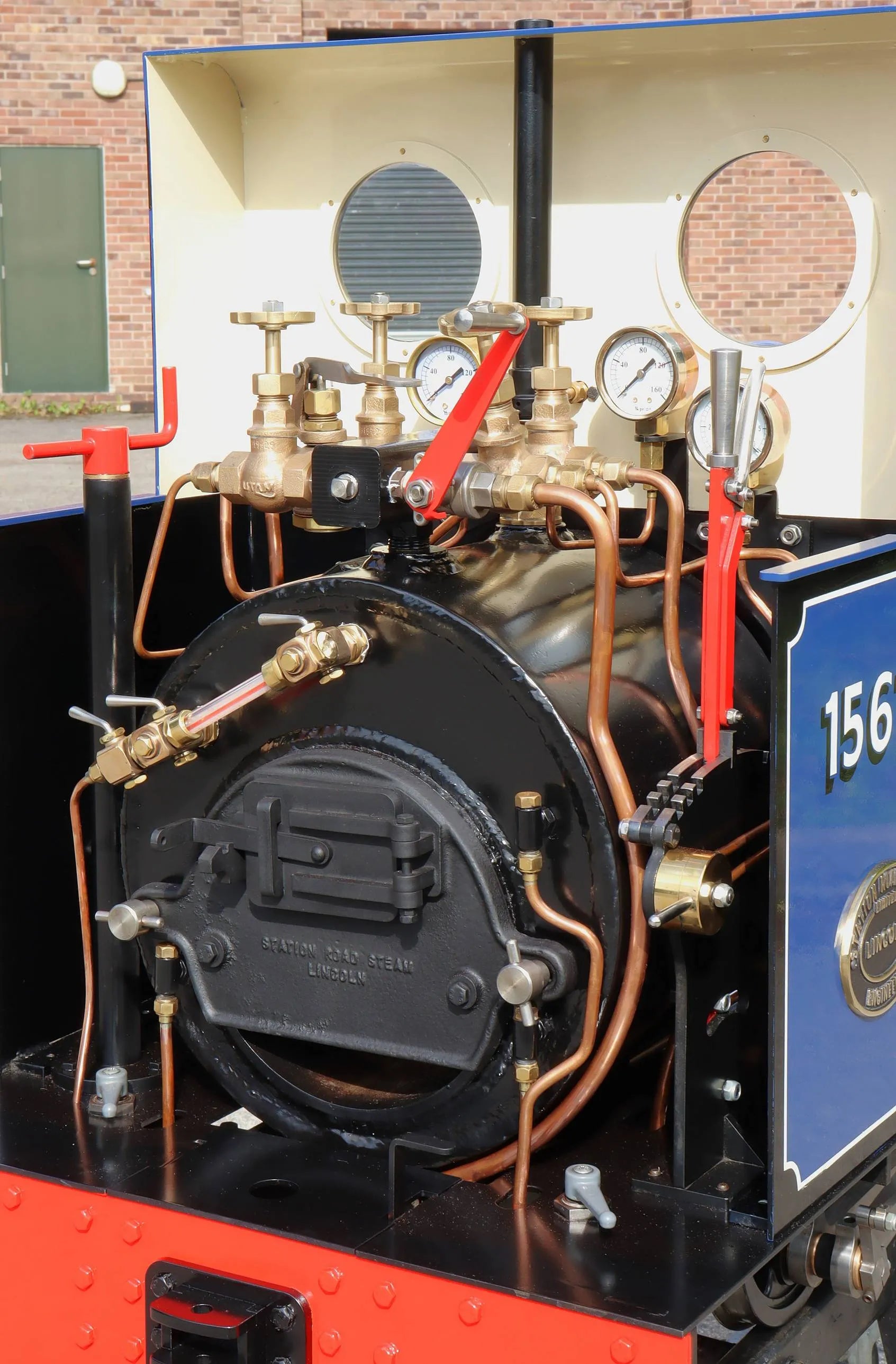

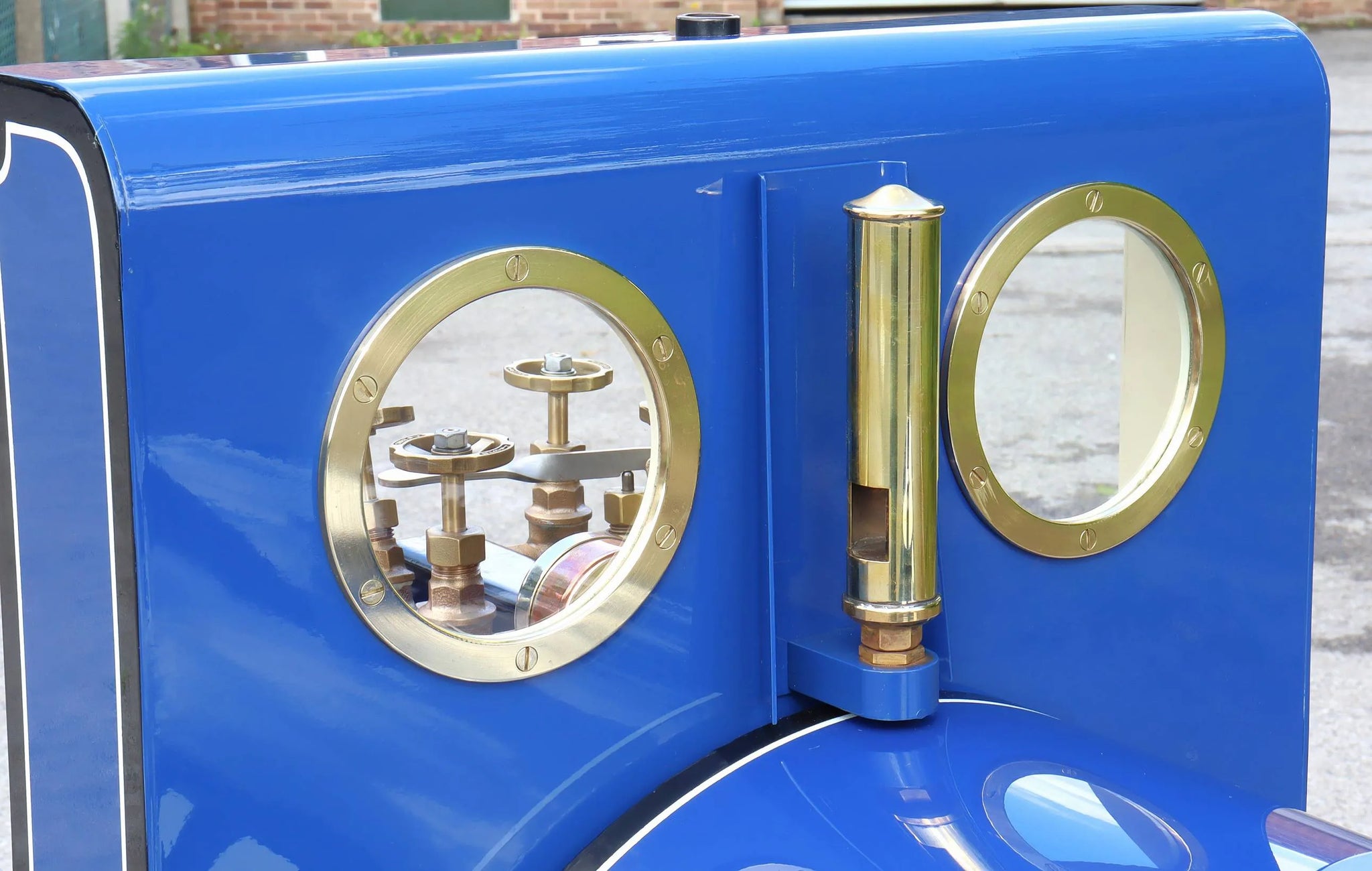

  • Talyllyn cab with polished brass spectacles
  • Type 28 whistle with valve, pipework and deflector plate

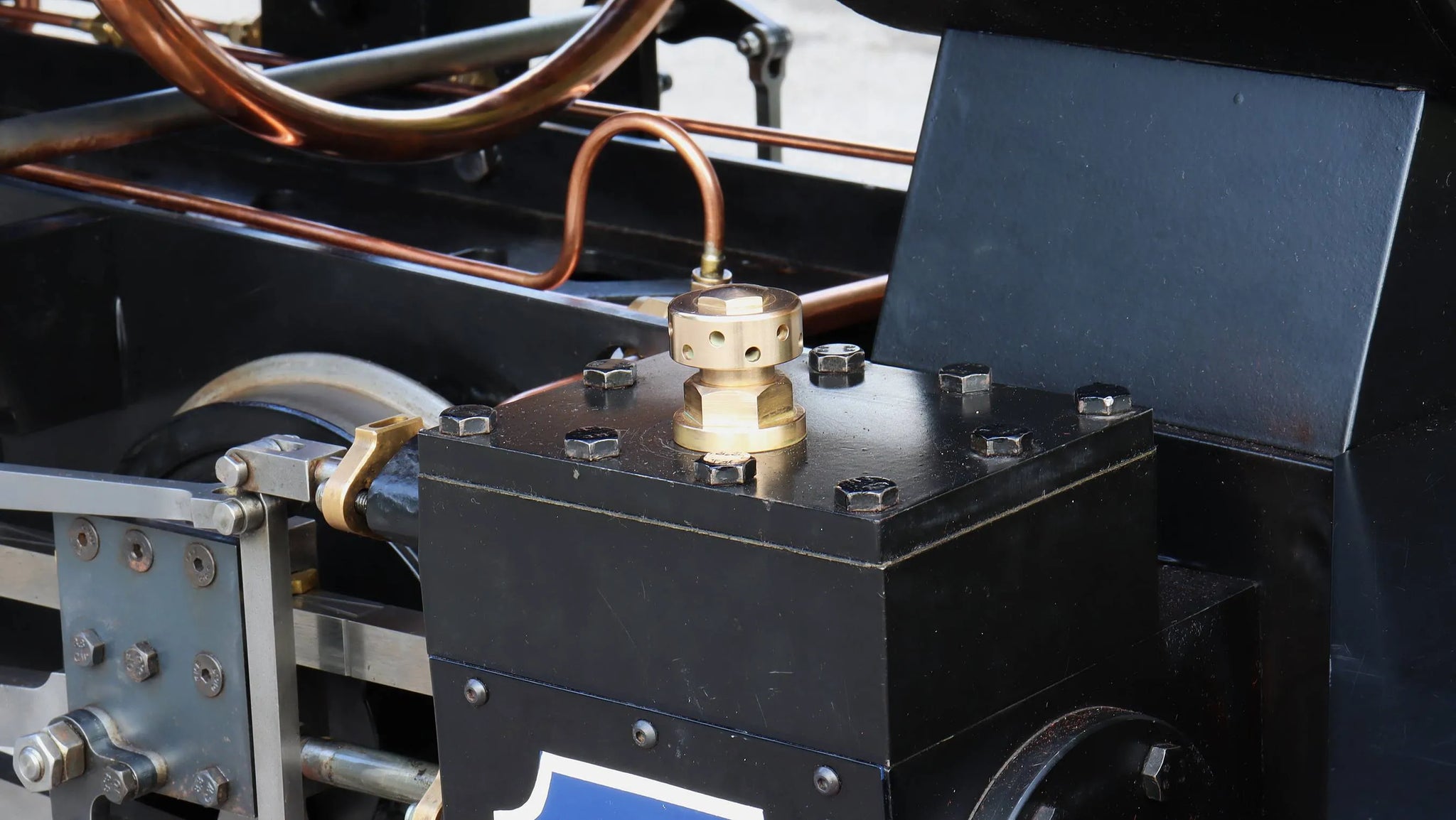

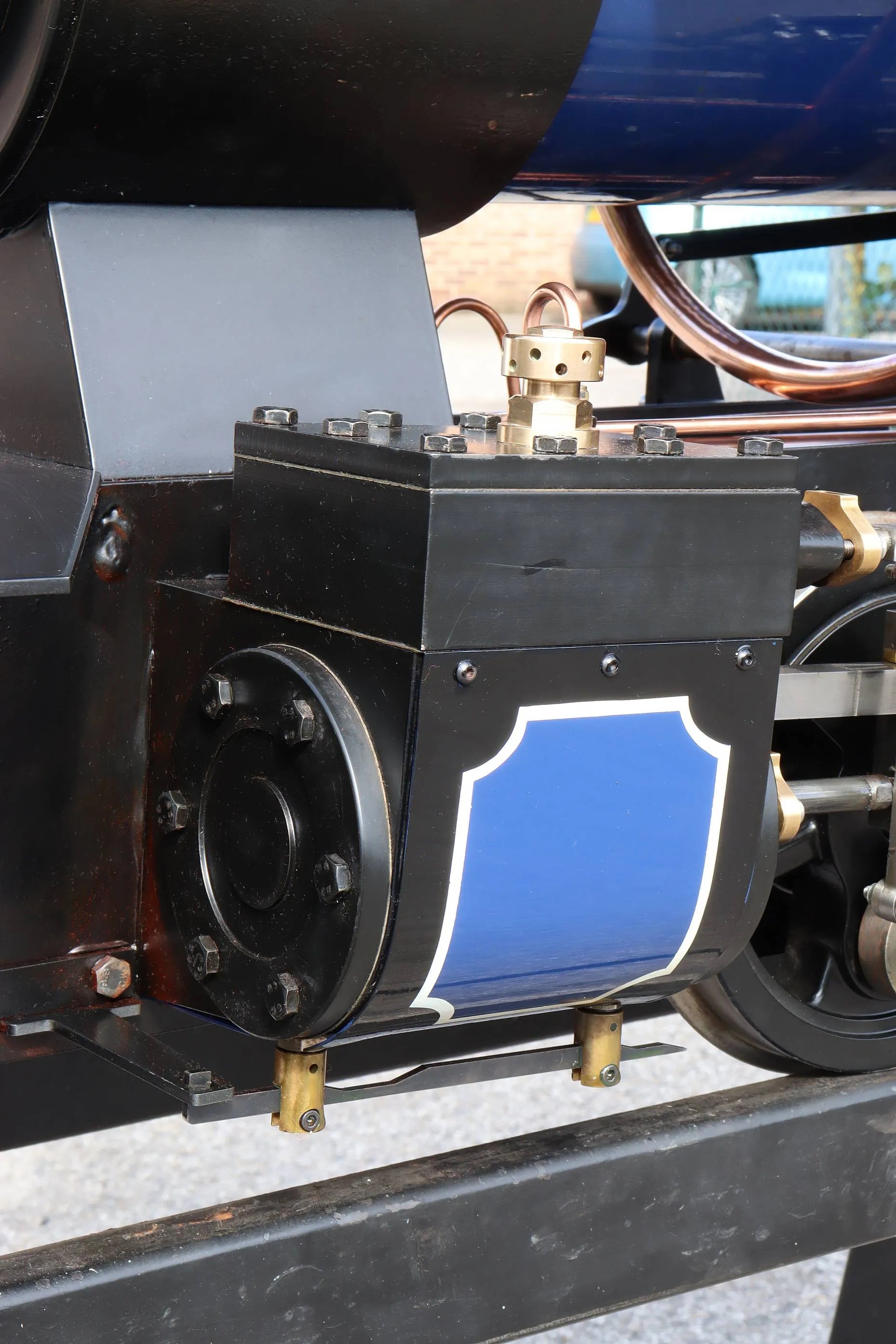

Since arriving back with us the engine has been fitted with the latest valve chest pressure gauge, snifting valves and dual-aspect headlamp.

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines. Current new price of a new Stafford with paintwork, lining and options as shown would be £16,848.


Technical information

Stock code

11522

Gauge

7 1/4 inch

Length/inches

45

Width/inches

19

Height/inches

32

Weight/Kg

195

Wheel material

EN8 steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

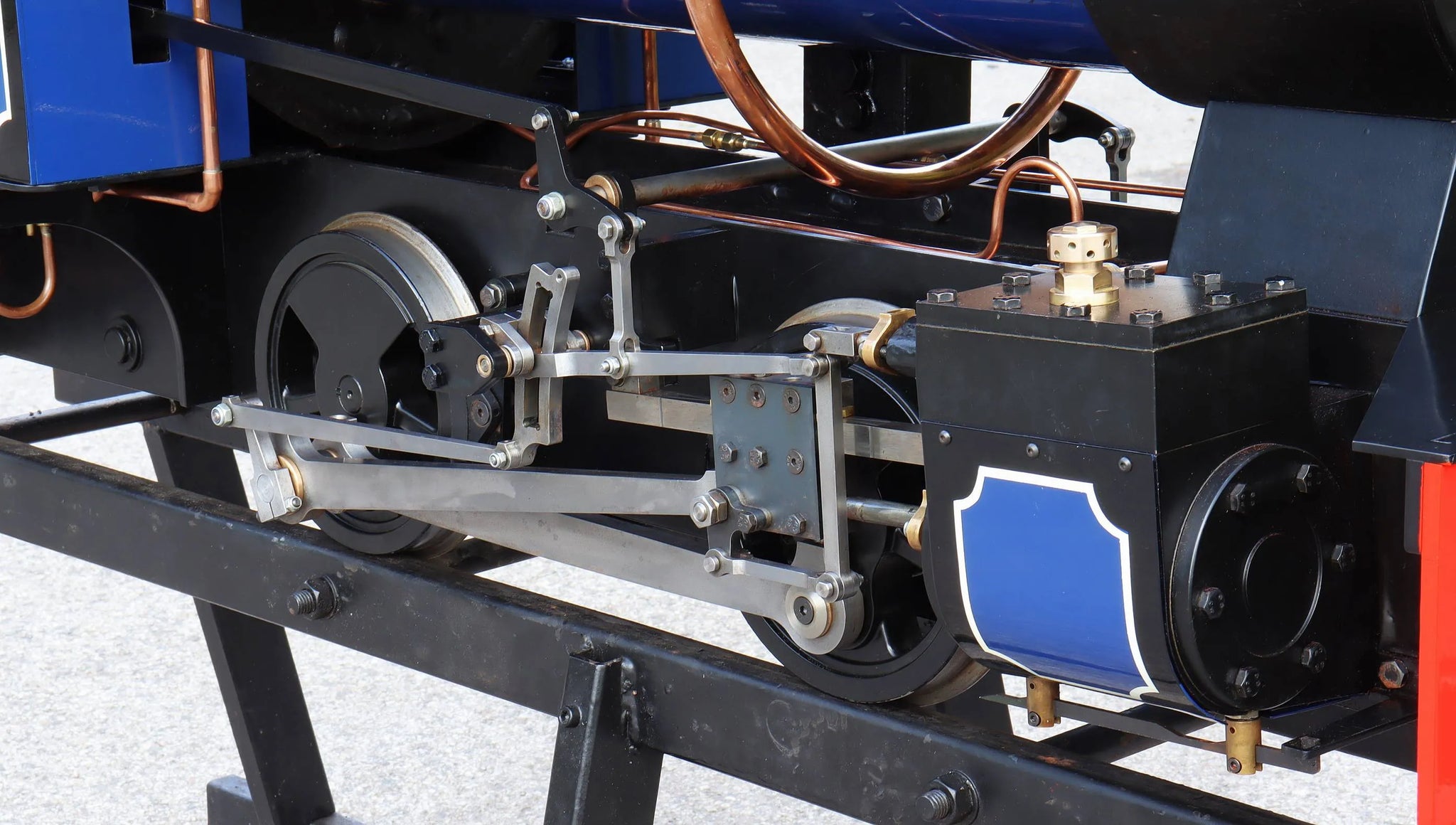

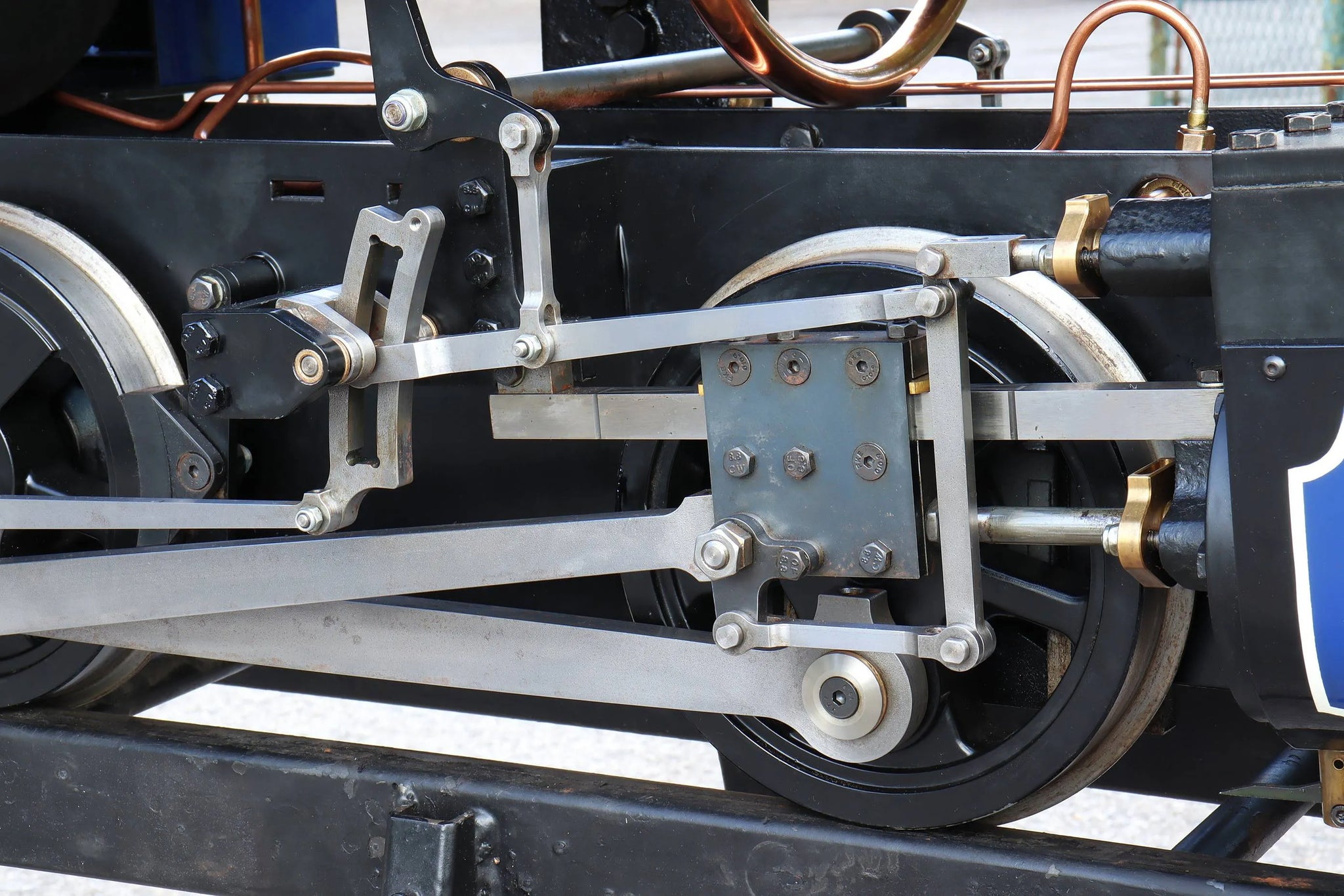

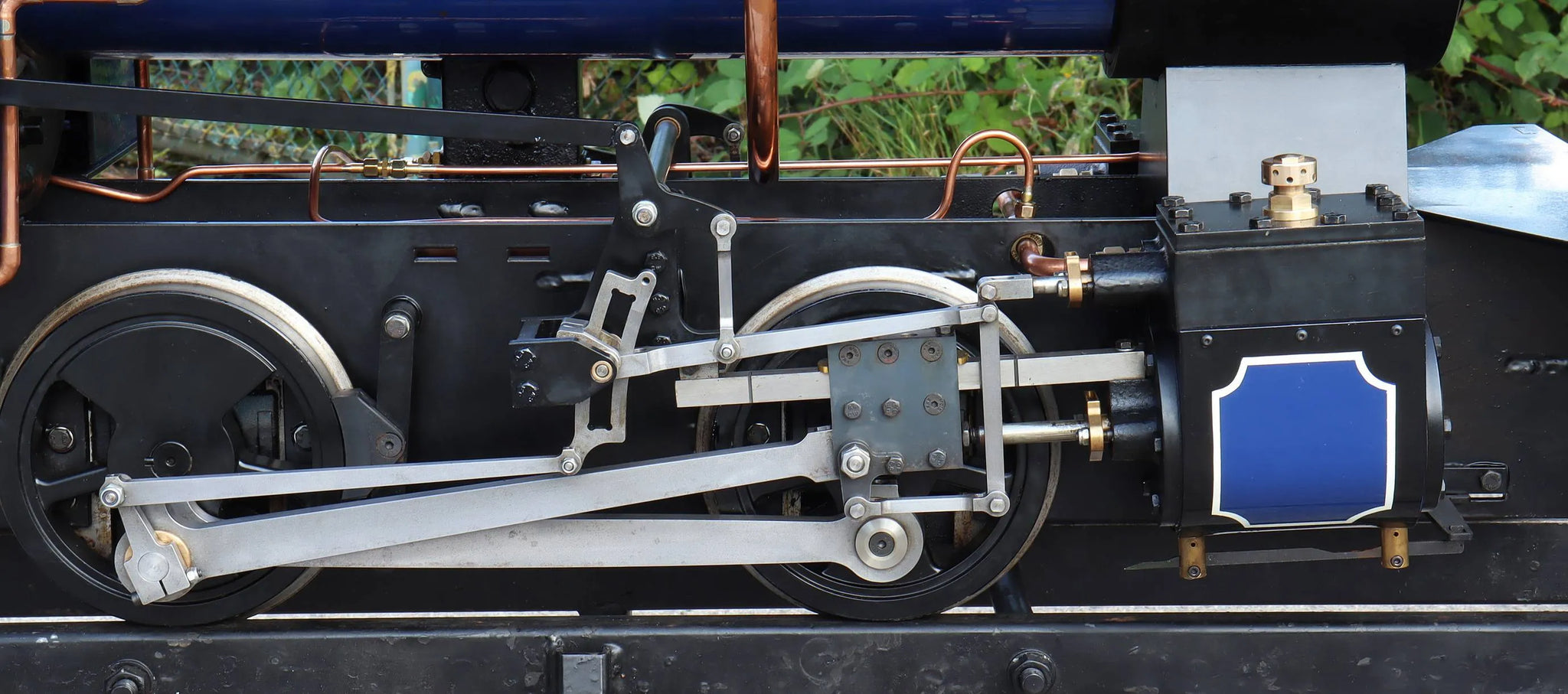

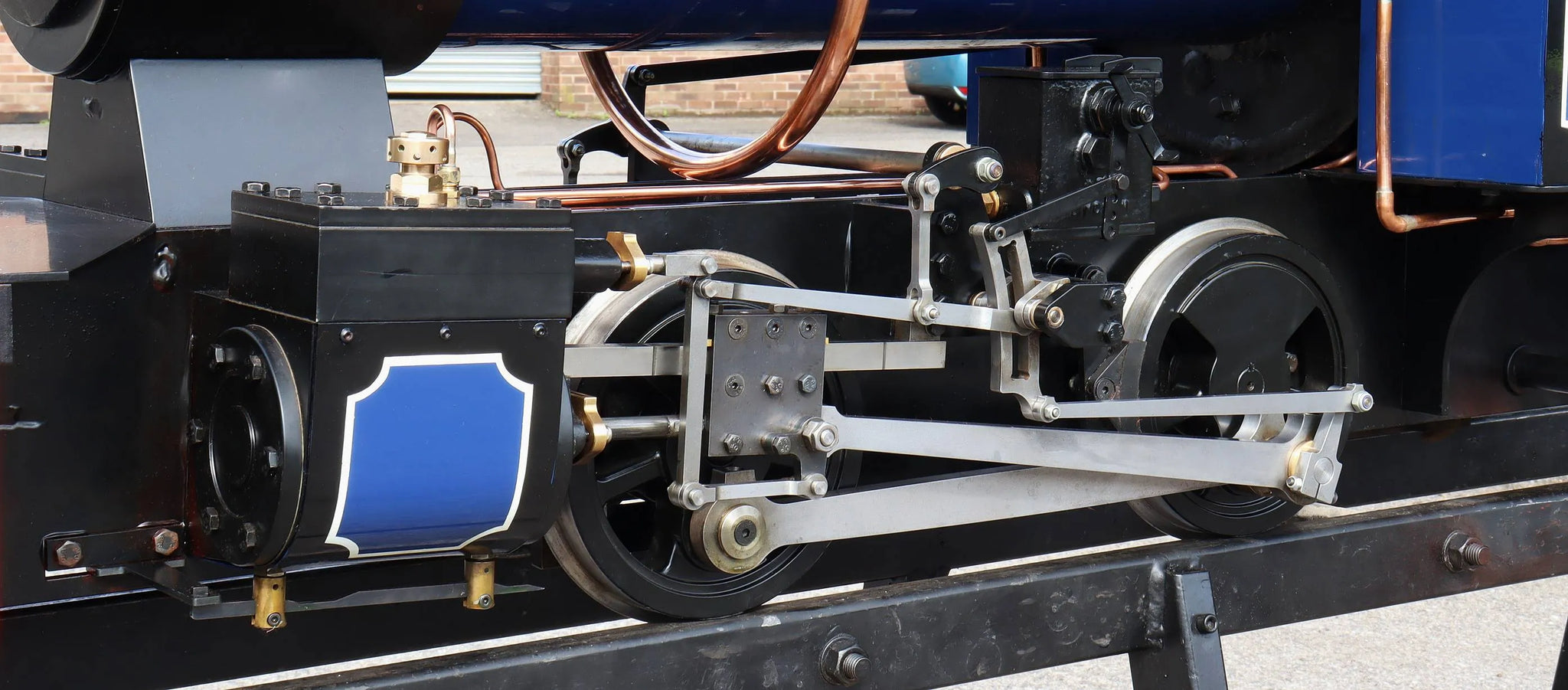

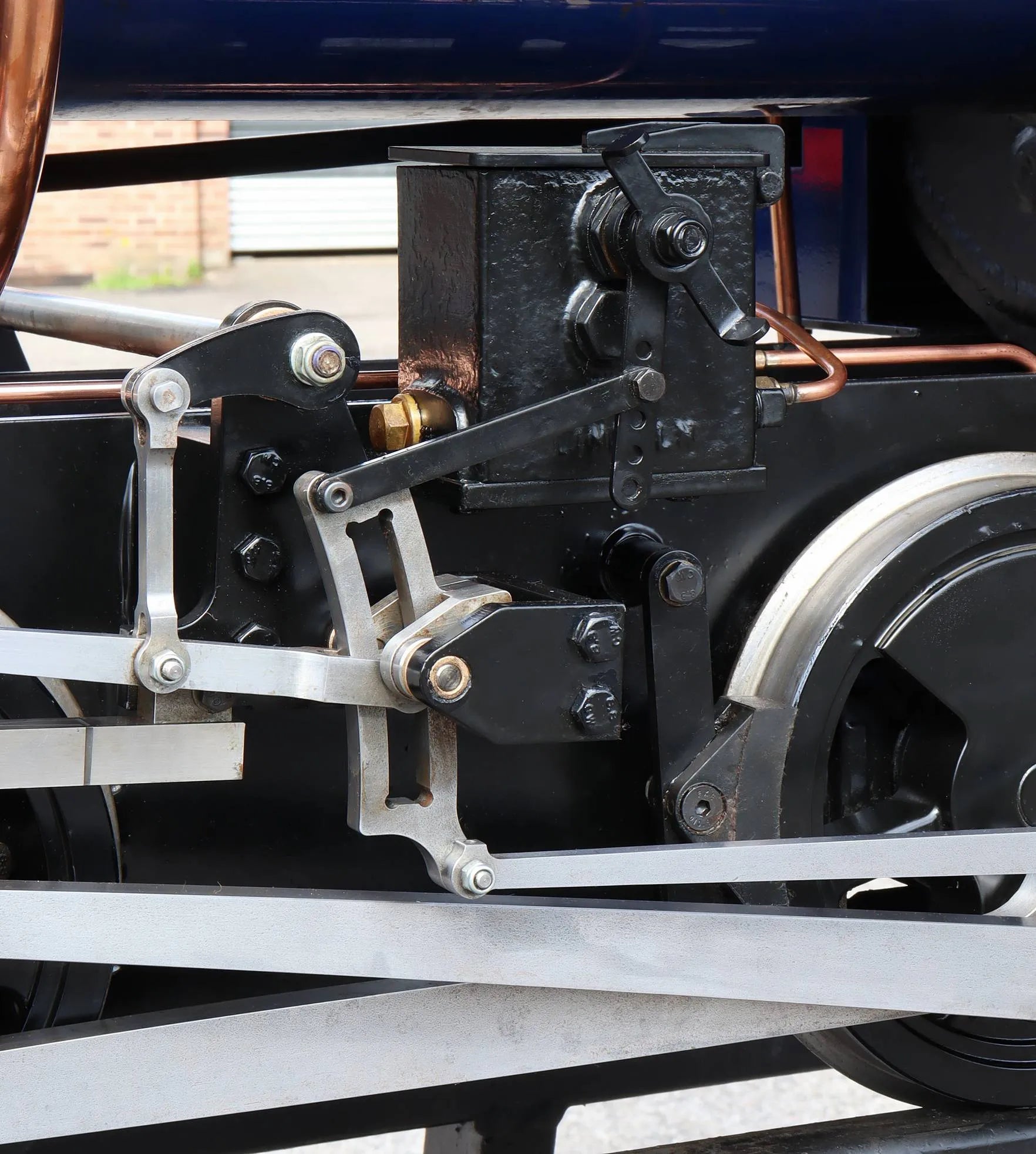

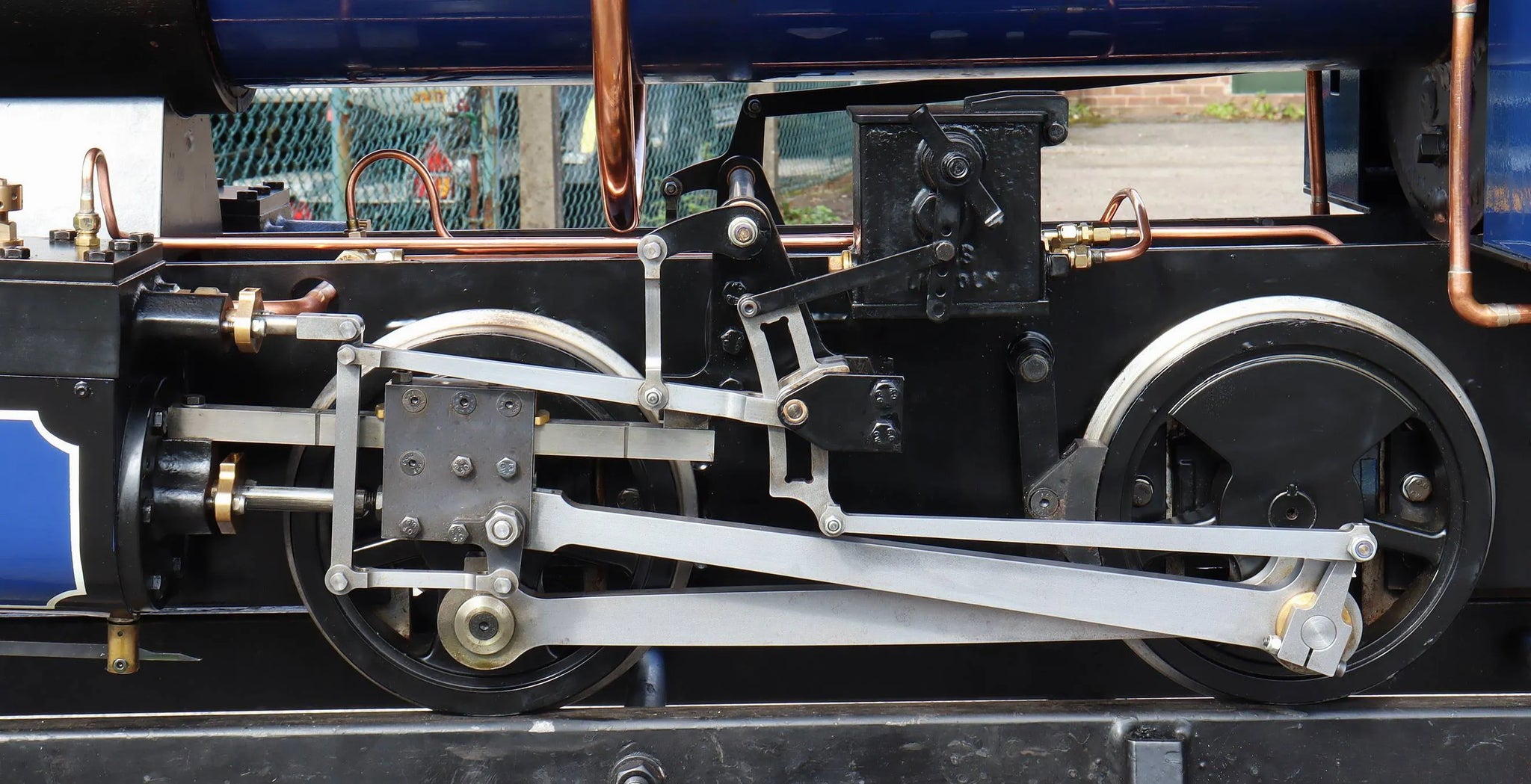

Valve gear

Walschaerts

Reverser type

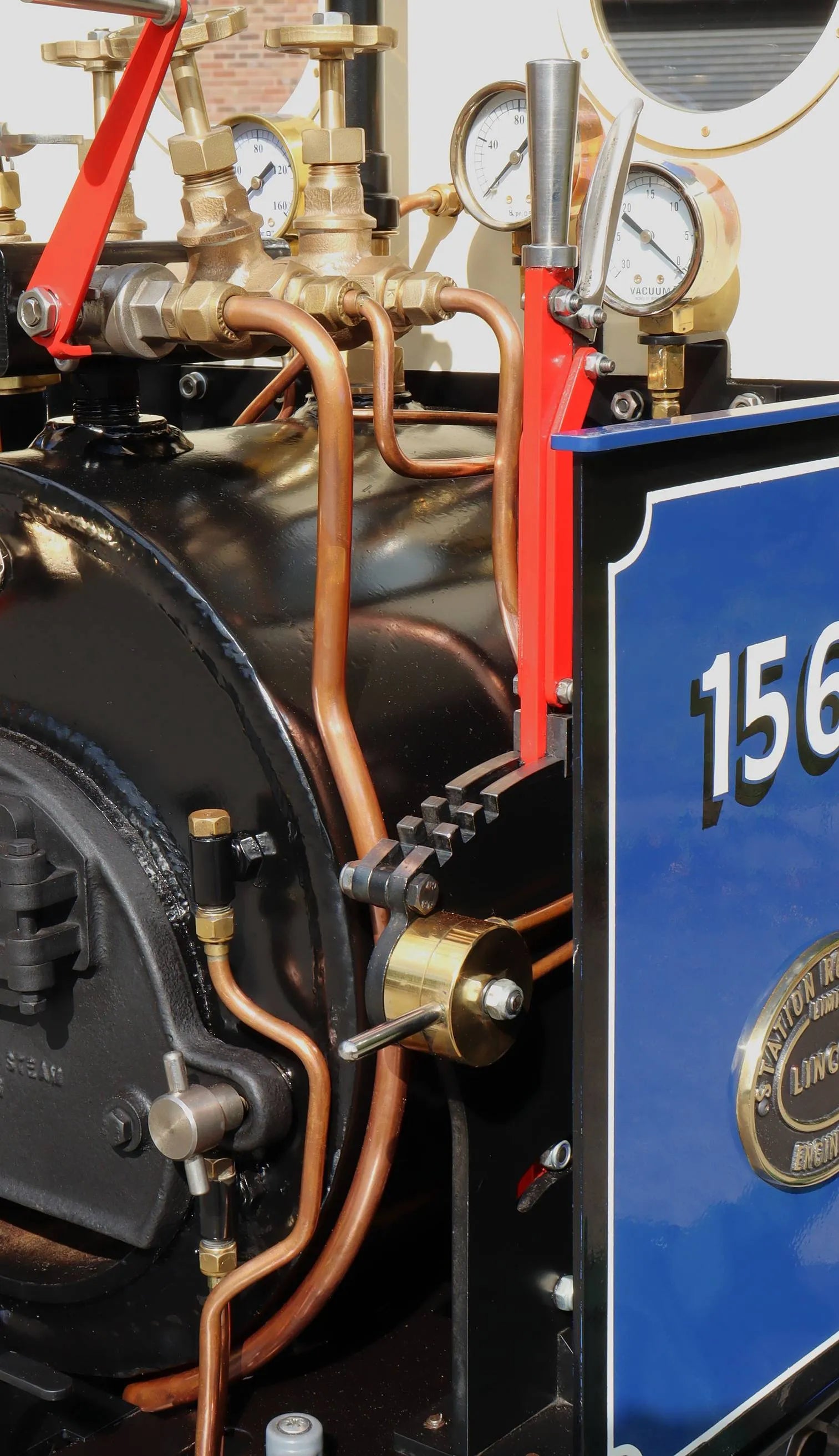

pole

Lubricator type

mechanical

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2019

Boiler number

139

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Chassis material

steel, welded

Body material

steel

Whistle

yes

Injector

2

Nominal traction

238

Date out

Jun-24

Hydraulic test valid to

17-Sep-25

Steam test valid to

21-Nov-24
