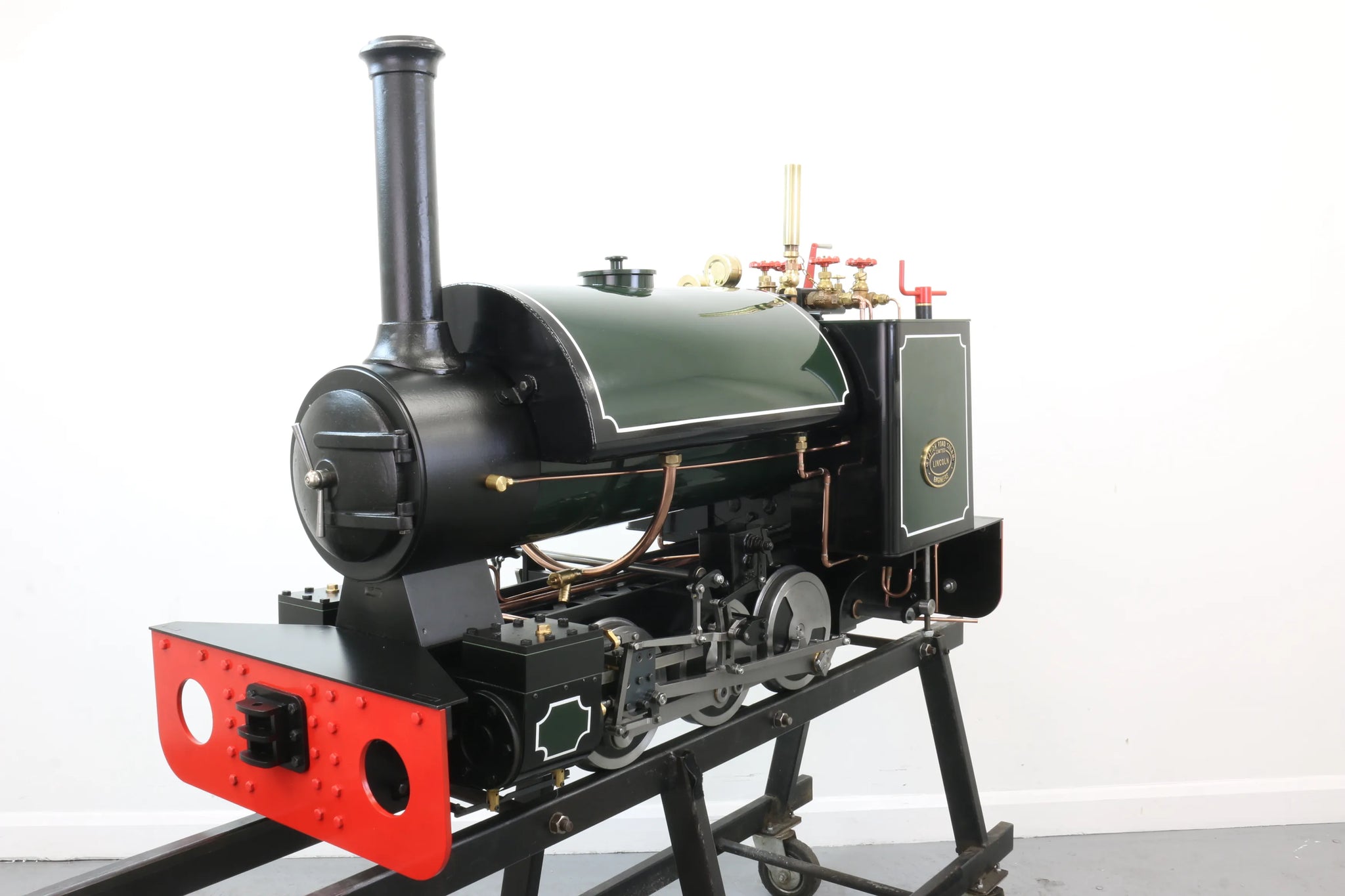

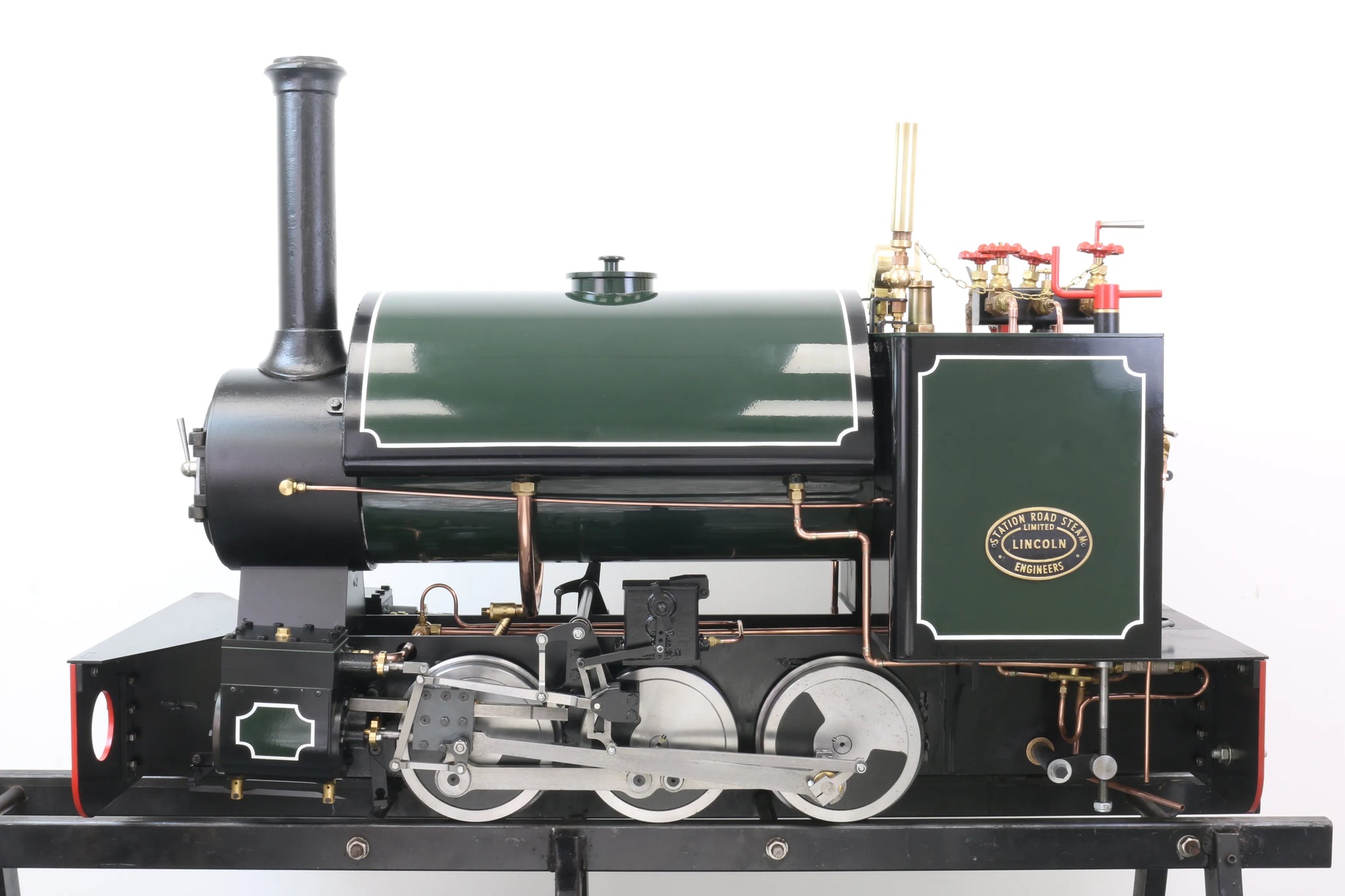

7 1/4 inch gauge Stafford 0-6-0, works number 1384

We supplied this Stafford 0-6-0 in March 2017 to a gentleman who, having already had a Stafford 0-4-0, decided to have a "deluxe specification" 0-6-0 built, which included:

  • Custom paintwork, hand panelled and lined out

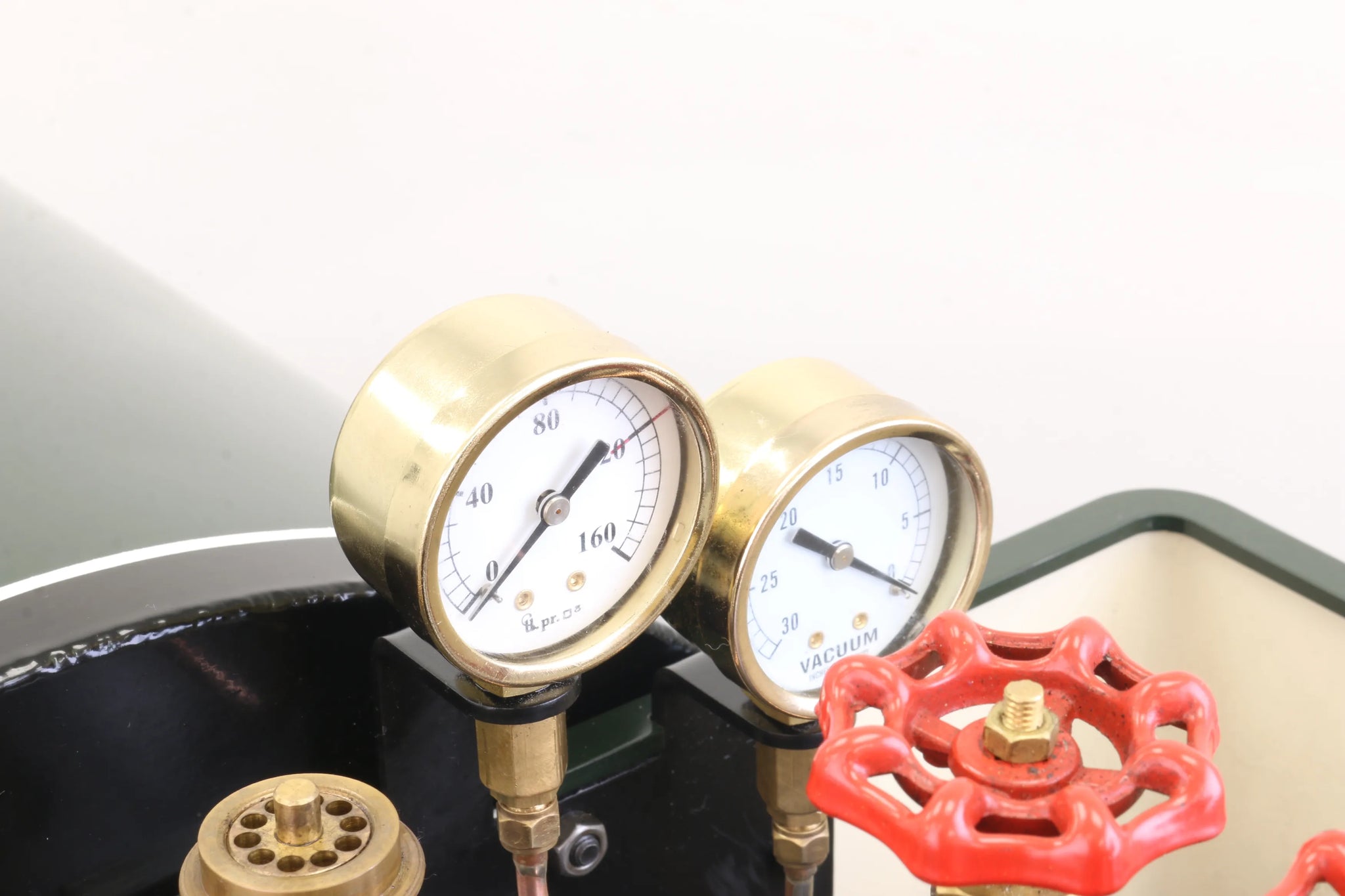

  • Vacuum brake equipment

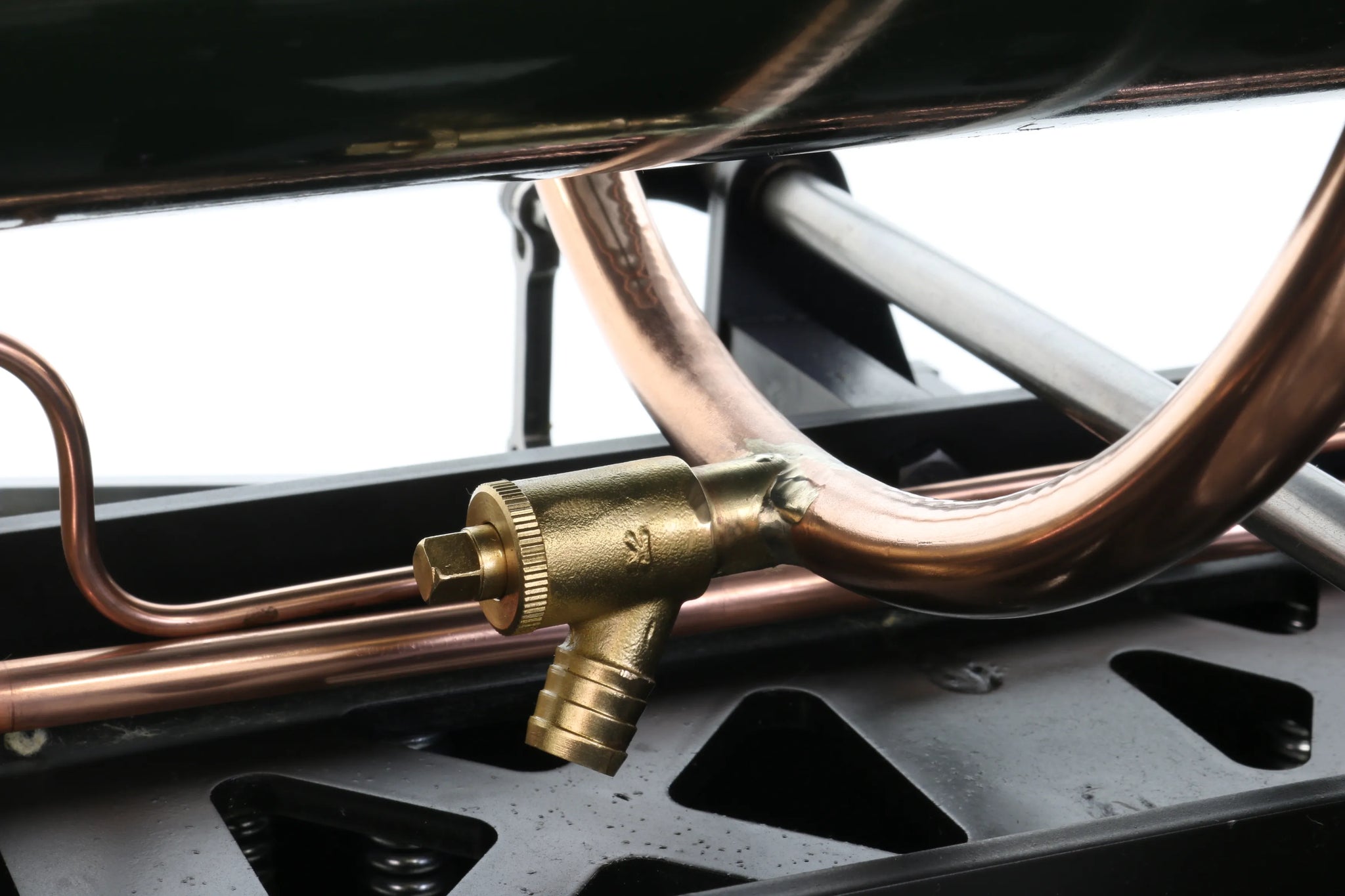

  • Saddle tank drain valve

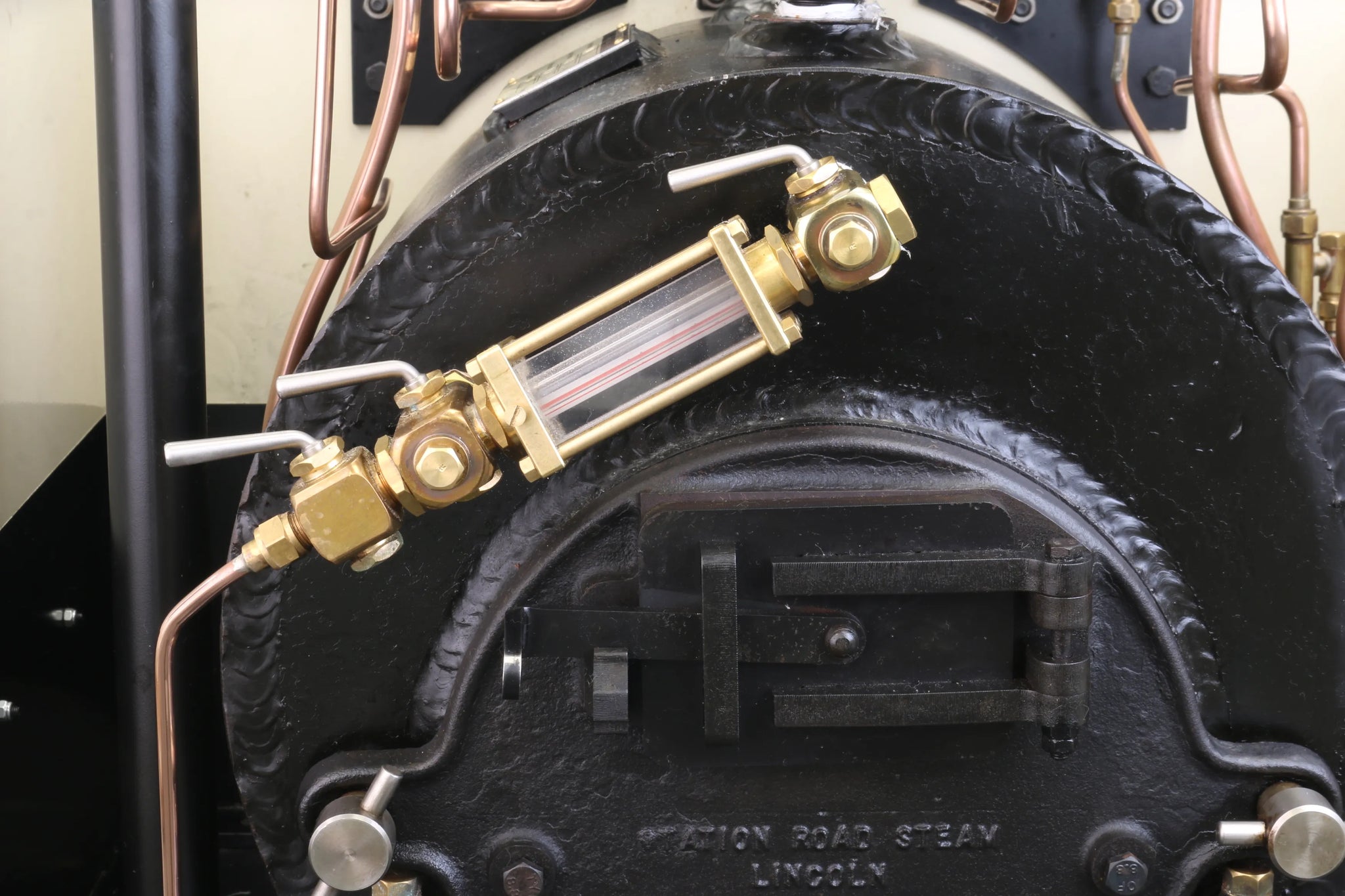

  • Gauge glass protector
  • Injector overflow extensions, visible from driving position
  • Chime whistle
  • Front coupling
The engine has been steamed six times, however now due to a change in circumstances it is for sale. It's as close to buying a new engine as you could get, the engine is in excellent condition throughout.

As with all second hand Staffords we sell, this one is supplied on exactly the same terms as our new engines: 12 months parts and labour warranty, new hydraulic and steam test certificate and complete with owner's handbook and starter kit comprising coal, firing irons, oil and water treatment.



Technical information

Stock code

7876

Gauge

7 1/4 inch

Length/inches

48

Width/inches

19

Height/inches

33

Weight/Kg

195

Wheel material

steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

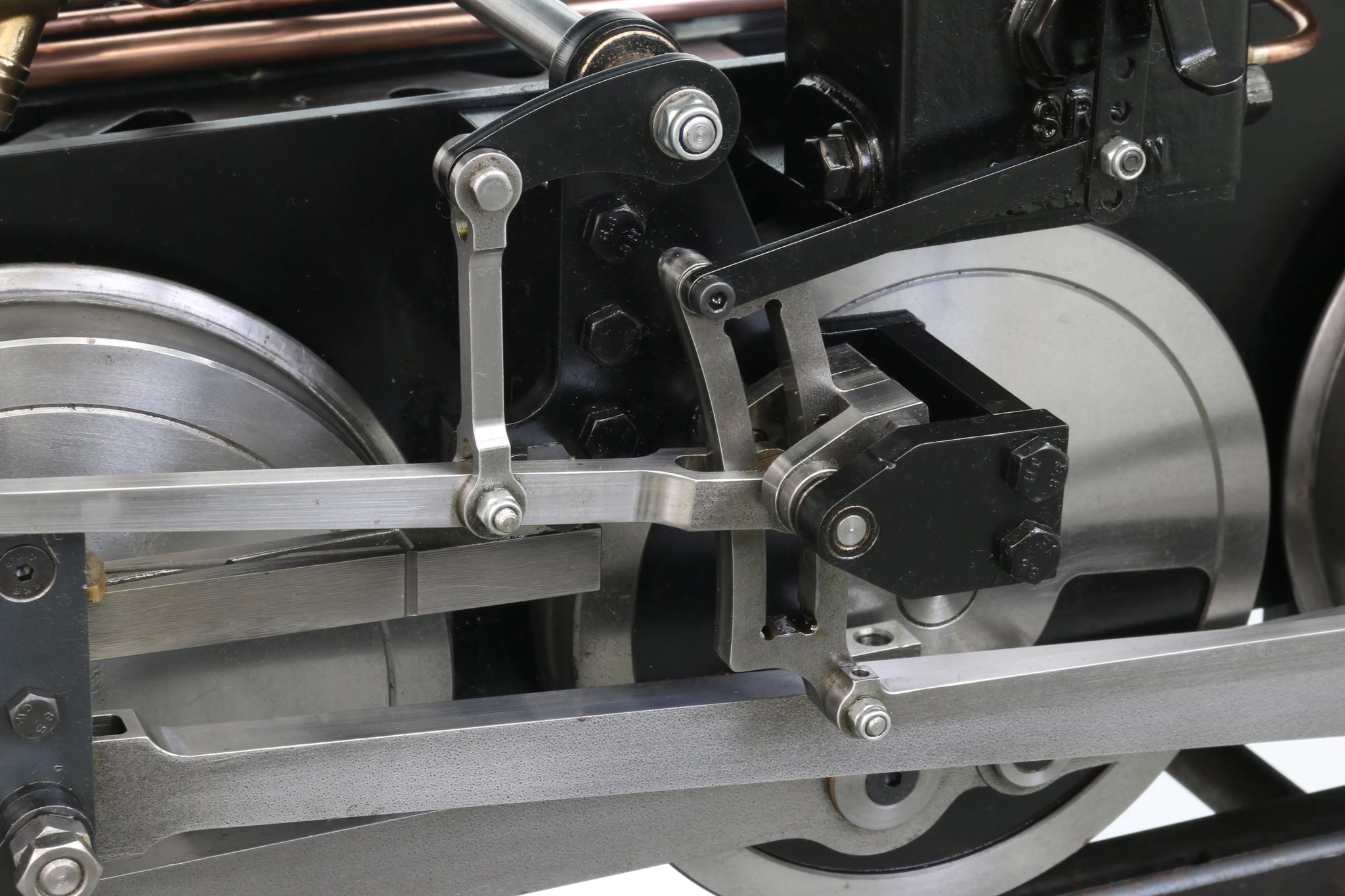

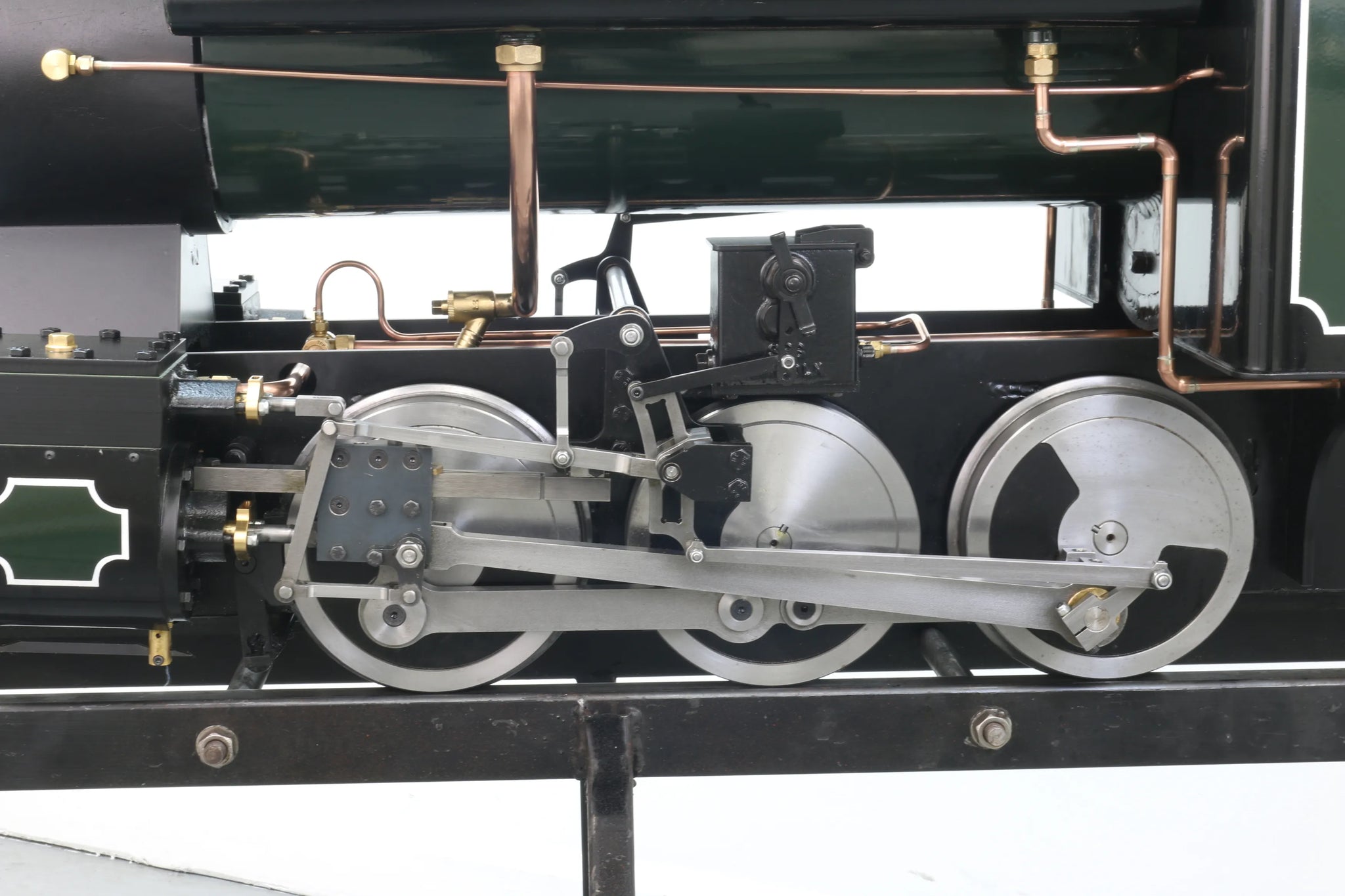

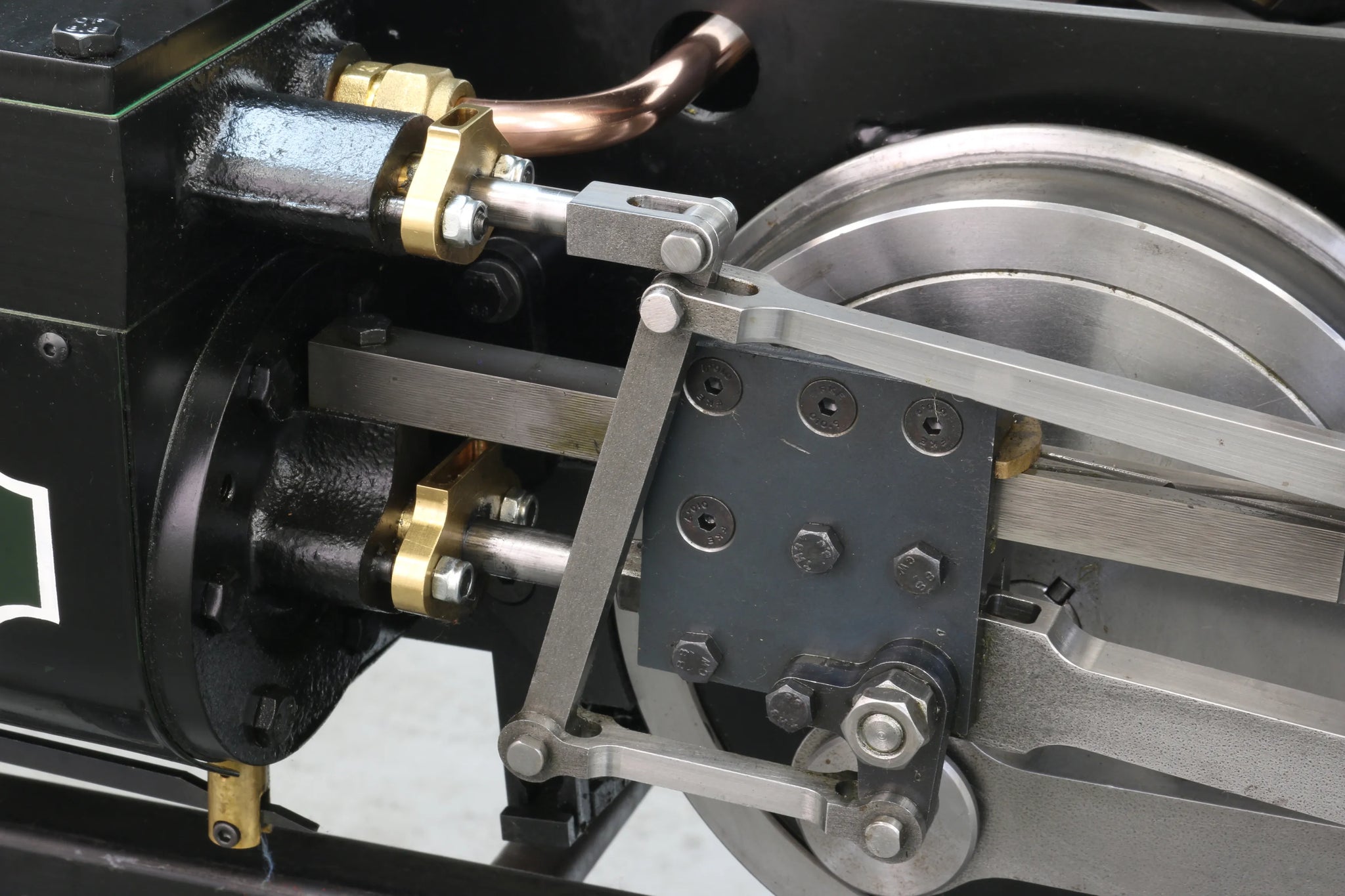

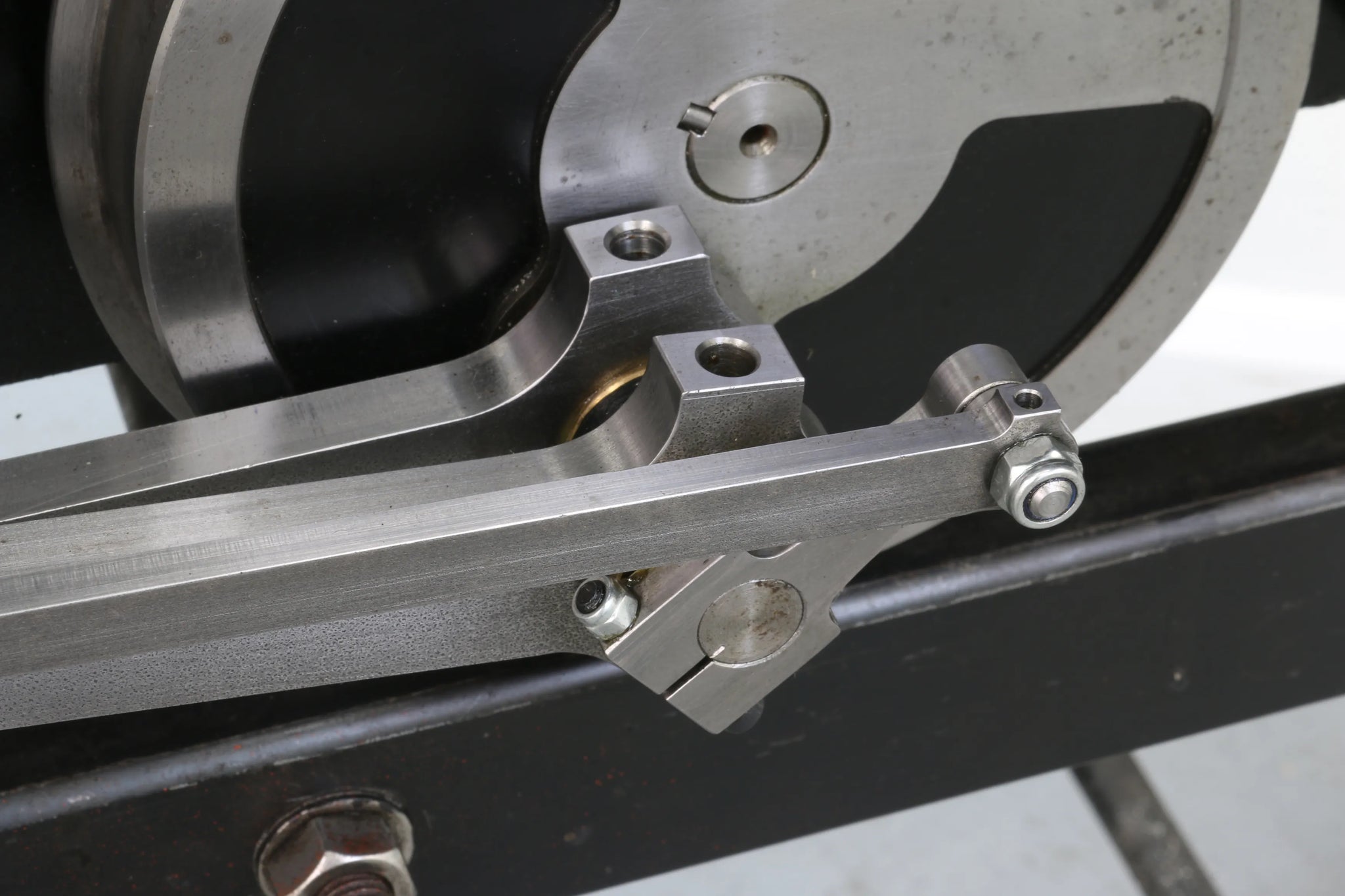

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

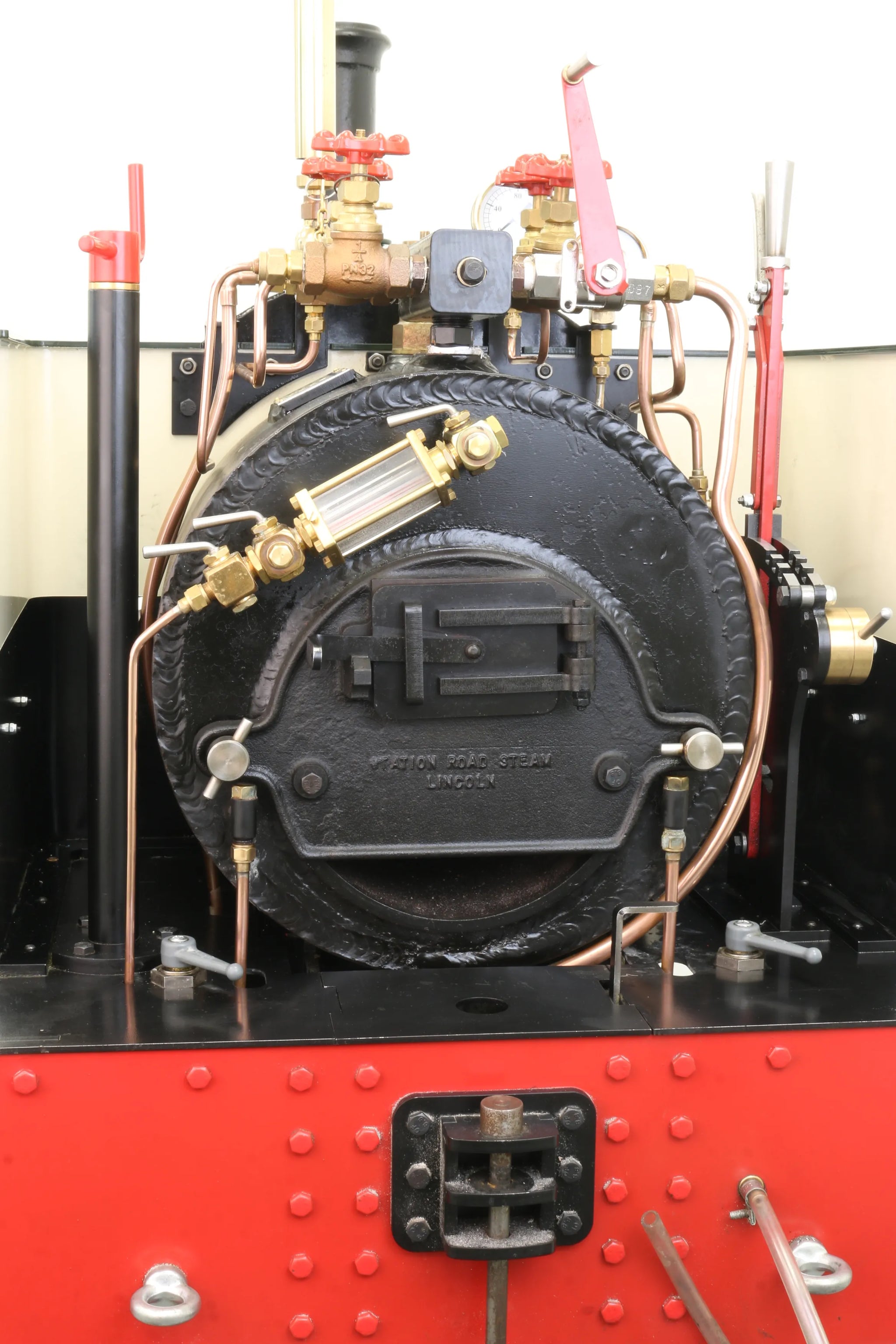

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2017

Boiler number

104

Safety valve type

pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

yes

Injector

2

Date out

Mar-18

Hydraulic test valid to

15-Mar-21

Steam test valid to

05-May-19
