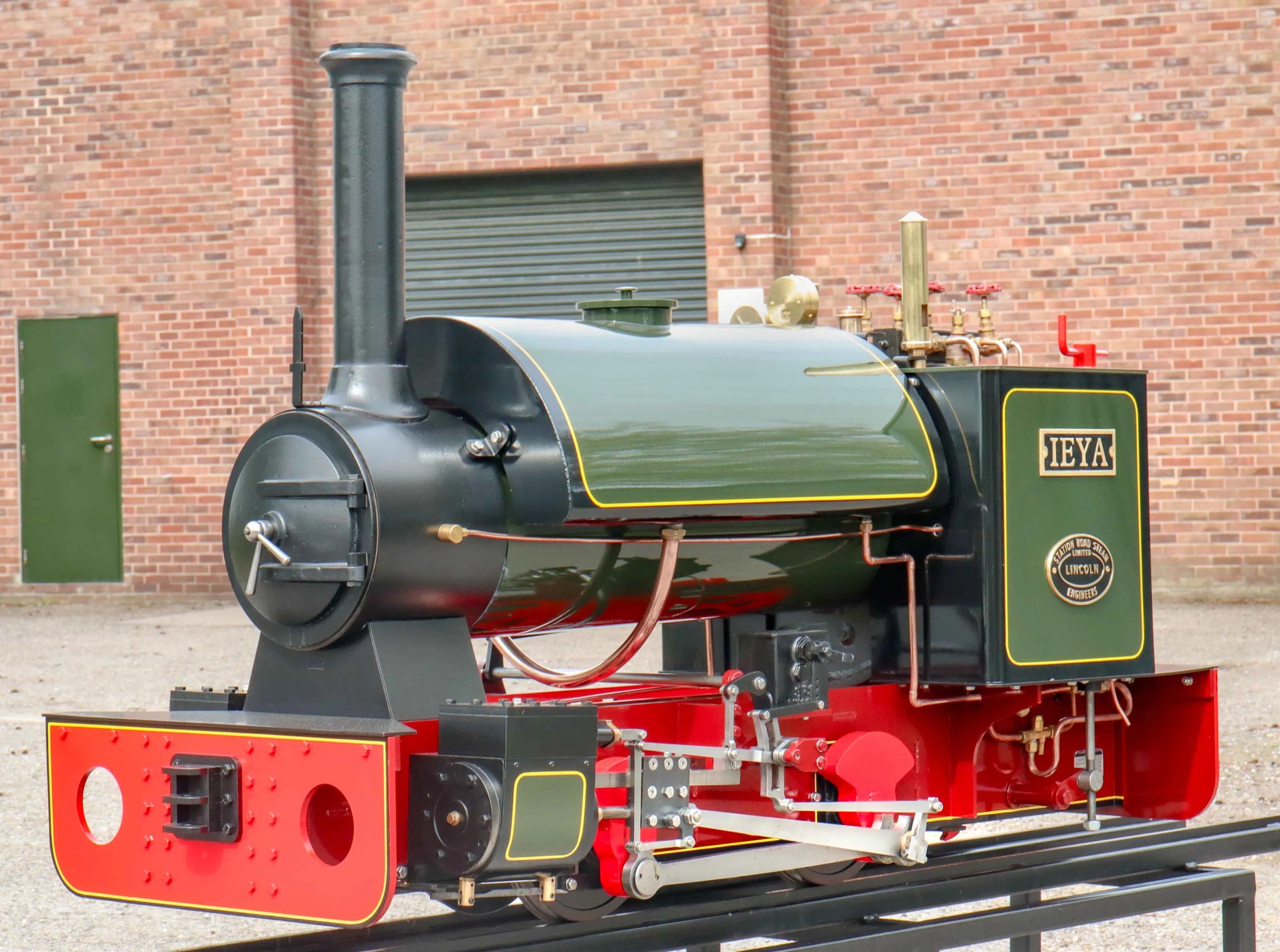

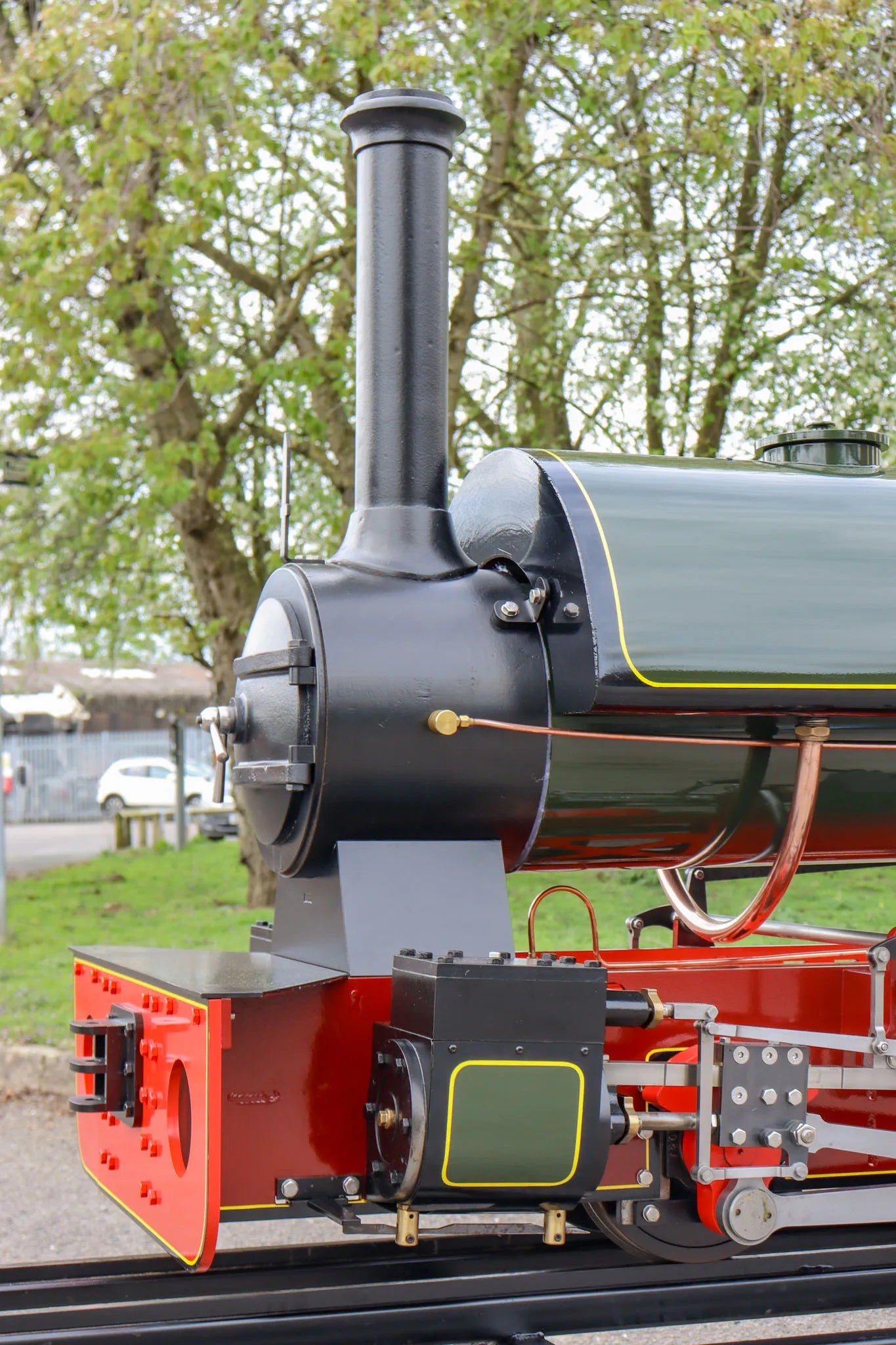

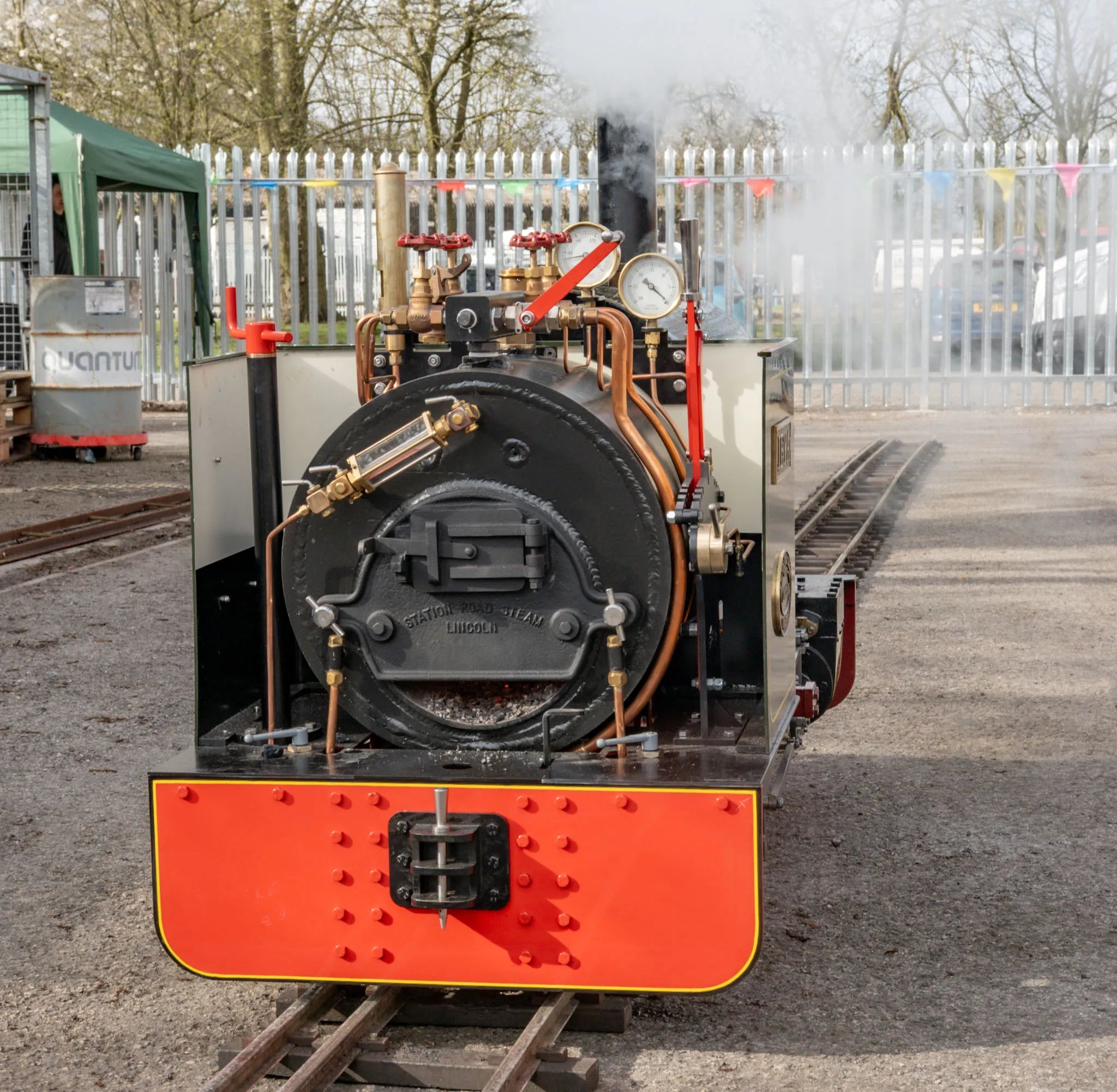

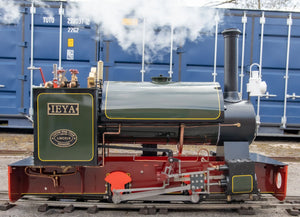

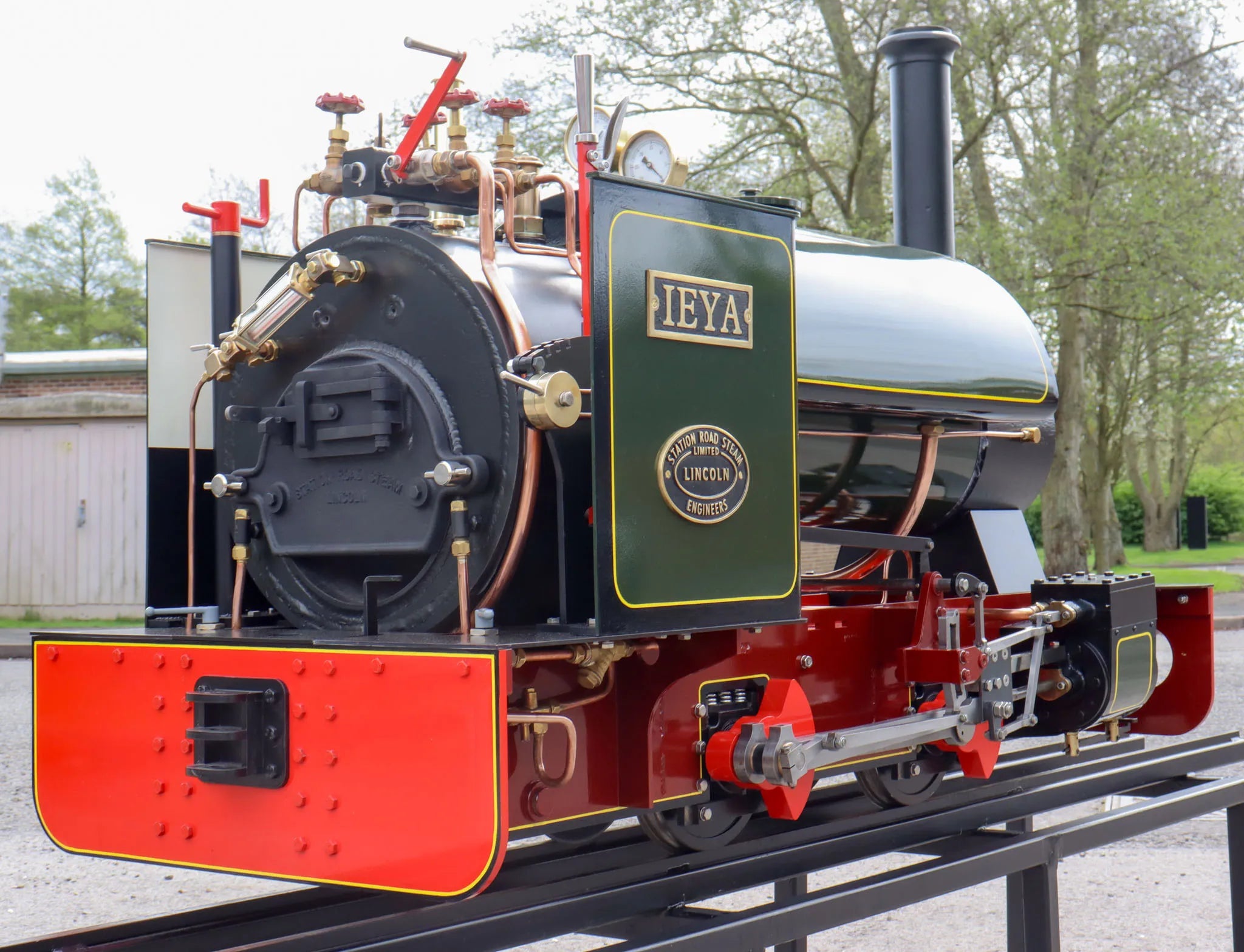

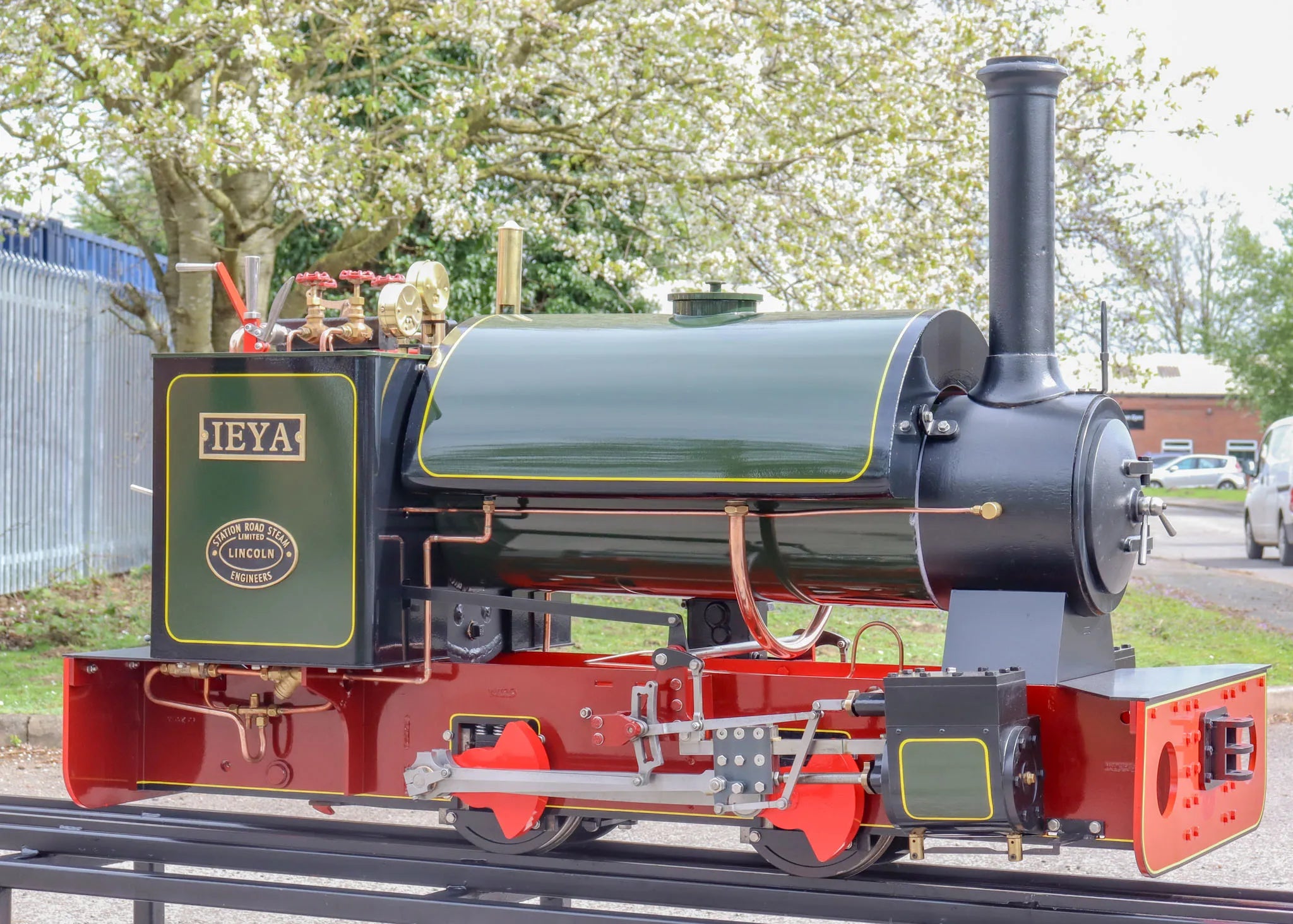

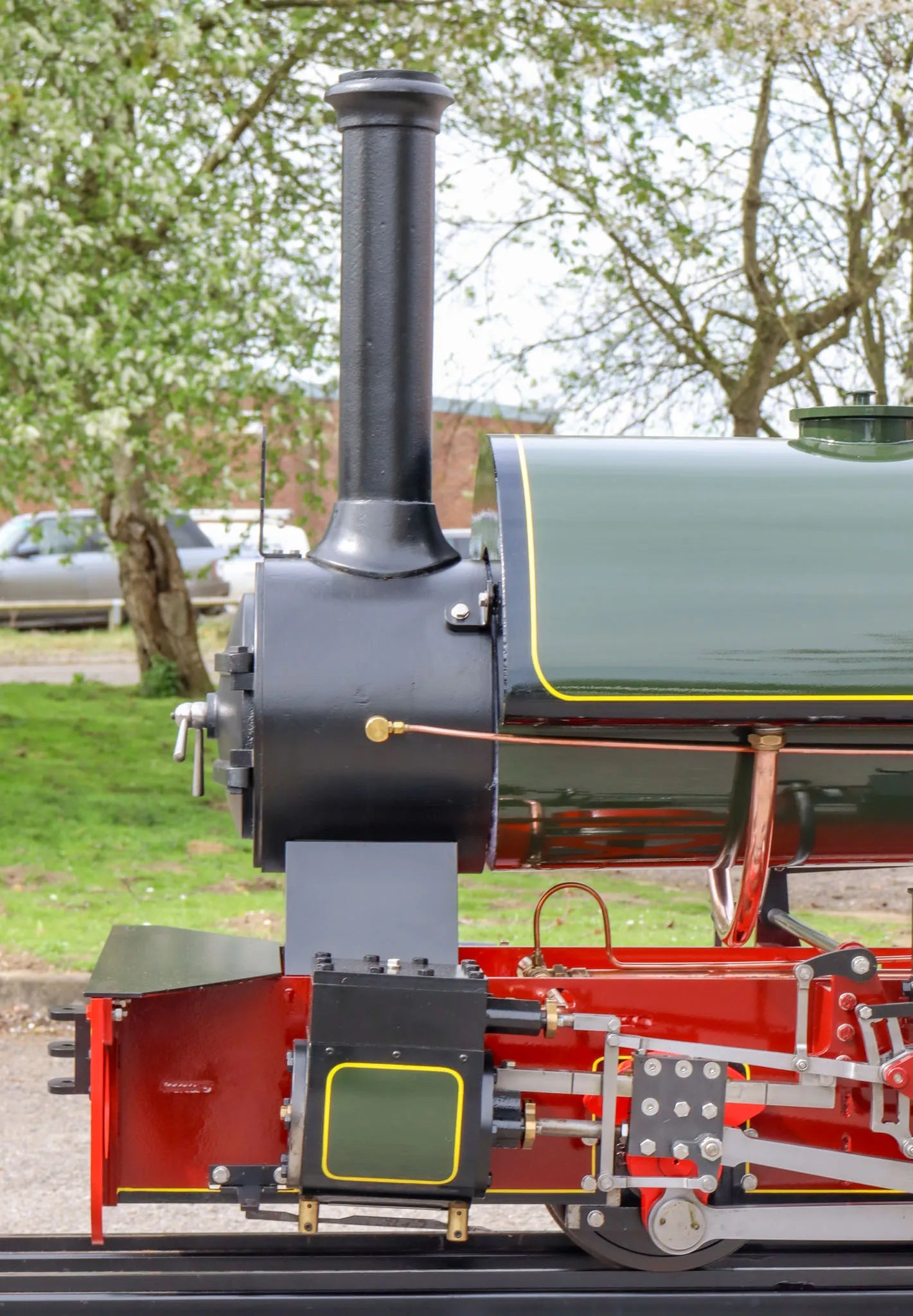

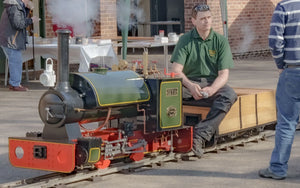

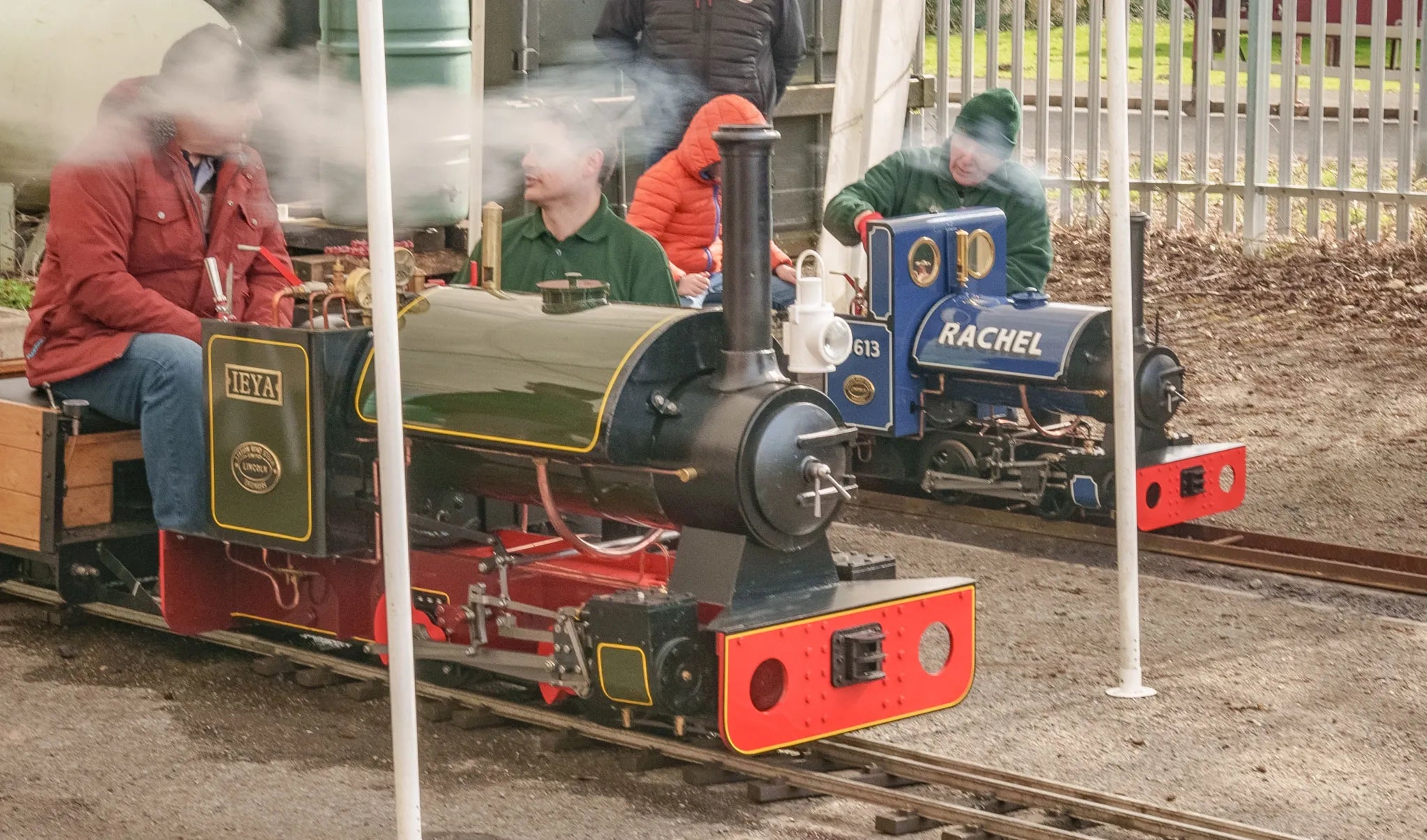

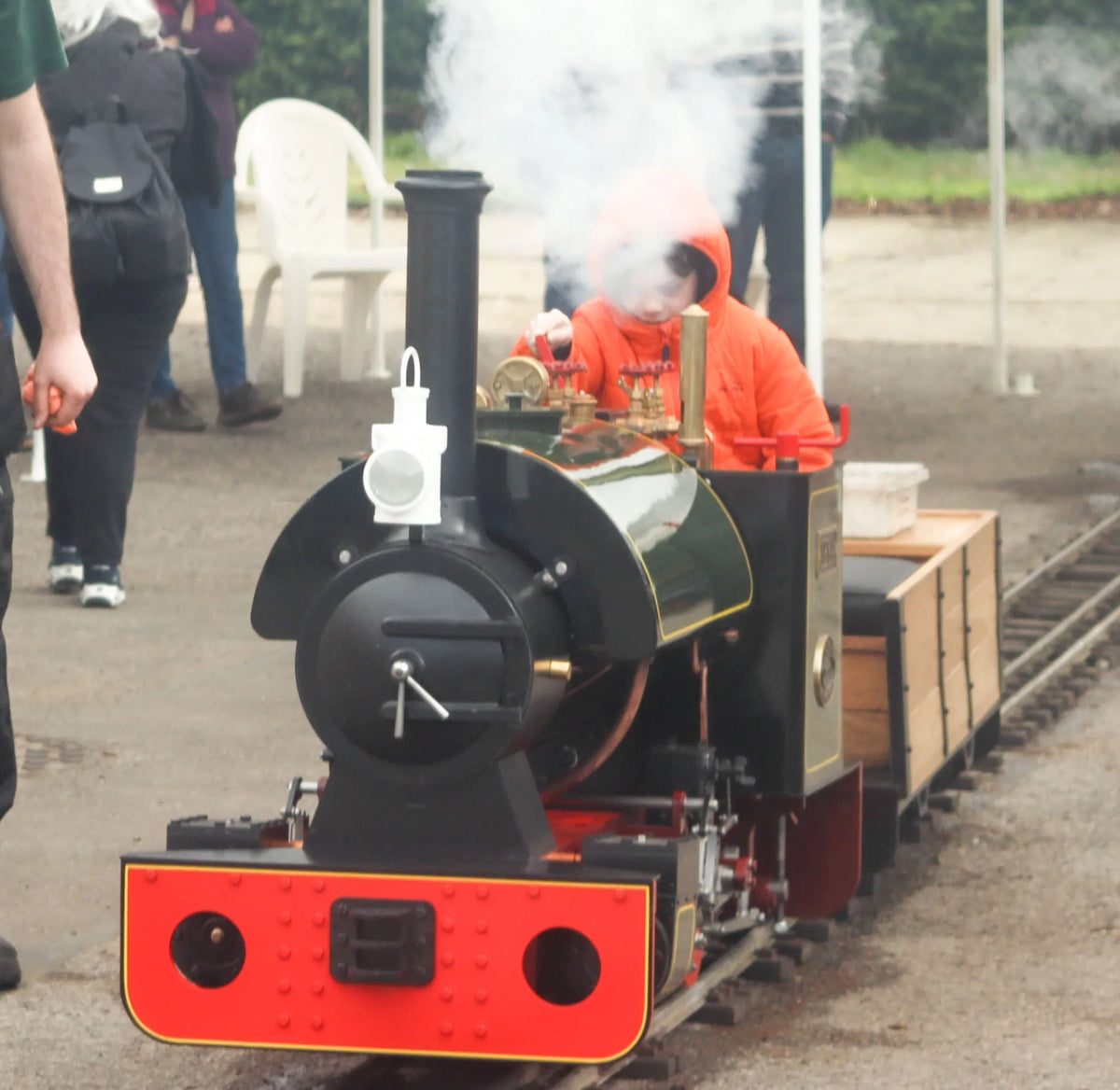

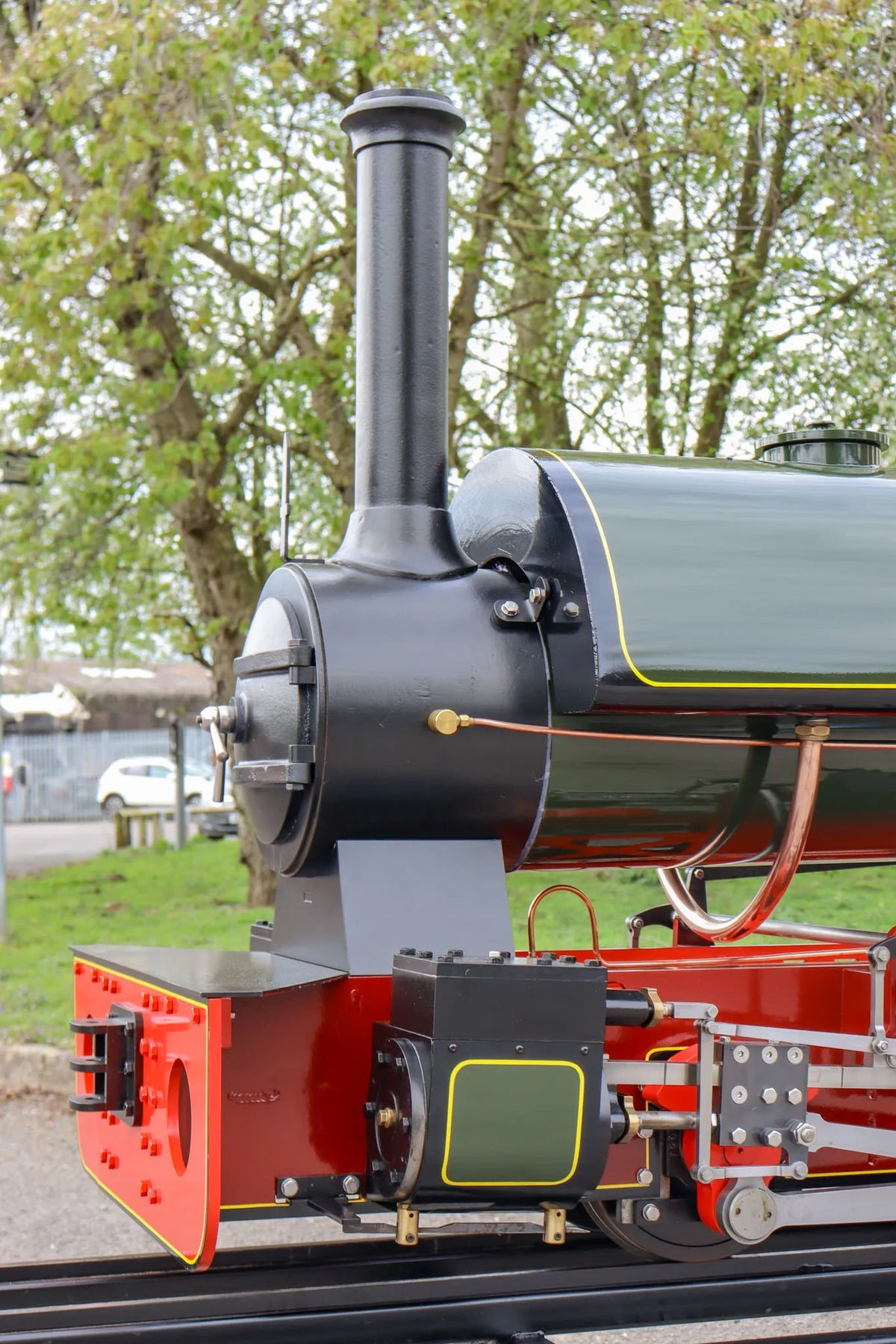

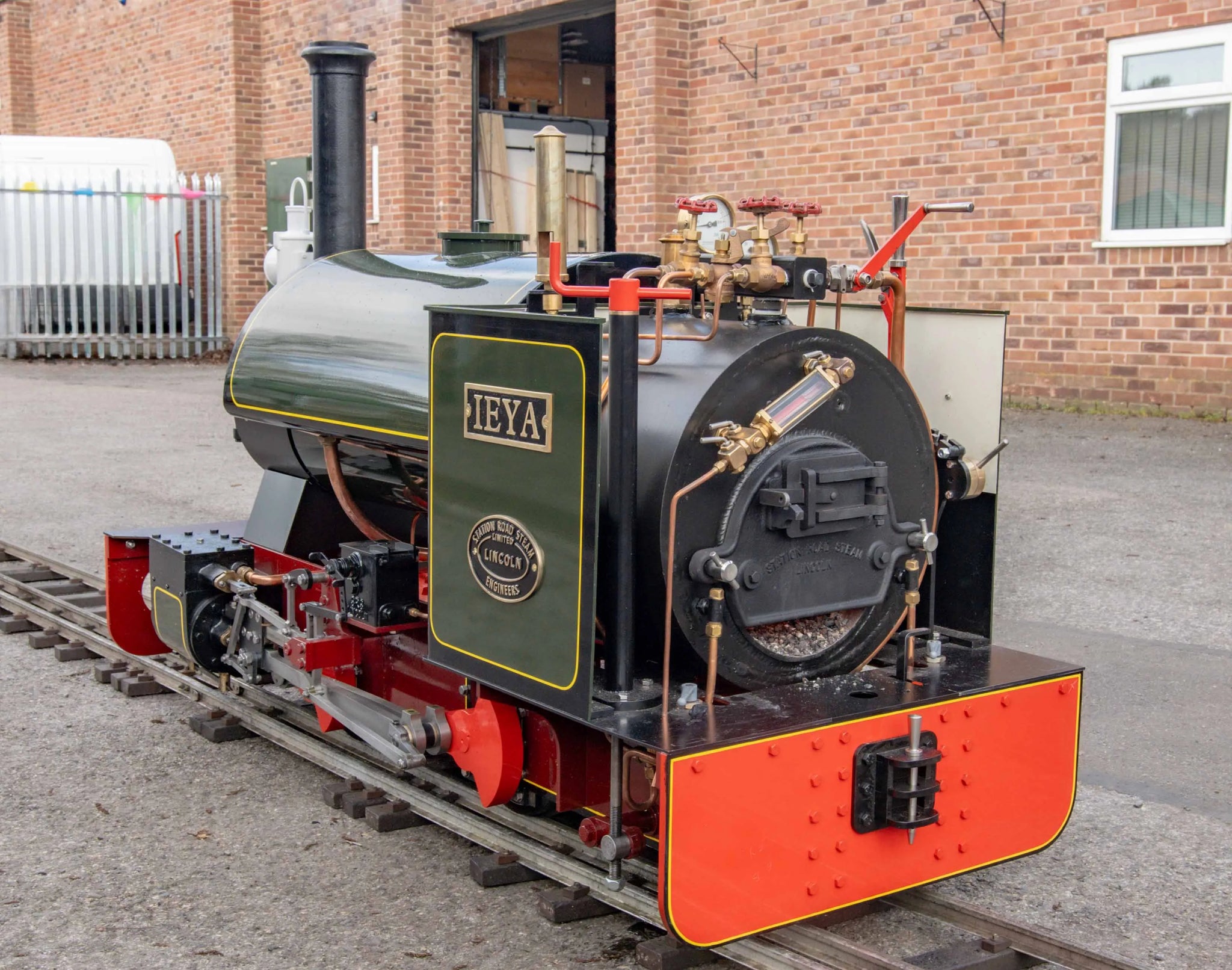

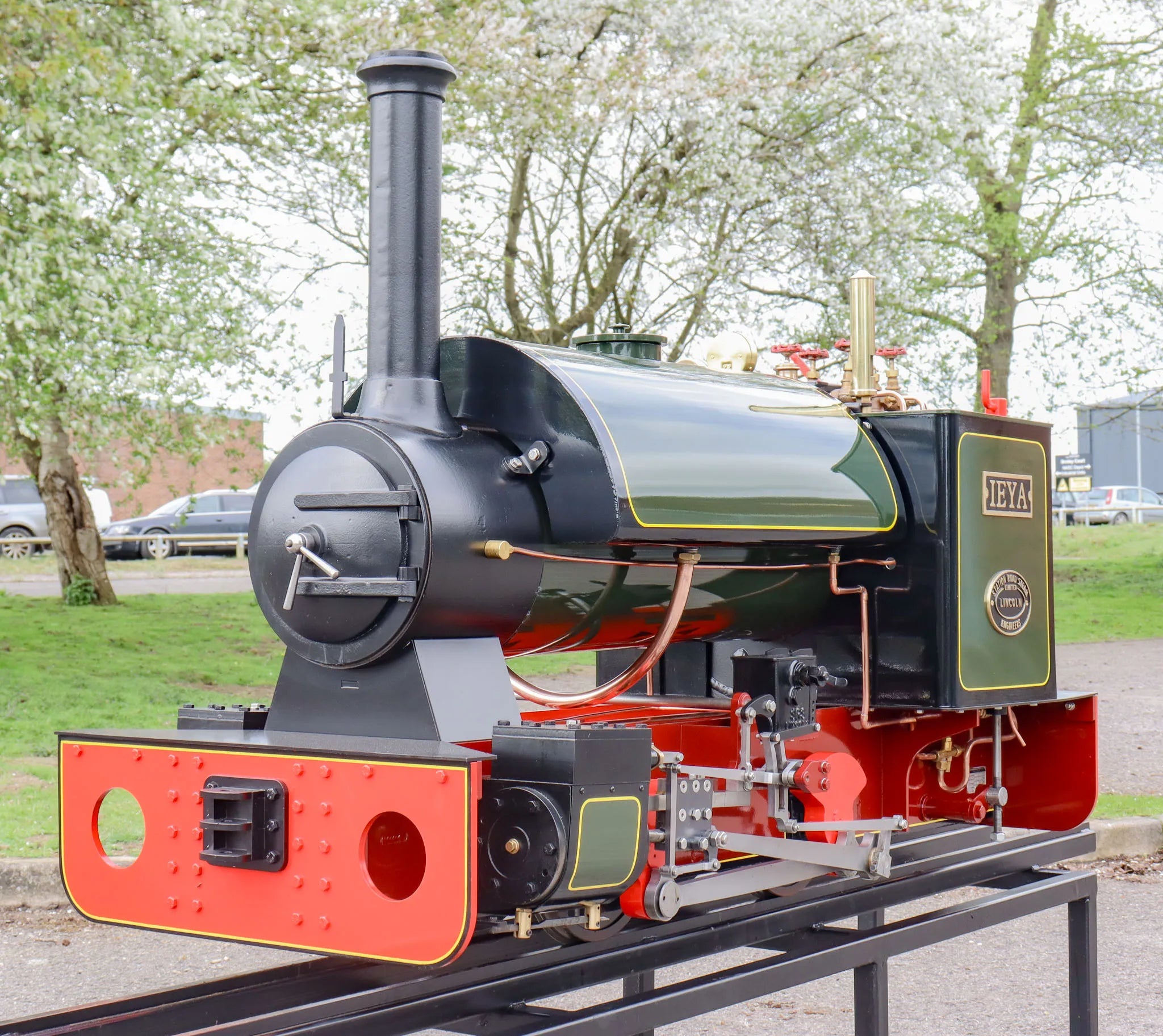

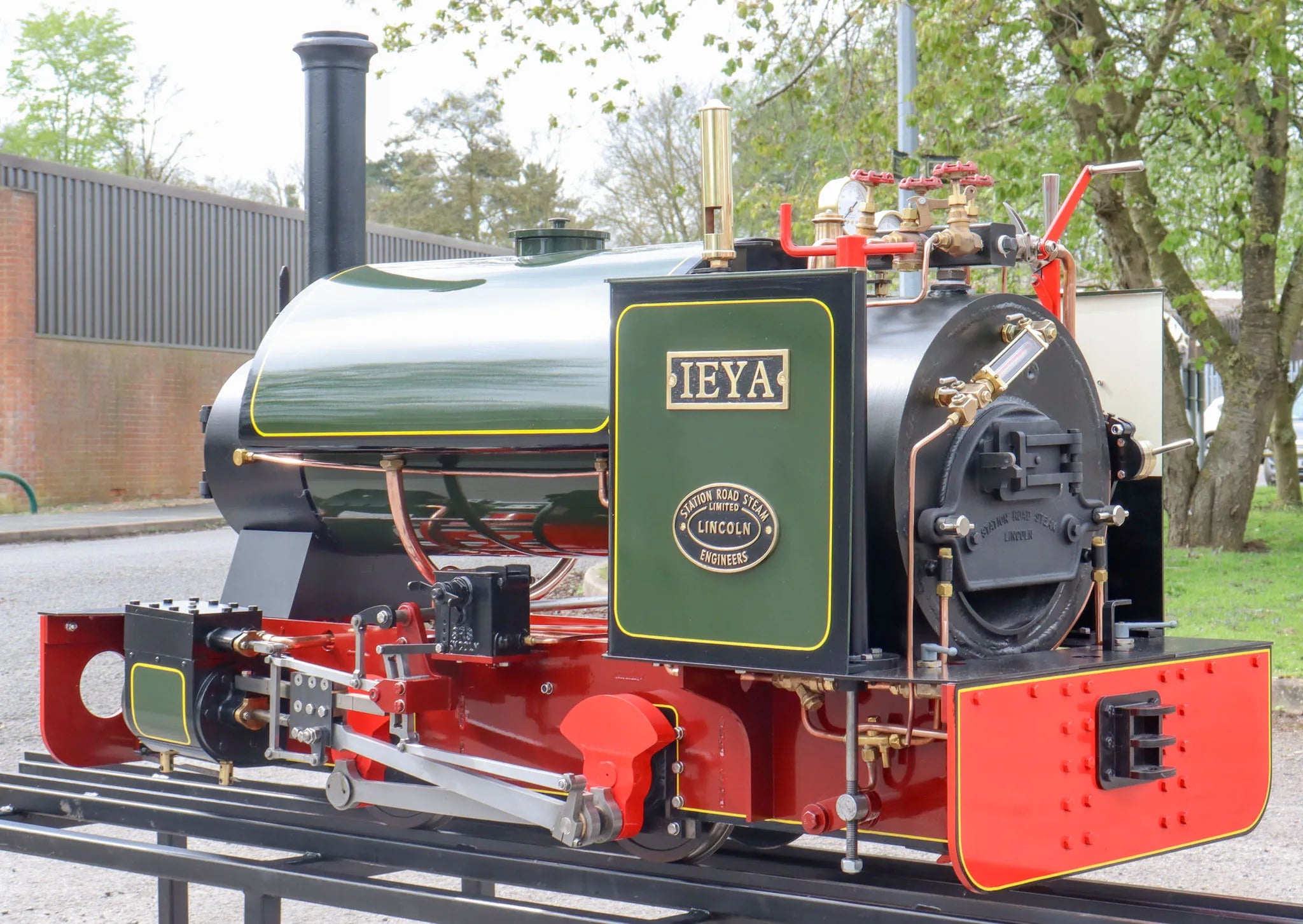

7 1/4 inch gauge Stafford FC7 0-6-0

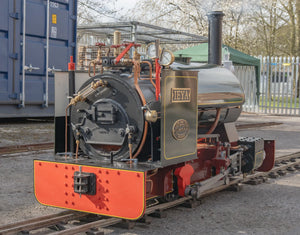

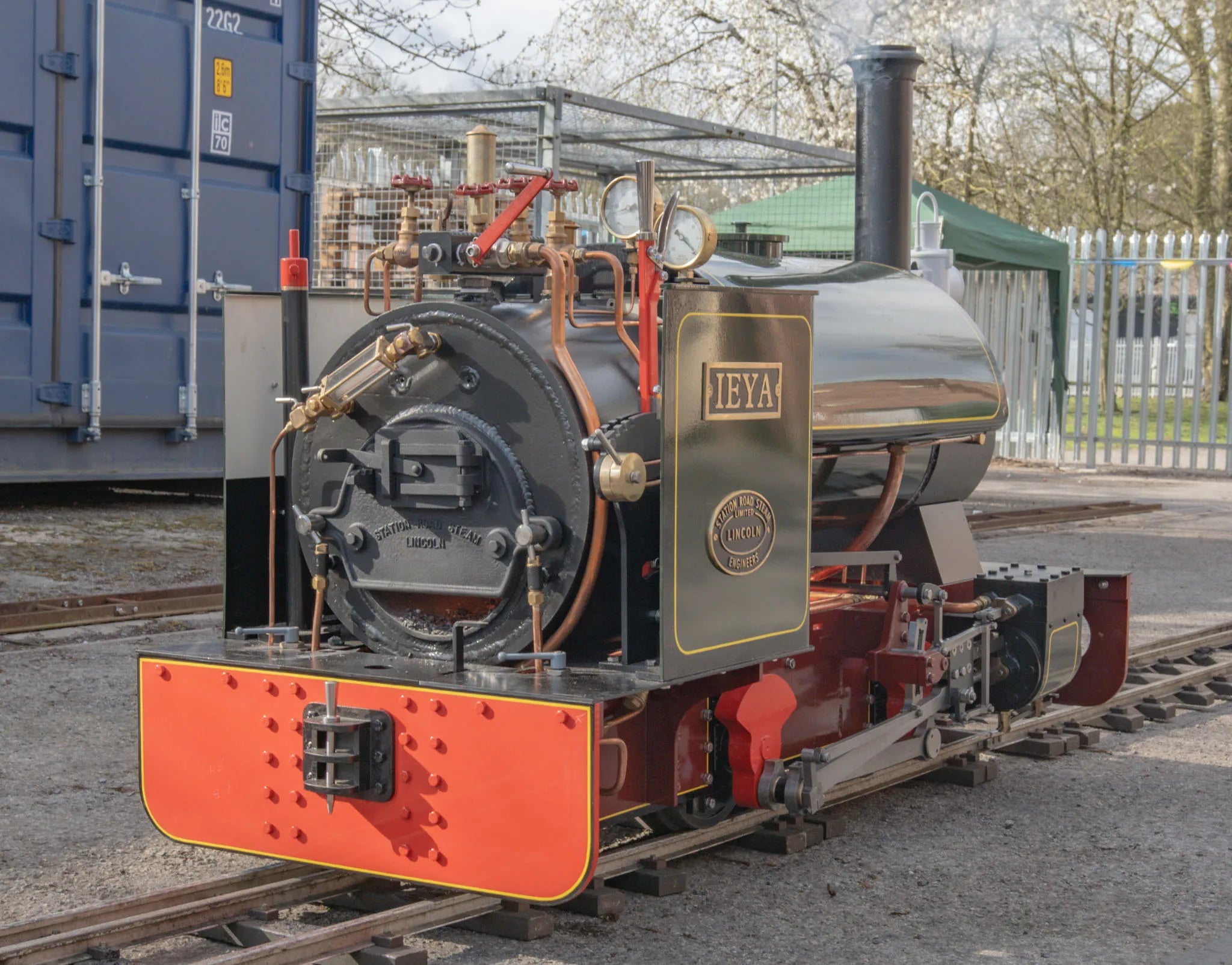

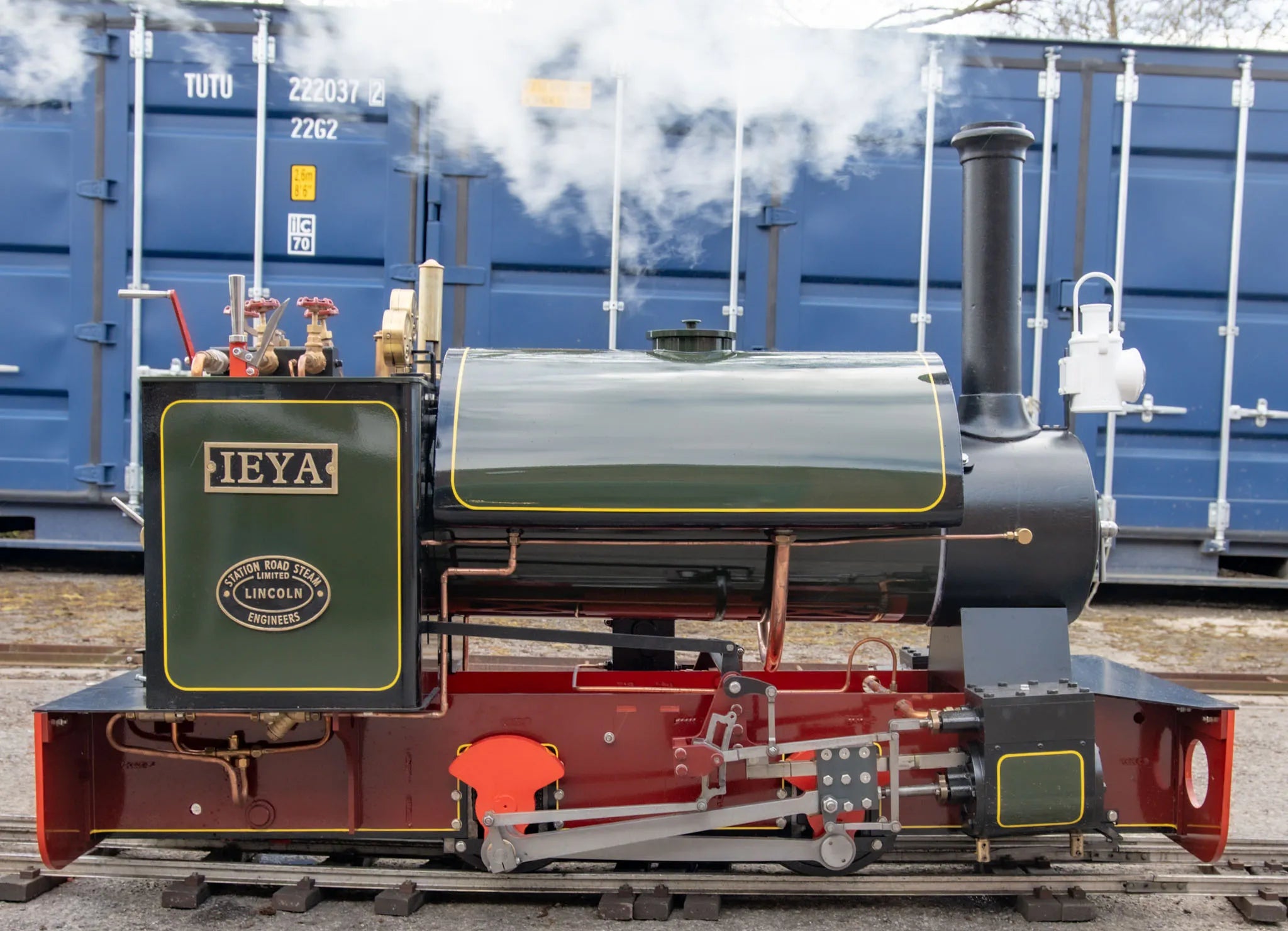

A Stafford FC7 0-4-0ST, delivered new in 2015 it has recently come back to us from its second owner, having spent the last few years little used on a garden railway.

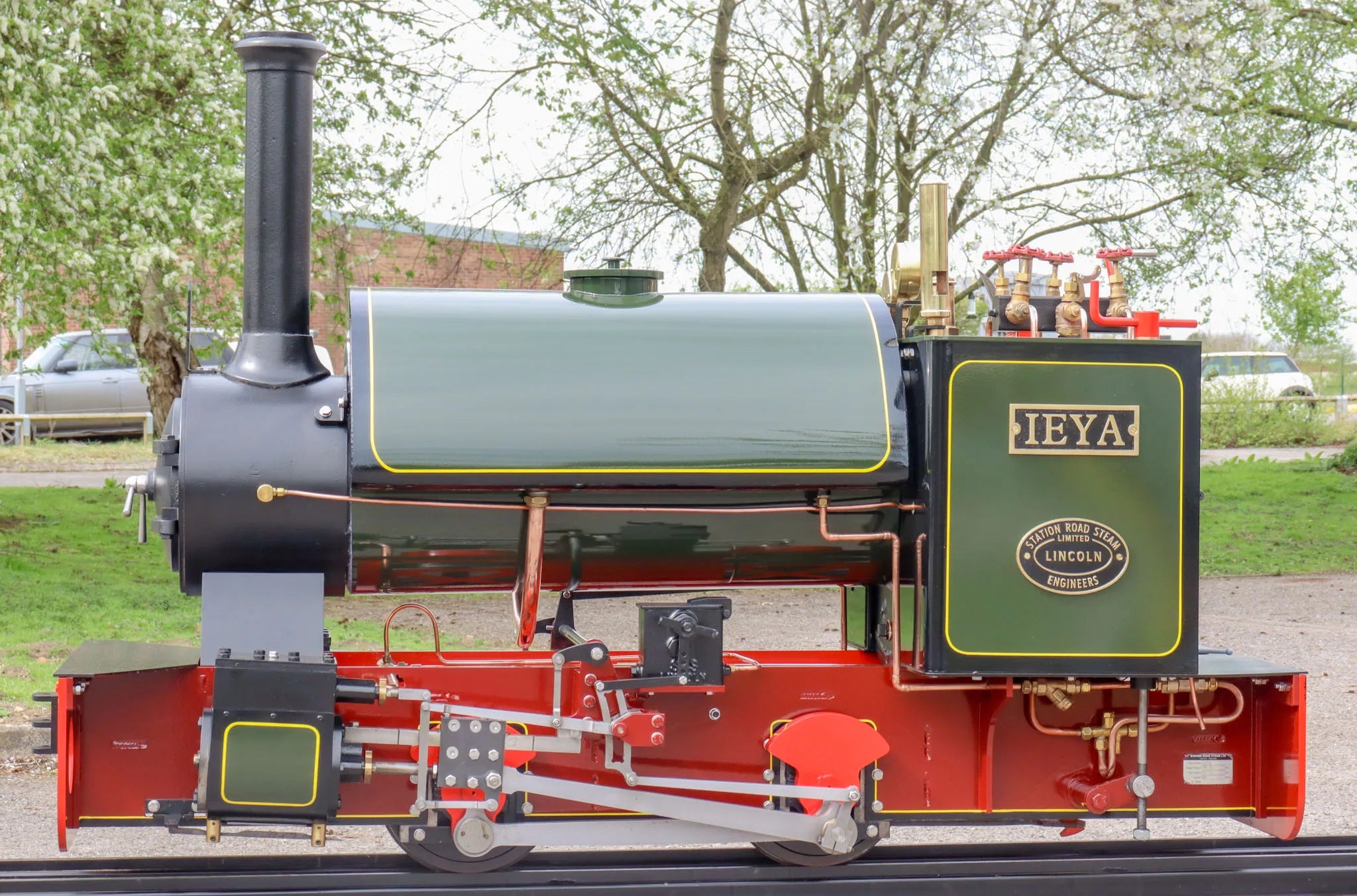

The engine has had a full overhaul in our works, including bare-metal repaint in bronze green with China red frames, panelled in black and hand-lined in primrose yellow.

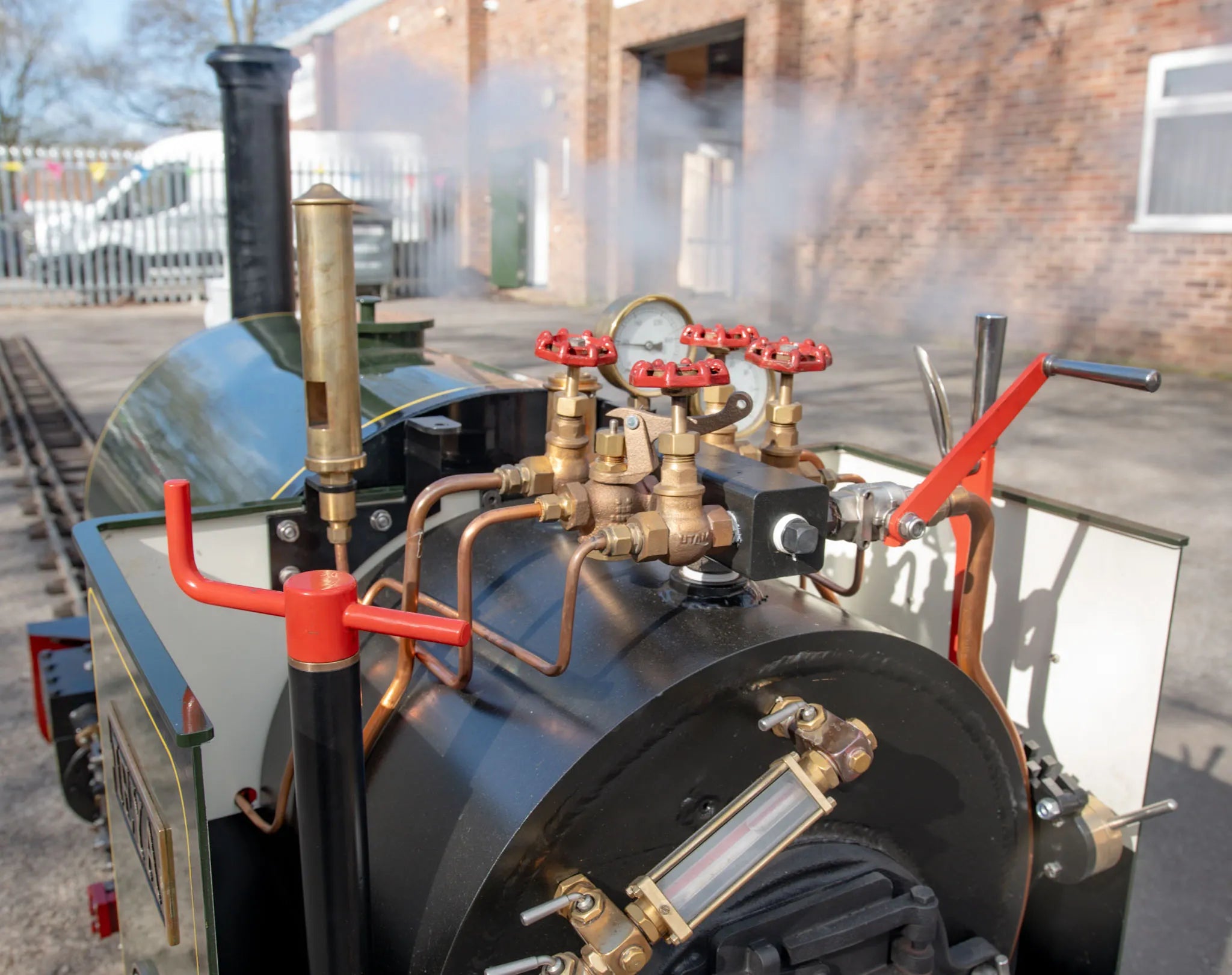

The boiler has had hydraulic and steam tests with new certification issued.

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines.

If required we would be more than happy to include half a day's training at our works on the firing, driving and disposal of the engine for a new owner.

Technical information

Stock code

11629

Gauge

7 1/4 inch

Length/inches

66

Width/inches

27

Height/inches

45

Weight/Kg

500

Wheel material

EN8 steel

Axlebox type

roller bearing

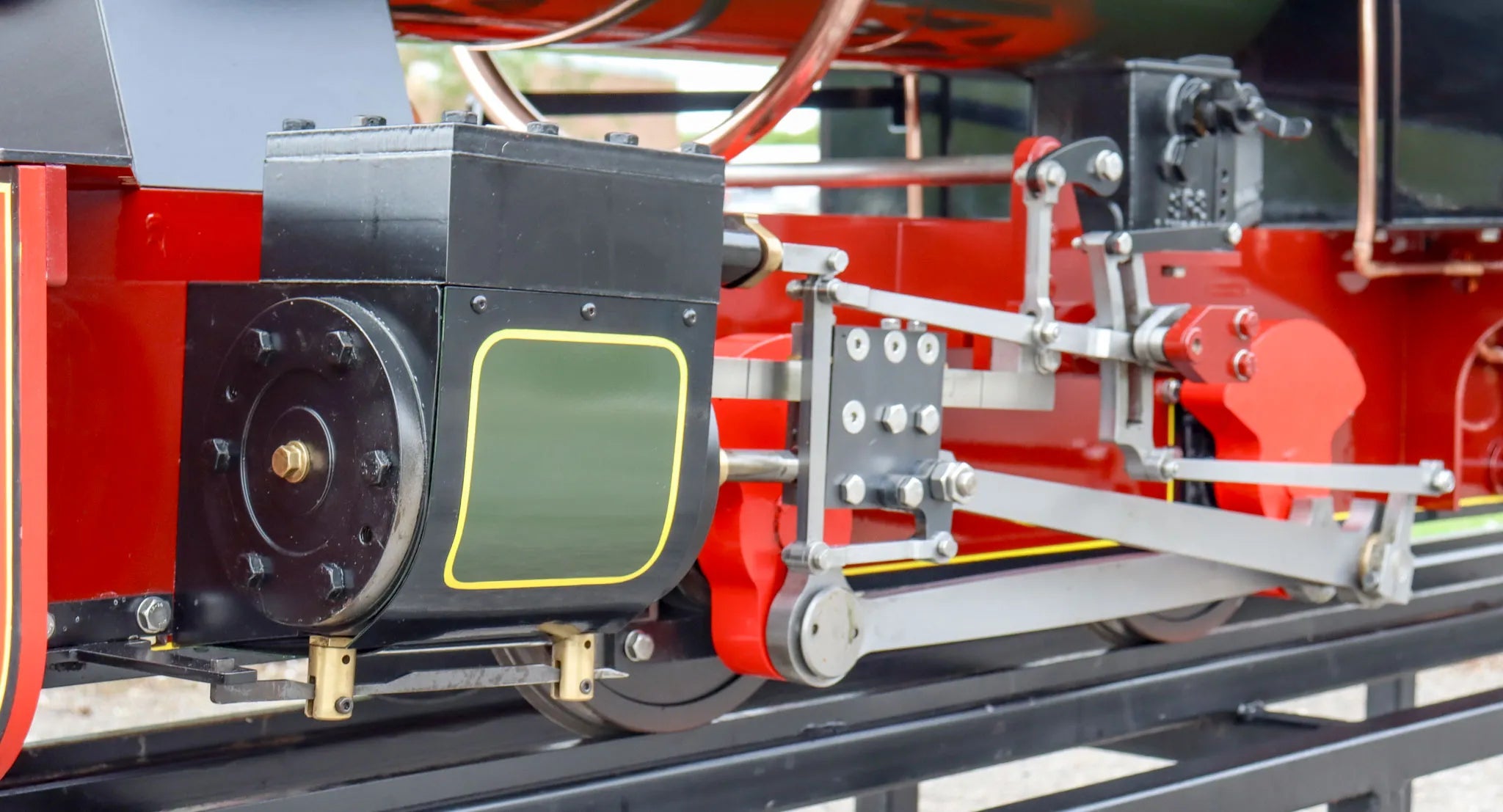

Cylinder material

cast iron

Valve type

slide

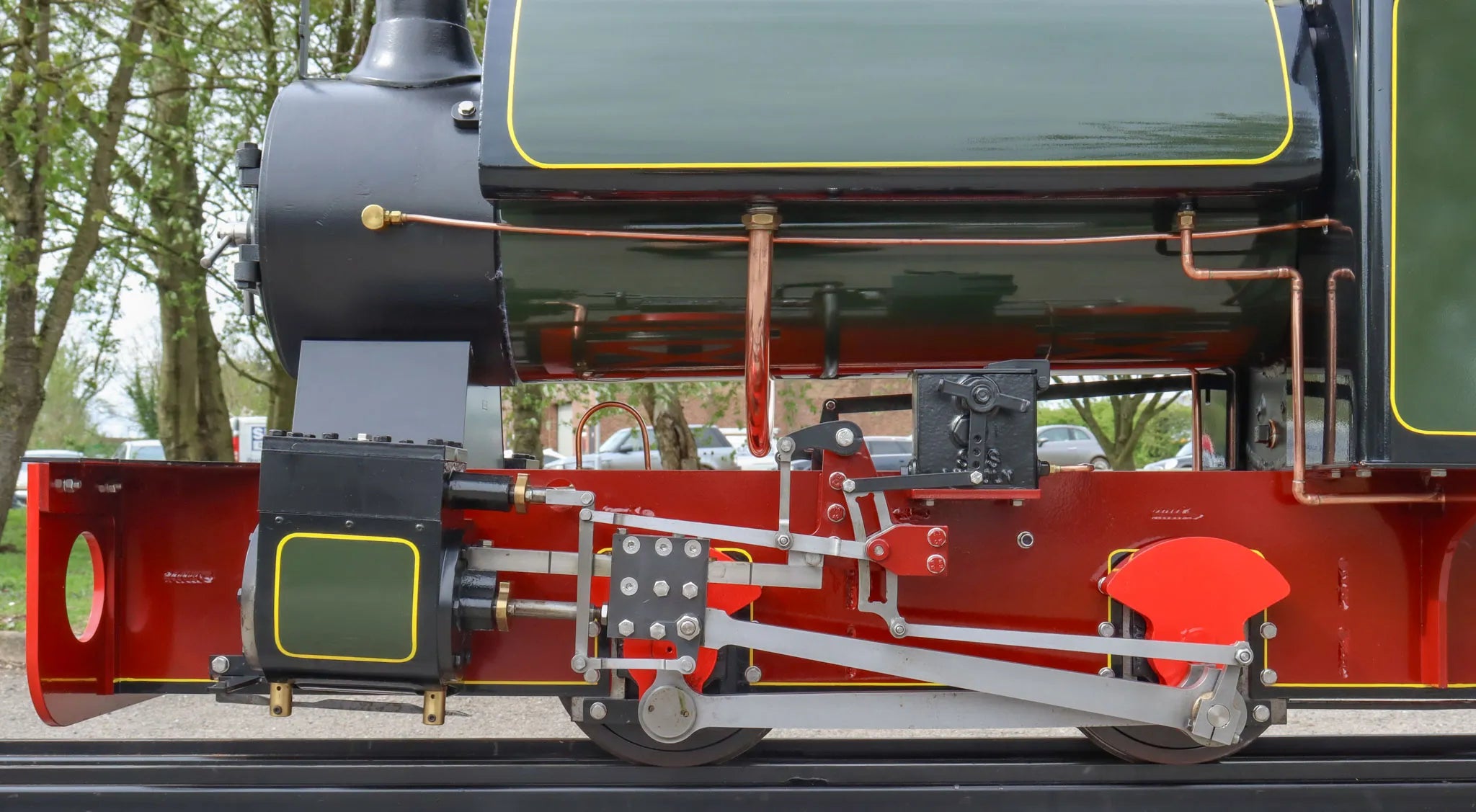

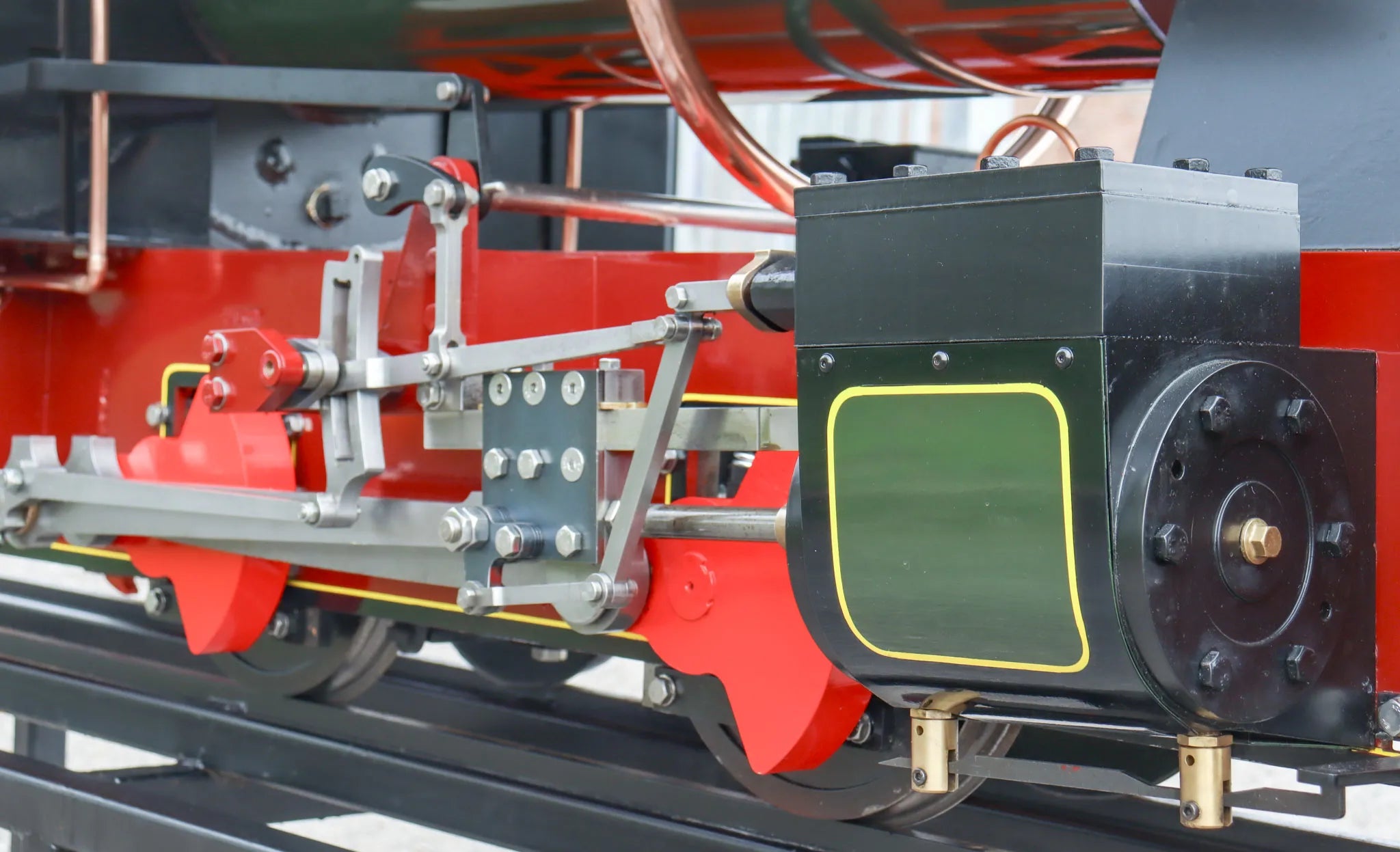

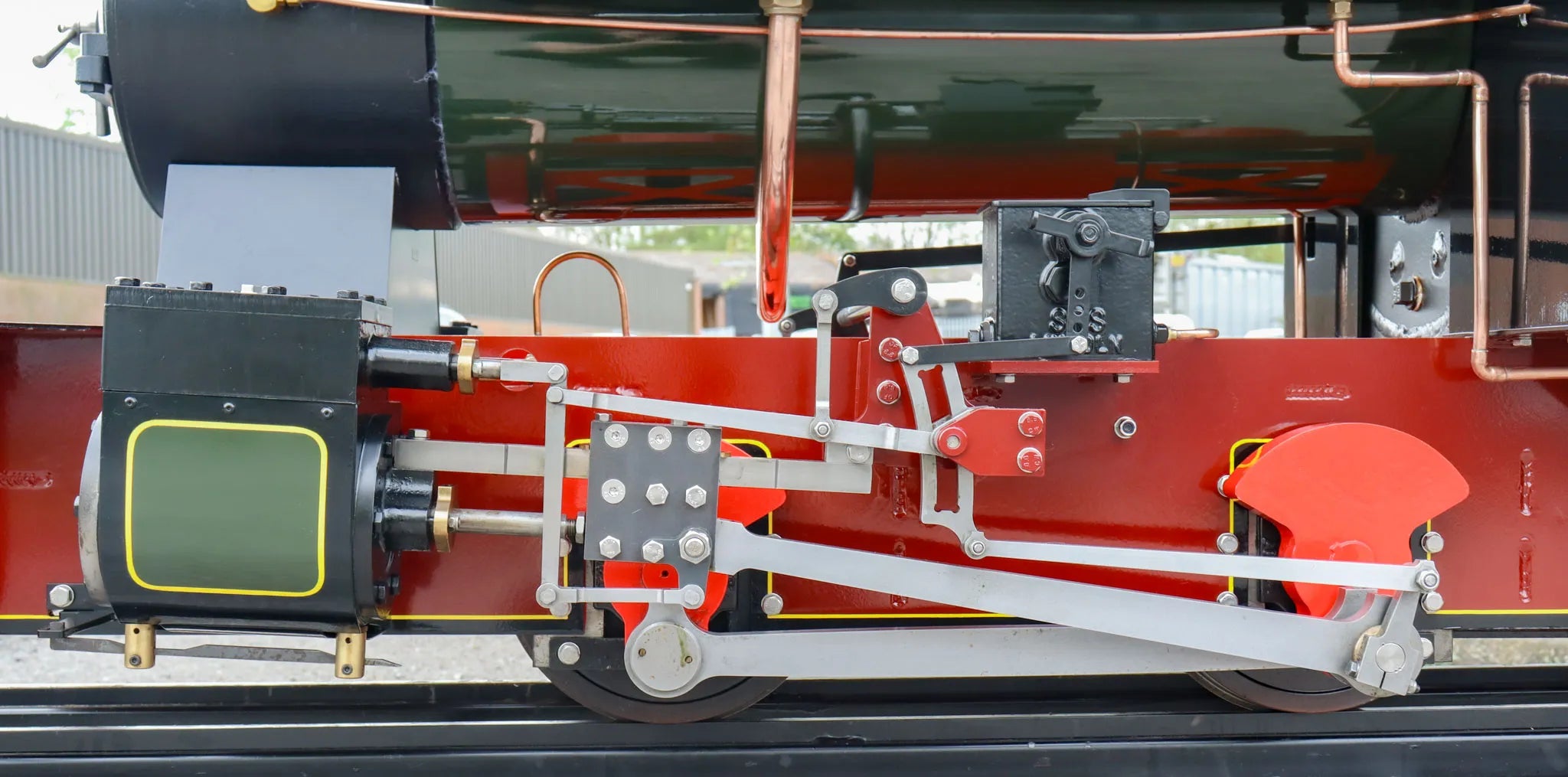

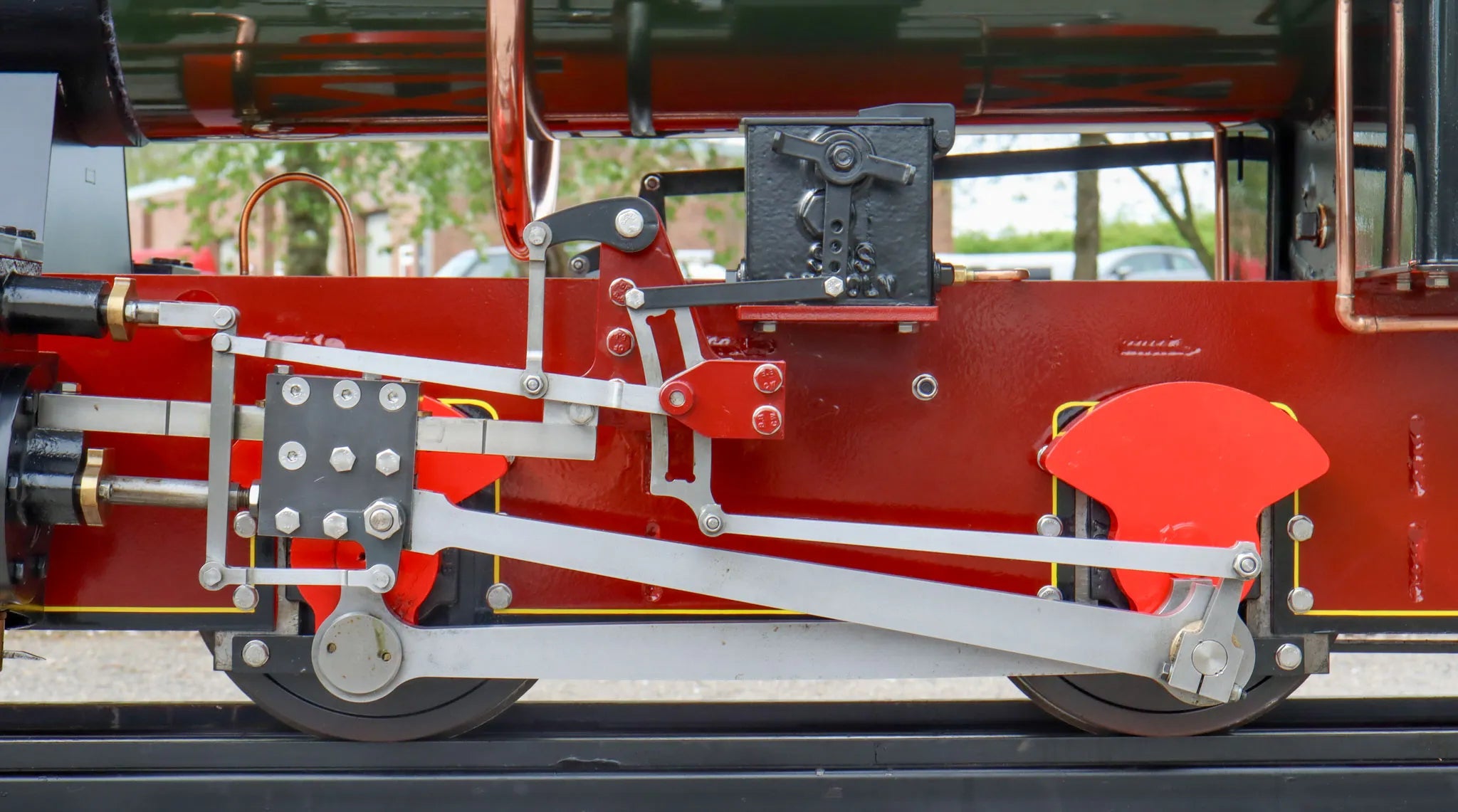

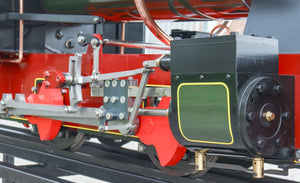

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

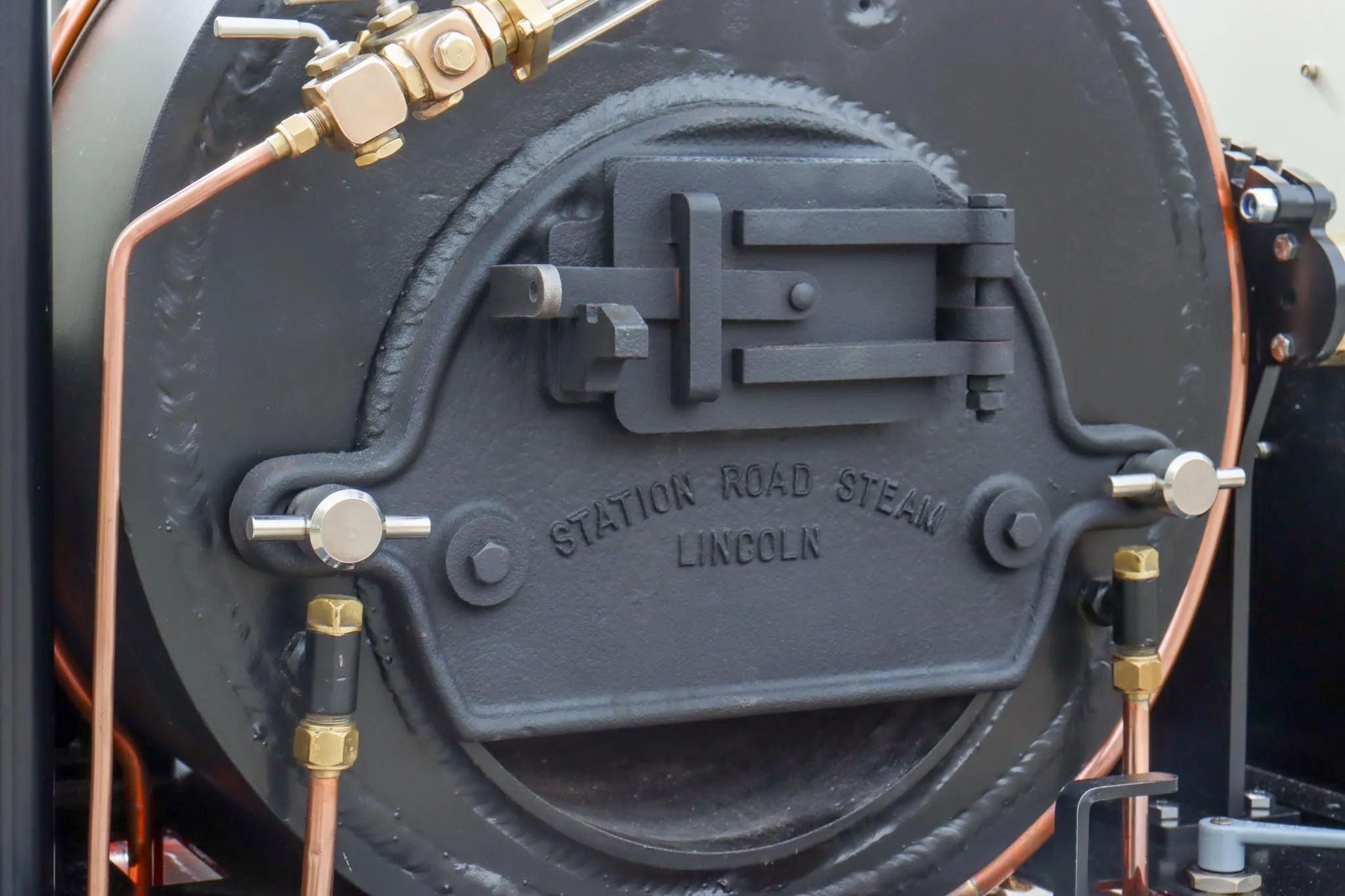

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

150

CE/UKCA mark

yes

Year built

2015

Boiler number

SRS-078

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

3 1/4 x 4 1/4

Chassis material

steel

Whistle

yes

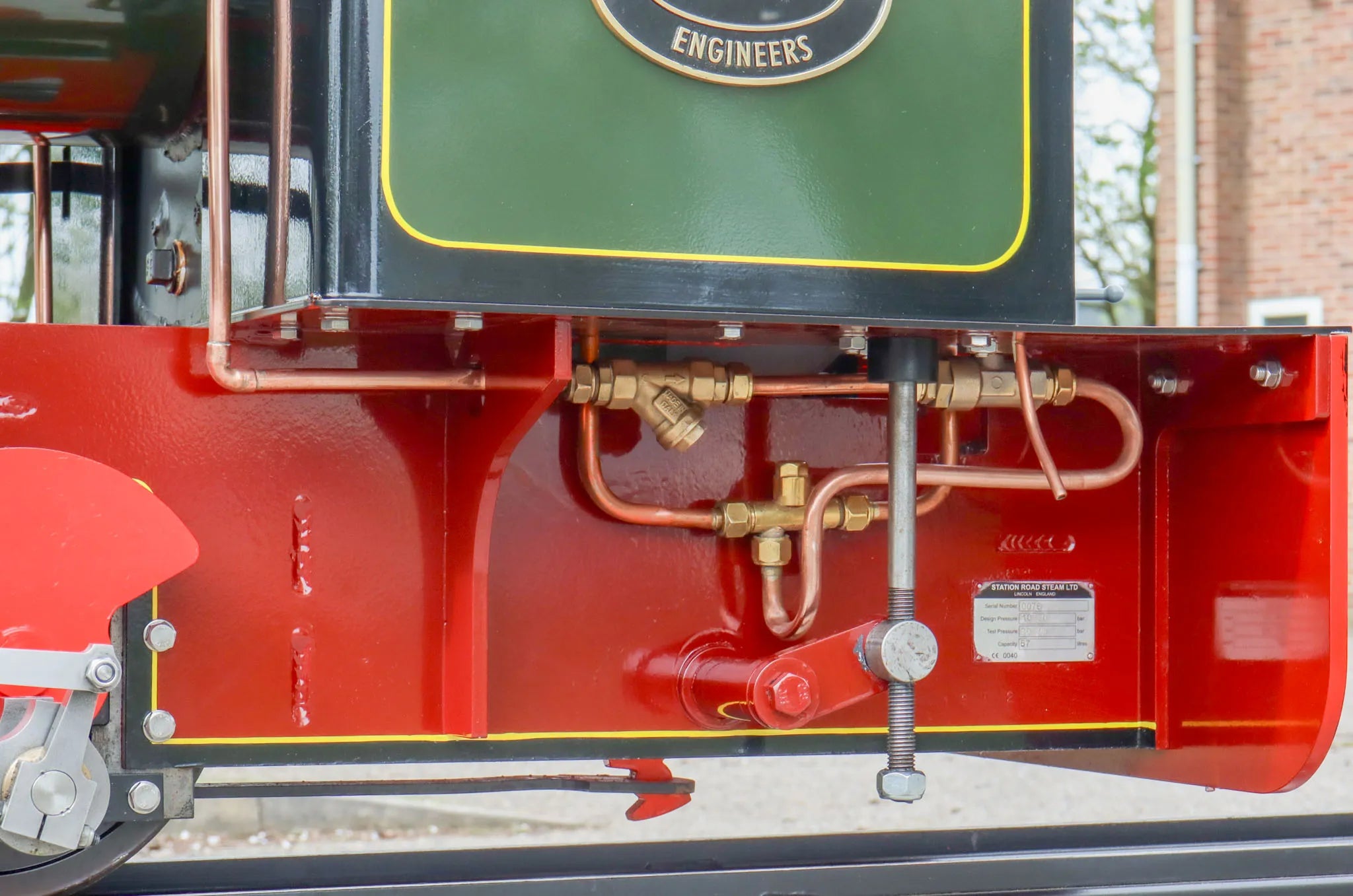

Injector

2

Date out

Jul-24

Hydraulic test valid to

08-Oct-25
