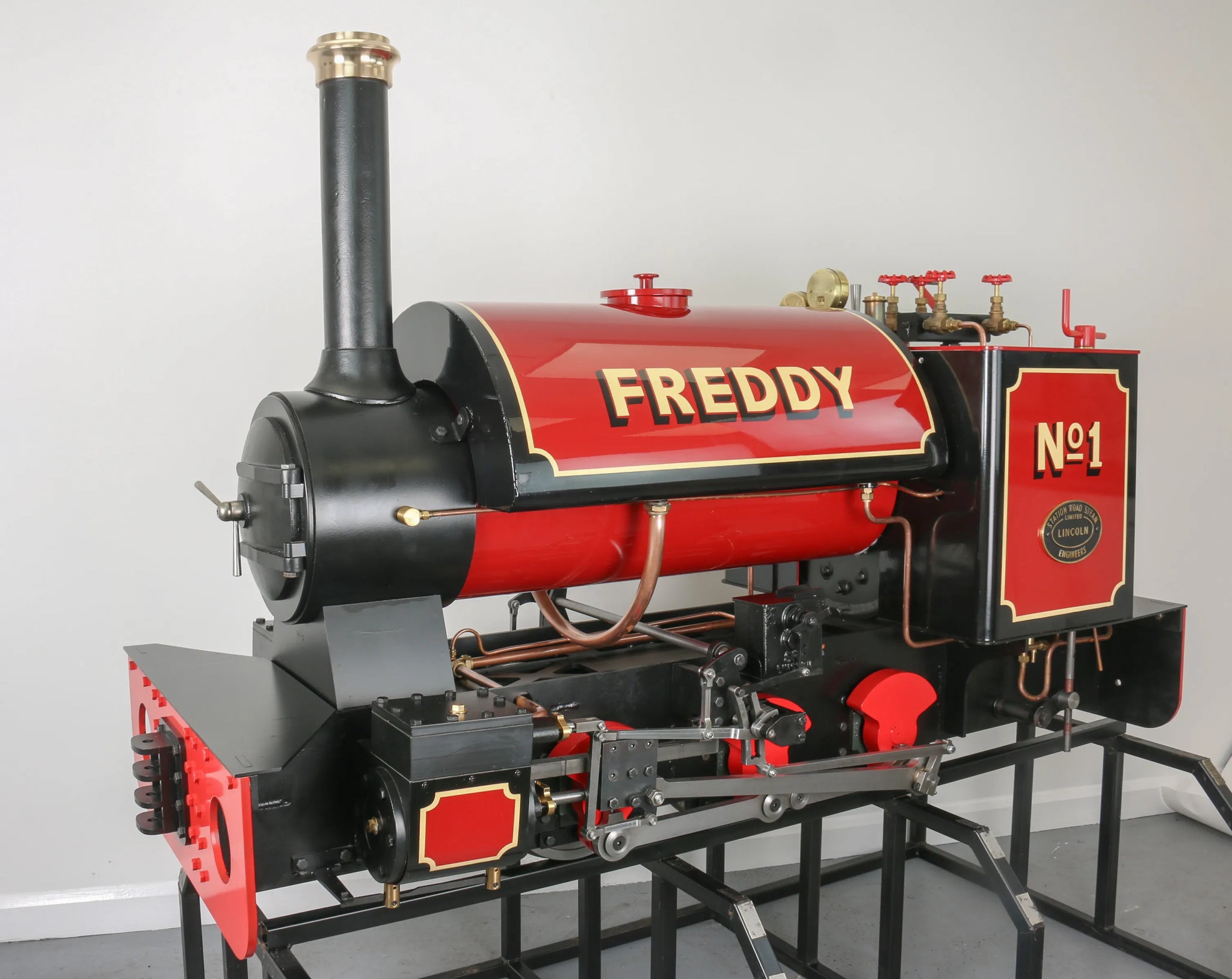

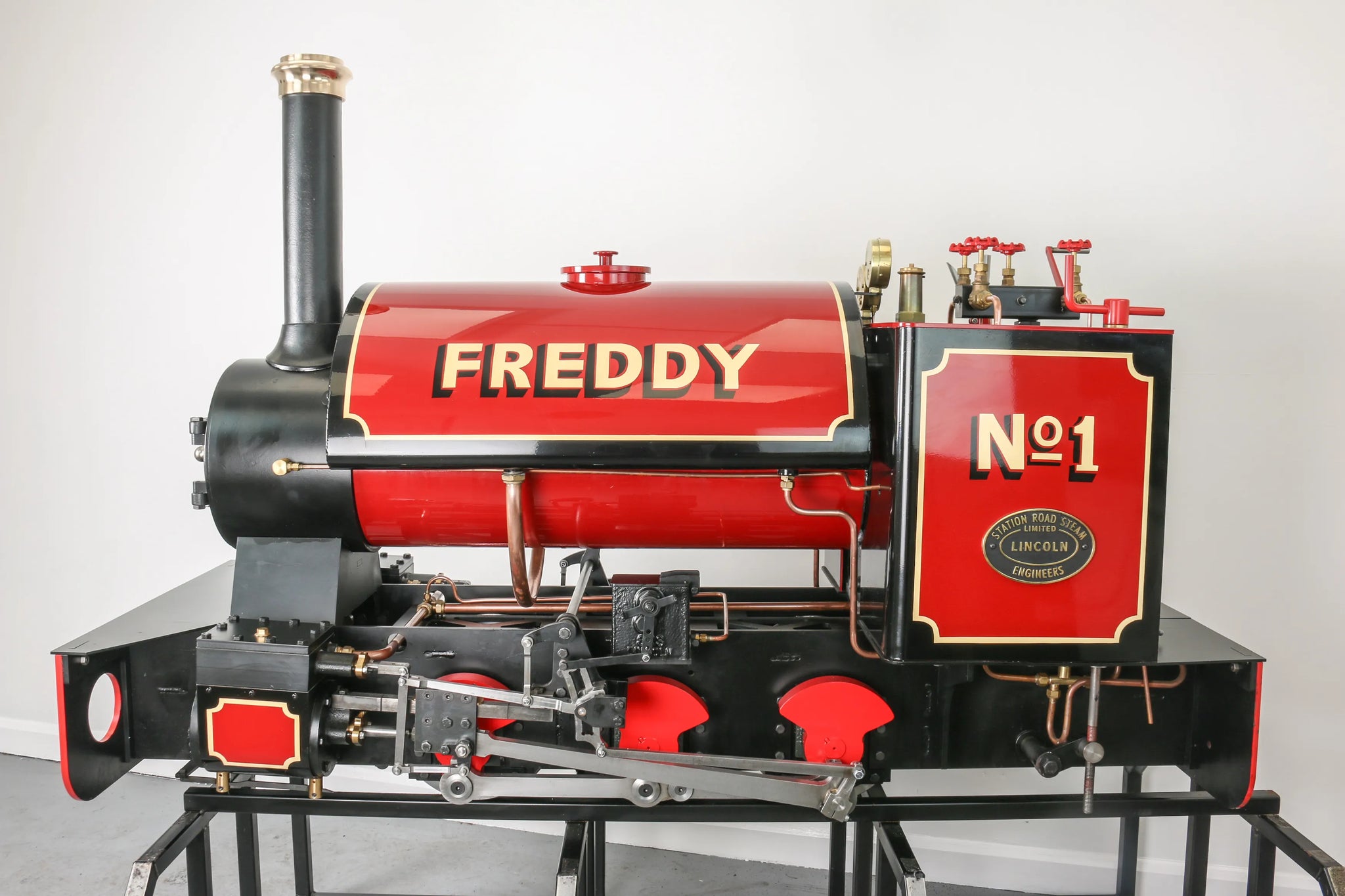

7 1/4 inch gauge "Stafford" FC7 0-6-0ST

Name: 7 1/4 inch gauge "Stafford" FC7 0-6-0ST
Brand: Station Road Steam
SKU: 7630
Price: 21500.0 GBP
Availability: OutOfStock

Sold

A new, unsteamed Stafford-FC7 which we built in 2016 for a customer who was unable at the time to take delivery - following pre-delivery steam test we crated it up and stored it for him. Failing health has now meant he has asked us to sell it on his behalf.

The engine is new, steamed once in the workshop. Options when built included vacuum brakes and non-standard red livery, panelled out in black and sign written - current new cost would be £23,827 delivered in this specification.

The engine is available for immediate delivery and will be supplied exactly as a new locomotive with starter kit, manual and 12 months parts and labour warranty.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	7630
Gauge	7 1/4 inch
Length/inches	64
Width/inches	27
Height/inches	45
Weight/Kg	500
Wheel material	steel
Axlebox type	roller bearing

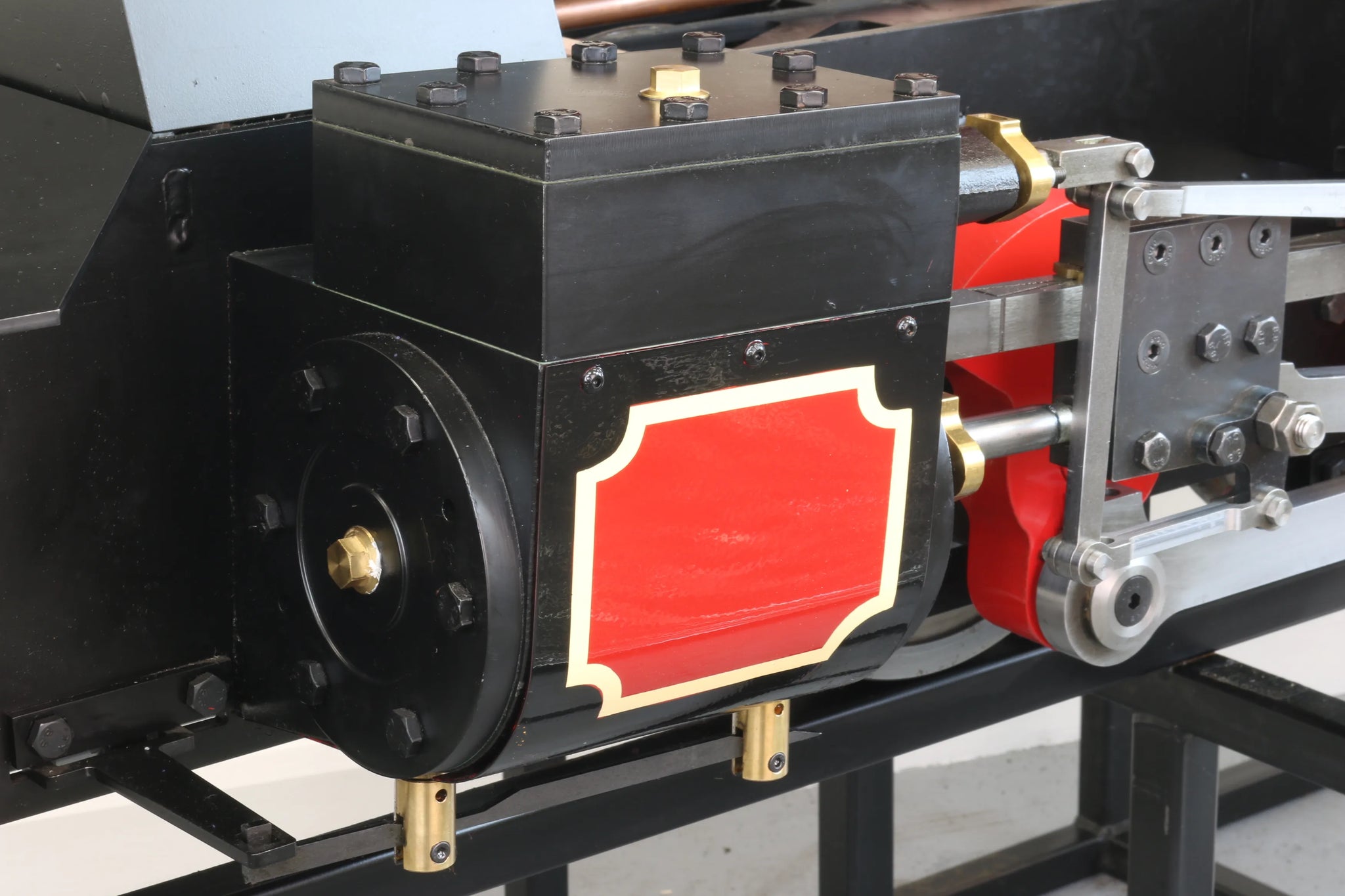

Cylinder material	cast iron
Valve type	slide

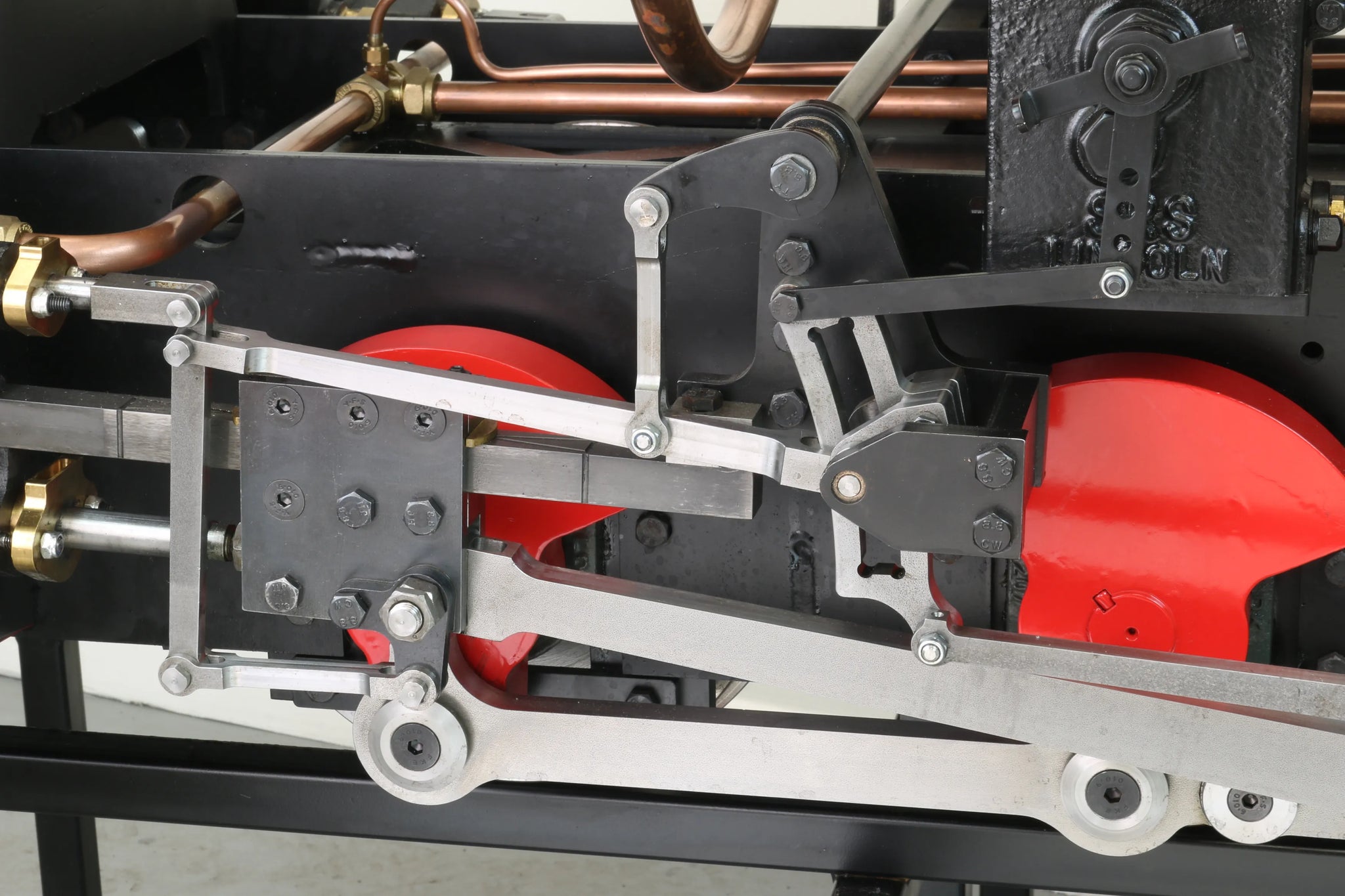

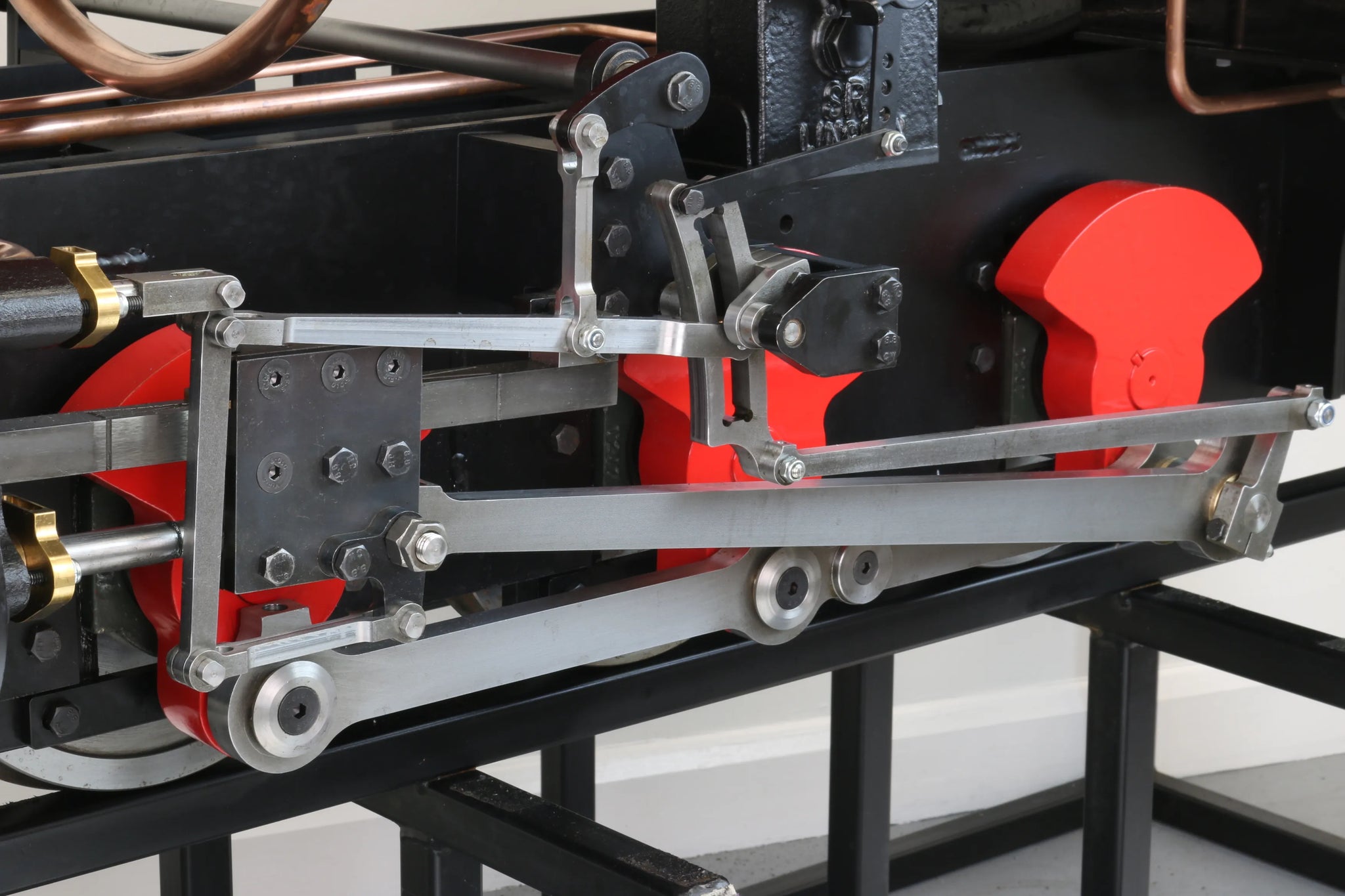

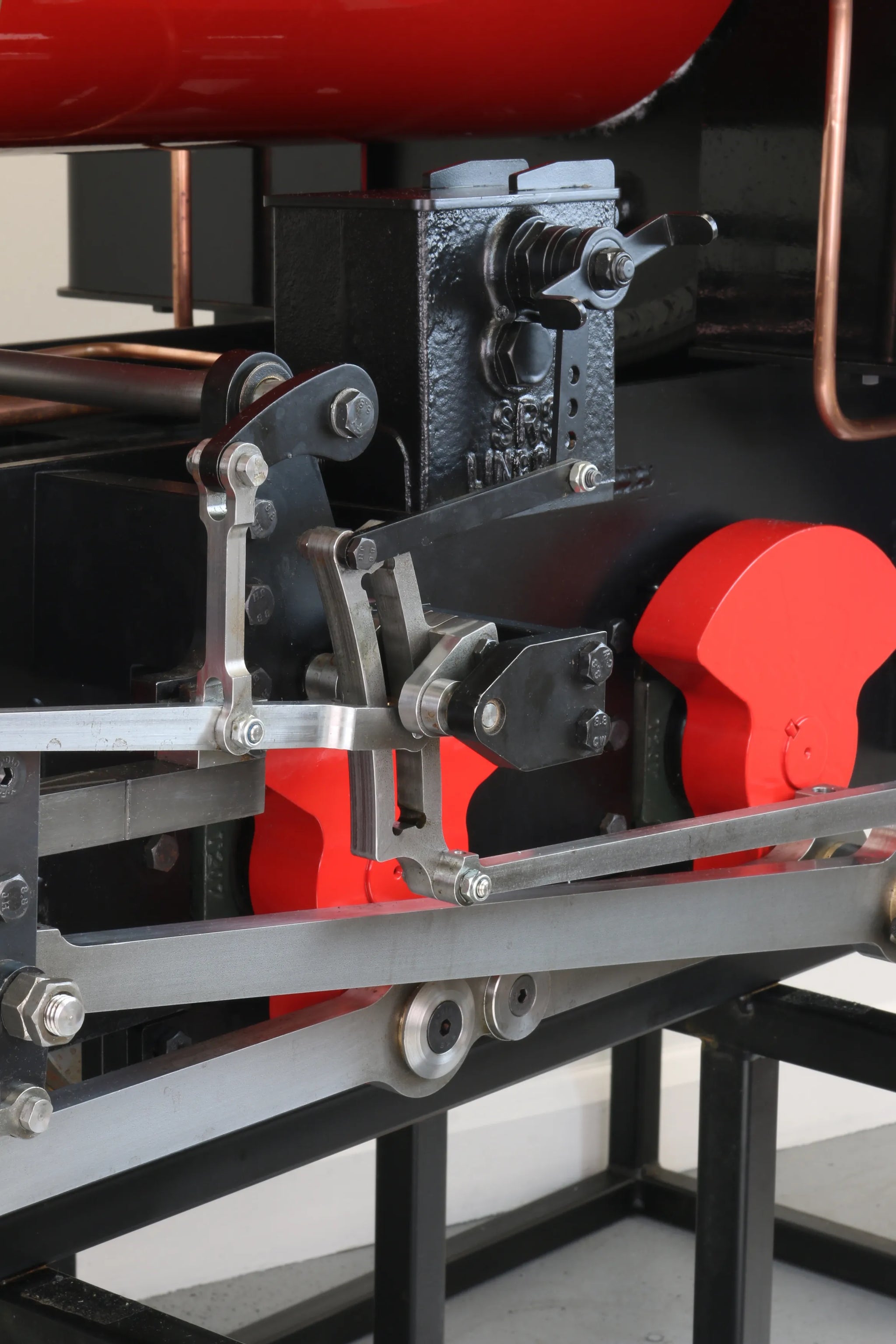

Valve gear	Walschaerts

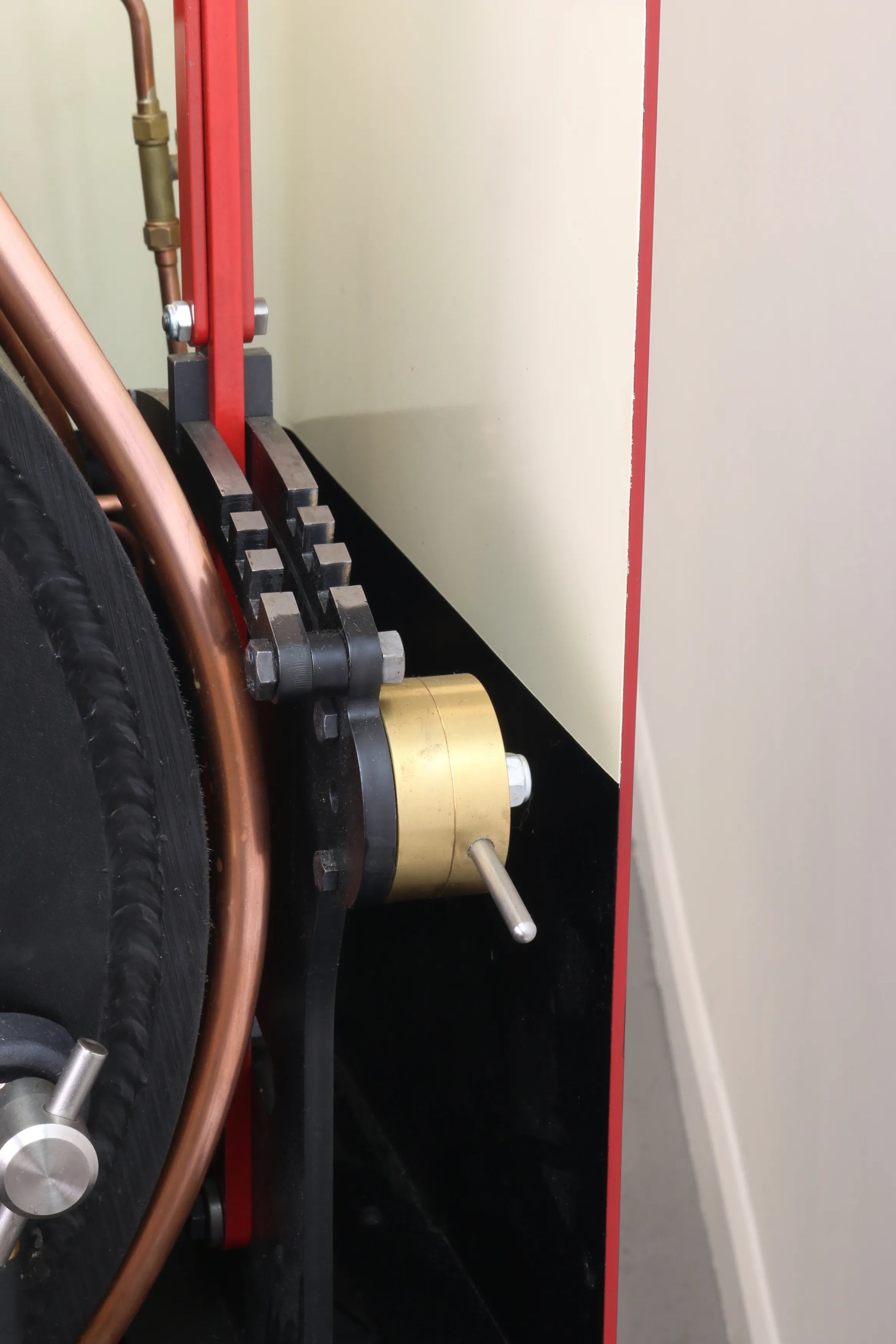

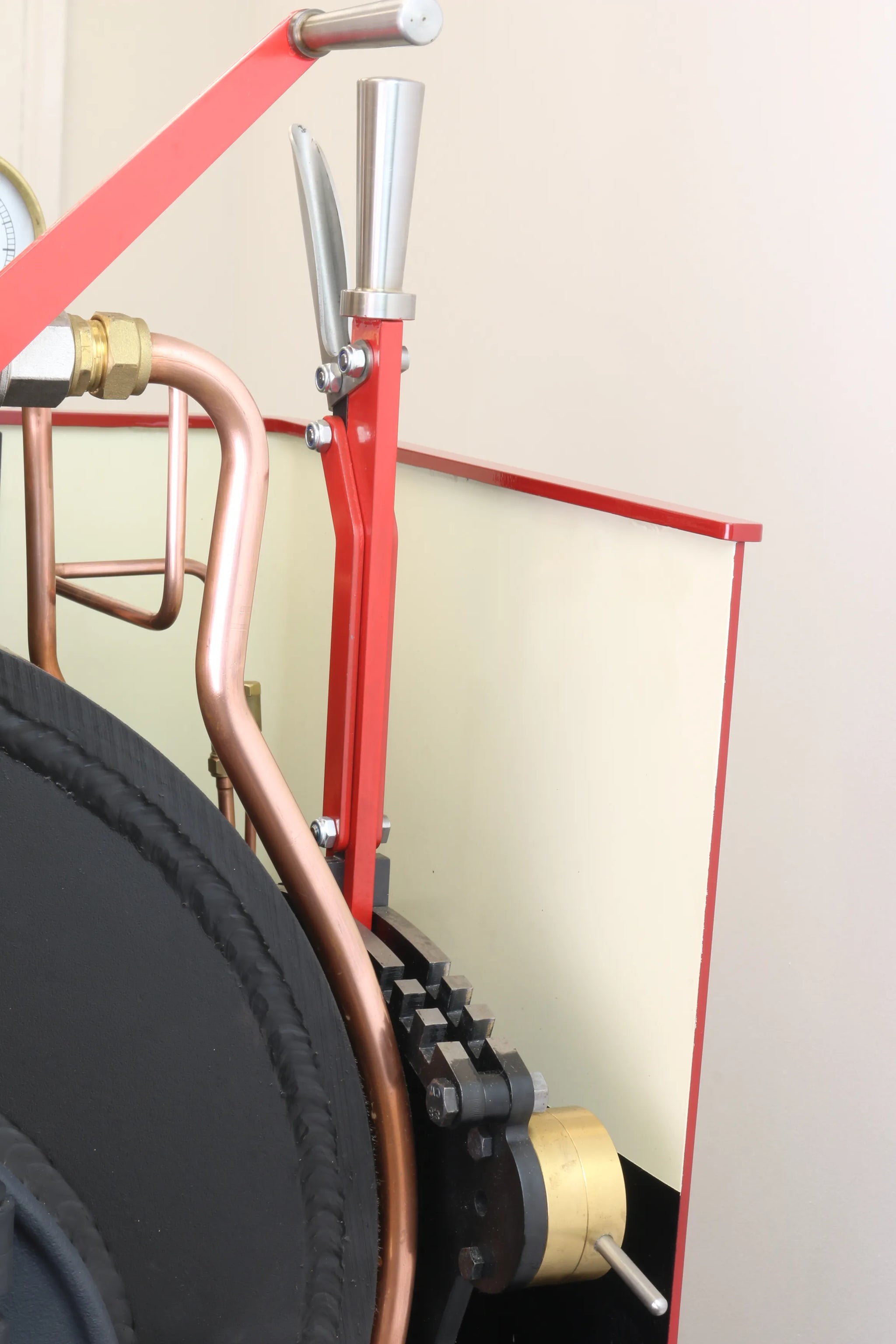

Reverser type	pole

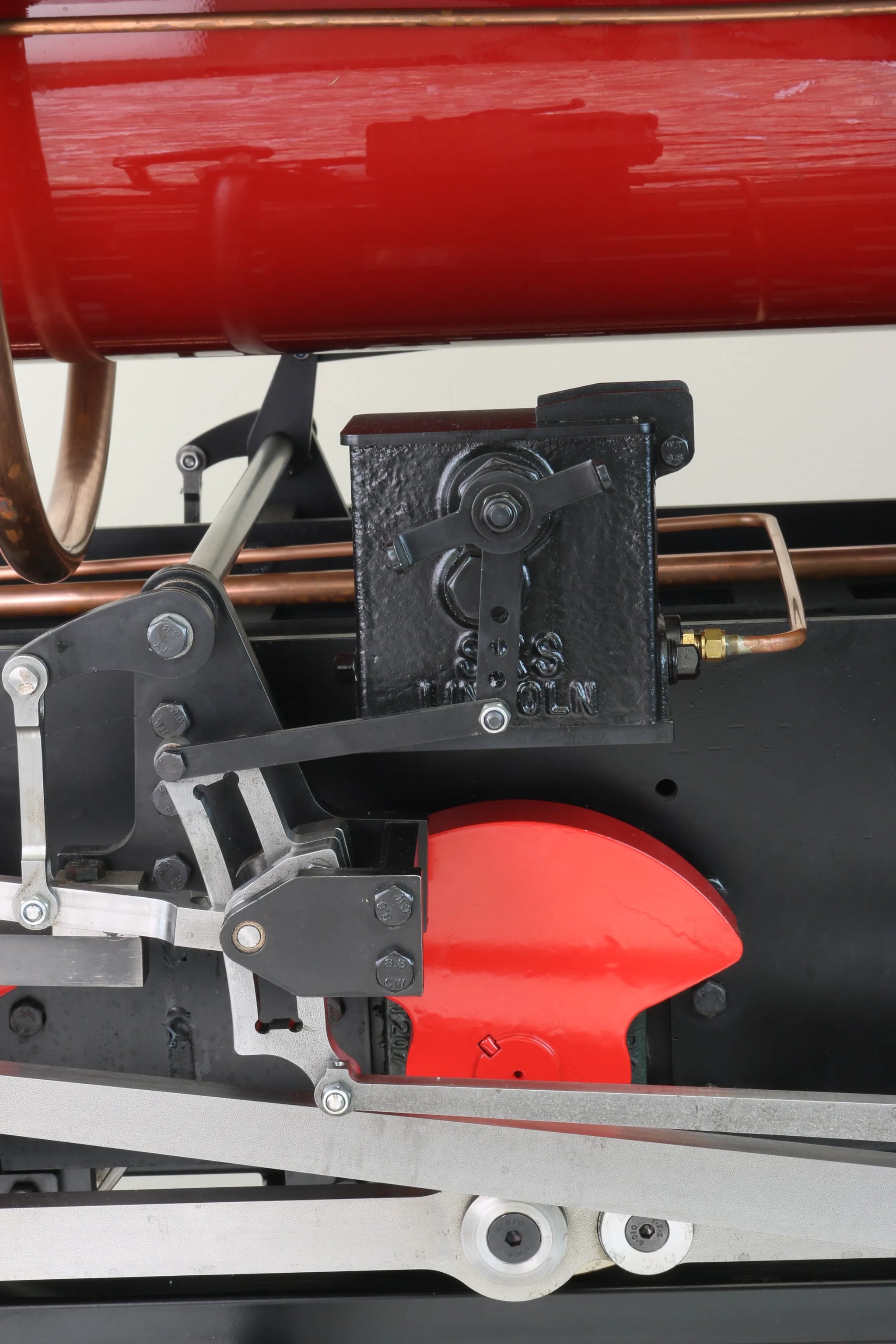

Lubricator type	mechanical
Boiler maker	Station Road Steam

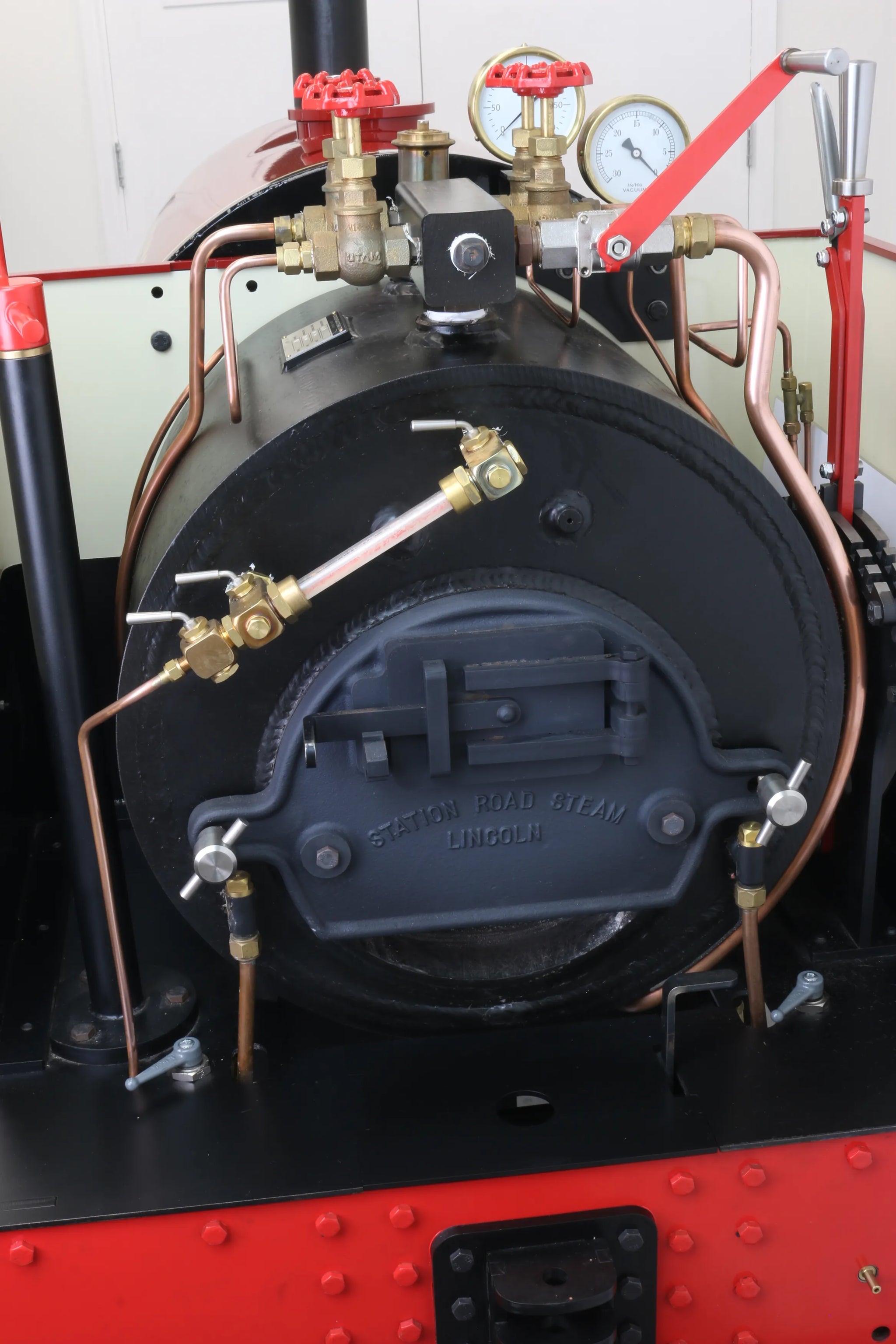

Boiler type	marine
Boiler construction	welded, expanded tubes
Boiler material	steel
Working pressure	150
CE/UKCA mark	yes
Year built	2016
Boiler number	105
Safety valve type	pop
Safety valve	1
Fusible plug	yes
Bore x stroke	3 1/4 x 4 1/4
Injector	2
Nominal traction	670
Pack	Van
Minimum radius	30
Date out	Feb-18
