7 1/4 inch gauge "Sweet William" 0-4-0ST with driving truck

Name: 7 1/4 inch gauge "Sweet William" 0-4-0ST with driving truck
Brand: Station Road Steam
SKU: 7802
Price: 7500.0 GBP
Availability: OutOfStock

Sold

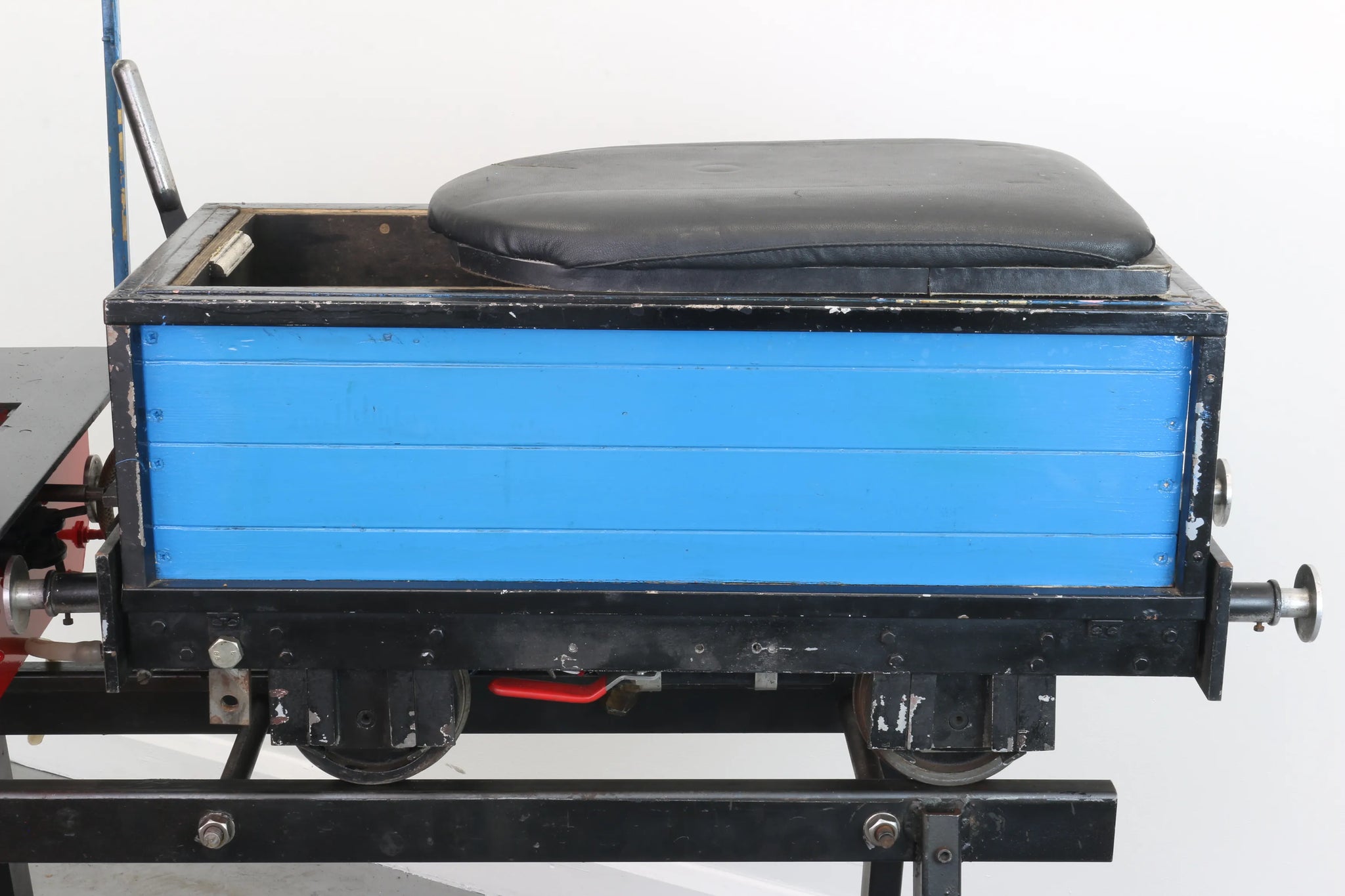

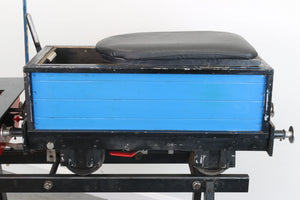

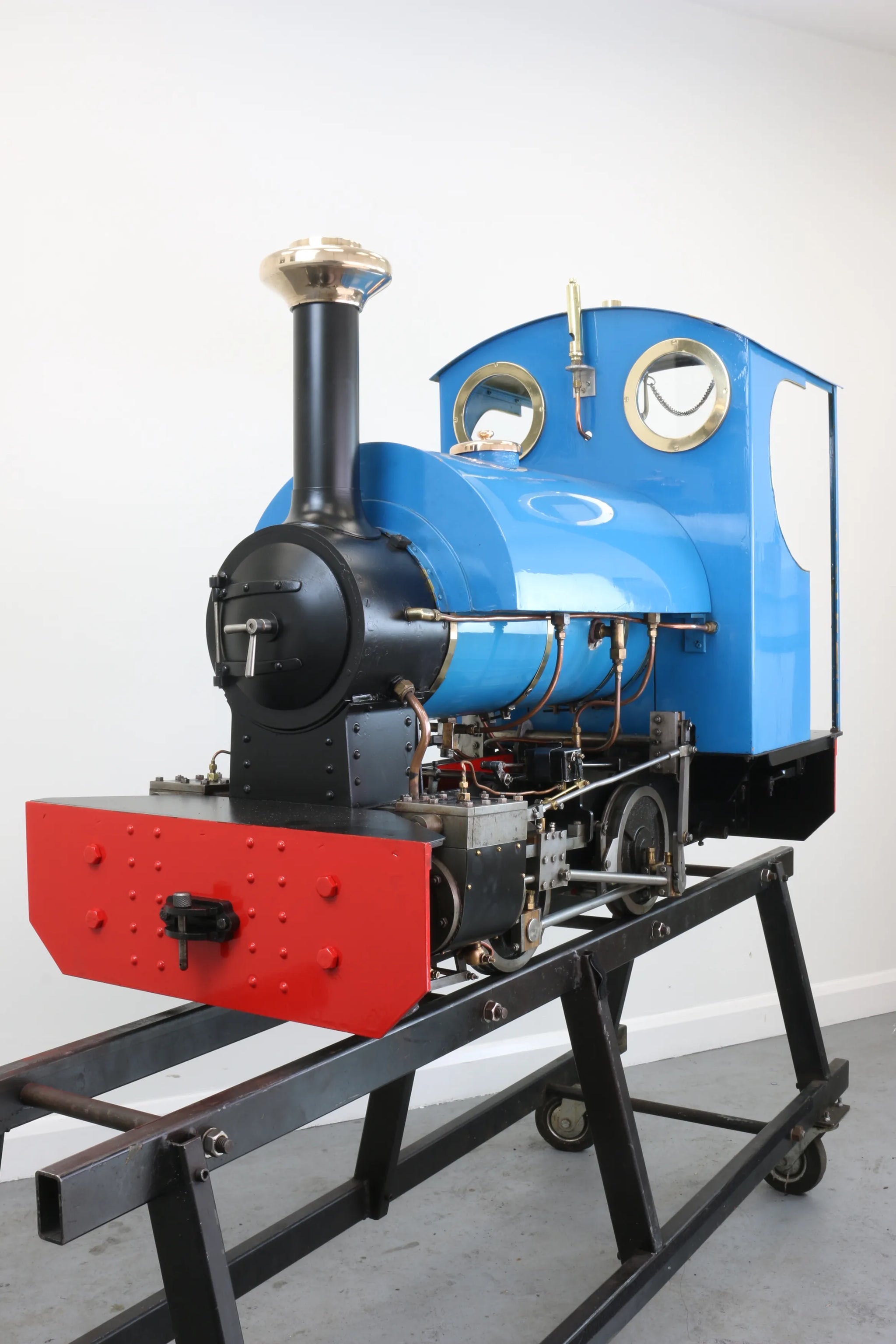

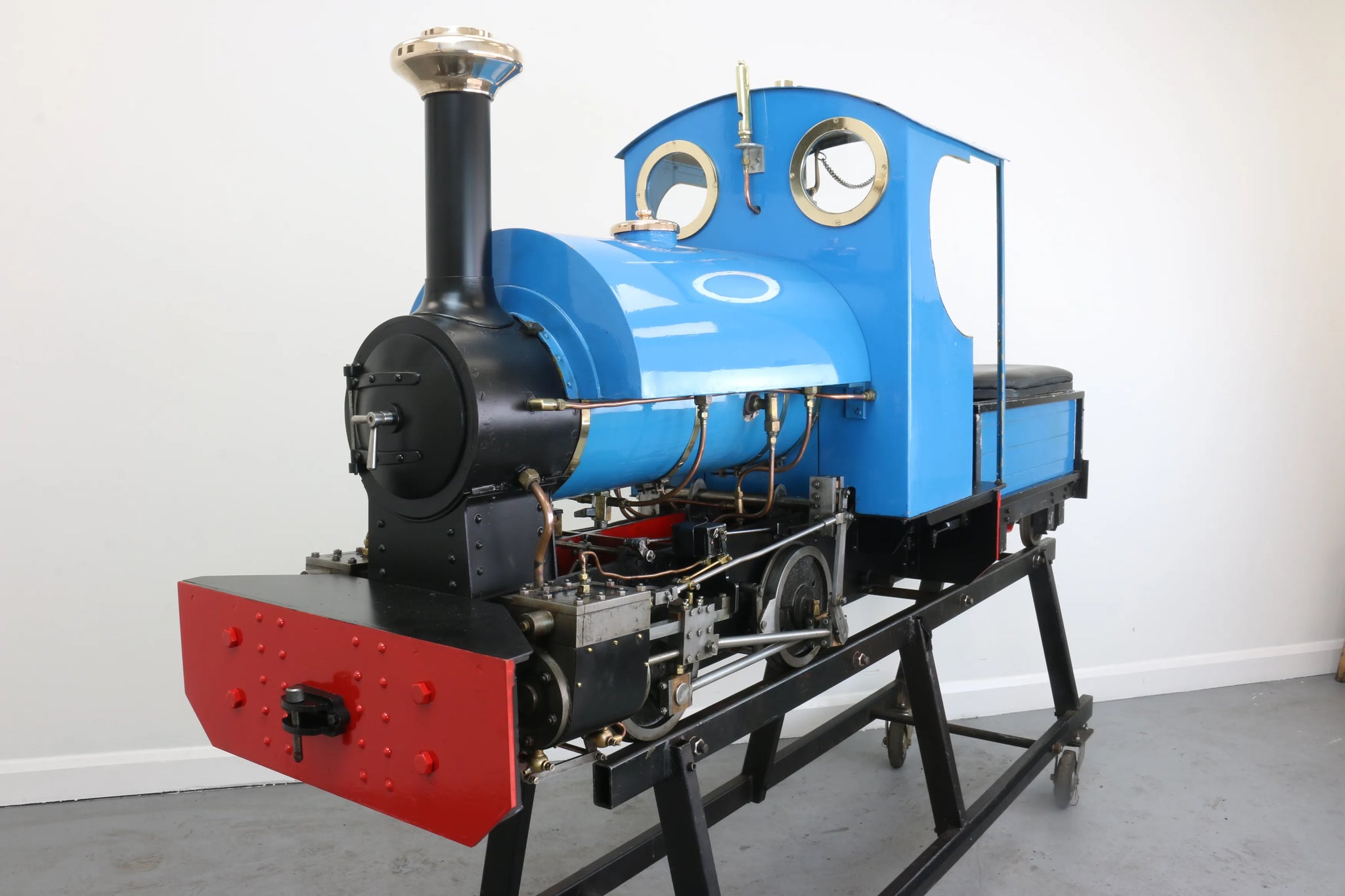

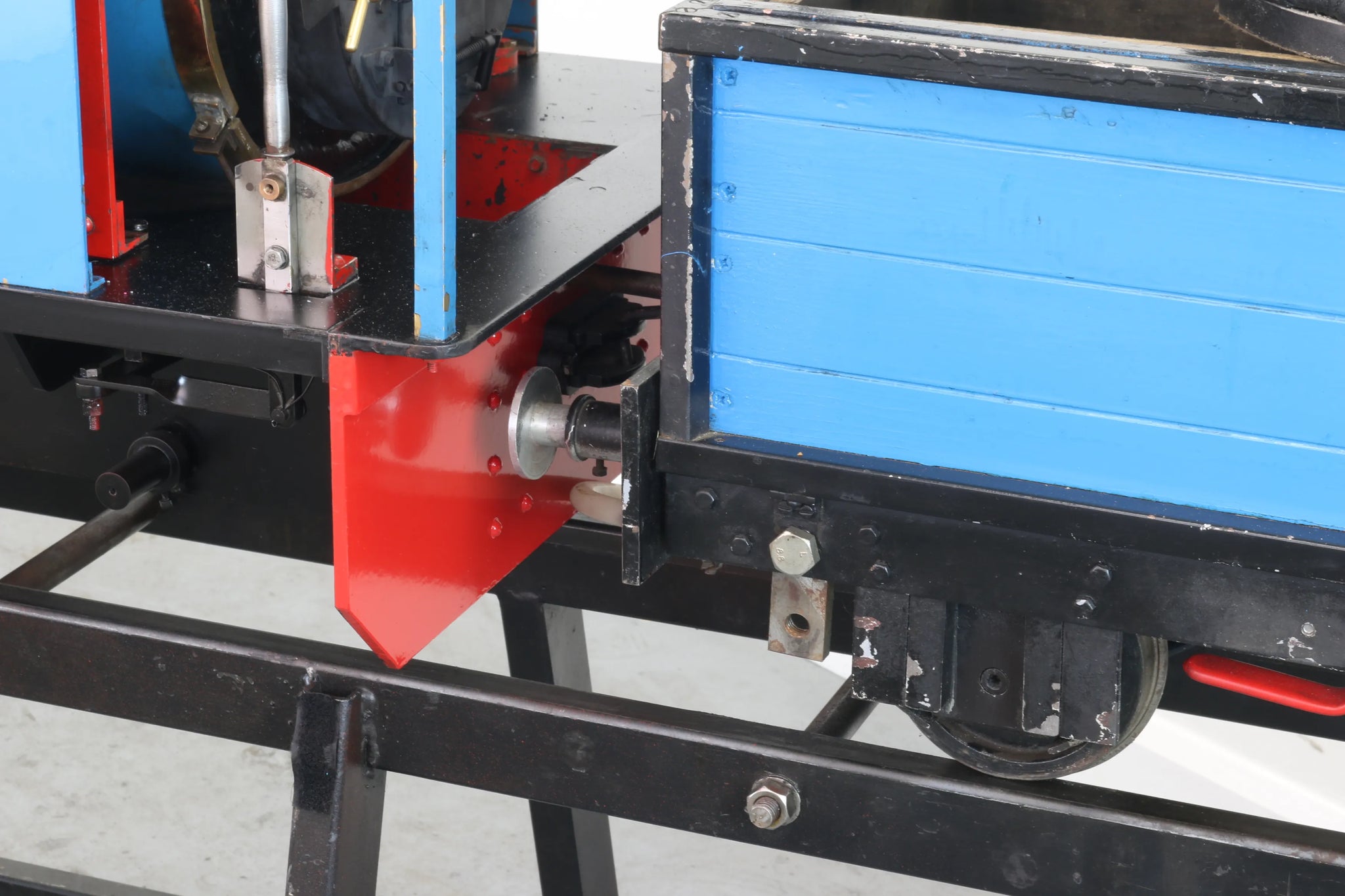

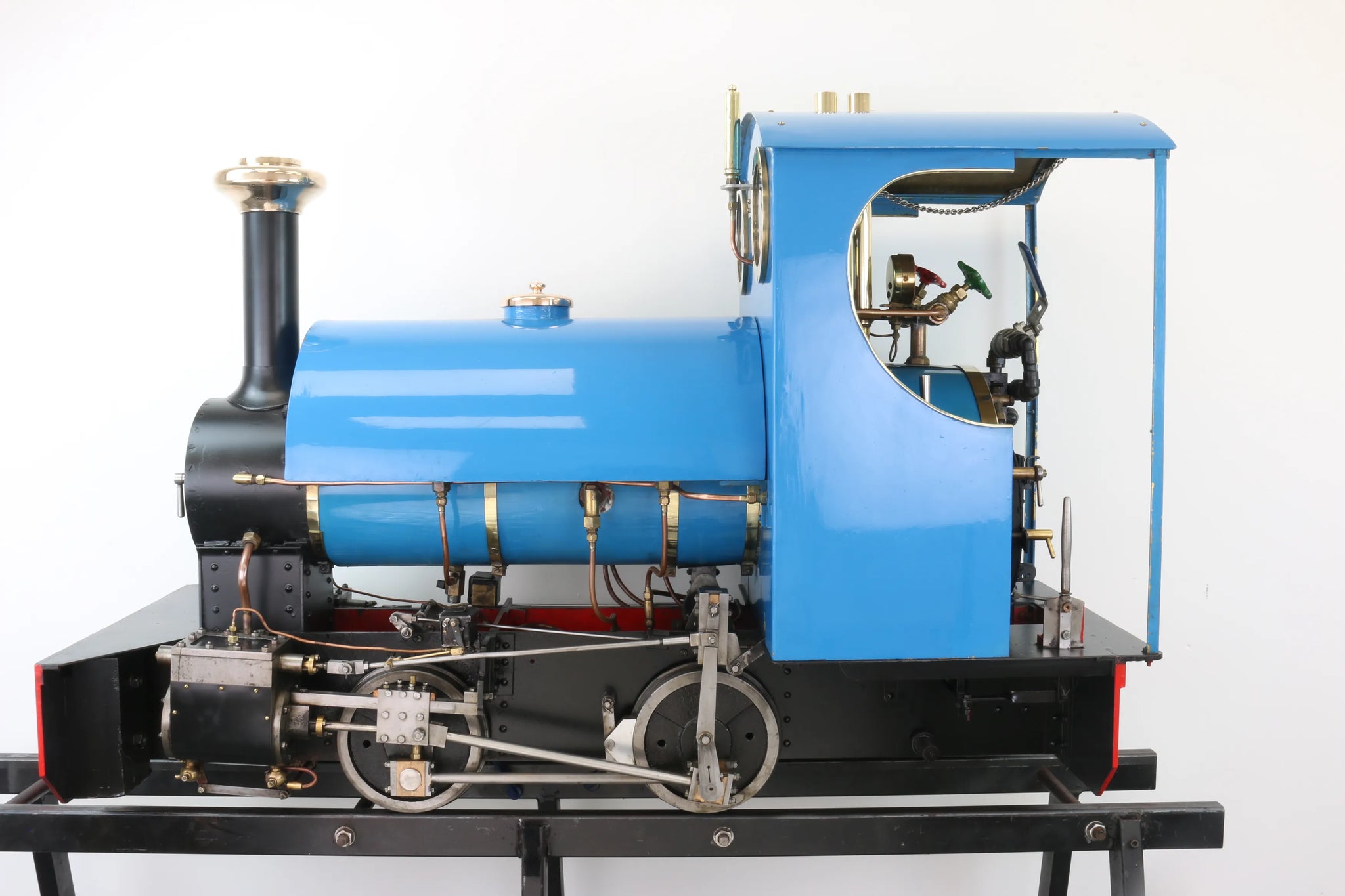

A 7 1/4 inch gauge "Sweet William" complete with driving truck. Built in 2004 with a commercial boiler, the engine is in good condition - it steams freely and runs well.

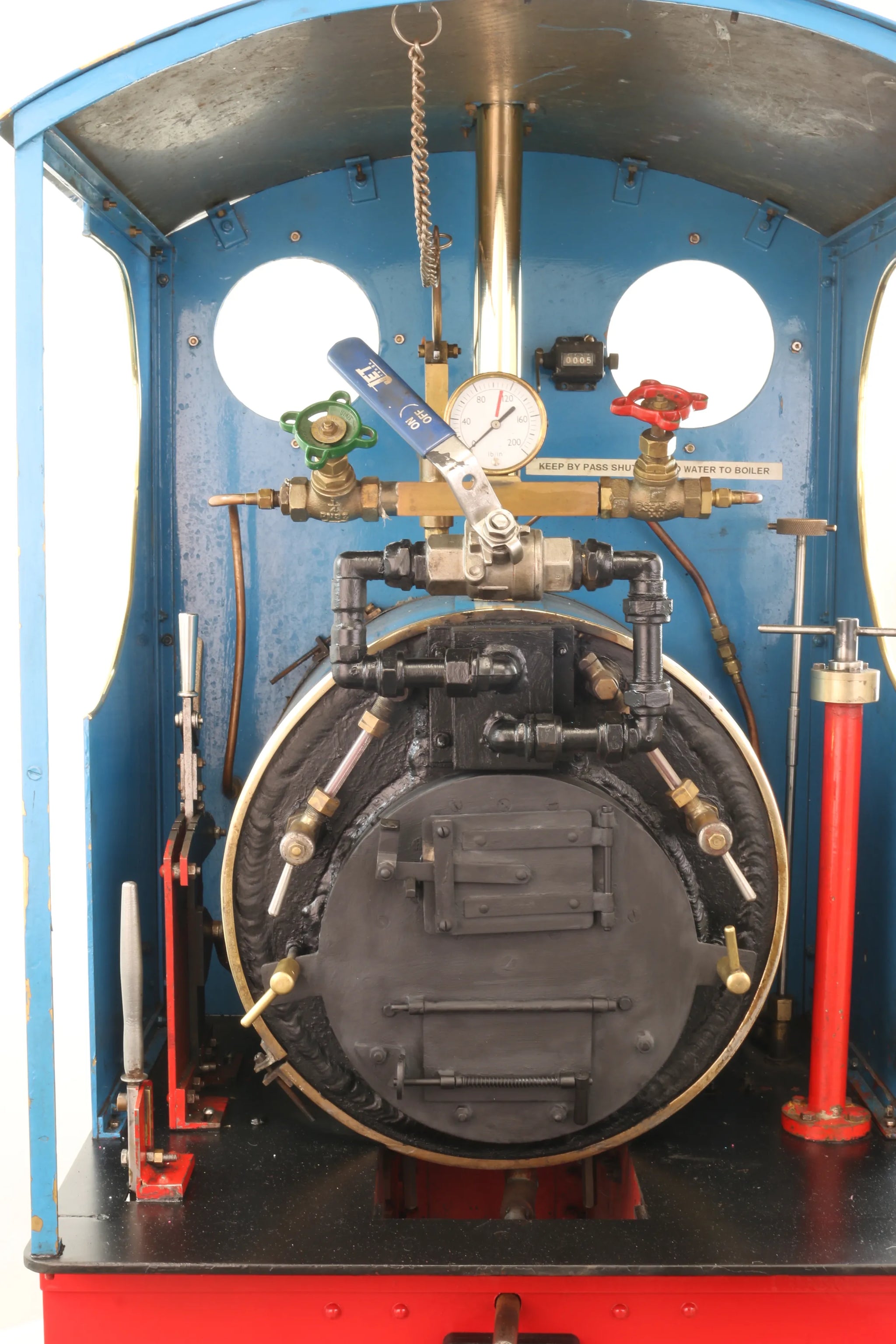

Built closely to standard specification, although the original poppet valve type regulator has been replaced with a stainess steel ball valve - a good idea, it's the same type we use on Staffords, although the pipework could be a little more elegant.

Complete with a set of drawings, past club boiler history and original boiler paperwork from Gloucester Steam & Traction.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	7802
Gauge	7 1/4 inch
Length/inches	51
Width/inches	20
Height/inches	35
Weight/Kg	200
Wheel material	cast iron
Axlebox type	plain bearing

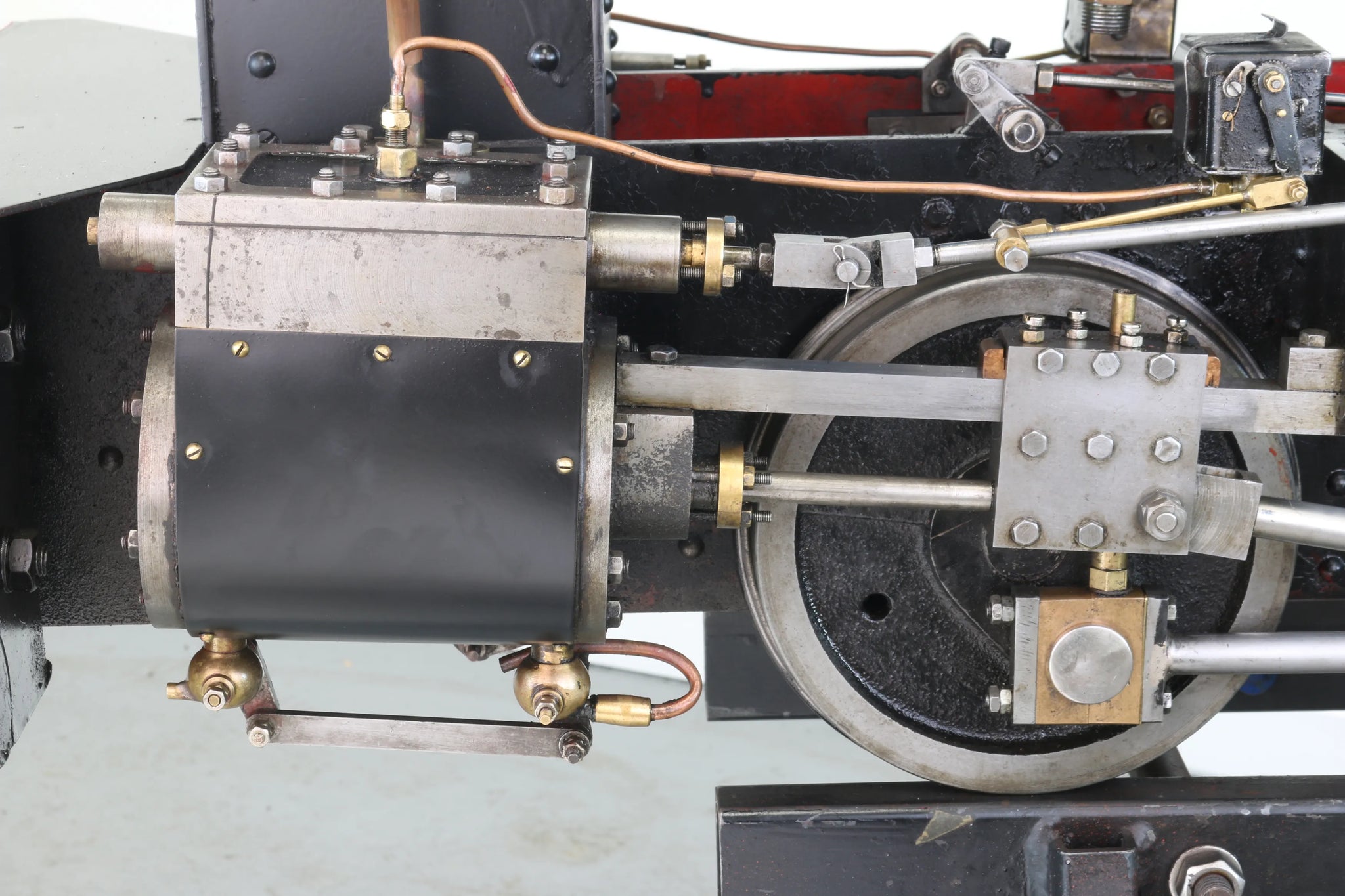

Cylinder material	cast iron
Valve type	slide

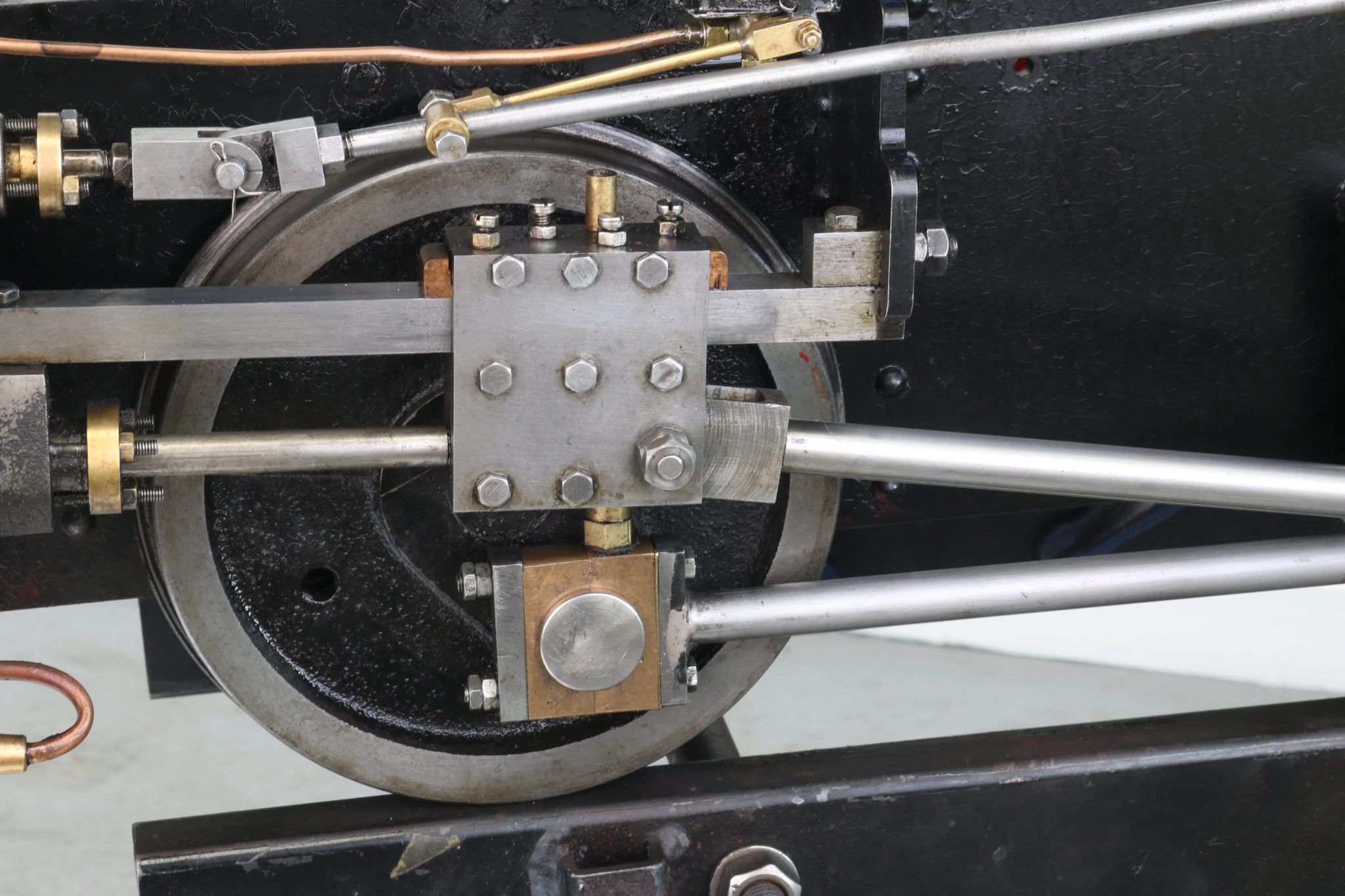

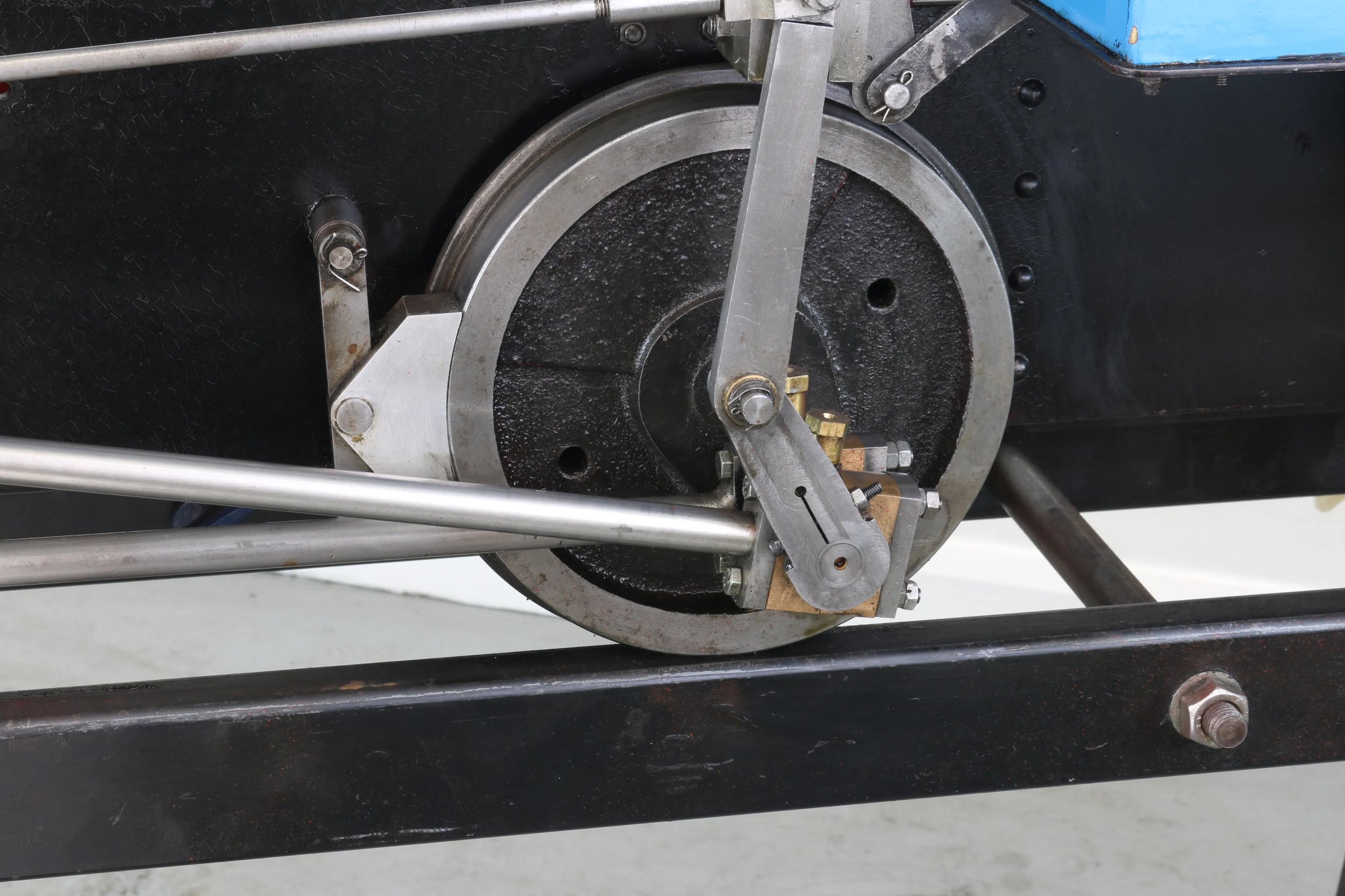

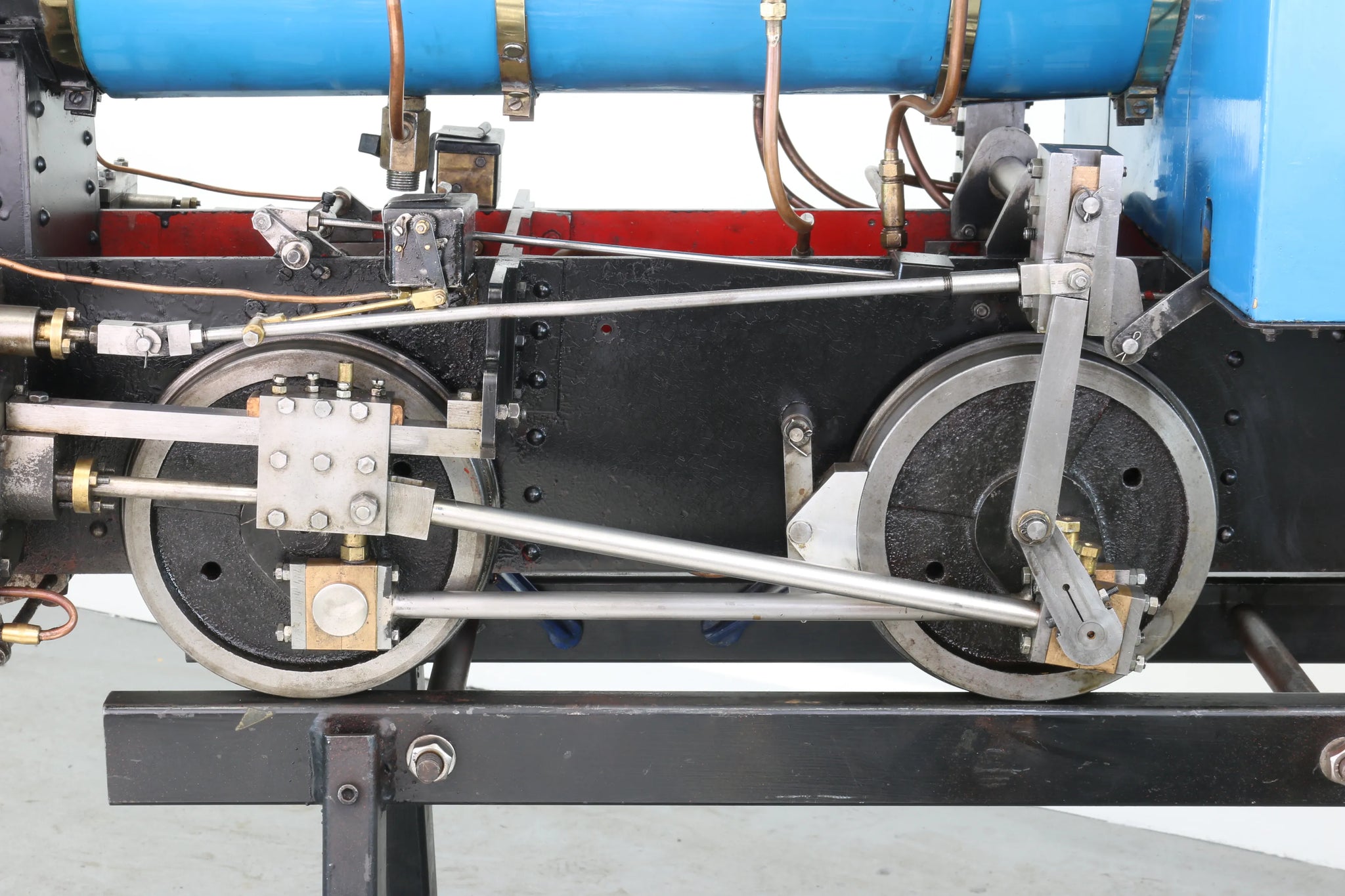

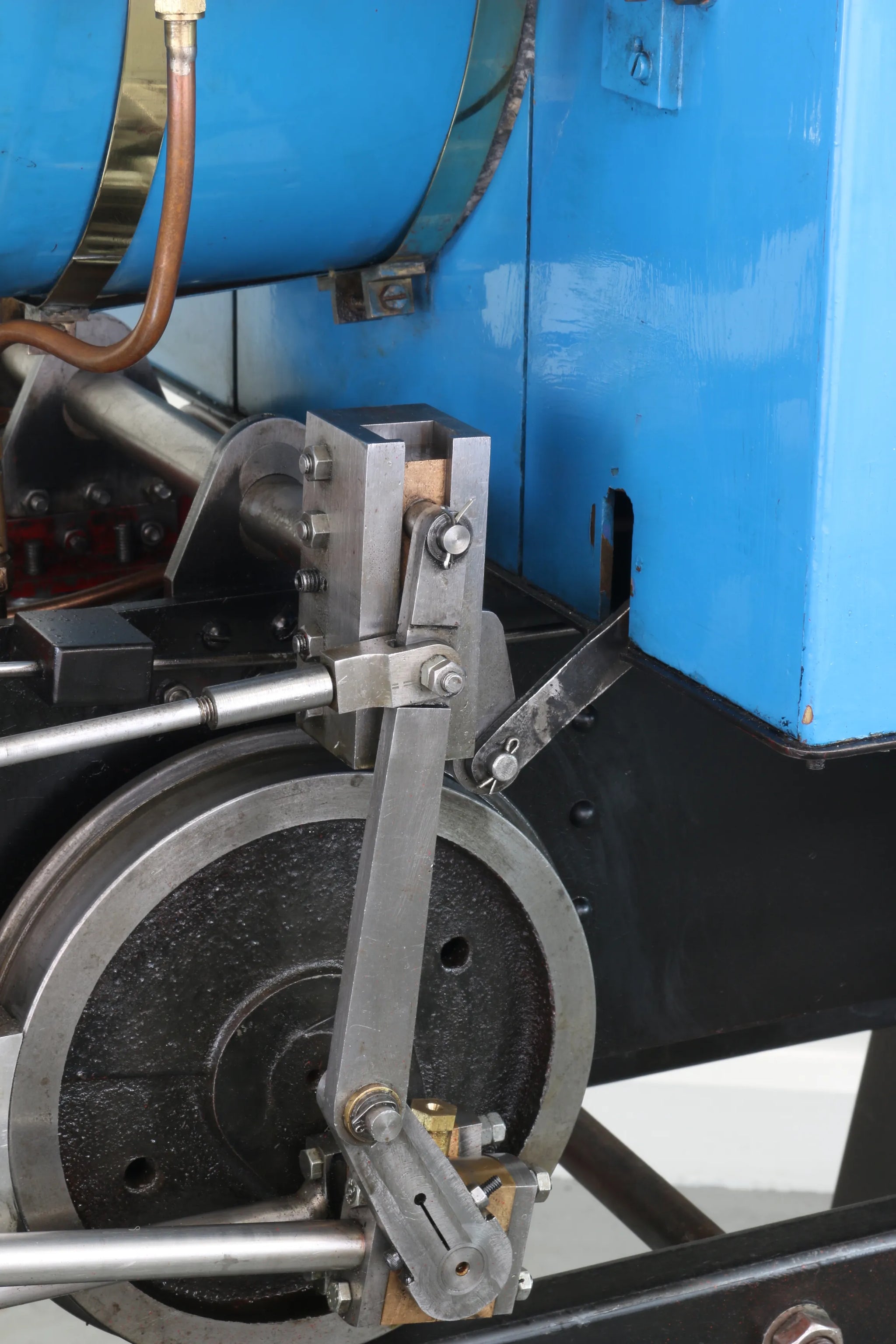

Valve gear	Hackworth
Reverser type	pole

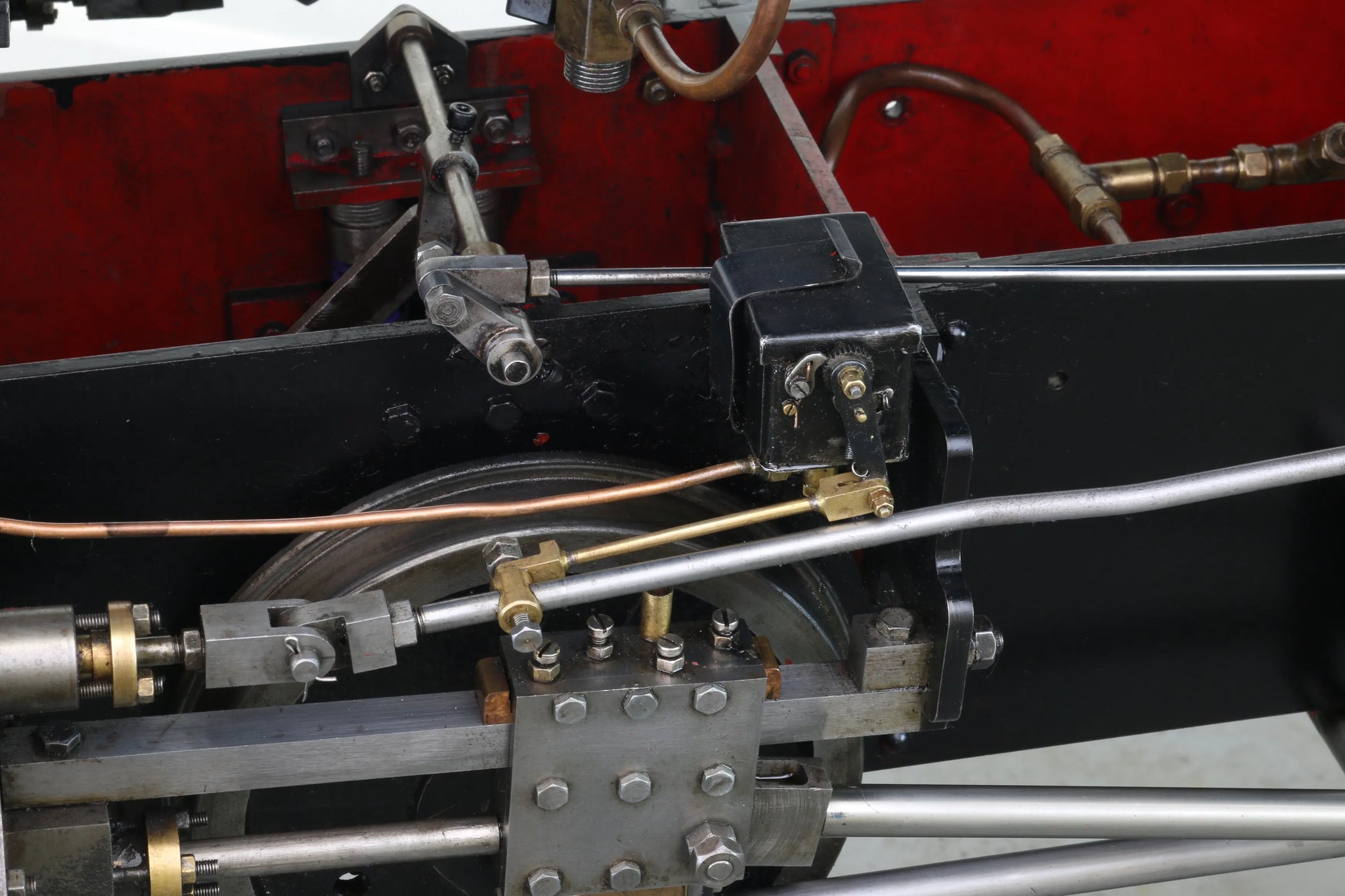

Lubricator type	2 x mechanical
Boiler maker	Gloucester Steam & Traction Engine Co.
Boiler type	marine
Boiler construction	welded, expanded tubes
Boiler material	steel
Working pressure	100
CE/UKCA mark	yes
Year built	2004
Boiler number	GST043
Safety valve type	spring
Safety valve	2
Fusible plug	yes
Bore x stroke	2 1/4 x 3

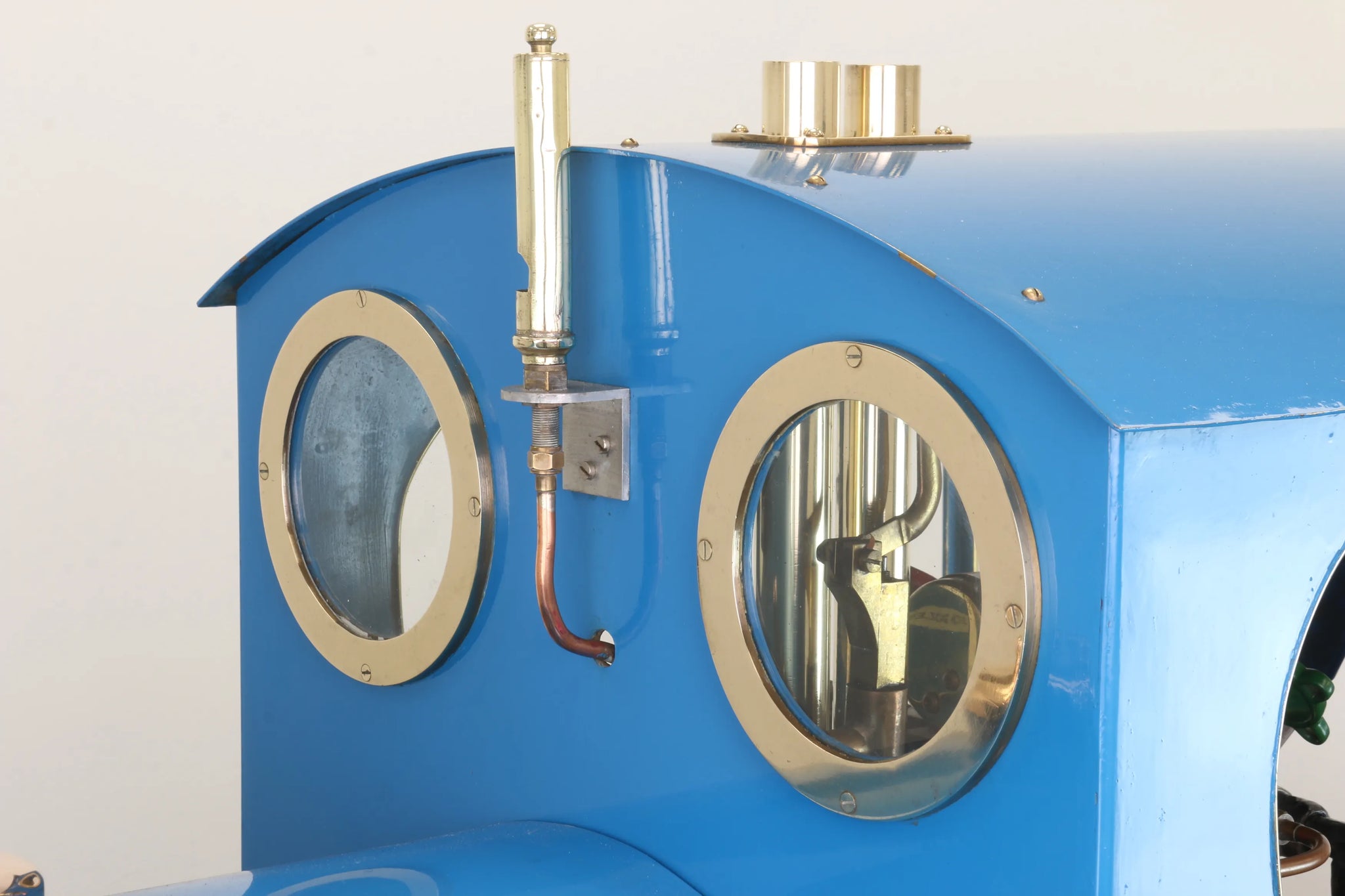

Whistle	yes
Hand pump	1
Mechanical pump	1
Injector	1
Pack	Double half pallet
Date out	May-18
Hydraulic test valid to	25-Nov-19
Steam test valid to	03-Feb-19
