Sold

8751

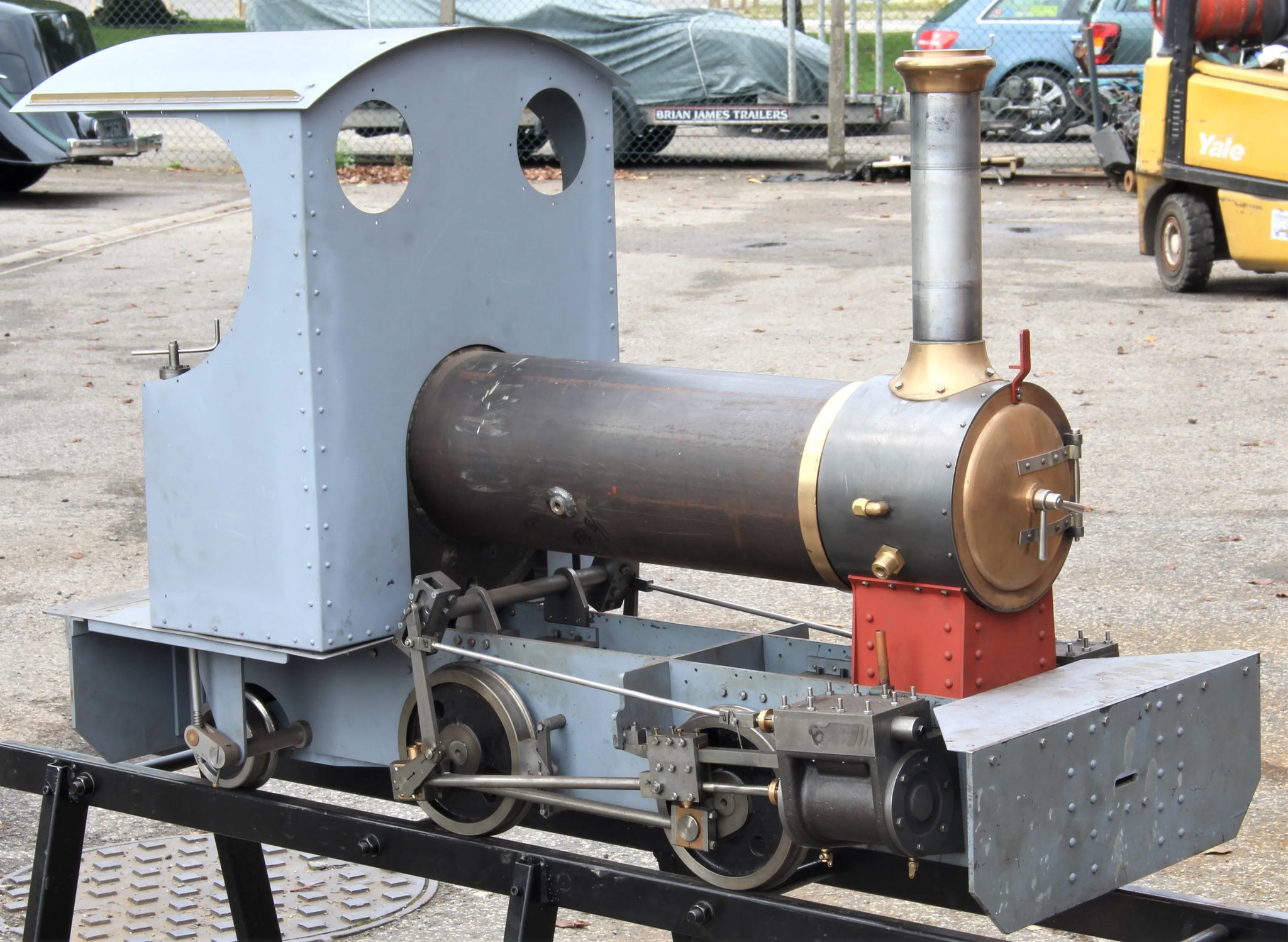

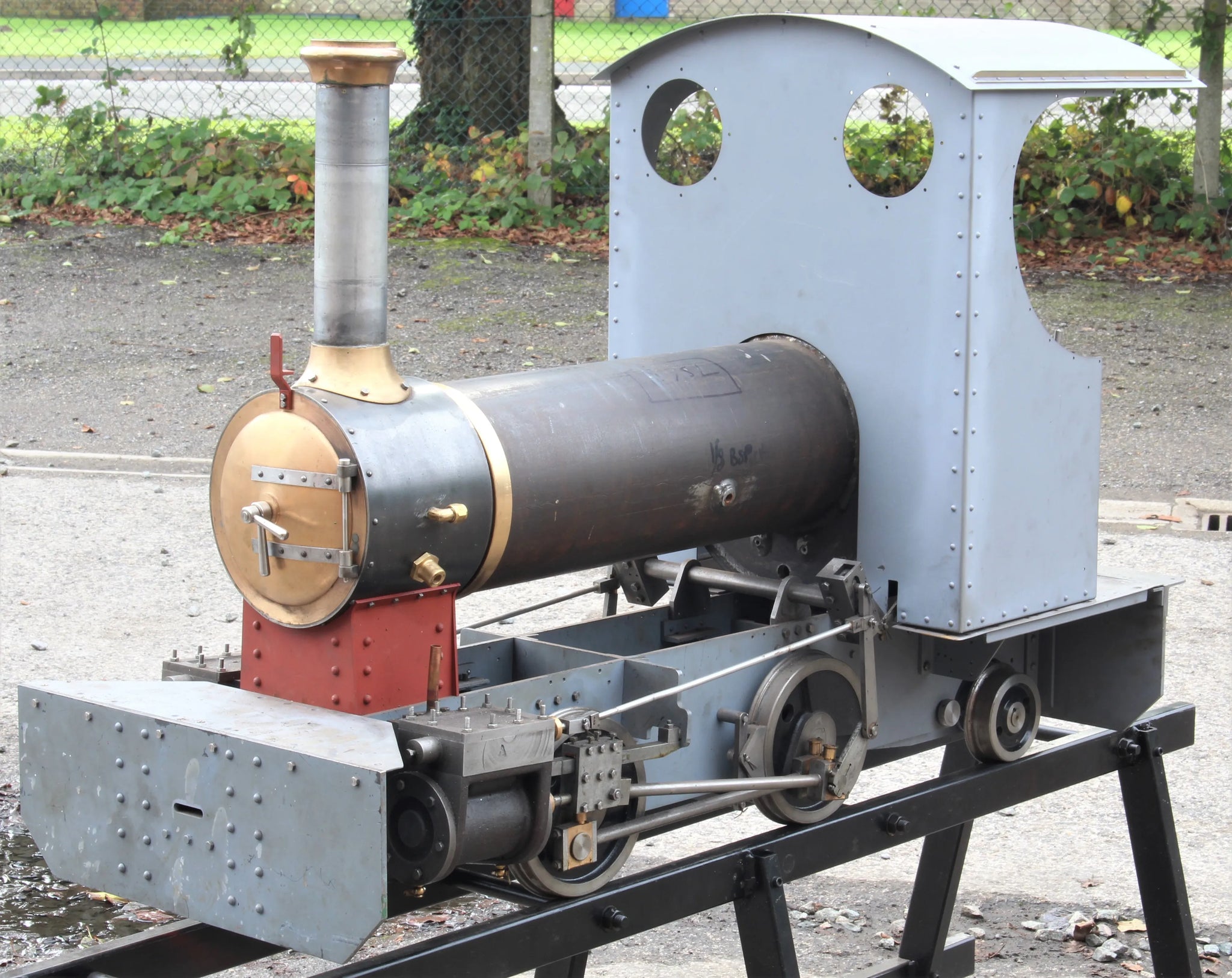

7 1/4 inch gauge "Sweet William" 0-4-2T

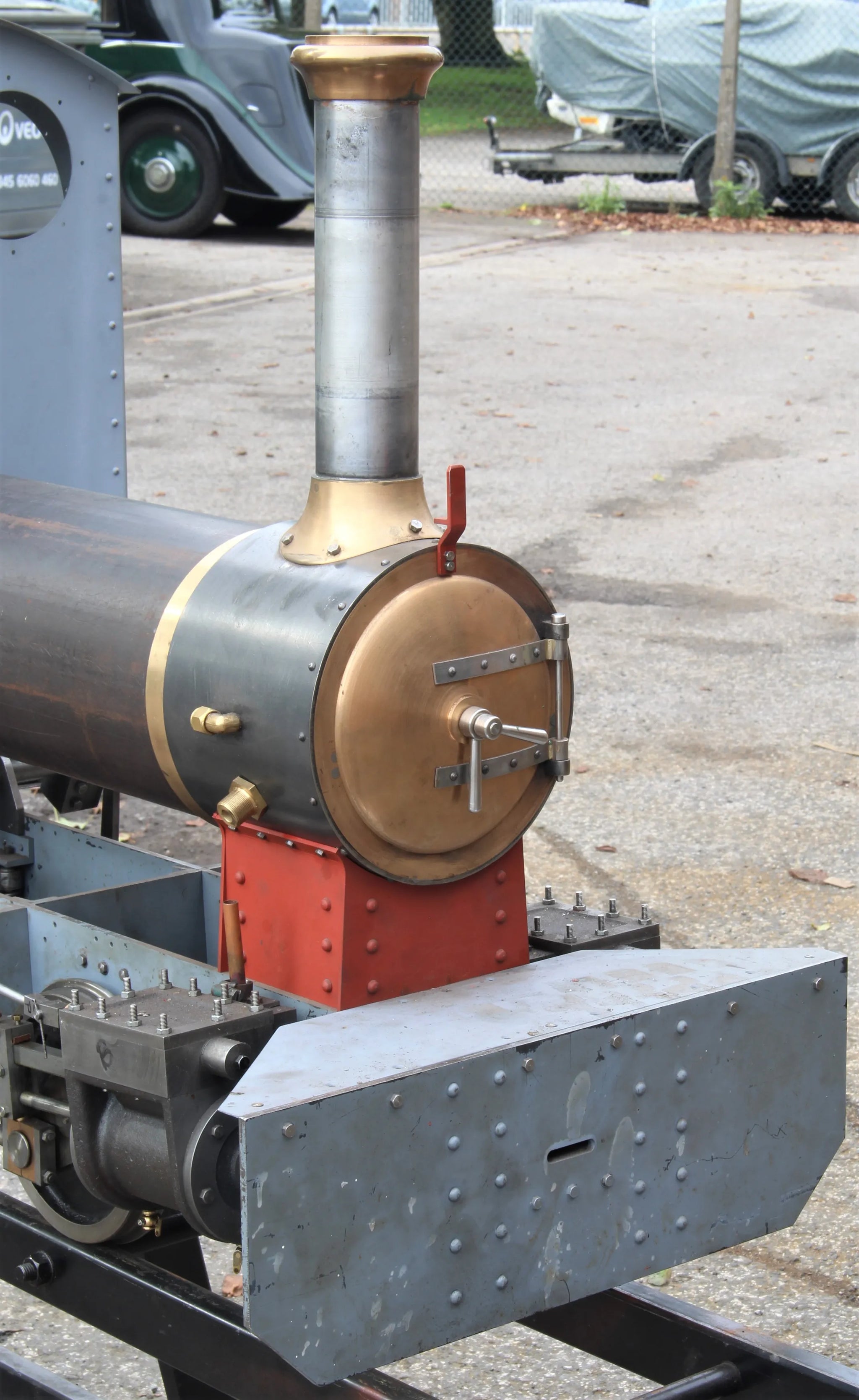

A 7 1/4 inch narrow gauge 0-4-2ST to the "Sweet William" design, scaled up from the ever-popular "Sweet Pea".

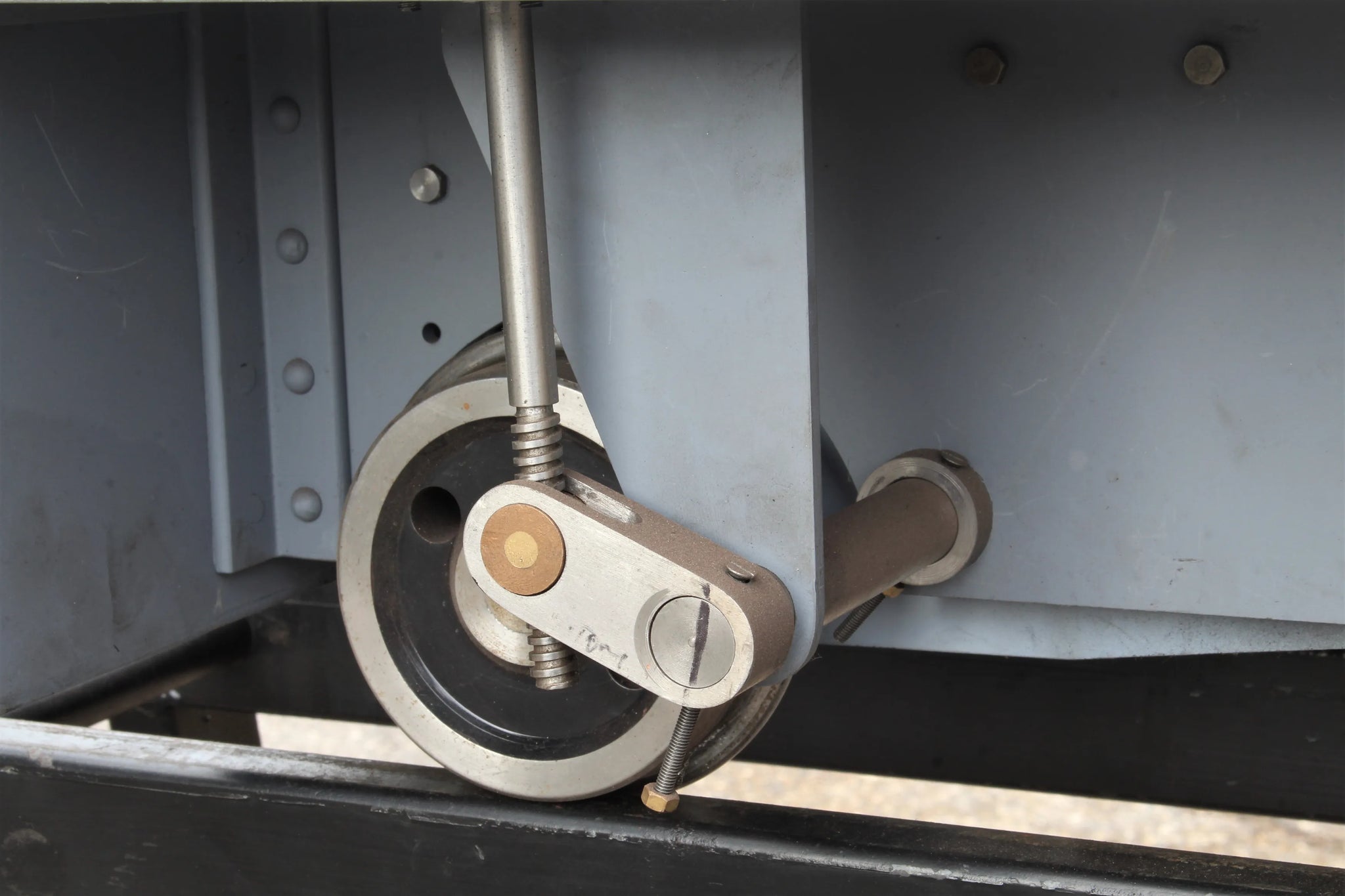

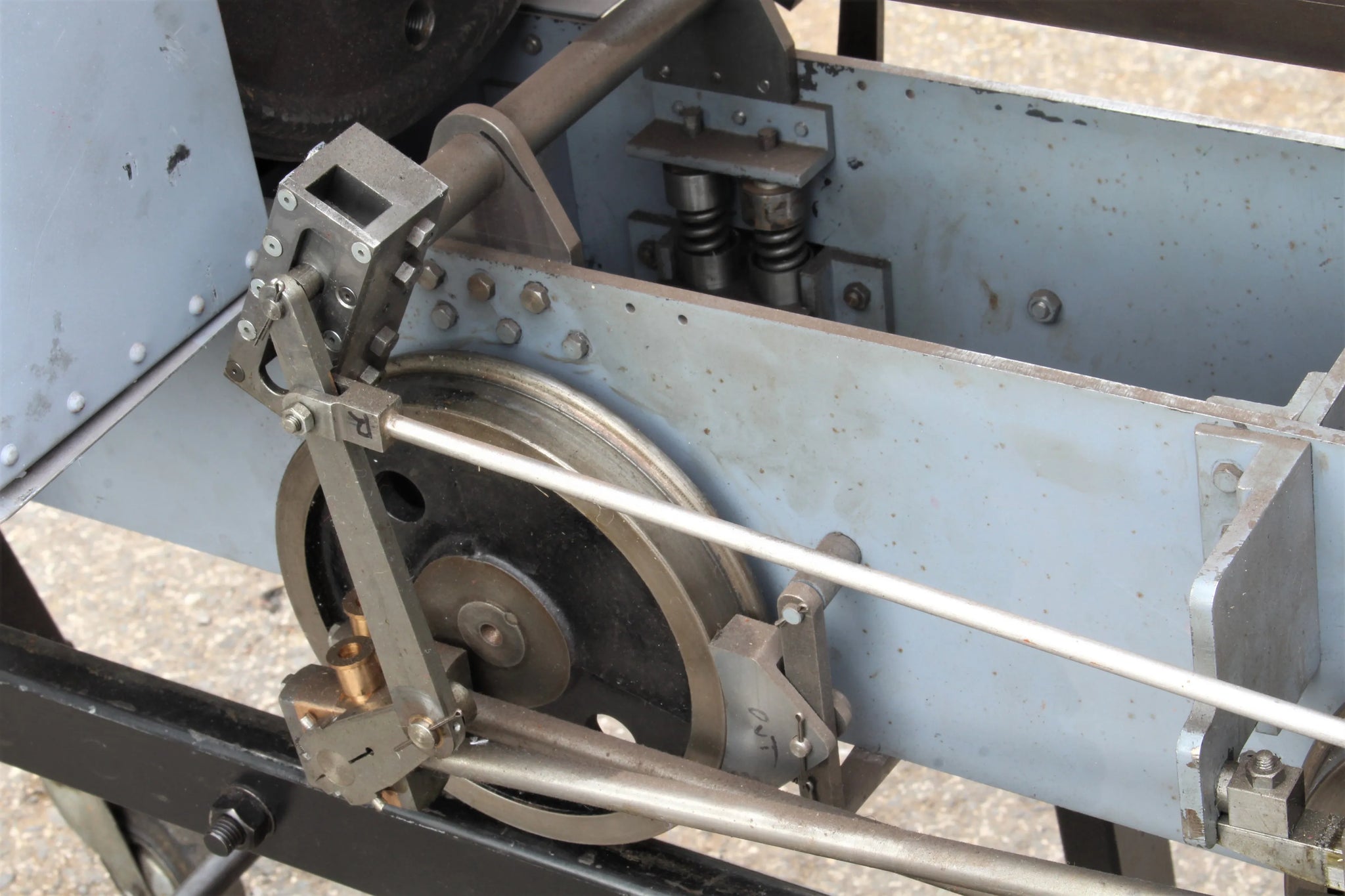

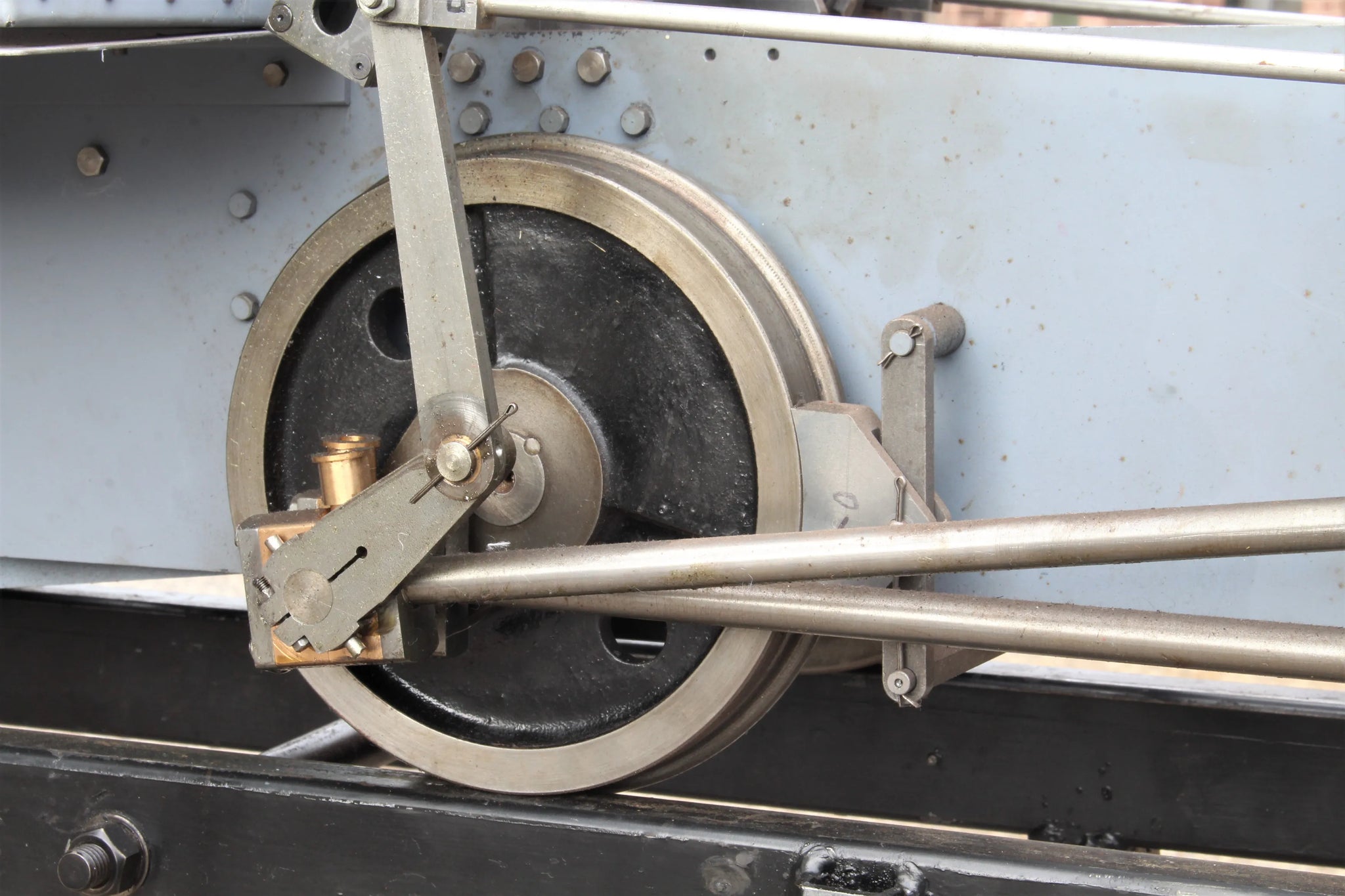

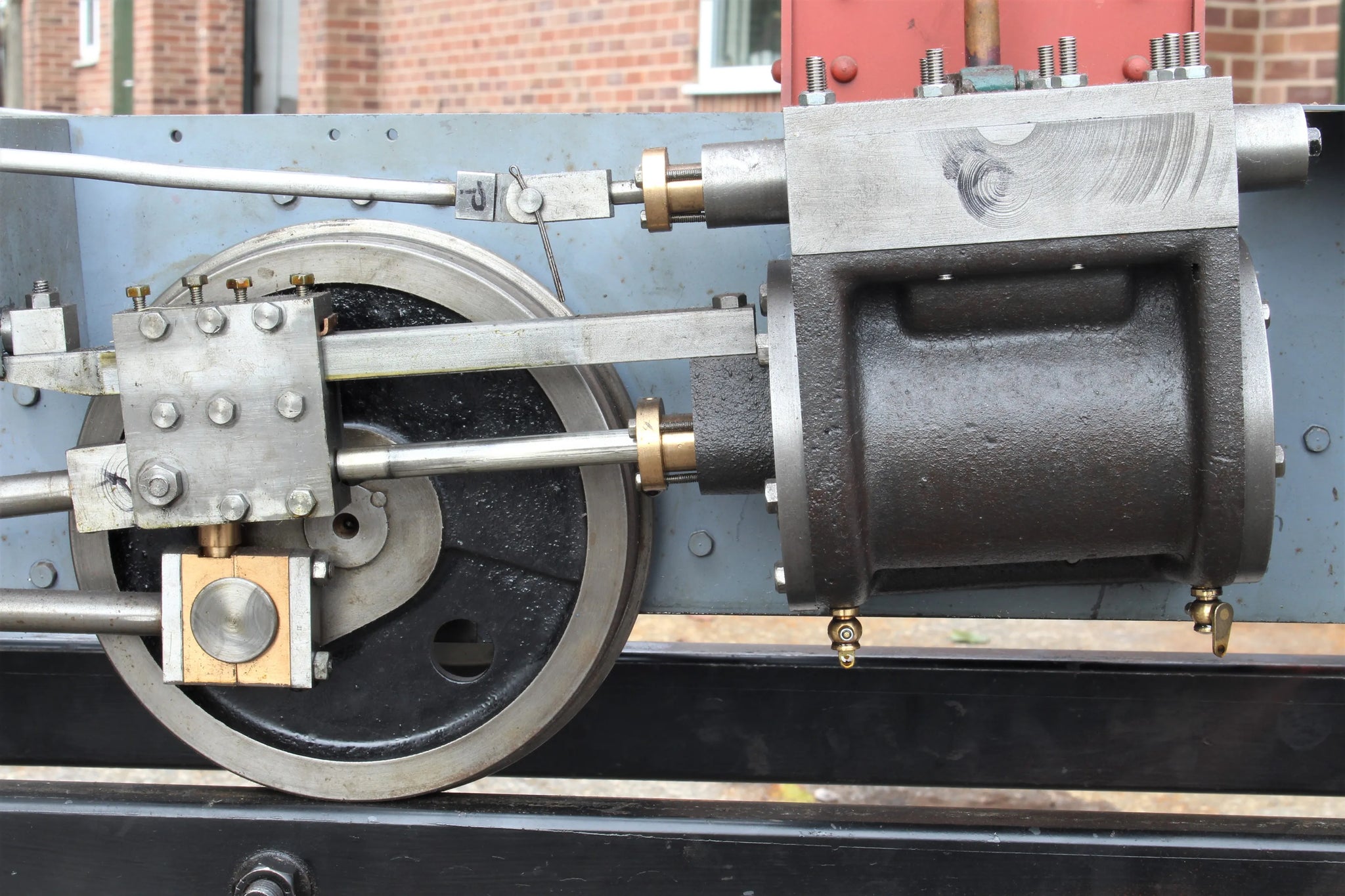

The work to date has been done to a good standard, the chassis is close to air-running with all motionwork and valve gear fitted.

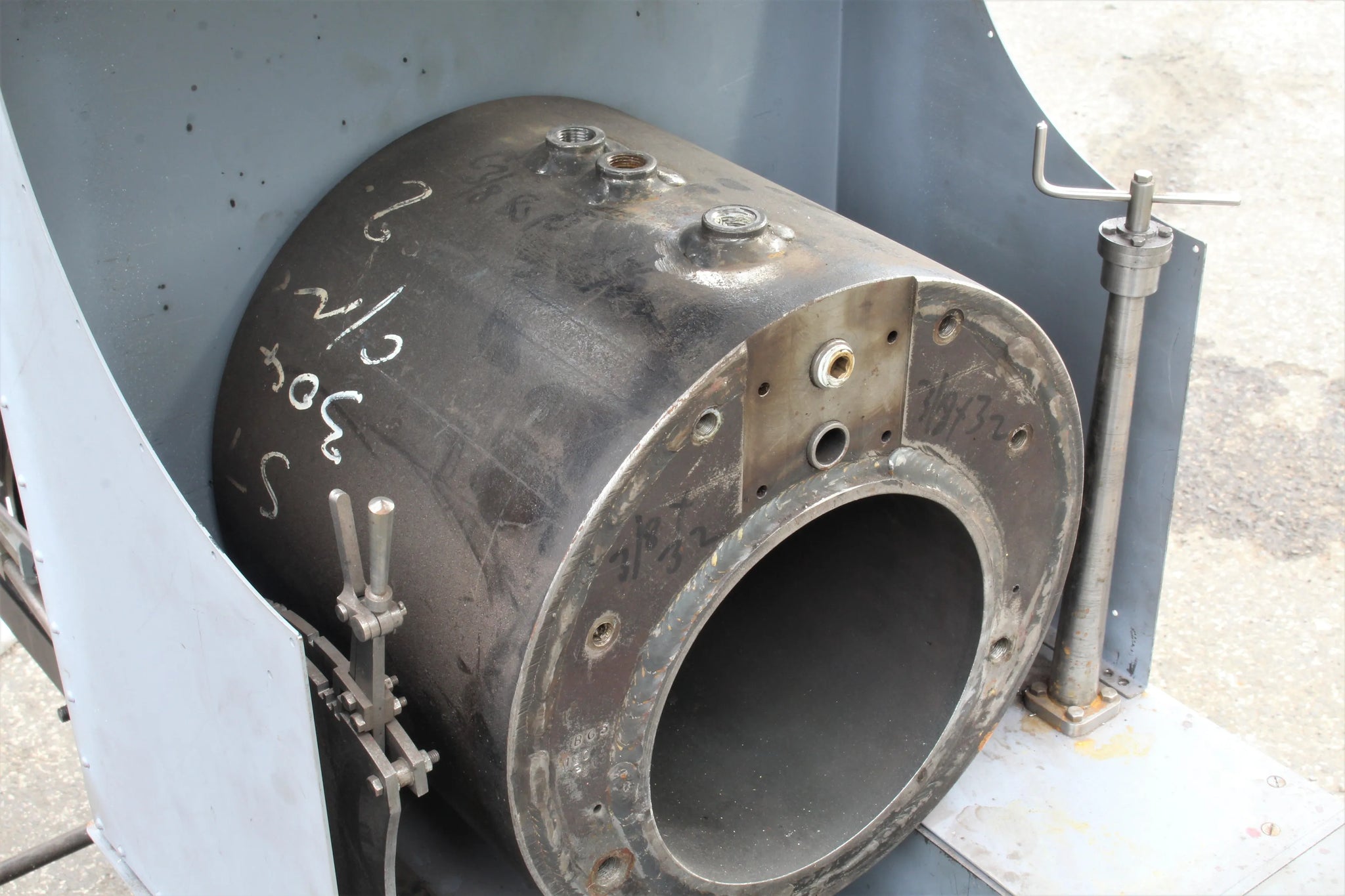

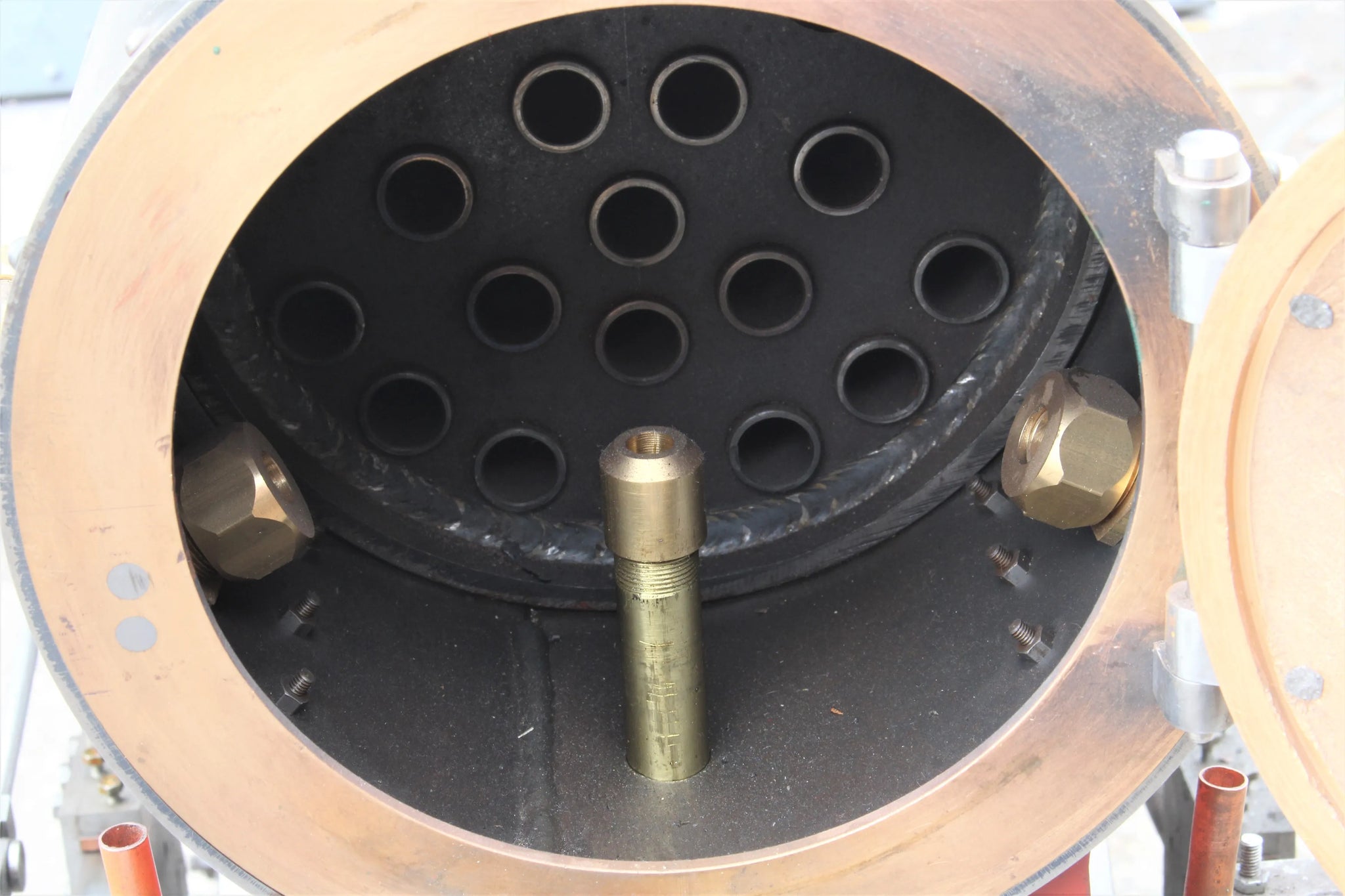

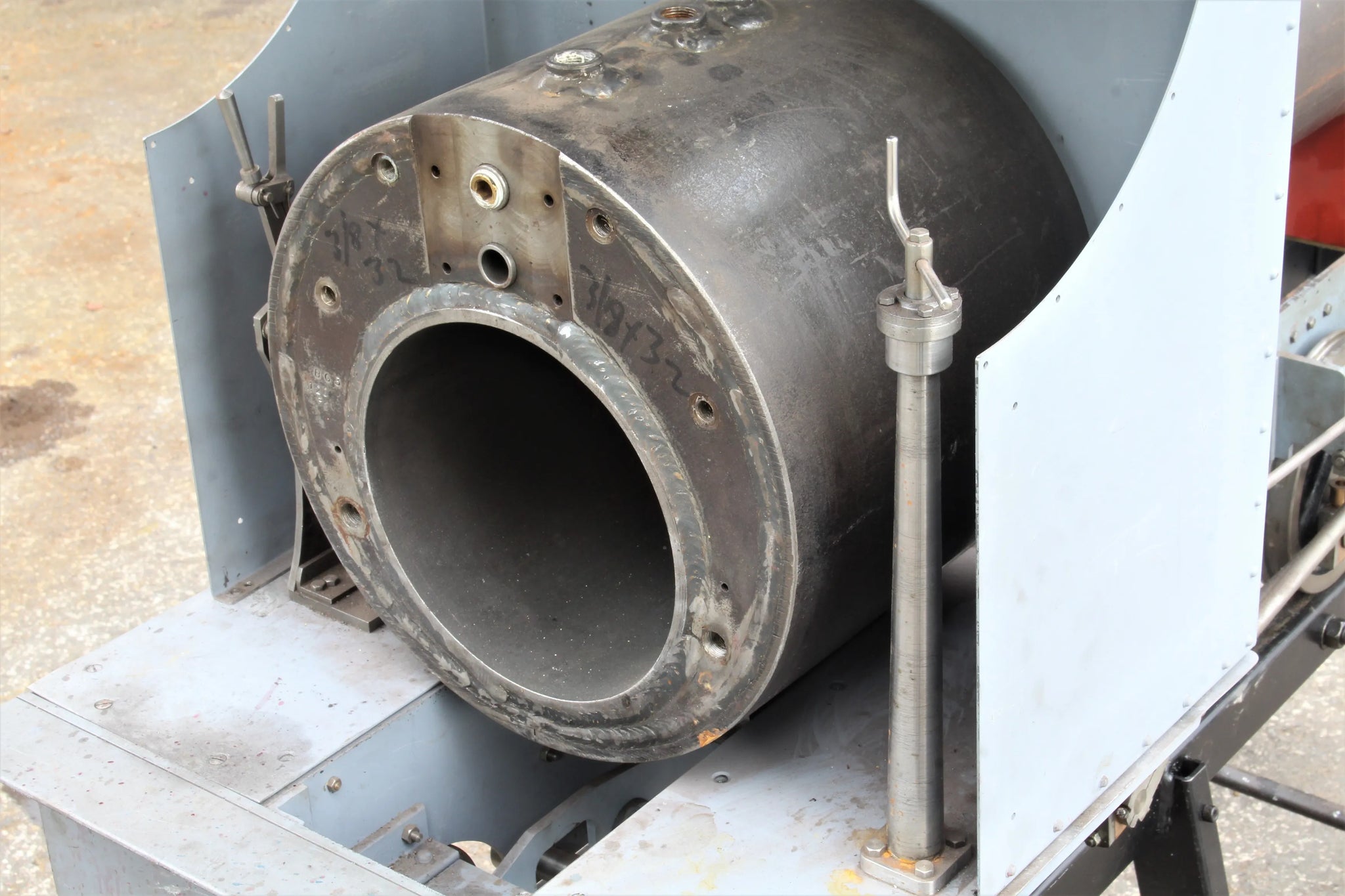

There is a steel boiler fitted, built to a good standard with expanded tubes, however with no paperwork.

Technical information

Stock code

8751

Gauge

7 1/4 inch

Length/inches

47

Width/inches

19

Height/inches

31

Weight/Kg

200

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

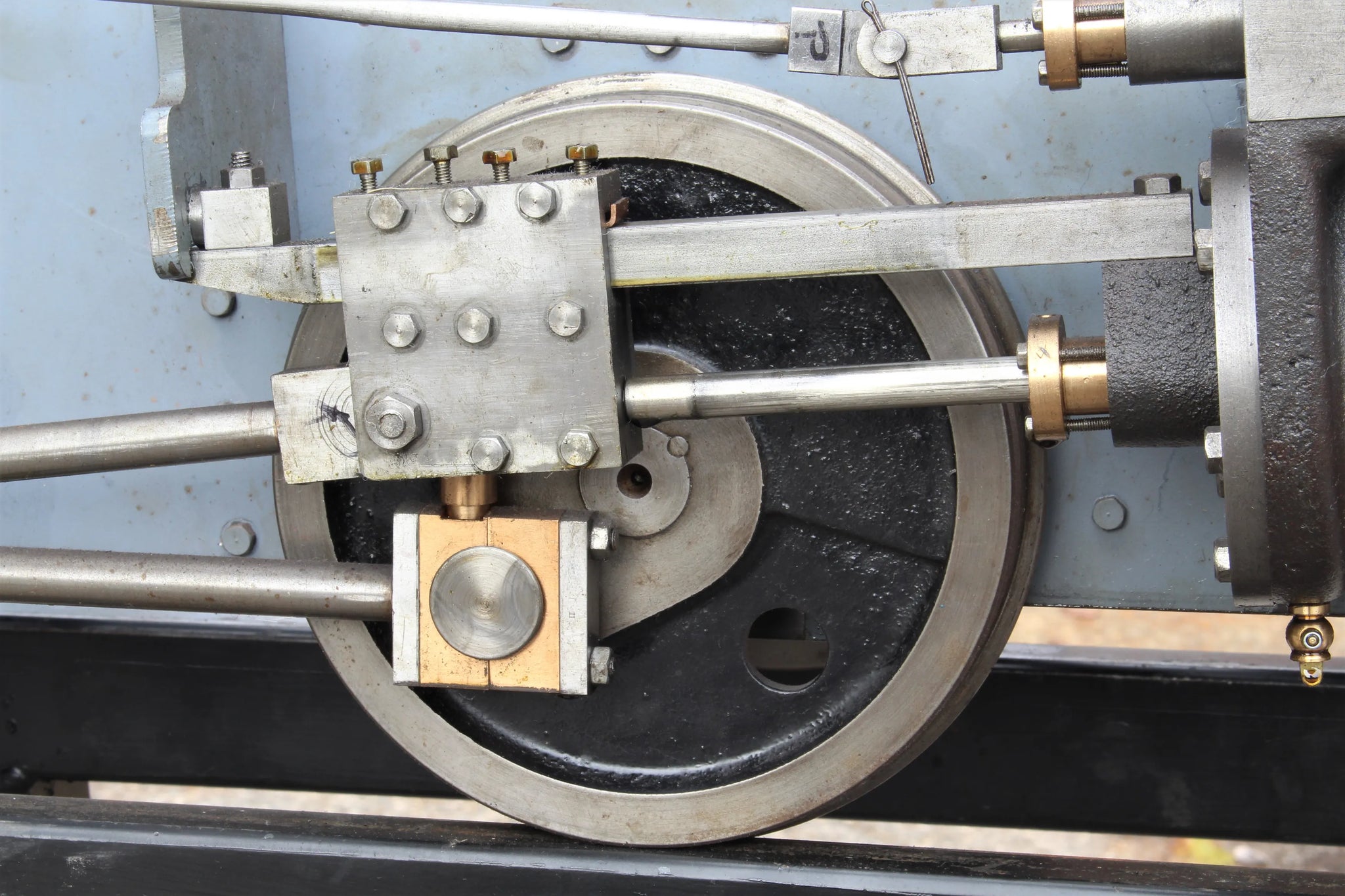

Valve gear

Hackworth

Reverser type

pole

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Bore x stroke

2 1/4 x 3

Date out

Apr-20
