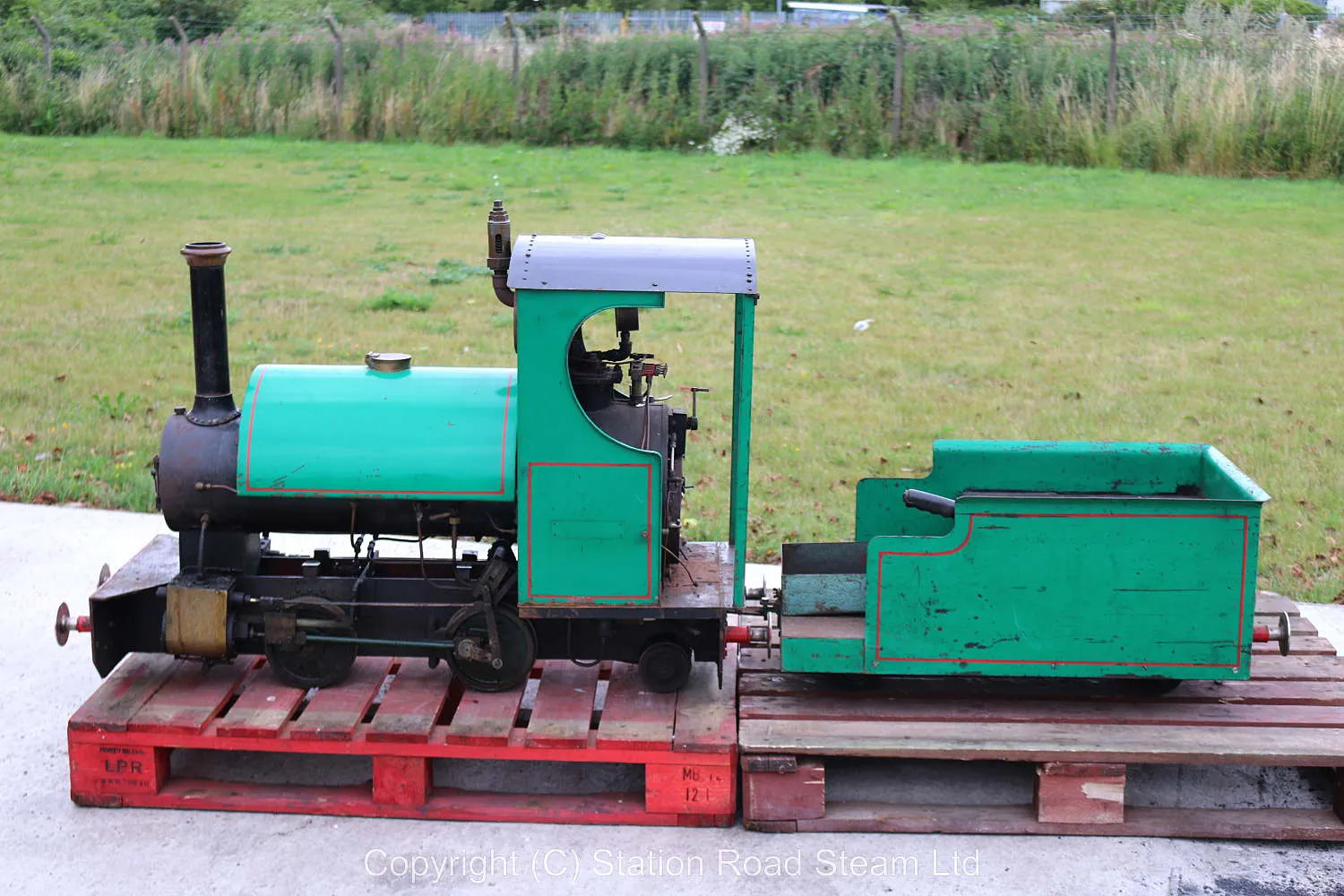

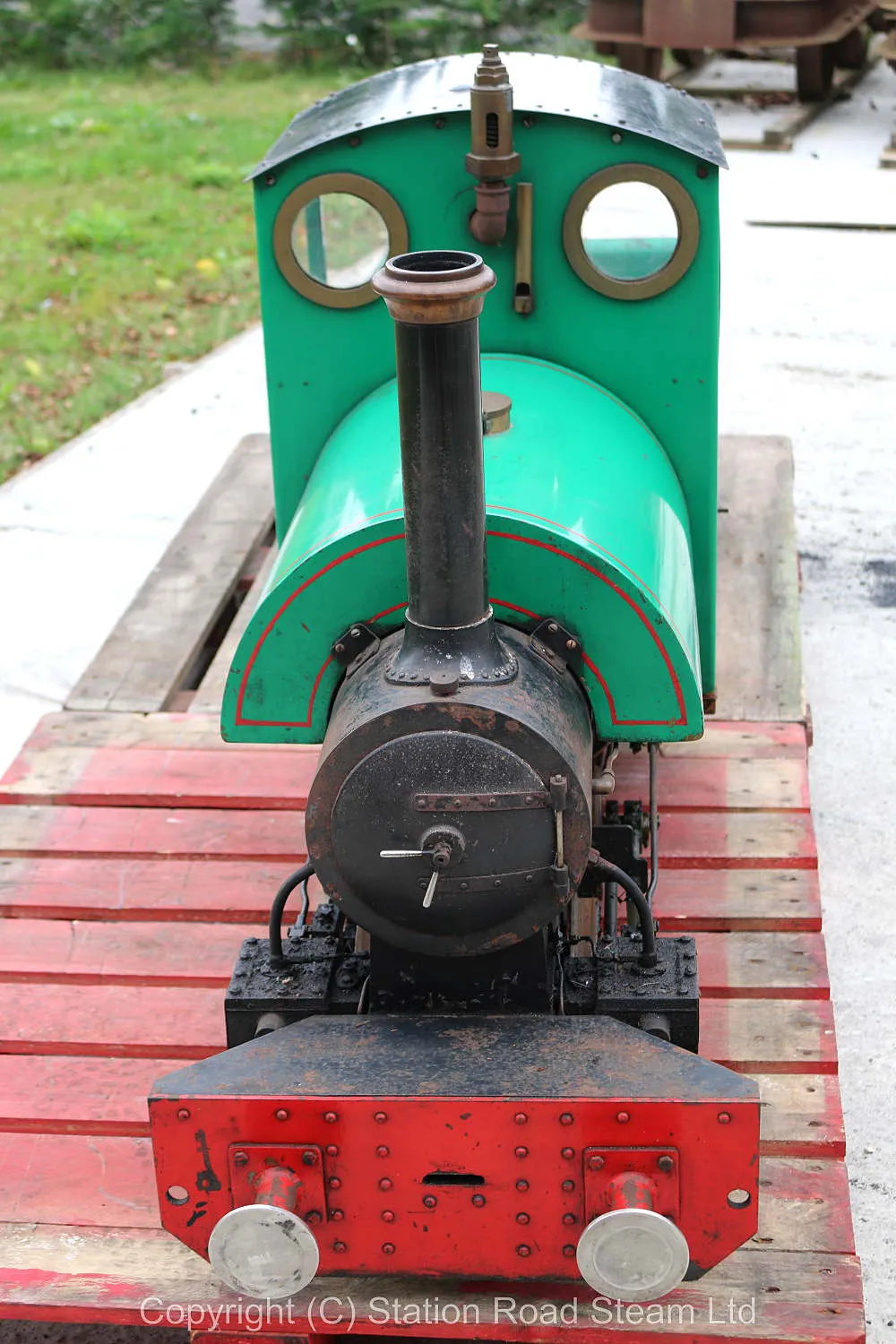

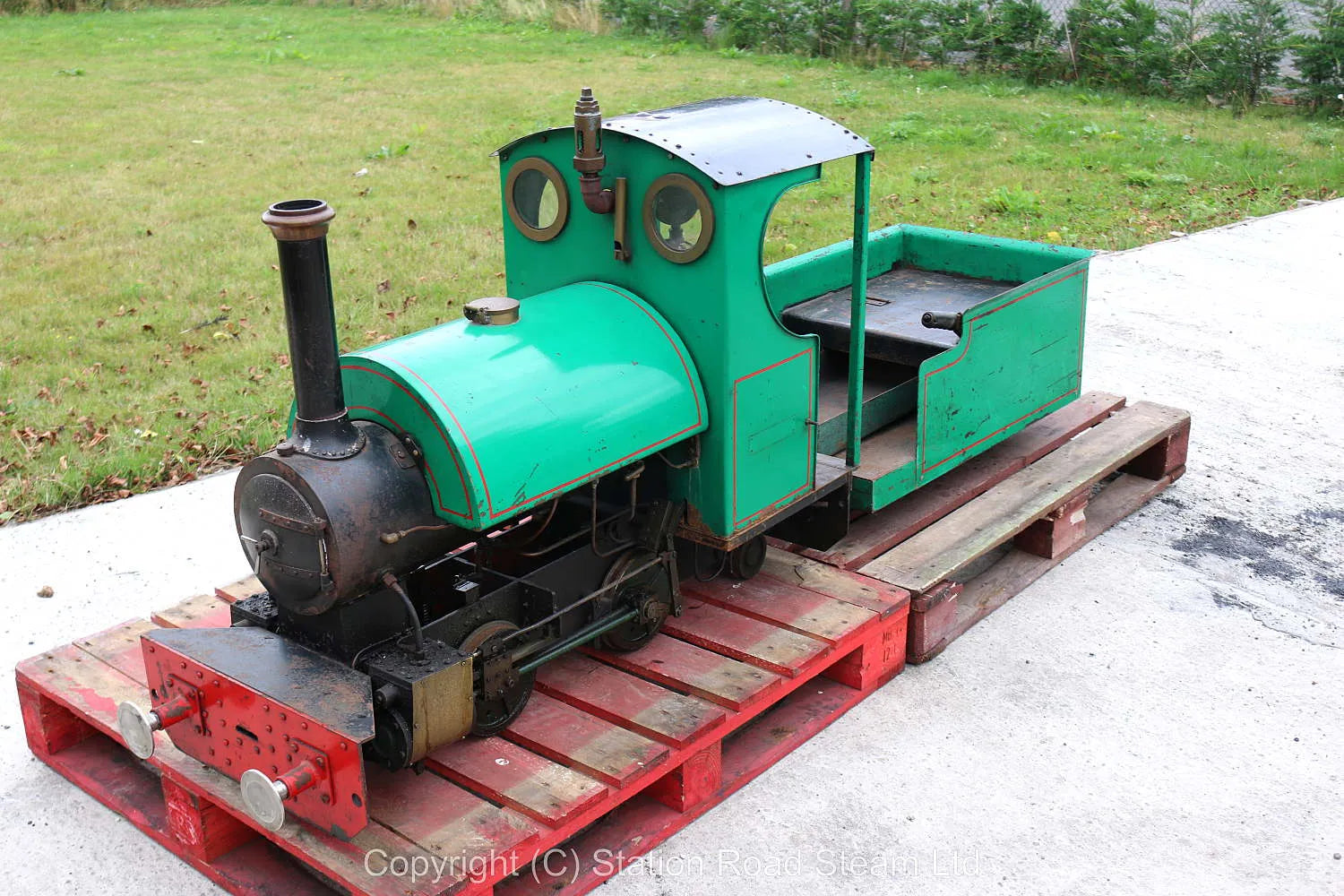

7 1/4 inch gauge "Sweet William" with ride on tender

We sold this one back in 2016 - it's recently come back along with seven other 7 1/4 inch narrow gauge locomotives as the previous owner clears out all the sheds to make room for one very big (and historically interesting) locomotive. Words below and pictures opposite were taken in 2016 - it looks very similar now.

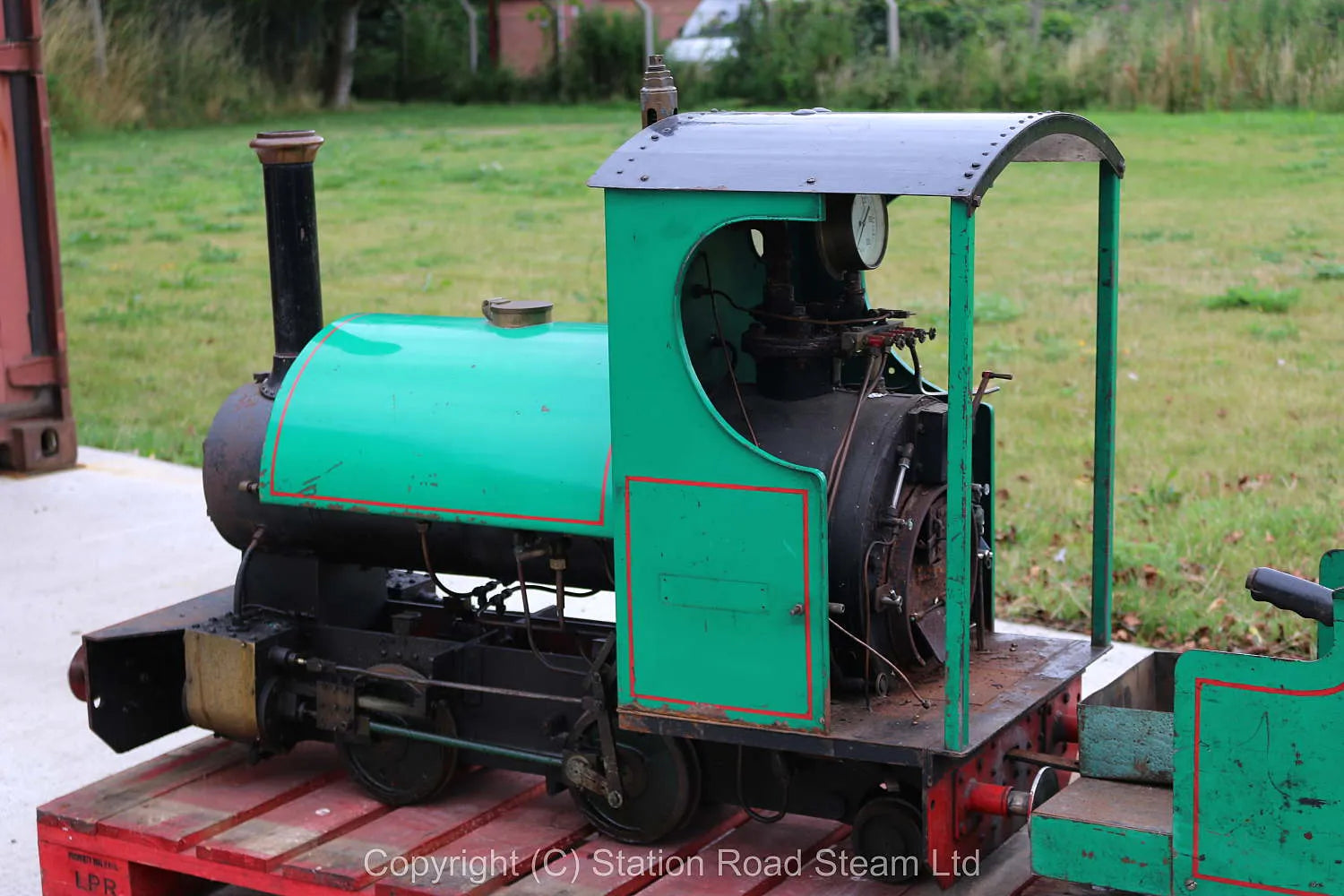

A barn find "Sweet William" 0-4-2ST, running until a few years ago - it's recently come as a part exchange. Immensely grubby, what isn't covered in oil (which is most of underneath and the motion) is rusty.

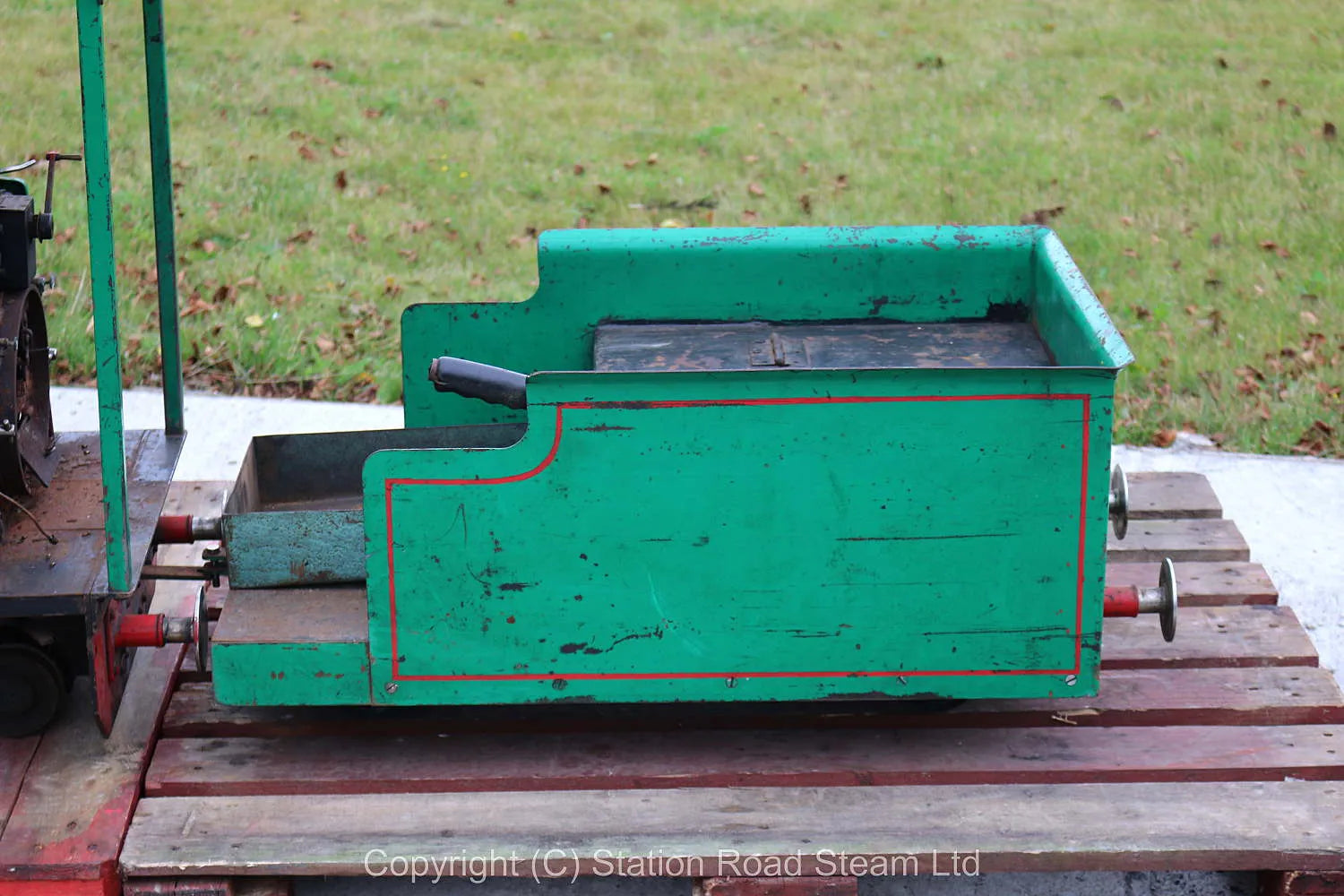

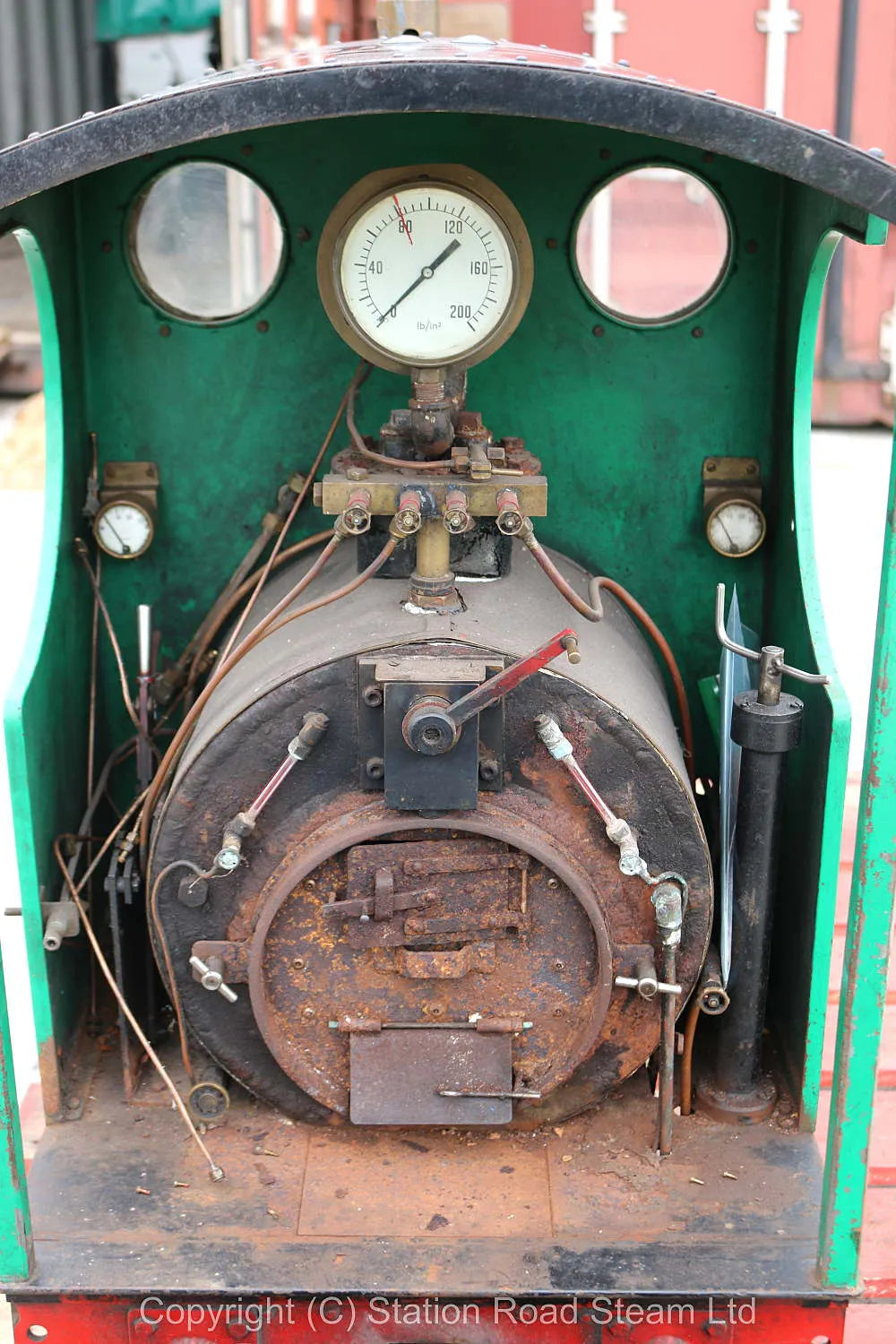

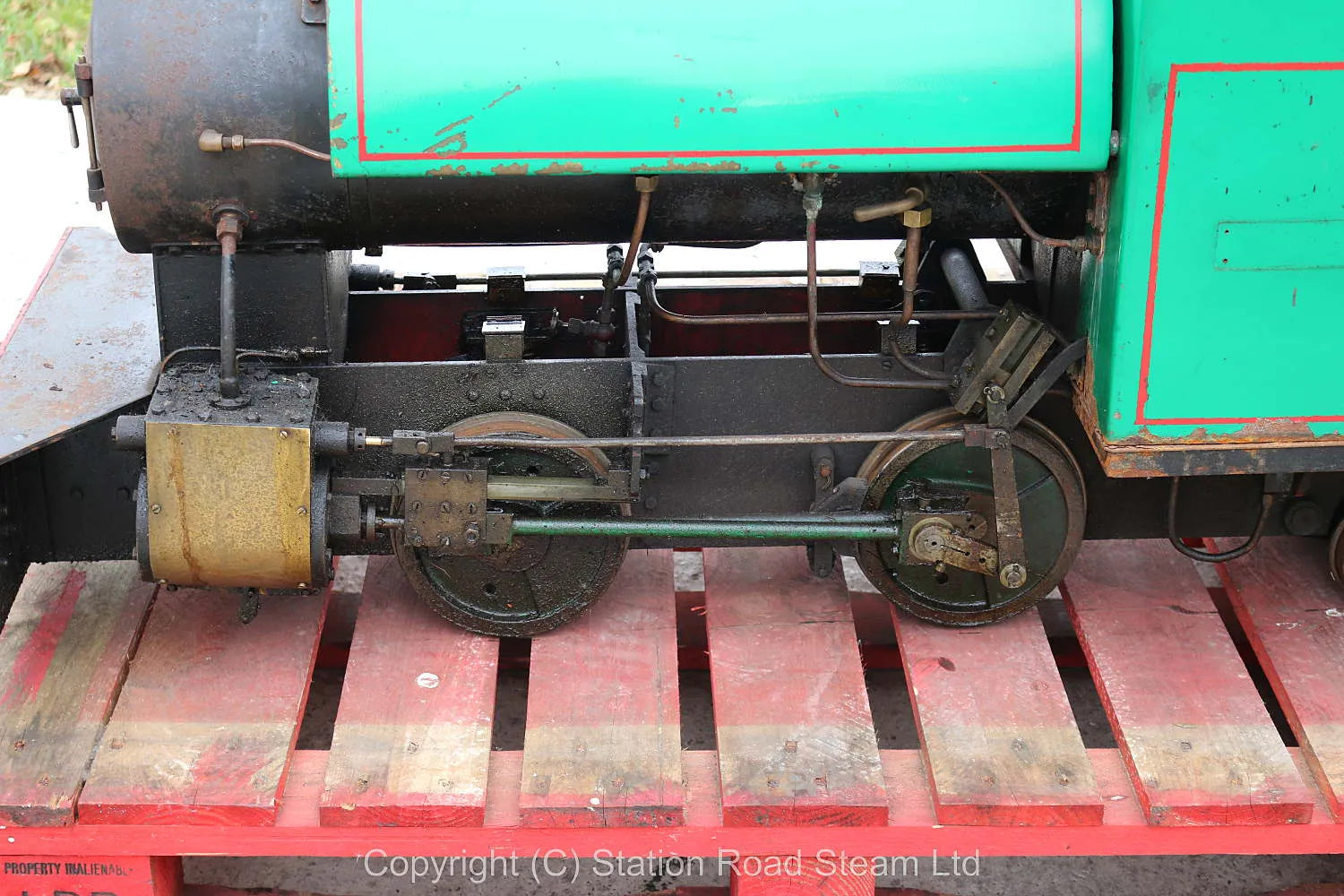

Welded steel boiler with expanded tubes, 80 psi working pressure, feed by twin axle pumps with auxiliary hand pump under the nearside footplate. Cast iron cylinders with slide valves actuated by Hackworth gear, pole reverser, mechanical lubricator. It's a well-built engine, with some nice detail touches like remote axle box oilers, spring buffers and hydraulic brake on tender.



Technical information

Stock code

6640

Gauge

7 1/4 inch

Length/inches

53 + 27

Weight/Kg

est 250 with tender

Wheel material

cast iron

Axlebox type

plain

Cylinder material

cast iron

Valve type

slide

Valve gear

Hackworth

Reverser type

po

Lubricator type

mechanical

Boiler construction

welded, expanded copper tubes

Boiler material

steel

Bore x stroke

2 1/4 x 3

Hand pump

1

Mechanical pump

Twin axle pump

Date out

Jan-16
