9237

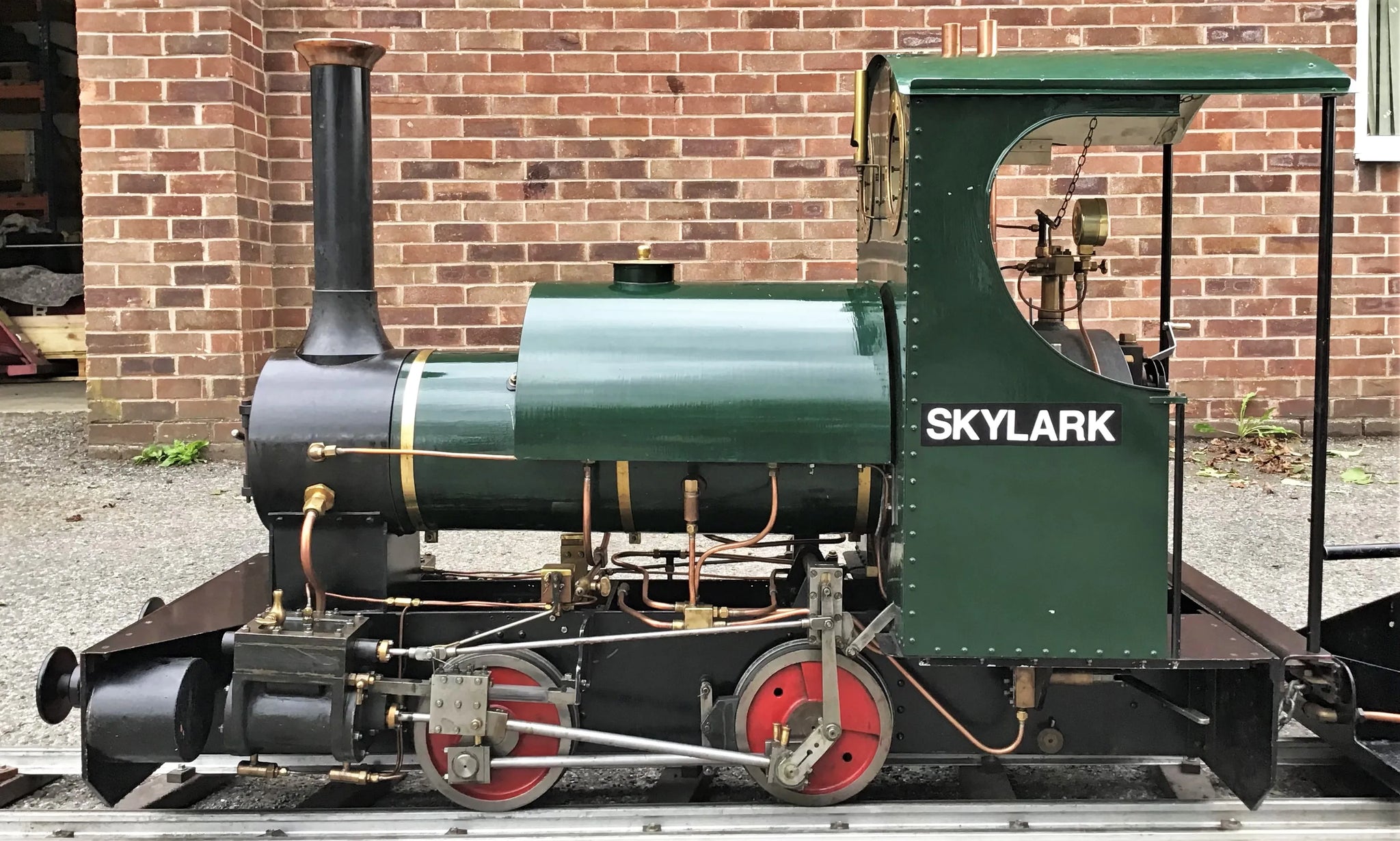

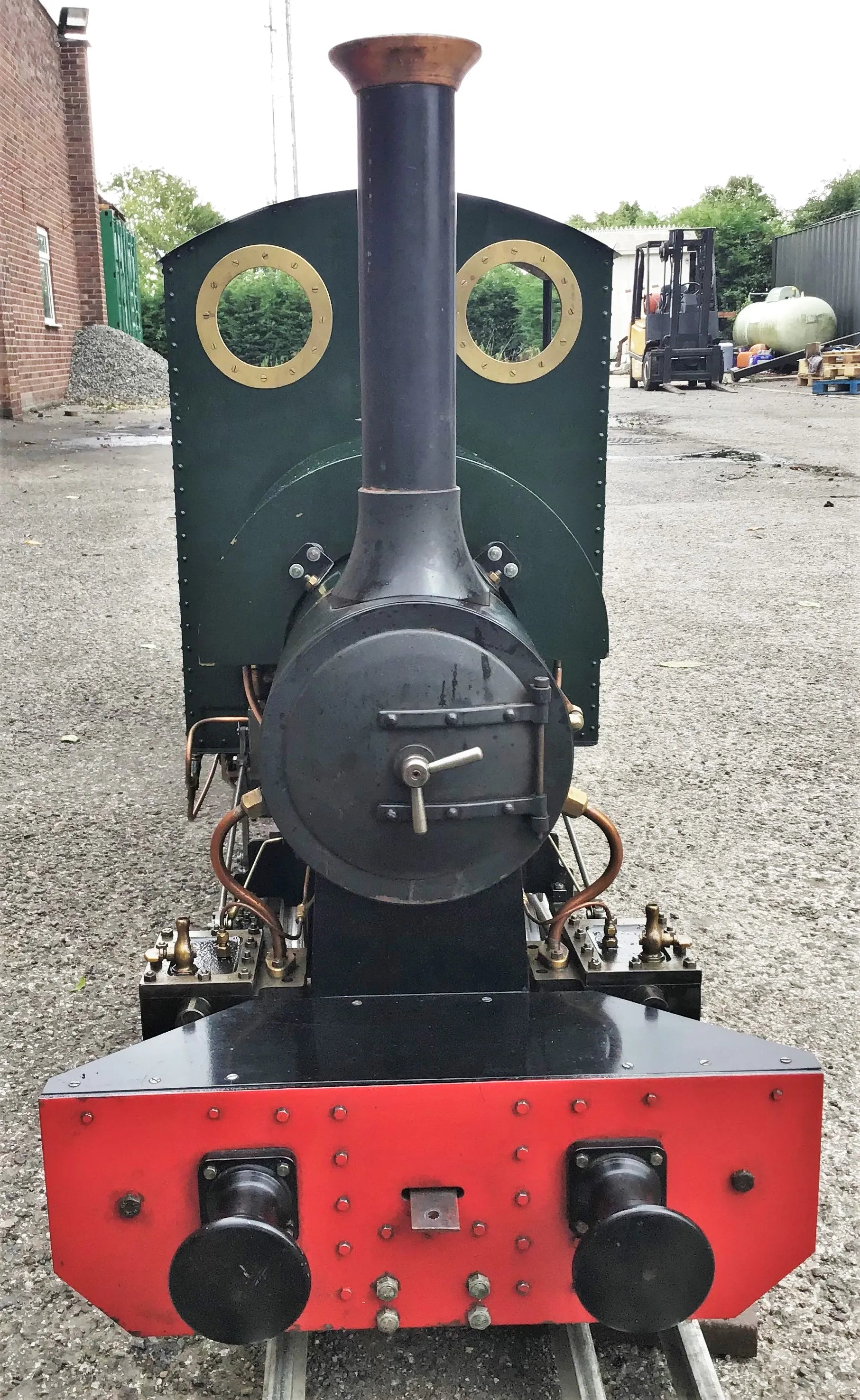

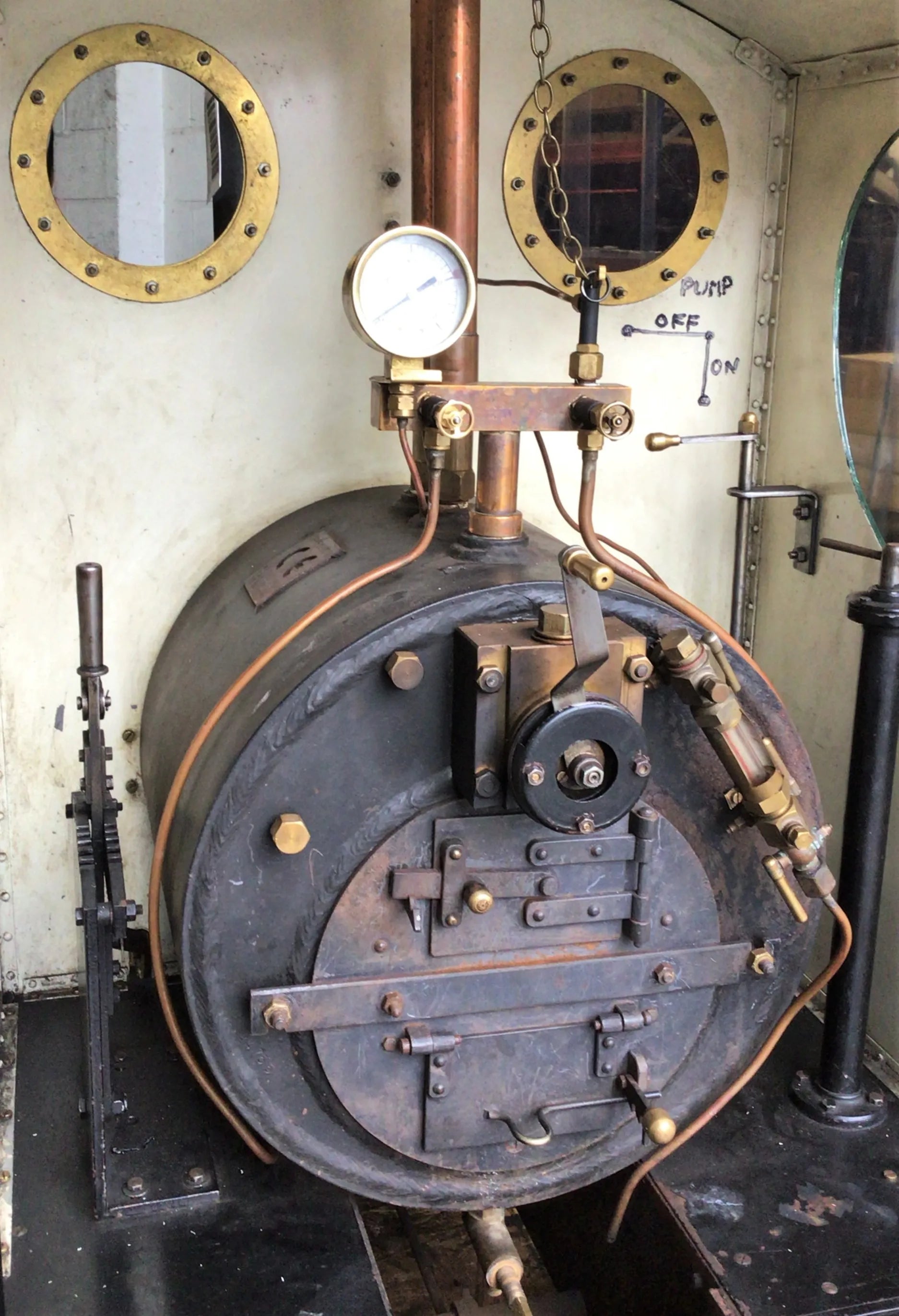

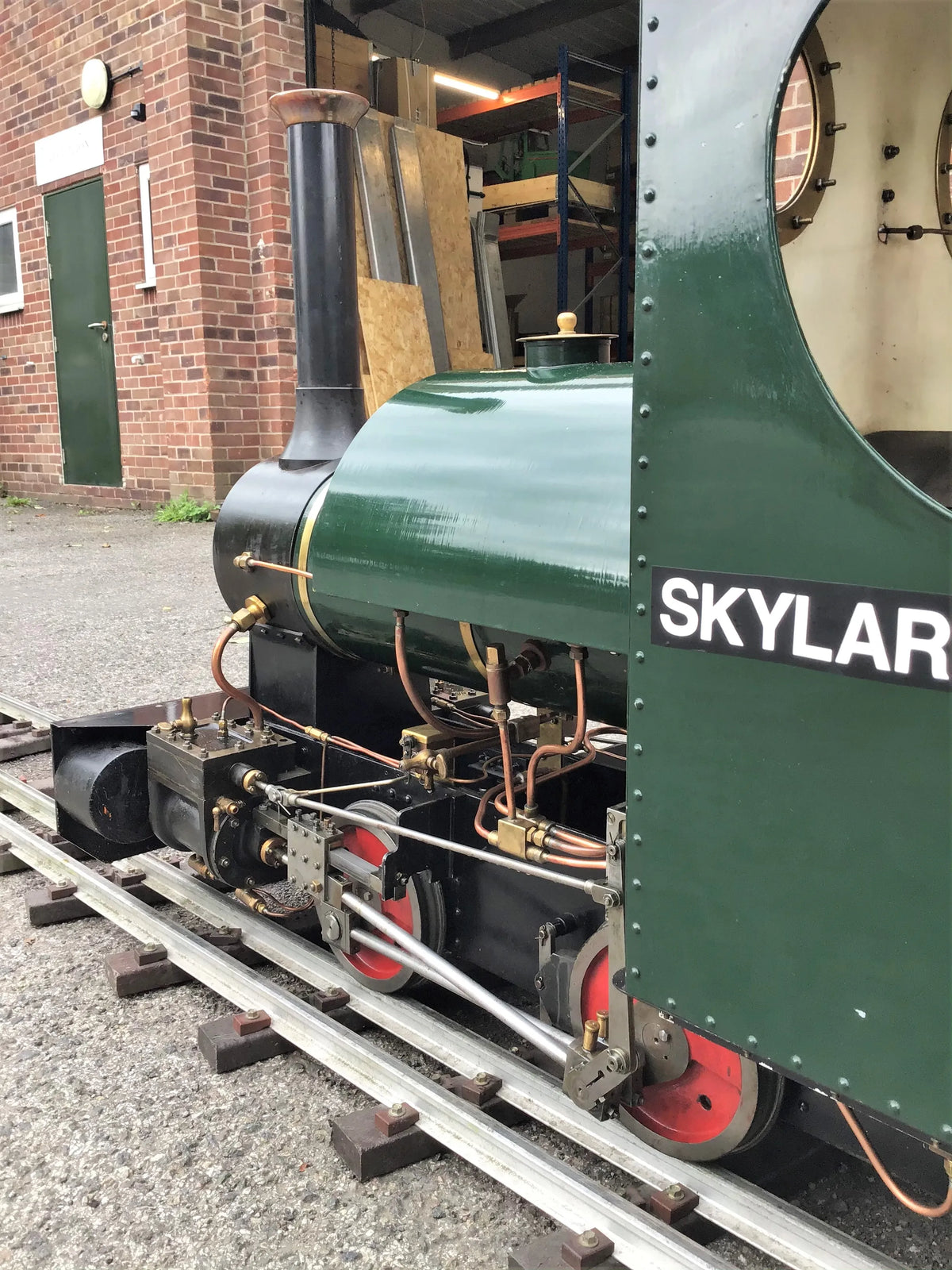

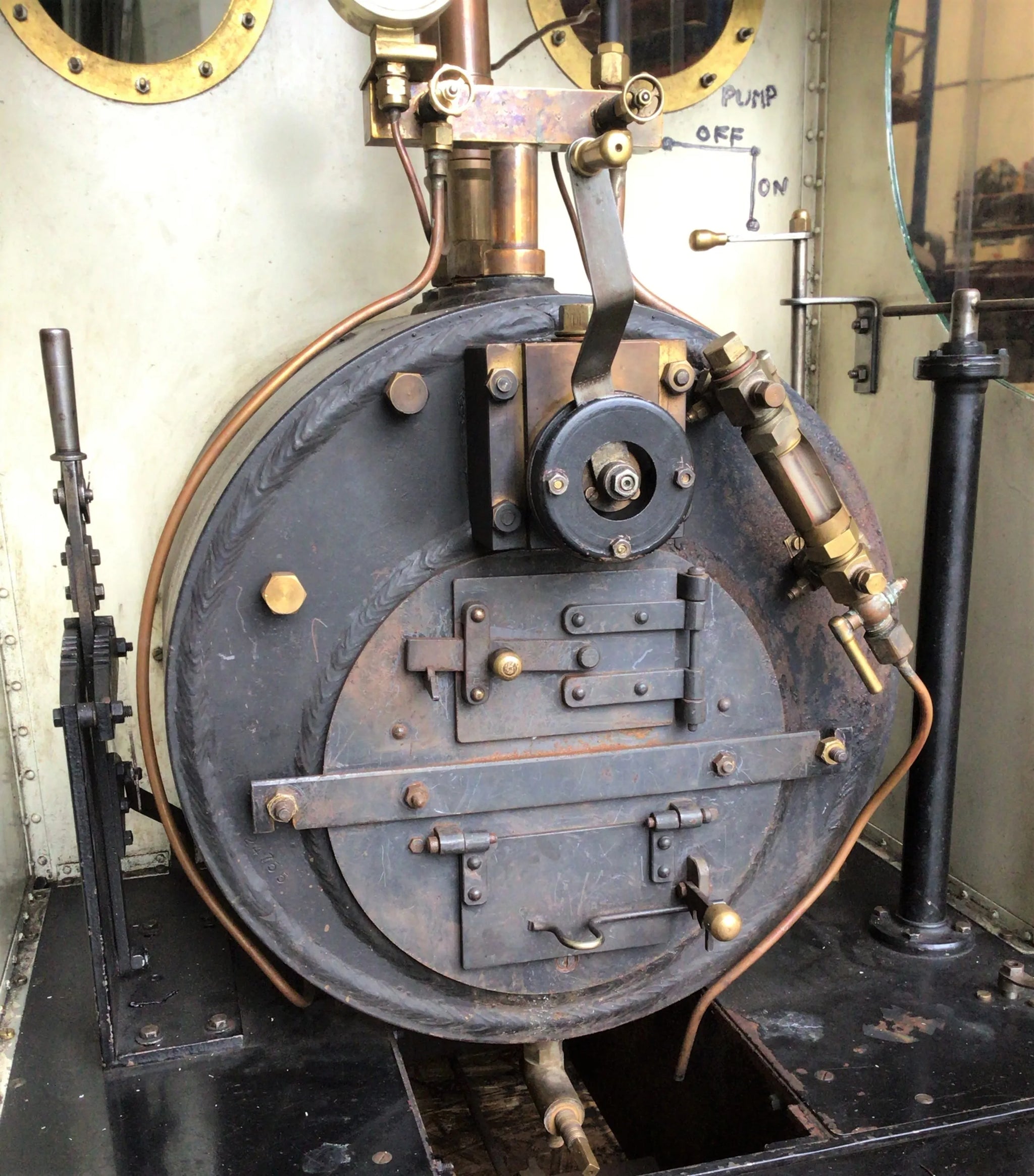

The steel boiler was supplied by John Rex Model Engineers in 2017, the locomotive having its first steam test in April of that year.

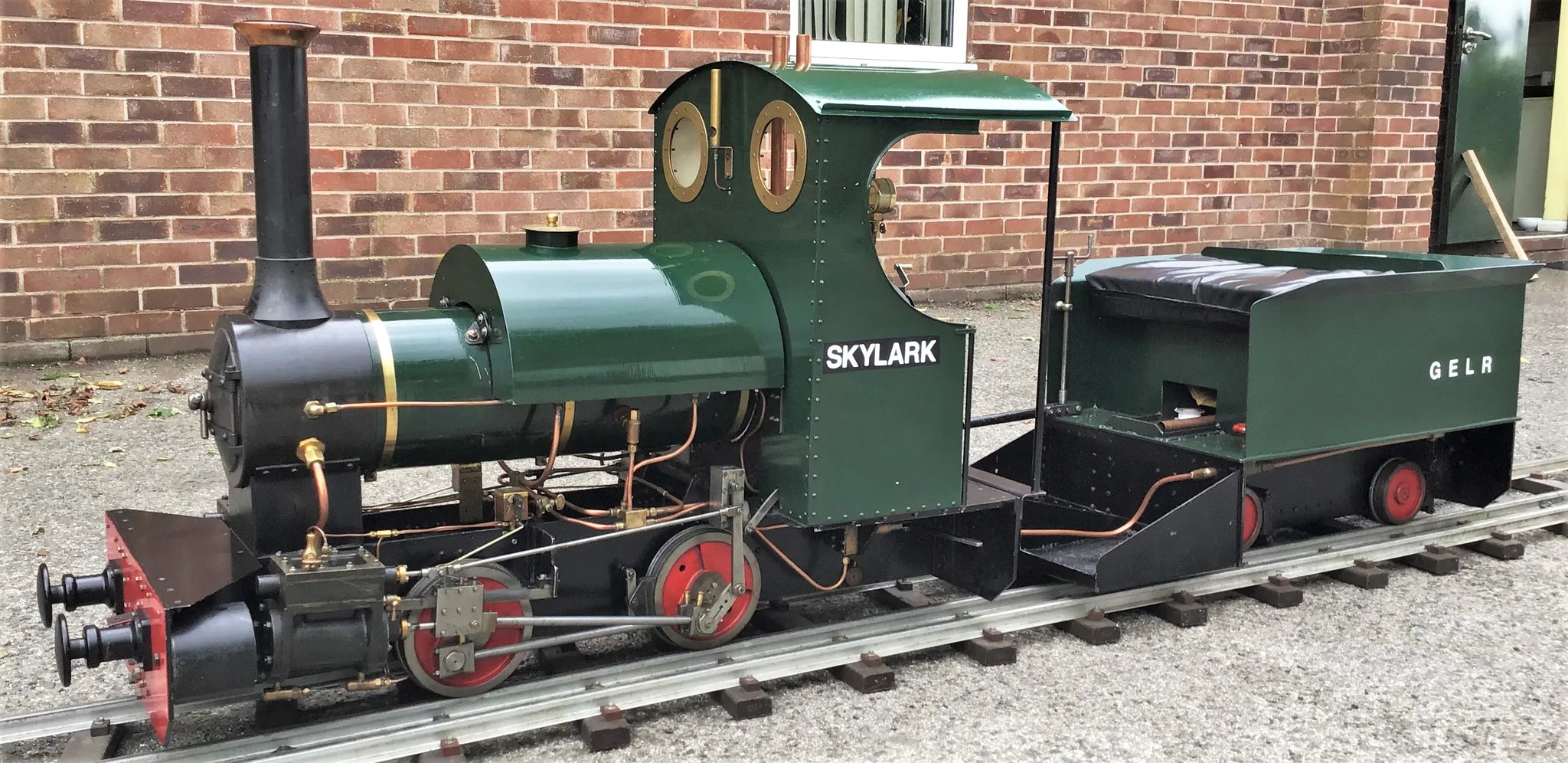

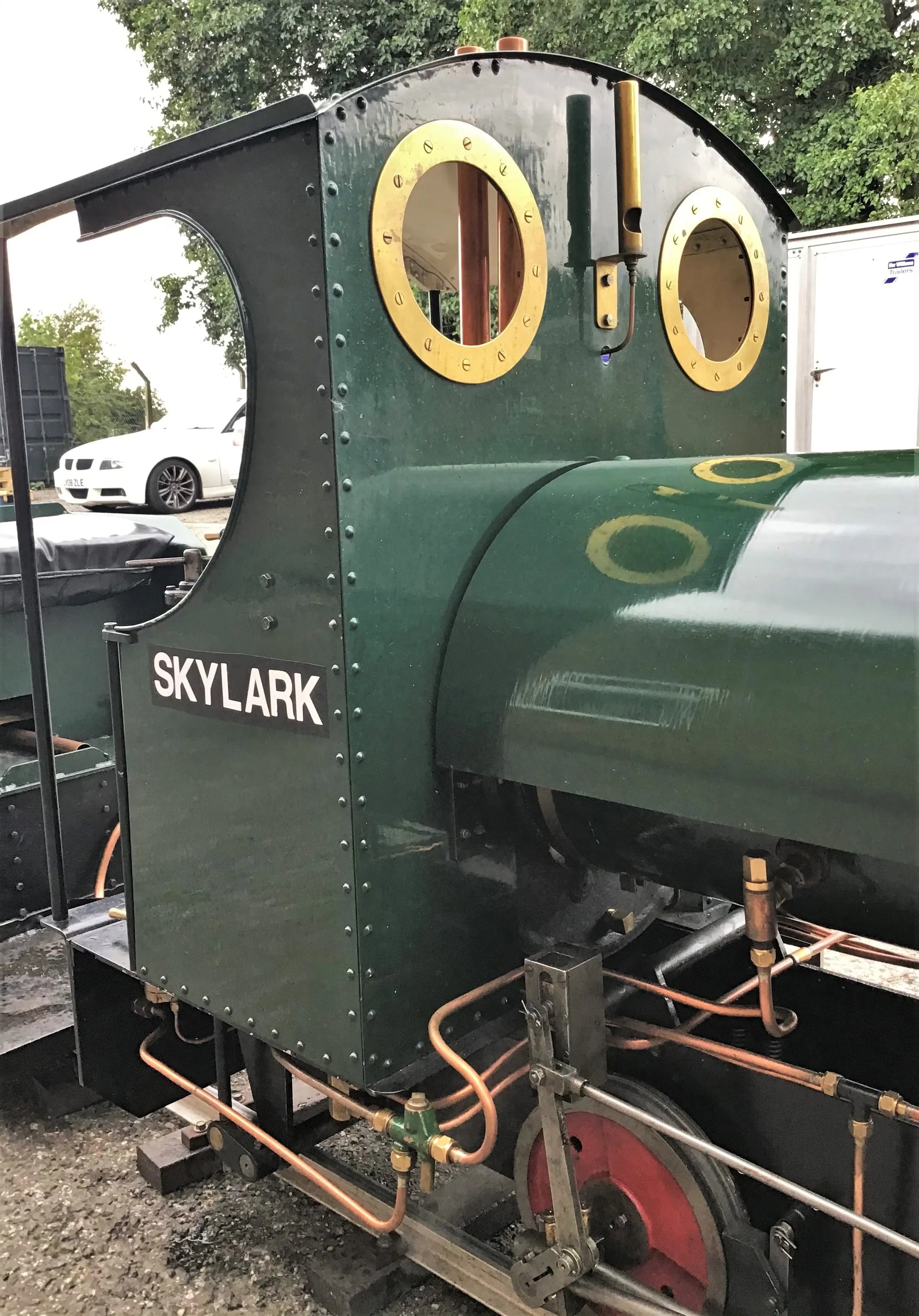

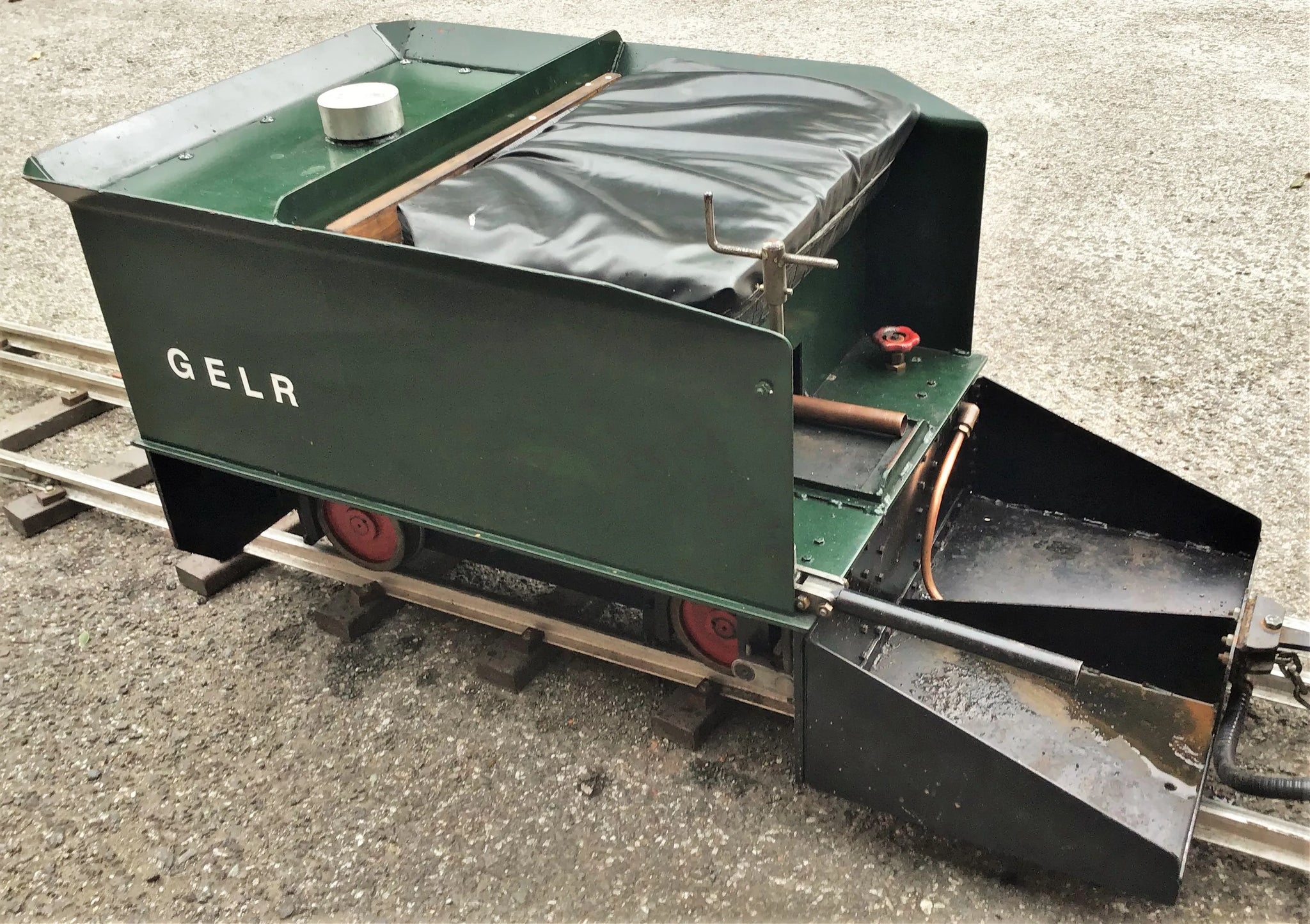

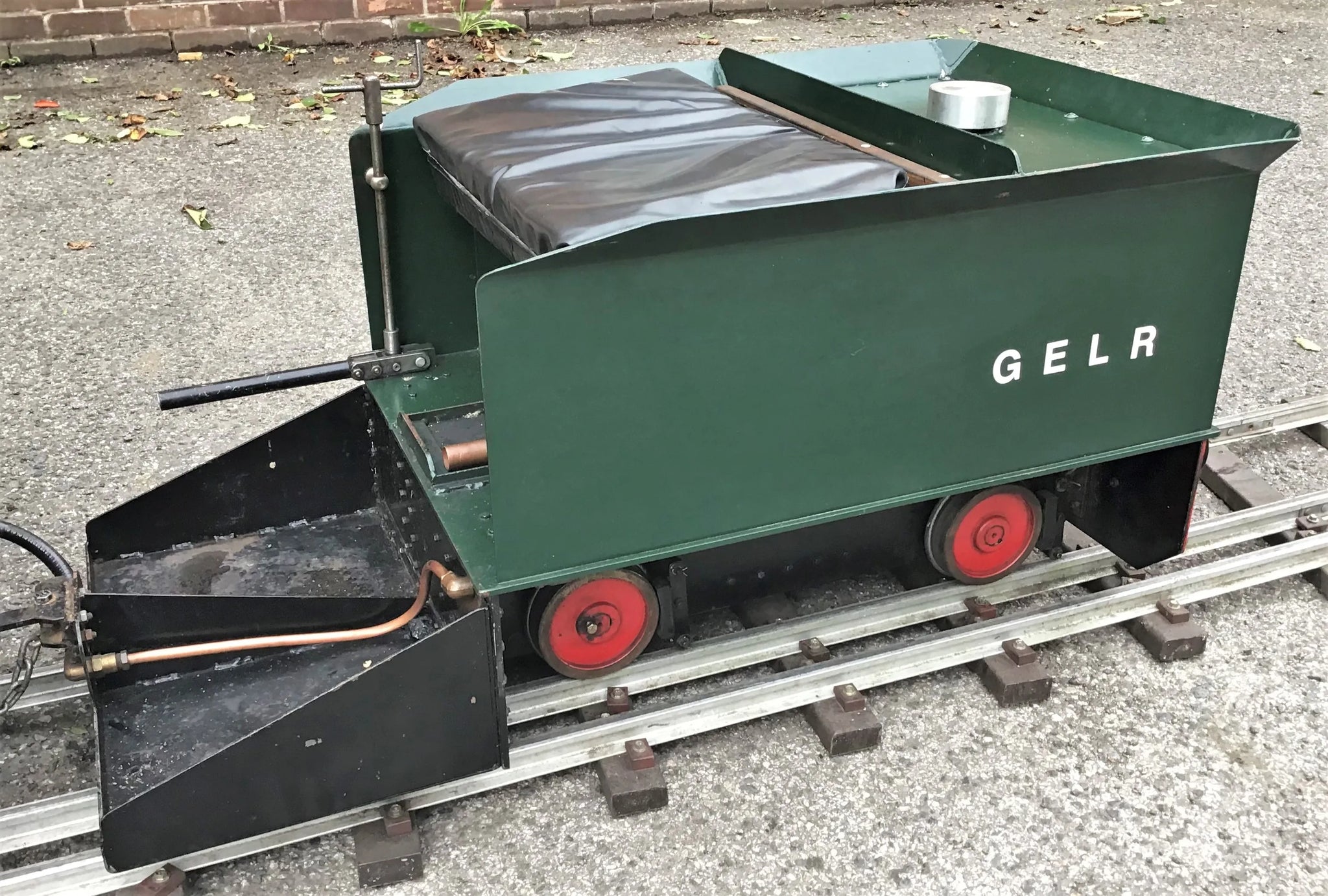

Complete with a steel bodied braked tender carrying a water tank - it provides a comfortable driving position, with upholstered seat and capacious foot tray.
Stock code |
9237 |
Gauge |
7 1/4 inch |
Length/inches |
51 + 46 |
Width/inches |
21 |
Height/inches |
31 |
Wheel material |
cast iron |

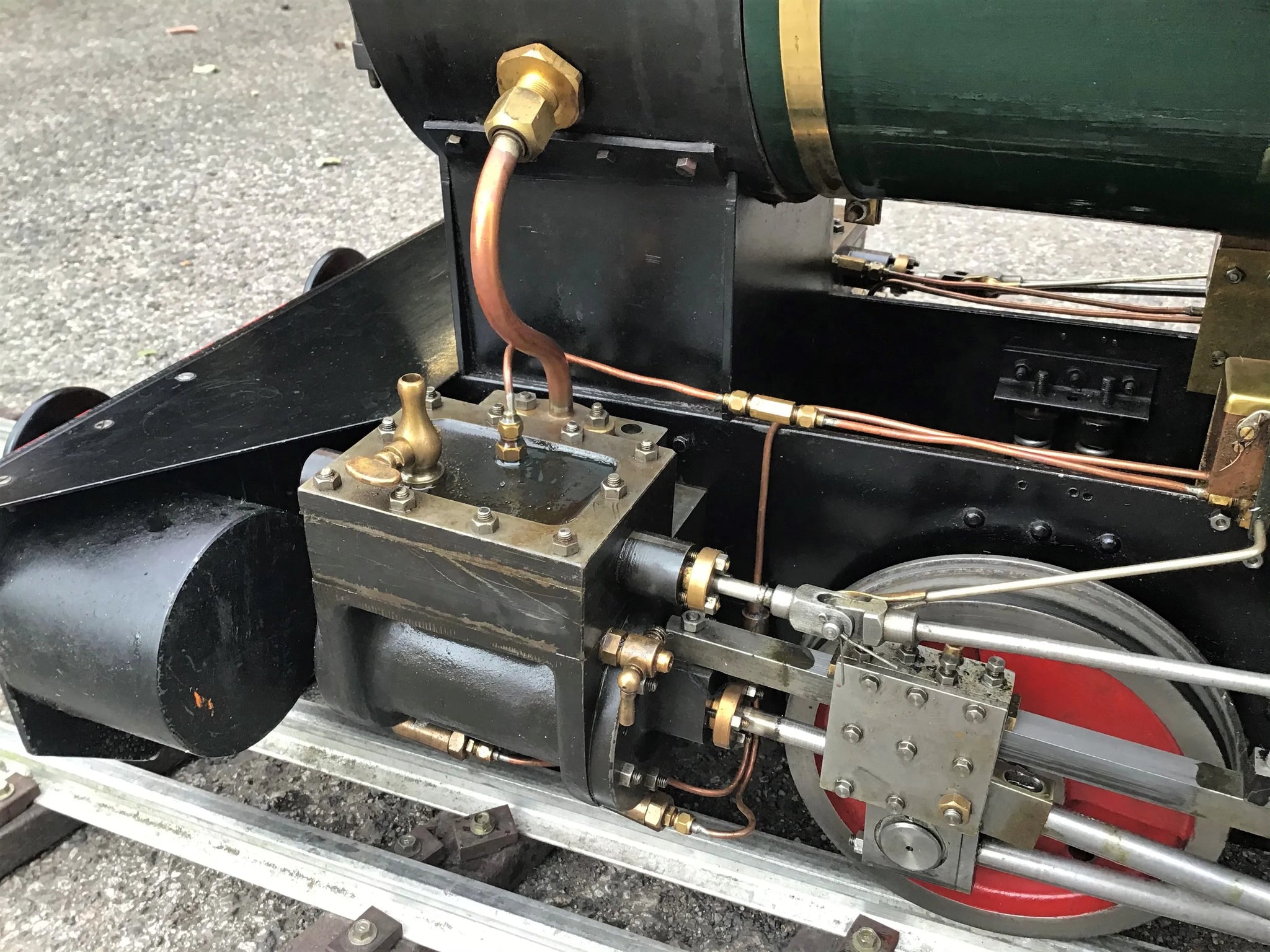

Cylinder material |
cast iron |

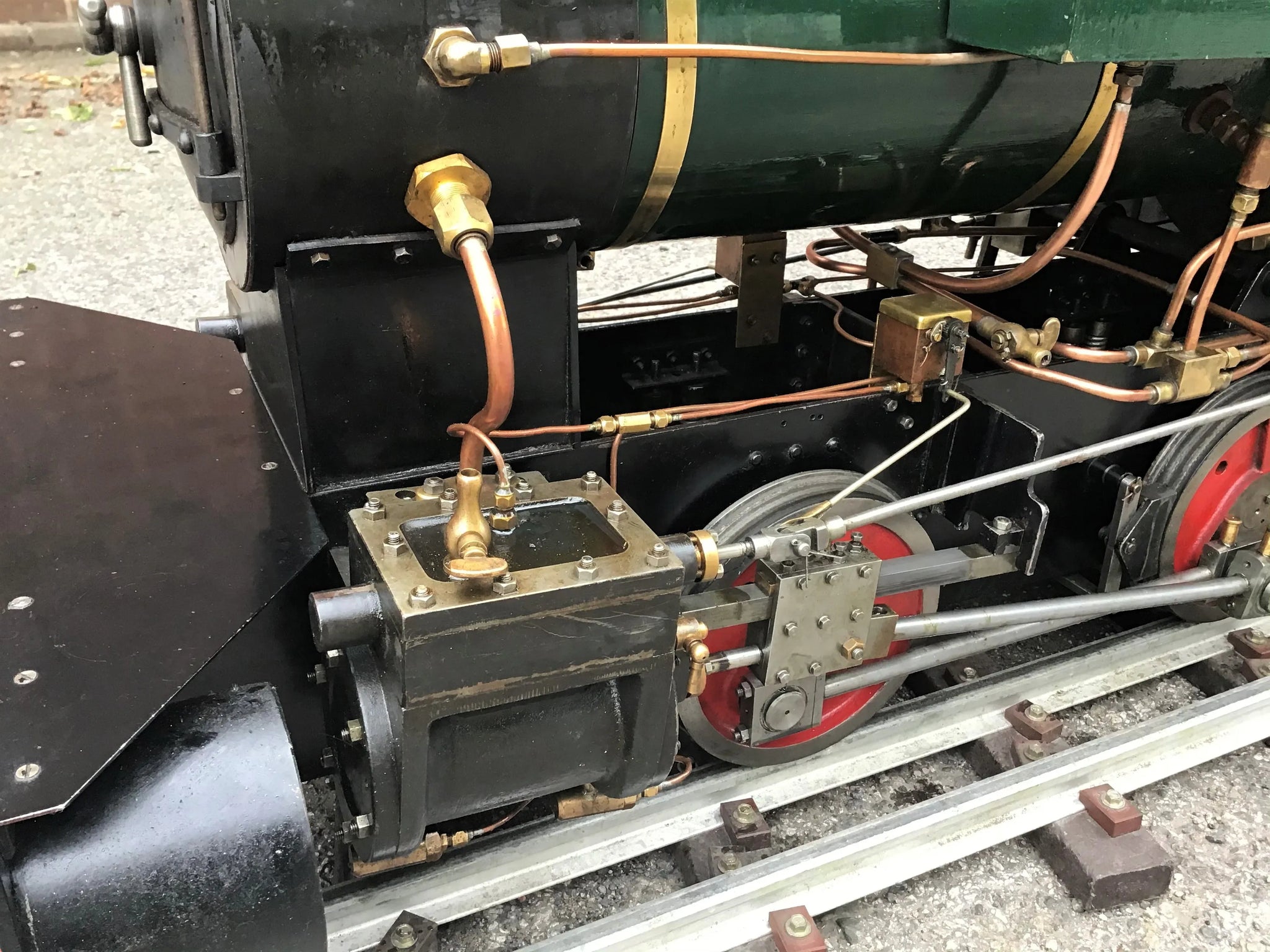

Valve type |
slide |

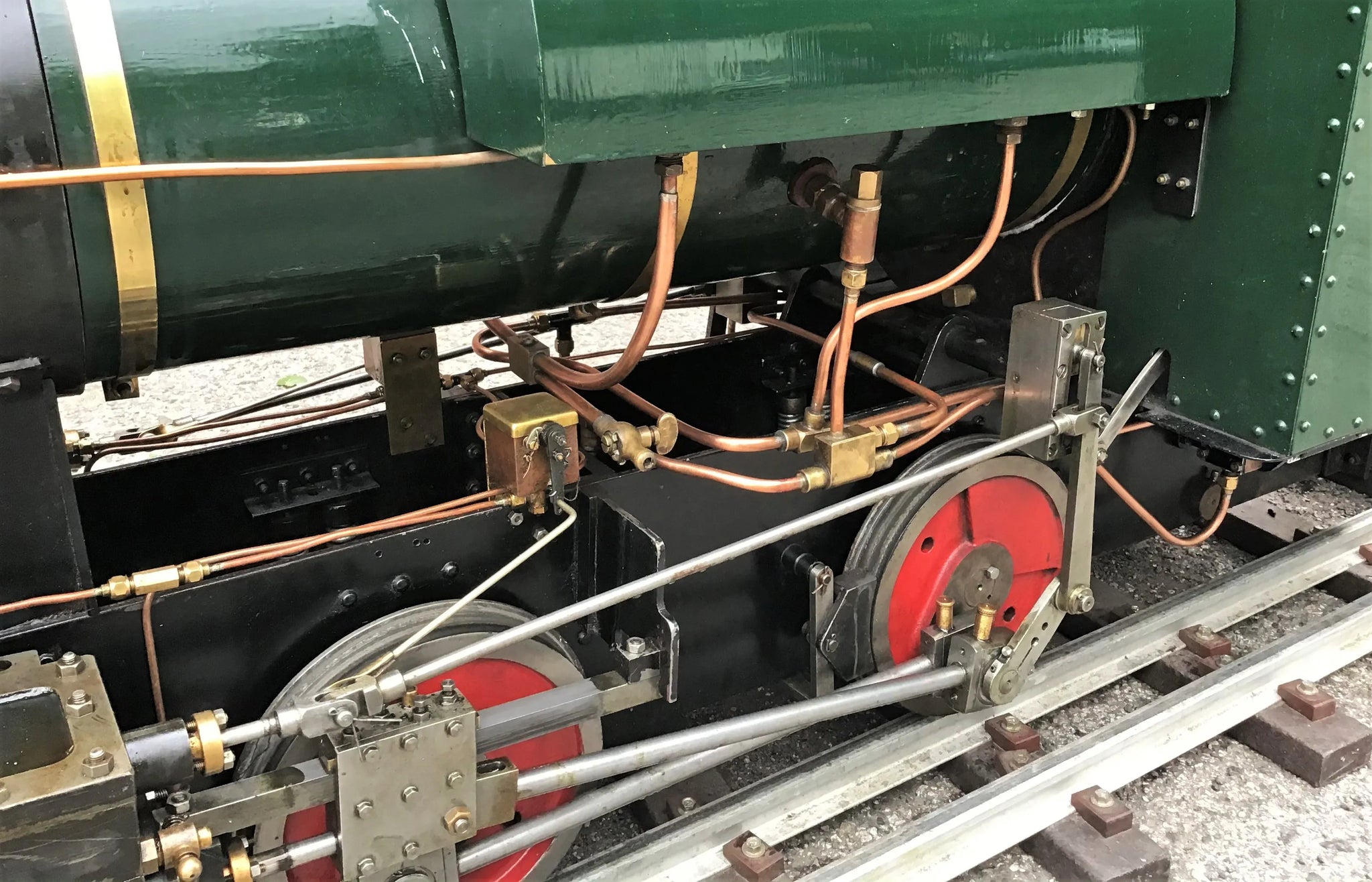

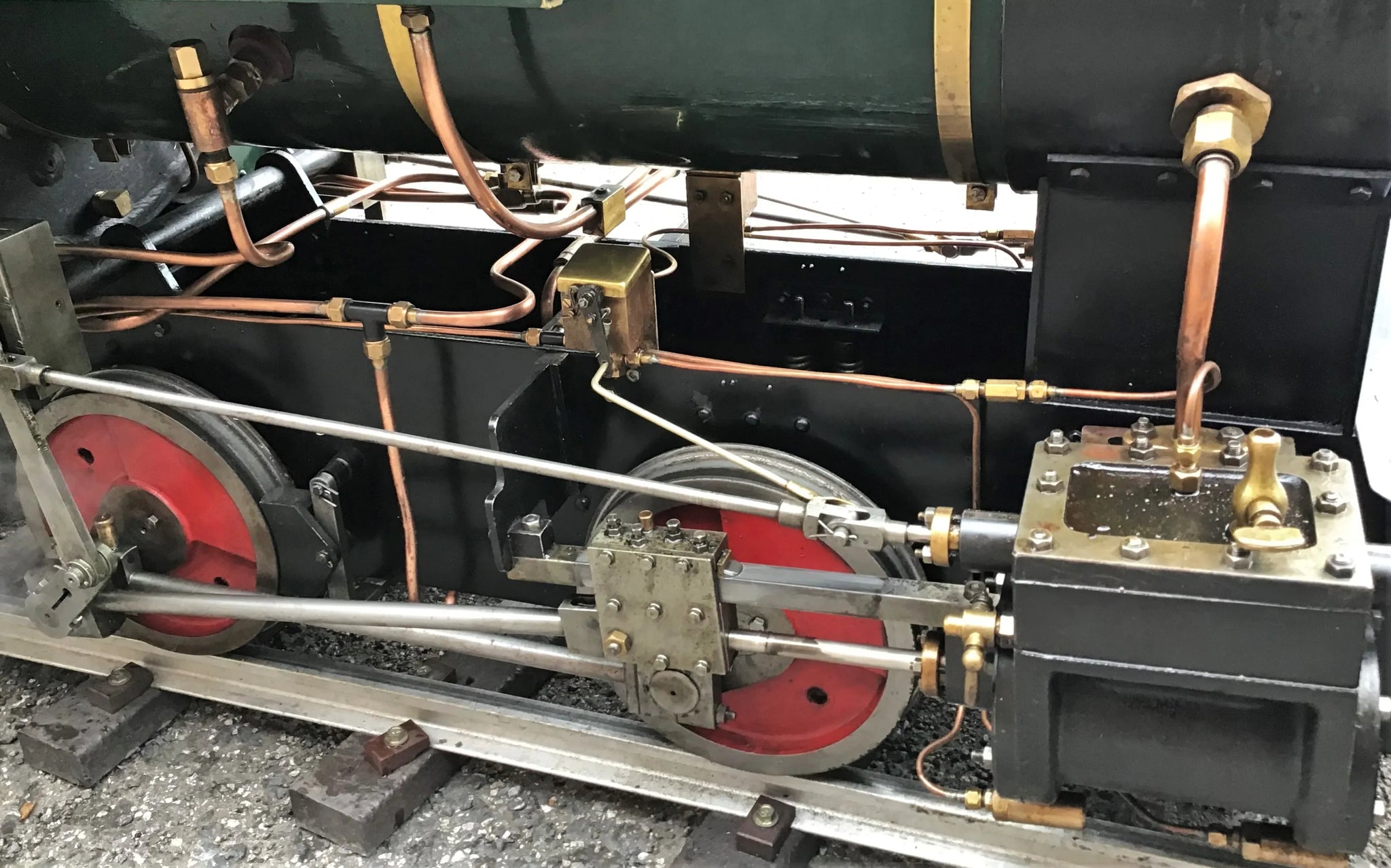

Valve gear |
Hackworth |
Reverser type |
pole |
Lubricator type |
2 x mechanical |
Boiler maker |
John Rex Model Engineers |
Boiler type |
marine |
Boiler construction |
welded, expanded tubes |
Boiler material |
steel |
Working pressure |
120 |
CE/UKCA mark |
yes |
Year built |
2017 |

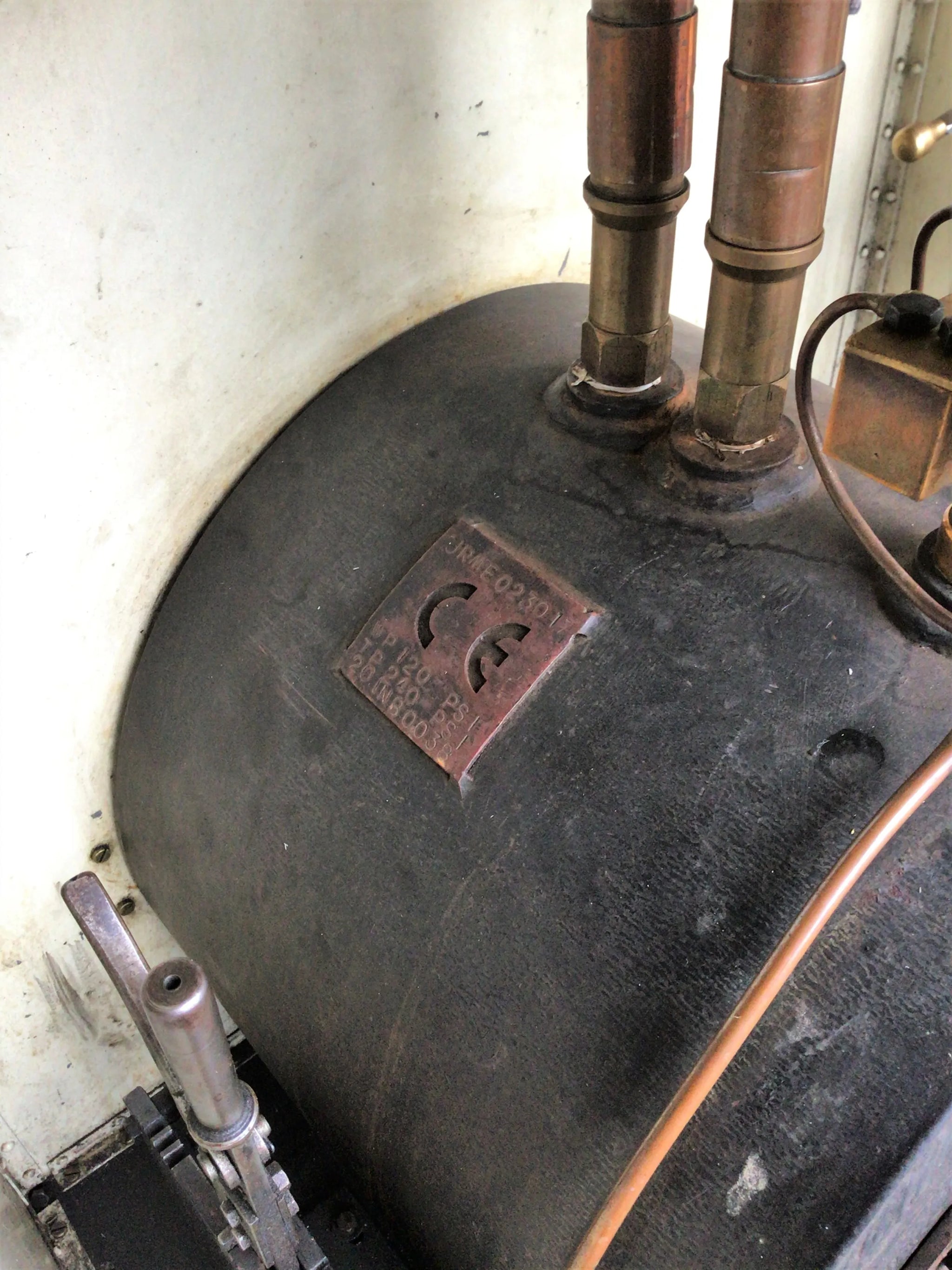

Boiler number |
JRME 0230/17 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
yes |
Bore x stroke |
2 1/4 x 3 |
Hand pump |
1 |
Mechanical pump |
2 x axle |
Injector |
1 |
Date out |
Nov-20 |
Hydraulic test valid to |
25-Aug-22 |
Steam test valid to |
22-Dec-21 |
