Sold

10337

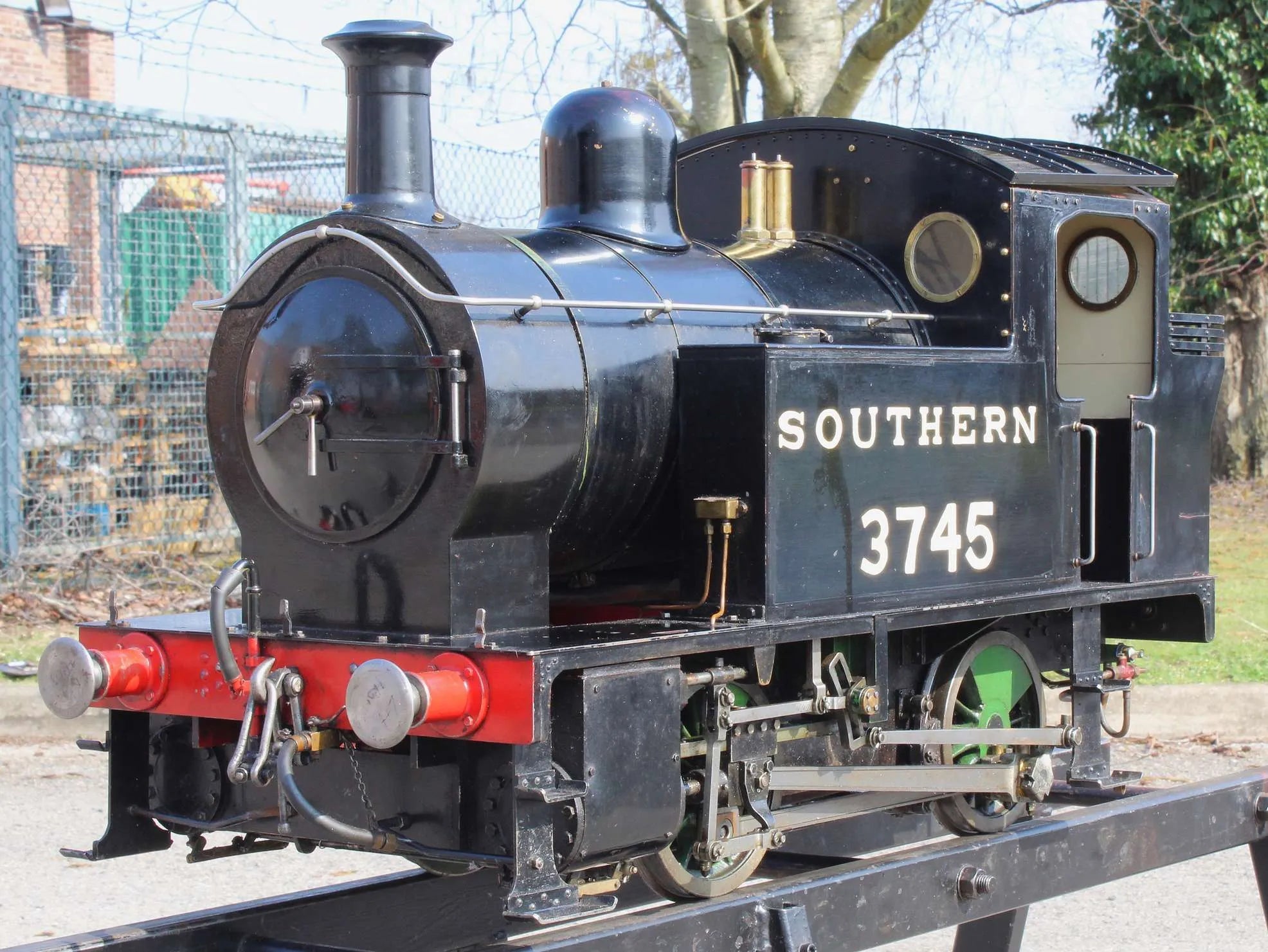

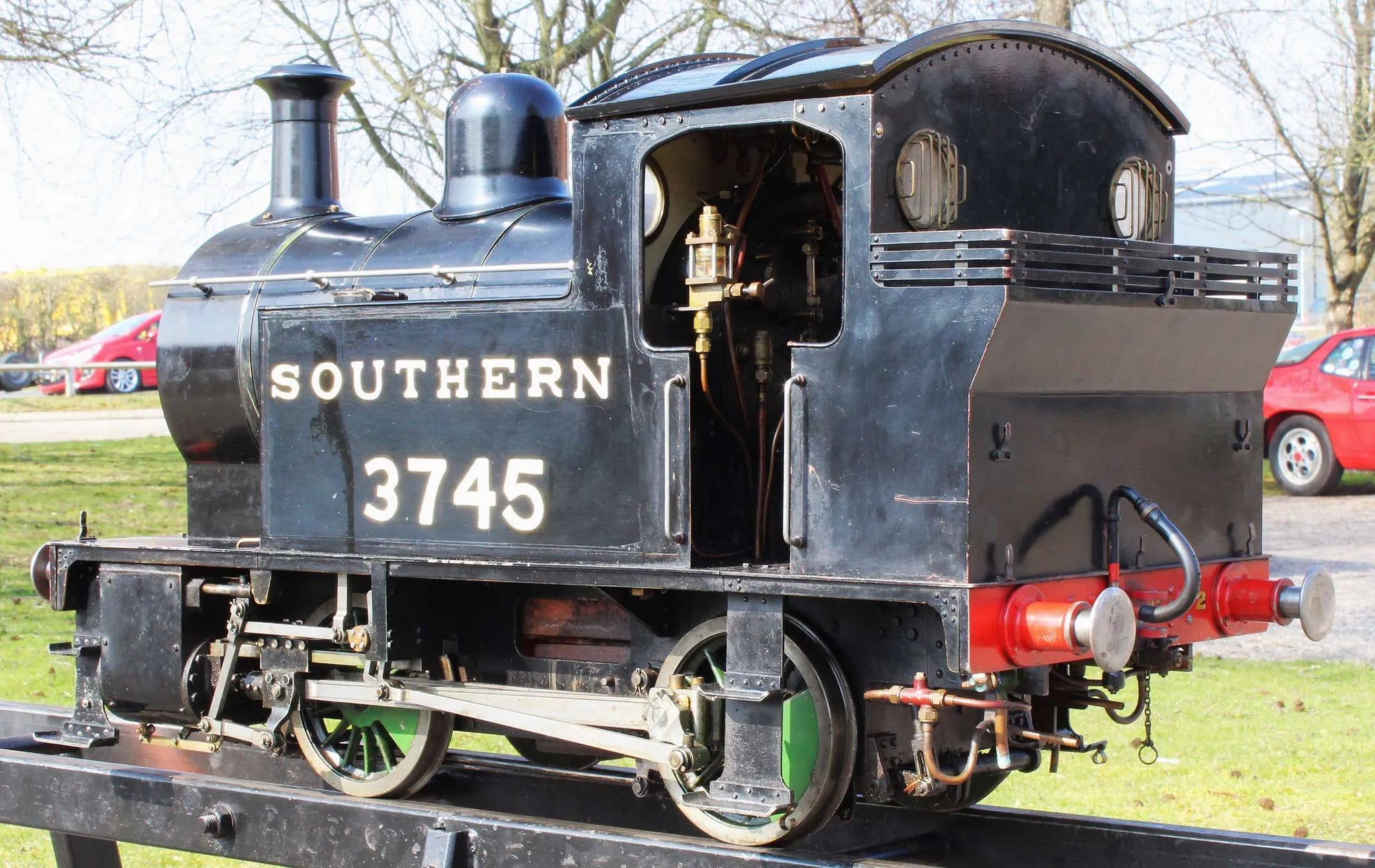

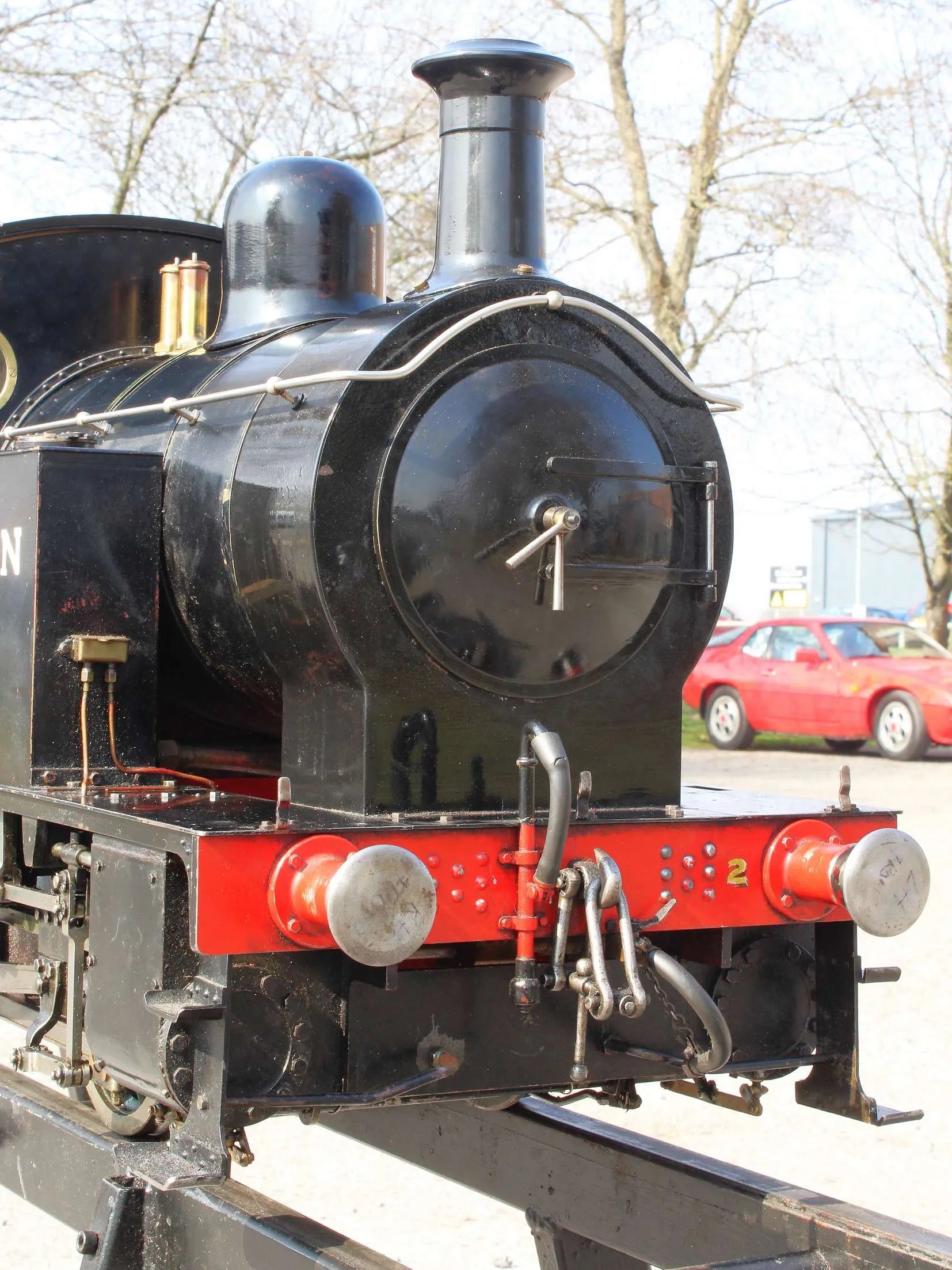

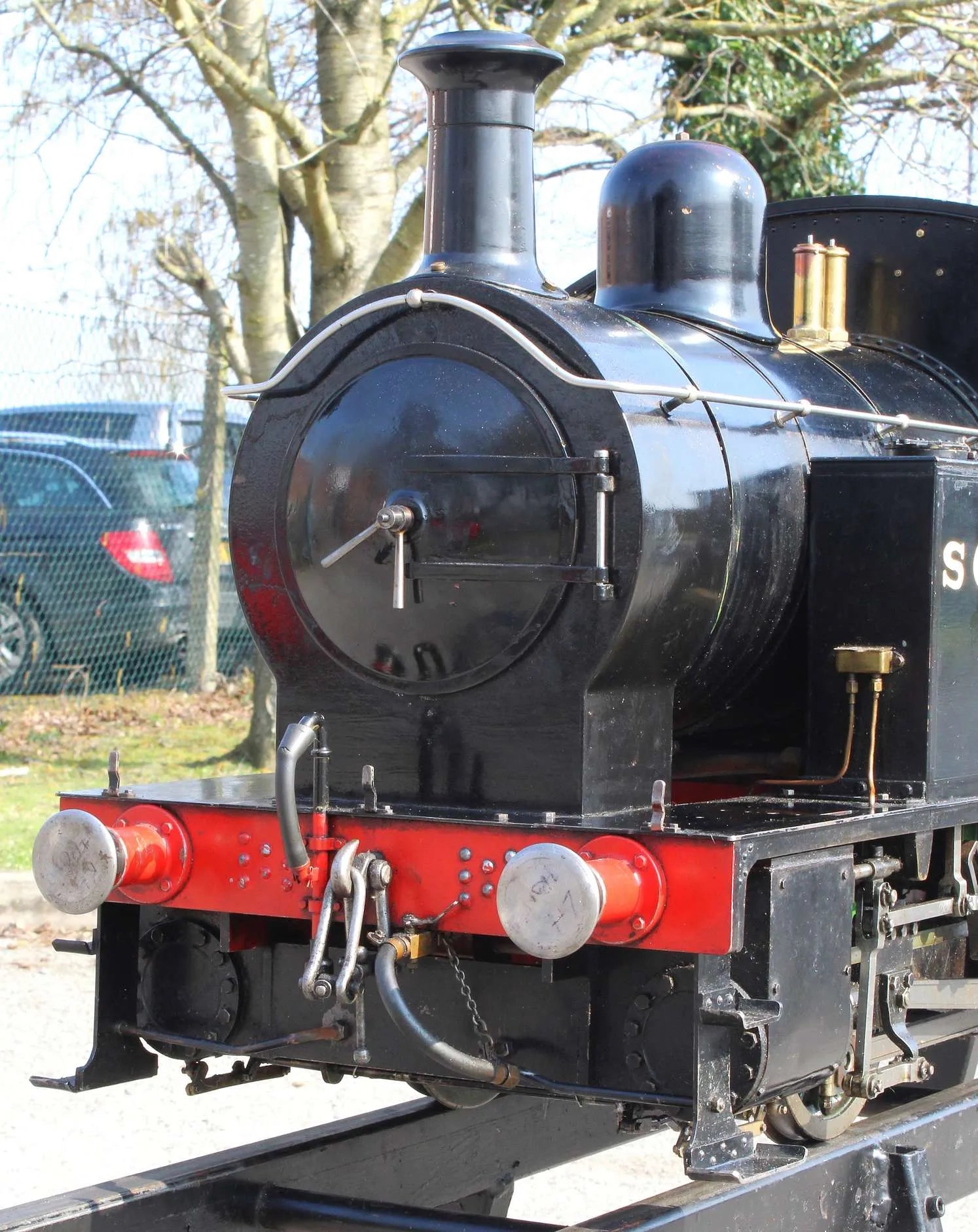

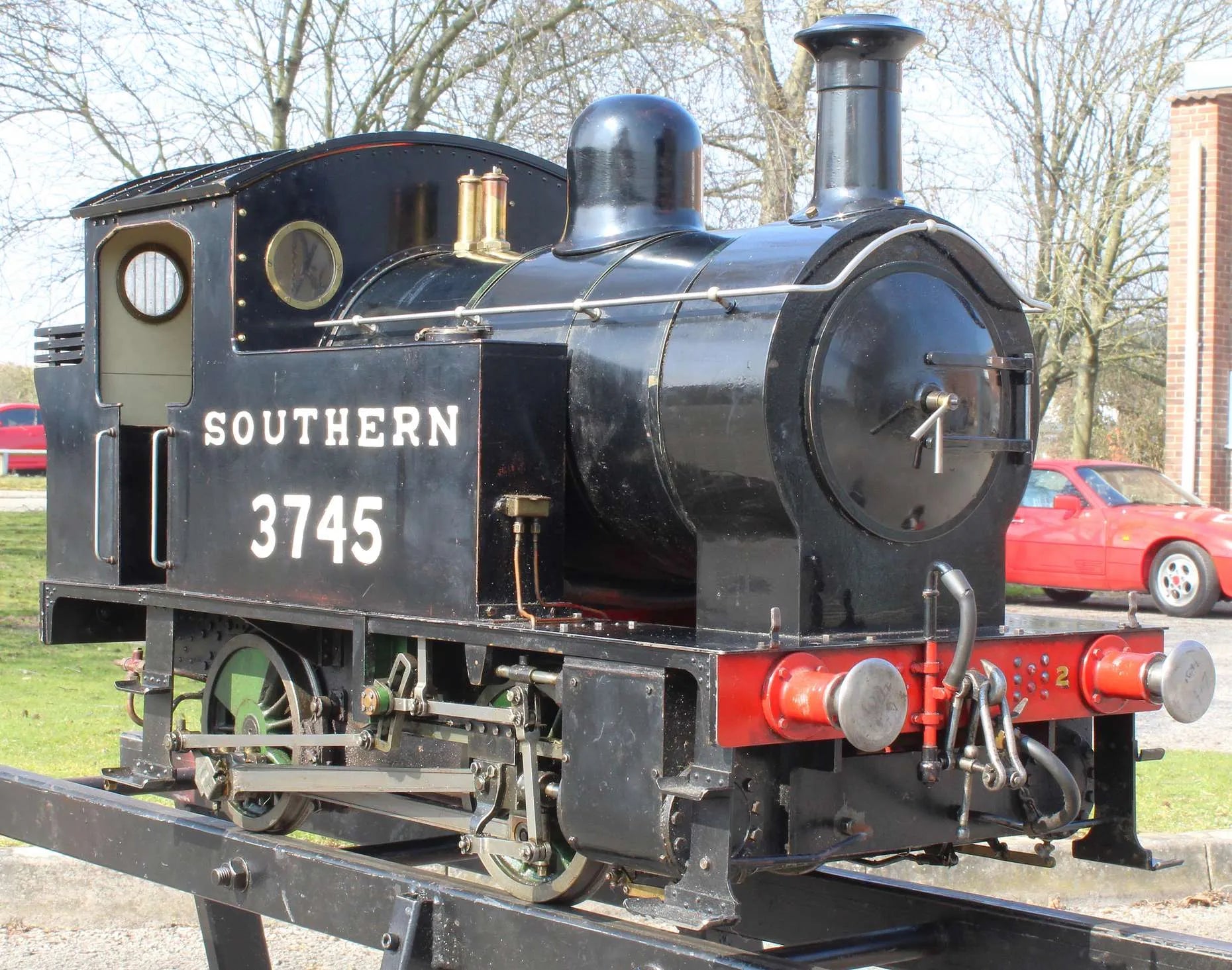

7 1/4 inch gauge "Tug" 0-4-0T

An 7 1/4 inch gauge 0-4-0T to Don Young's "Tug" design.

I first saw the engine running years ago - it belonged to a friend who was also a boiler inspector at the club we were both members of at the time.

Proudest achievement was when the man - normally a dyed in the wool standard gauge fan - ordered a new Stafford from us (it was this one) to take over public running duties from the "Tug" and his elderly American 2-8-0.

Well built in the first place, it's now due for an overhaul. The steel boiler has club history; it long ago had the superheater flues blanked off with plugs and threaded bar - not uncommon back in the day in full-sized engines - running saturated in recent times.

The chassis itself is free-rolling, it runs on air.

Technical information

Stock code

10337

Gauge

7 1/4 inch

Length/inches

34.5

Width/inches

13

Height/inches

20

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

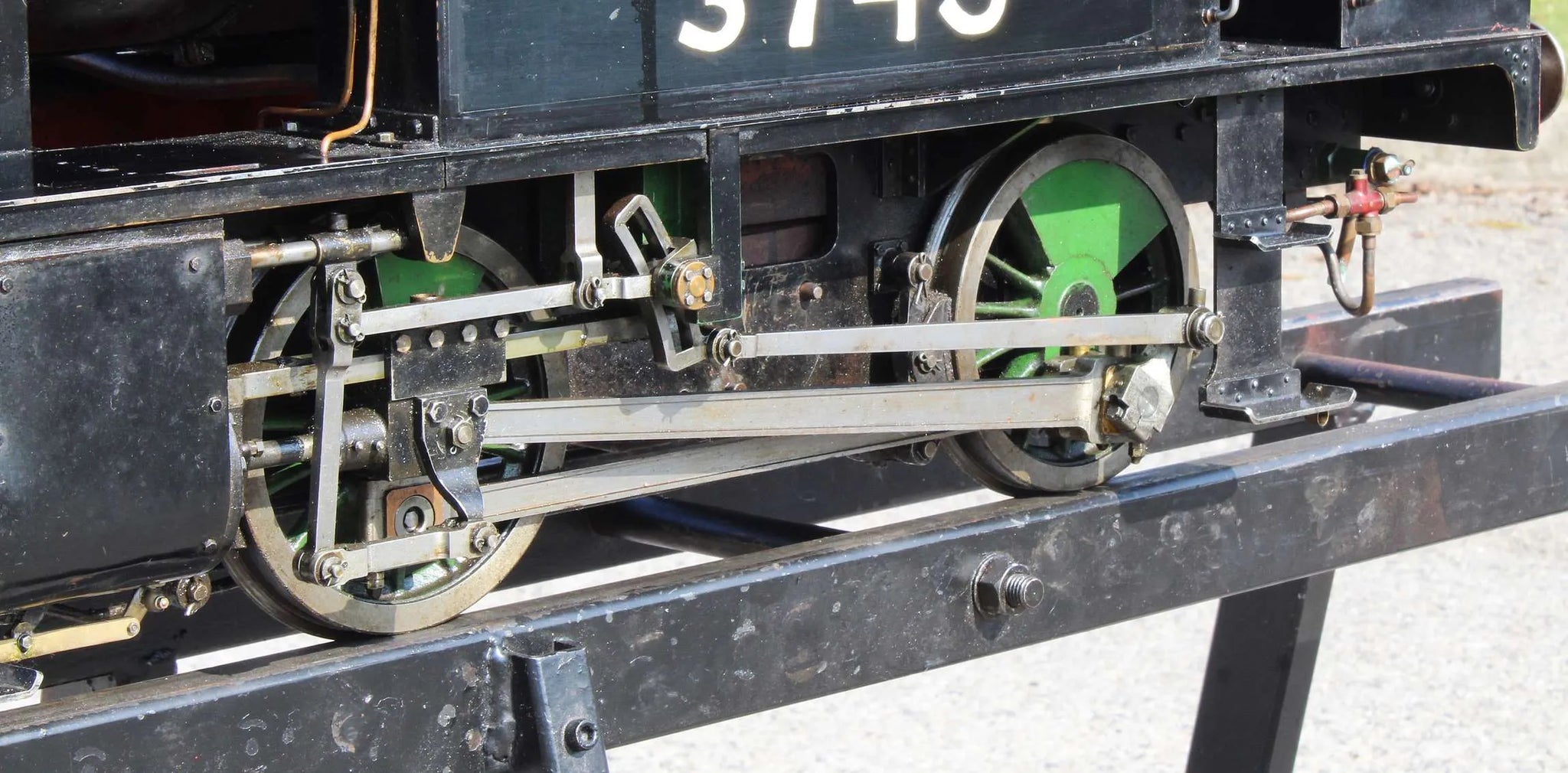

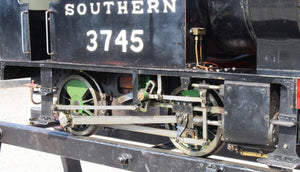

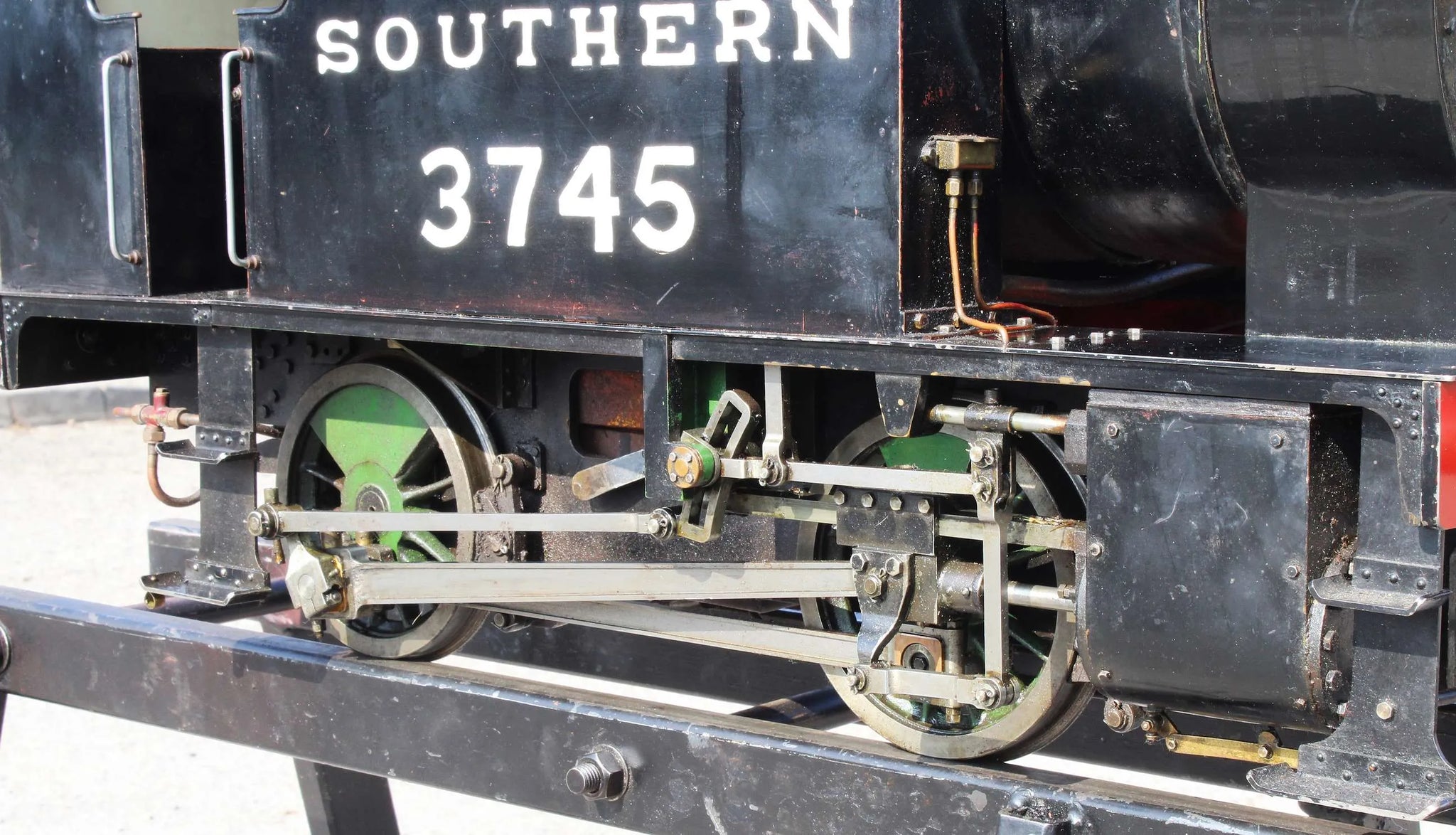

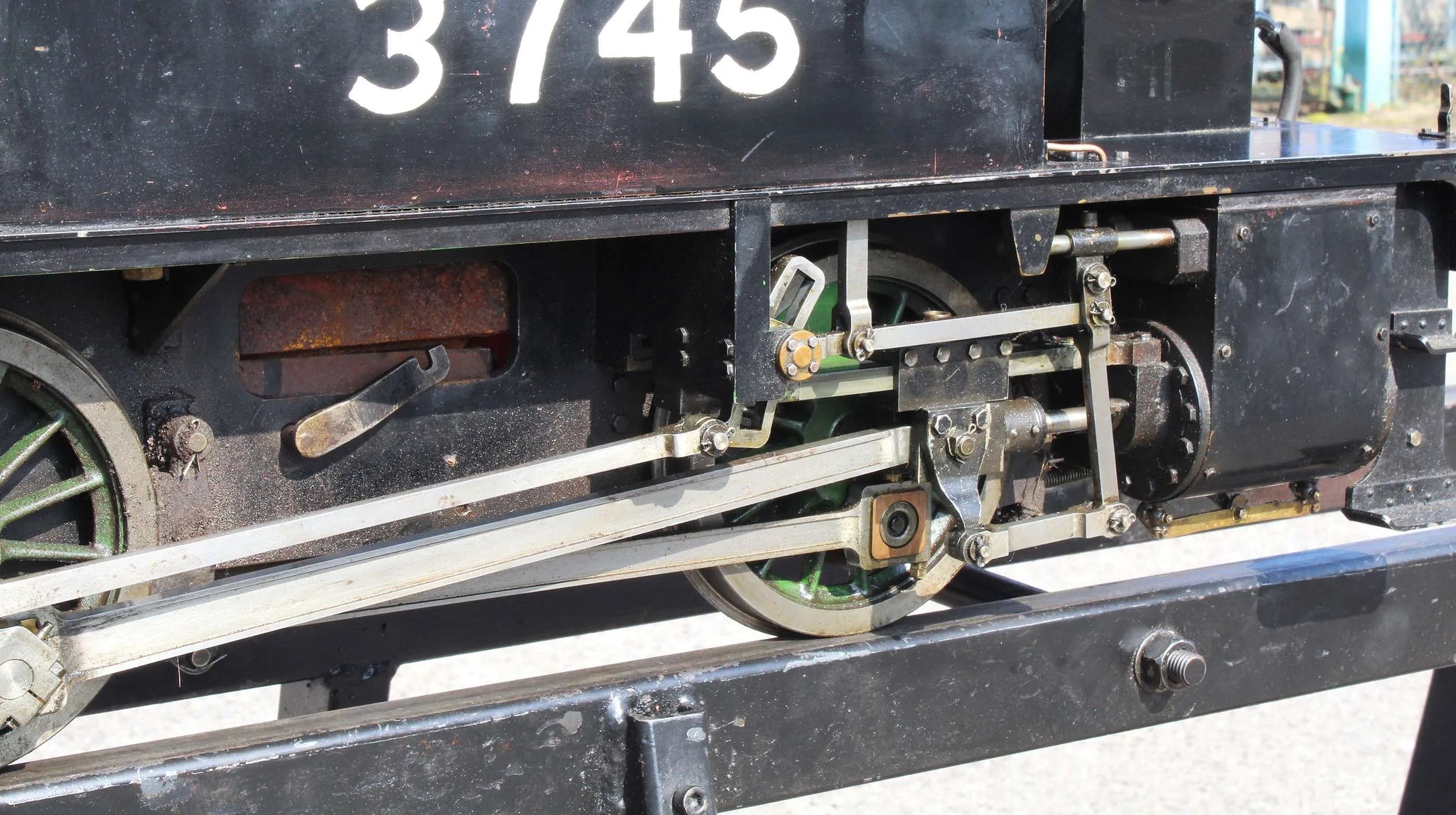

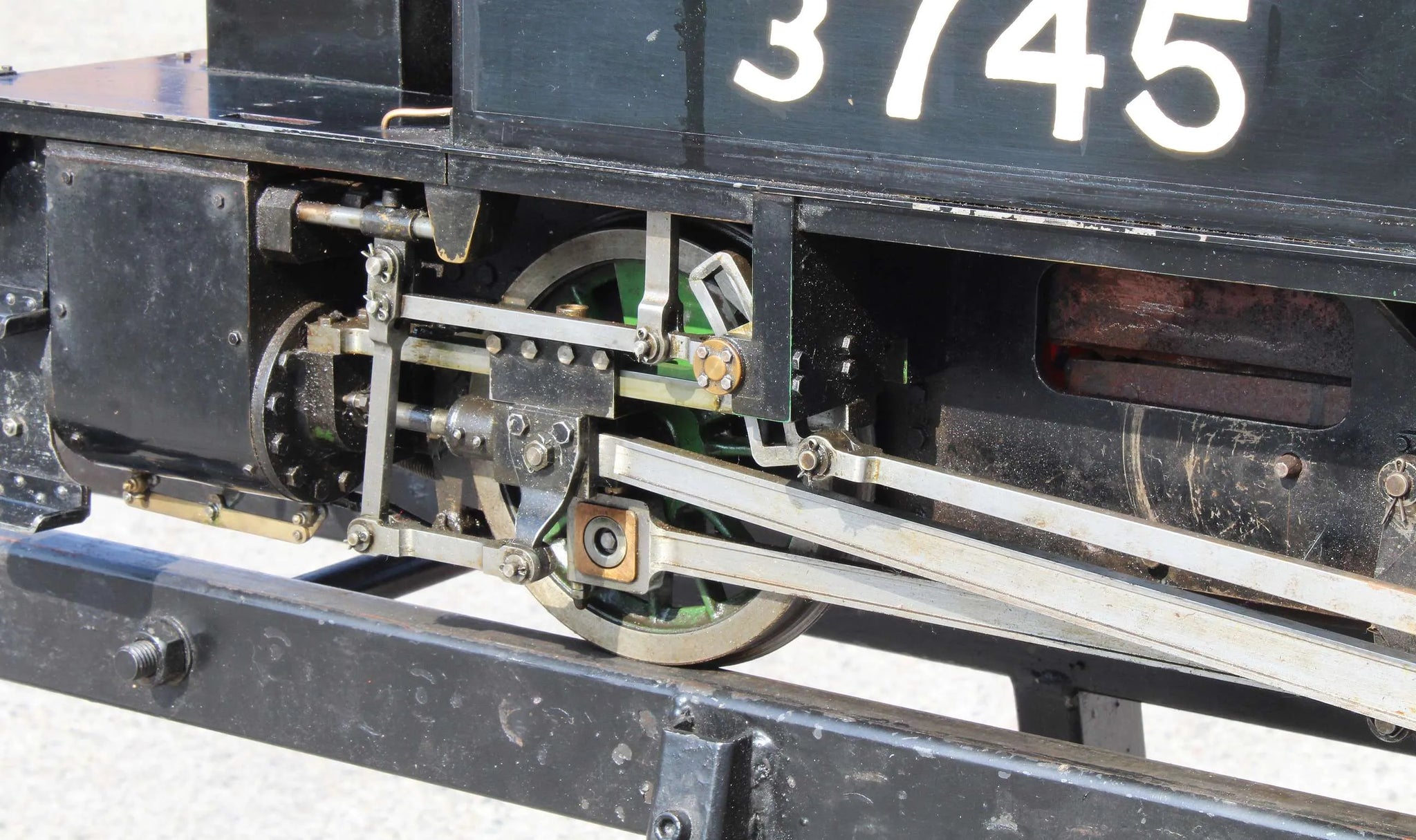

Valve gear

Walschaerts

Reverser type

pole

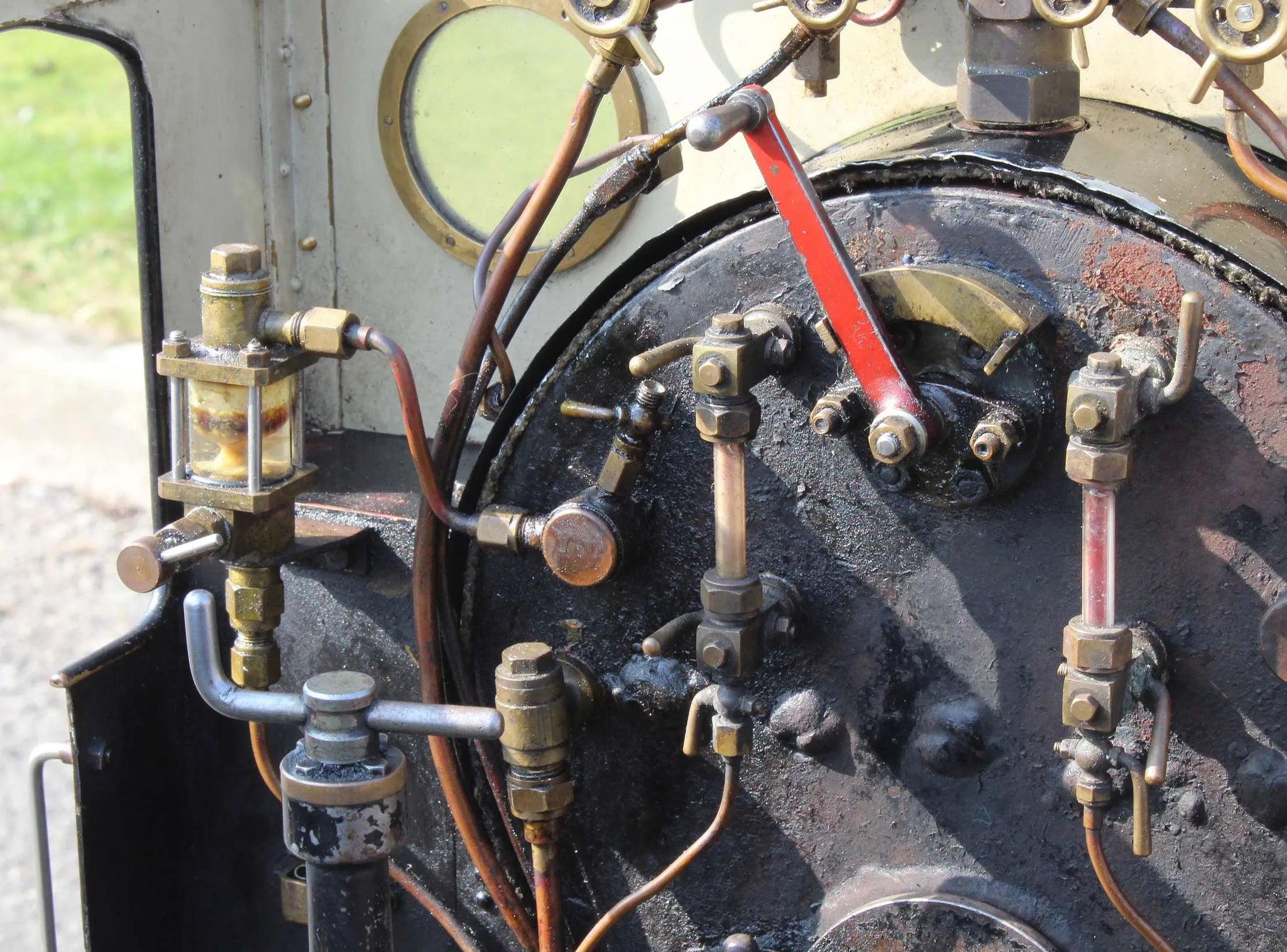

Lubricator type

displacement with sight feed

Boiler type

locomotive

Boiler construction

welded, silver soldered tubes

Boiler material

steel

Working pressure

80

Year built

1985

Boiler number

374

Safety valve type

spring

Safety valve

2

Whistle

yes

Injector

2

Date out

Apr-22
