10051

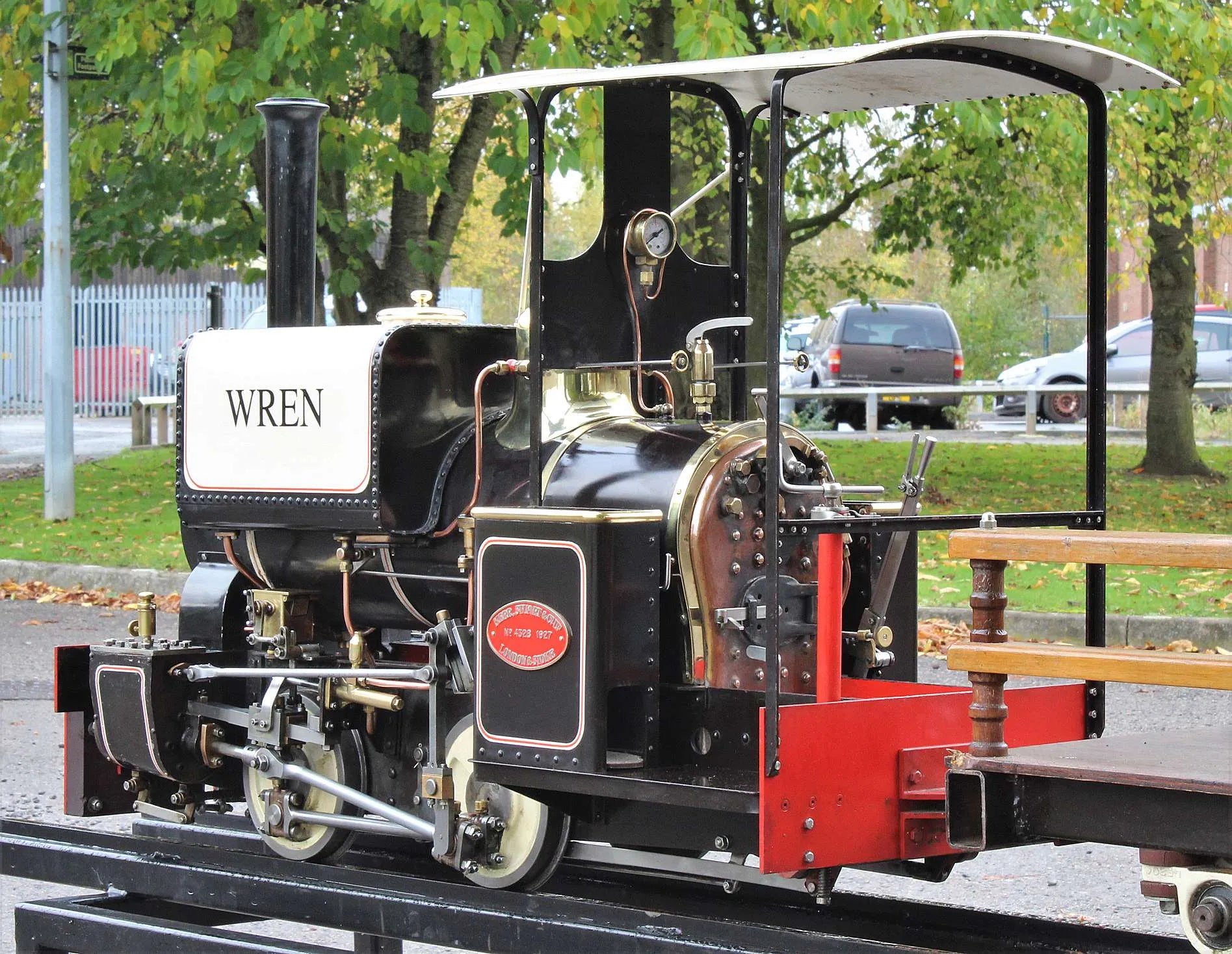

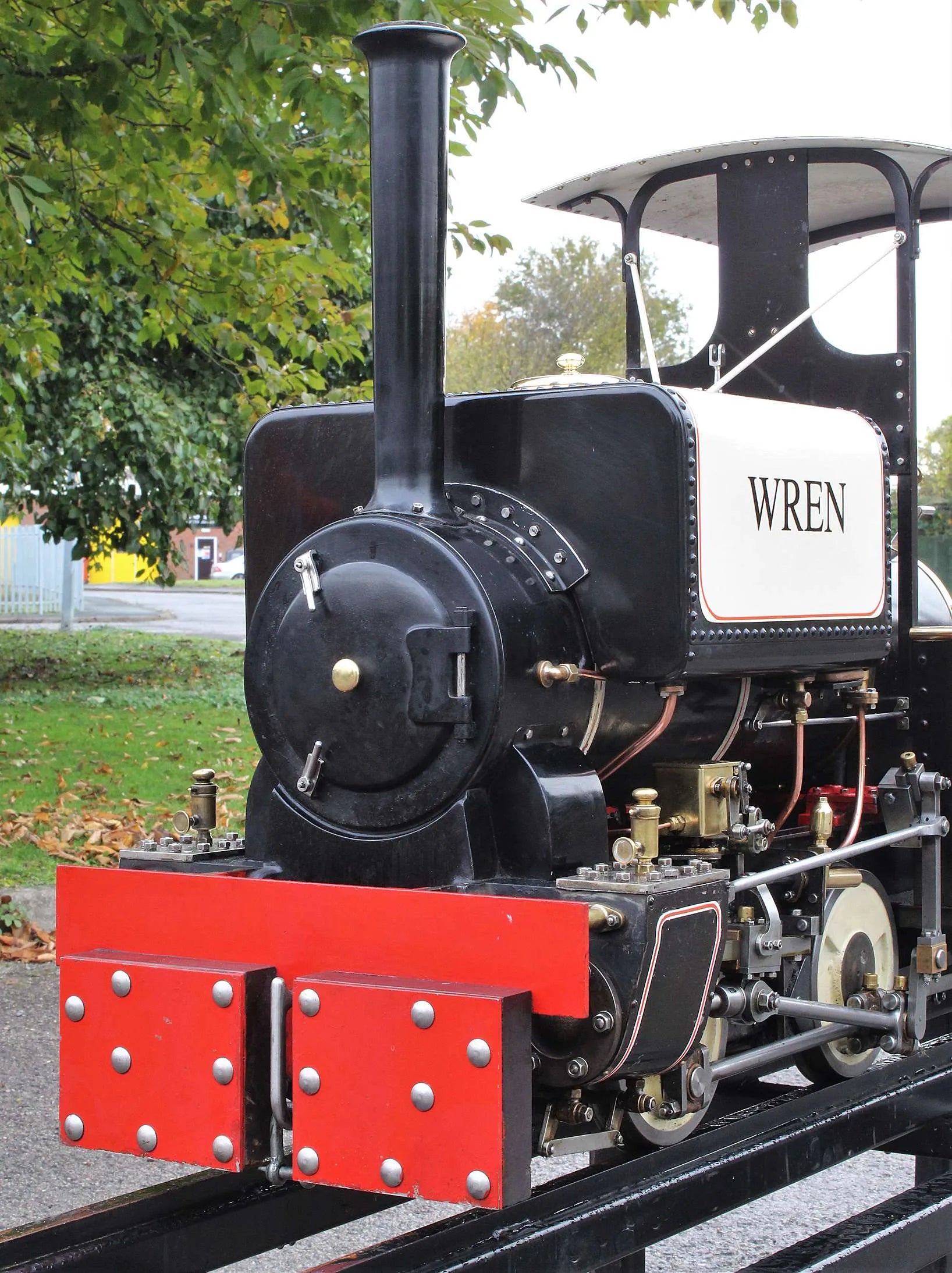

The previous owner, a boiler inspector for his club, kept it in good order - other than some minor paint scrapes, it's cosmetically in good condition and polishes up well.

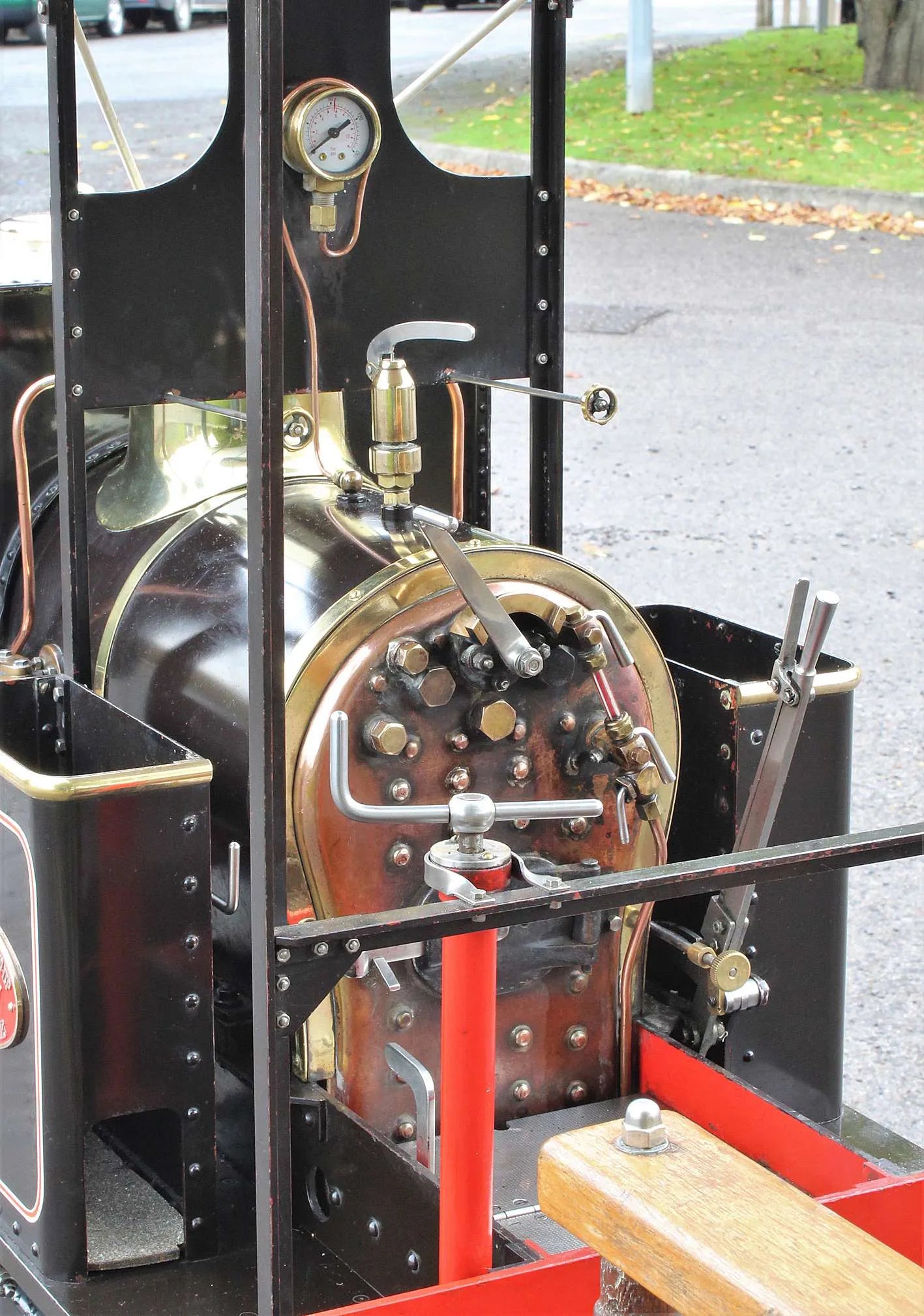

It's had hydraulic and steam test in recent days with new certification issued, a new water gauge the only item required, the old one difficult to isolate.
On the track it runs exceptionally well, one of the best examples of this design we've driven. Free-steaming, the injector and water pump work well, it was easy to maintain both steam and water whilst running.

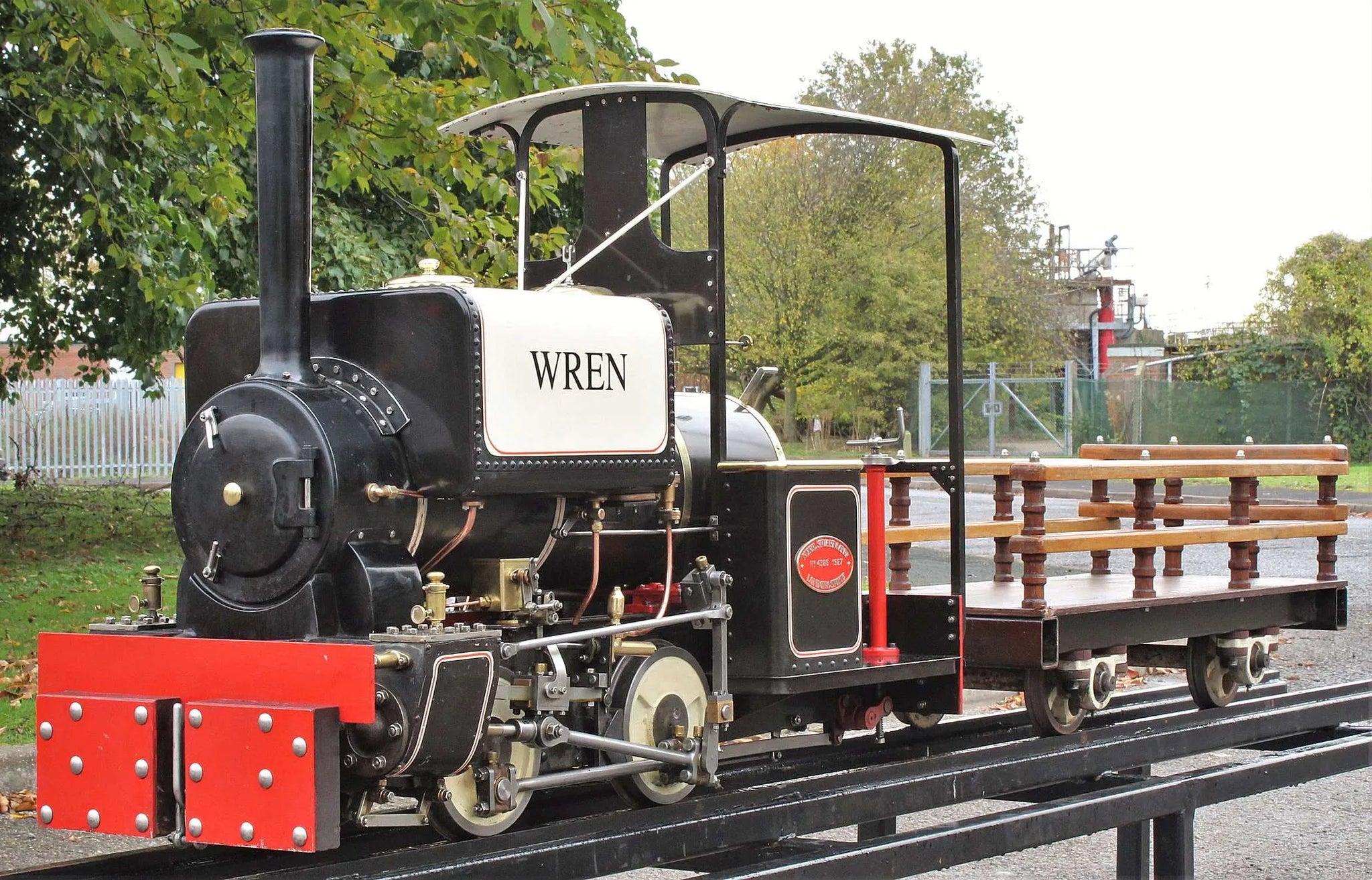

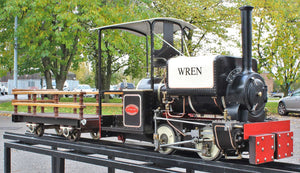

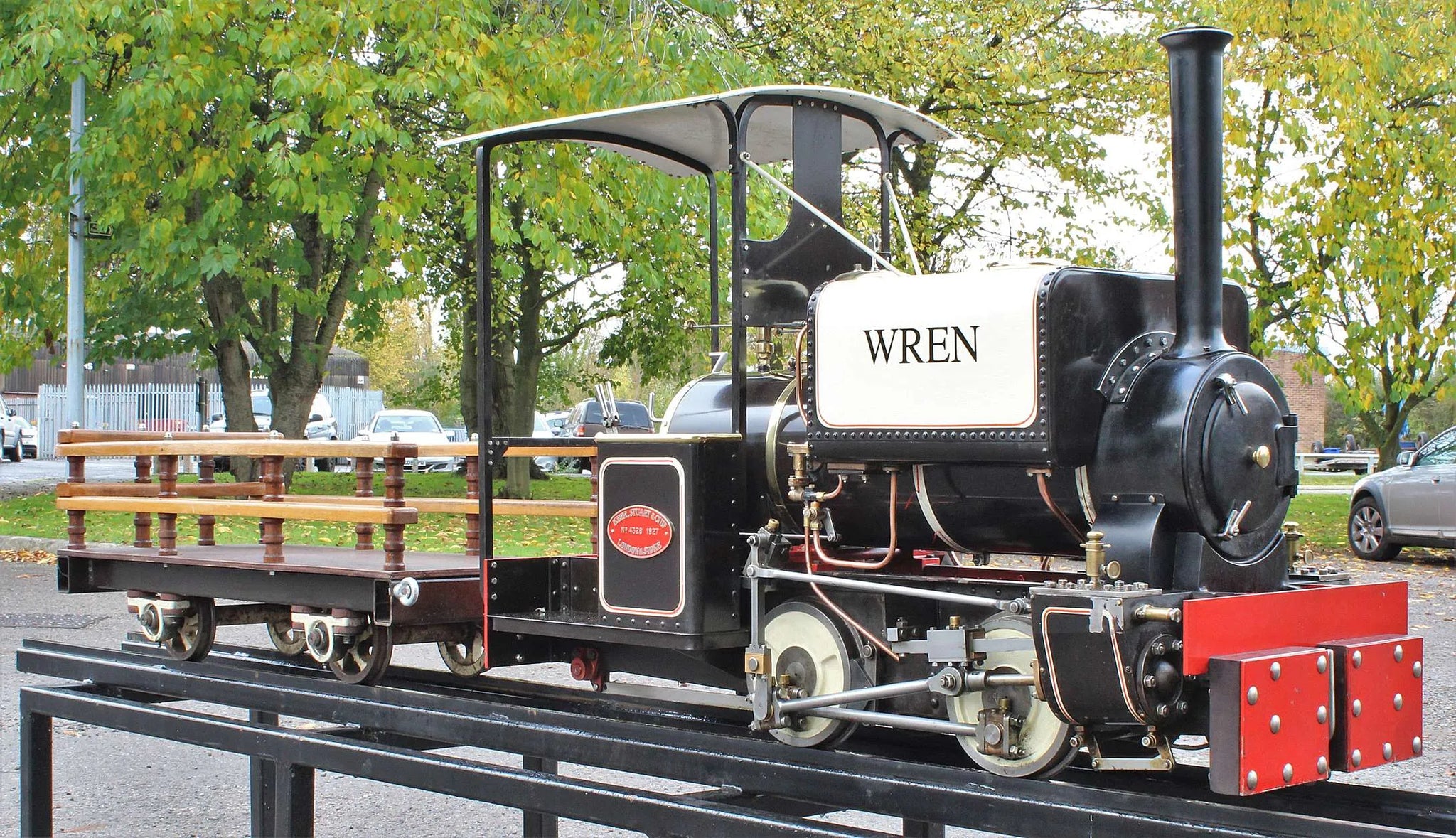

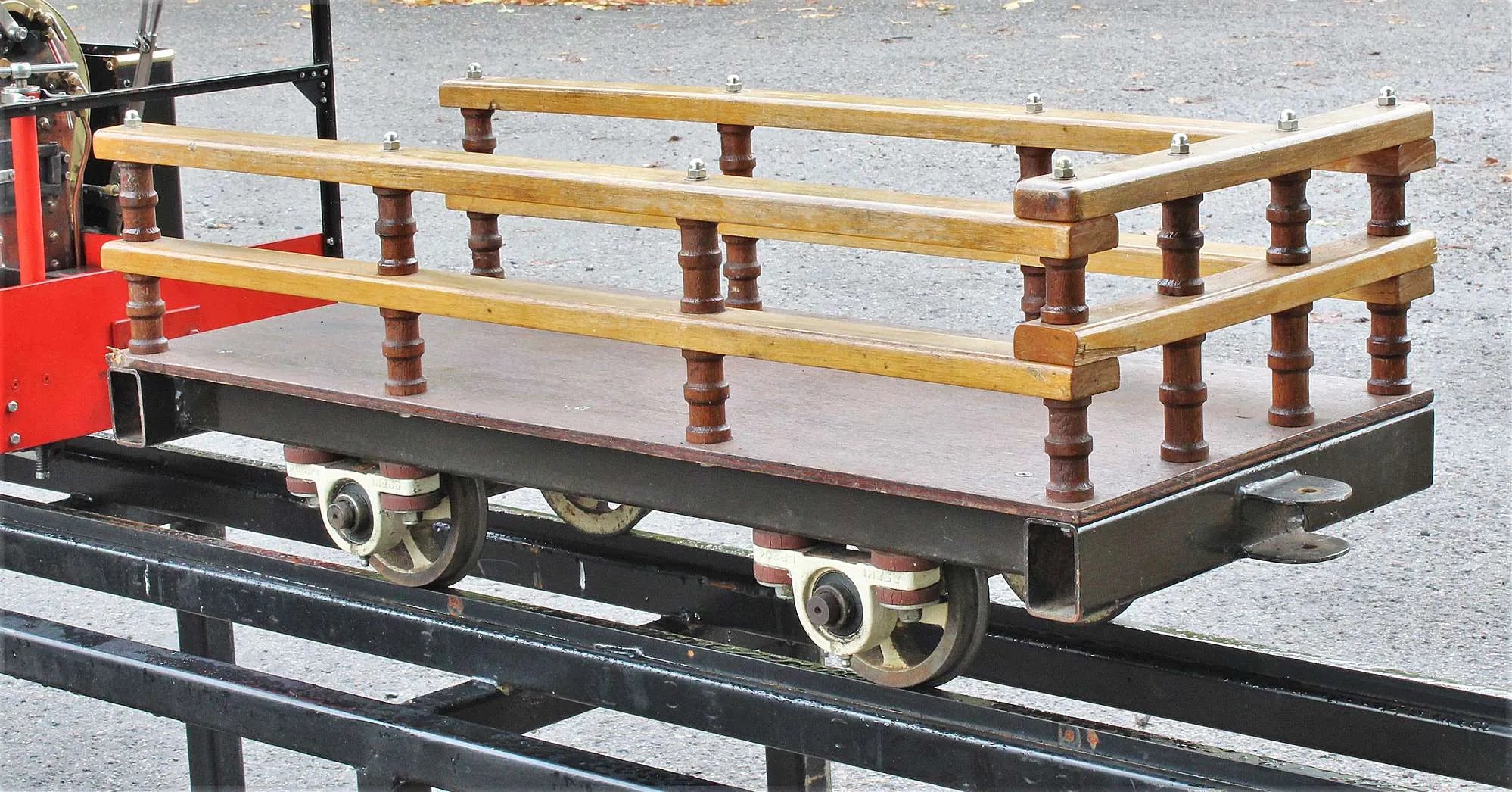

Complete with a slate truck style wagon.
Stock code |
10051 |
Gauge |
7 1/4 inch |
Length/inches |
43+57 |
Width/inches |
16 |
Height/inches |
29 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

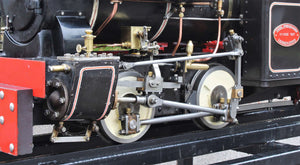

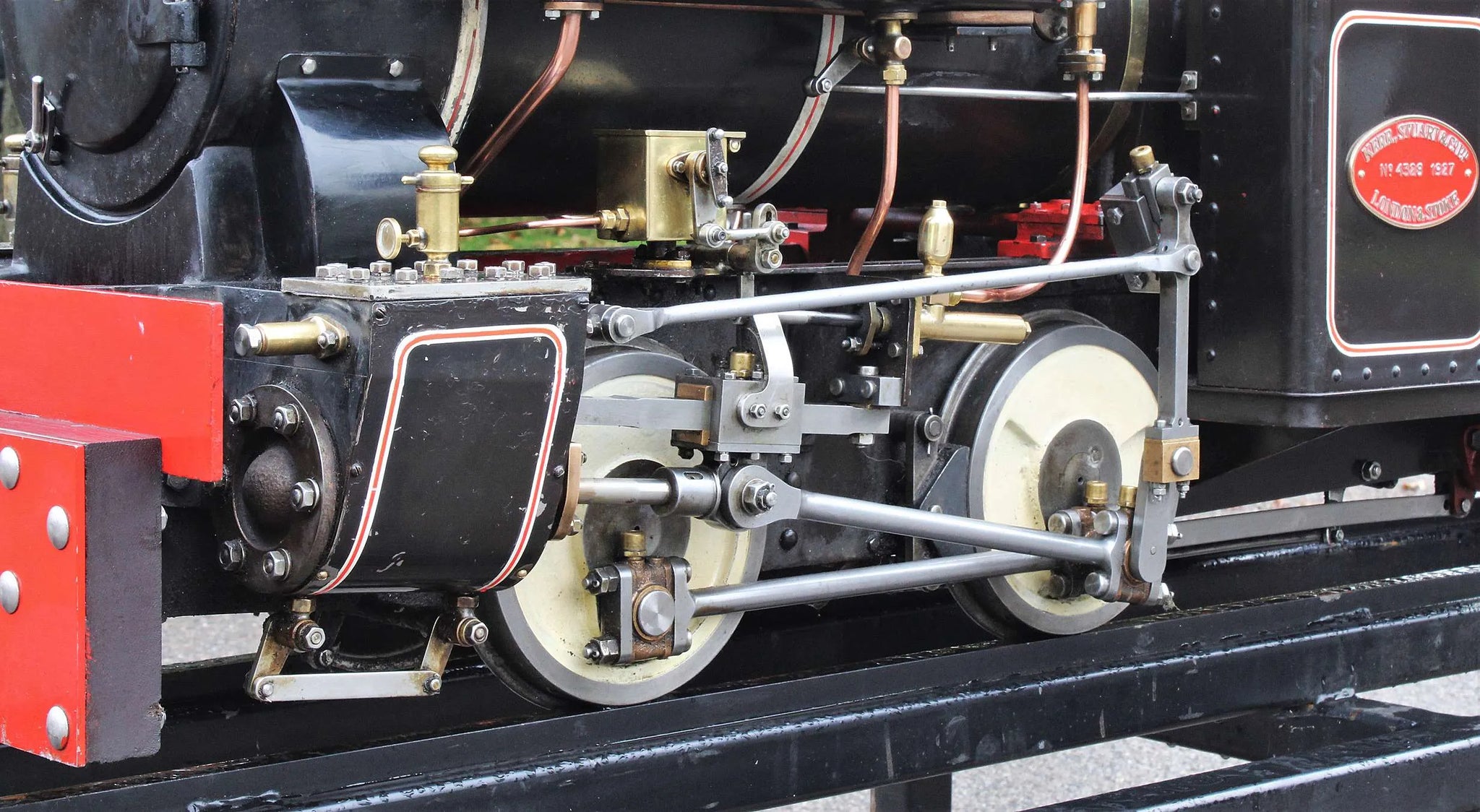

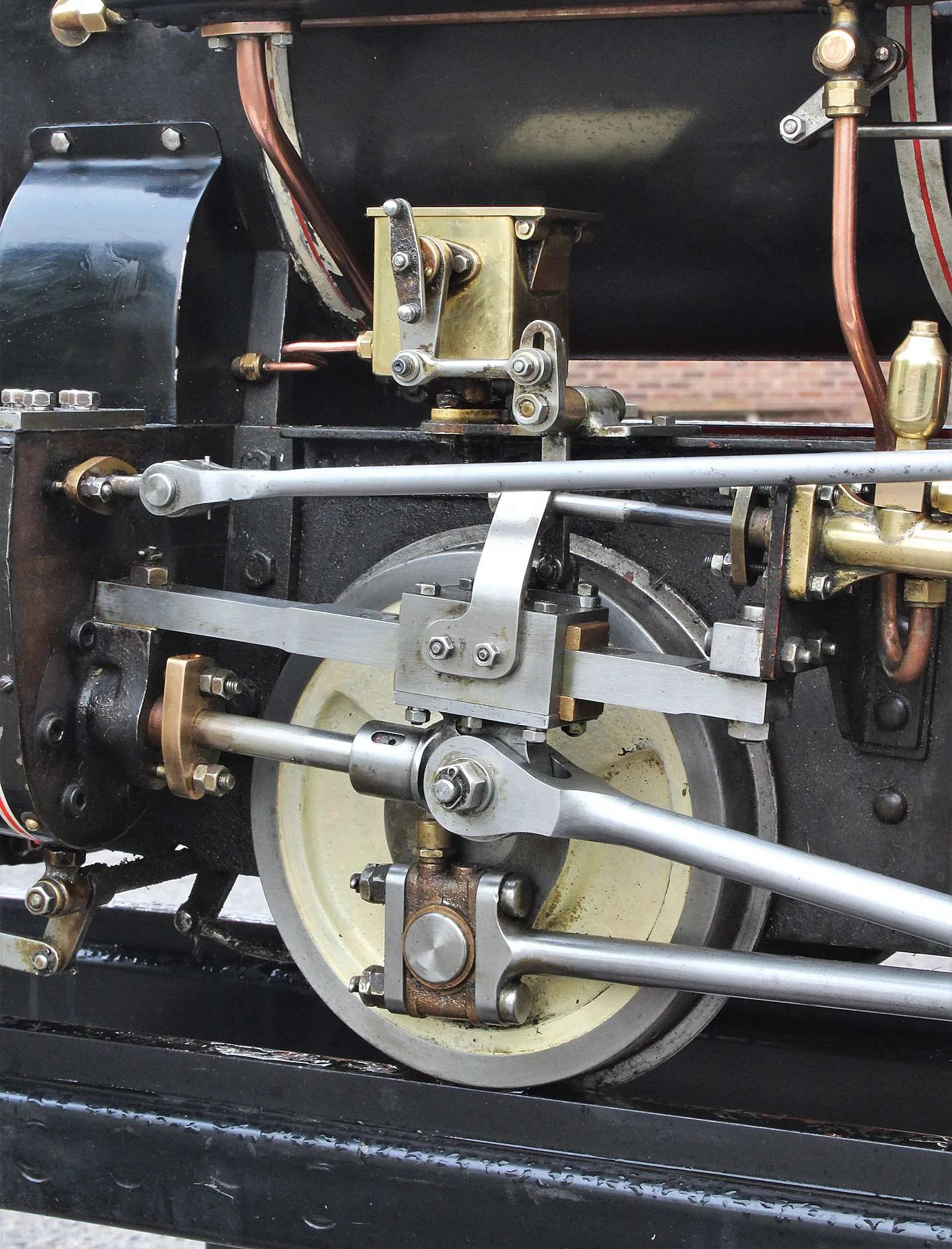

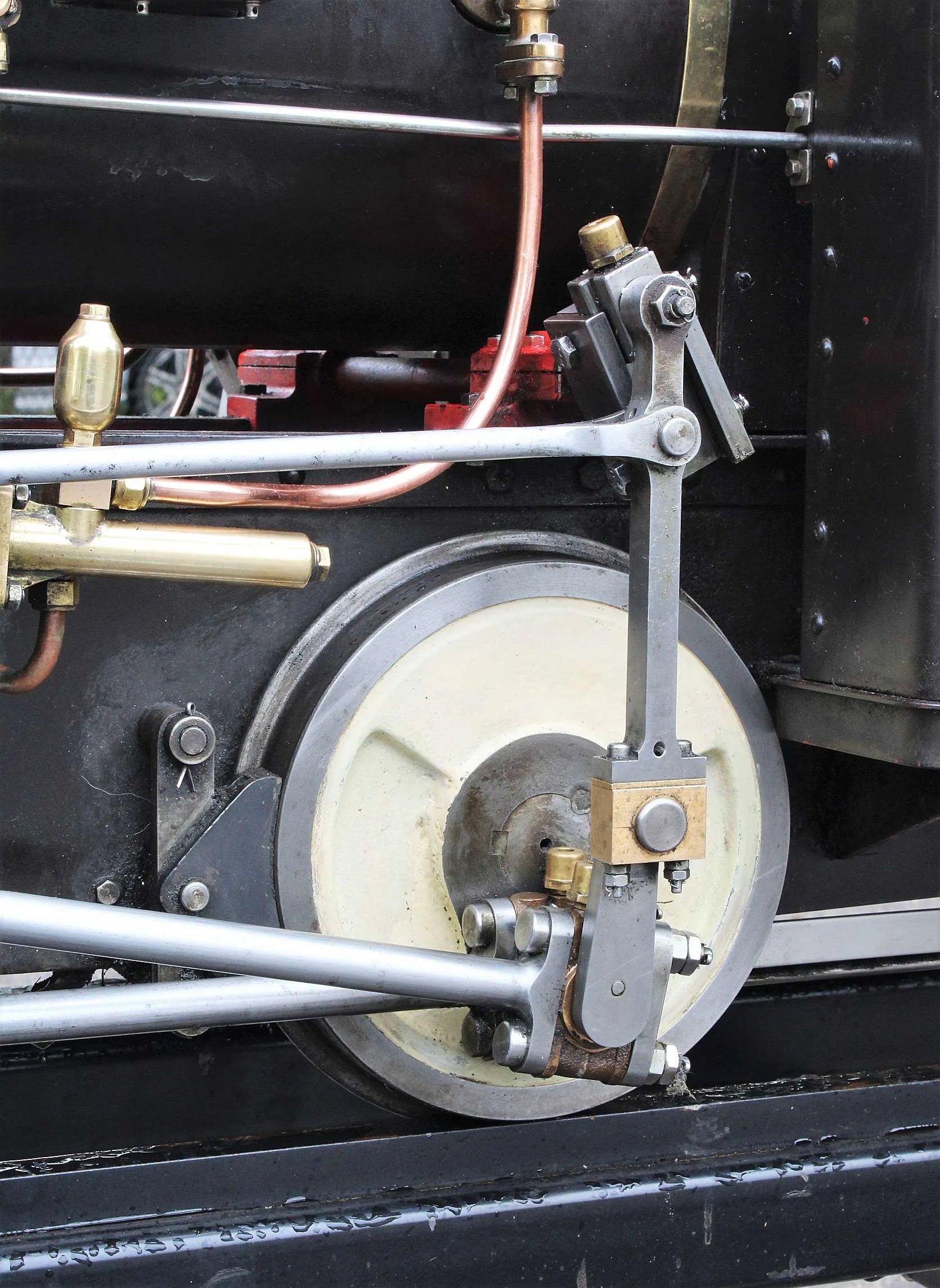

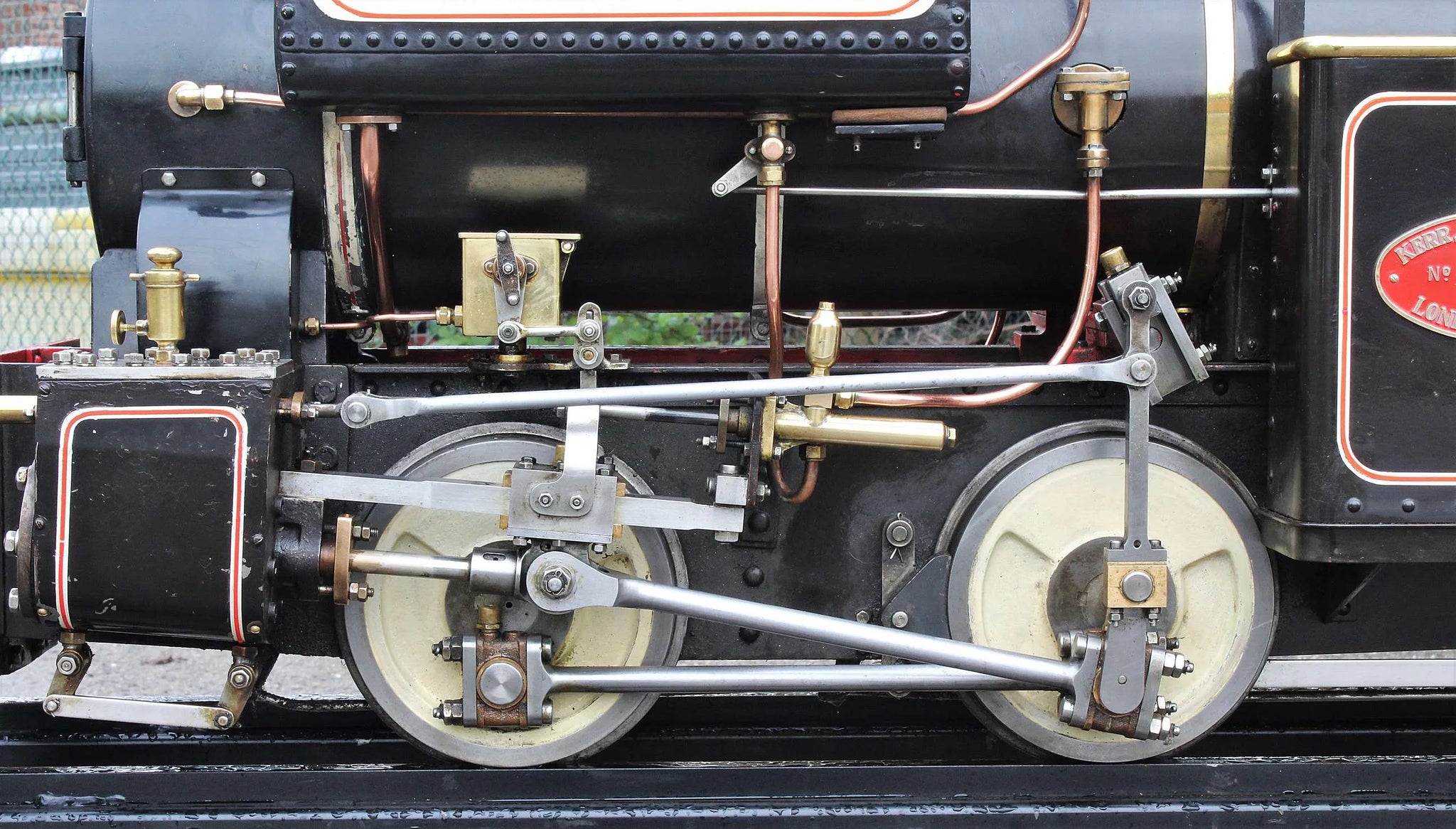

Valve gear |
Hackworth |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
85 |
Year built |
1997 |
Boiler number |
N50-850-01 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
yes |
Whistle |
yes |
Mechanical pump |
1 |
Injector |
1 |
Date out |
Dec-21 |
Hydraulic test valid to |
04-Nov-25 |
Steam test valid to |
22-Jan-23 |
