7 1/4 inch narrow gauge 0-4-0ST with driving truck

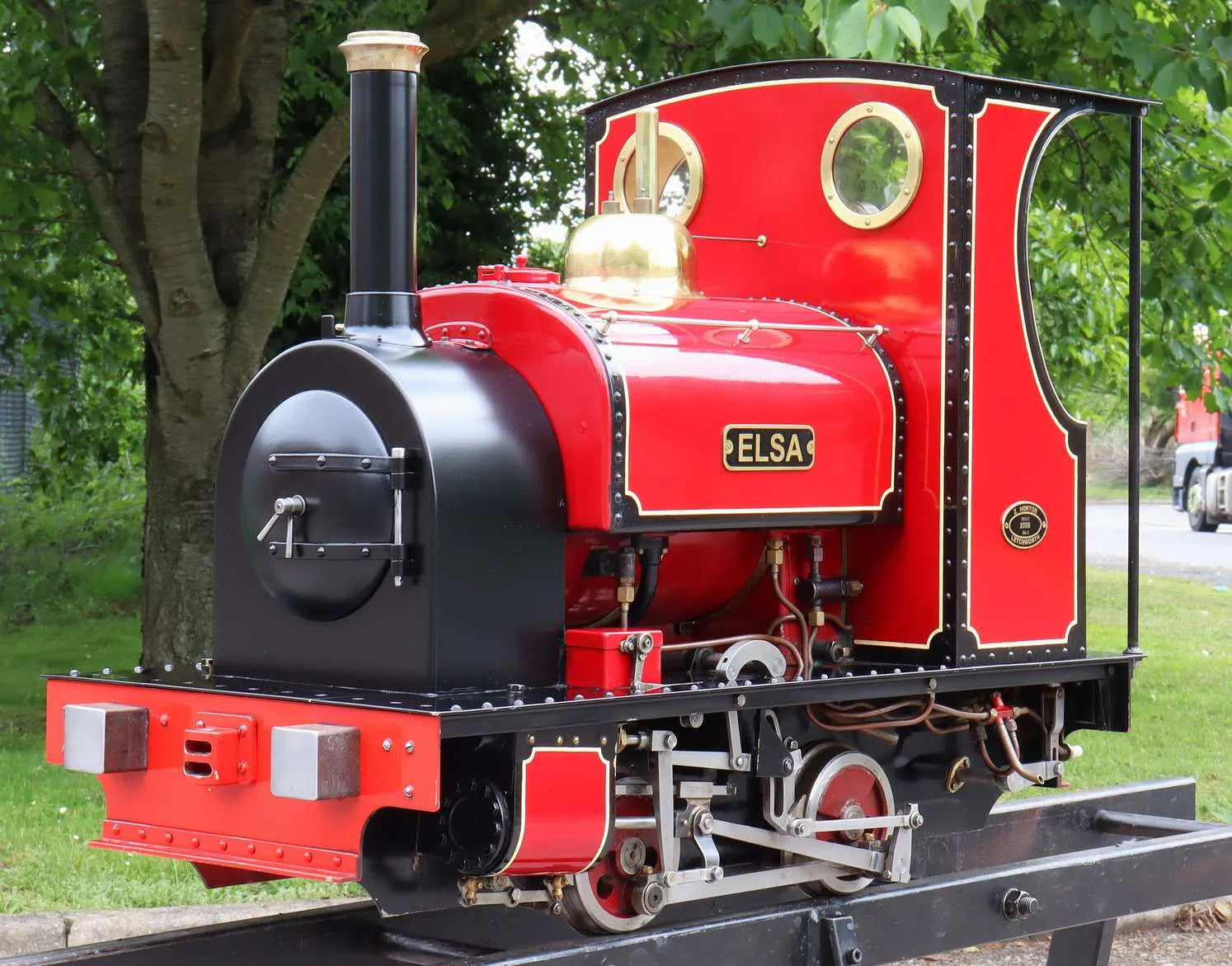

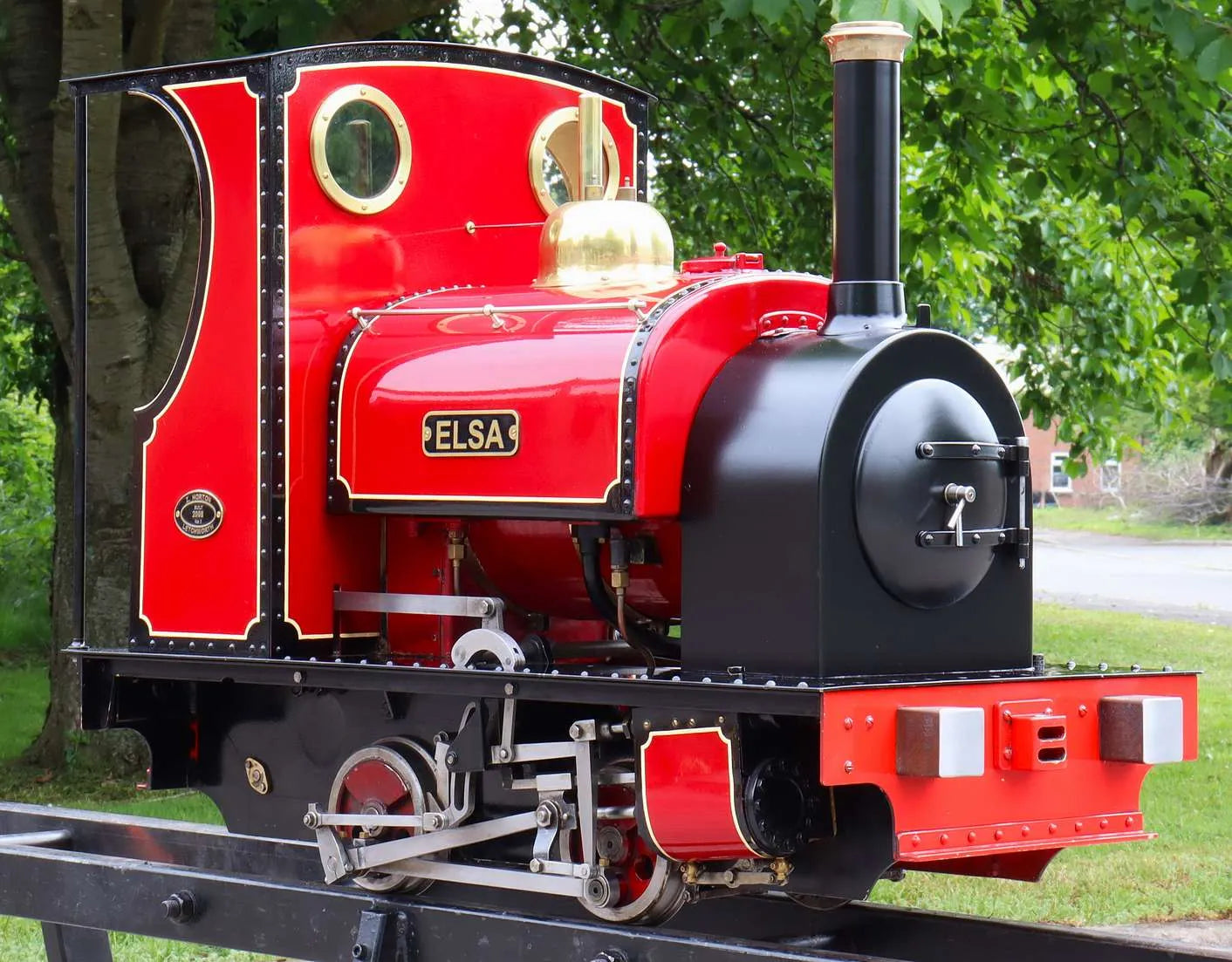

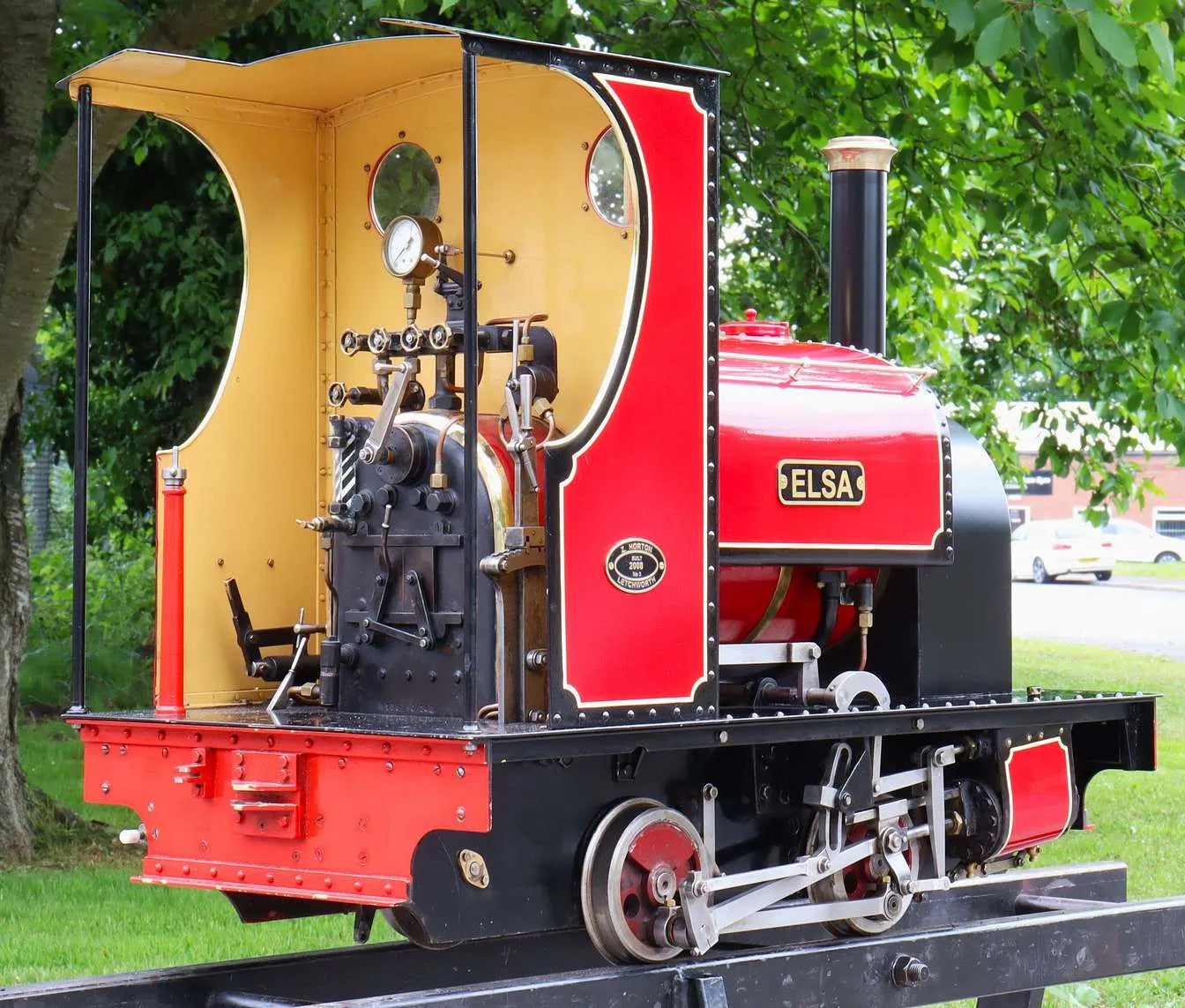

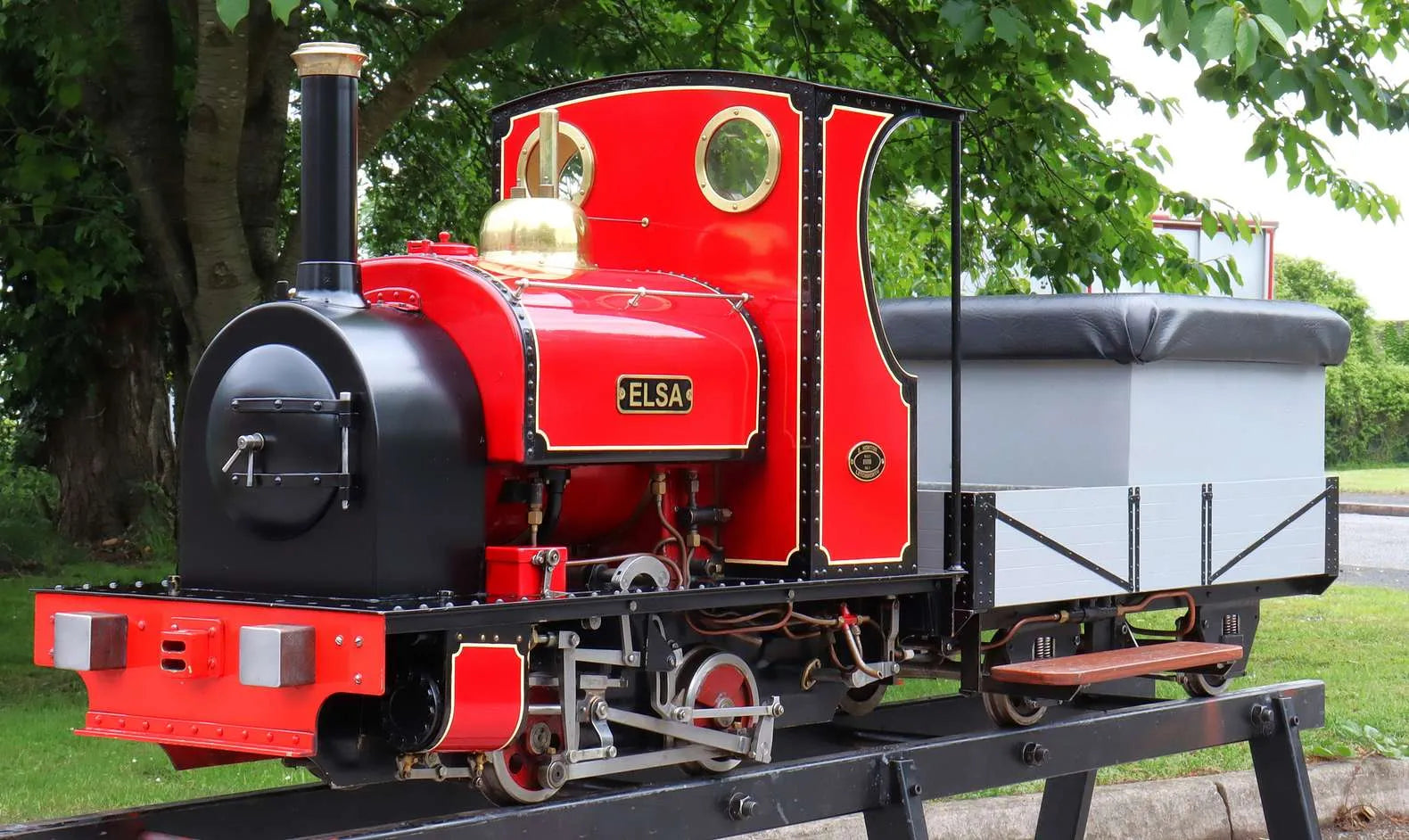

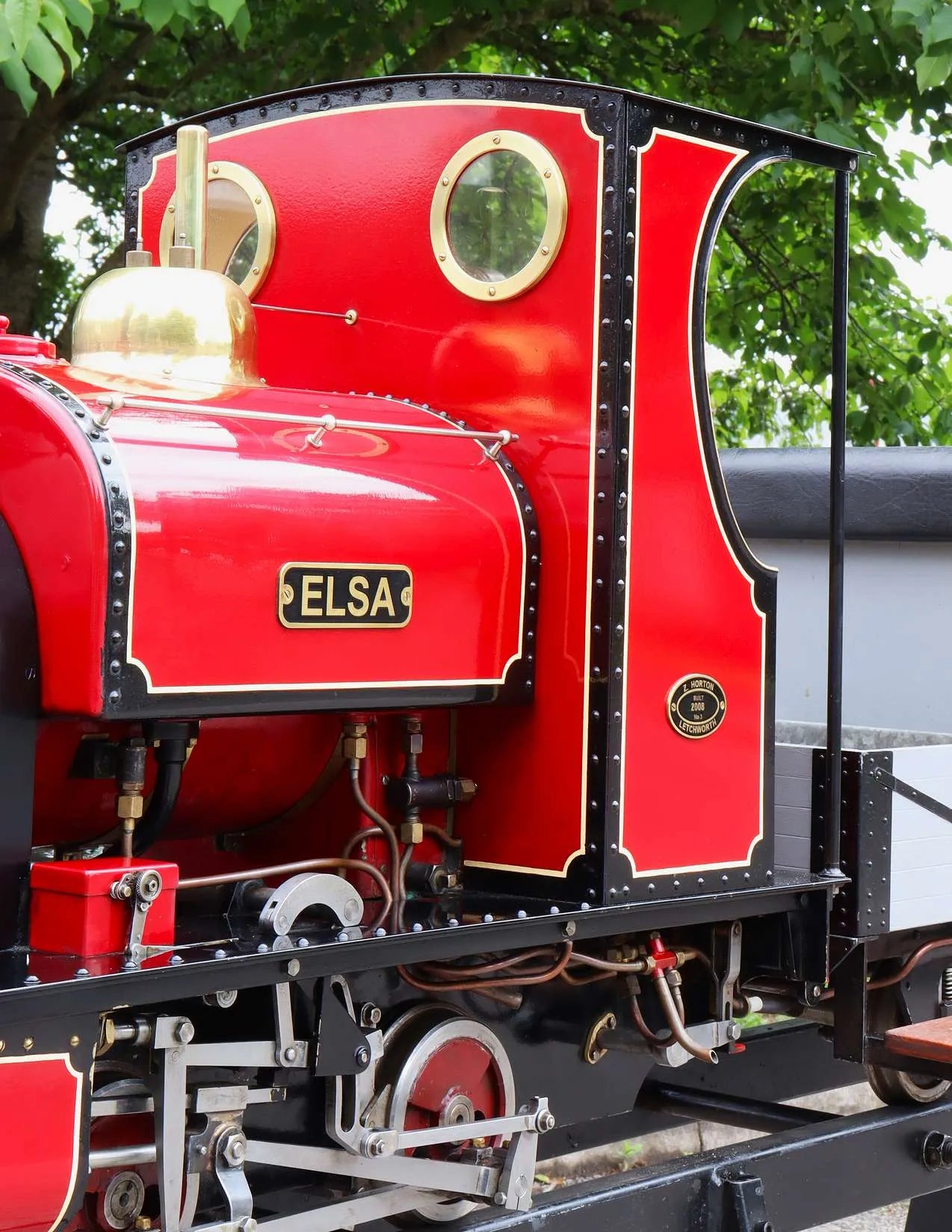

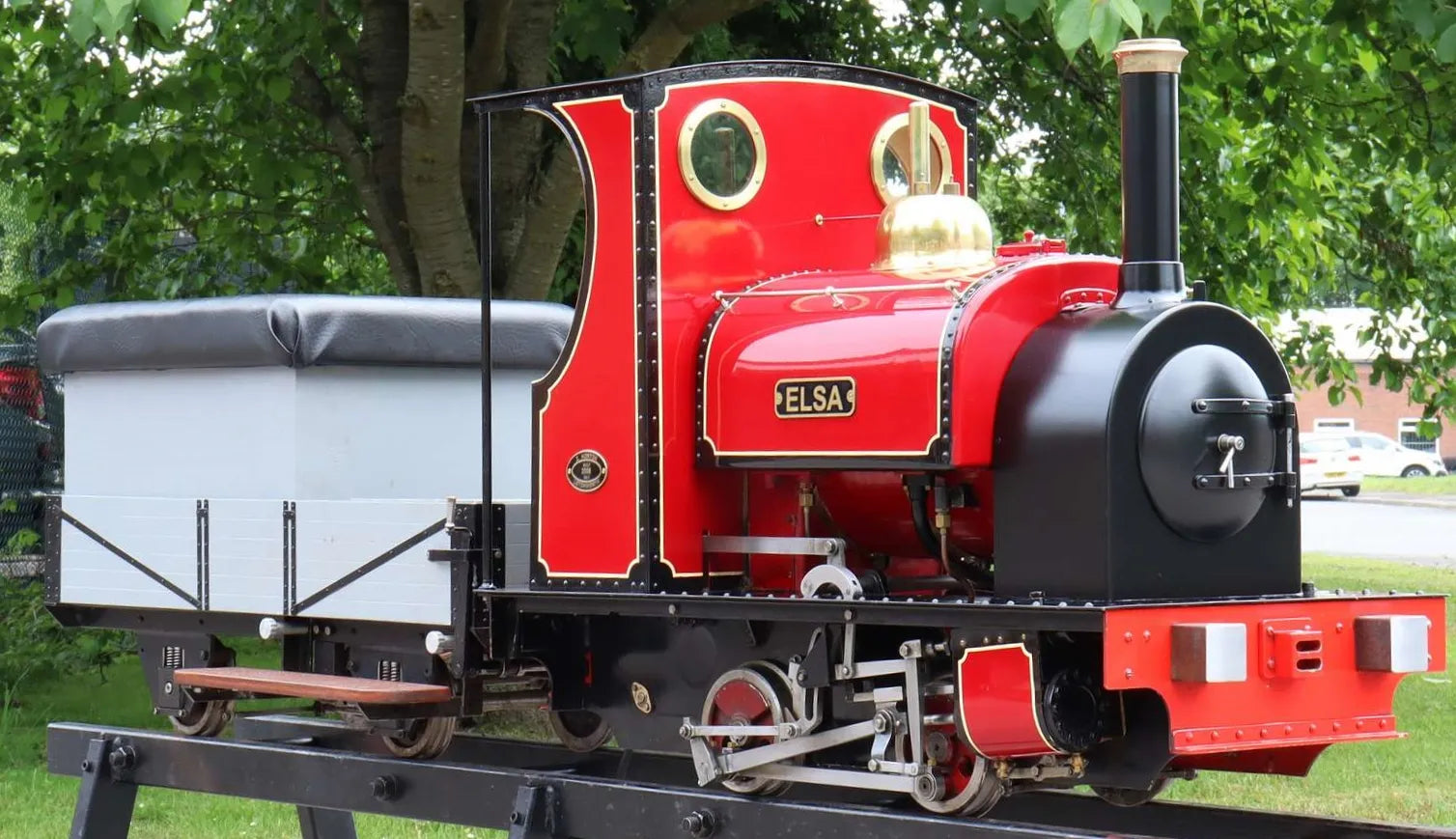

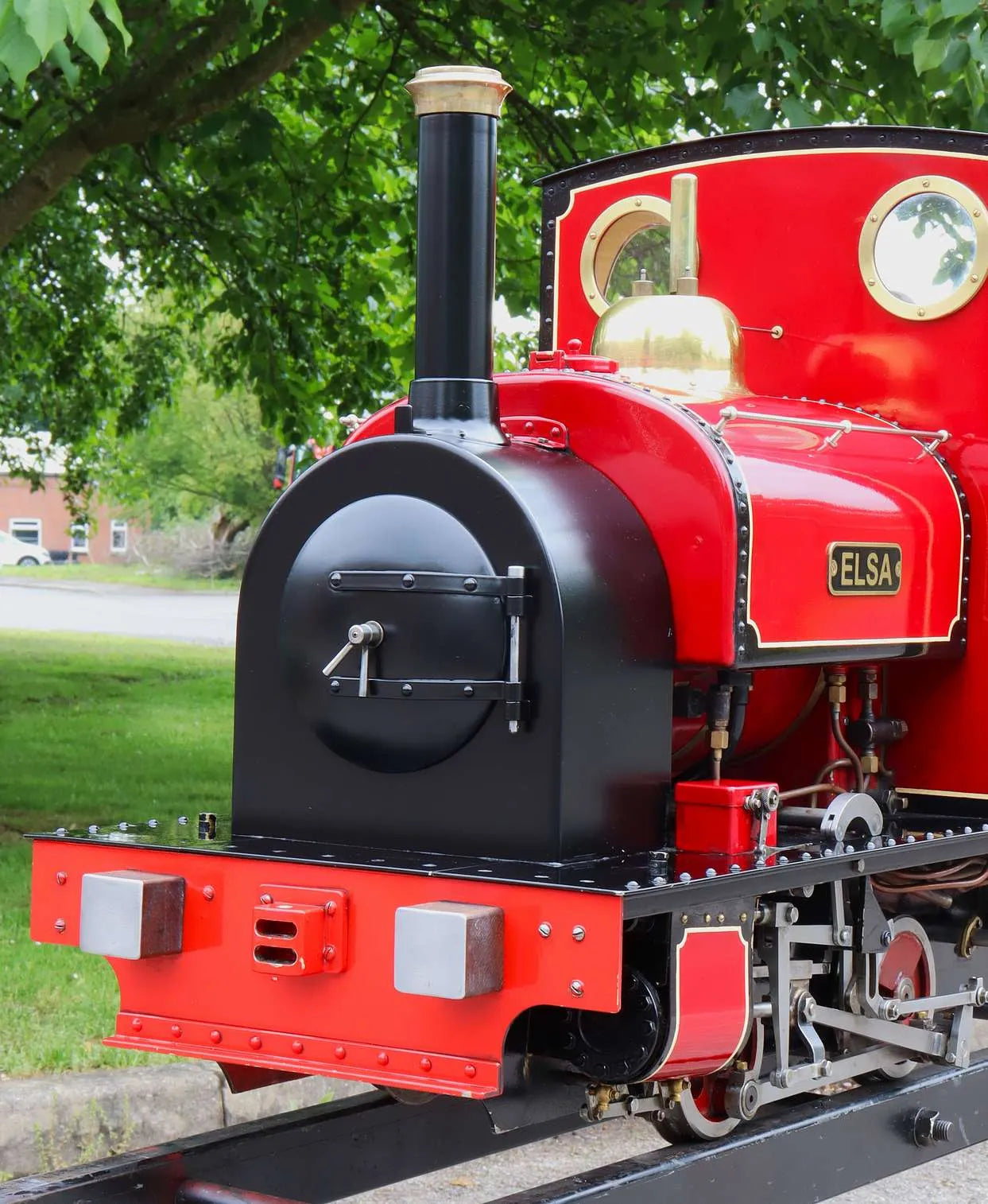

A particularly well-built 7 1/4 inch narrow gauge 0-4-0ST - you have to look quite closely to see its origins as a doubled up version of LBSC's "Tich"!

This one has come to us from a private railway along with a large collection of locomotives and rolling stock. Stored in a heated garage, it's been unused in some years following its owner's move into larger locomotives, including a Lynton & Barnstaple "Yeo", Waldenburg 0-6-0 and Bagnall 0-4-0ST.

The engine steams freely, requiring no blower on the rolling road; it runs very well - there's some video of it here. - the loudest thing when ticking over is the clicking of the lubricator ratchet

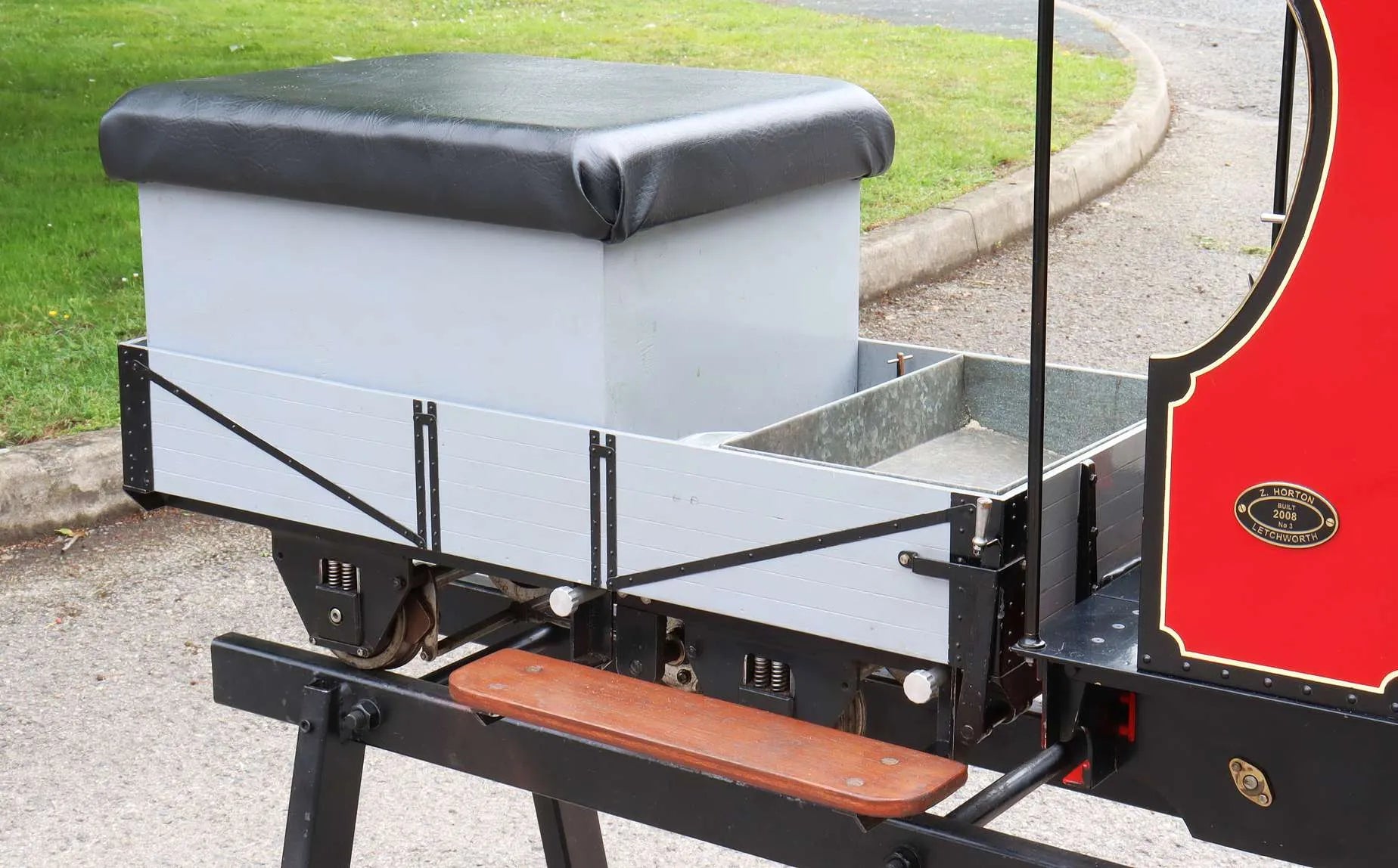

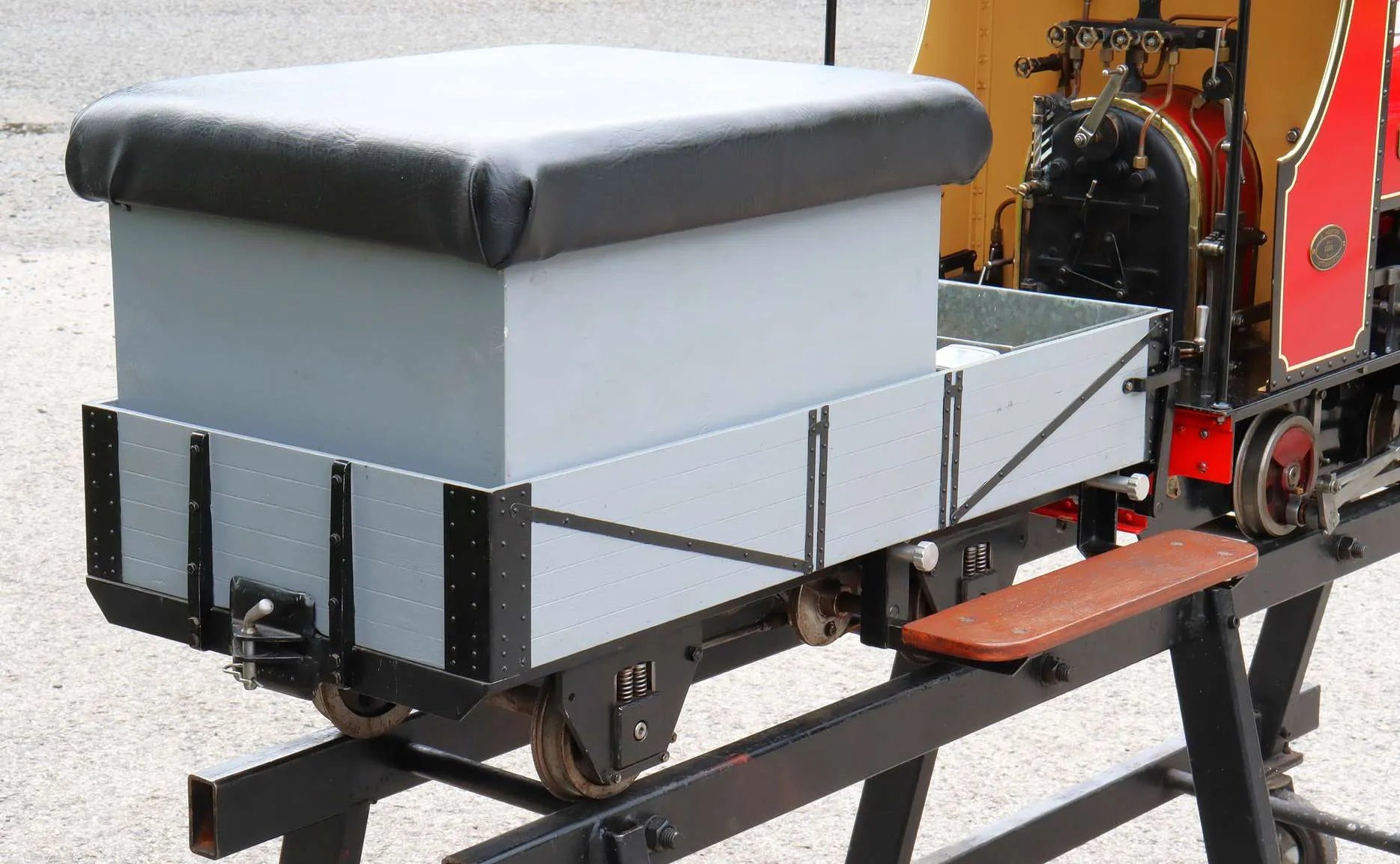

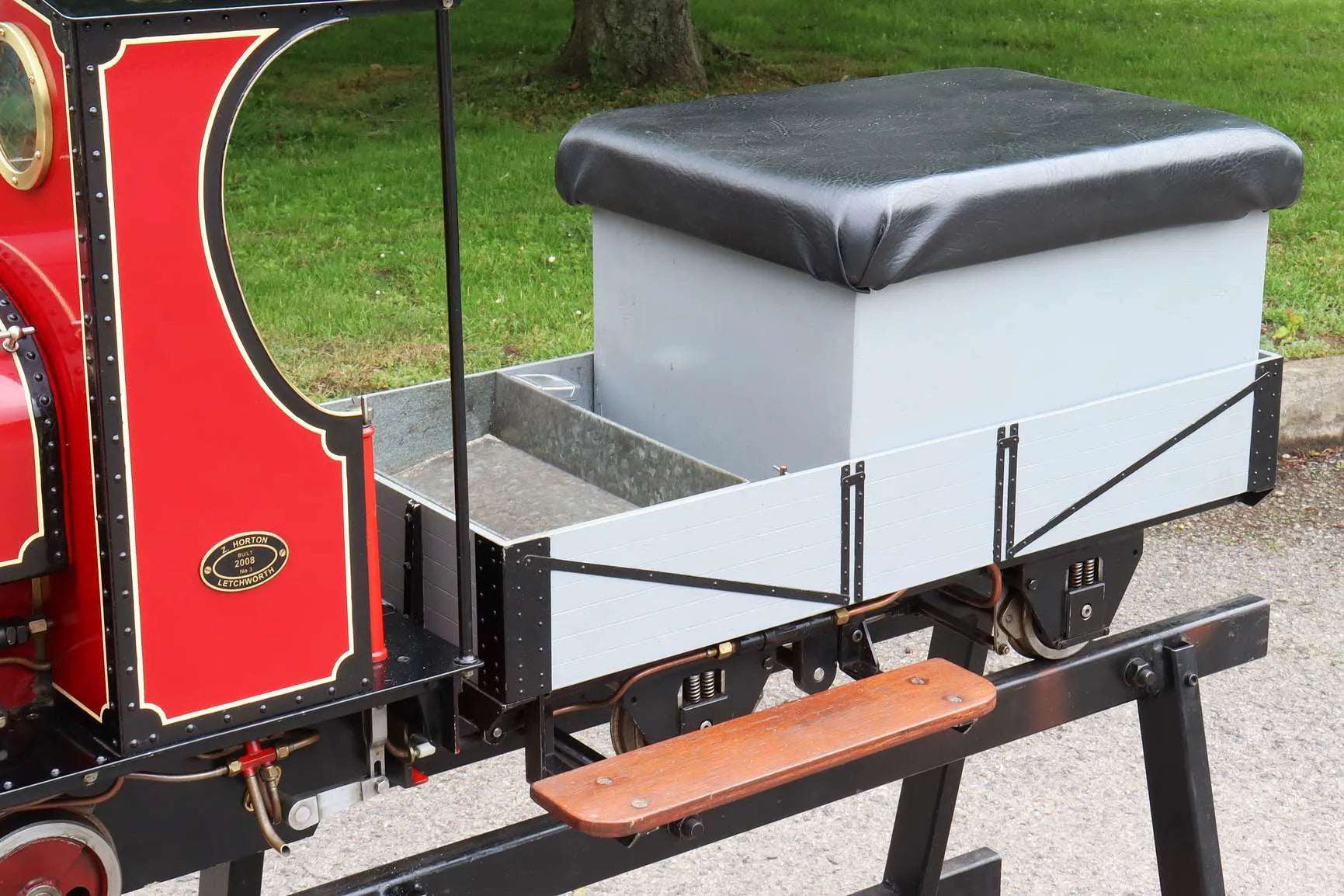

The four wheeled driving truck is fitted with a hand brake and footboards; there's a coal compartment in front of the driver and water tank under the seat piped forwards to the engine - the injector can take water from either the saddle tank or tender. There is a bicycle type speedometer fitted with magnet attached to one of the wheelsets - it needs a new battery.

A thoroughly well-sorted outfit, its compact size allows for easy handling and transport in a modest sized hatchback.

Technical information

Stock code

10516

Gauge

7 1/4 inch

Length/inches

29 + 29

Width/inches

14 1/2 + 17

Height/inches

24 + 16

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

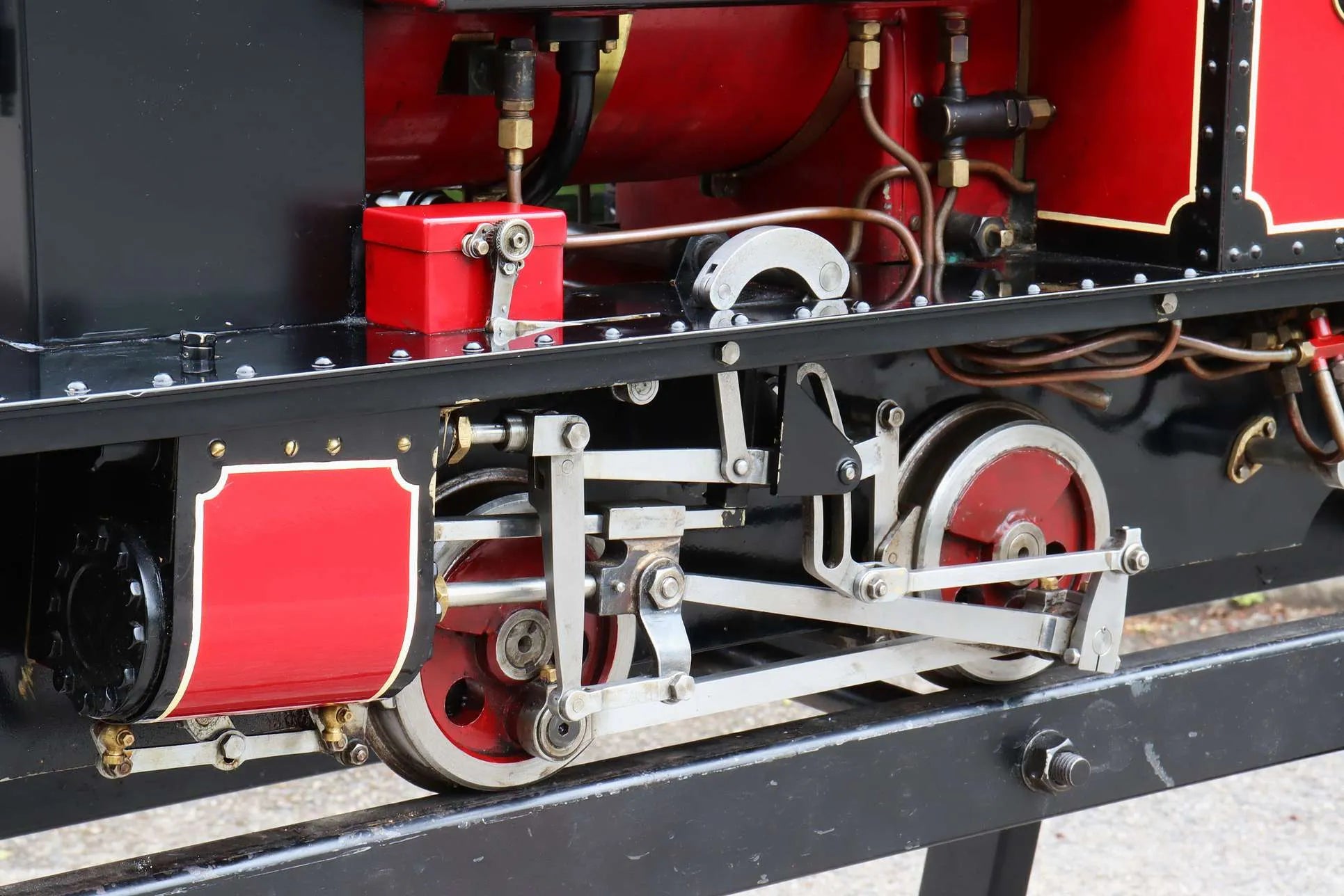

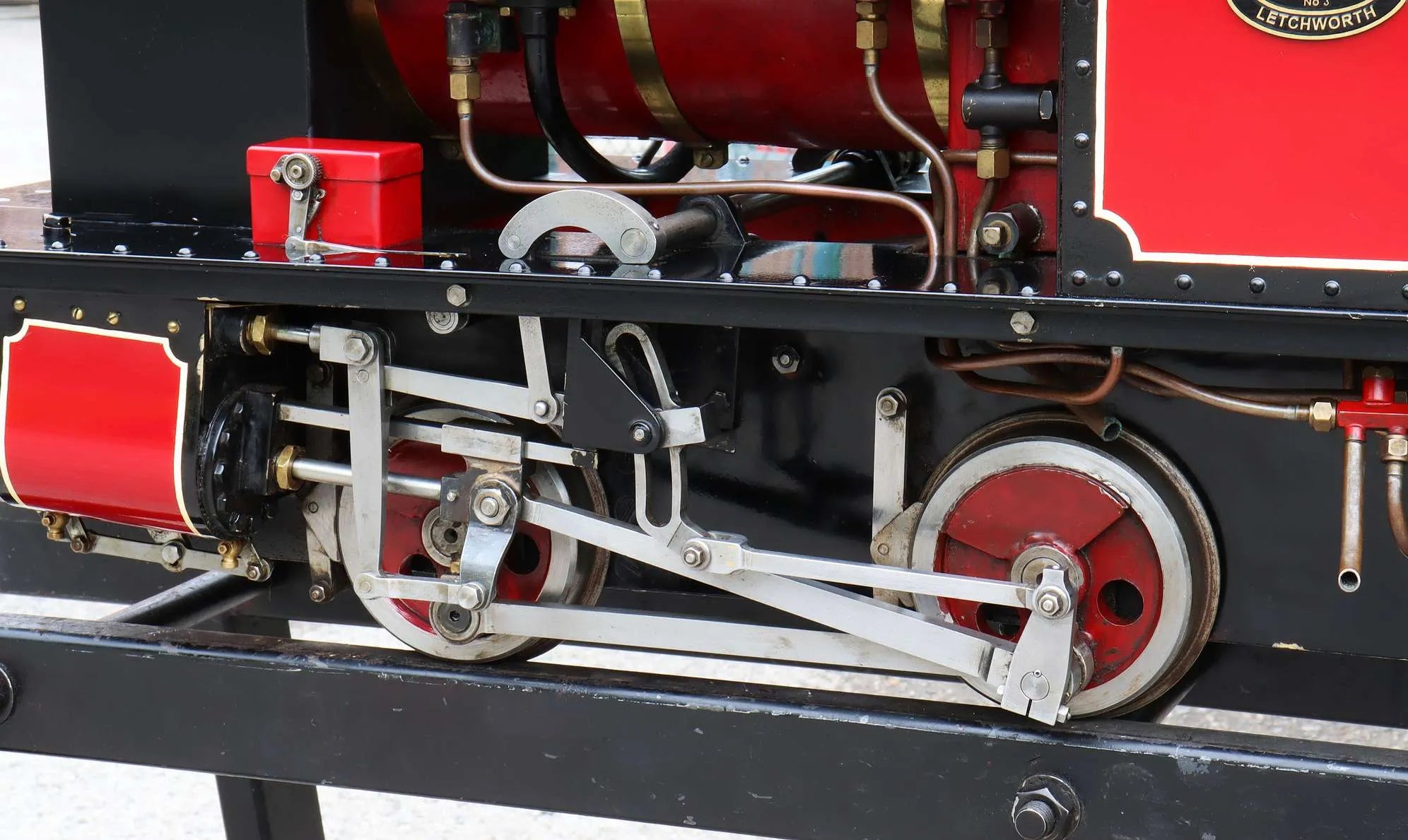

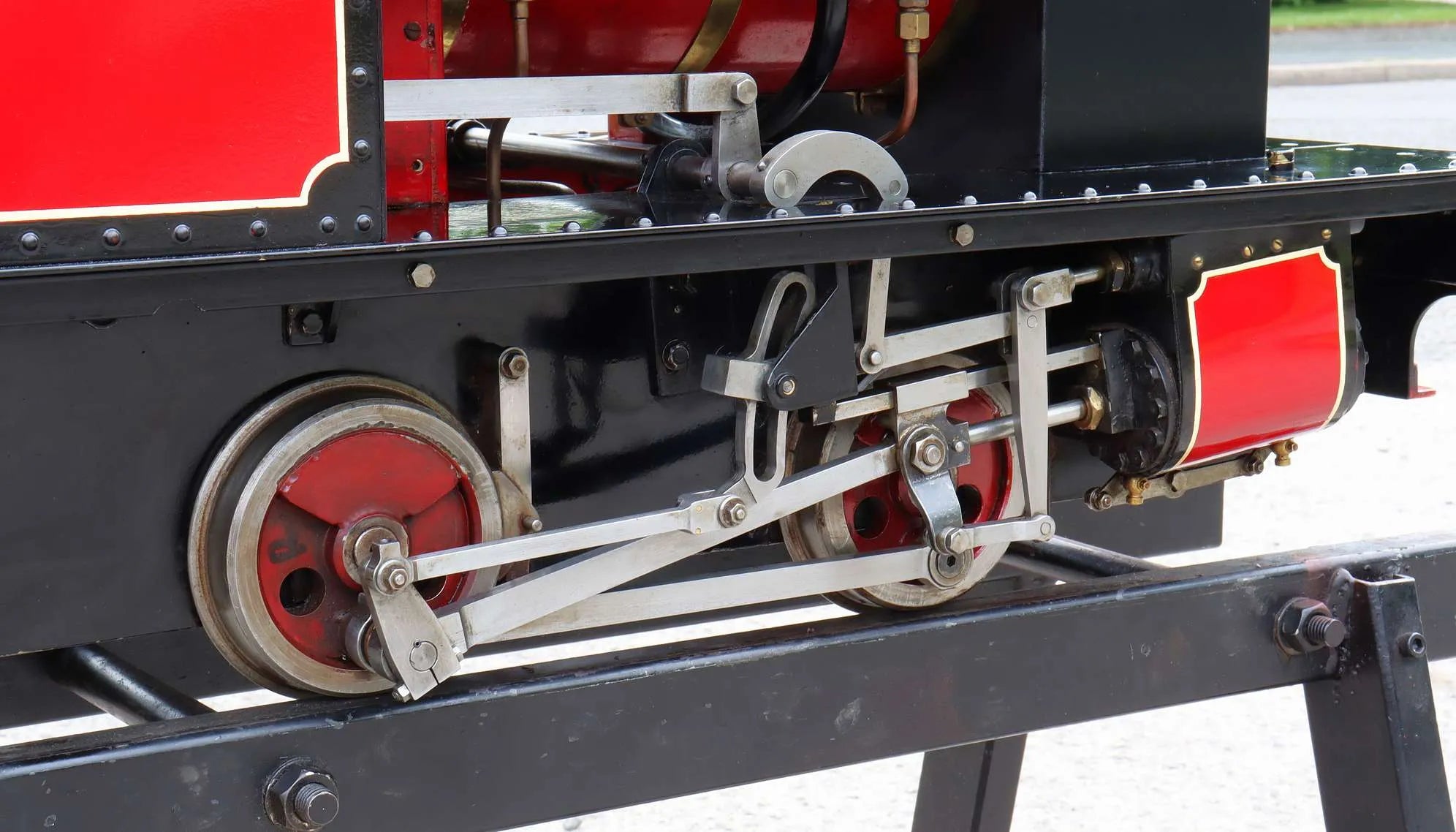

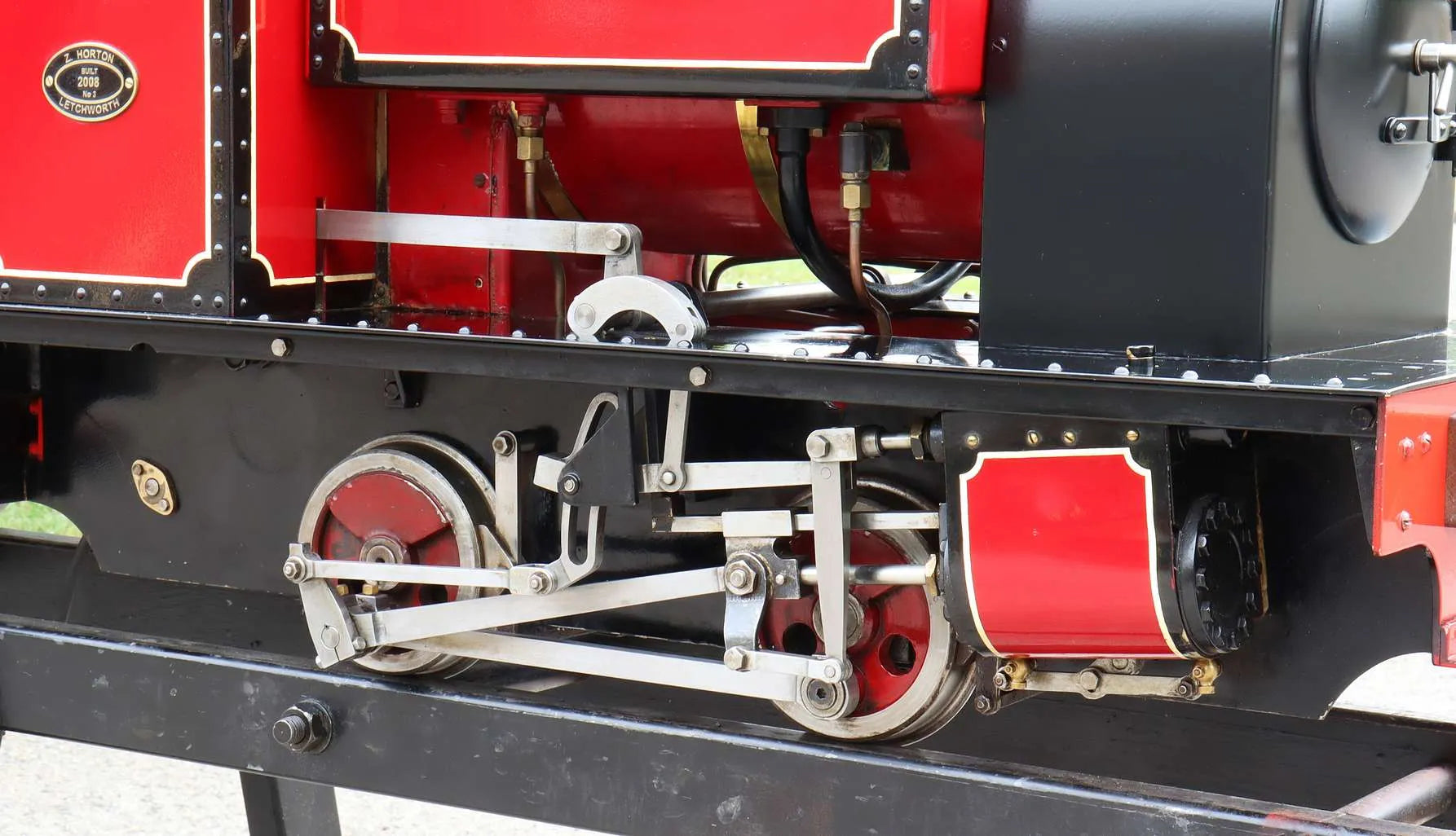

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

2007

Boiler number

N138/90/242

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Jul-22

Hydraulic test valid to

31-May-26

Steam test valid to

27-Aug-23
