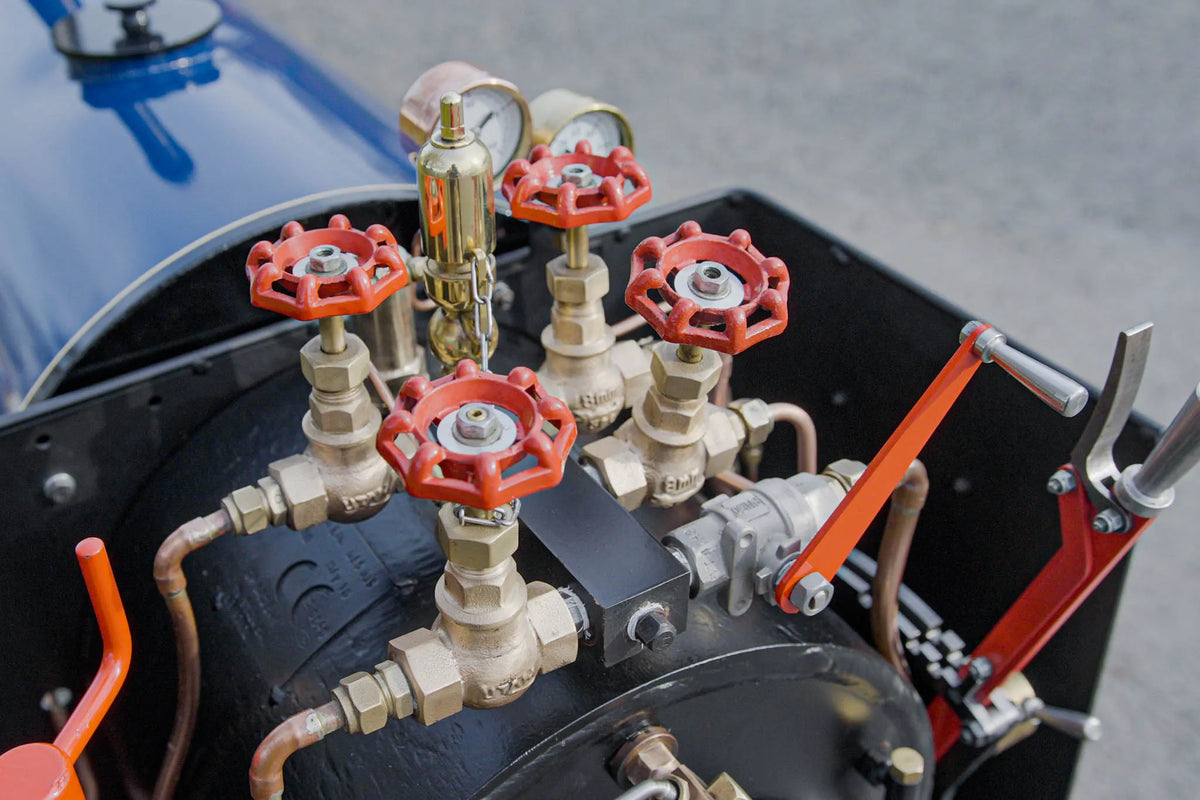

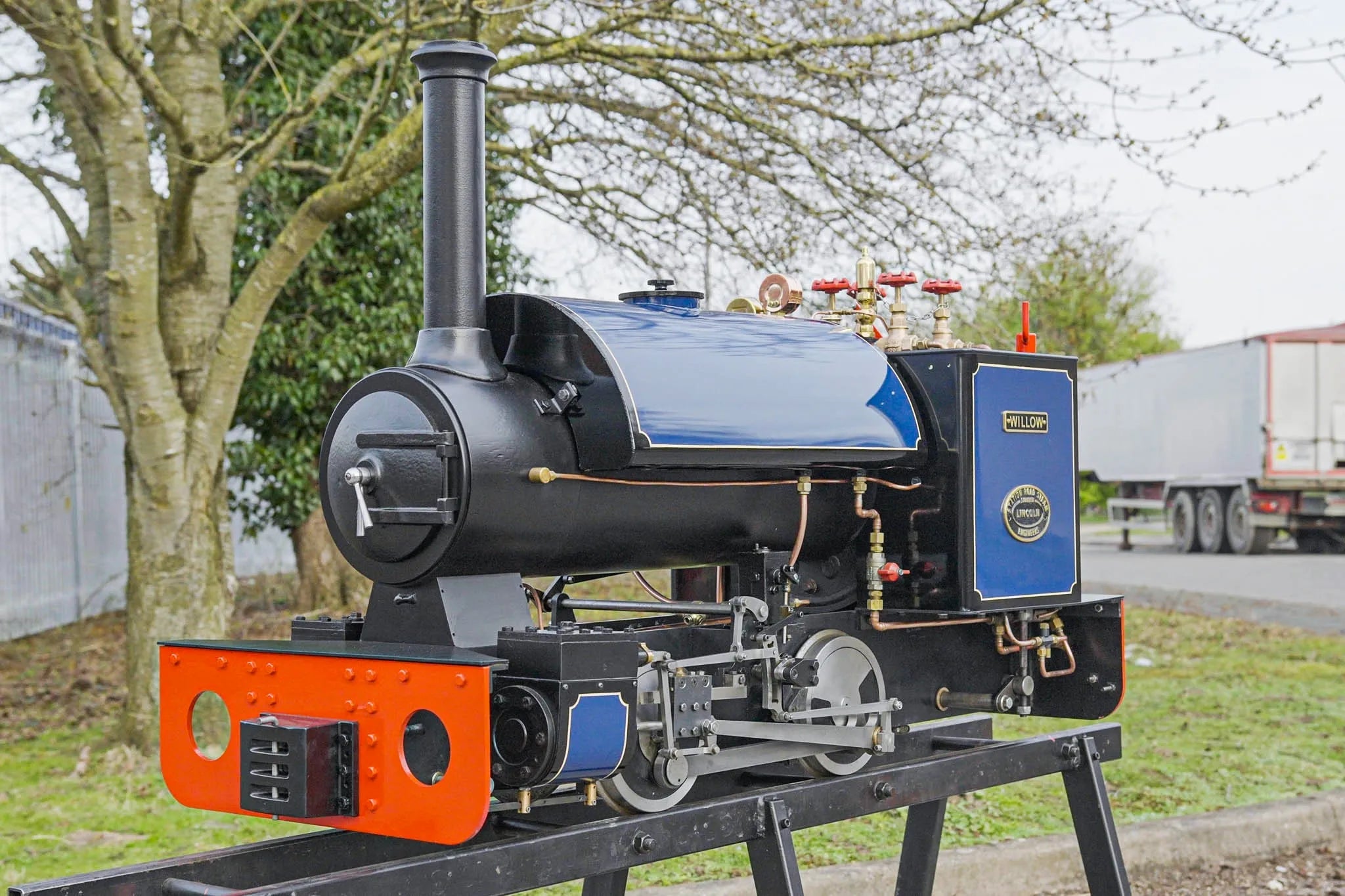

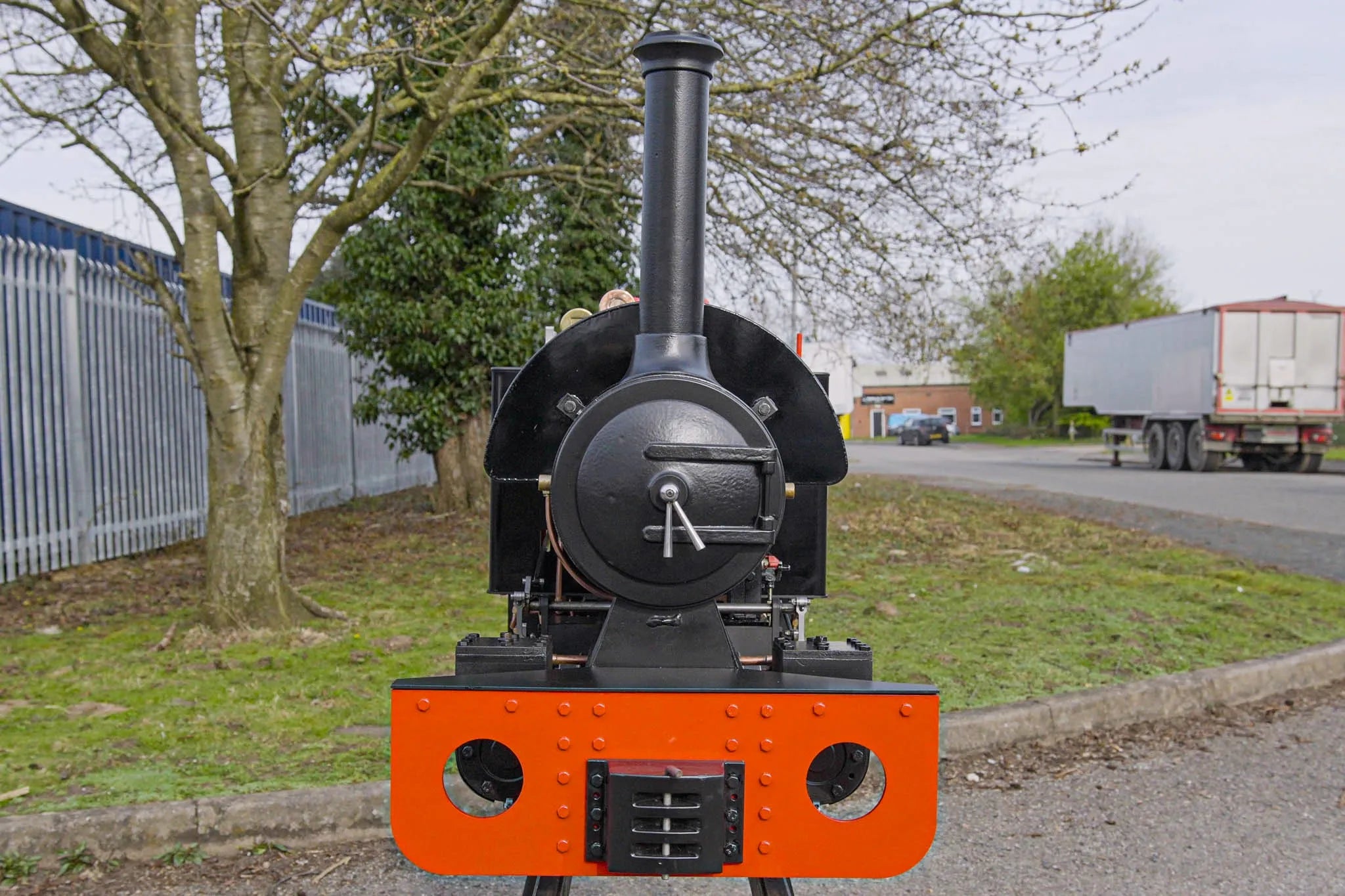

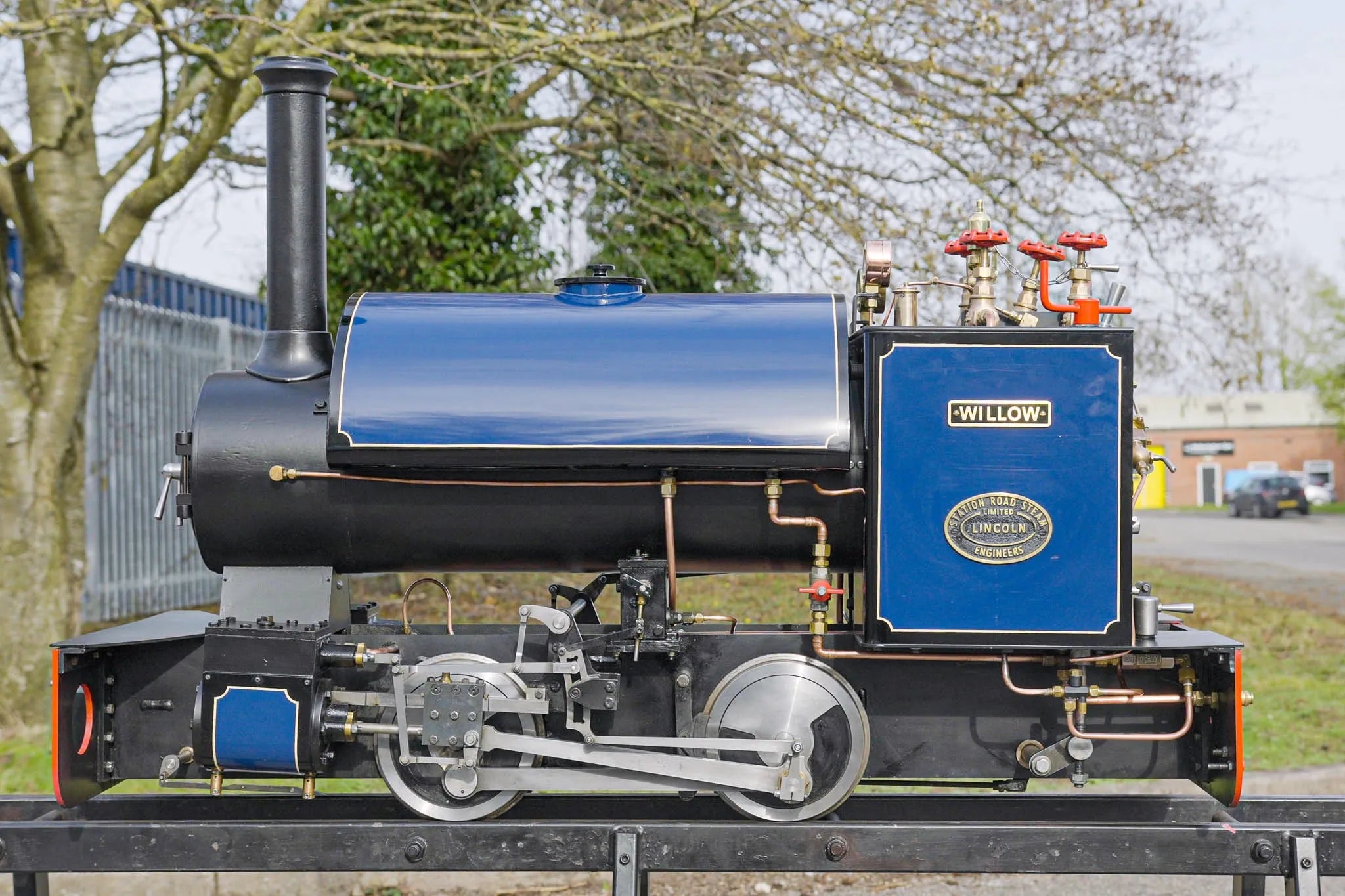

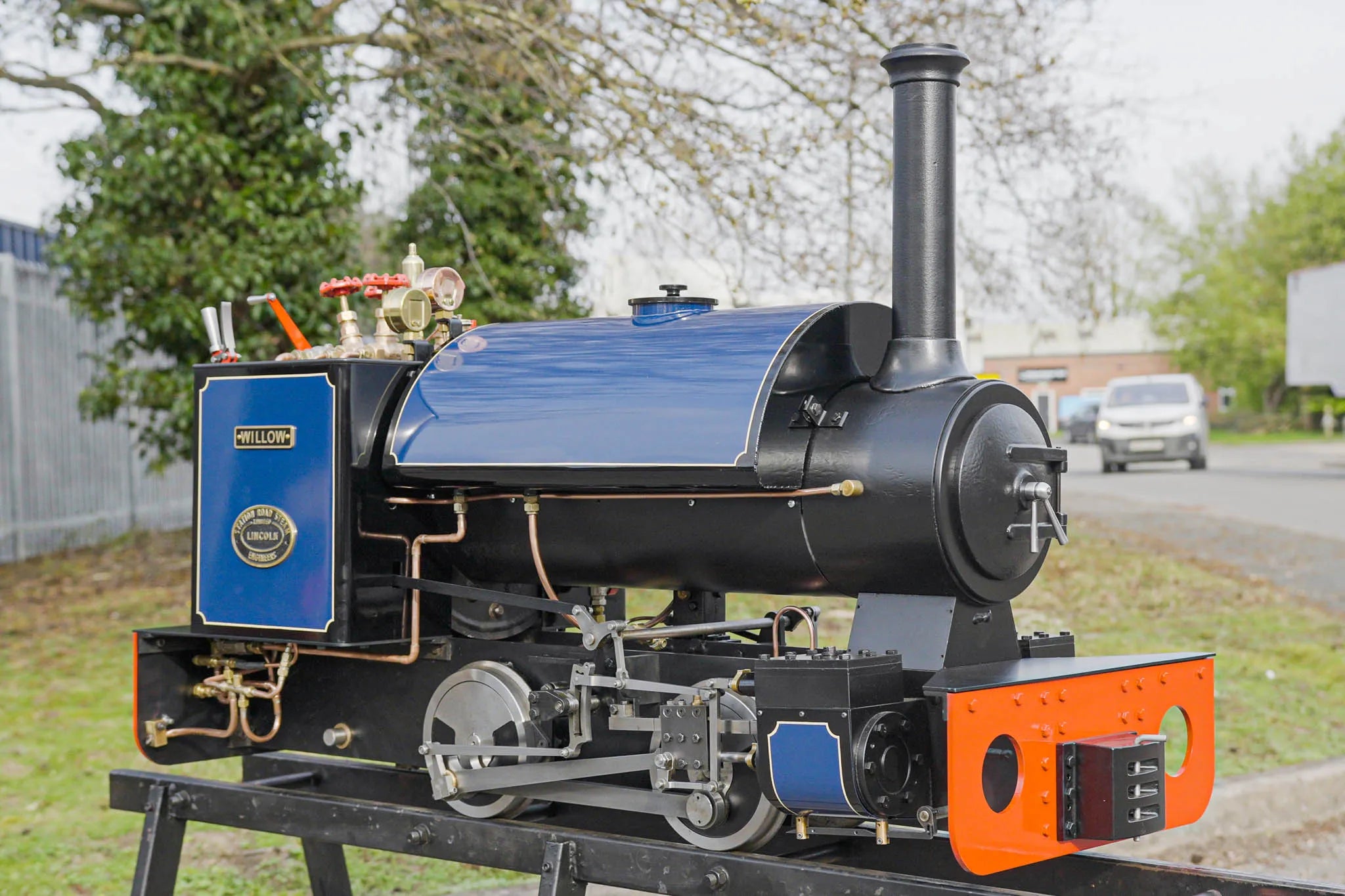

7 1/4 inch narrow gauge "Stafford" 0-4-0ST, works number 1302

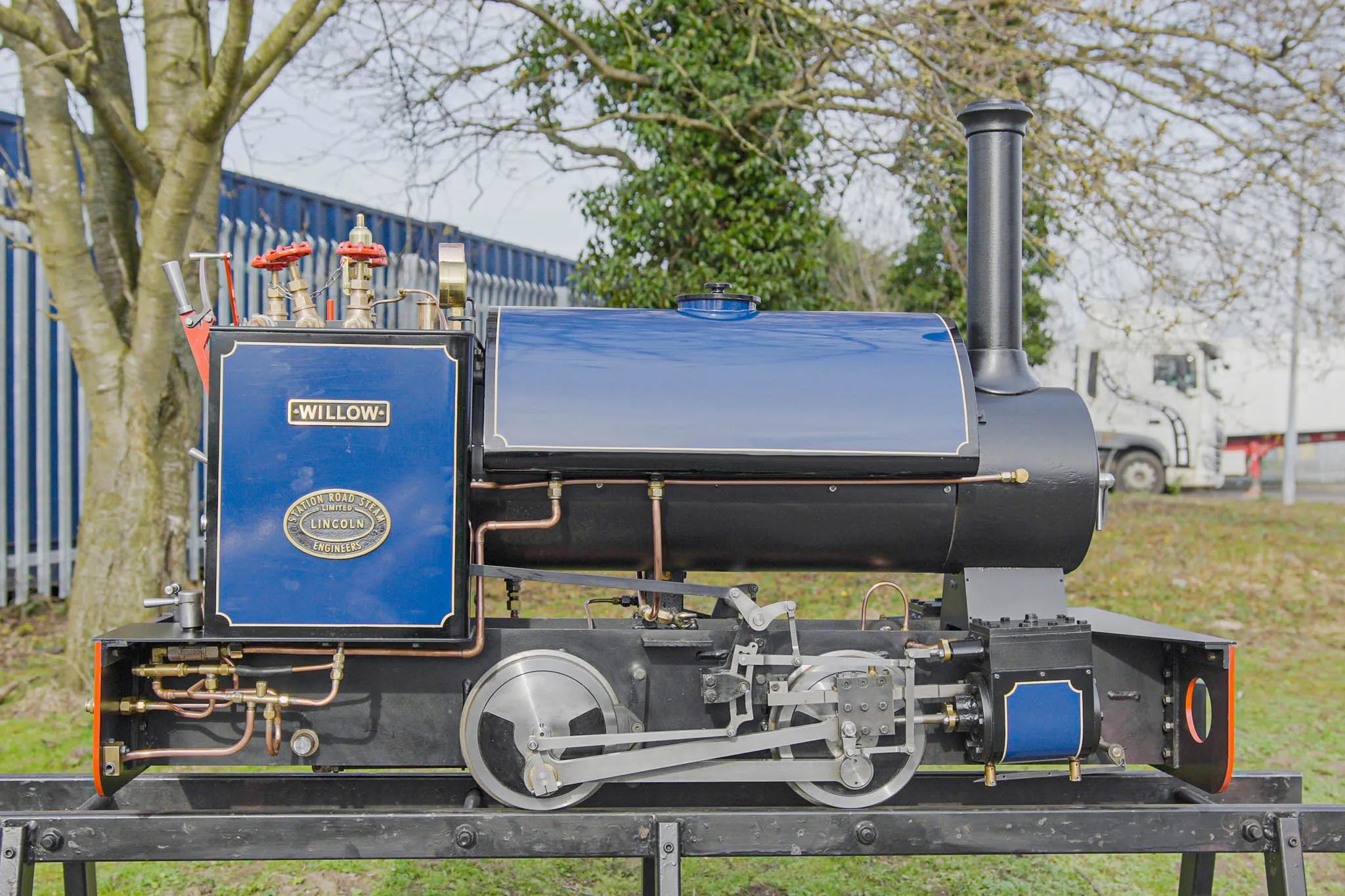

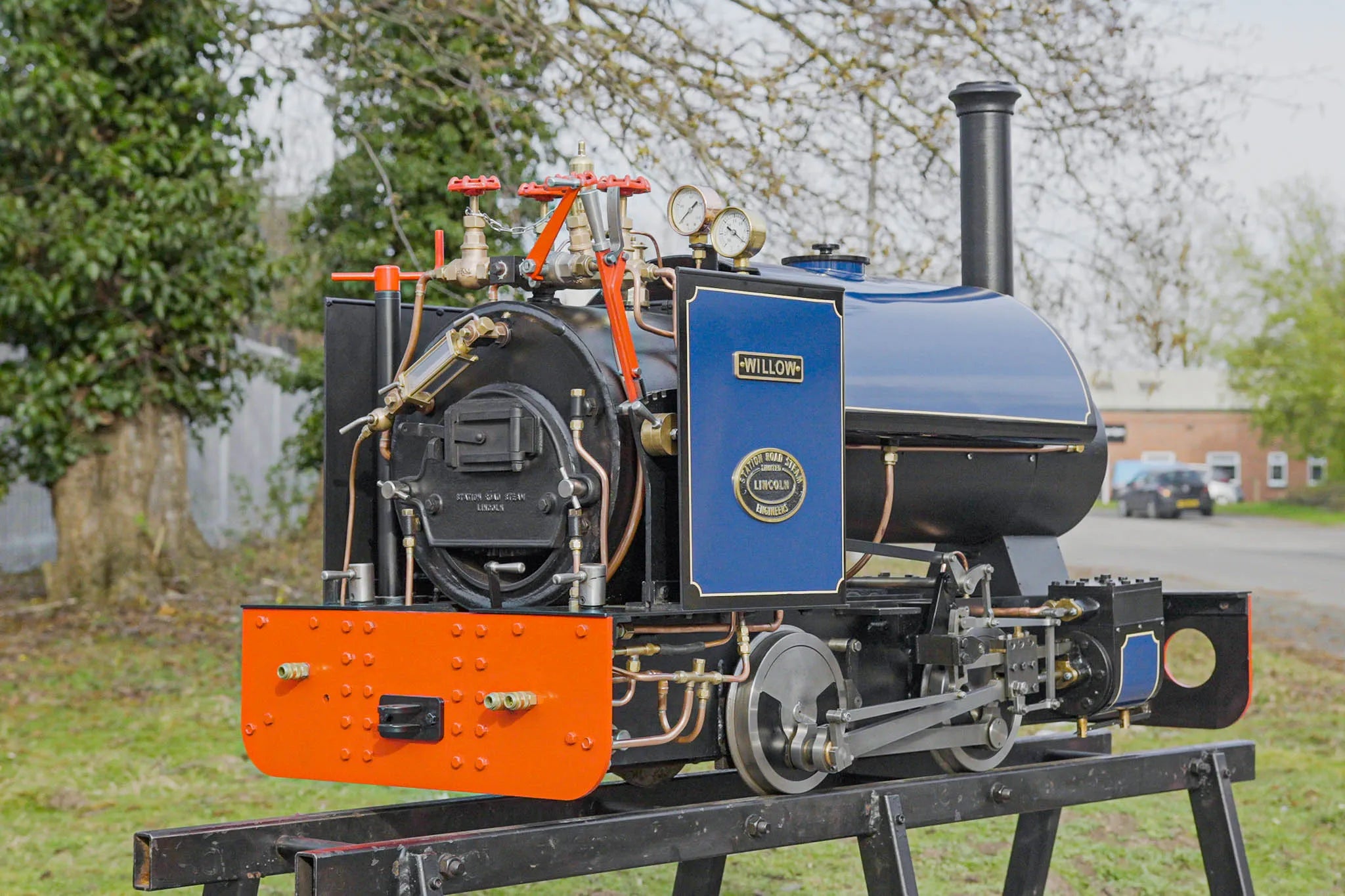

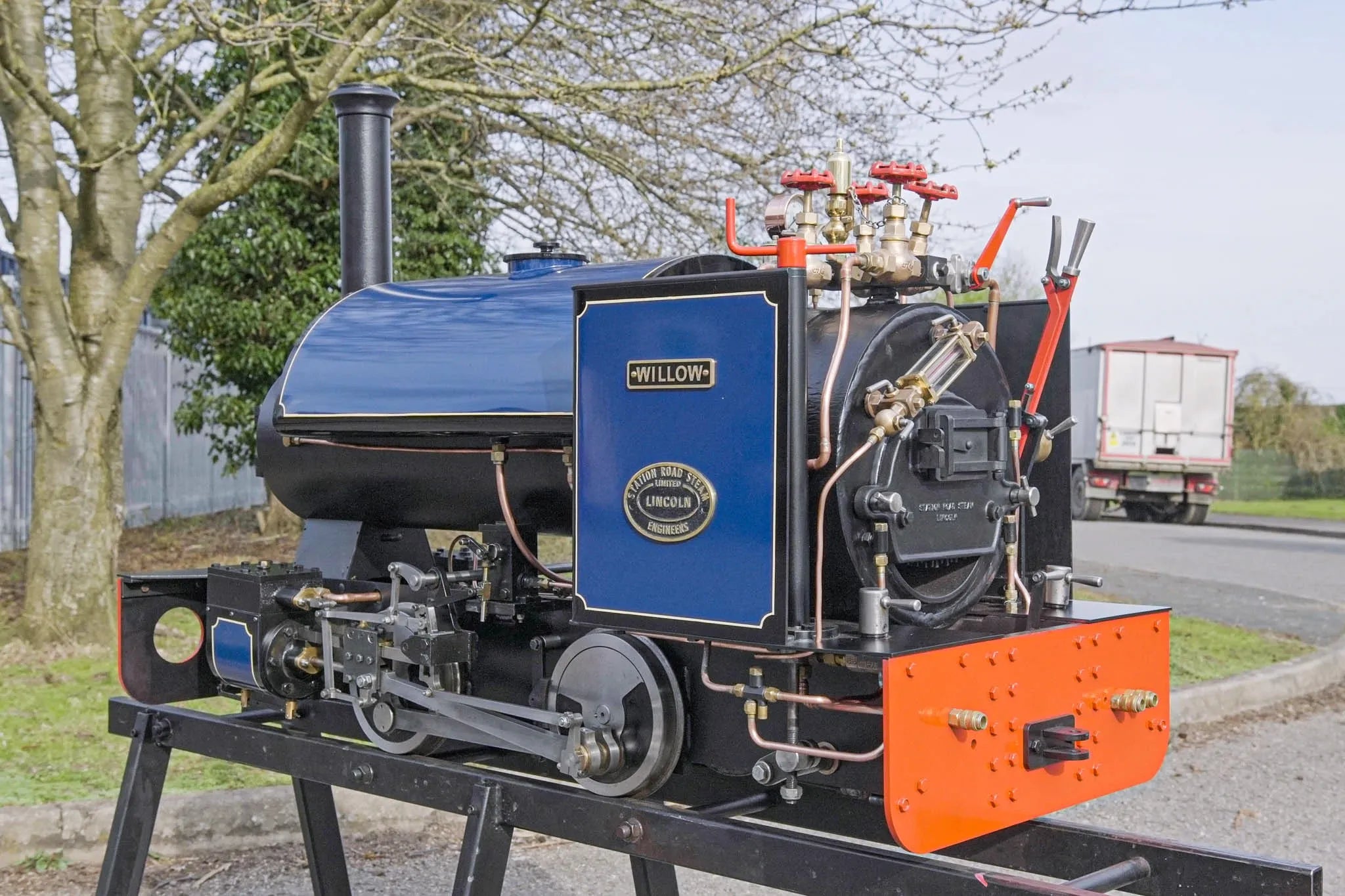

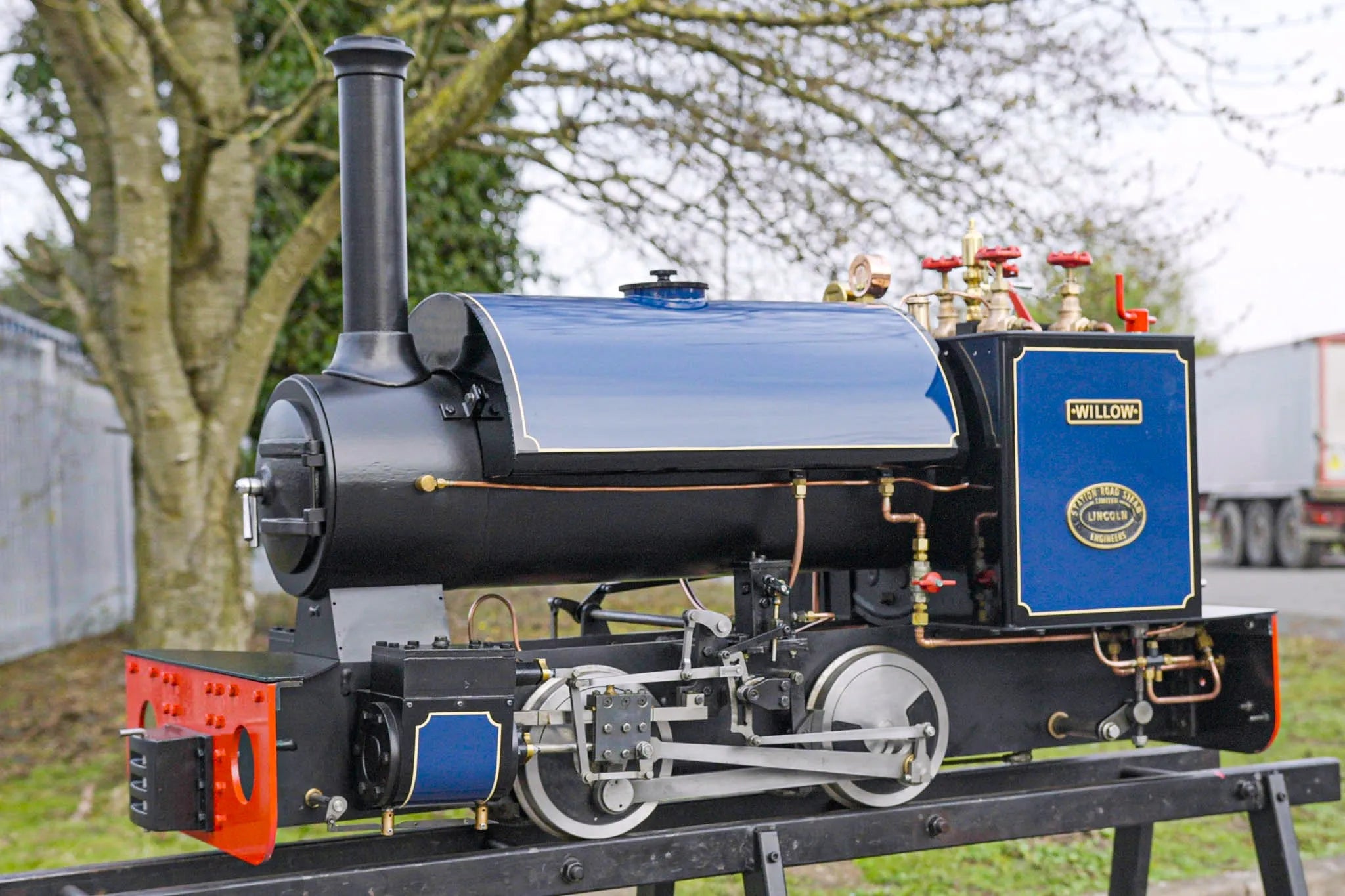

A 7 1/4 inch gauge Stafford 0-4-0ST, works number 1302, delivered new in 2010.

A well-known engine, the subject of an interesting blog by its first owner, a professional engineer with several good models to his credit. After running the engine for a couple of years he traded it in for the first six-coupled engine we built based on this design.

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines.

If required we would be more than happy to include half a day's training at our works on the firing, driving and disposal of the engine for a new owner.

Technical information

Stock code

11822

Length/inches

45

Width/inches

19

Height/inches

32

Weight/Kg

195

Wheel material

steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

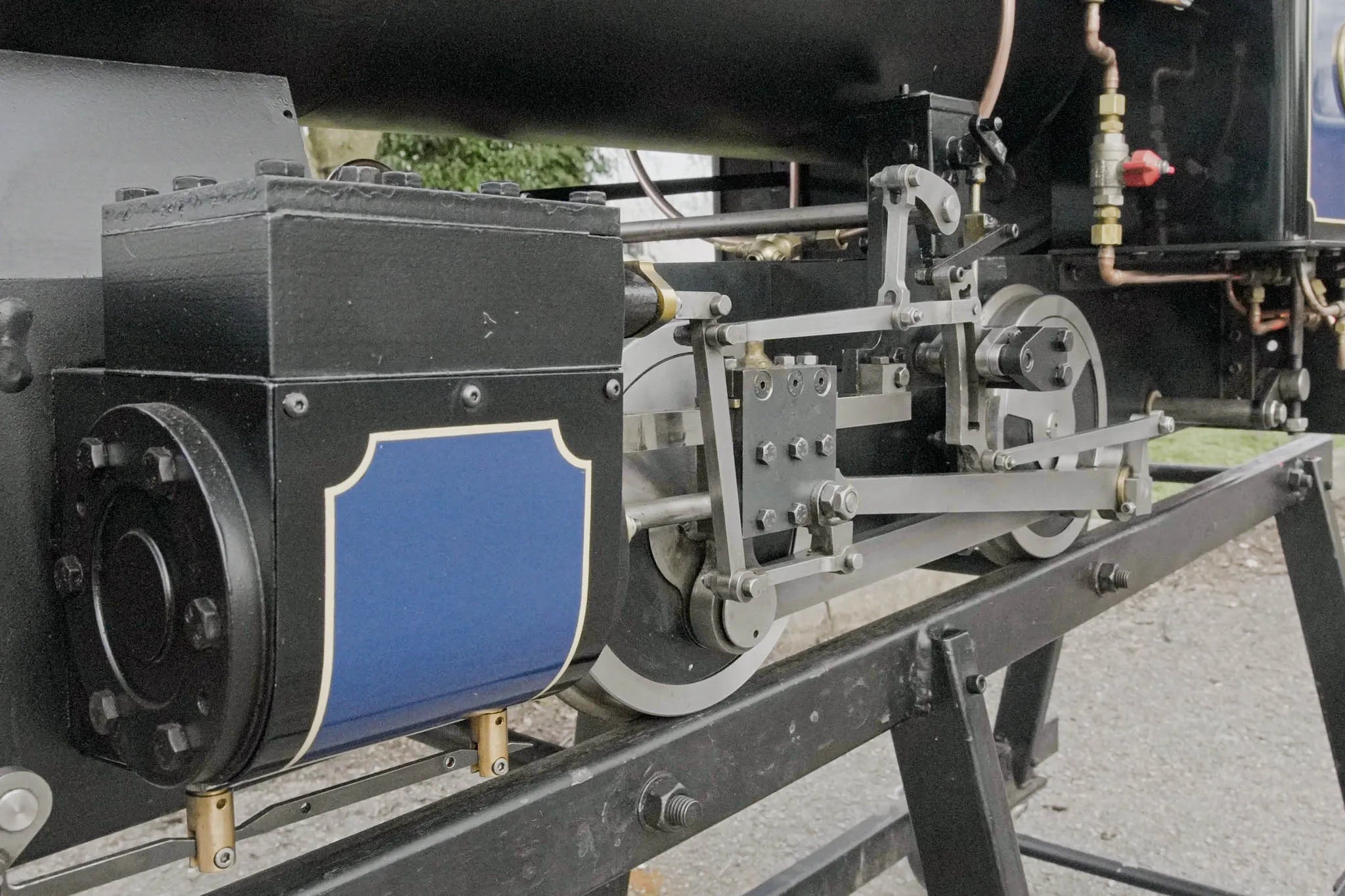

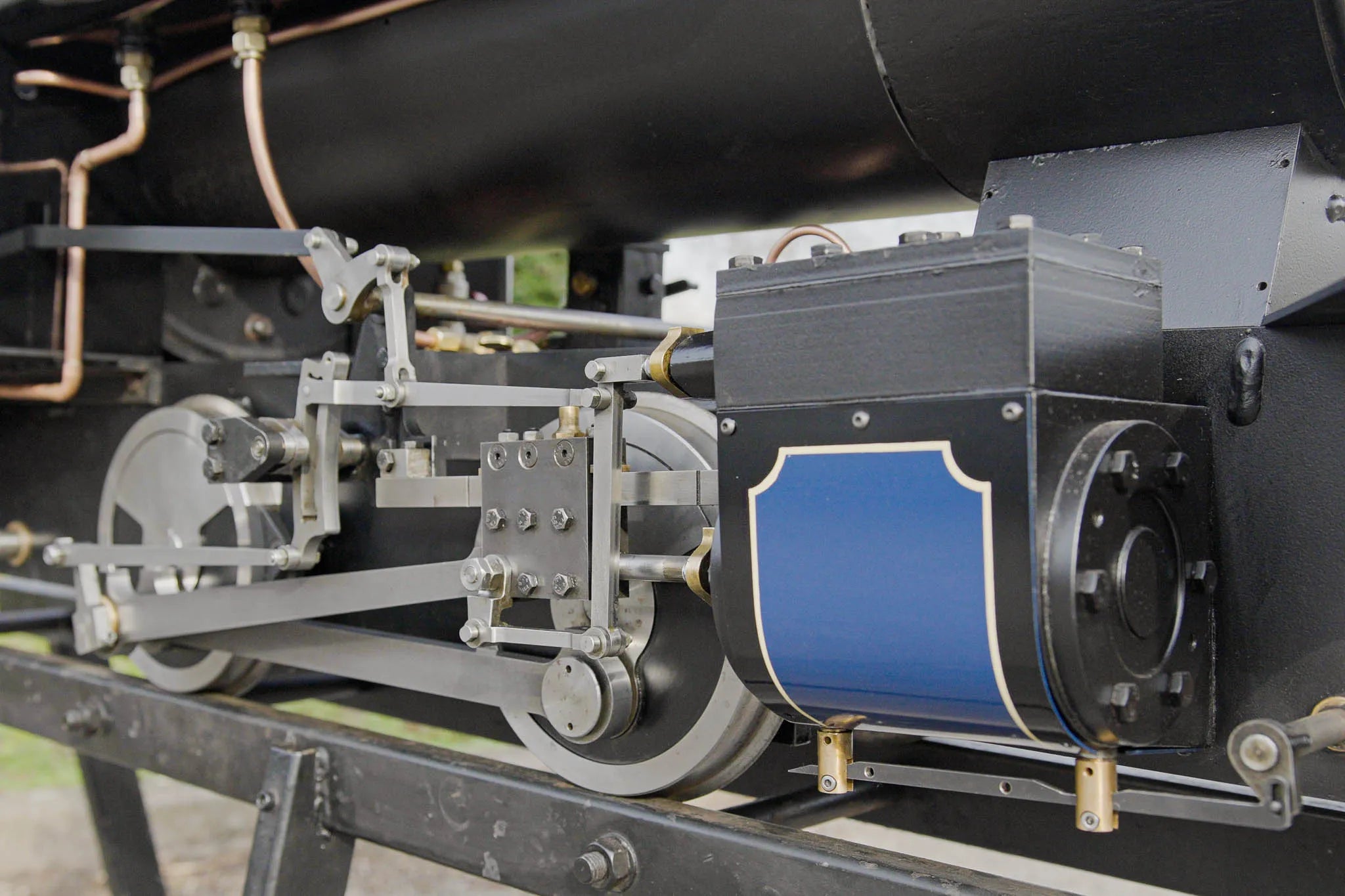

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

AJB Engineering

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

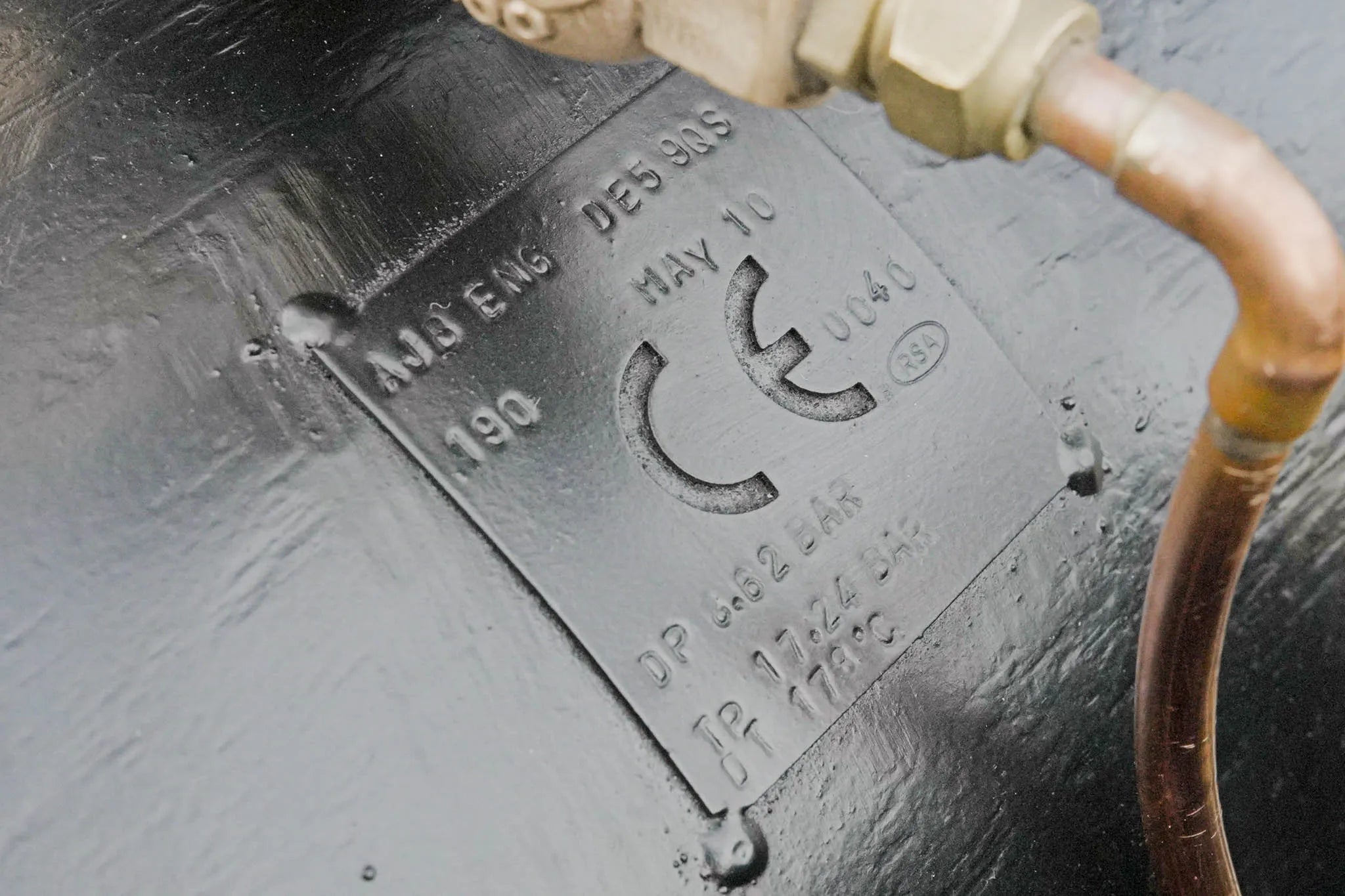

CE/UKCA mark

yes

Year built

2010

Boiler number

190

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

bell type

Injector

2

Nominal traction

238

Date out

Aug-24
