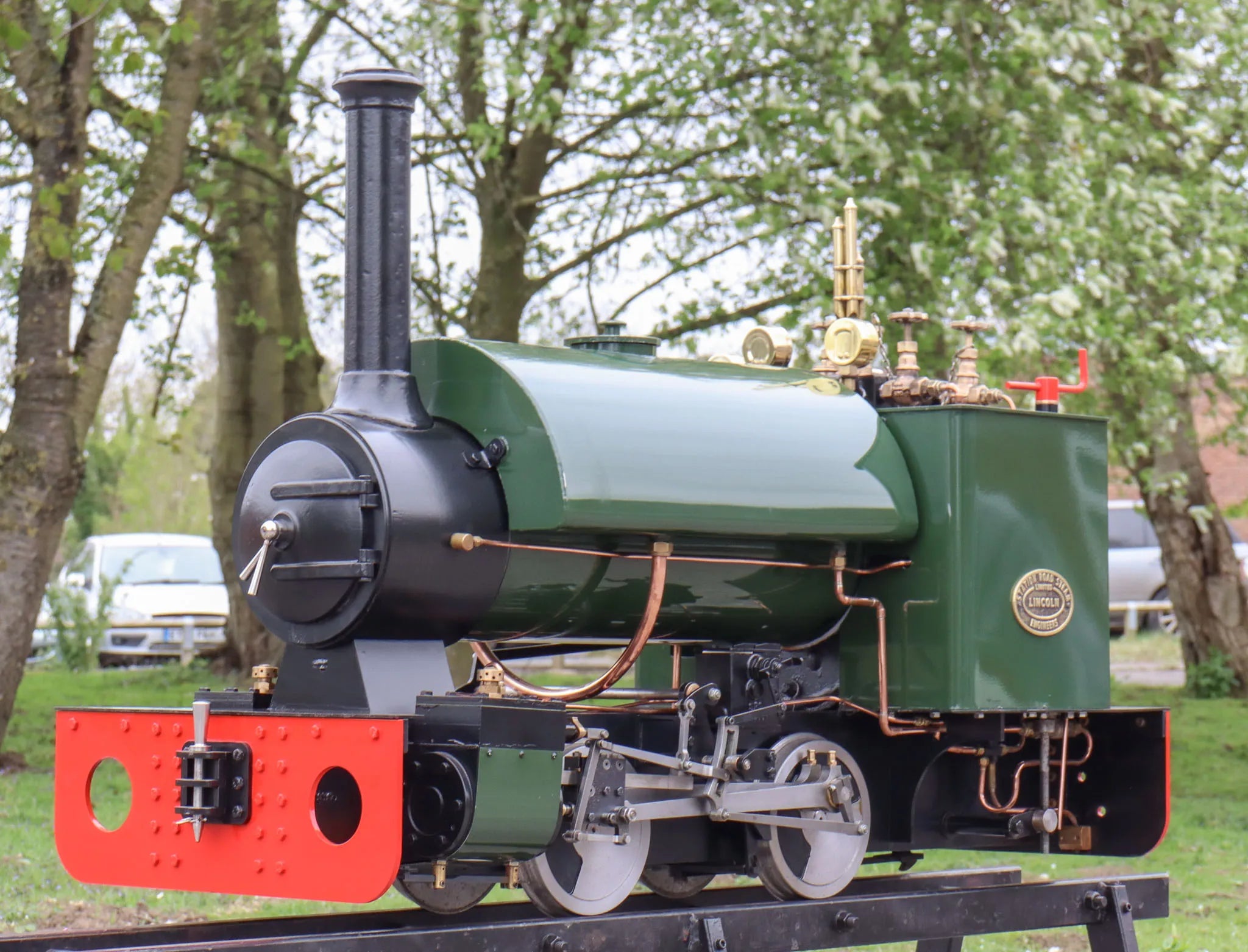

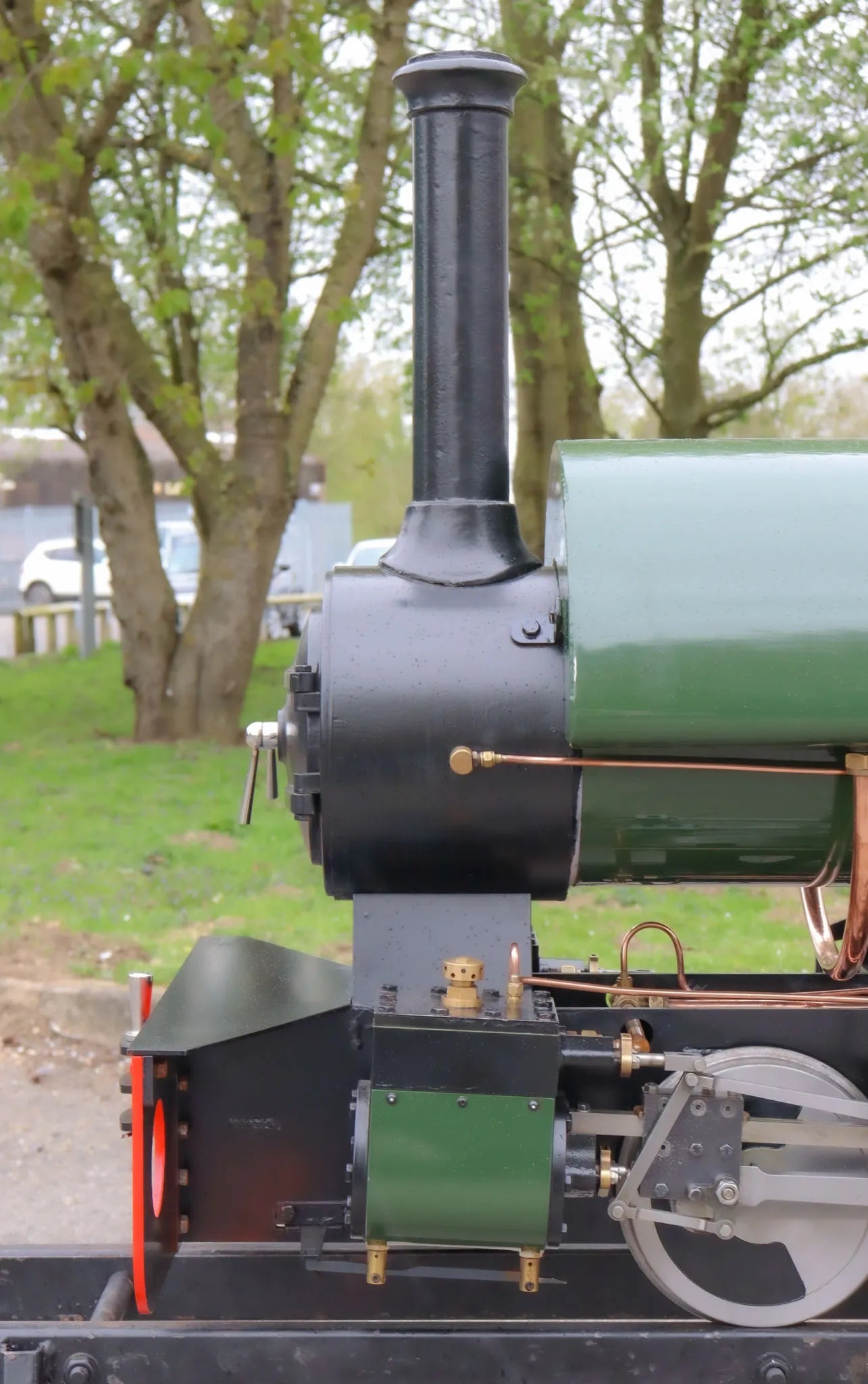

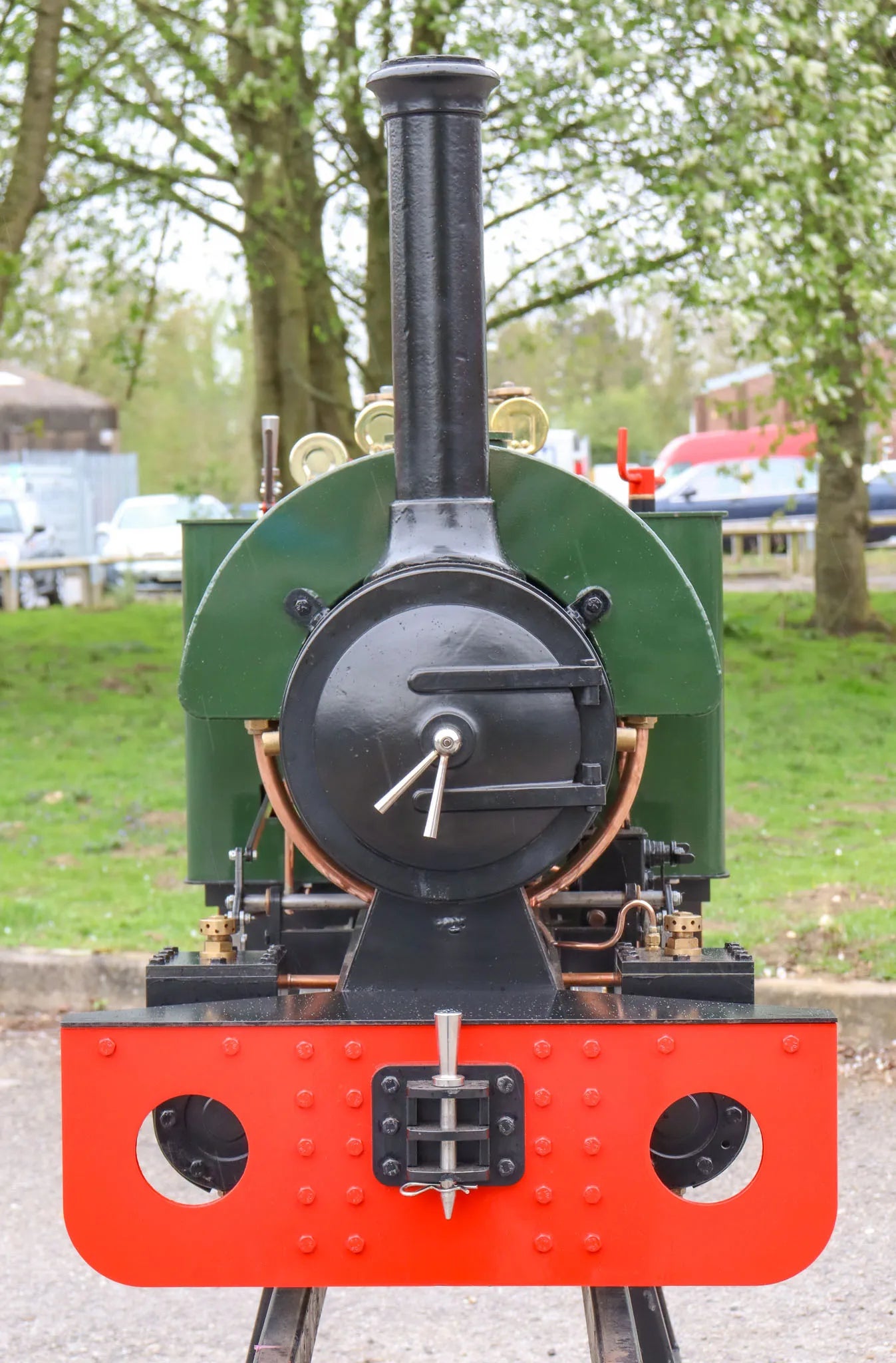

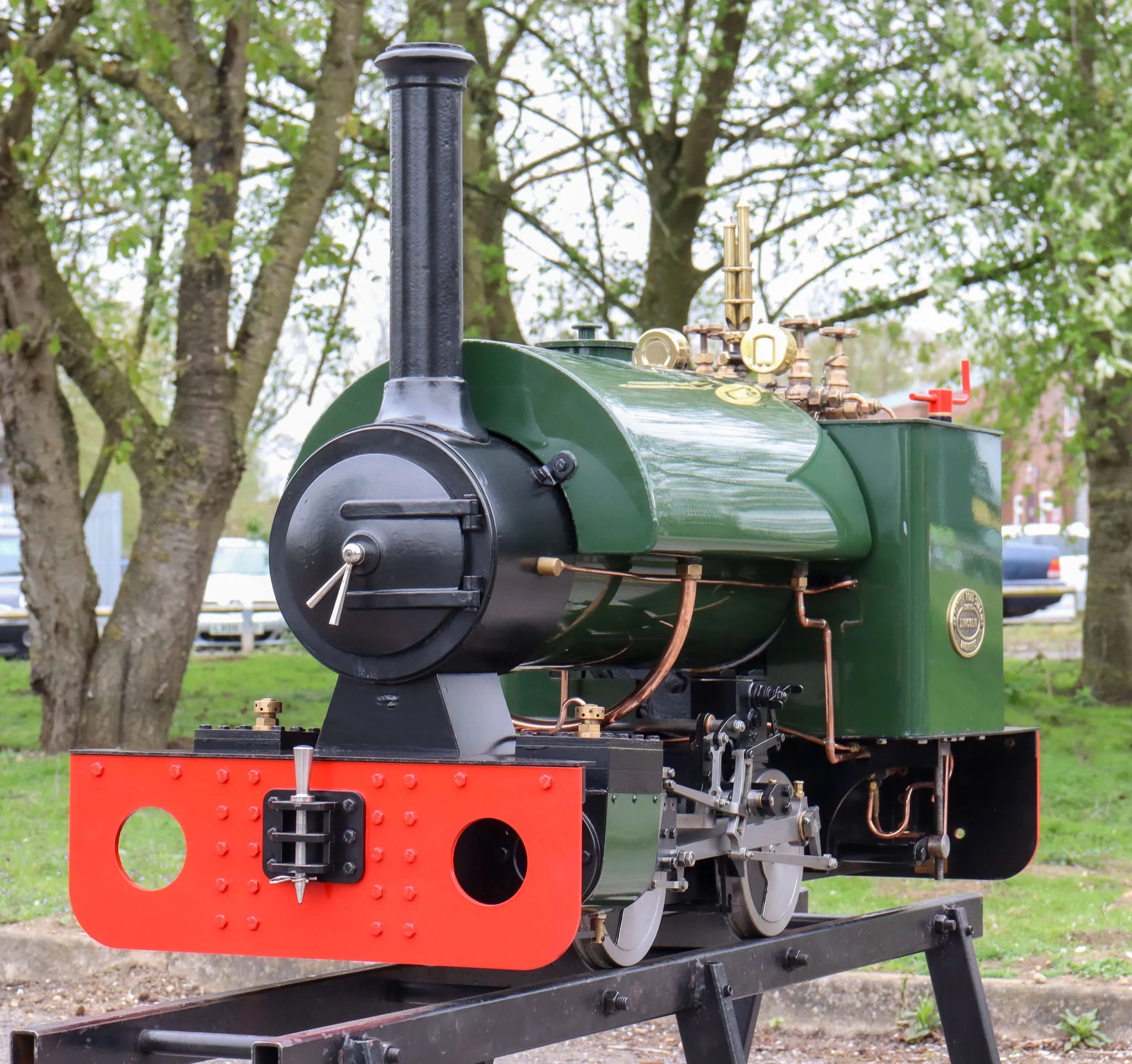

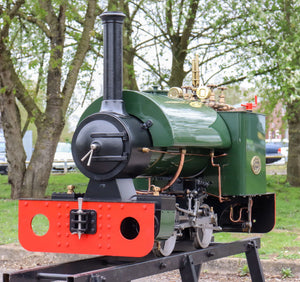

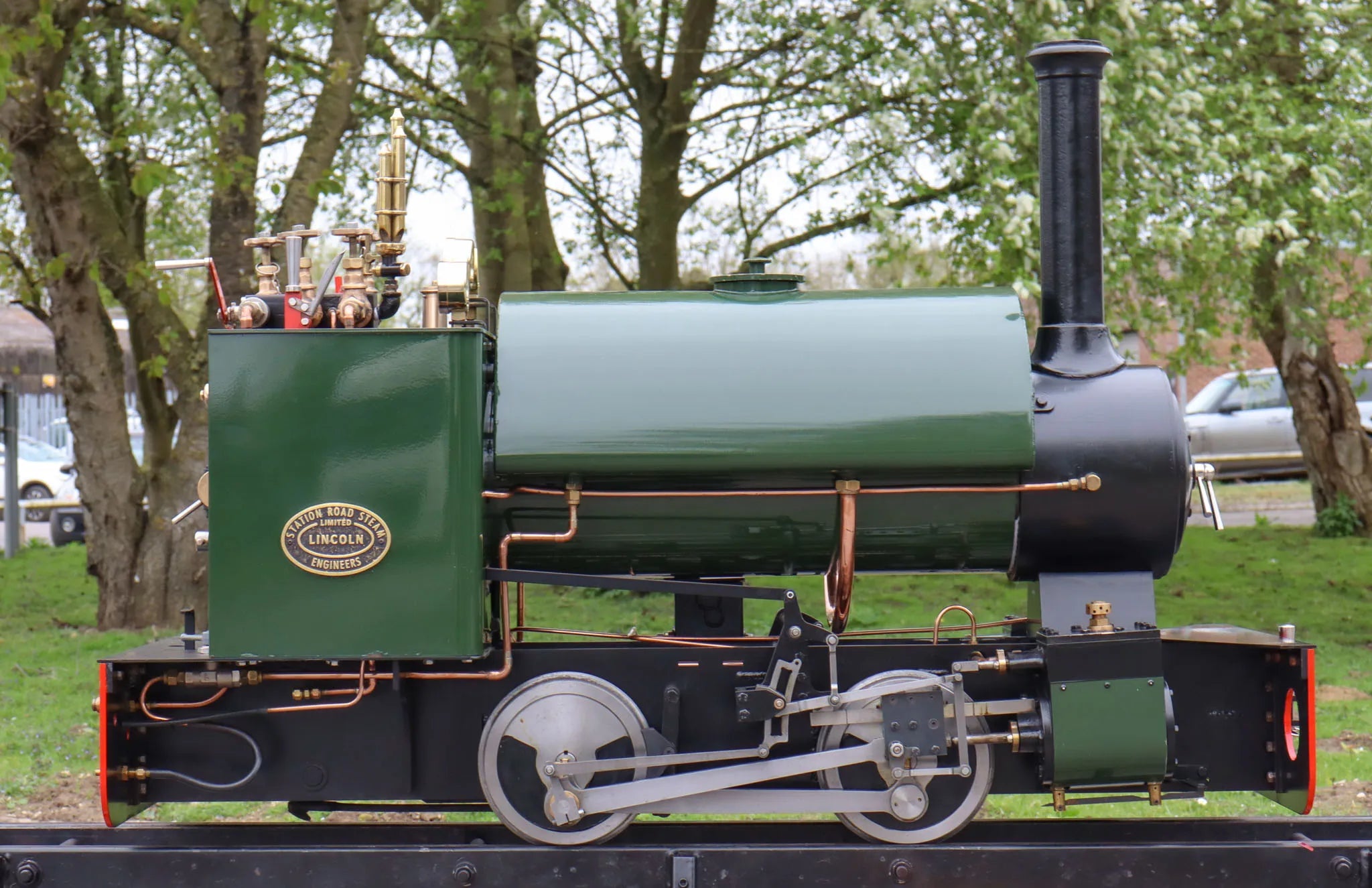

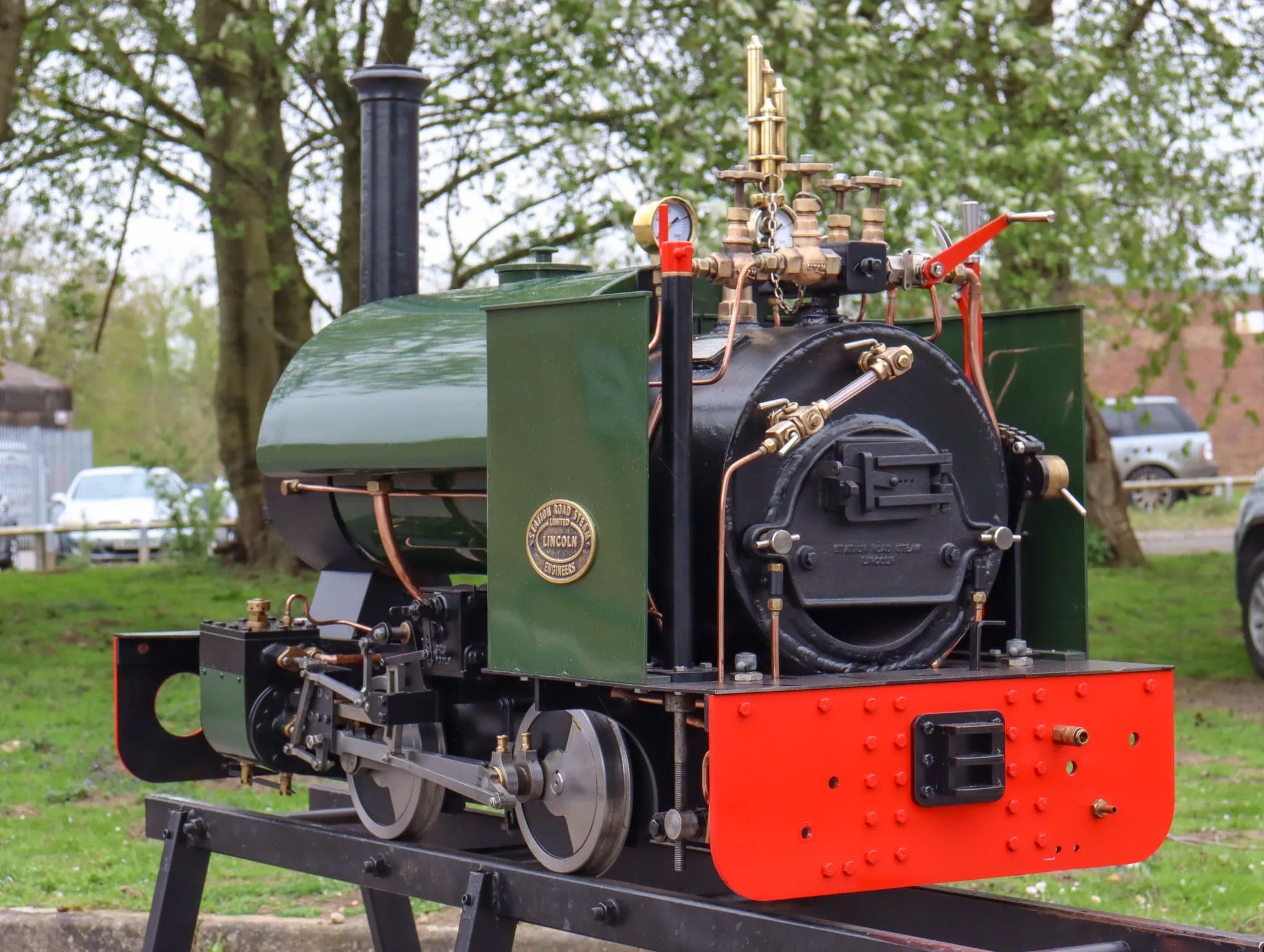

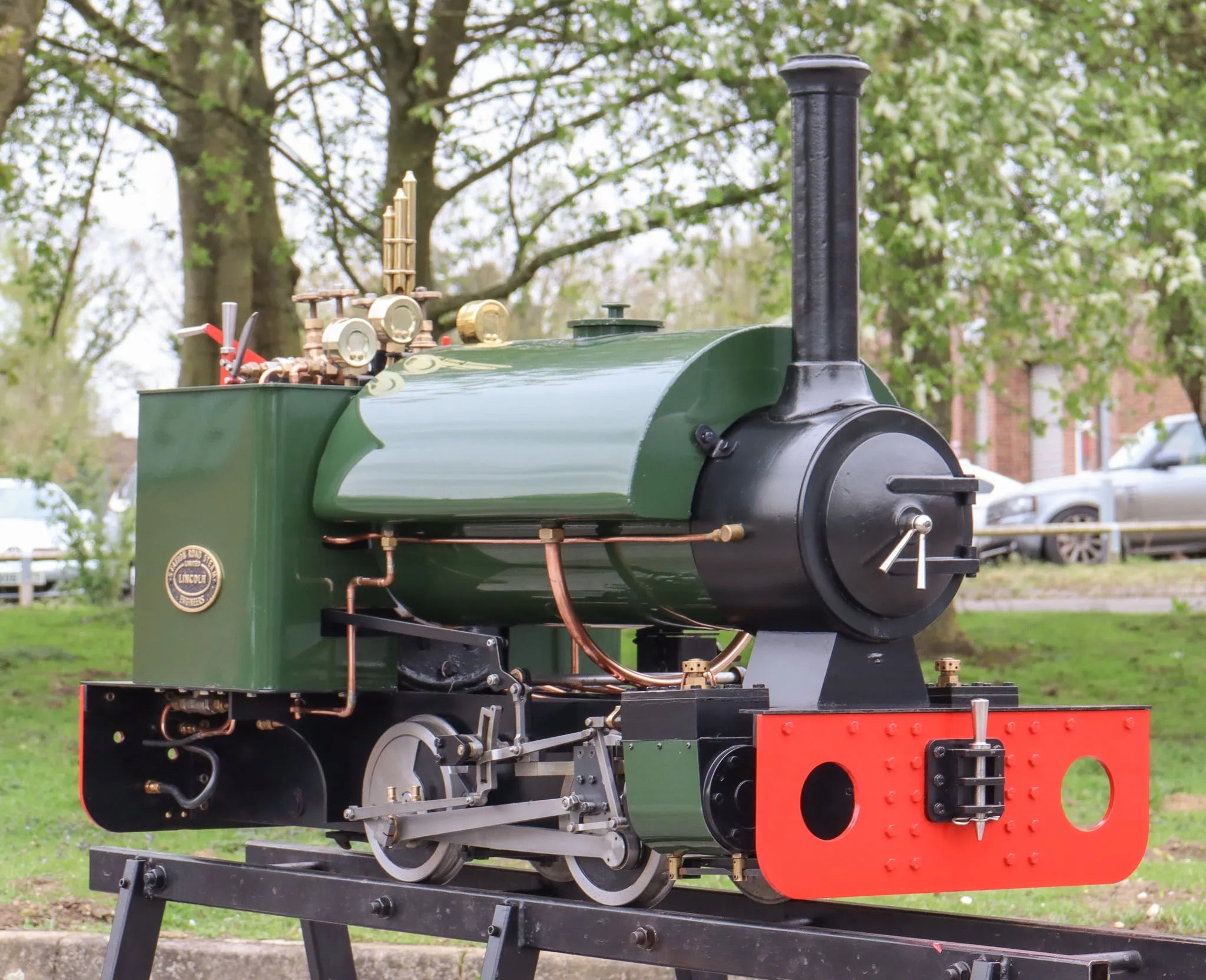

7 1/4 inch narrow gauge Stafford 0-4-0T, works number 1332

A 71/4 inch gauge Stafford 0-4-0ST, works number 1332, supplied new in March 2013 and subject of a full overhaul at our works in 2021, since when the engine has seen little use.

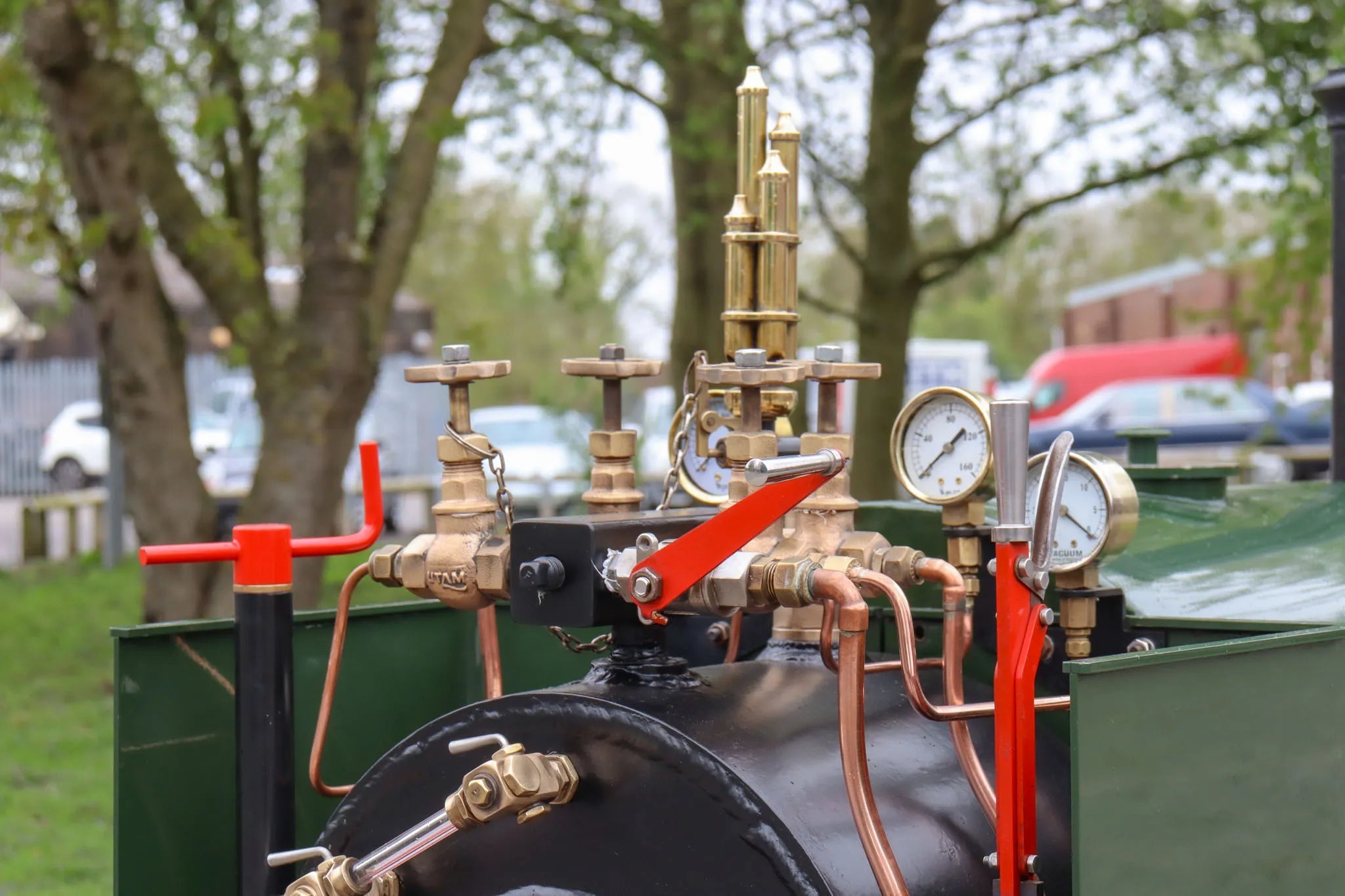

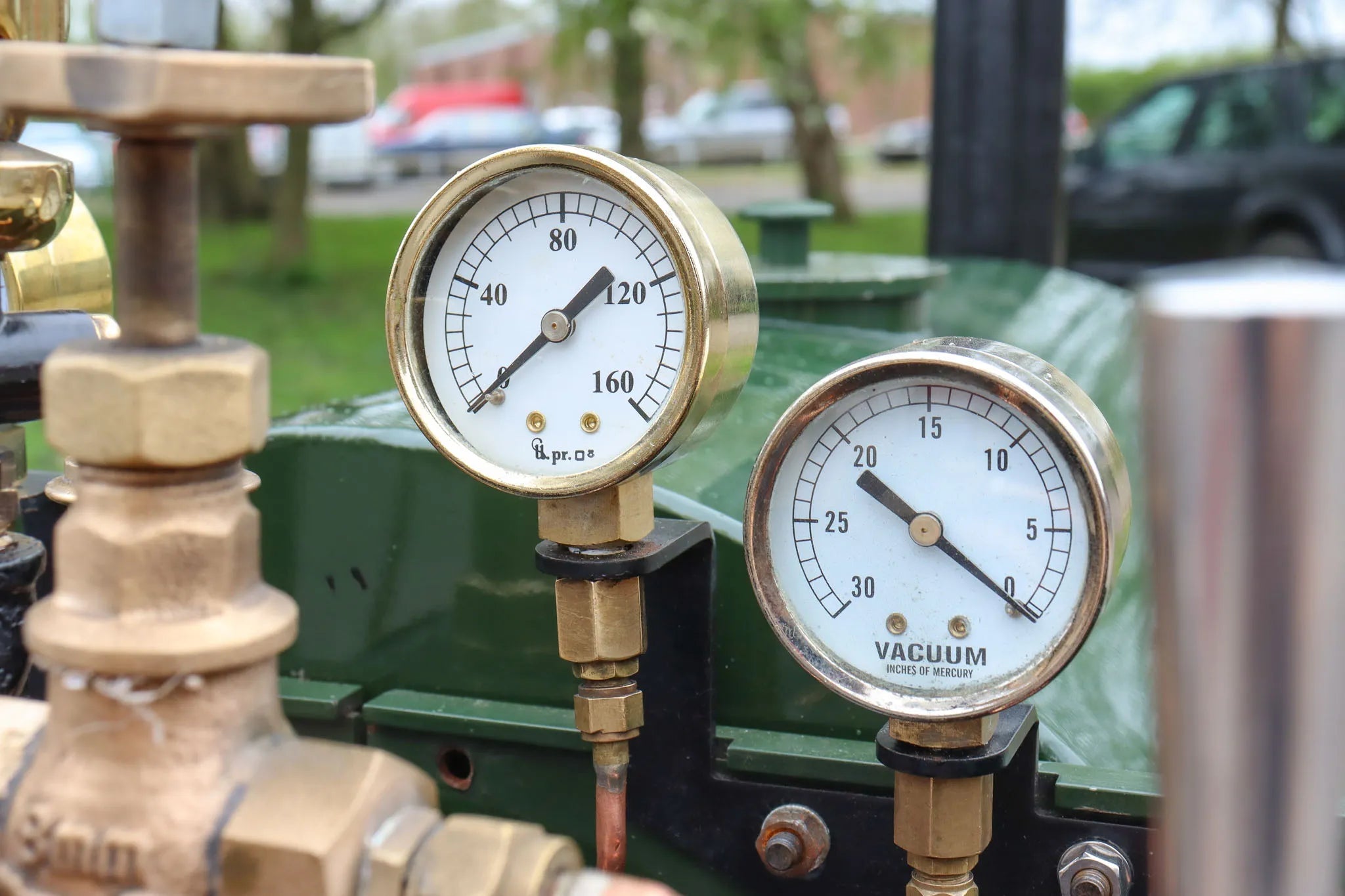

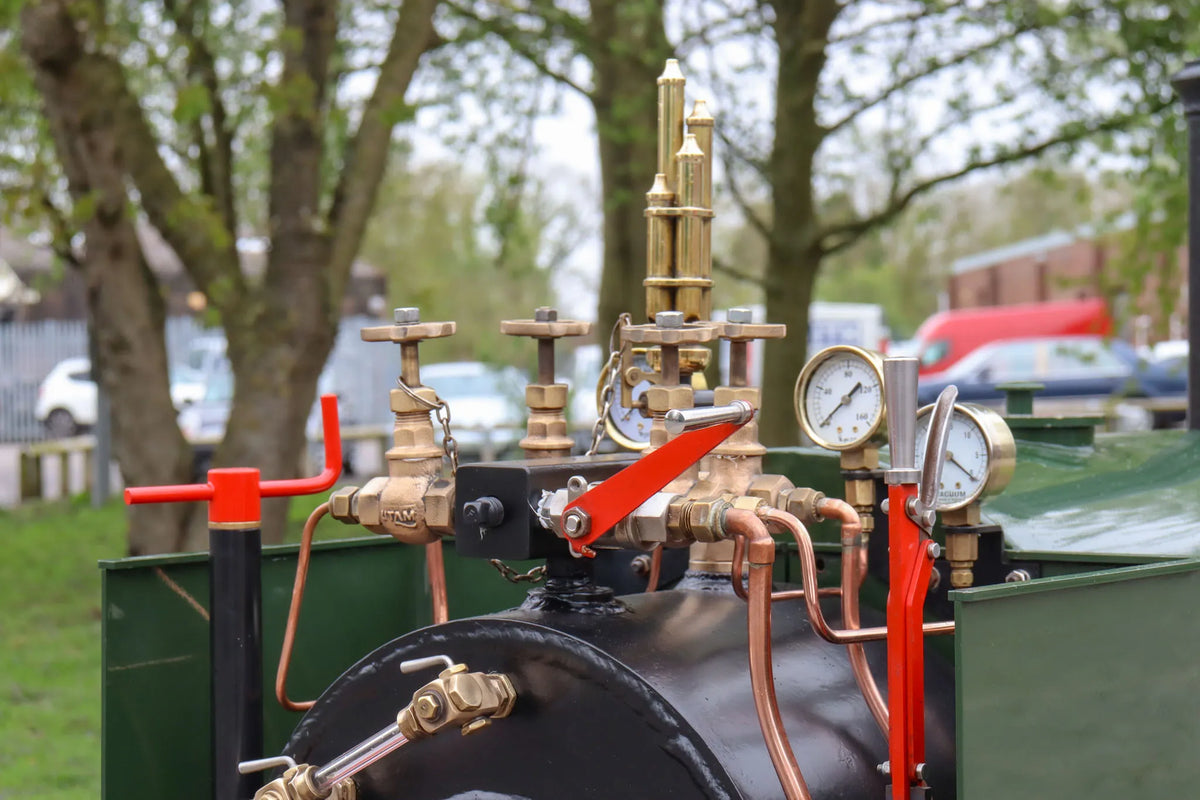

Recently back with us in part exchange for a larger engine, it has been through the works for servicing, when the latest type vacuum brake valve, coupling and connecting rod oil pots, snifting valves and valve chest pressure gauge were fitted.

The boiler has had an inspection off the frames with cladding removed, followed by hydraulic and steam test with new certification issued.

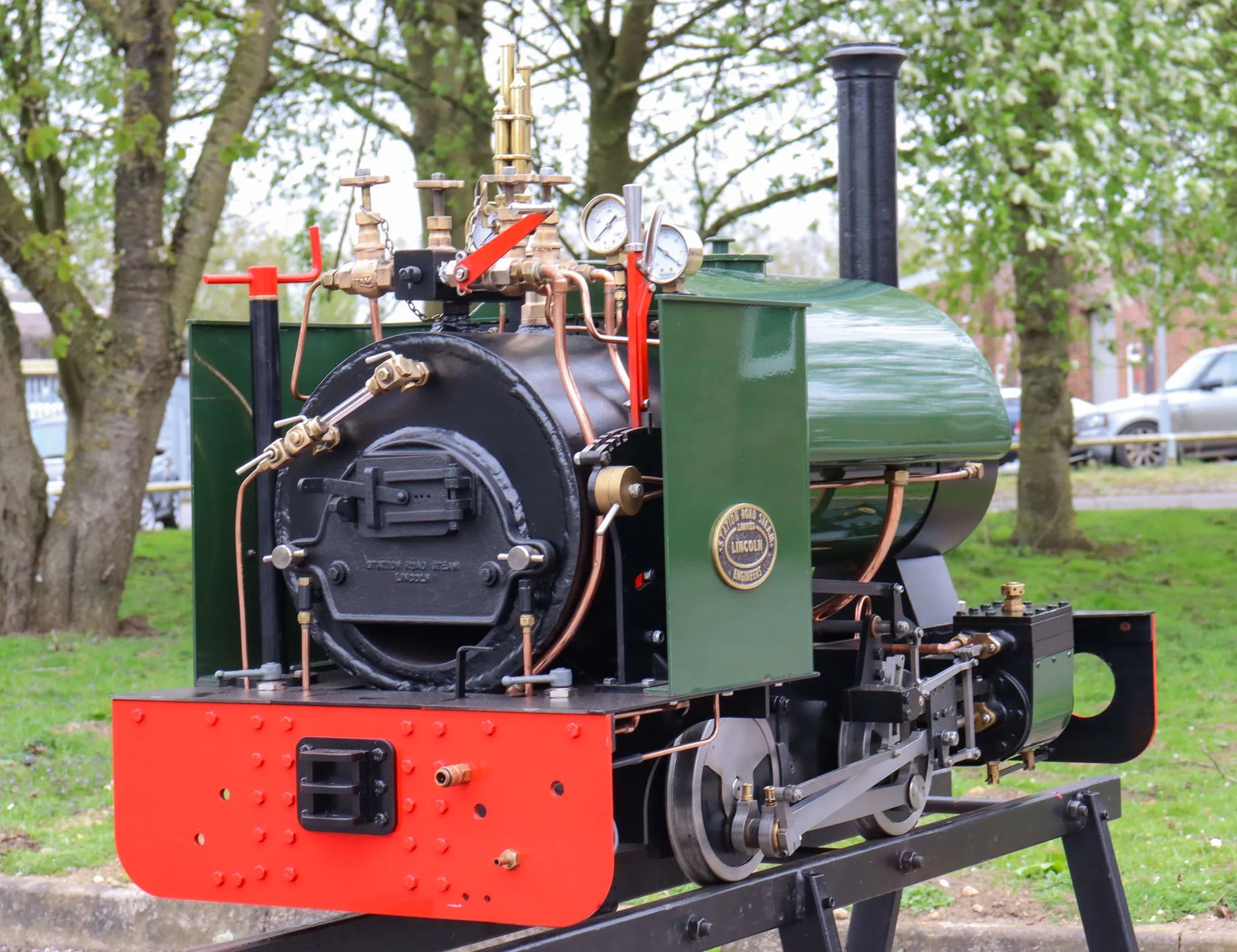

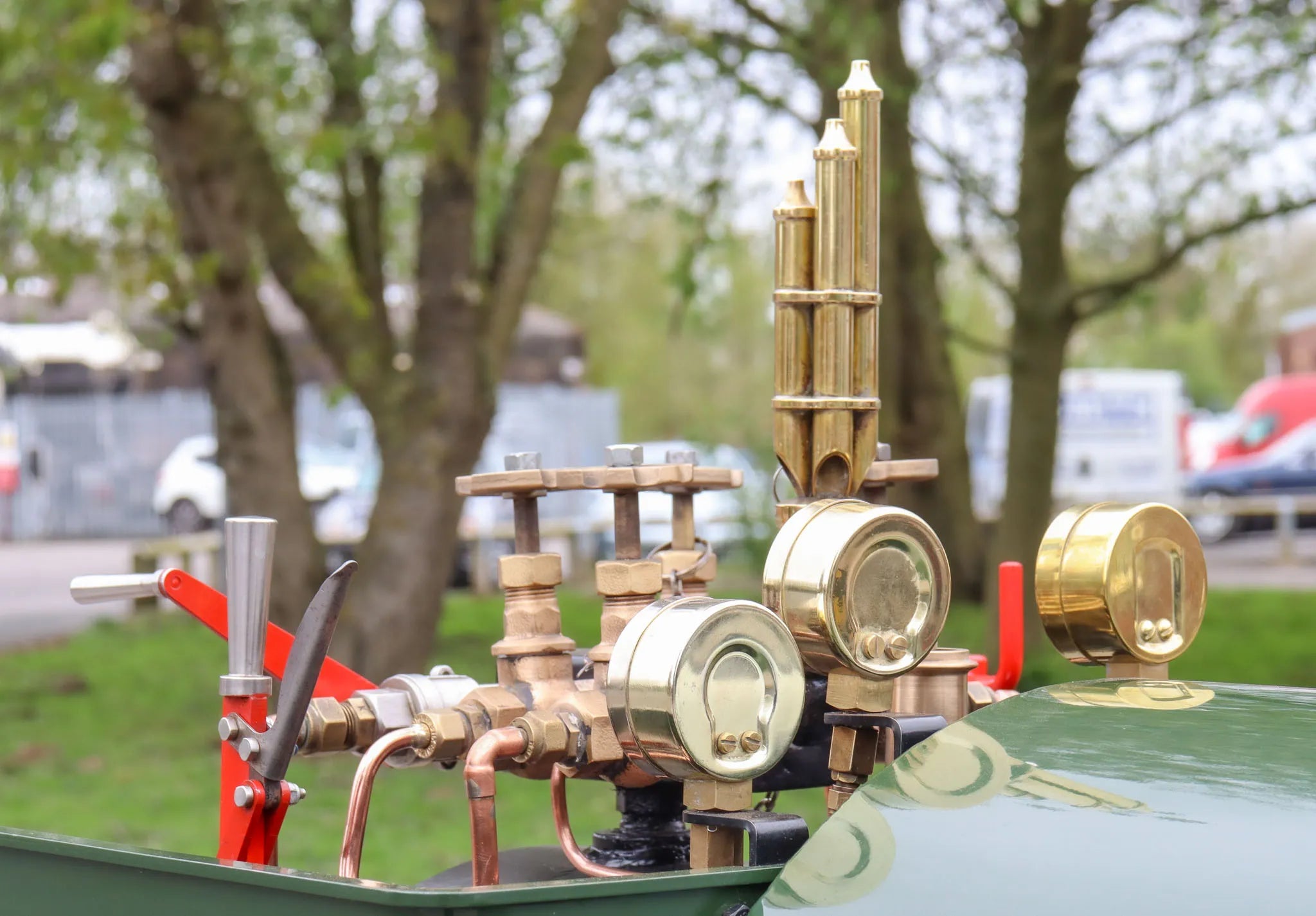

The engine was well-specified when first ordered, including four note chime whistle, gauge glass protector and vacuum brake equipment.

Supplied with handbook, 12 months warranty and starter kit of coal, oil and water treatment - exactly the same as we offer with our new engines.

If required we would be more than happy to include half a day's training at our works on the firing, driving and disposal of the engine for a new owner.

Technical information

Stock code

11728

Weight/Kg

195

Wheel material

steel

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

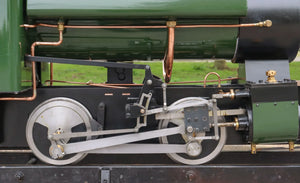

Valve gear

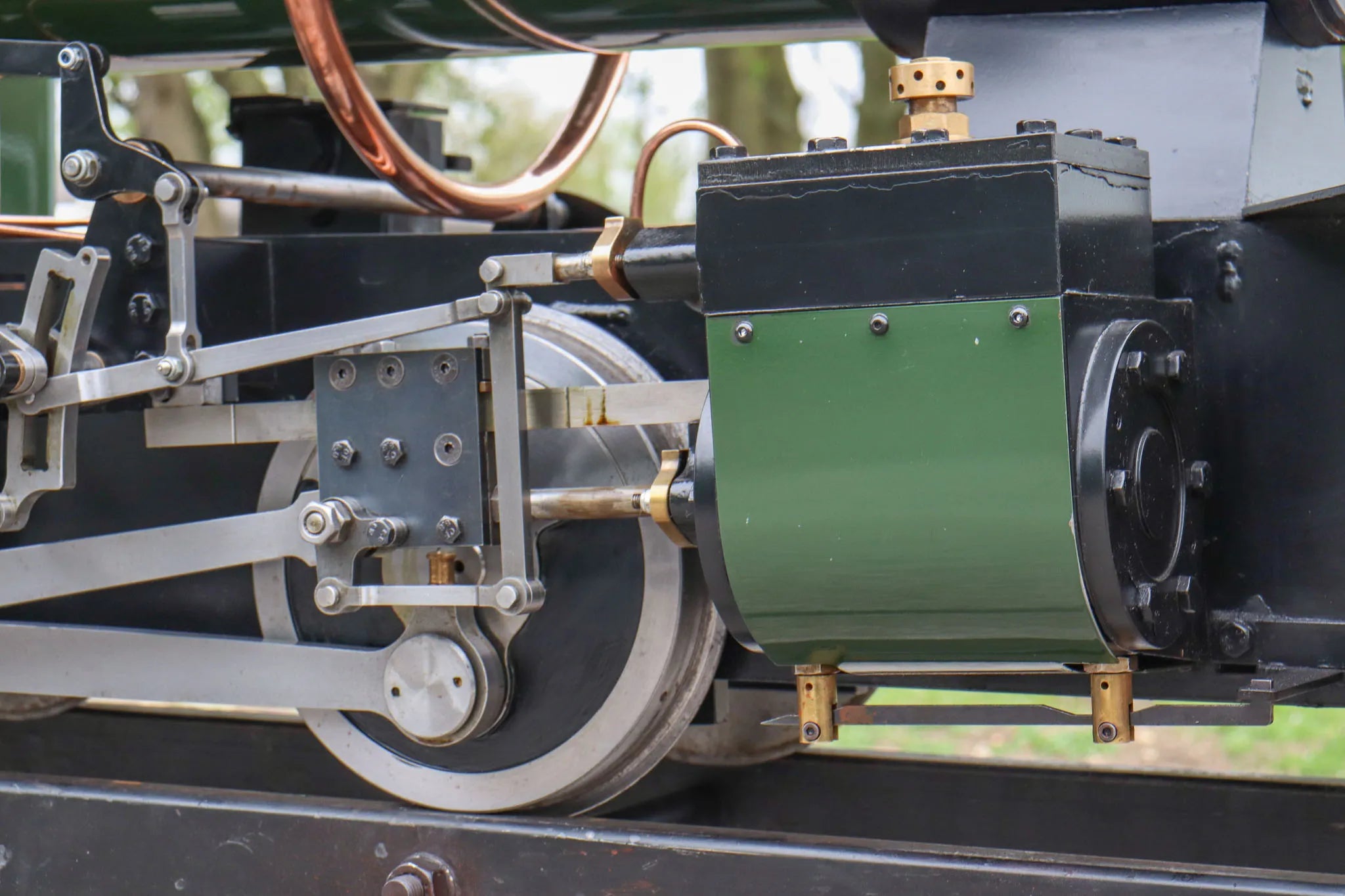

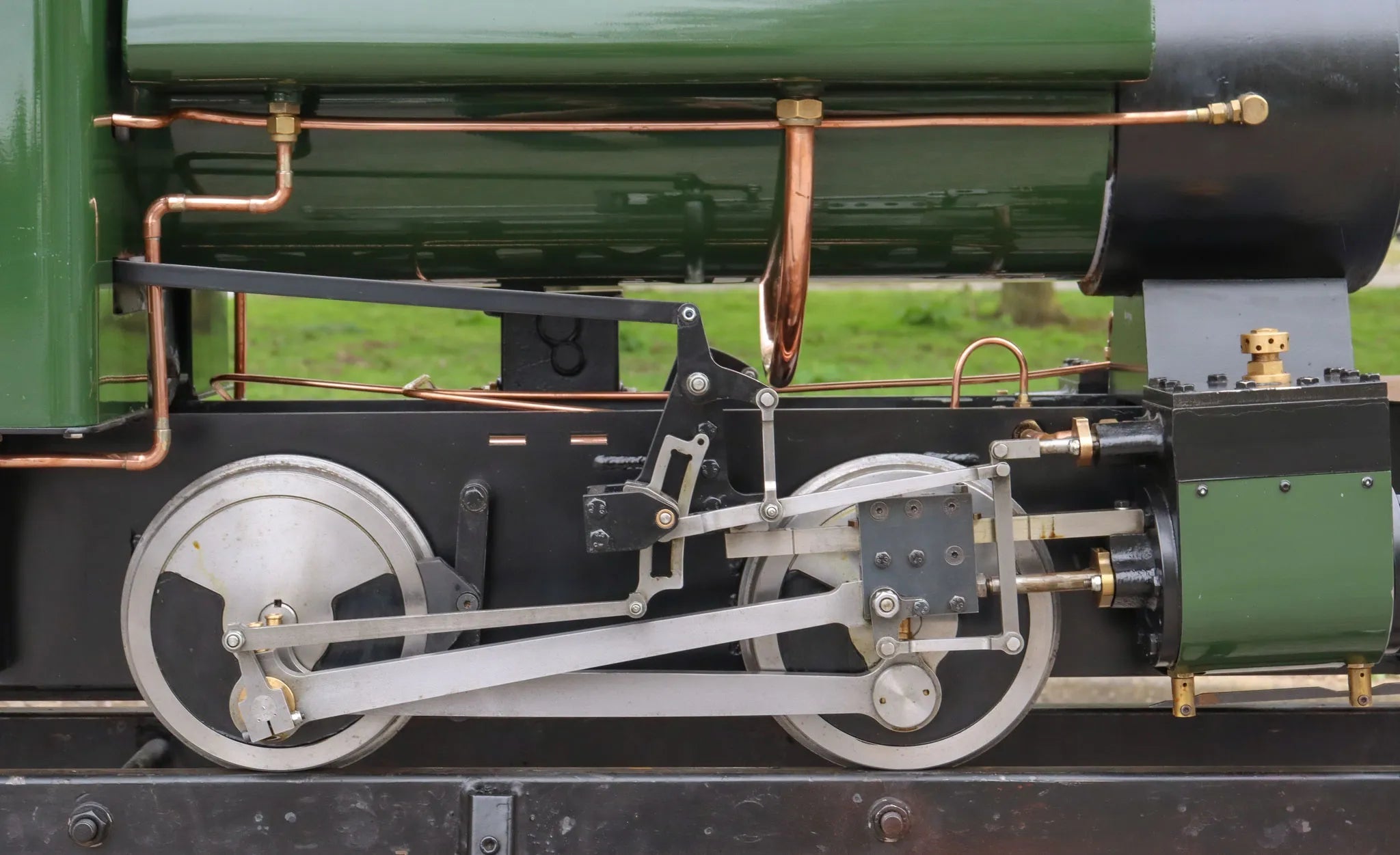

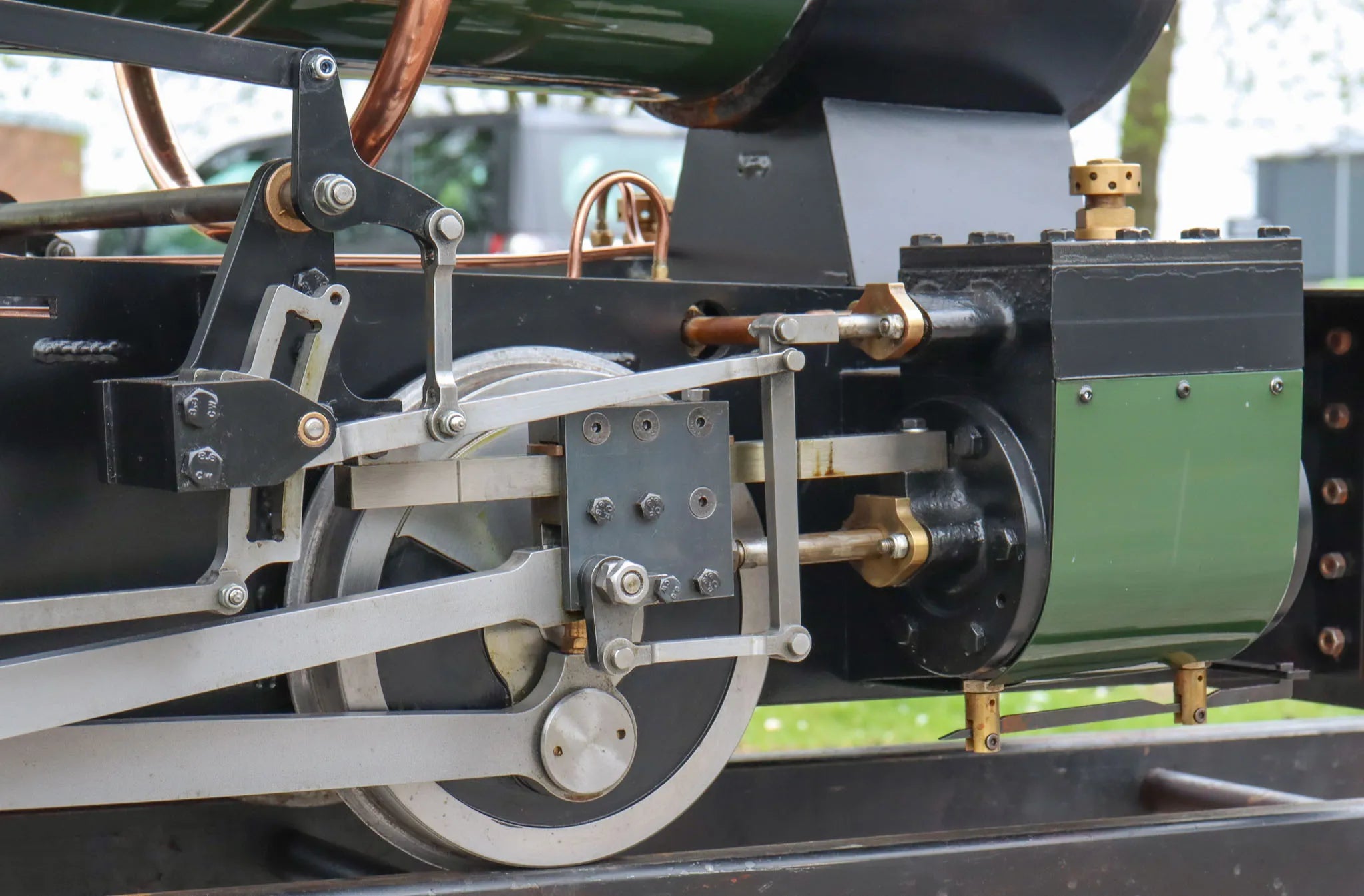

Walschaerts

Reverser type

pole

Boiler maker

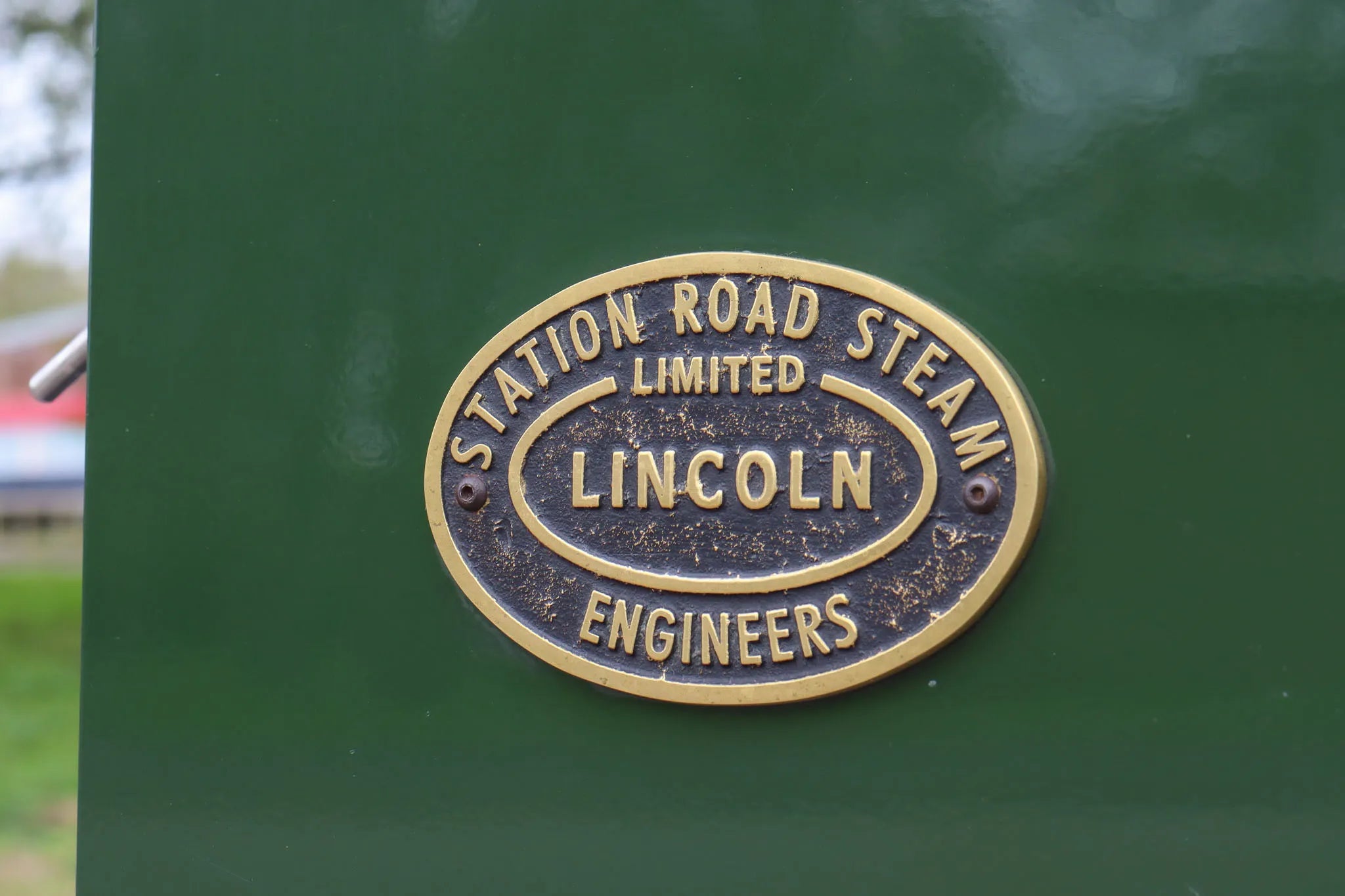

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2012

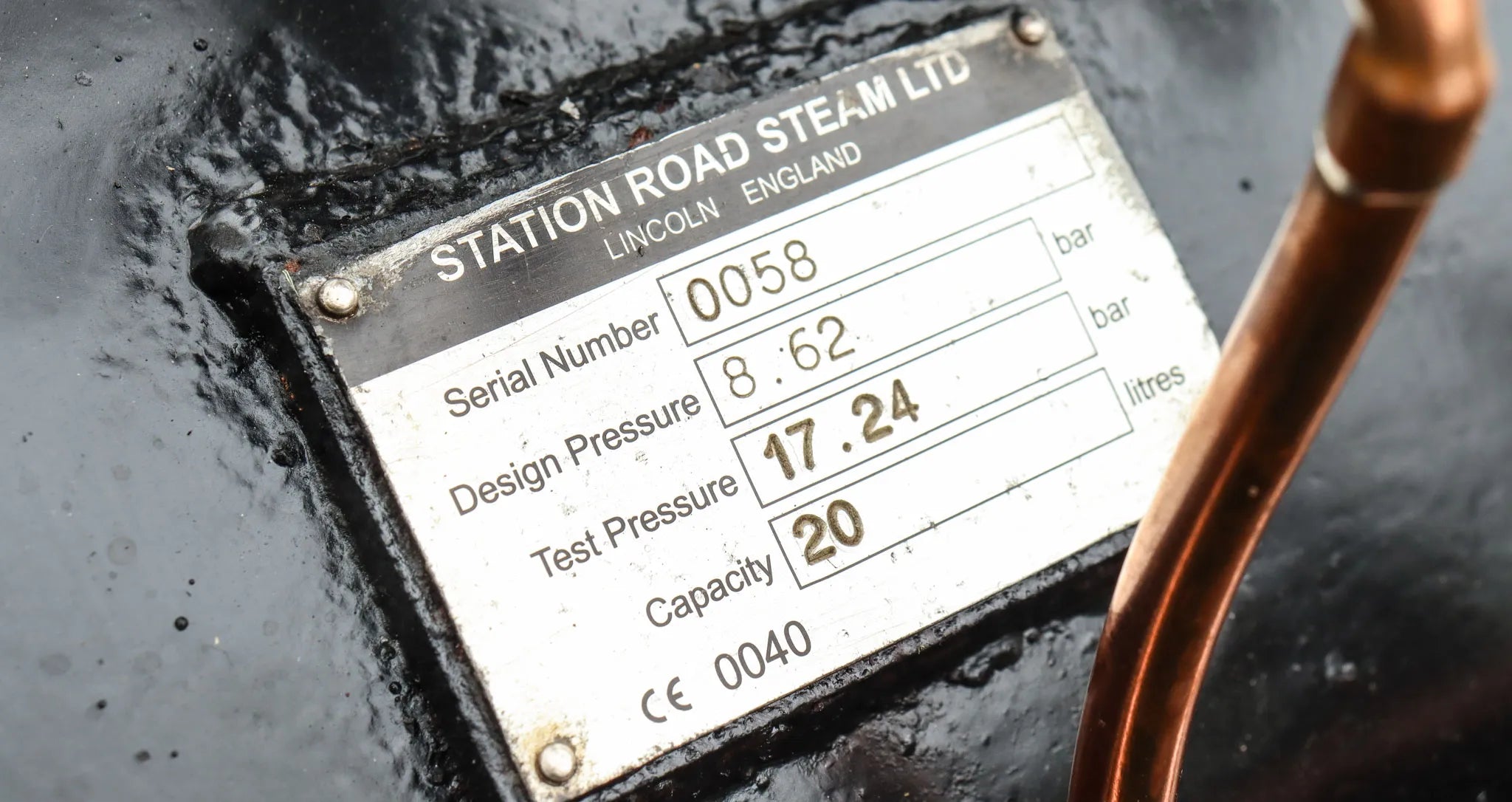

Boiler number

058

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Whistle

four note chime

Injector

2

Nominal traction

238

Date out

Sep-24
