10844

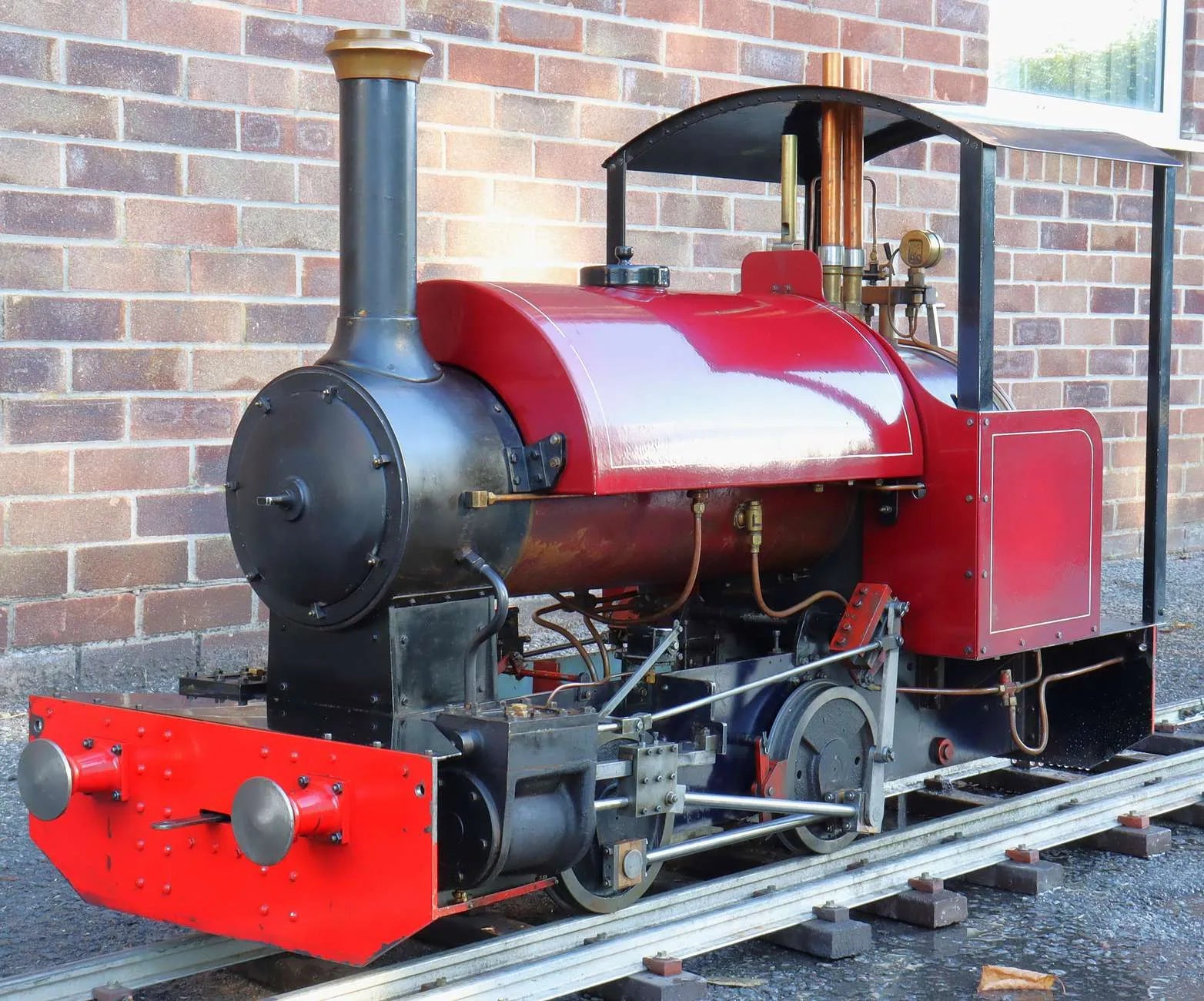

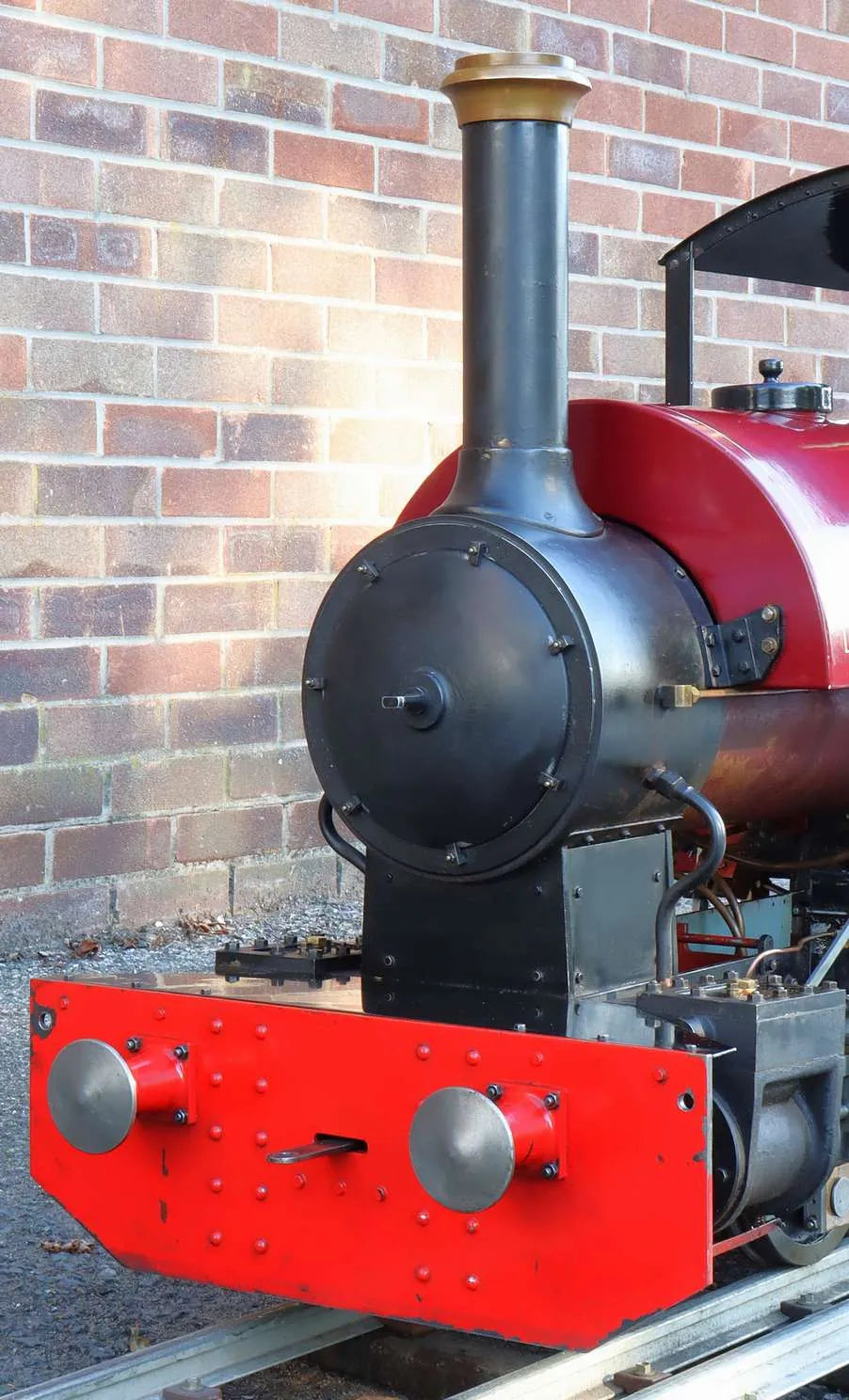

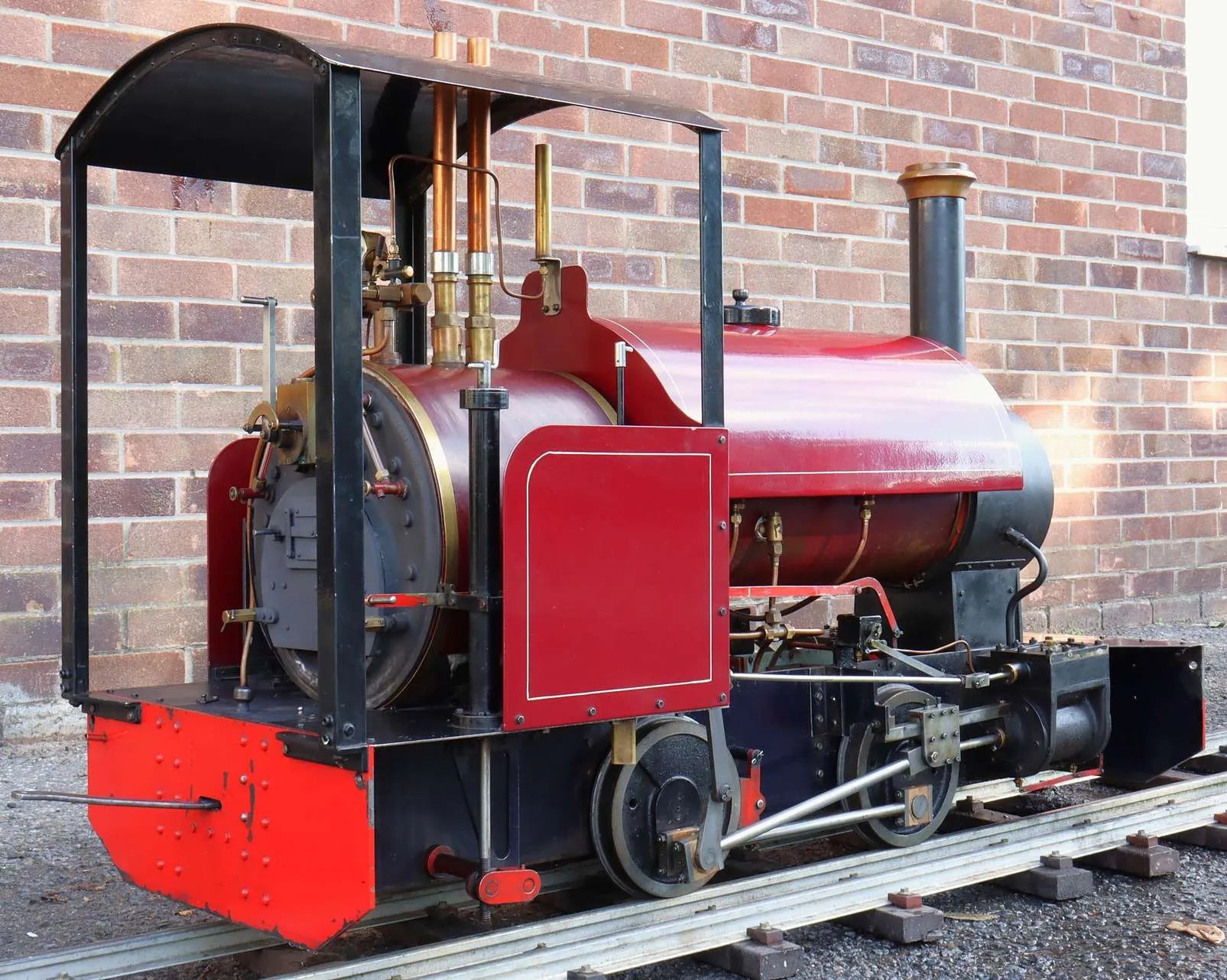

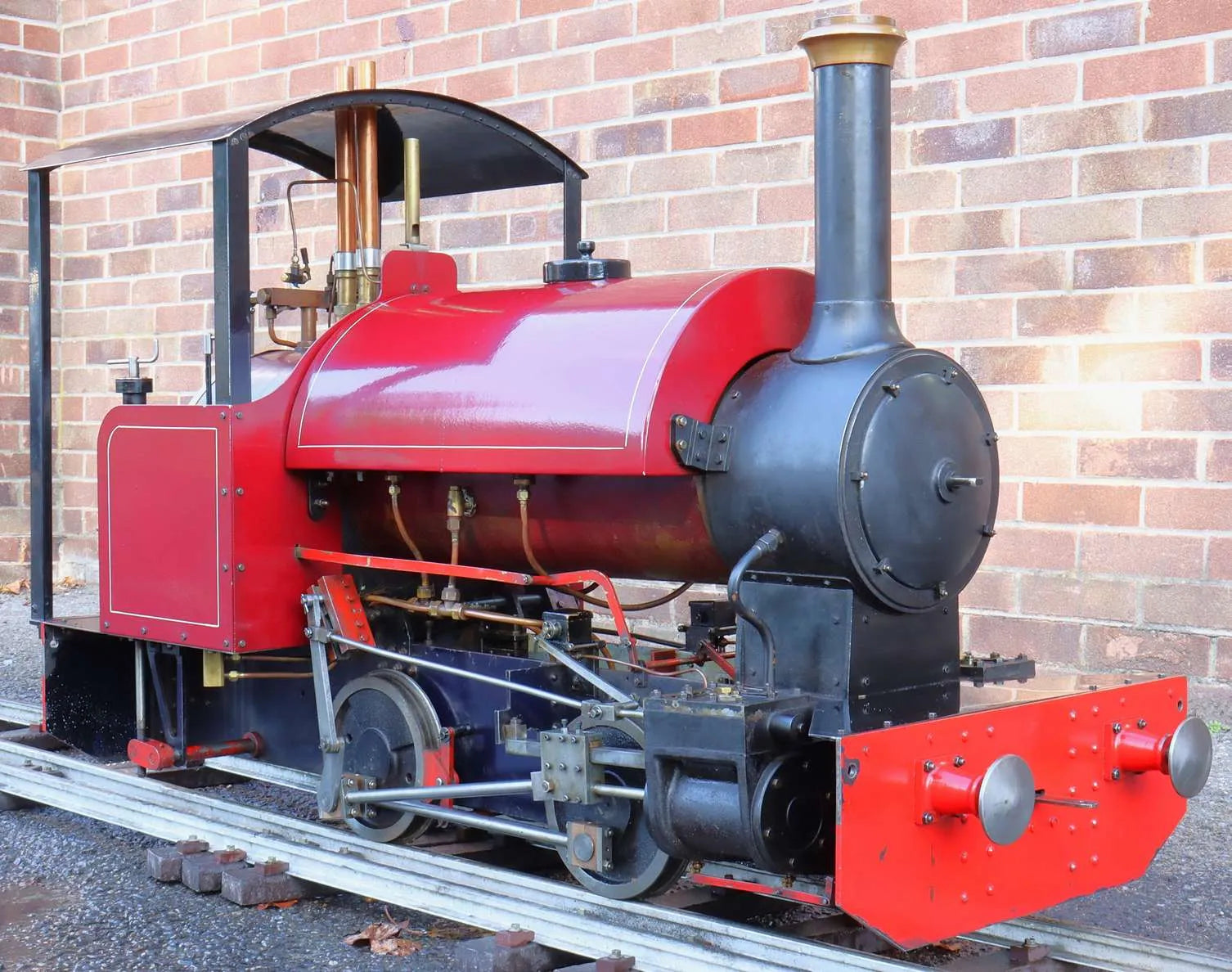

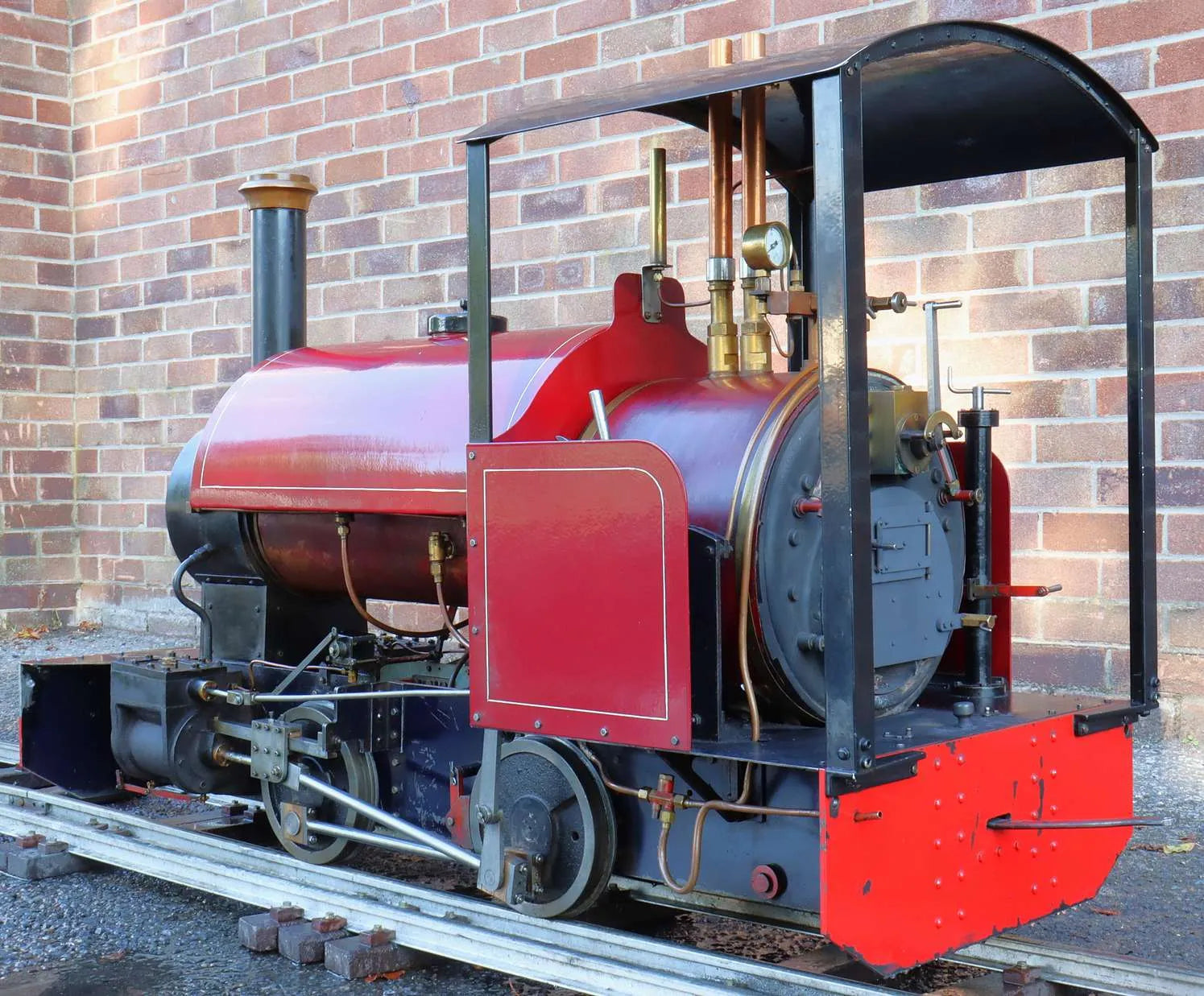

This one came in recently in part exchange for a "General Gordon". A well-built engine, it steams freely and runs well - there's some video on our YouTube channel here.
Stock code |
10844 |
Gauge |
7 1/4 inch |
Length/inches |
48 |
Width/inches |
19 |
Height/inches |
32 |
Weight/Kg |
est 200 |
Wheel material |
cast iron |

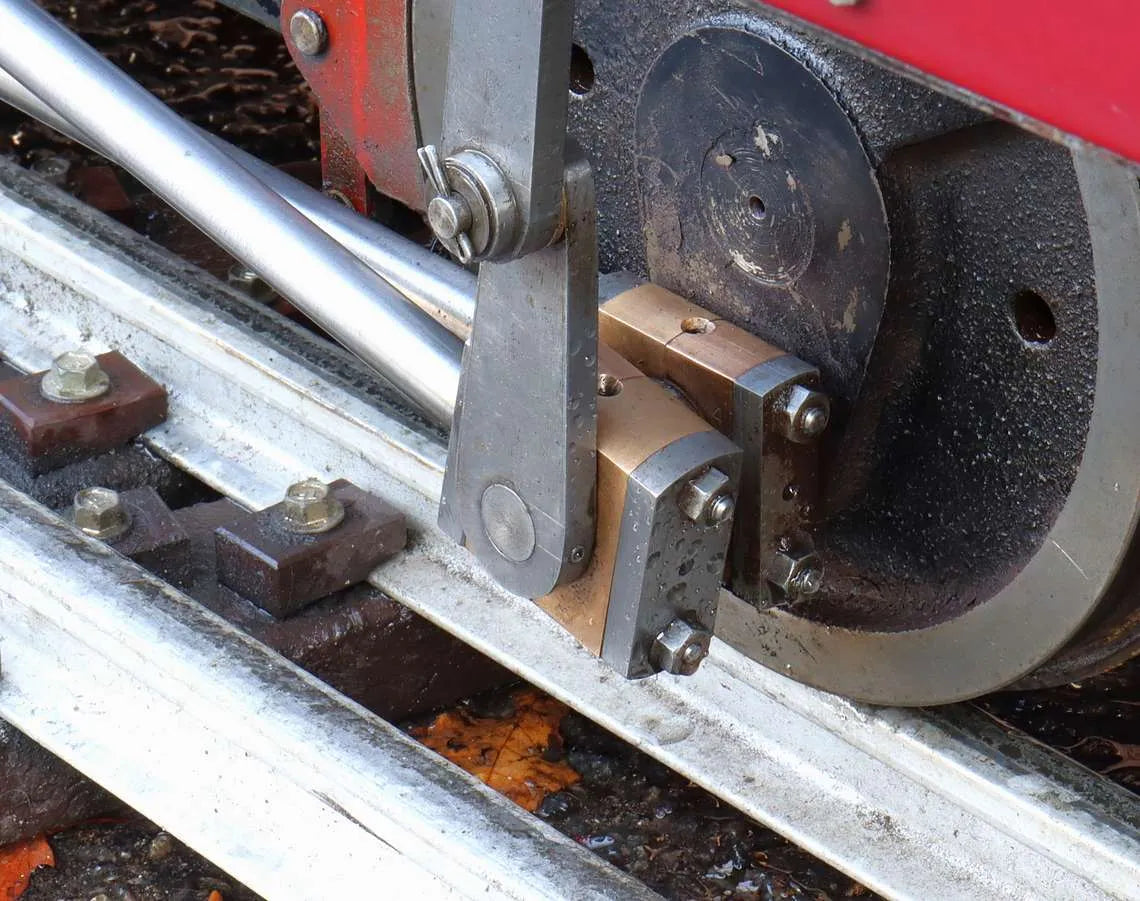

Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |

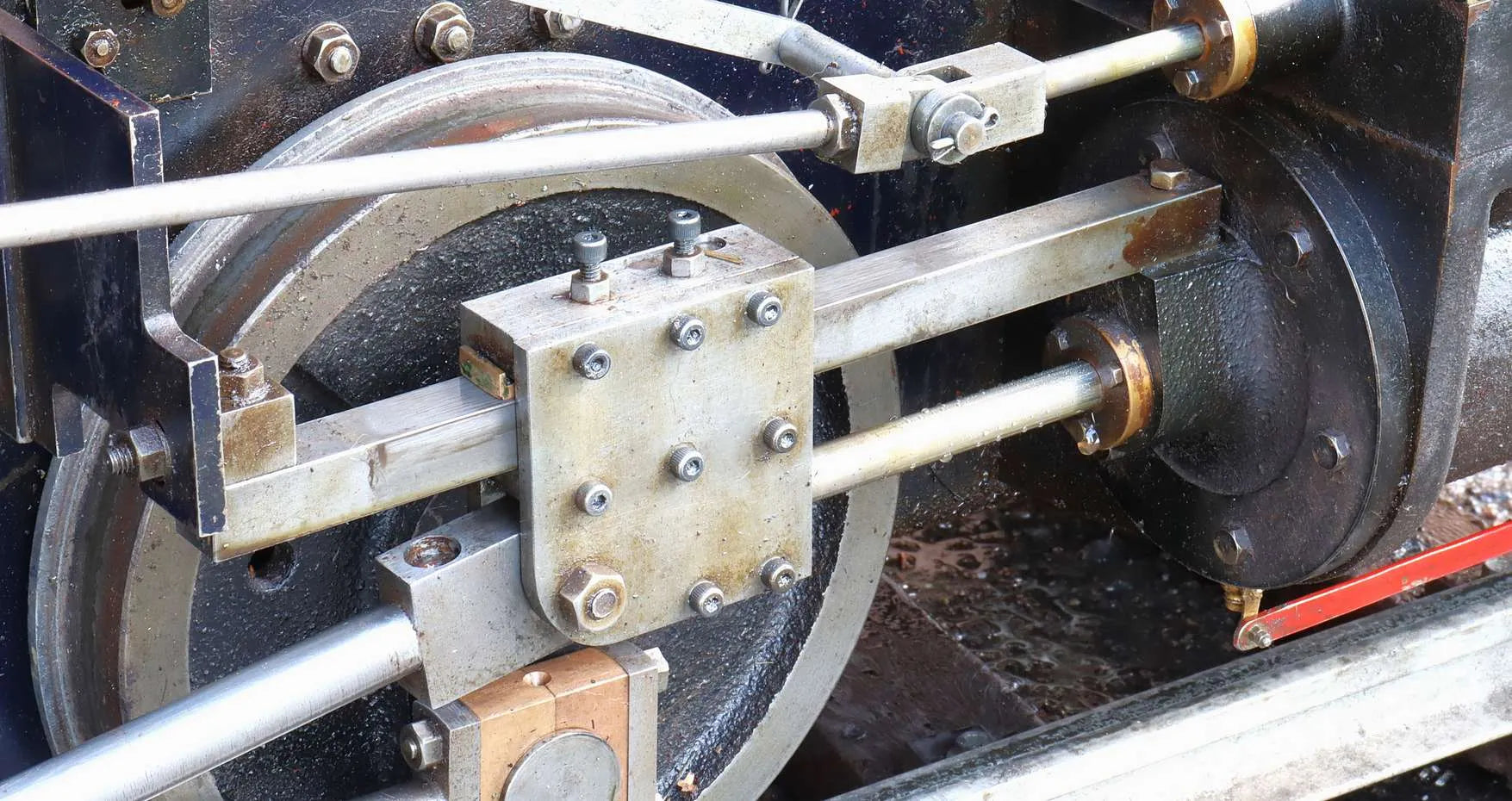

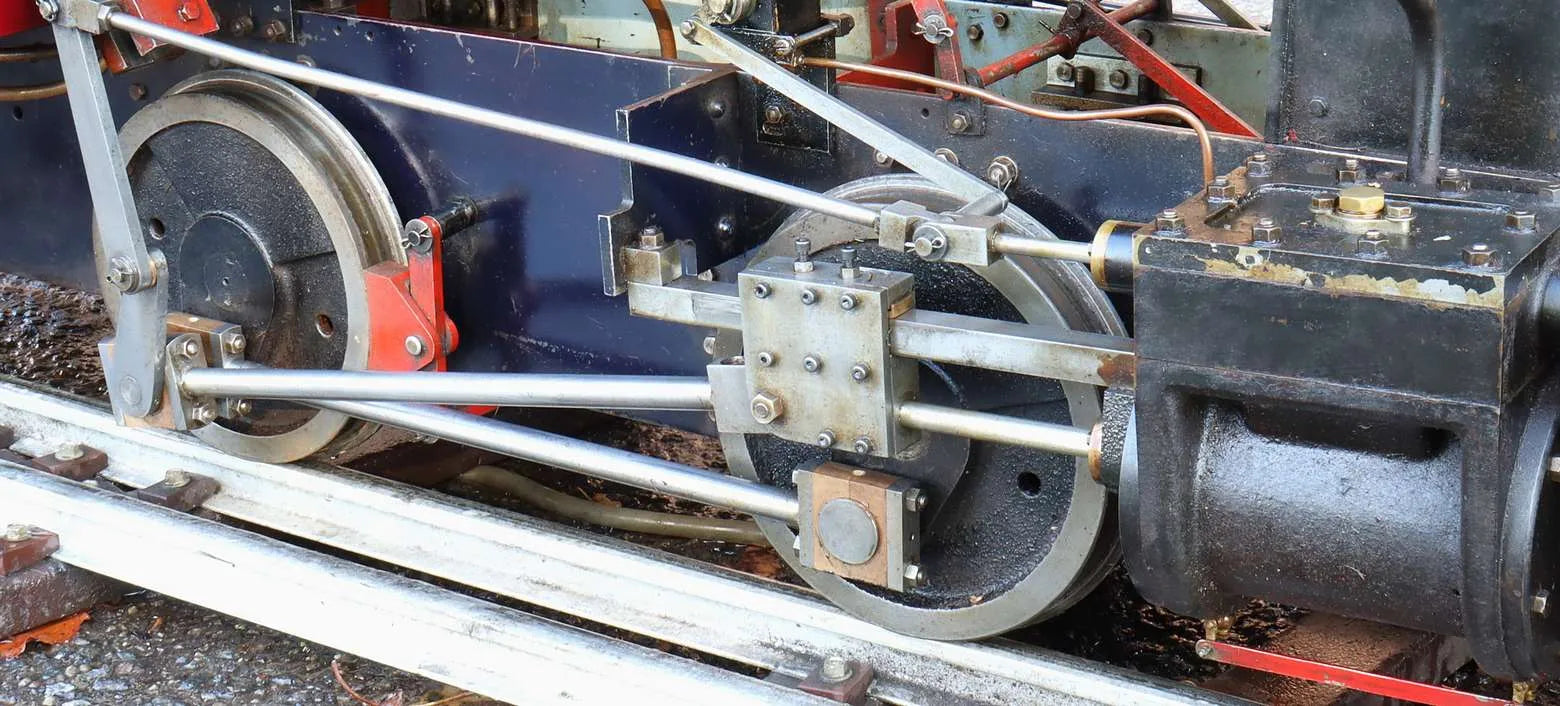

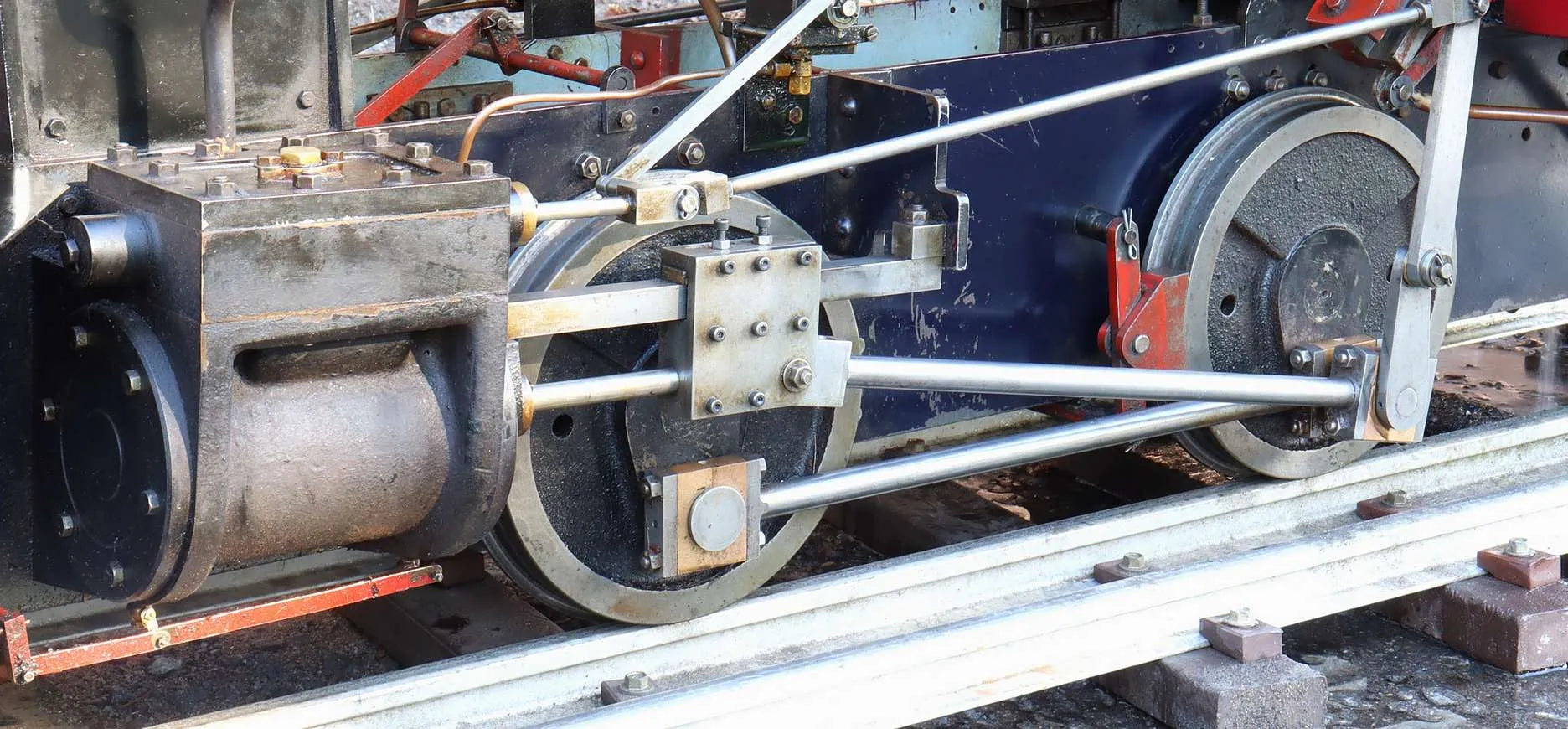

Valve gear |
Hackworth |
Reverser type |
pole |

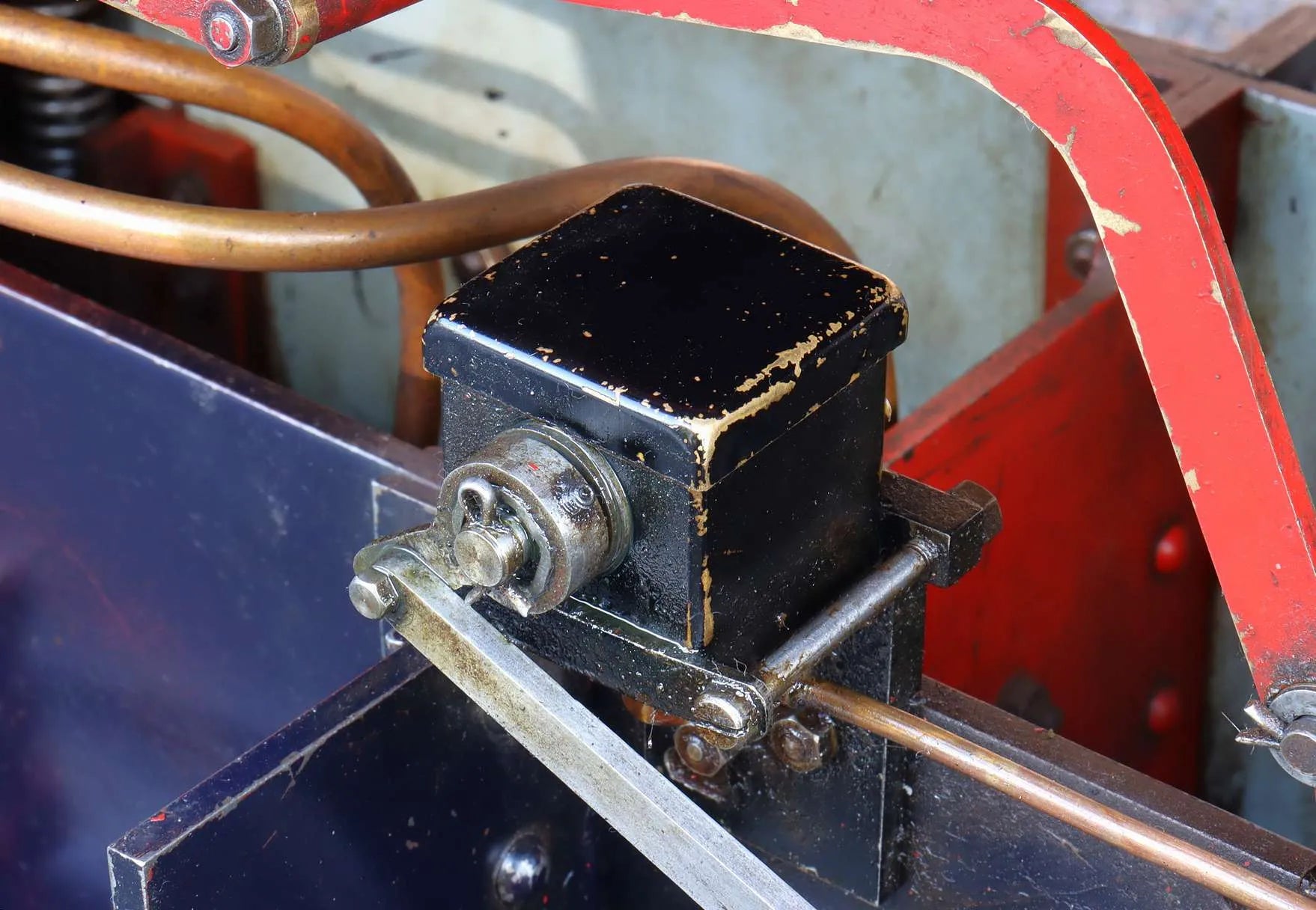

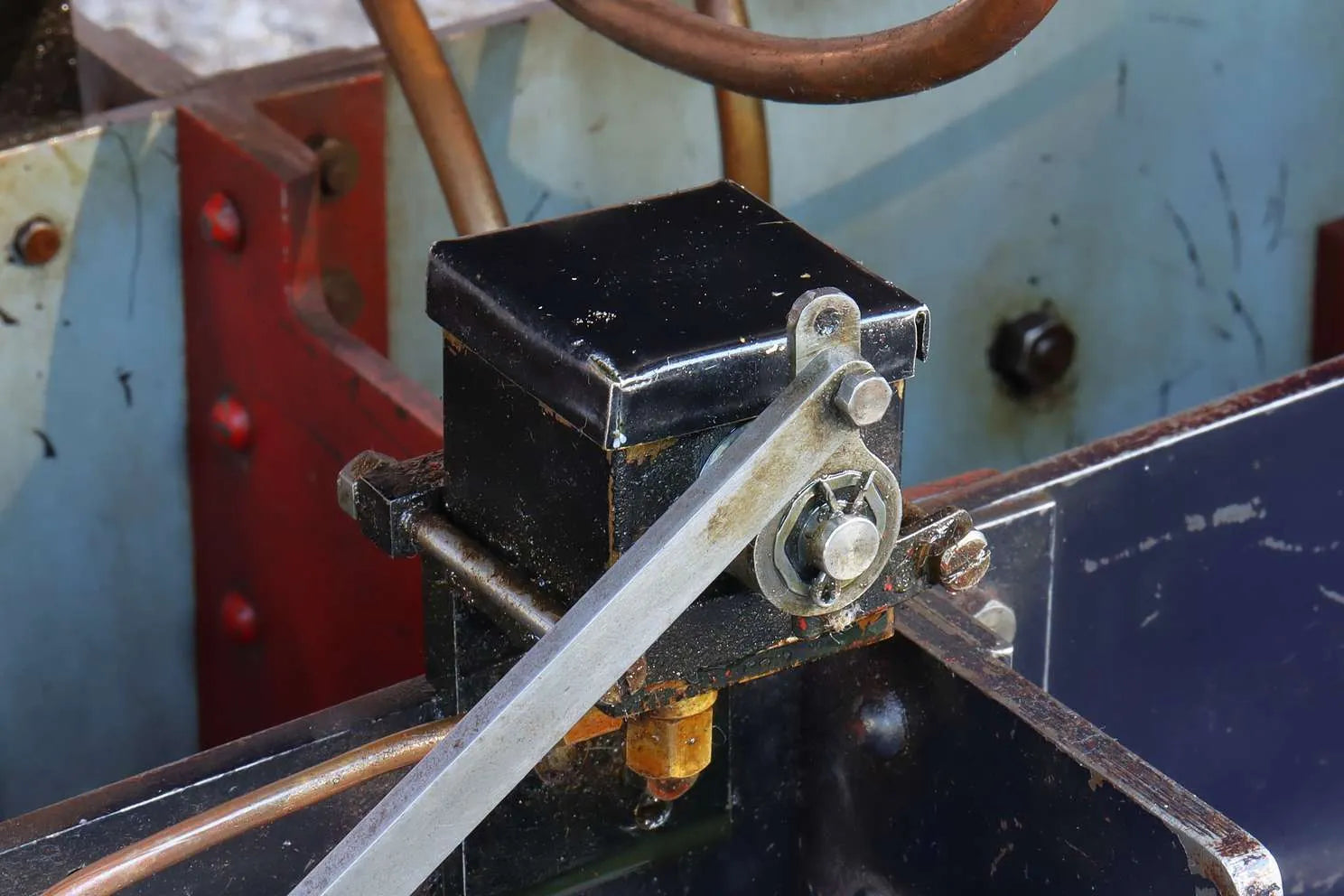

Lubricator type |
twin mechanical |
Boiler type |
marine |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a pre-2002 |
Year built |
2000 |
Boiler number |
PGN100 |
Safety valve type |
spring |
Safety valve |
2 |
Bore x stroke |
2 1/4 x 3 |
Whistle |
yes |
Mechanical pump |
1 |
Injector |
1 |
Date out |
Apr-23 |
Hydraulic test valid to |
27-Sep-26 |
Steam test valid to |
27-Nov-23 |
