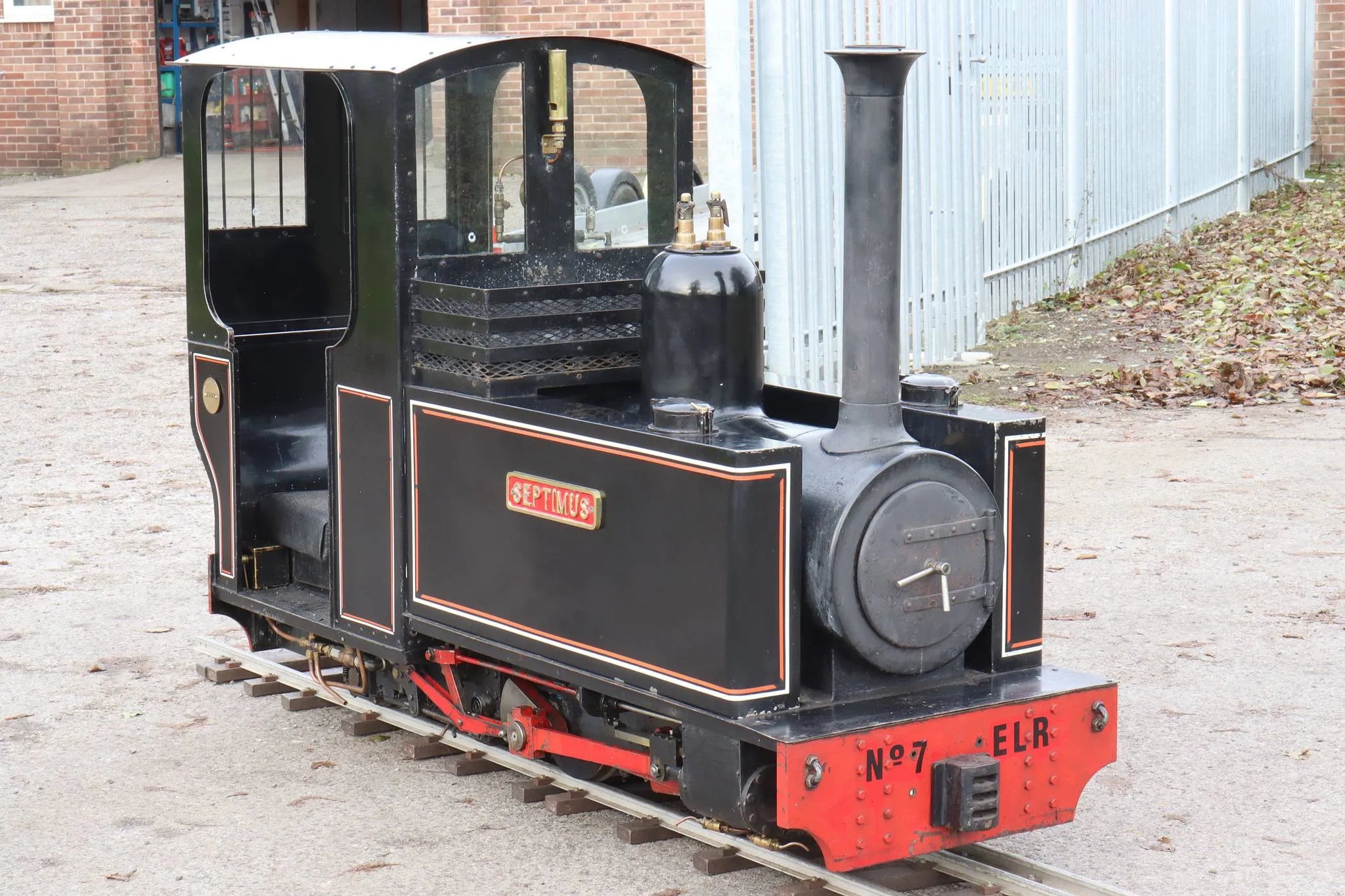

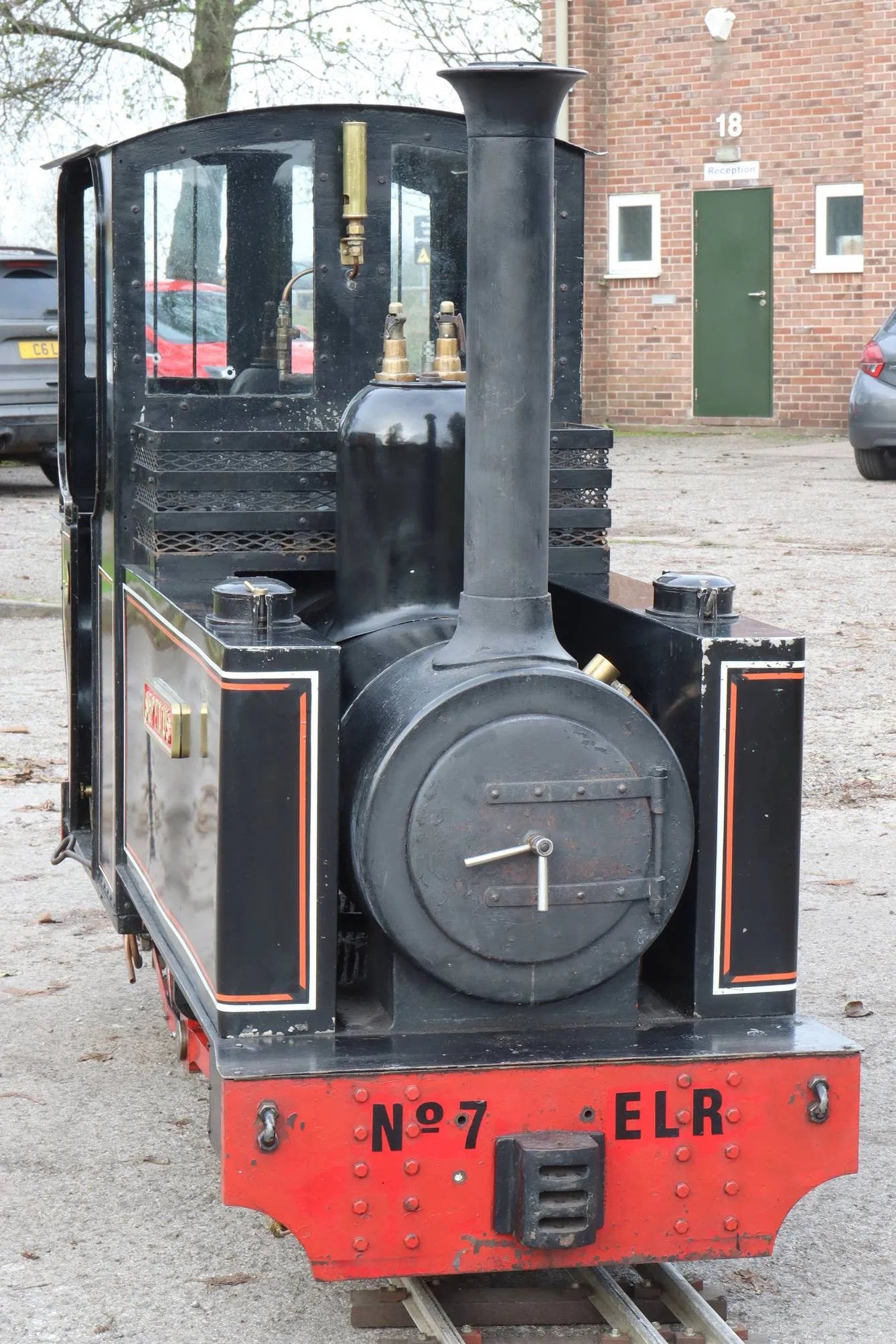

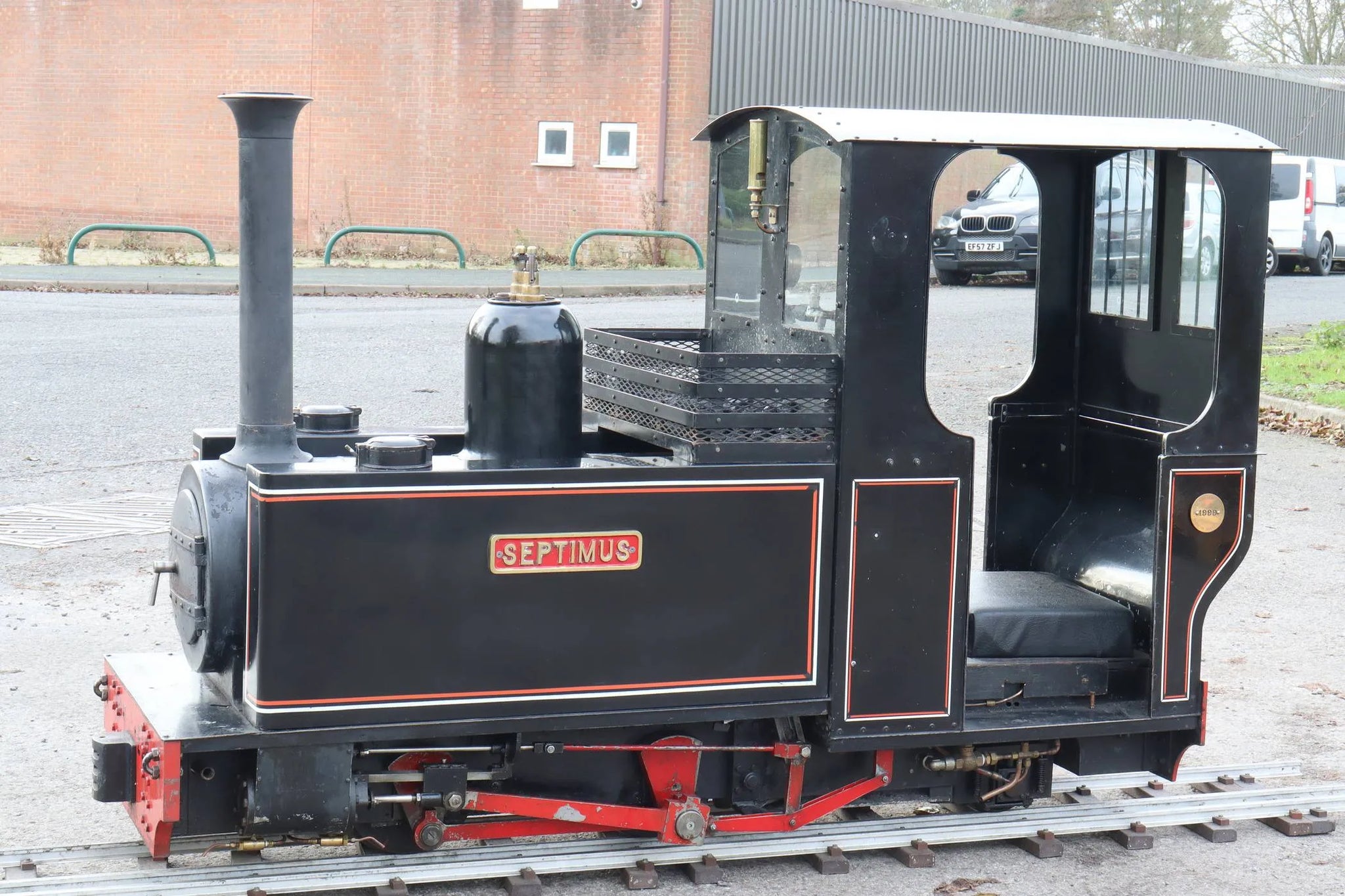

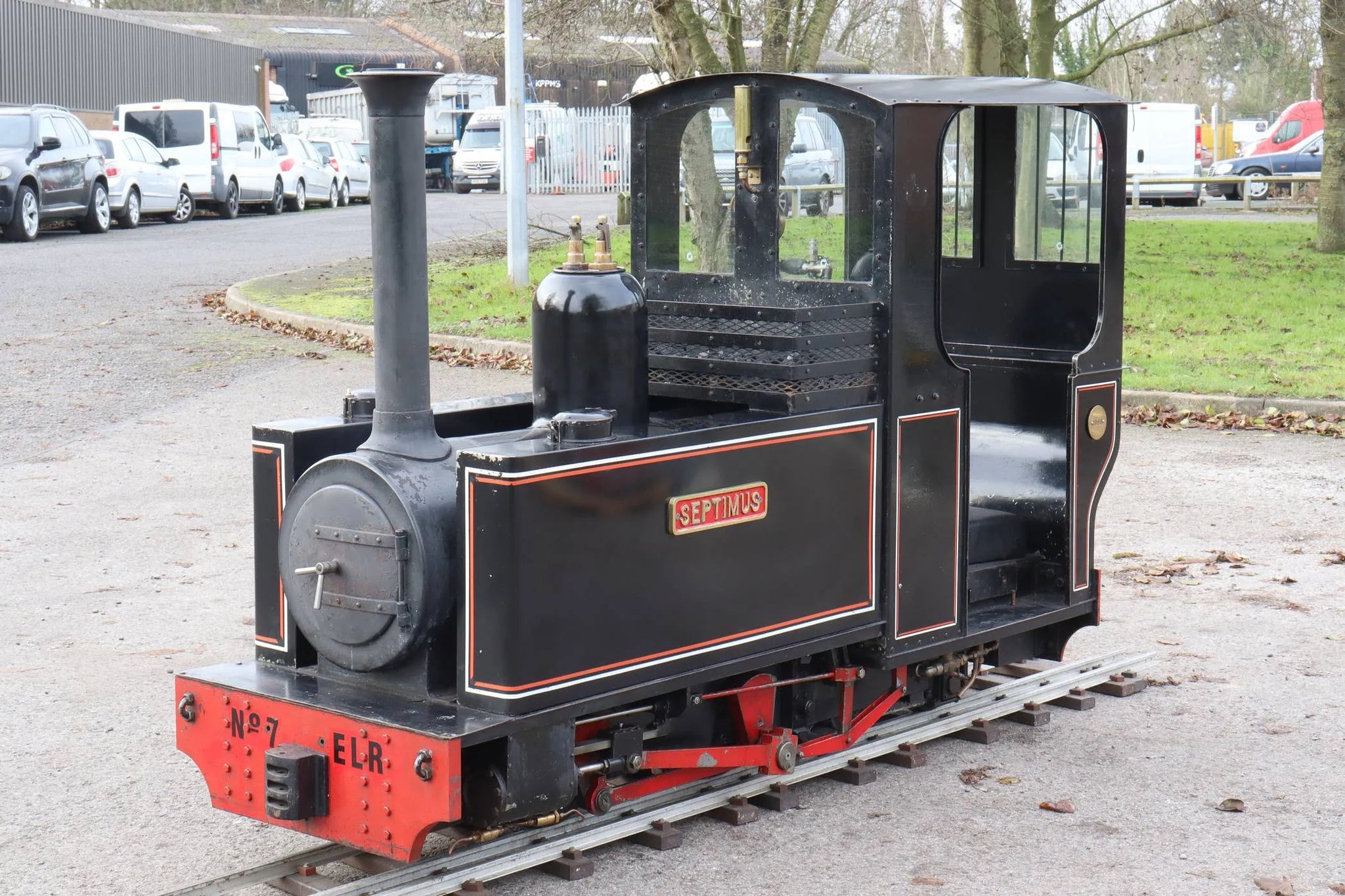

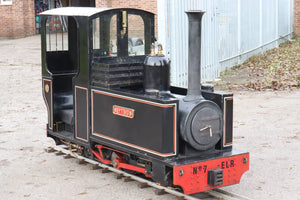

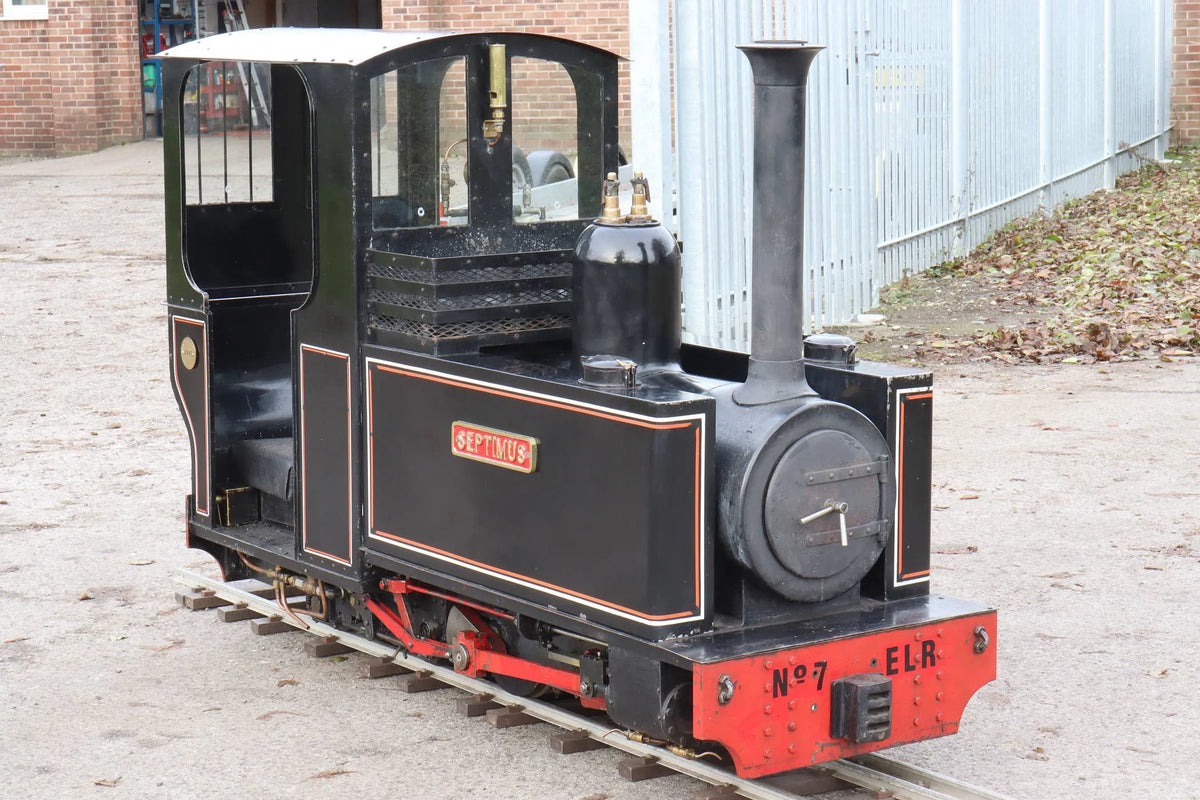

7 1/4 inch narrow gauge Tinkerbell 0-4-2T

Back in 2018 we bought a large garden railway along with its rolling stock and other equipment from a gentleman in the Midlands as, in retirement, he downsized his collection.

A picturesque line, it wound its way throughout substantial grounds, with a large multi-road engine shed and turntable at one end, a variety of interesting loops, cuttings and bridges on the main line.

In company with a couple of large battery electric locomotives and a tram, a Tinkerbell provided motive power for the line - at the time the steam locomotive was donated to the owner's club, who have used it since.

A combination of demanding public running, lack of experienced steam drivers and the need for an overhaul on the horizon has prompted its disposal to fund the purchase of a new diesel locomotive.

Very much in "working clothes", this is an engine that's worked hard for its living these last twenty-five years - the boiler is in its autumn years, the chassis coming up to needing a bottom end overhaul.

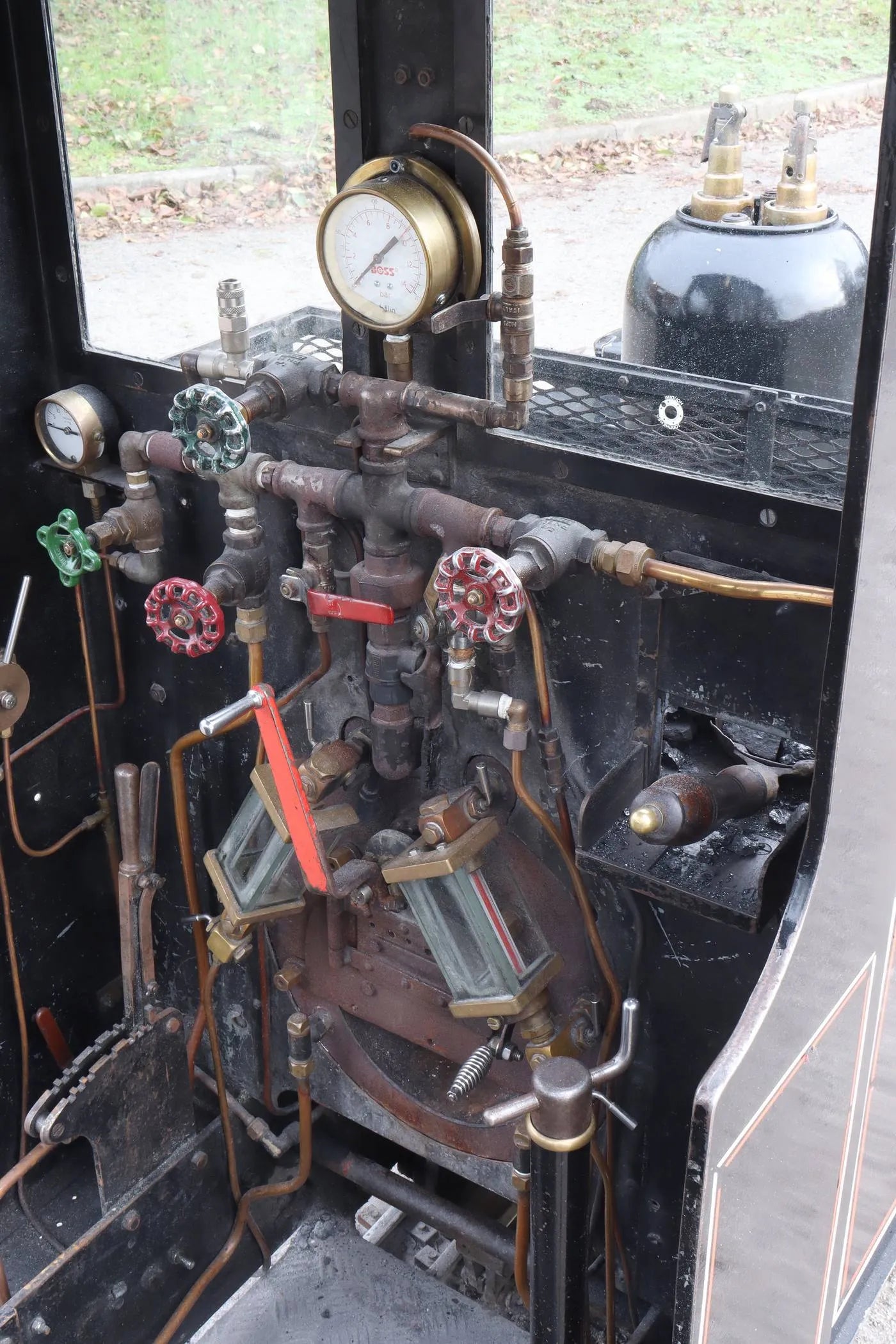

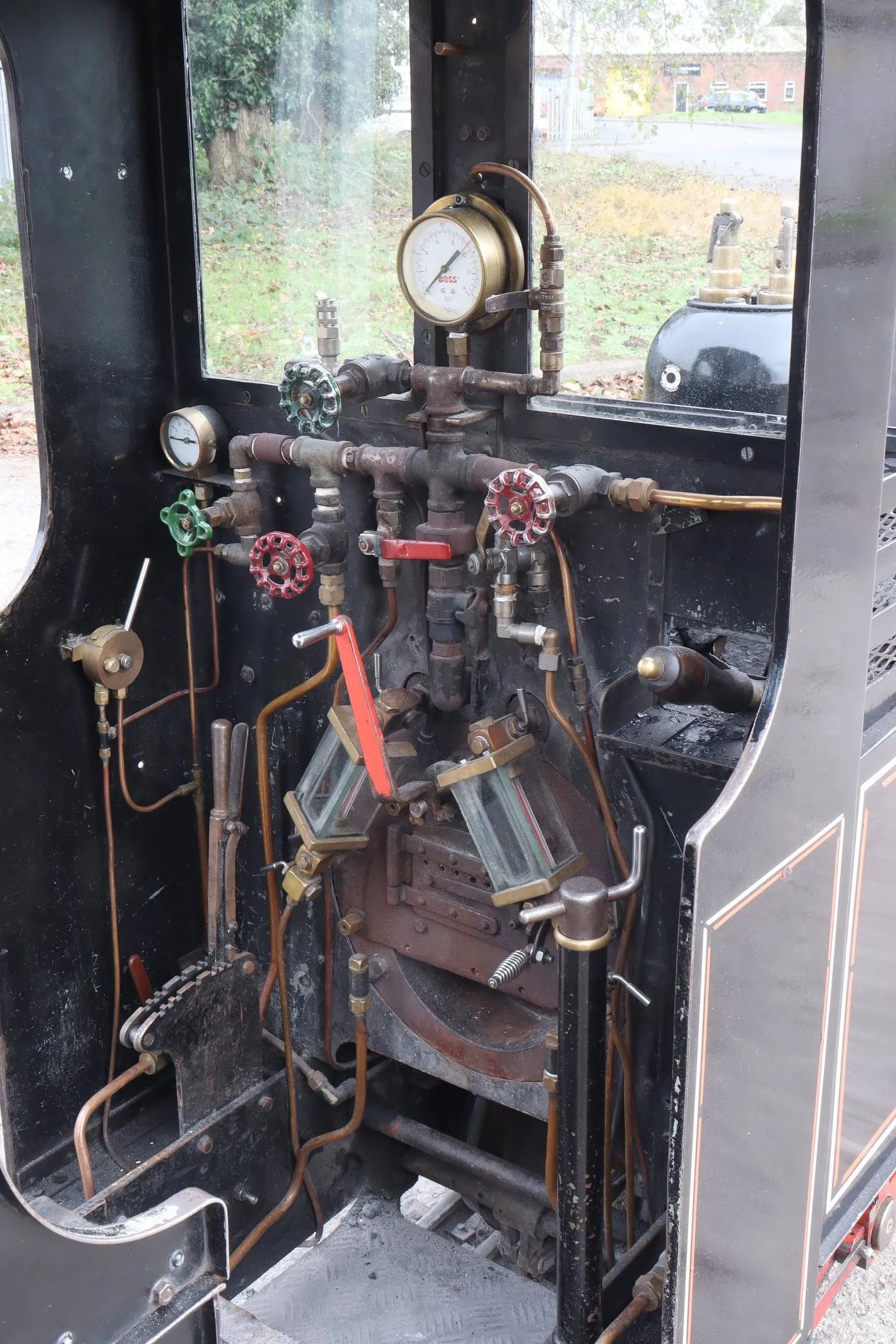

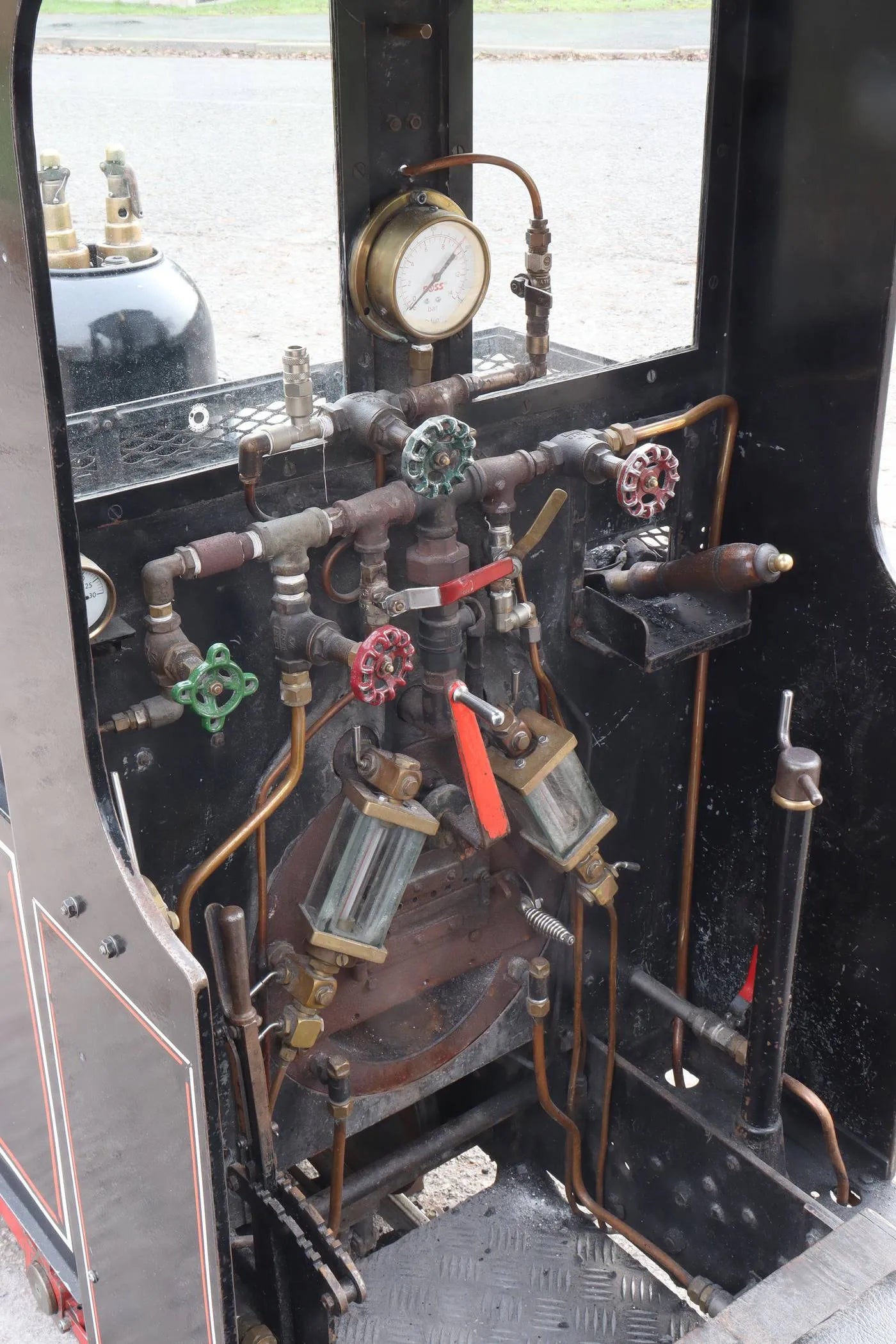

That said, the engine still runs beautifully - it's an absolute delight to drive, we all had a go with it last week when it was in steam. The valve events are good, the engine taking off with the regulator barely cracked open. Controls fall readily to hand in the cab, with the typical Tinkerbell feel of a small real engine rather than large model.

A large engine, at just under seven feet long and weighing in at around two thirds of a ton. It would make a worthwhile project, with the potential - overhauled and repainted - to produce a good example of this popular design.


Technical information

Stock code

12560

Gauge

7 1/4 inch

Length/inches

83

Width/inches

26.5

Height/inches

49

Weight/Kg

660

Wheel material

cast iron

Axlebox type

plain

Cylinder material

cast iron

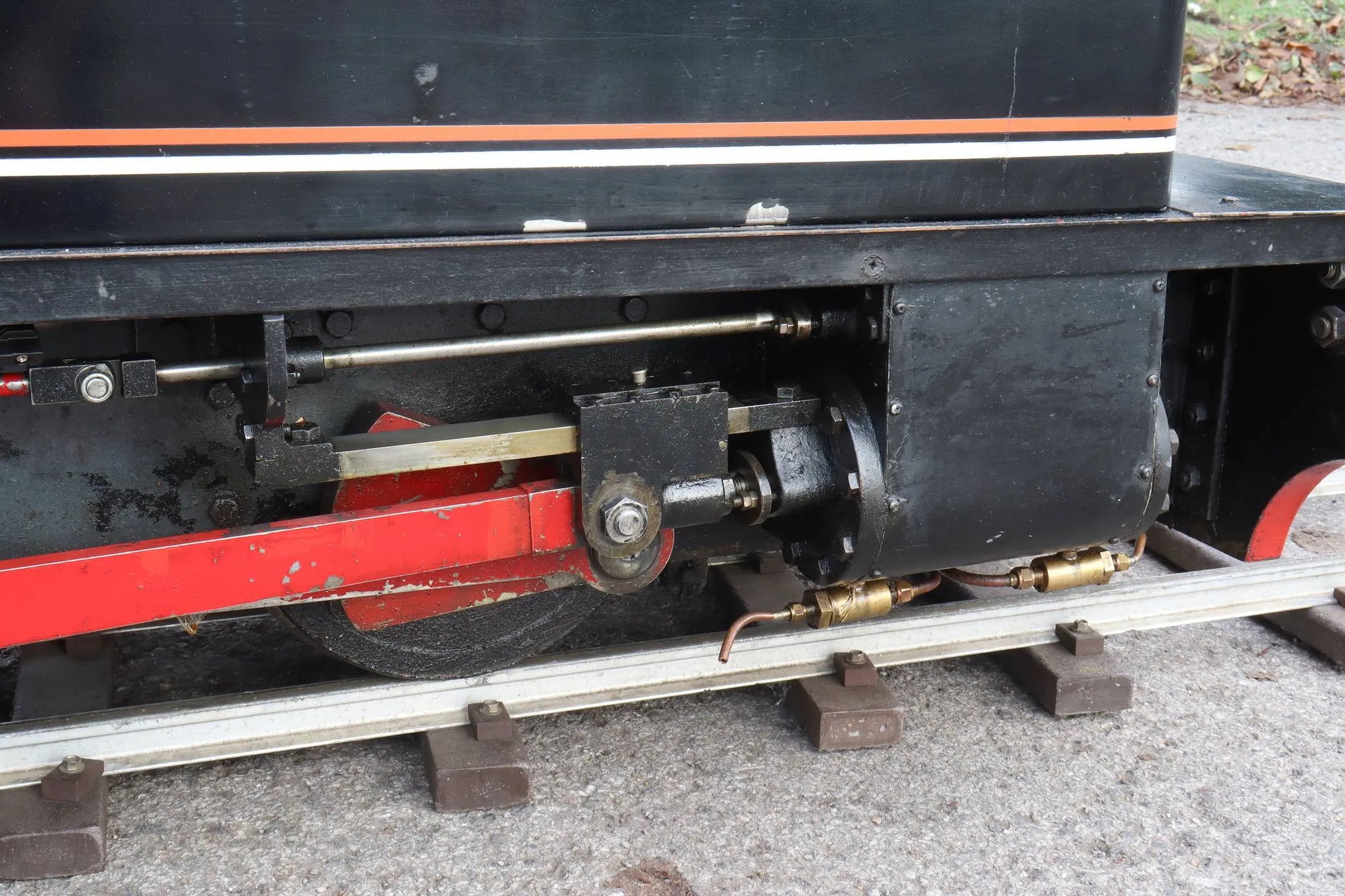

Valve type

slide

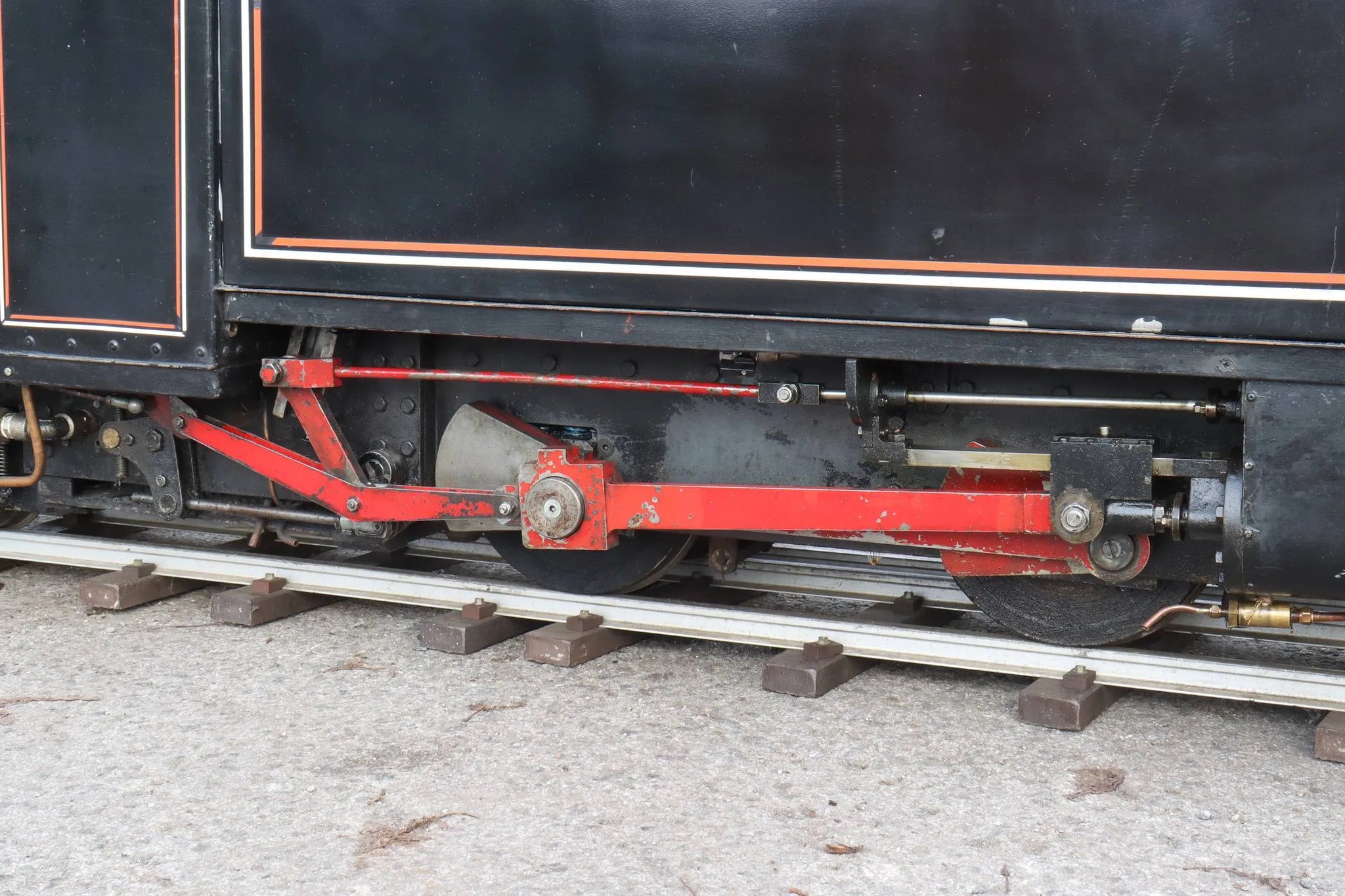

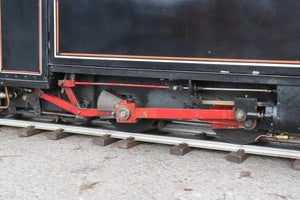

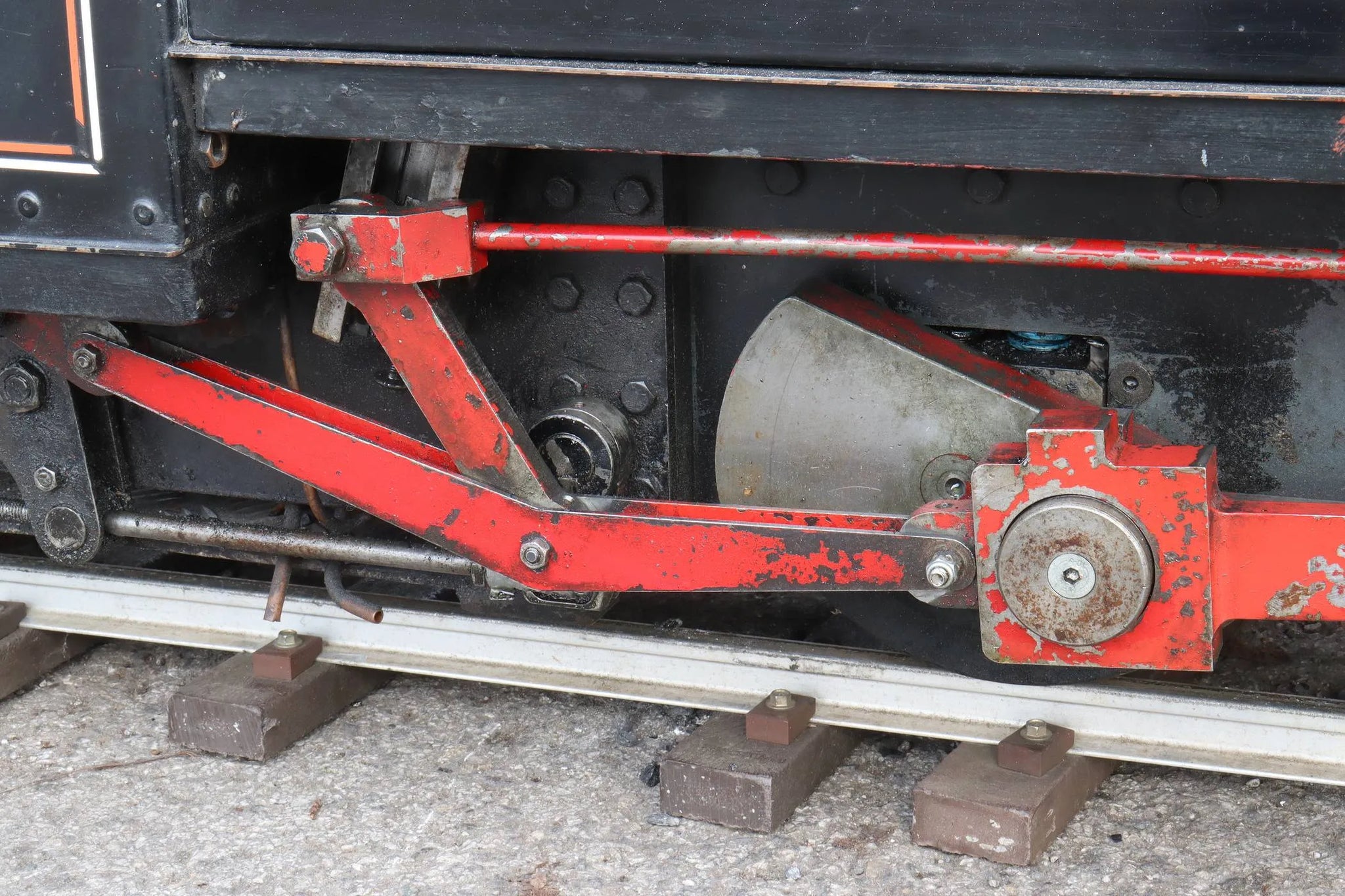

Valve gear

Heywood

Reverser type

pole

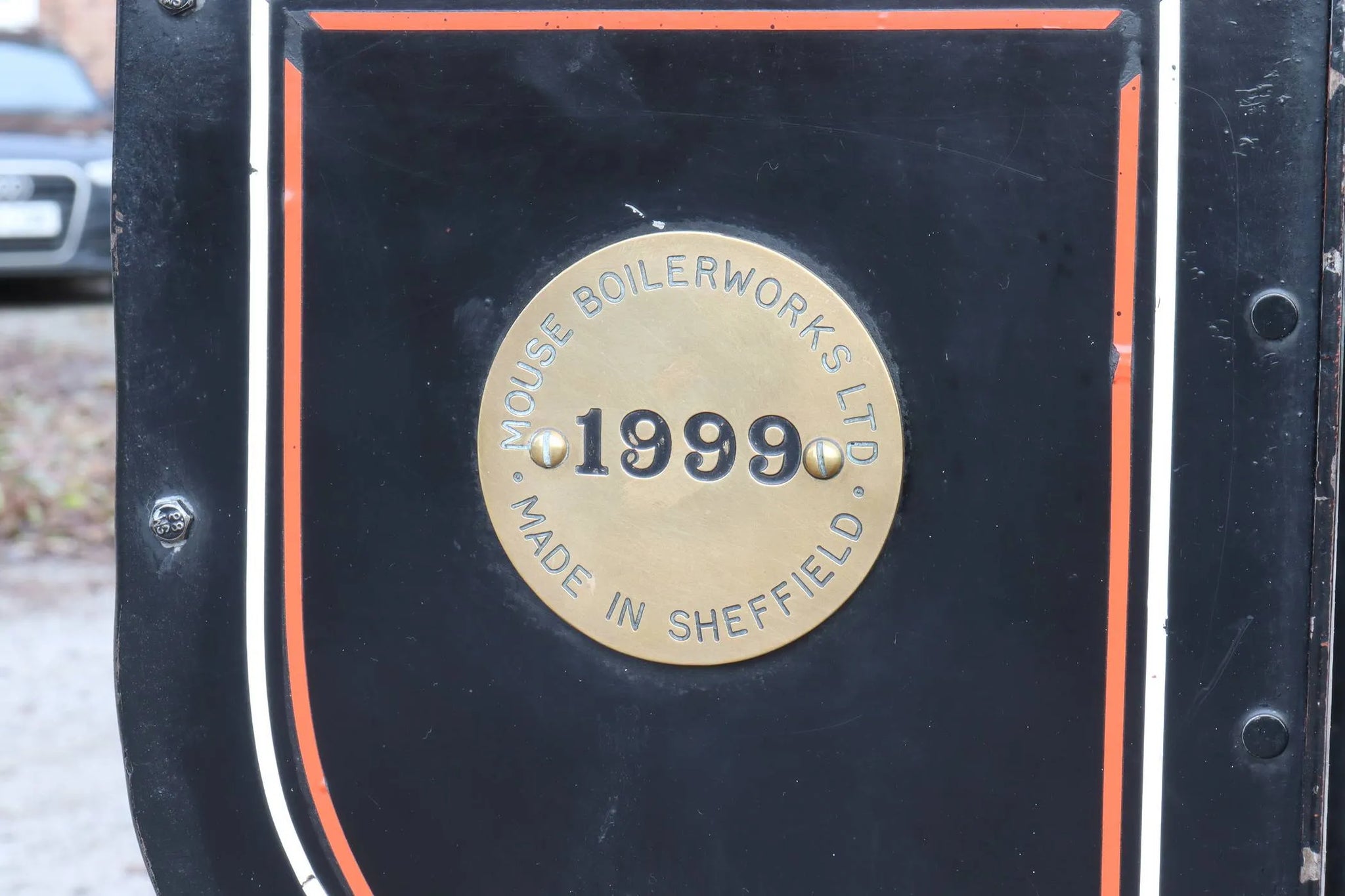

Boiler maker

Mouse Boiler Works

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

140

CE/UKCA mark

n/a - pre-2002

Year built

1999

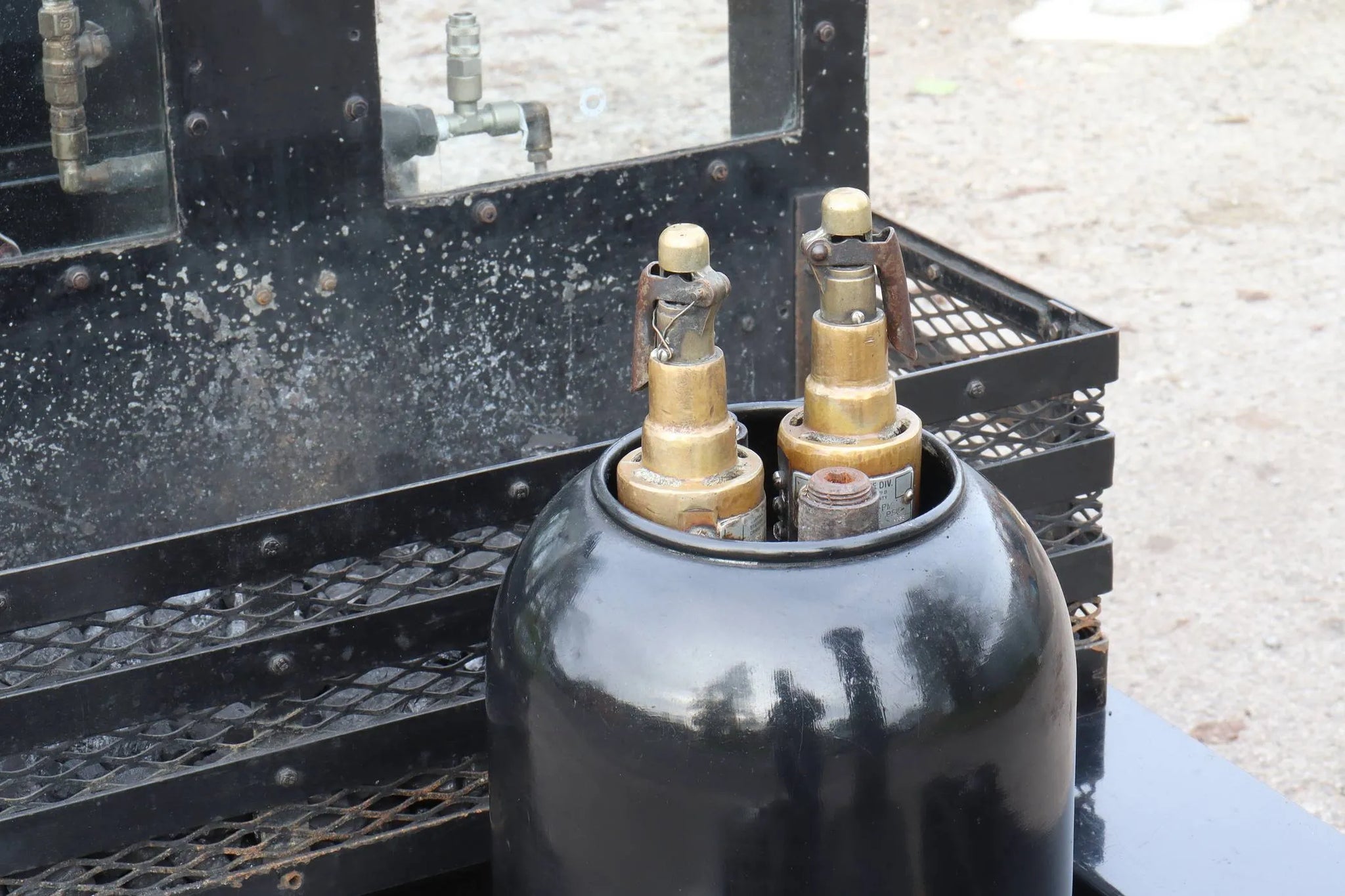

Safety valve type

pop

Safety valve

2

Fusible plug

no

Chassis material

steel, bolted

Date out

Jan-25
