11083

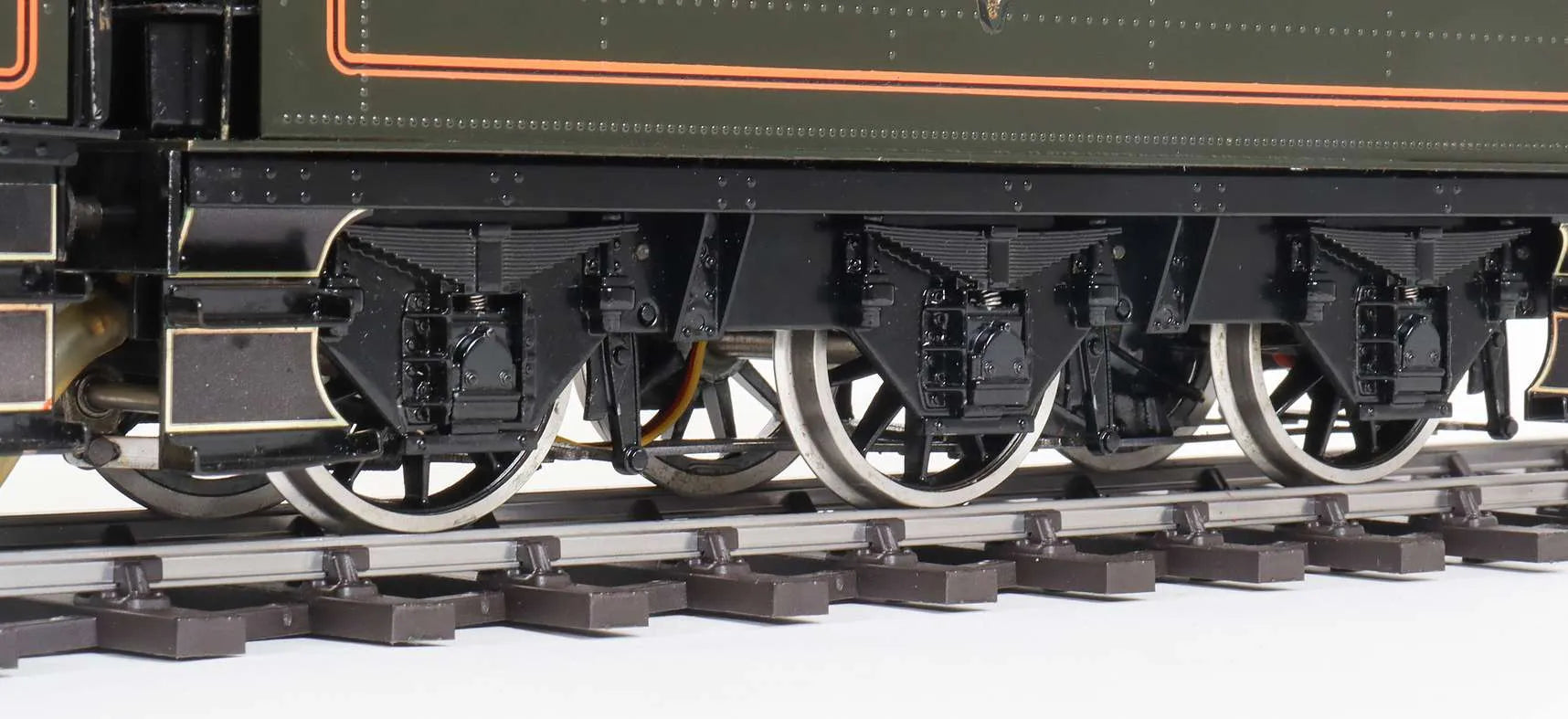

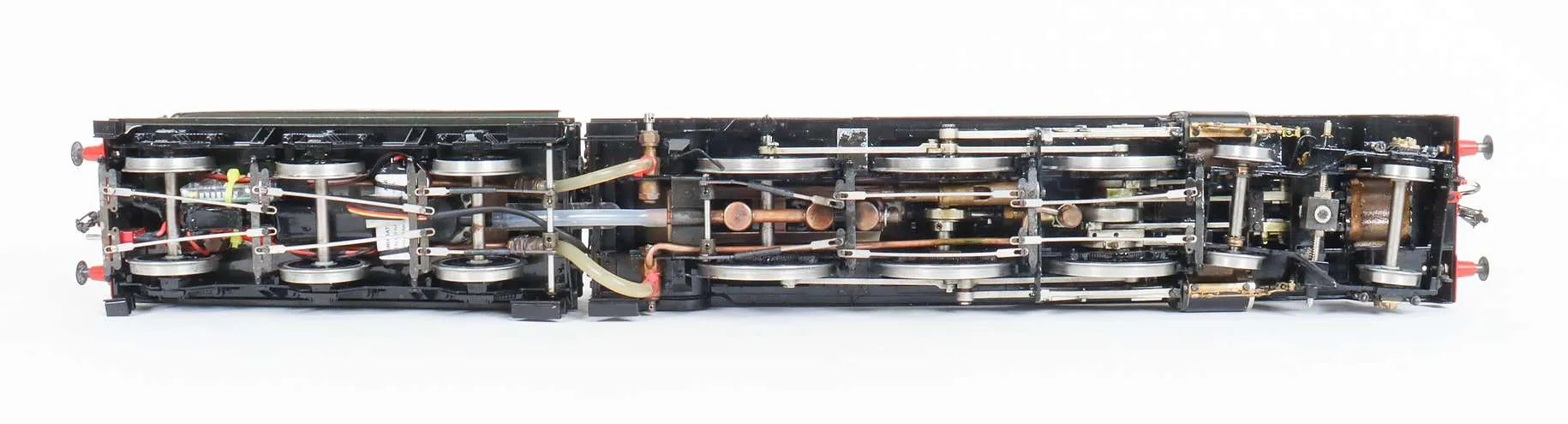

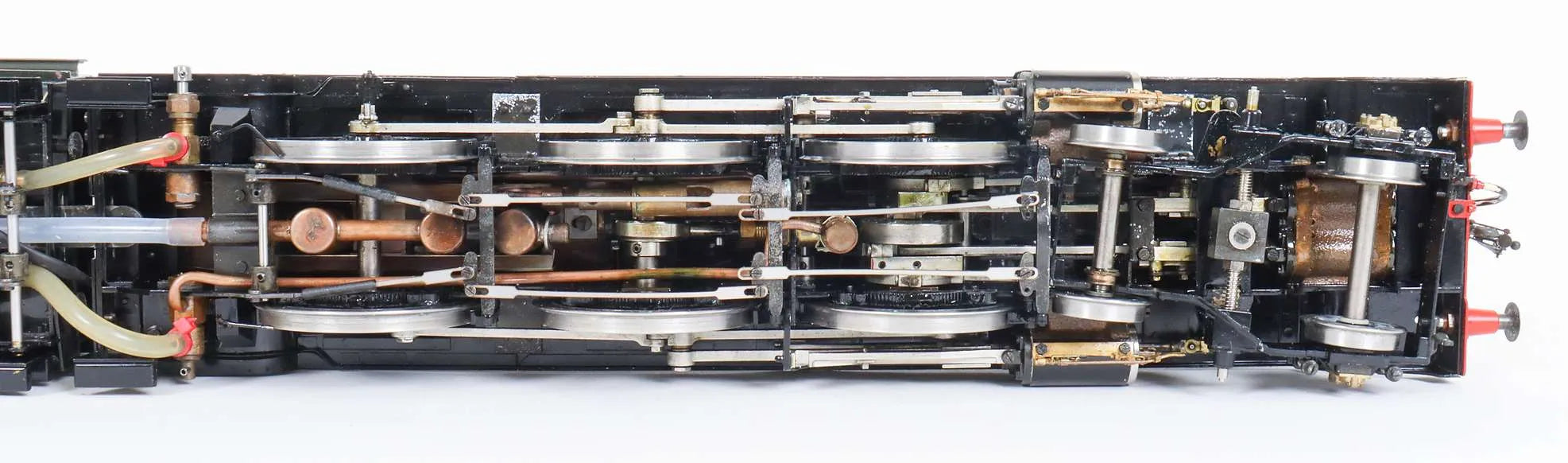

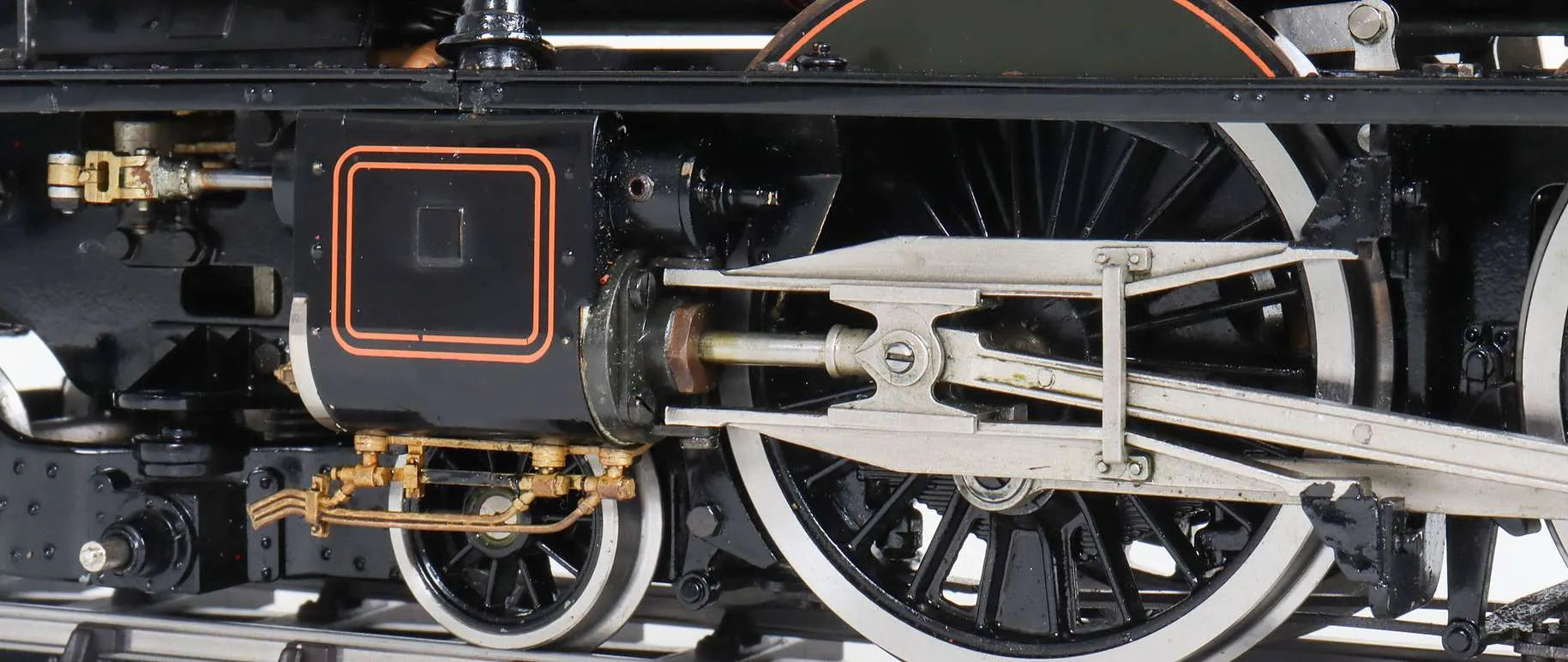

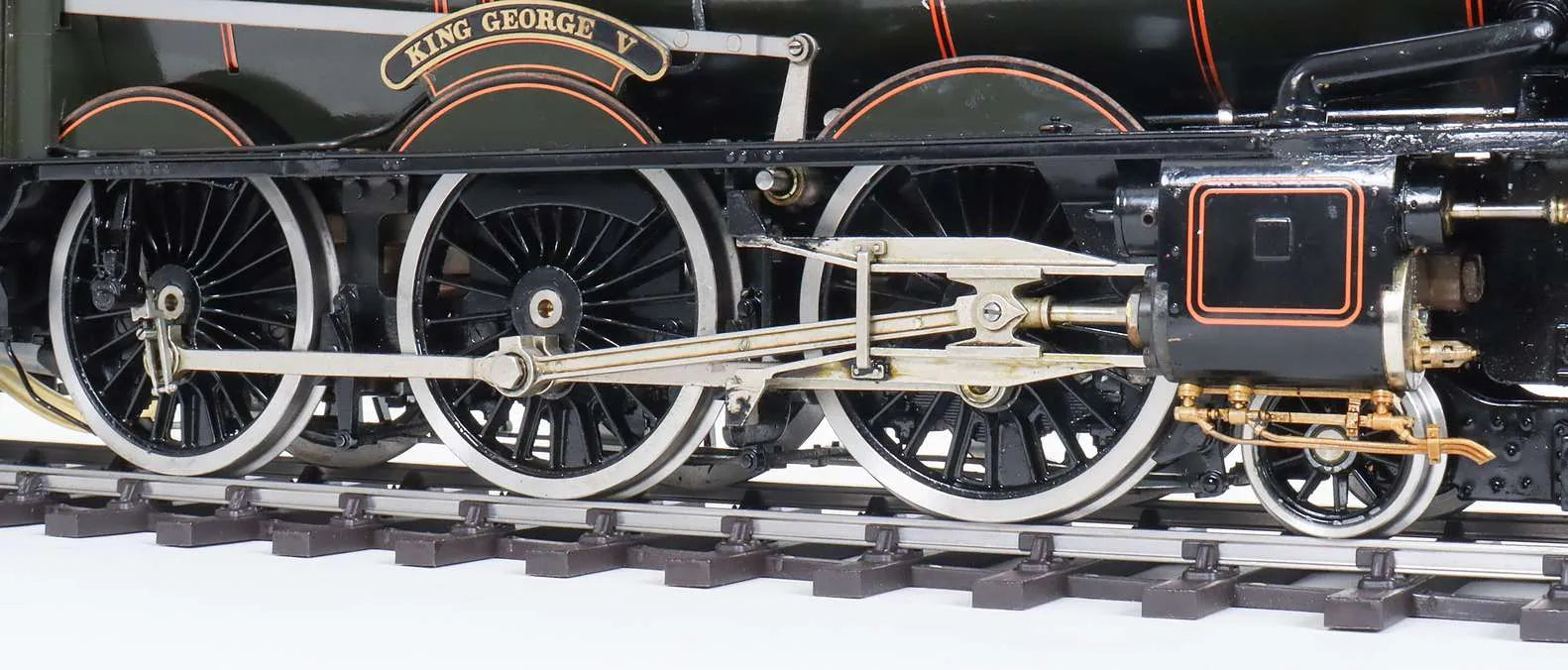

Unused since, it's recently arrived back with us, along with several other gauge 1 locomotives. Photographs opposite were taken in recent days, words below are from last time it was here.

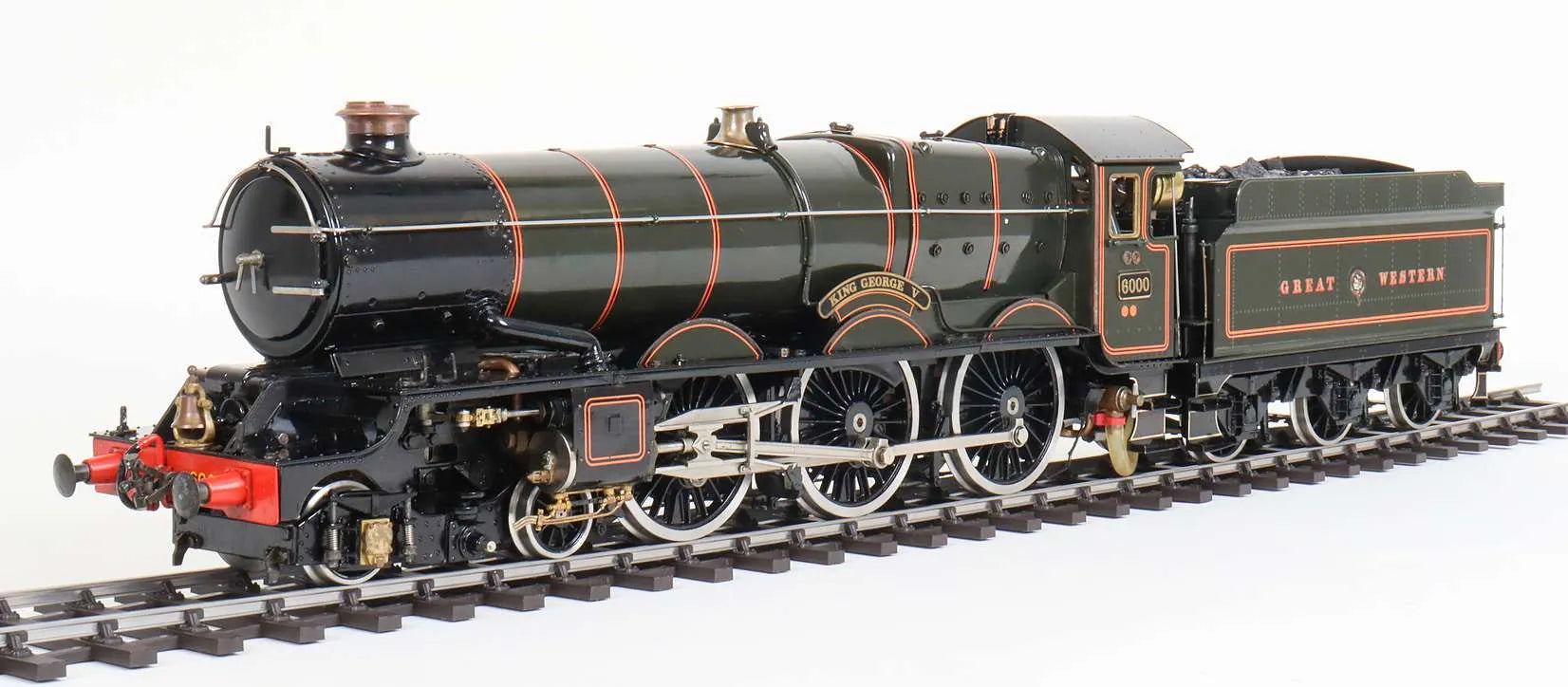

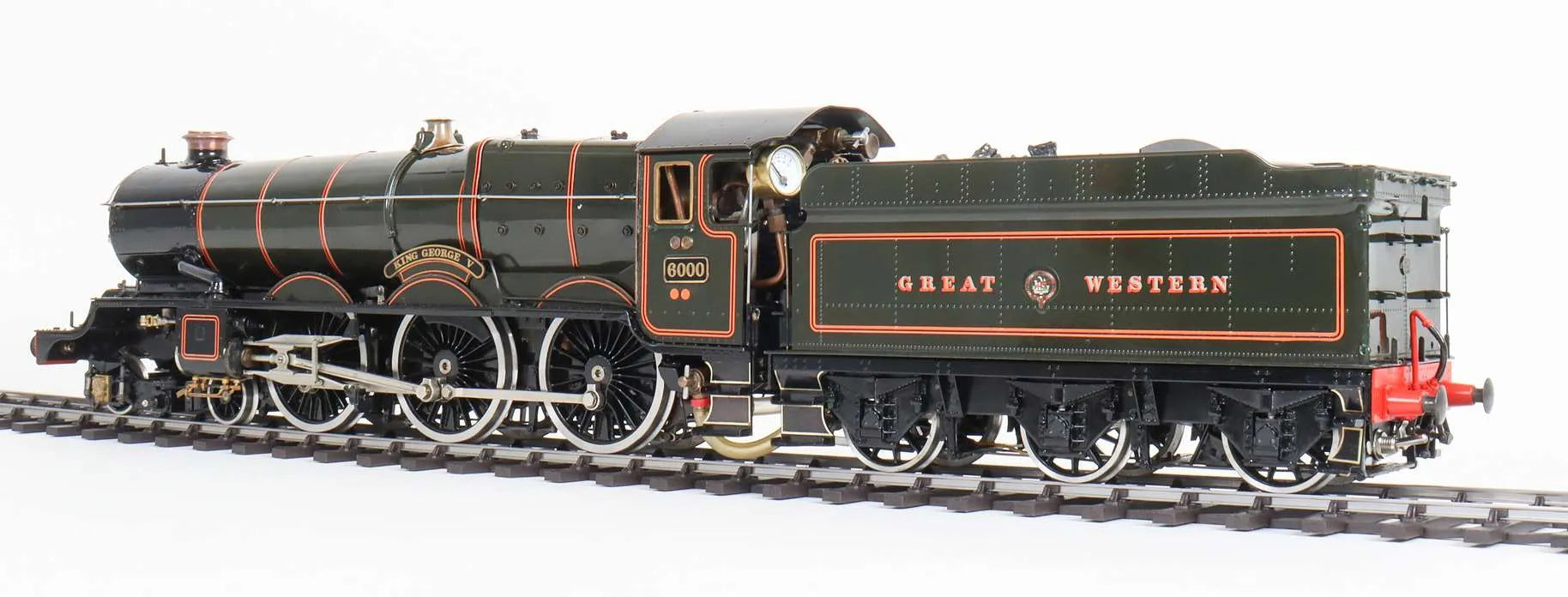

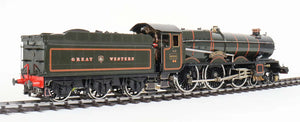

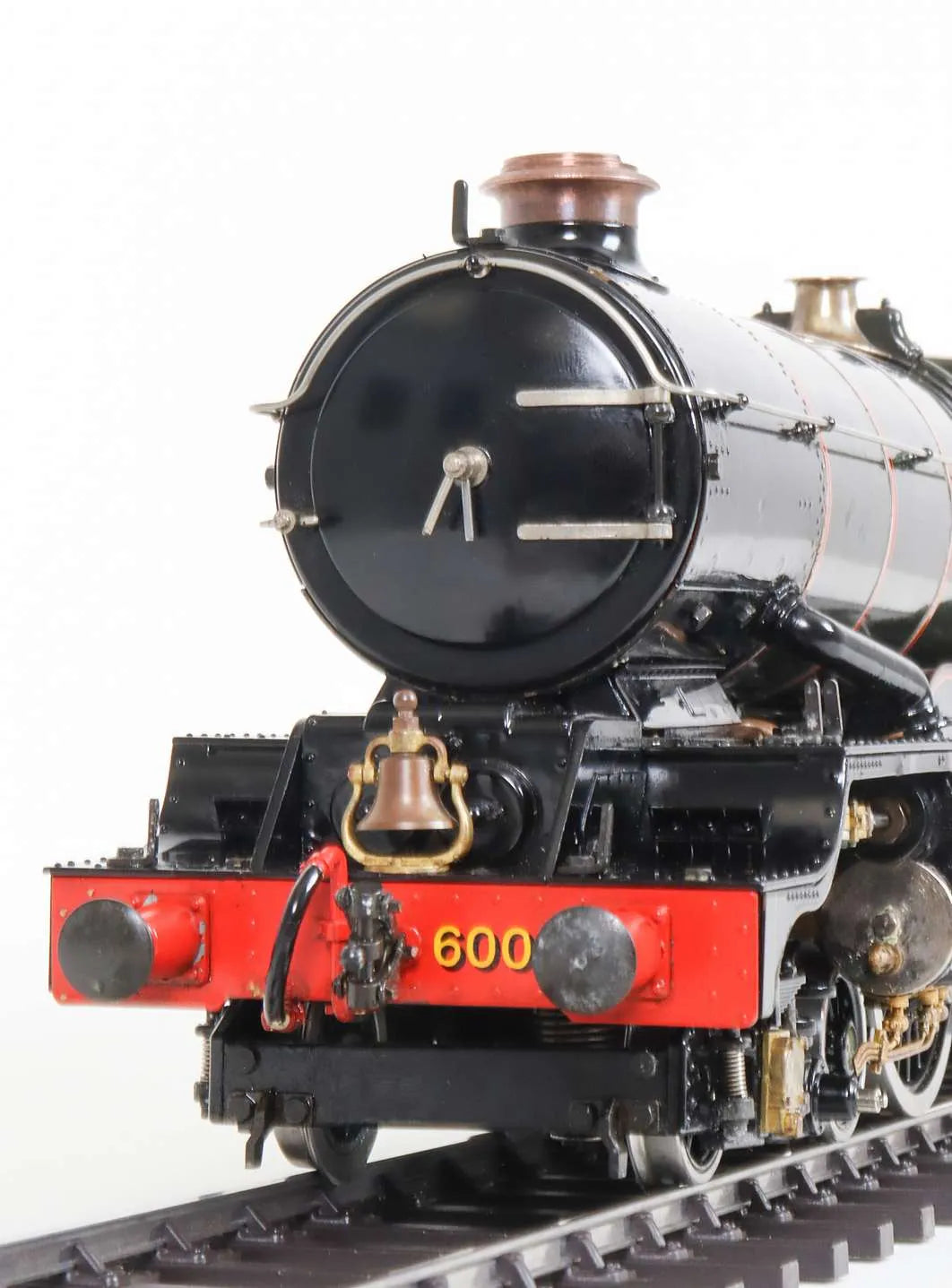

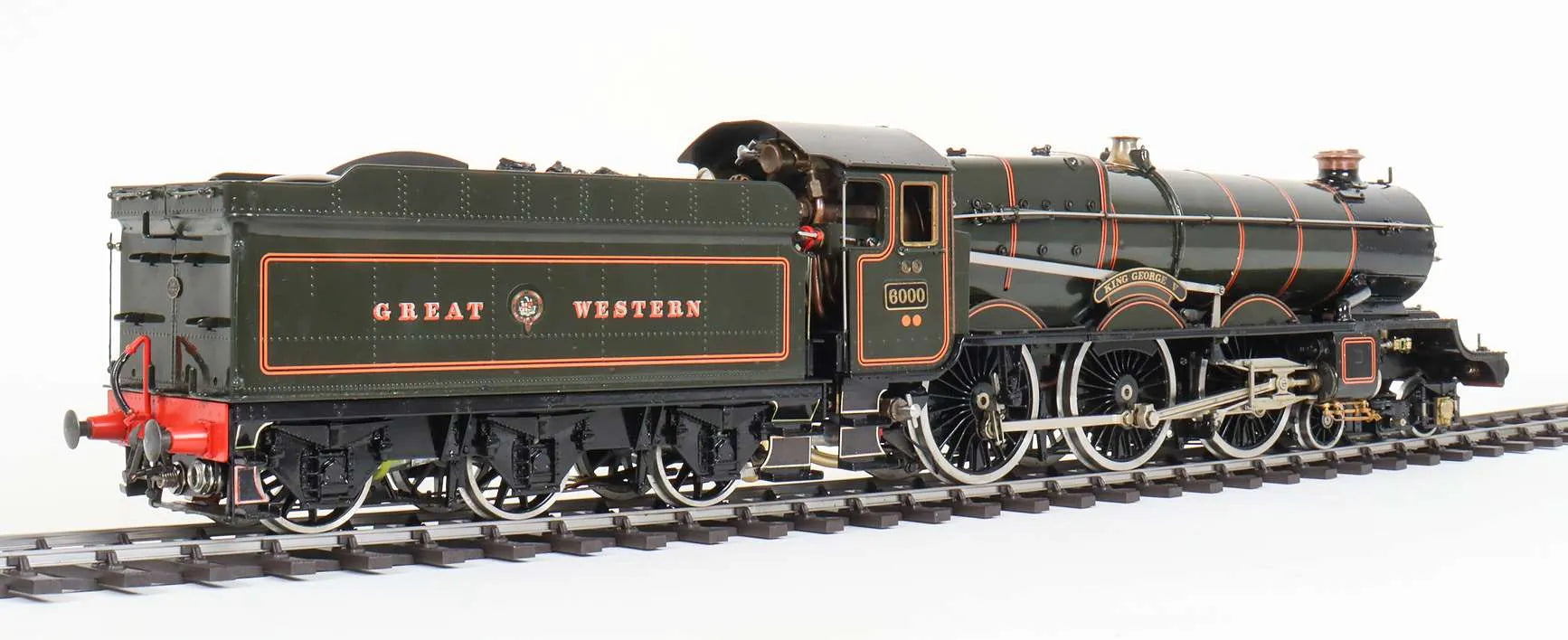

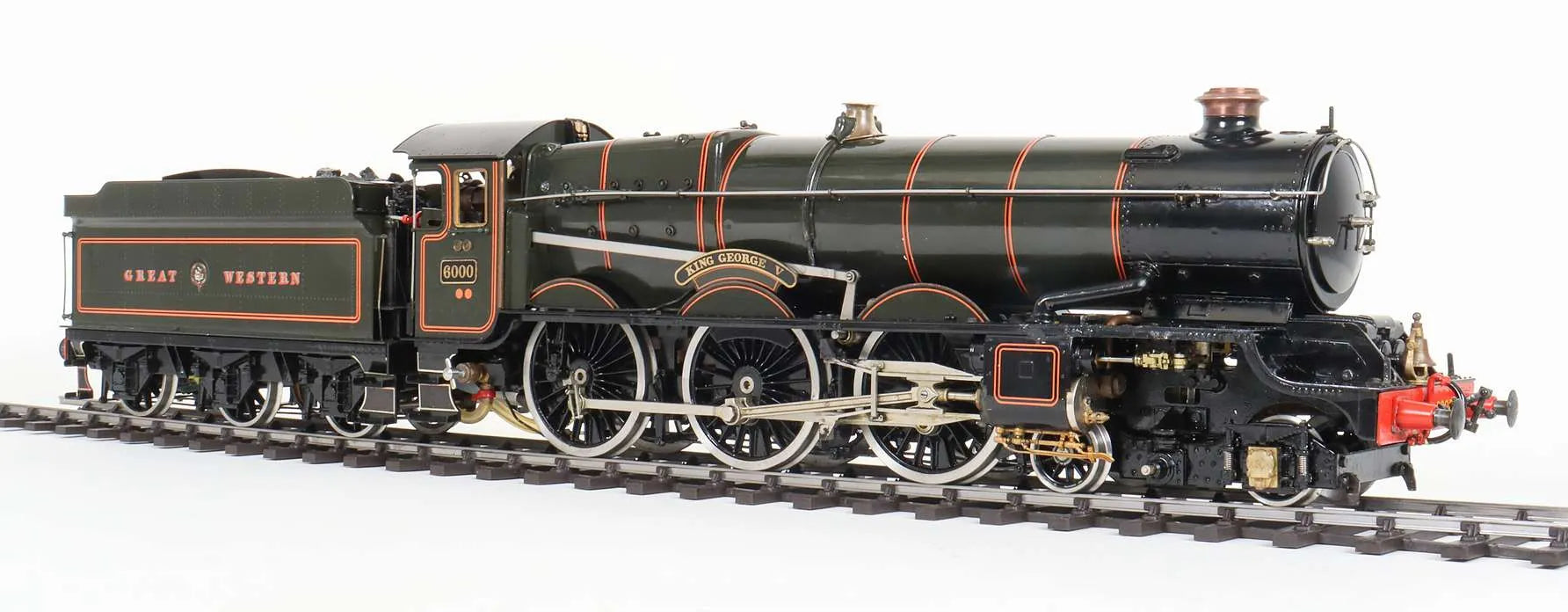

A gauge 1 Aster GWR King, it recently arrived with us along with several other gauge 1 engines as the owner traded up (several) size(s) to 7 1/4 inch gauge.

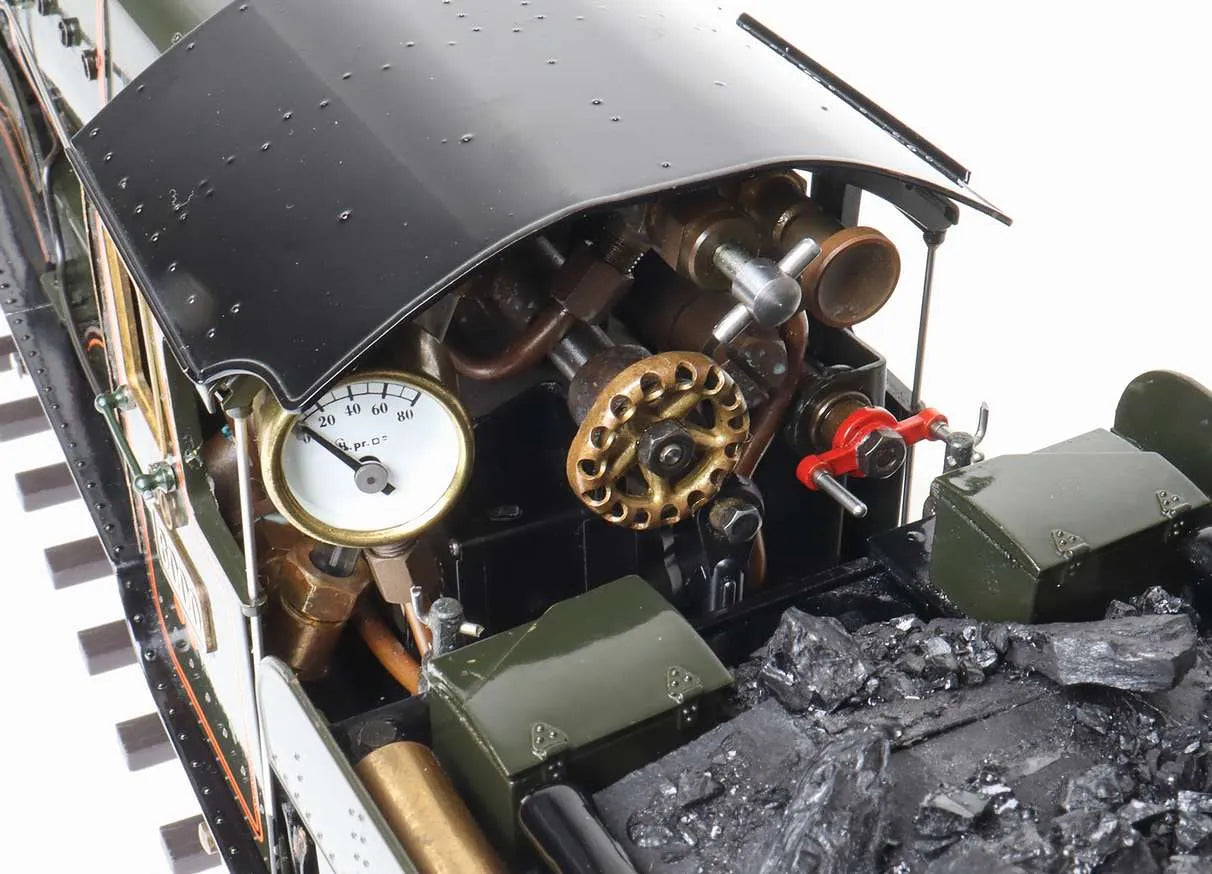

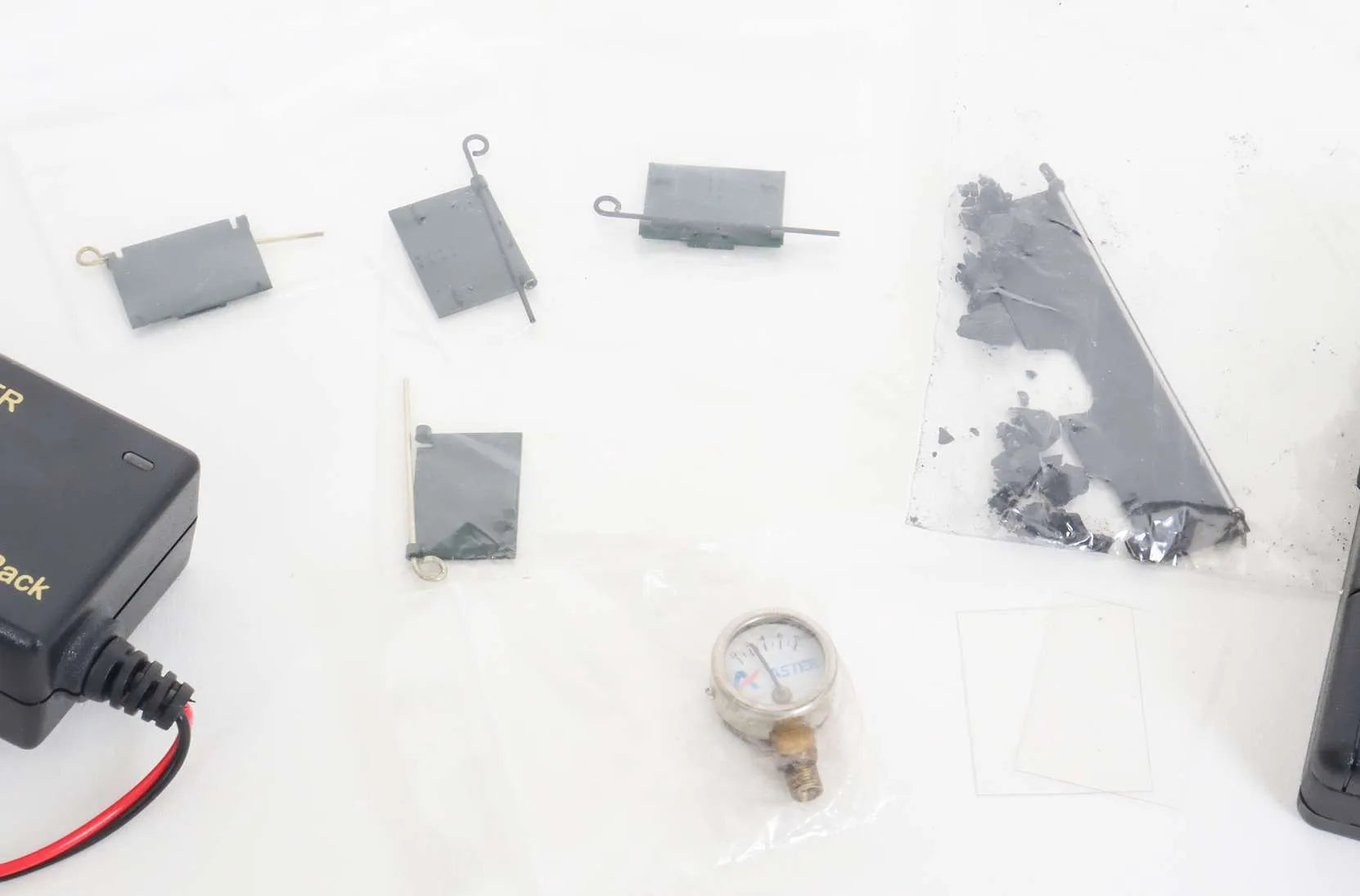

The original pressure gauge developed a fault and has been replaced with a slightly larger gauge reading in psi rather than bar.

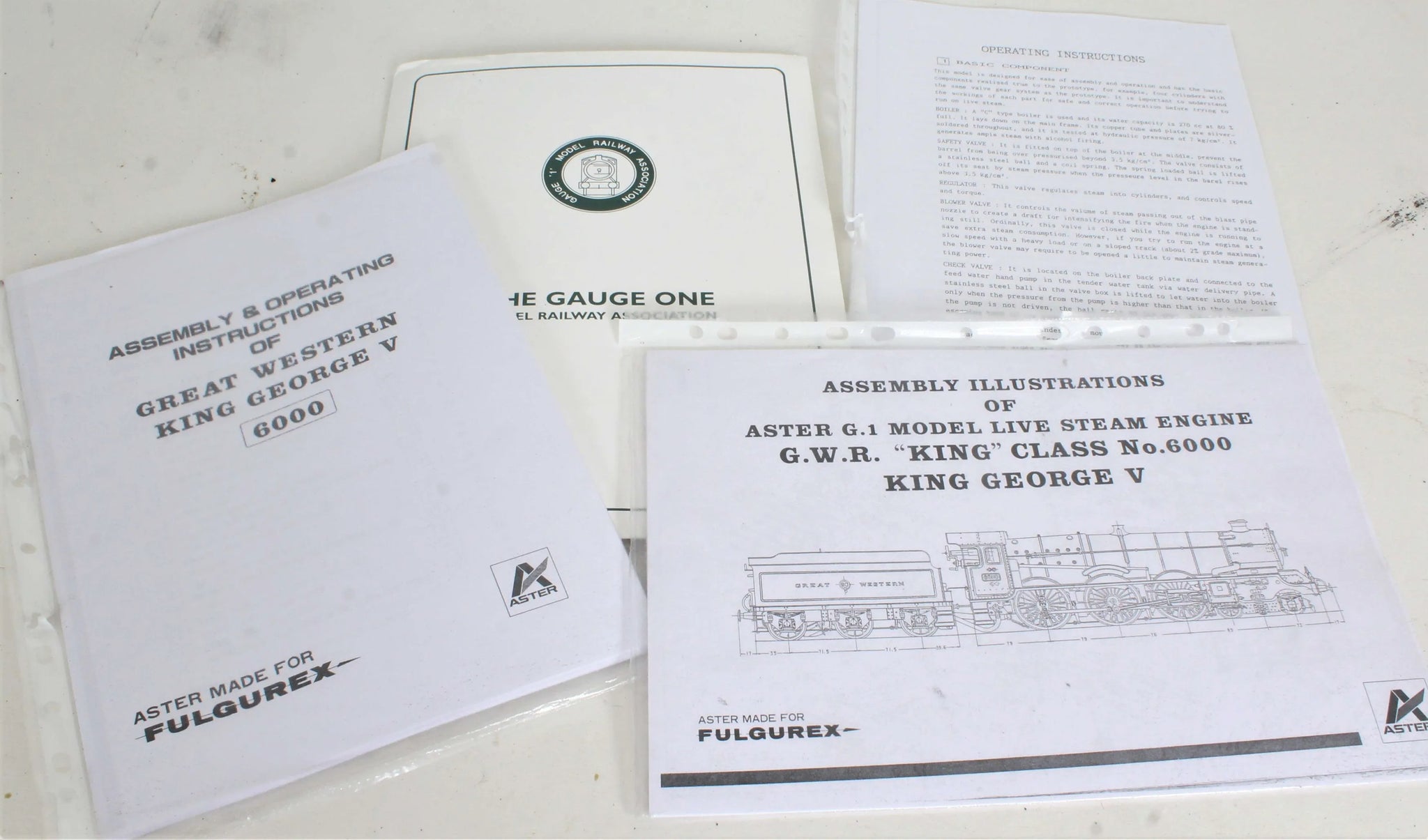

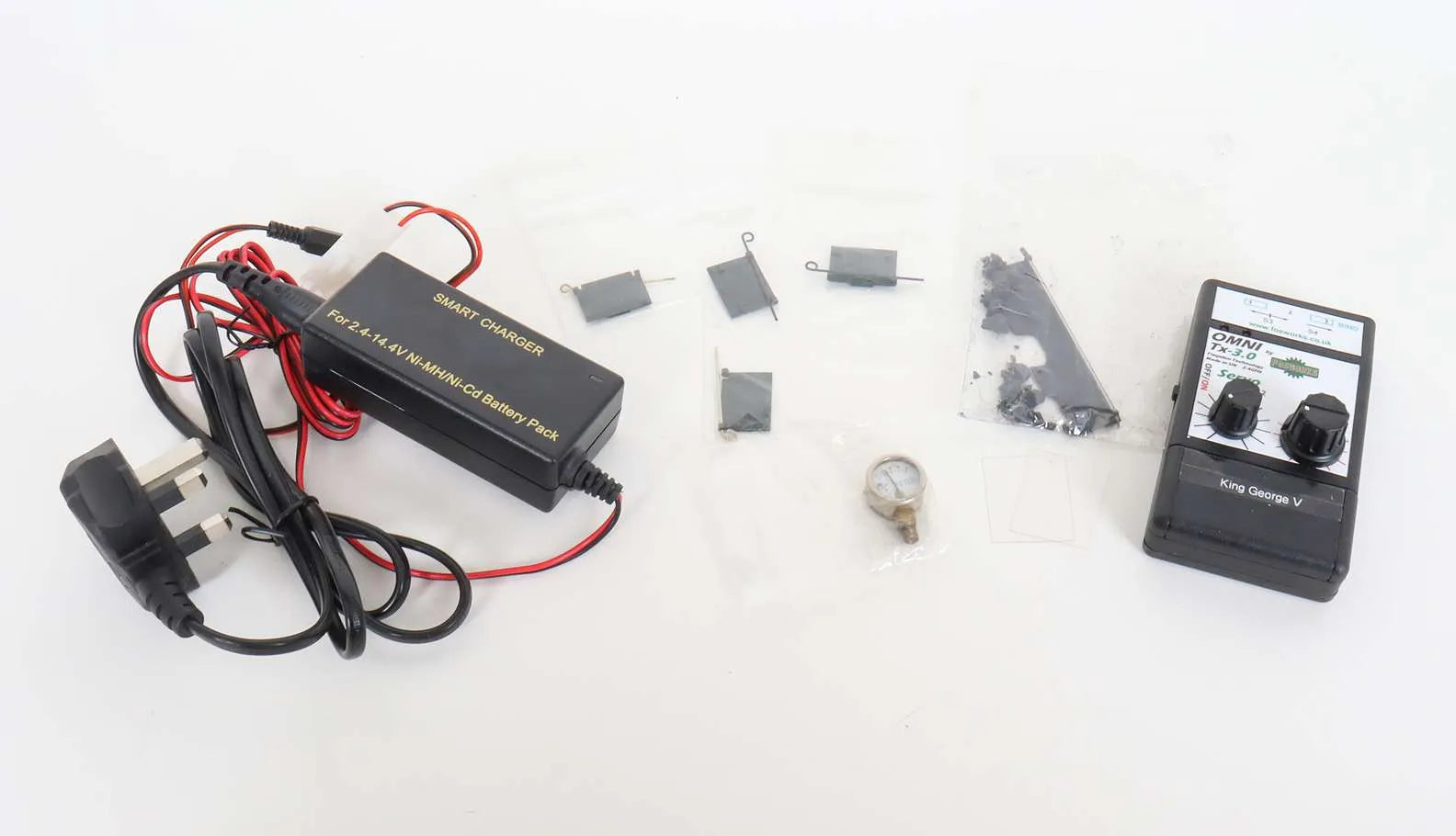

Complete with original manufacturer's documentation, some tools and a basic wooden carrying crate.
Stock code |
11083 |
Gauge |
45mm & smaller |
Length/inches |
26 |
Width/inches |
4 |
Height/inches |
5 |
Weight/Kg |
9 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
brass |
Valve type |
slide |

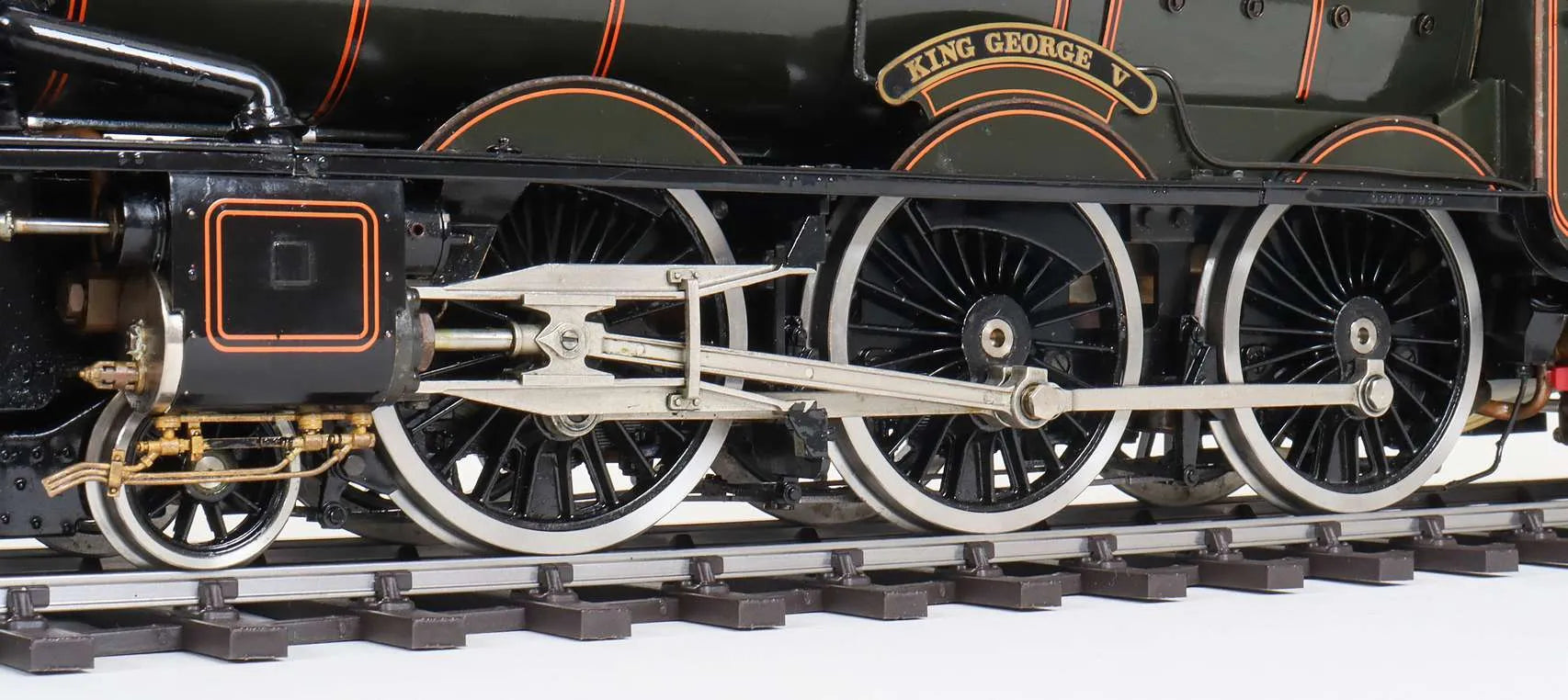

Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
displacement |
Boiler maker |
Aster Hobbies |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
60 |
CE/UKCA mark |
n/a - <2 litre capacity |
Boiler number |
11083 |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Date out |
Apr-23 |
Hydraulic test valid to |
30-Jan-27 |
