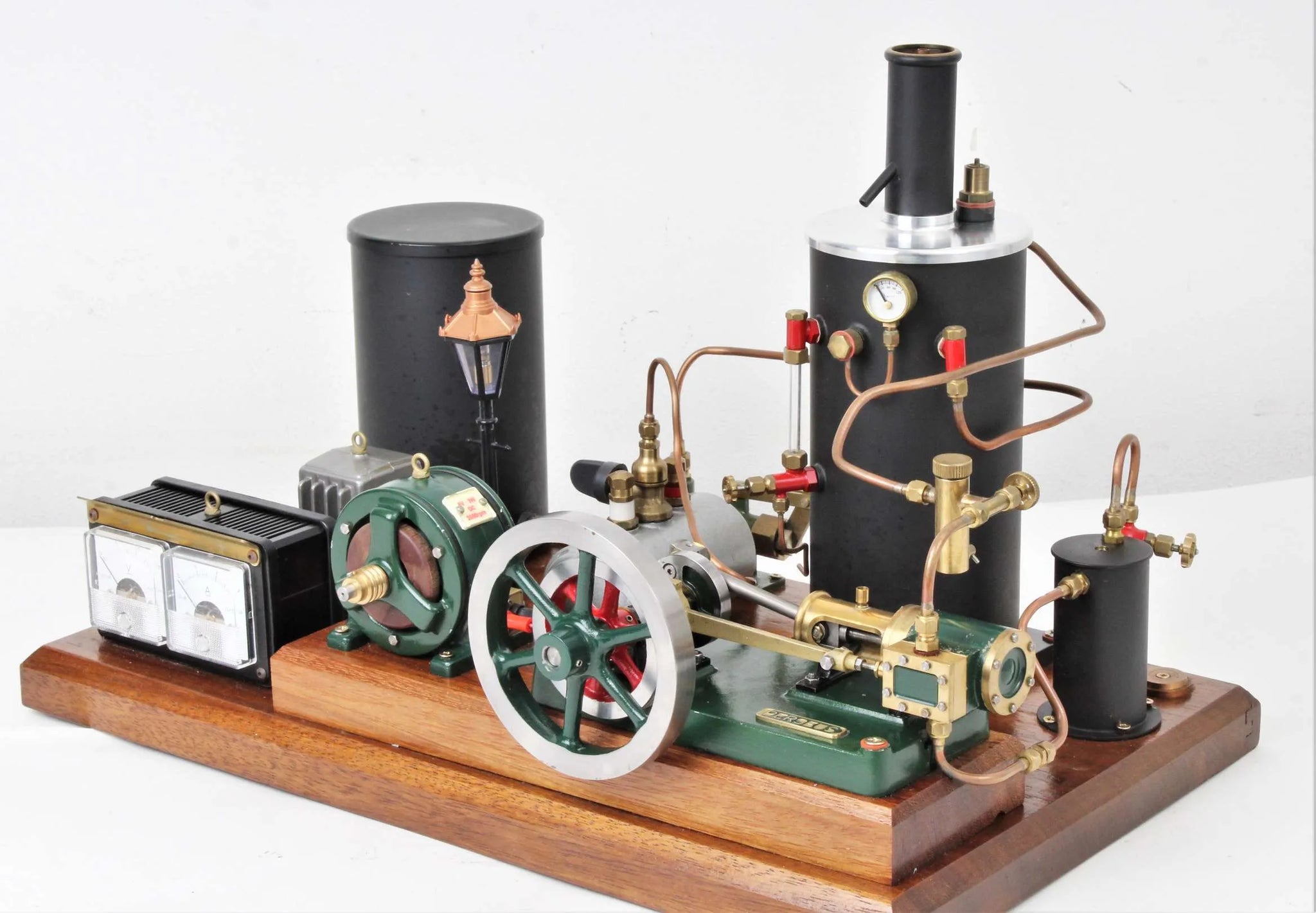

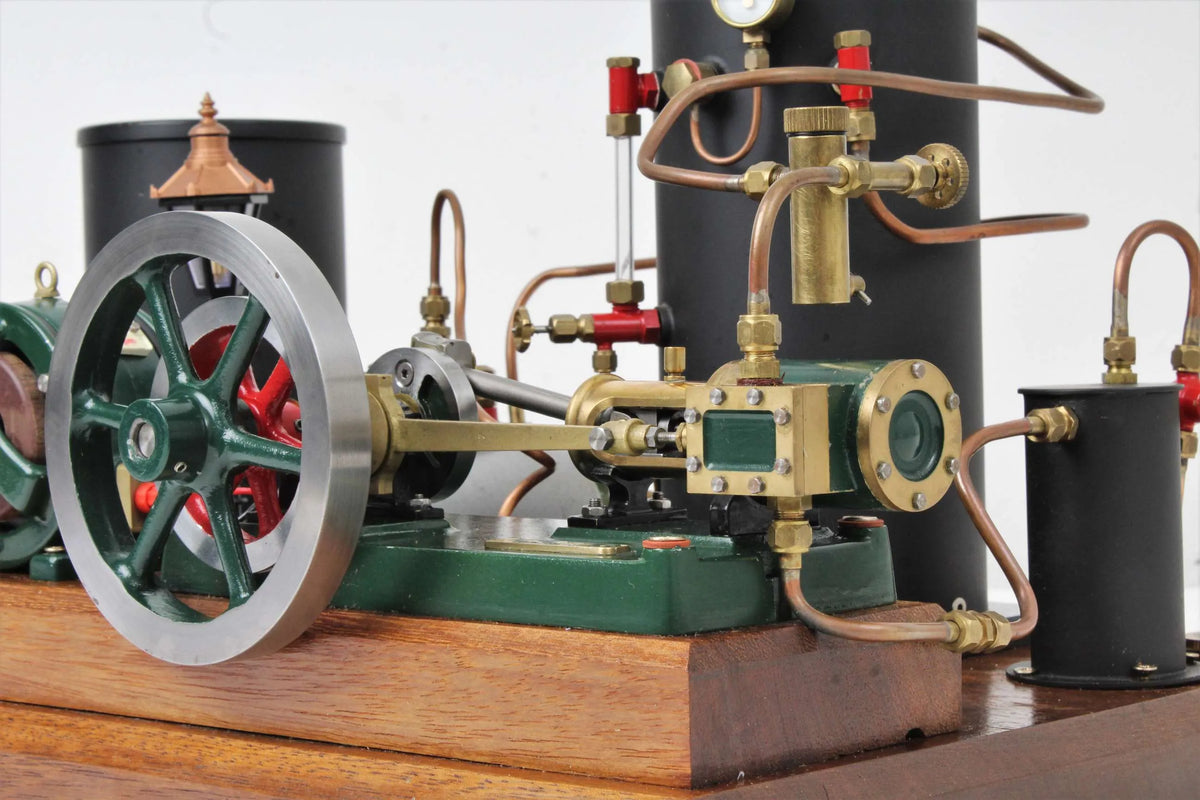

Cotswold Heritage "Perseus" steam plant

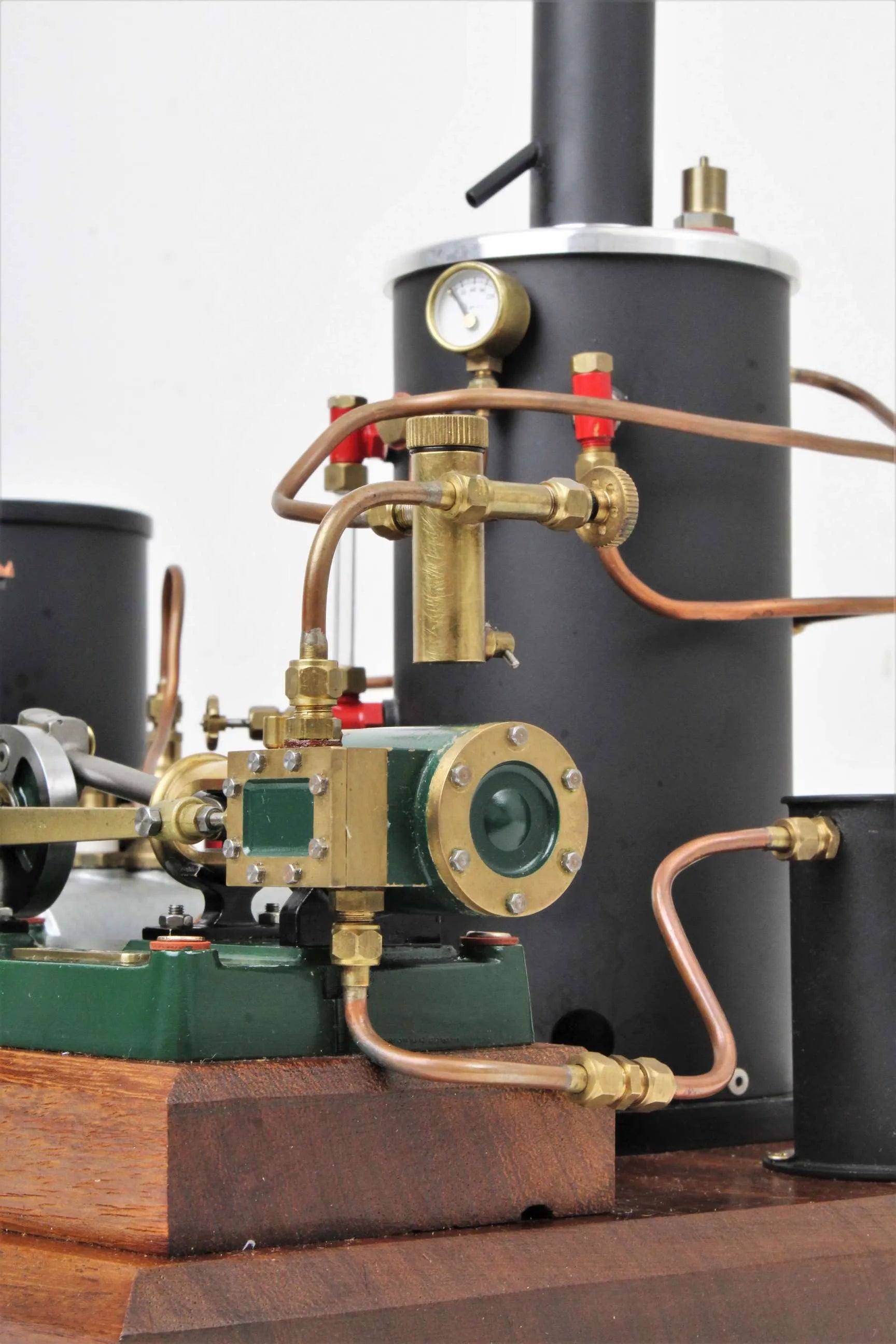

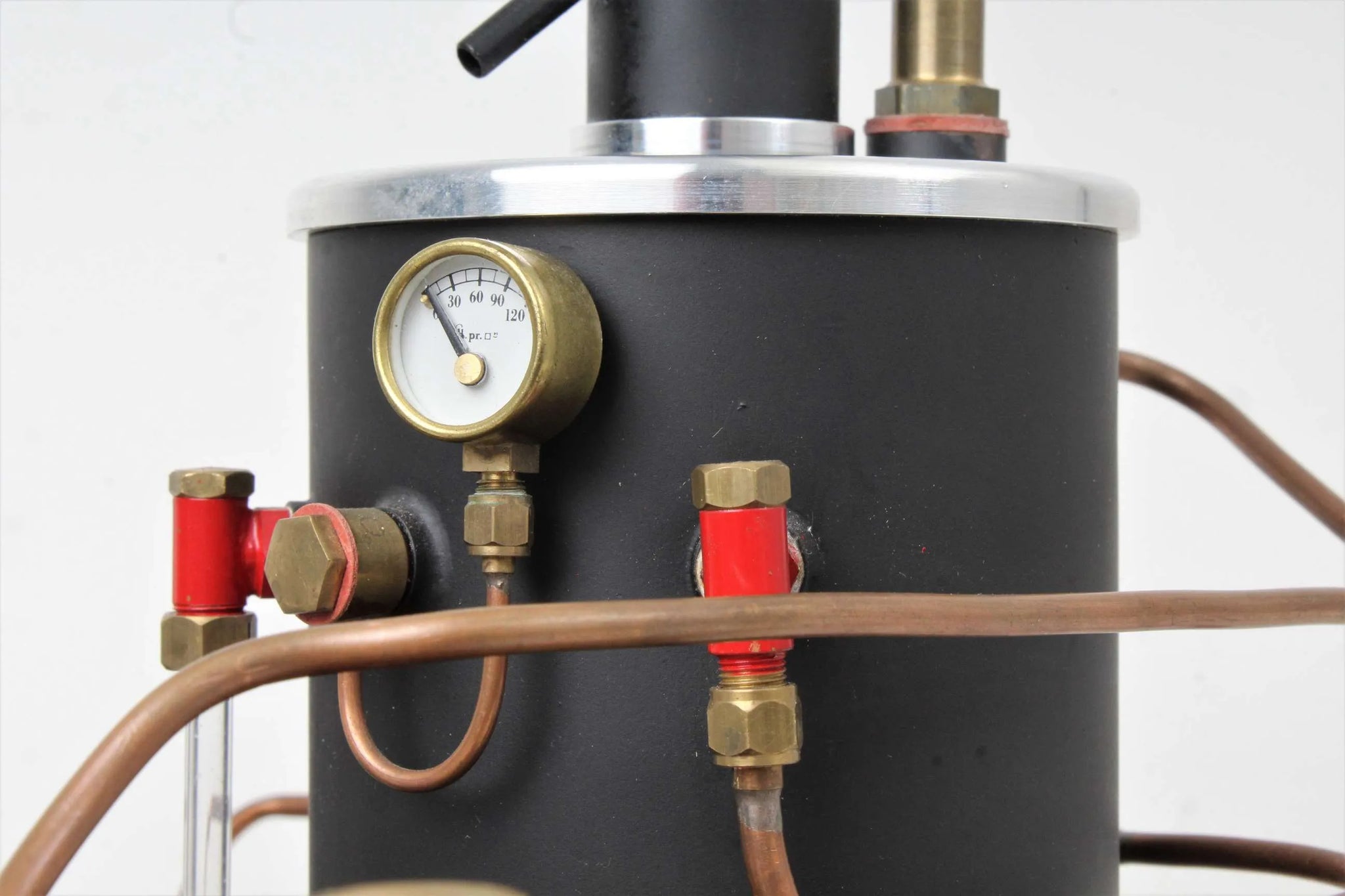

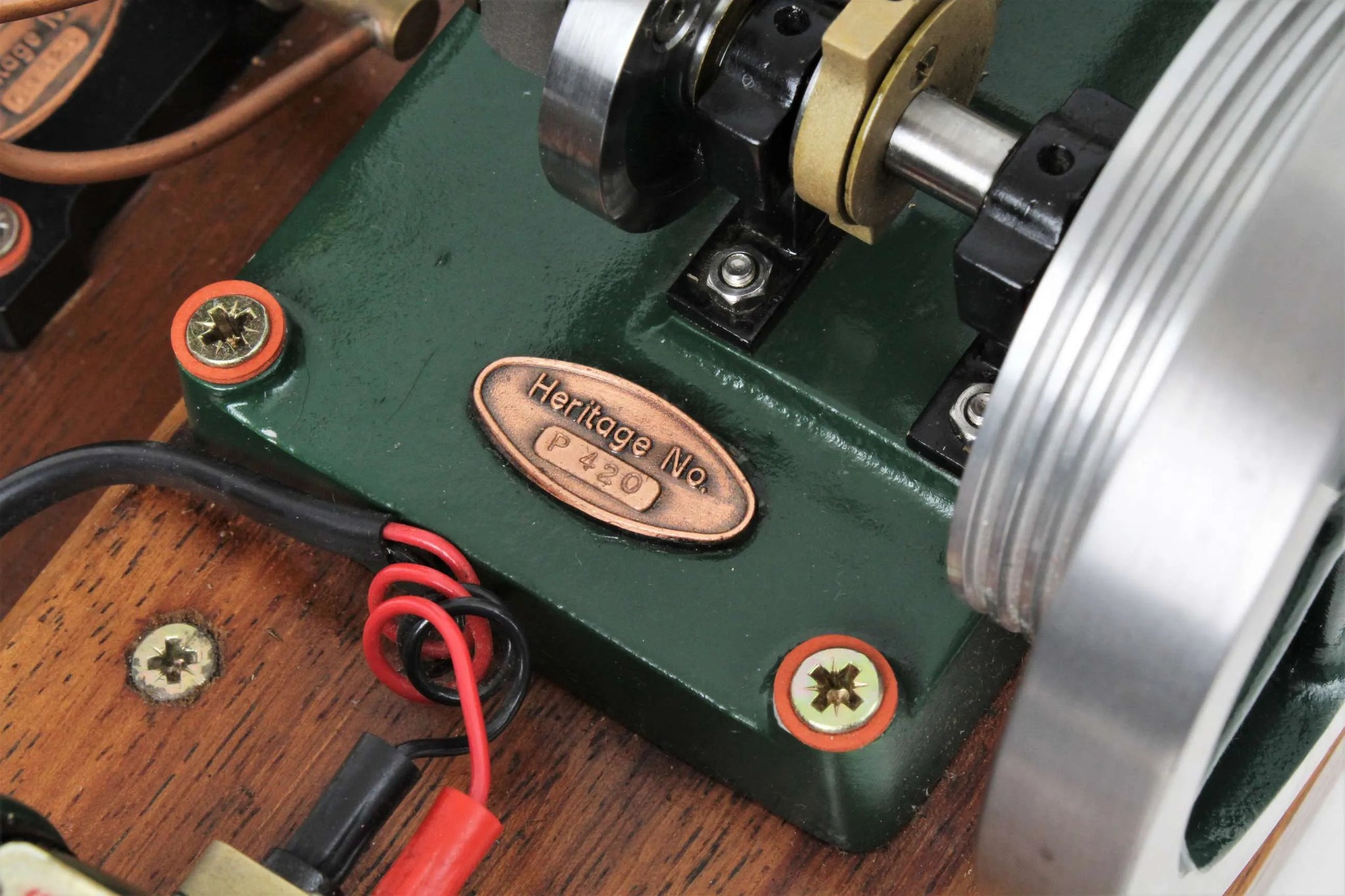

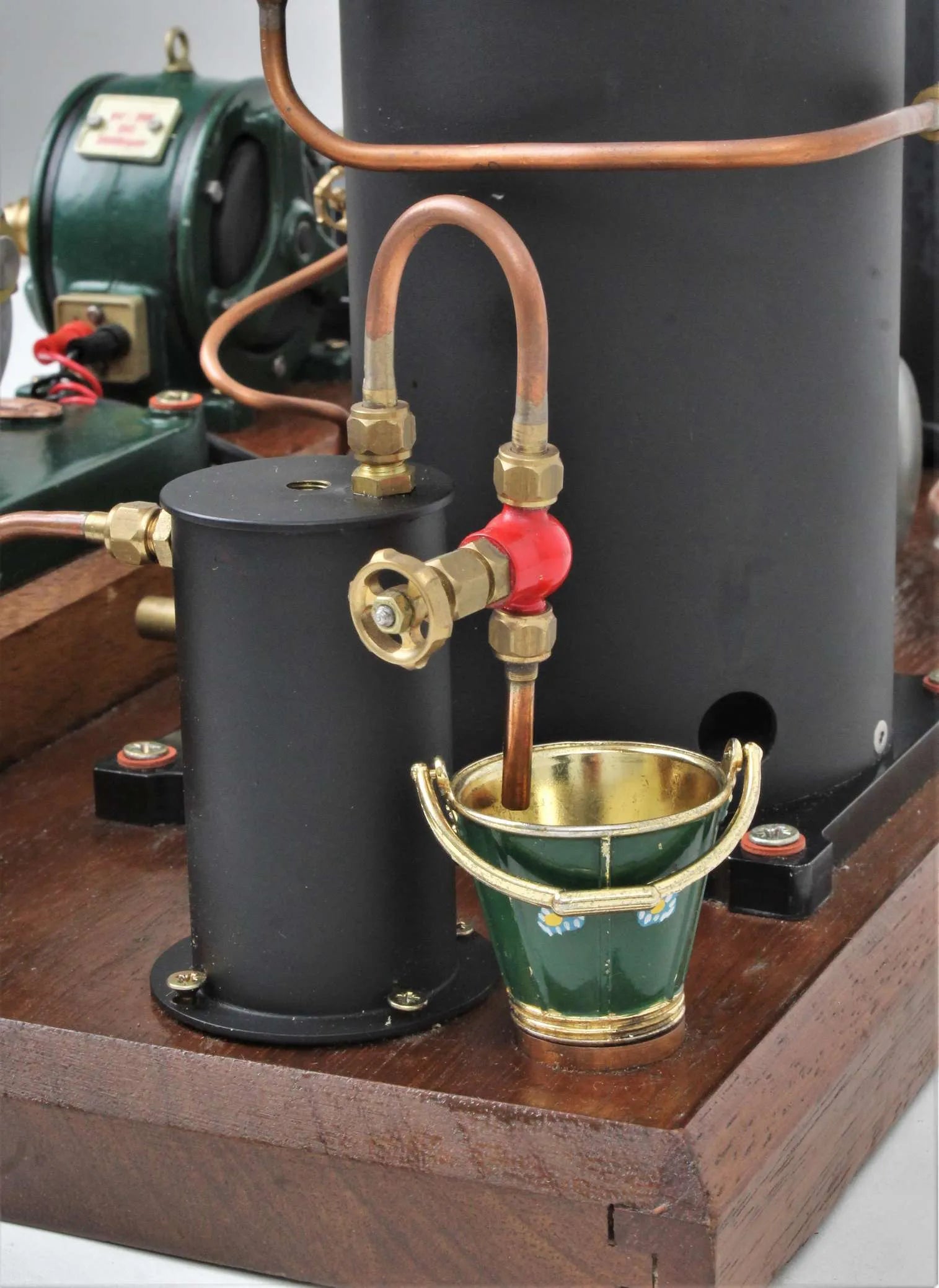

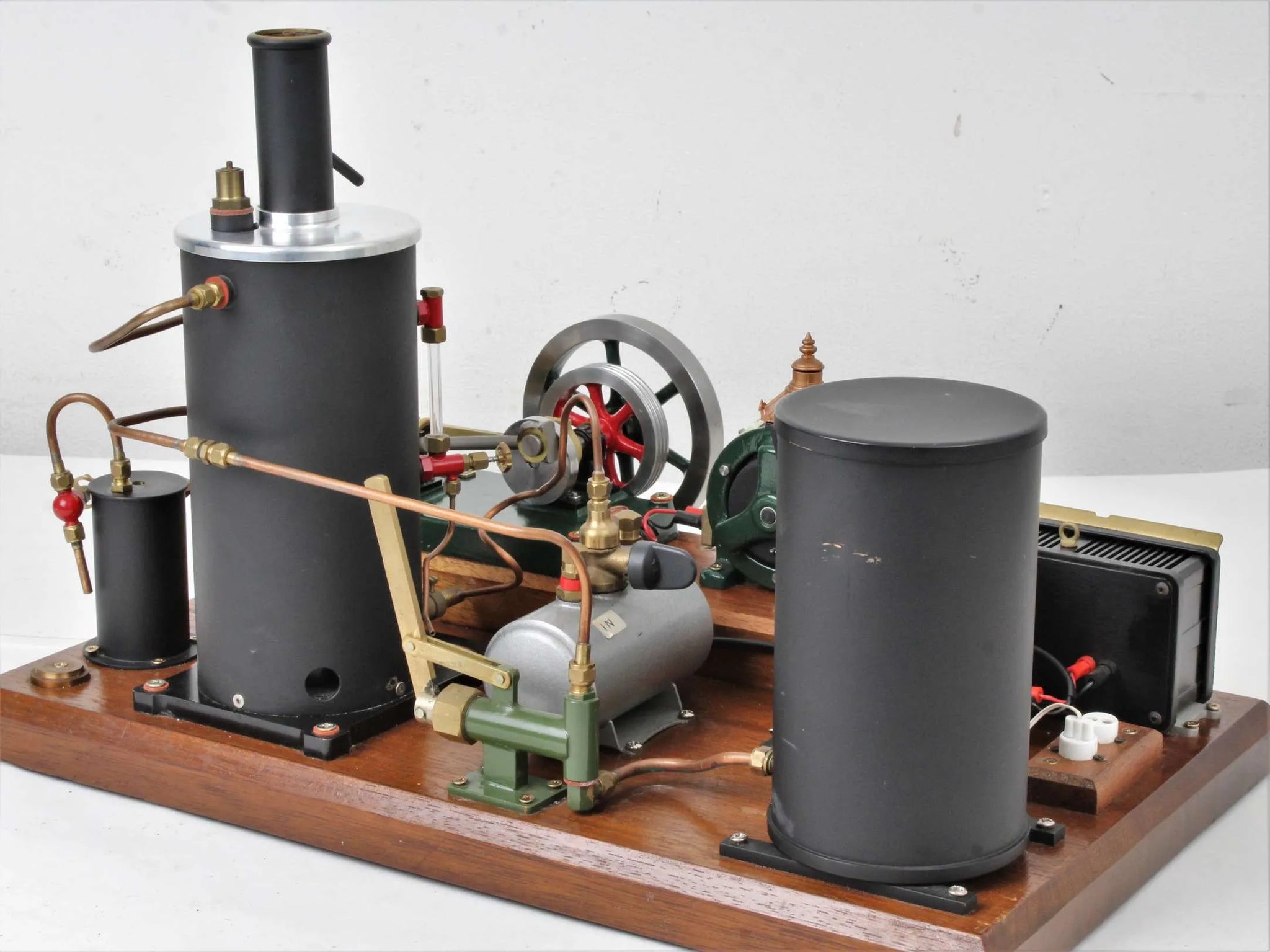

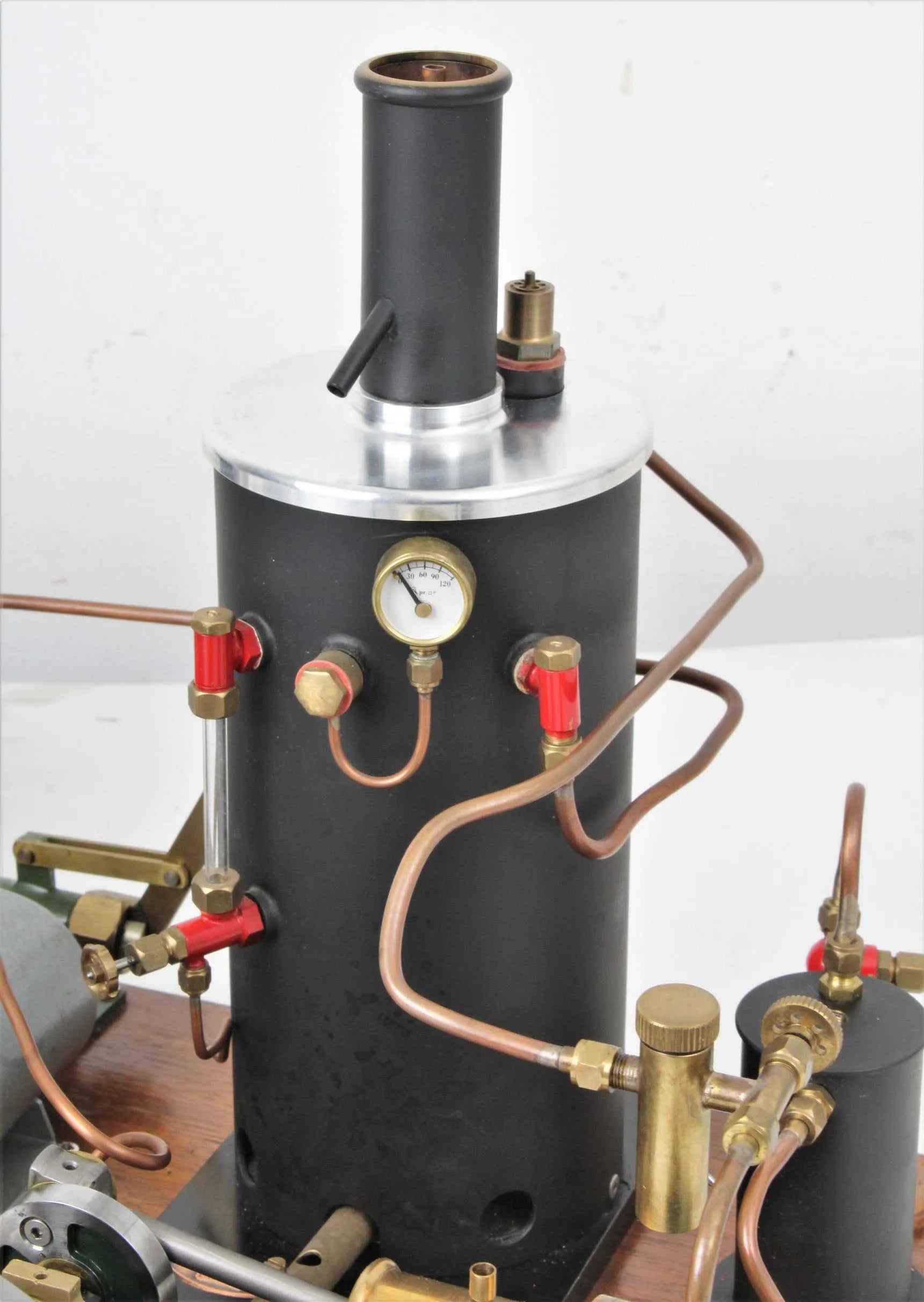

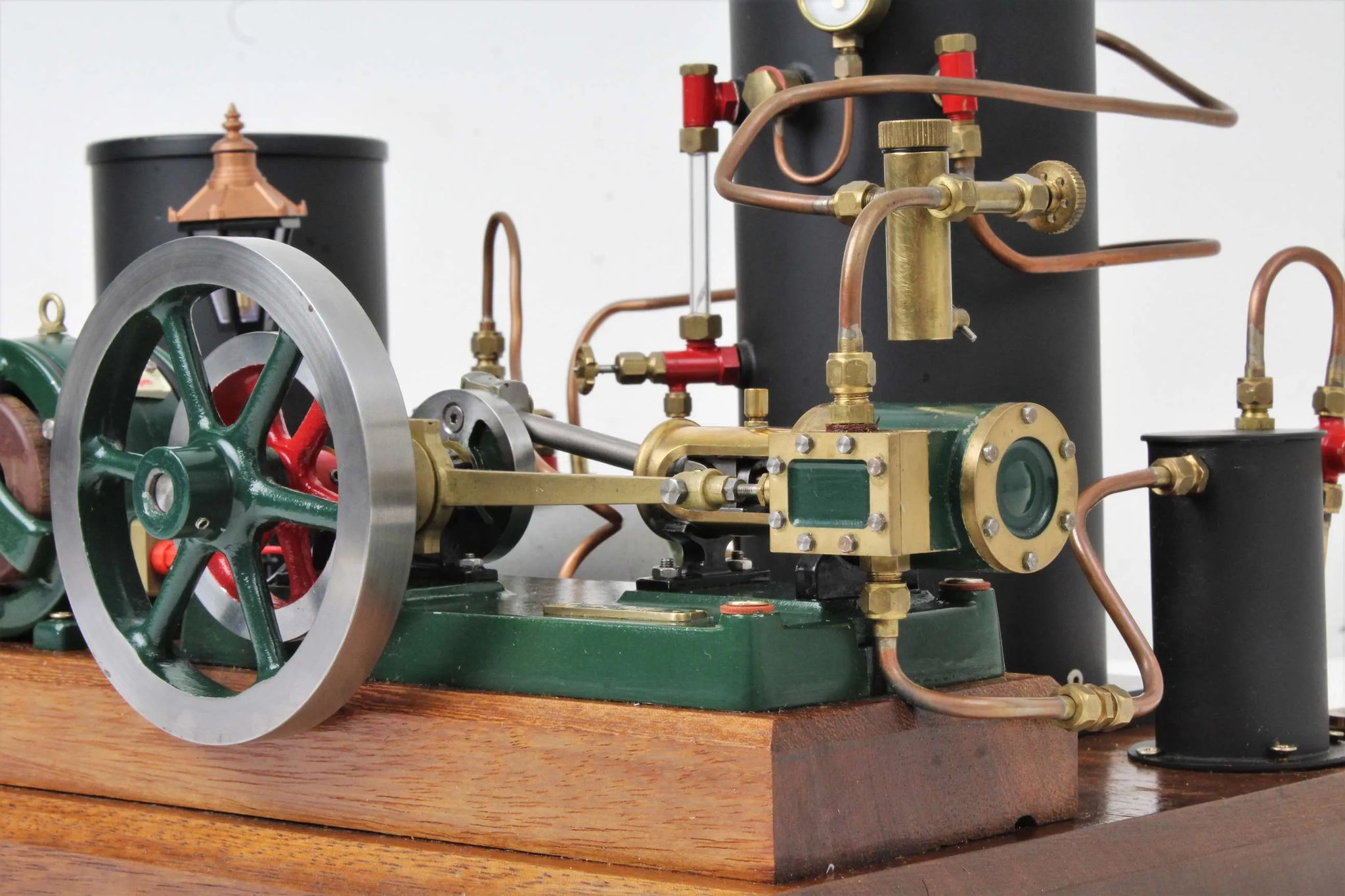

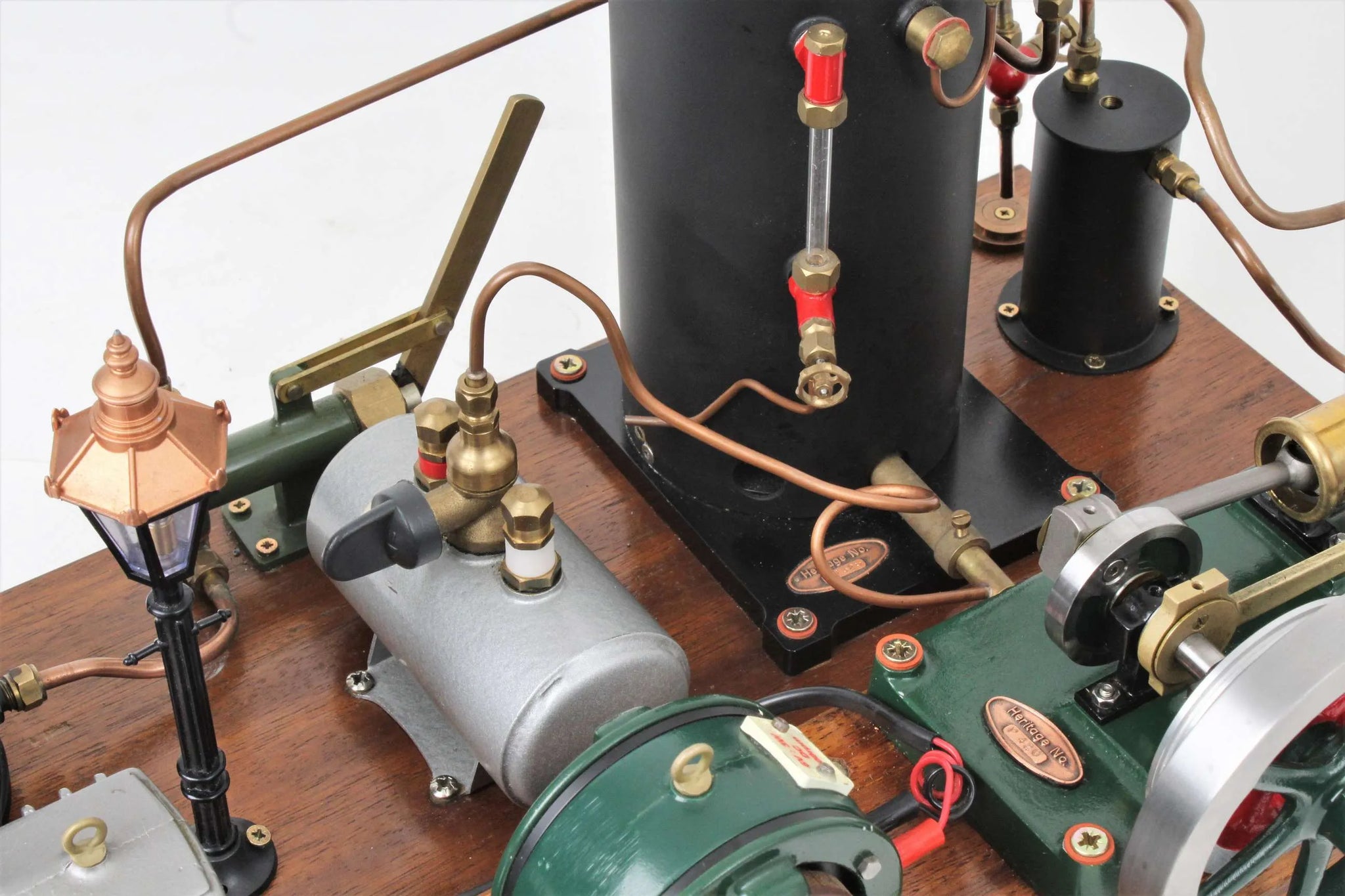

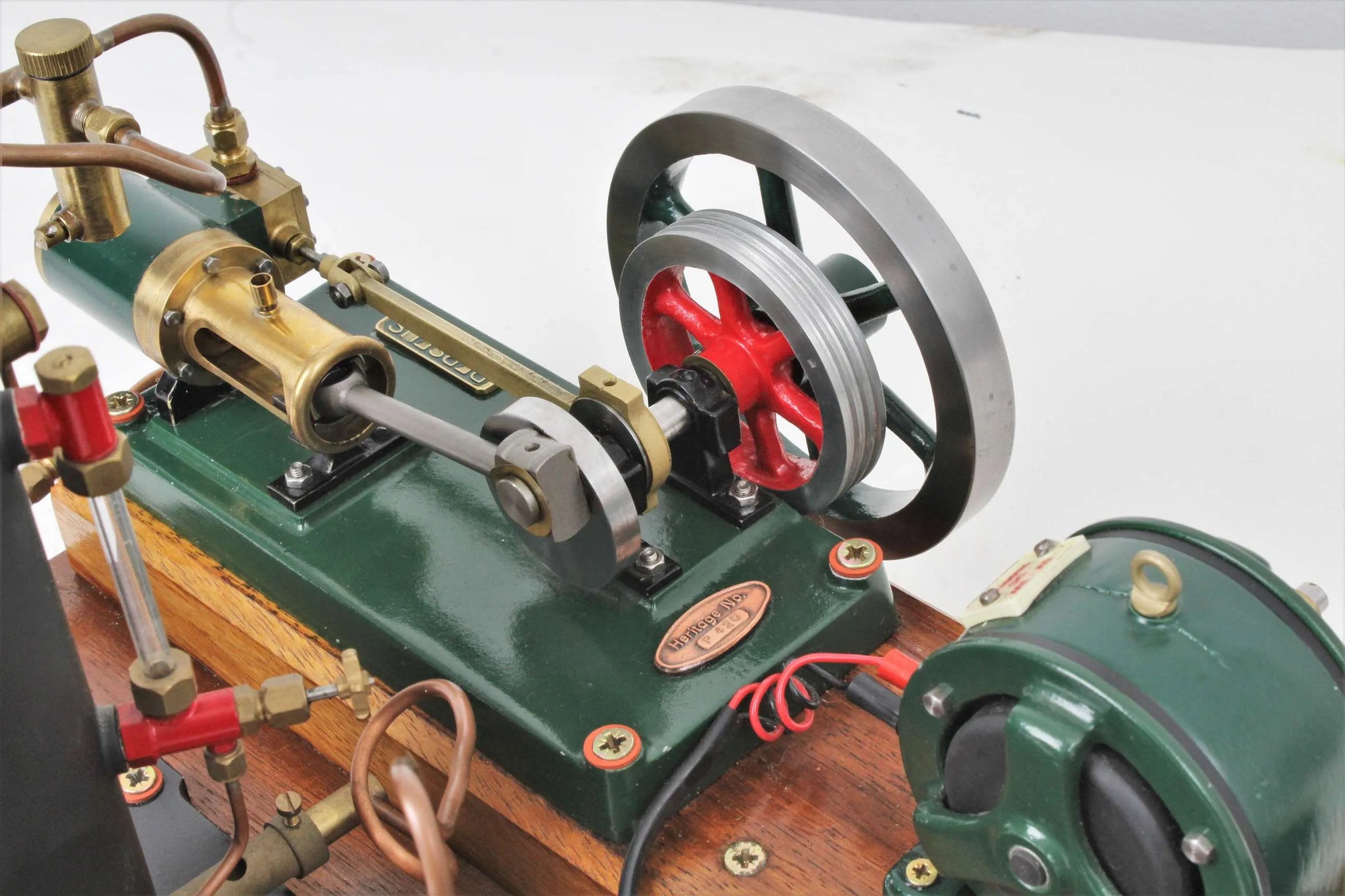

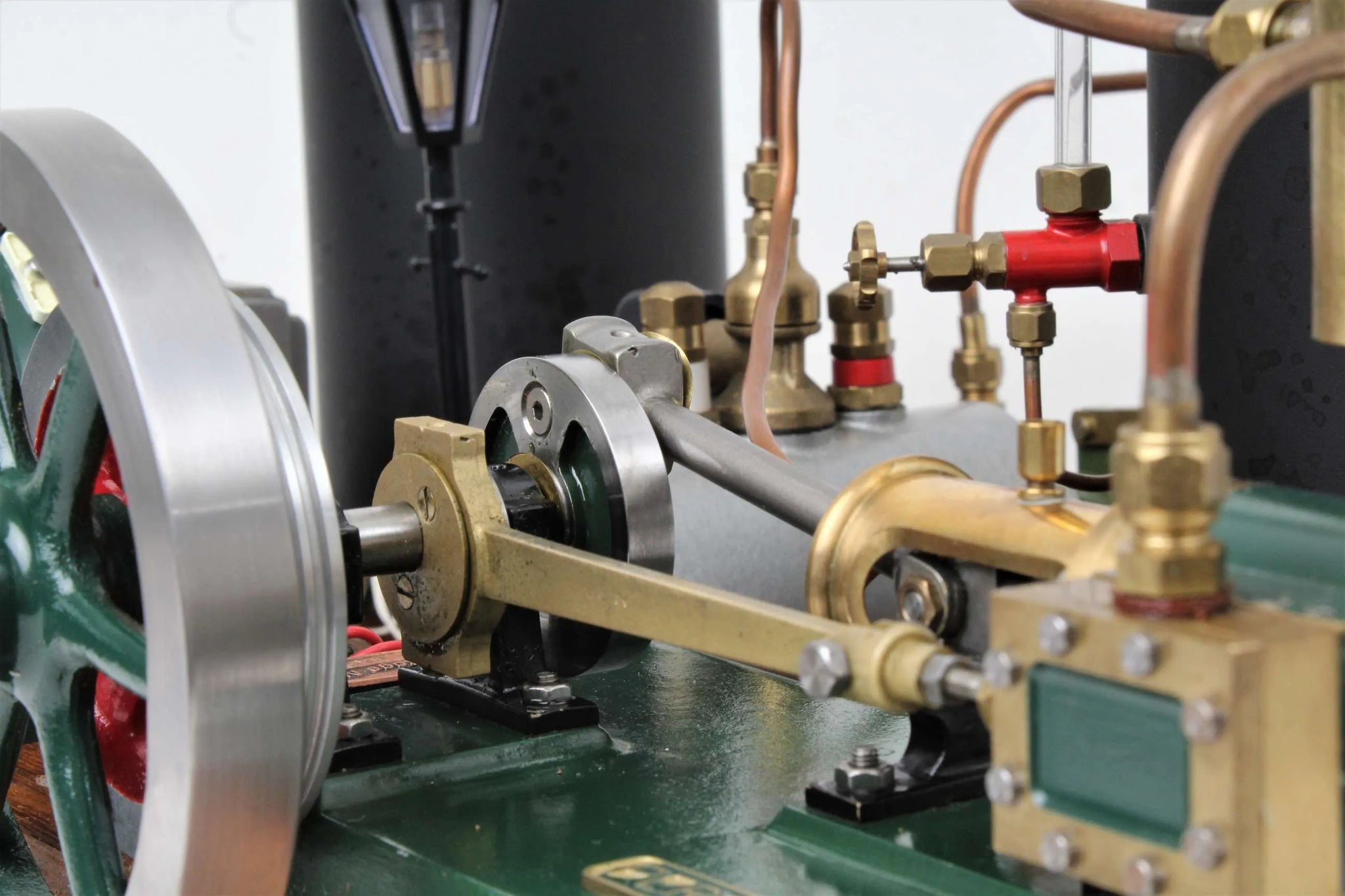

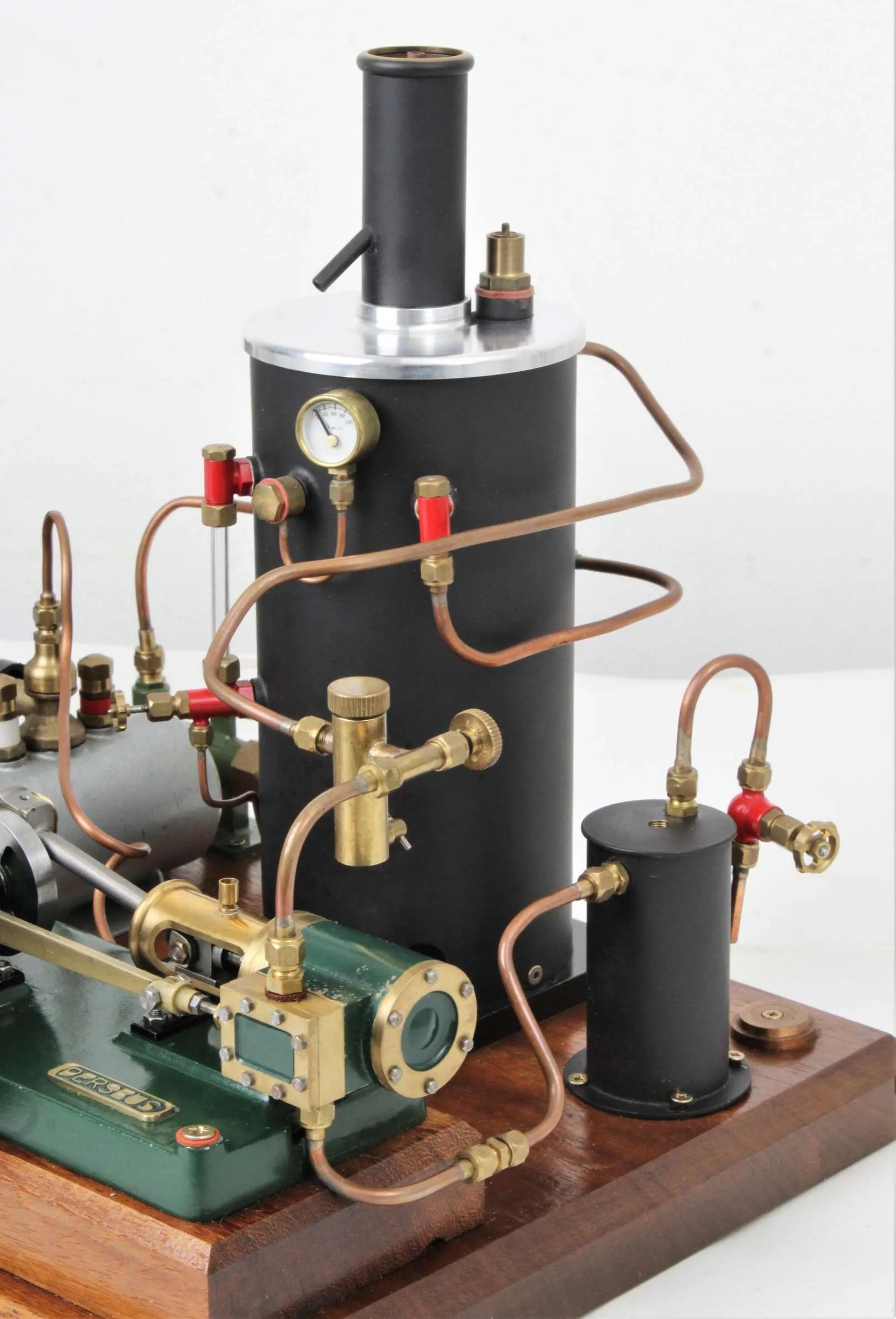

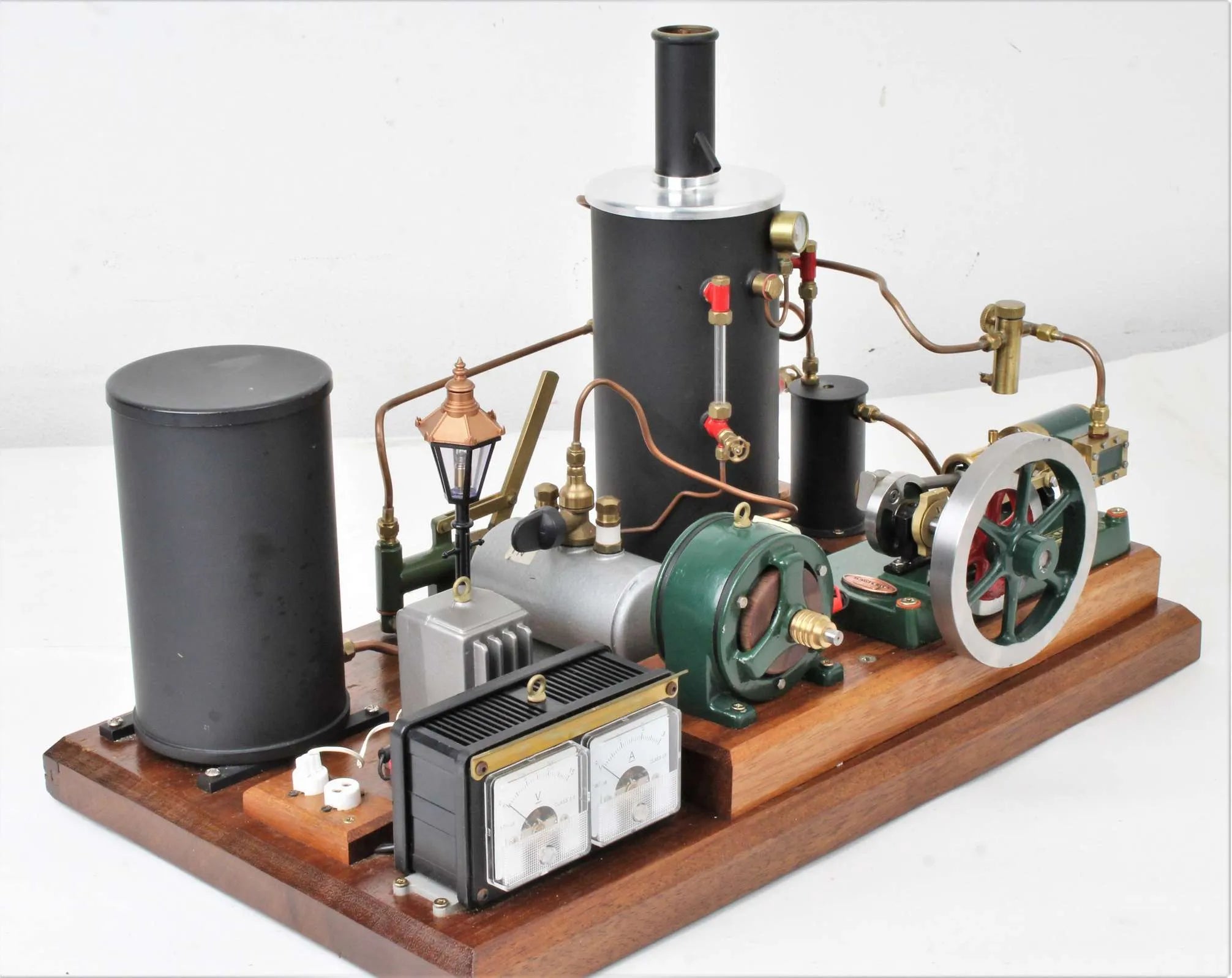

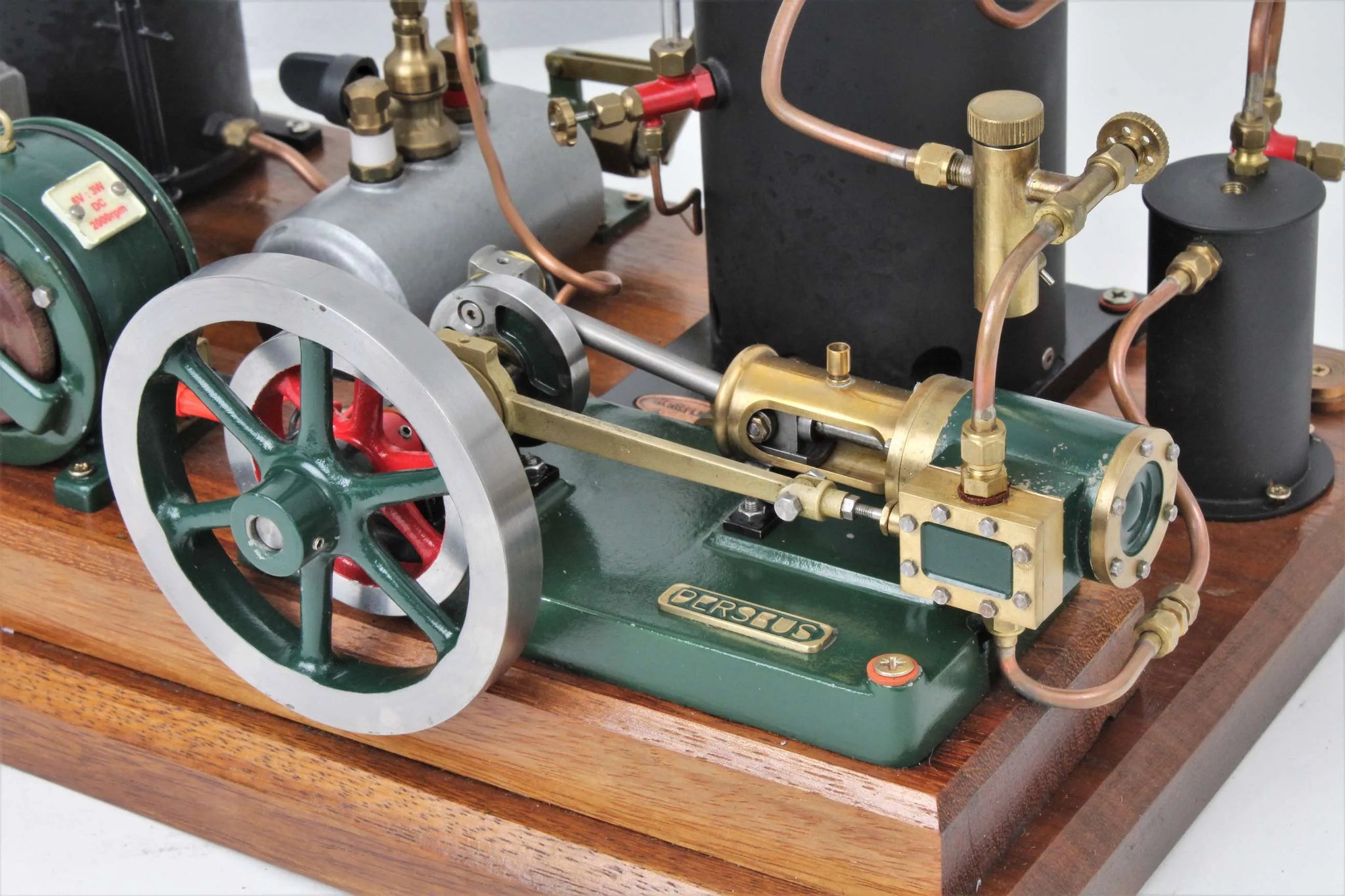

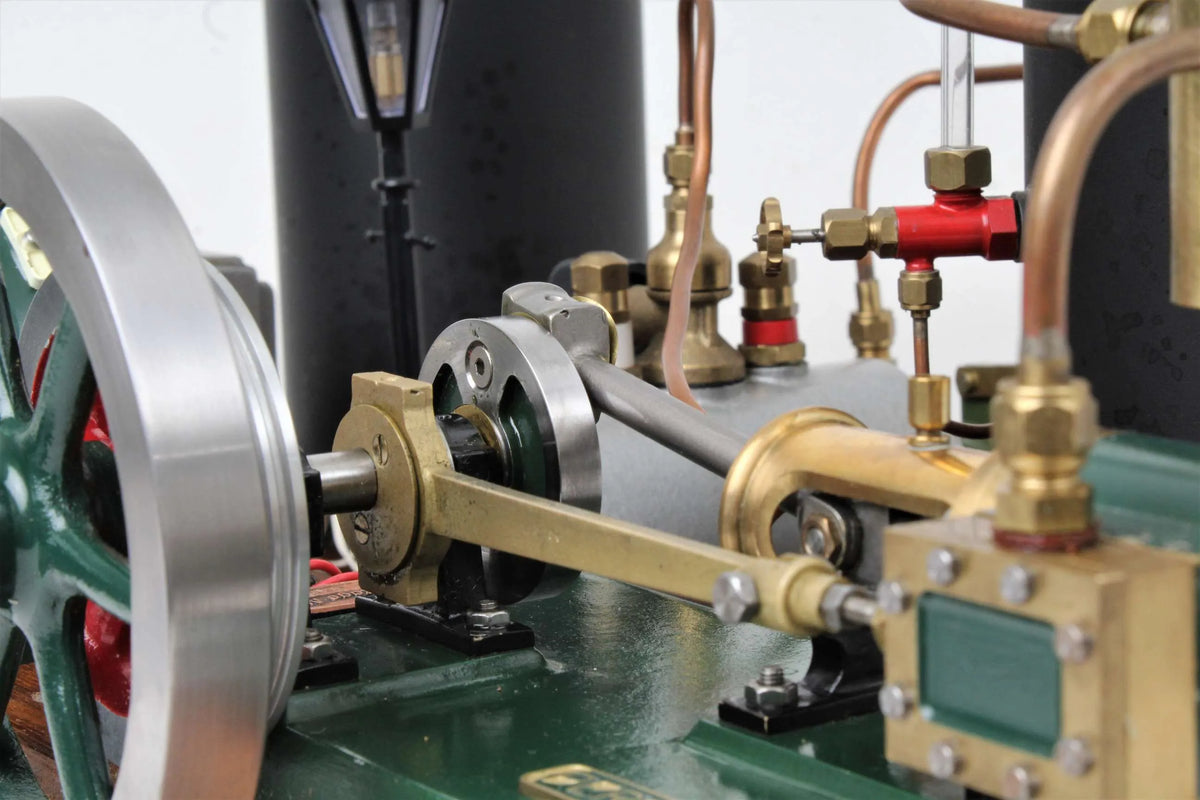

A steam plant, comprising Cotswold Heritage "Perseus" horizontal mill engine, with vertical gas-fired boiler and condenser/oil trap.

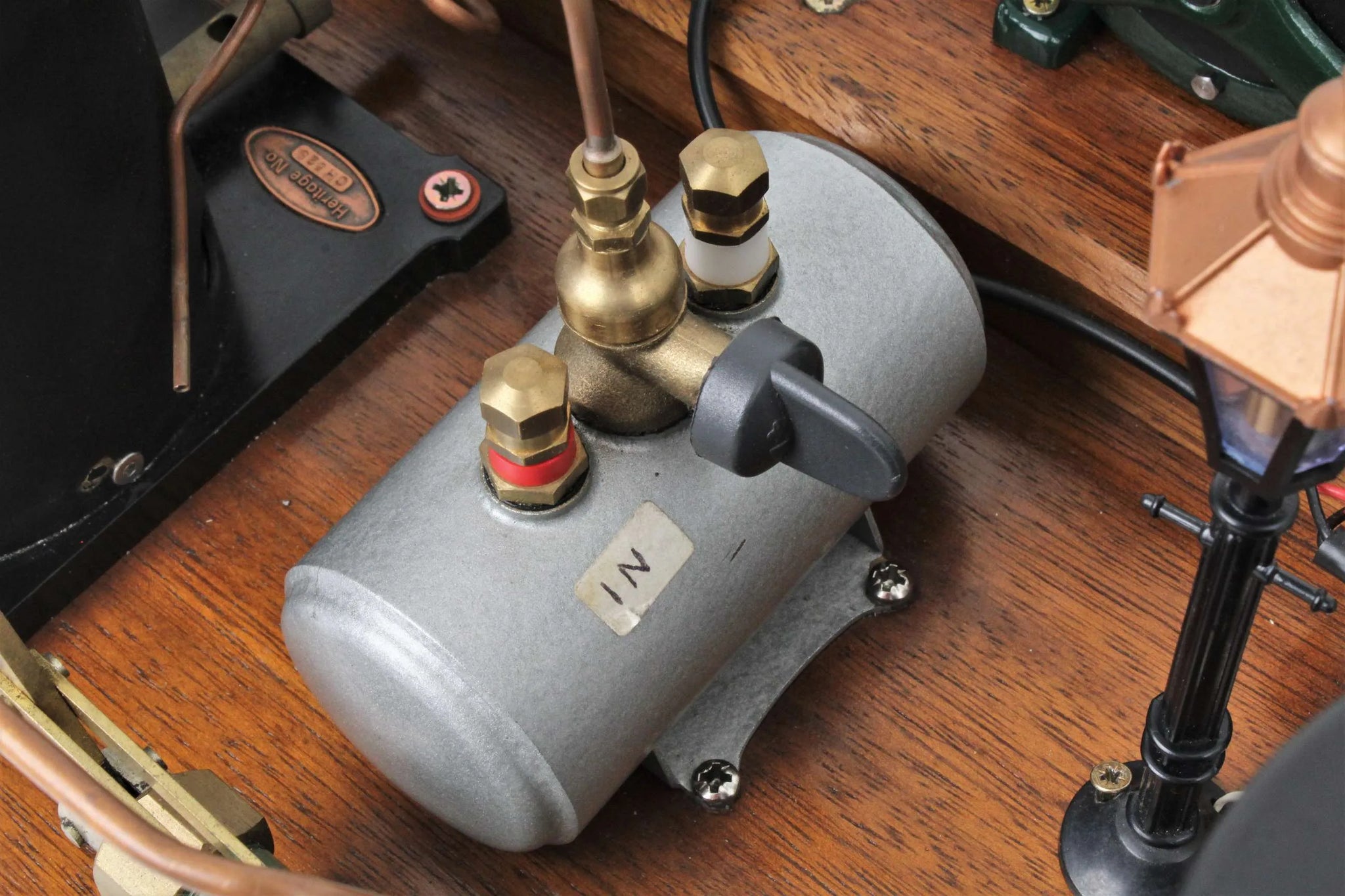

The boiler is fed from a water tank with hand pump, both by Stuart Models.

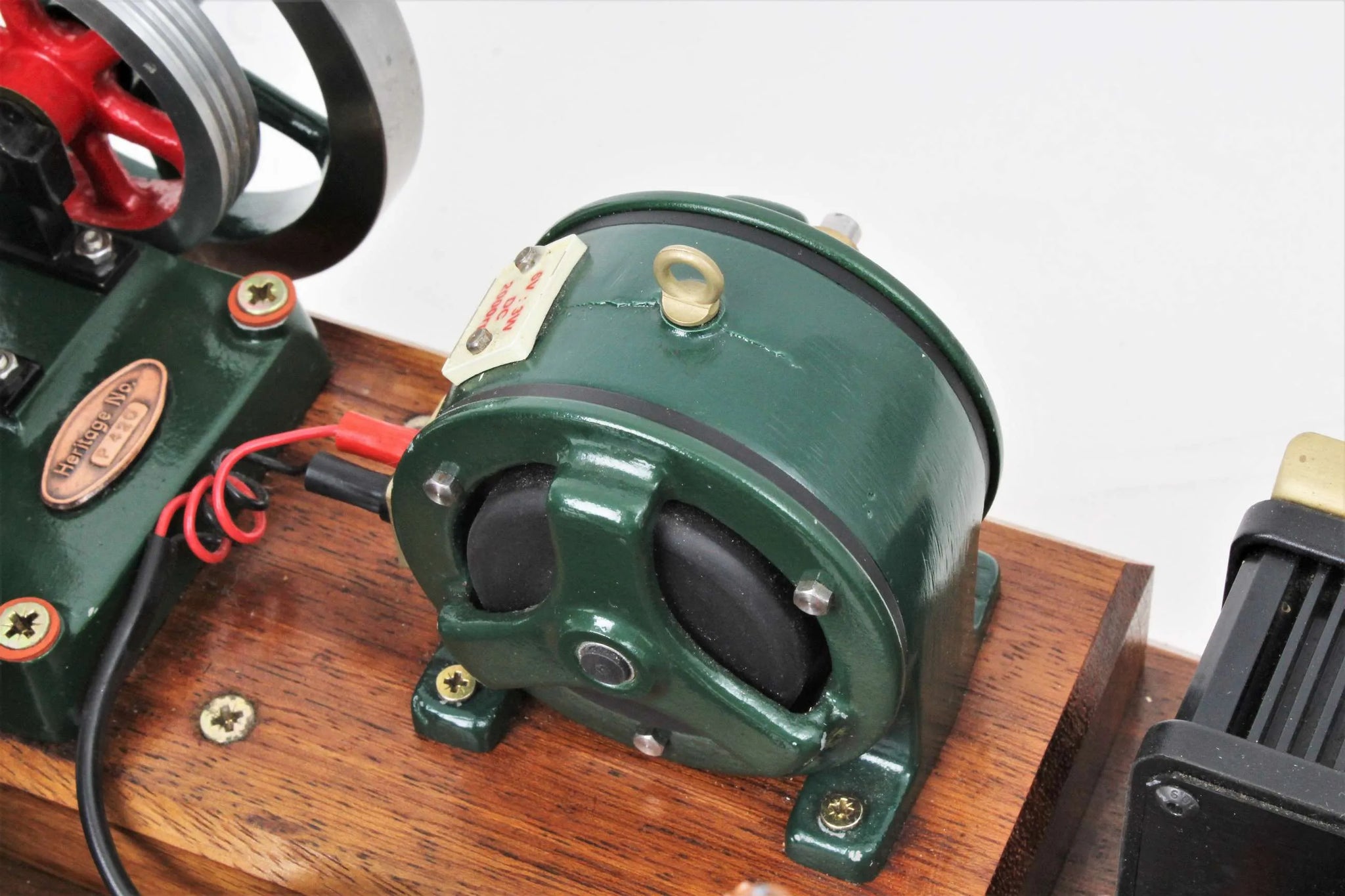

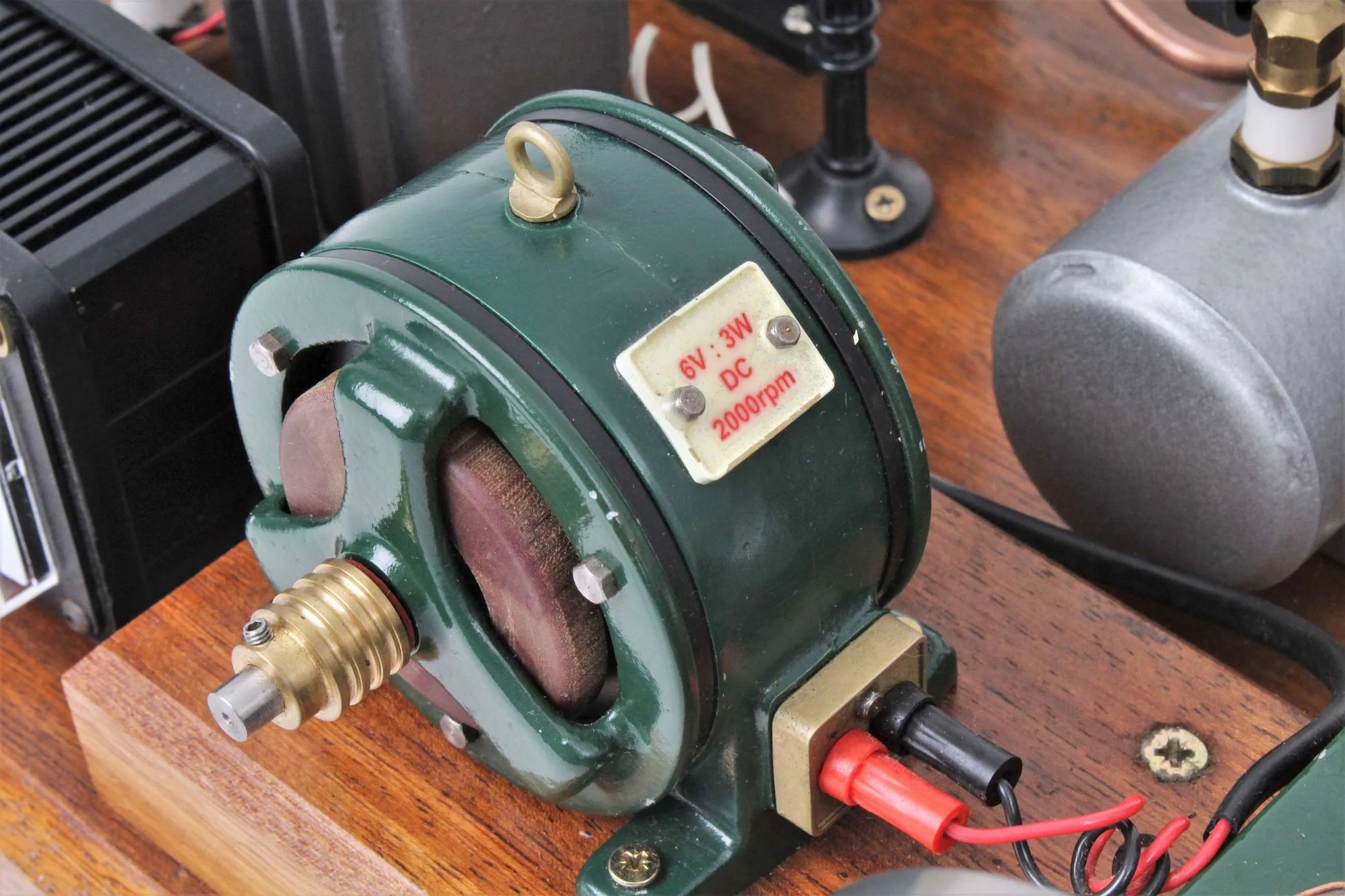

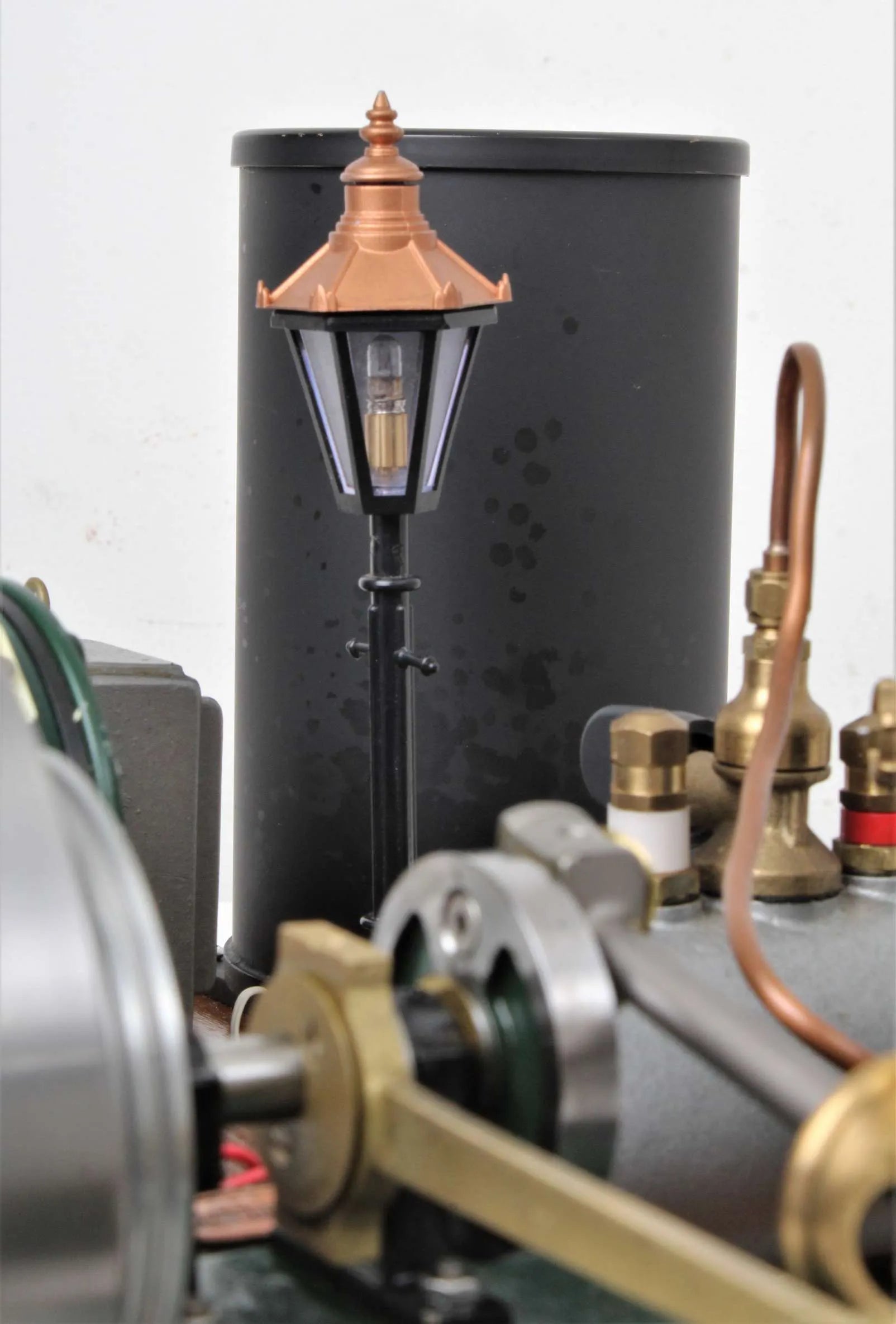

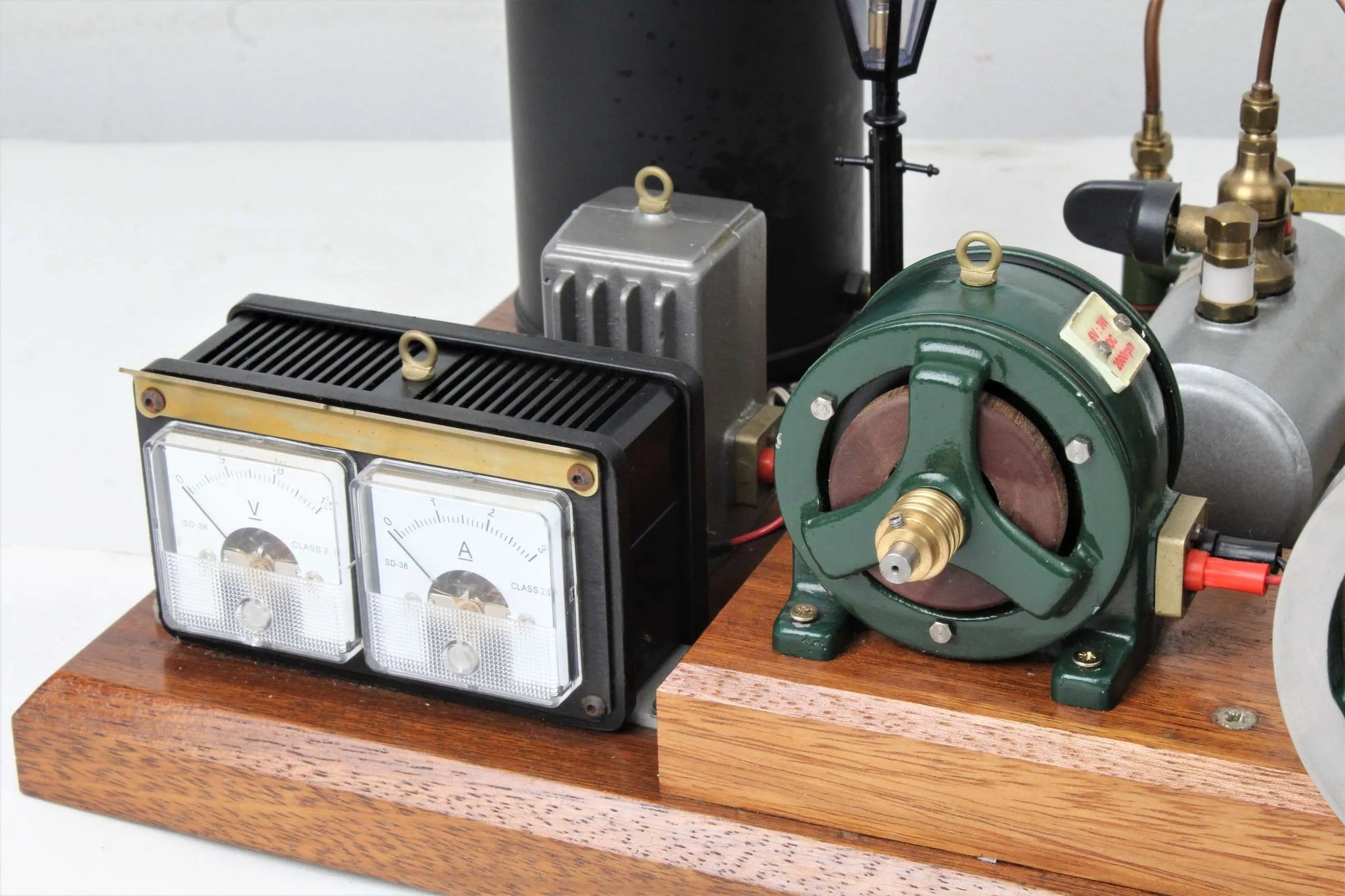

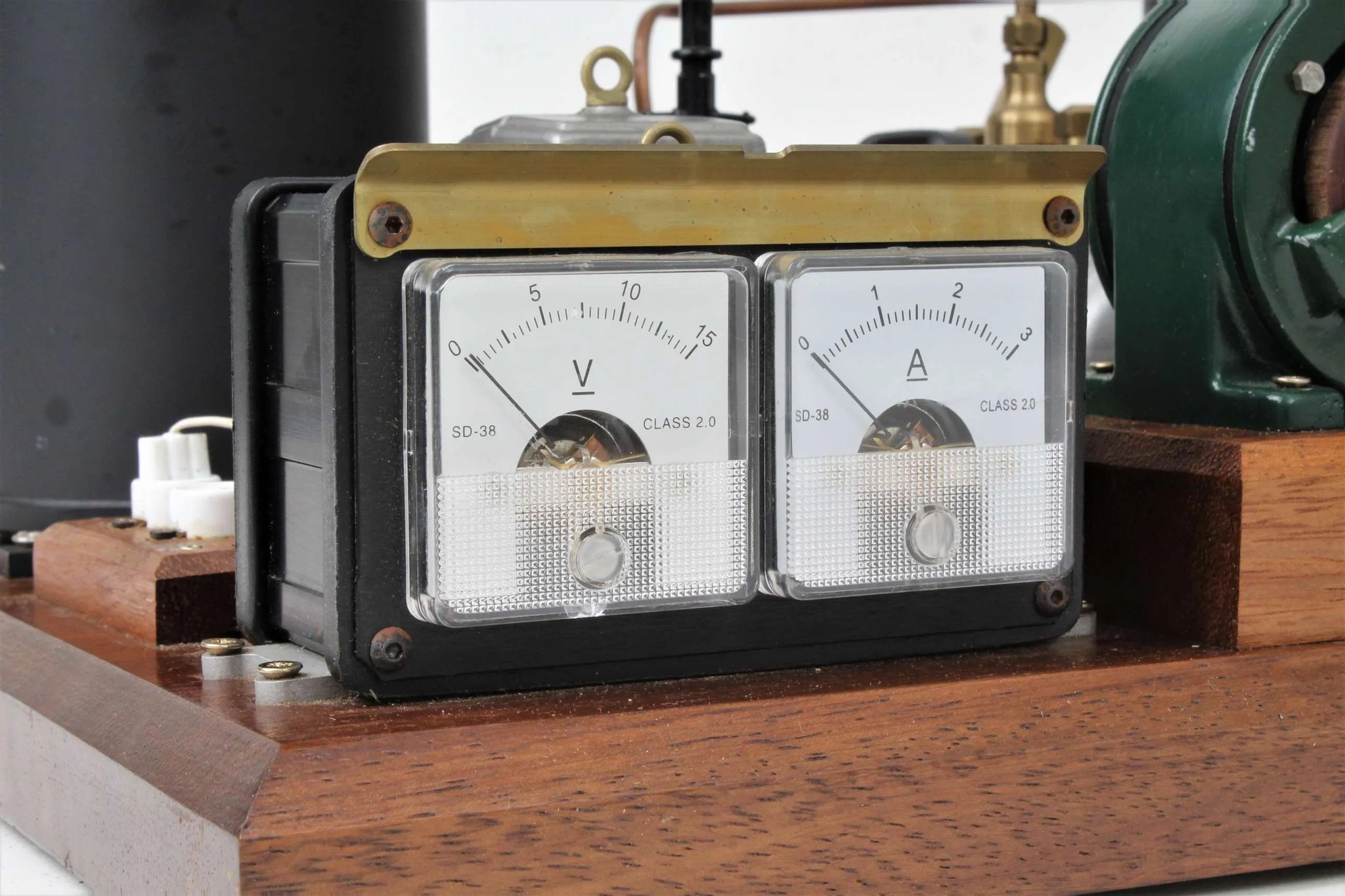

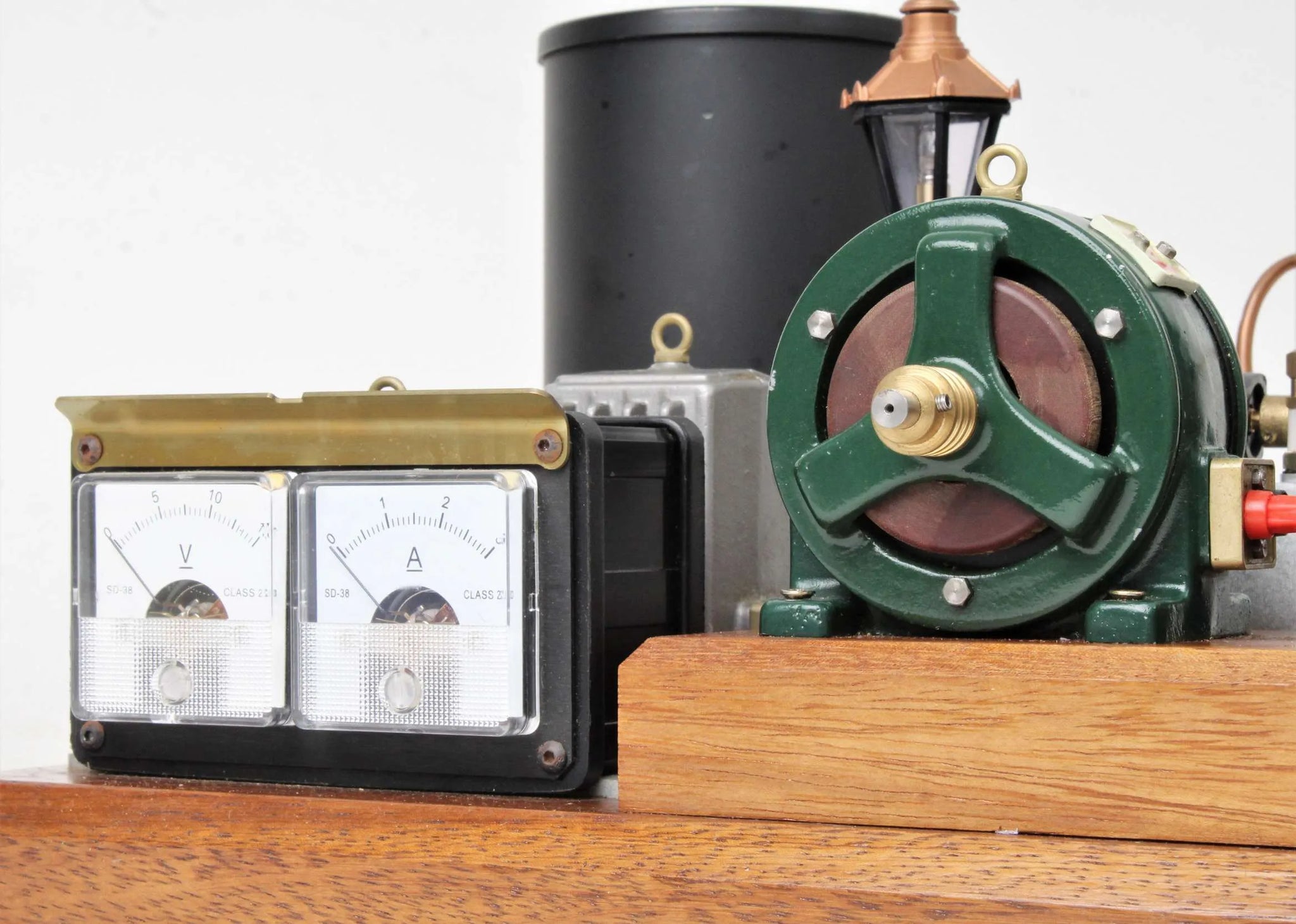

There is a dynamo - in working order although it needs a drive belt - complete with volt and ammeters, which powers an engine house lamp.

The whole plant has been well put together and mounted on an attractive wooden base. The engine runs well on air - with a rubber band doing temporary service as a drive belt we could iven get a glow from the lamp!

Technical information

Stock code

9807

Length/inches

18

Width/inches

11

Height/inches

12

Cylinder material

gunmetal

Valve type

slide

Lubricator type

displacement

Boiler maker

Cotswold Heritage

Boiler type

vertical

Boiler construction

silver soldered

Boiler material

copper

Working pressure

60

Safety valve type

spring

Safety valve

1

Date out

Dec-21

Hydraulic test valid to

01-Dec-25
