11636

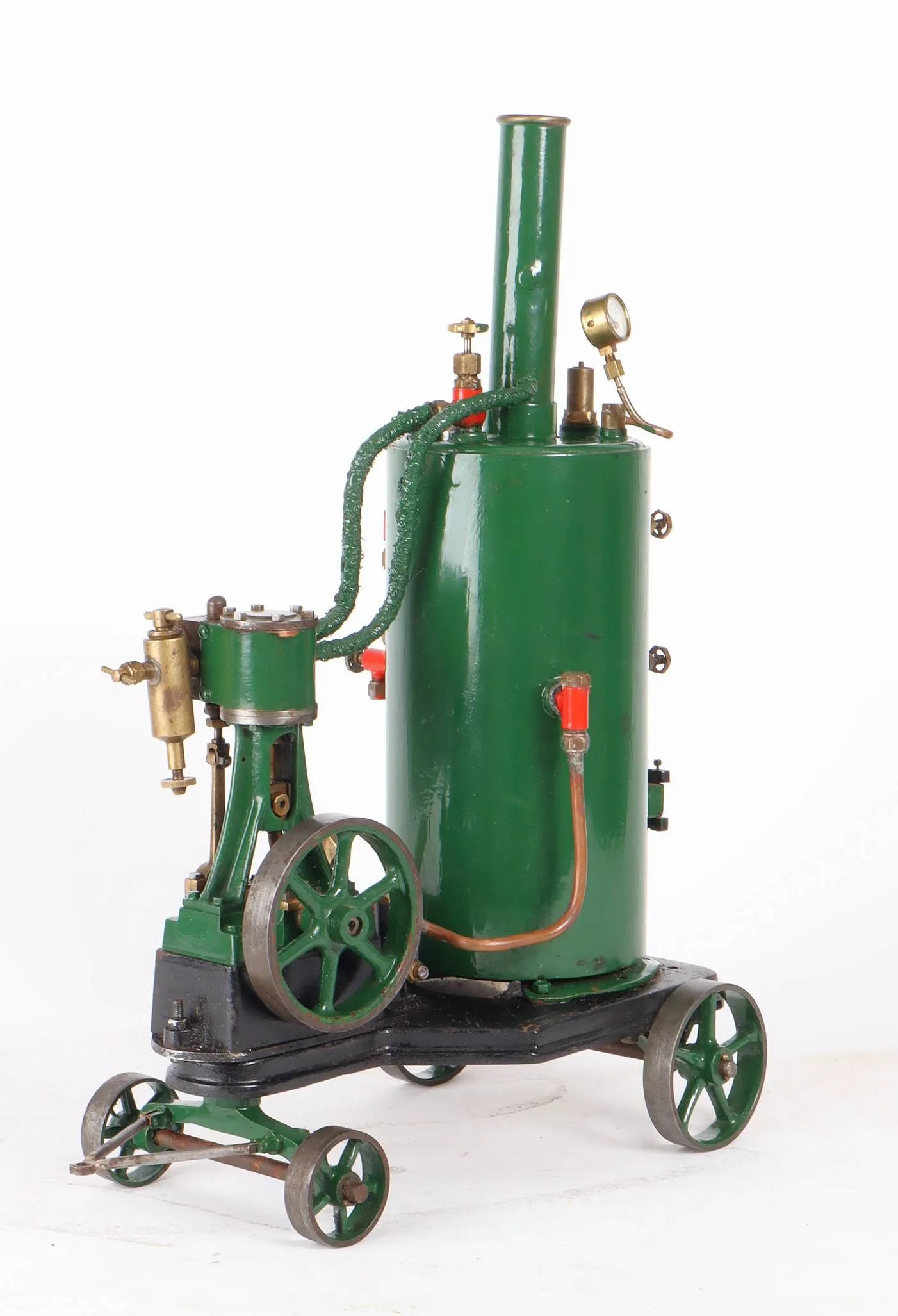

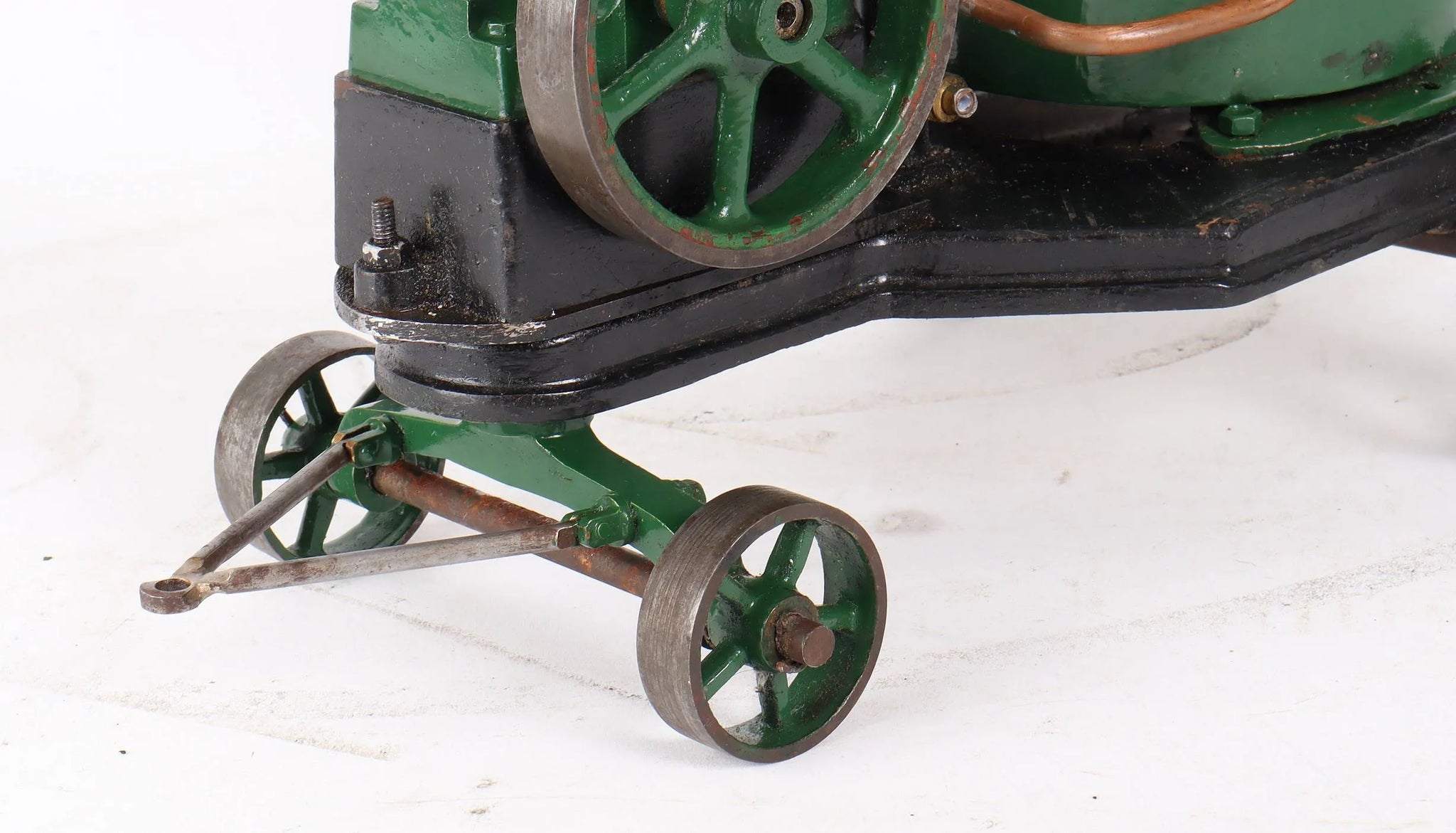

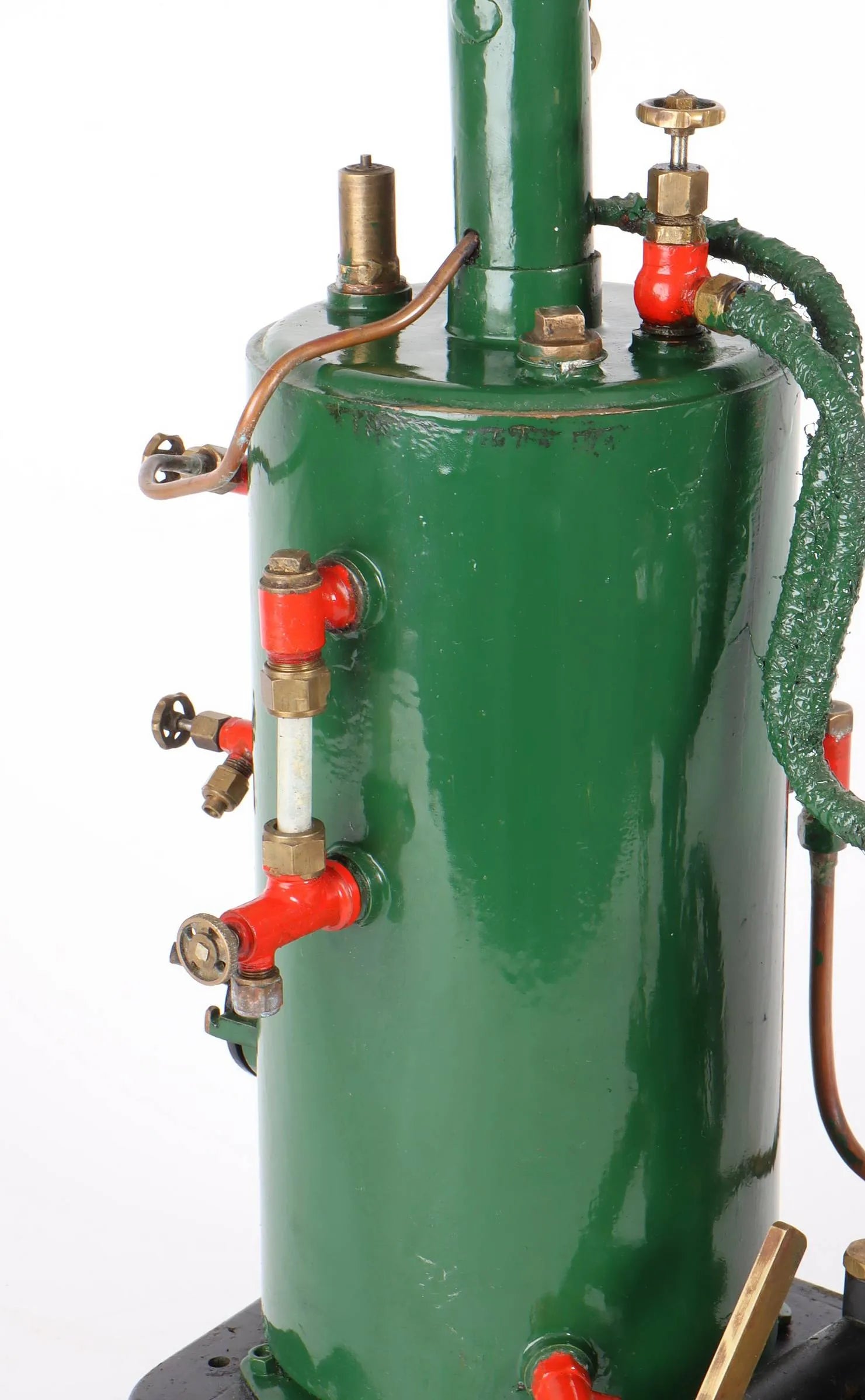

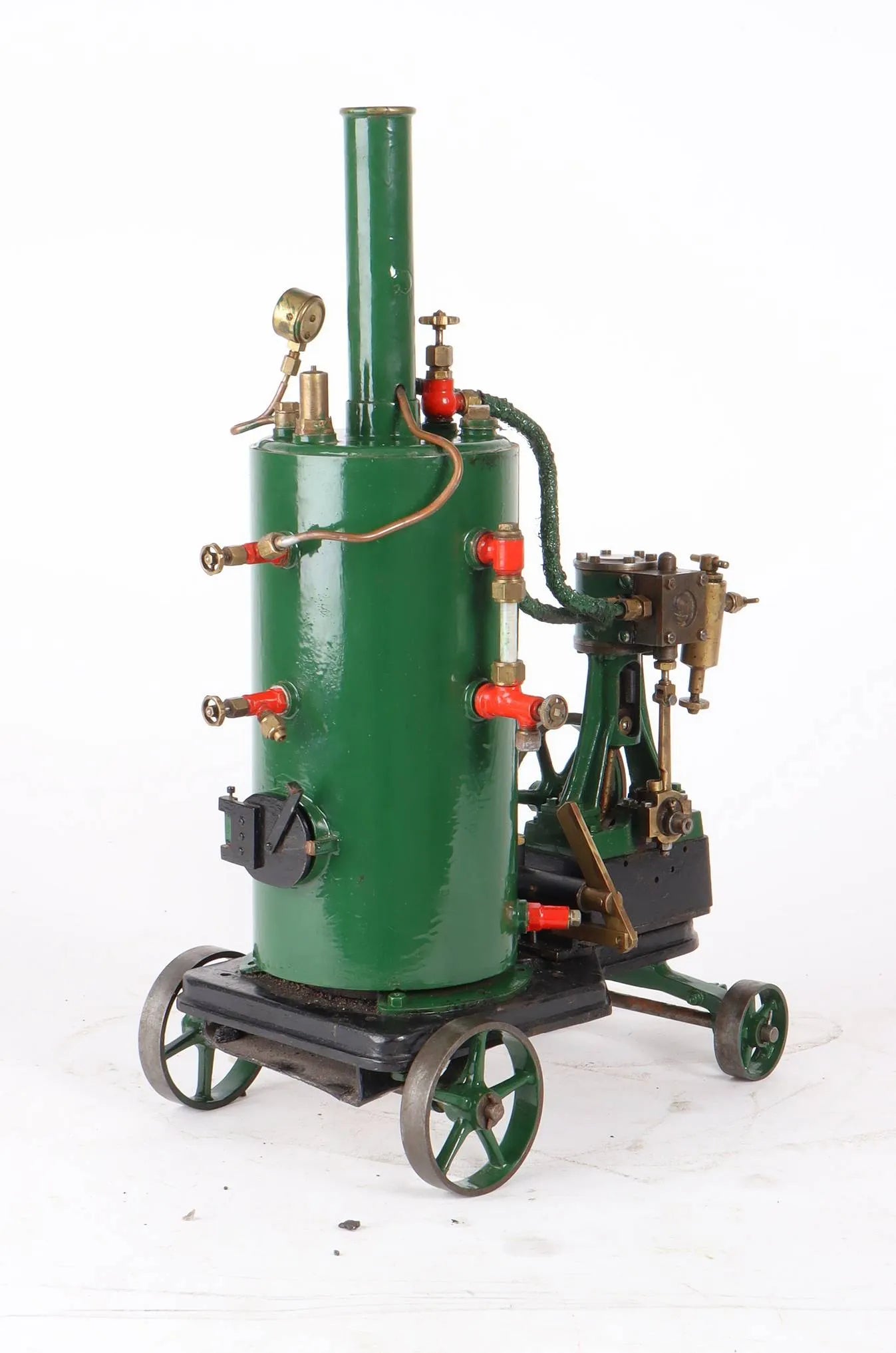

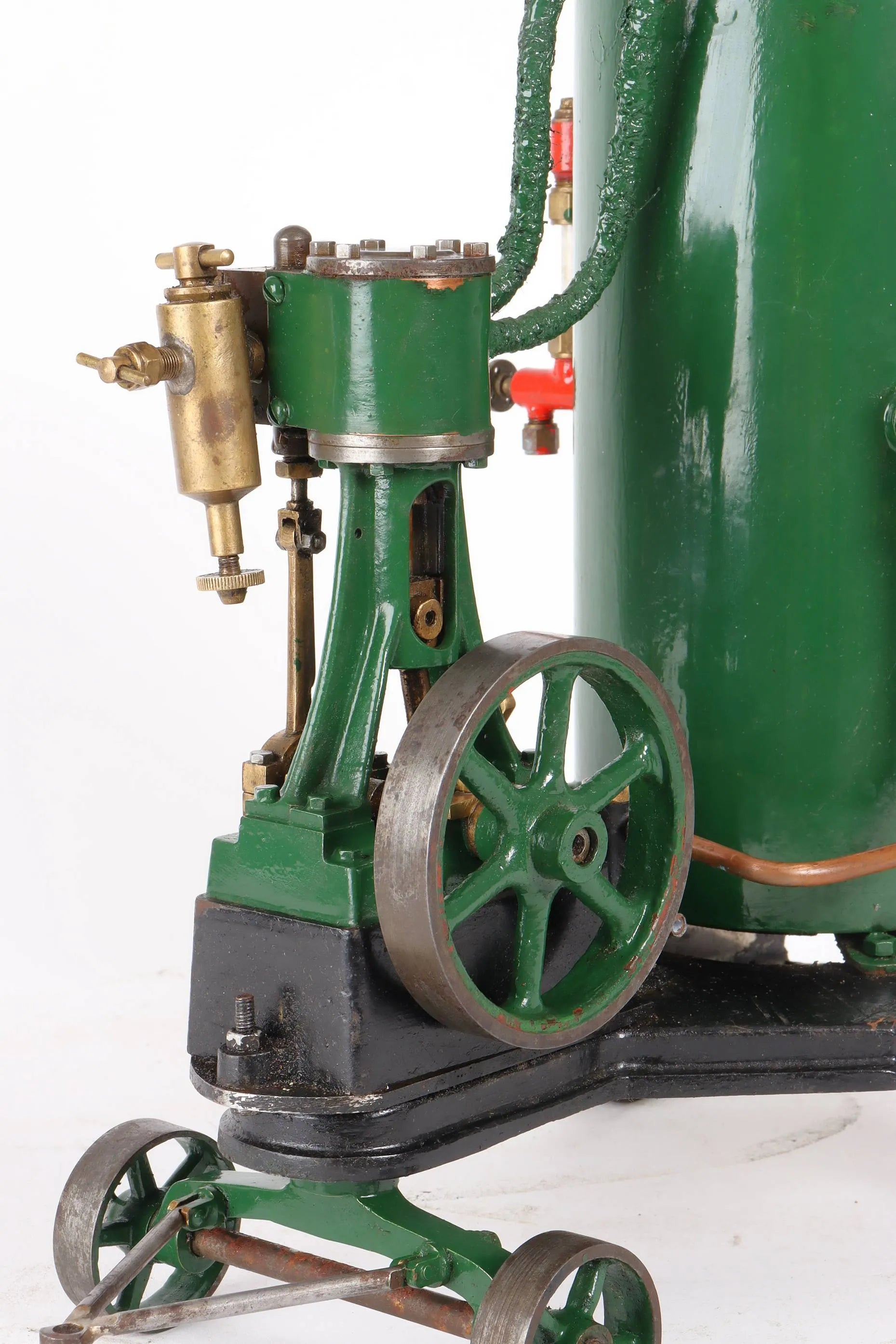

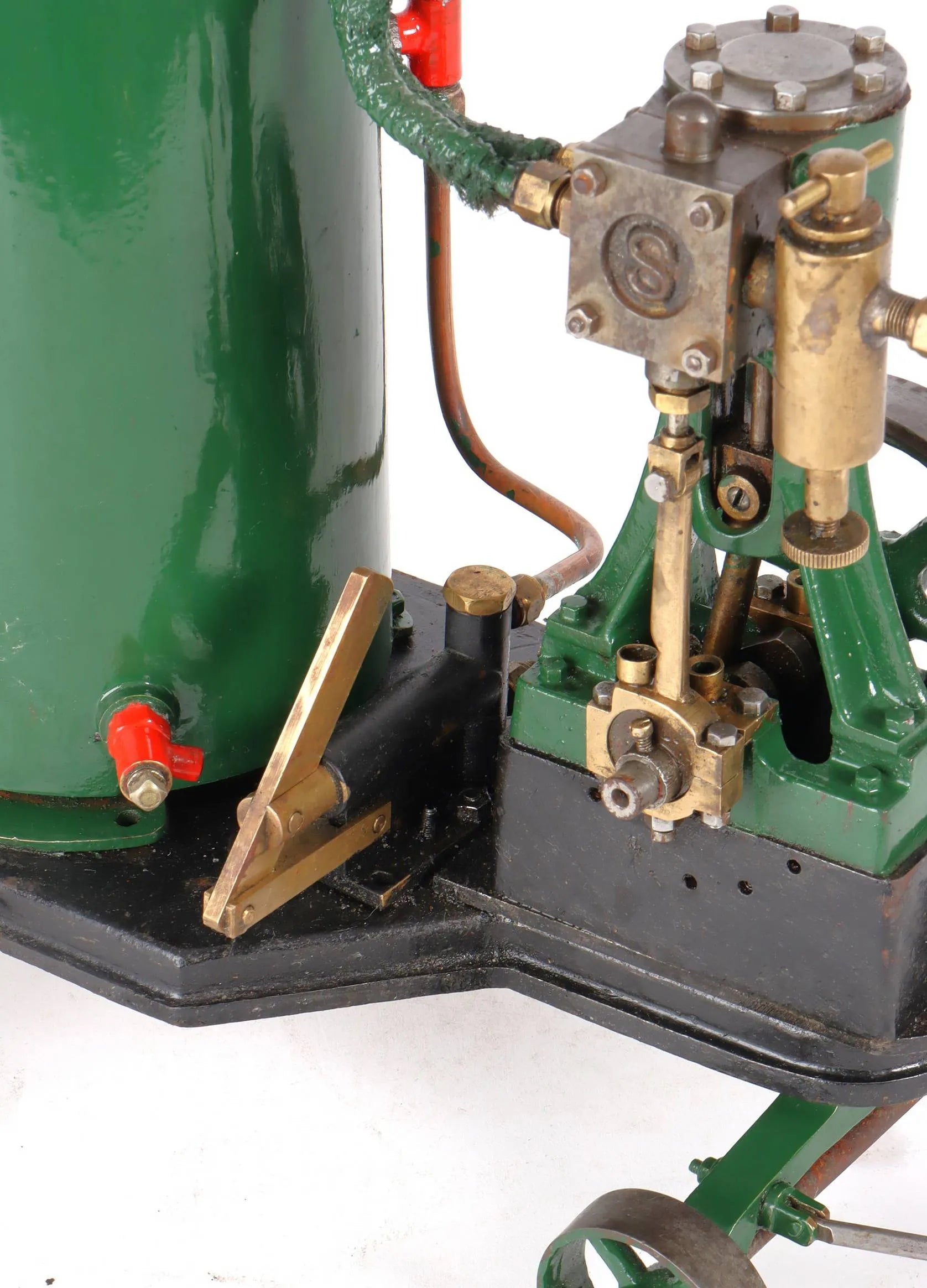

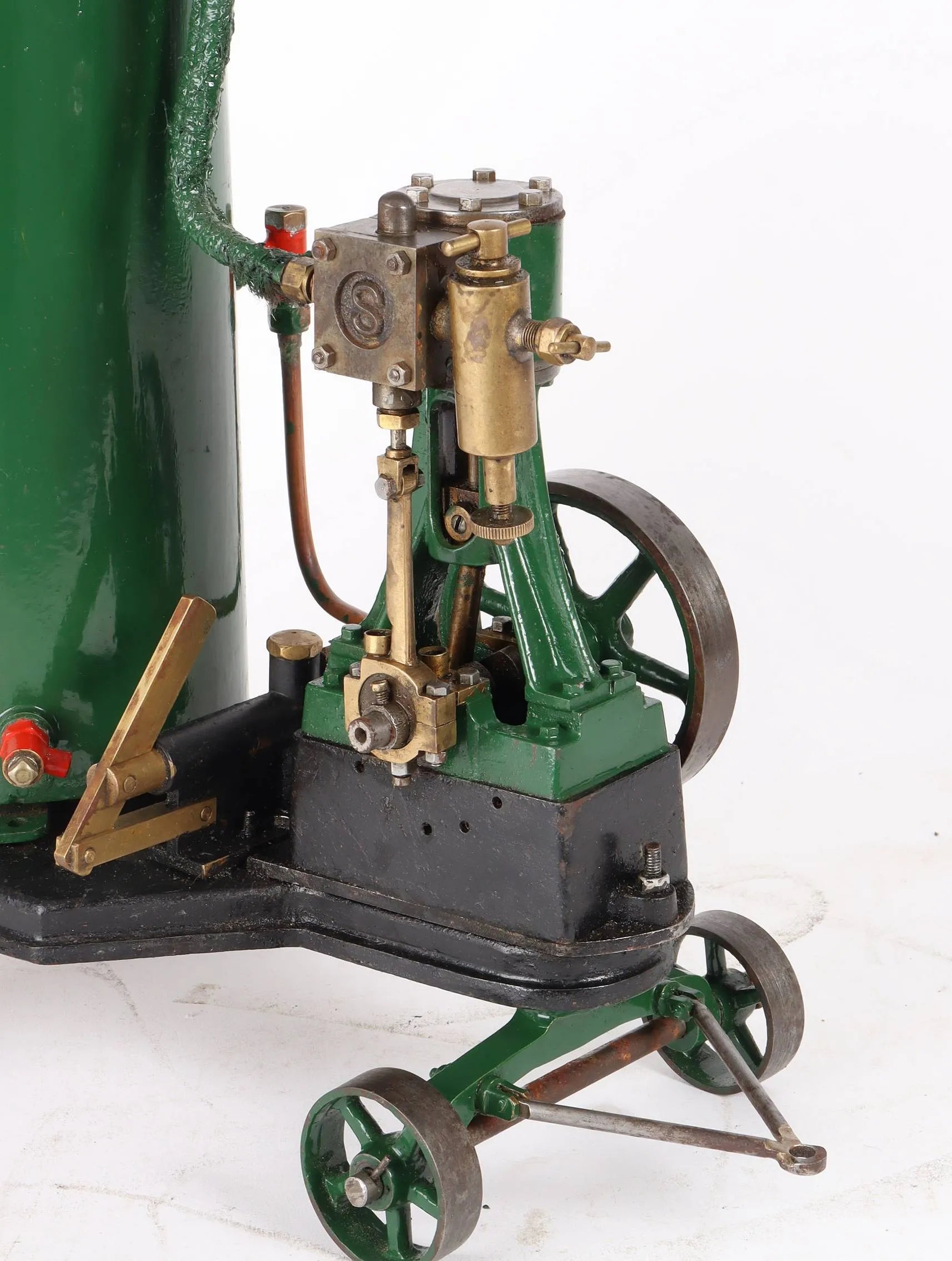

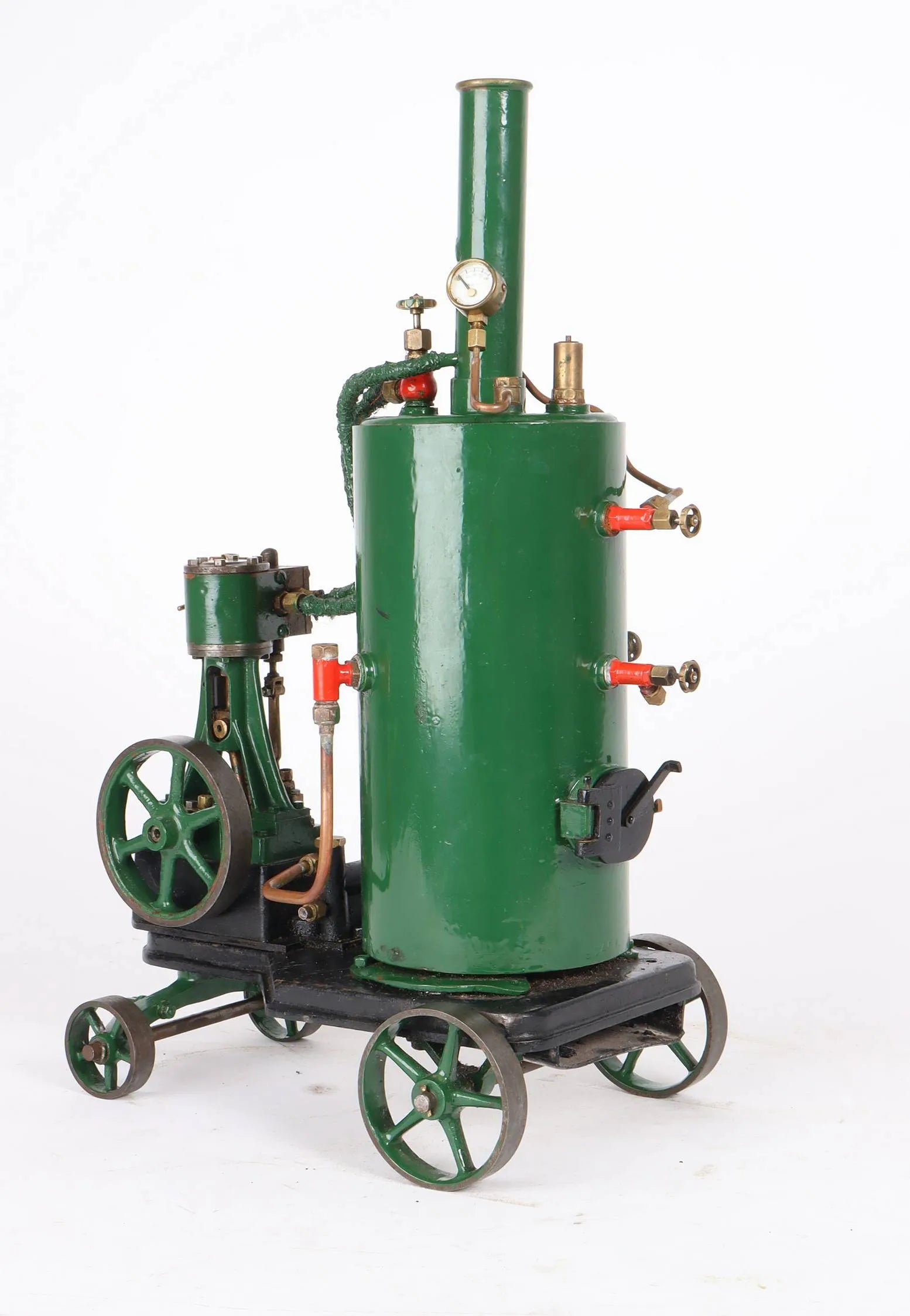

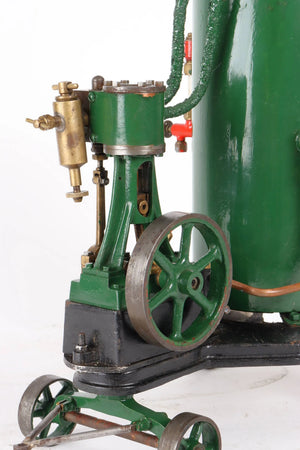

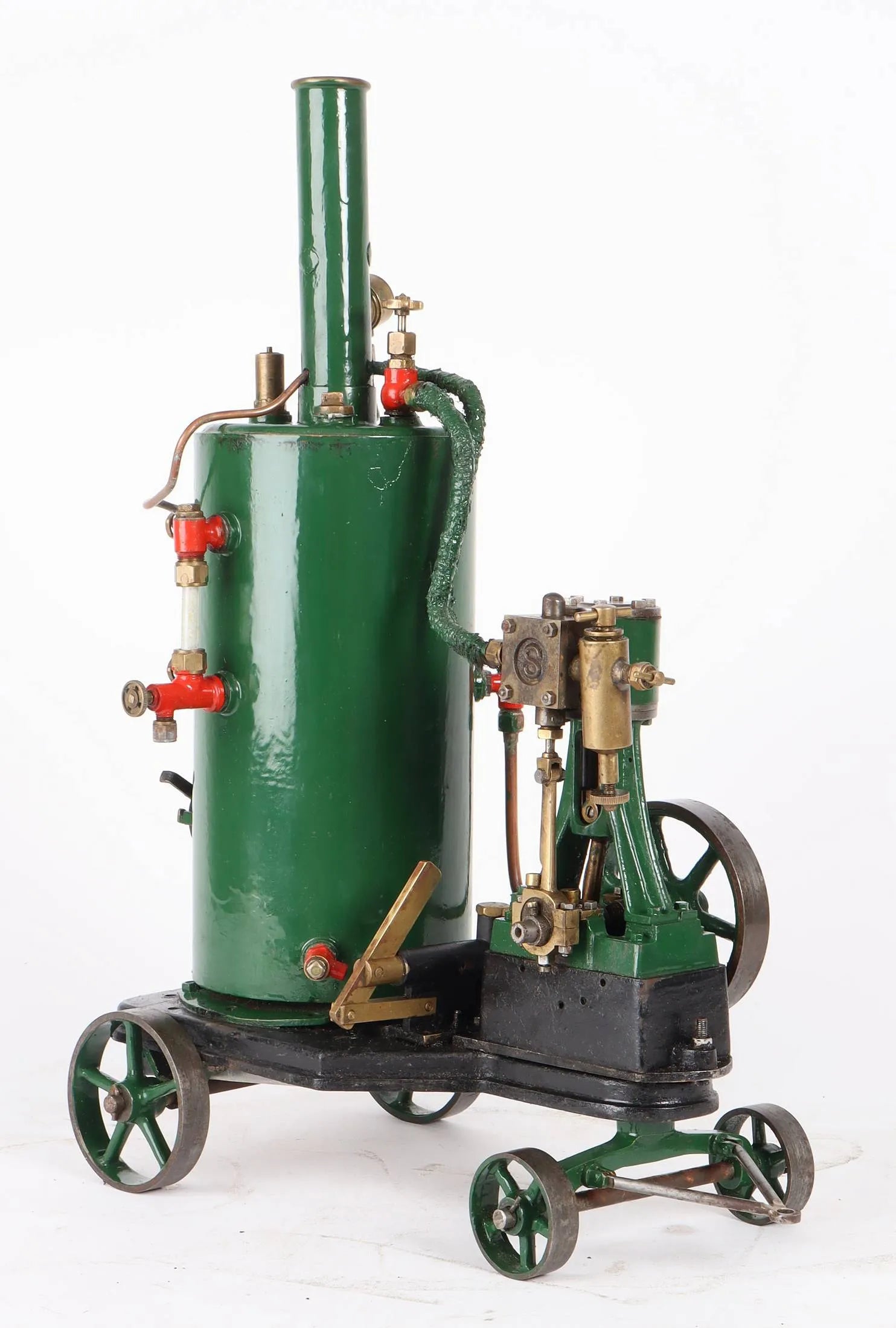

Comprises a Stuart 10V engine with coal-fired vertical boiler fed by a hand pump, the whole plant mounted on a steel trolley with cast spoked wheels and steering turntable.
Stock code |
11636 |
Length/inches |
10 |
Width/inches |
6.5 |
Height/inches |
16 |
Weight/Kg |
6 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |
single eccentric |
Lubricator type |
displacement |
Boiler type |
vertical centre flue |
Boiler material |
copper |
CE/UKCA mark |
n/a - non-commercial |
Safety valve type |
spring |
Safety valve |
1 |
Hand pump |
1 |
Date out |
Nov-23 |
Hydraulic test valid to |
11-Oct-27 |
