Gauge 1 Aristocraft "Mikado" 2-8-2

We sold this one in September last year to a regular customer, a driver on the LNER. On display since, it's recently come back in as part-exchange.

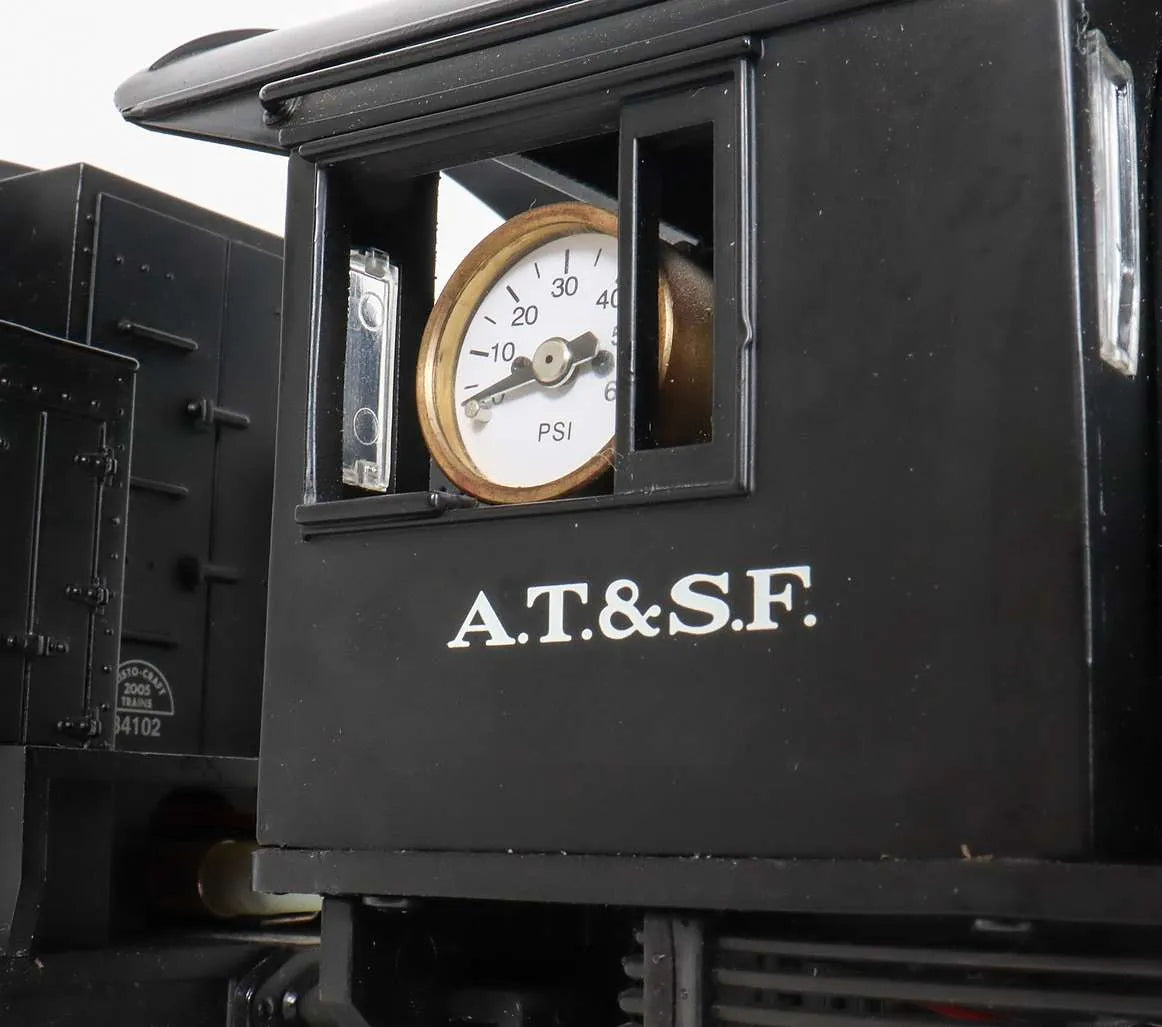

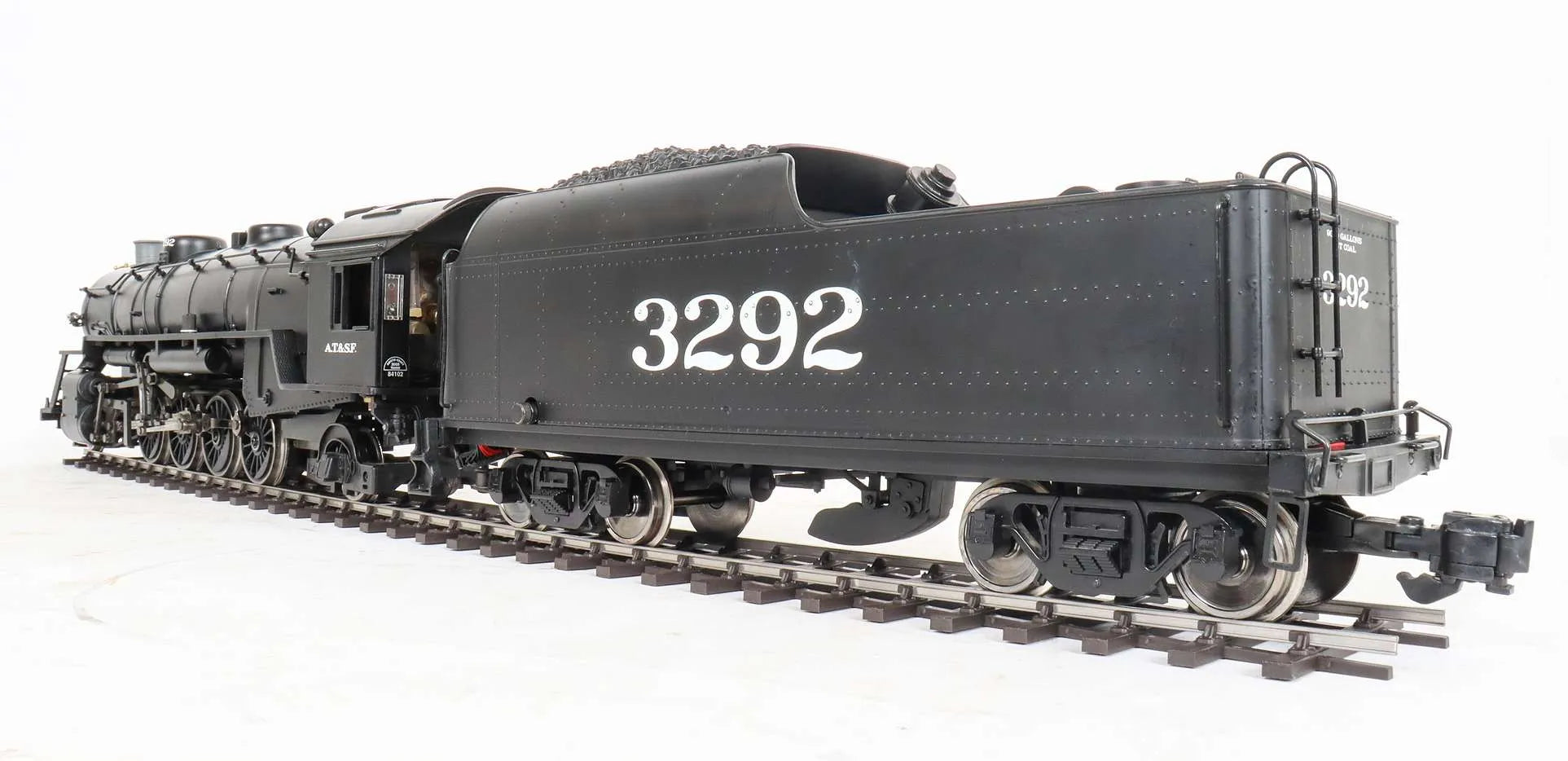

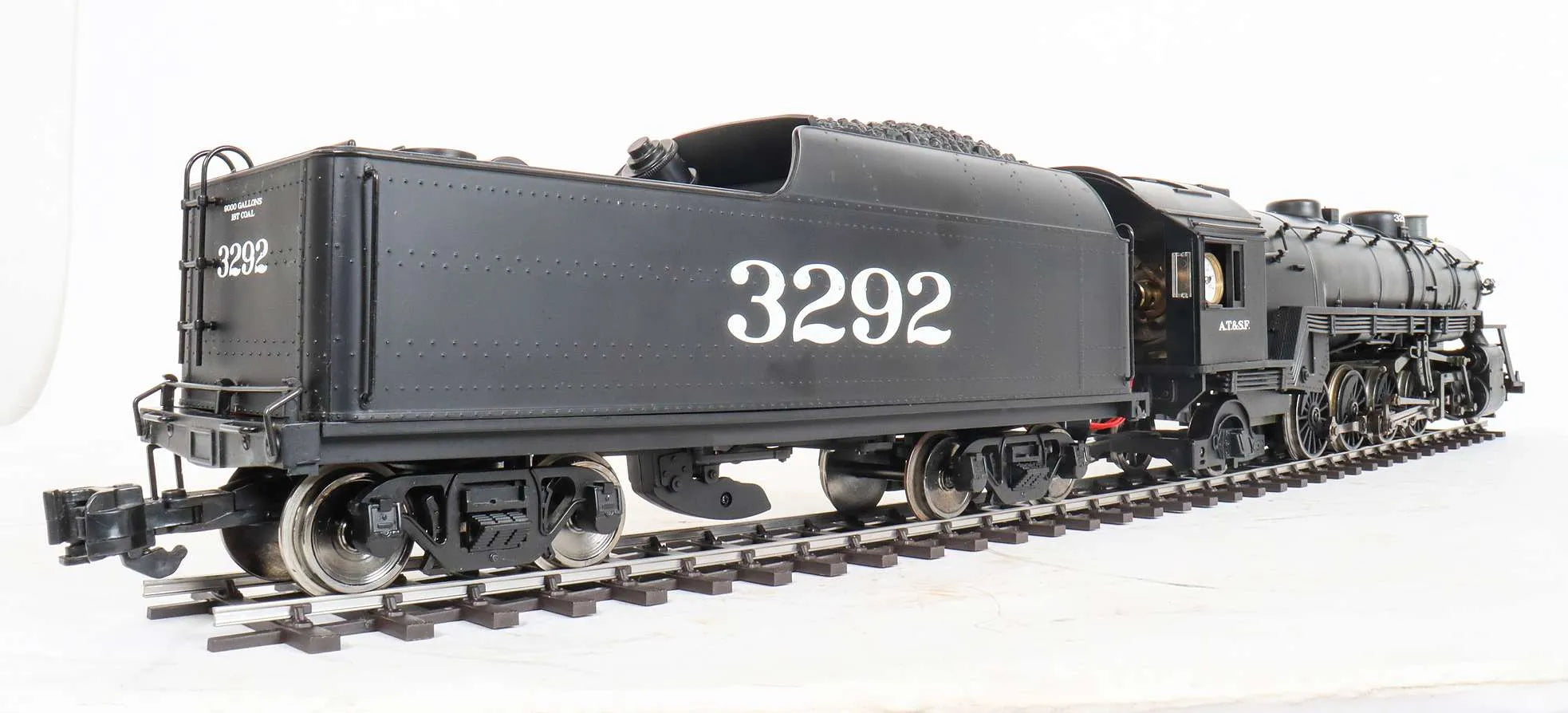

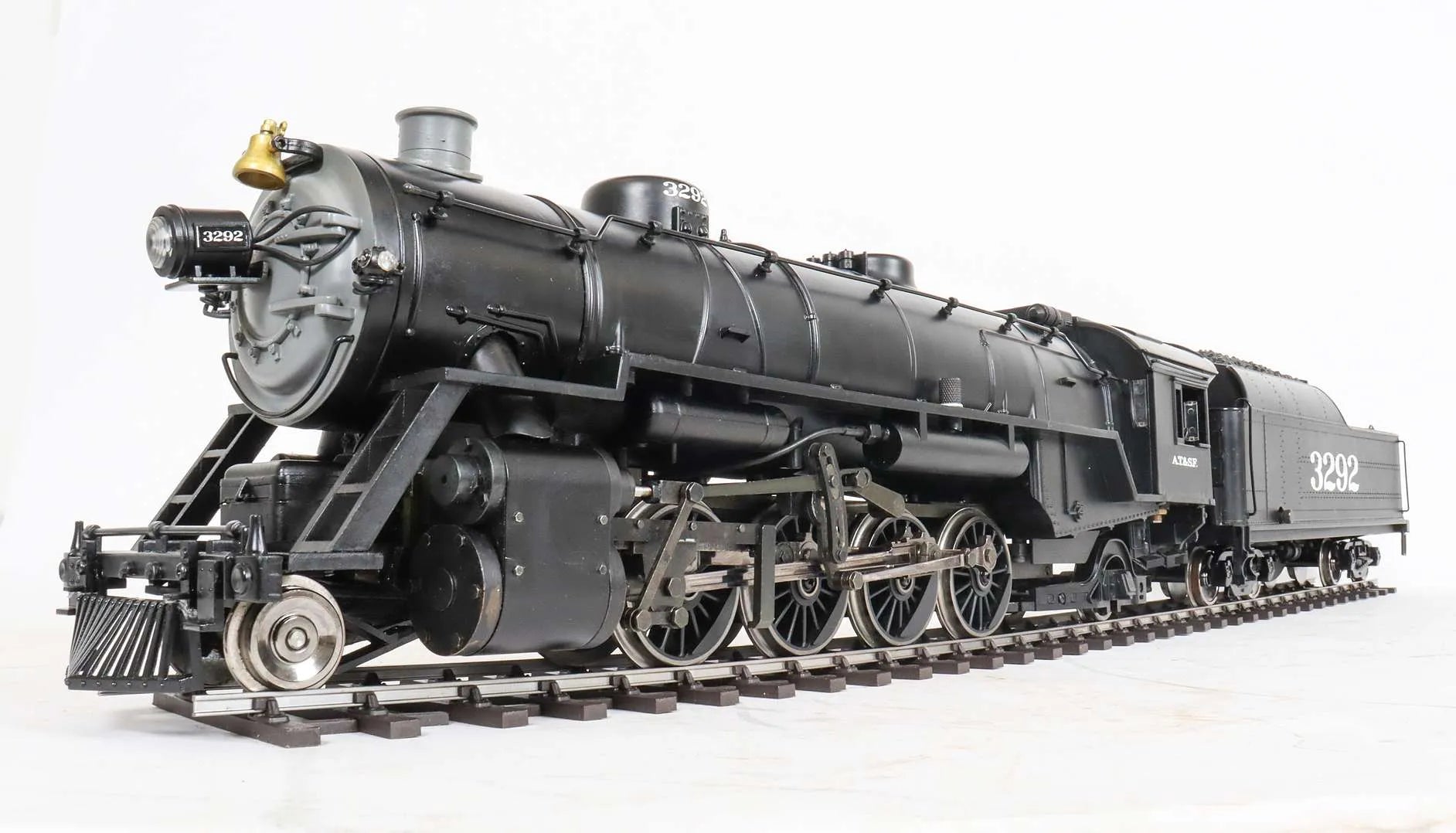

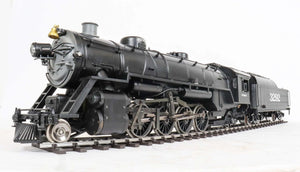

A gauge 1 Atchison, Topeka & Santa Fe Railroad Mikado by Accucraft.

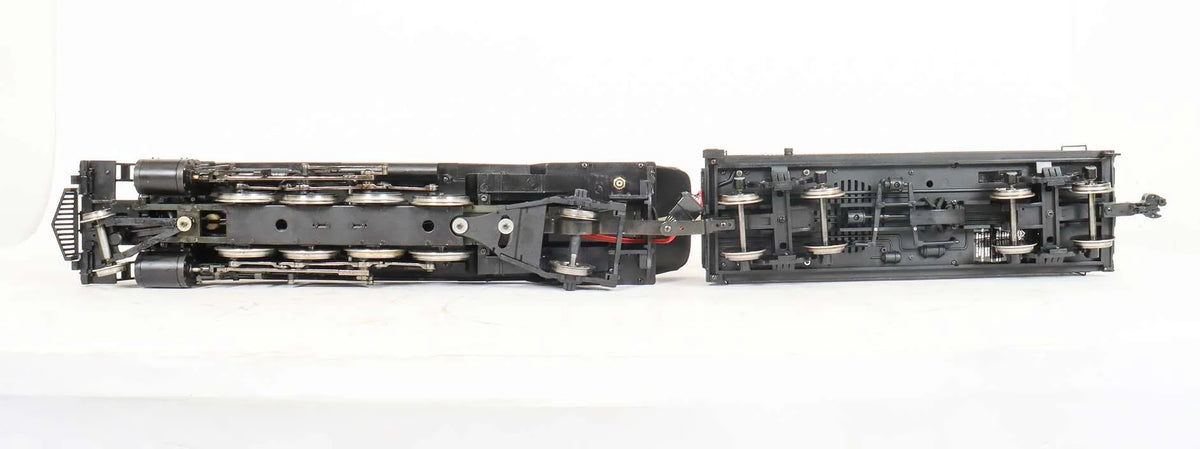

The boiler has had a hydraulic test, with new certification issued, the chassis runs on air.

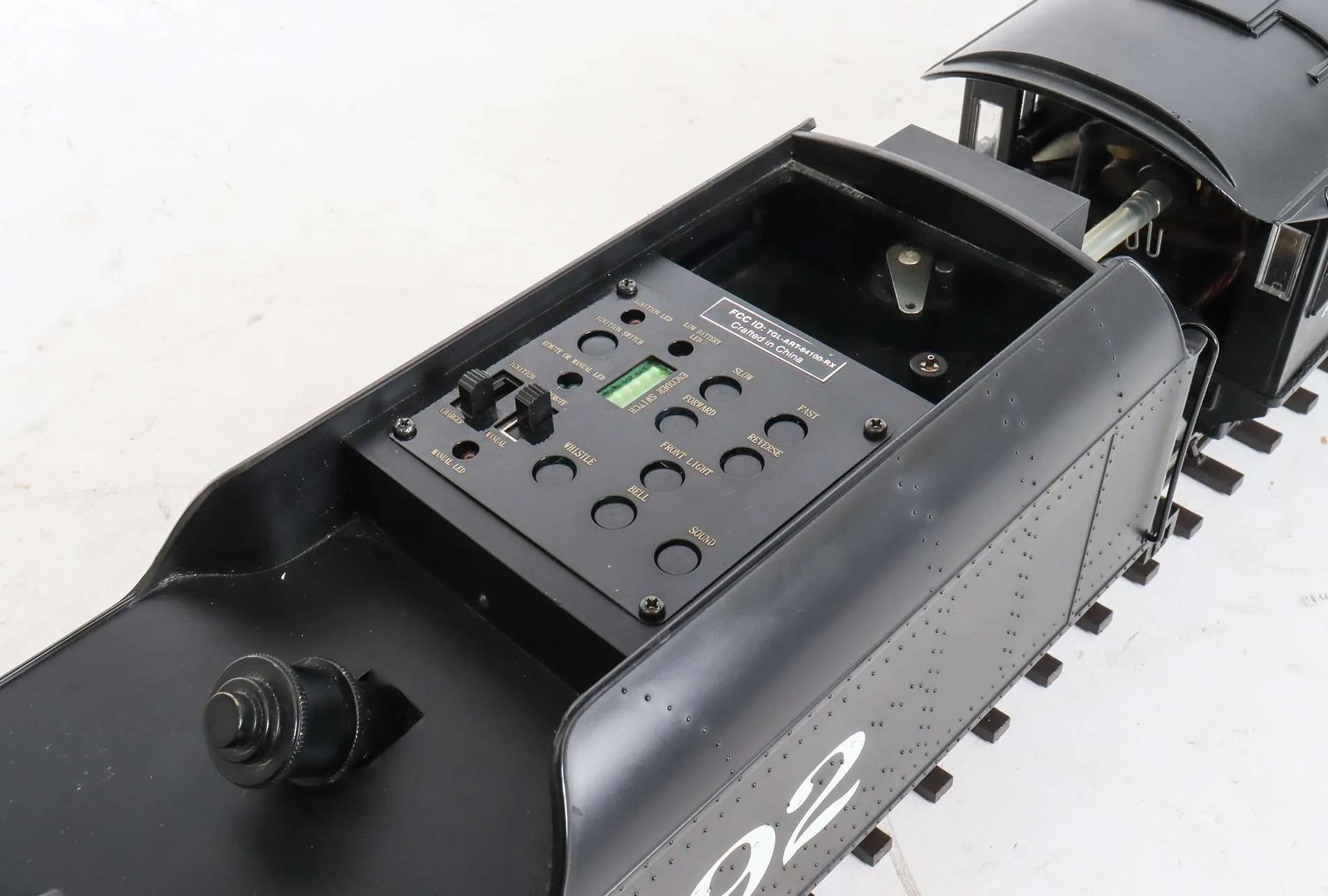

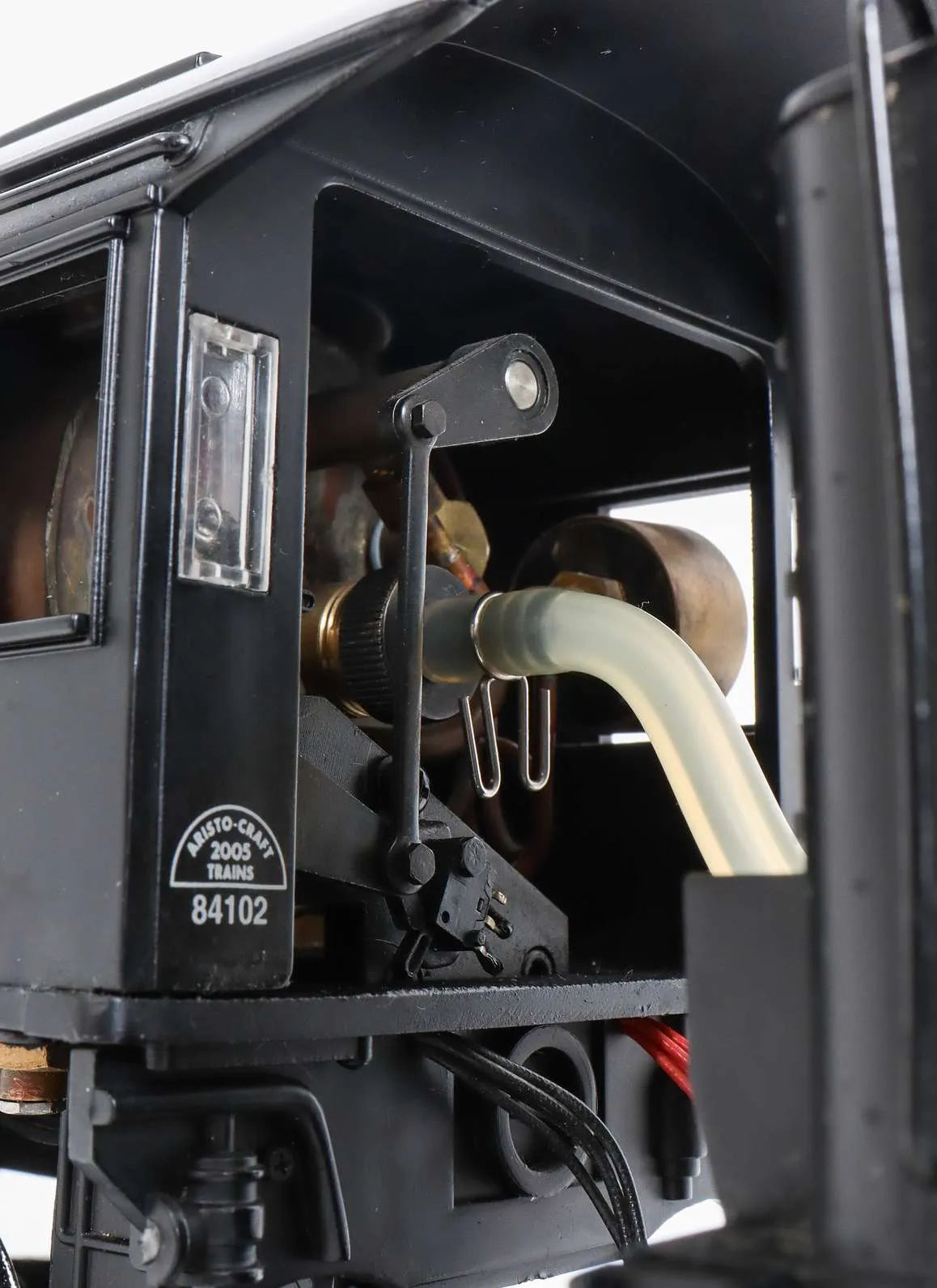

Something of a hybrid steam/electric confection, the tender-mounted control panel looks like something from mission control, with switches and indicators for reverser, regulator, lights and sound.

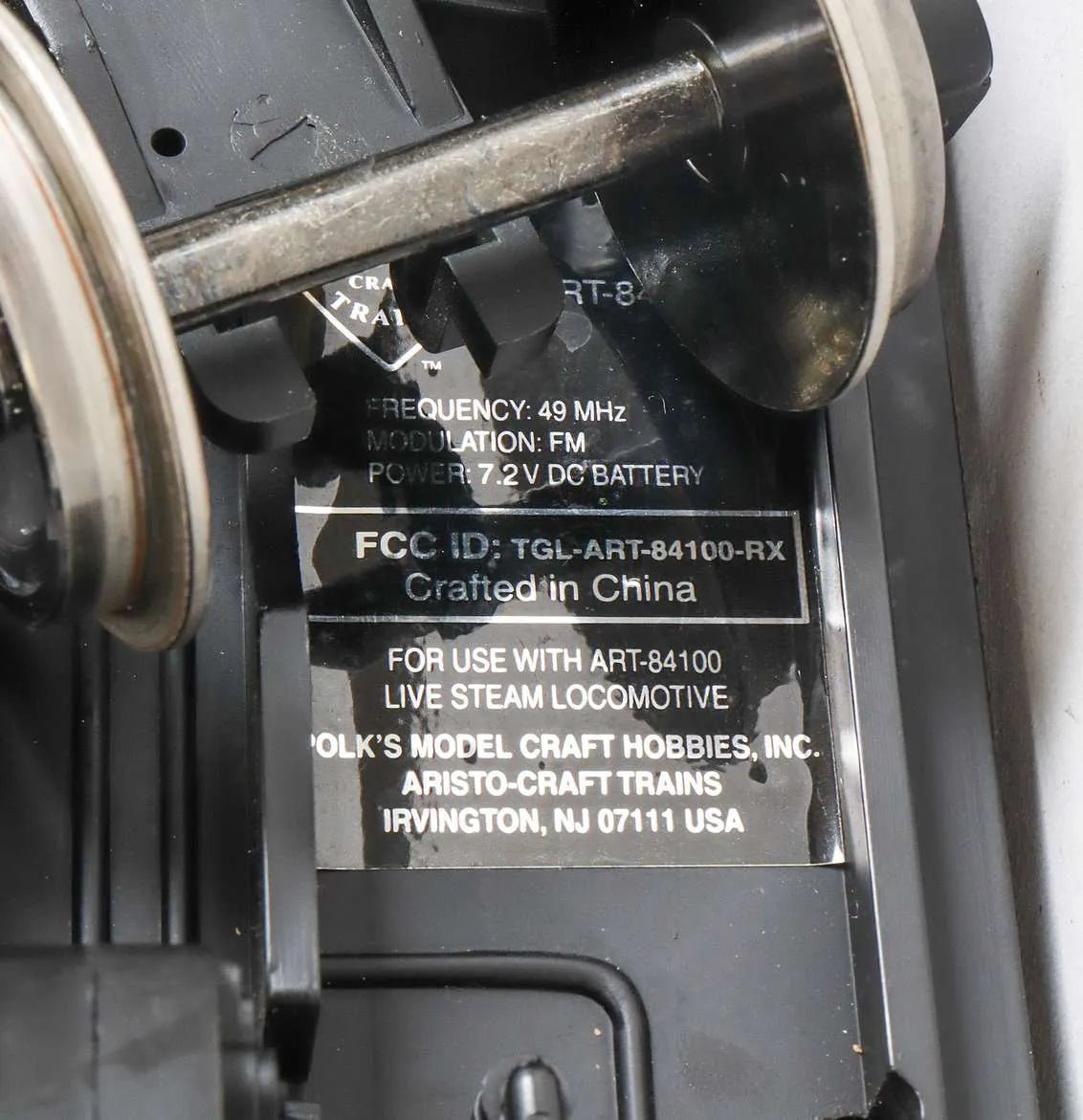

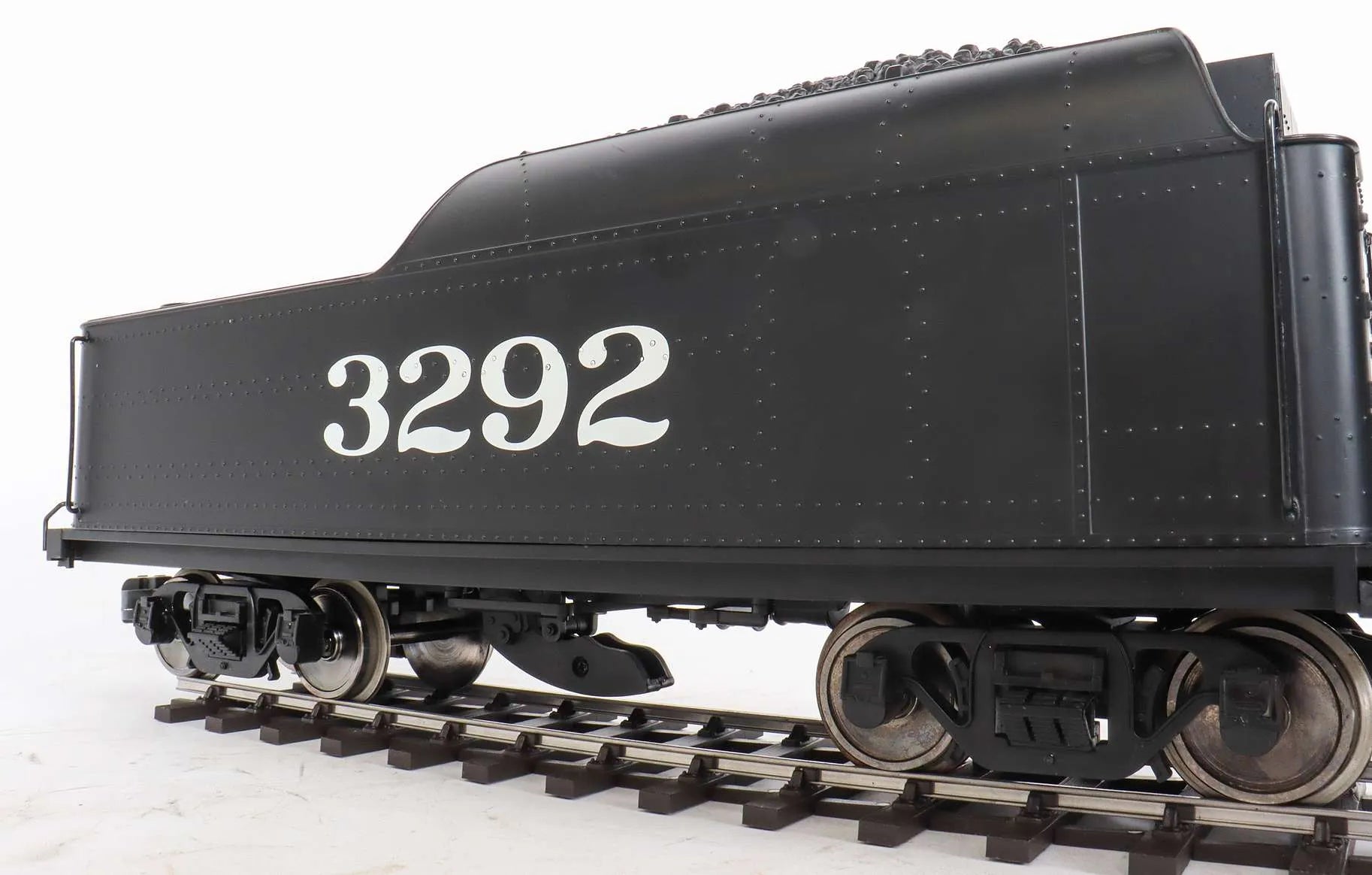

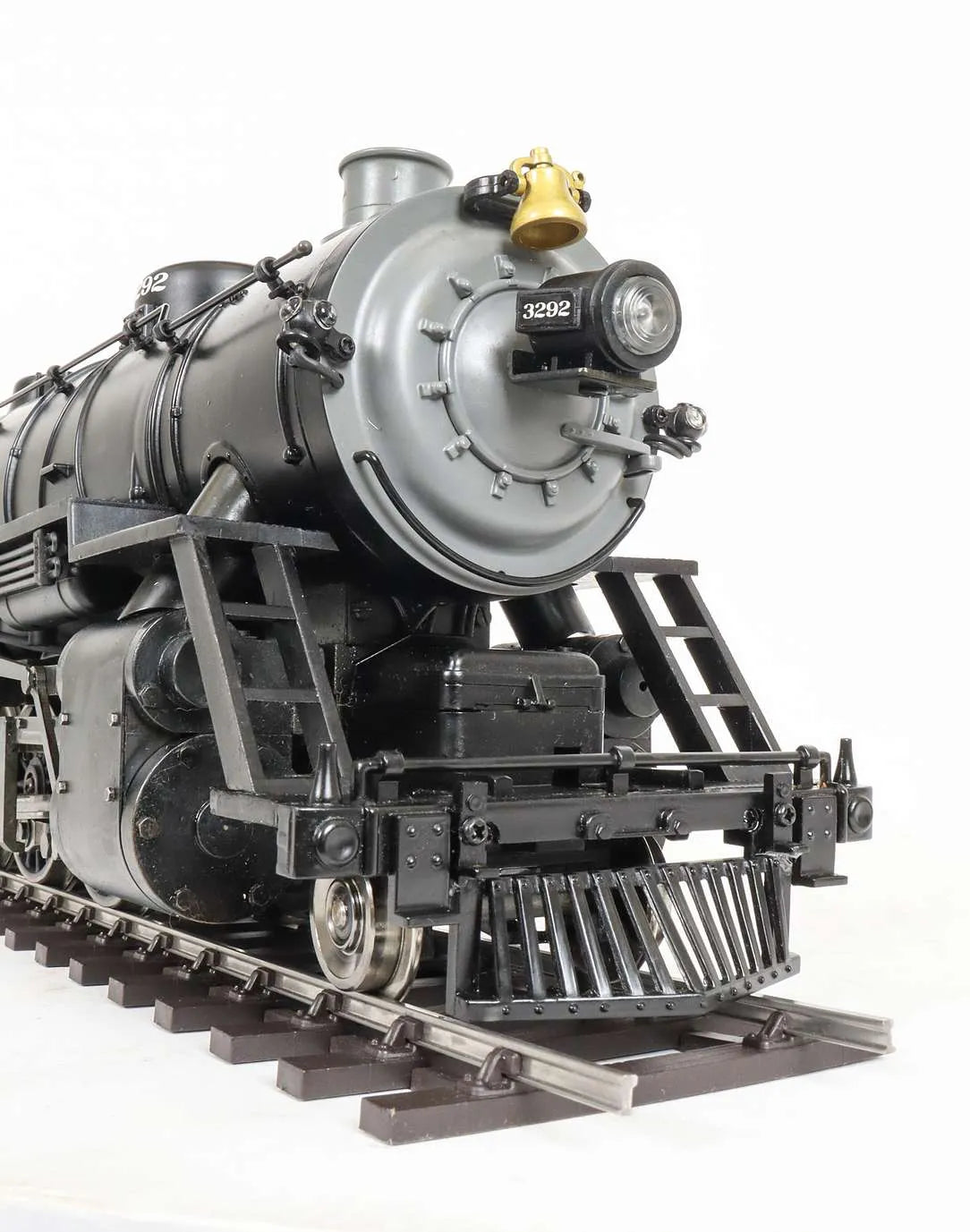

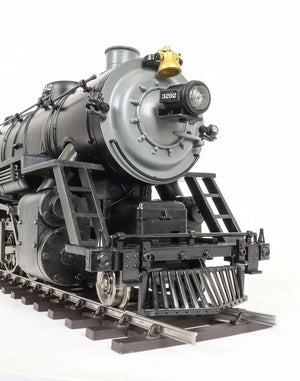

We can report that of the three lights at the front the middle one works every time, the right hand one most of the time and the left hand one never. The motor operating the reverser works, the one to operate the regulator doesn't. Whistle, engine and bell sounds all work, with a speaker fitted in the tender. There is no transmitter for the radio control.

There is a "period piece" video by Aristocraft showing how to steam and run the engine, linked below and a copy of the original instruction manual here.

Technical information

Stock code

11294

Gauge

45mm & smaller

Length/inches

21 + 16

Width/inches

5

Height/inches

6

Weight/Kg

9

Wheel material

plastic with steel tyres

Axlebox type

plain

Cylinder material

brass

Valve type

piston

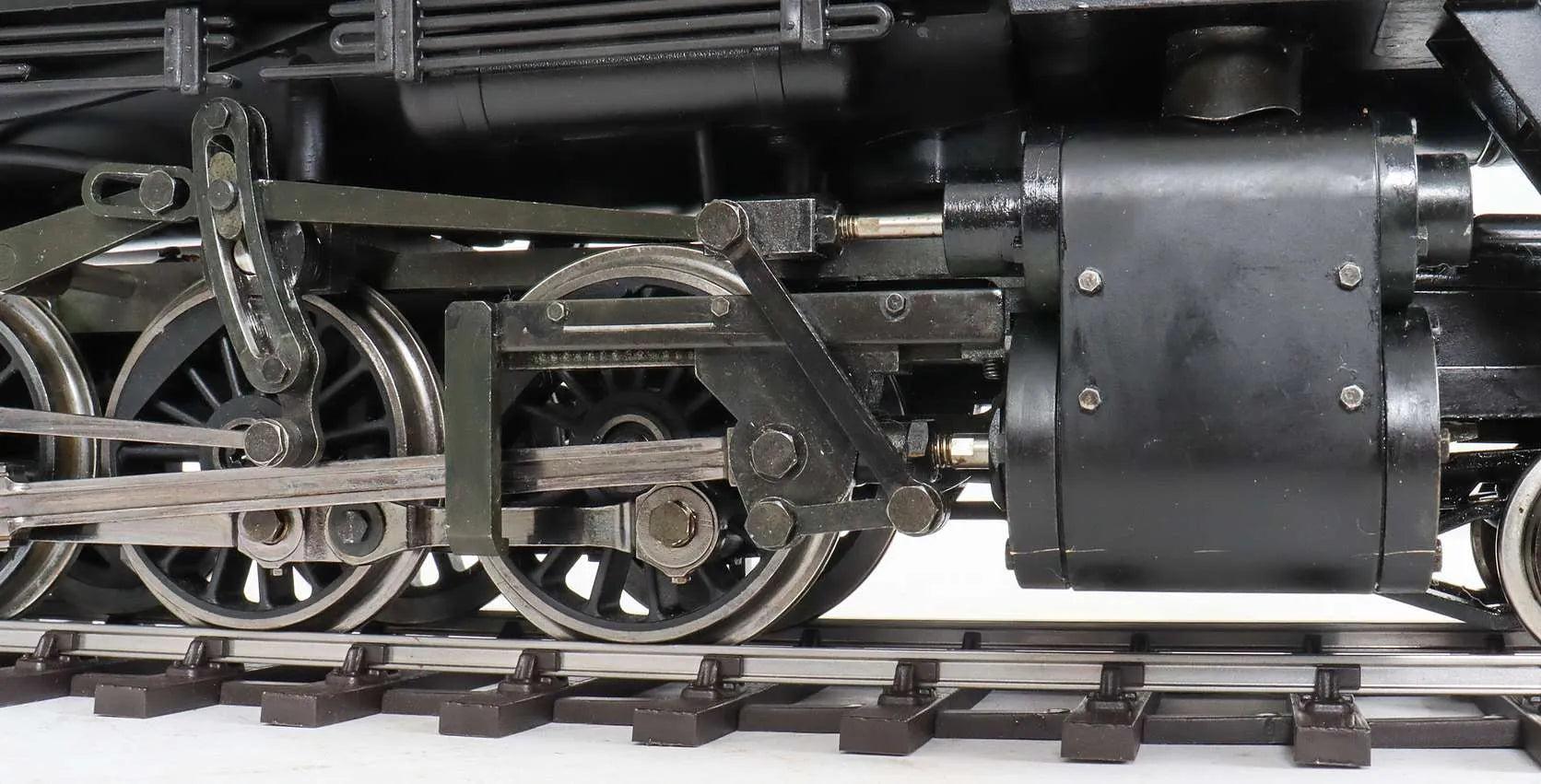

Valve gear

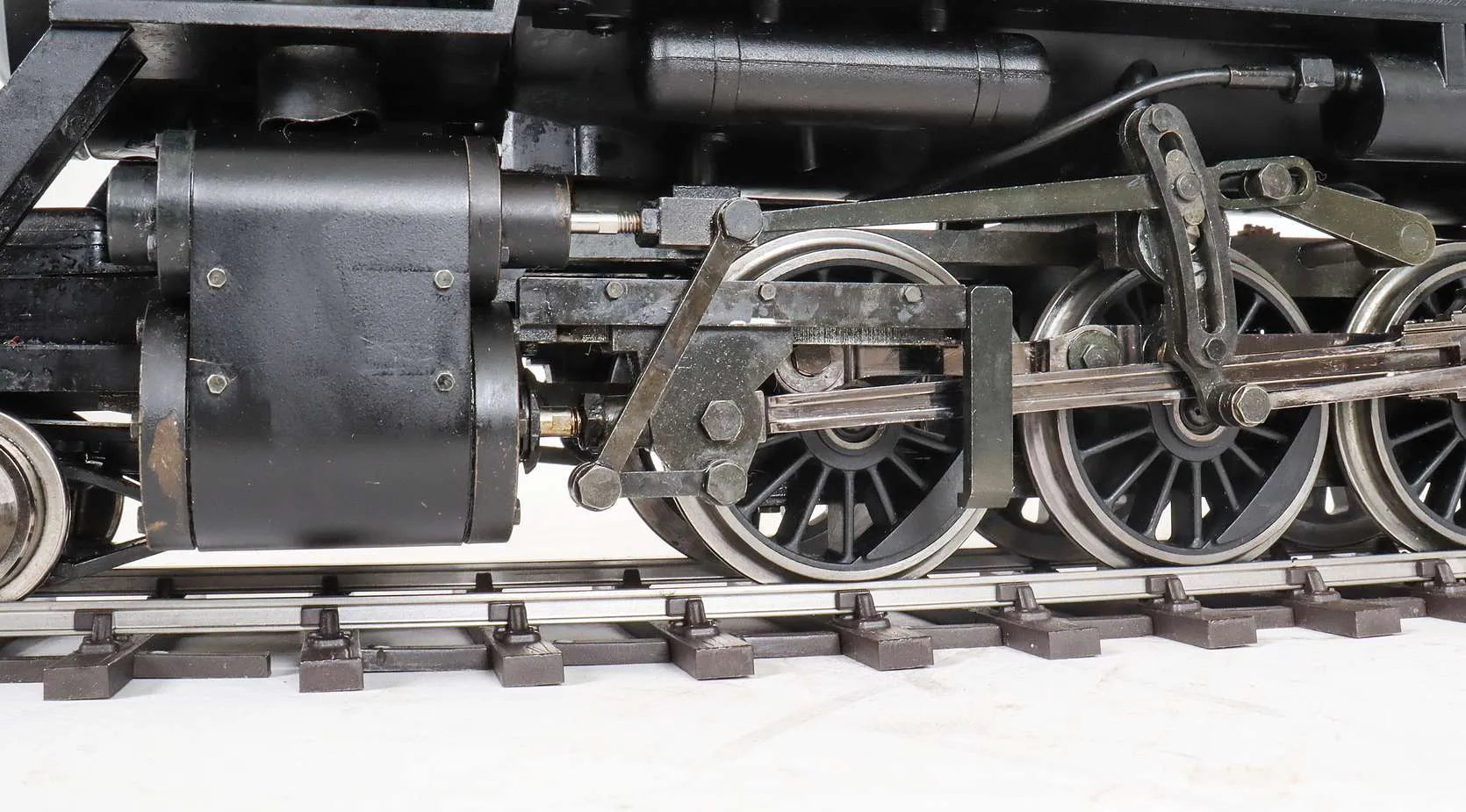

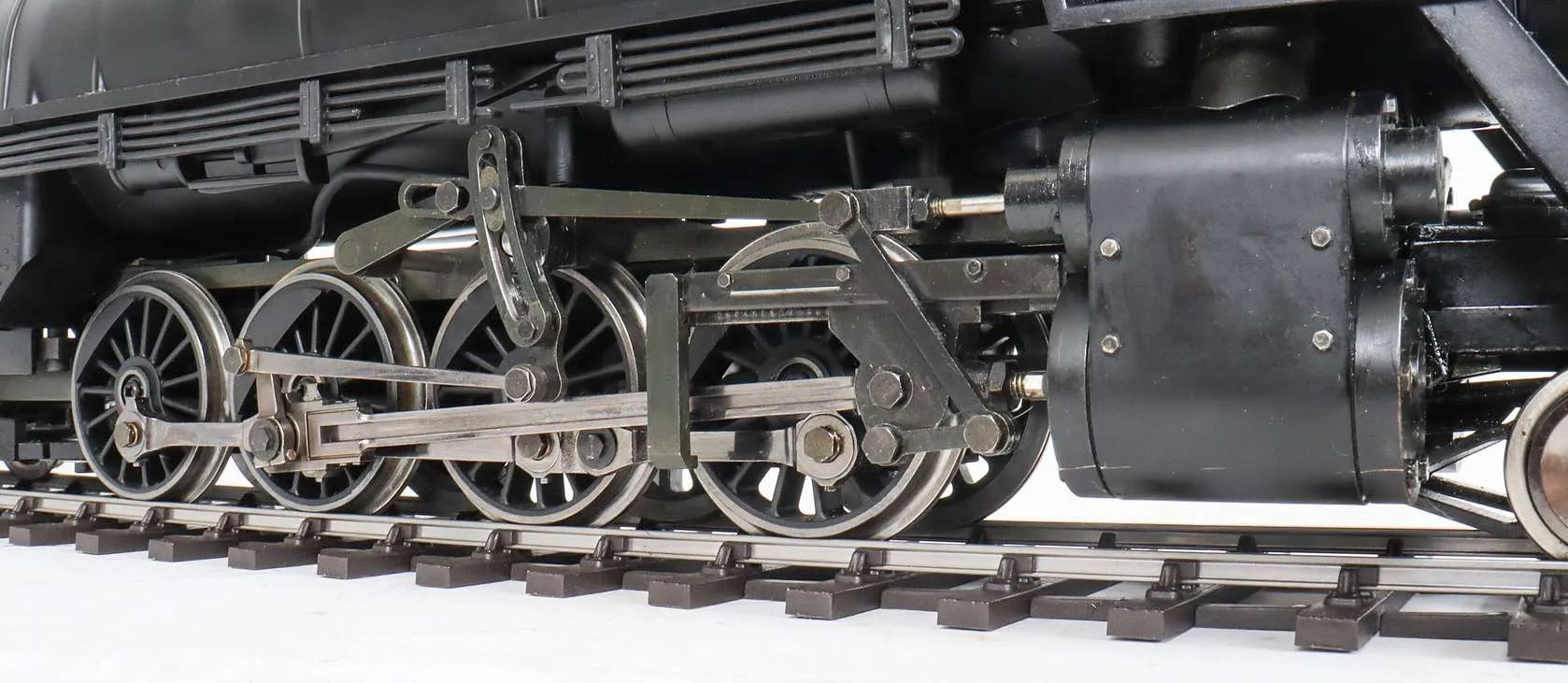

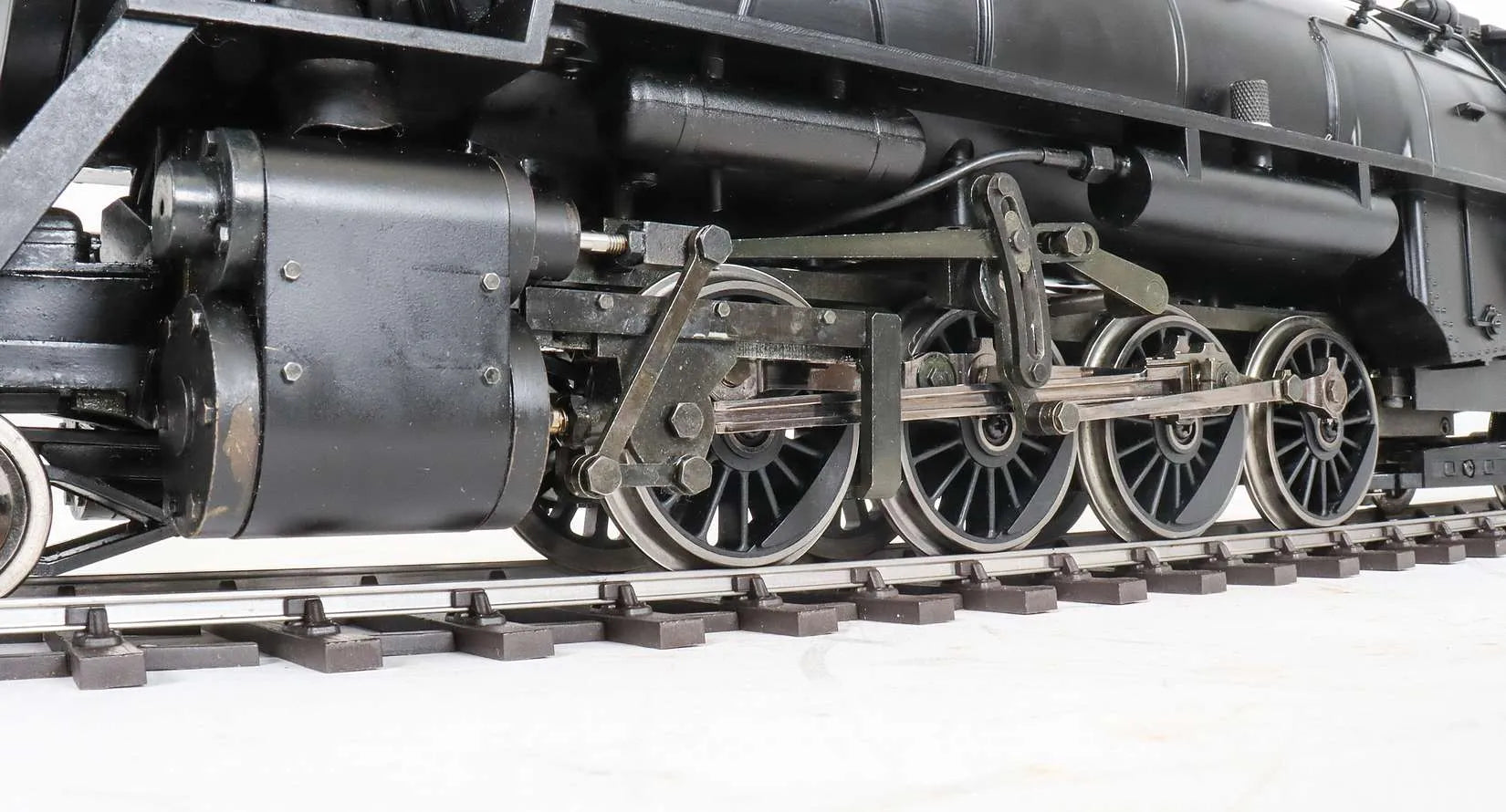

Simplified Walschaerts

Reverser type

radio control

Lubricator type

displacement

Boiler maker

Aristocraft

Boiler type

centre flue

Boiler material

copper

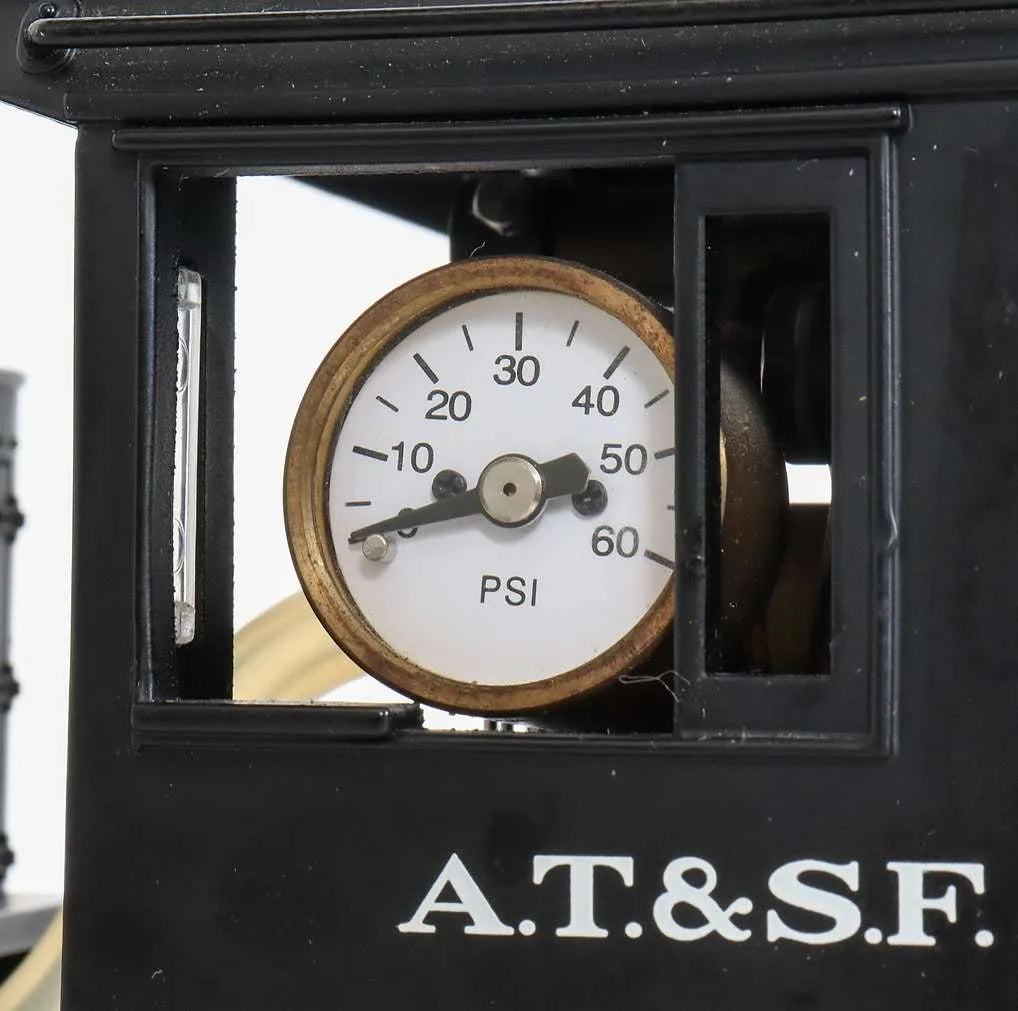

Working pressure

30

CE/UKCA mark

n/a - <2 litre capacity

Boiler number

BE0029

Hydraulic test valid to

23-Jul-2028
