9600

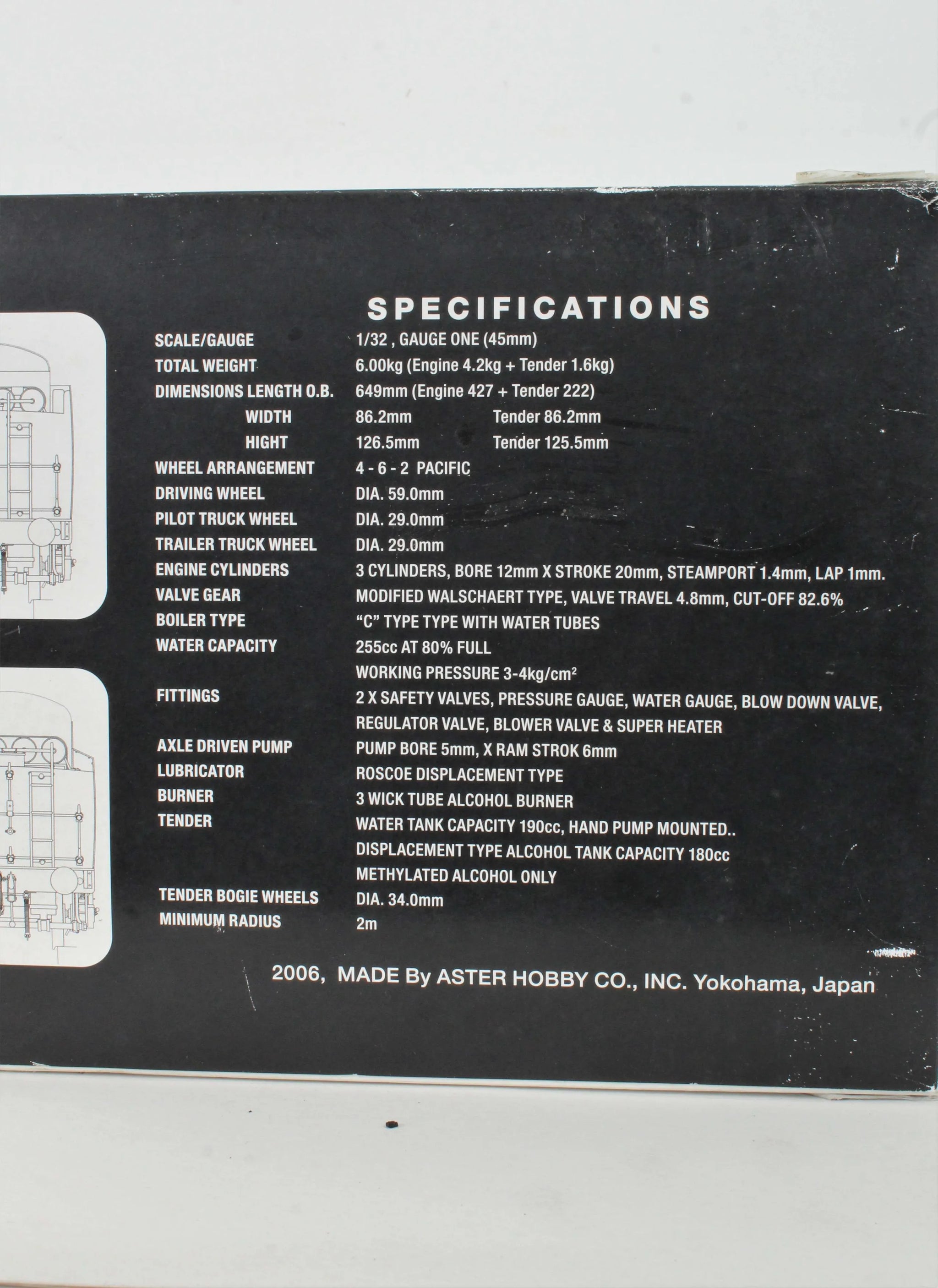

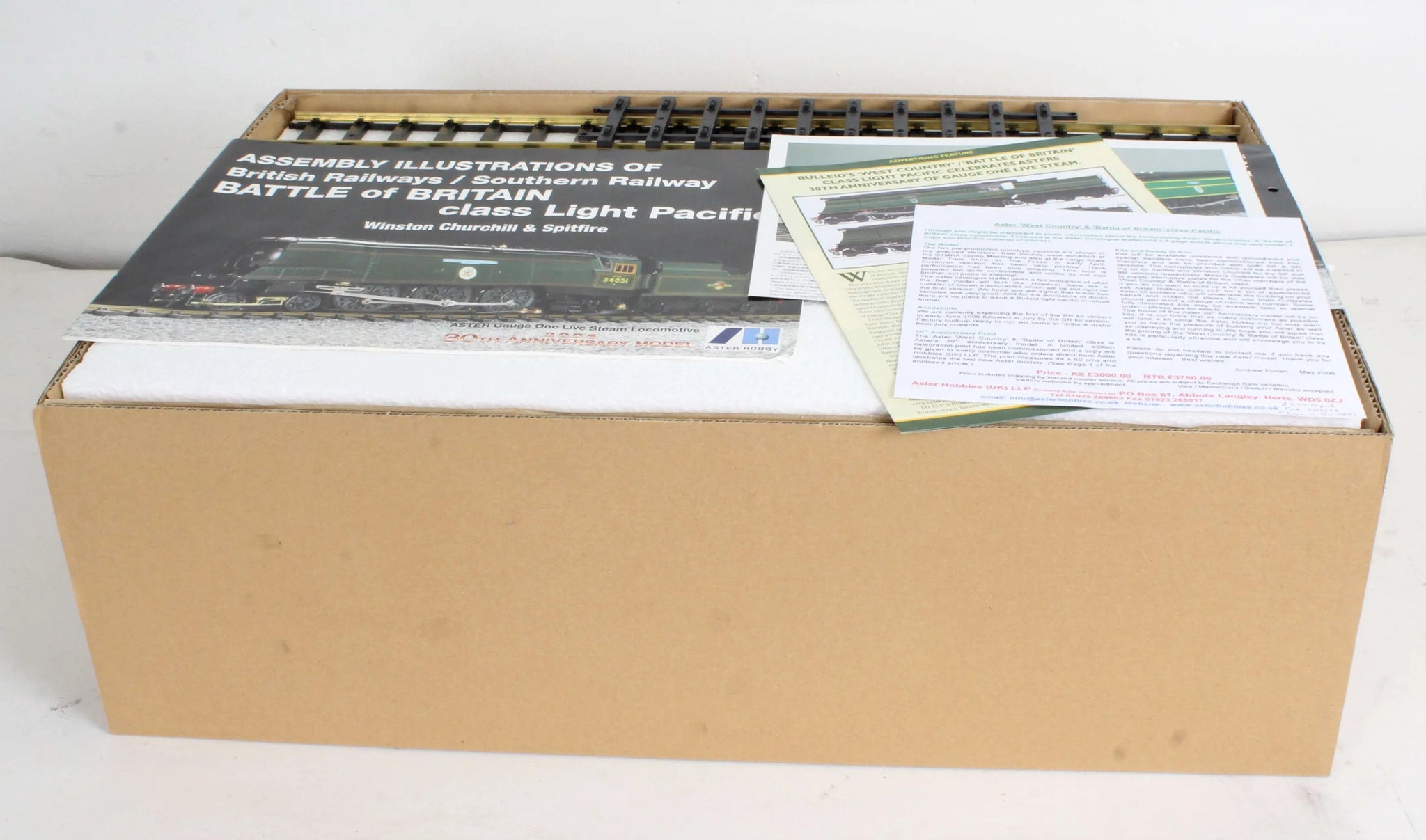

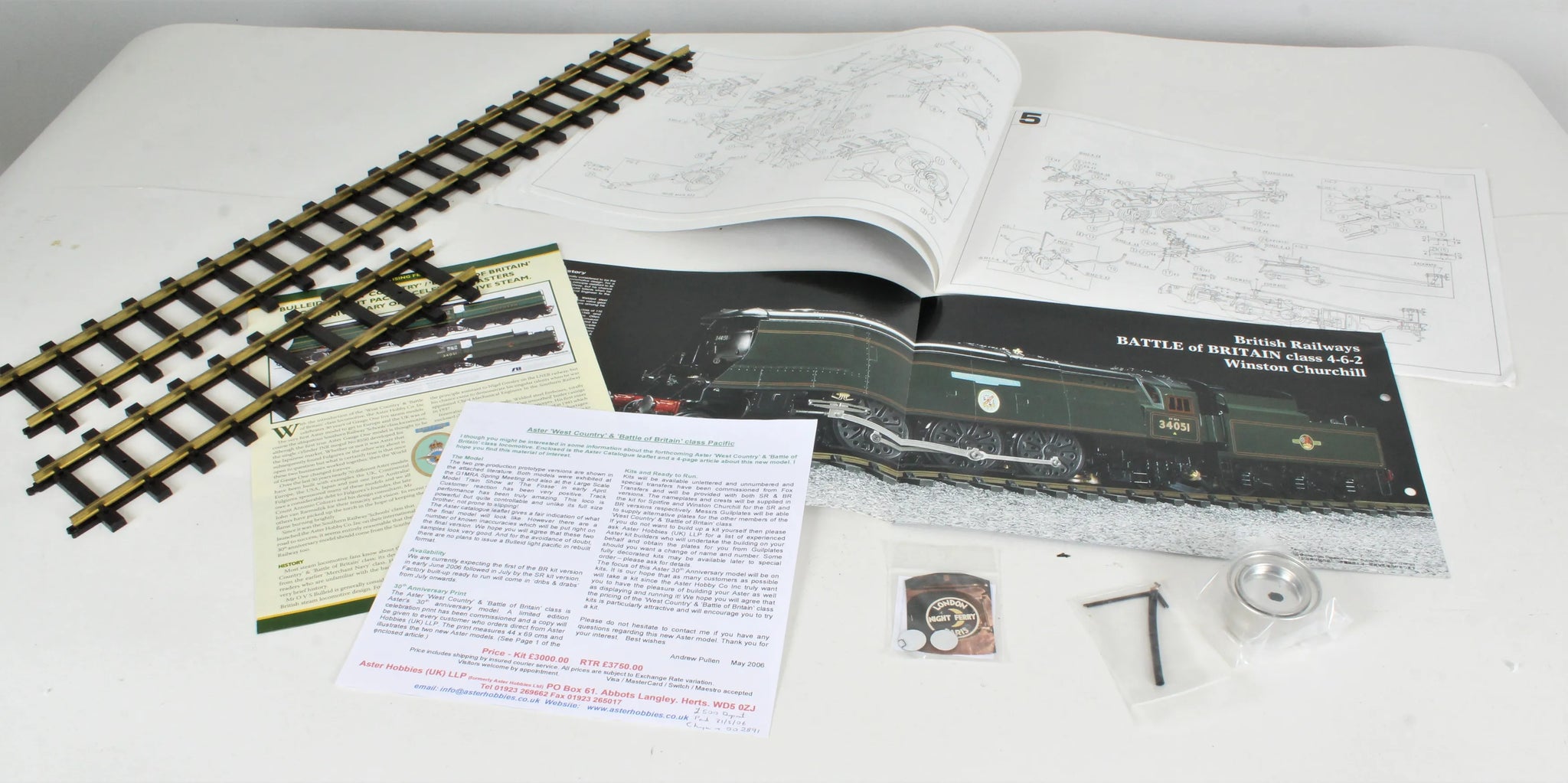

In good condition, it appears to have had little use. Complete with manufacturer's packaging, documentation and display track.
Stock code |
9600 |
Gauge |
45mm & smaller |
Length/inches |
25.5 |
Width/inches |
3.5 |
Height/inches |
5 |
Weight/Kg |
4.2 + 1.6 |
Wheel material |
steel |
Axlebox type |
plain bearing |
Cylinder material |
3 x gunmetal |
Valve type |
slide |

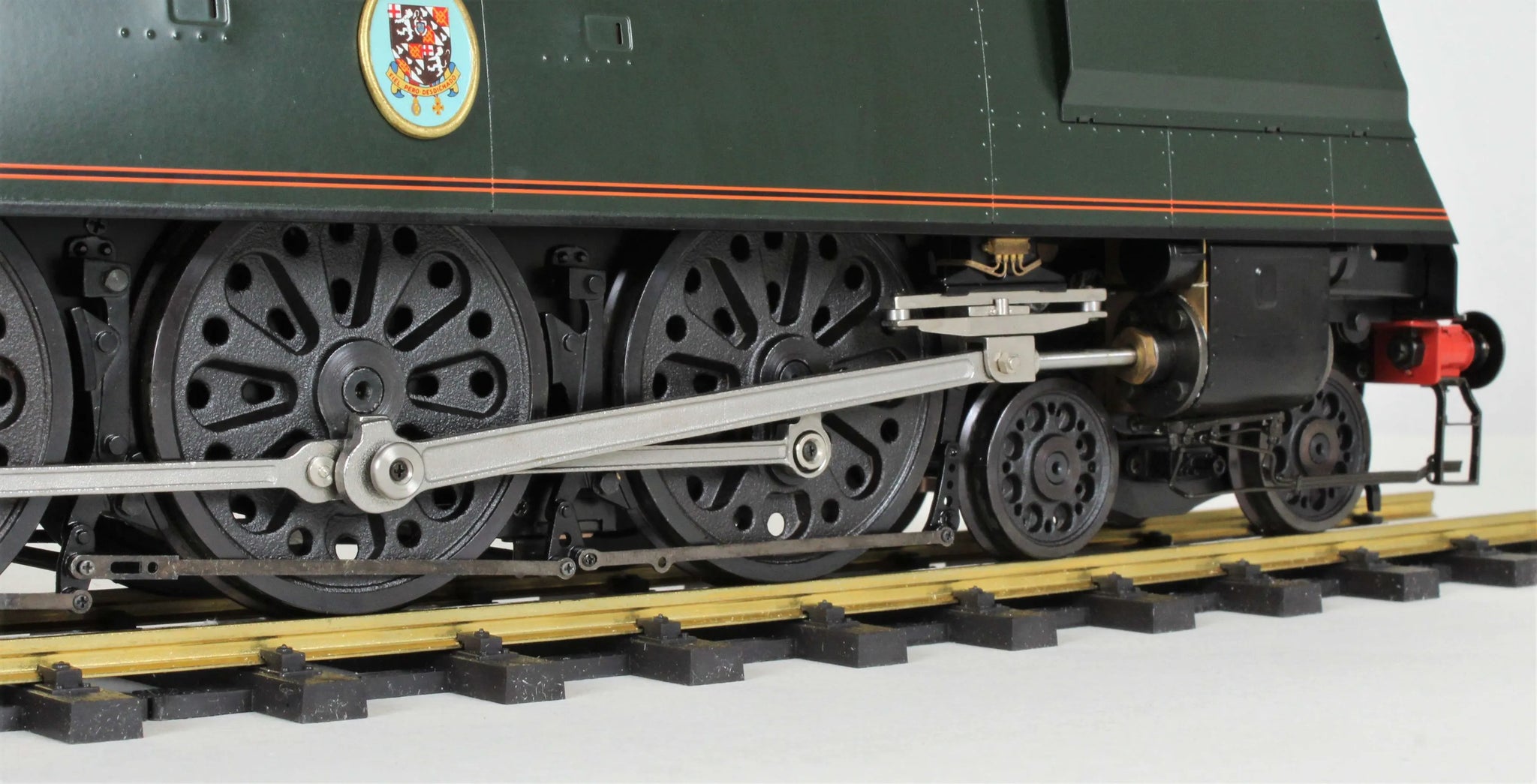

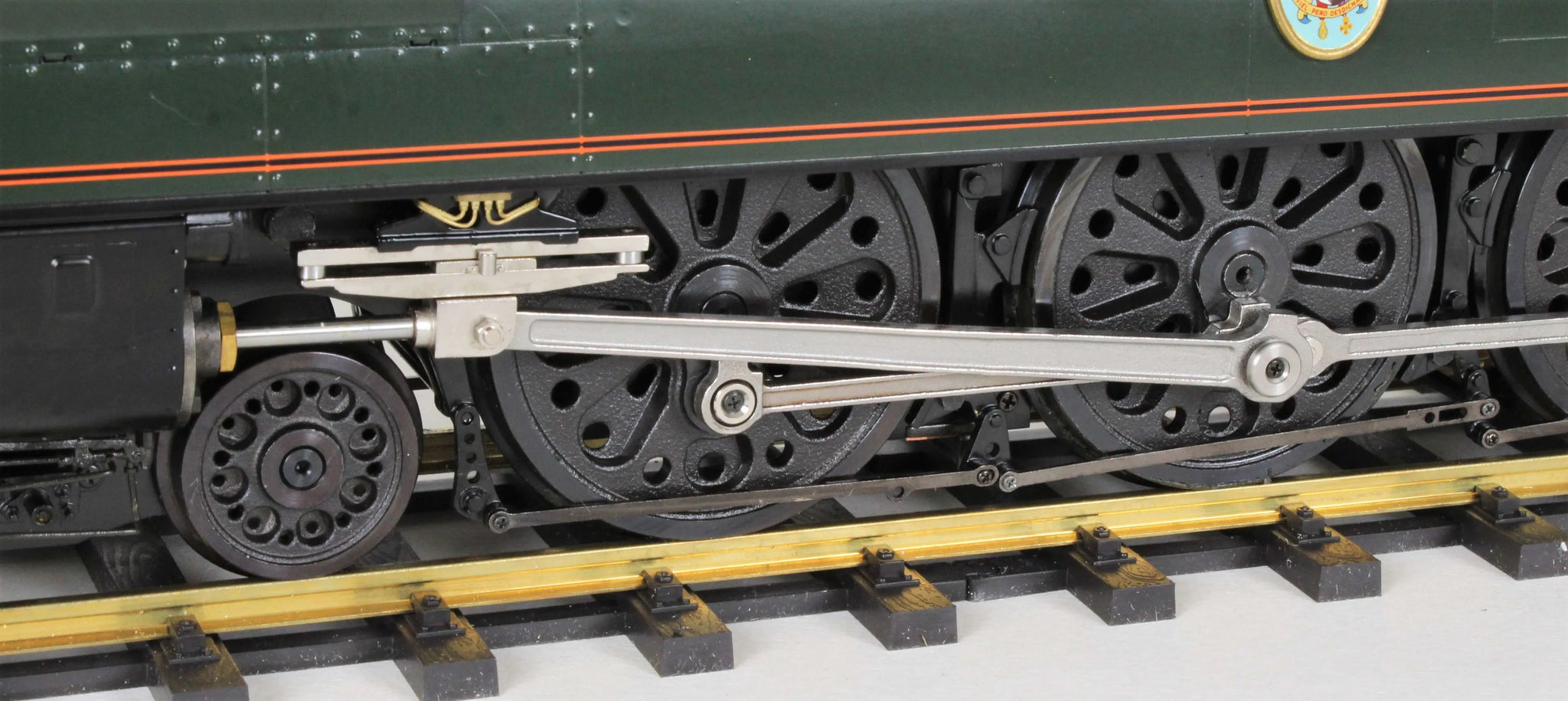

Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
displacement |
Boiler type |
water tube, spirit-fired with 3 wick burner |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
42-56 |
Safety valve type |
spring |
Safety valve |
2 |
Bore x stroke |
12 x 20mm |
Hand pump |
1 |
Mechanical pump |
1 x axle |
Superheater |
1 |
Date out |
May-21 |
