13519

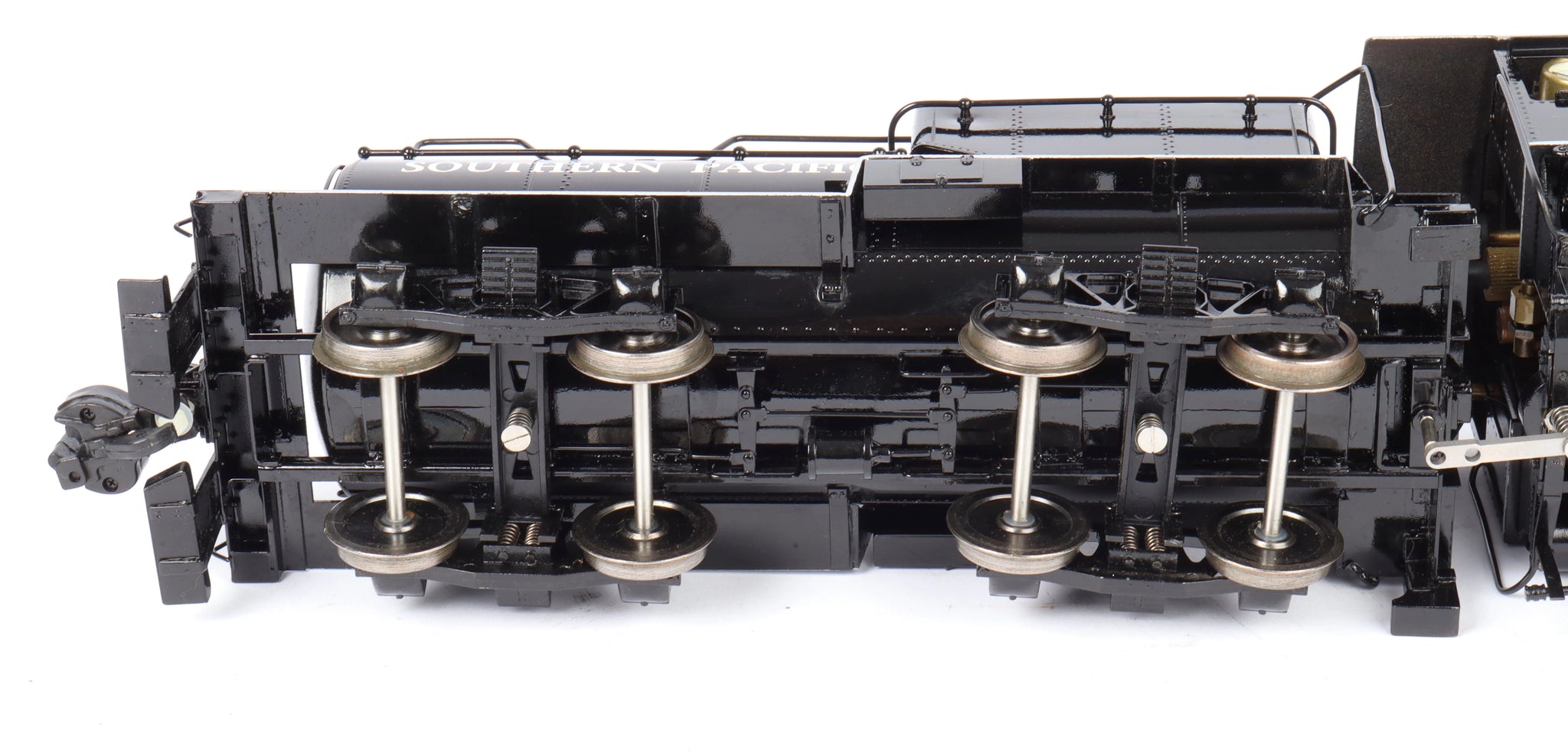

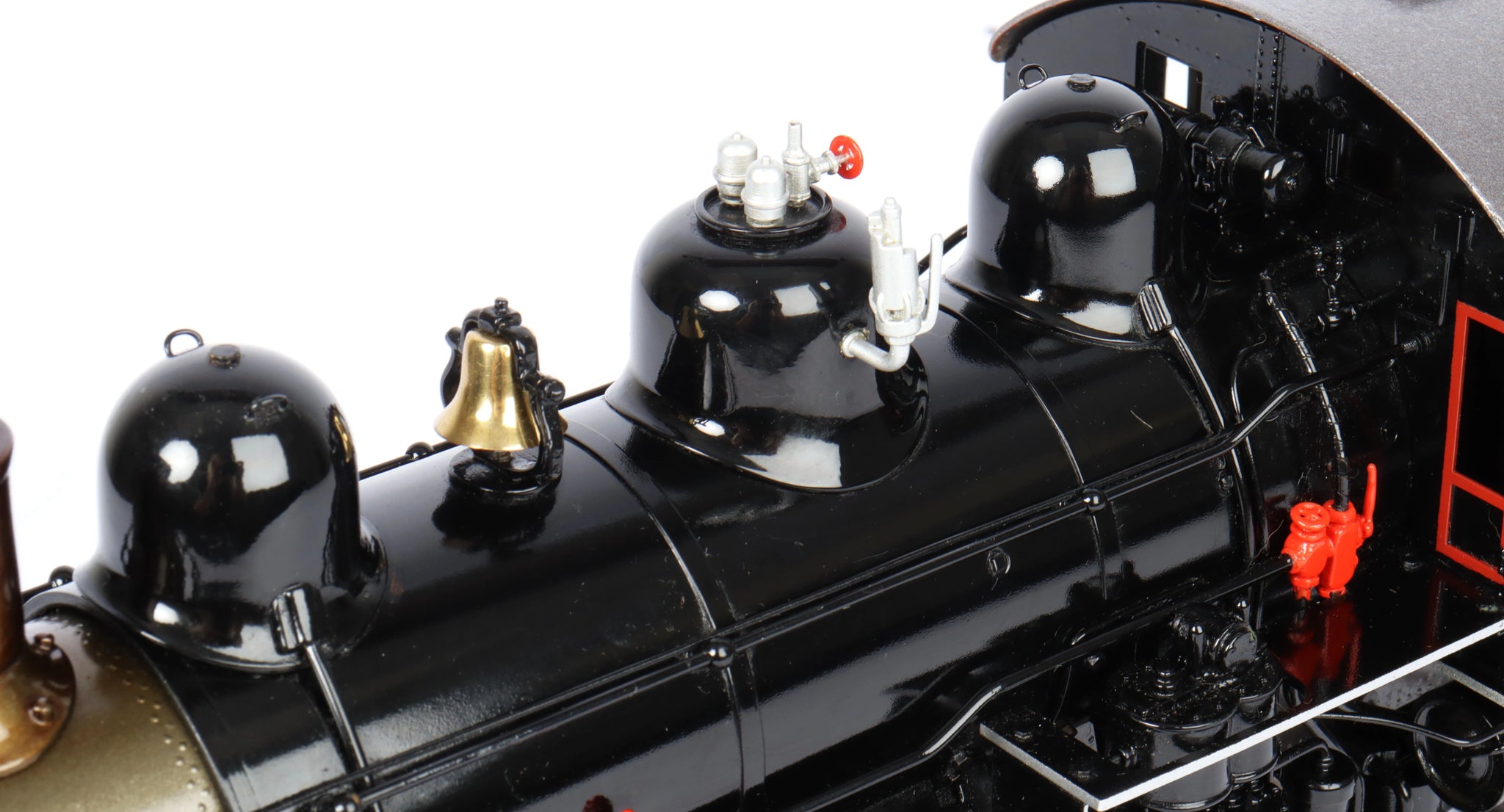

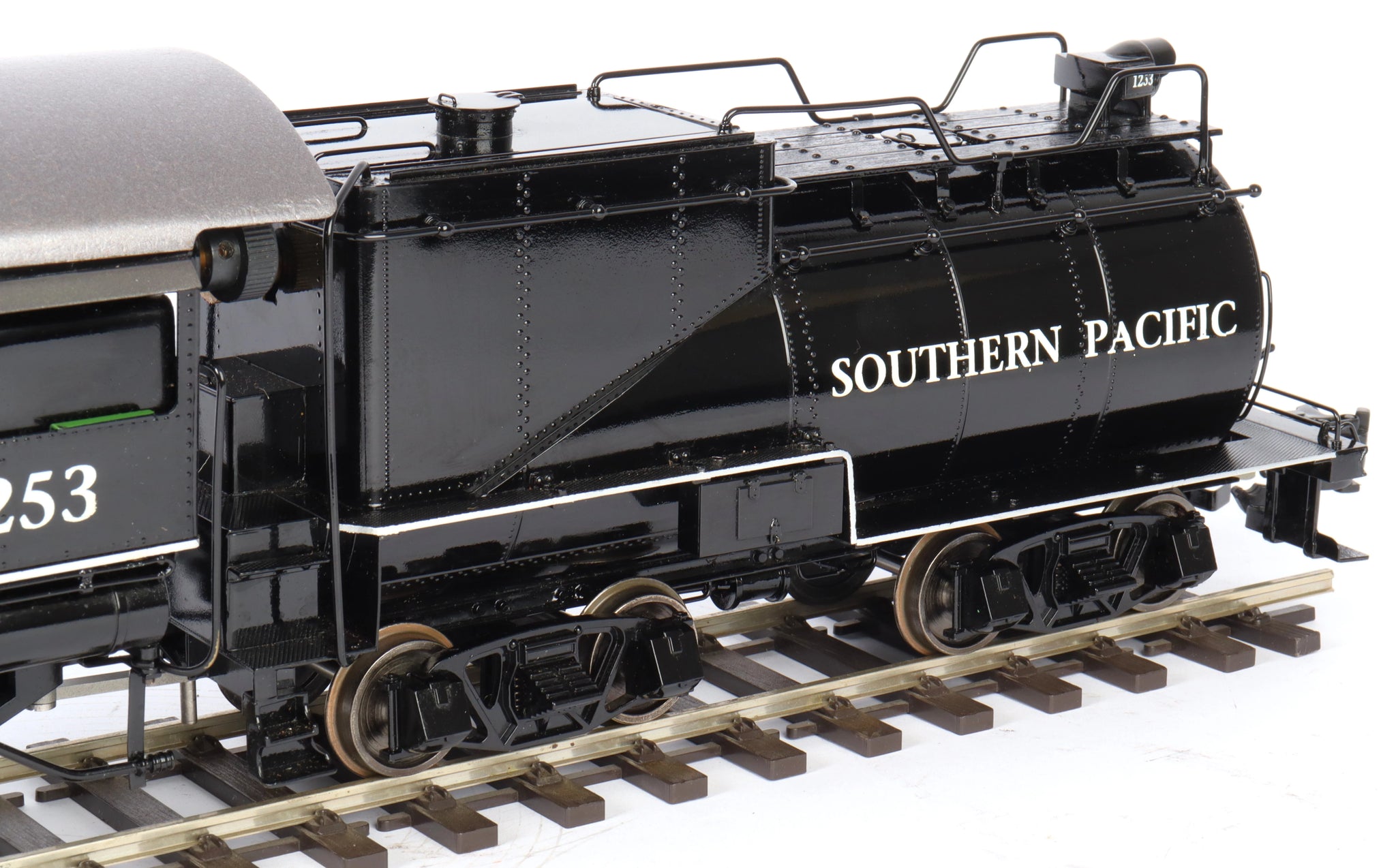

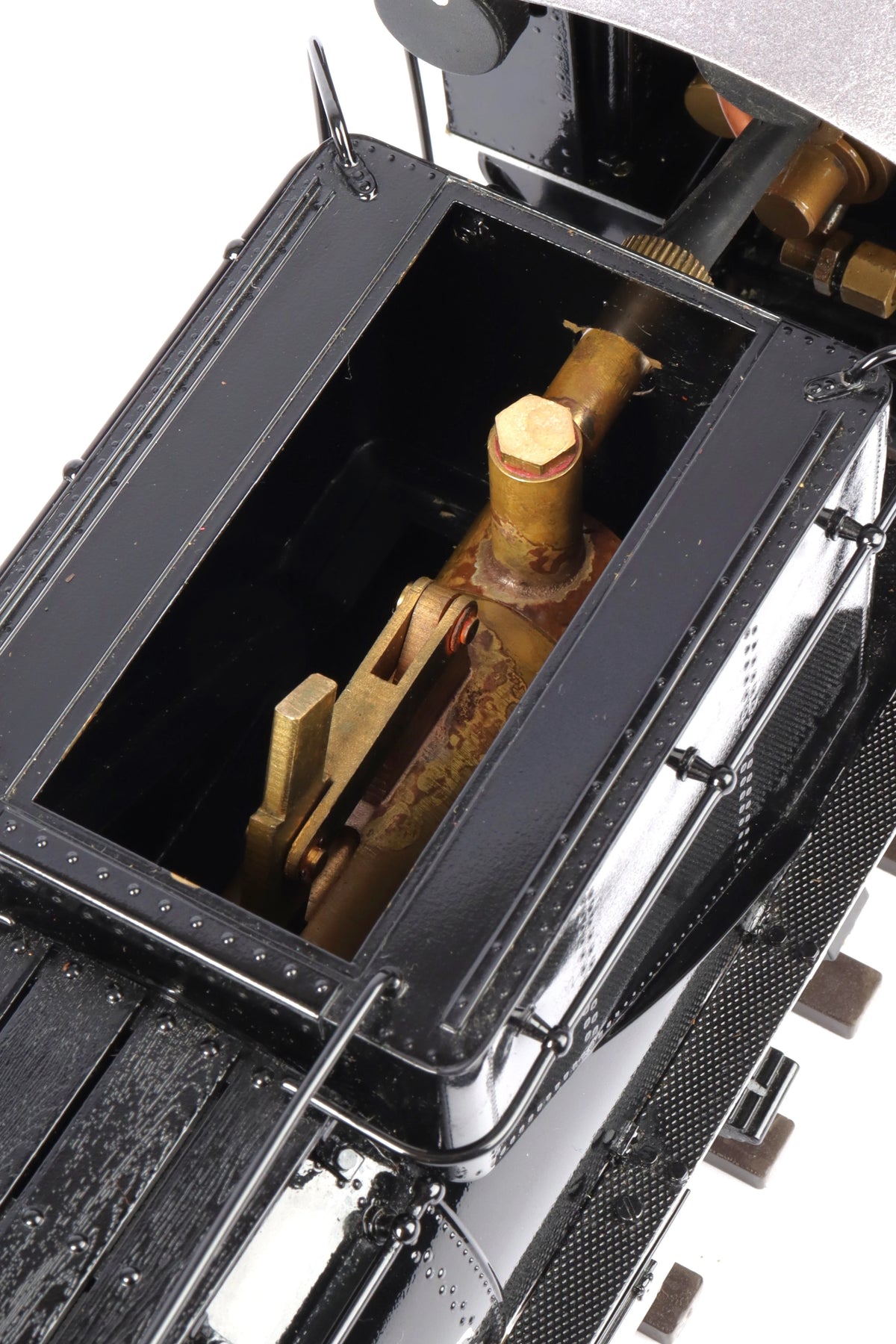

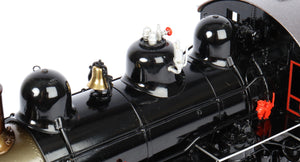

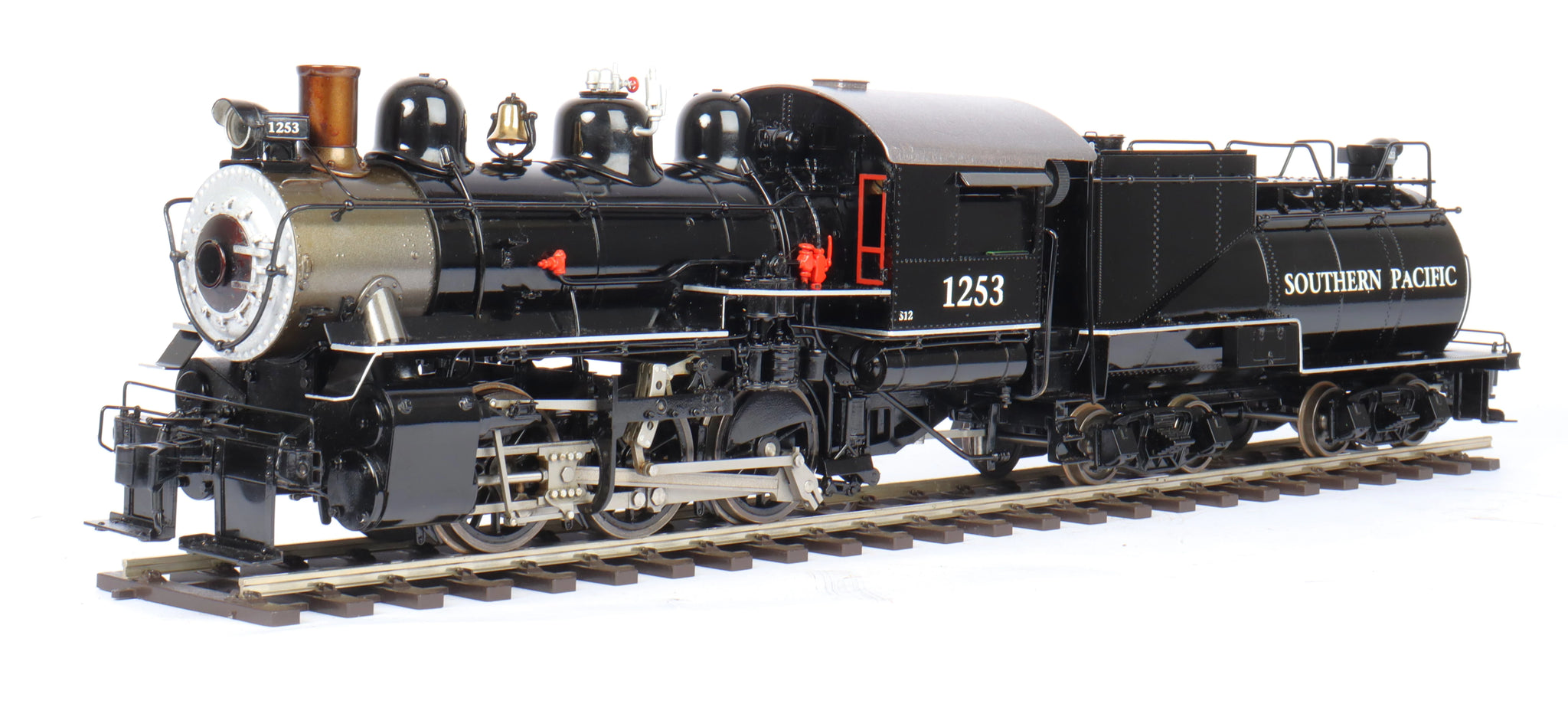

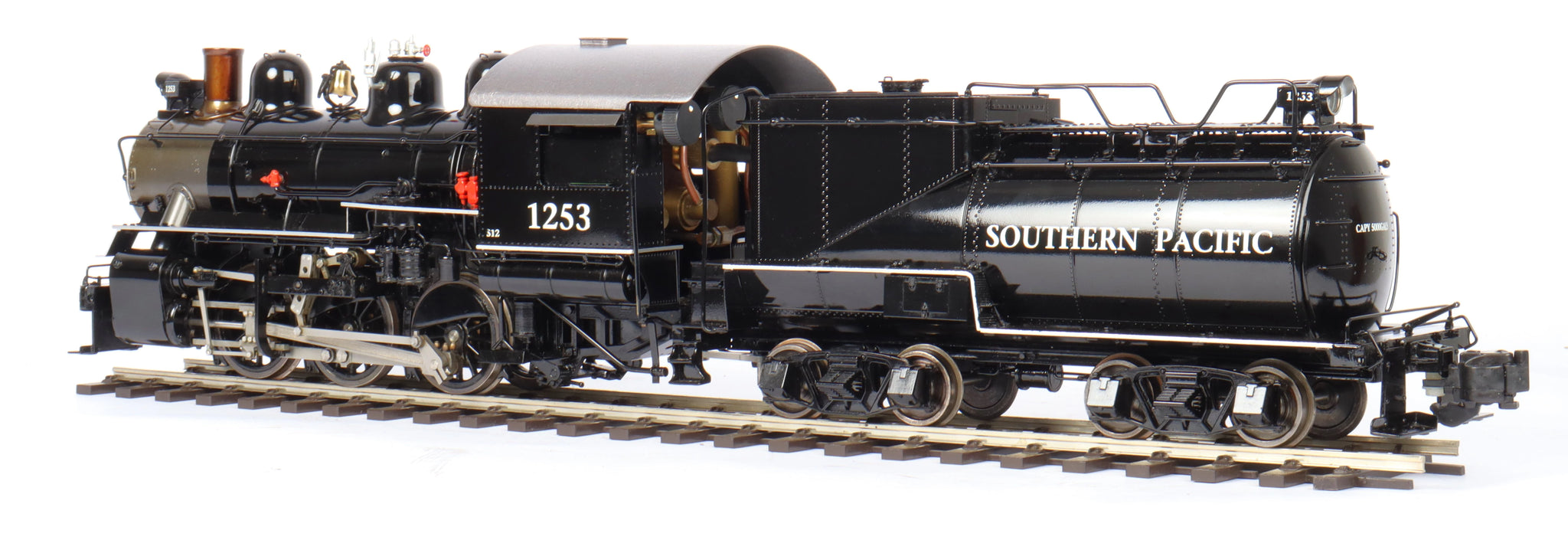

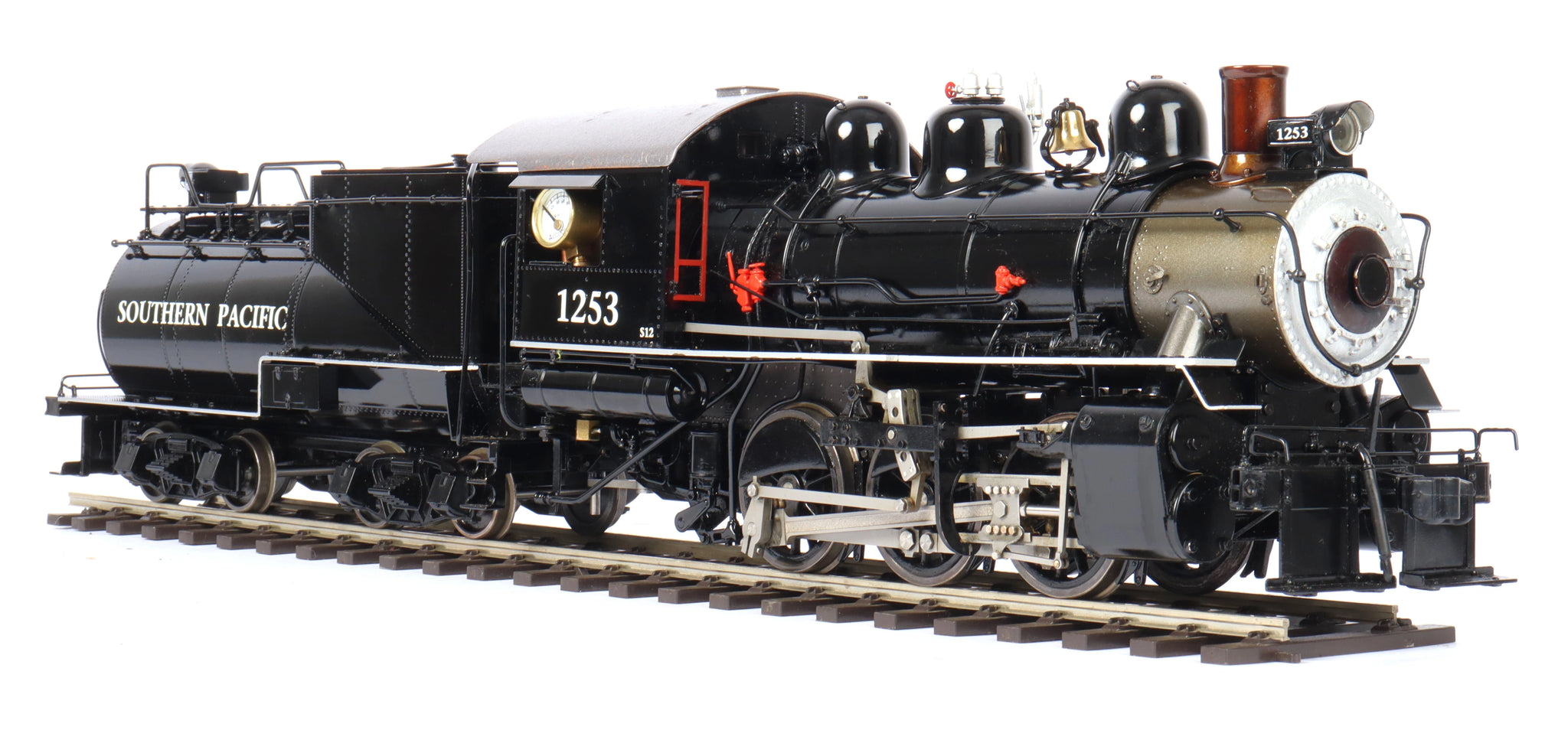

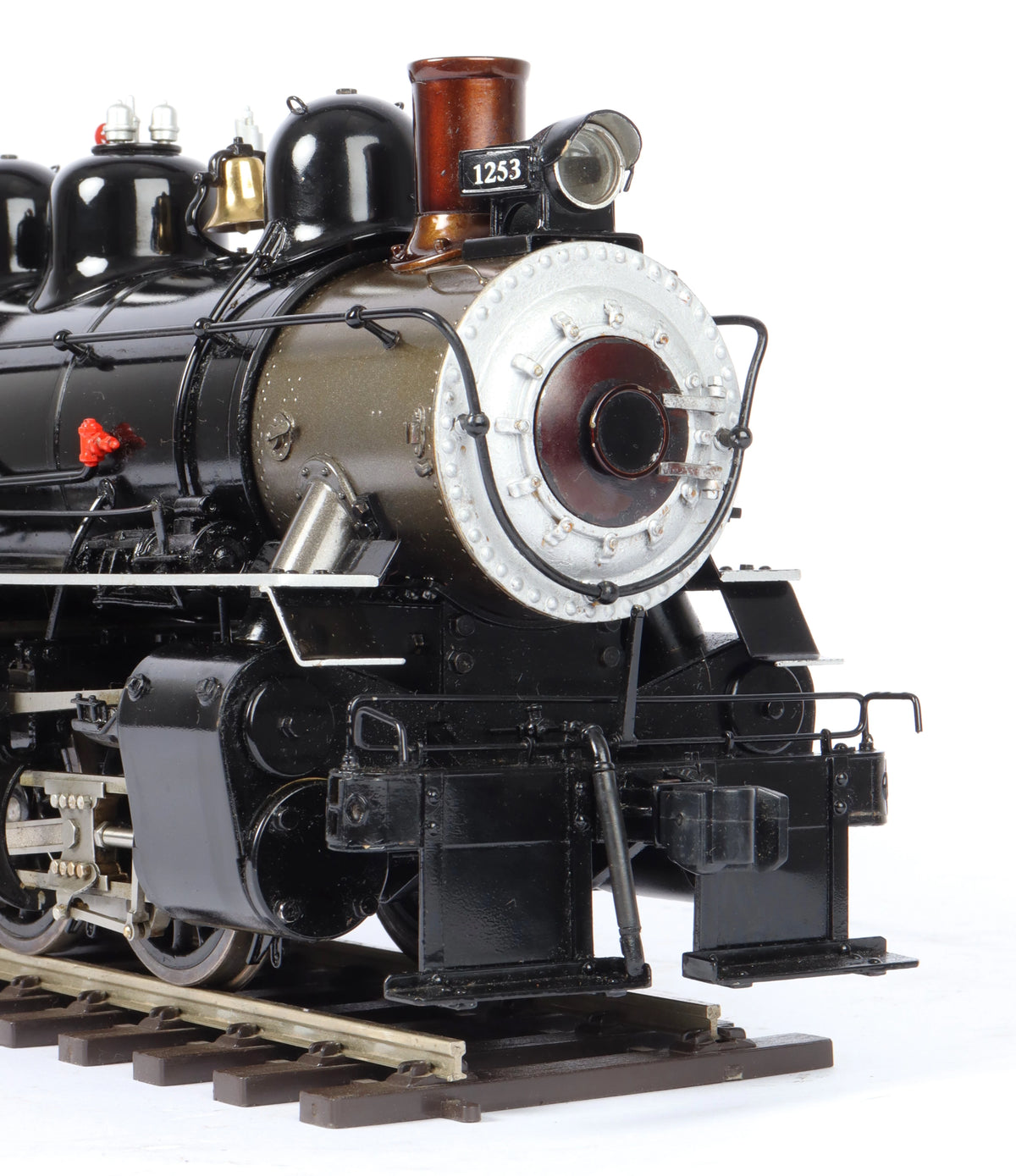

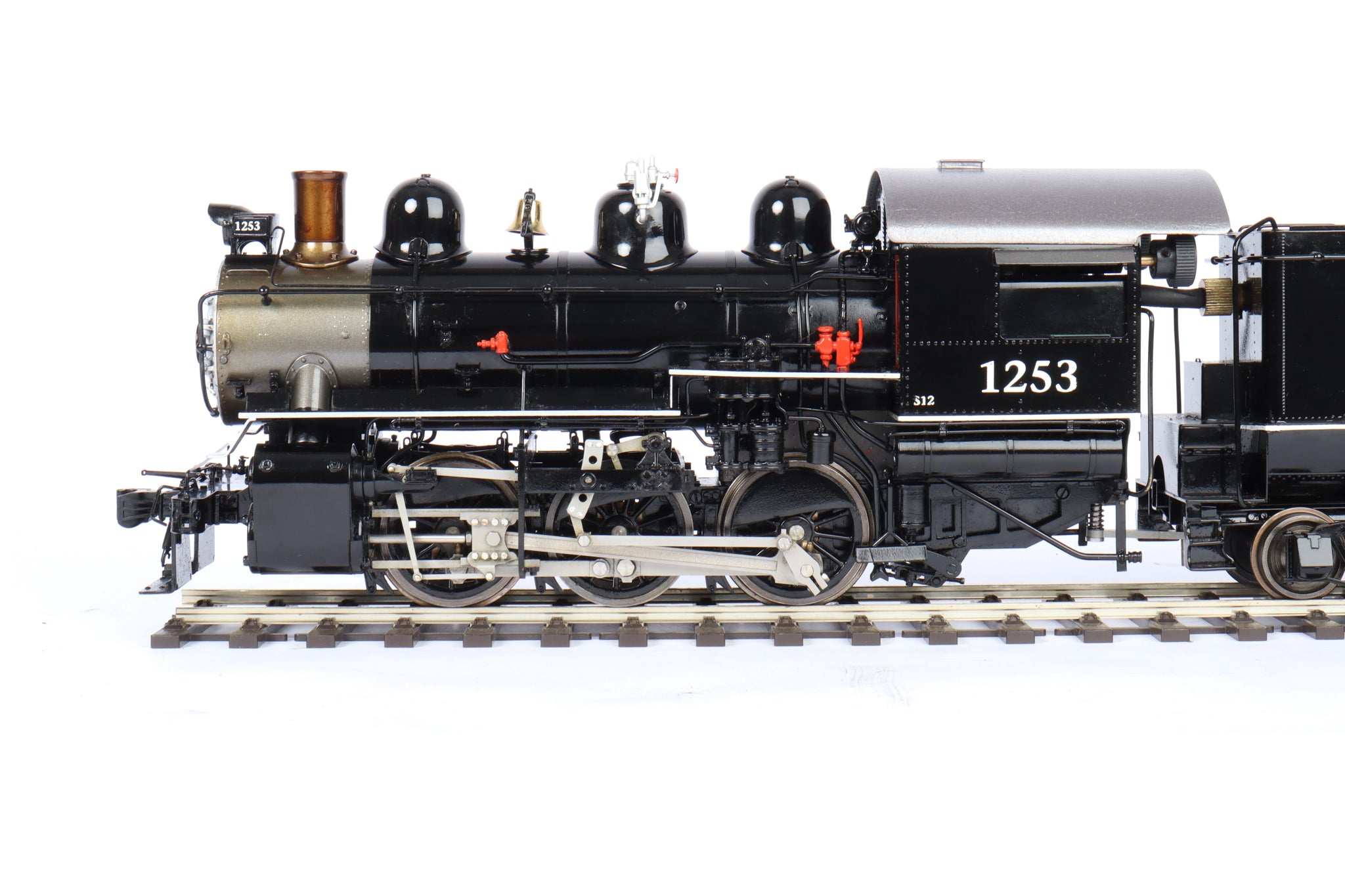

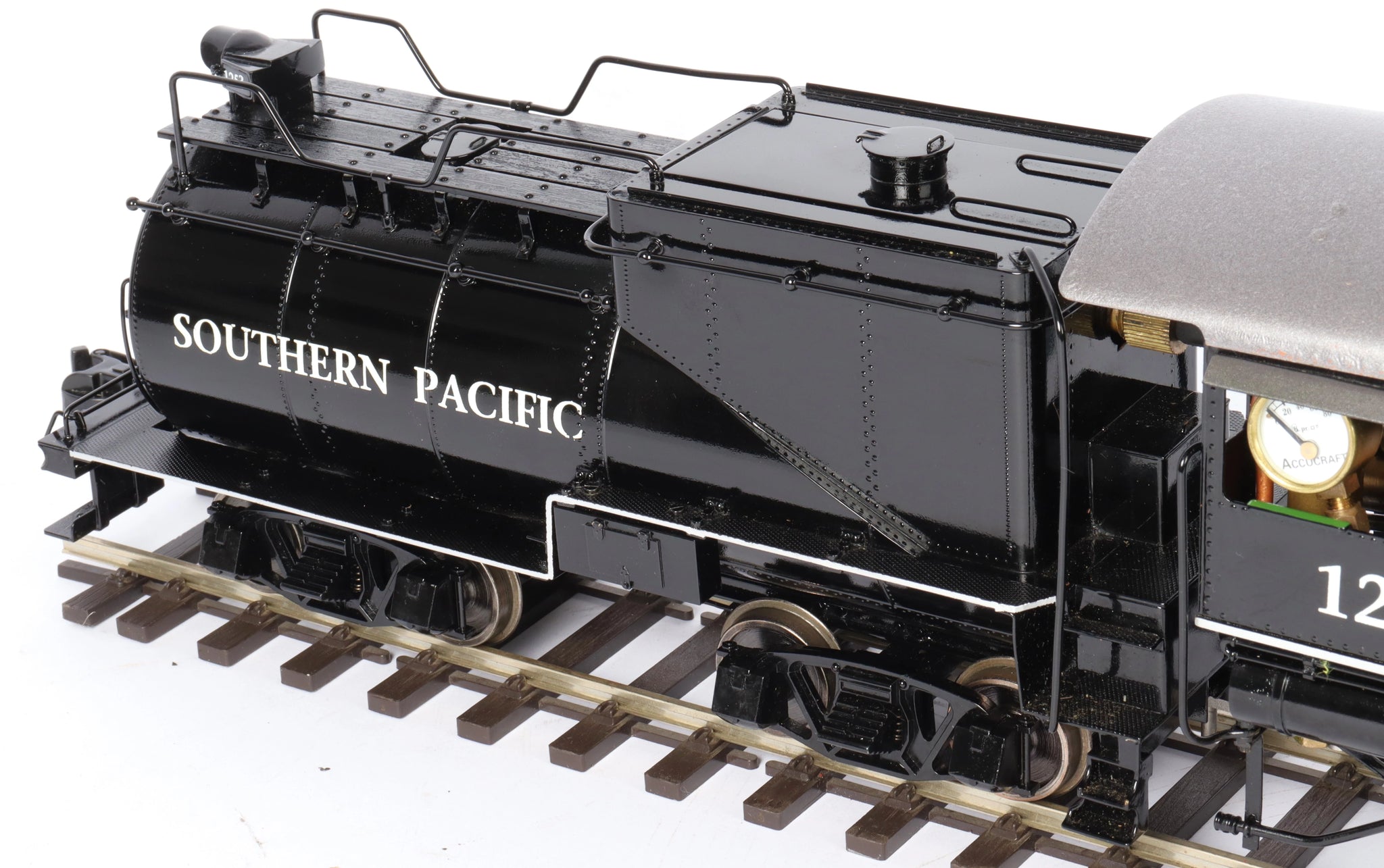

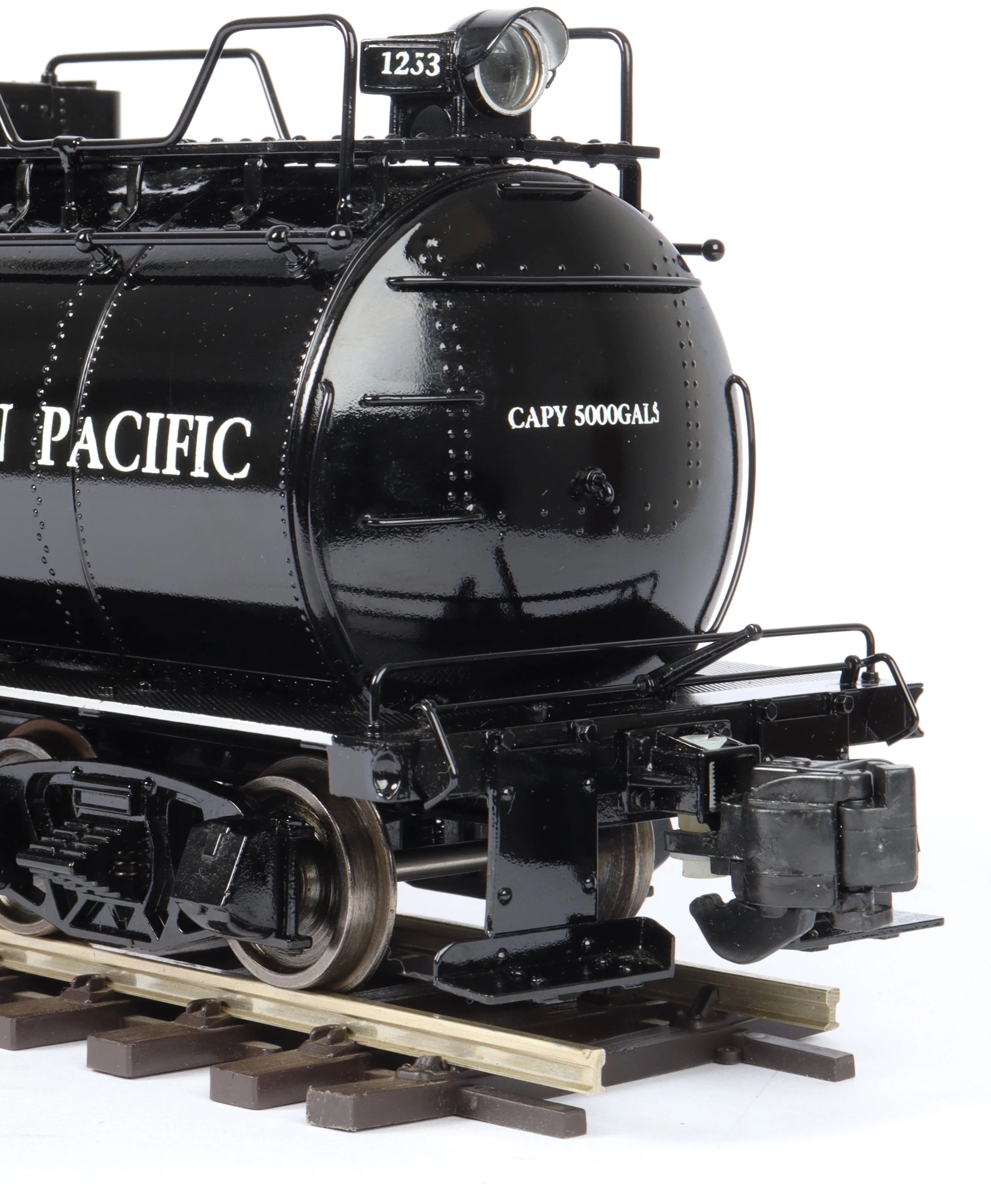

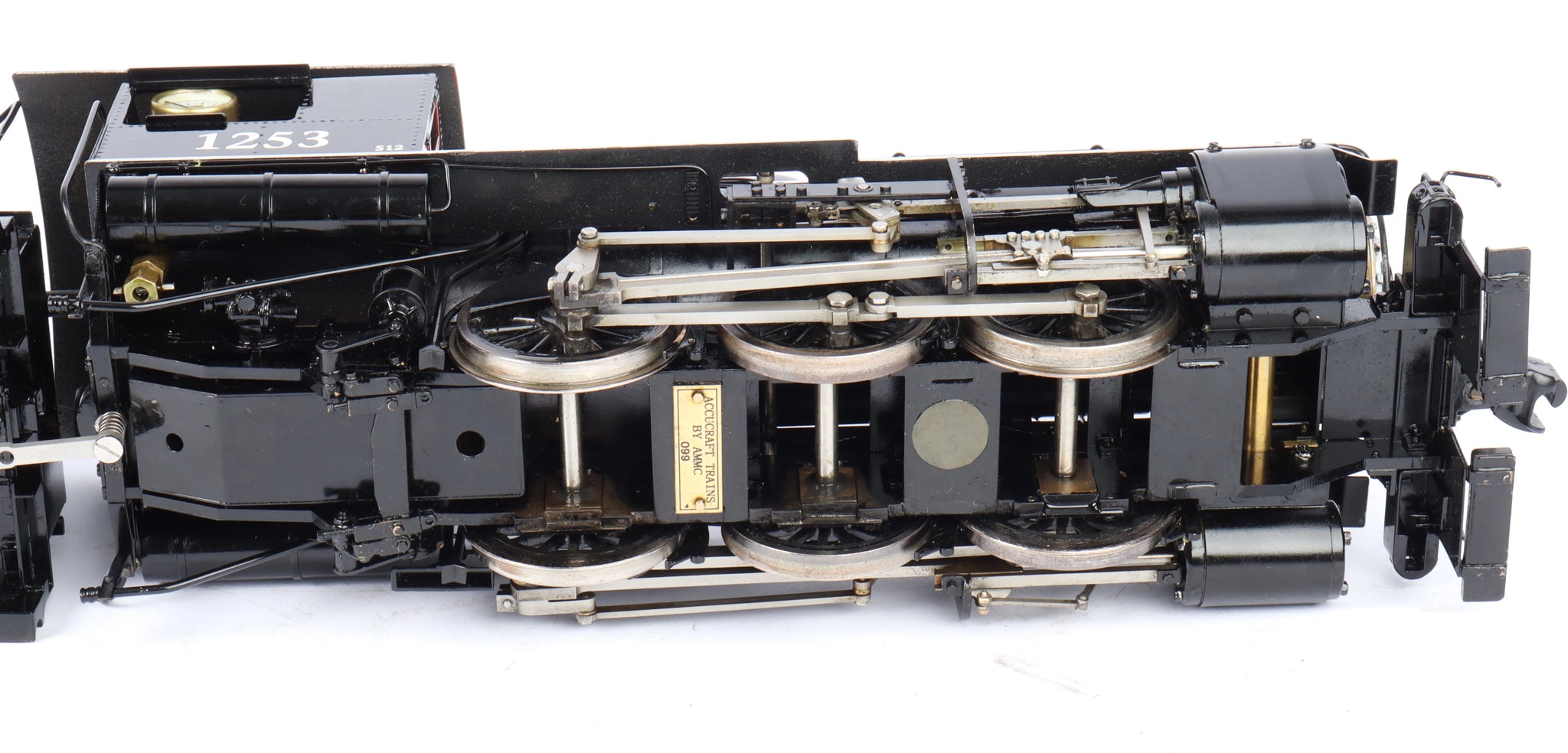

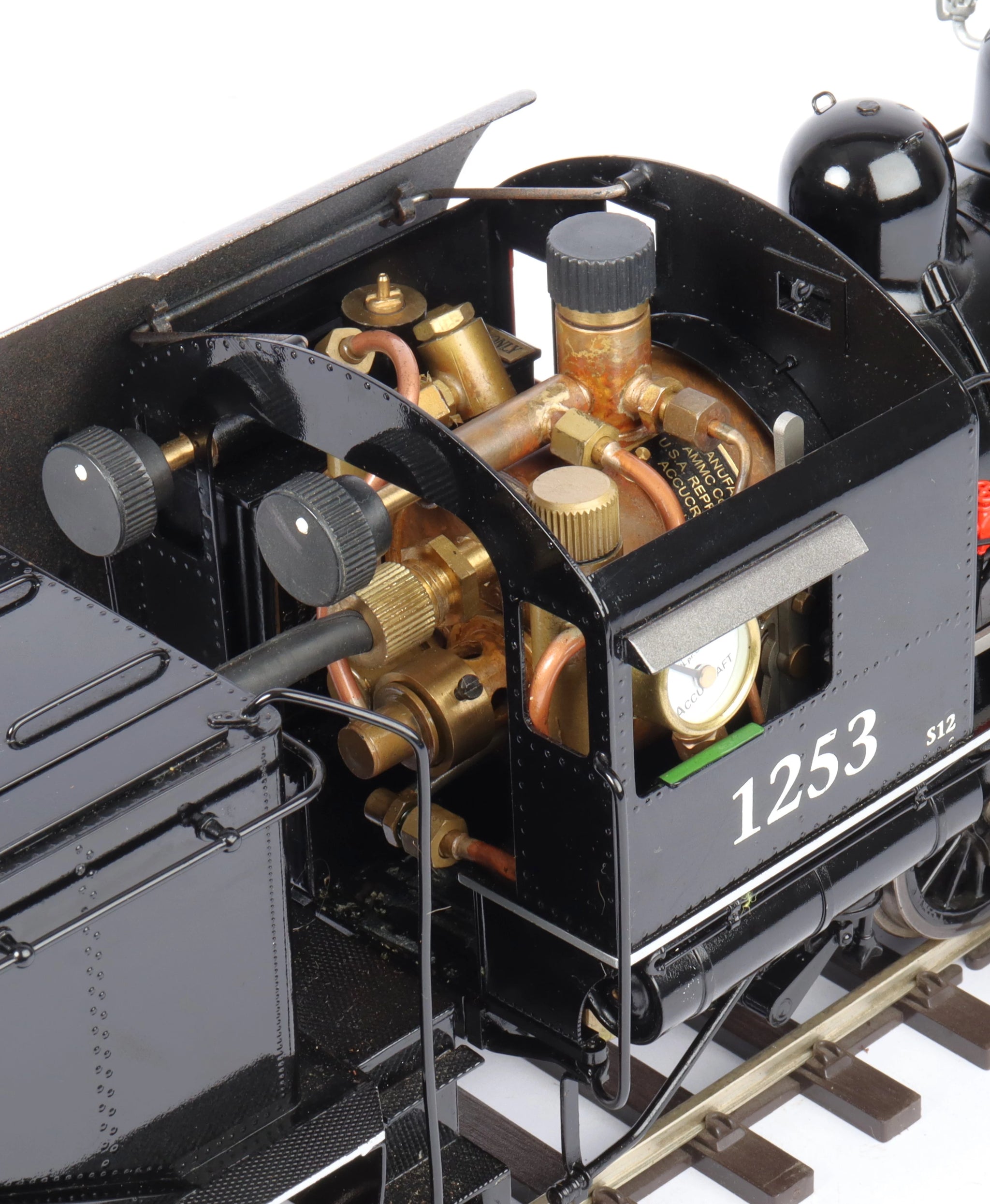

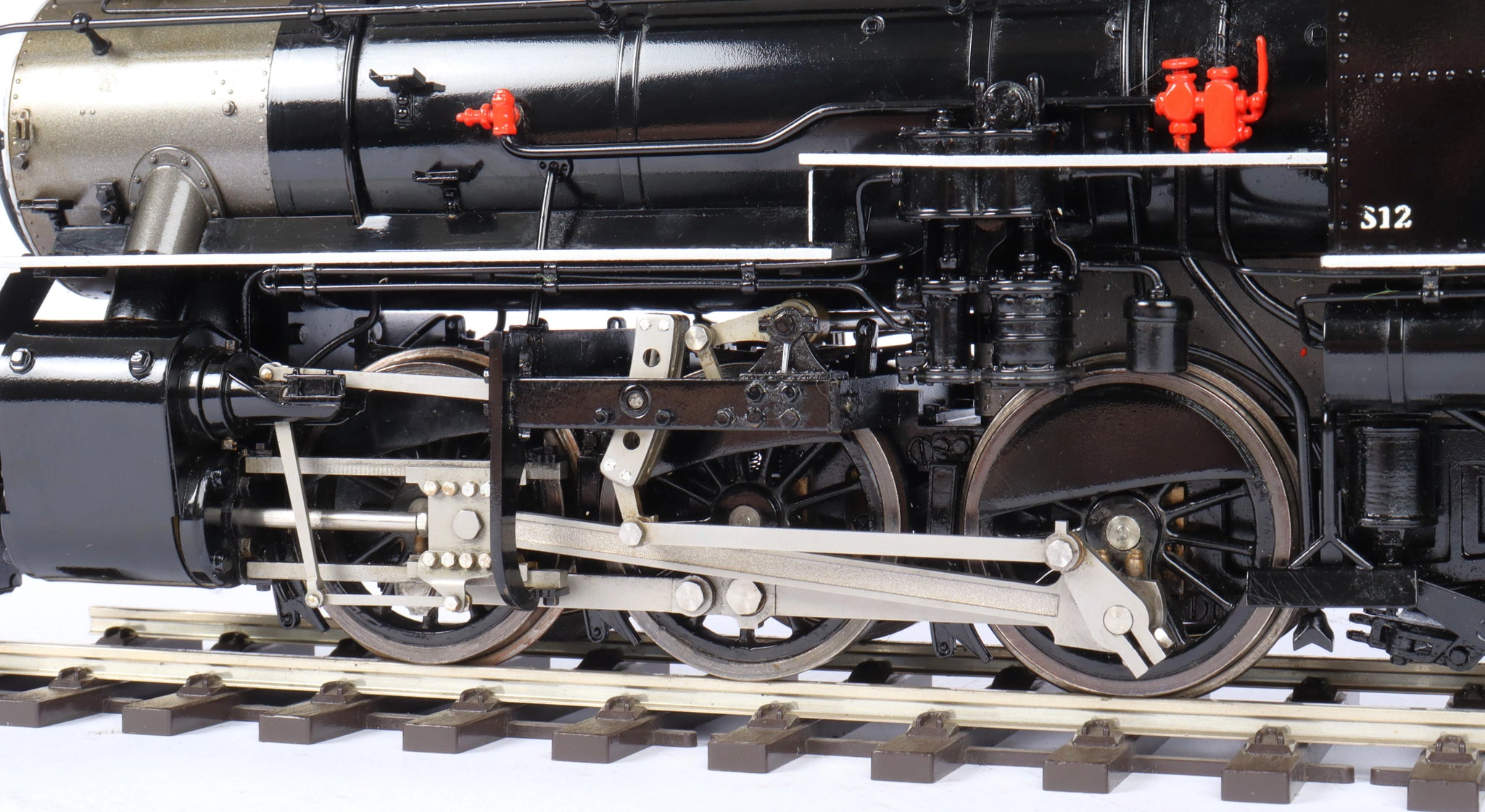

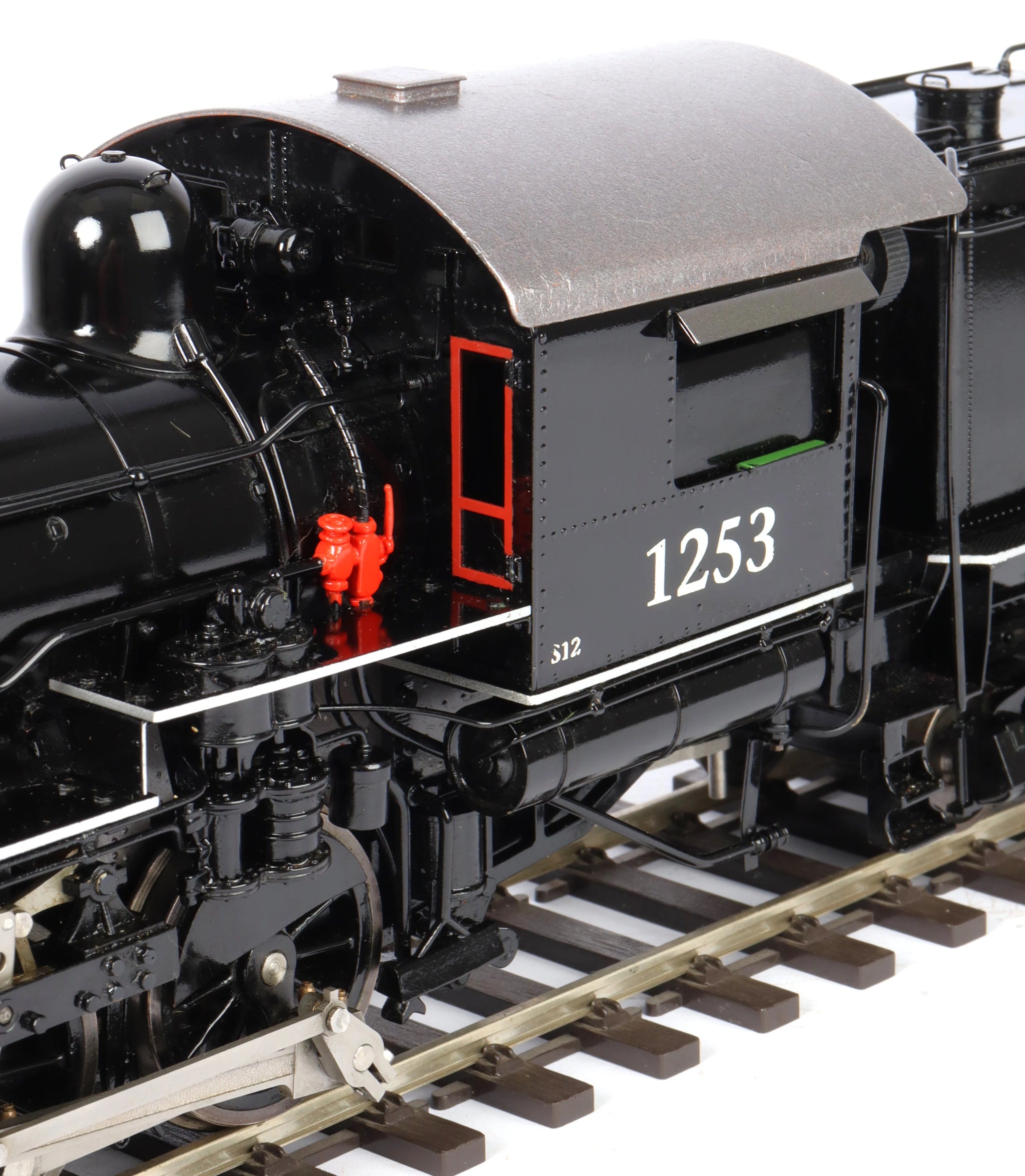

A 45mm gauge Southern Pacific S12 by Accucraft.
The third one of these we've had through, they're particularly good runners - this one is no exception, we've issued new hydraulic and steam test certificates.
The operating manual is available to view online on Accucraft's website.
Stock code |
13519 |
Length/inches |
13.5 + 11 |
Width/inches |
4 1/2 |
Height/inches |
5 |
Weight/Kg |
5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
brass |
Valve type |
piston |

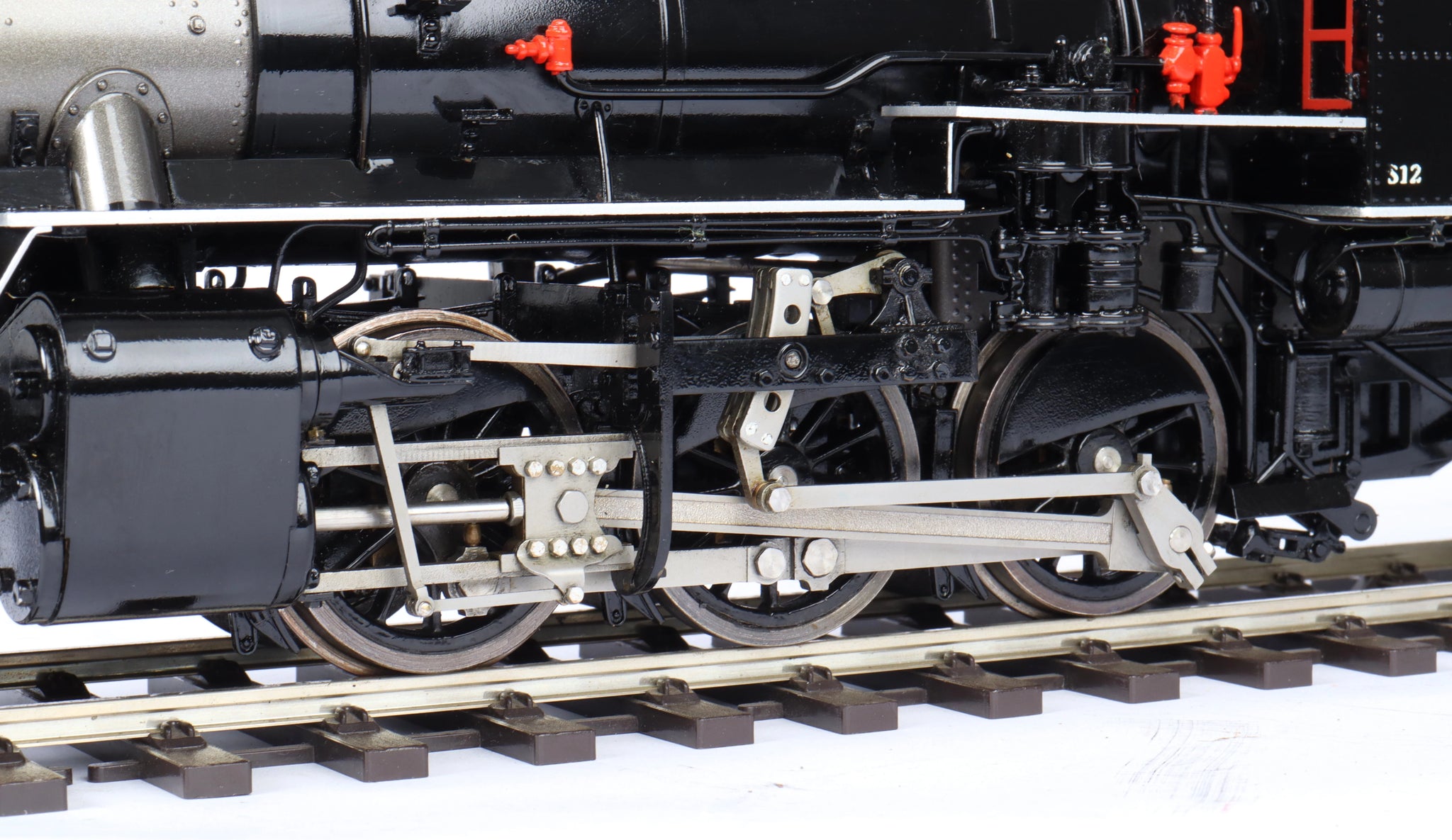

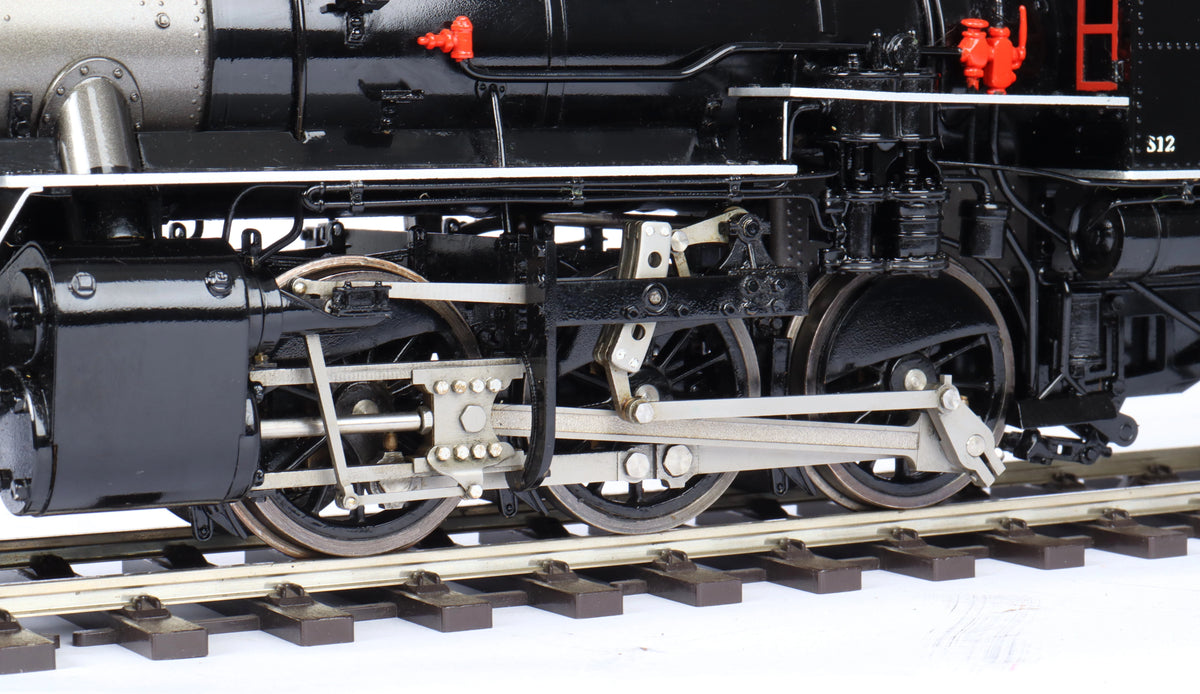

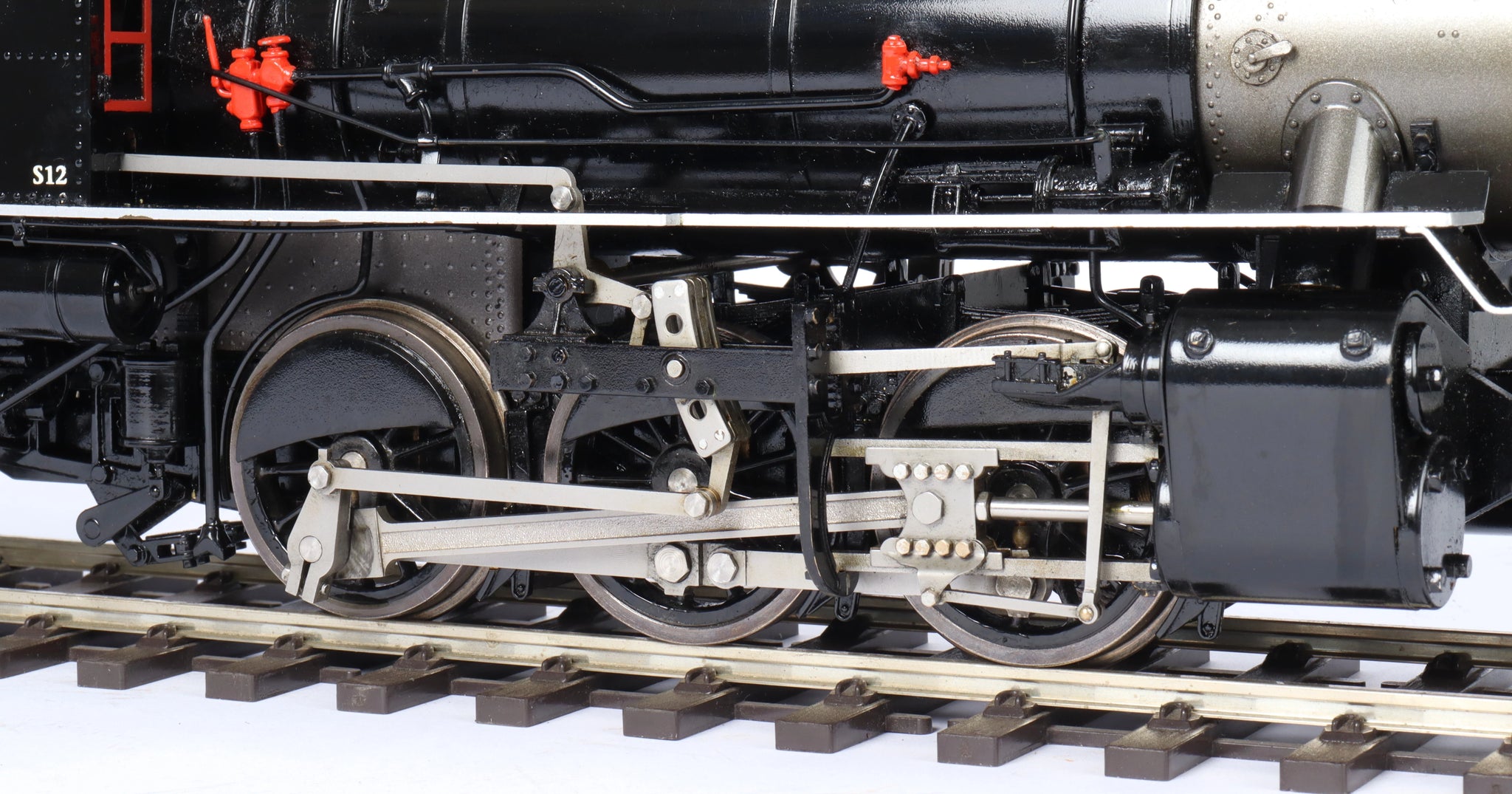

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Accucraft |
Boiler type |
single flue gas fired |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
60 |
CE/UKCA mark |
n/a - <2 litre capacity |
Boiler number |
AMMC:B060563 |
Safety valve type |
spring |
Safety valve |
1 |
Hydraulic test valid to |
n/a - <2 litre capacity |
Steam test valid to |
21-Dec-2027 |
