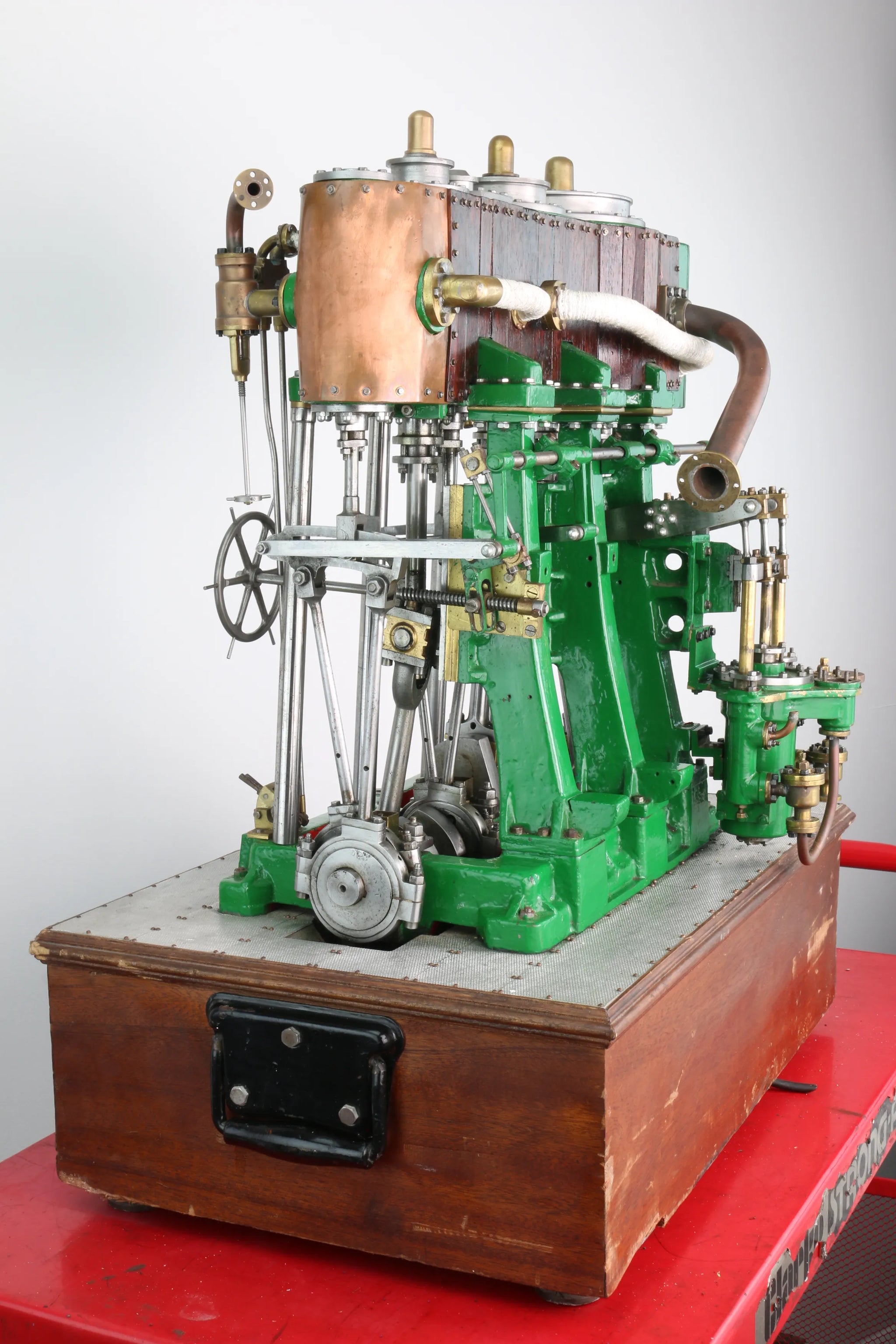

Large triple expansion engine

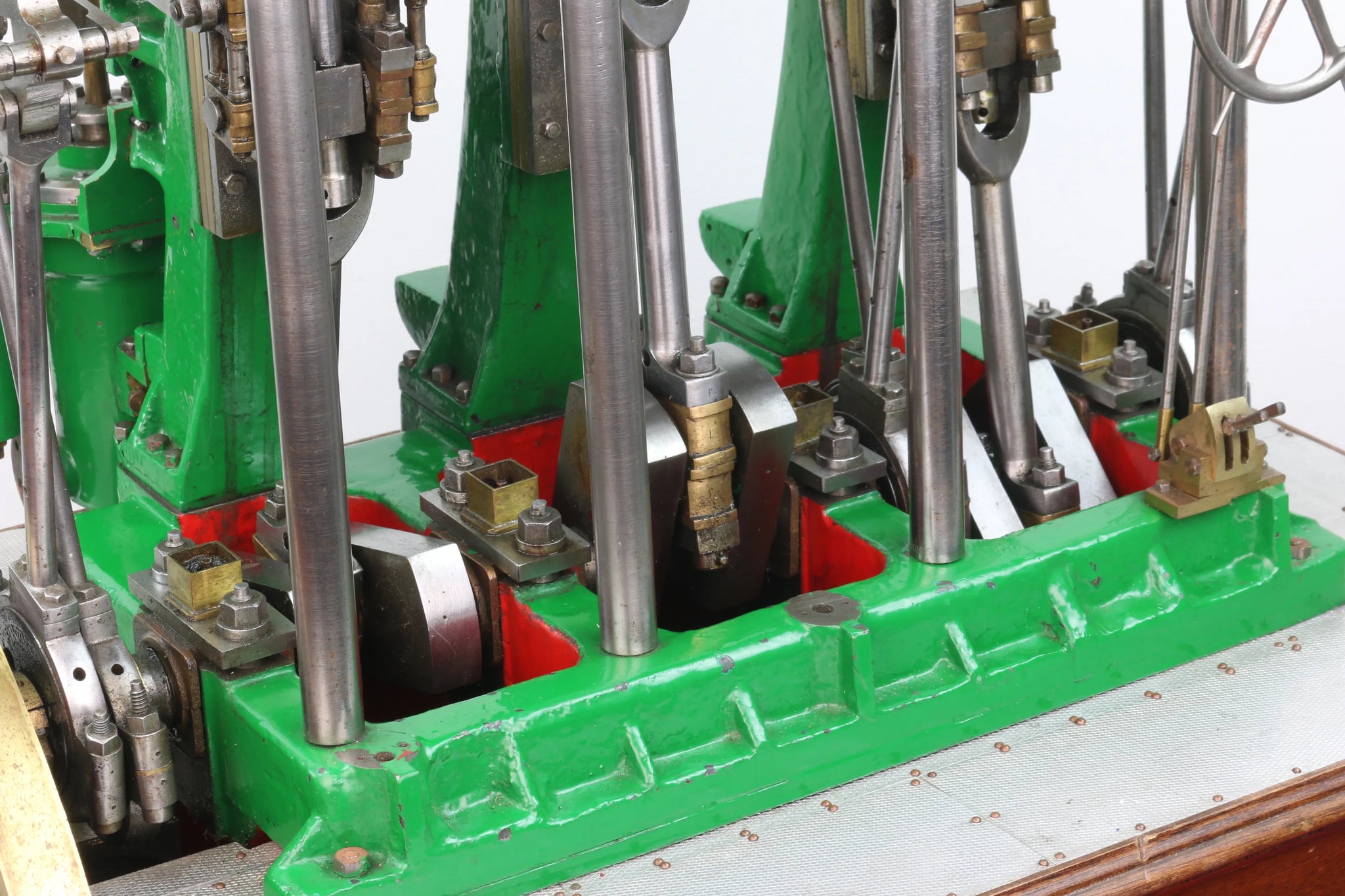

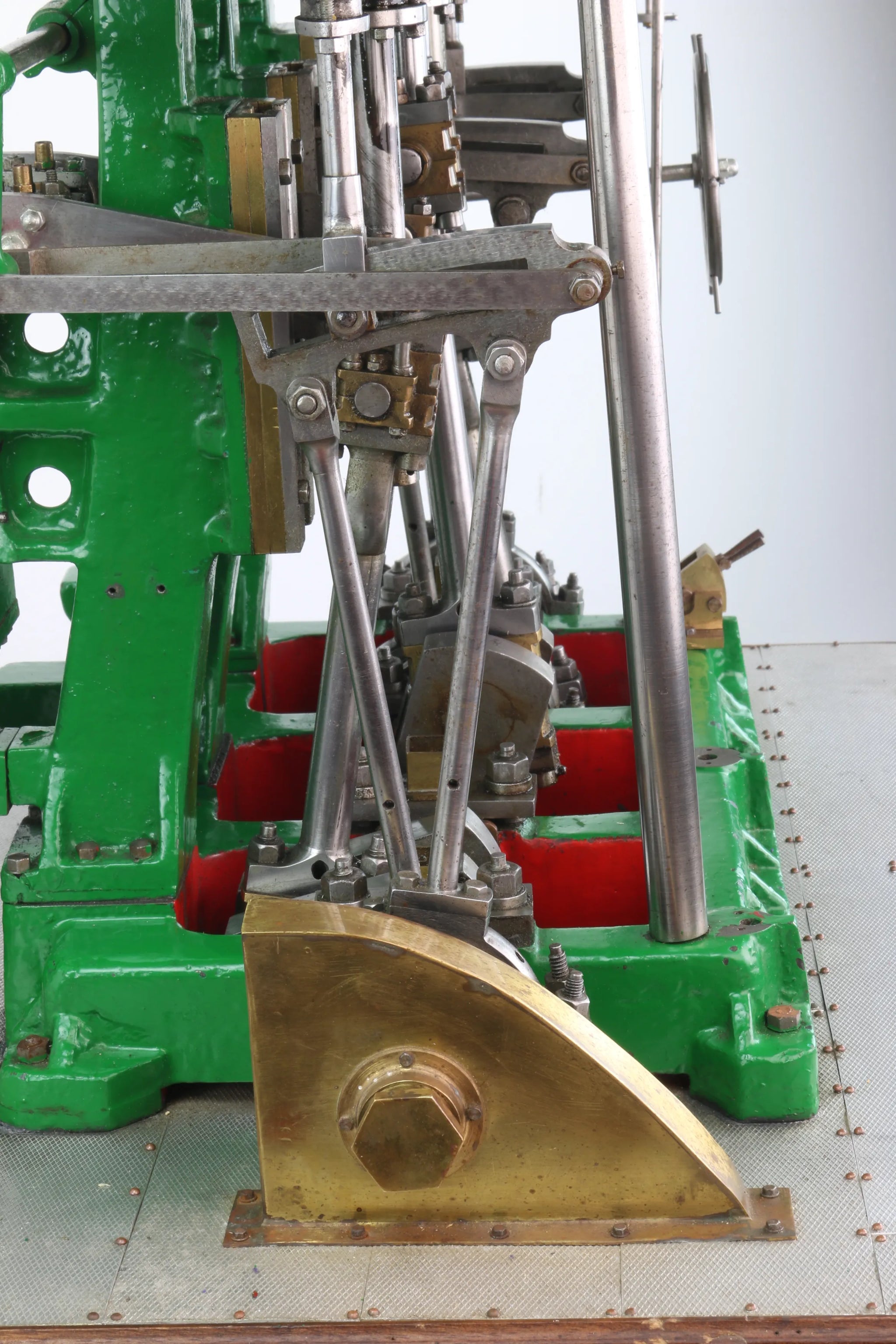

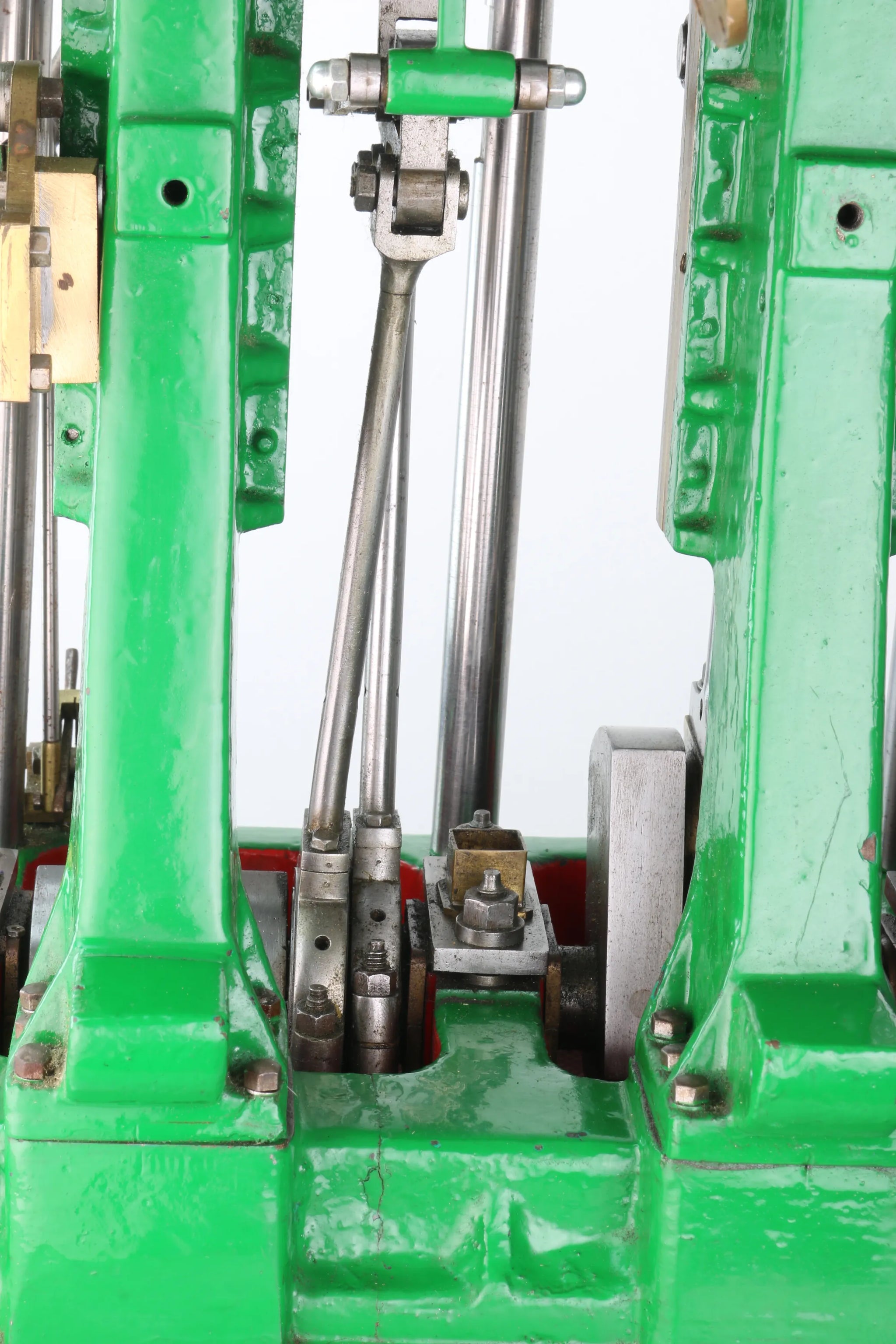

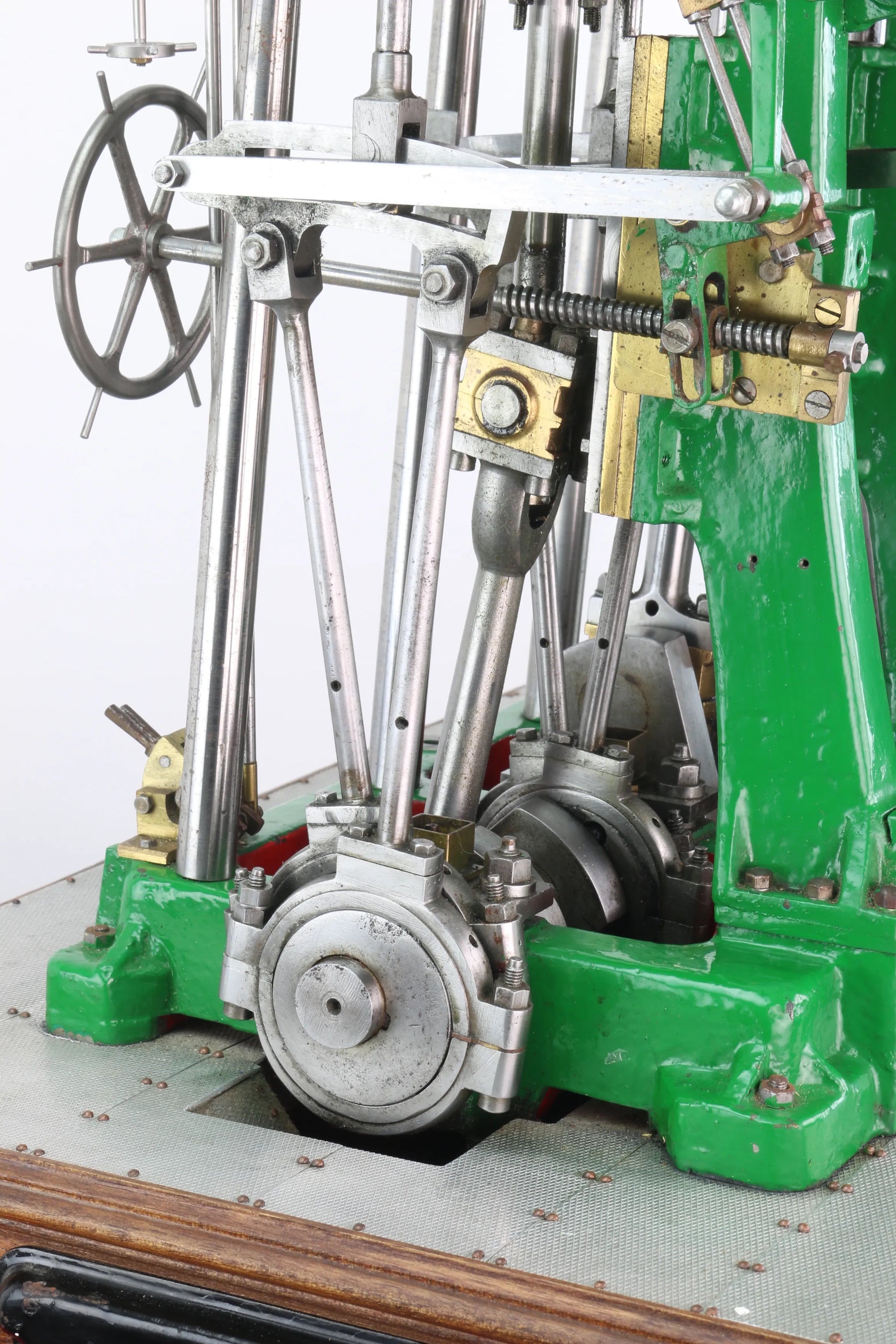

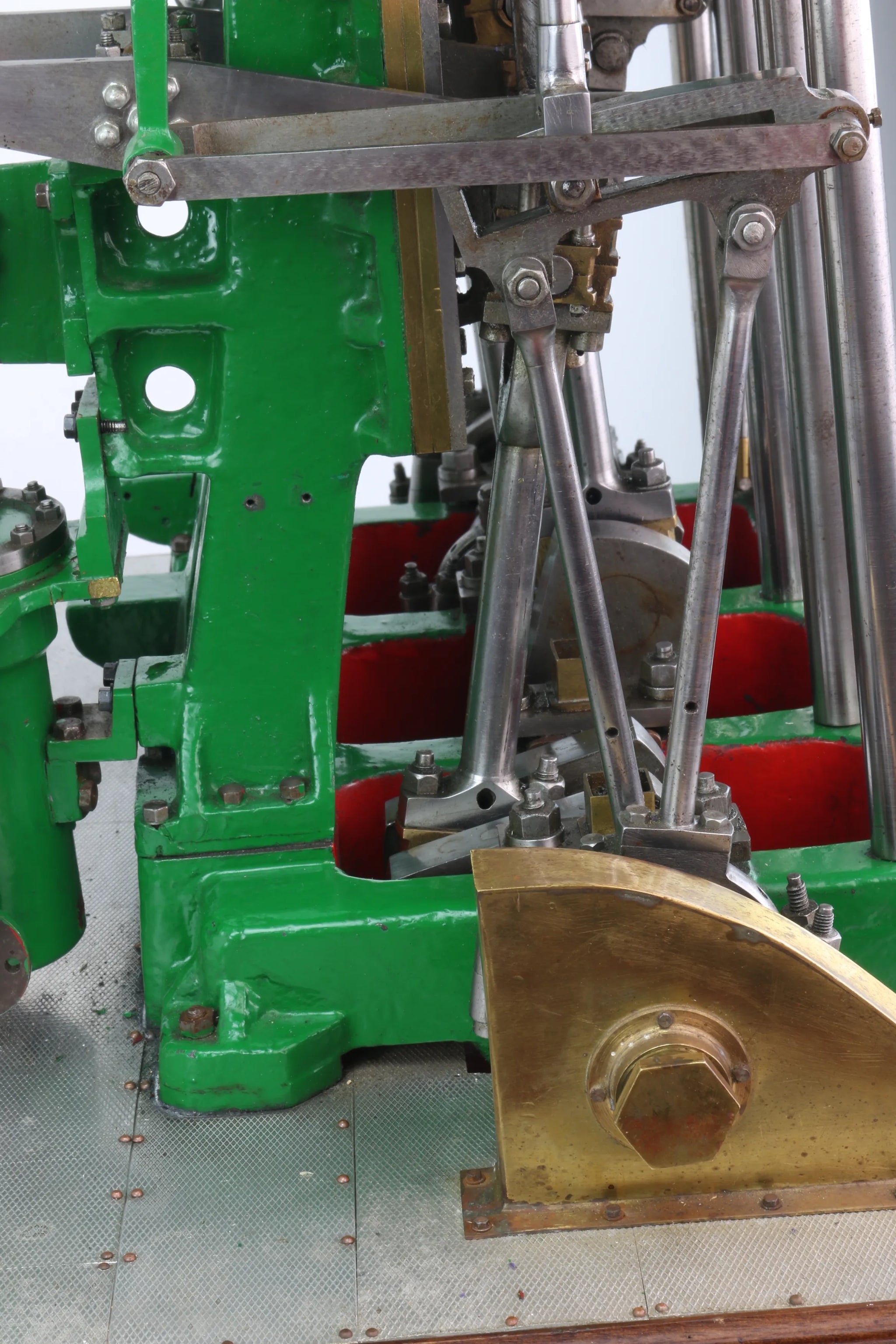

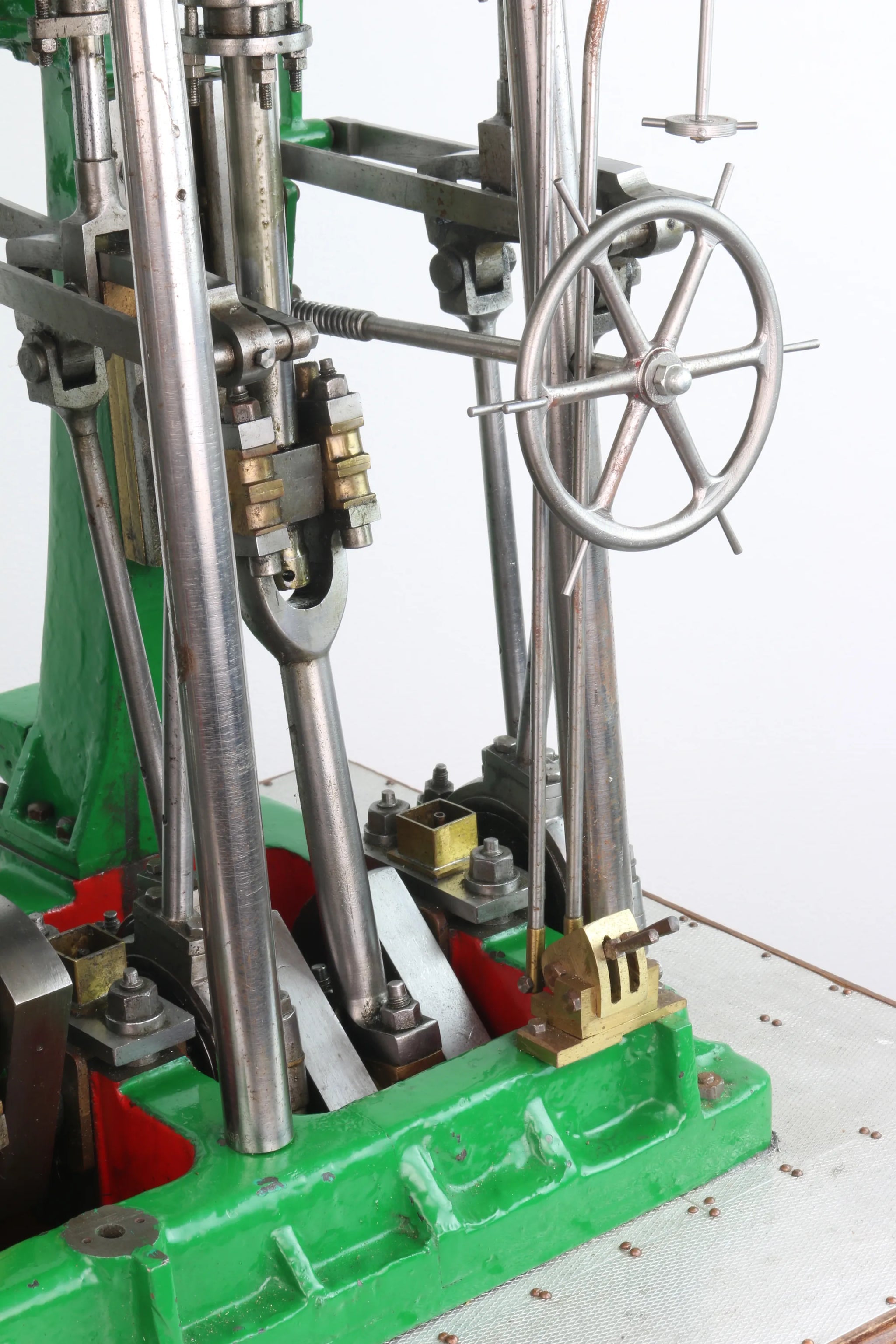

A large model triple expansion engine, an older model which at some stage has been electrically driven by a motor in the base chain-driving the crankshaft. It turns over somewhat stiffly although without obvious tight spots - we suspect it hasn't been run on steam in years, the electric drive is no longer operational although would appear to be largely intact.

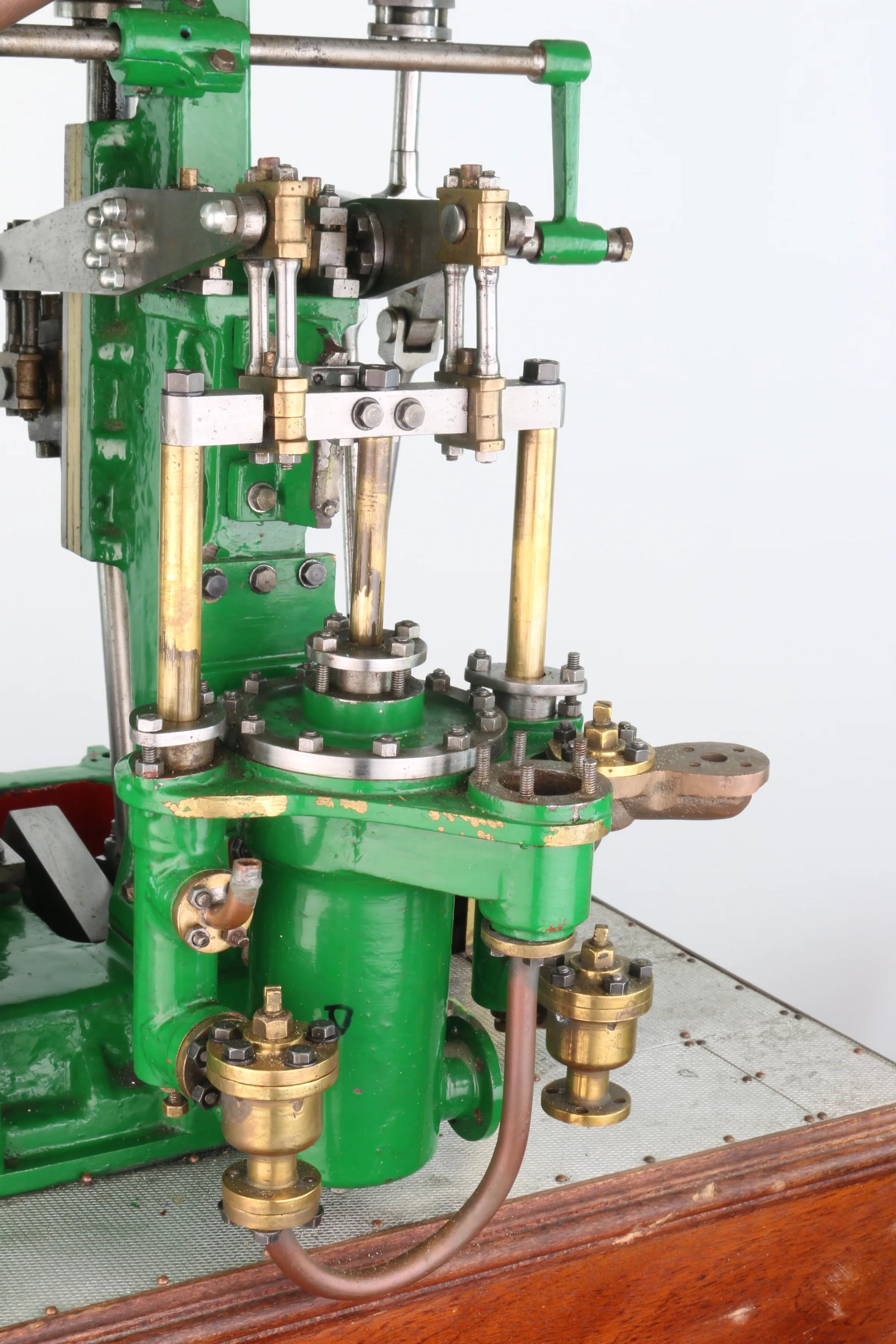

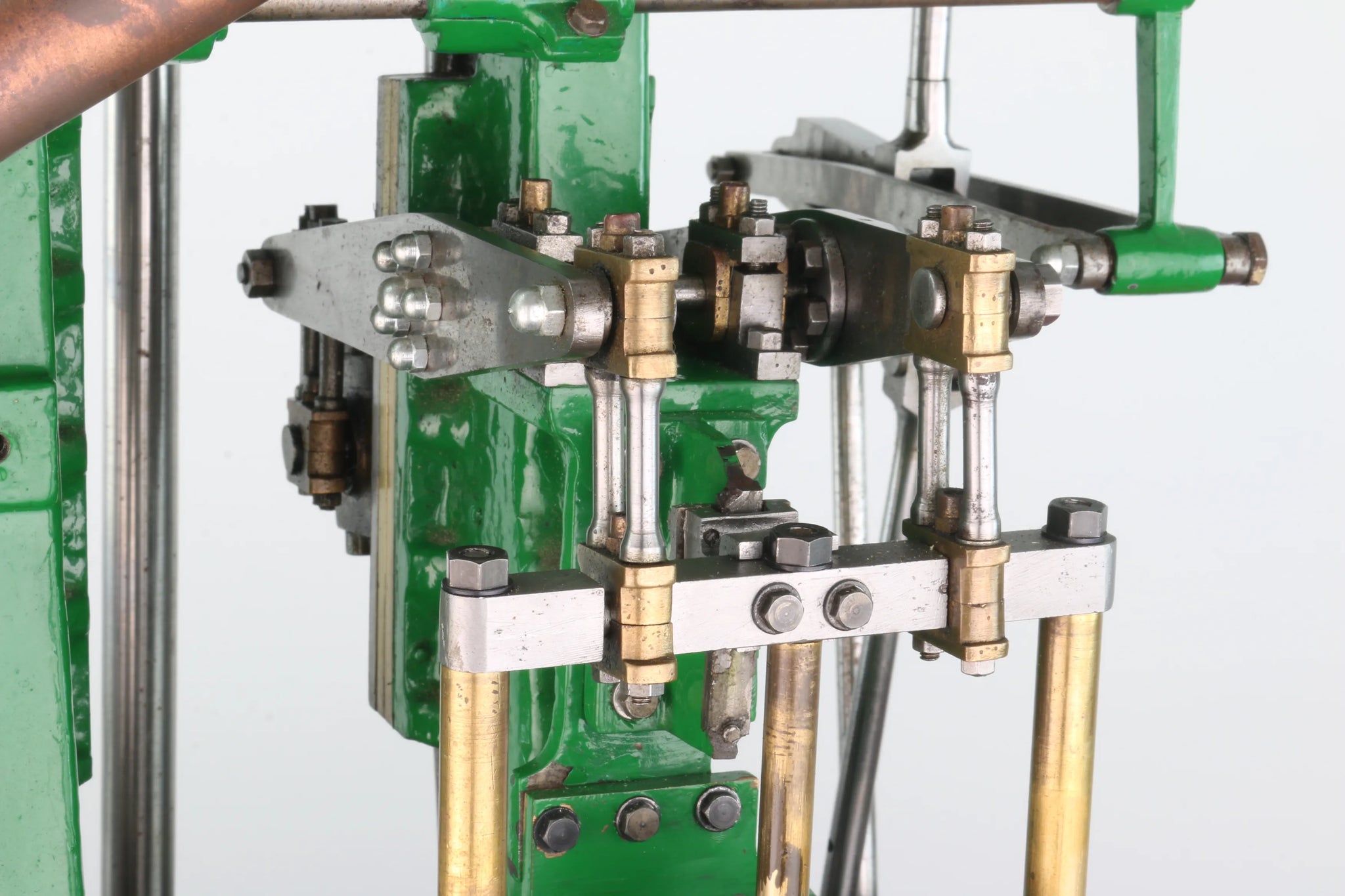

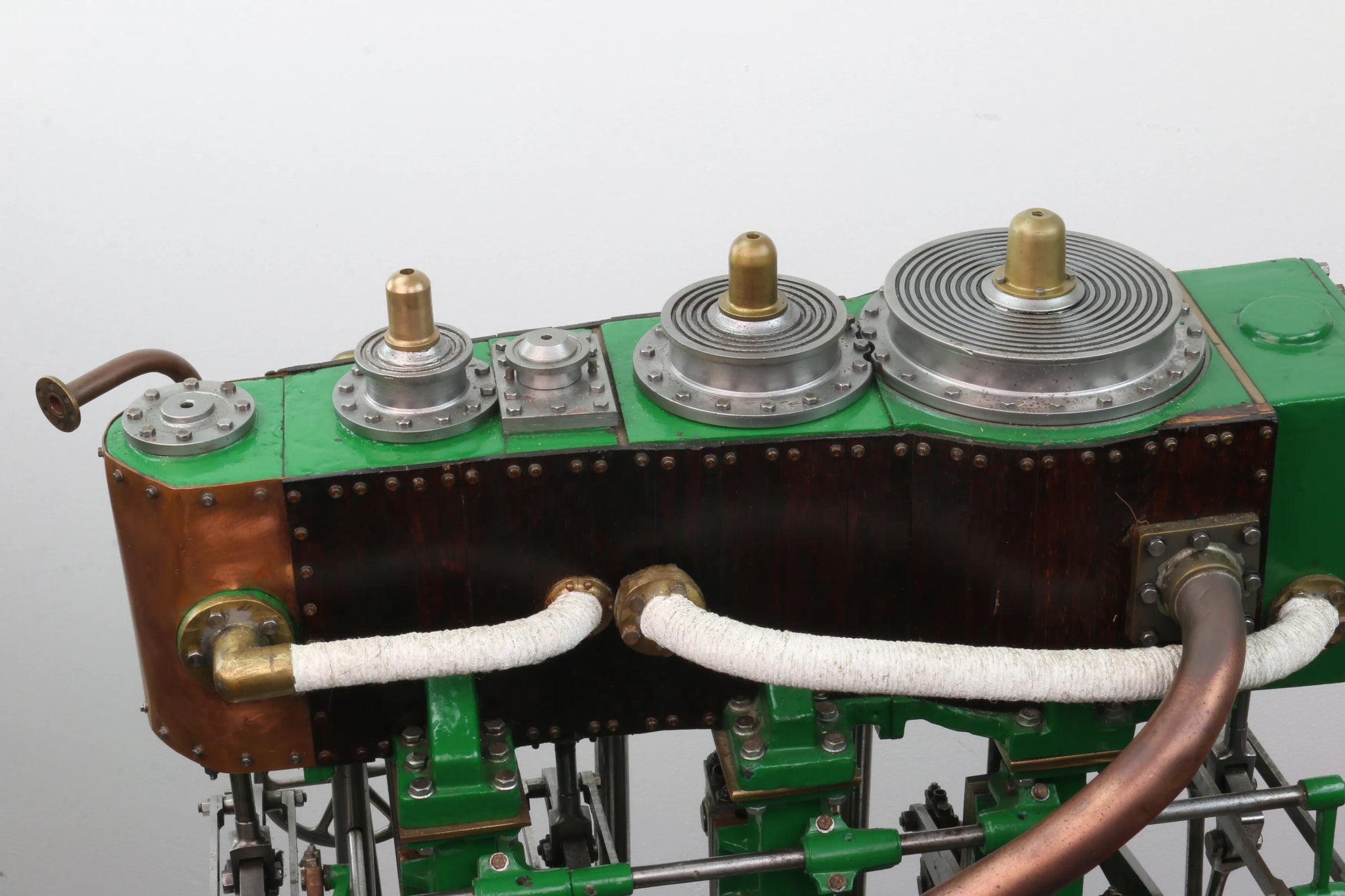

High pressure cylinder is fitted with a piston valve, slide valve for the other two cylinders with individual simpling valves taken from the main steam inlet. The engine is fitted with a condenser pump.



Unusual at this size, it would be a worthwhile project to recommission - stripped and repainted it would make a handsome, well-detailed engine.




Technical information

Stock code

7766

Length/inches

23

Width/inches

16

Height/inches

27 including base

Weight/Kg

75

Cylinder material

cast iron

Valve type

HP PV, 2 x LP SV

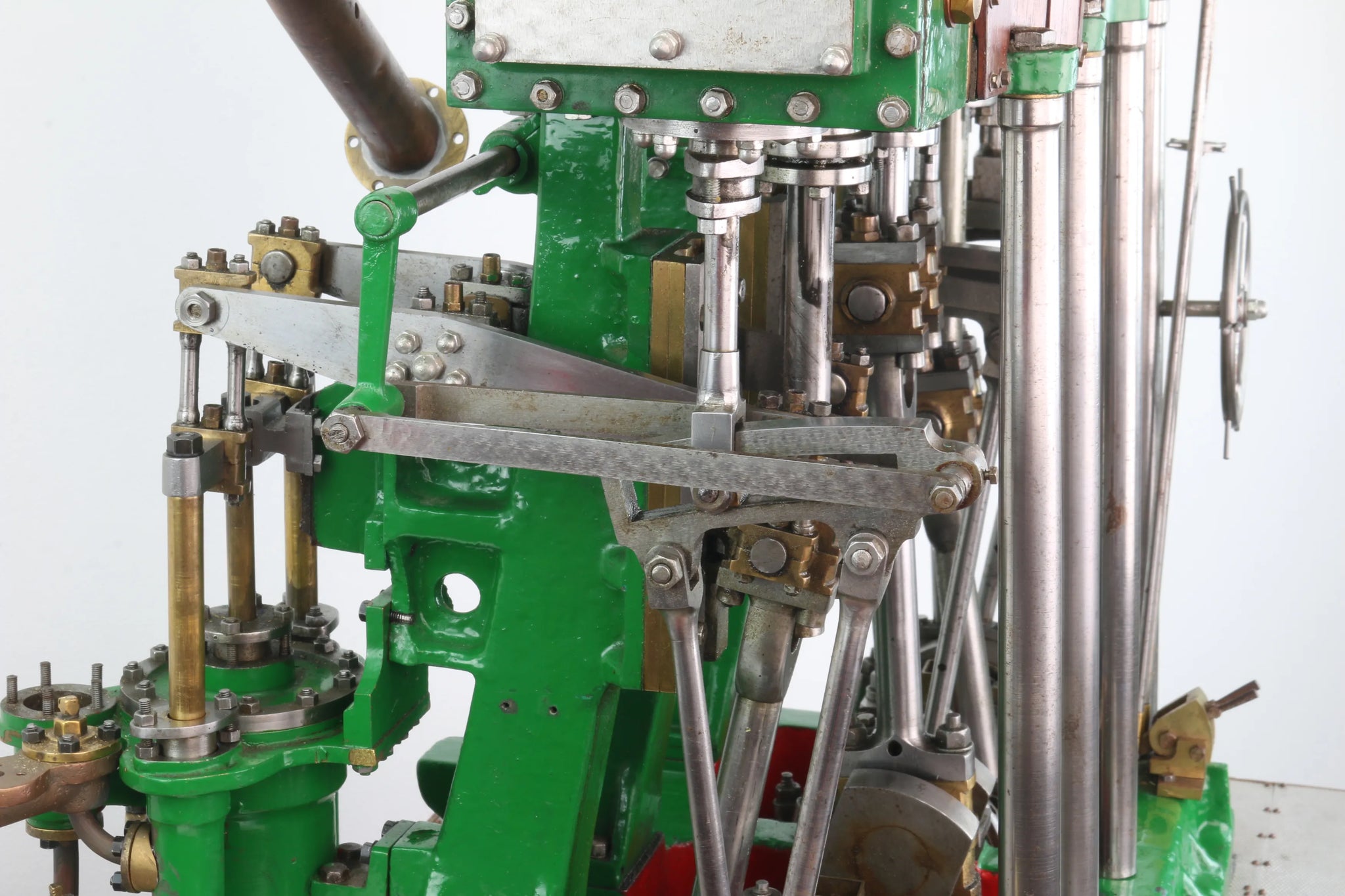

Valve gear

Stephensons

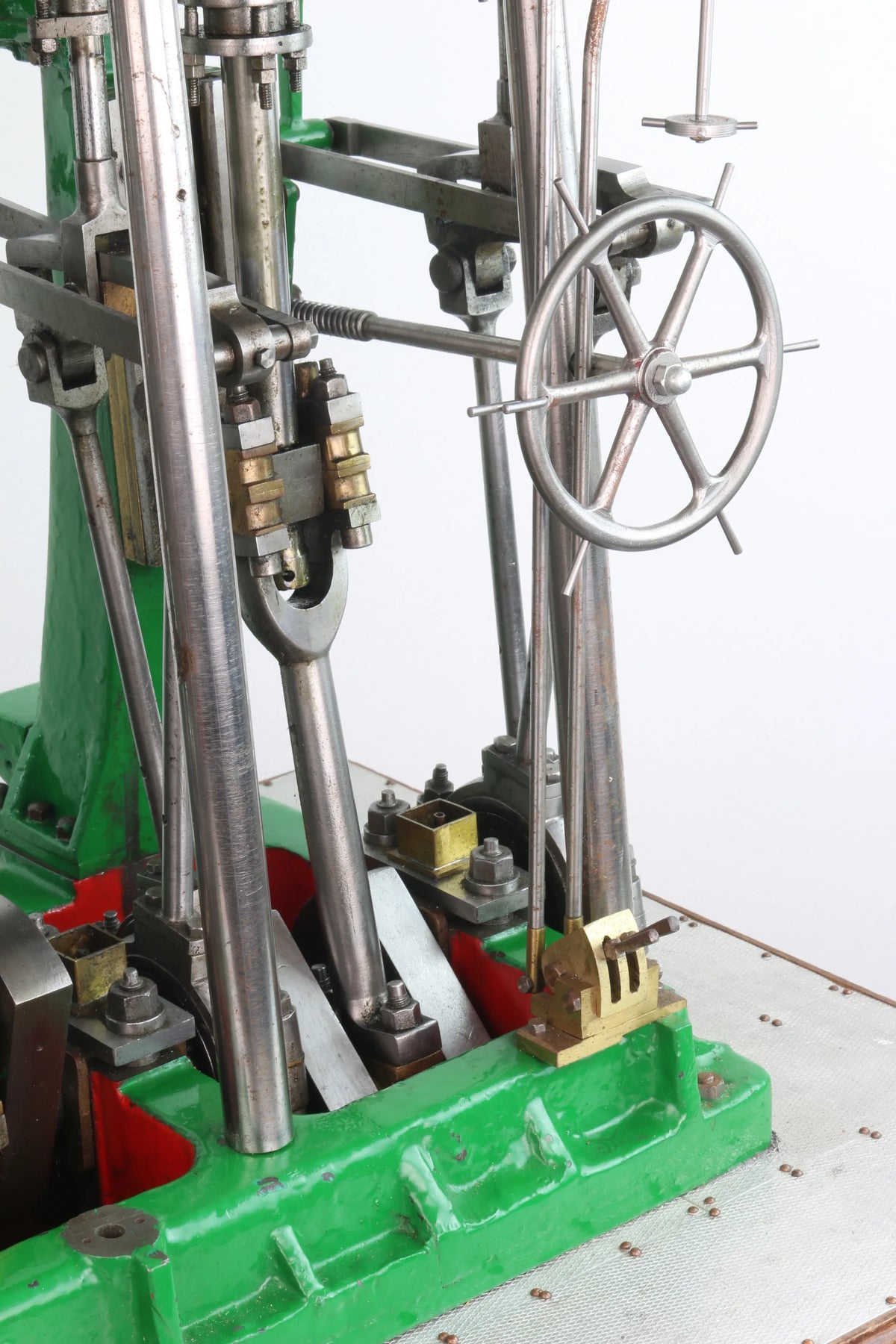

Reverser type

screw

Pack

Single half pallet

Date out

Feb-18
