13071

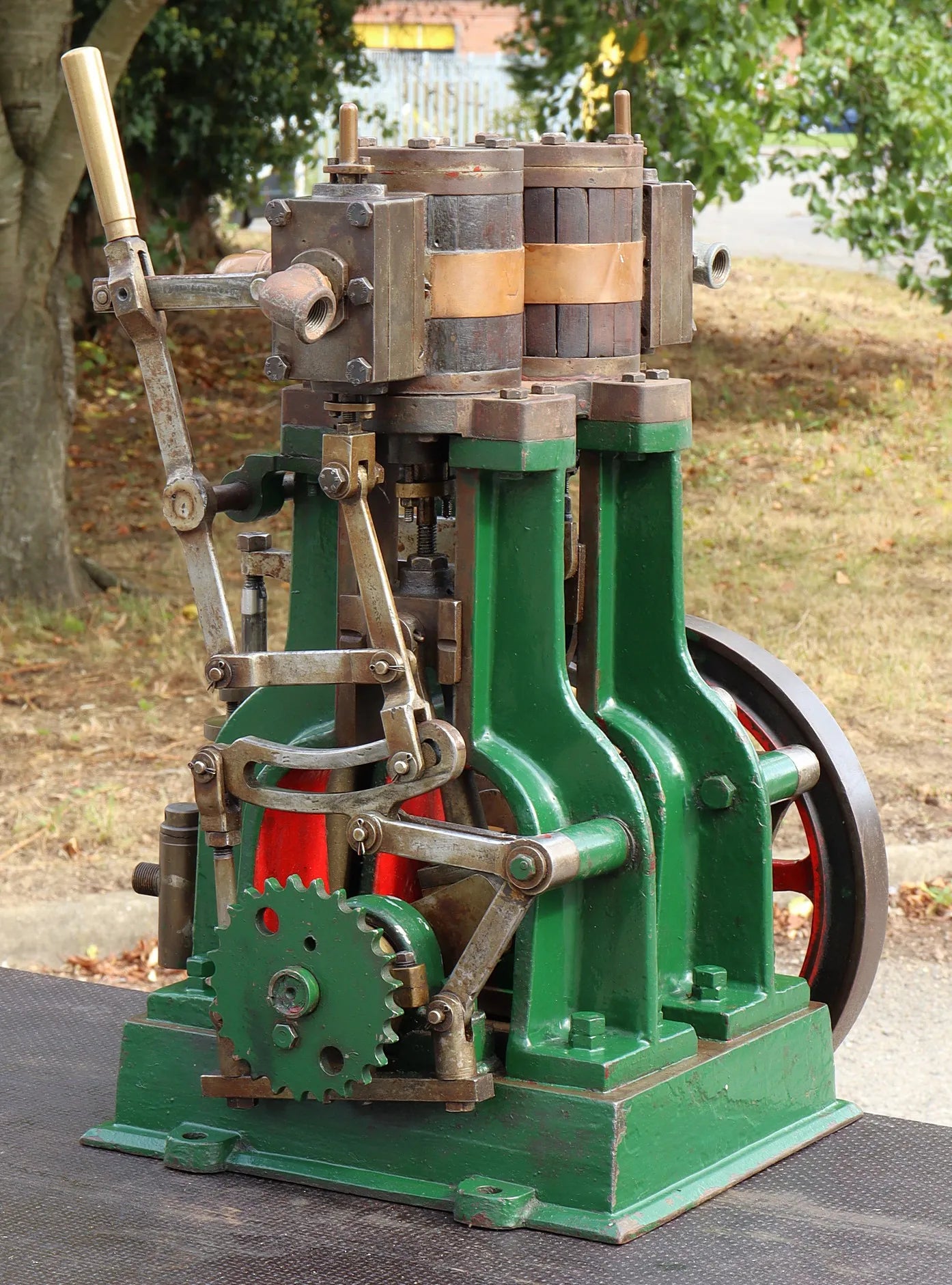

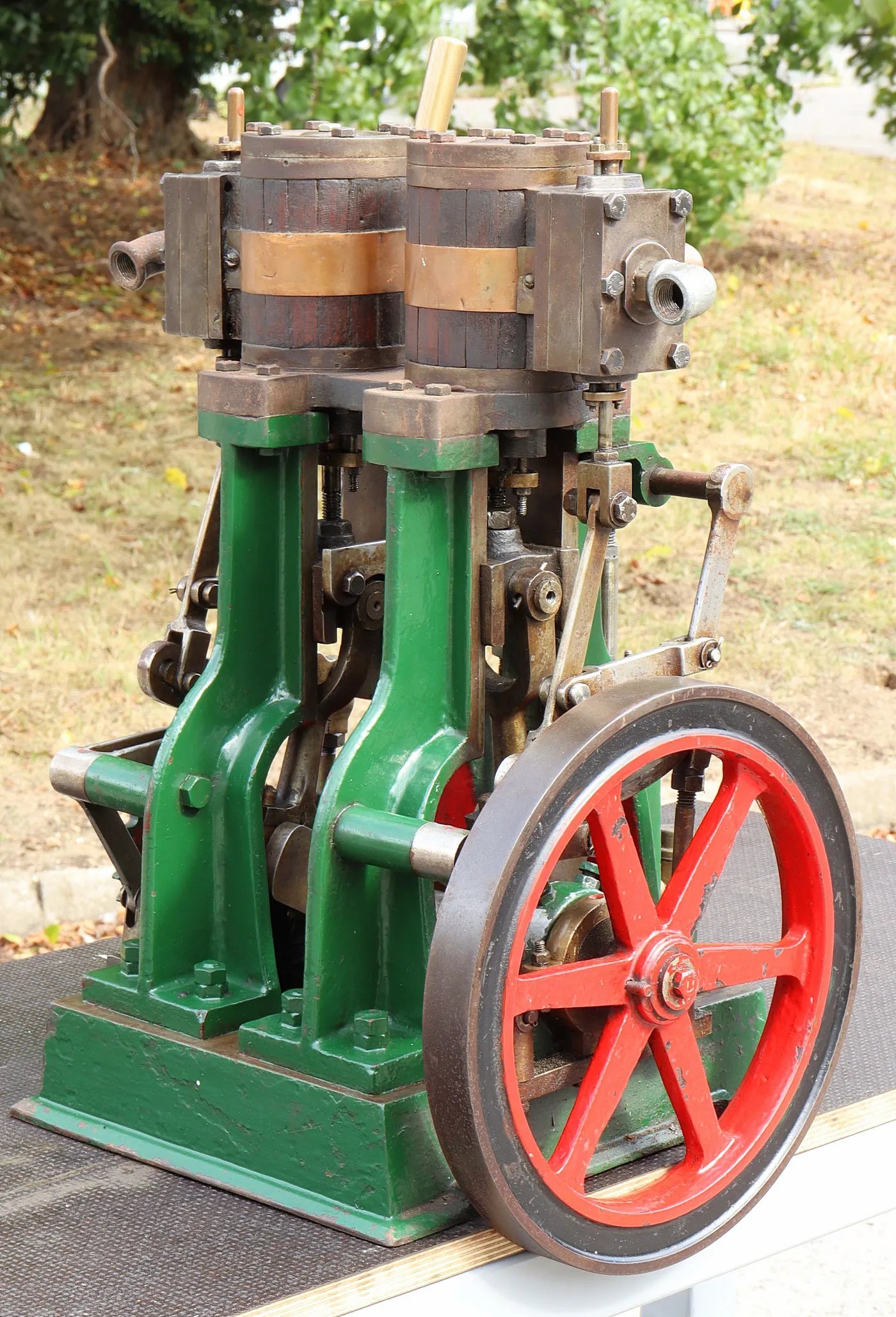

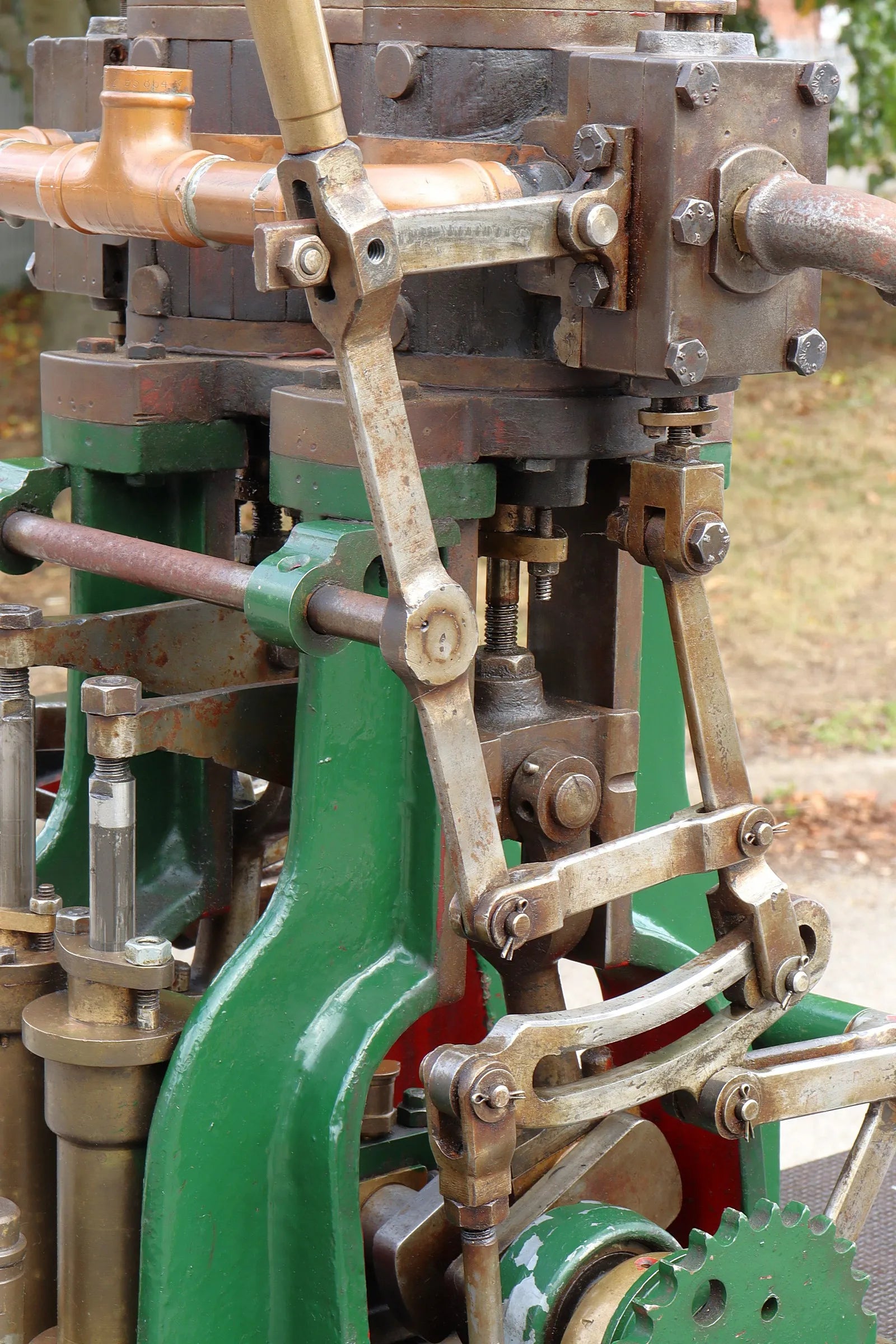

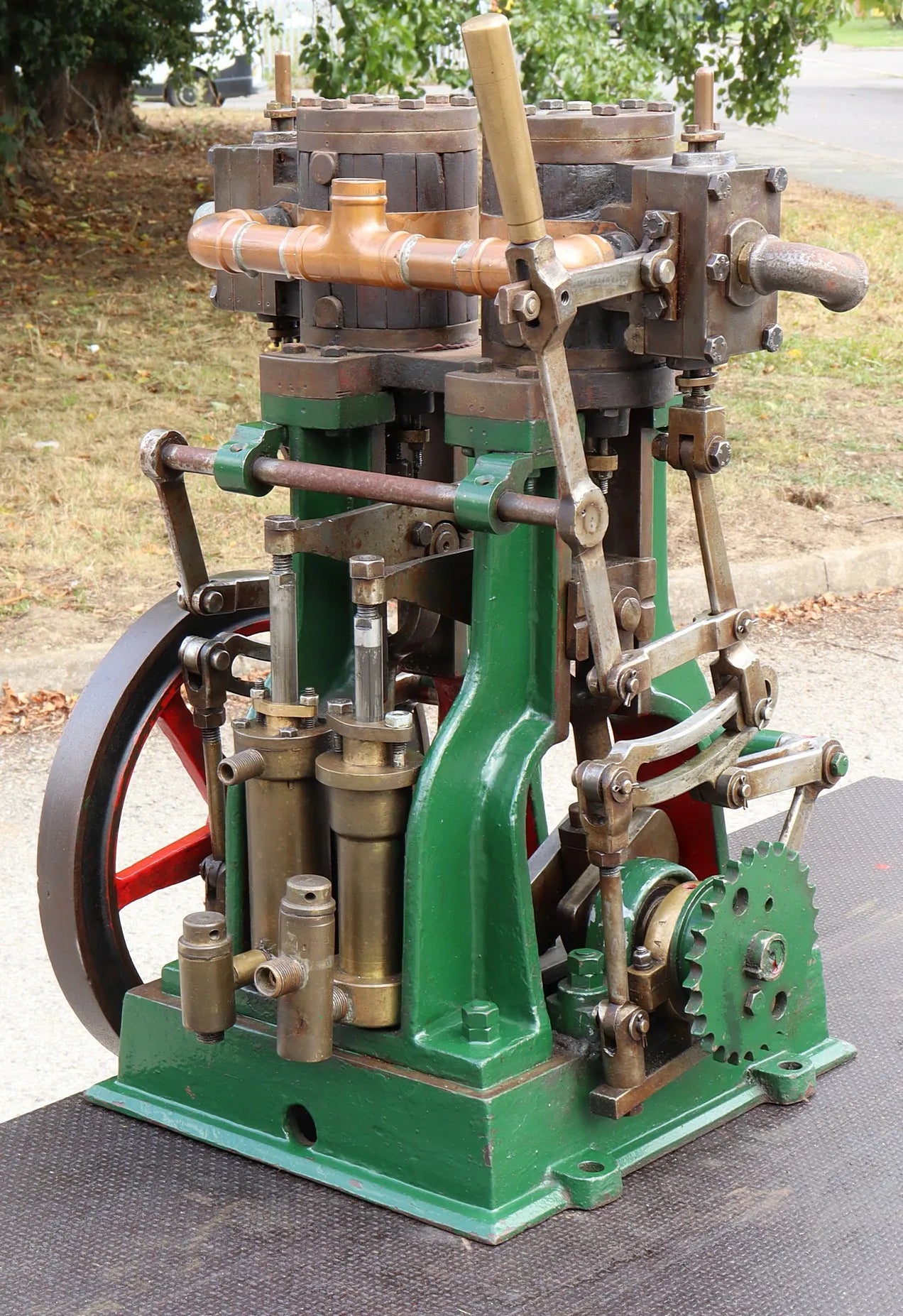

It runs well on air in either direction, feeling like it would do a serious job of work on steam - we could see this one in a large, narrow gauge vertical boiler locomotive!

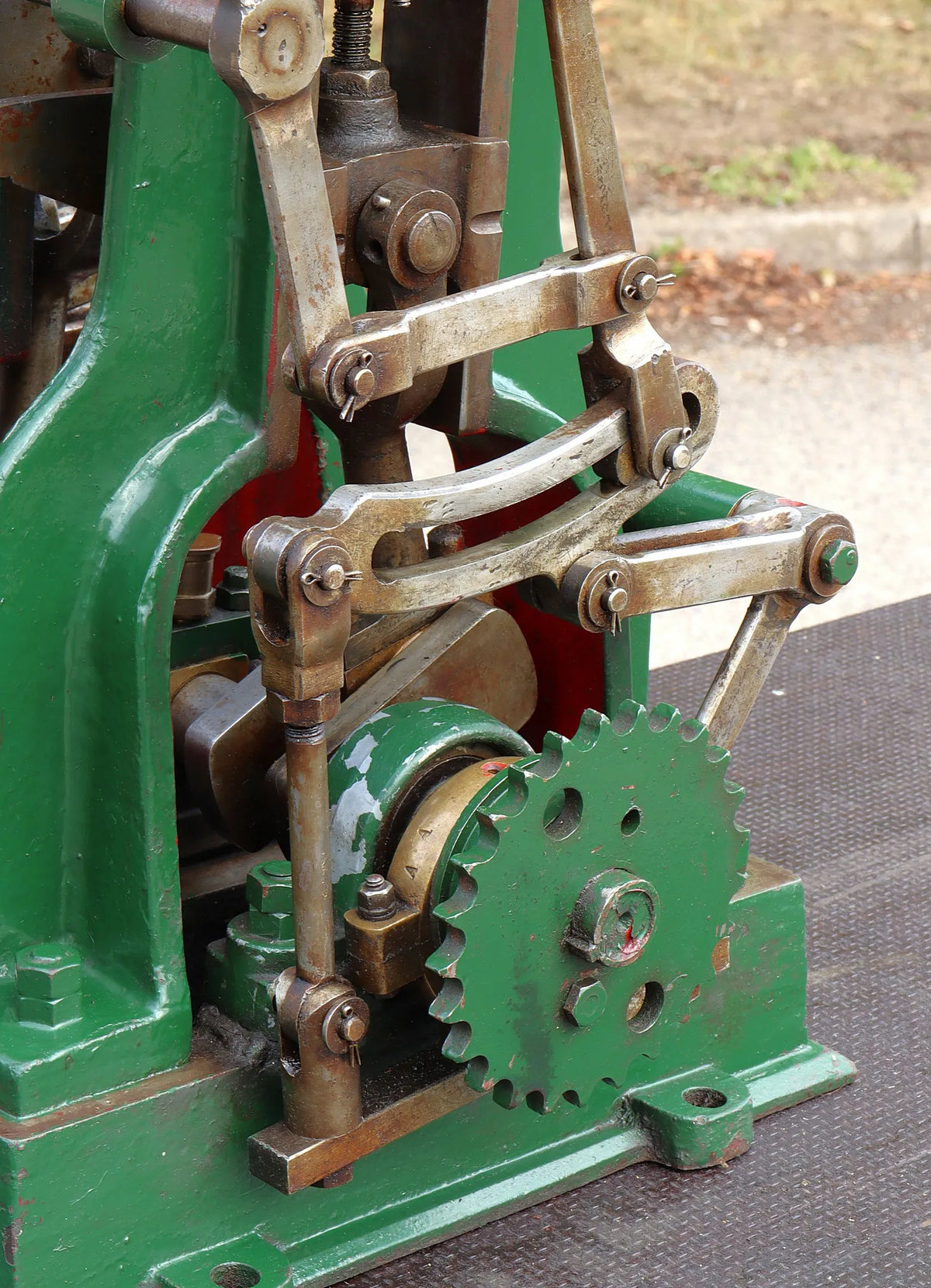

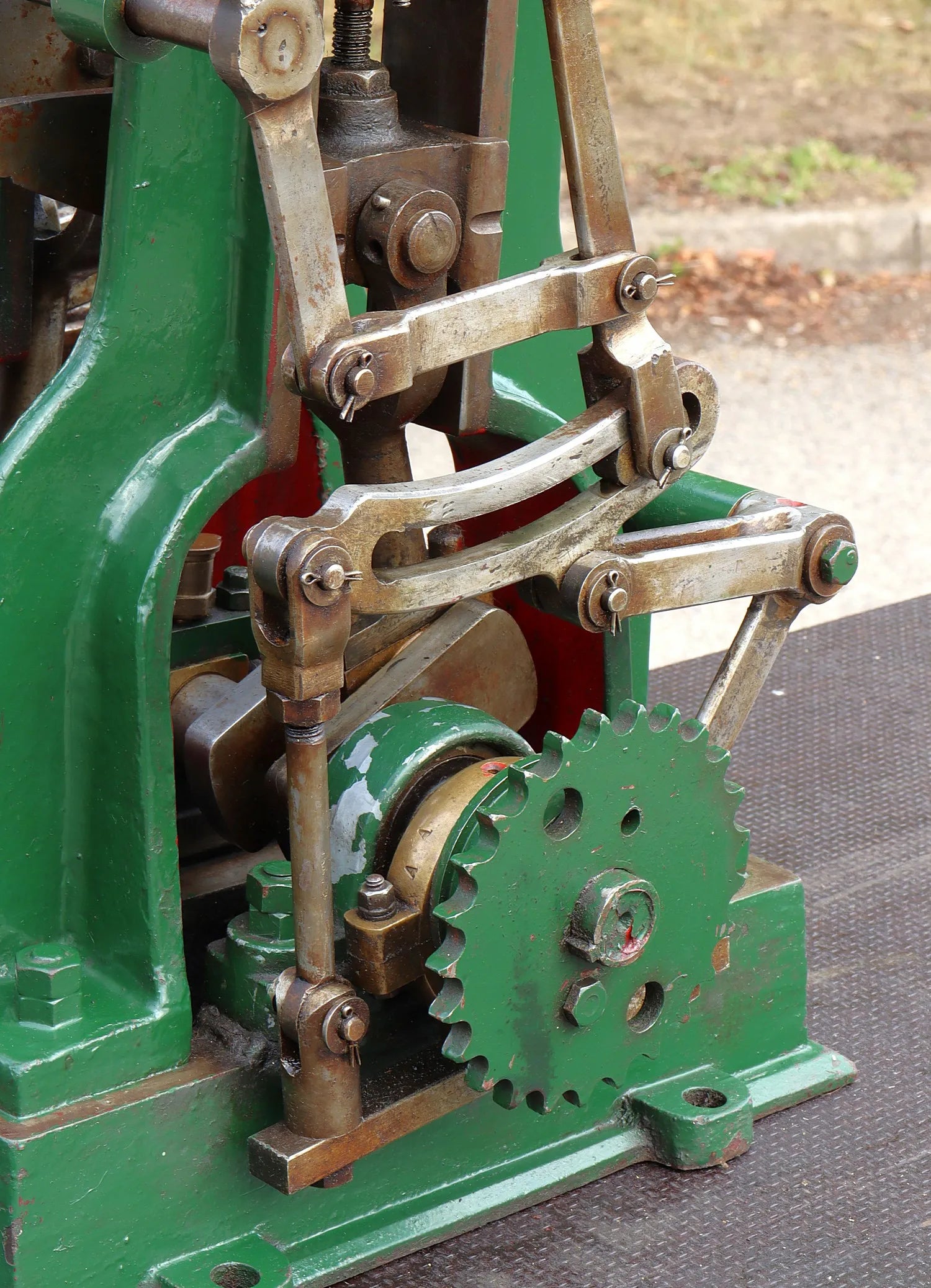

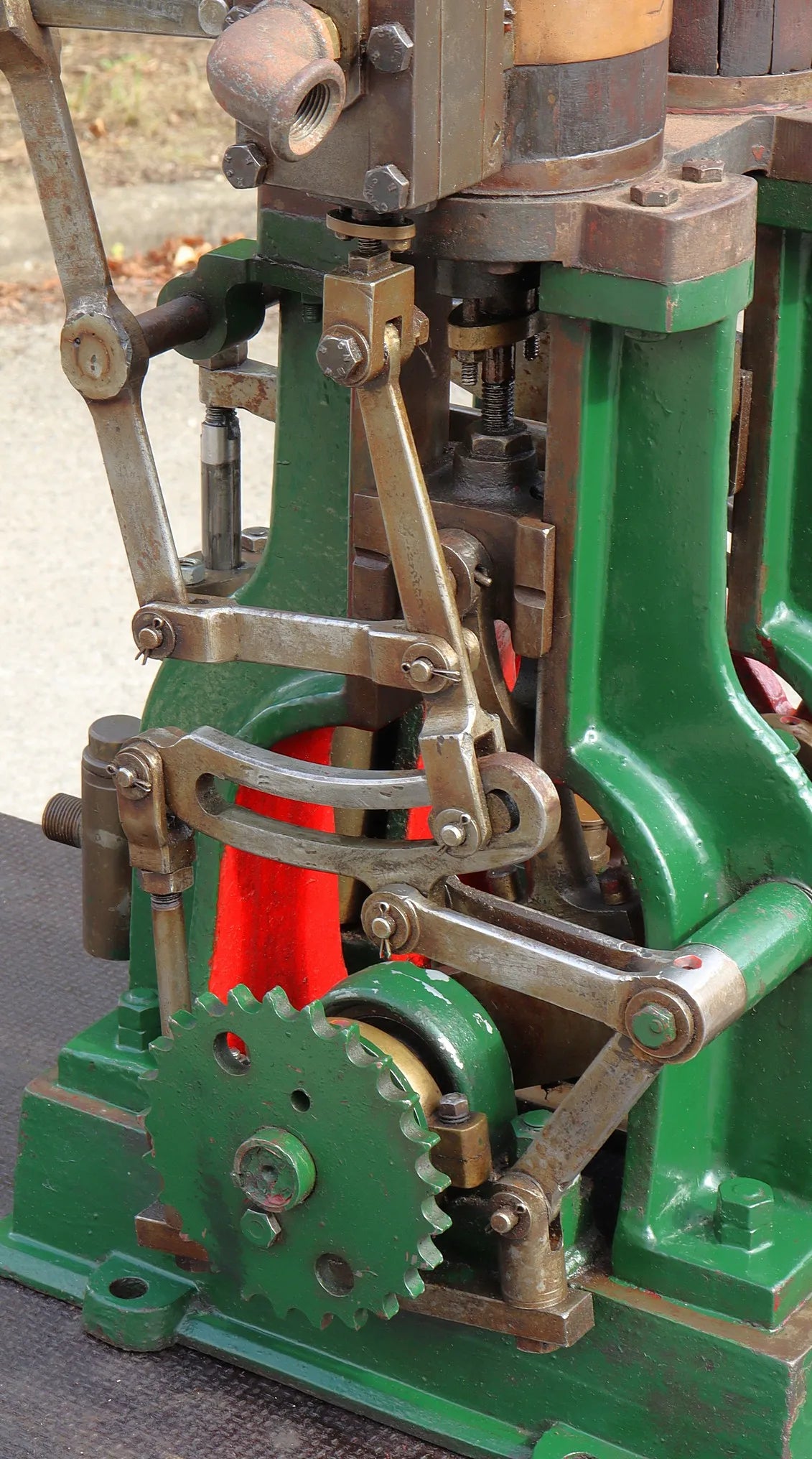

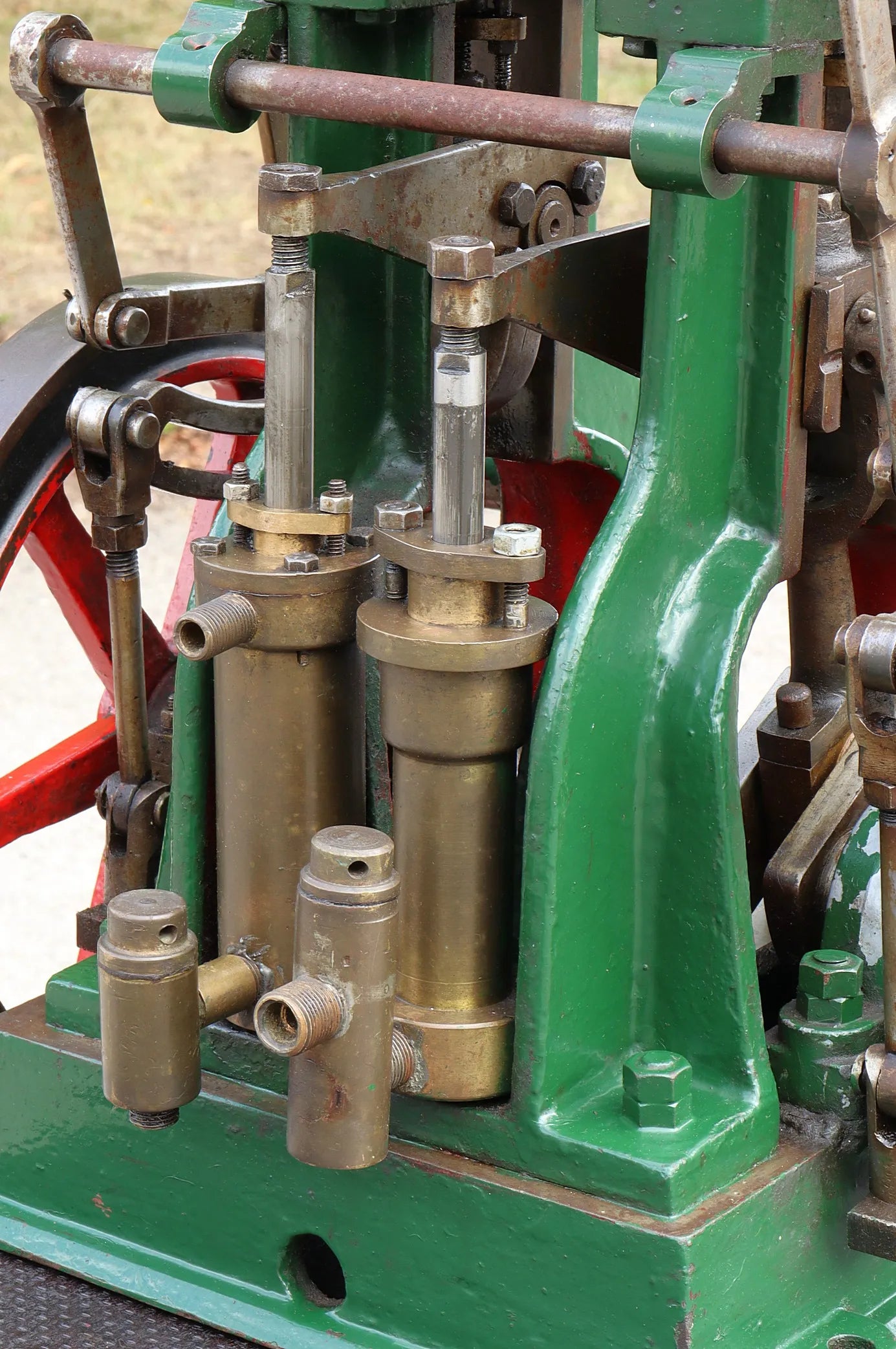

Fitted with reversing gear and twin boiler feed pumps, The right hand pump moves, but feels tight when stationary - possibly an alignment issue which needs further investigation.
Stock code |
13071 |
Length/inches |
14 |
Width/inches |
14 |
Height/inches |
22 |
Weight/Kg |
49 |
Wheel material |
cast iron |
Axlebox type |
split bronze |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Mechanical pump |
2 |
Date out |
Oct-25 |
