Part-built 5 inch gauge "Sweet Pea" with boiler

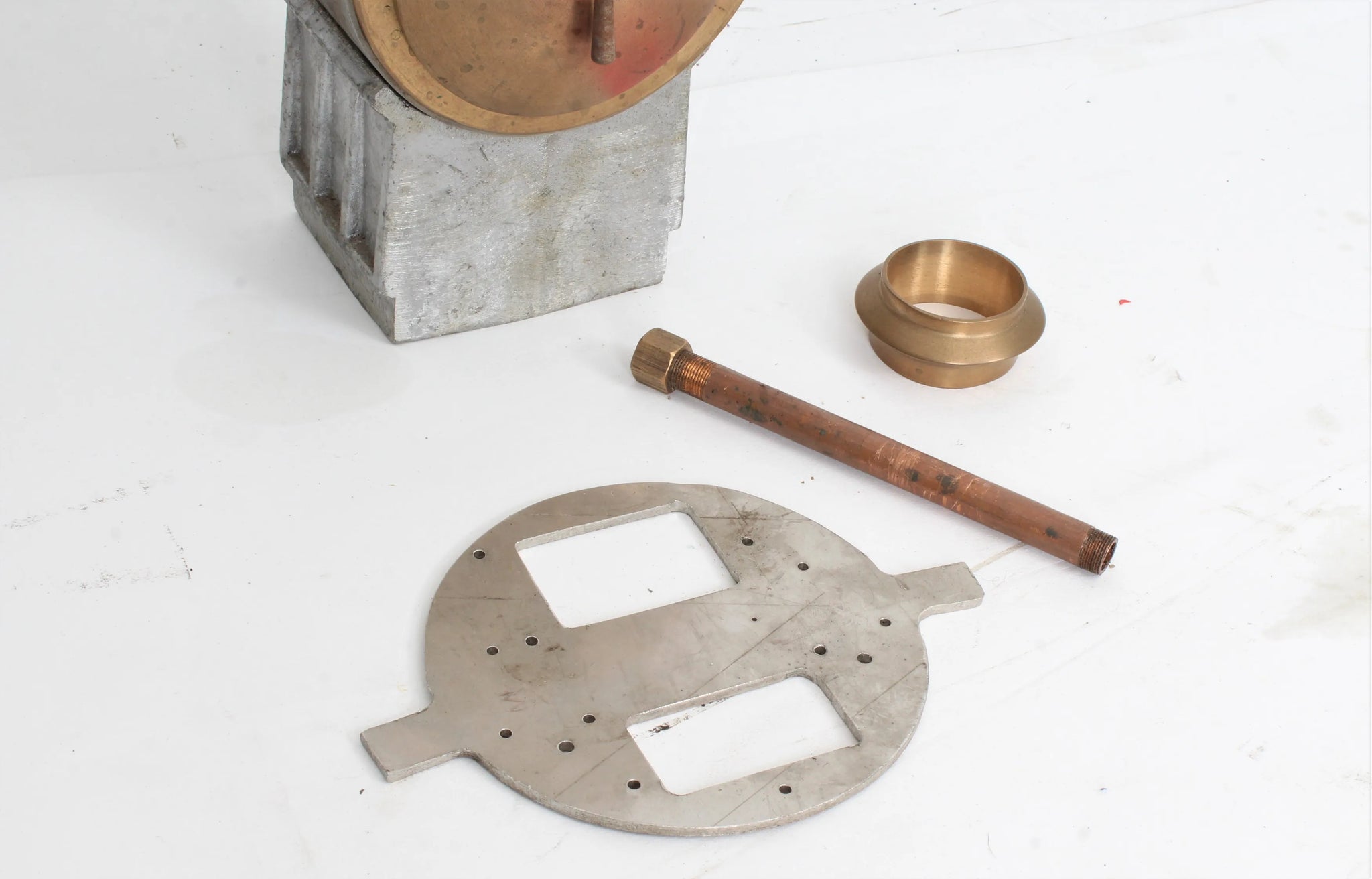

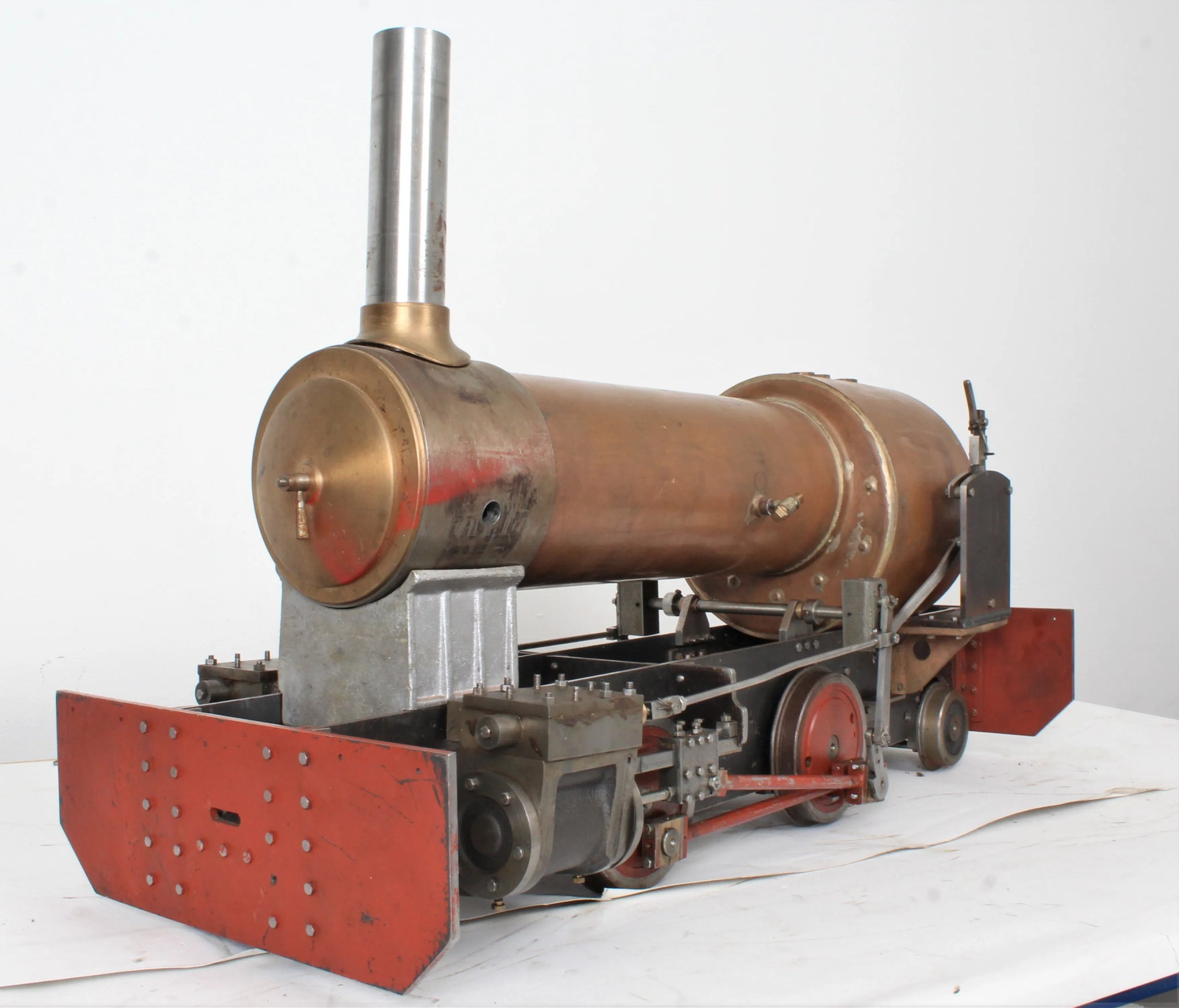

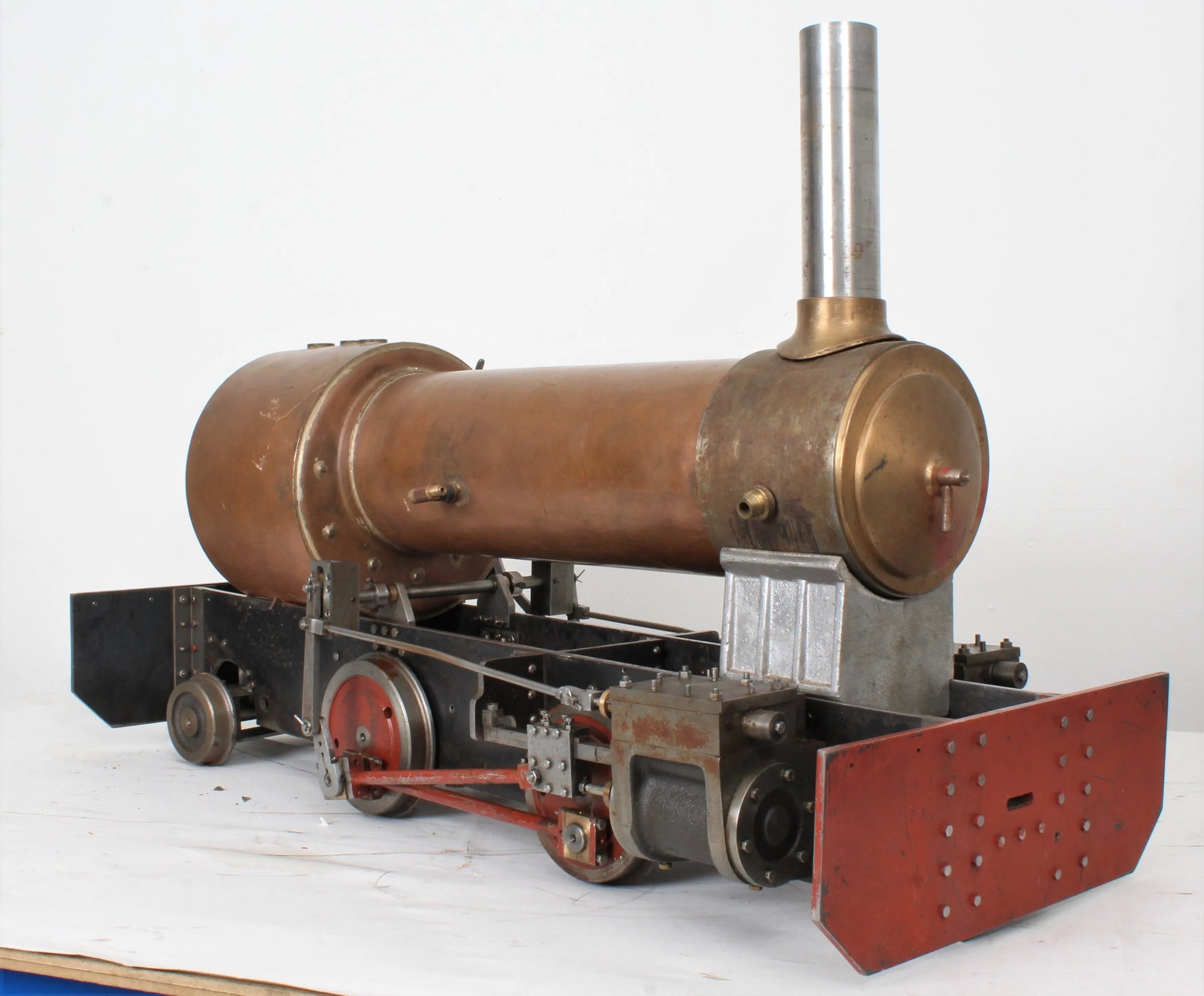

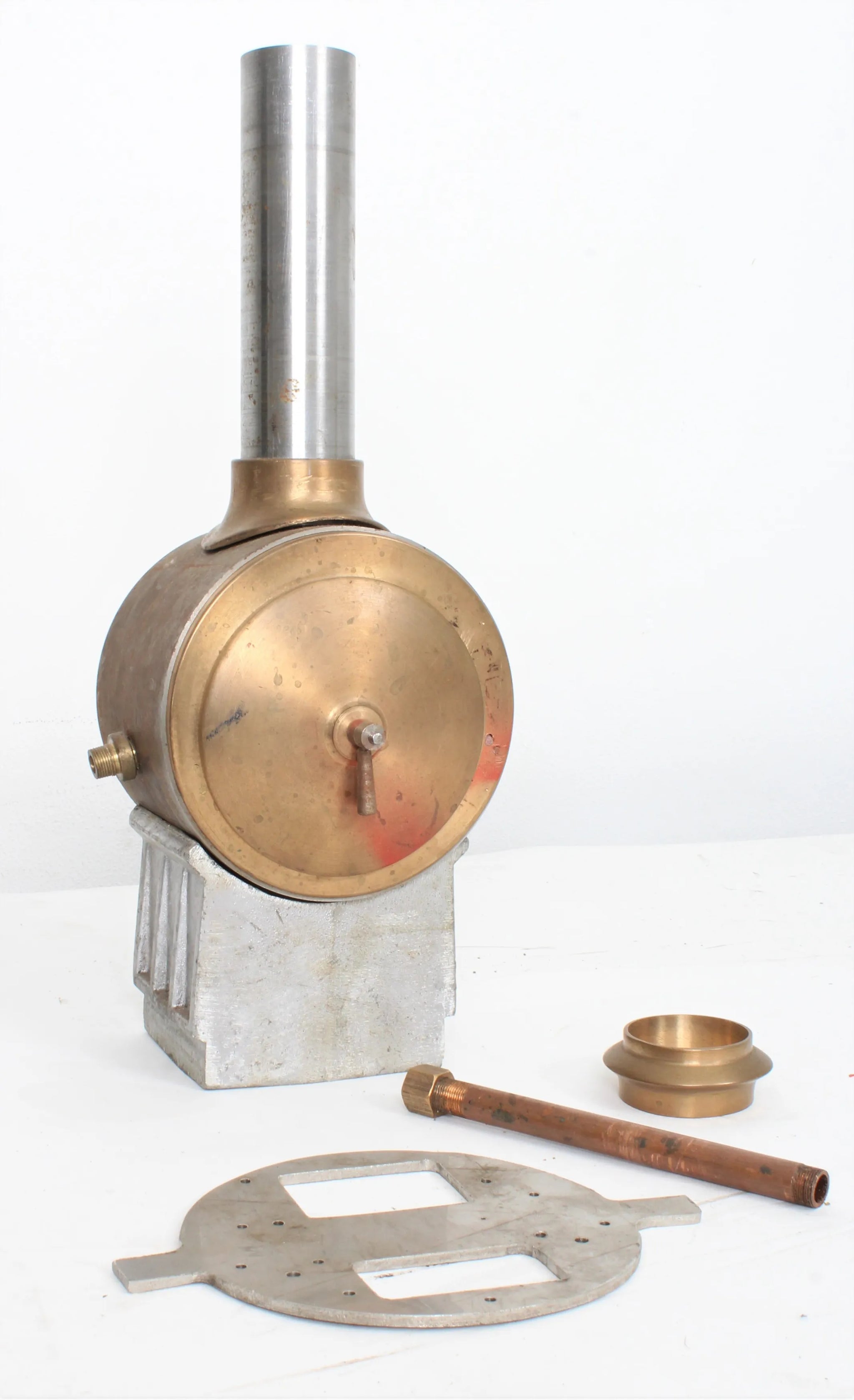

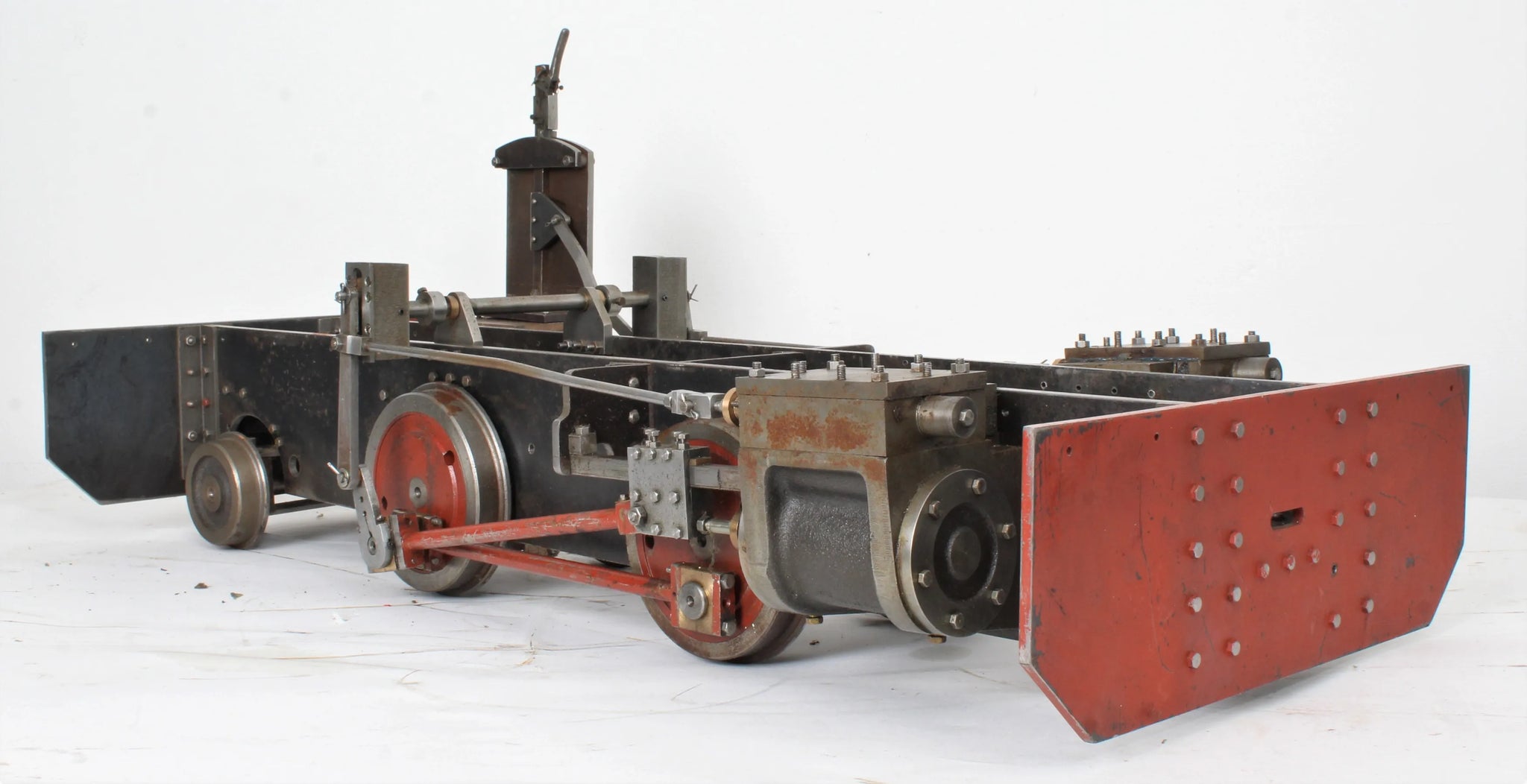

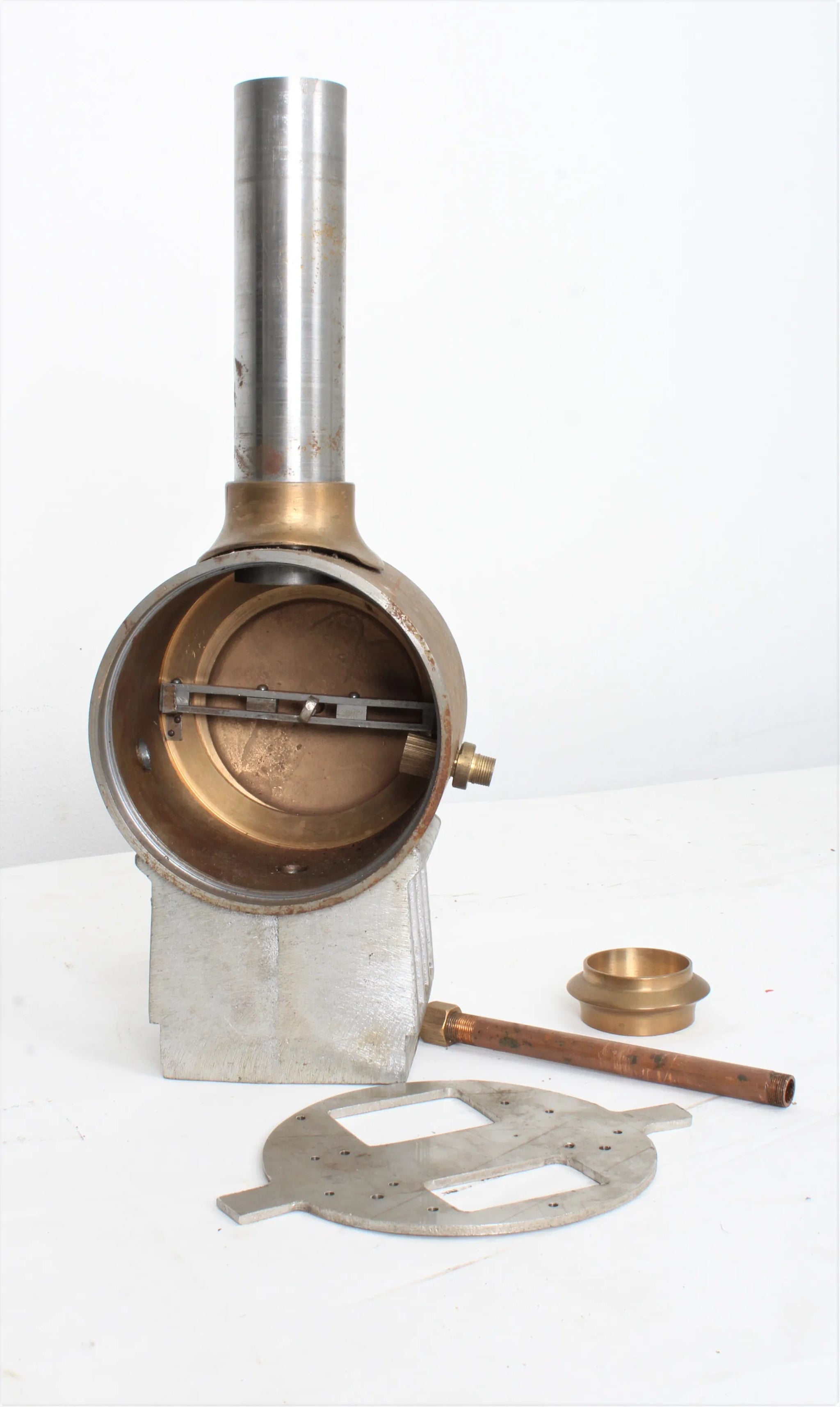

A well-advanced "Sweet Pea" 0-4-2ST, comprising complete chassis, smokebox assembly and a silver soldered copper boiler.

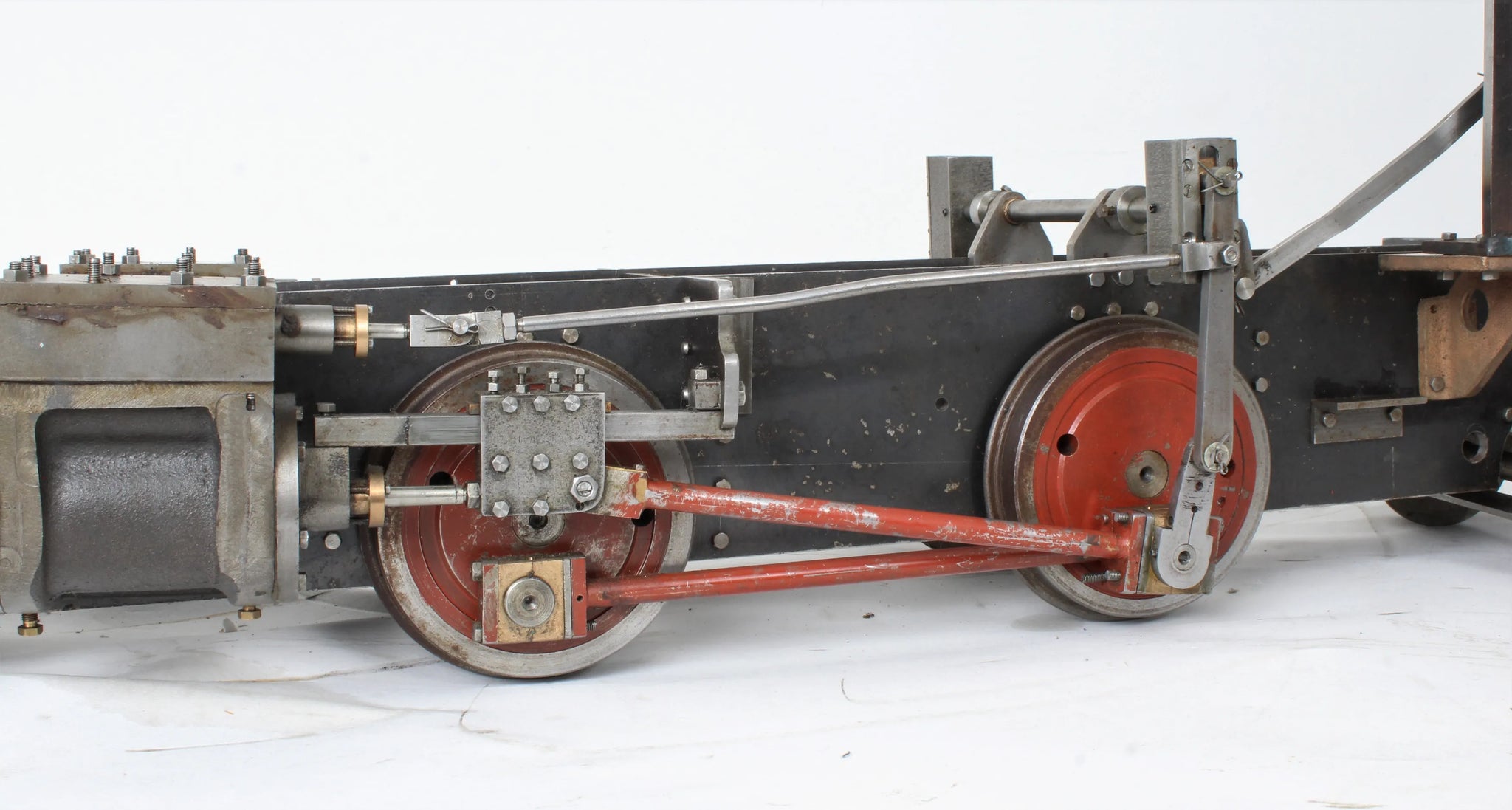

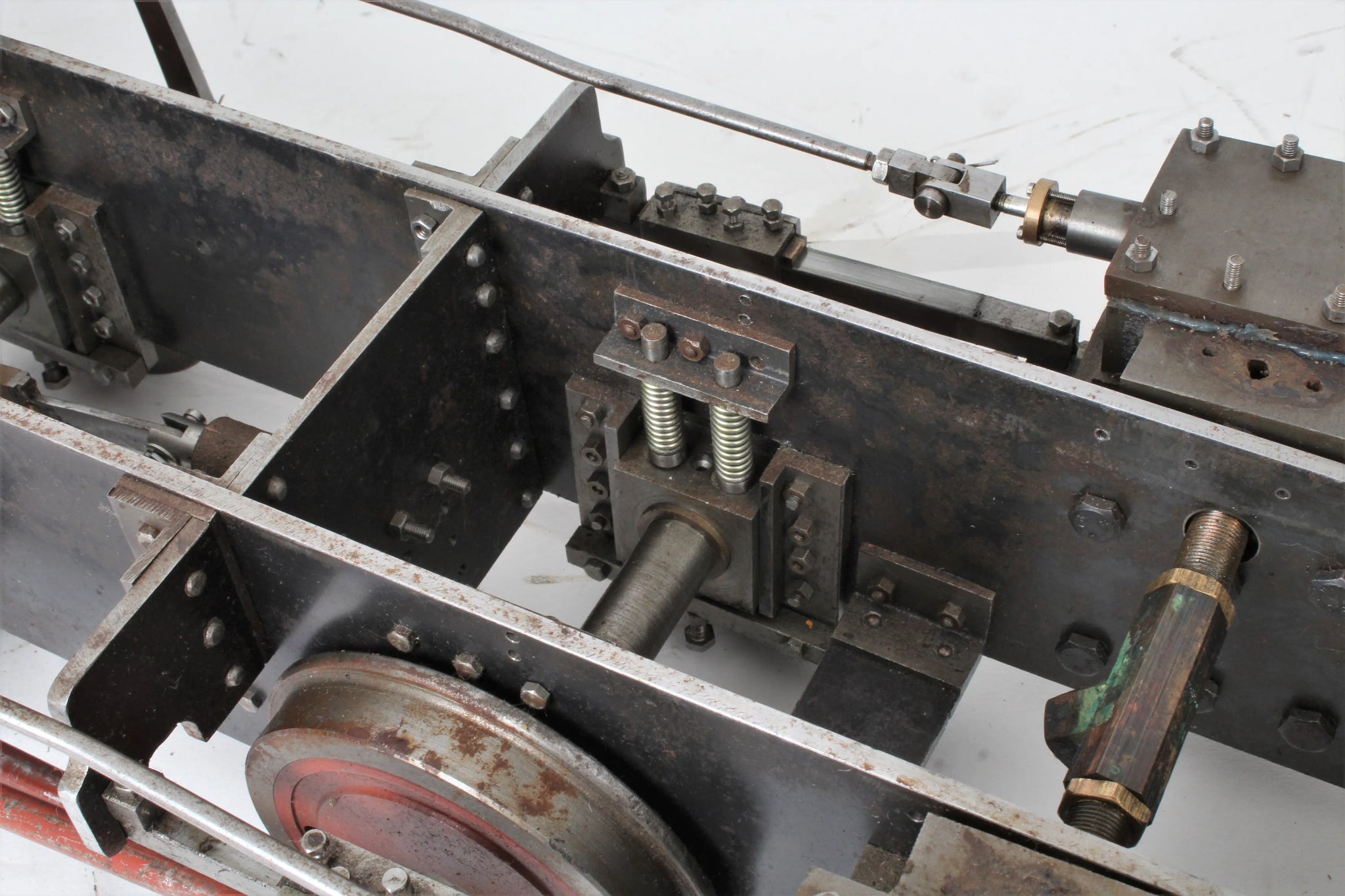

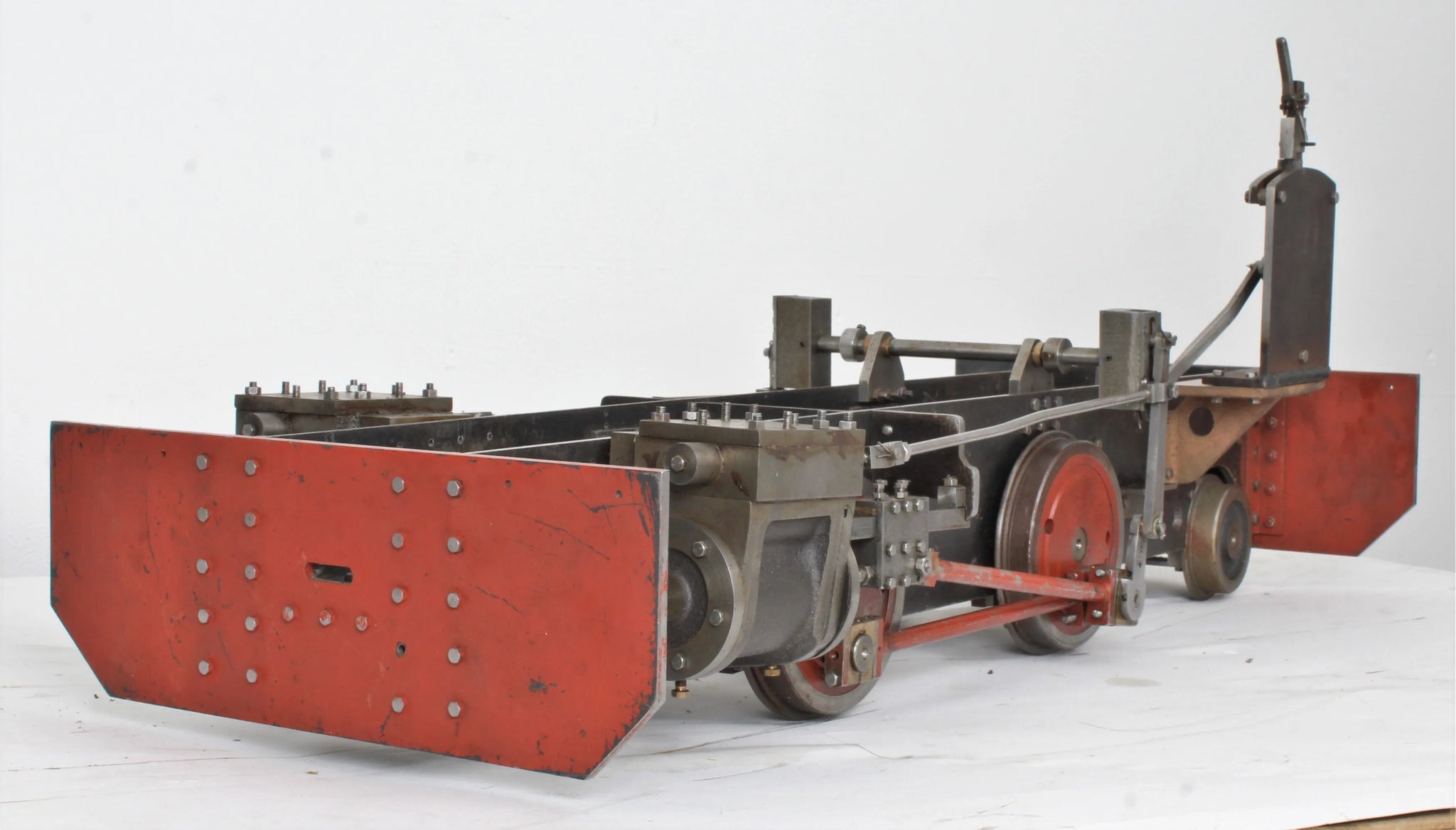

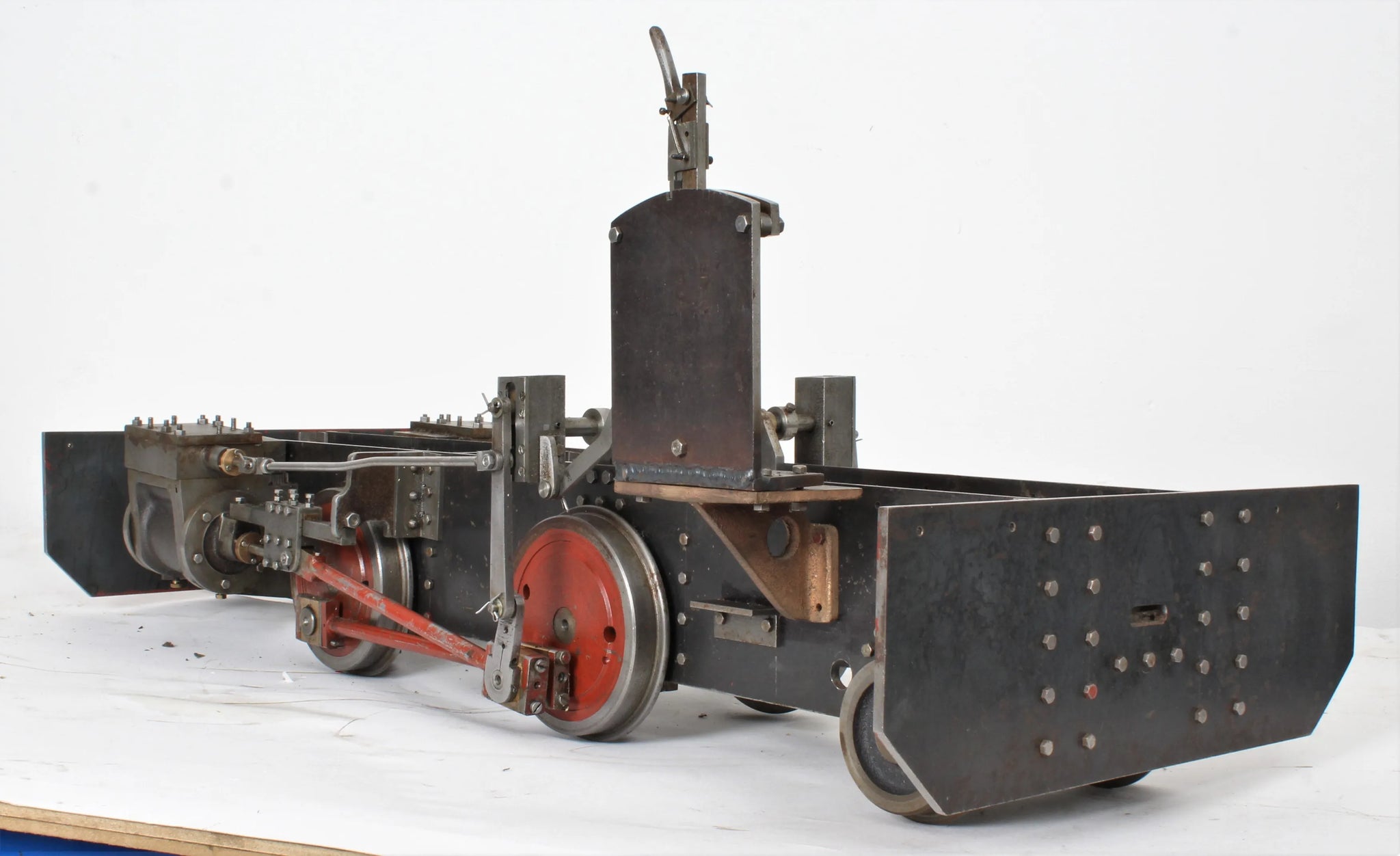

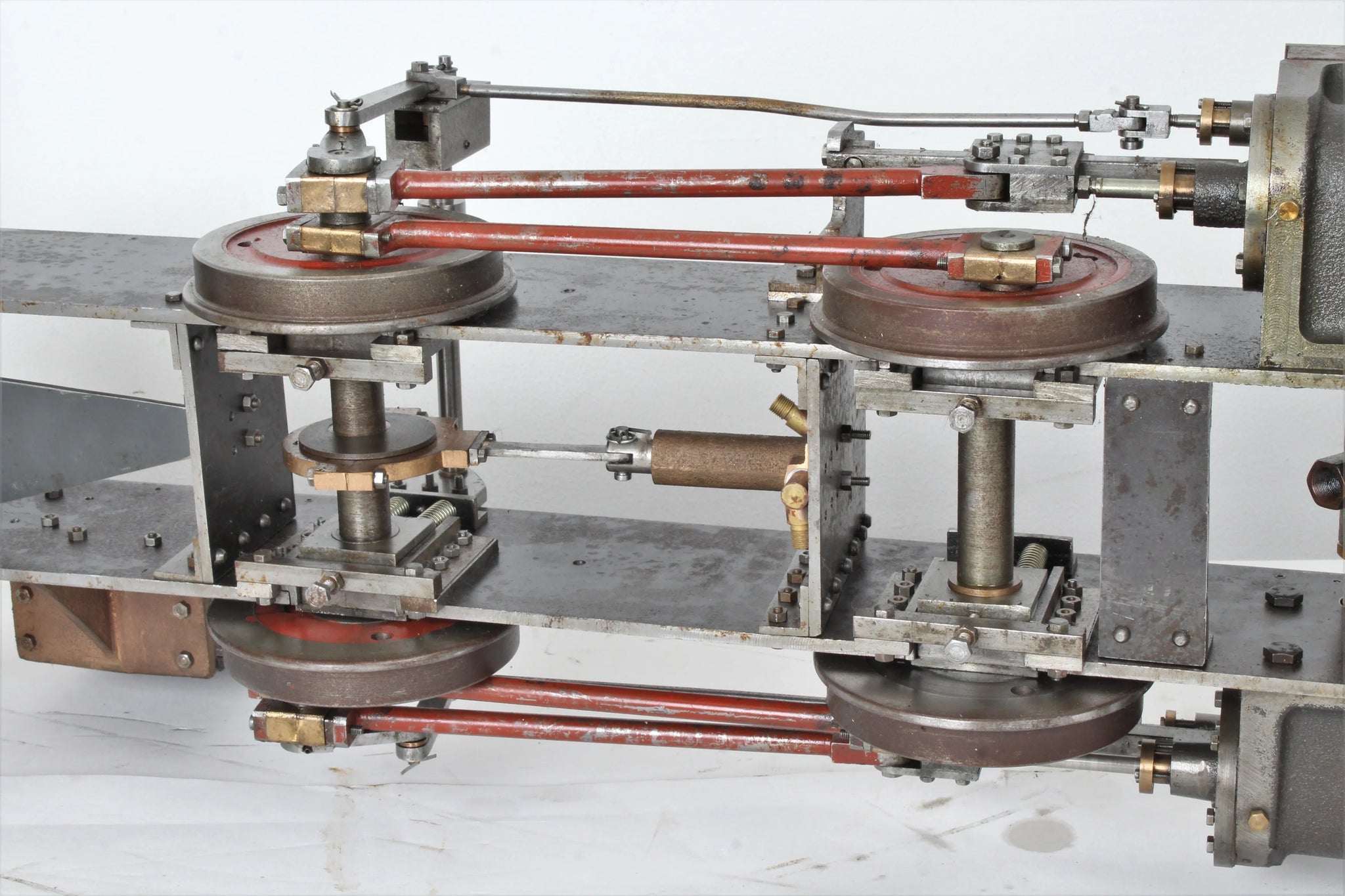

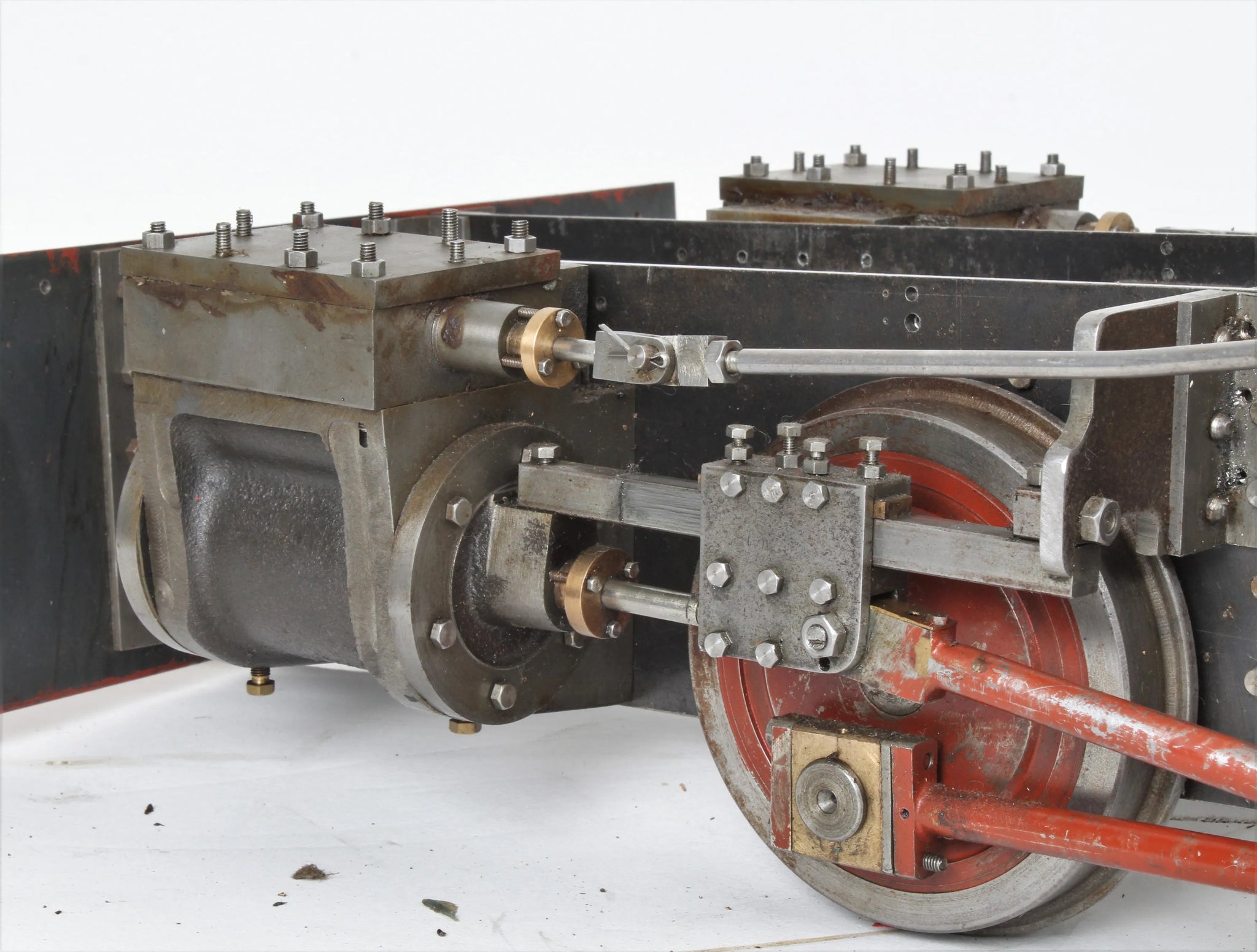

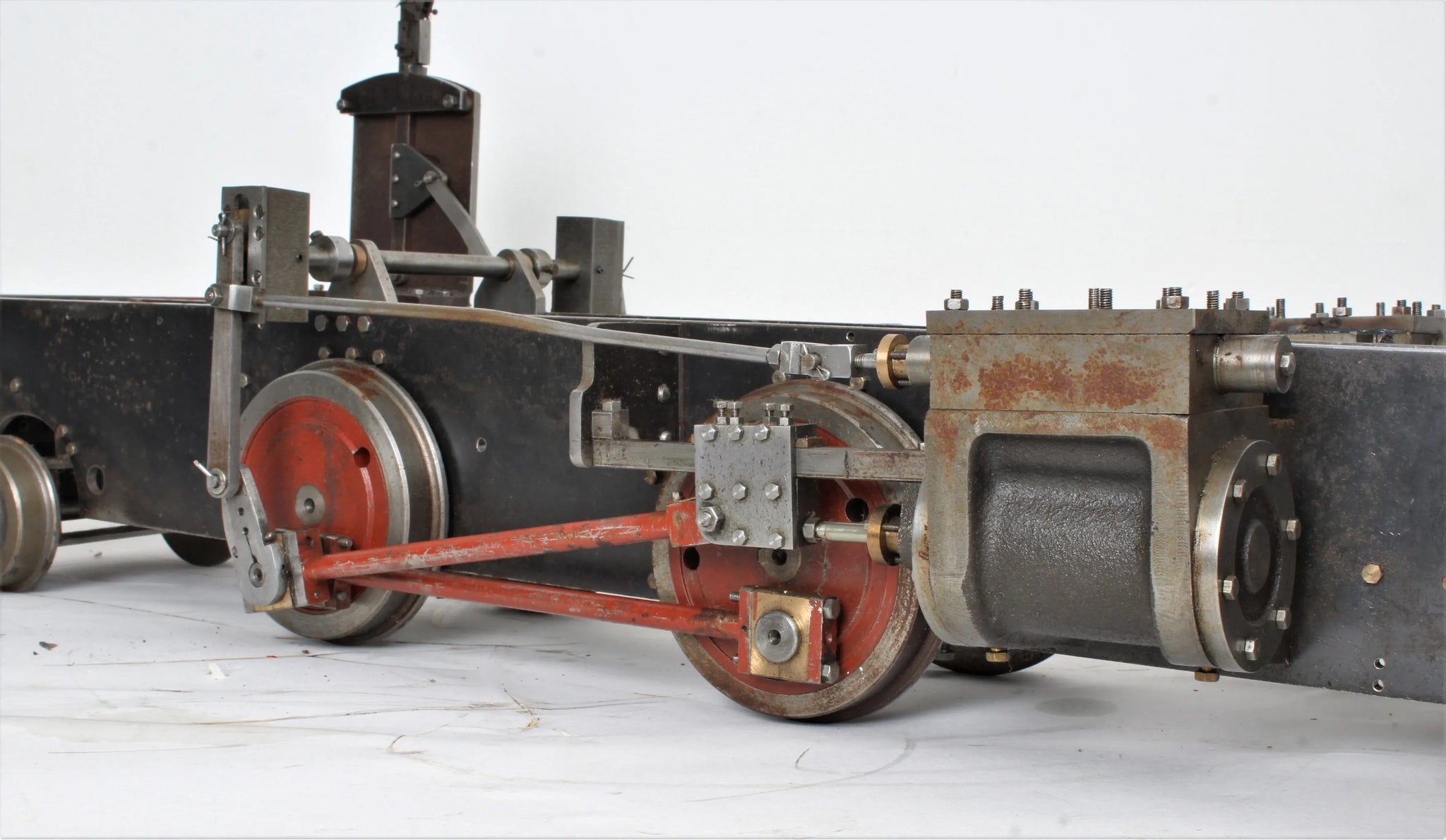

The chassis turns over freely without tight spots. Overall it looks reasonable (if rather grubby), although with a good deal of slop in the die blocks - it would not be a big job to replace them.

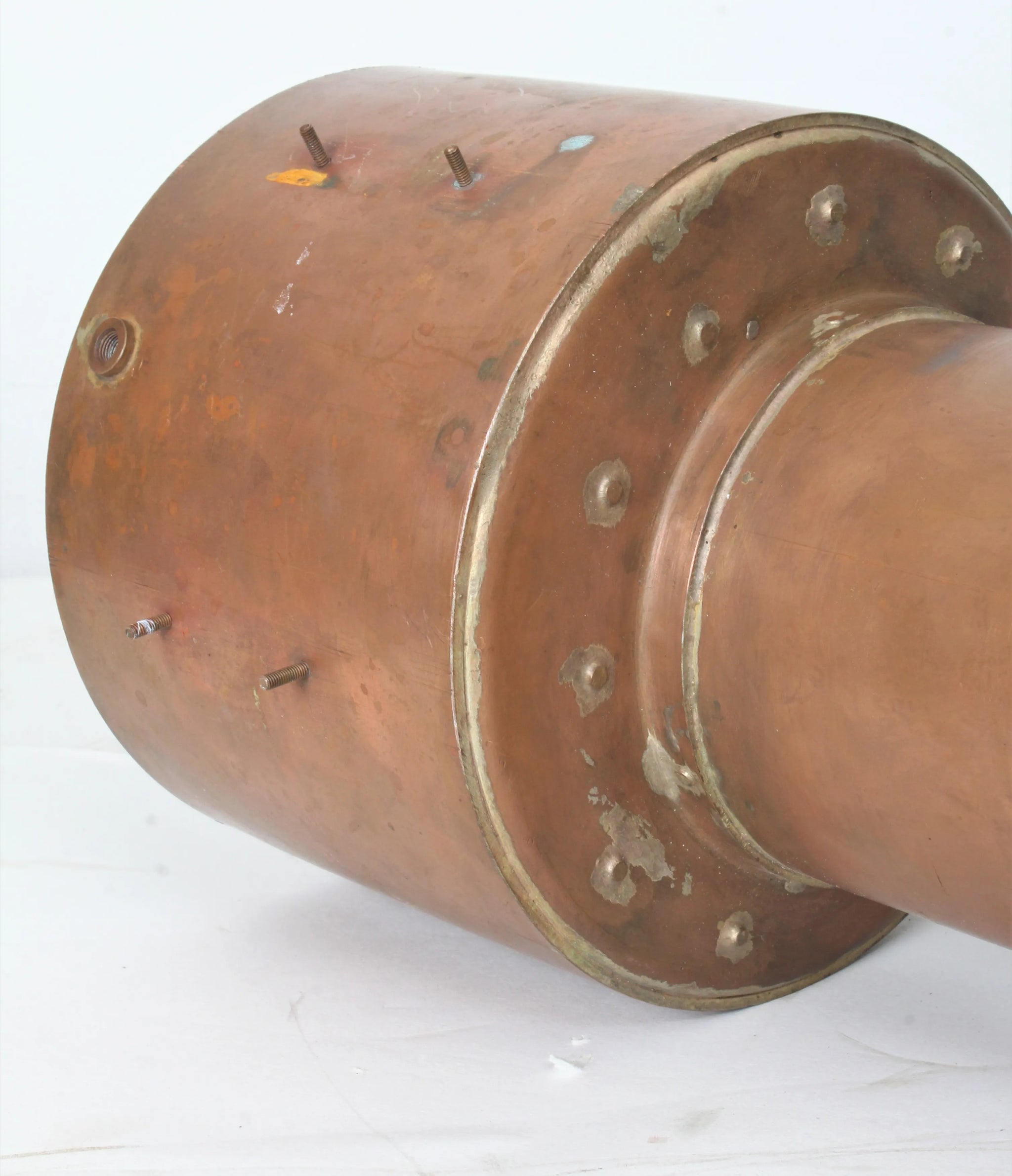

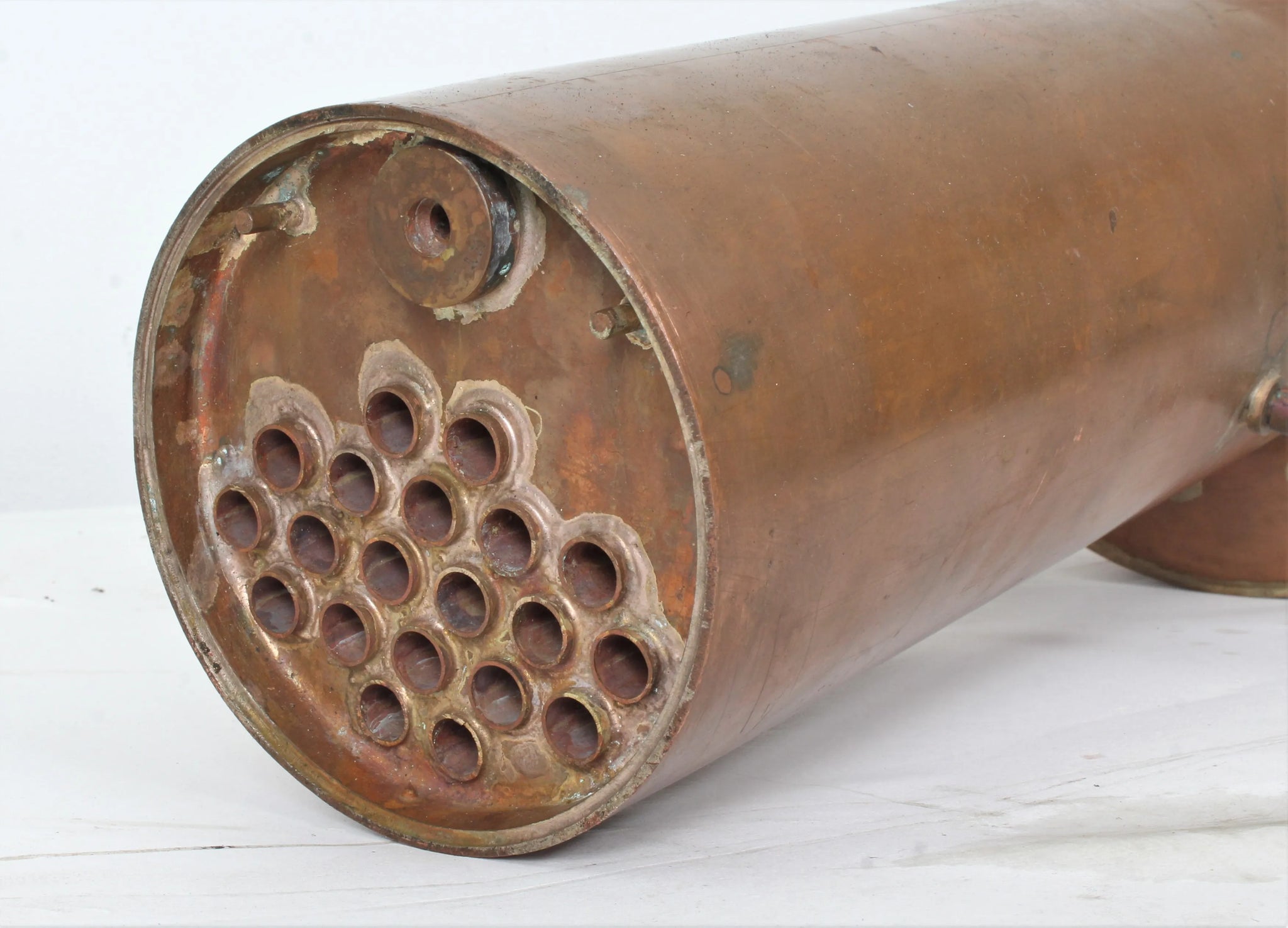

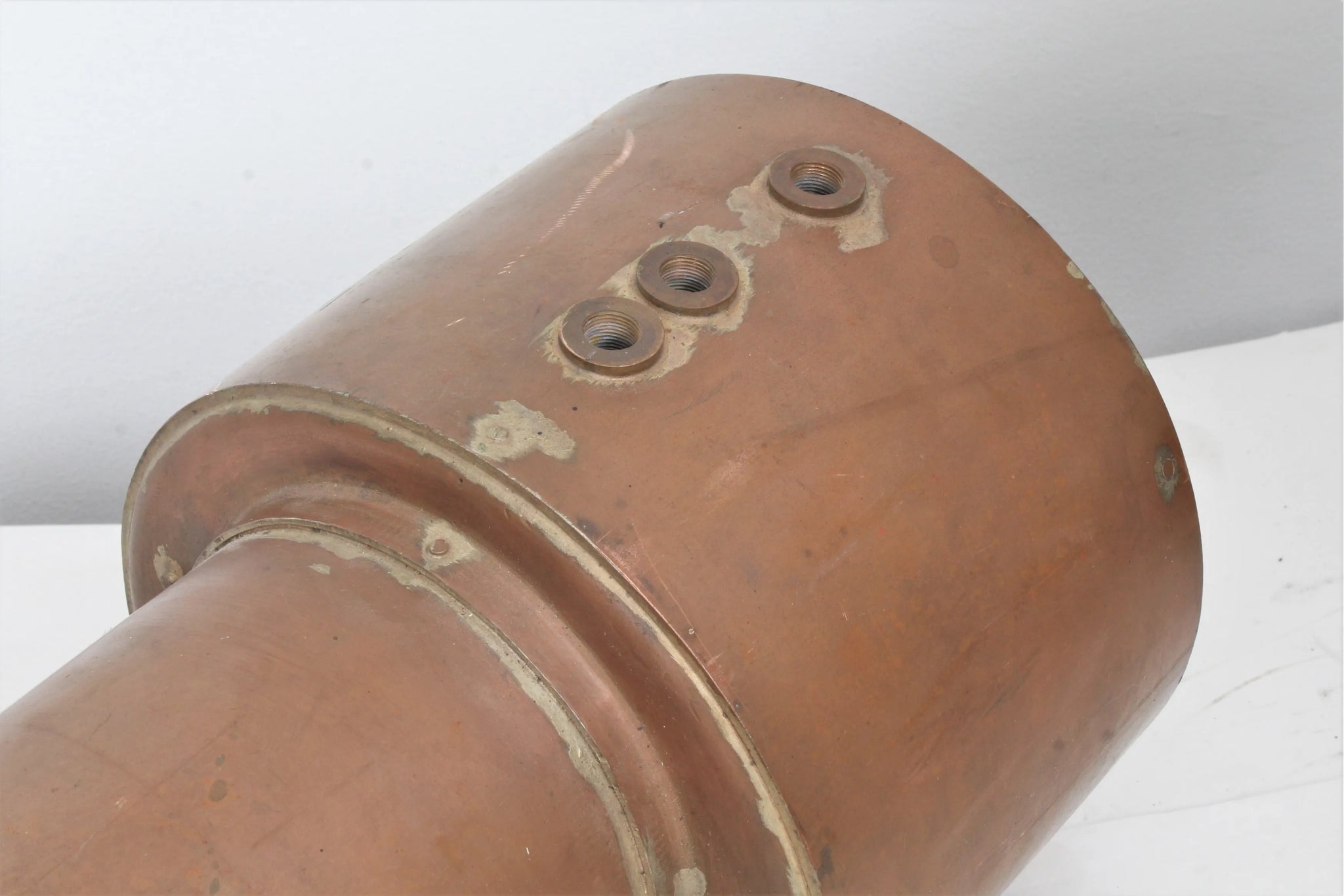

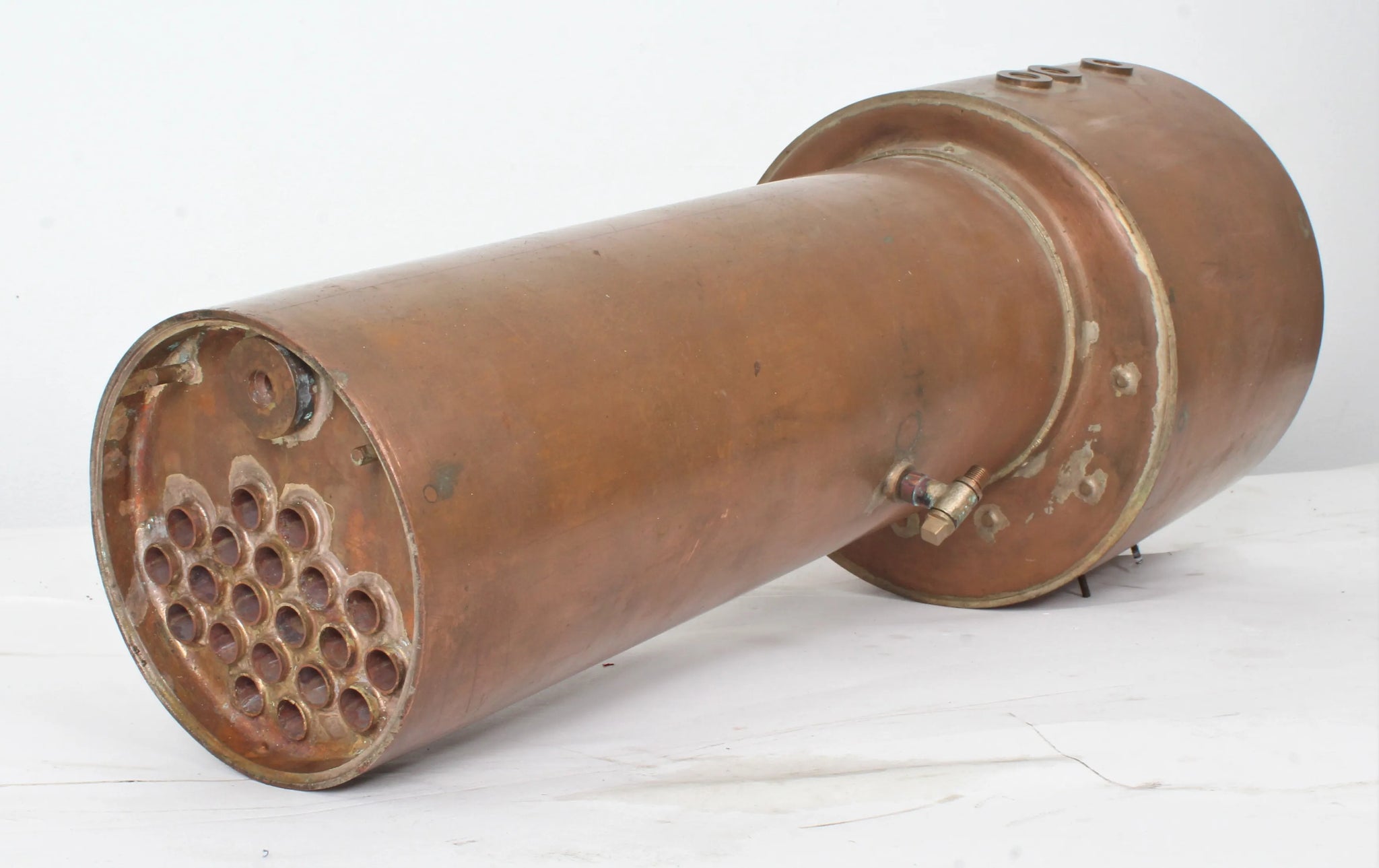

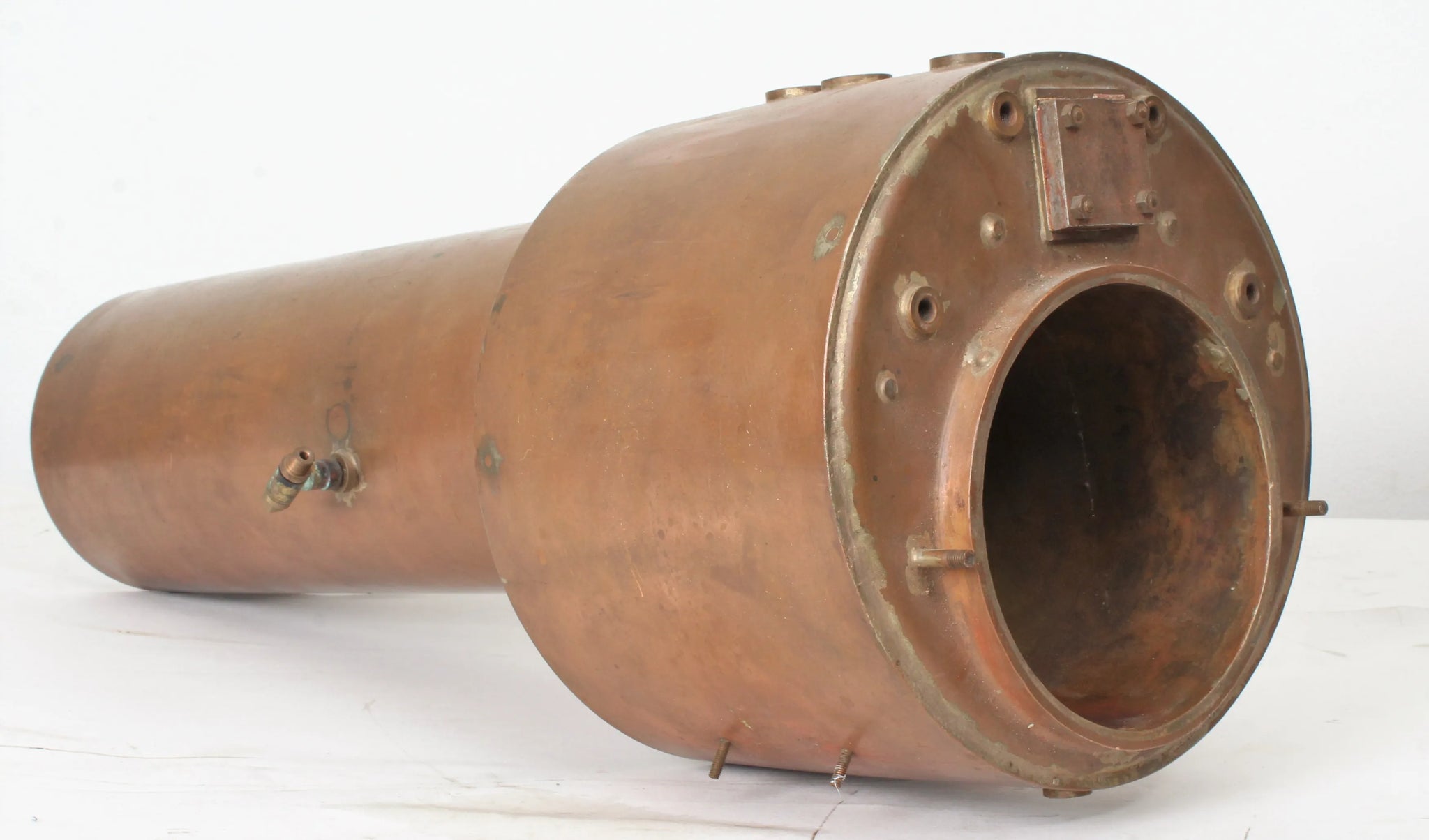

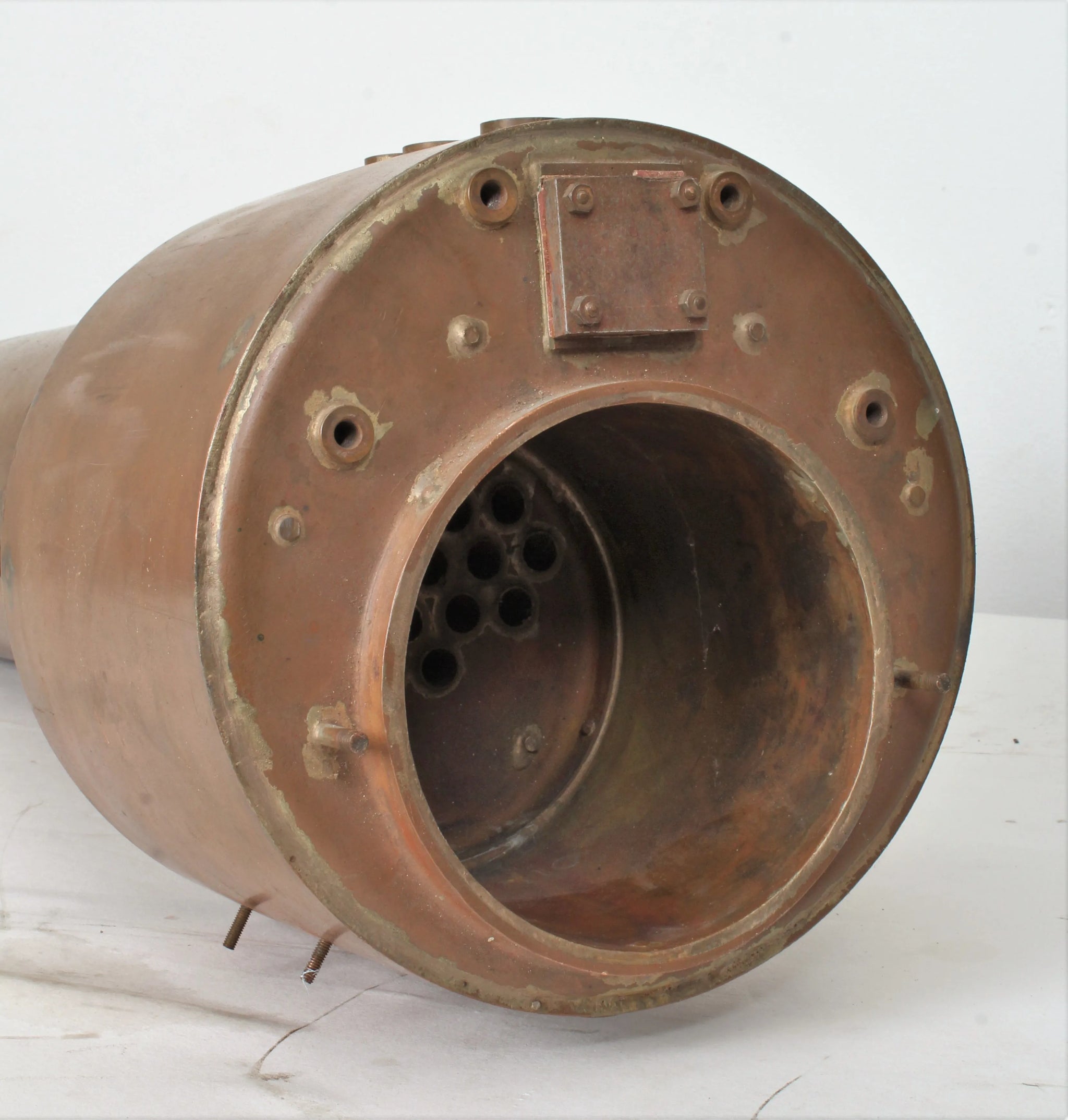

Boiler has been neatly made - we suspect built from a flanged kit of parts - with good solder penetration.

Complete with a copy of the "Sweet Pea" build manual.

Technical information

Stock code

9320

Gauge

5 inch

Length/inches

30

Width/inches

12.5

Height/inches

20

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

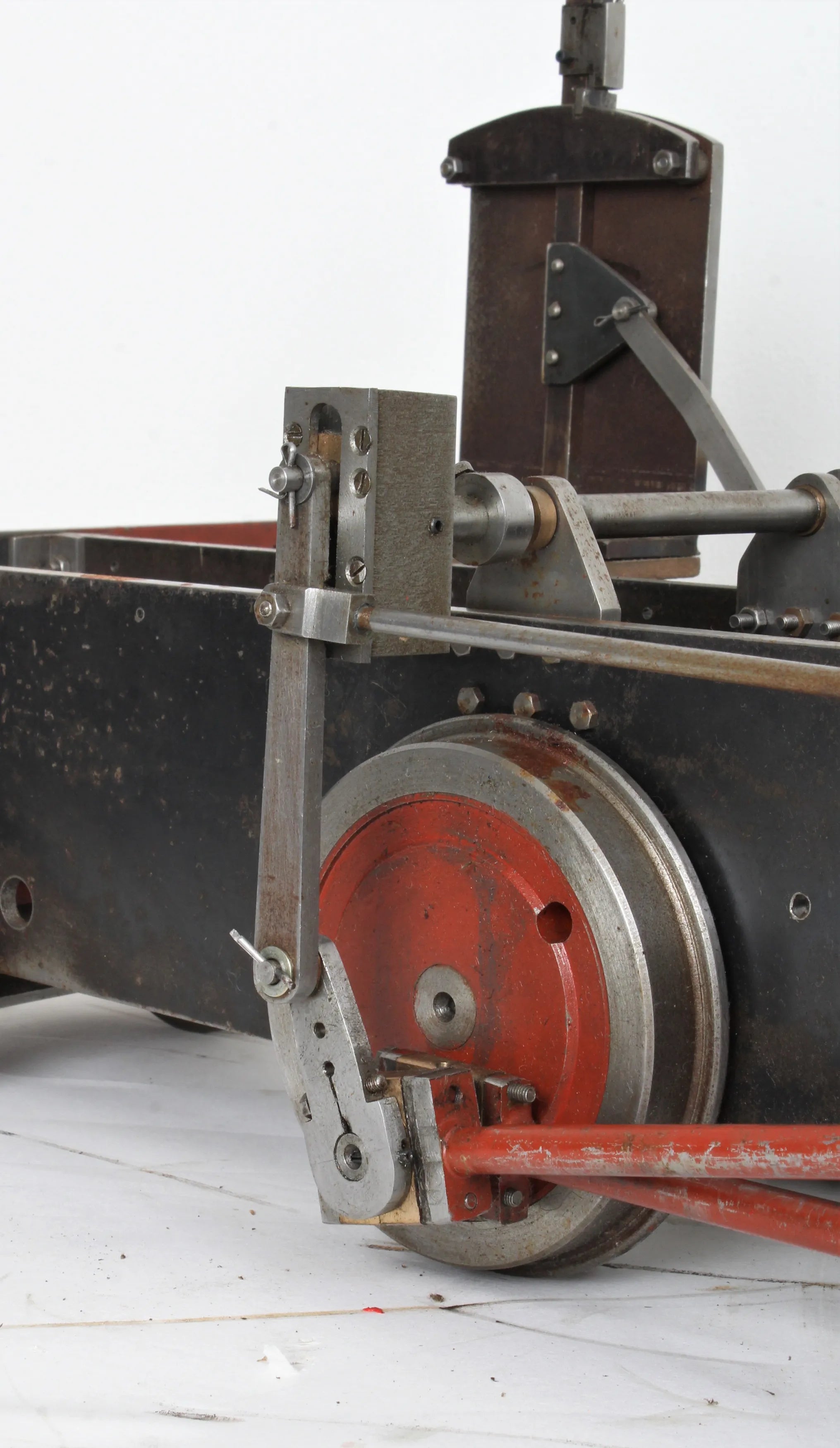

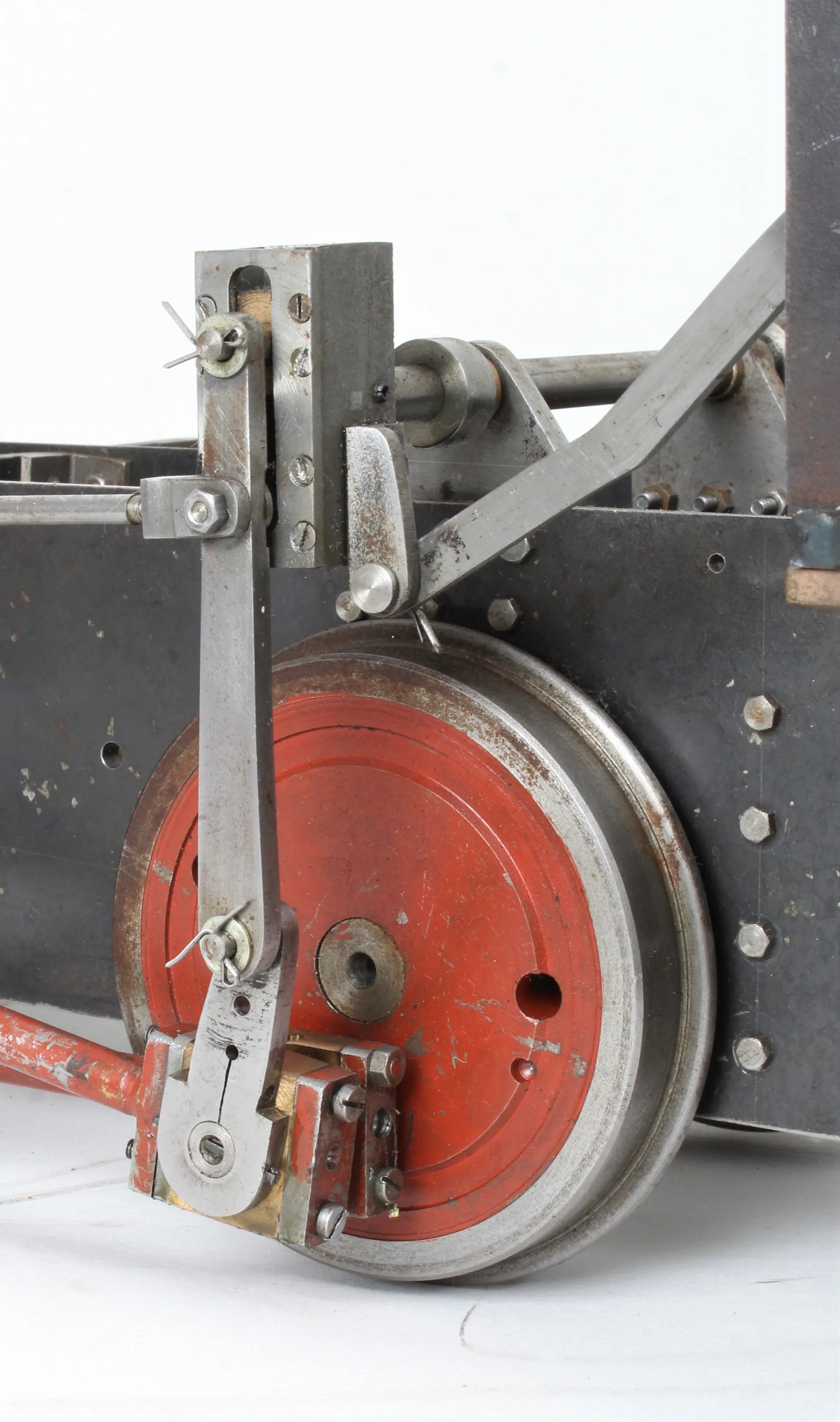

Valve gear

Hackworth

Reverser type

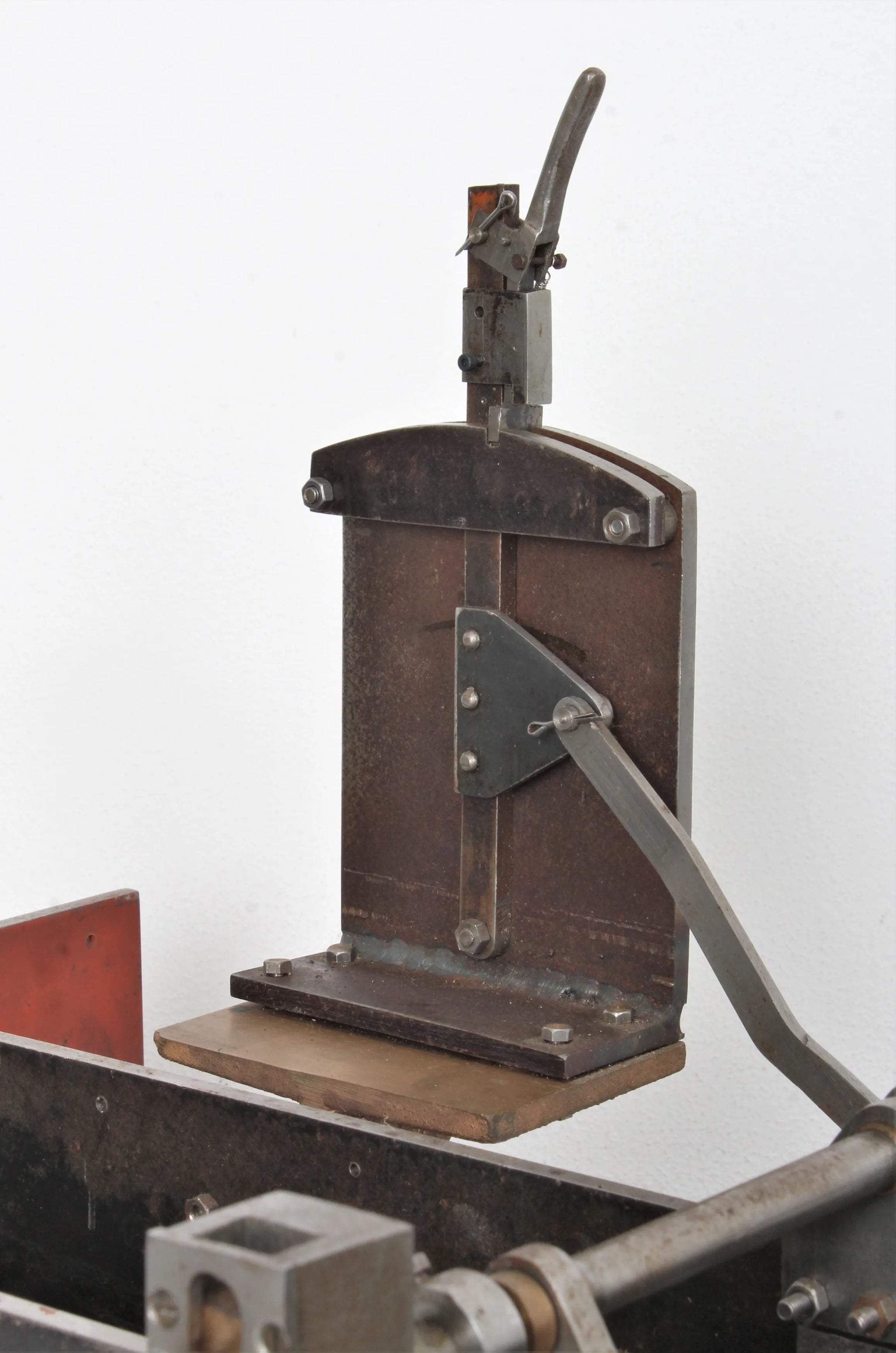

pole

Boiler type

marine

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a non-commercial

Mechanical pump

1

Date out

Apr-21
