Part-built 7 1/4 inch gauge GWR 14XX 0-4-2T

We last sold this one back in 2019 - it's recently arrived back with us in part-exchange against a 5 inch gauge "Simplex".

Words below are from the previous listing, pictures opposite were taken this week.

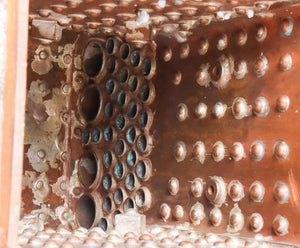

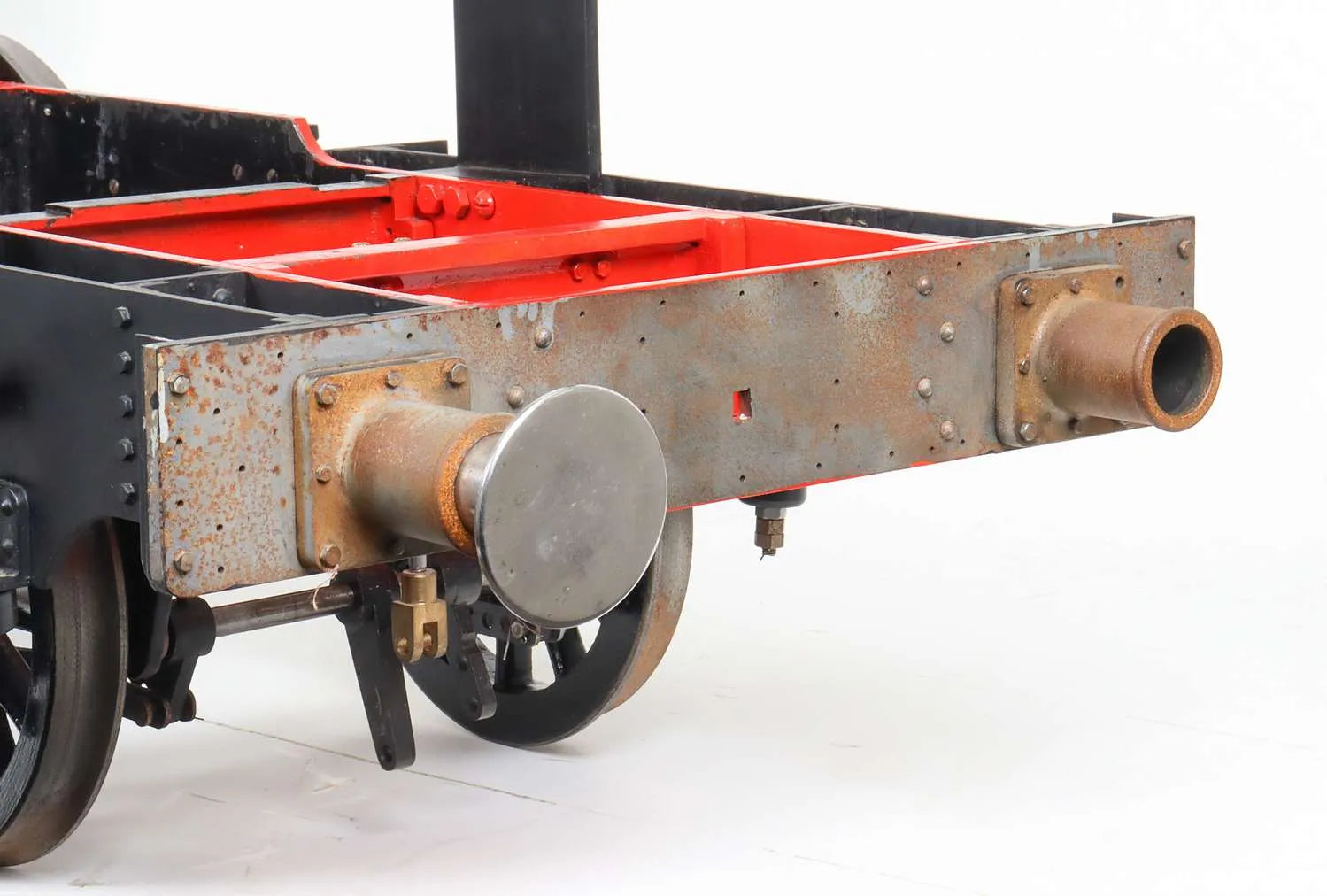

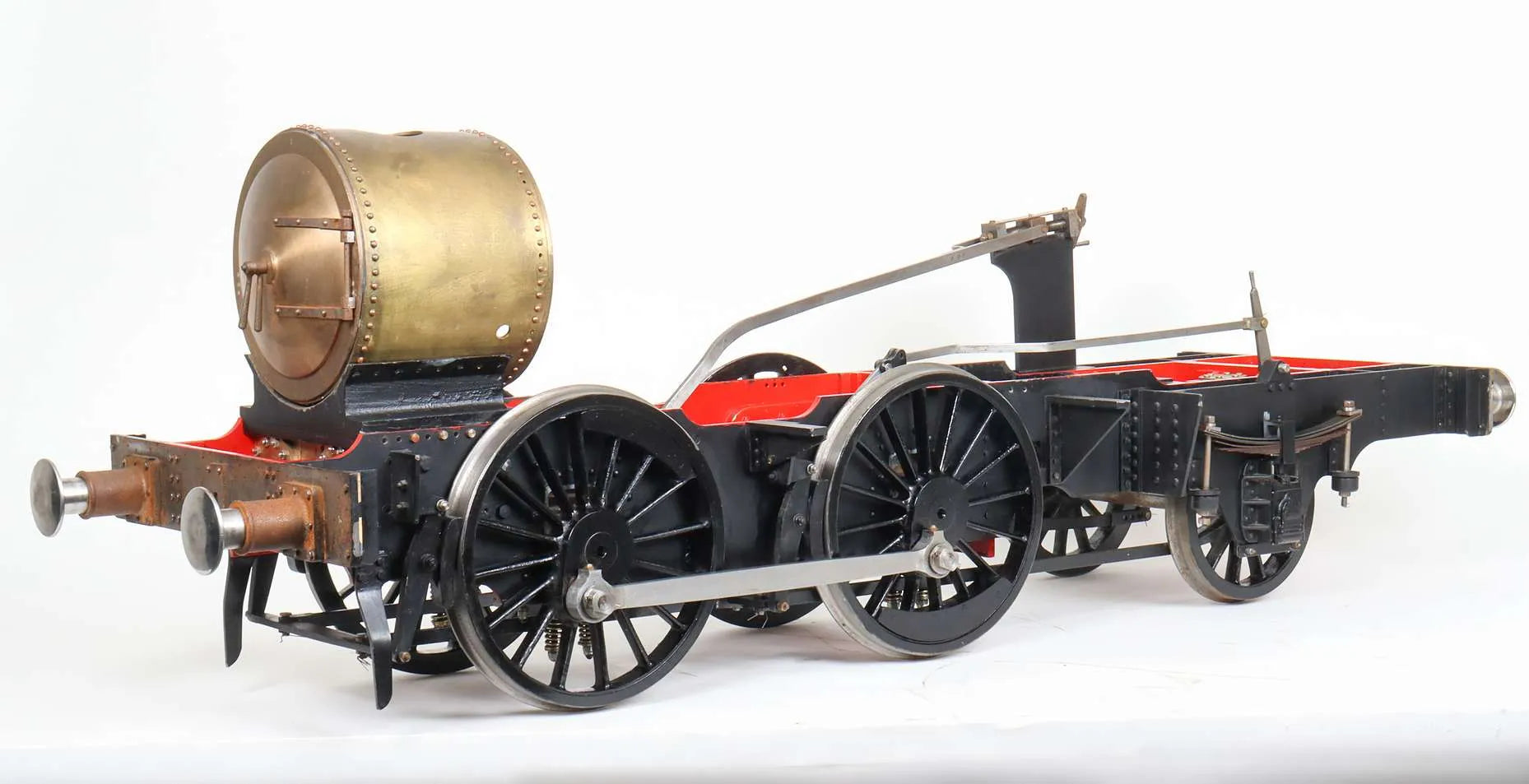

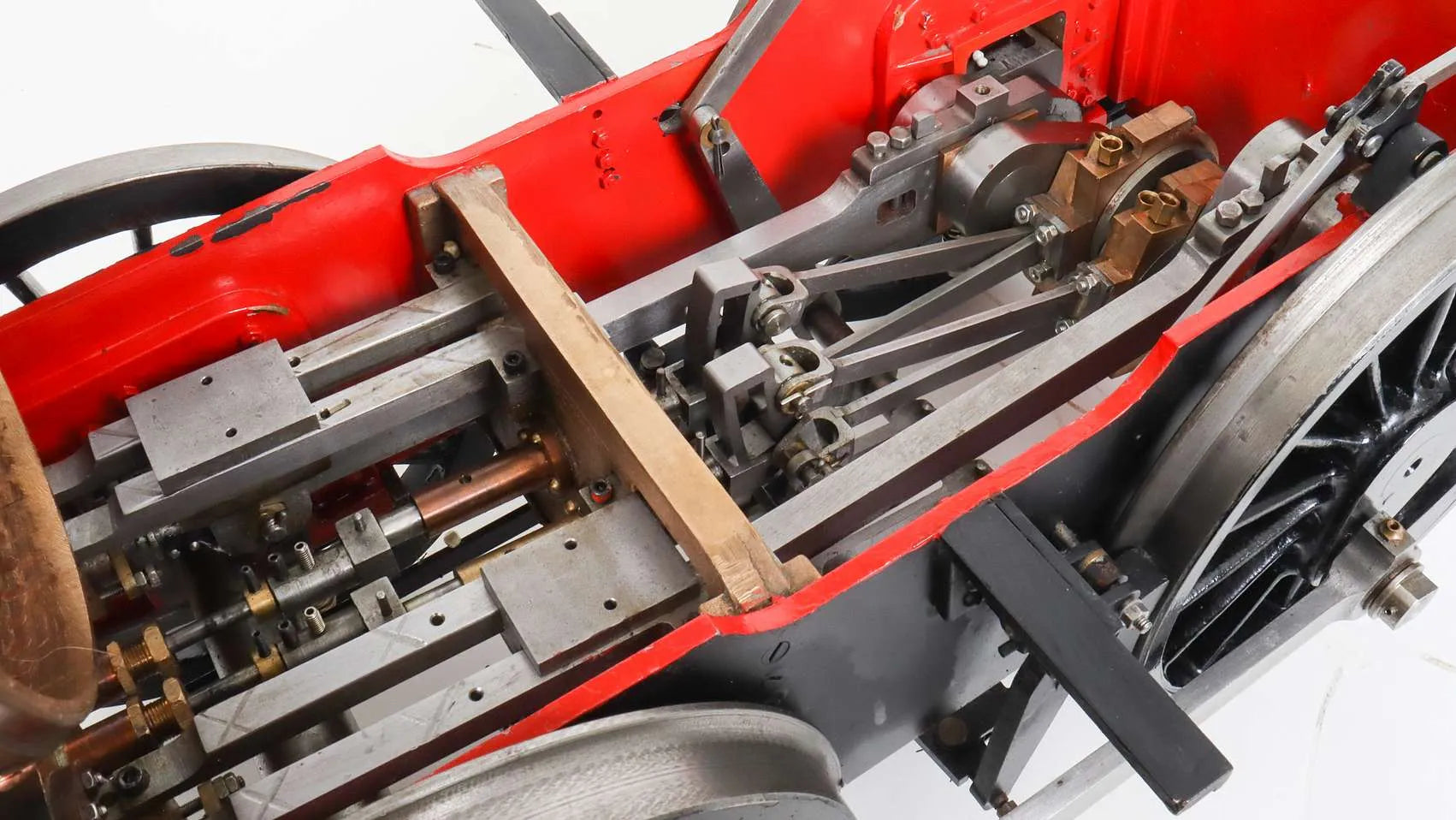

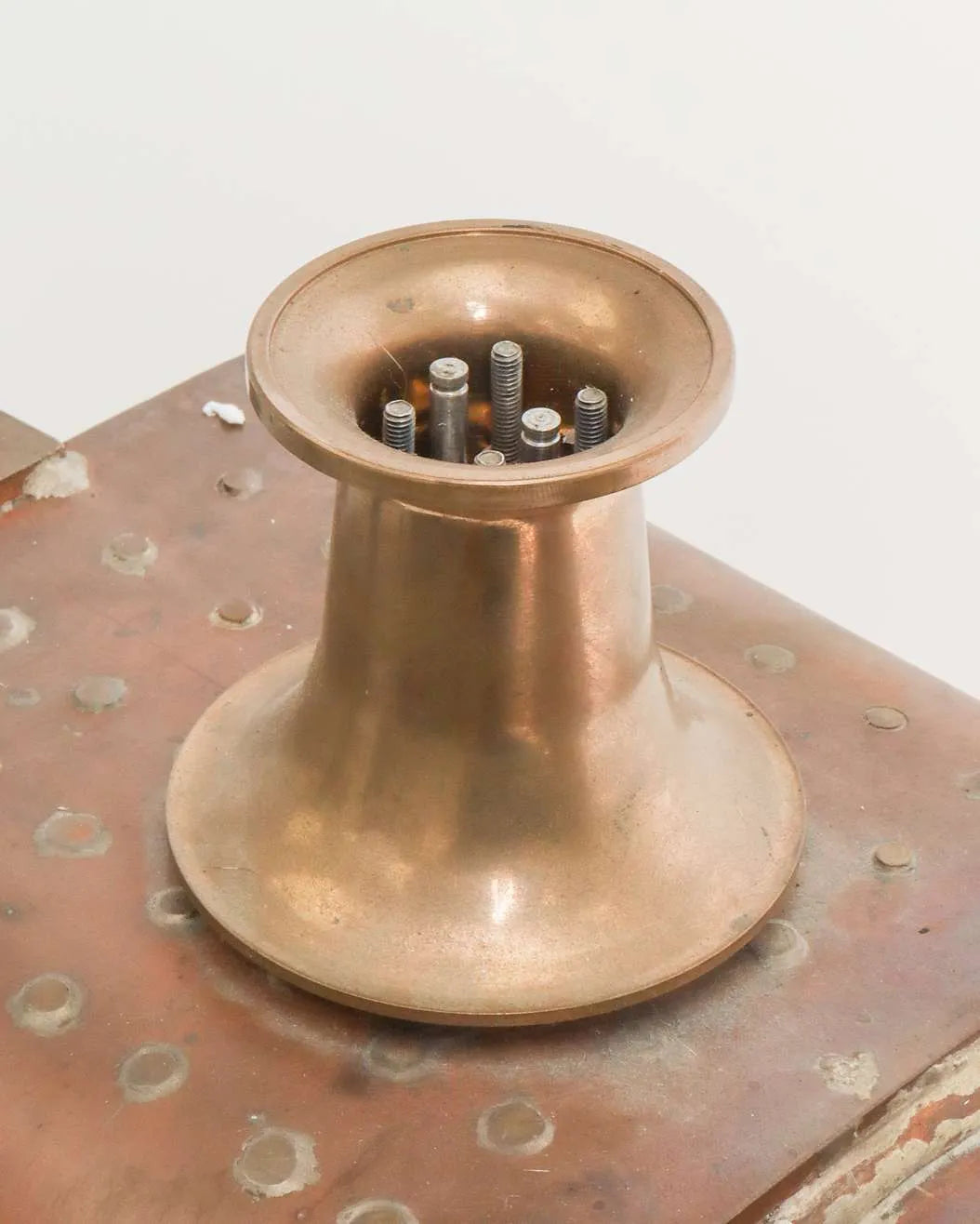

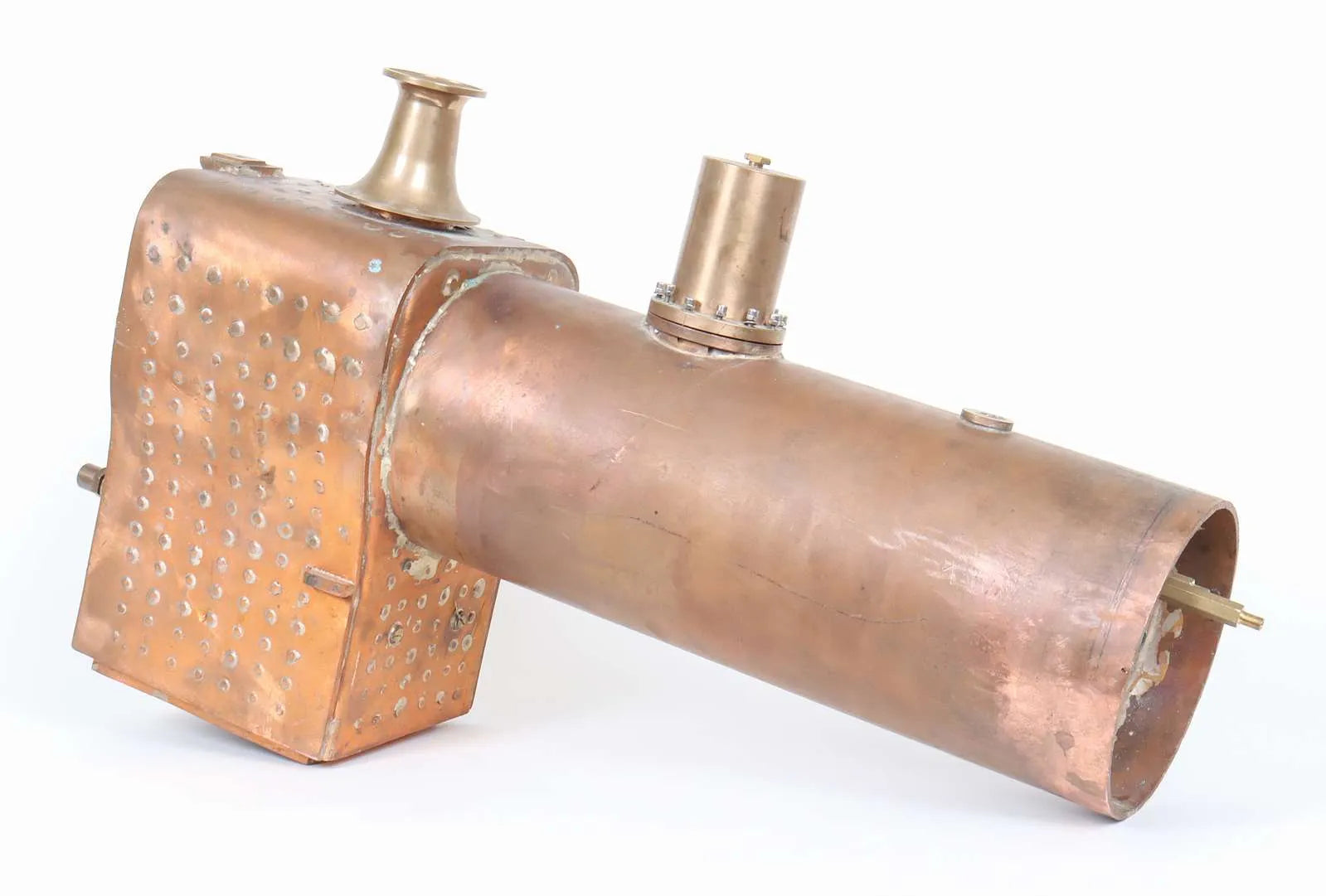

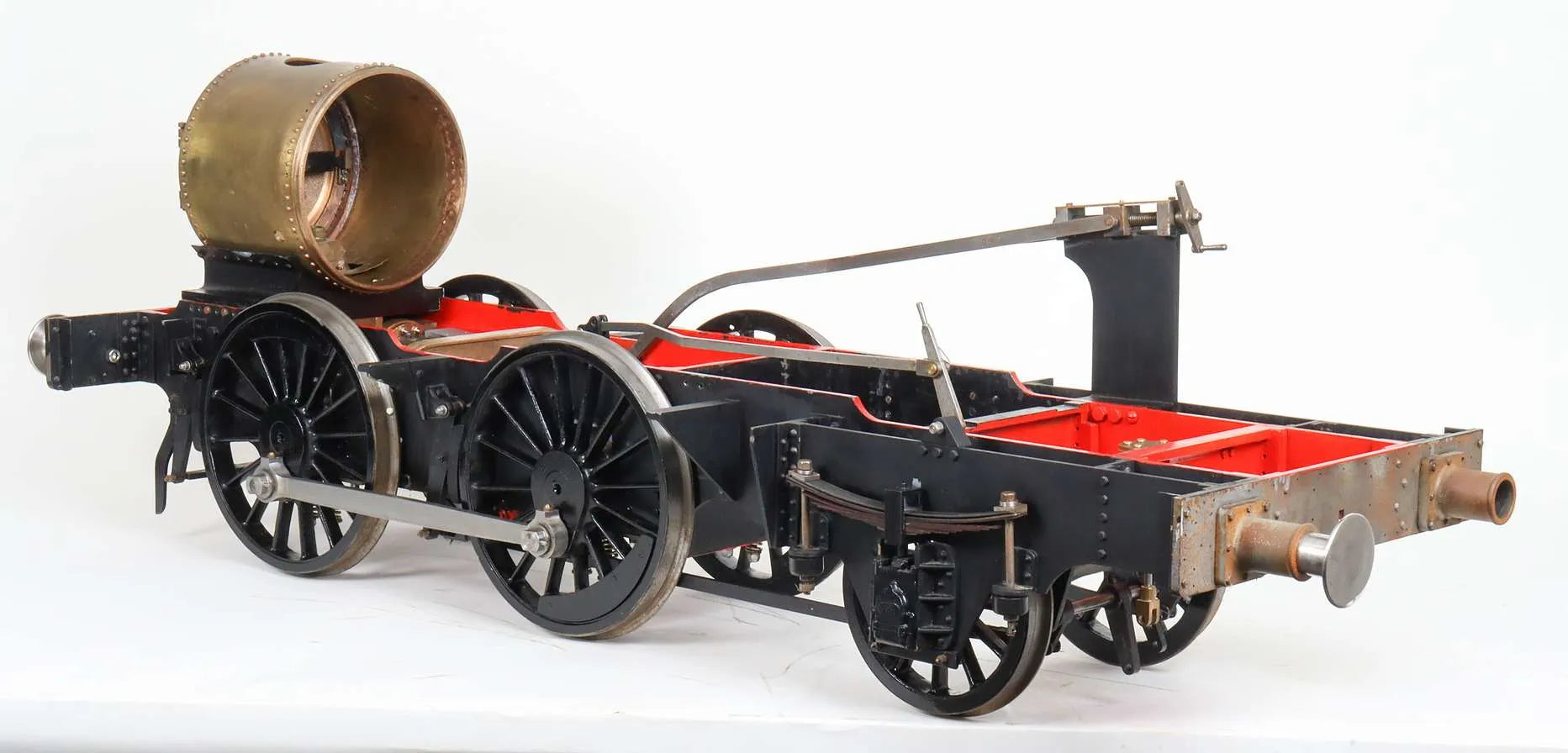

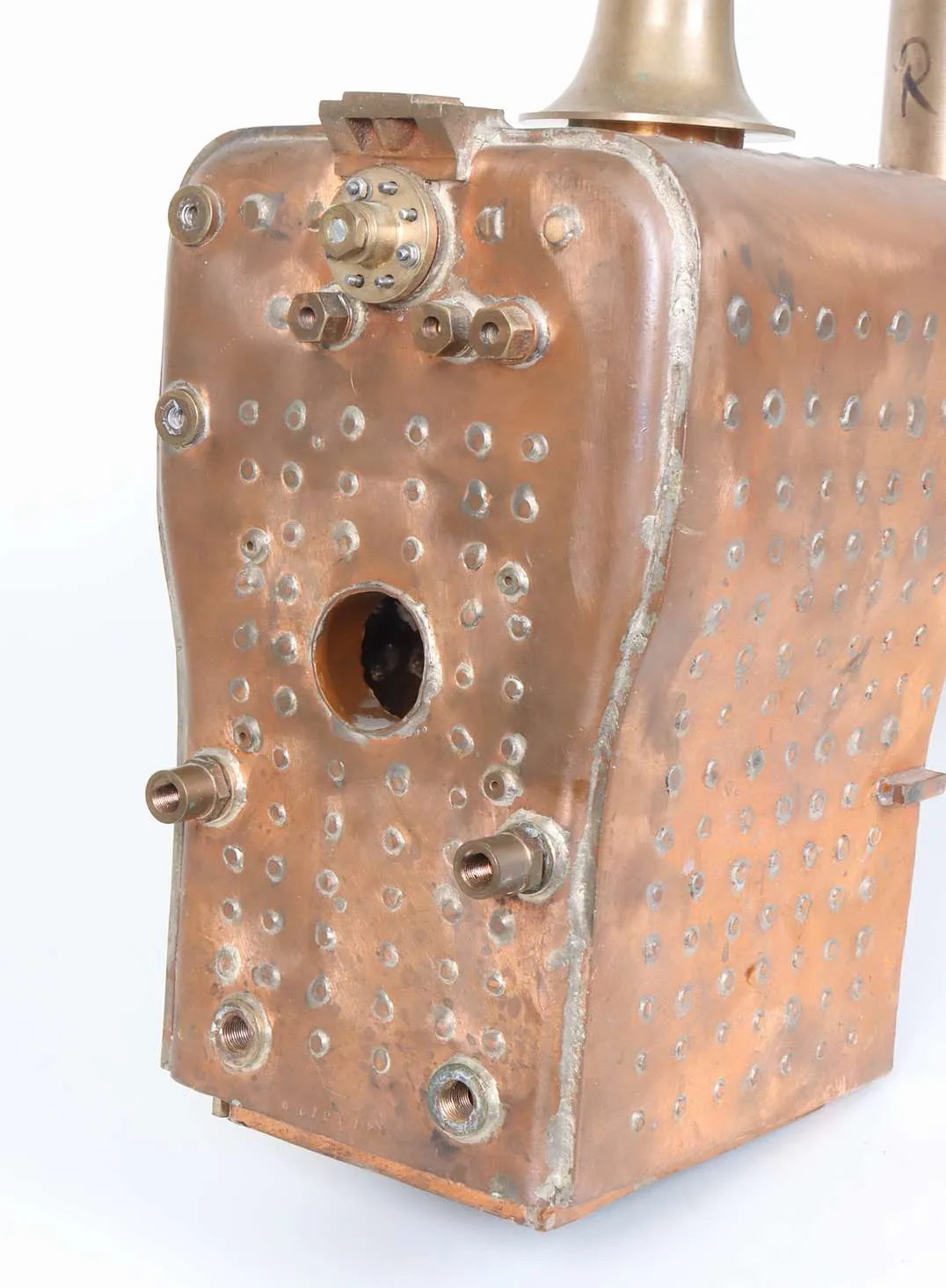

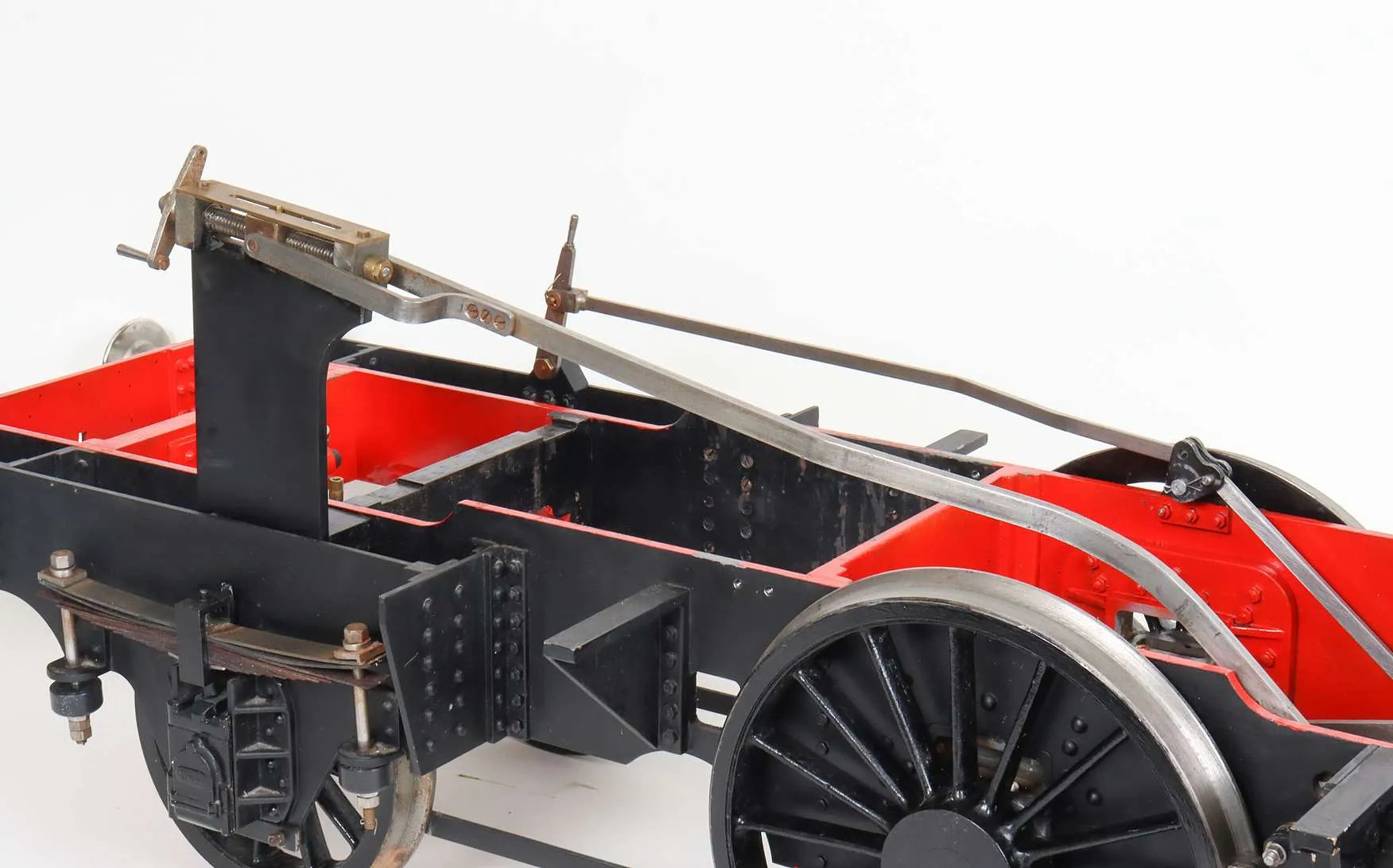

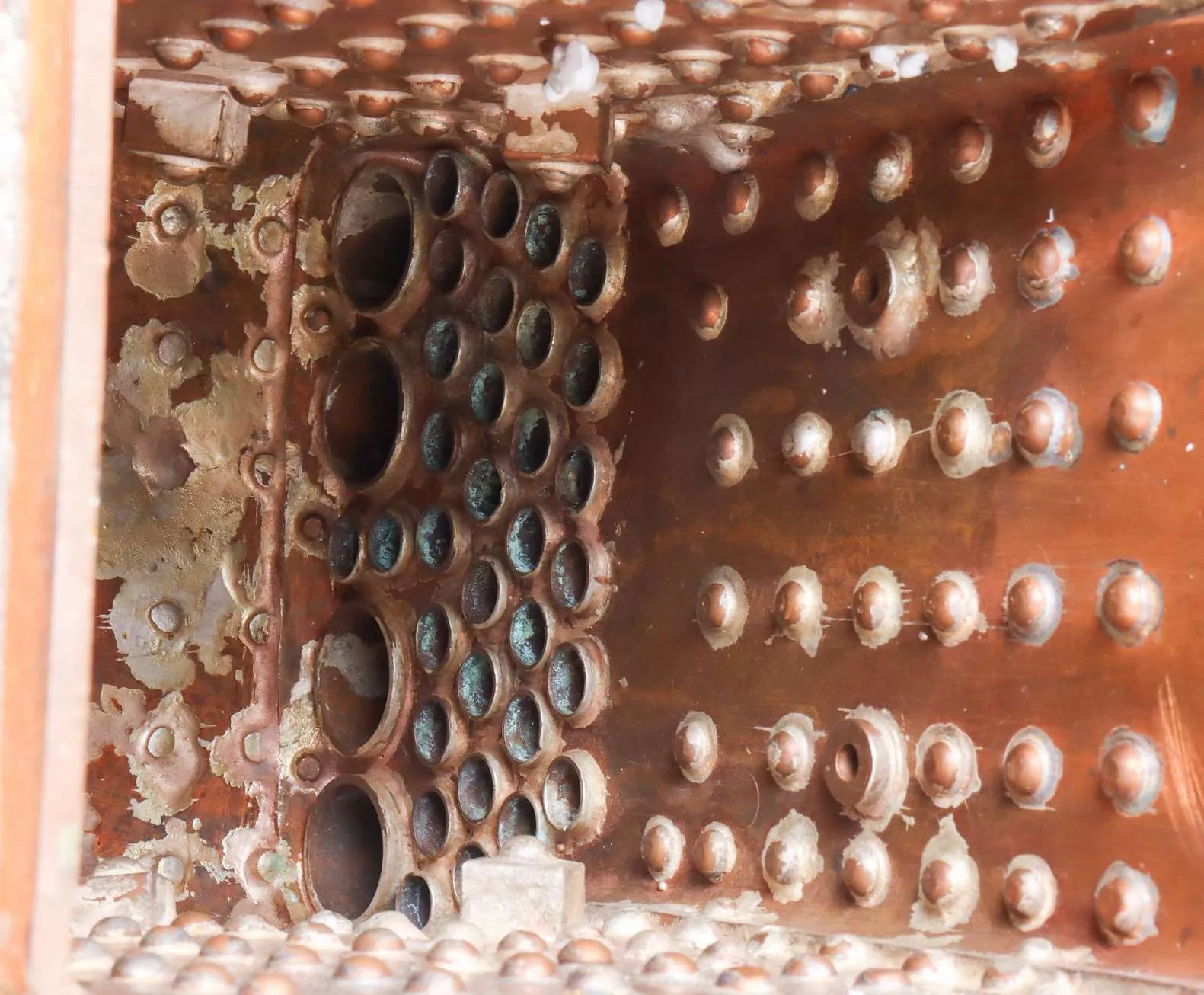

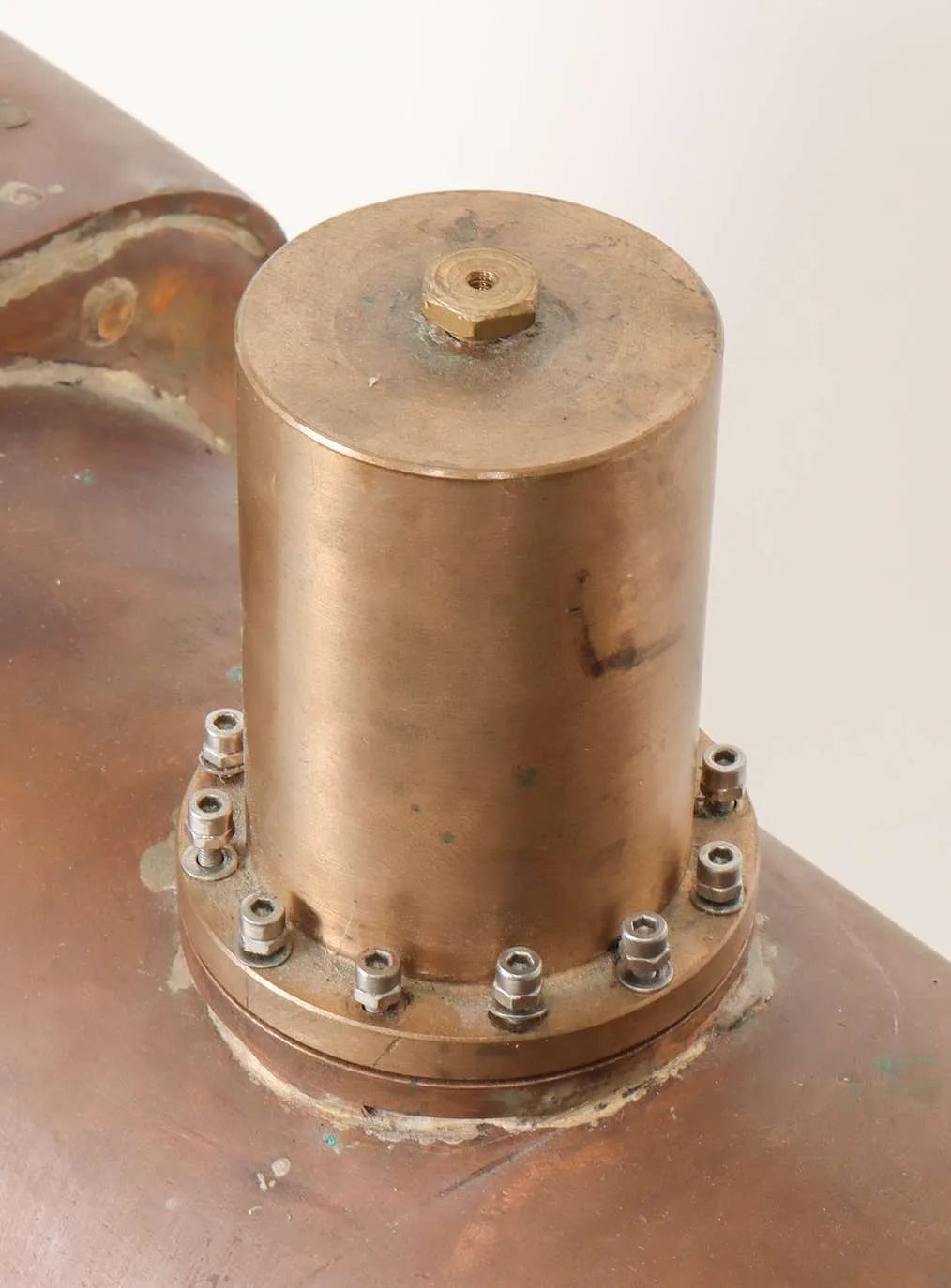

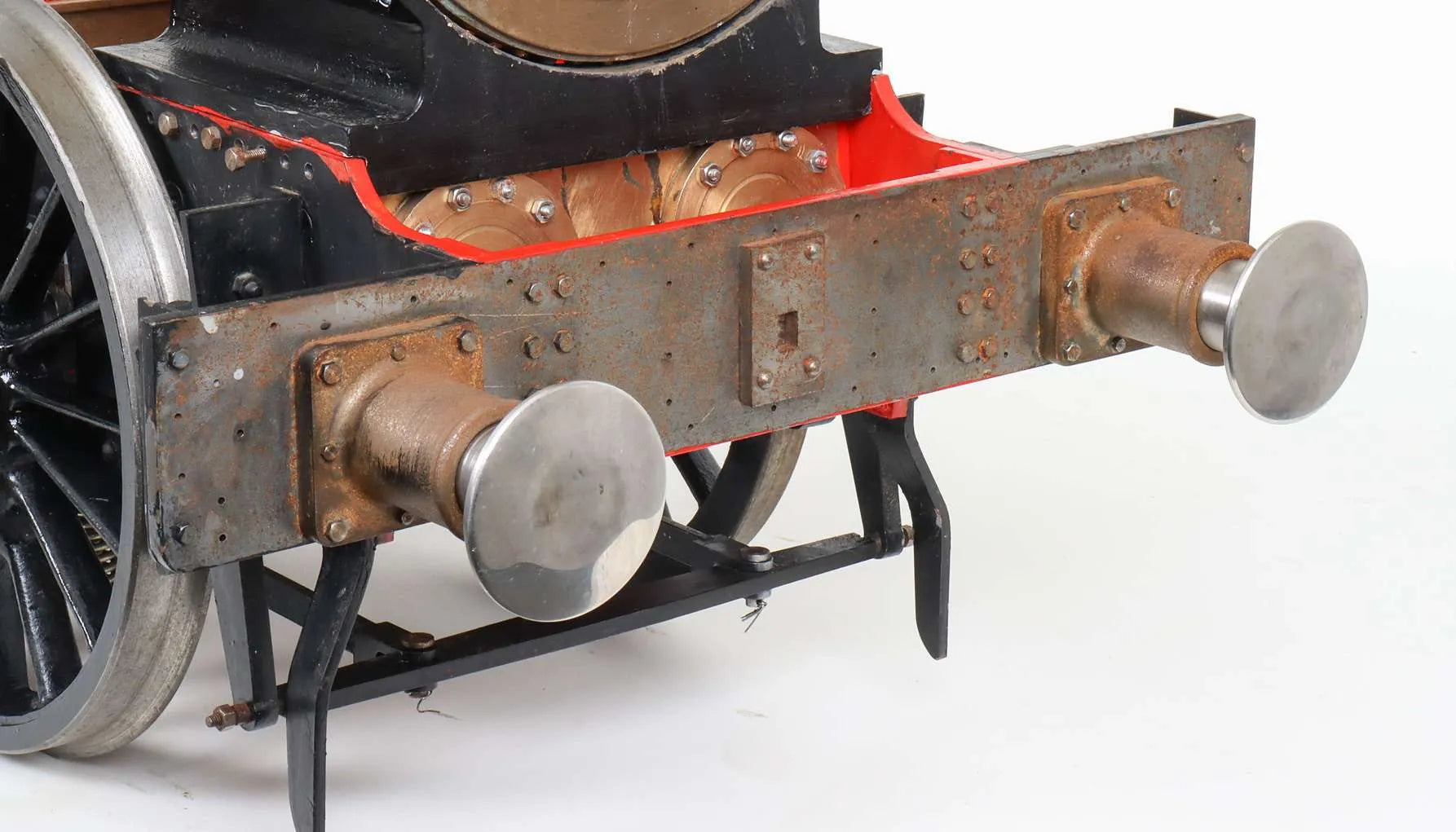

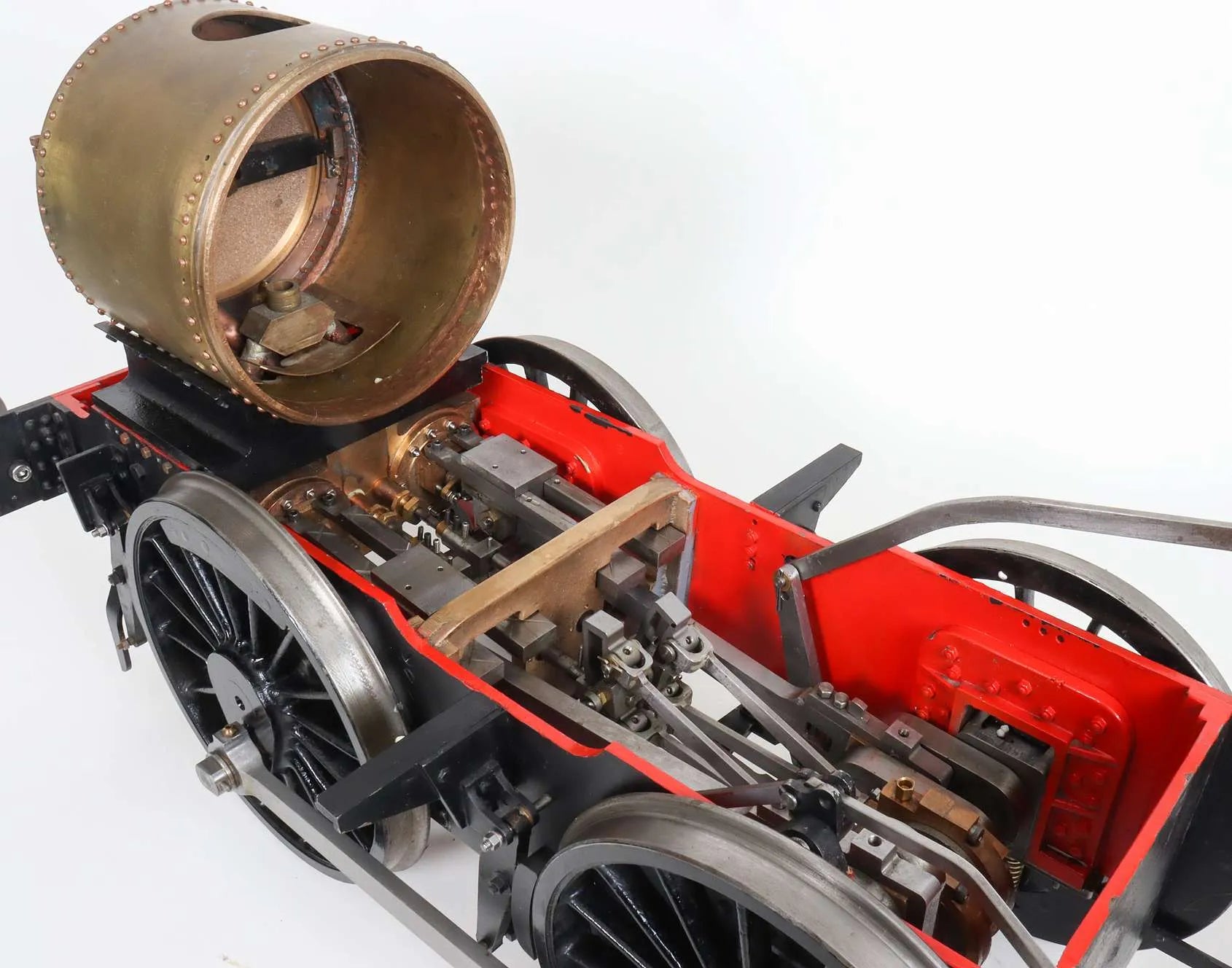

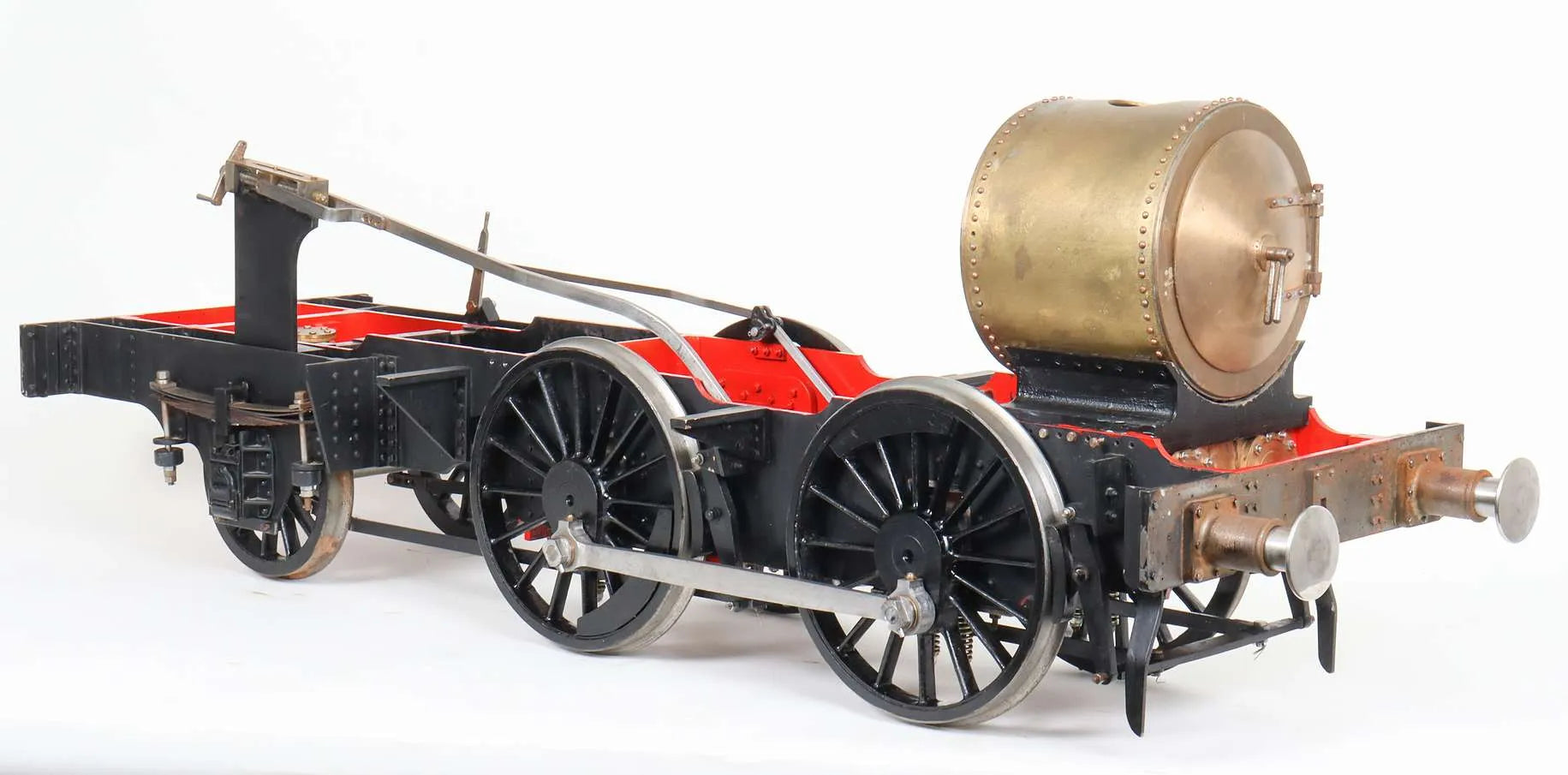

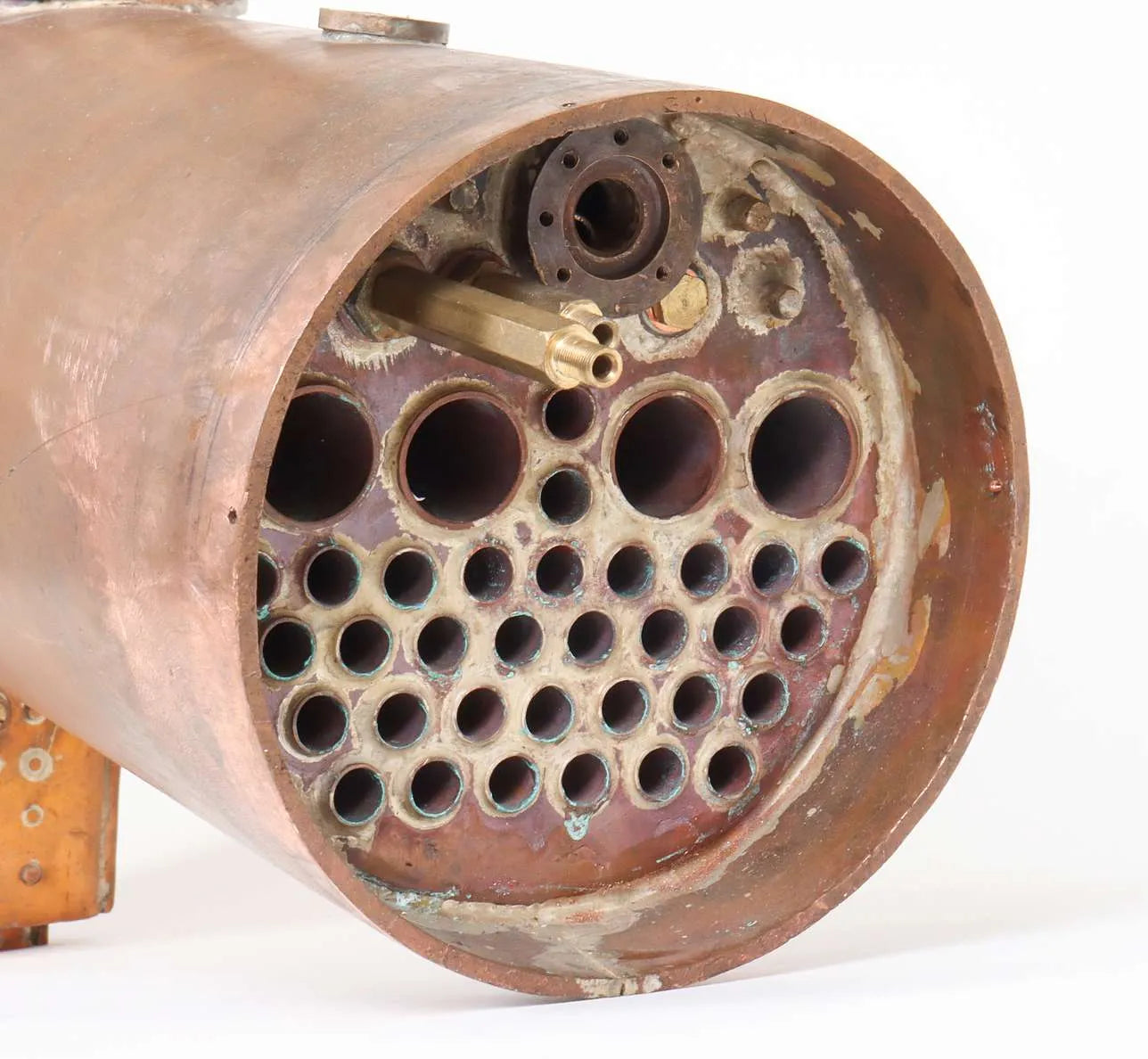

A well-advanced 7 1/4 inch gauge GWR 14XX 0-4-2T to Martin Evans' "Dart" design, chassis is up to air-running stage. The boiler is copper, silver soldered - the work of an experienced boiler maker. Well made, it has club certification for its initial twice working pressure hydraulic test.

Much work already done, to a high standard throughout - earlier in the year we sold a fine Fowler traction engine by the same builder. Main work to complete is platework for cab and tanks - a kit of laser cut parts is available commercially - pipework and painting.

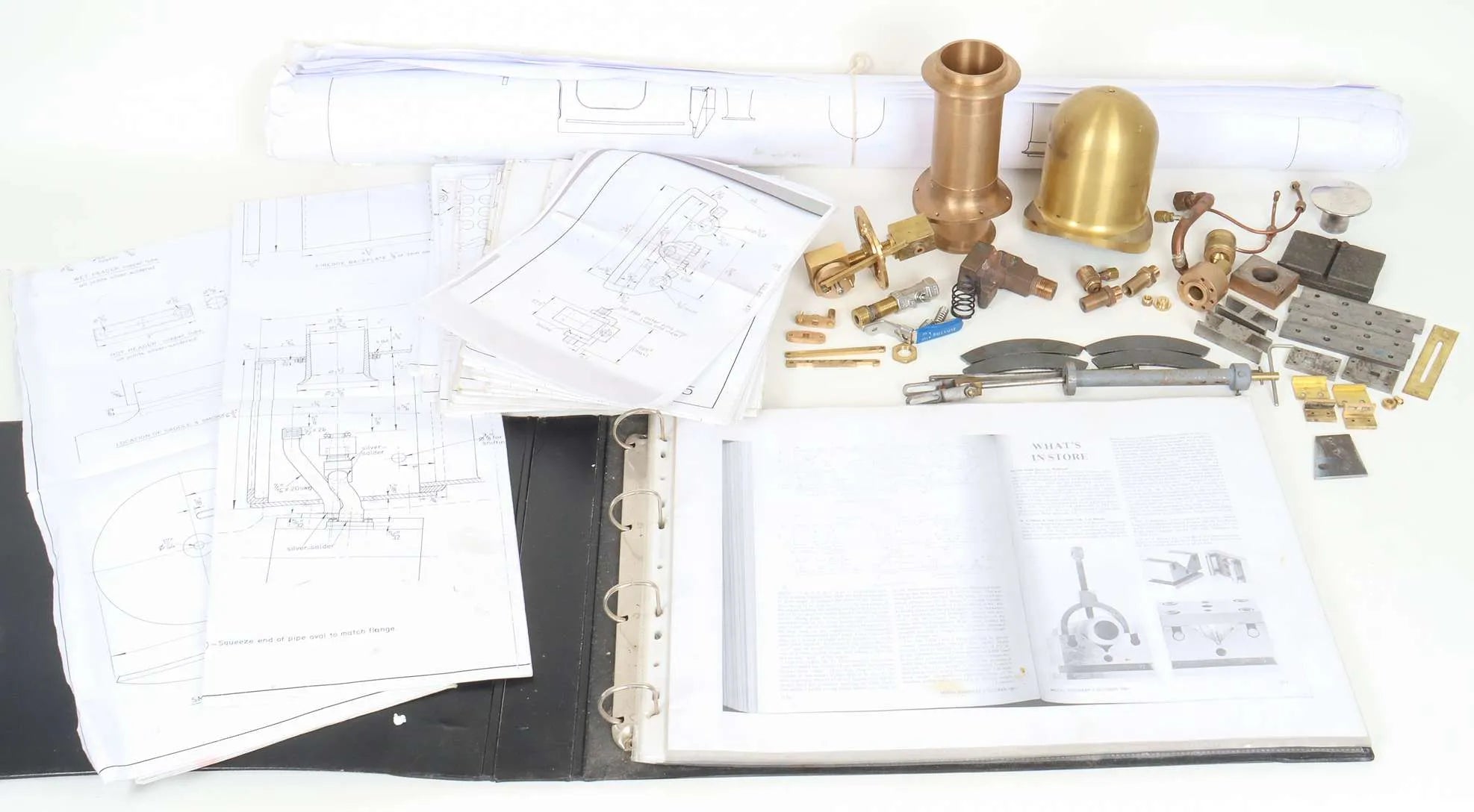

Complete with a set of drawings and copies of the original construction series from "Model Engineer" magazine.

Technical information

Stock code

8088

Gauge

7 1/4 inch

Length/inches

46

Width/inches

13

Height/inches

16

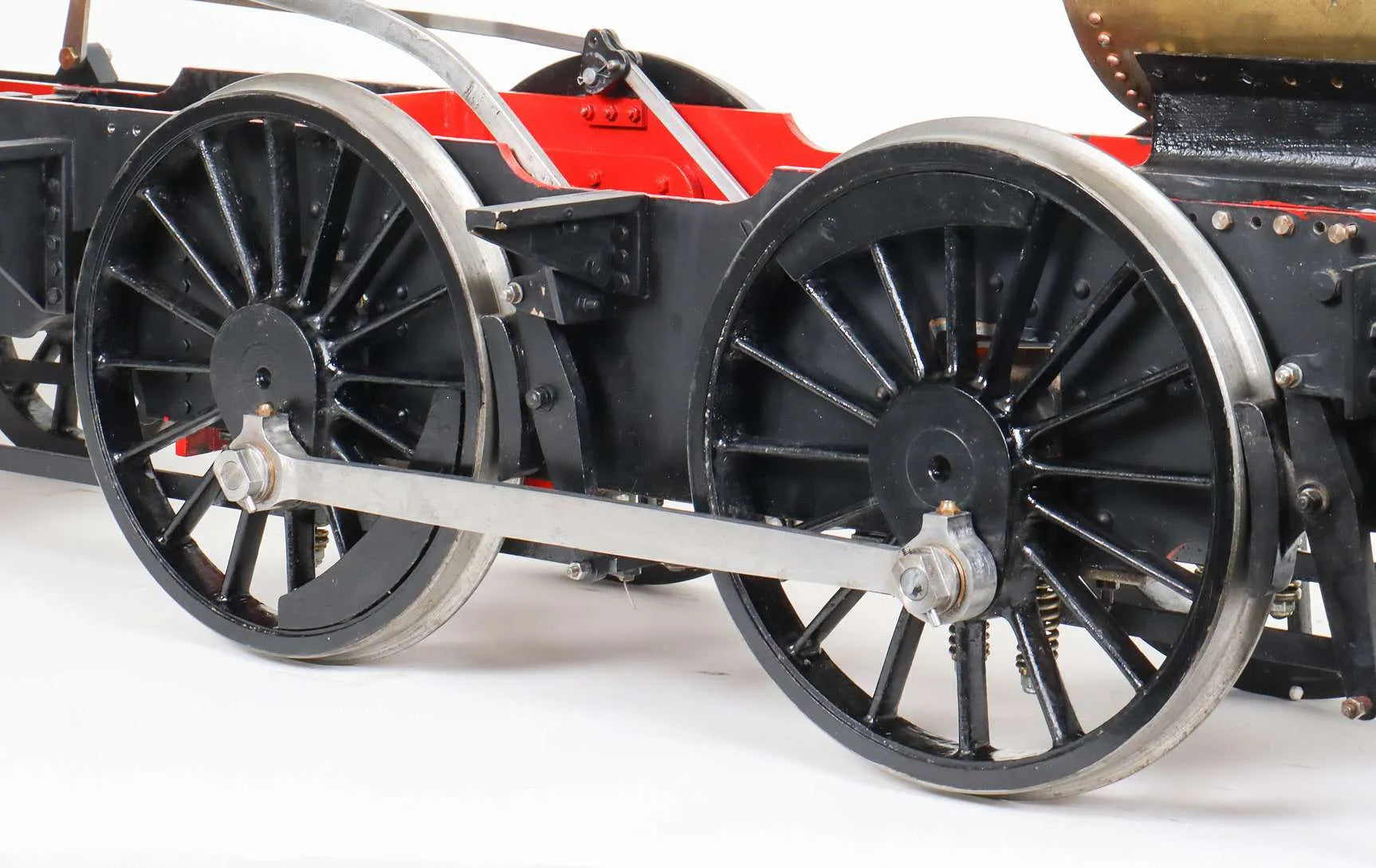

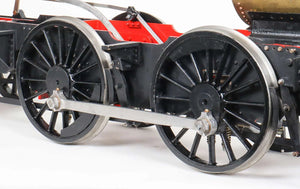

Wheel material

cast iron

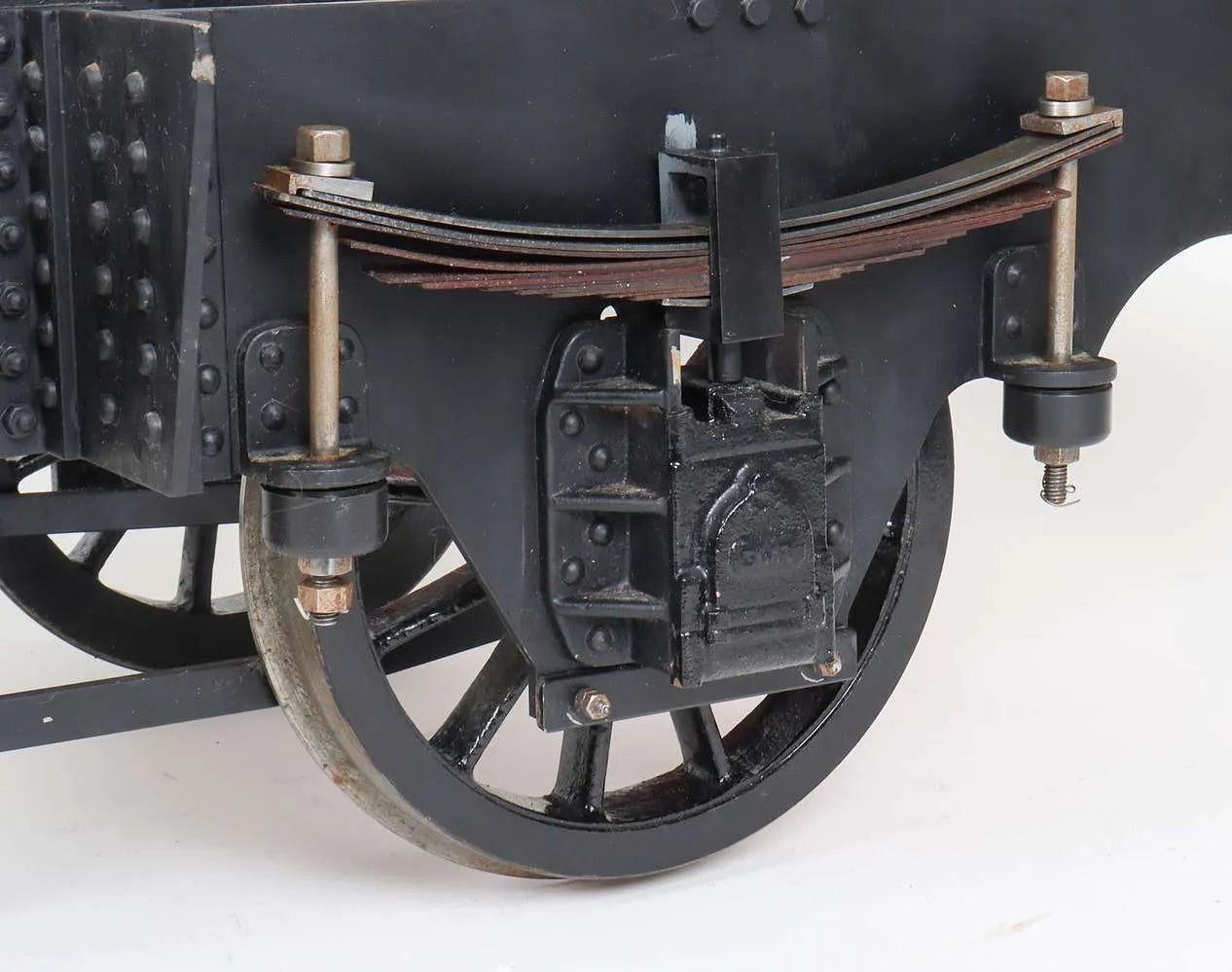

Axlebox type

plain

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Boiler construction

silver-soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

n/a - non-commercial

Year built

2014

Boiler number

N6100198

Pack

Single half pallet

Date out

Feb-23
