ST060

Stafford 0-6-0 - 7 1/4 inch gauge 0-6-0ST

Complete the form below to enquire about this product and we'll be in touch.

The six-coupled version of our original Stafford - the extra wheelset provides additional adhesive weight and stability.

Supplied ready to run, standard specification includes:

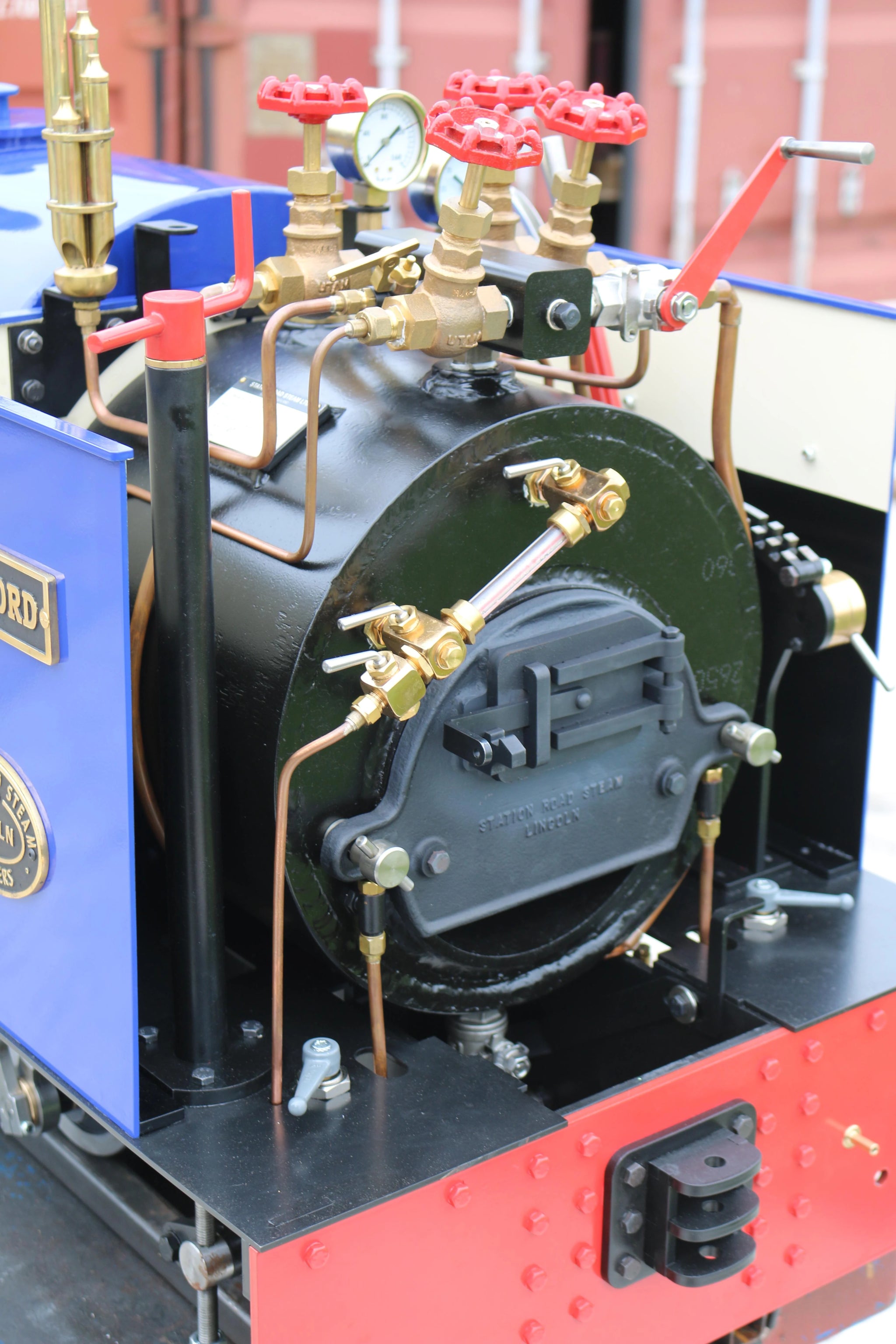

  • Vacuum brake equipment - ejector, steam valve, driver's brake valve, vacuum gauge
  • Valve chest pressure gauge

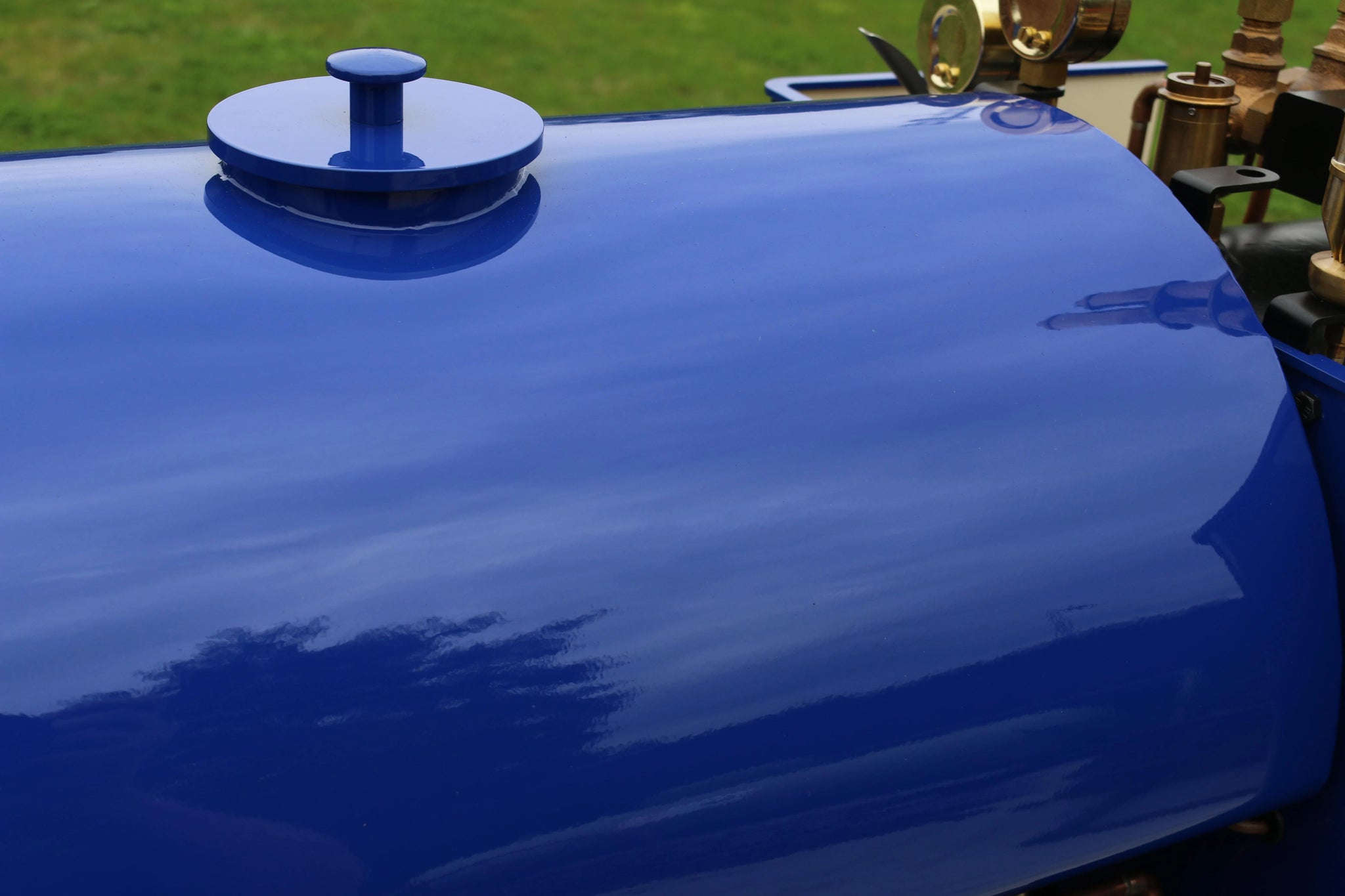

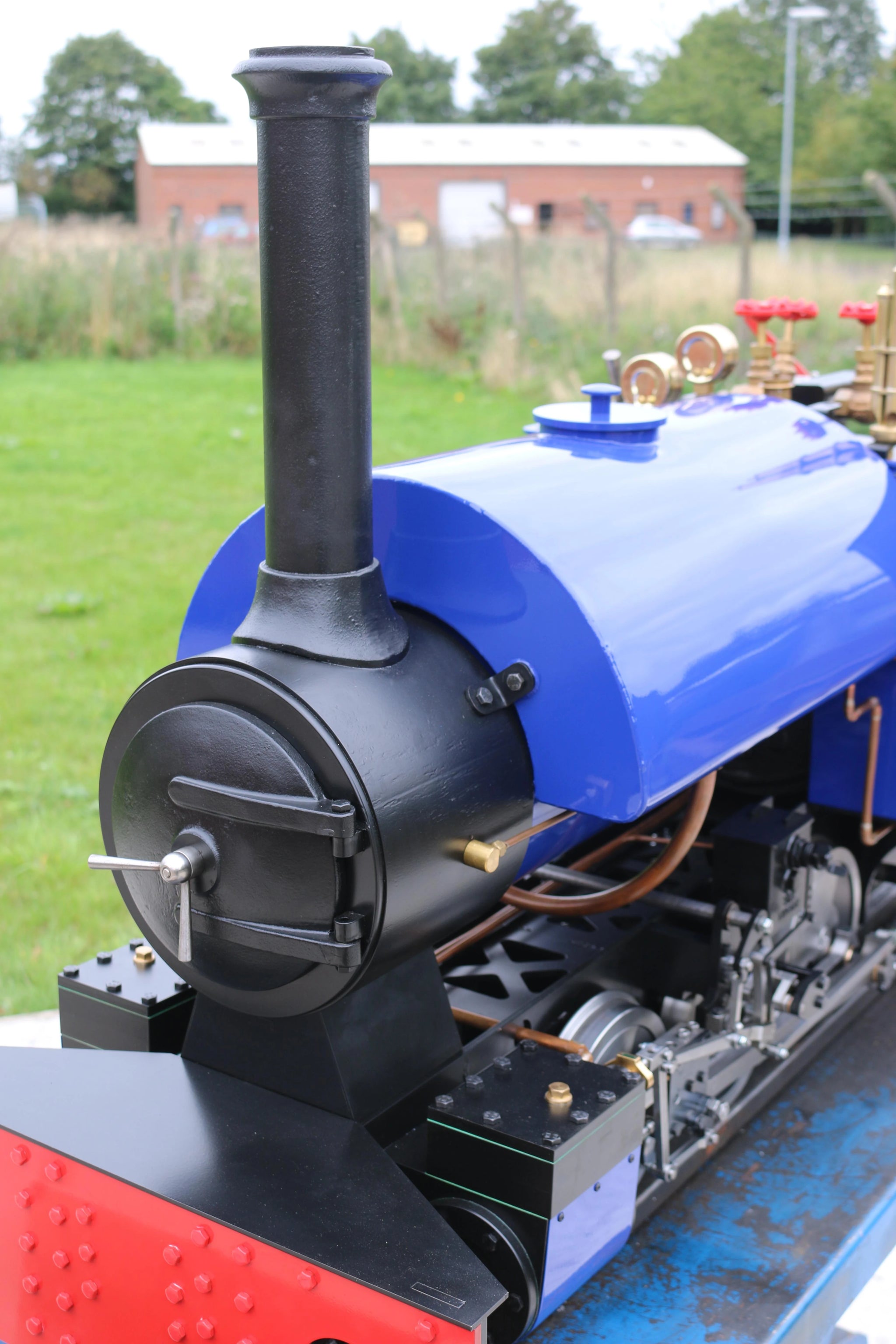

  • TIG-welded stainless steel saddle tank, 18.6 litre/4.1 imp gallon capacity
  • Type 28 whistle and valve
  • Valve chest mounted snifting valves
  • Polished stainless steel handrails and smokebox door handles
  • Two pack livery in choice of colours
  • Front and rear three slot couplings
  • Starter kit of oil, water treatment and coal
  • Set of firing irons
  • Stainless steel coupling bar and pin
  • Operating and maintenance handbook
  • 12 months parts and labour warranty

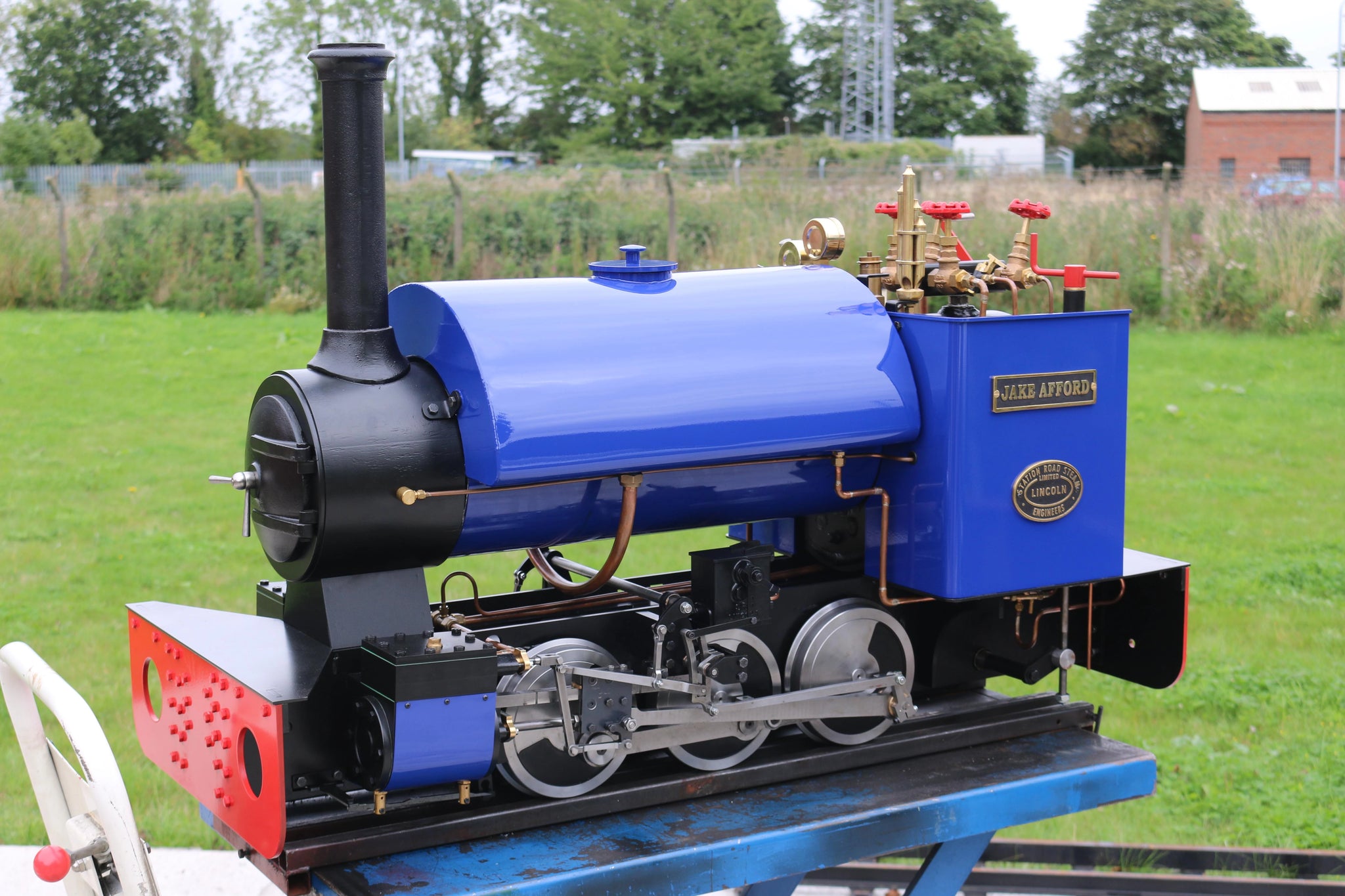

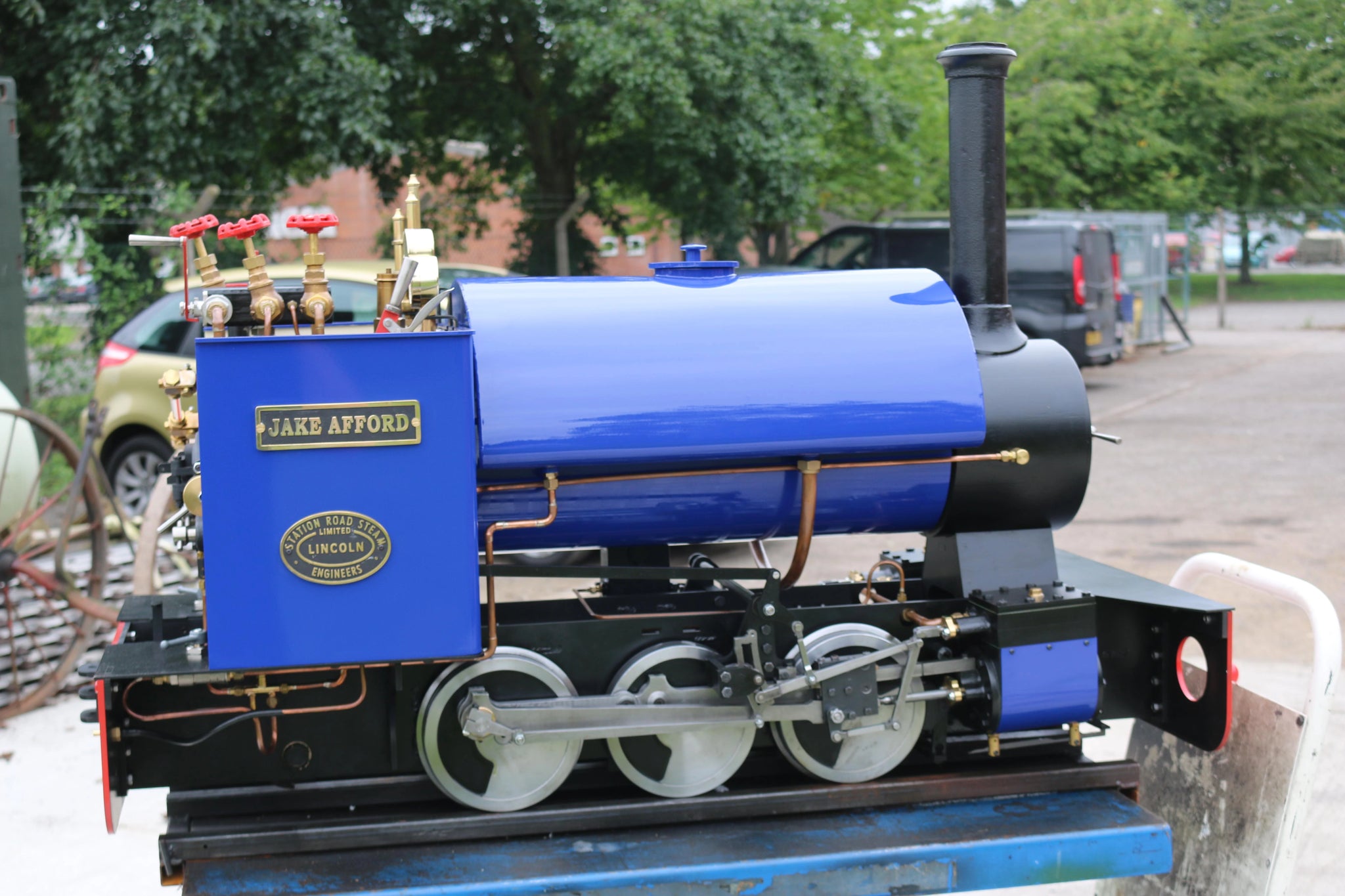

The engine pictured opposite, works number 1330, is fitted with options including:

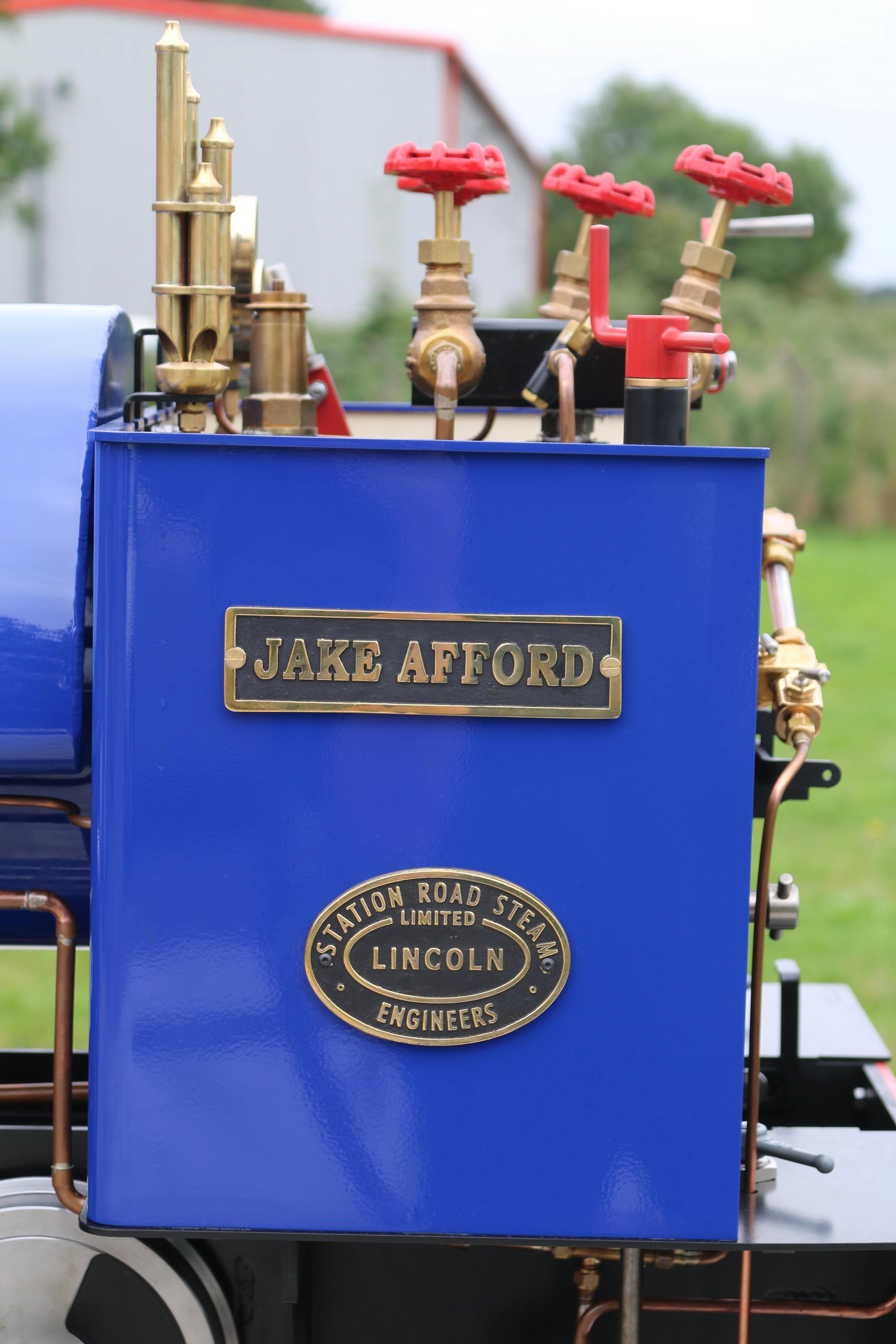

  • Polished and painted nameplates
  • Four note chime whistle

Technical information

Stock code

ST060

Gauge

7 1/4 inch

Length/inches

45

Height/inches

32

Weight/Kg

205

Axlebox type

sealed takeup bearing

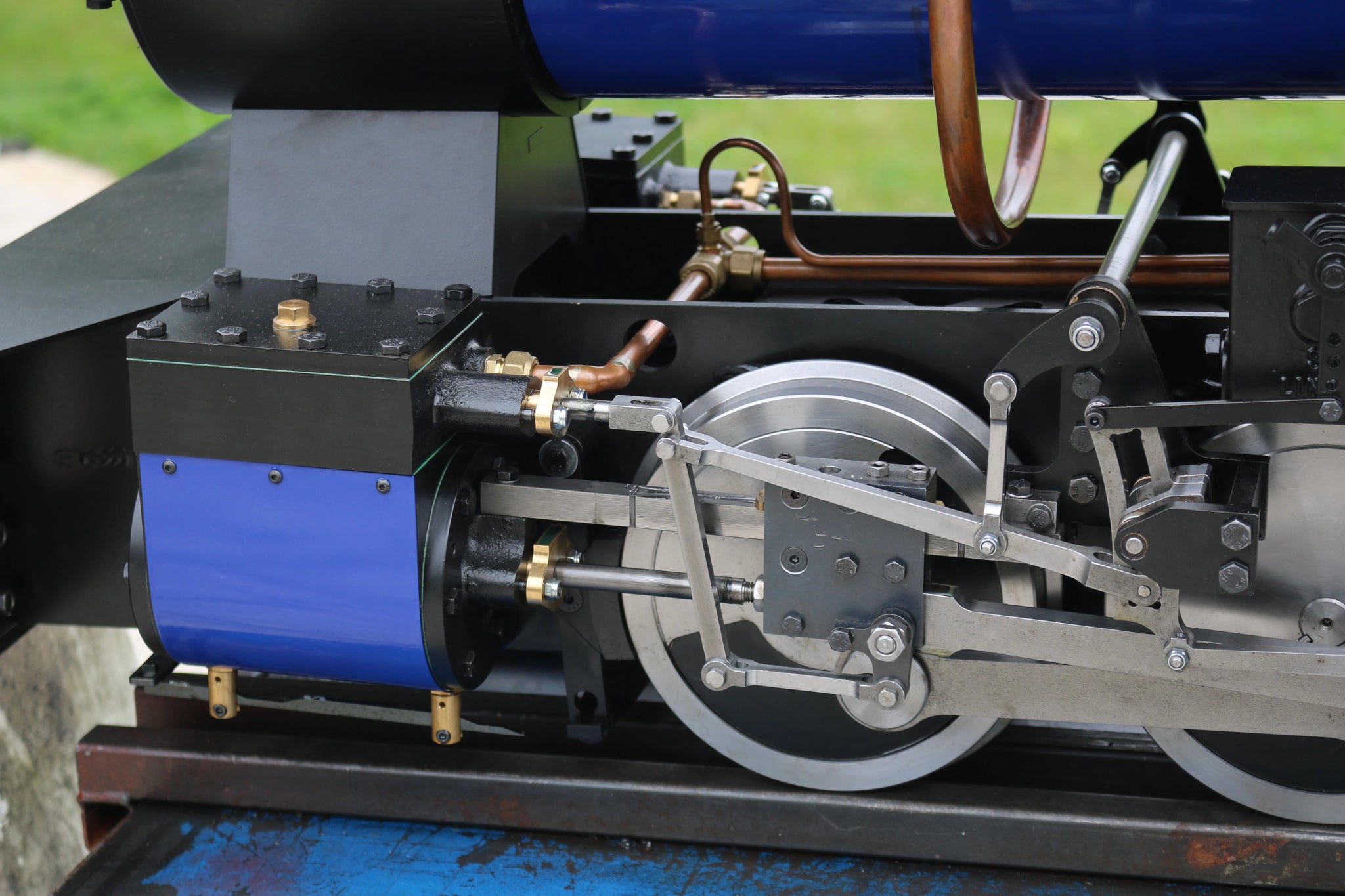

Cylinder material

cast iron

Valve type

slide

Valve gear

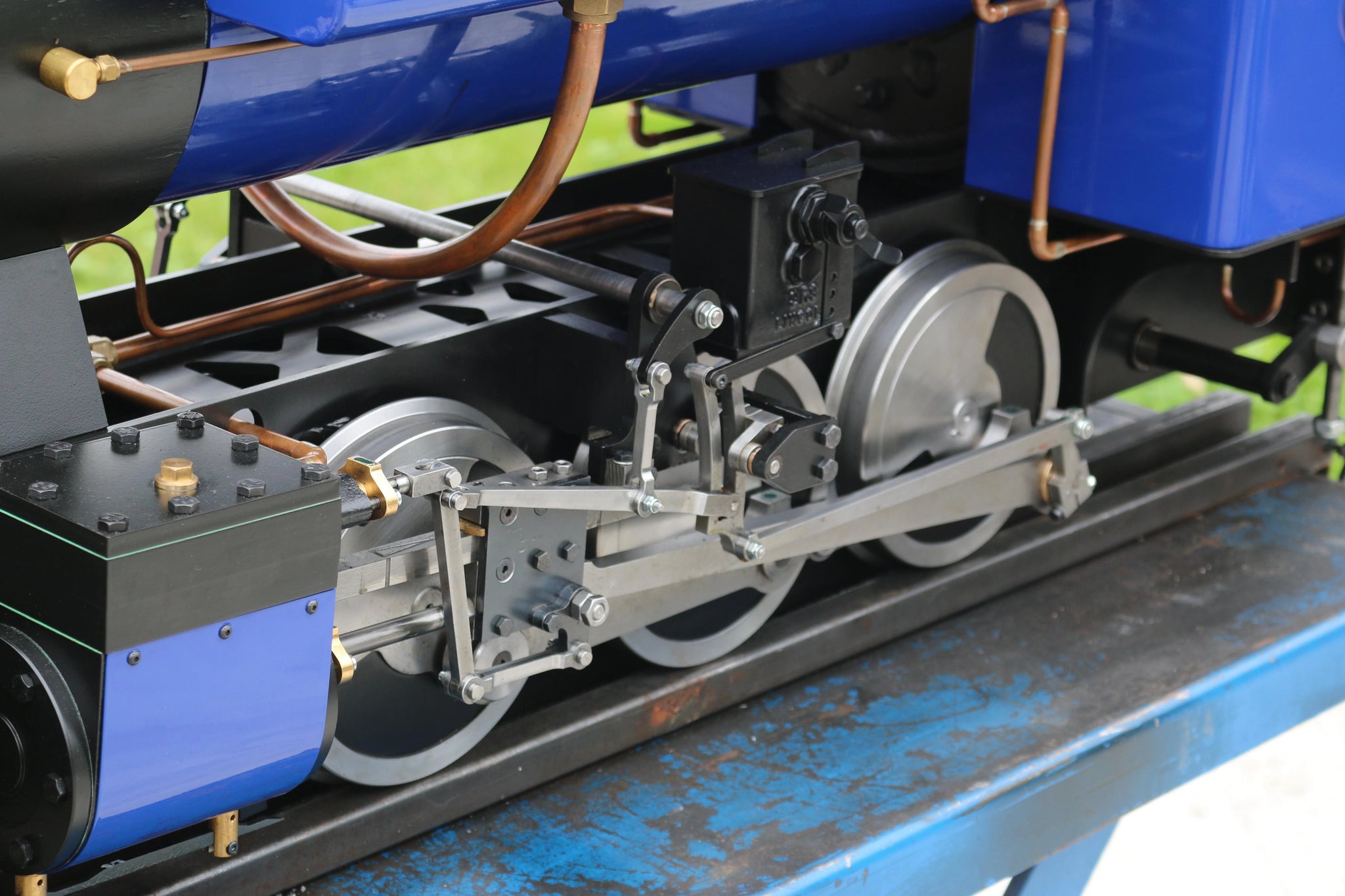

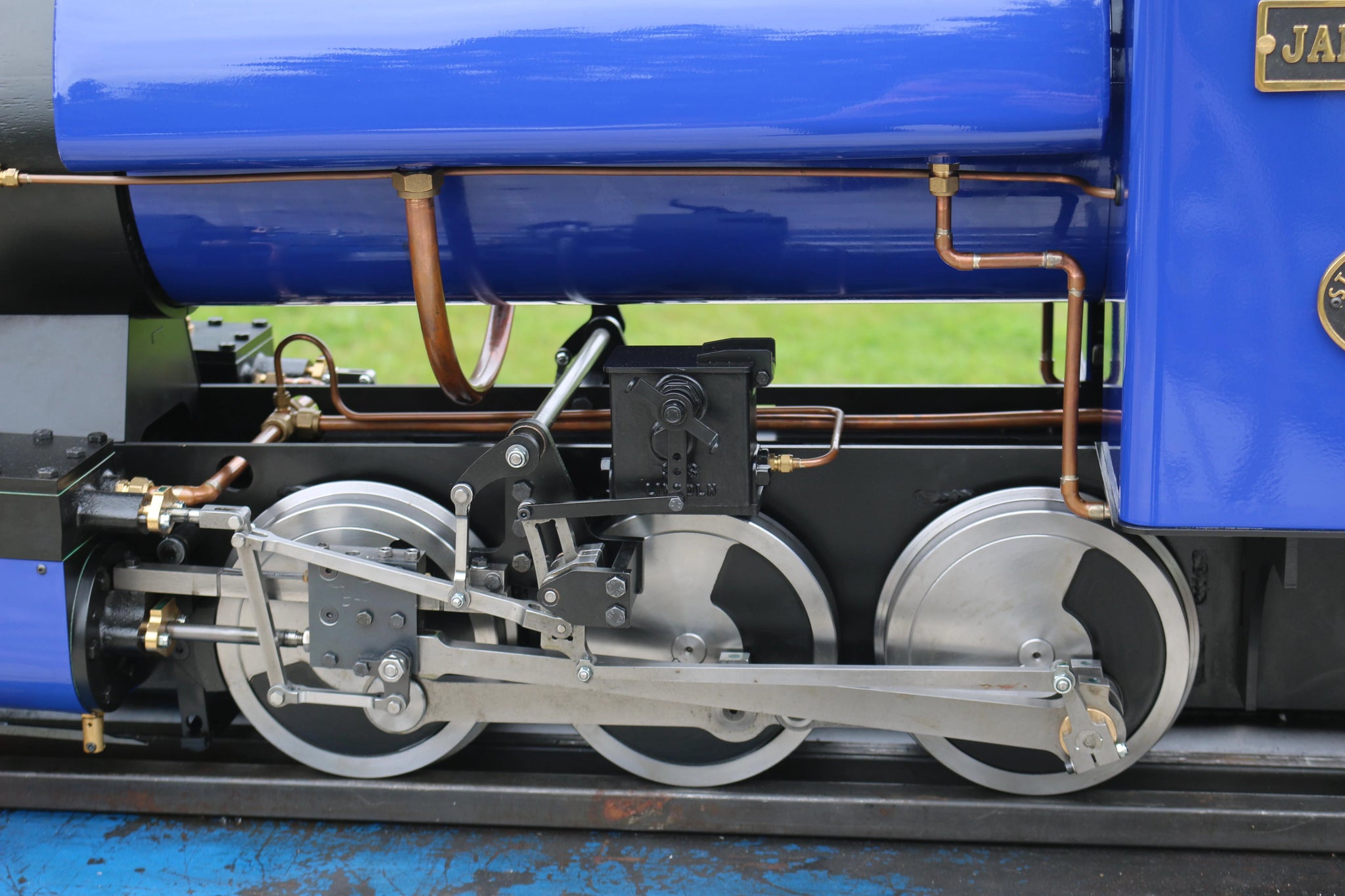

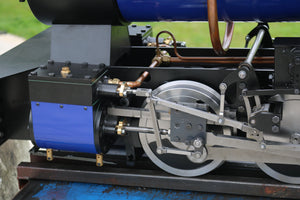

Walschaerts

Reverser type

pole

Lubricator type

mechanical

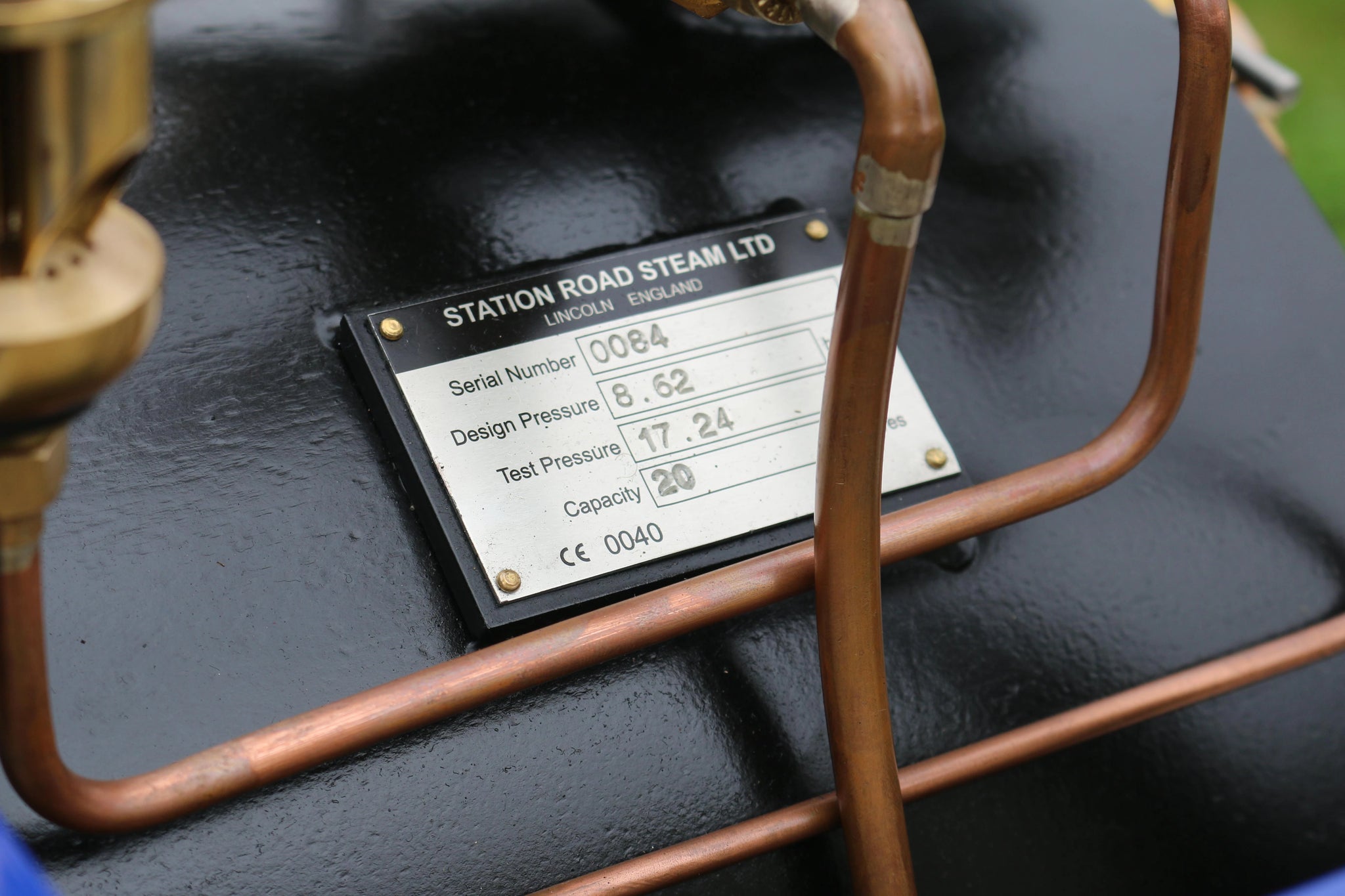

Boiler maker

Station Road Steam

Boiler type

marine

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

UKCA/CE

Safety valve type

progressive pop

Safety valve

1

Fusible plug

yes

Bore x stroke

2 1/4 x 3

Chassis material

steel

Injector

2 x 2.6 pint/min

Nominal traction

238

Minimum radius

25
