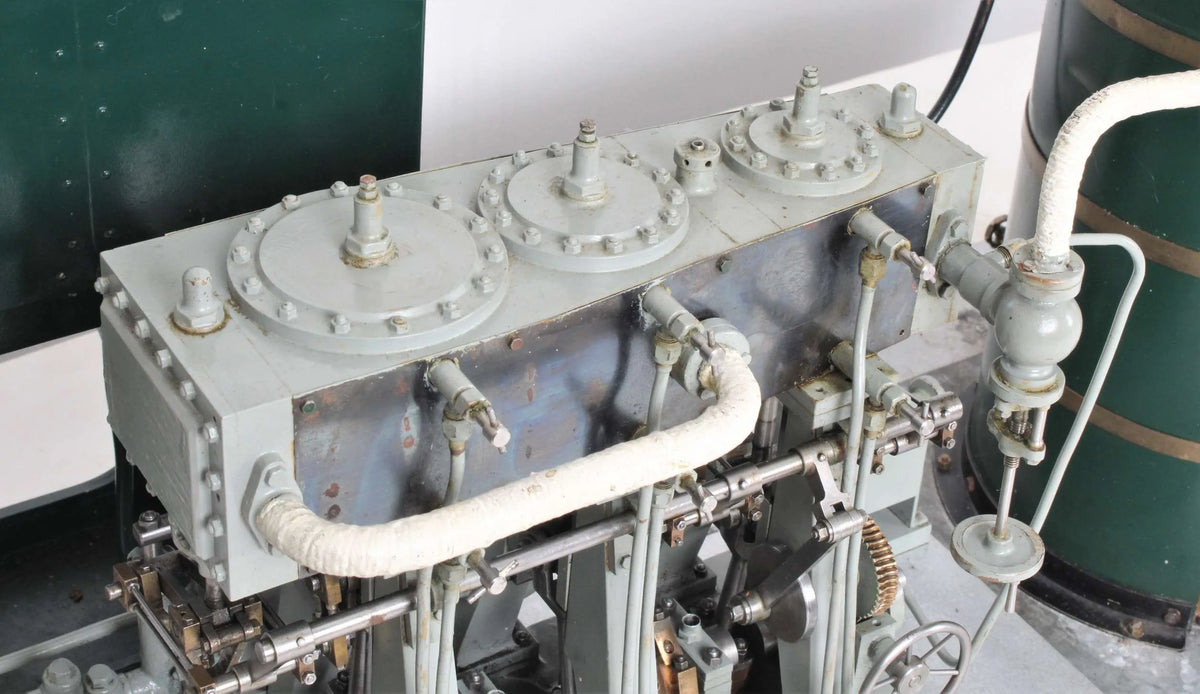

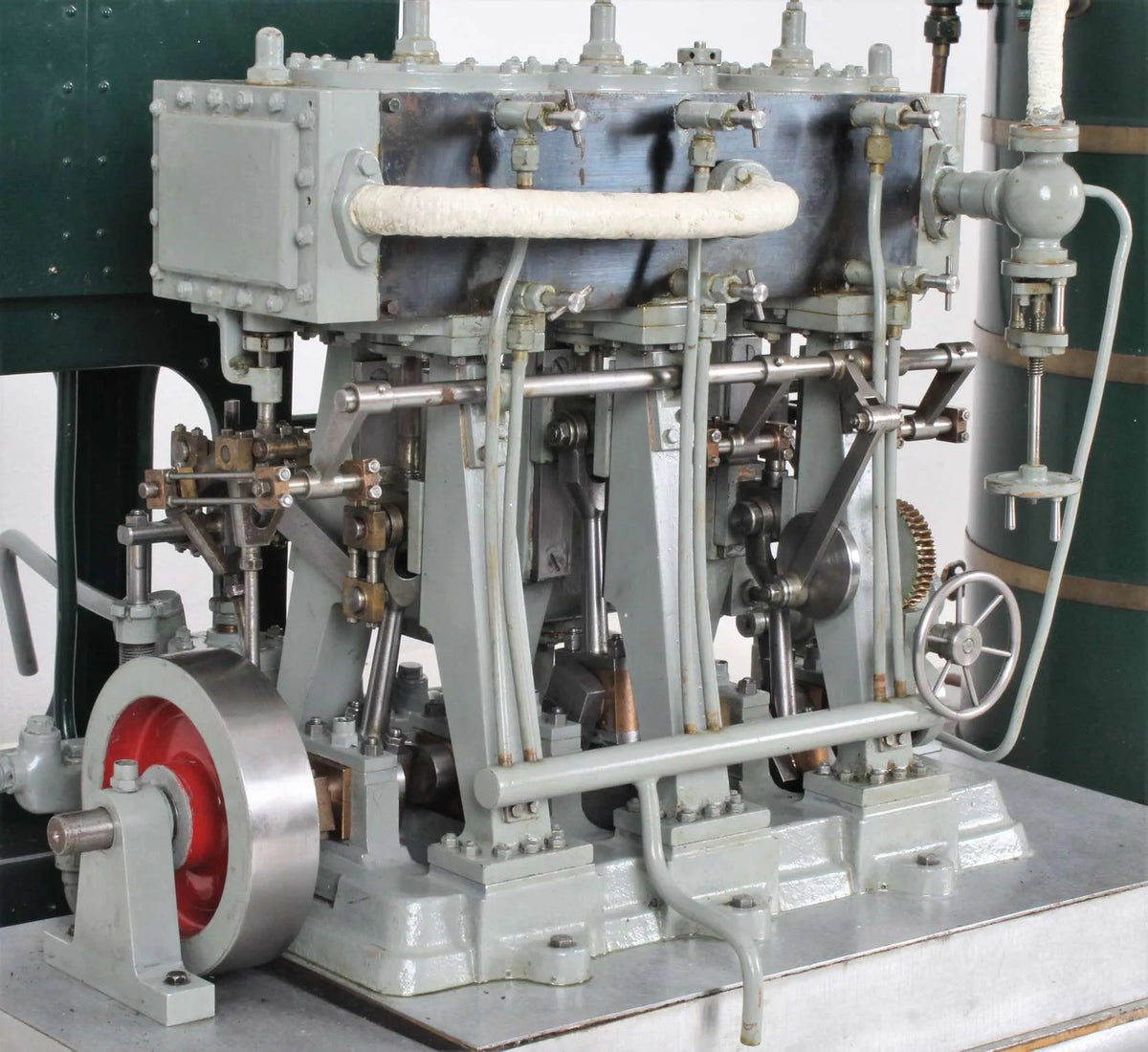

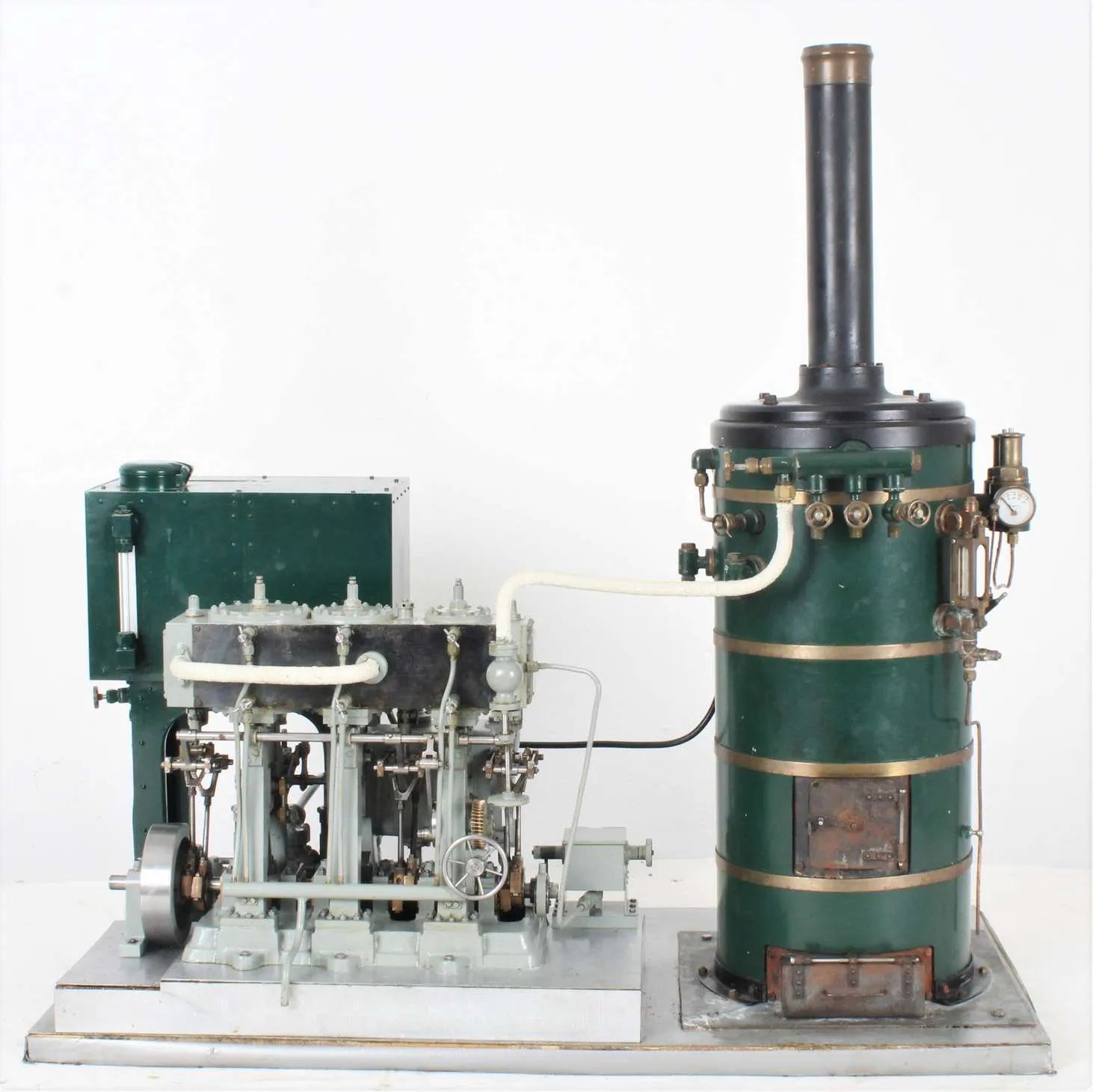

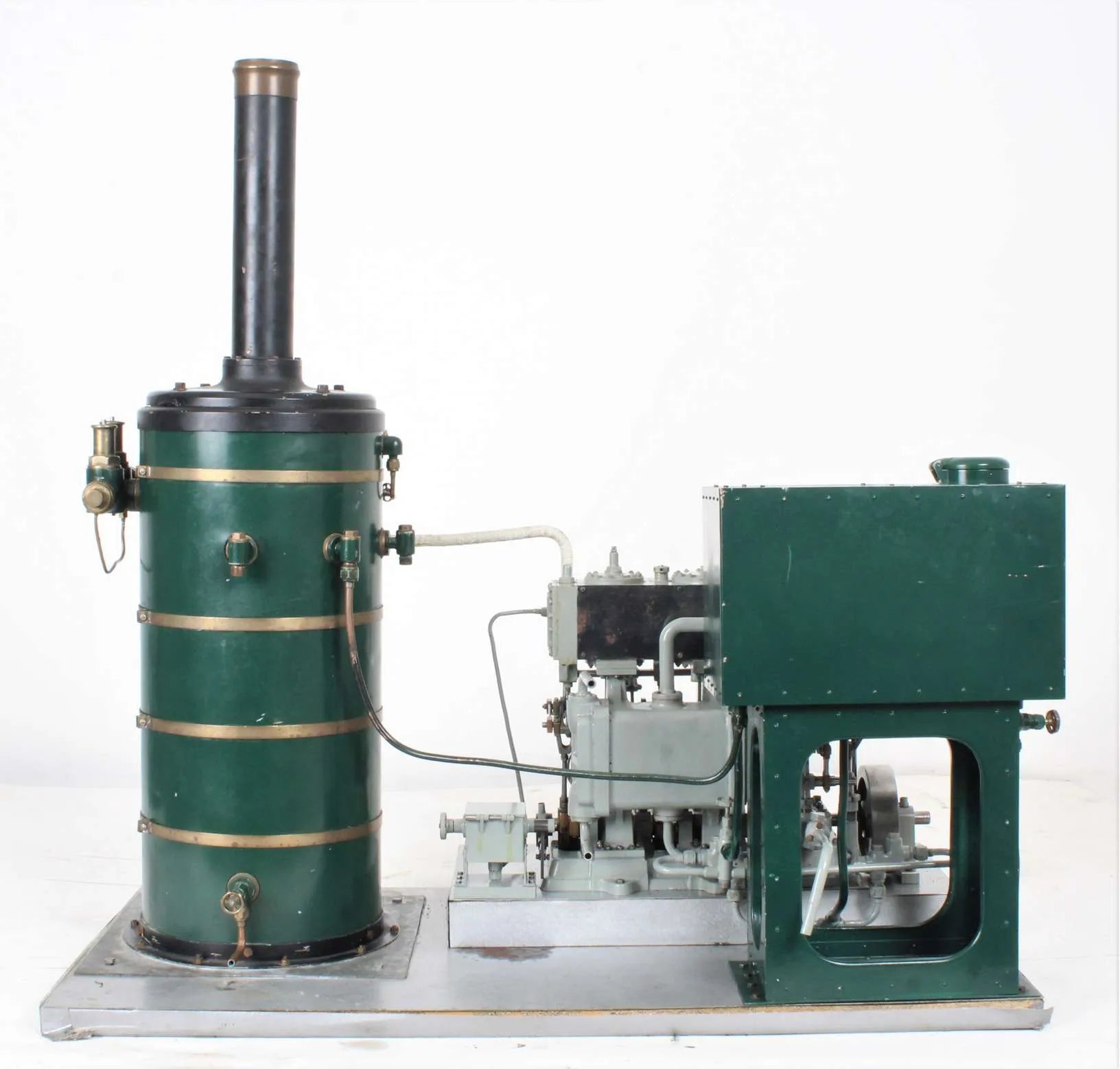

Steam plant with triple expansion engine and vertical boiler

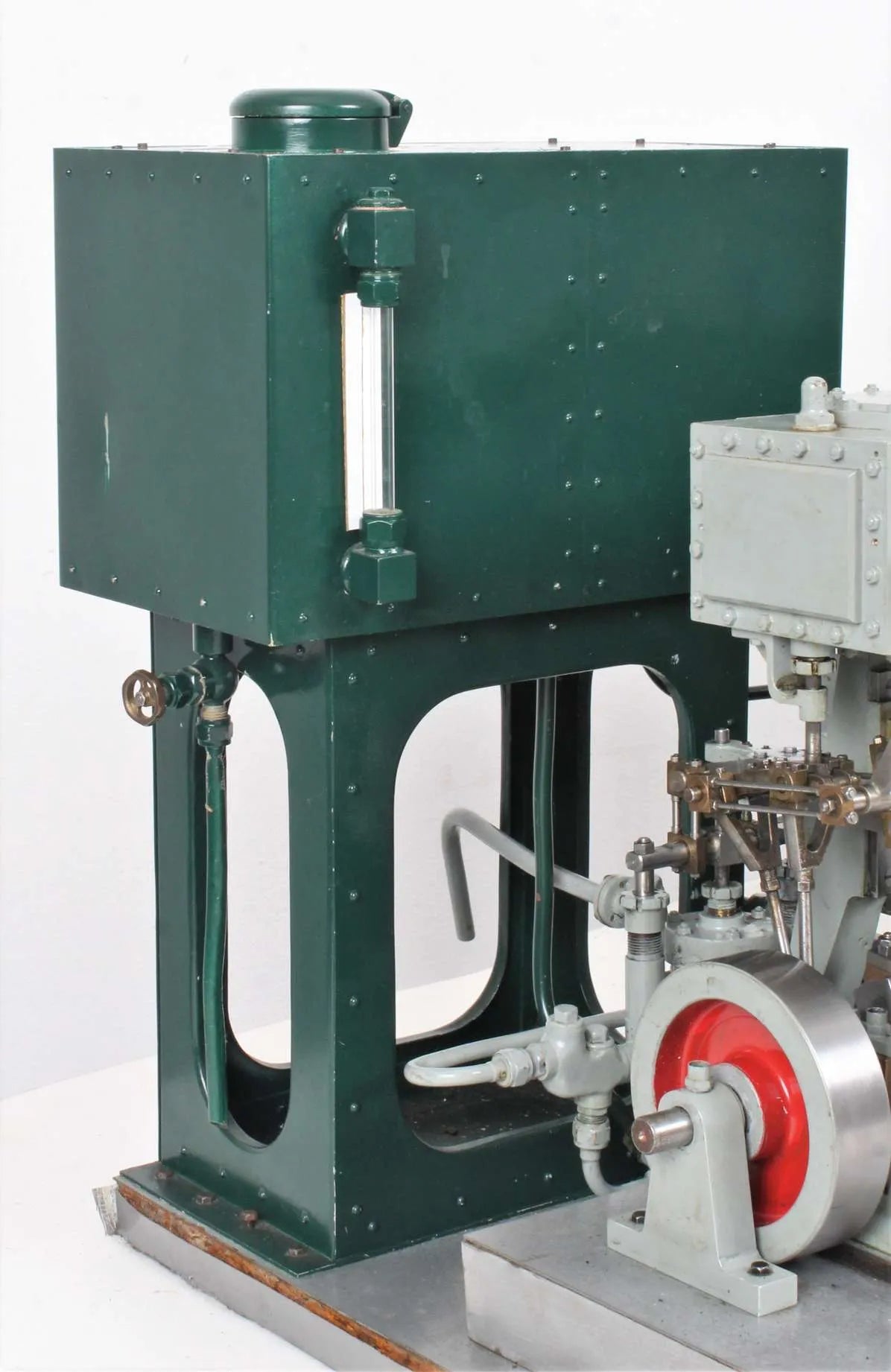

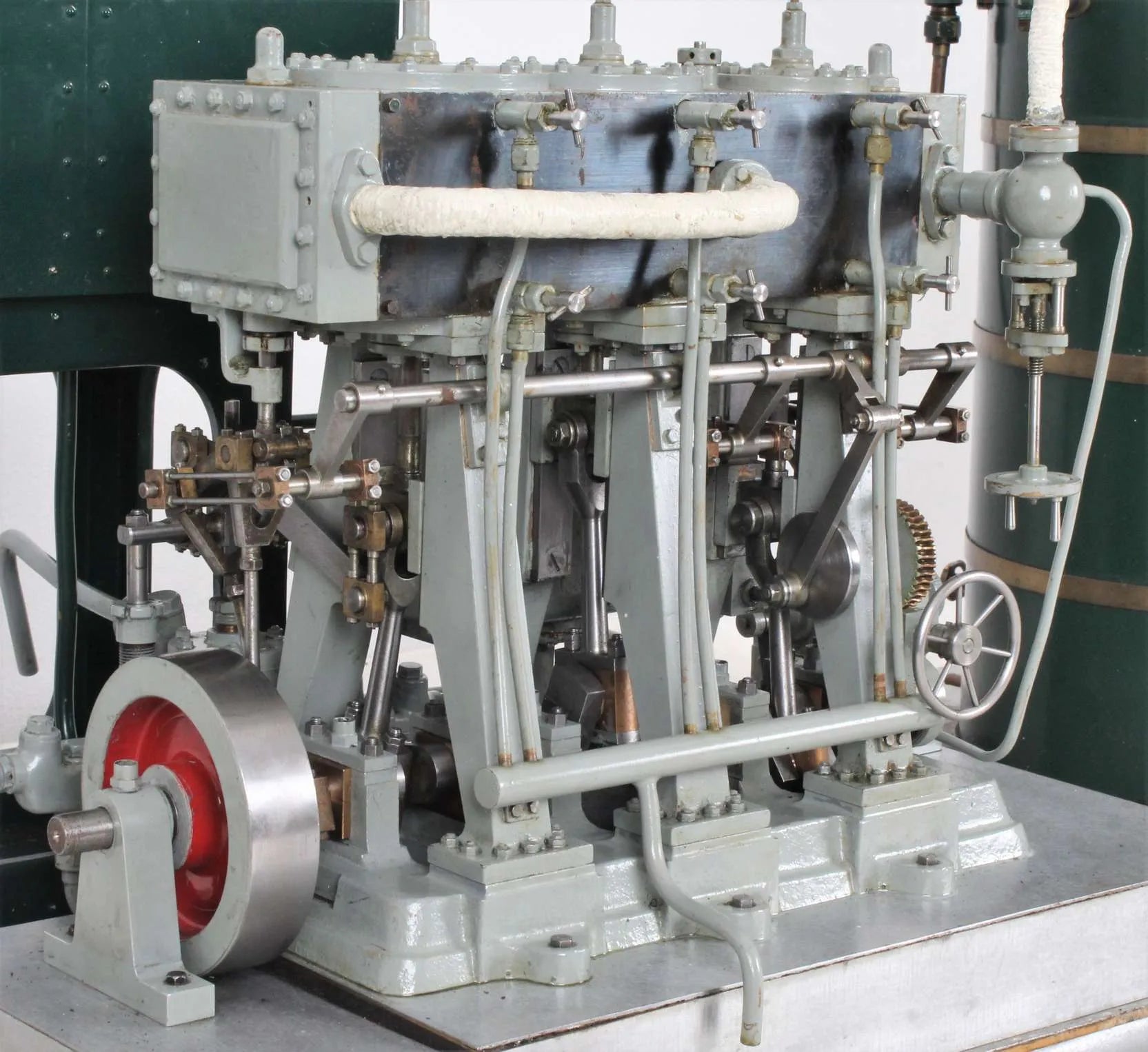

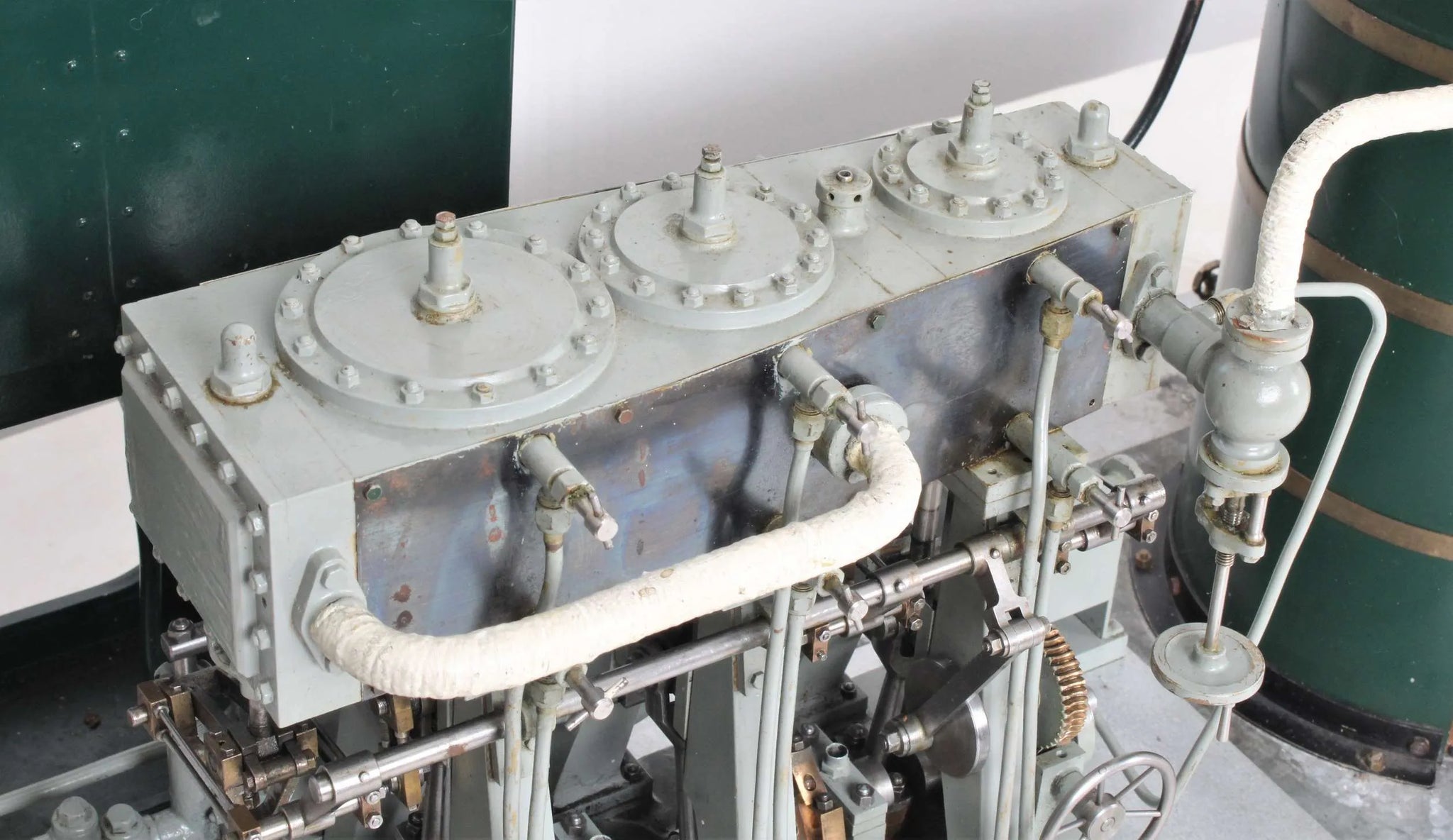

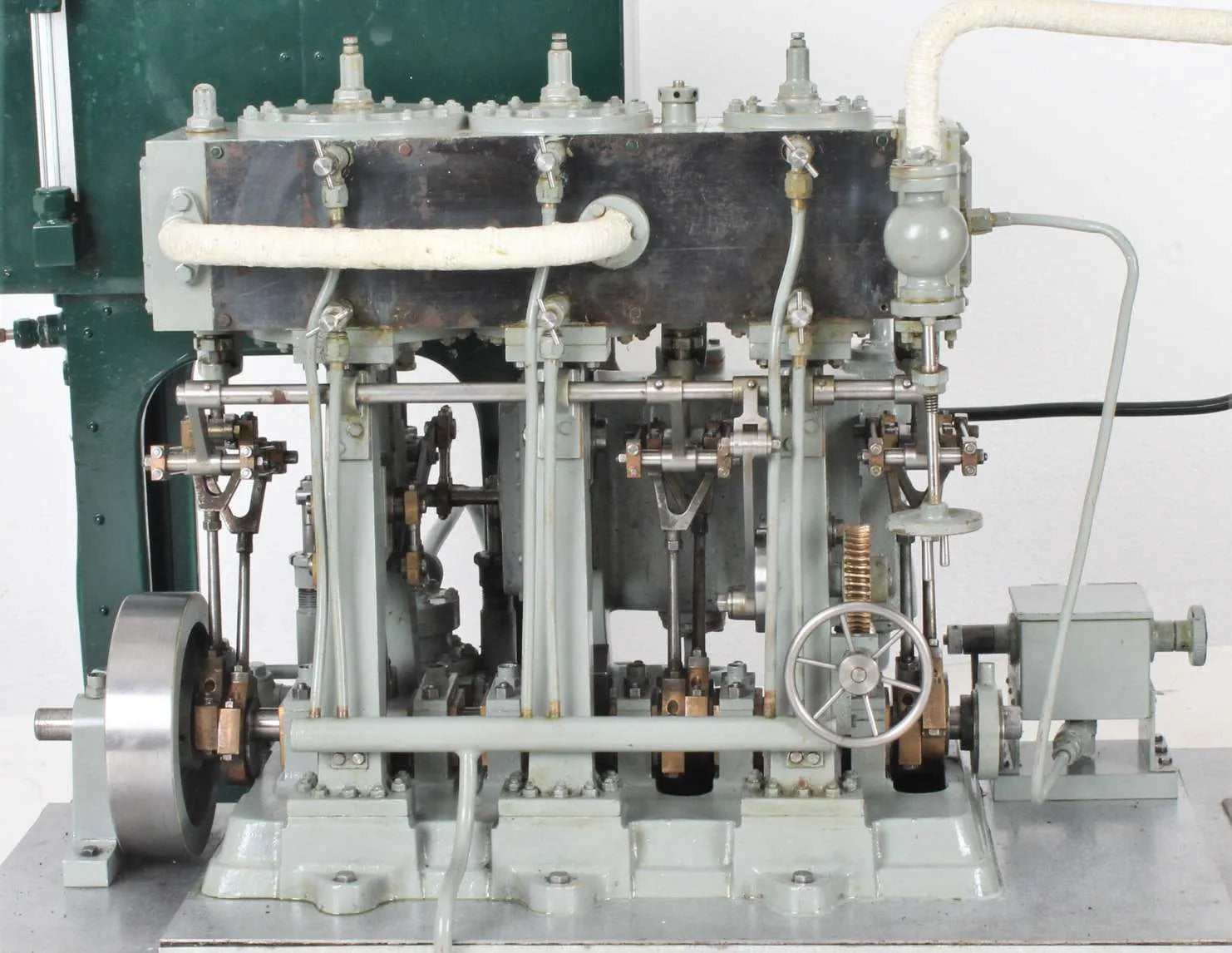

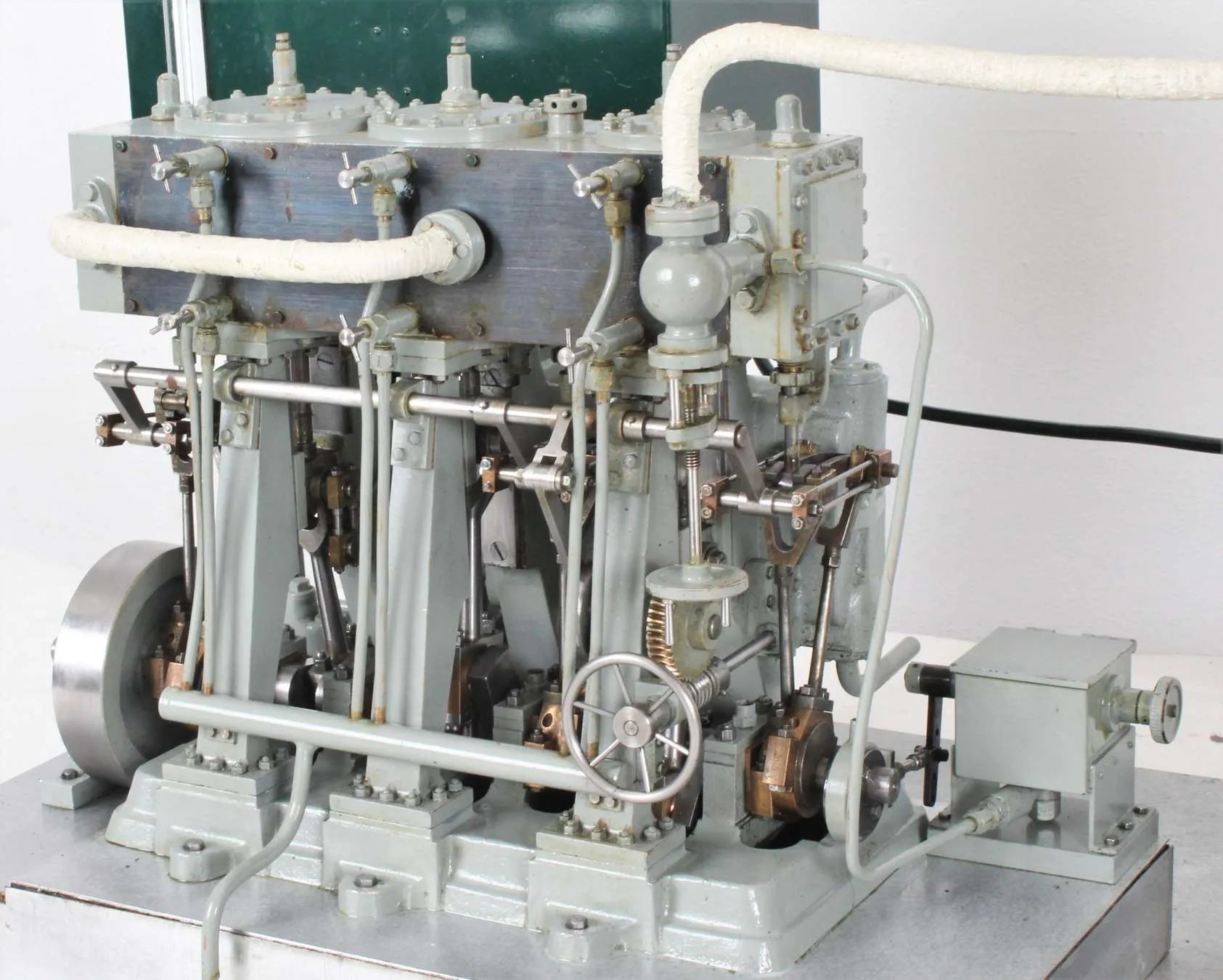

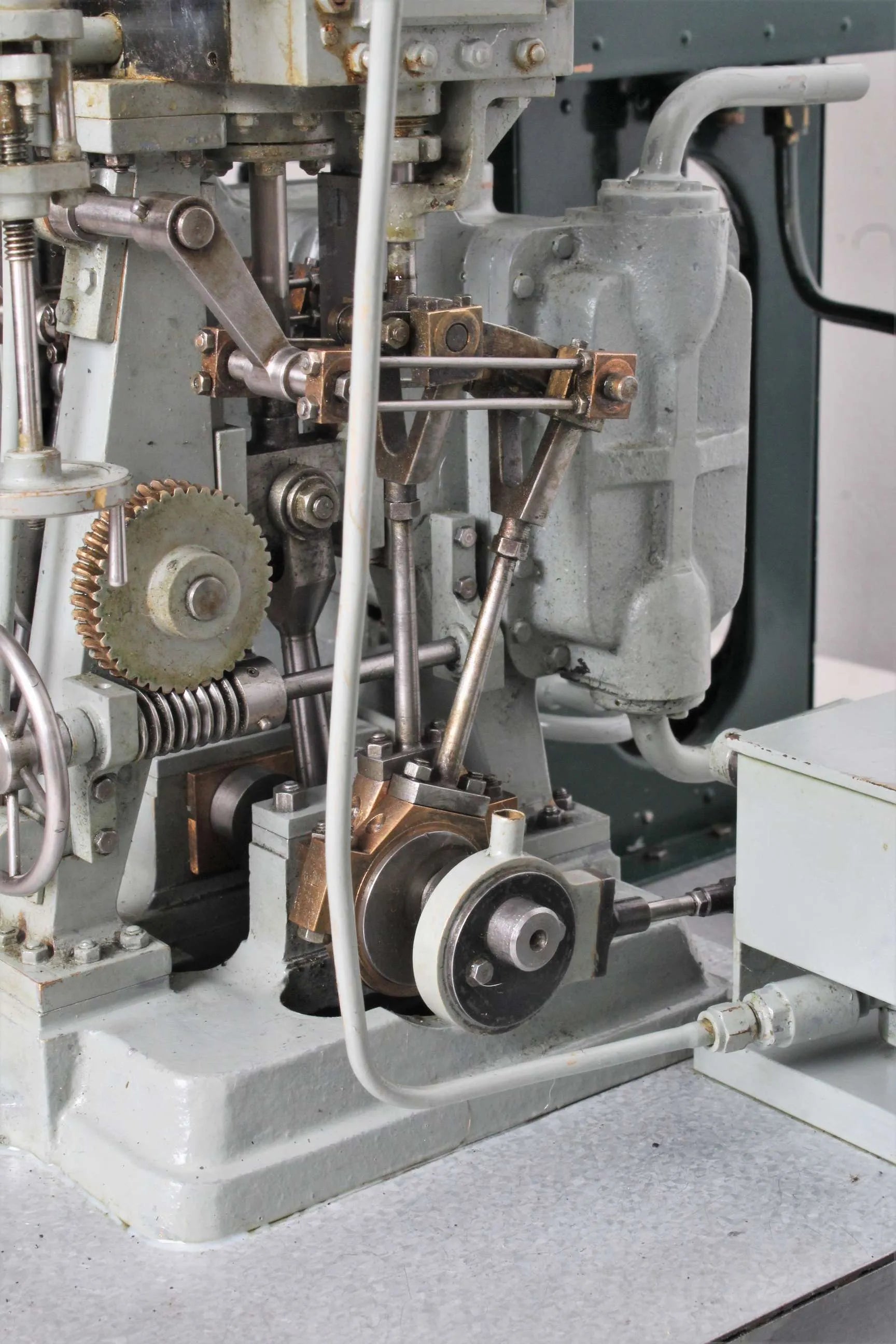

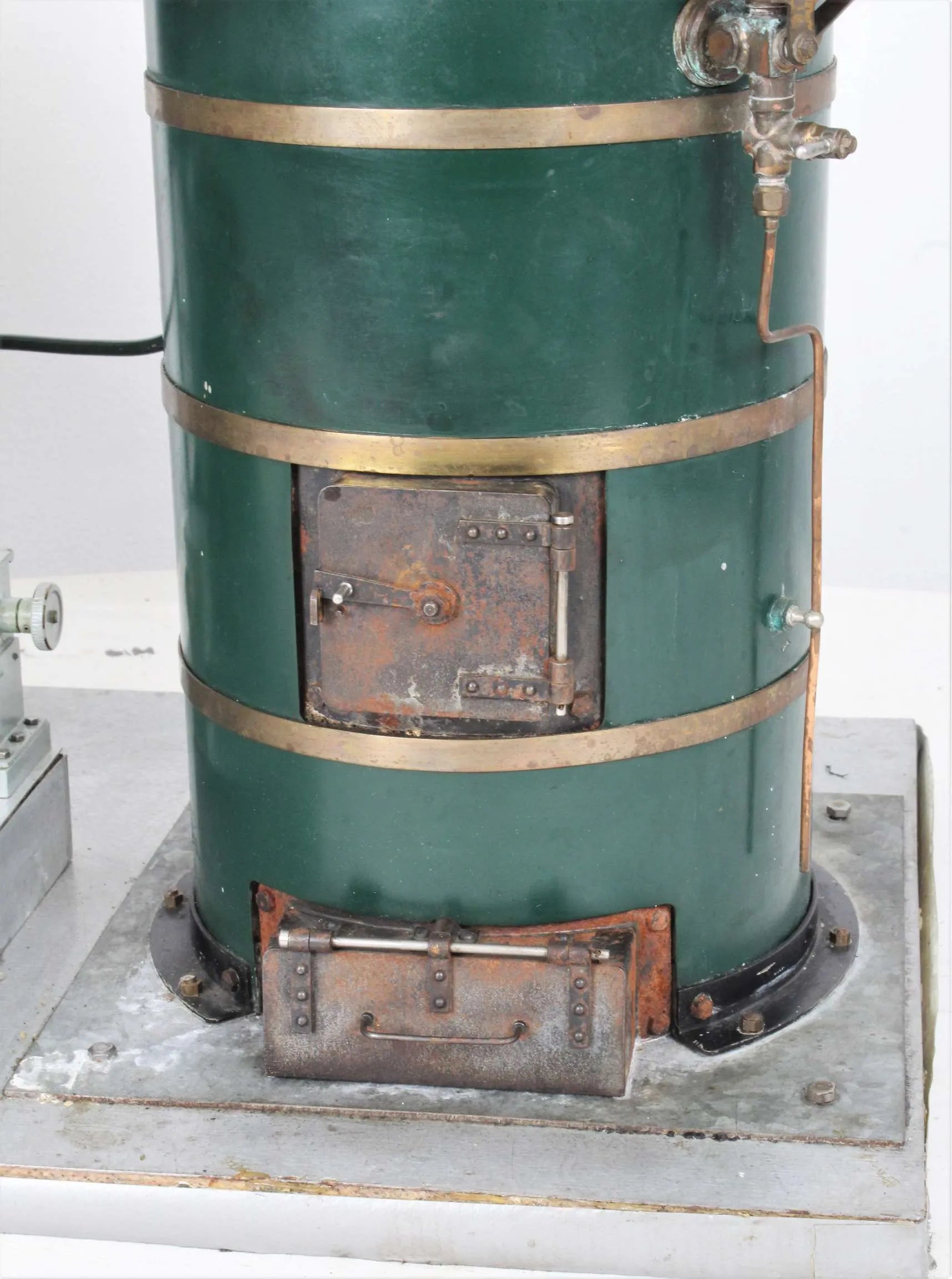

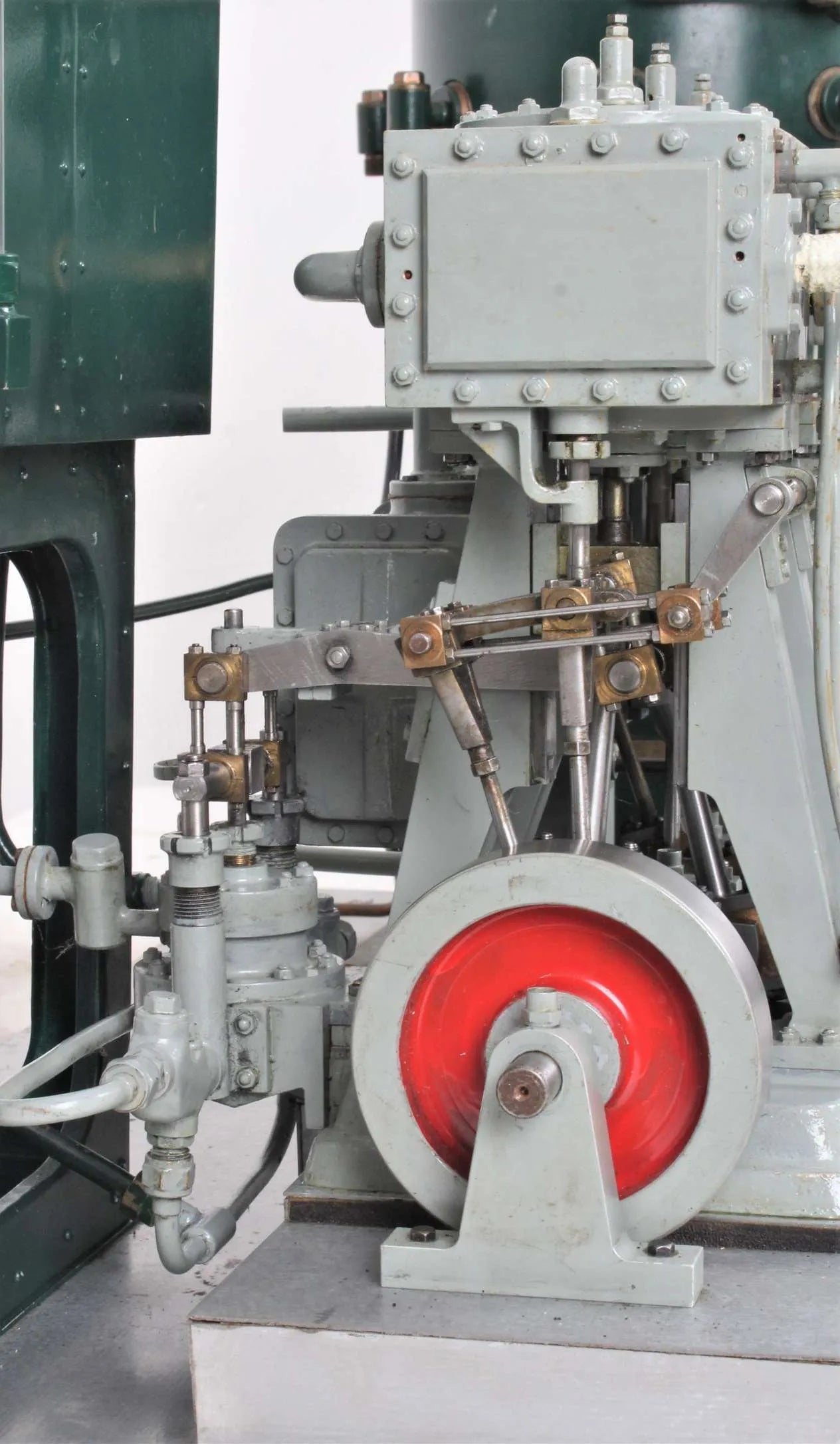

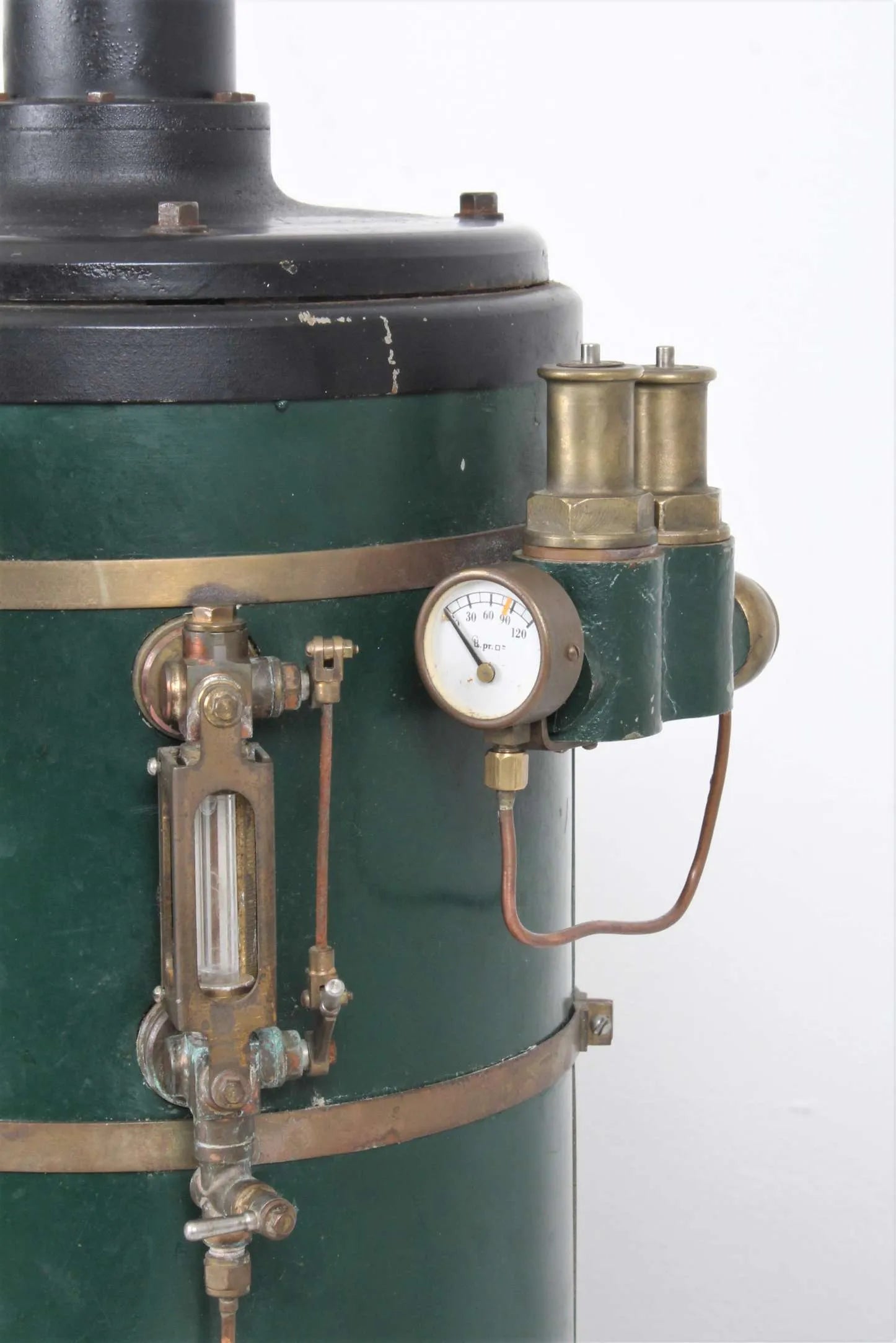

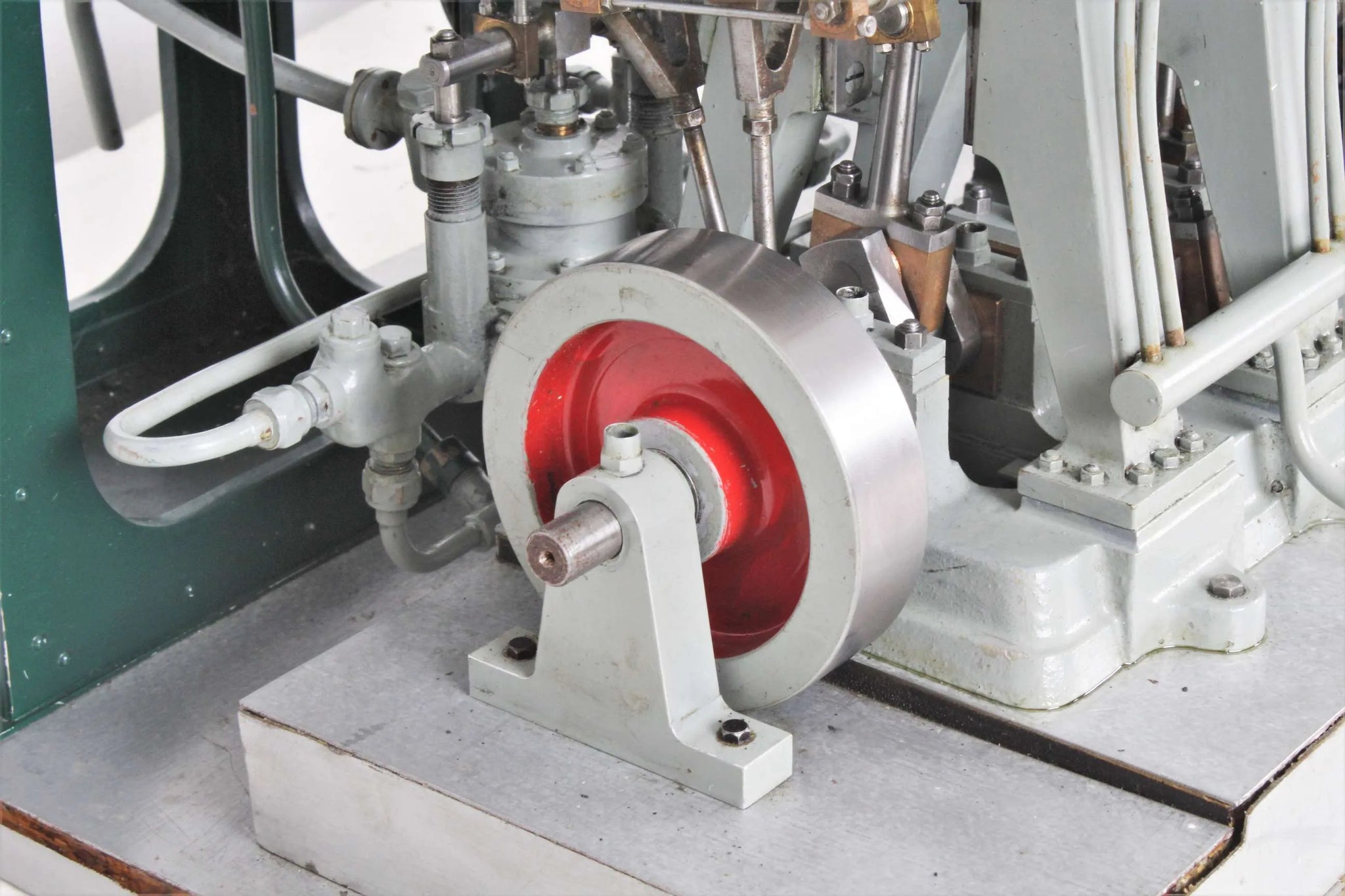

A well-built steam plant comprising large vertical coal-fired boiler with a nicely-made triple expansion engine to the O.B.Bolton design, serialised in "Model Engineer" magazine by John Bertinat.

The work of an experienced model engineer, the man responsible for the 3 1/2 and 5 inch gauge Britannias we've listed recently, along with a beautifully made LMS Jubilee, well-advanced when he finished work on it.

Stored unused for many years, the engine is dry and stiff to turn over - it will need some dismantling, cleaning and oiling to recommission for running.

Technical information

Stock code

9380

Length/inches

23.5

Width/inches

12, boiler 6 1/2 inch diameter

Height/inches

24

Valve type

slide

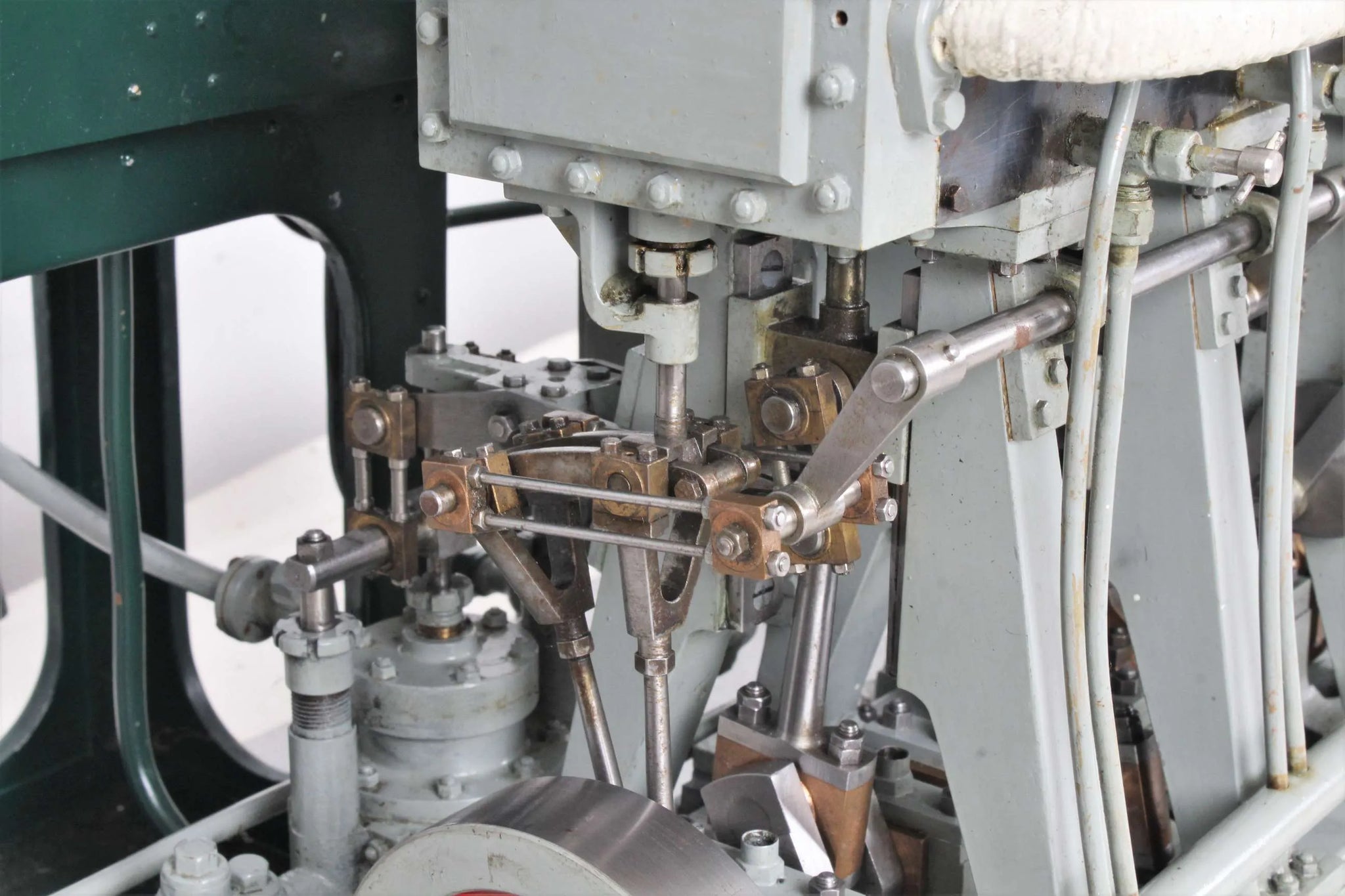

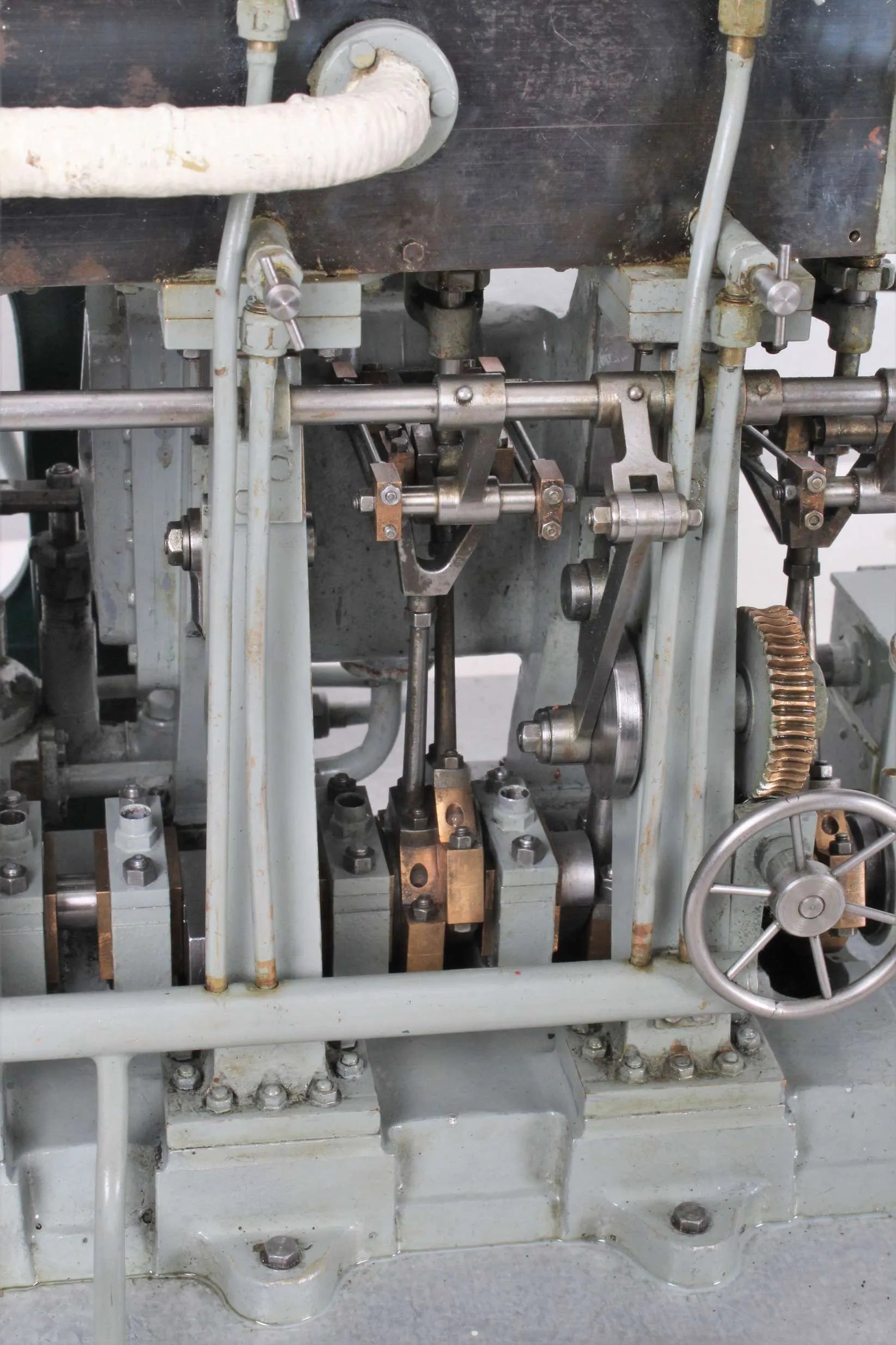

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

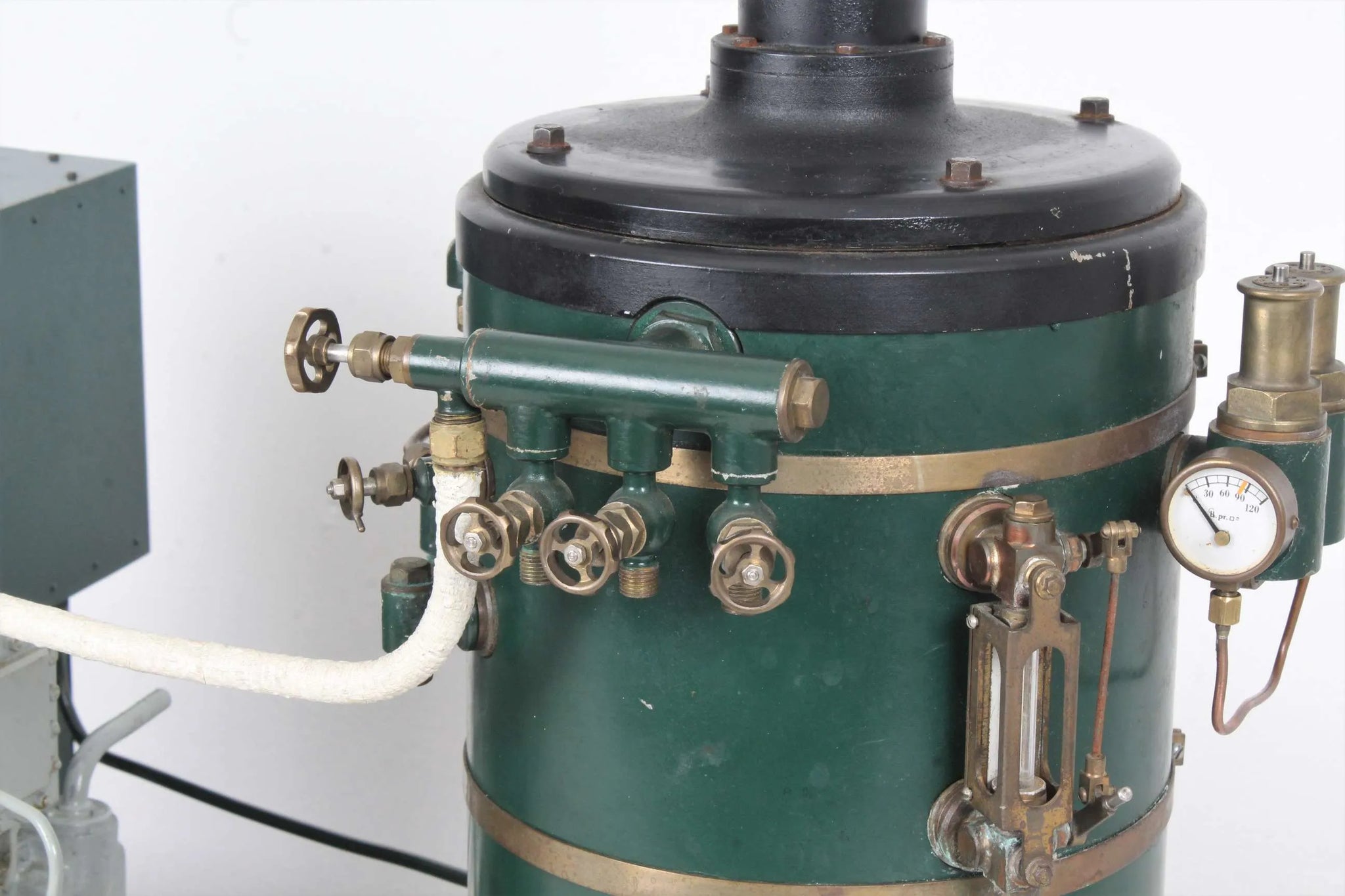

Boiler type

vertical

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Safety valve type

spring

Safety valve

2

Hand pump

1

Mechanical pump

2

Date out

Jan-21
