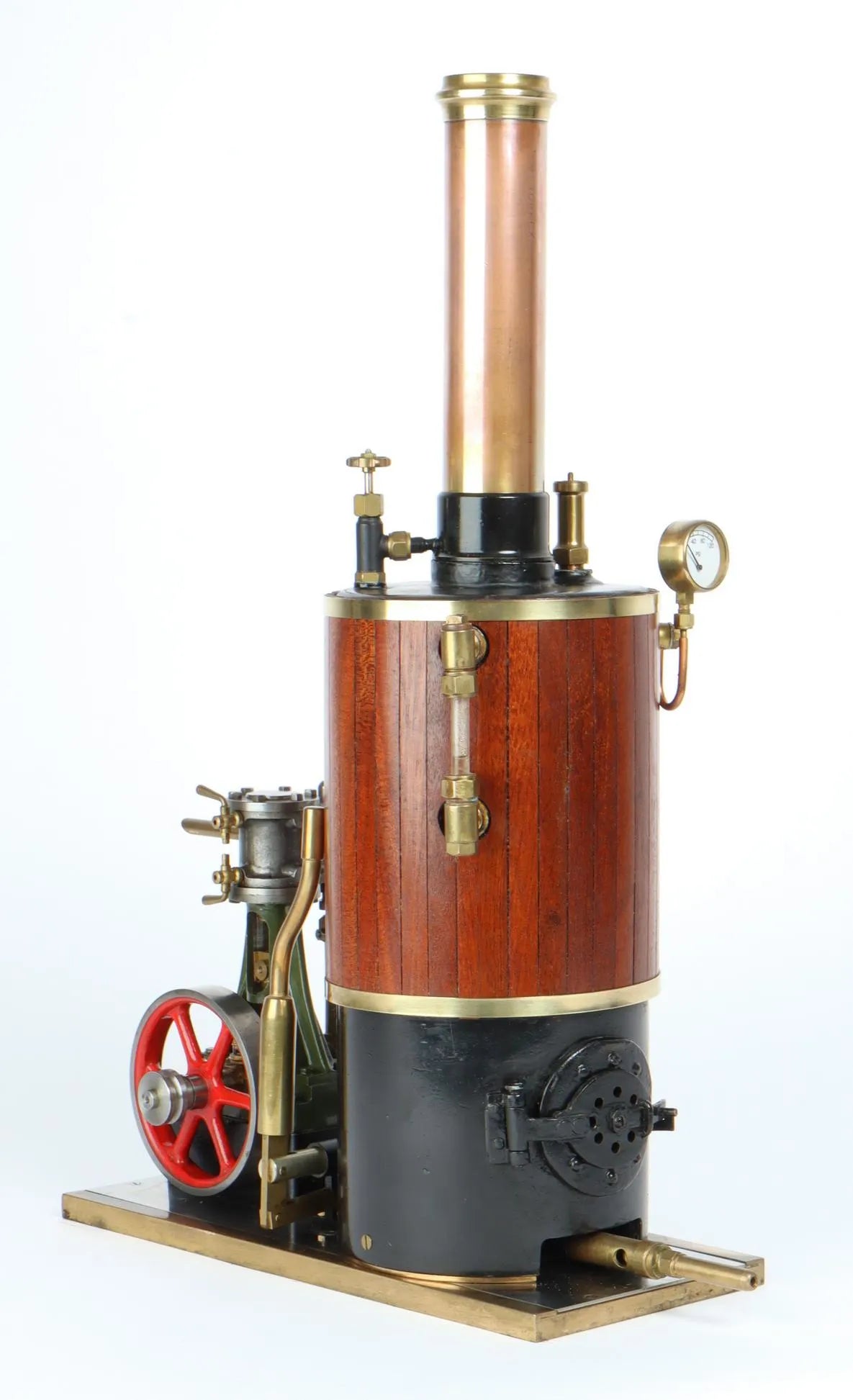

Stuart 10V steam plant

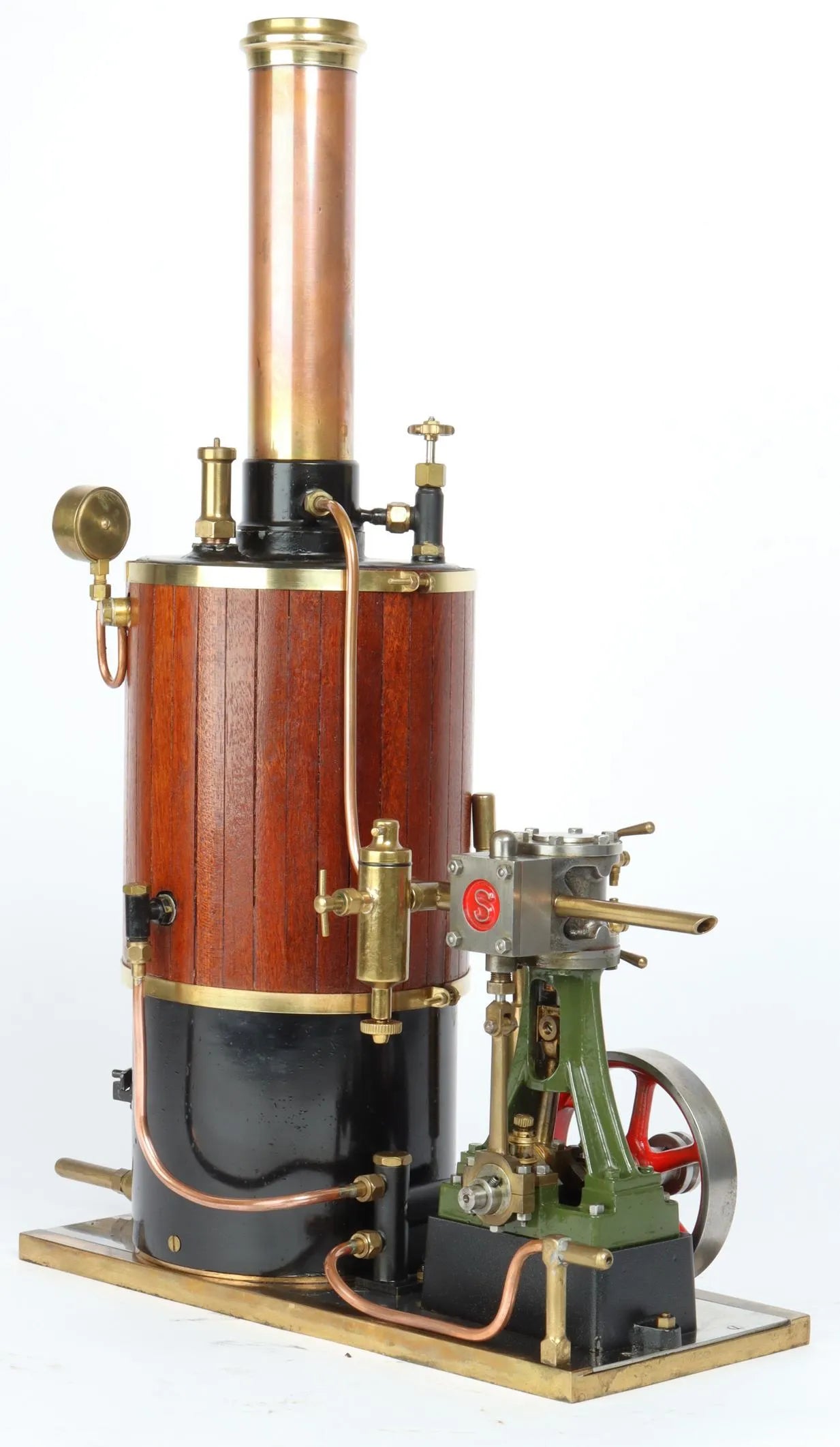

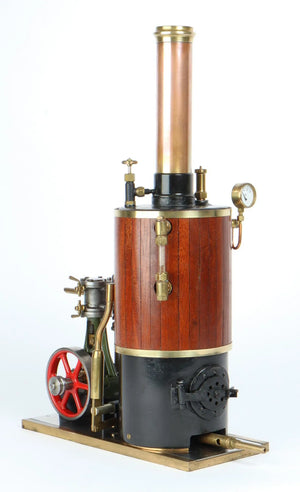

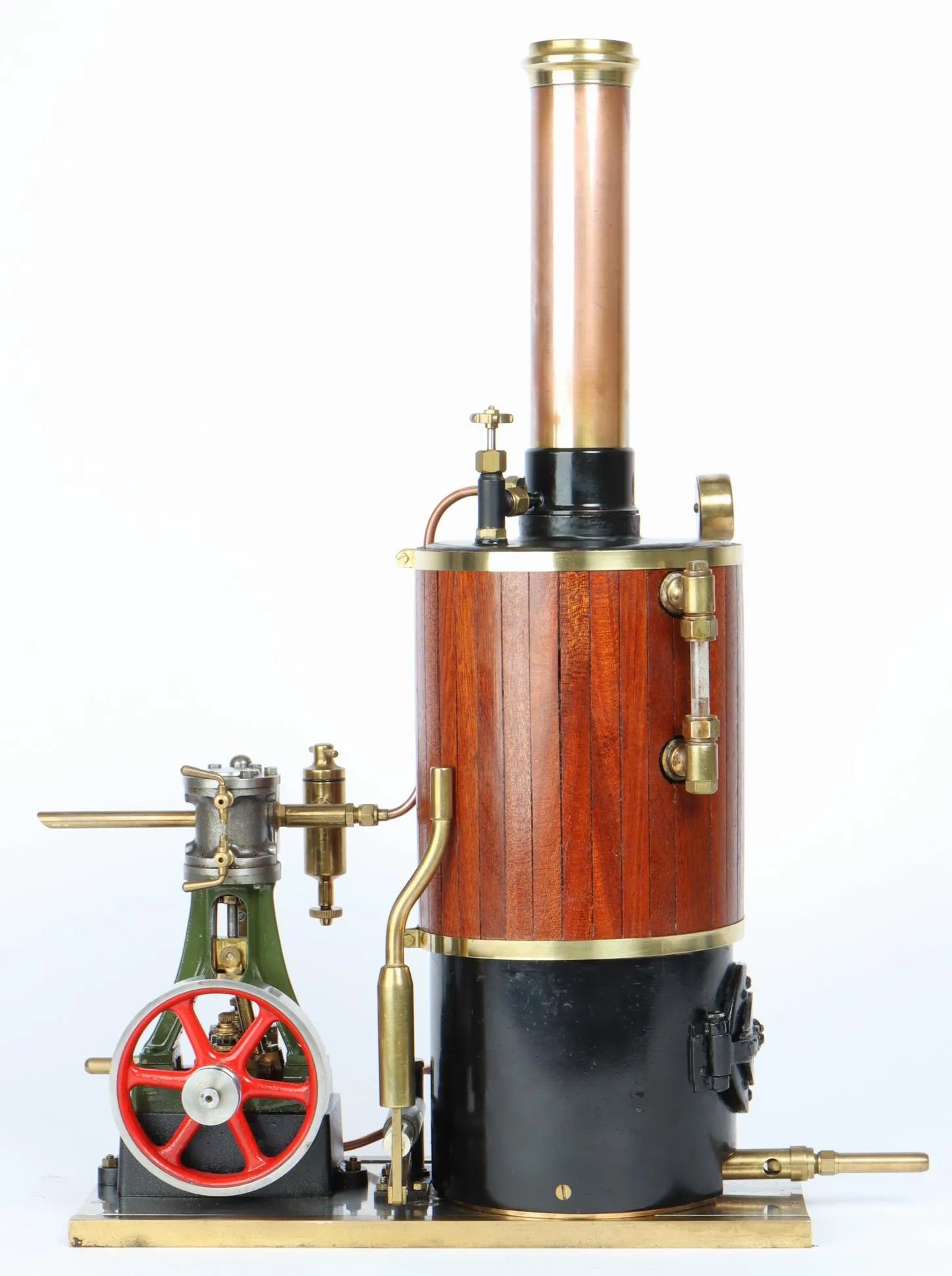

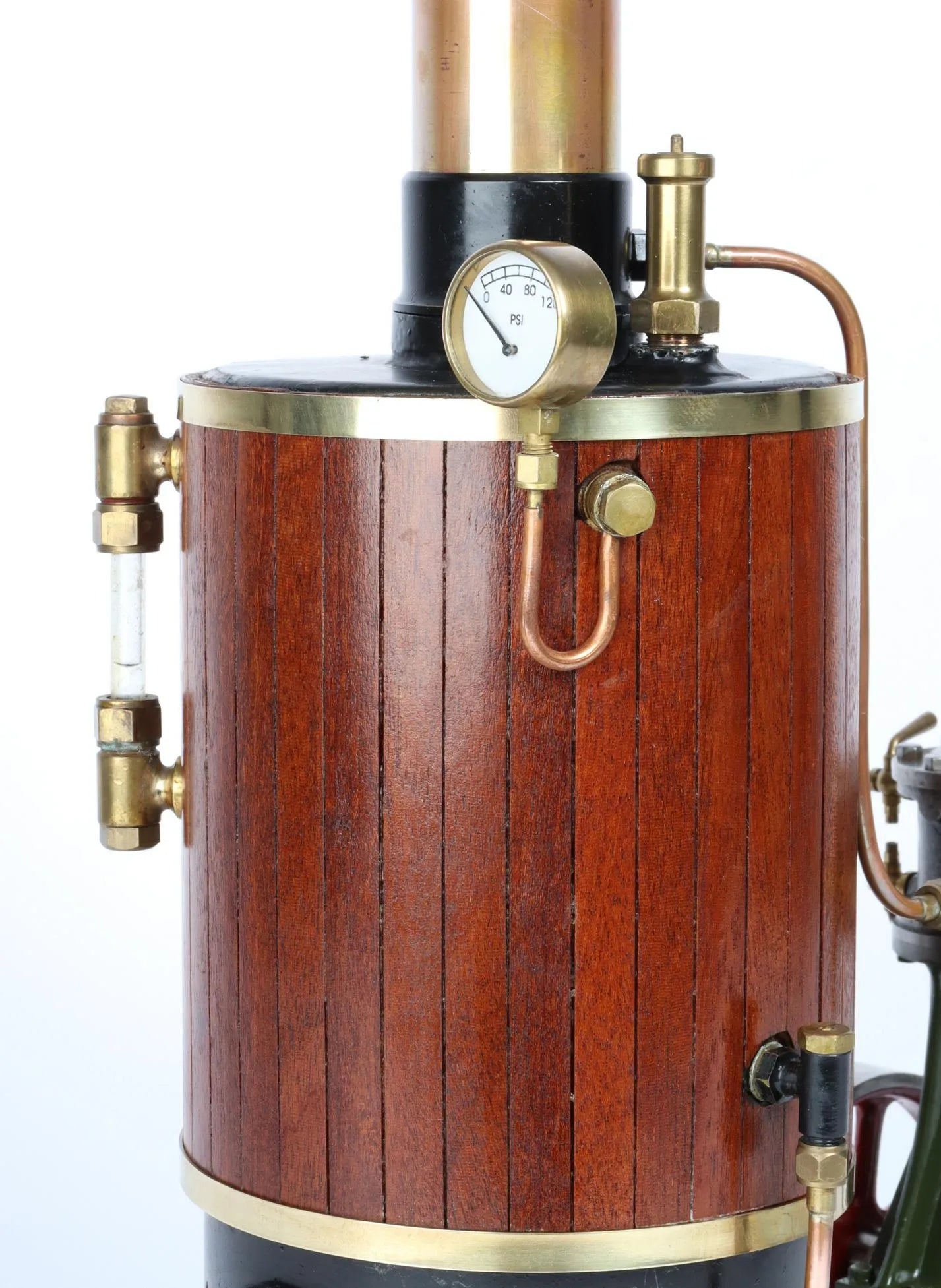

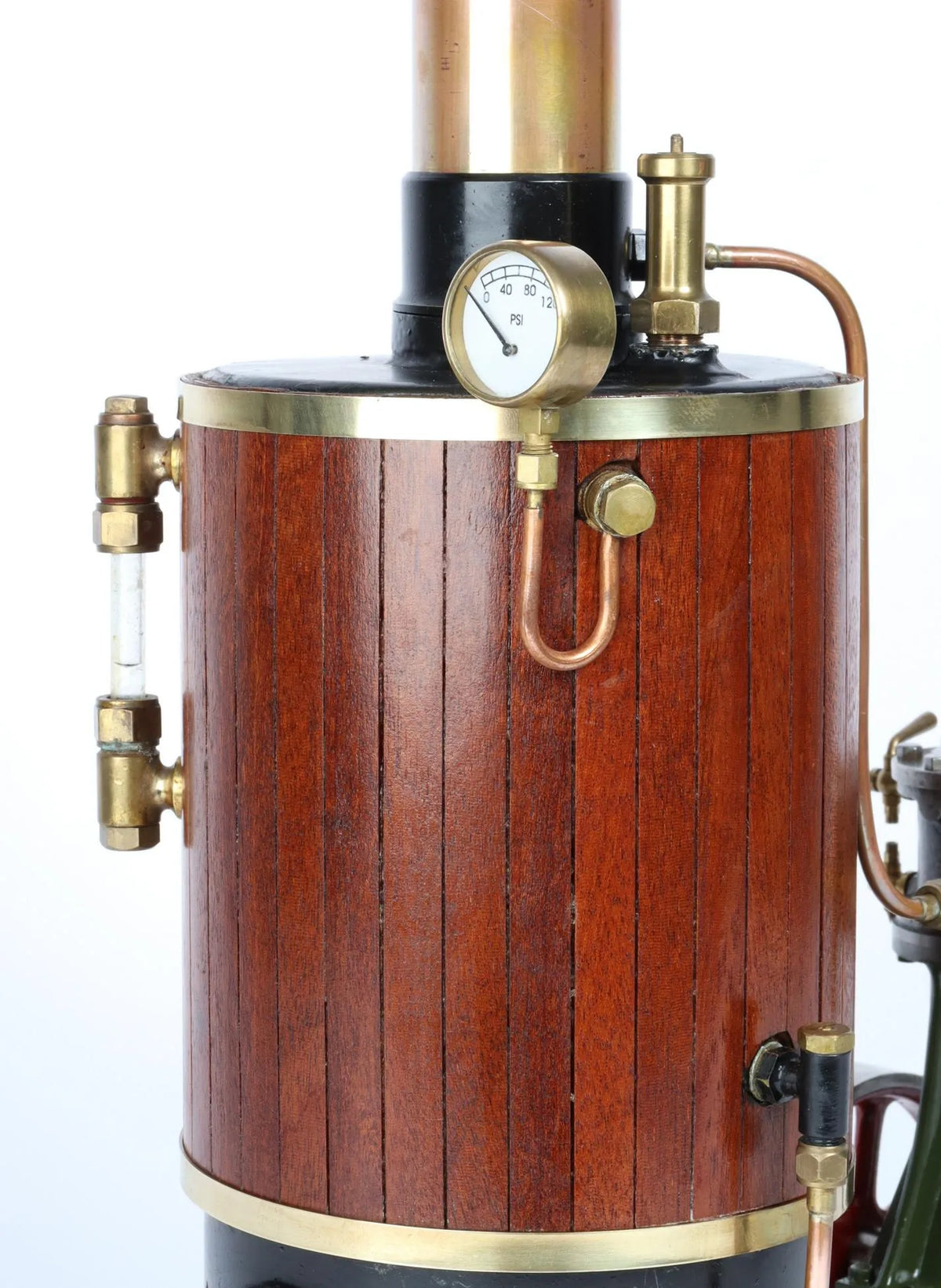

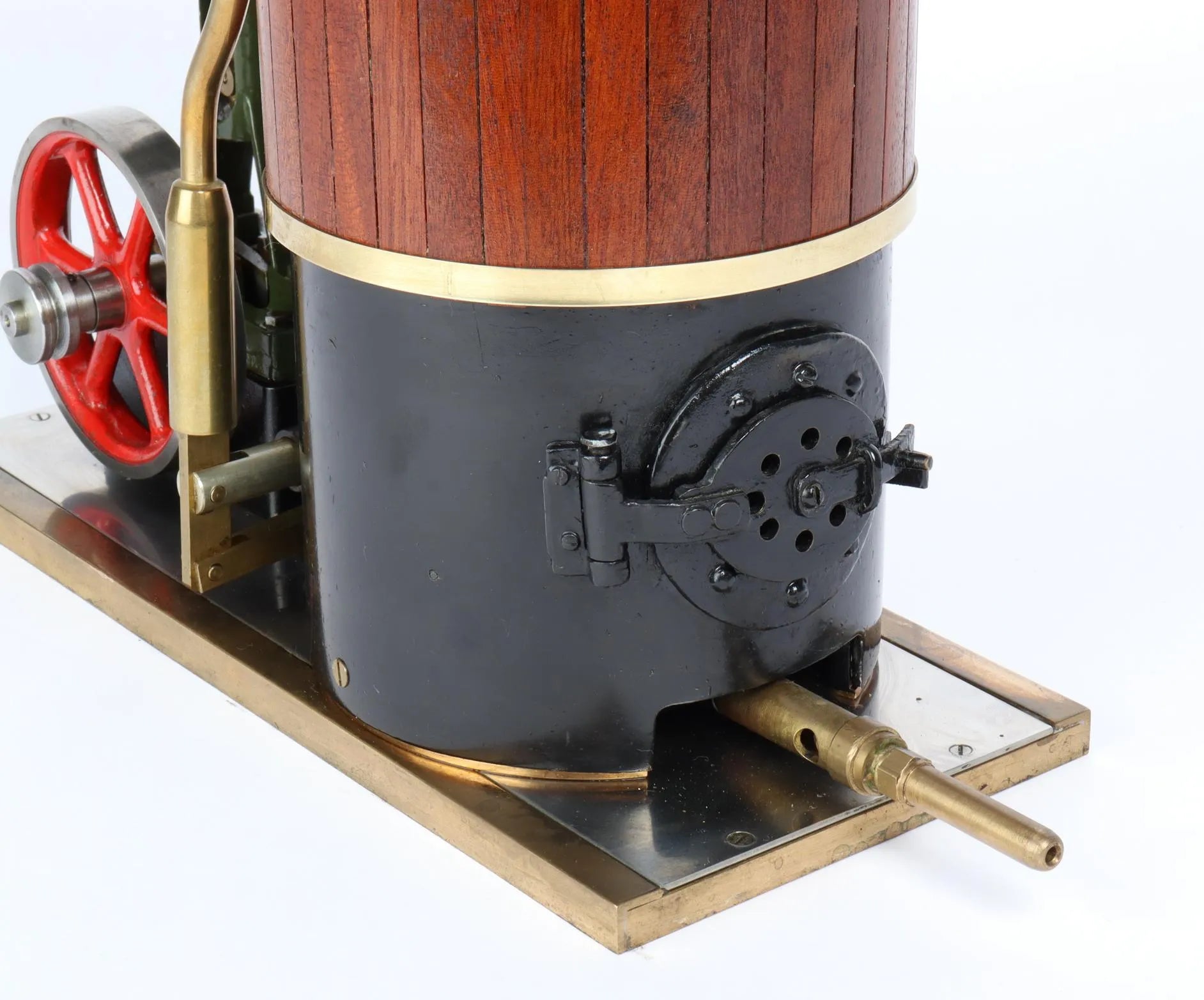

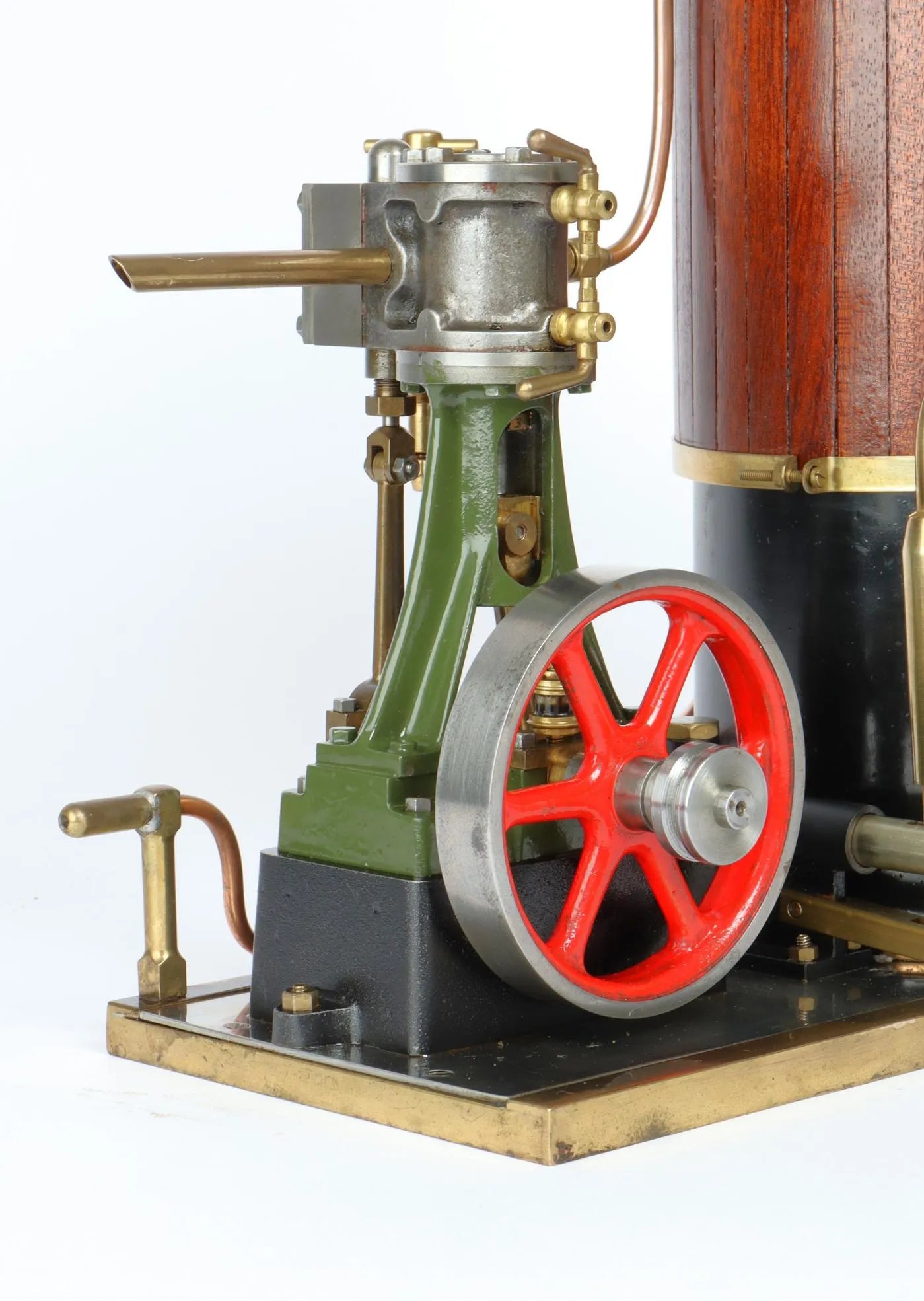

A beautifully put together small gas-fired steam plant with vertical wood-lagged boiler and a Stuart 10V vertical engine.

We've steamed this one in the workshop - the ceramic burner is quiet, bringing the boiler up to working pressure gently from cold and maintaining pressure nicely when running. The safety valve works very well, opening and closing in positive fashion.

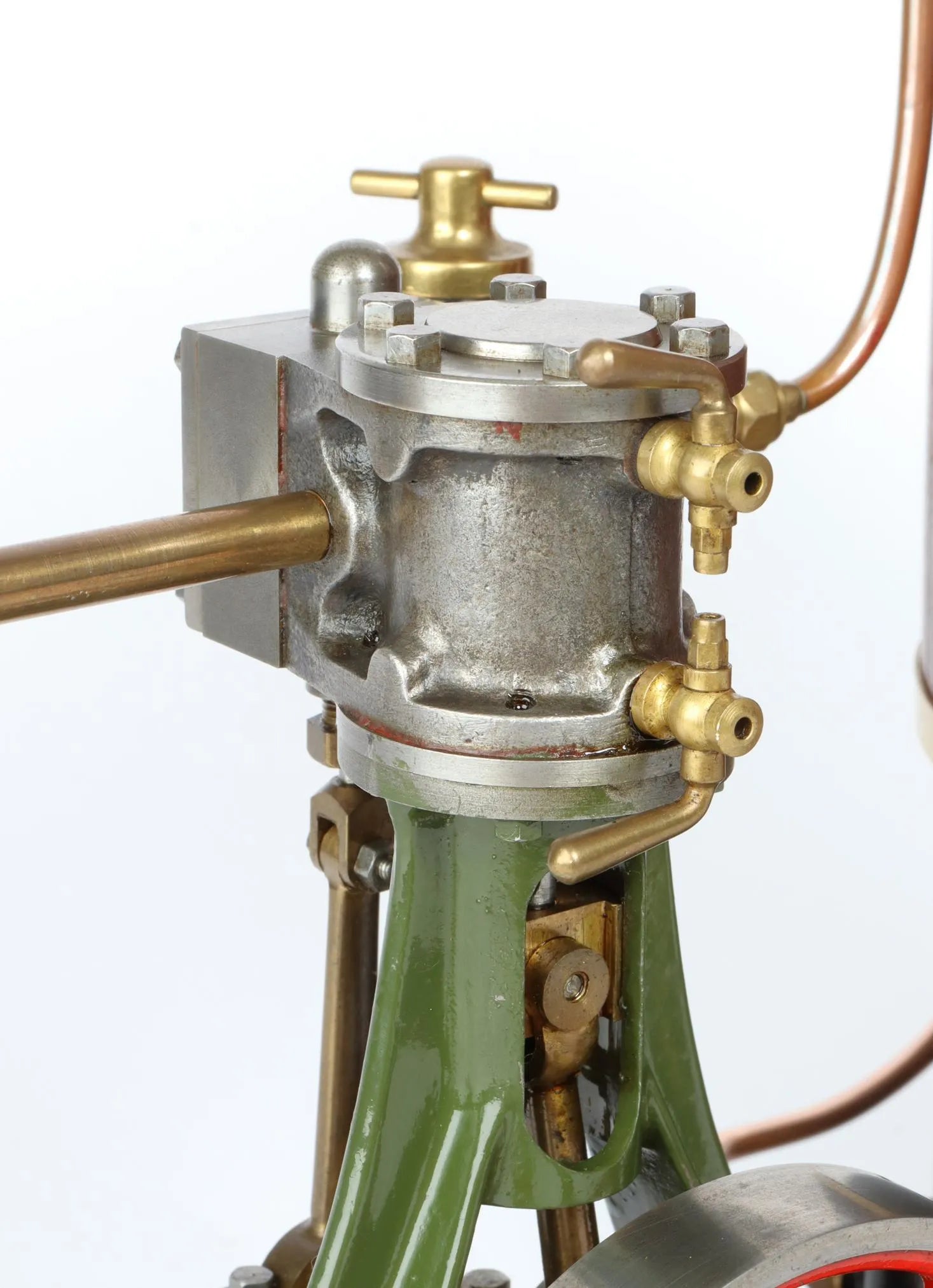

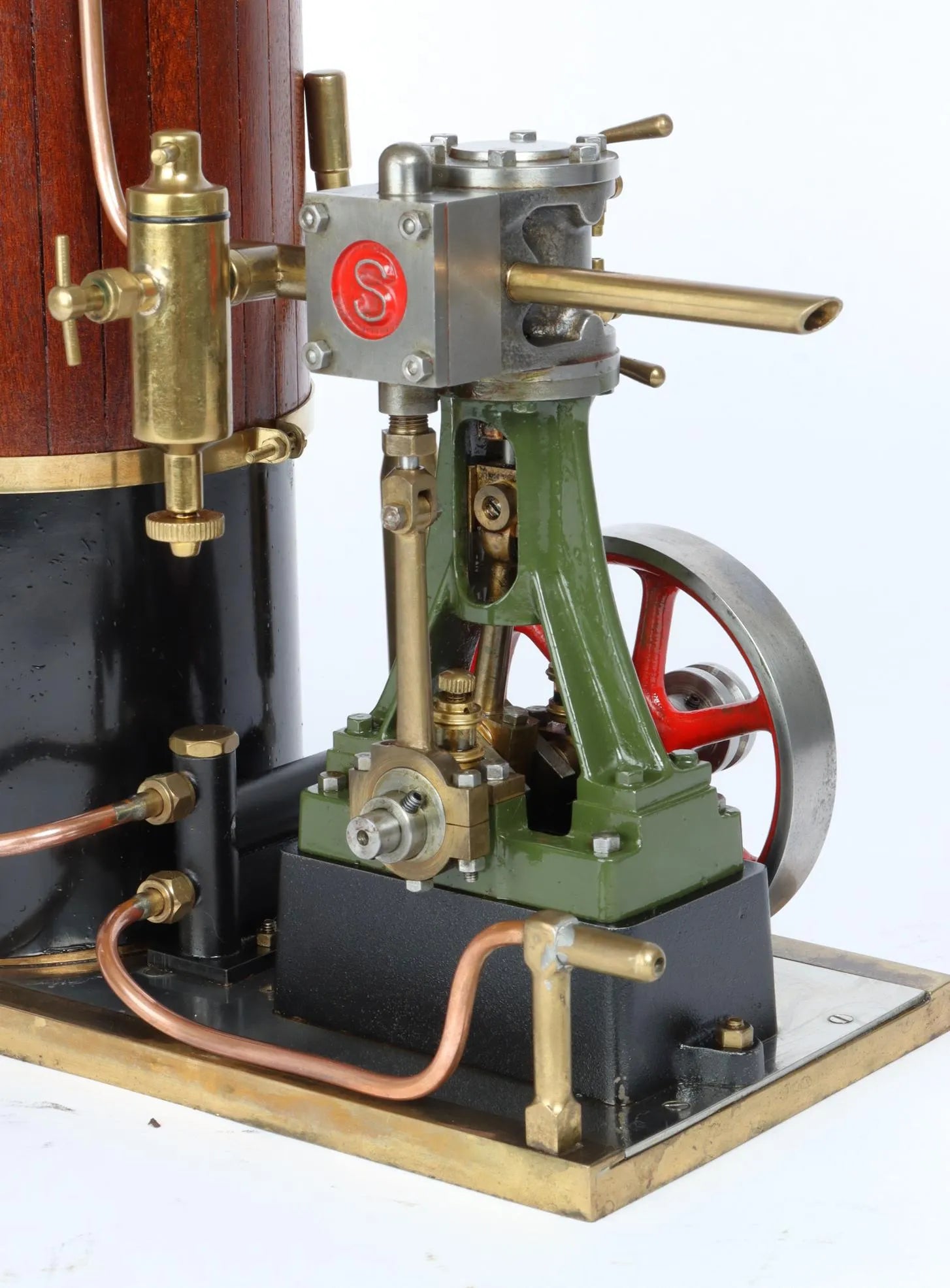

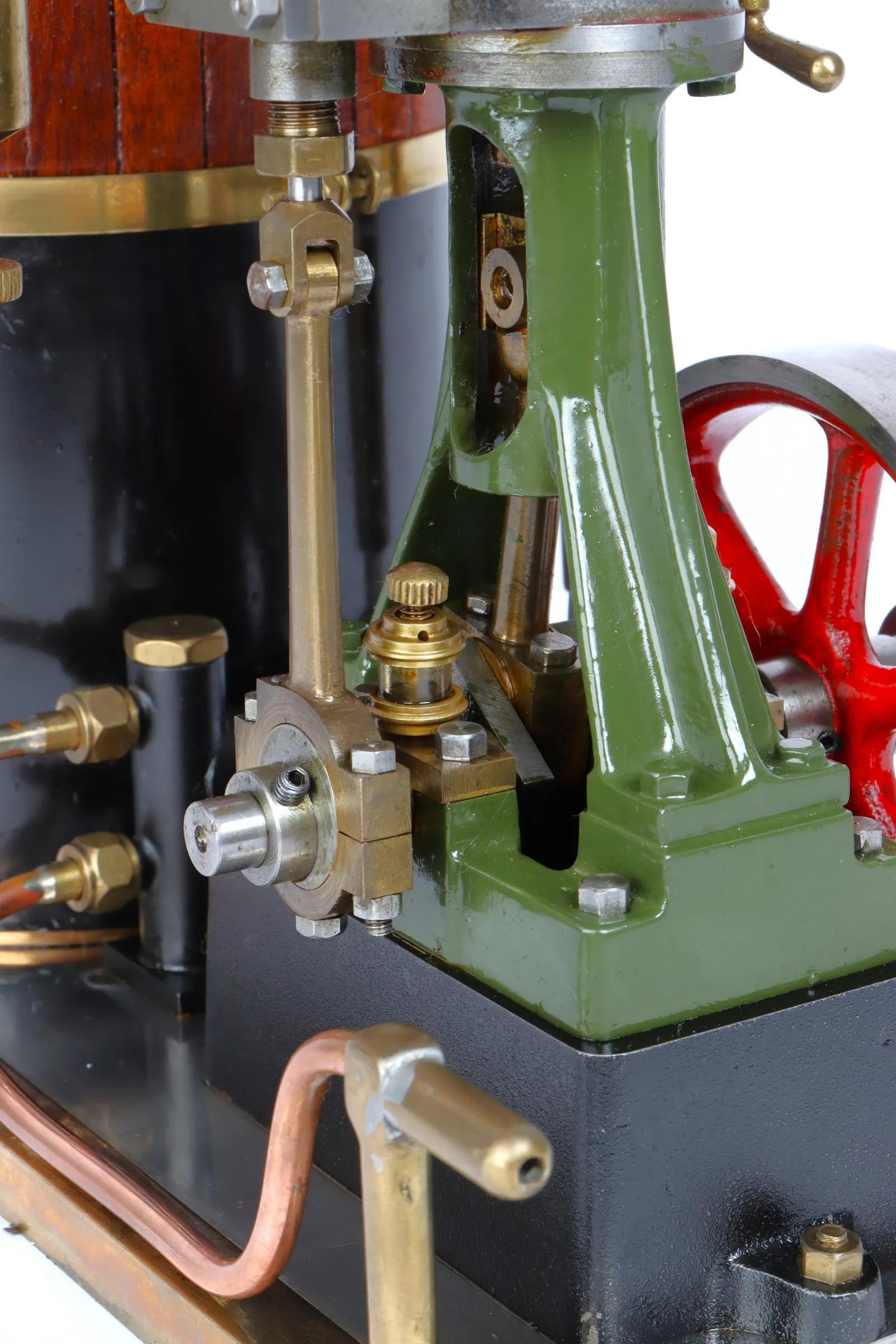

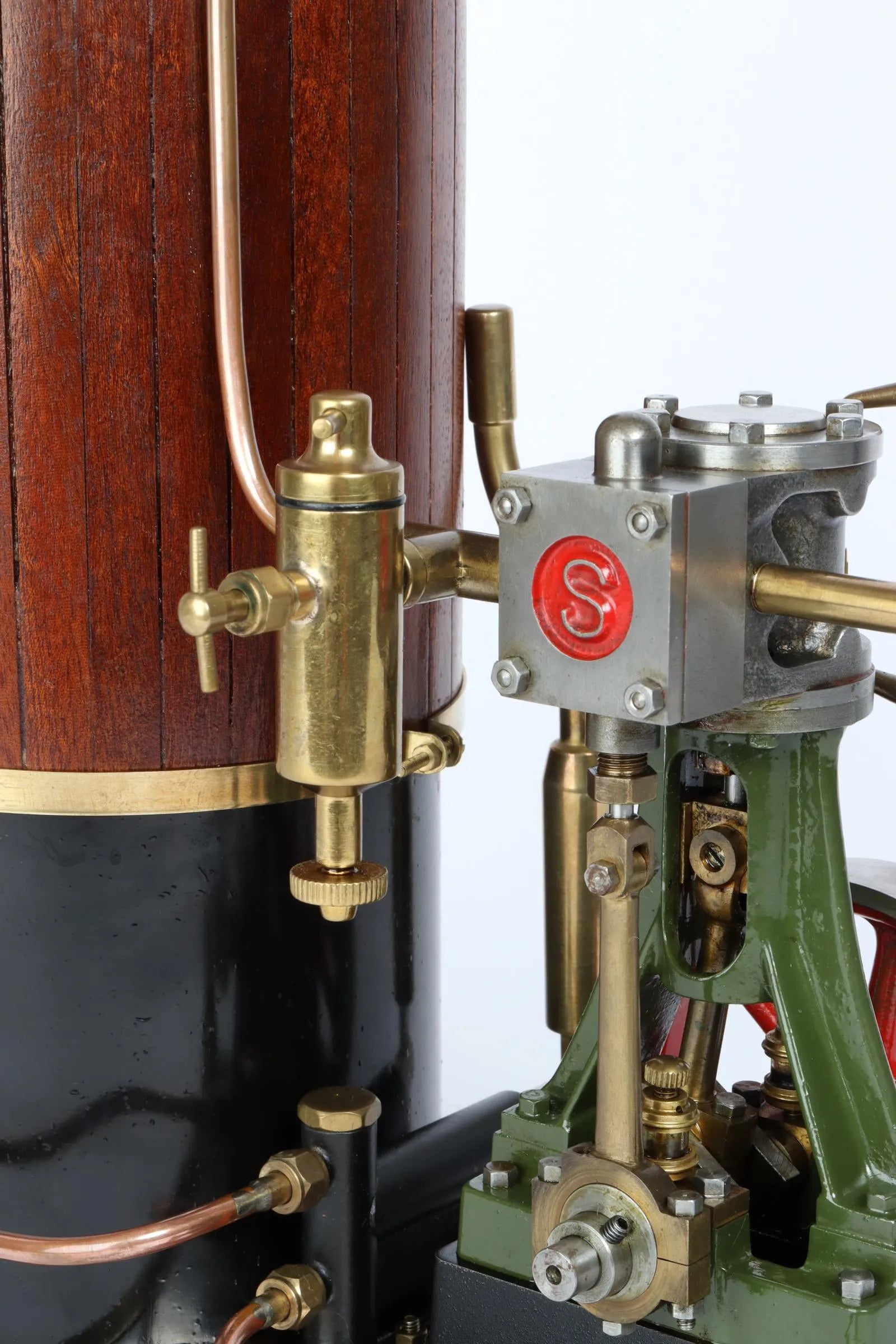

The engine is fitted with drain cocks and displacement lubricator. It runs nicely, using little steam.

The boiler has had a hydraulic test, with certification issued for both that and the steam test.

Includes free UK shipping.


Technical information

Stock code

12804

Length/inches

10

Width/inches

4.5

Height/inches

16.5

Weight/Kg

6

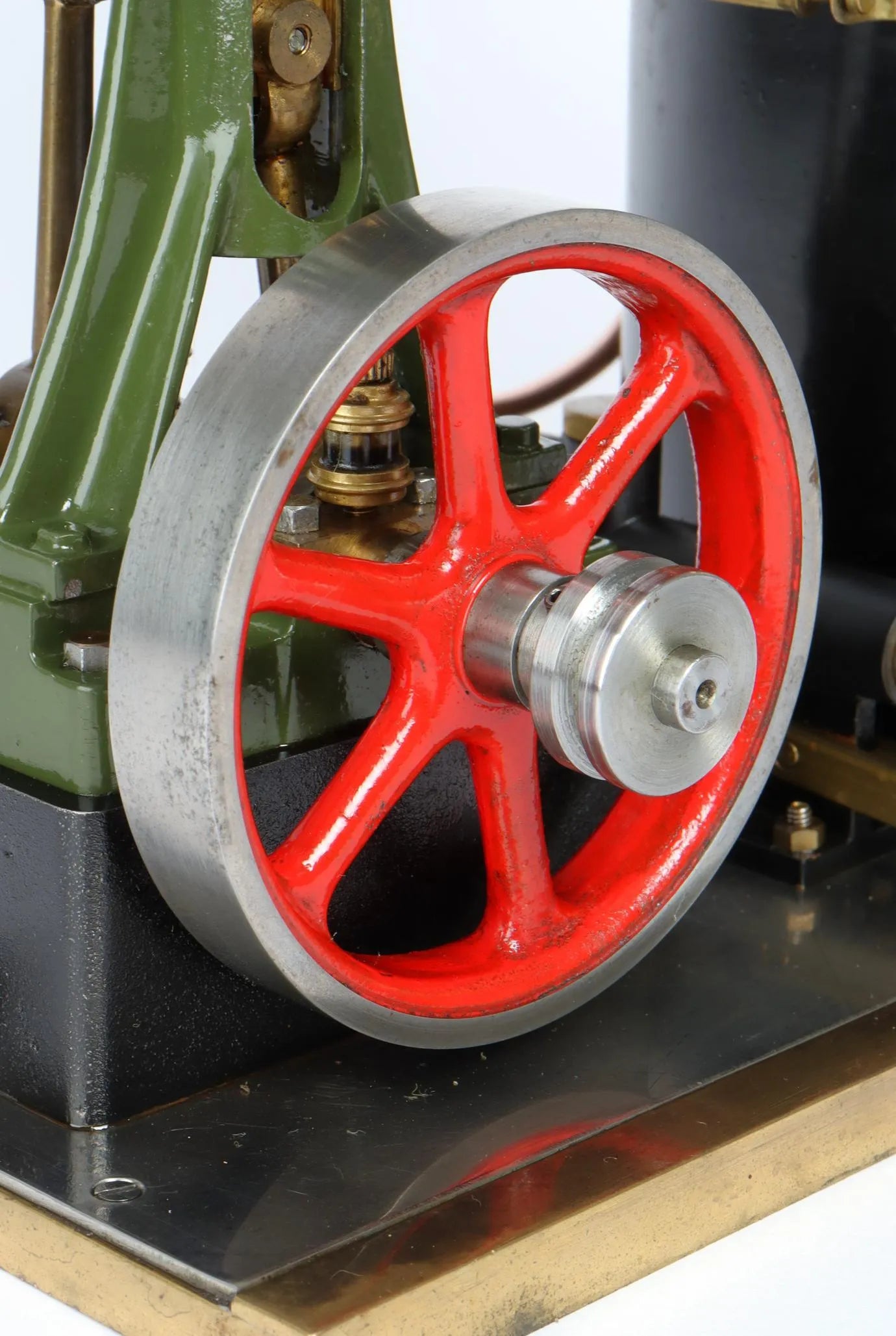

Wheel material

cast iron, 3 inch diameter

Cylinder material

cast iron

Valve type

slide

Lubricator type

displacement

Boiler type

vertical, gas-fired

Boiler construction

silver soldered

Boiler material

copper

Working pressure

60

CE/UKCA mark

n/a - <2 litre capacity

Safety valve type

spring

Safety valve

1

Bore x stroke

3/4 x 3/4

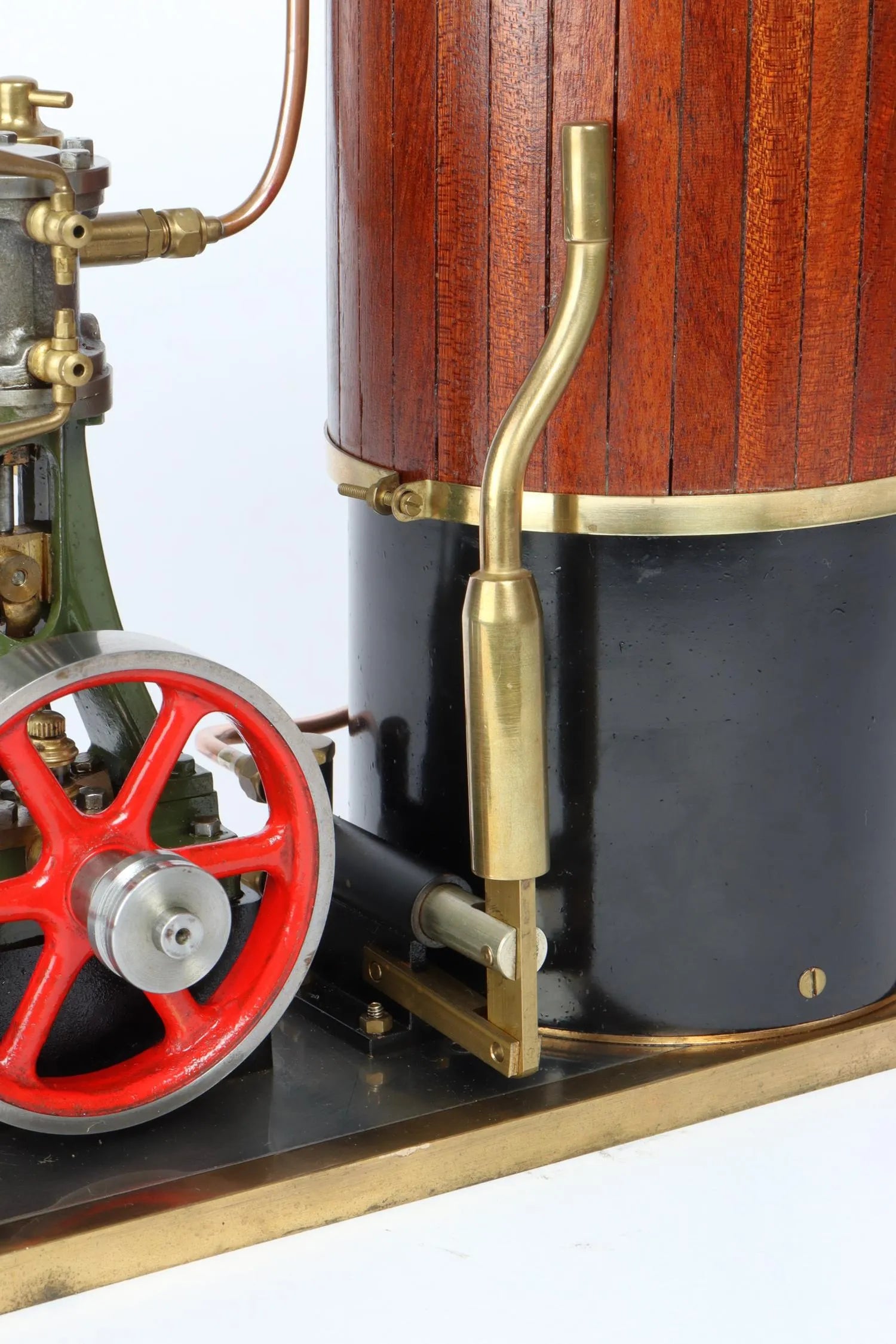

Hand pump

1

Date out

May-25

Hydraulic test valid to

07-May-29

Steam test valid to

11-Jul-26
