8787

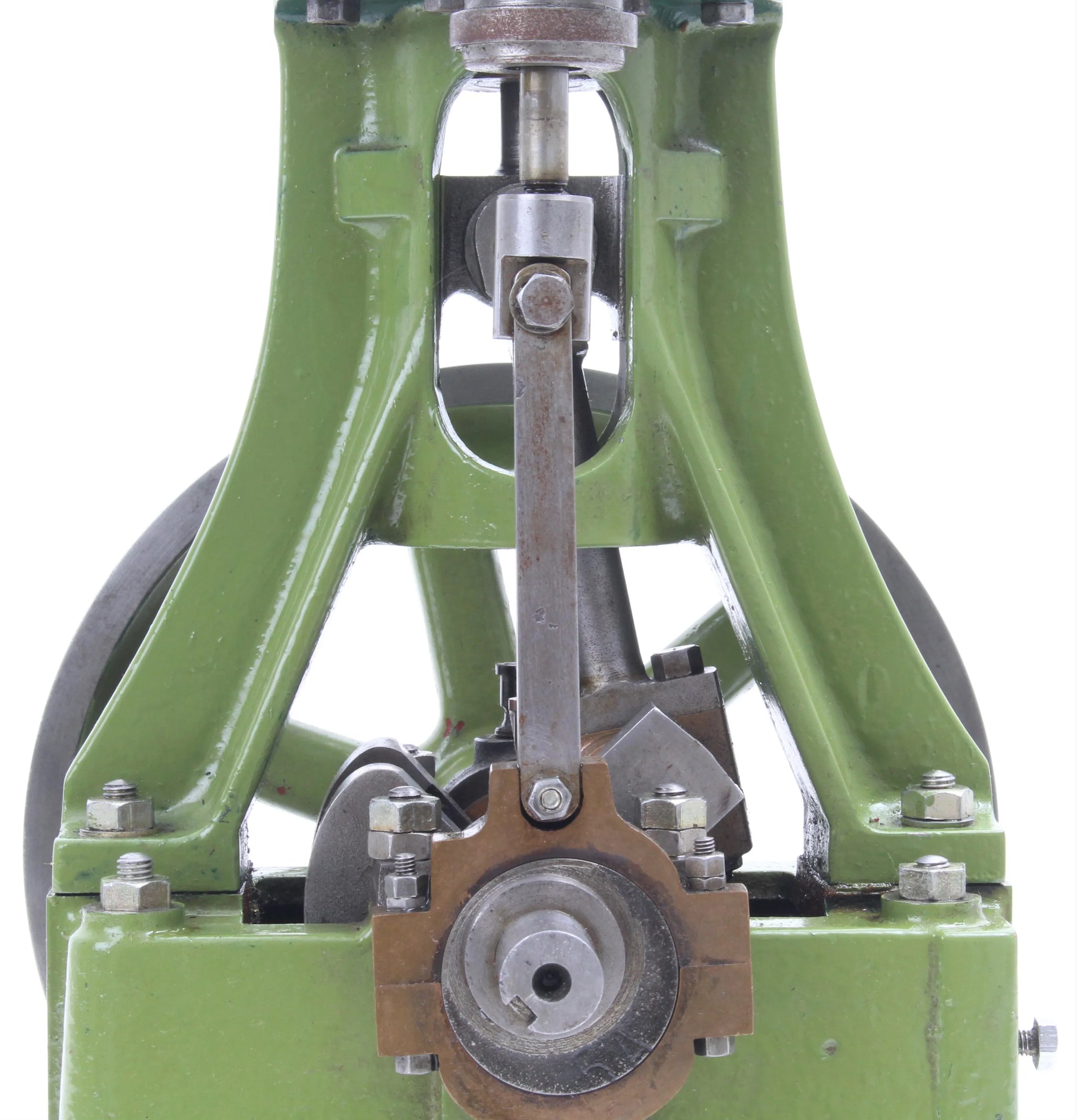

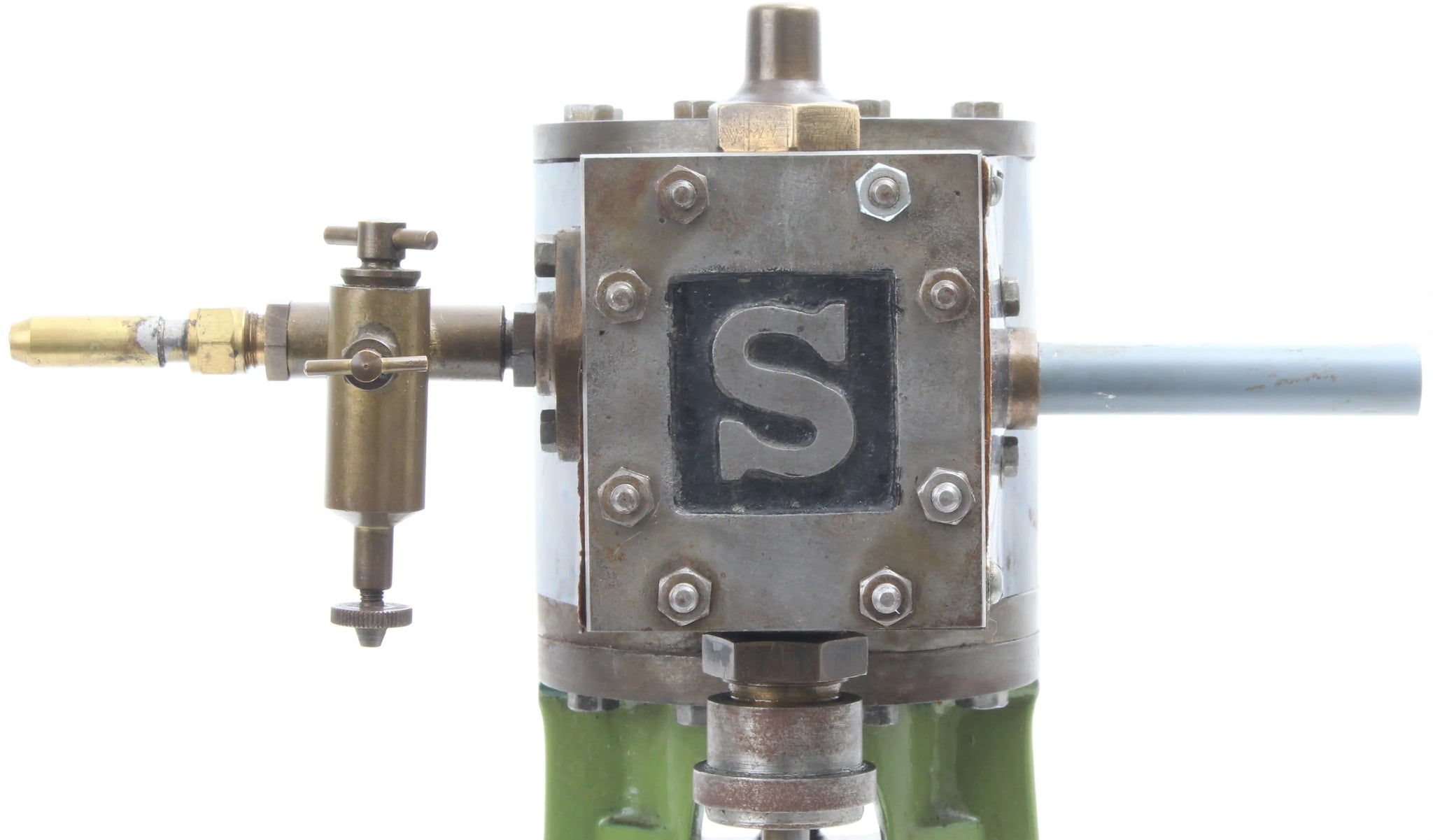

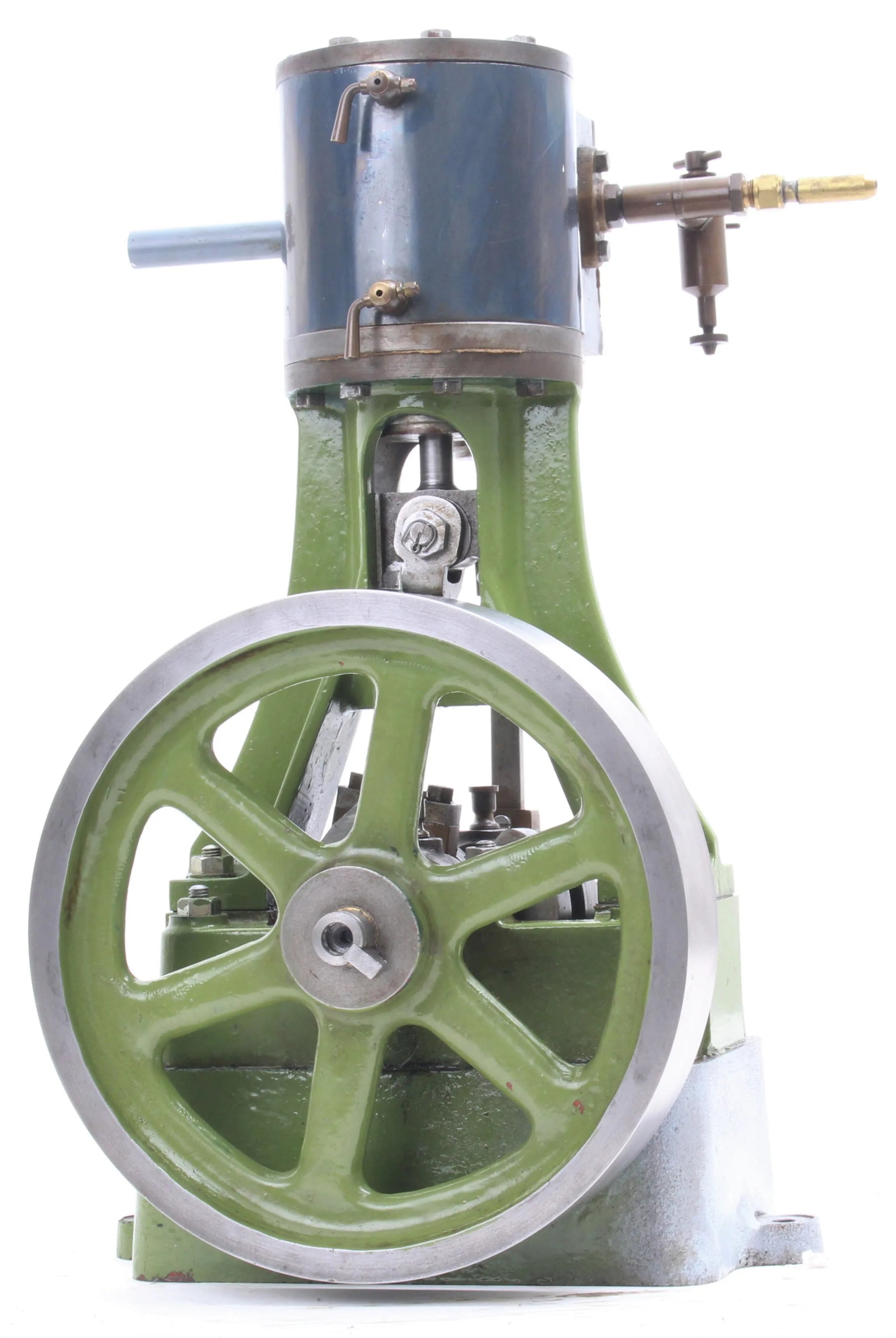

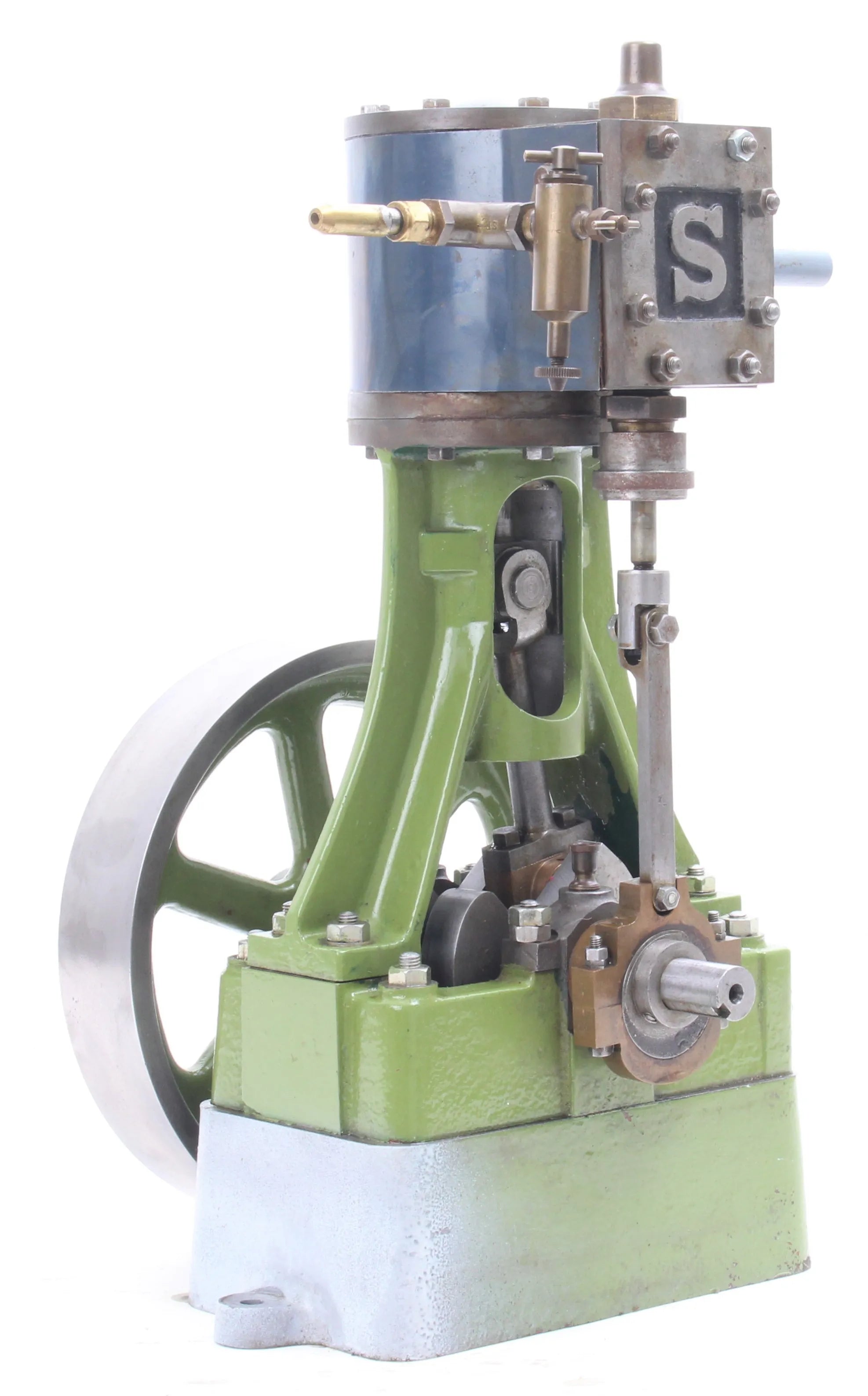

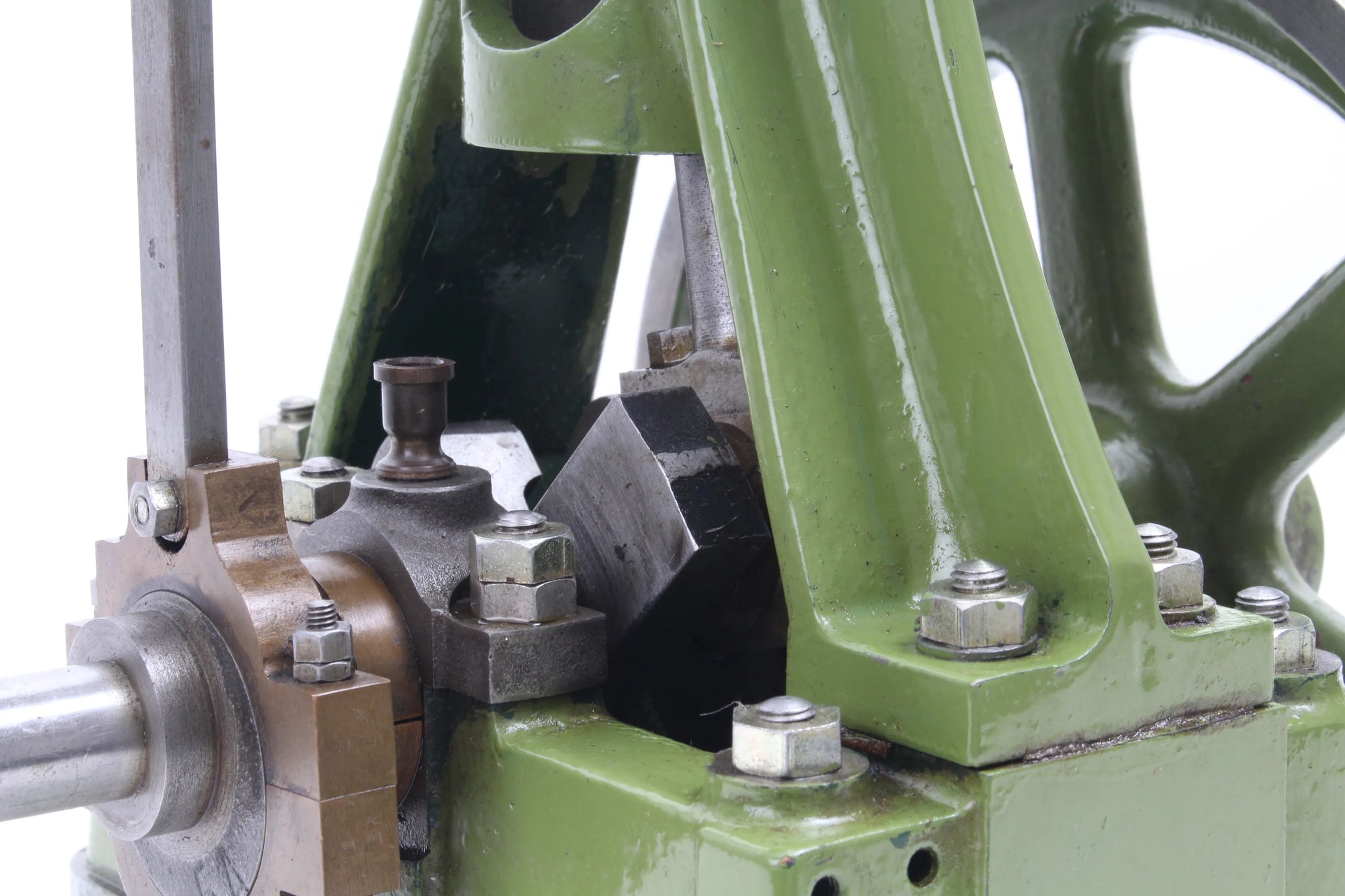

One of the largest of the Stuart engines, we've seen these fitted in everything from steam canoes to vertical boiler locomotives - Stuart's rate it 1 1/2 bhp at 800rpm on 100psi steam.

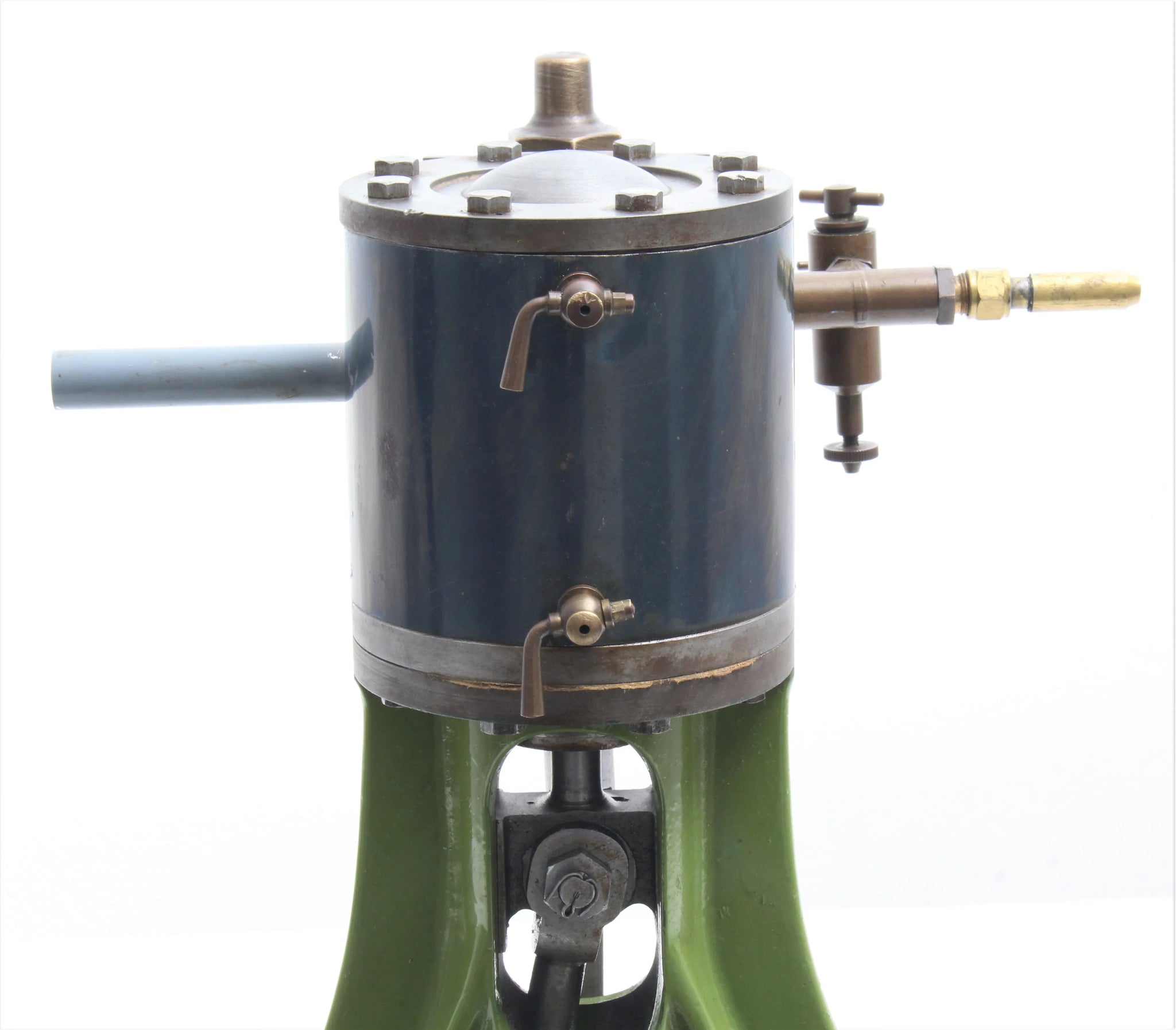

Complete with drain cocks and displacement lubricator.
Stock code |
8787 |
Length/inches |
9 |
Width/inches |
9 |
Height/inches |
15 |
Weight/Kg |
13.5 |
Wheel material |

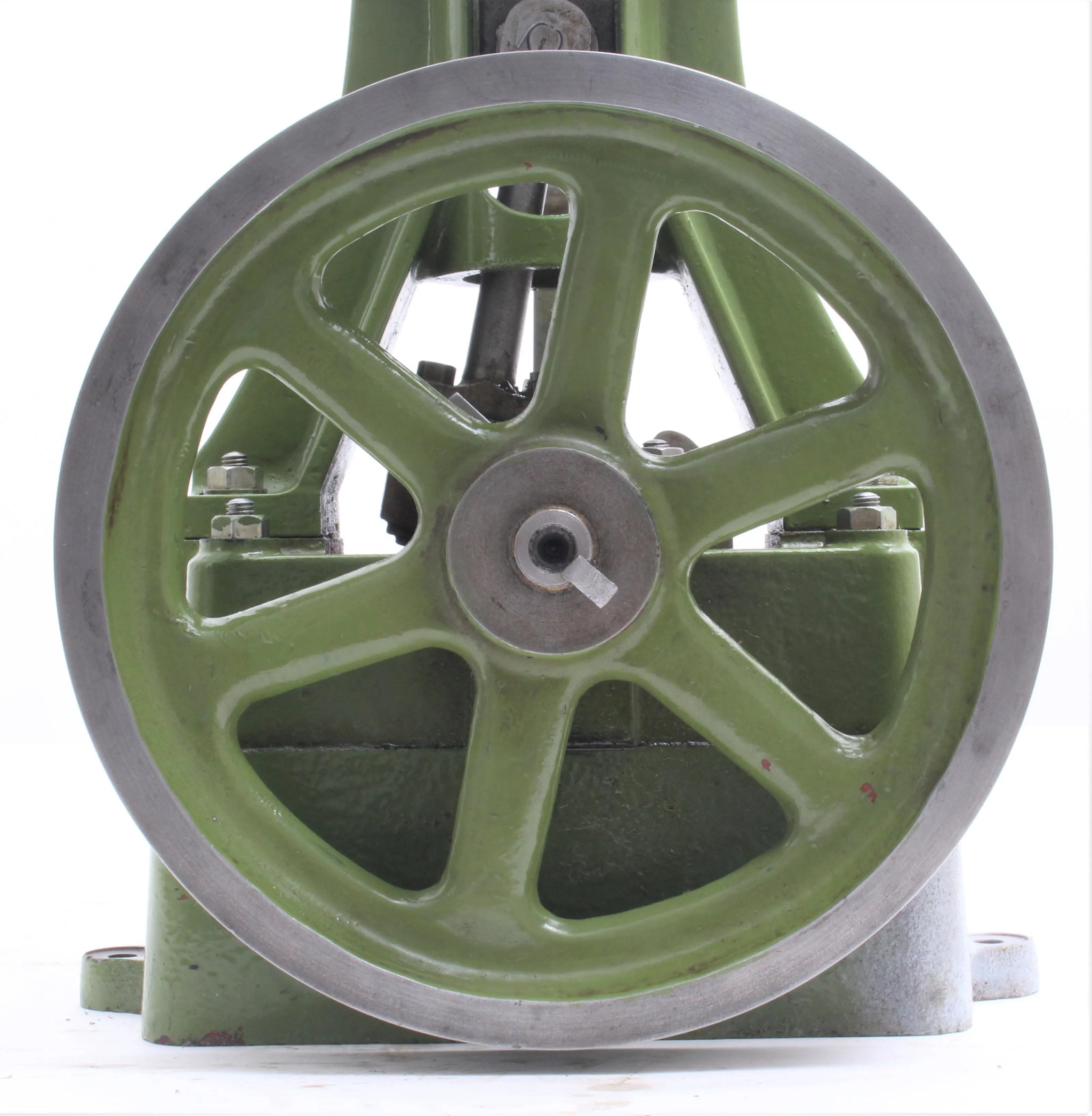

cast iron flywheel |
Cylinder material |
cast iron |
Valve type |
slide |
Bore x stroke |
2 1/4 x 2 |
Date out |
Oct-19 |
