Sold

7815

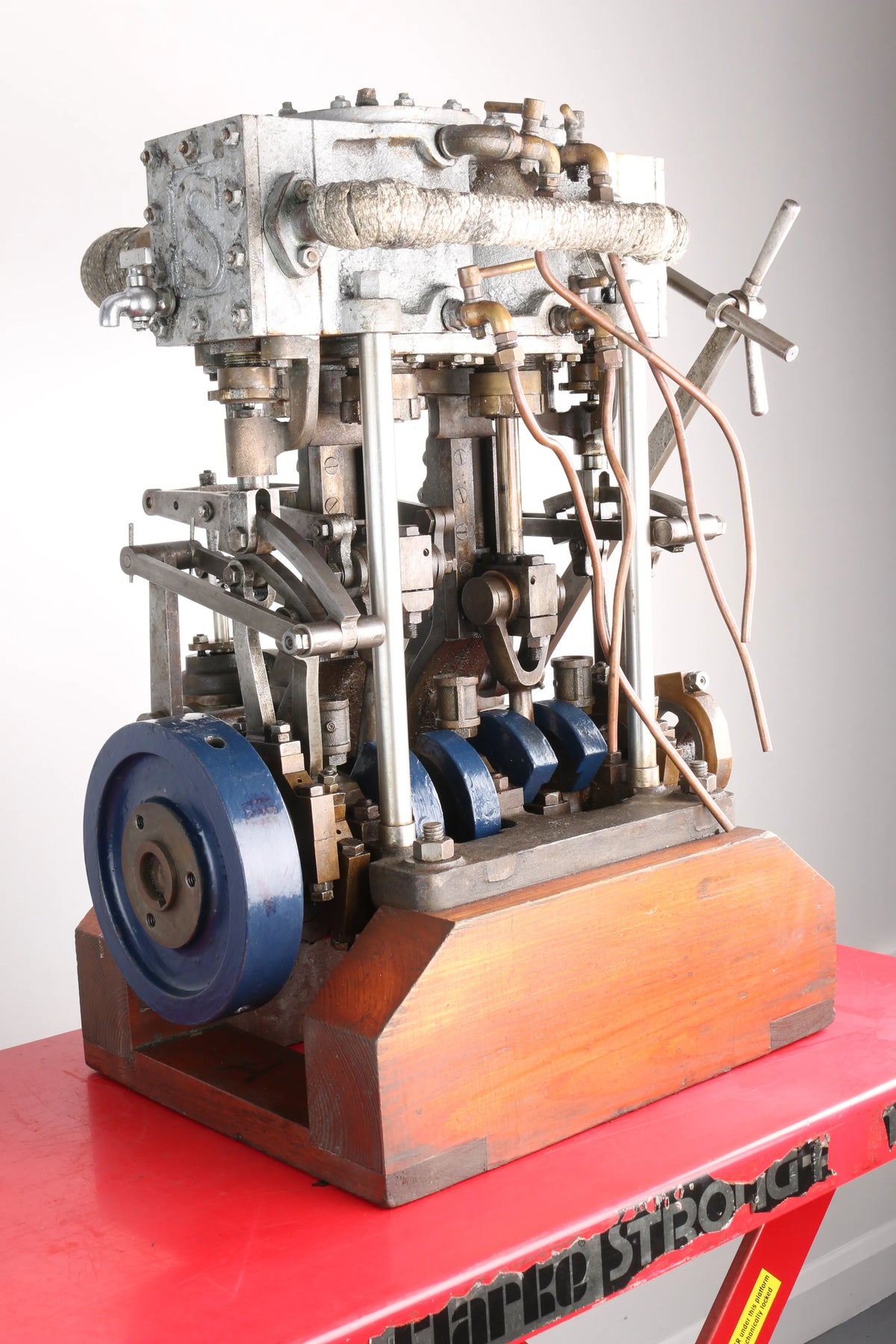

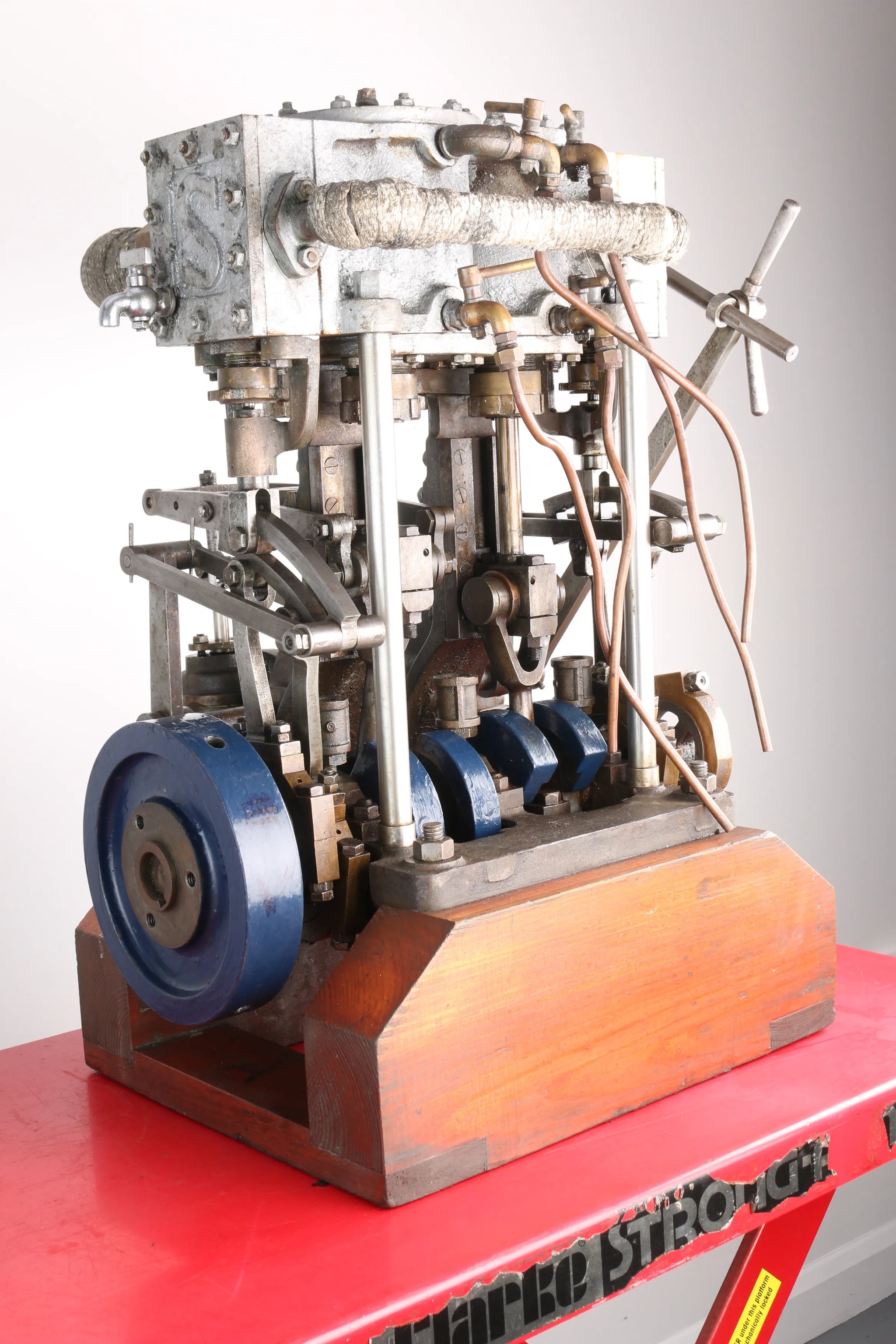

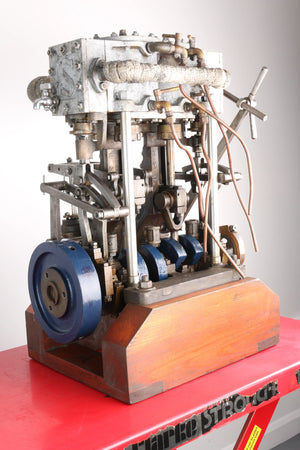

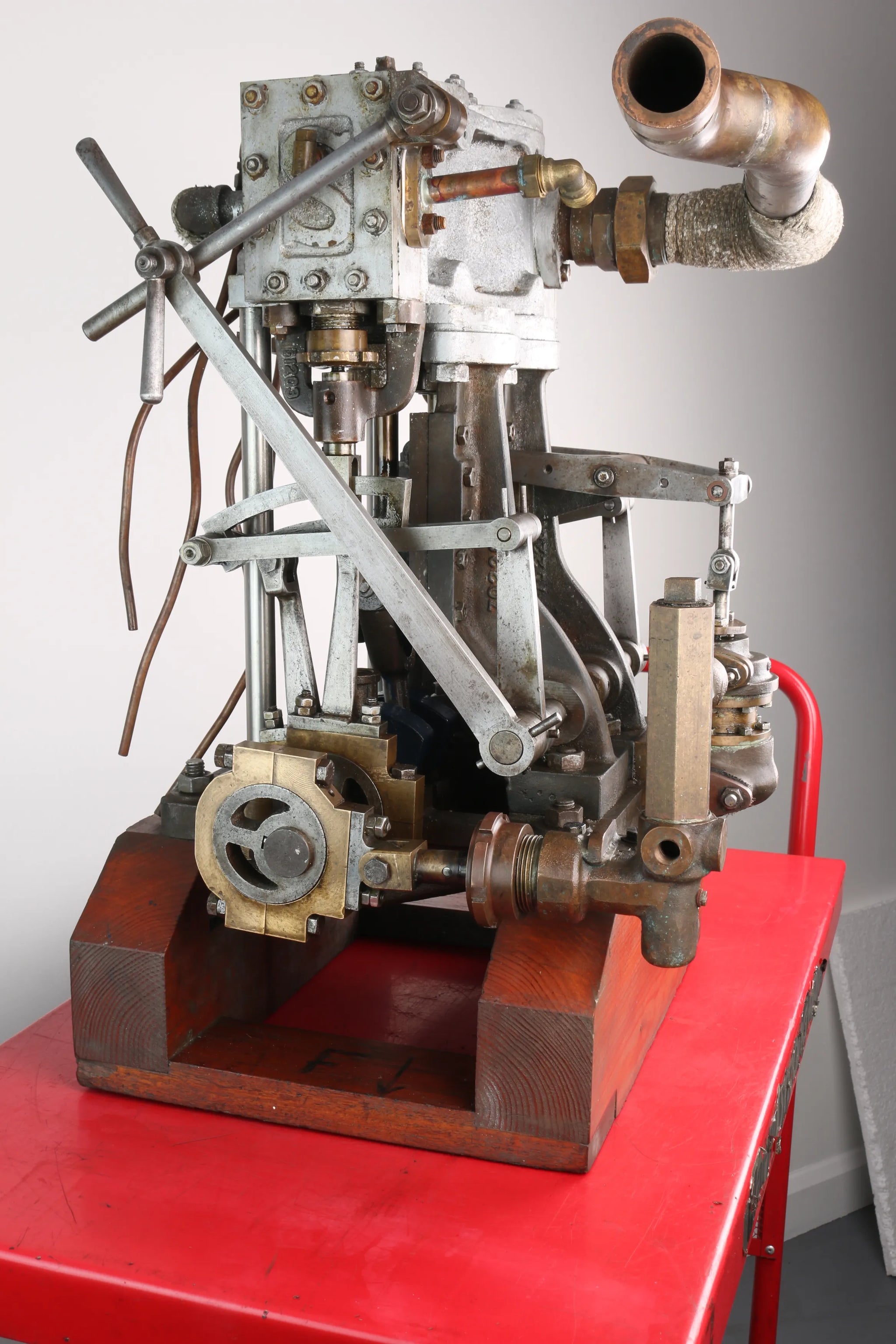

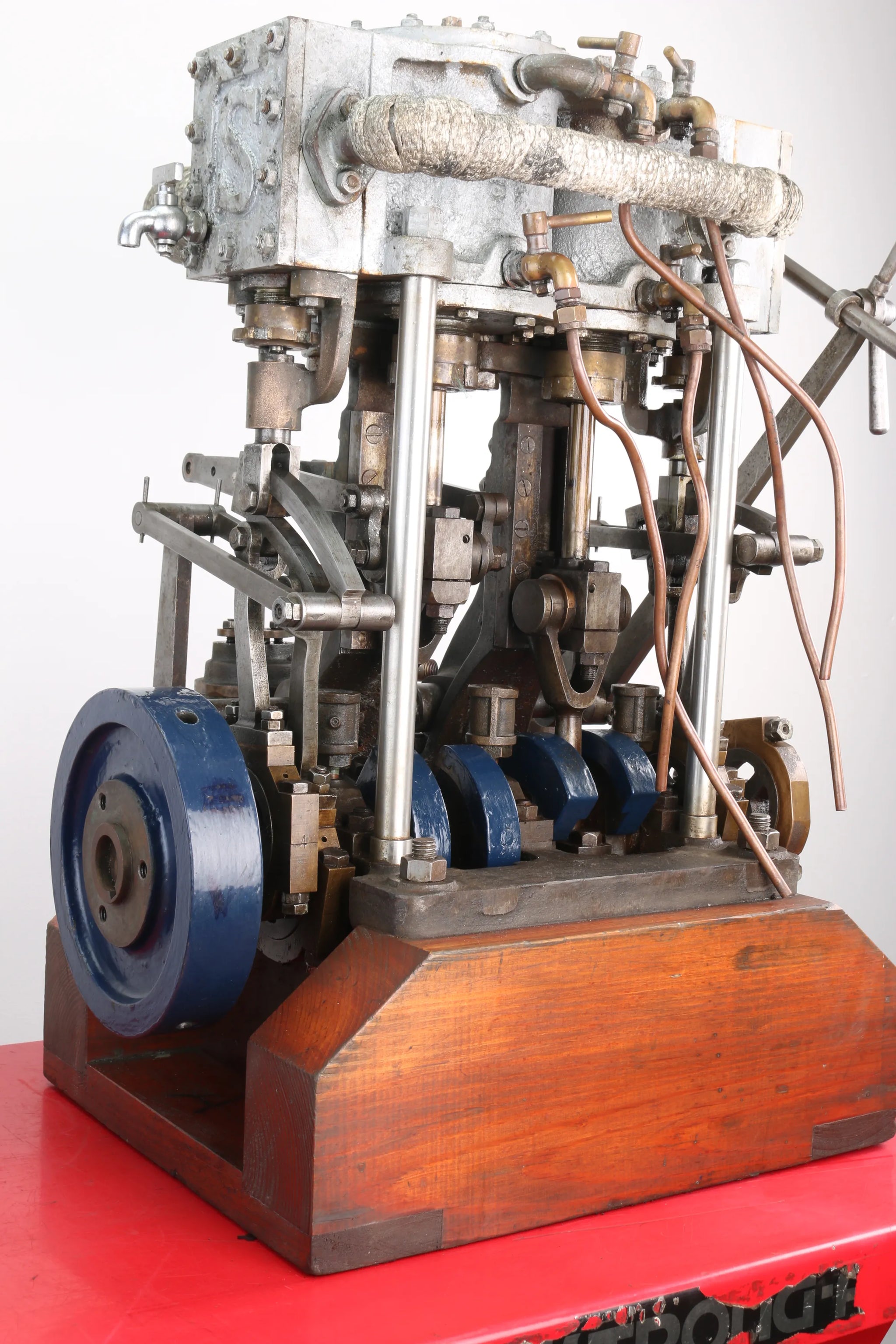

Stuart 6A marine compound

Largest of the Stuart Turner steam engines, the 6A is a marine compound twin, designed for powering boats from 18 to 22 feet long and developing 4bhp at 750 rpm at 120psi working pressure.

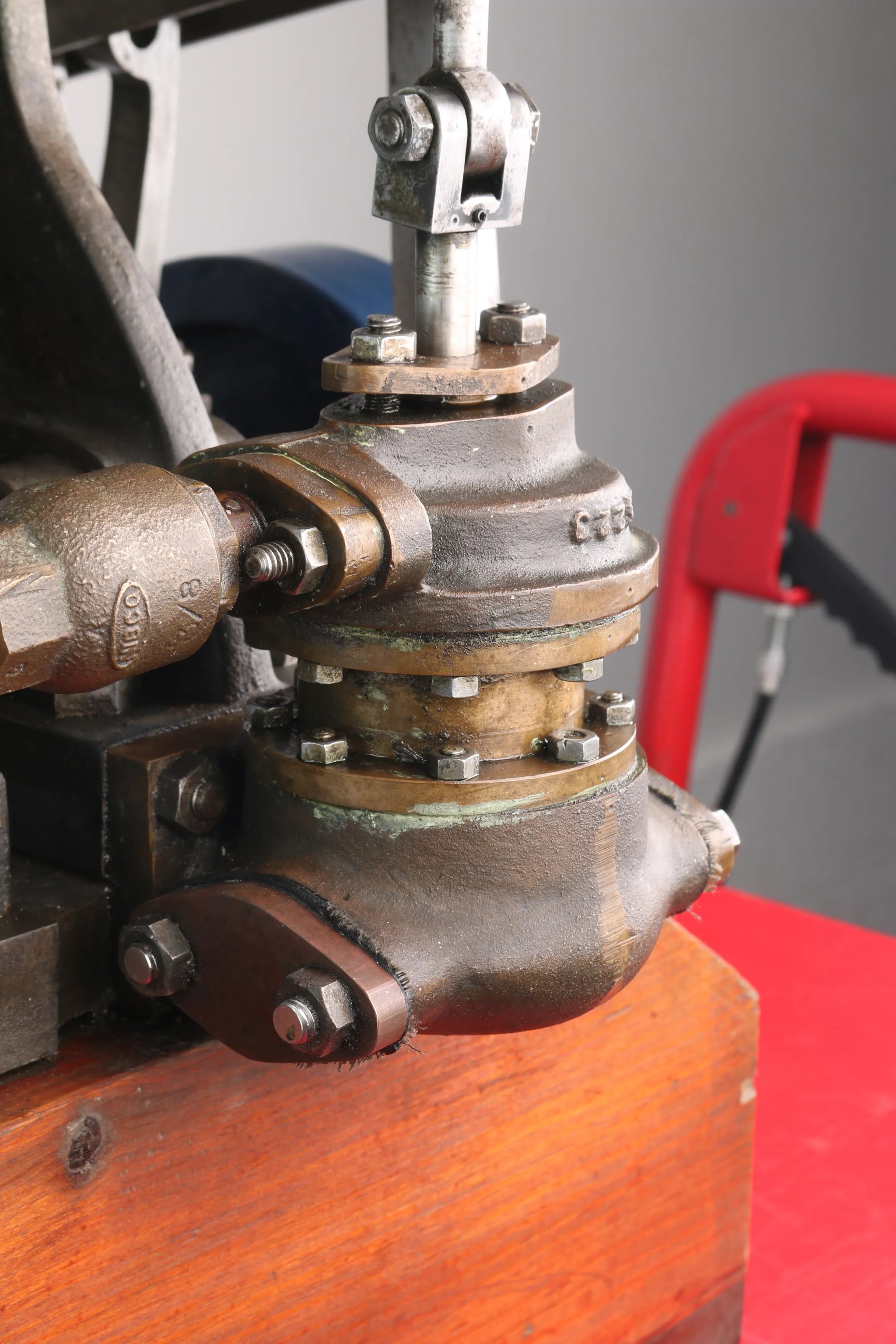

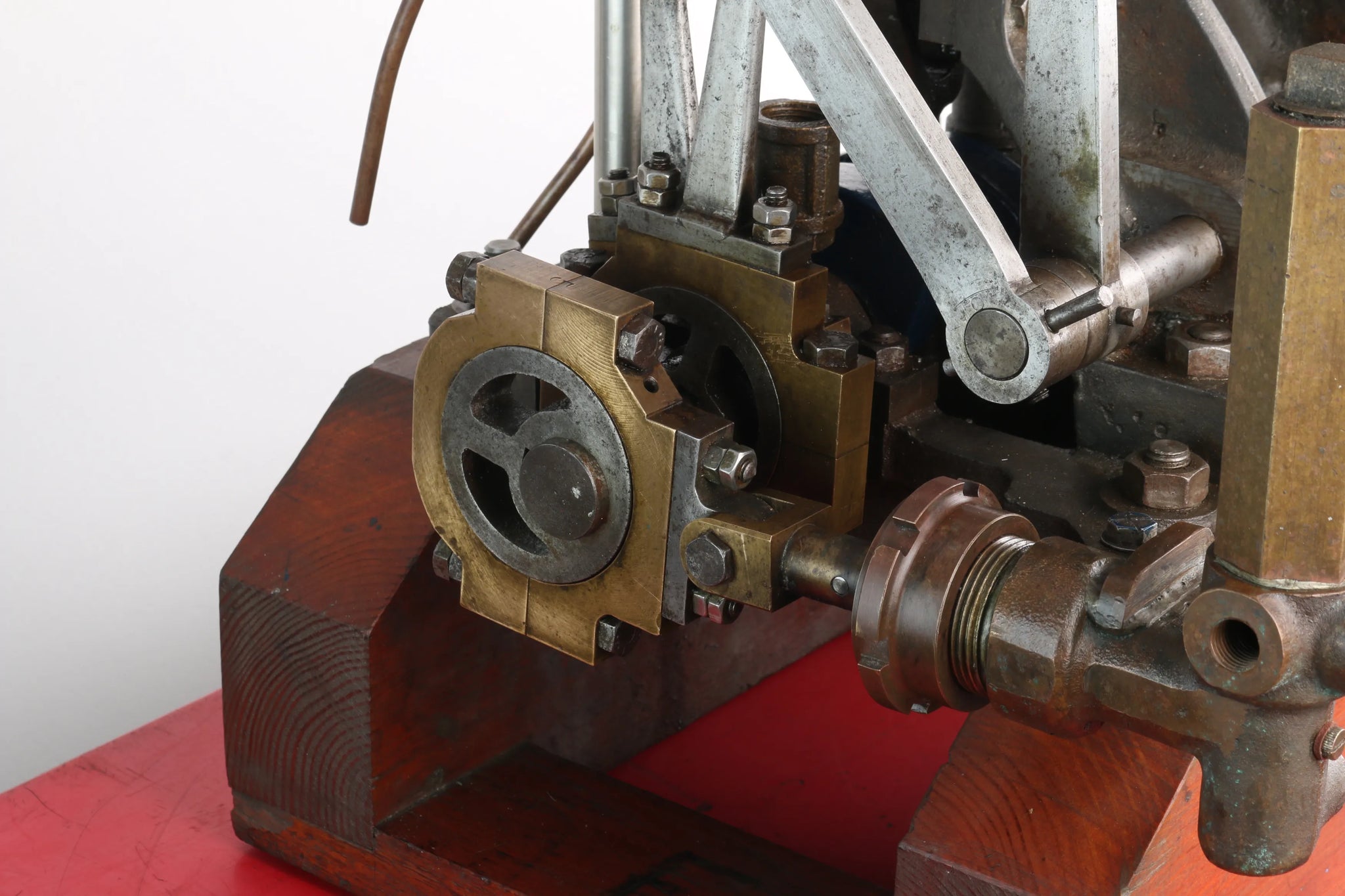

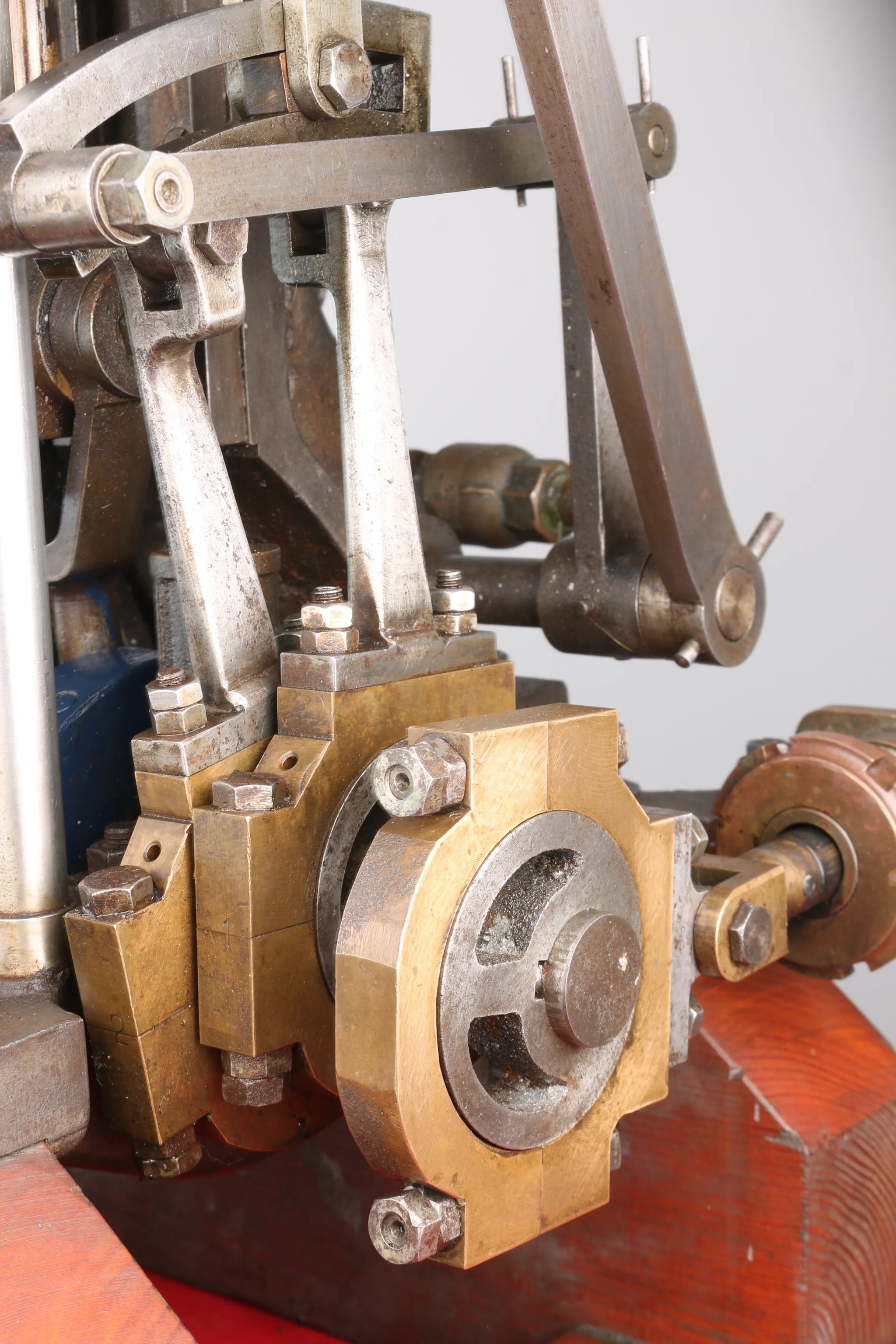

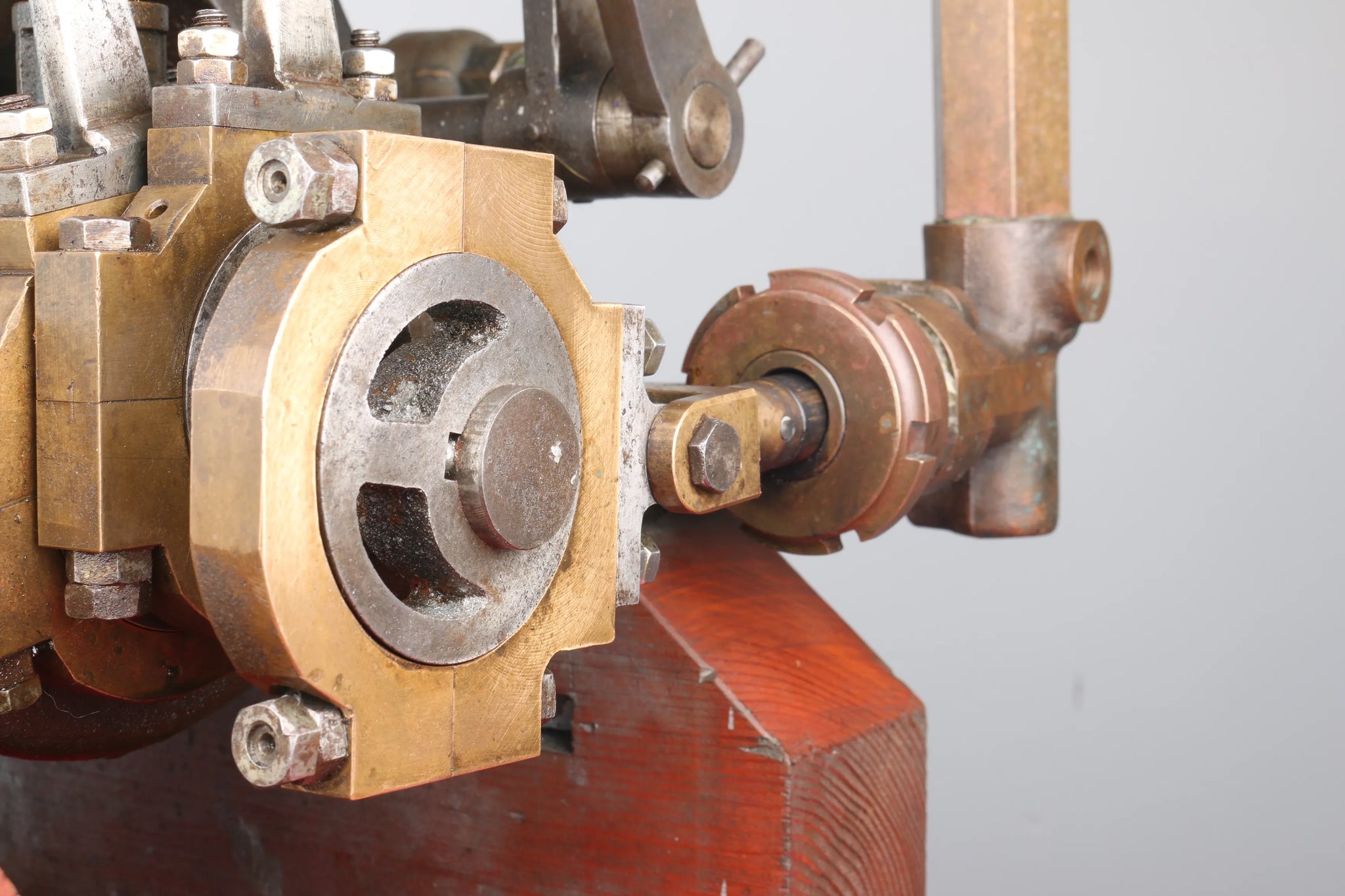

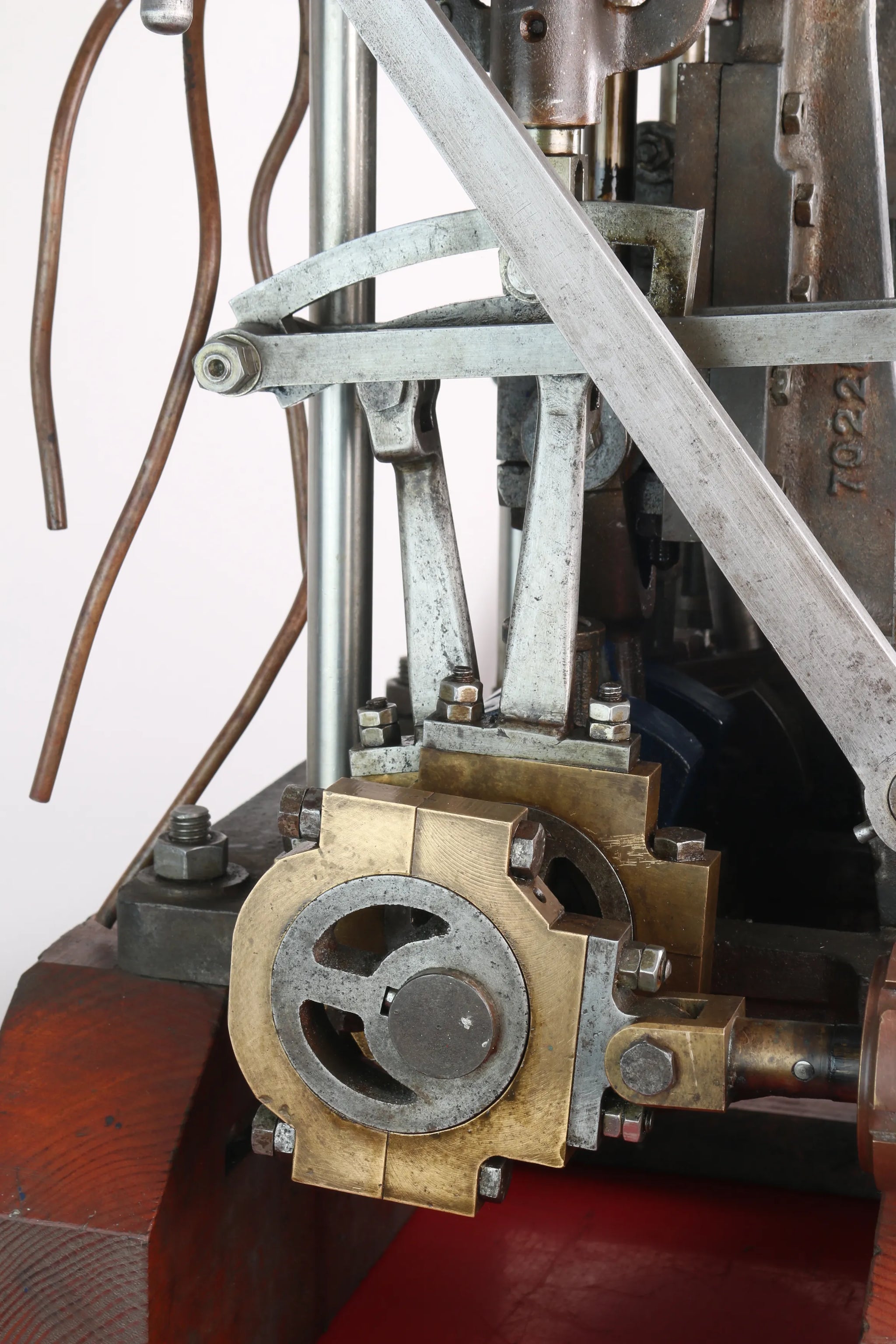

Acquired by its previous owner to power a 6 inch scale steam wagon, it was not ultimately used (mainly because we sold him a 6 inch wagon which already had an engine...). Quite nicely made in the first place, and fitted with boiler feed and air pumps, it's now in need of an overhaul (and definitely a repaint). A worthwhile project, it has the potential to make a decent example of a useful-sized engine.

Technical information

Stock code

7815

Length/inches

23

Width/inches

18

Height/inches

24

Weight/Kg

92

Cylinder material

cast iron

Valve type

slide

Valve gear

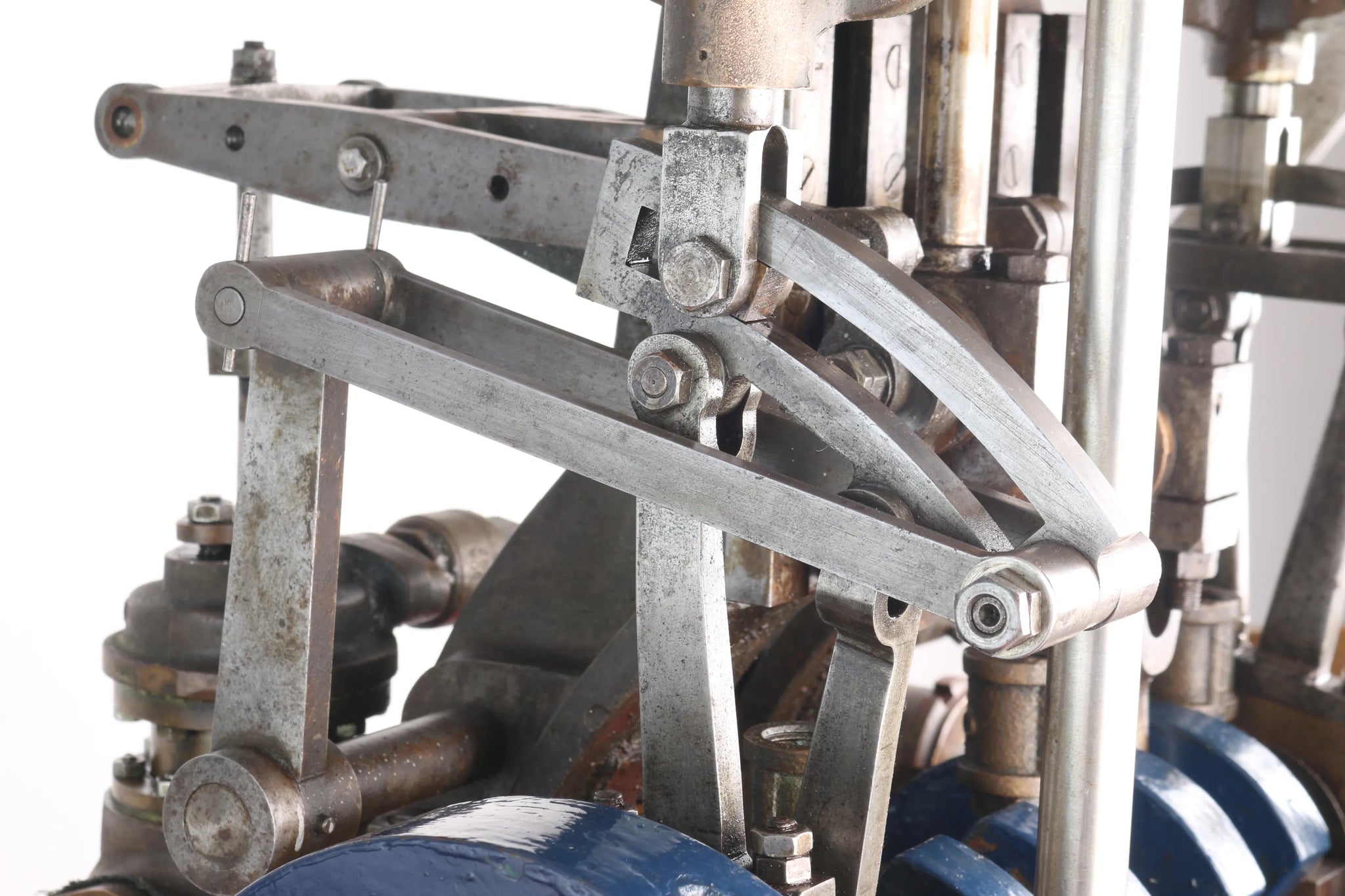

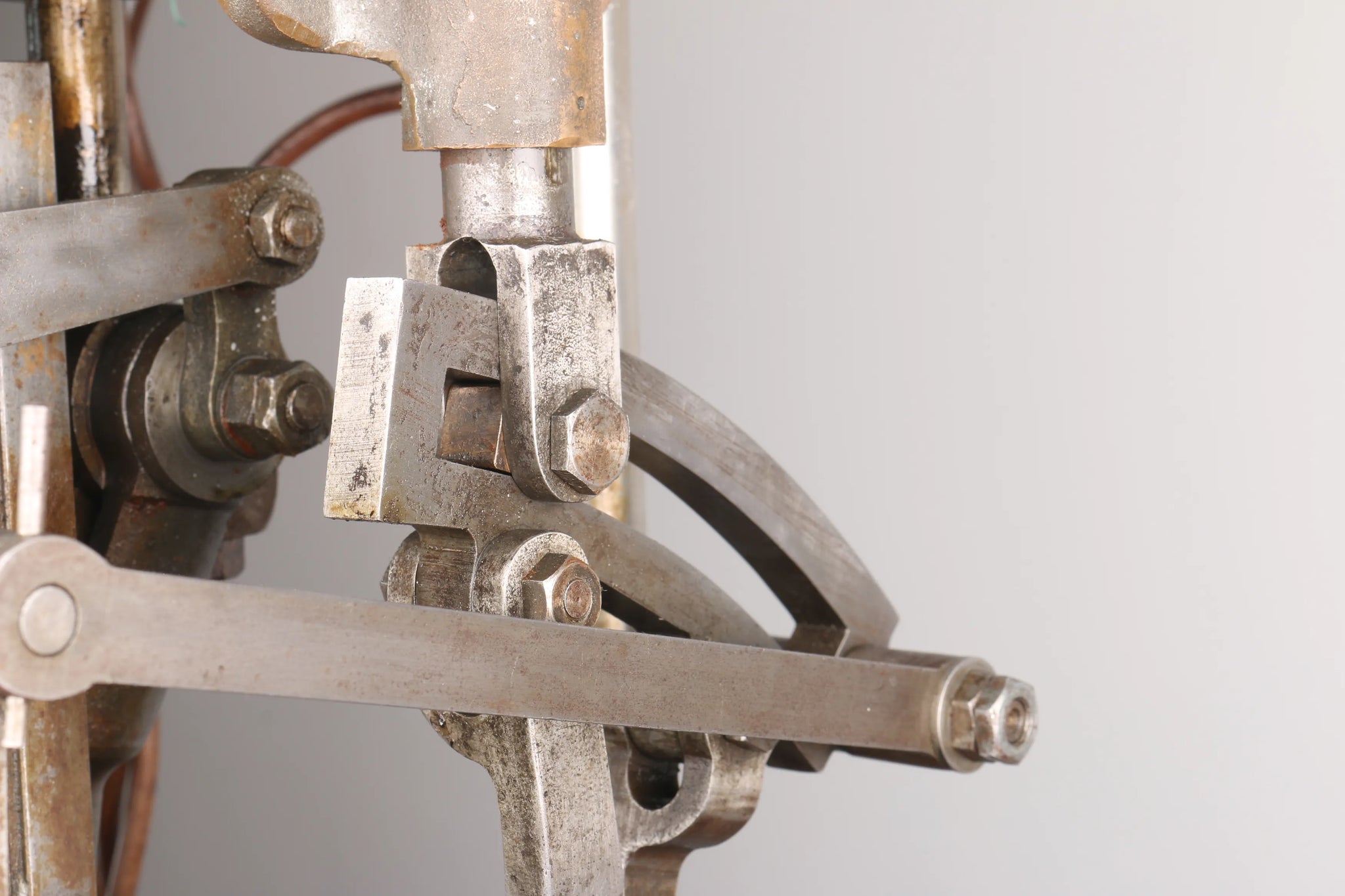

Stephensons

Reverser type

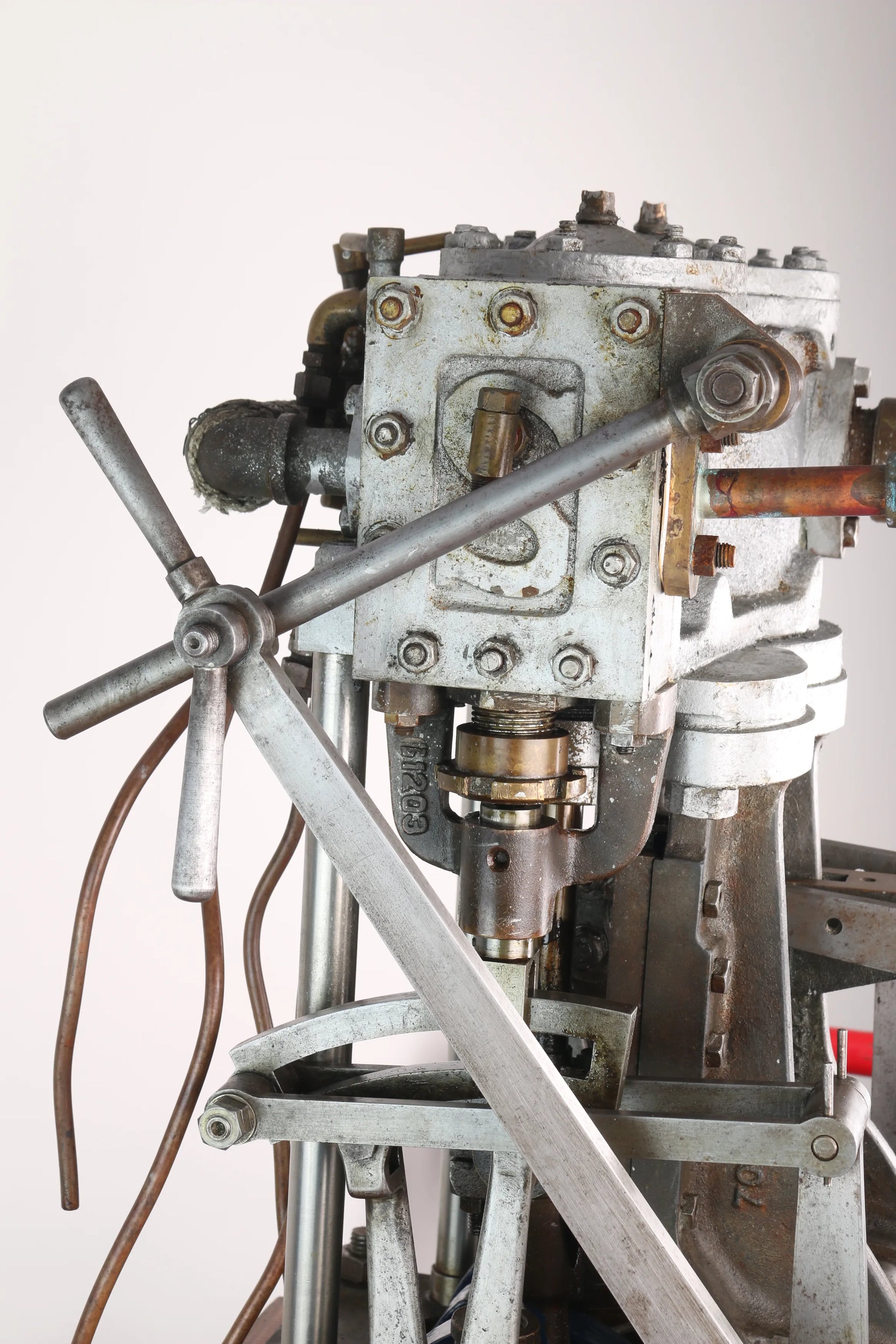

pole

Bore x stroke

2 1/2 + 4 x 3

Mechanical pump

yes

Pack

Single half pallet

Date out

Jan-18
