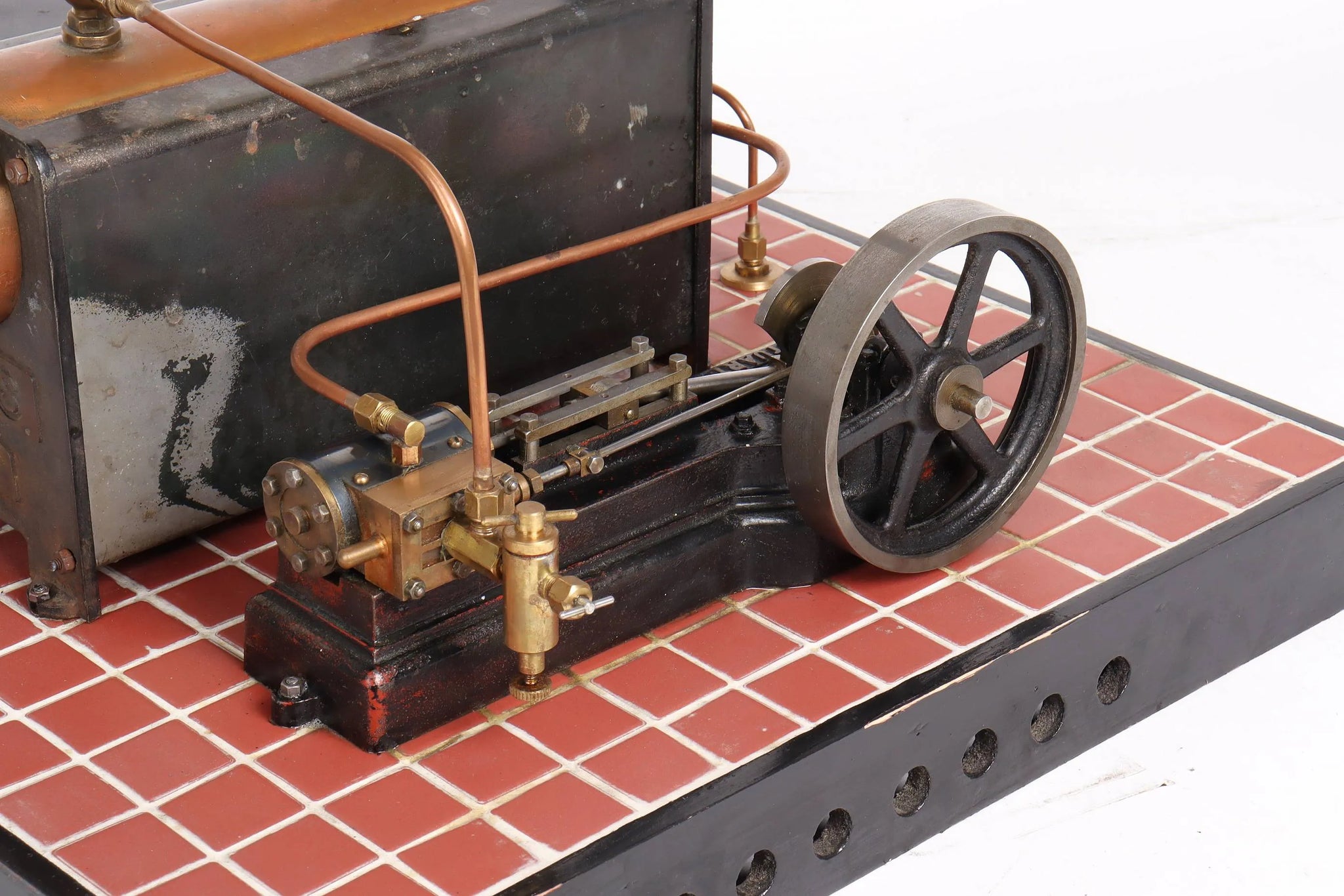

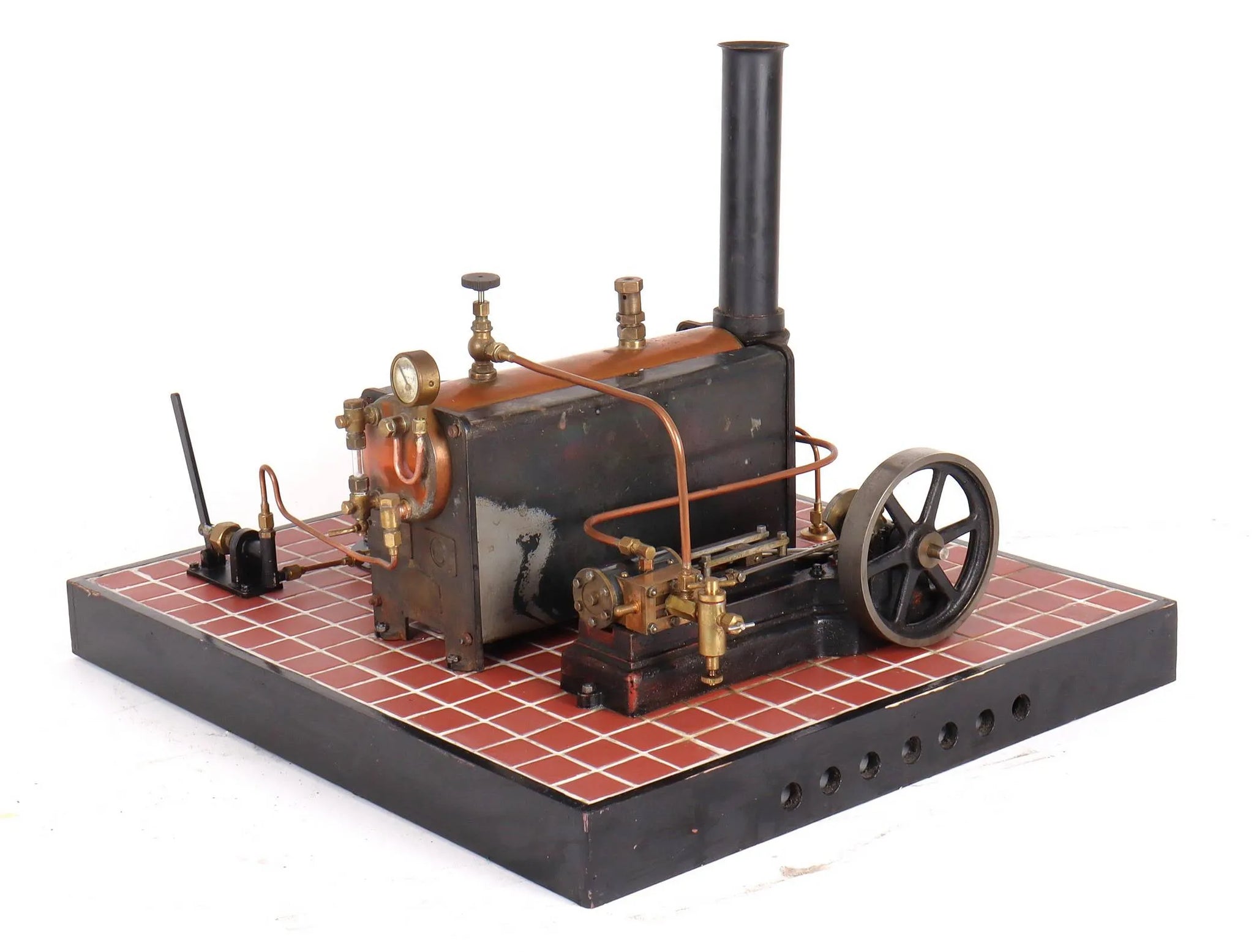

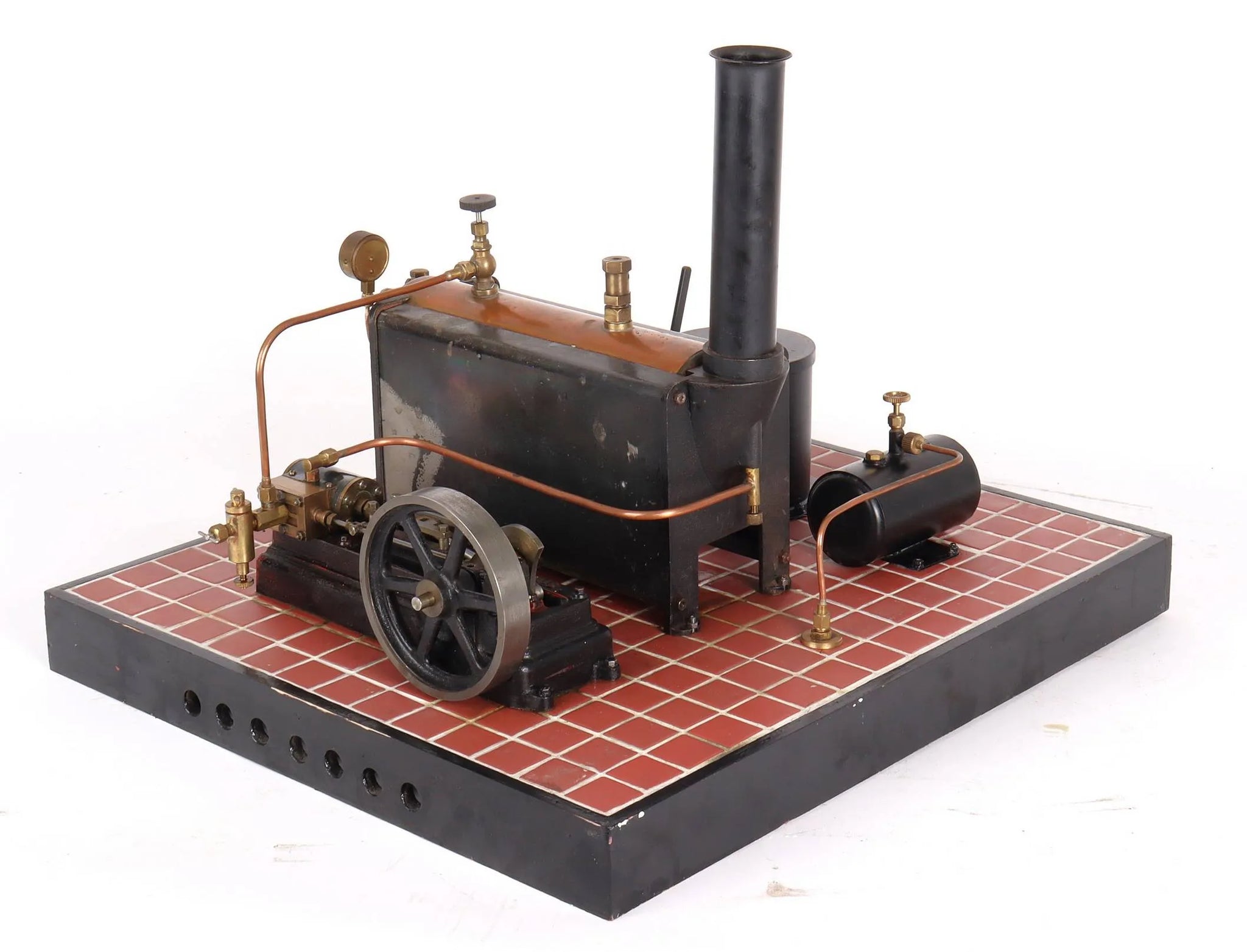

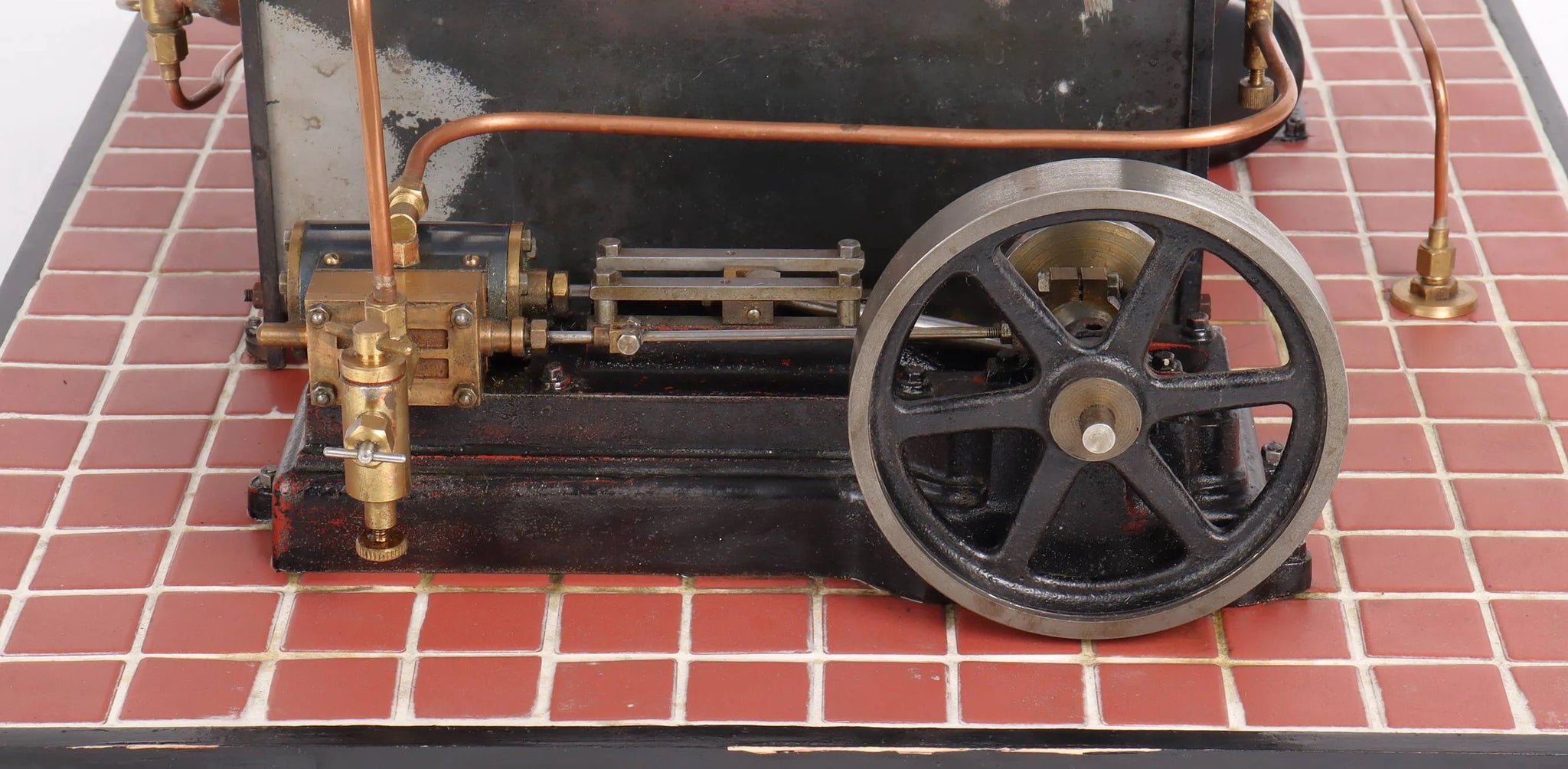

Stuart S50 steam plant

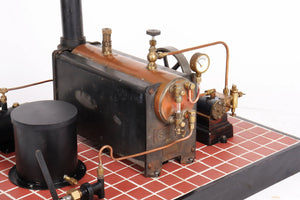

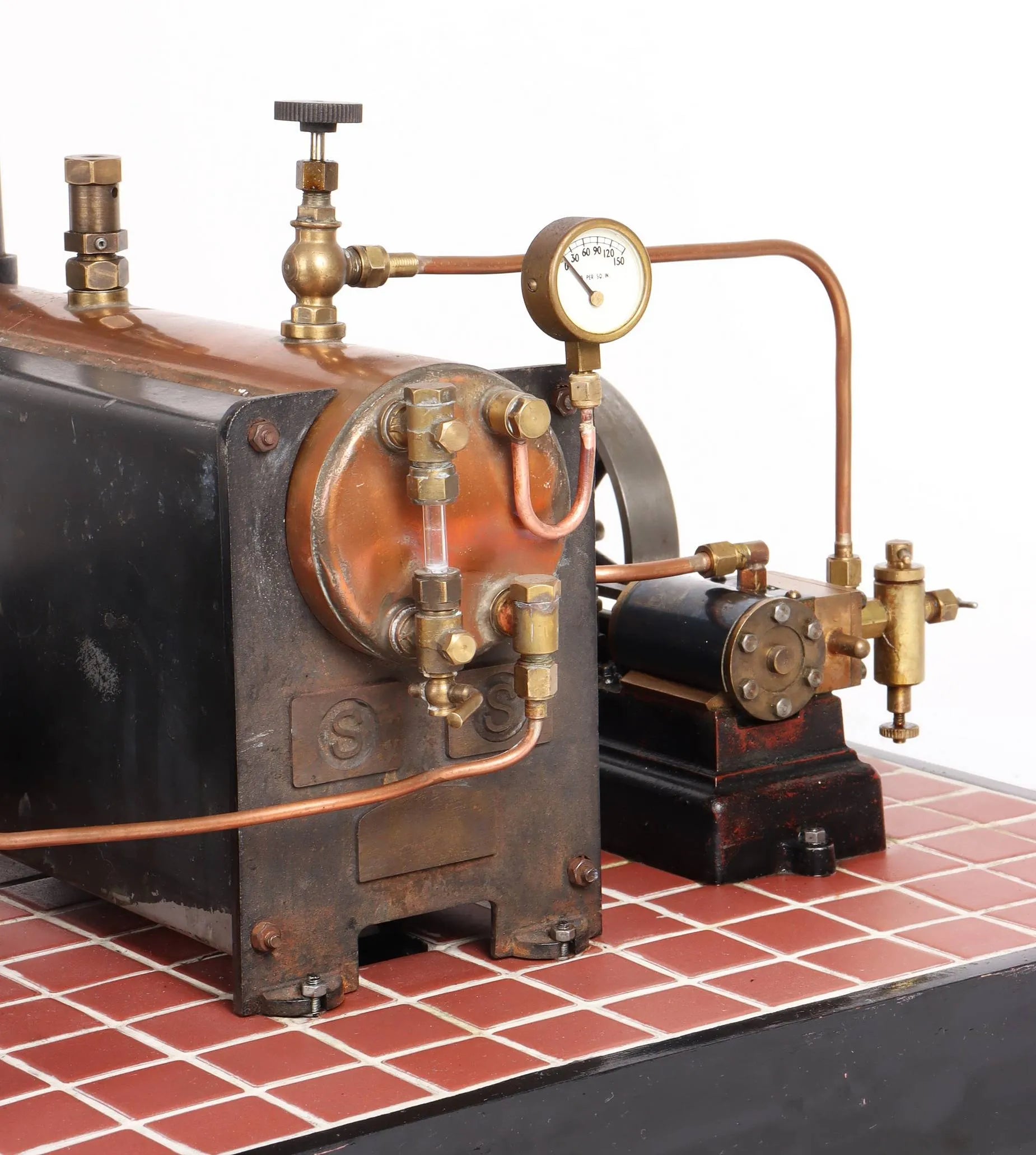

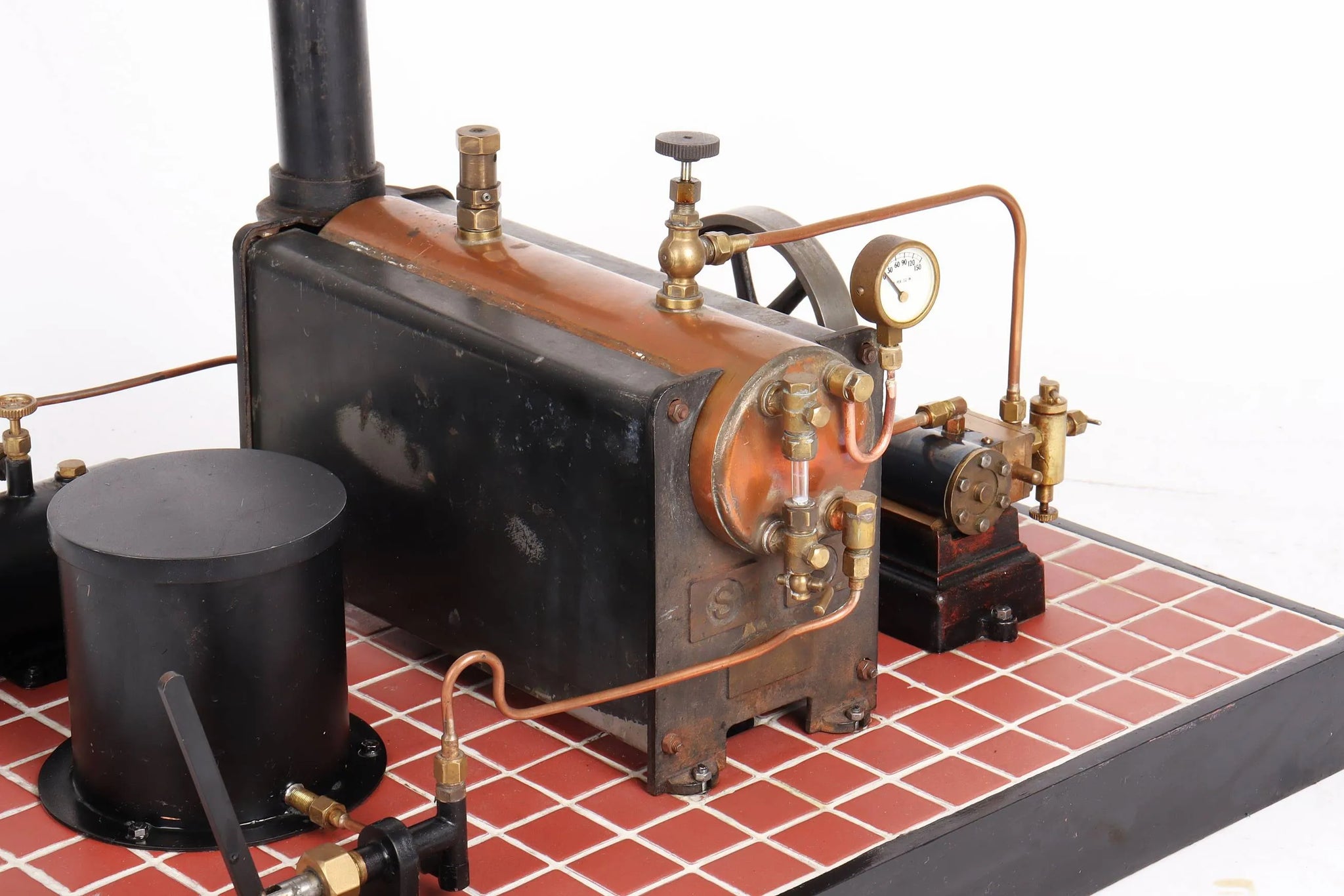

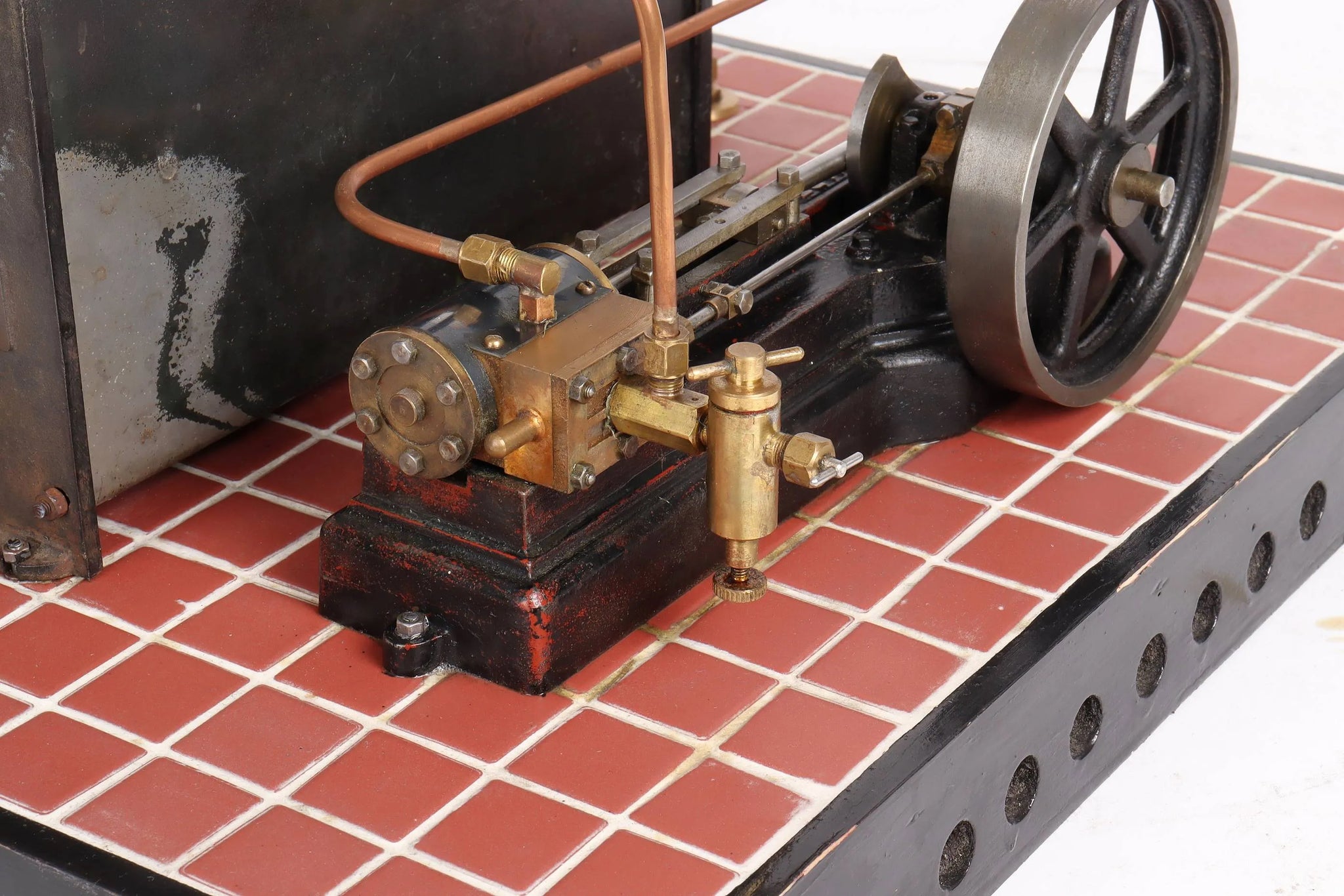

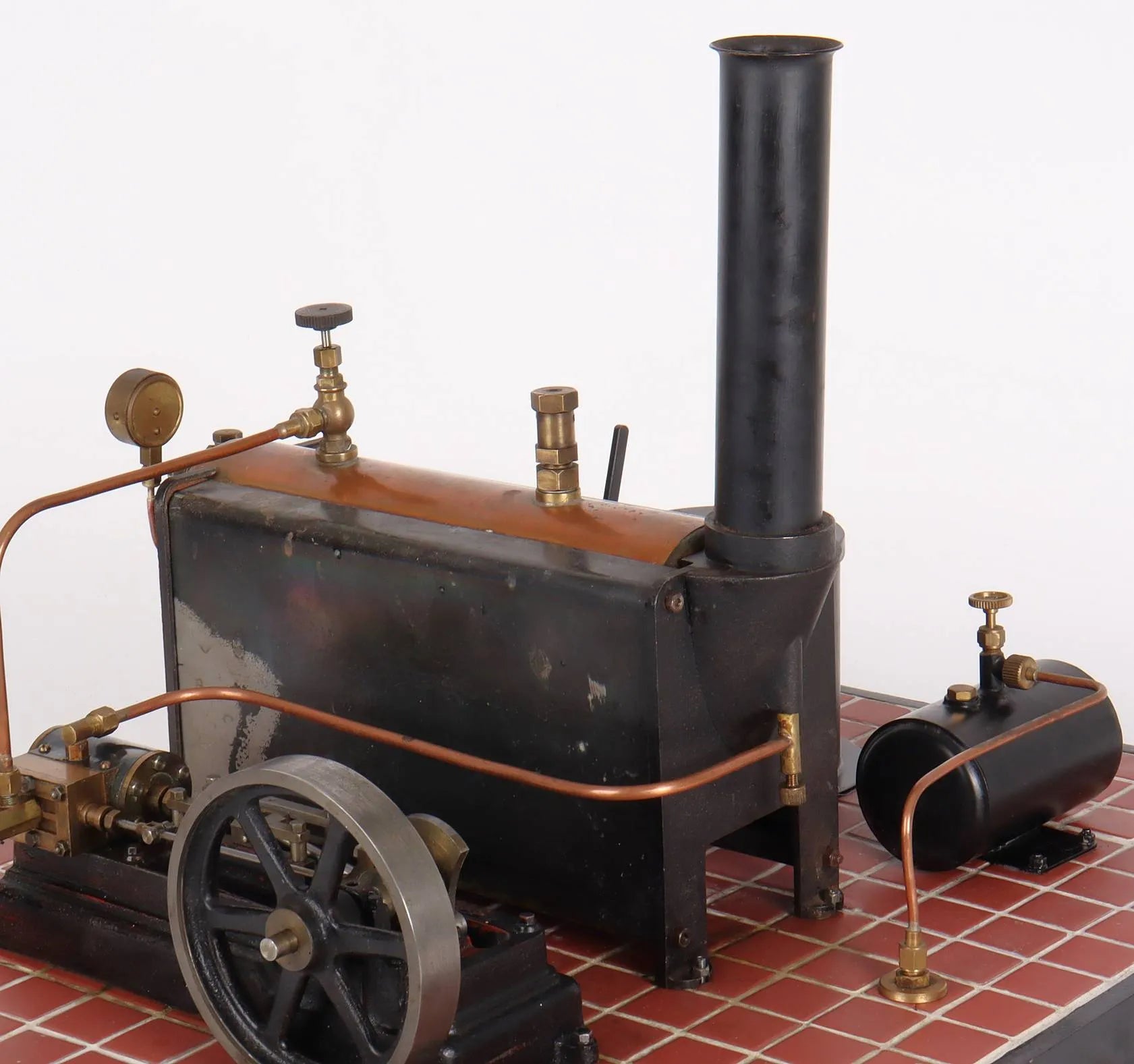

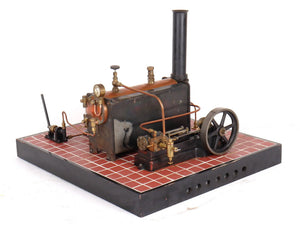

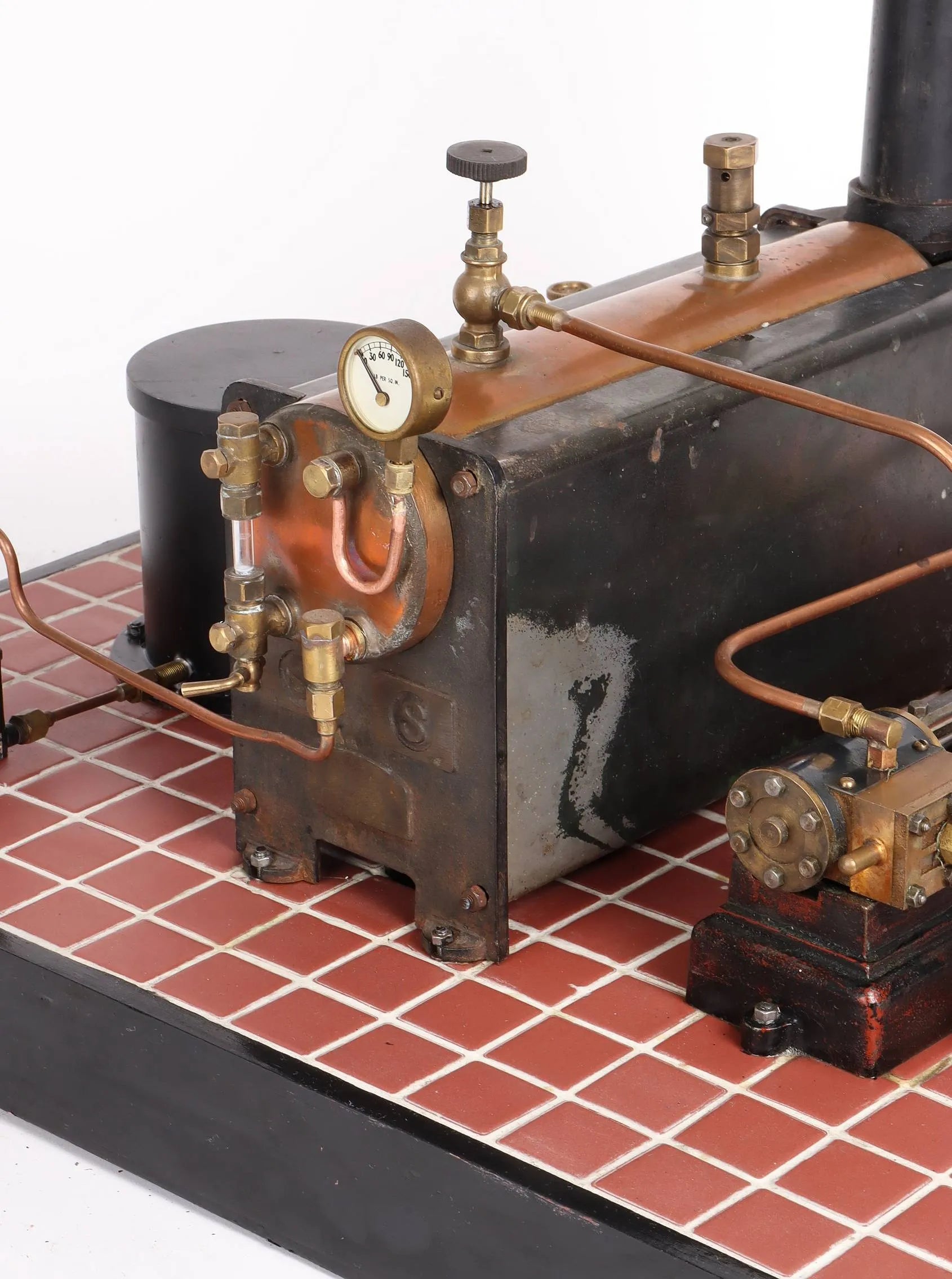

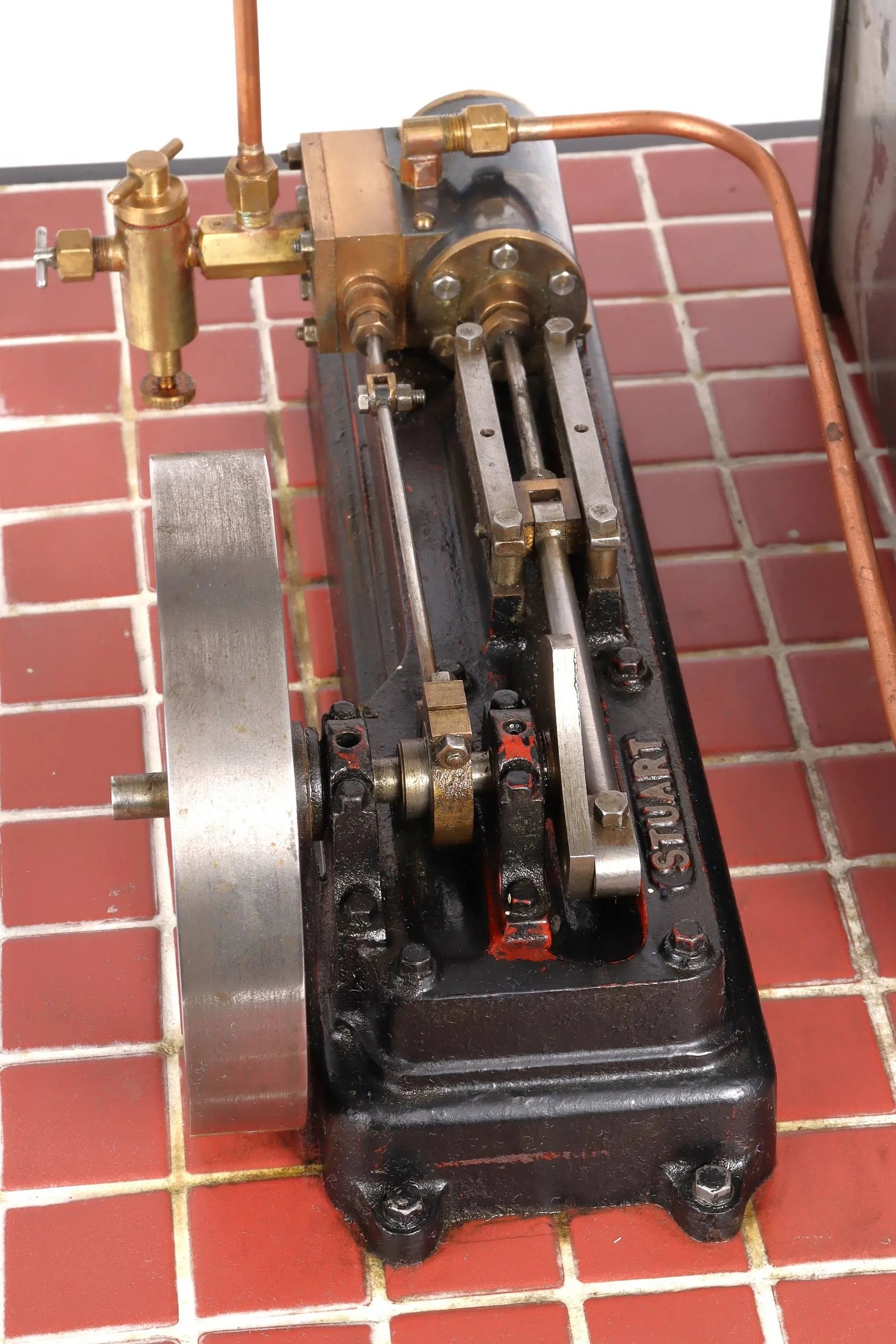

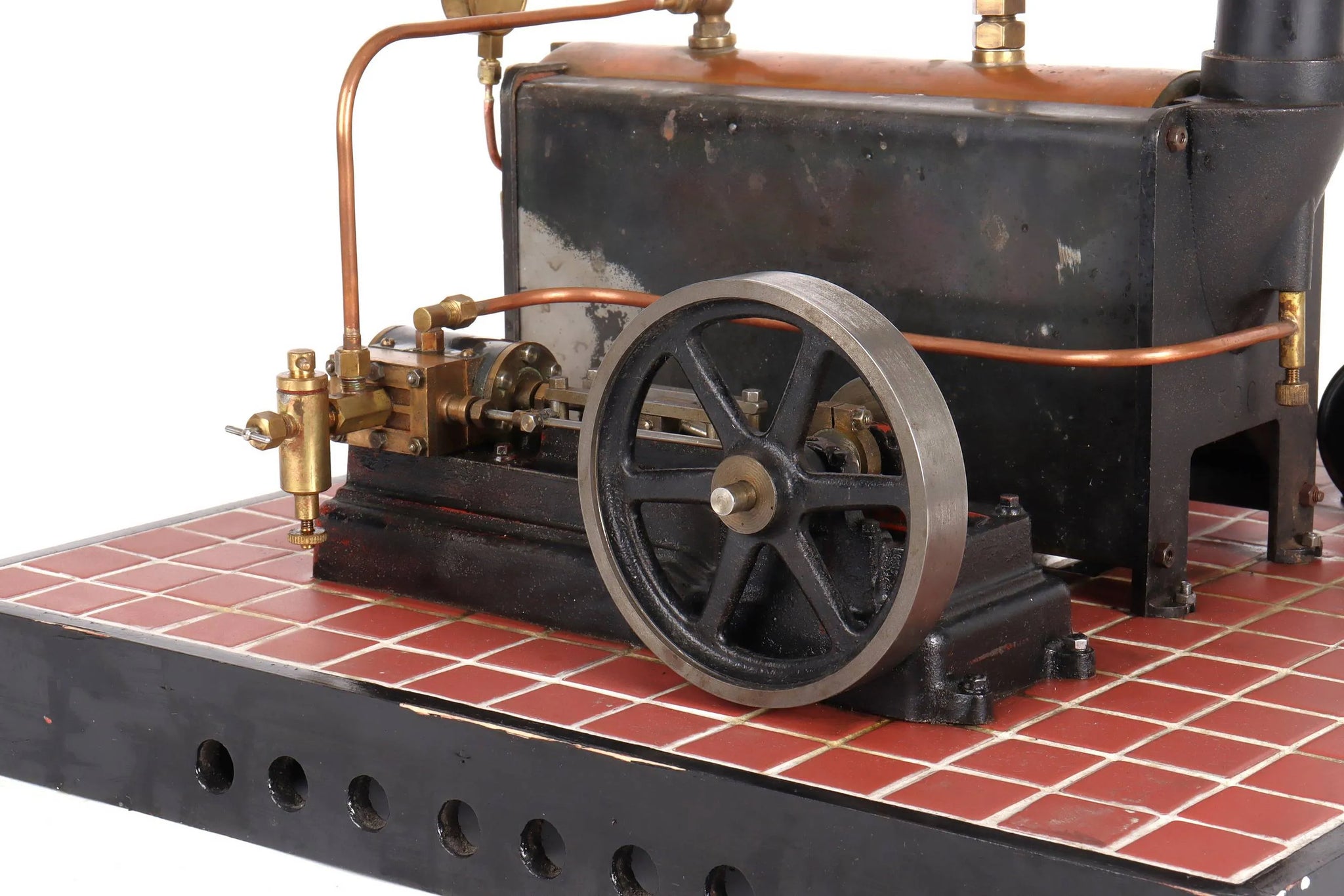

A Stuart S50 steam plant with gas-fired 500 water tube boiler.

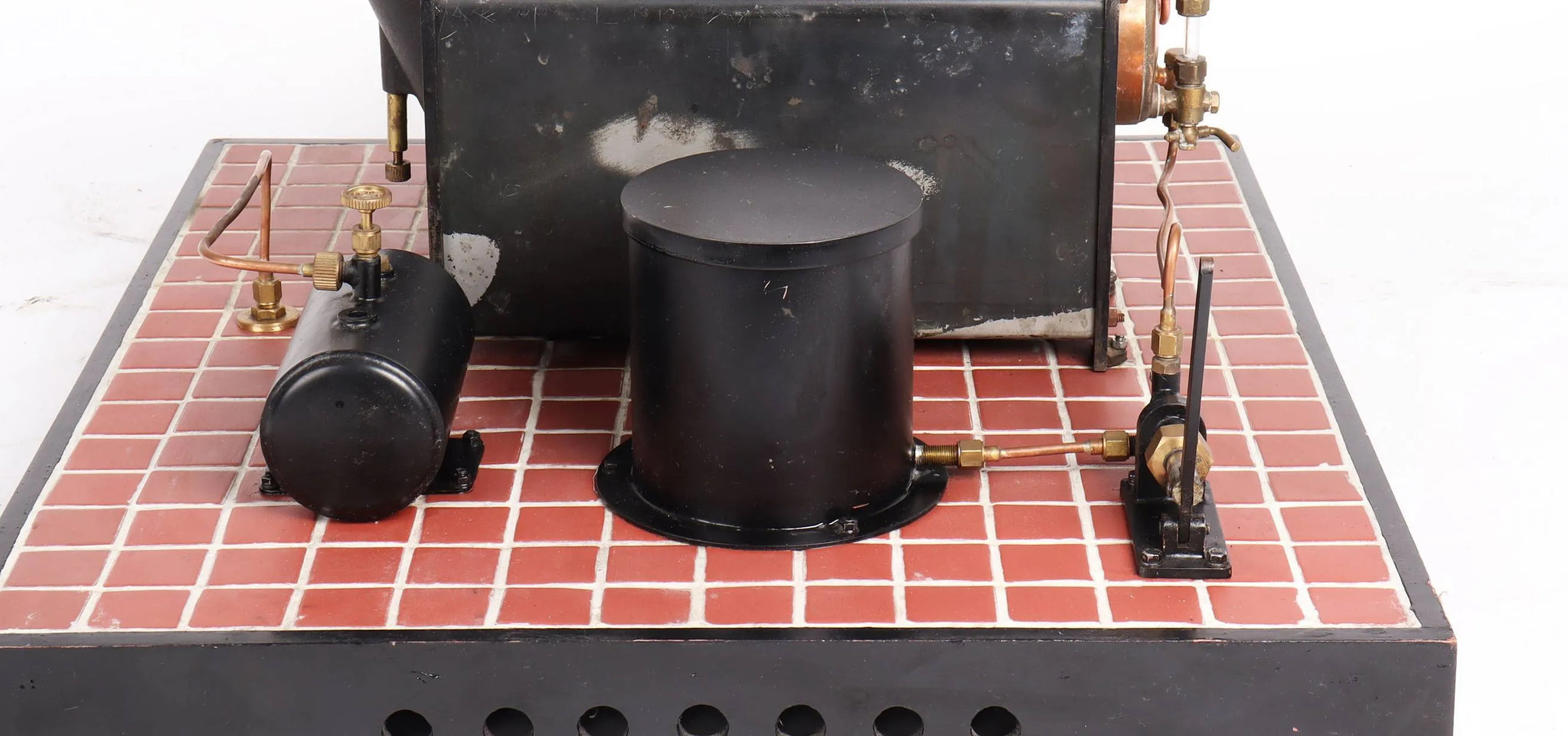

An older model in rather scruffy condition, it needs a cosmetic overhaul - a worthwhile project, it was nicely put together in the first place, with tiled engine room floor and pipework neatly run through the base.

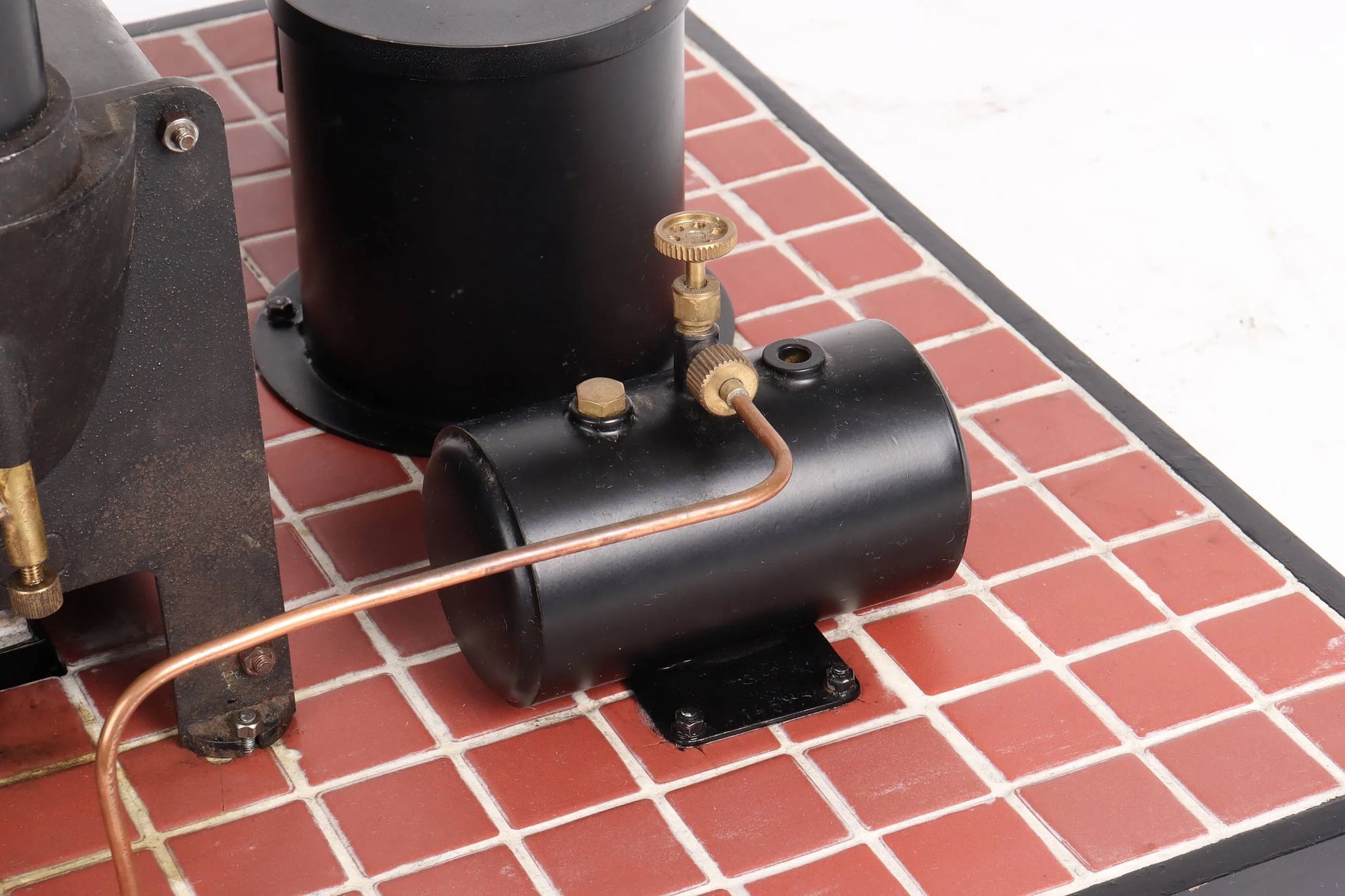

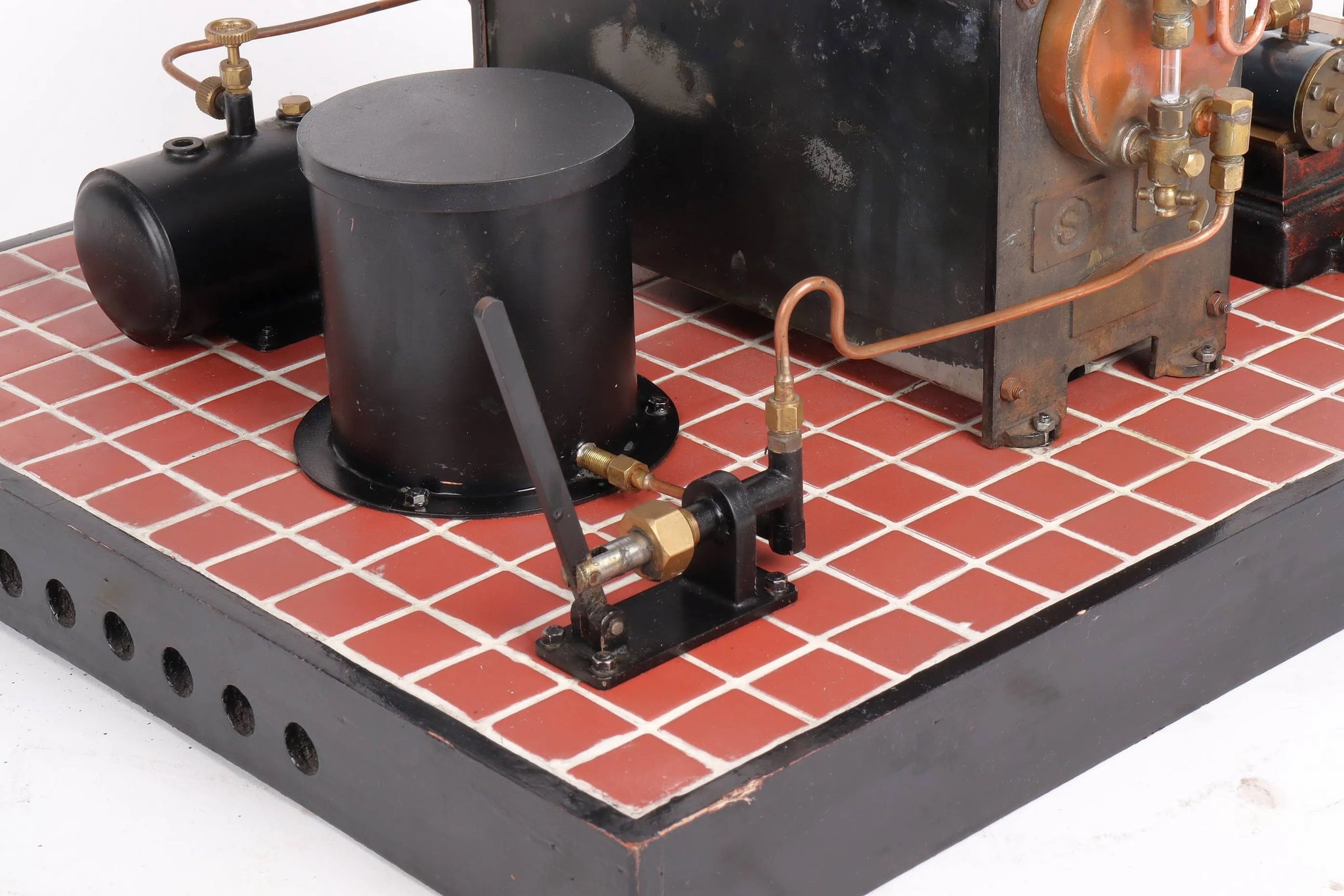

There is a water tank with hand pump, the boiler is fired by a ceramic burner installed in the base, with refillable gas tank.

Technical information

Stock code

9837

Length/inches

15.5

Width/inches

17.5

Height/inches

13

Weight/Kg

8

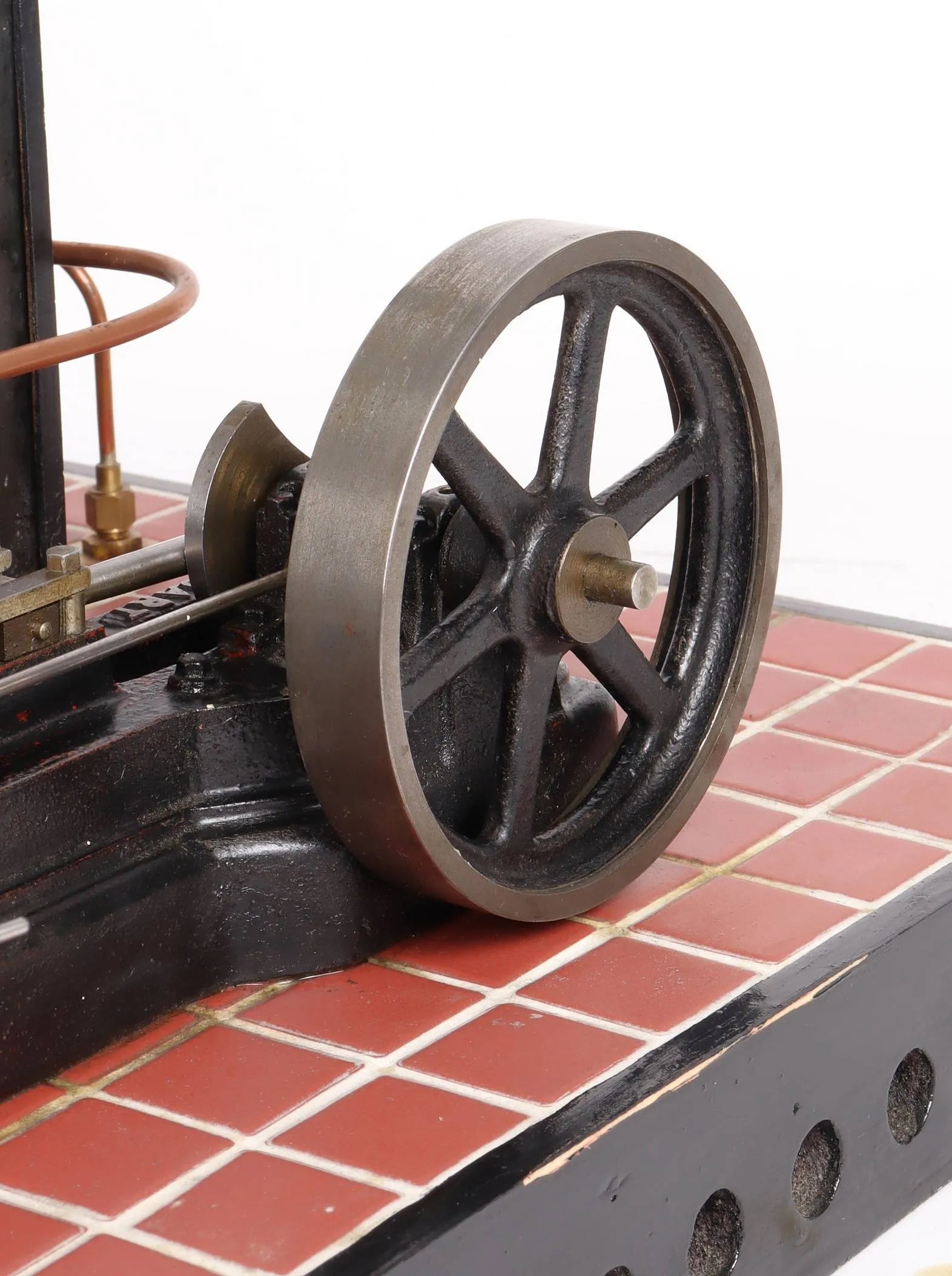

Wheel material

cast iron

Cylinder material

gunmetal

Valve type

slide

Valve gear

single eccentric

Lubricator type

displacement

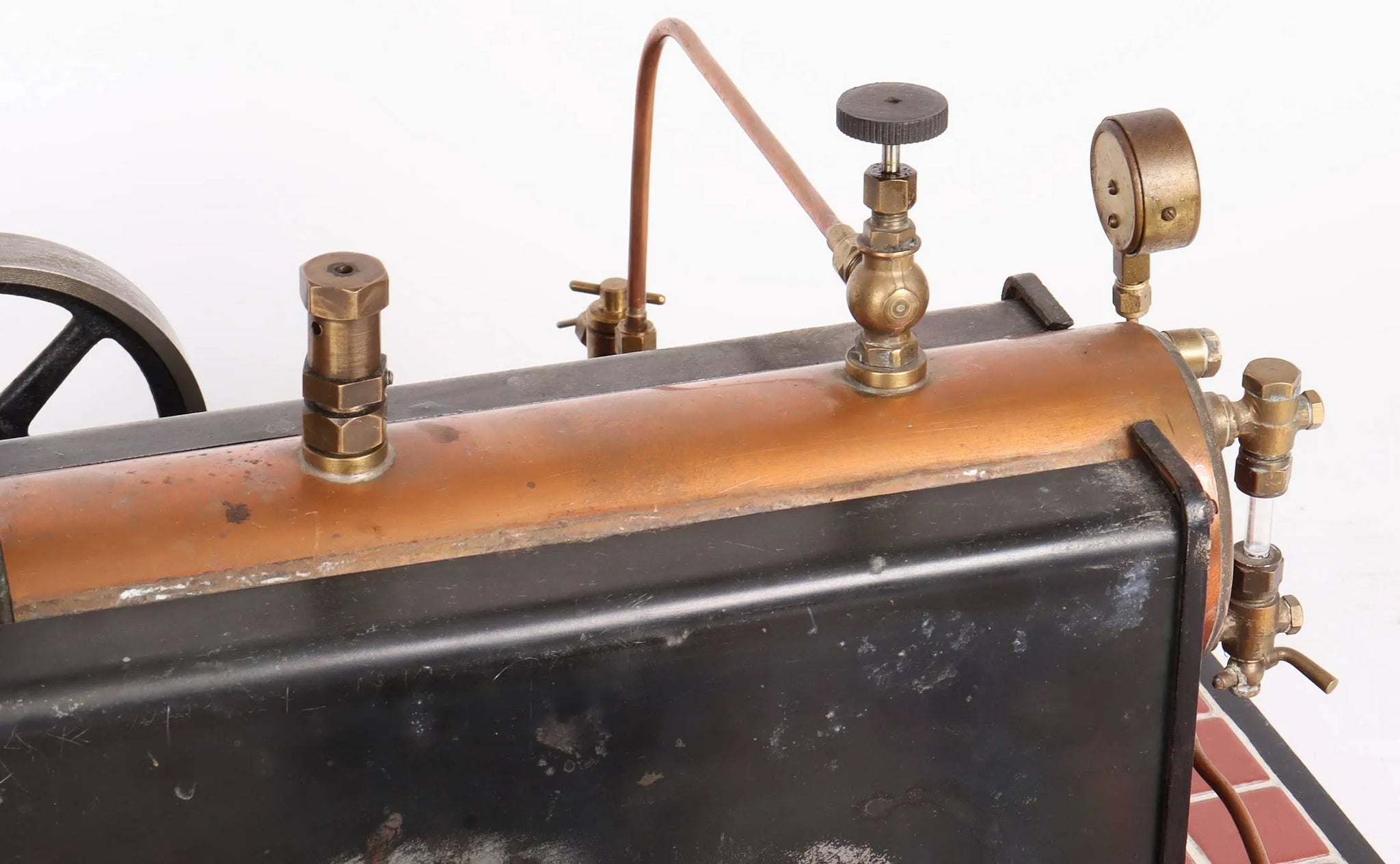

Boiler type

water tube

Boiler construction

silver soldered

Boiler material

copper

Working pressure

60

Safety valve type

spring

Safety valve

1

Bore x stroke

5/8 x 1 1/4

Hand pump

1

Date out

Jun-24
