9799

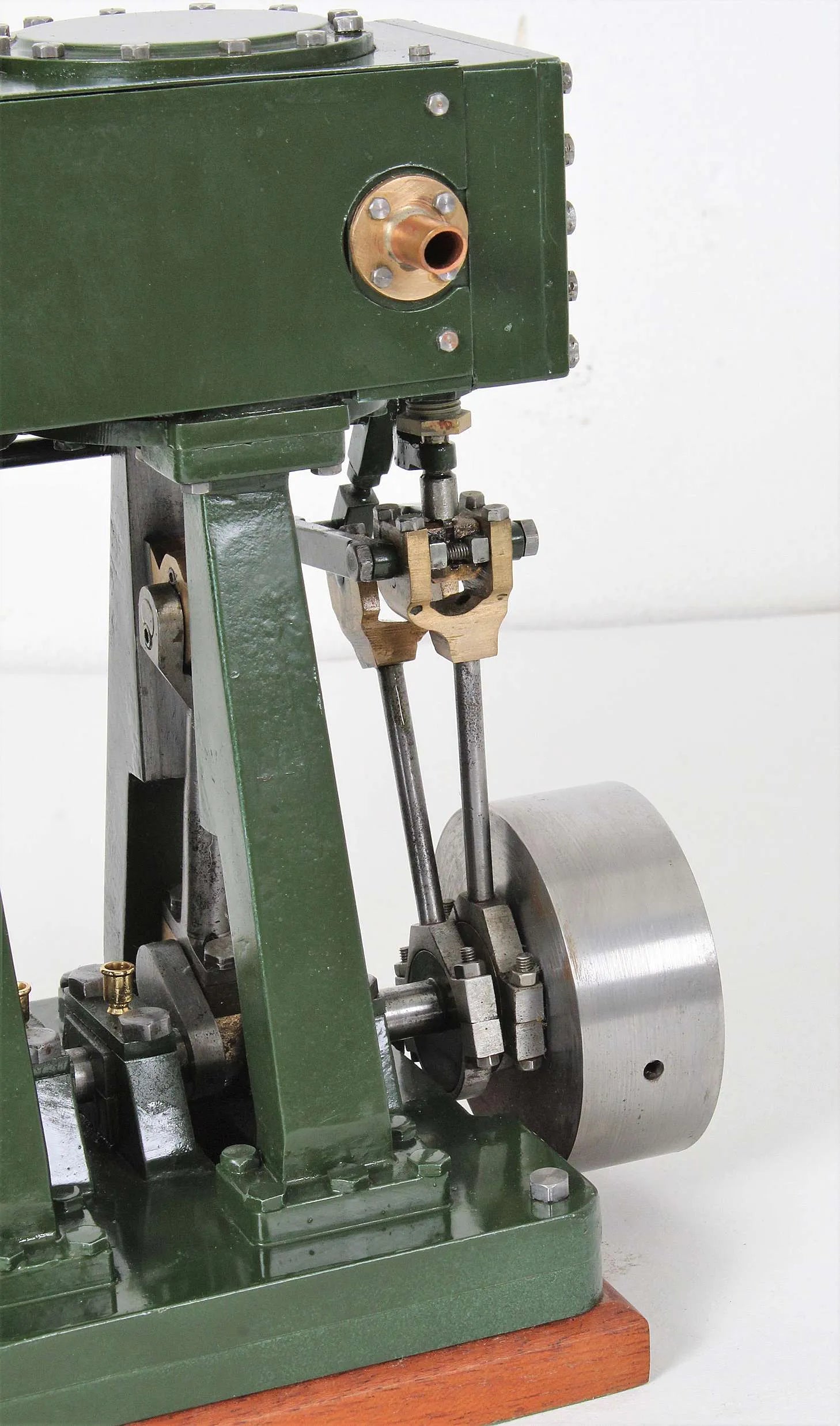

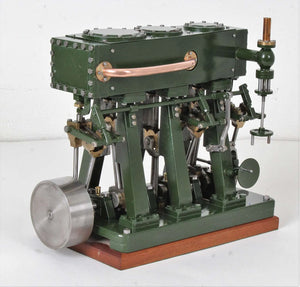

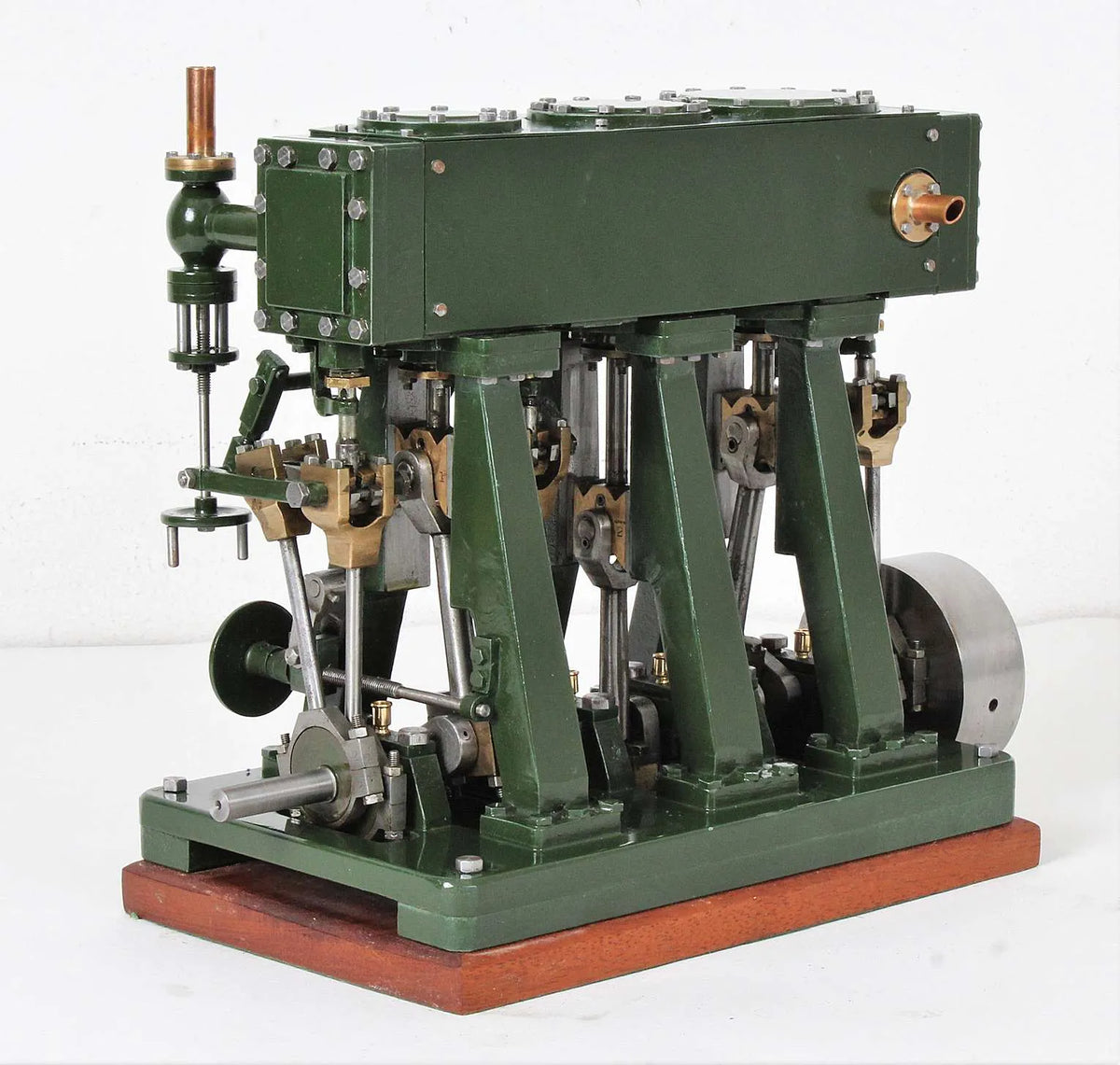

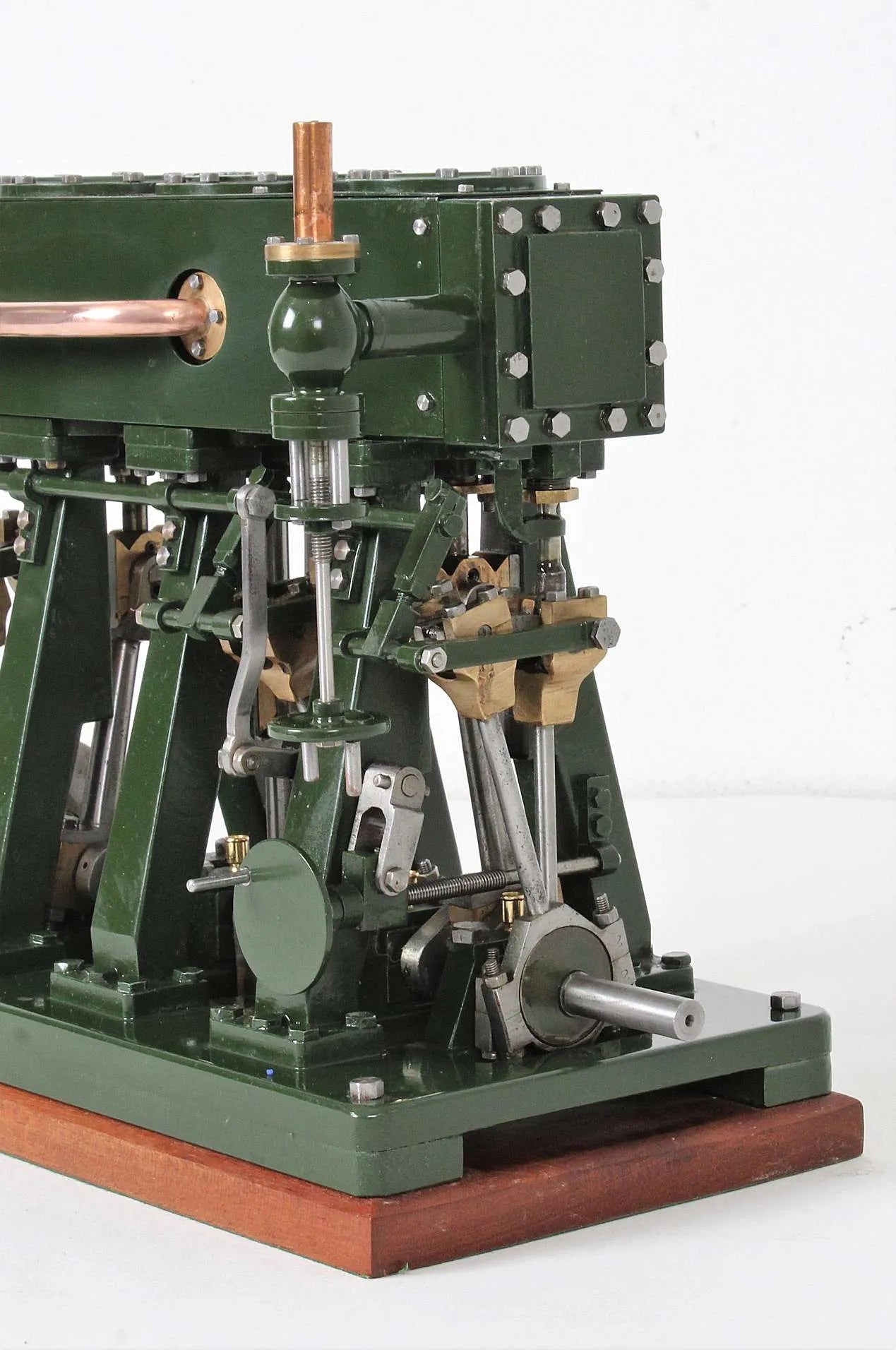

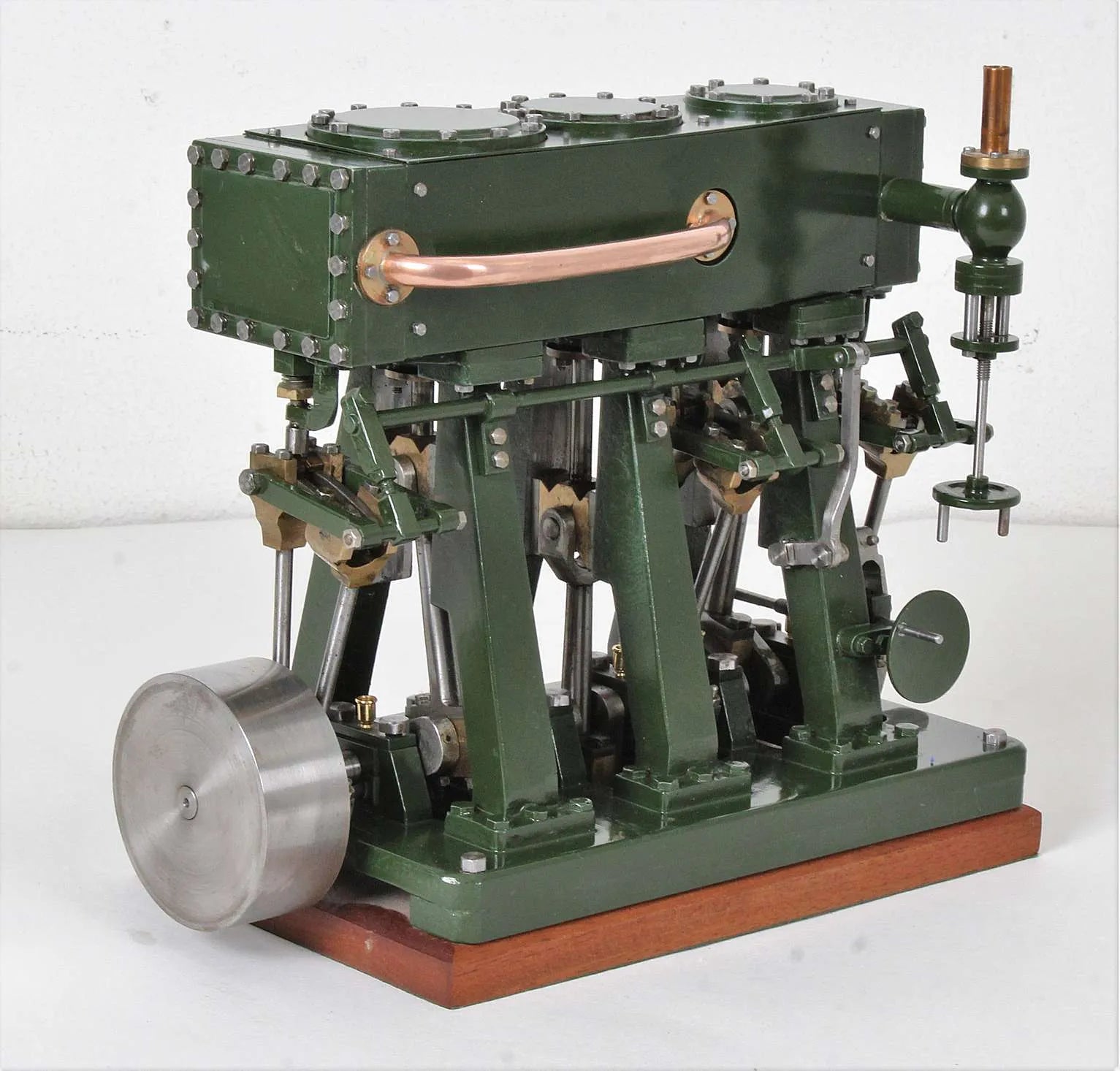

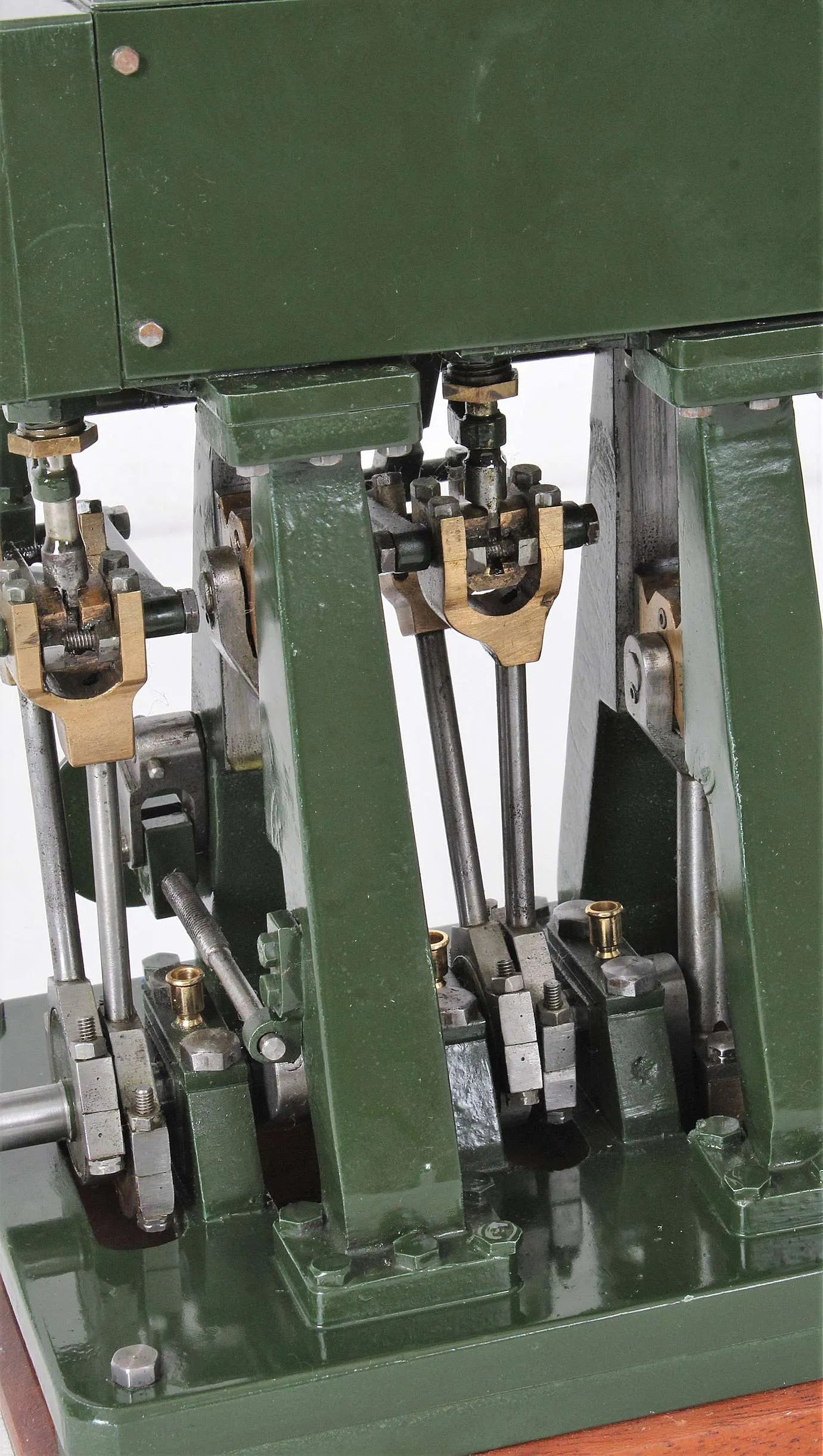

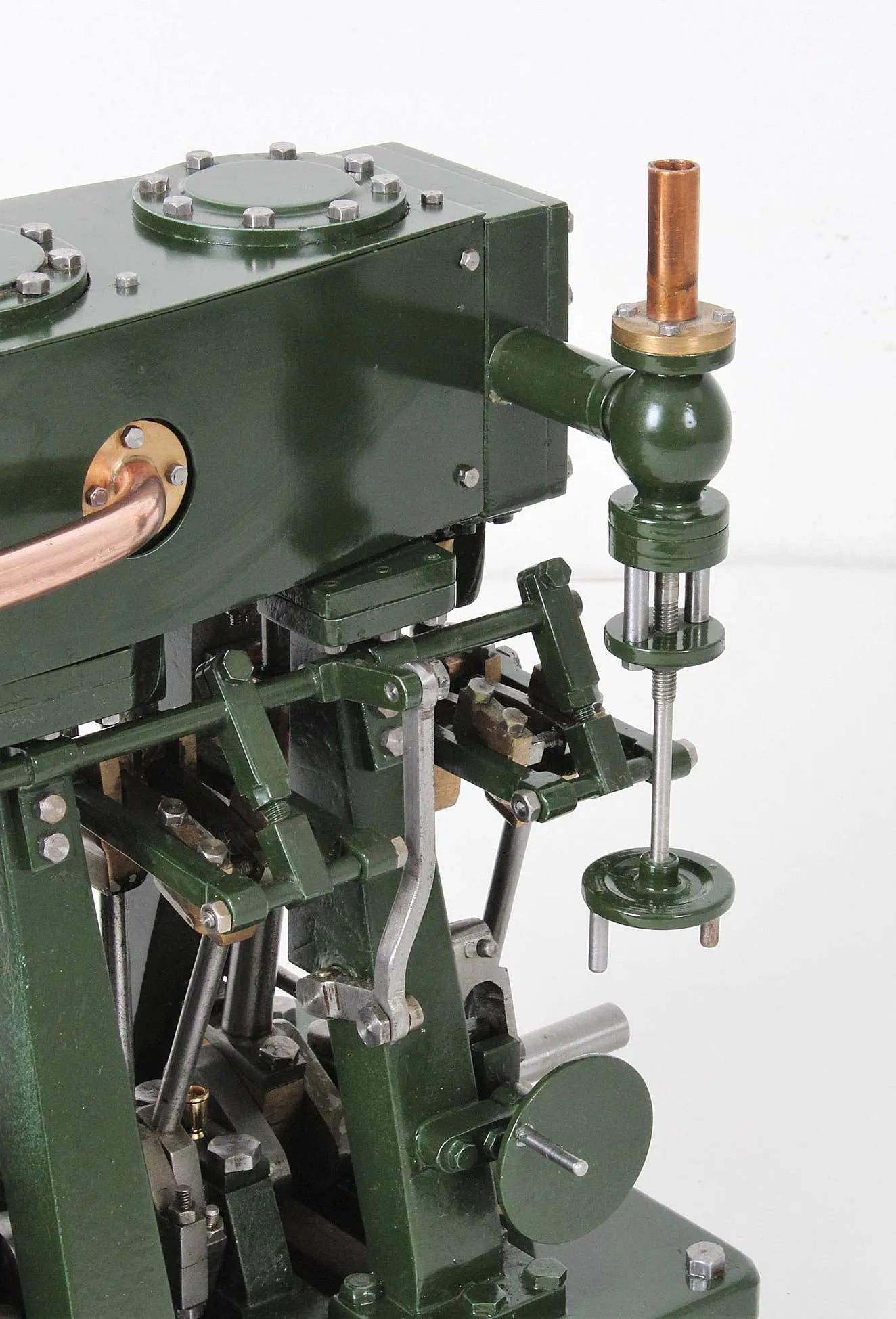

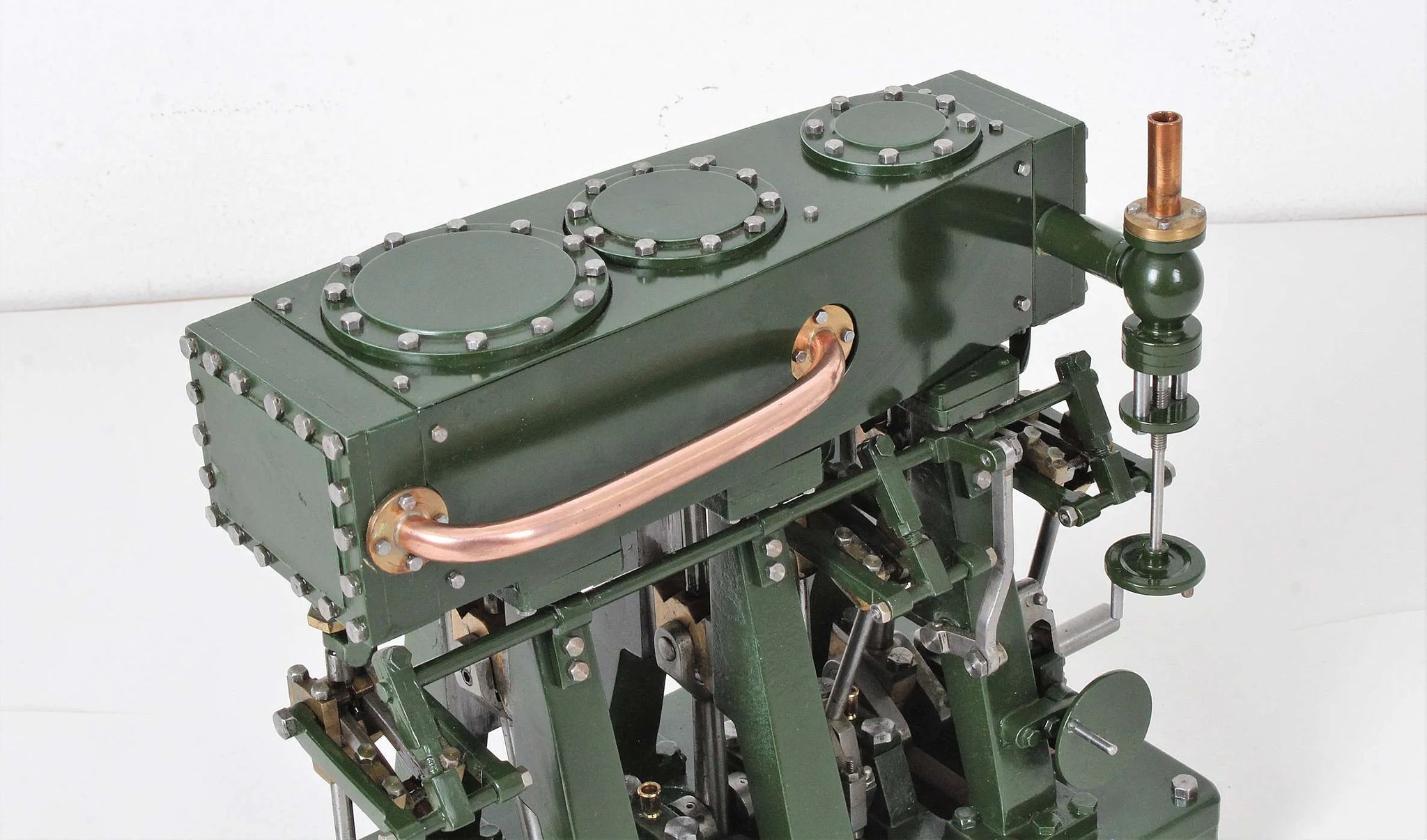

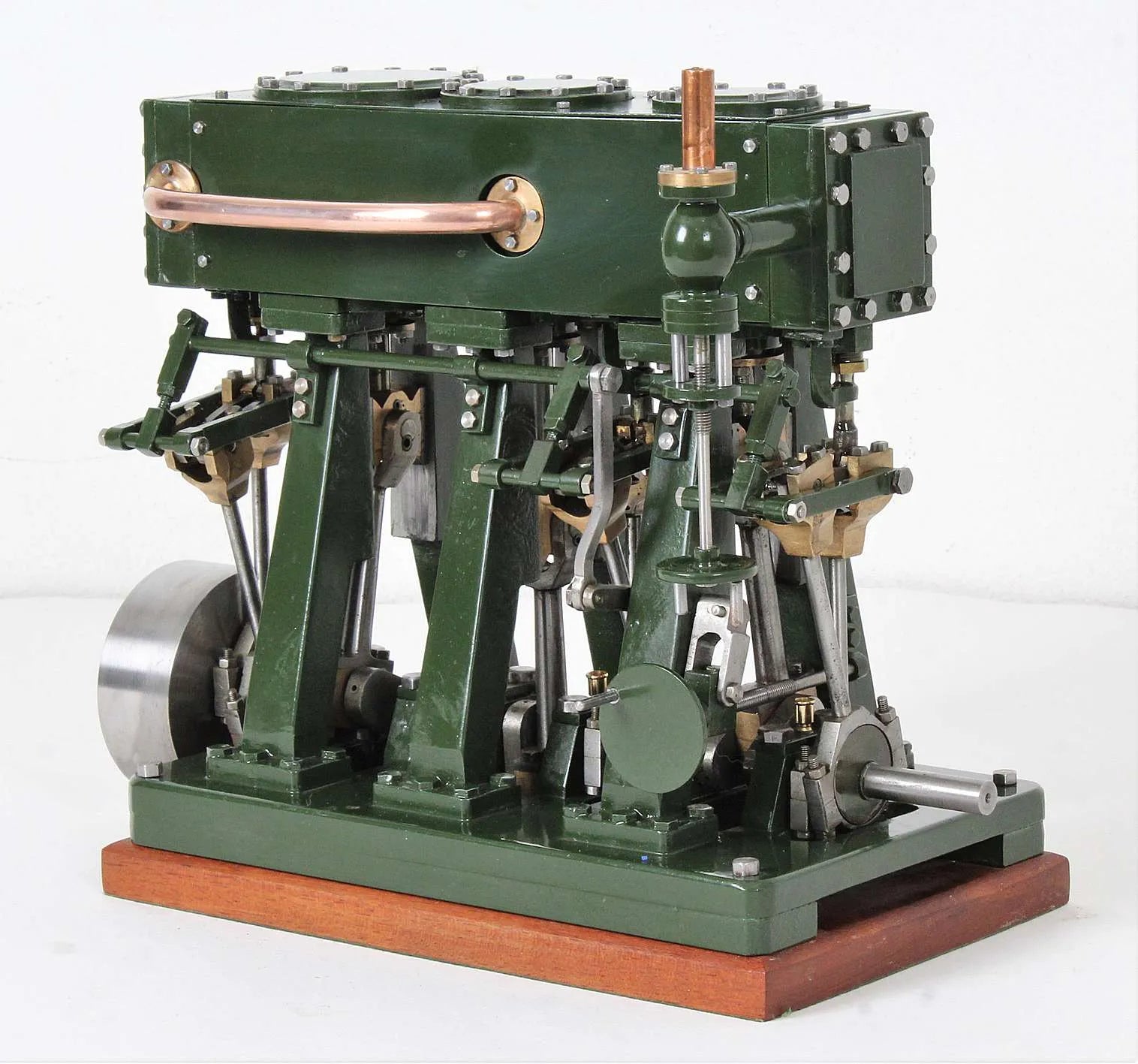

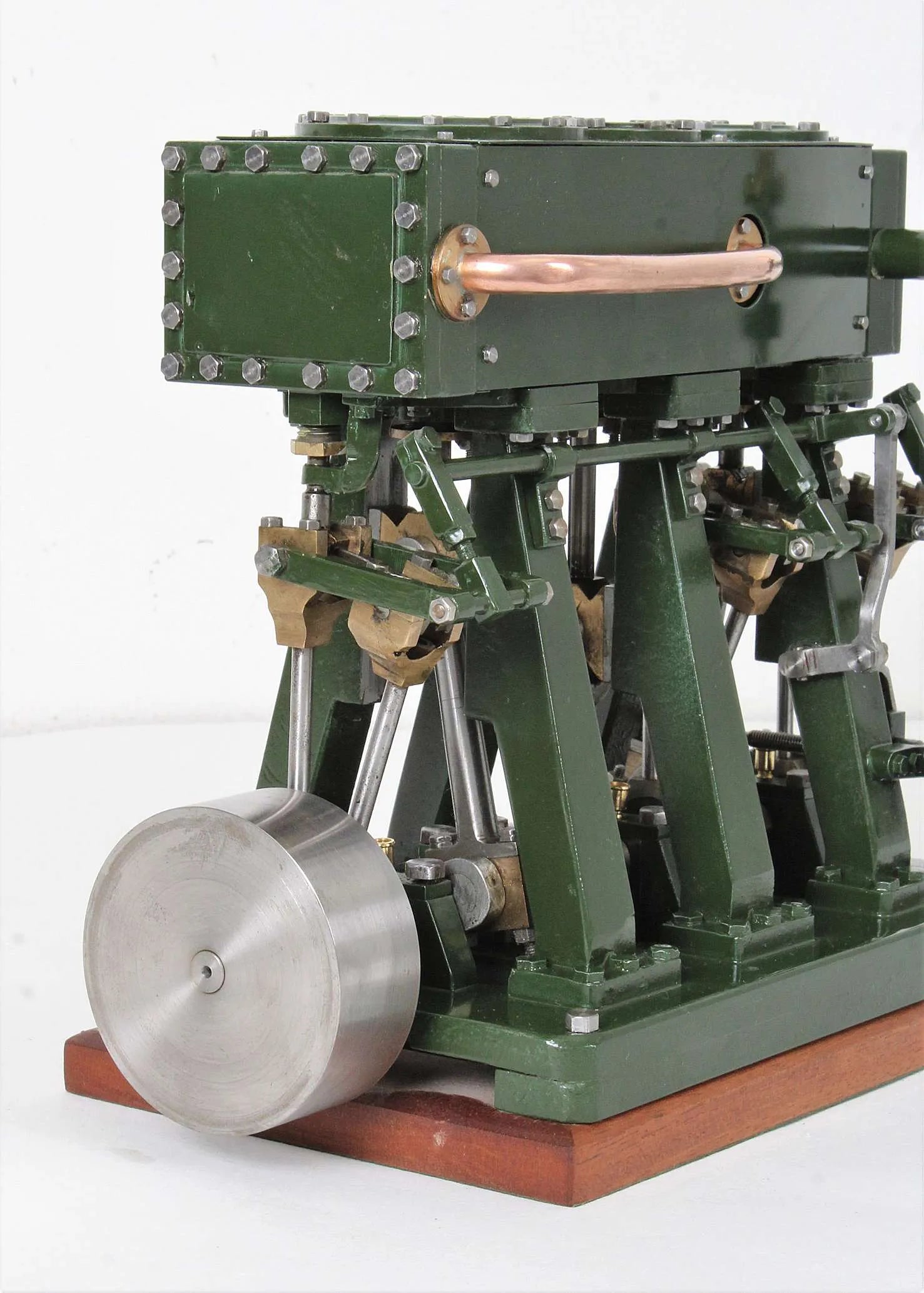

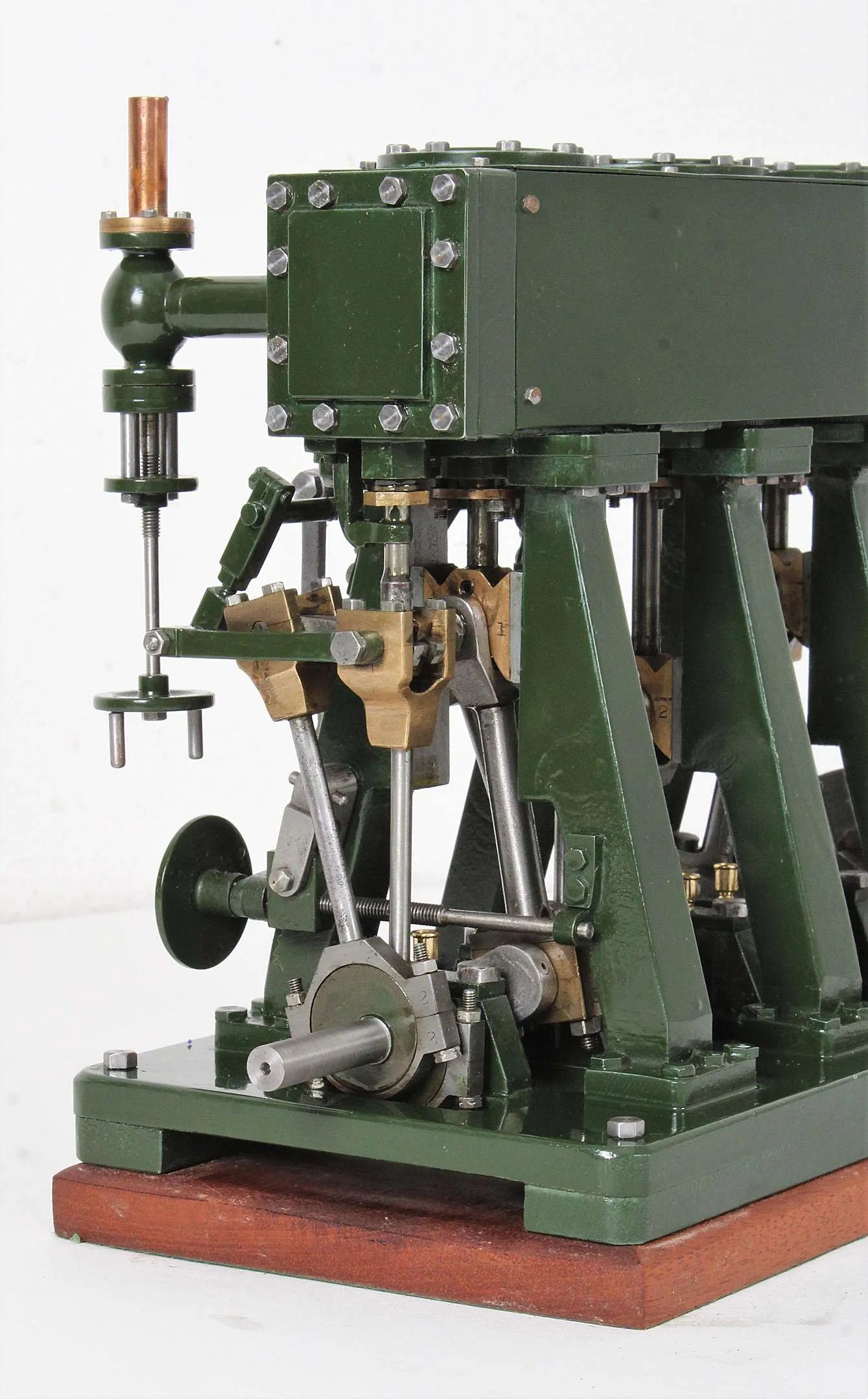

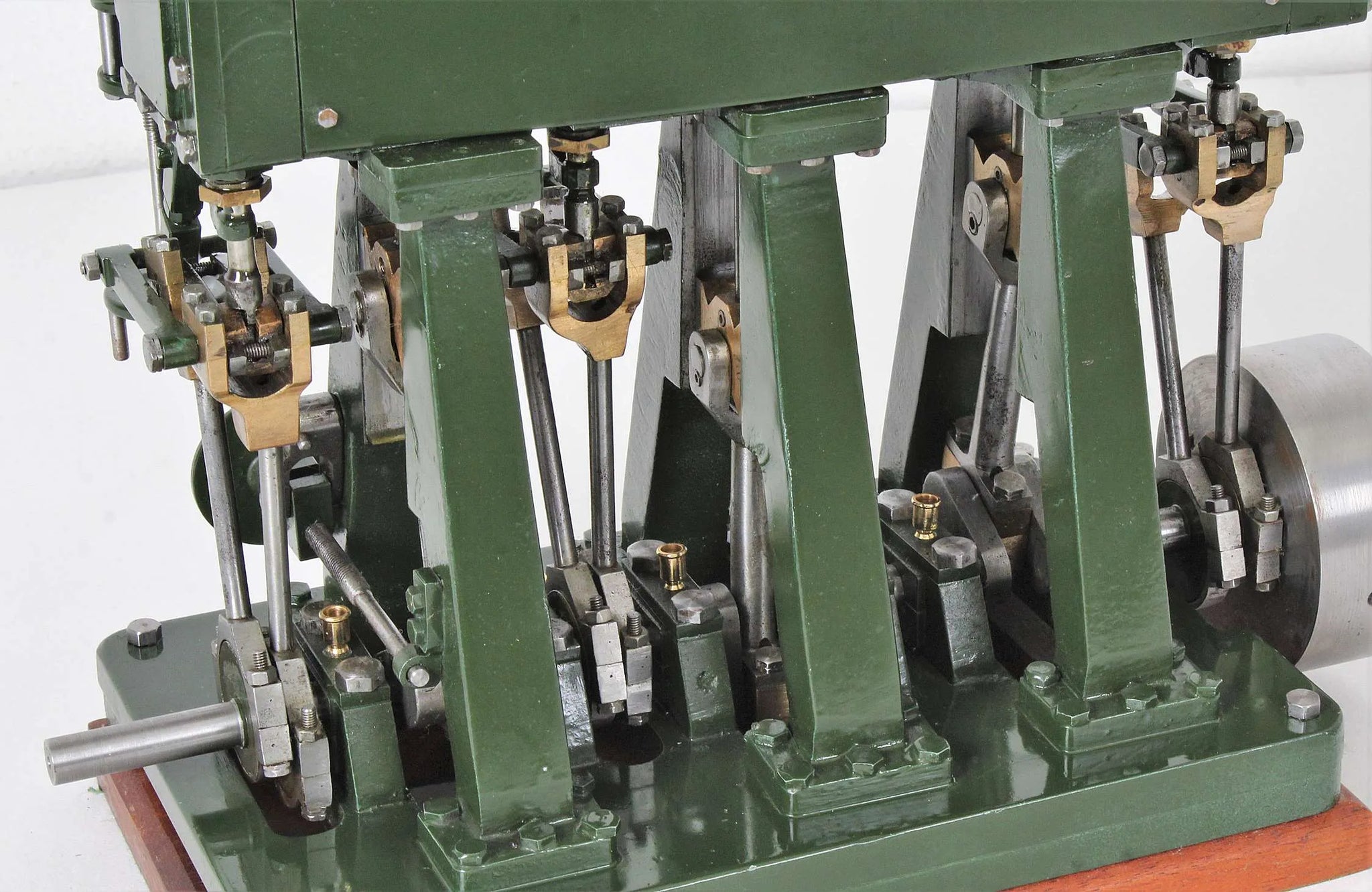

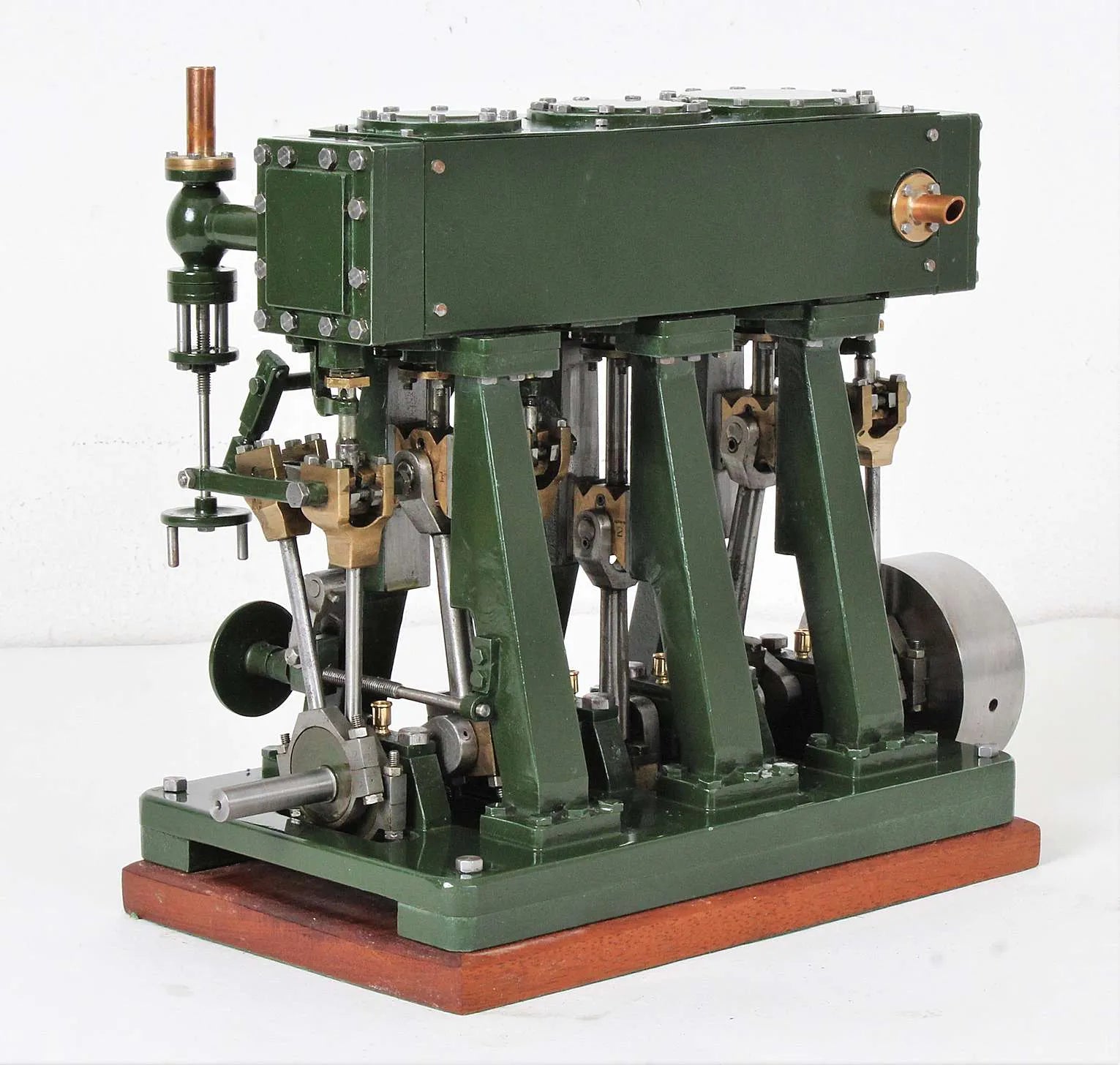

Similar in design to the Bolton/Bertinat design although differing in some details, it's considerably larger than the Stuart triple.
Stock code |
9799 |
Length/inches |
11 |
Width/inches |
5.5 |
Height/inches |
9 |
Weight/Kg |
12 |
Wheel material |
Flywheel cast iron, 2 3/4 inch diameter |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
screw |
Bore x stroke |
7/8 + 1 1/4 + 1 3/4 x 1 1/4 |
Date out |
Feb-22 |
