13201

3 1/2 inch gauge Midland 4-4-0

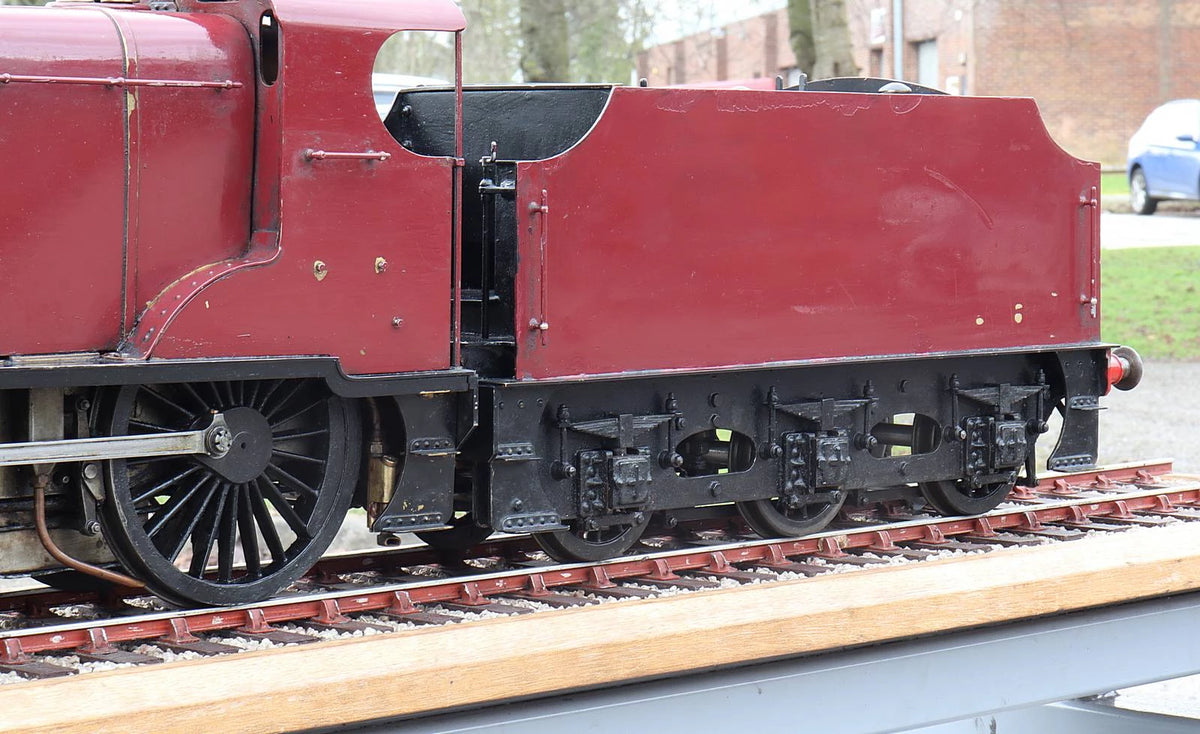

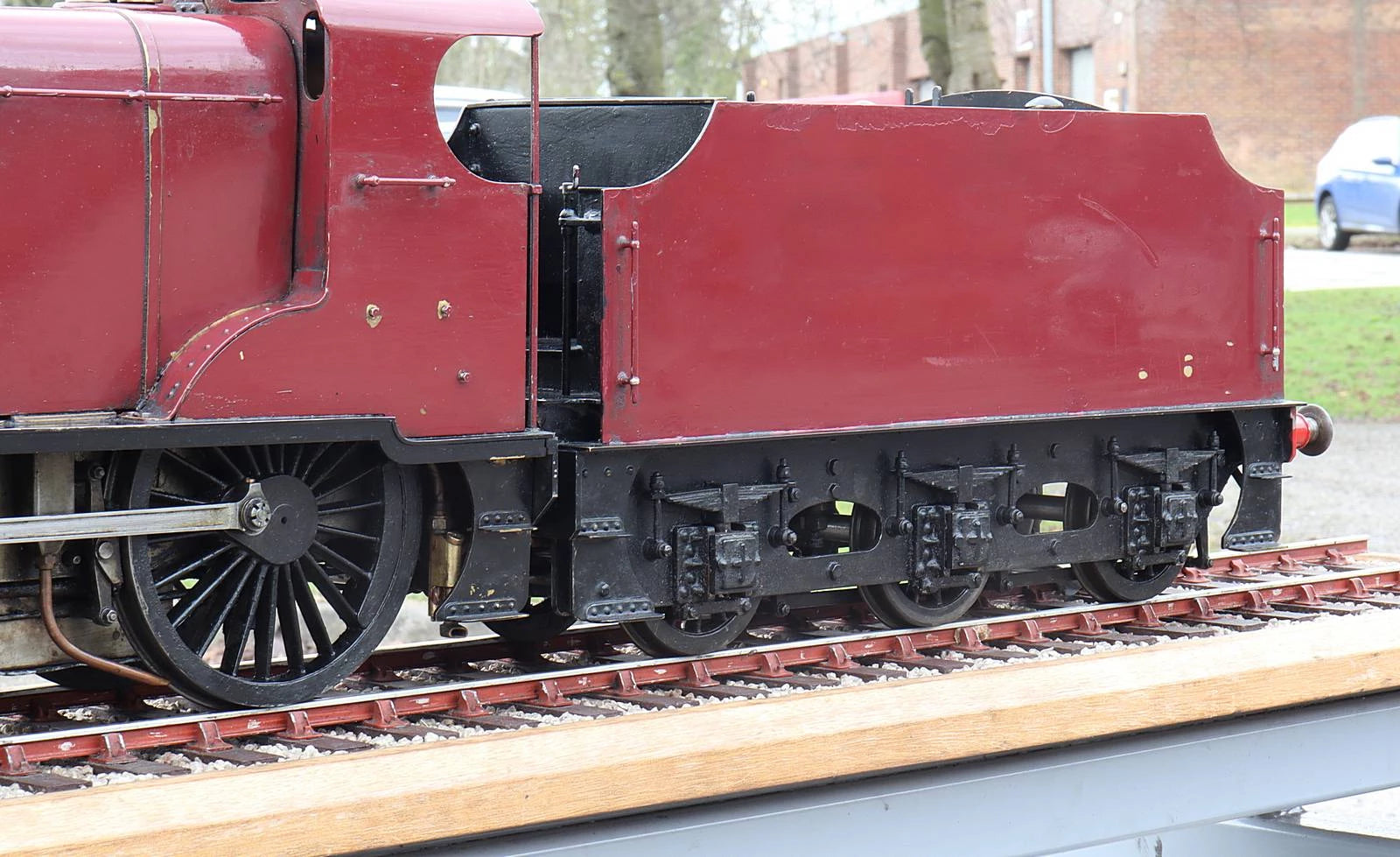

A 3 1/2 inch gauge Midland 4-4-0.

An older engine, it requires some recommissioning work - the water gauge seals leak and pressure gauge requires replacement, and the paintwork is on the shabby side of serviceable.

That said, it's a well-made example of an elegant design. The boiler proved structurally sound on hydraulic test, and the chassis runs well in both directions on compressed air.

Technical information

Stock code

13201

Gauge

3 1/2 inch

Length/inches

19

Width/inches

4 1/2

Height/inches

7

Weight/Kg

22 + 10

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Joy

Reverser type

screw

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered with nutted and calked firebox

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

N257005

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

1

Hydraulic test valid to

25-Nov-29
