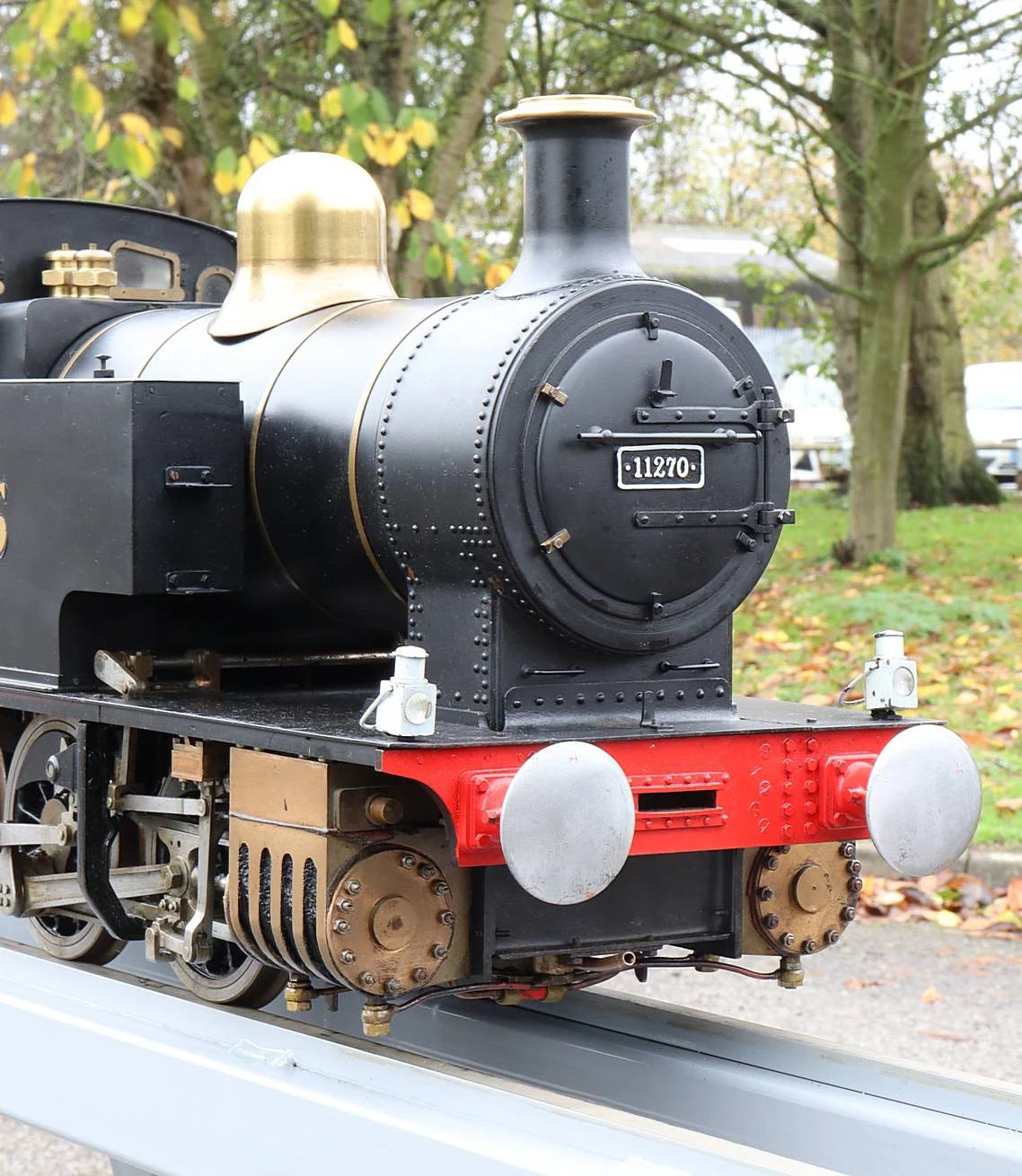

5 inch gauge "Twin Sisters" 0-6-0T

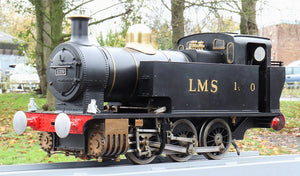

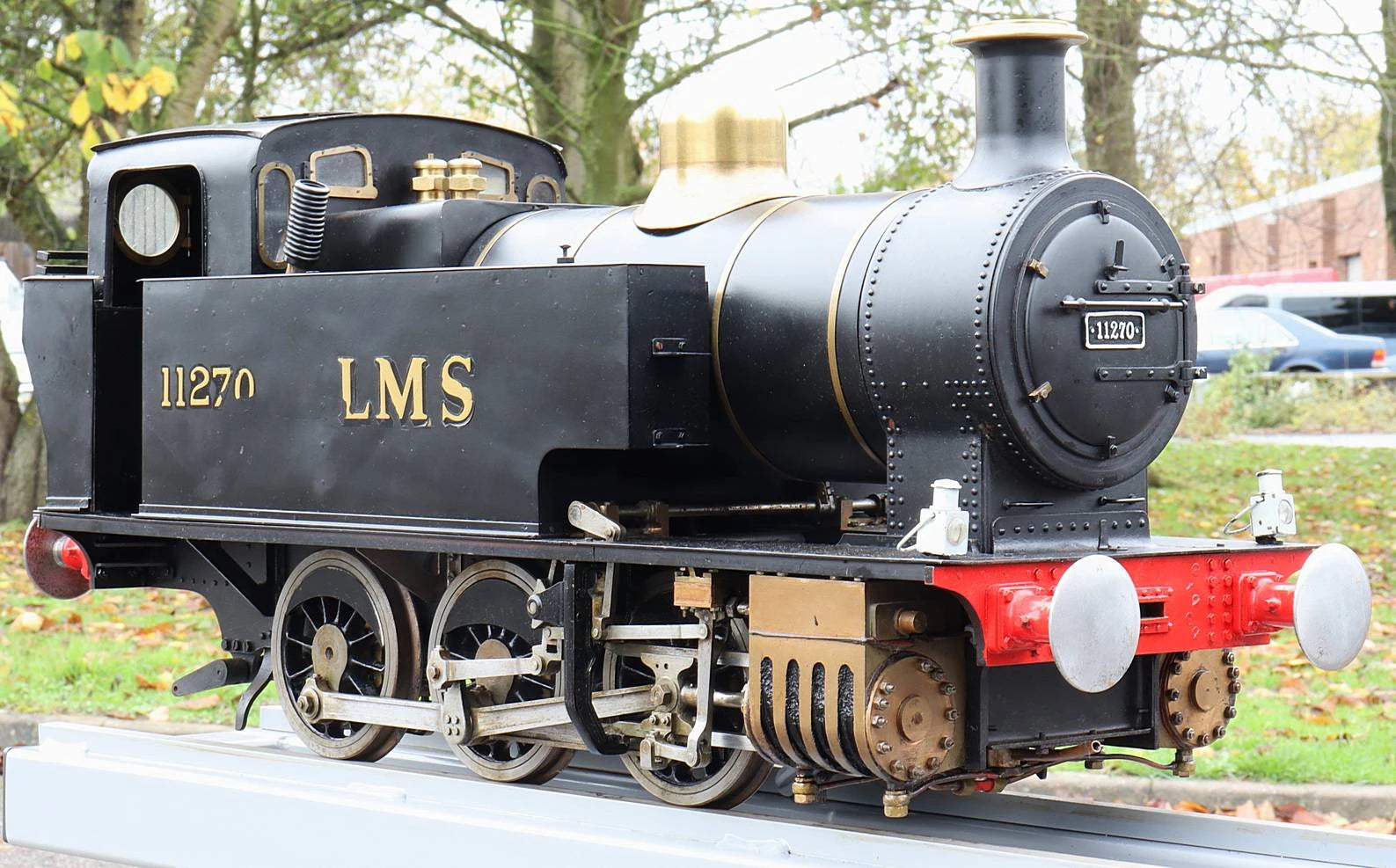

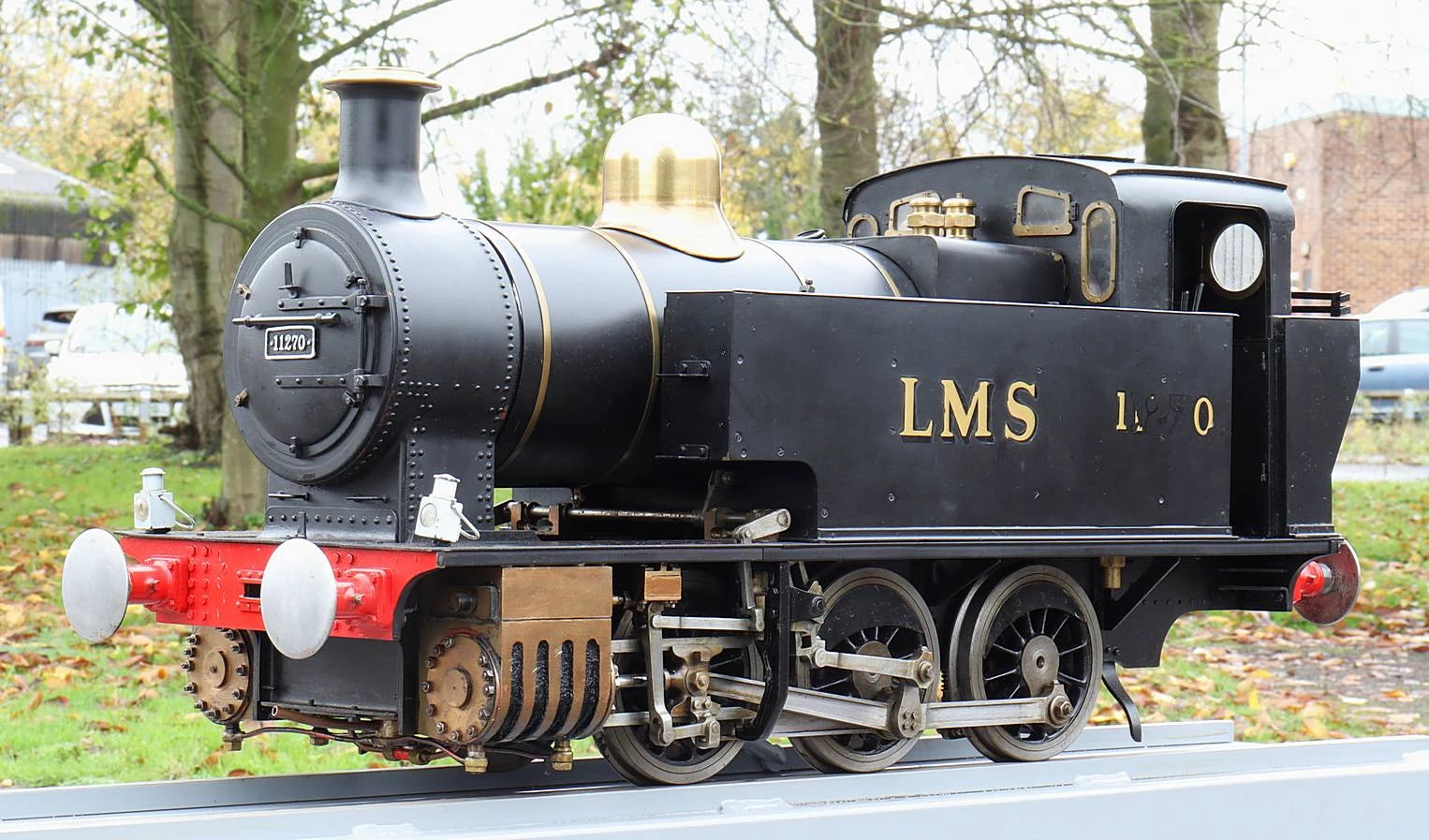

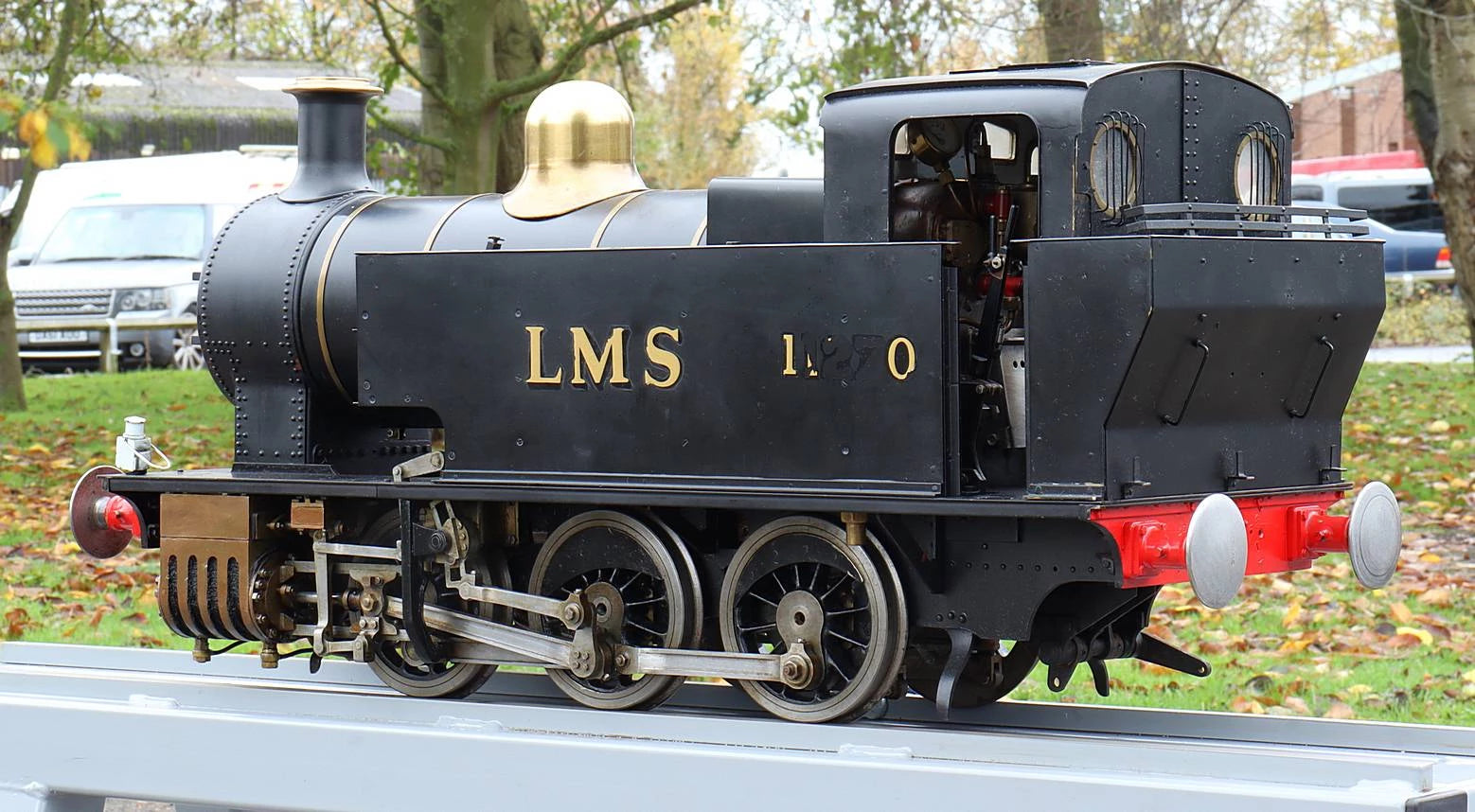

A 5 inch gauge LMS 0-6-0T to the detailed "Twin Sisters" design by J Austen-Walton, An older engine, it turns over freely.

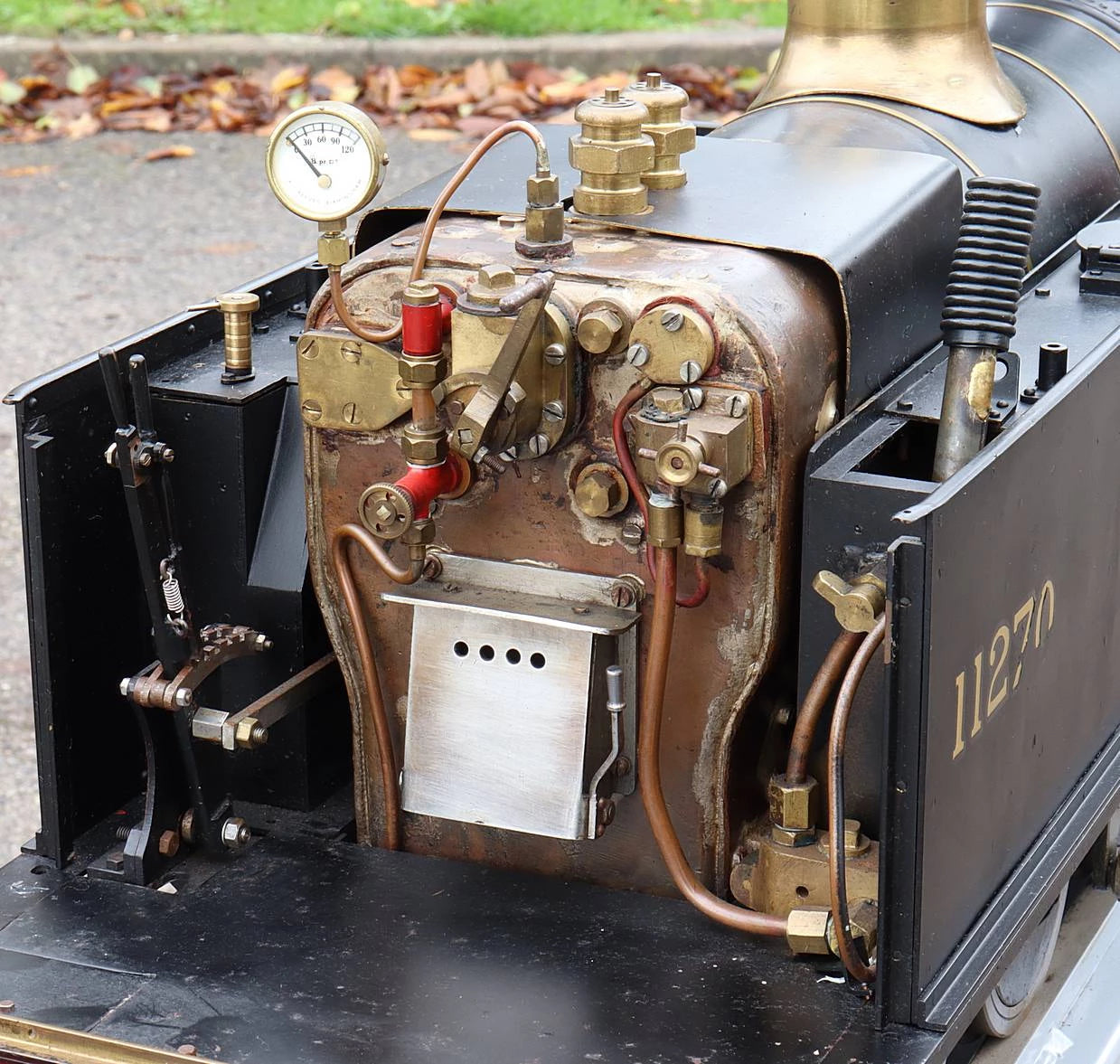

The boiler has an odd arrangement whereby a blowdown plug had been drilled and tapped into the side of the foundation ring. Installed too close to the edge it leaks persistently, although the rest of the boiler appeared sound on hydraulic test - it requires the boiler lifting and a bronze plug silver soldering in.

Technical information

Stock code

13189

Gauge

5 inch

Length/inches

28

Width/inches

9

Height/inches

14

Weight/Kg

41

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

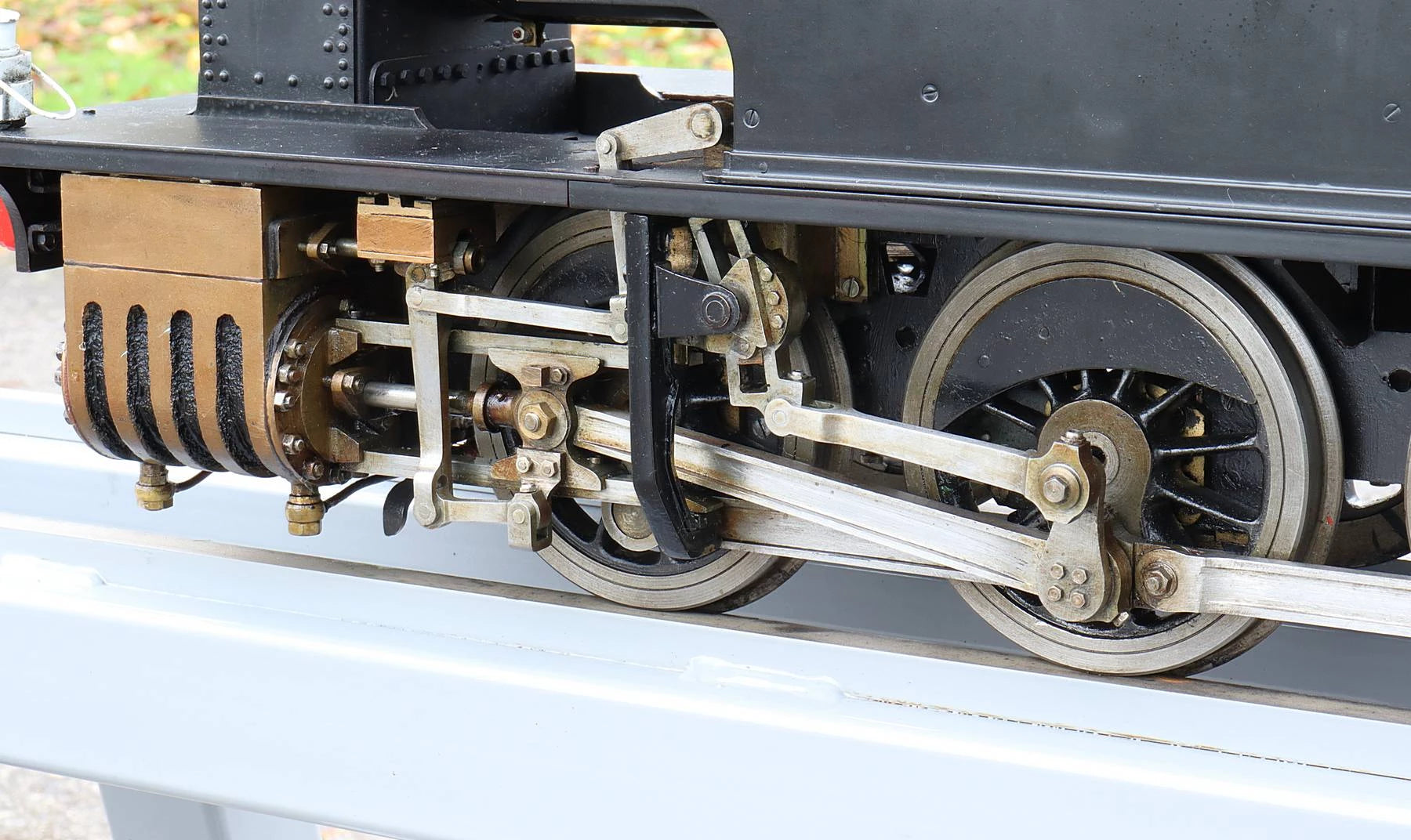

Valve gear

Walschaerts

Reverser type

pole

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

75

CE/UKCA mark

n/a non-commercial

Boiler number

N6 80 32

Safety valve type

spring

Safety valve

2

Whistle

no

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

3
